融入低声爆设计的超声速民机概念方案多学科优化

doi:10.7527/S1000-6893.2025.31457

Abstract

Abstract:

To meet the demand for rapid analysis and optimization in conceptual design of supersonic civil aircraft， we present a multidisciplinary analysis optimization method integrated with low-boom design. The method consists of three main steps. Determining the target reversed equivalent area， which aims to provide a low-boom reversed equivalent area distribution target for multidisciplinary optimization. Optimizing the aircraft configuration within the multidisciplinary optimization framework， the overall parameters of the wing and tail are used as design variables to obtain a multi-objective optimal solution set for minimizing maximum takeoff weight and matching equivalent reversed area. Fine-tuning fuselage shape and tailplane parameters based on the results of multidisciplinary optimization， making minor adjustments to further match the target reversed equivalent area distribution. In this multidisciplinary approach， sonic boom characteristics are analyzed exclusively through the calculation of reversed equivalent area， which significantly reduces the computational expense. This enables the application of high-fidelity sonic boom prediction methods during the conceptual design. The method is compatible with existing multidisciplinary optimization frameworks for civil aircraft design， facilitating seamless implementation. The method is applied to the optimization of the medium-sized supersonic civil aircraft conceptual design.Results show that an optimal solution set for the multiple objectives is obtained with less computational expense. An optimal design that has less maximum takeoff weight and highly matches the reversed equivalent area， is selected from the optimal solution set. Compared to the baseline design， the maximum takeoff weight is reduced by 3.6% and sonic boom is reduced by 6.62 PLdB.

Key words: supersonic civil aircraft, conceptual design, multidisciplinary optimization, low-boom design, reversed equivalent area

CLC Number:

V221

Chao YANG, Yuting TAN, Wei WANG, Yan ZHAO, Xiongqing YU. Multidisciplinary optimization with low-boom design for supersonic civil aircraft conceptual design[J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(20): 531457.

Figures/Tables 33

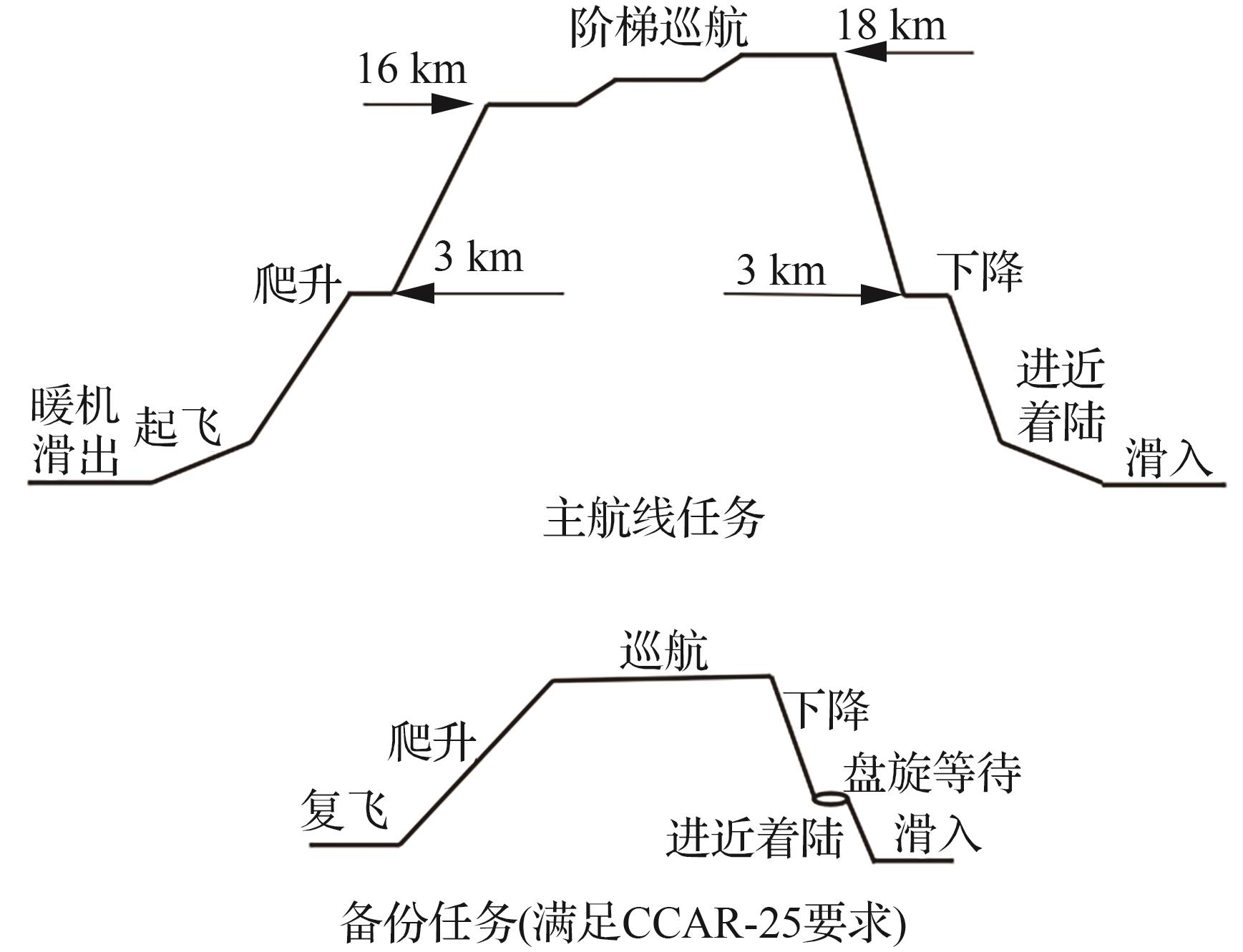

Fig.1

Fig.2

Table 1

Table 2

Table 3

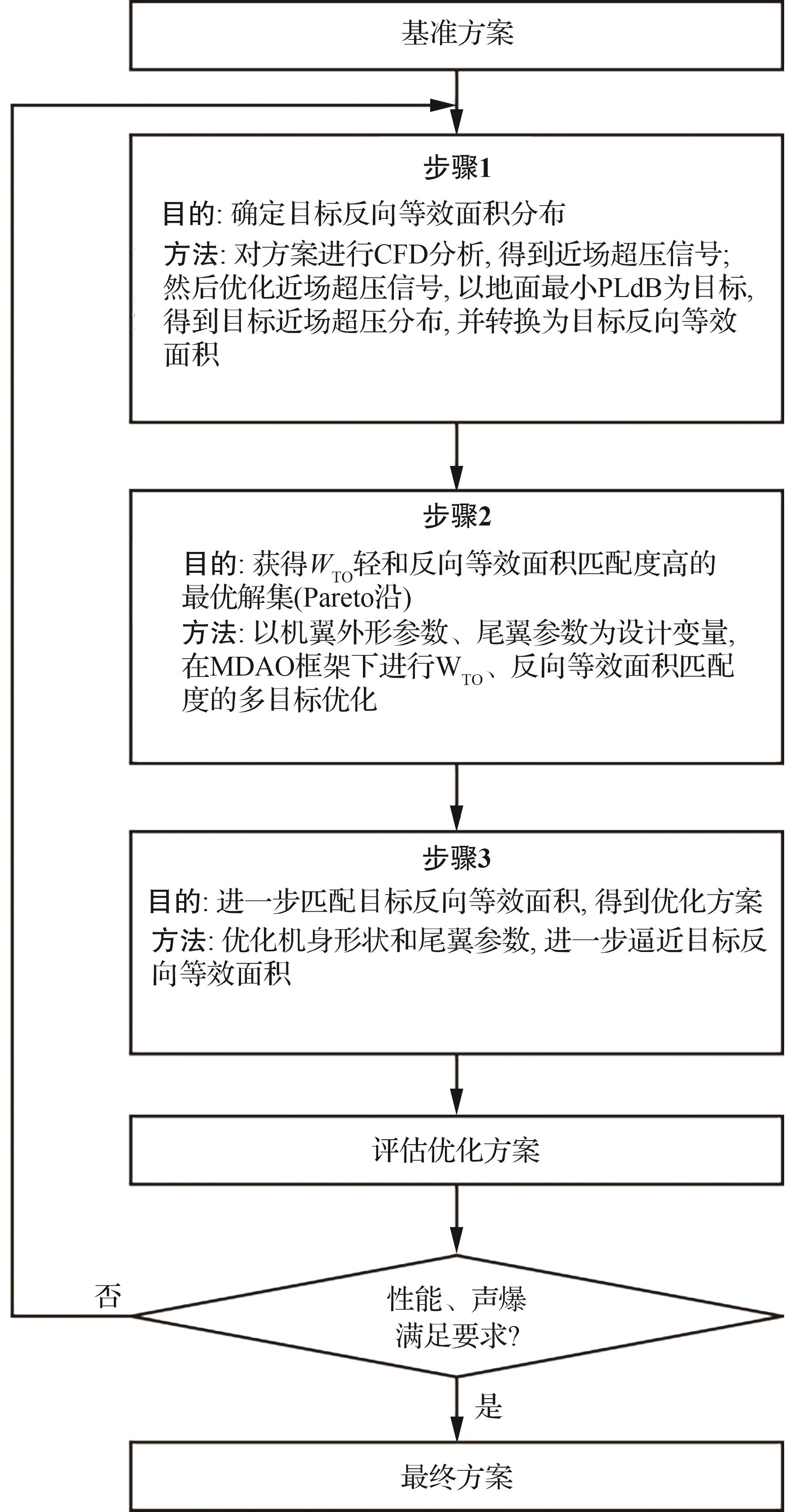

Fig.3

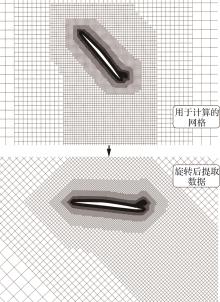

Fig.4

Fig.5

Fig.6

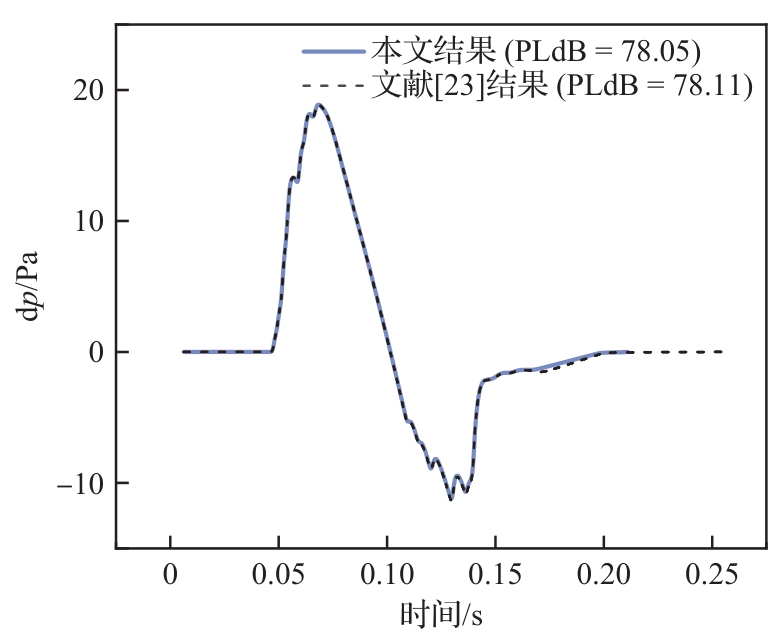

Fig.7

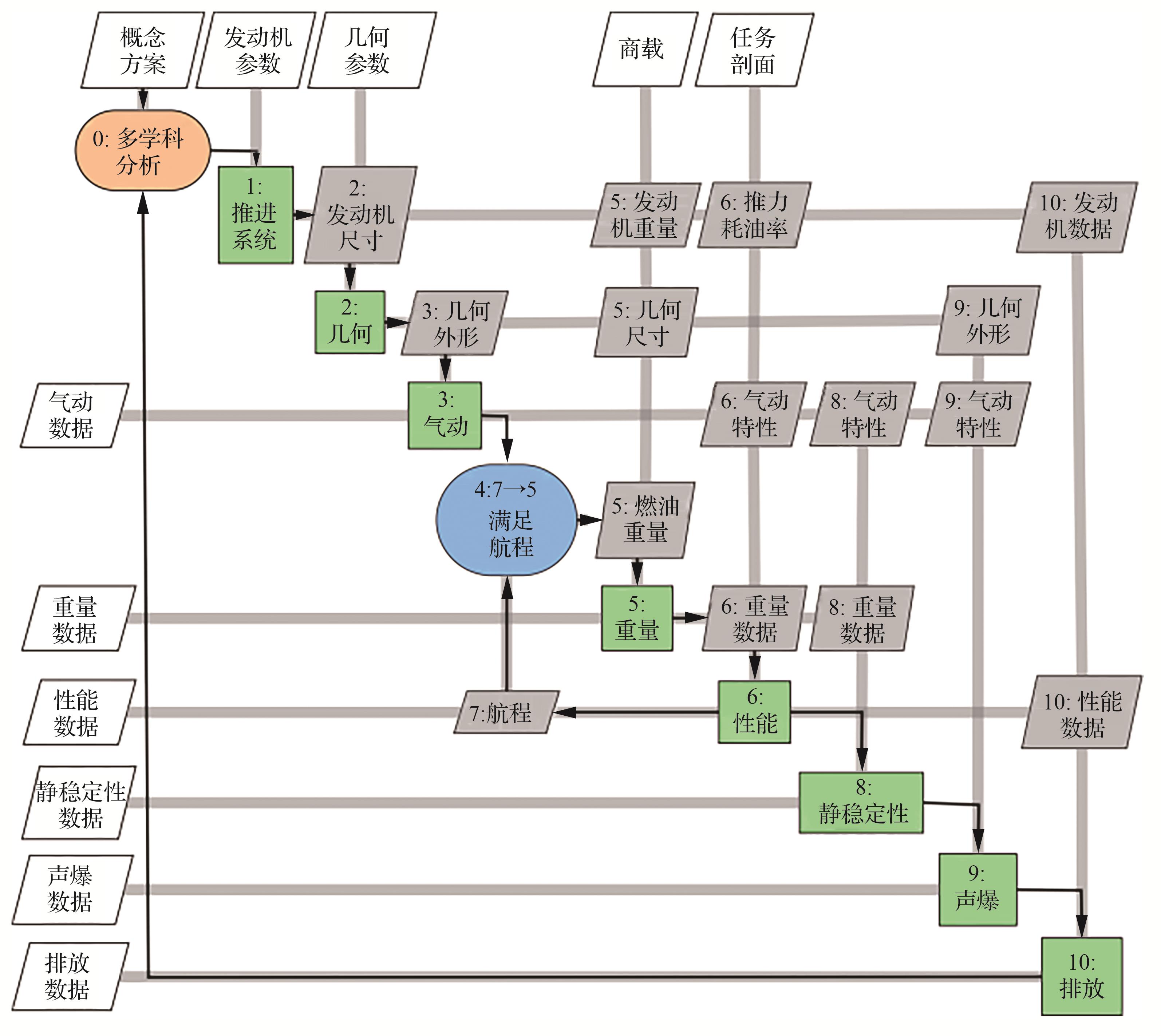

Fig.8

Fig.9

Fig.10

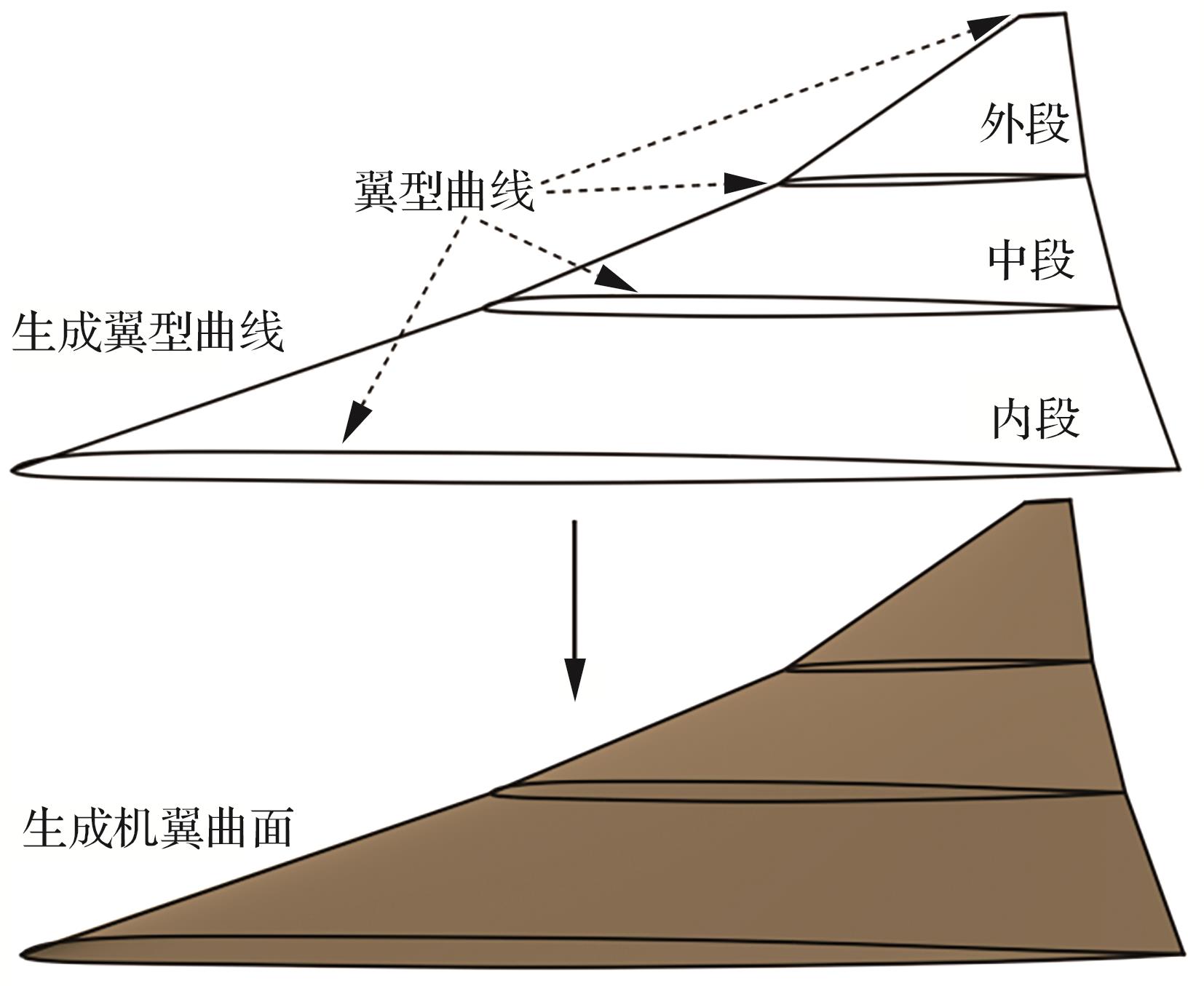

Fig.11

Fig.12

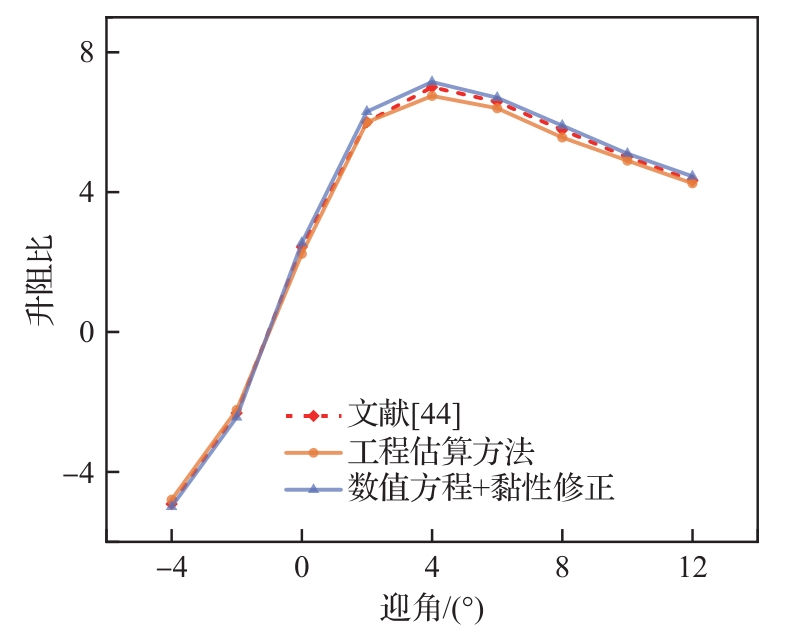

Fig.13

Table 4

Fig.14

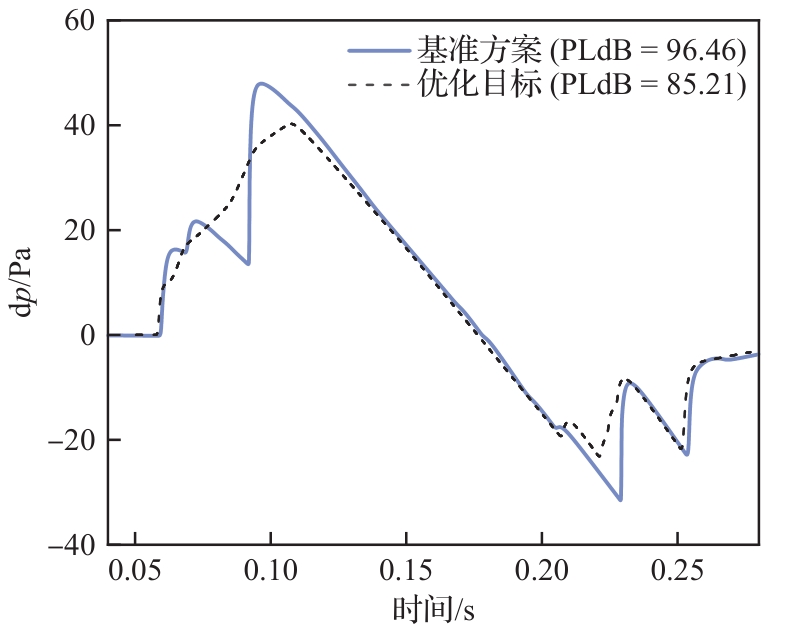

Fig.15

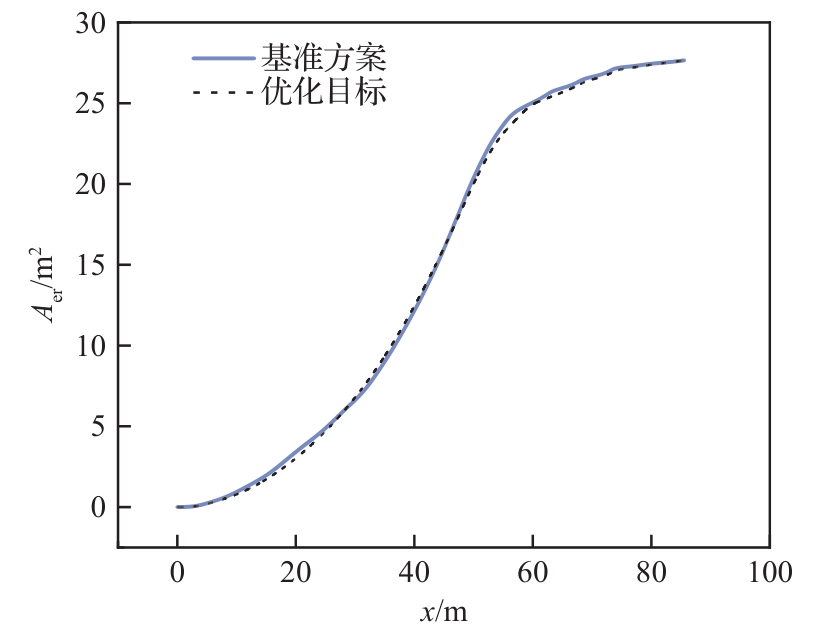

Fig.16

Table 5

Fig.17

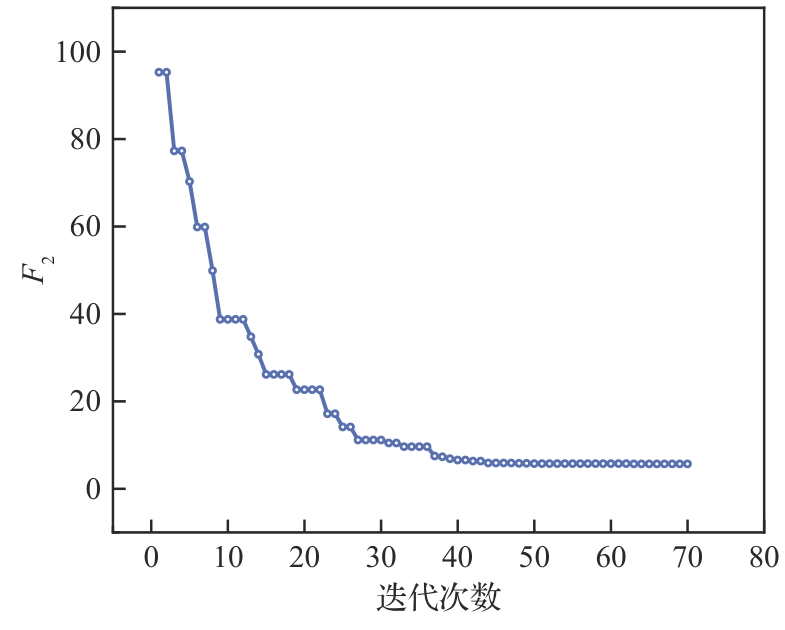

Fig.18

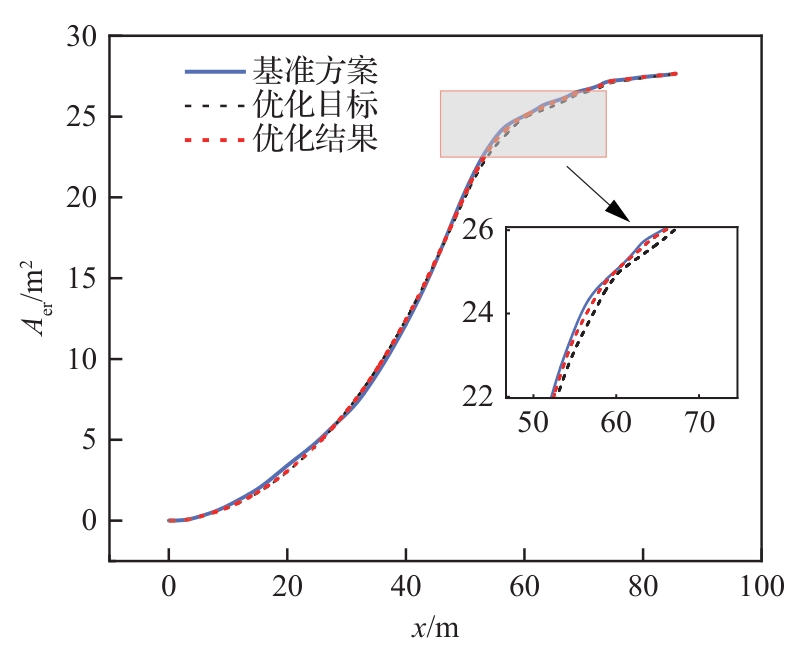

Fig.19

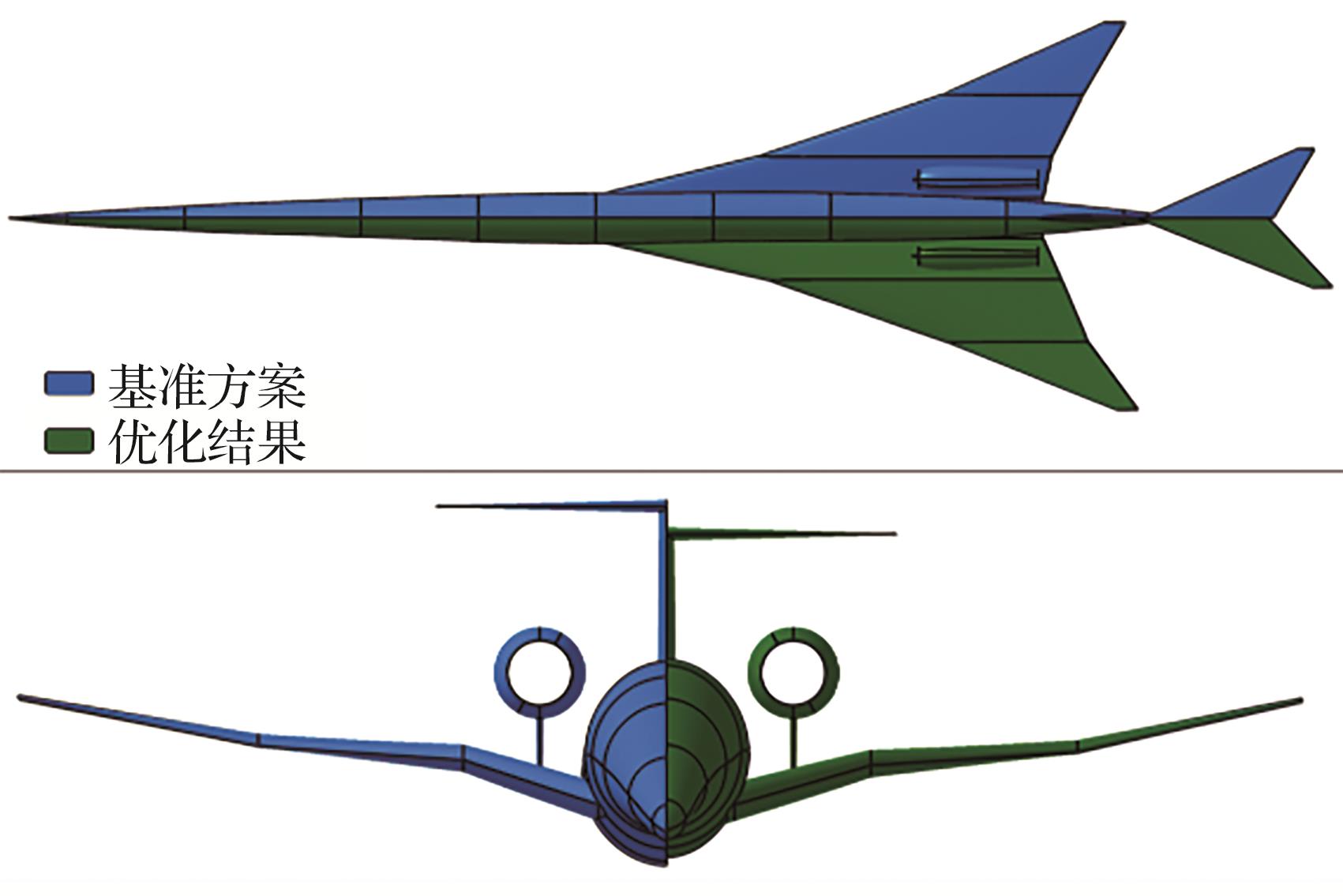

Fig.20

Fig.21

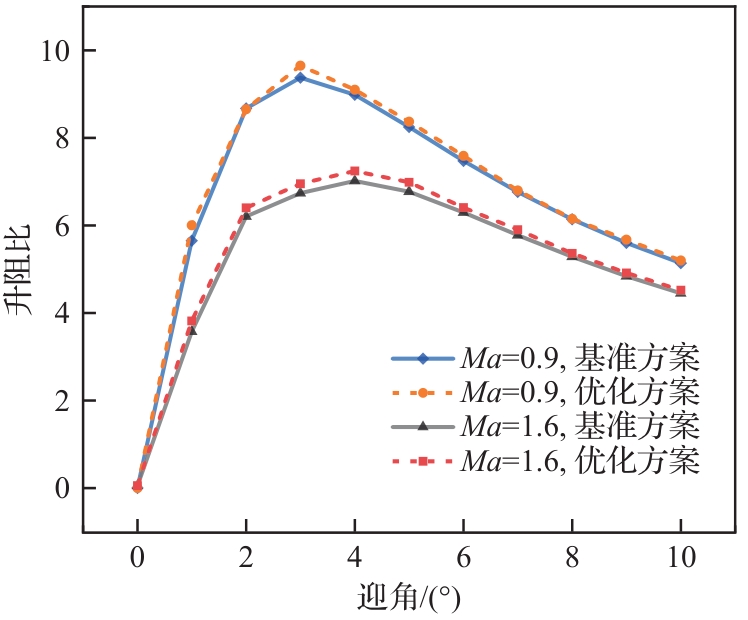

Fig.22

Table 6

Table7

Table 8

Fig.23

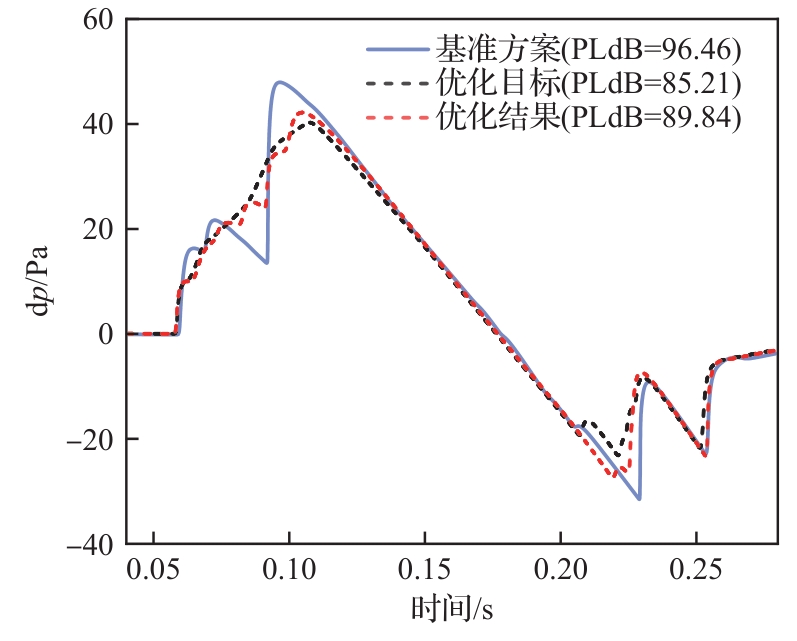

Fig.24

Table 9

References 50

[1]	SUN Y C， SMITH H. Review and prospect of supersonic business jet design［J］. Progress in Aerospace Sciences， 2017， 90： 12-38.
[2]	余雄庆. 飞机总体多学科设计优化的现状与发展方向［J］. 南京航空航天大学学报， 2008， 40（4）： 417-426.
	YU X Q. Multidisciplinary design optimization for aircraft conceptual and preliminary design： Status and directions［J］. Journal of Nanjing University of Aeronautics & Astronautics， 2008， 40（4）： 417-426 （in Chinese）.
[3]	WALSH J， TOWNSEND J， SALAS A， et al. Multidisciplinary high-fidelity analysis and optimization of aerospace vehicles， Part 1： Formulation［C］∥38th Aerospace Sciences Meeting and Exhibit. Reston： AIAA， 2000.
[4]	WALSH J， WESTON R， SAMAREH J， et al. Multidisciplinary high-fidelity analysis and optimization of aerospace vehicles， Part 2： Preliminary results［C］∥38th Aerospace Sciences Meeting and Exhibit. Reston： AIAA， 2000.
[5]	KROO I， MANNING V. Collaborative optimization-status and directions［C］∥8th Symposium on Multidisciplinary Analysis and Optimization. Reston： AIAA， 2000.
[6]	MANNING V M. Large-scale design of supersonic aircraft via collaborative optimization［D］. Stanford： Stanford University， 1999： 22-32.
[7]	MACMILLIN P， GOLOVIDOV O， MASON W， et al. An MDO investigation of the impact of practical constraints on an HSCT configuration［C］∥35th Aerospace Sciences Meeting and Exhibit. Reston： AIAA， 1997.
[8]	HOSDER S， WATSON L T， GROSSMAN B， et al. Polynomial response surface approximations for the multidisciplinary design optimization of a high speed civil transport［J］. Optimization and Engineering， 2001， 2（4）： 431-452.
[9]	FENWICK S， HARRIS J， DEAN S. Multi-disciplinary optimisation to assess the impact of cruise speed on HSCT performance［C］∥10th AIAA/ISSMO Multidisciplinary Analysis and Optimization Conference. Reston： AIAA， 2004.
[10]	LABAN M， HERRMANN U. Multi-disciplinary analysis and optimisation applied to supersonic aircraft part 1： analysis tools［C］∥48th AIAA/ASME/ASCE/AHS/ASC Structures， Structural Dynamics， and Materials Conference. Reston： AIAA， 2007.
[11]	SCHUERMANN M， GAFFURI M， HORST P. Multidisciplinary pre-design of supersonic aircraft［J］. CEAS Aeronautical Journal， 2015， 6（2）： 207-216.
[12]	CHOI S， ALONSO J J， KROO I M， et al. Multifidelity design optimization of low-boom supersonic jets［J］. Journal of Aircraft， 2008， 45（1）： 106-118.
[13]	BREZILLON J， CARRIER G， LABAN M. Multidisciplinary optimization of supersonic aircraft including low-boom considerations［J］. Journal of Mechanical Design， 2011， 133（10）： 105001.
[14]	SUN Y C， SMITH H. Low-boom low-drag optimization in a multidisciplinary design analysis optimization environment［J］. Aerospace Science and Technology， 2019， 94： 105387.
[15]	LI W， RALLABHANDI S. Inverse design of low-boom supersonic concepts using reversed equivalent-area targets［J］. Journal of Aircraft， 2014， 51（1）： 29-36.
[16]	LI W， GEISELHART K. Multidisciplinary design optimization of low-boom supersonic aircraft with mission constraints［J］. AIAA Journal， 2020， 59（1）： 165-179.
[17]	LI W， GEISELHART K. Multi-objective， multidisciplinary optimization of low-boom supersonic transports using multifidelity models［J］. Journal of Aircraft， 2022， 59（5）： 1137-1151.
[18]	丁玉临，韩忠华，乔建领，等. 超声速民机总体气动布局设计关键技术研究进展［J］. 航空学报， 2023， 44（2）： 626310.
	DING Y L， HAN Z H， QIAO J L， et al. Research progress in key technologies for conceptual-aerodynamic configuration design of supersonic transport aircraft［J］. Acta Aeronautica et Astronautica Sinica， 2023， 44（2）： 626310 （in Chinese）.
[19]	张力文，宋文萍，韩忠华，等. 声爆产生、传播和抑制机理研究进展［J］. 航空学报， 2022， 43（12）： 025649.
	ZHANG L W， SONG W P， HAN Z H， et al. Recent progress of sonic boom generation， propagation， and mitigation mechanism［J］. Acta Aeronautica et Astronautica Sinica， 2022， 43（12）： 025649 （in Chinese）.
[20]	DING Y L， HAN Z H， QIAO J L， et al. Inverse design method for low-boom supersonic transport with lift constraint［J］. AIAA Journal， 2023， 61（7）： 2840-2853.
[21]	CASTNER R. Analysis of exhaust plume effects on sonic boom for a 59-degree wing body model［C］∥49th AIAA Aerospace Sciences Meeting Including the New Horizons Forum and Aerospace Exposition. Reston： AIAA， 2011.
[22]	KIRZ J. DLR TAU simulations for the third AIAA sonic boom prediction workshop near-field cases［C］∥AIAA Scitech 2021 Forum. Reston： AIAA， 2021.
[23]	PARK M A， NEMEC M. Nearfield summary and statistical analysis of the second AIAA sonic boom prediction workshop［J］. Journal of Aircraft， 2018， 56（3）： 851-875.
[24]	ANDERSON G R， AFTOSMIS M J， NEMEC M. Cart3D simulations for the second AIAA sonic boom prediction workshop［J］. Journal of Aircraft， 2018， 56（3）： 896-911.
[25]	SEEBASS R. Minimum sonic boom shock strengths and overpressures［J］. Nature， 1969， 221（5181）： 651-653.
[26]	顾奕然，黄江涛，陈树生，等. 基于逆向增广Burgers方程的声爆反演技术［J］. 航空学报， 2023， 44（2）： 626258.
	GU Y R， HUANG J T， CHEN S S， et al. Sonic boom inversion technology based on inverse augmented Burgers equation［J］. Acta Aeronautica et Astronautica Sinica， 2023， 44（2）： 626258 （in Chinese）.
[27]	WHITHAM G B. The flow pattern of a supersonic projectile［J］. Communications on Pure and Applied Mathematics， 1952， 5（3）： 301-348.
[28]	JONES L B. Lower bounds for sonic bangs［J］. The Aeronautical Journal， 1961， 65（606）： 433-436.
[29]	GEORGE A R. Lower bounds for sonic booms in the midfield［J］. AIAA Journal， 1969， 7（8）： 1542-1545.
[30]	DARDEN C M. Sonic-boom minimization with nose bluntness relaxation： NASA TP-1348［R］. Washington， D. C.： NASA， 1979.
[31]	PLOTKIN K， RALLABHANDI S， LI W. Generalized formulation and extension of sonic boom minimization theory for front and aft shaping［C］∥47th AIAA Aerospace Sciences Meeting including The New Horizons Forum and Aerospace Exposition. Reston： AIAA， 2009.
[32]	CLEVELAND R O. Propagation of sonic booms through a real， stratified atmosphere［D］. Austin： The University of Texas at Austin， 1995： 75-117.
[33]	STEVENS S S. Perceived level of noise by mark Ⅶ and decibels（E）［J］. The Journal of the Acoustical Society of America， 1972， 51（2B）： 575-601.
[34]	RALLABHANDI S K. Advanced sonic boom prediction using the augmented Burgers equation［J］. Journal of Aircraft， 2011， 48（4）： 1245-1253.
[35]	FORRESTER A， SOBESTER A， KEANE A. Engineering design via surrogate modelling： A practical guide［M］. Chichester： John Wiley & Sons， 2008： 33-59.
[36]	BOOKER A J， DENNIS J E， FRANK P D， et al. A rigorous framework for optimization of expensive functions by surrogates［J］. Structural Optimization， 1999， 17（1）： 1-13.
[37]	JONES D R， SCHONLAU M， WELCH W J. Efficient global optimization of expensive black-box functions［J］. Journal of Global Optimization， 1998， 13（4）： 455-492.
[38]	DEB K， PRATAP A， AGARWAL S， et al. A fast and elitist multiobjective genetic algorithm： NSGA-Ⅱ［J］. IEEE Transactions on Evolutionary Computation， 2002， 6（2）： 182-197.
[39]	范周伟. 基于模型的客机需求定义与概念设计一体化研究［D］. 南京：南京航空航天大学， 2022： 99-100.
	FAN Z W. Model-based integration of requirements definition and conceptual design for commercial aircraft［D］. Nanjing： Nanjing University of Aeronautics and Astronautics， 2022： 99-100 （in Chinese）.
[40]	MATTINGLY J D， HEISER W H， DALEY D H. Air-craft engine design［M］. 2nd ed. Reston： AIAA， 2002： 38-39.
[41]	高永，朱飞翔，李冰，等. 改进CST方法在翼型优化设计中的应用［J］. 海军航空工程学院学报， 2017， 32（5）： 426-430.
	GAO Y， ZHU F X， LI B， et al. Application of improved CST parametric method in airfoil design［J］. Journal of Naval Aeronautical and Astronautical University， 2017， 32（5）： 426-430 （in Chinese）.
[42]	RAYMER D P. Aircraft design： A conceptual approach ［M］. 6th ed. Reston： AIAA， 2018： 389-452.
[43]	JONES R T. Theory of Wing-Body Drag at Supersonic Speeds： NACA-TR-1284［R］. Washington， D. C.： NASA， 1956.
[44]	韩阳，冷岩，杨龙，等. 一类超声速长航程民用客机的气动设计和性能评估［J］. 航空科学技术， 2019， 30（9）： 25-32.
	HAN Y， LENG Y， YANG L， et al. Aerodynamic design and evaluation of a type of supersonic long-range civil transport［J］. Aeronautical Science & Technology， 2019， 30（9）： 25-32 （in Chinese）.
[45]	HOWE D. Aircraft conceptual design synthesis［M］. London： Professional Engineering Pub， 2000： 153-164.
[46]	WELGE H R， BONET J， MAGEE T， et al. N+3 Ad-vanced Concept Studies for Supersonic Commercial Transport Aircraft Entering Service in the 2030-2035 Period： NASA/CR-2011-217084［R］. Reston AIAA， 2011.
[47]	JENKINSON L R， SIMPKIN P， RHODES D. Civil jet aircraft design［M］. Washington， D. C.： American Institute of Aeronautics and Astronautics， 1999： 147-148.
[48]	张帅，余雄庆. 客机航线性能分析的分段解析方法［J］. 飞行力学， 2012， 30（6）： 502-506.
	ZHANG S， YU X Q. Piecewise analytic model for en-route performance of airliners［J］. Flight Dynamics， 2012， 30（6）： 502-506 （in Chinese）.
[49]	SCHULTE P， SCHLAGER H， ZIEREIS H， et al. NO _x emission indices of subsonic long-range jet aircraft at cruise altitude： In situ measurements and predictions［J］. Journal of Geophysical Research： Atmospheres， 1997， 102（D17）： 21431-21442.
[50]	FUSARO R， VIOLA N， GALASSINI D. Sustainable supersonic fuel flow method： An evolution of the Boeing fuel flow method for supersonic aircraft using sustainable aviation fuels［J］. Aerospace， 2021， 8（11）： 331.

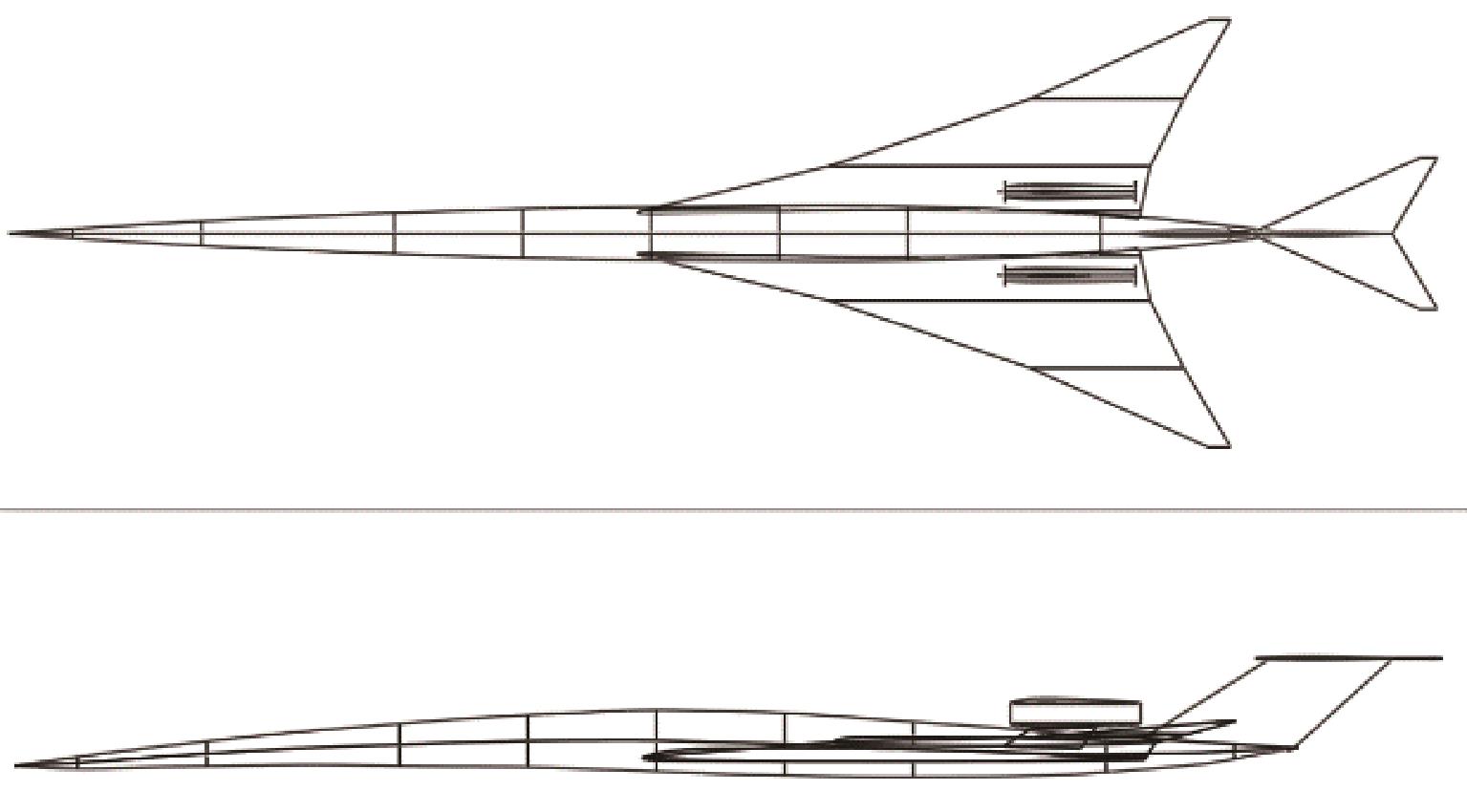

部件参数	数值
机身长度/m	66
机翼展长/m	22.4
机翼前缘后掠角/（°）	76.6，71.5，66.0
机翼面积/m²	280
垂尾面积/m²	31.8
平尾面积/m²	32
短舱长度/m	6.7

部件	设计变量
机翼	内段上反角、中段上反角、外段上反角
	内段后掠角、中段后掠角、外段后掠角
	中段半展长、外段半展长
平尾	后掠角
平尾	梢根比
垂尾	展长

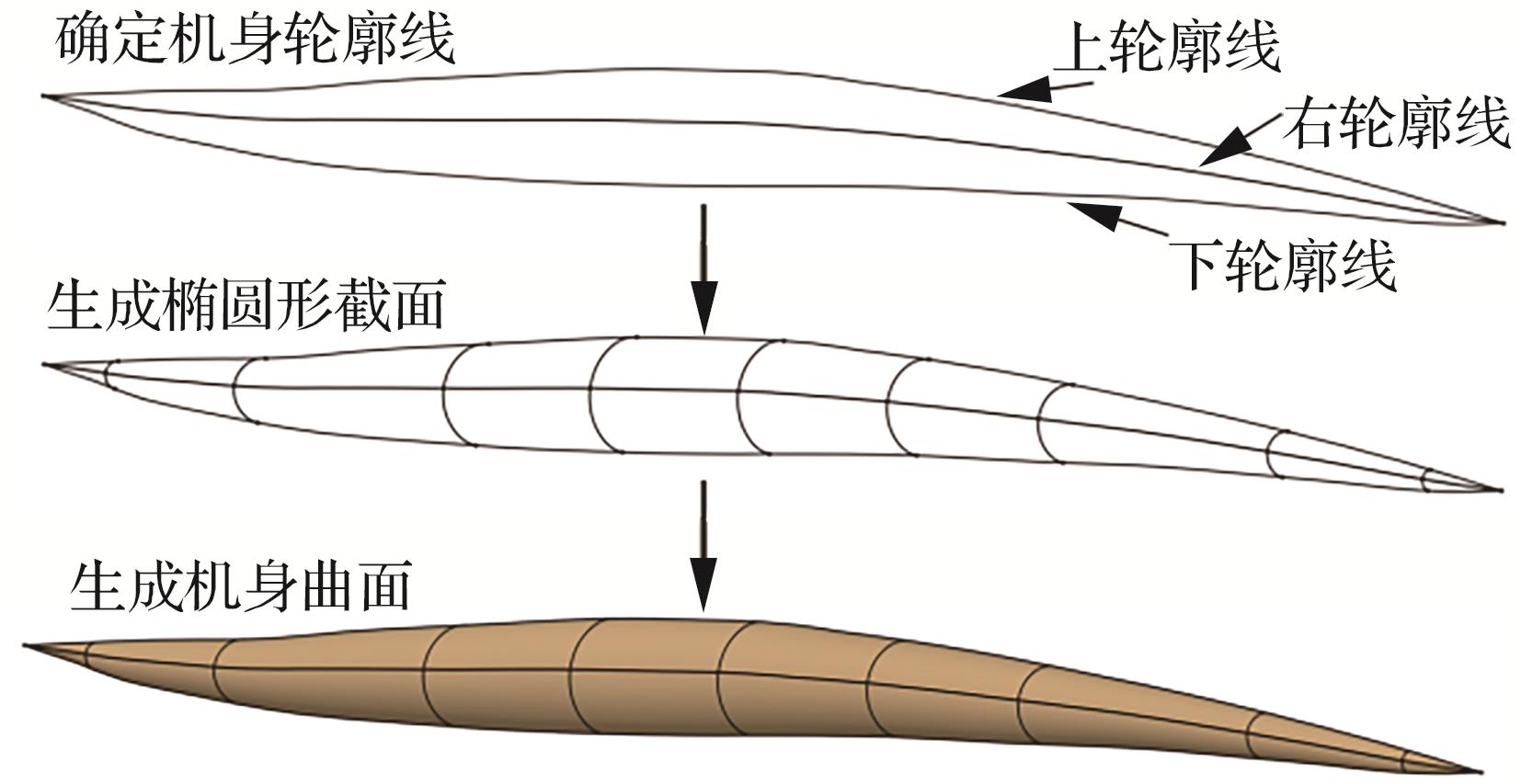

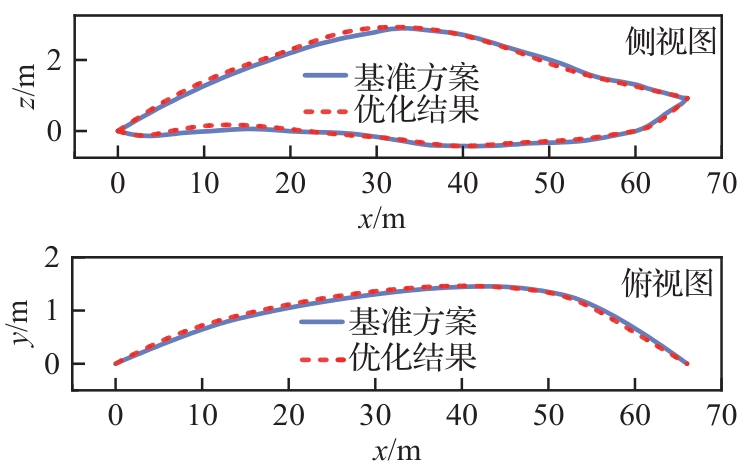

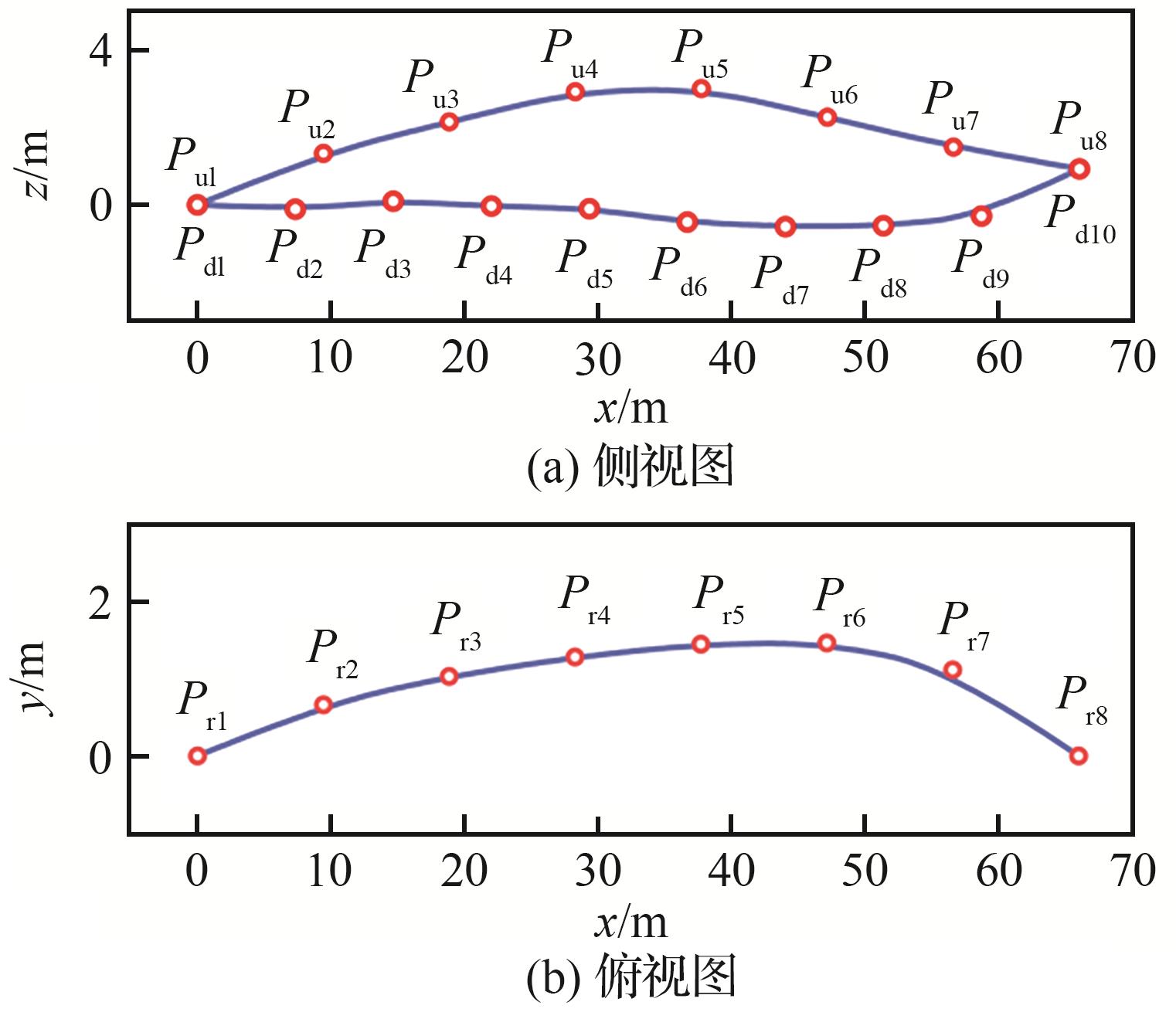

机身	上轮廓线控制点z坐标
	下轮廓线控制点z坐标
	右轮廓线控制点y坐标

约束变量	下限	上限
航程/km	6 000
起飞场长/m		1 800
着陆场长/m		1 800
单发失效第二爬升段爬升率/%	2.4
纵向力矩系数导数		0
滚转力矩系数导数		0
偏航力矩系数导数	0
客舱长度/m	14.0	15.4
客舱高度/m	2.65	2.90
客舱宽度/m	2.8	3.1

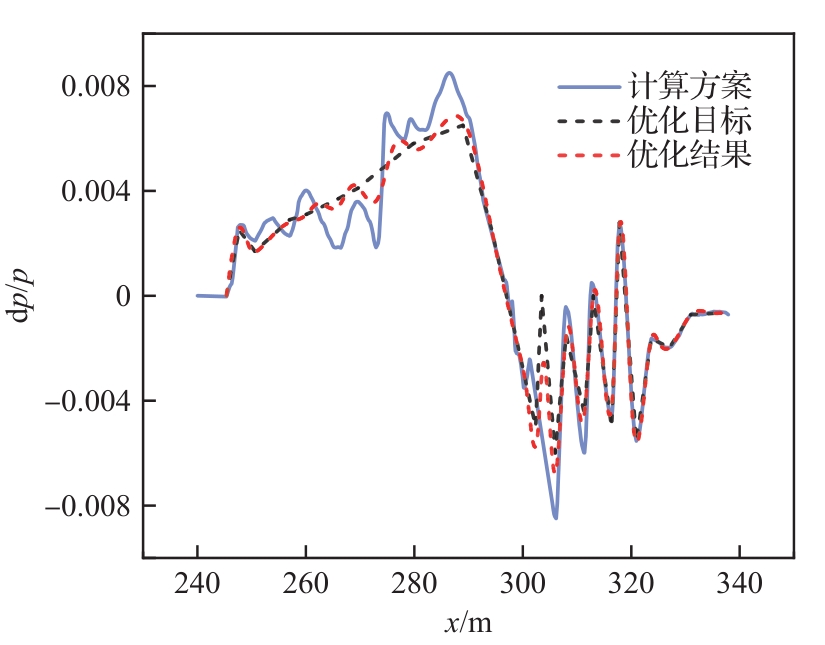

截面位置x_i （i=1，2，…，5）/m	下限/m²	上限/m²
1.80	0.016 7	0.020 4
30.00	6.280 0	6.940 0
37.00	9.960 0	10.650 0
44.00	14.380 0	15.890 0
85.56	27.650 0	27.650 0

类别	参数	初始值	下限	上限	优化结果
目标	min W_TO/t	80.16			77.29
目标	min F₁	0.644			0.401
变量	机翼内段上反角/（°）	18.3	12.0	20.0	17.3
	机翼中段上反角/（°）	4.0	0	7.0	5.1
	机翼外段上反角/（°）	11.0	7.0	15.0	12.2
	机翼内段后掠角/（°）	76.6	74.0	78.0	77.5
	机翼中段后掠角/（°）	71.5	69.0	73.0	70.6
	机翼外段后掠角/（°）	66.0	62.0	68.0	67.7
	机翼中段展长/m	6.96	6.60	7.30	7.13
	机翼外段展长/m	8.29	7.80	8.60	8.11
	平尾后掠角/（°）	66.0	62.0	70.0	68.1
	平尾梢根比	0.12	0.08	0.20	0.145
	垂尾展长/m	4.7	4.0	5.5	4.48
约束	航程/km	6 000	6 000		6 000
	起飞场长/m	1 723		1 800	1 702
	着陆场长/m	1 690		1 800	1 660
	单发失效第二爬升段爬升率/%	4.11	2.40		4.19
	纵向力矩系数导数	-0.018 7		0	-0.017 1
	滚转力矩系数导数	-0.002 8		0	-0.002 2
	偏航力矩系数导数	0.018 3	0		0.016 9
	客舱长度/m	14.2	14.0	15.4	14.0
	客舱高度/m	2.50	2.45	2.70	2.47
	客舱宽度/m	2.83	2.80	3.10	2.81

Multidisciplinary optimization with low-boom design for supersonic civil aircraft conceptual design

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 33

References 50

Related Articles 15

Recommended Articles

Metrics

Comments

部件参数	基准方案	优化方案
燃油质量/kg	39 518	37 769
机翼质量/kg	10 982	10 145
机身质量/kg	6 092	5 969
尾翼质量/kg	2 164	2 122
起落架质量/kg	3 046	2 937
系统和其他质量/kg	6 573	6 573
推进系统质量/kg	6 012	6 012
使用项目质量/kg	960	960
有效载荷质量/kg	4 800	4 800
总质量/kg	80 147	77 287

项目	基准方案	优化结果
起飞失速速度/（m·s^-1）	75.8	74.6
起飞场长/m	1 722.9	1 701.6
进场速度/（m·s^-1）	68.61	67.1
着陆场长/m	1 689.6	1 659.8
航程/km	6 000	6 000

项目	基准方案	优化结果	稳定性
C_mα/（（°）^-1）	-0.018 7	-0.017 1	纵向静稳定
C_nβ/（（°）^-1）	0.018 3	0.016 9	航向静稳定
C_lβ/（（°）^-1）	-0.002 8	-0.002 2	横向静稳定

航段名称	NO _x 排放量/kg
航段名称	基准方案	优化结果
滑跑、起飞	18.310	17.873
爬升	87.429	84.671
巡航	417.193	399.117
下降	0.675	0.641
进近着陆	0.104	0.101
全航线	523.711	502.403
