大型客机刚弹耦合分析技术研究及验证

doi:10.7527/S1000-6893.2024.30972

Abstract

Abstract:

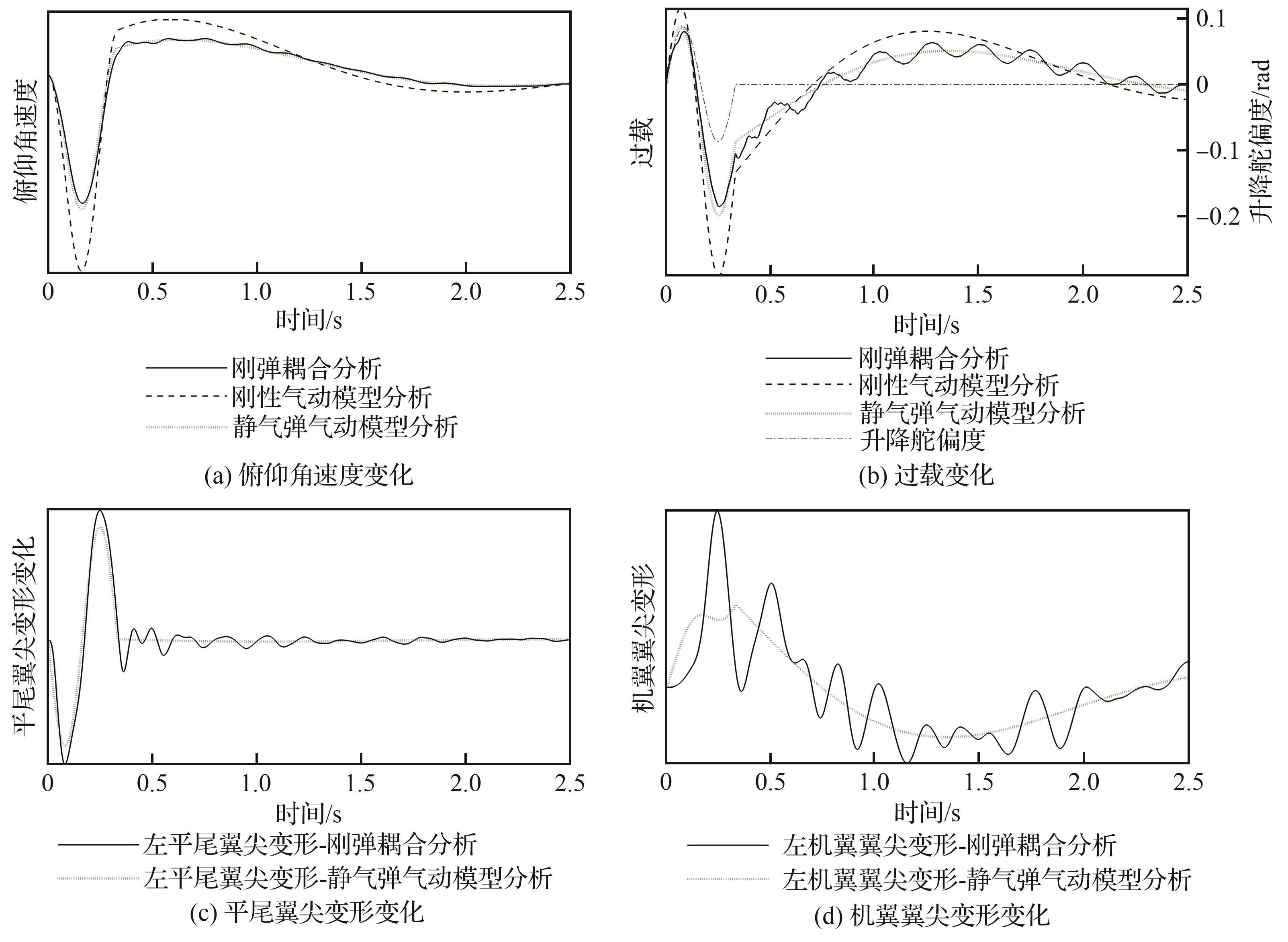

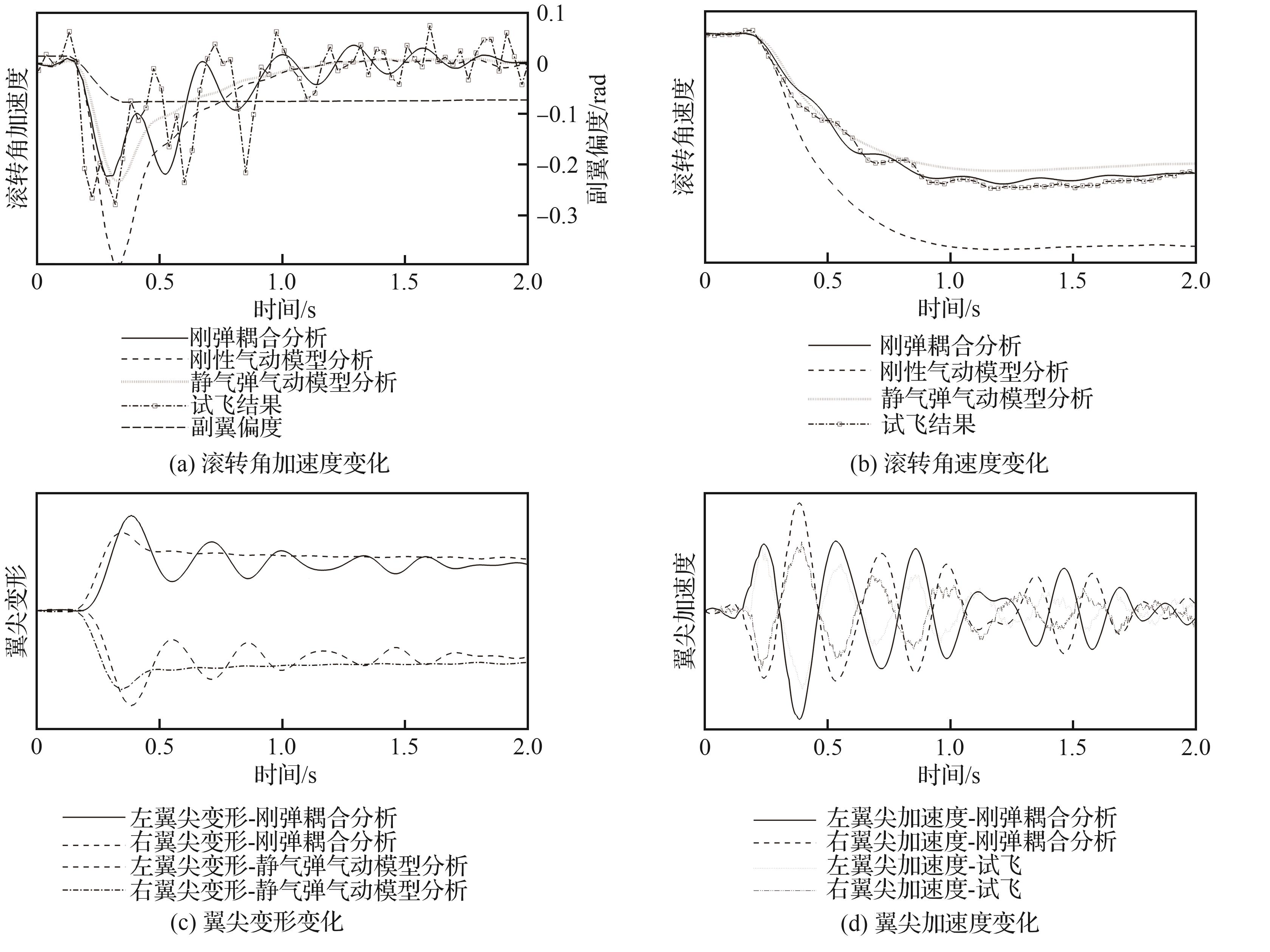

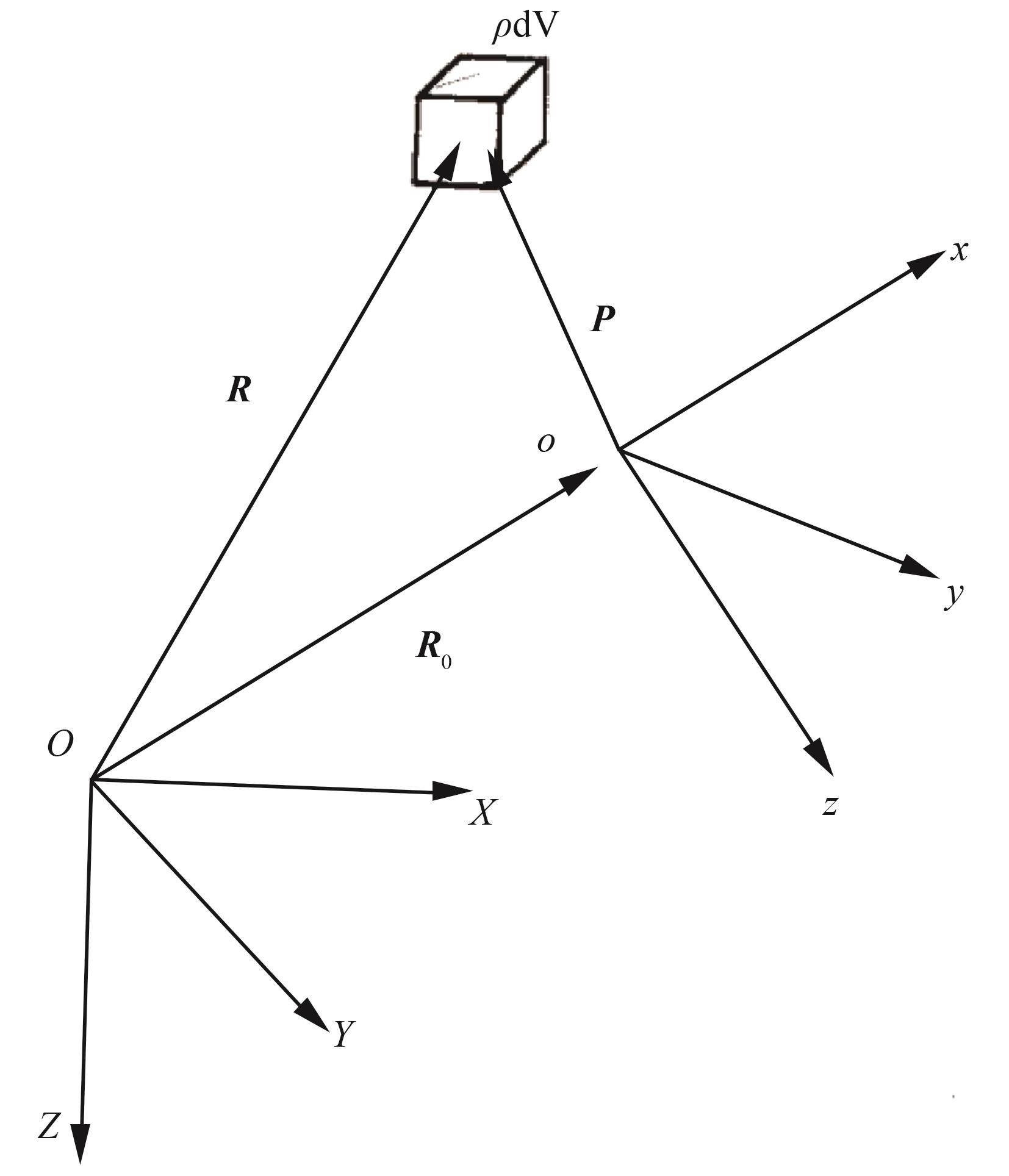

The difference in the frequency of rigid-body mode and the elastic mode of modern large passenger aircraft is becoming smaller， and the problem of rigid-elastic coupling during maneuvering is becoming increasingly apparent. Traditional flight dynamics simulation with six degrees of freedom cannot simulate this rigid-elastic coupling process， which is unfavorable for the optimization of control laws or the development of flight training simulators. By analyzing the basic motion characteristics of large passenger aircraft， we use the mean axis system method to extend the traditional flight dynamics equation， and construct a rigid-elastic coupling flight dynamics simulation model for large passenger aircraft， significantly simplifying the analysis process while inheriting the original simulation system. Meanwhile， the rigid-elastic coupling simulation model is used to analyze the typical rigid-elastic coupling problem of large passenger aircraft under pitch and roll maneuvers， with comparison with flight test results to verify the accuracy of the model. The model is then adopted to study the rigid-elastic coupling characteristics of large passenger aircraft under typical pitch and roll maneuvers， as well as the impact characteristics of rigid-elastic coupling on dynamic stability and elastic modes.

Key words: rigid-body mode, elastic mode, rigid-elastic coupling, pitch maneuver, roll maneuver, flight test

CLC Number:

V212.12

Kun MAO, Wuxing JING, Shi CHEN, Jun LIU, Dawei WU, Jiangtao SI. Research and verification of rigid-elastic coupling analysis technology for large passenger aircraft[J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(12): 130972.

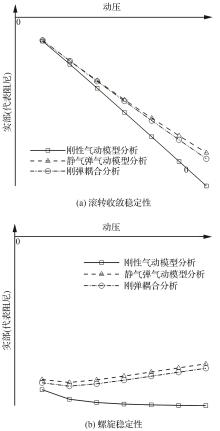

Figures/Tables 18

Fig.1

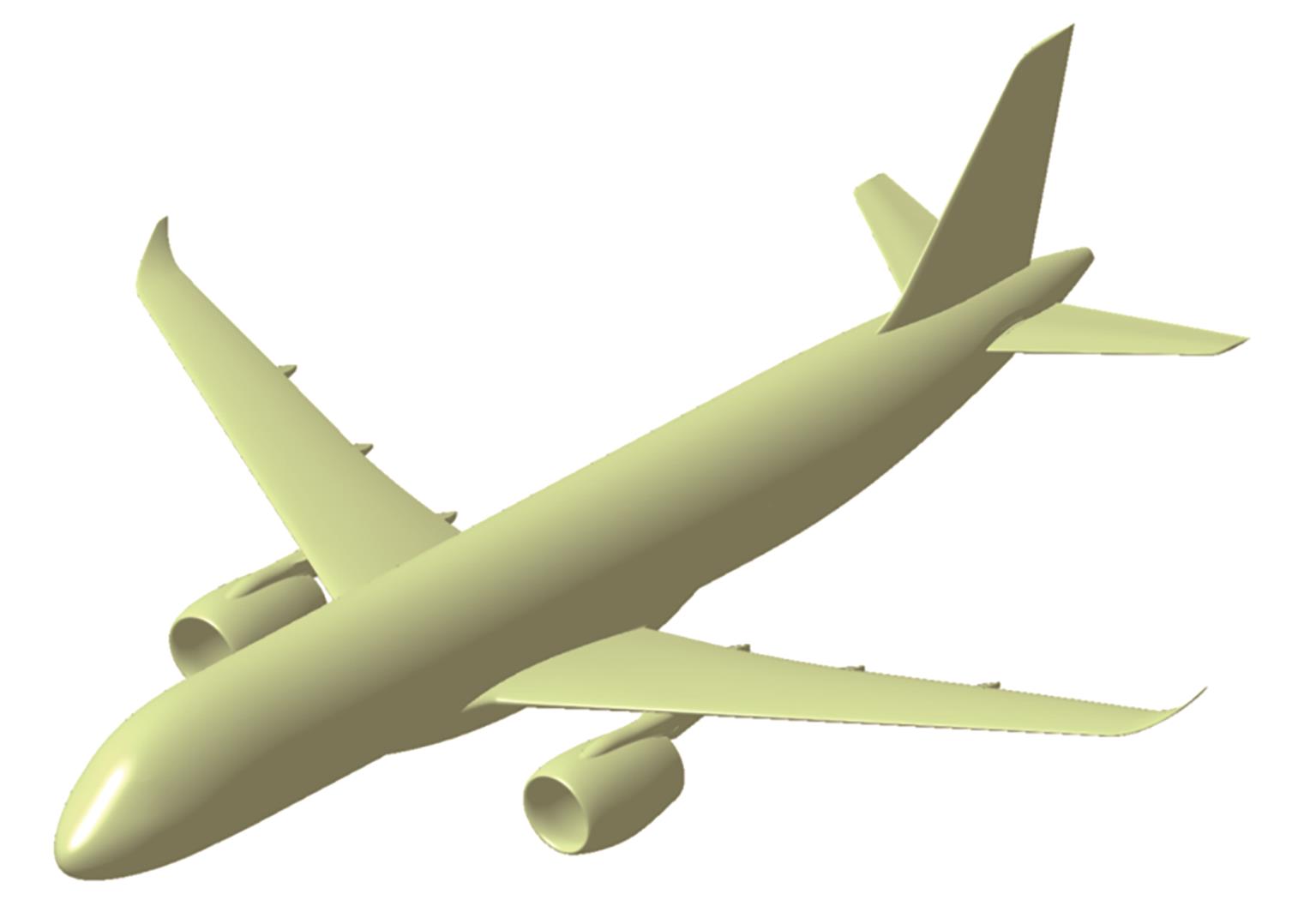

Fig.2

Fig.3

Table 1

Fig.4

Table 2

Fig.5

Table 3

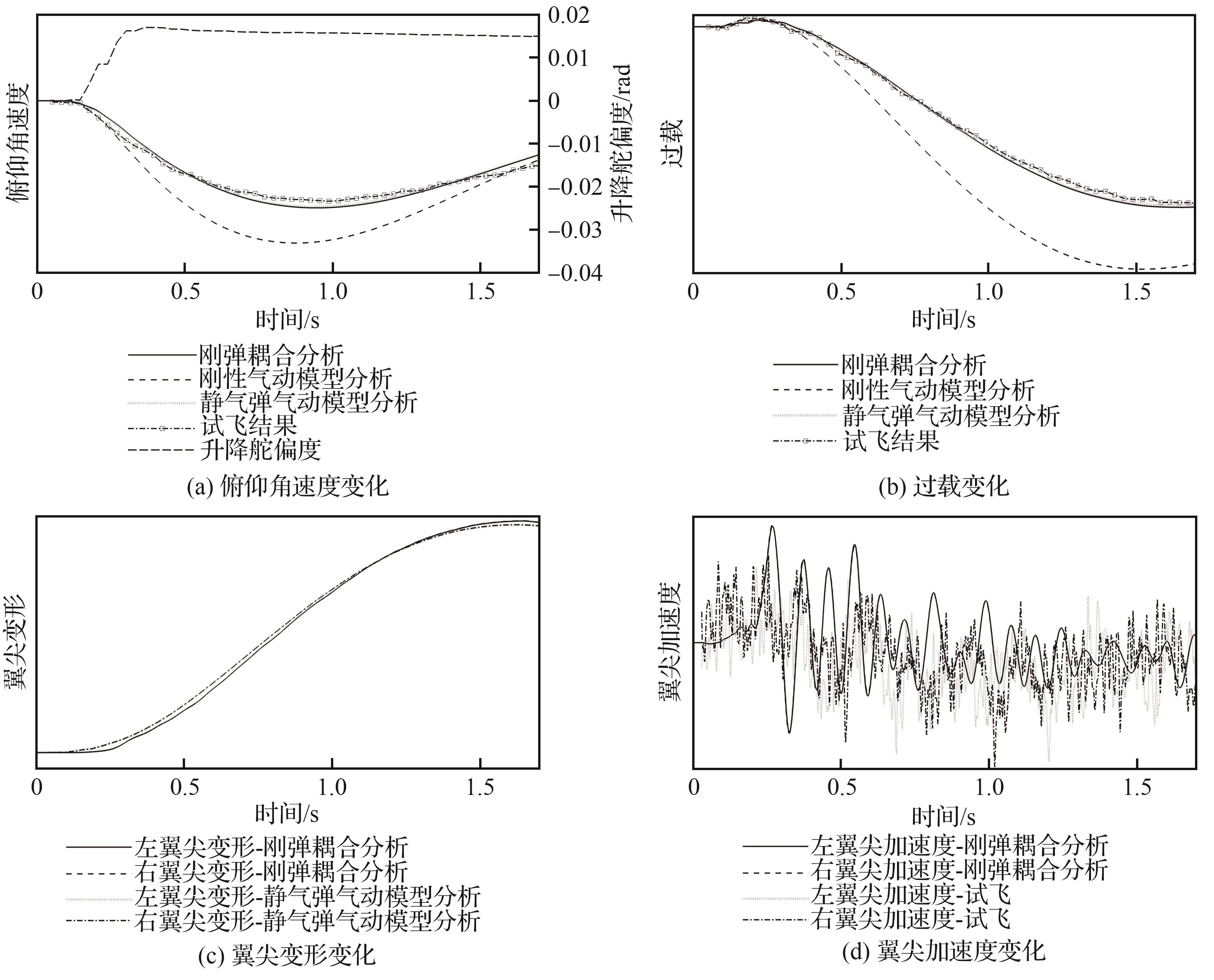

Fig.6

Fig.7

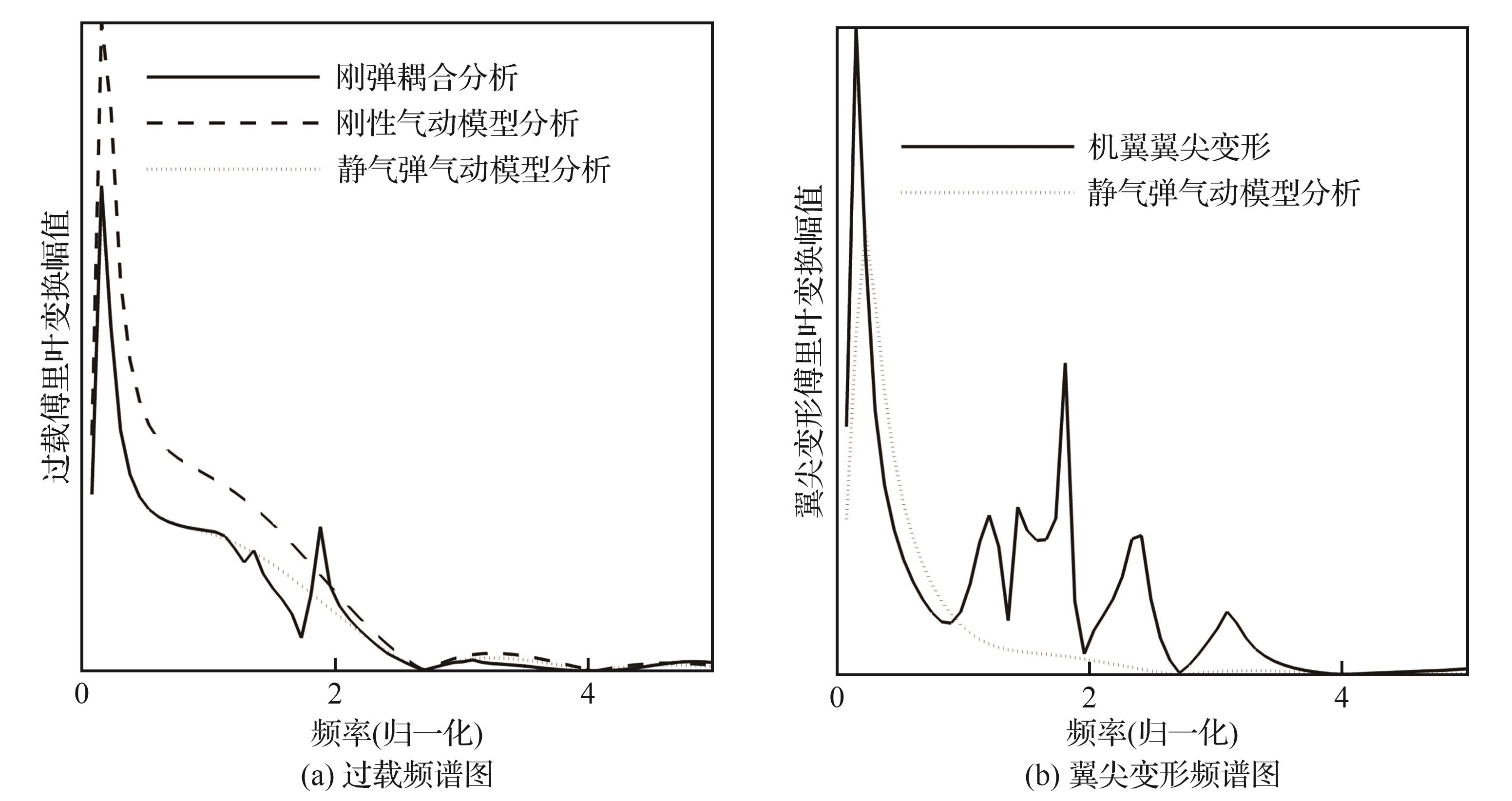

Fig.8

Fig.9

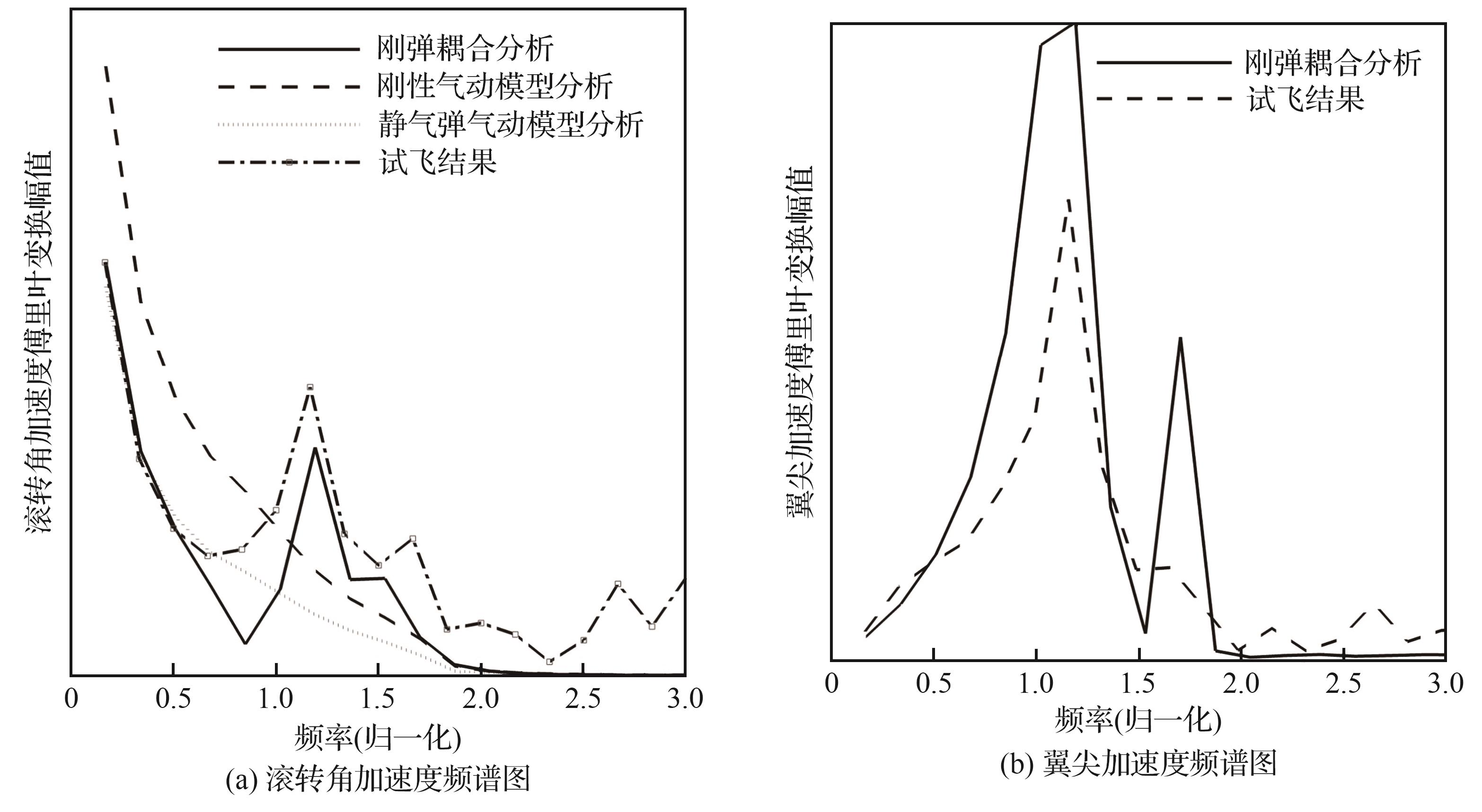

Fig.10

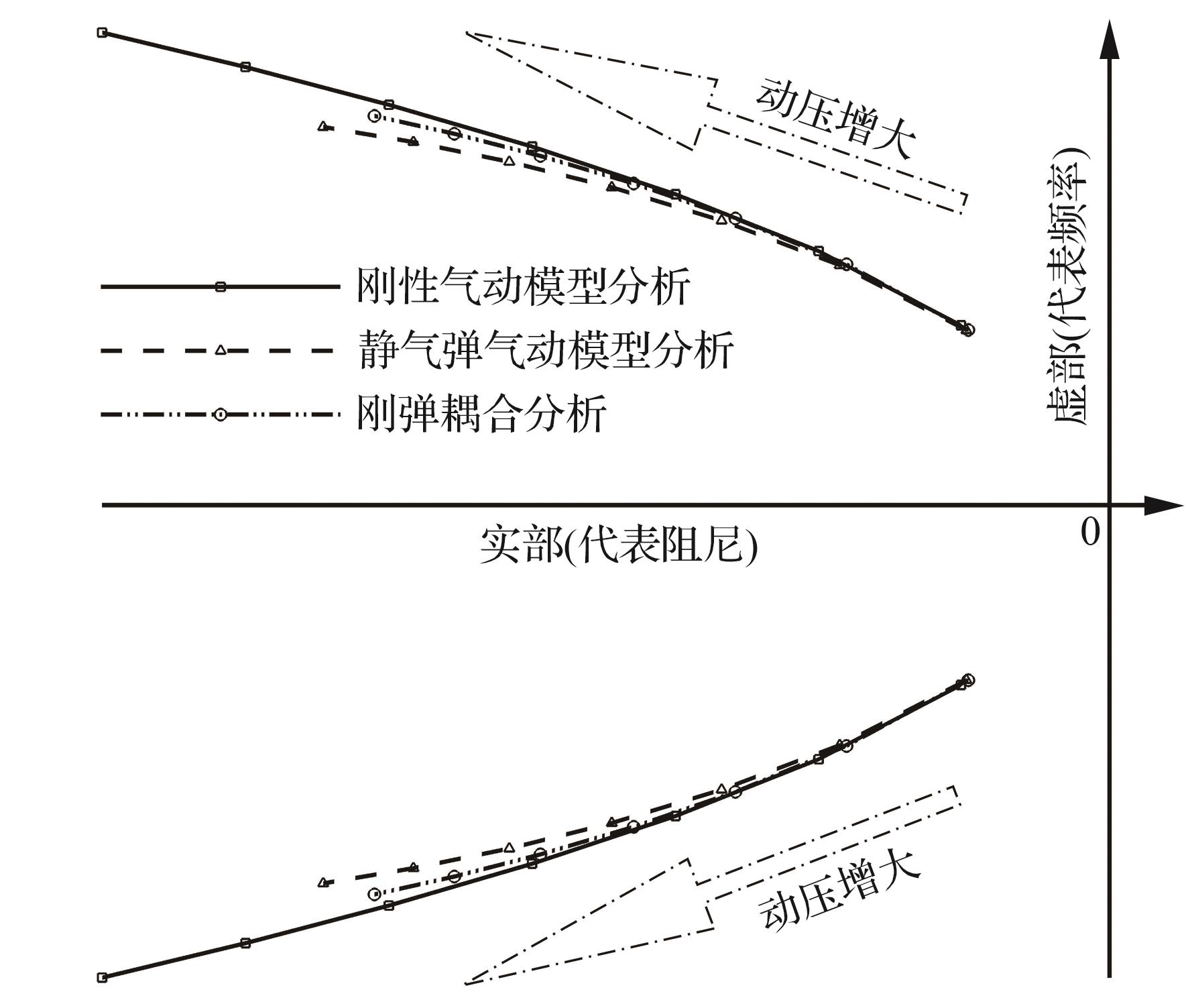

Fig.11

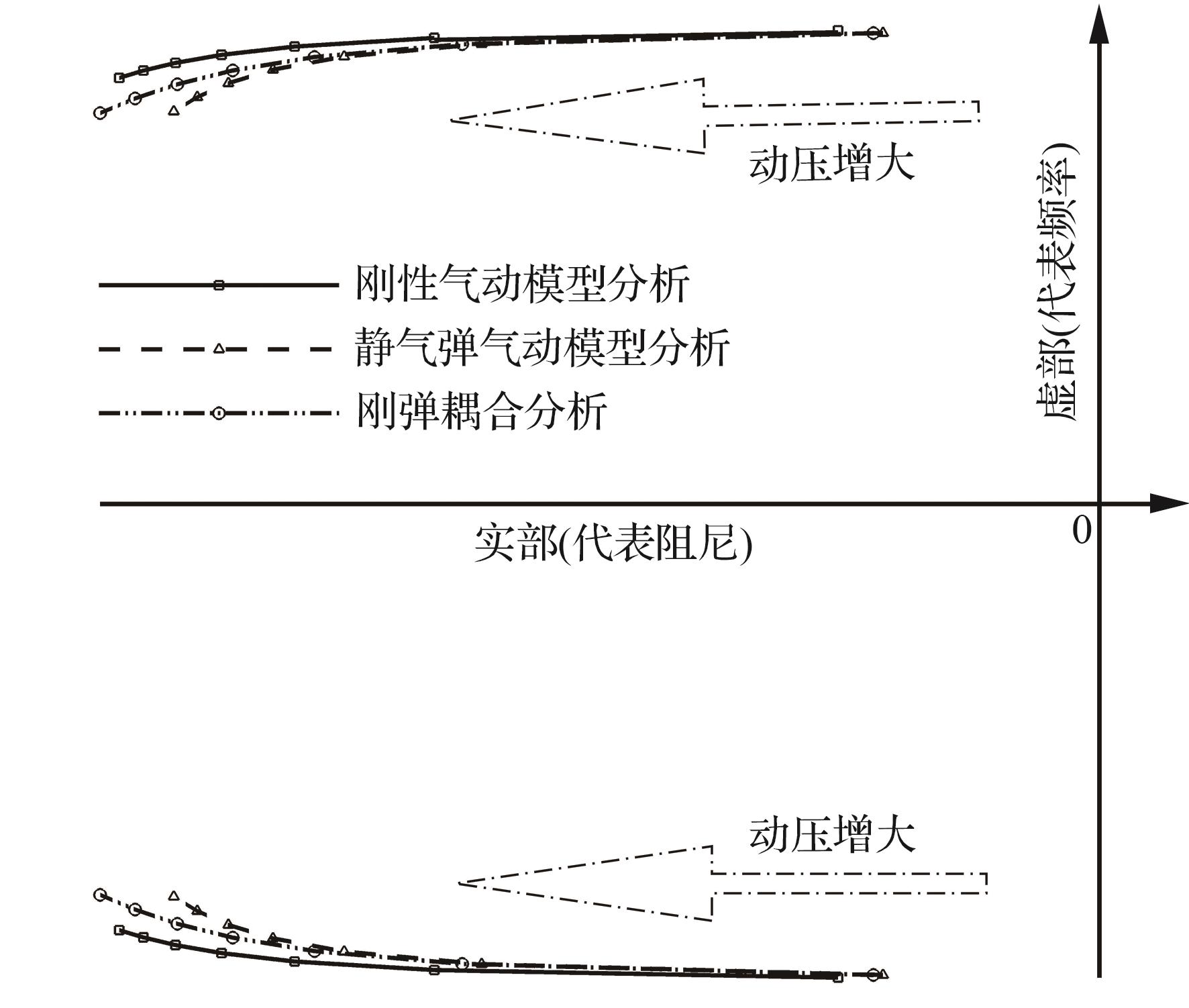

Fig.12

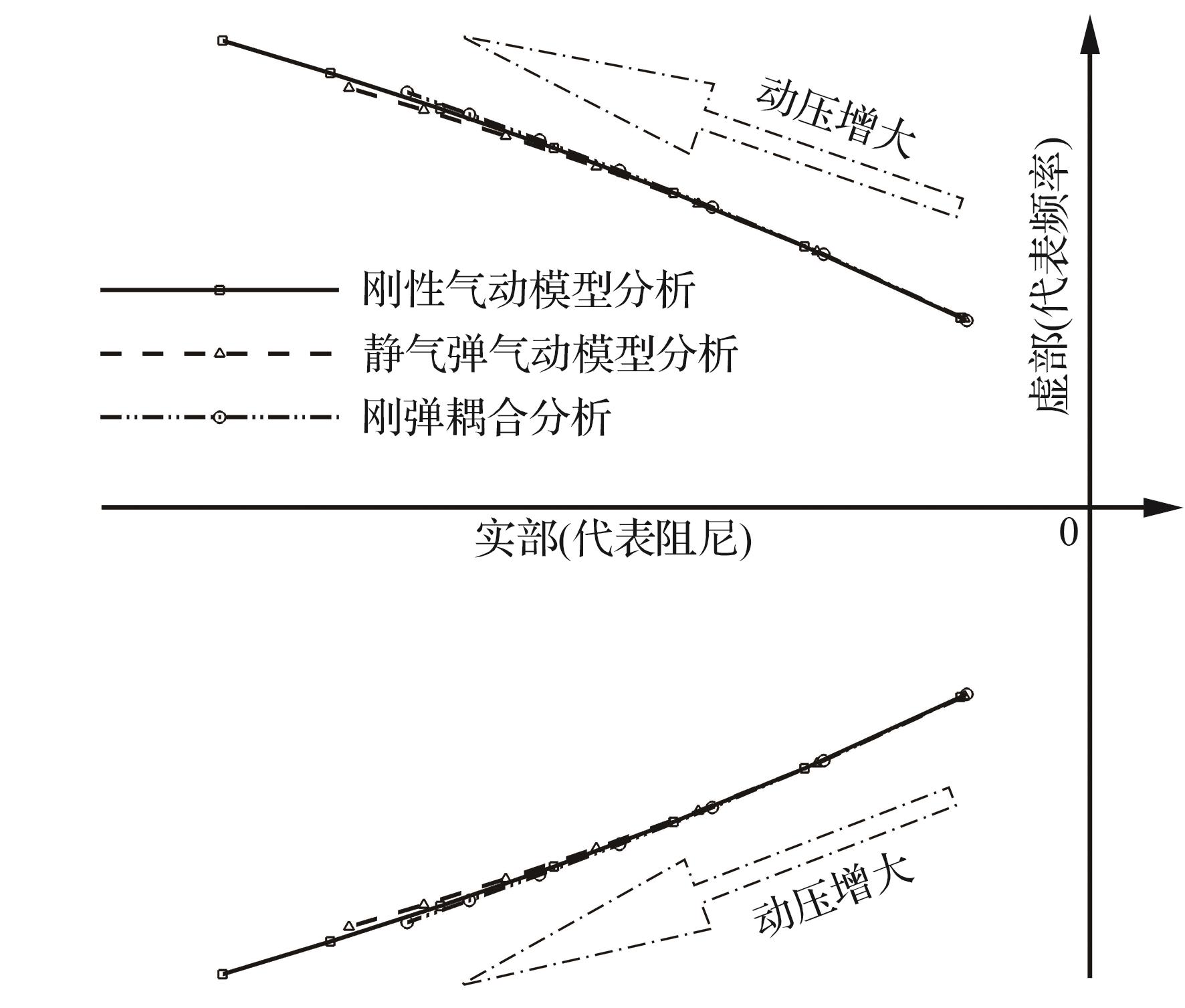

Fig.13

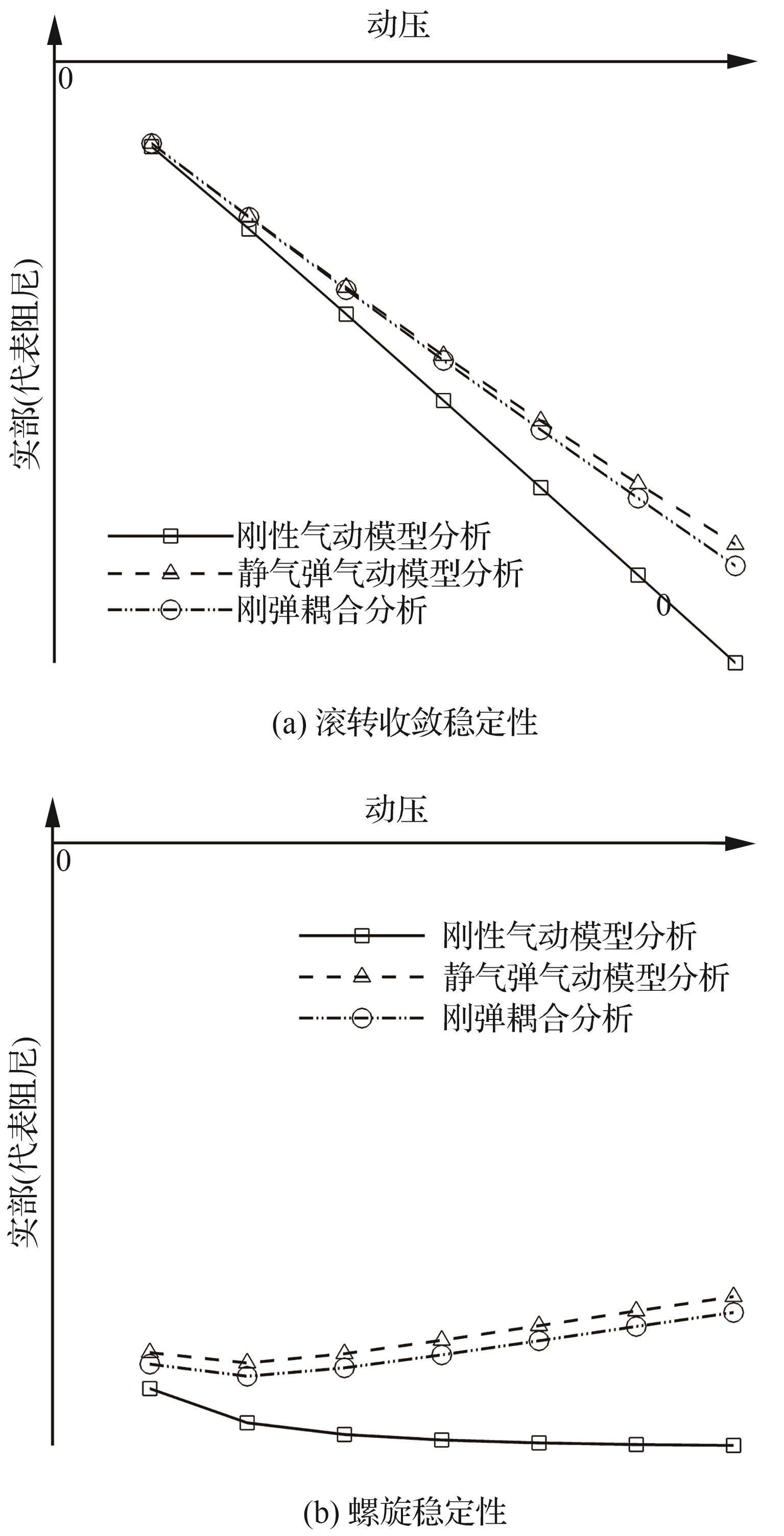

Fig.14

Fig.15

References 21

[1]	SCHWANZ R， CERR J， BLAIR M. Dynamic modeling uncertainty affecting control system design‍［C］‍∥25th Structures， Structural Dynamics and Materials Conference. Reston： AIAA， 1984.
[2]	WASZAK M R， SCHMIDT D K. Flight dynamics of aeroelastic vehicles［J］. Journal of Aircraft， 1988， 25（6）： 563-571.
[3]	SCHMIDT D， RANEY D. Modeling and simulation of flexible flight vehicles［C］‍∥AIAA Modeling and Simulation Technologies Conference and Exhibit. Reston： AIAA， 1998.
[4]	MEIROVITCH L. Hybrid state equations of motion for flexible bodies in terms of quasi-coordinates［J］. Journal of Guidance， Control， and Dynamics， 1991， 14（5）： 1008-1013.
[5]	荣吉利，徐天富，王玺，等. 随动推力作用下柔性旋转飞行器稳定性分析［J］. 宇航学报， 2015， 36（1）： 18-24.
	RONG J L， XU T F， WANG X， et al. Dynamic stability analysis of flexible spinning flight vehicles under follower thrust［J］. Journal of Astronautics， 2015， 36（1）： 18-24 （in Chinese）.
[6]	郭东，徐敏，陈士橹. 弹性飞行器飞行动力学建模研究［J］. 空气动力学学报， 2013， 31（4）： 413-419， 436.
	GUO D， XU M， CHEN S L. Research on flight dynamic modeling of highly flexible aircrafts［J］. Acta Aerodynamica Sinica， 2013， 31（4）： 413-419， 436 （in Chinese）.
[7]	陈尔康，廖欣，高长生，等. 考虑刚体运动与弹体变形耦合效应的旋转导弹动力学建模［J］. 兵工学报， 2018， 39（11）： 2159-2171.
	CHEN E K， LIAO X， GAO C S， et al. Dynamics modeling of spinning missiles considering the rigid-elastic coupling effect［J］. Acta Armamentarii， 2018， 39（11）： 2159-2171 （in Chinese）.
[8]	SALTARI F， RISO C， DE MATTEIS G， et al. Finite-element-based modeling for flight dynamics and aeroelasticity of flexible aircraft［J］. Journal of Aircraft， 2017， 54（6）： 2350-2366.
[9]	RISO C， MASTRODDI F， CESNIK C E. Coupled flight dynamics and aeroelasticity of very flexible aircraft based on commercial finite element solvers‍［C］‍∥2018 AIAA/ASCE/AHS/ASC Structures， Structural Dynamics， and Materials Conference. Reston： AIAA， 2018.
[10]	XIE C C， YANG L， LIU Y， et al. Stability of very flexible aircraft with coupled nonlinear aeroelasticity and flight dynamics［J］. Journal of Aircraft， 2017， 55（2）： 862-874.
[11]	刘宝，章卫国，李广文，等. 弹性飞机的建模与模型降阶方法研究［J］. 计算机仿真， 2008， 25（5）： 29-32， 43.
	LIU B， ZHANG W G， LI G W， et al. Research on modeling and model reduction of flexible aircraft［J］. Computer Simulation， 2008， 25（5）： 29-32， 43 （in Chinese）.
[12]	曹奇凯，曾惠华，柏楠. 考虑刚体/弹性耦合的飞机动稳定性研究［J］. 飞行力学， 2011， 29（4）： 11-14， 18.
	CAO Q K， ZENG H H， BAI N. Dynamic stability of aircraft with rigid and flexible motion coupling［J］. Flight Dynamics， 2011， 29（4）： 11-14， 18 （in Chinese）.
[13]	王立波，唐矗，杨超. 大展弦比飞翼刚弹耦合运动稳定性分析［J］. 西北工业大学学报， 2017， 35（6）： 1096-1104.
	WANG L B， TANG C， YANG C. Dynamic stability analysis of a flying wing considering the rigid-elastic coupling effects［J］. Journal of Northwestern Polytechnical University， 2017， 35（6）： 1096-1104 （in Chinese）.
[14]	王培涵，吴志刚，杨超，等. 一种适用于弹性飞机飞行仿真的补丁方法［J］. 航空学报， 2023， 44（6）： 127038.
	WANG P H， WU Z G， YANG C， et al. Patch module method for flight simulation of flexible aircraft［J］. Acta Aeronautica et Astronautica Sinica， 2023， 44（6）： 127038 （in Chinese）.
[15]	MARIN P C， POETSCH C. Simulation of flexible aircraft response to gust and turbulence for flight dynamics investigations［C］‍∥AIAA Scitech 2020 Forum. Reston： AIAA， 2020.
[16]	ALBANO E， RODDEN W P. A doublet-lattice method for calculating lift distributions on oscillating surfaces in subsonic flows［J］. AIAA Journal， 1969， 7（2）： 279-285.
[17]	GIESING J， KALMAN T. Subsonic unsteady aerodynamics for general configurations‍［C］‍∥10th Aerospace Sciences Meeting. Reston： AIAA， 1972.
[18]	MAO K， JING W X， CHENG P， et al. A modification to the enhanced correction factor technique for the subsonic wing-body interference model‍［J］. Aerospace， 2023， 10（1）： 40.
[19]	MAO K， JING W X， ZHANG M H， et al. An aerodynamic correction technique for the unsteady subsonic wing-body interference model［J］. Aerospace， 2023， 10（10）： 837.
[20]	KARPEL M. Extensions to the minimum-state aeroelastic modeling method［J］. AIAA Journal， 1991， 29（11）： 2007-2009.
[21]	方振平，陈万春，张曙光. 航空飞行器飞行动力学［M］. 北京：北京航空航天大学出版社， 2005：288-324.
	FANG Z P， CHEN W C， ZHANG S G. Flight dynamics of aircraft［M］. Beijing： Beijing University of Aeronautics & Astronautics Press， 2005： 288-324 （in Chinese）.

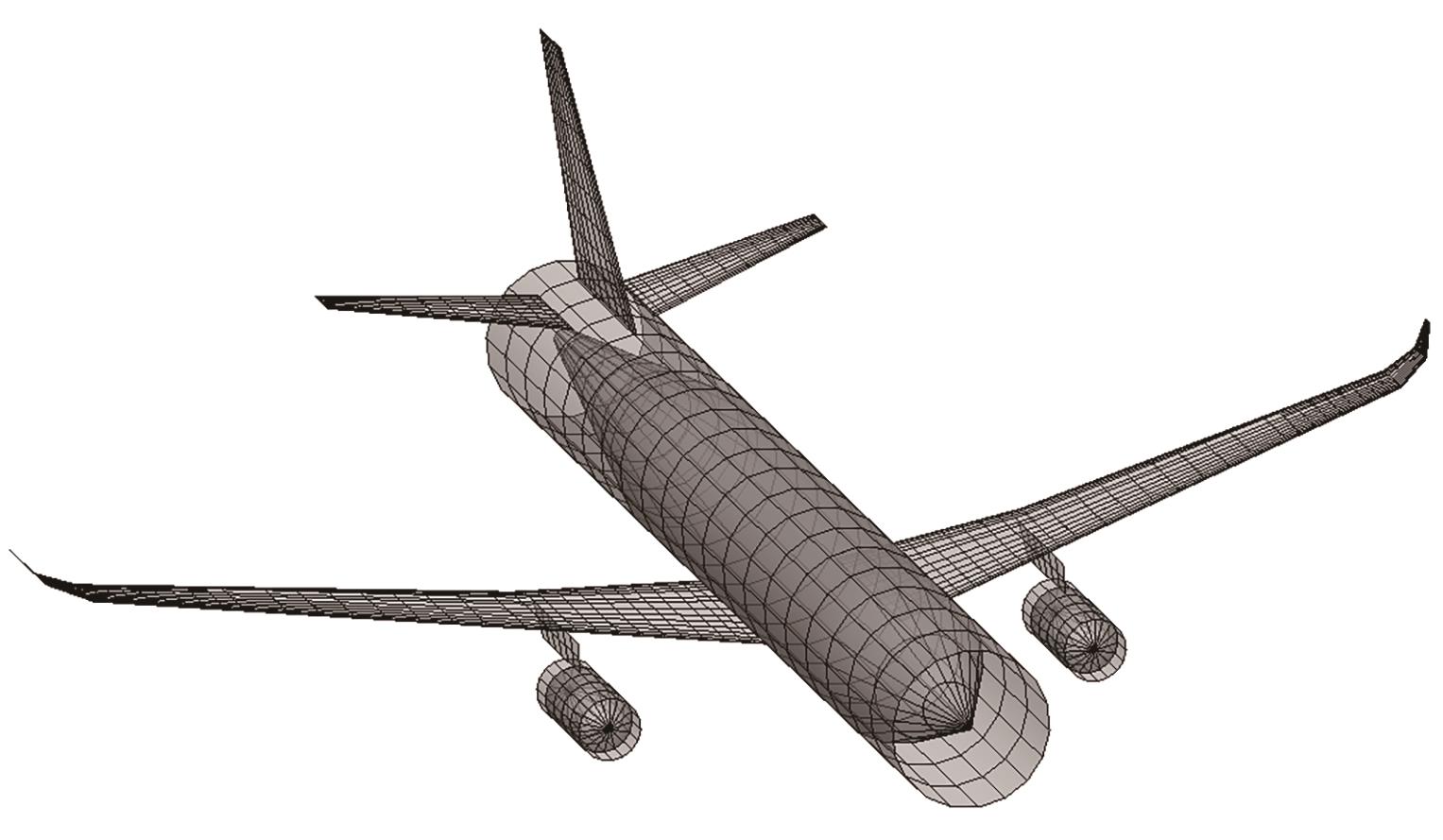

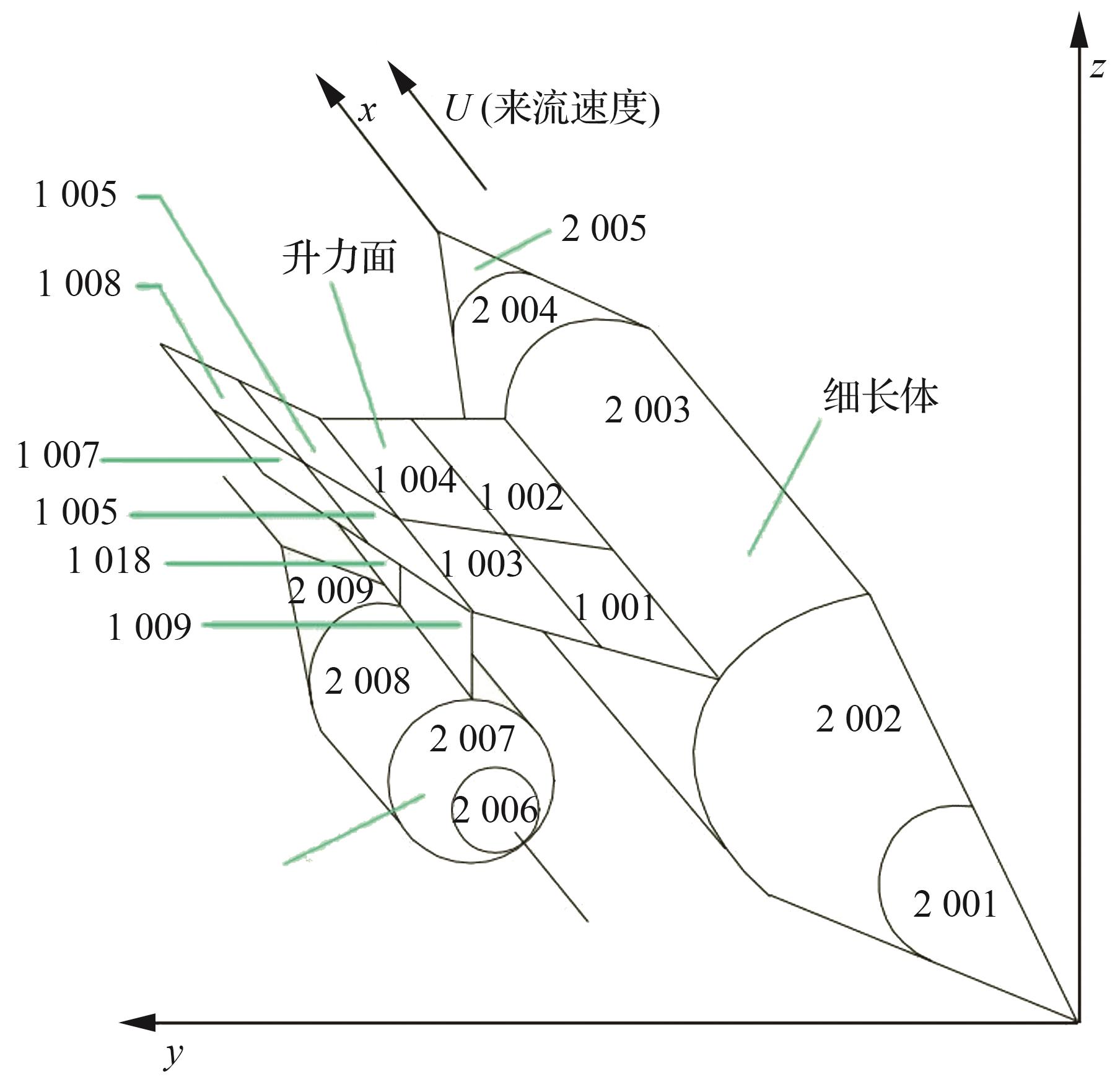

类别	网格数量
总体	1 817
升力面	1 757
细长体	30
干扰体	30

序号	振型	频率（归一化）
1	机翼对称垂直一弯	1.00
2	机翼反对称垂直一弯	1.32
3	发动机对称侧向弯曲	1.36
4	发动机反对称侧向弯曲	1.43
5	机身水平一弯	1.82
6	发动机对称俯仰	1.83
7	发动机反对称俯仰	2.20
8	机身垂直一弯	2.31
