飞机多约束轨迹优化奇异性分析与自动解算方法

doi:10.7527/S1000-6893.2025.32147

Abstract

Abstract:

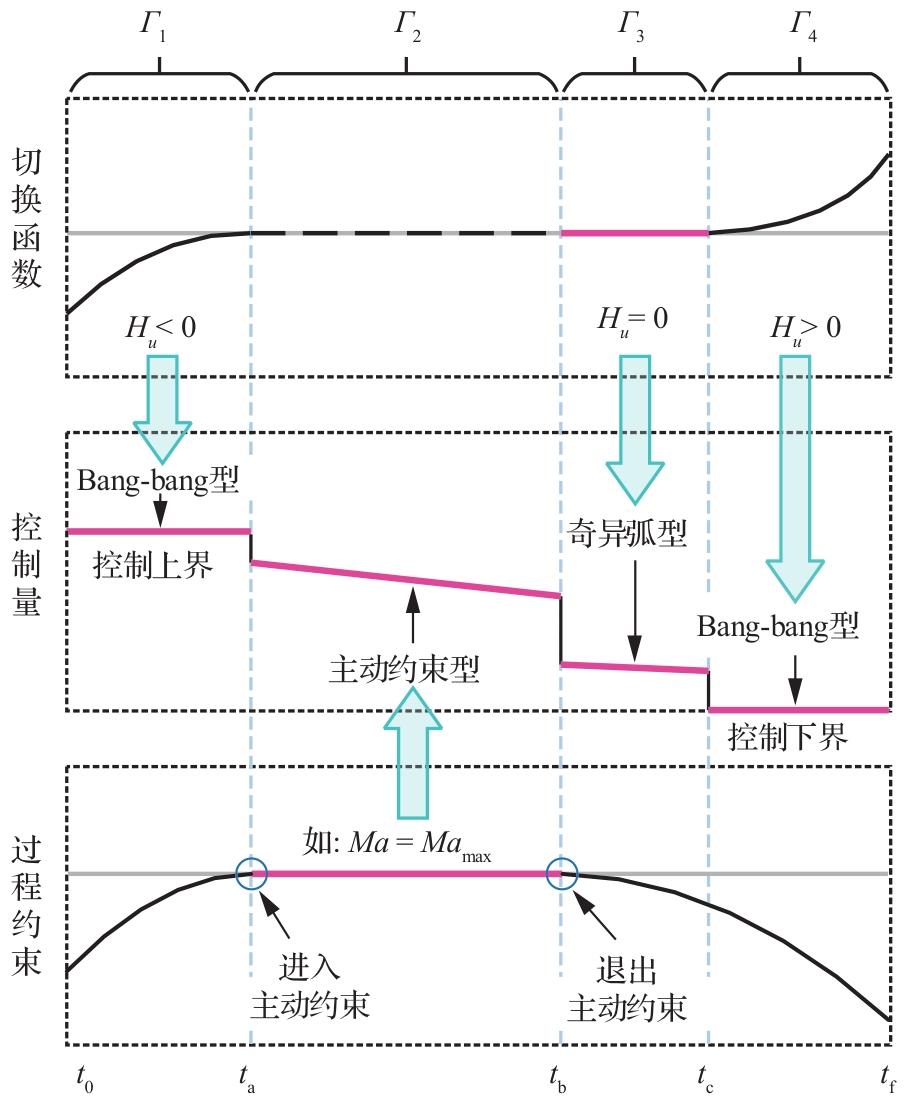

The aircraft trajectory optimization problem usually involves complex situations such as singular arc type control， bang-bang control， and active constraint control， where the control variable is switched. The existing solution methods are difficult to achieve a balance between accuracy and numerical stability when dealing with the problem containing switch control. In this paper， the control singularity and the influence of active constraints on the switch of control law in the aircraft trajectory optimization problem are analyzed， and an automatic solution method is constructed. The proposed method requires no prior knowledge of the control structure； instead， based on the solution by the Radau pseudospectral method， an automatic estimation method for the control switch moment is added. According to these estimations， the entire control process is divided into multiple stages. Then， the control types of each stage are identified and the solution strategies are constructed in a targeted manner to gradually approximate the optimal solution of the problem in the optimization iteration. Taking Airbus A320 aircraft as an example， both the proposed method and the optimal control software GPOPS-Ⅱ are employed to solve trajectory optimization problem with singularity and active constraints. Numerical experiments show that the proposed method has better advantages in numerical stability and convergence accuracy for the aircraft trajectory optimization problem with control switching.

Key words: trajectory optimization, singular arc, Bang-bang control, active constraint, Radau pseudospectral method

CLC Number:

V271

Yonghui WU, Xiang LI, Hao HUANG, Xu LIU. Singularity analysis and automatic solution method for aircraft multi-constrained trajectory optimization[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(2): 332147.

Figures/Tables 17

Fig.1

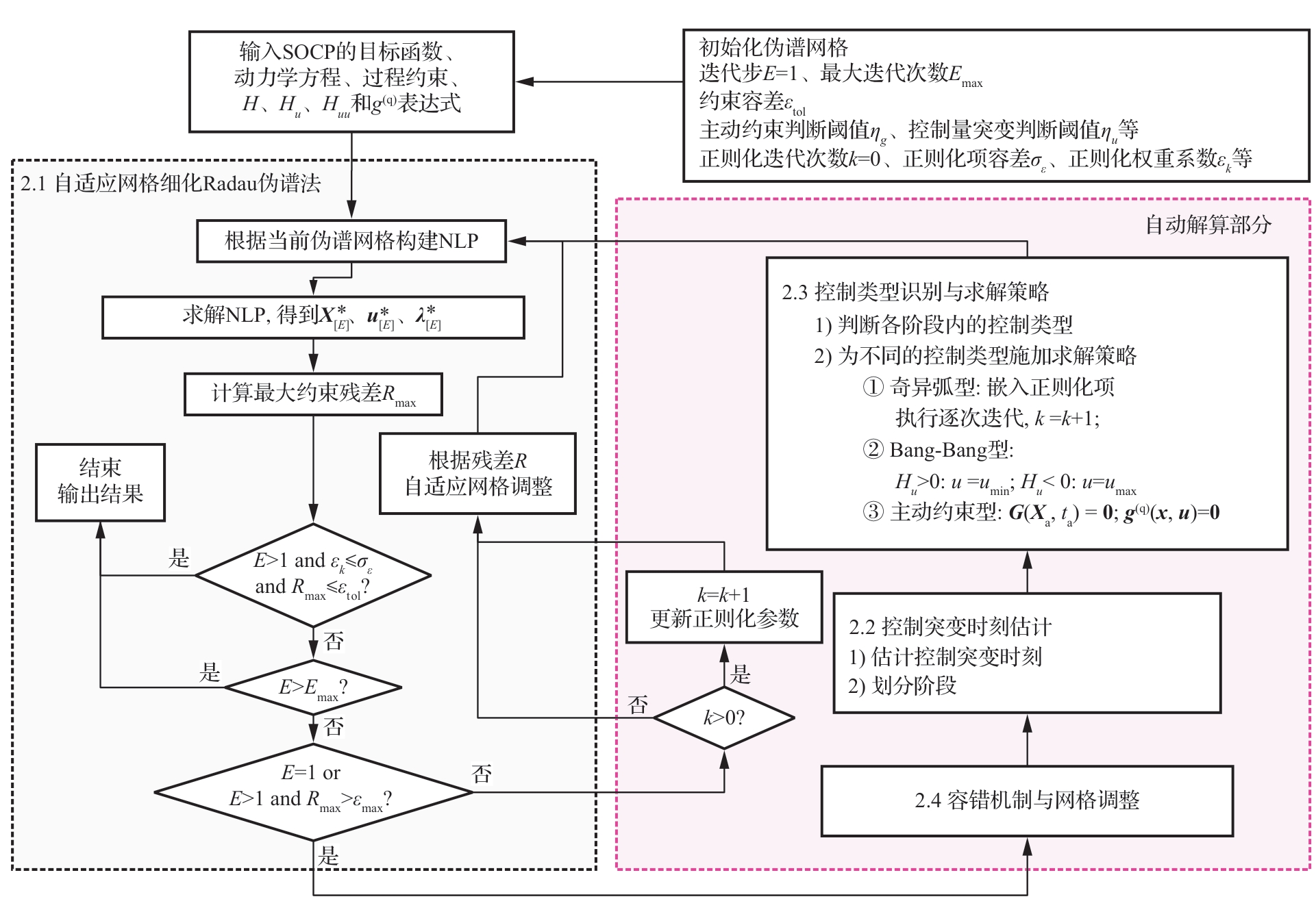

Fig.2

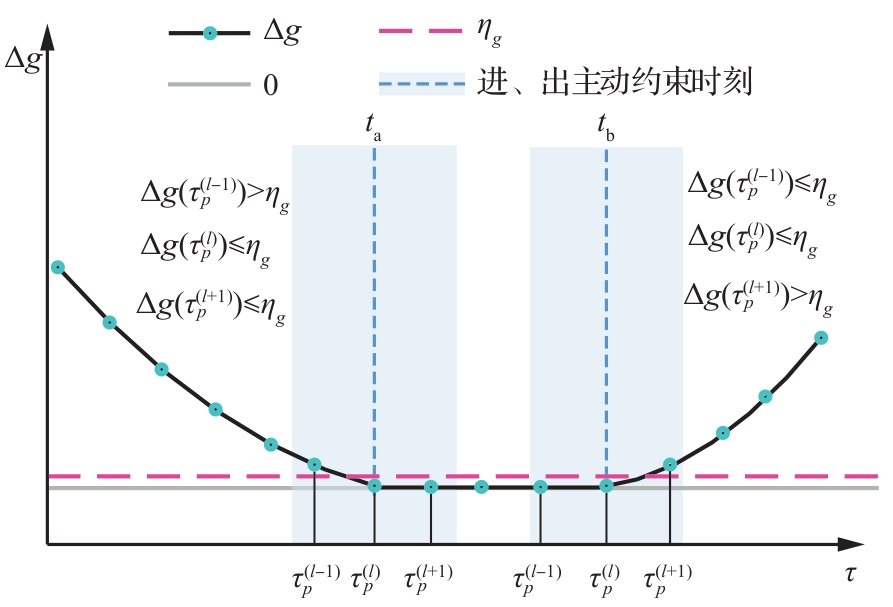

Fig.3

Table 1

Table 2

Fig.4

Table 3

Fig.5

Fig.6

Fig.7

Table 4

Fig.8

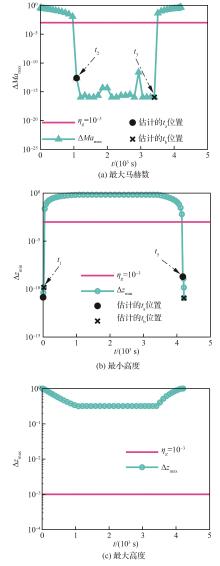

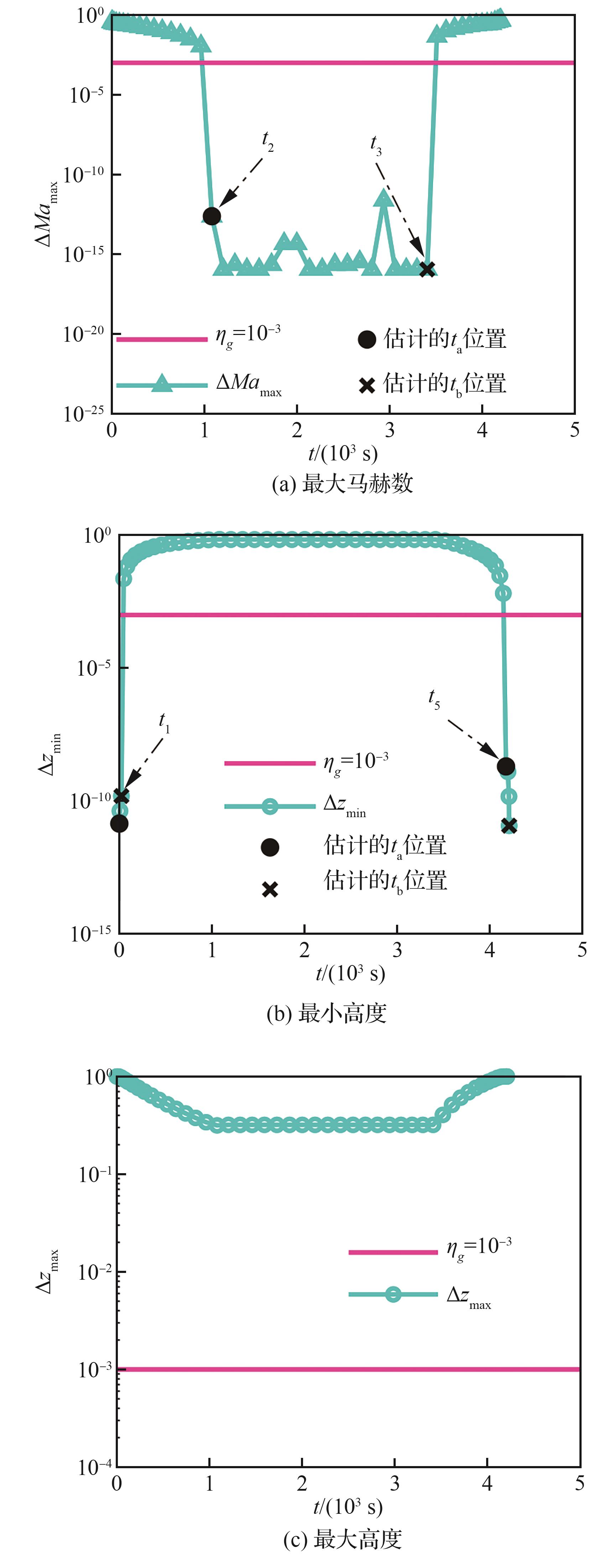

Fig.9

Fig.10

Table 5

Table 6

Fig.11

References 28

[1]	SOLEDAD ARONNA M， FRÉDÉRIC BONNANS J， MARTINON P. A shooting algorithm for optimal control problems with singular arcs［J］. Journal of Optimization Theory and Applications， 2013， 158（2）： 419-459.
[2]	BRYSON A E. Applied optimal control： Optimization， estimation and control［M］. New York： Routledge， 1975 ： 90-117.
[3]	JAFARIMOGHADDAM A， SOLER M. The Indirect Bang-Singular Algorithm （IBSA） for singular control problems with state-inequality constraints［J］. European Journal of Control， 2024， 79： 101071.
[4]	FRANCO A， RIVAS D. Optimization of multiphase aircraft trajectories using hybrid optimal control［J］. Journal of Guidance， Control， and Dynamics， 2015， 38（3）： 452-467.
[5]	PARK S G， CLARKE J P. Vertical trajectory optimization to minimize environmental impact in the presence of wind［J］. Journal of Aircraft， 2016， 53（3）： 725-737.
[6]	COTS O， GERGAUD J， GOUBINAT D， et al. Singular versus boundary arcs for aircraft trajectory optimization in climbing phase［J］. ESAIM： Mathematical Modelling and Numerical Analysis， 2023， 57（2）： 817-839.
[7]	JAFARIMOGHADDAM A， SOLER M. Time-fuel-optimal navigation of a commercial aircraft in cruise with heading and throttle controls using Pontryagin’s maximum principle［J］. IEEE Control Systems Letters， 2023， 7： 2970-2975.
[8]	NURRE N P， TAHERI E. Comparison of indirect and direct methods for operationally constrained low-thrust trajectories［J］. Journal of Guidance， Control， and Dynamics， 2025， 48（4）： 885-902.
[9]	PAN B F， NI Y， MA Y Y， et al. Smoothing Homotopy methods for solving nonlinear optimal control problems［J］. Journal of Guidance， Control， and Dynamics， 2023， 46（8）： 1470-1484.
[10]	刘哲，张羲格，韦常柱，等. 亚轨道飞行器再入轨迹高精度自适应凸规划［J］. 航空学报， 2023， 44（S2）： 729430.
	LIU Z， ZHANG X G， WEI C Z， et al. High-precision adaptive convex programming for reentry trajectory of suborbital vehicle［J］. Acta Aeronautica et Astronautica Sinica， 2023， 44（S2）： 729430 （in Chinese）.
[11]	罗淑贞，孙青林，檀盼龙，等. 基于高斯伪谱法的翼伞系统复杂多约束轨迹规划［J］. 航空学报， 2017， 38（3）： 320363.
	LUO S Z， SUN Q L， TAN P L， et al. Trajectory planning of parafoil system with intricate constraints based on Gauss pseudo-spectral method［J］. Acta Aeronautica et Astronautica Sinica， 2017， 38（3）： 320363 （in Chinese）.
[12]	赵吉松，尚腾，张金明，等. 带有控制变量变化率约束的伪谱轨迹优化方法［J］. 宇航学报， 2022， 43（10）： 1368-1377.
	ZHAO J S， SHANG T， ZHANG J M， et al. Pseudo-spectral trajectory optimization method with constraint on the change rate of control variables［J］. Journal of Astronautics， 2022， 43（10）： 1368-1377 （in Chinese）.
[13]	MALL K， TAHERI E. Three-degree-of-freedom hypersonic reentry trajectory optimization using an advanced indirect method［J］. Journal of Spacecraft and Rockets， 2022， 59（5）： 1463-1474.
[14]	PATTERSON M A， RAO A V. GPOPS-Ⅱ： A MATLAB software for solving multiple-phase optimal control problems using hp-adaptive Gaussian quadrature collocation methods and sparse nonlinear programming［J］. ACM Transactions on Mathematical Software， 2014， 41（1）： 1-37.
[15]	PATTERSON M A， RAO A V. GPOPS-Ⅱ： A general-purpose MATLAB software for solving multiple-phase optimal control problems version 2.3［EB/OL］. （2016-12-01）［2025-04-22］. .
[16]	HAGER W W， HOU H Y， MOHAPATRA S， et al. Convergence rate for a Radau hp collocation method applied to constrained optimal control［J］. Computational Optimization and Applications， 2019， 74（1）： 275-314.
[17]	CHEN W F， REN Y Y， ZHANG G J， et al. A simultaneous approach for singular optimal control based on partial moving grid［J］. AIChE Journal， 2019， 65（6）： e16584.
[18]	印明威，李京阳，宝音贺西. 敏捷卫星姿态机动的奇异最优控制［J］. 光学精密工程， 2018， 26（4）： 906-915.
	YIN M W， LI J Y， BAO Y. Singular optimal control for three-axis reorientation of an agile satellite［J］. Optics and Precision Engineering， 2018， 26（4）： 906-915 （in Chinese）.
[19]	李京琪，郑宇锋，刘磊，等. 基于bang-bang控制平滑正则化的动力制动轨迹优化［J］. 海军工程大学学报， 2024， 36（5）： 54-60.
	LI J Q， ZHENG Y F， LIU L， et al. Trajectory optimization via smooth regularization of Bang-Bang control for power braking［J］. Journal of Naval University of Engineering， 2024， 36（5）： 54-60 （in Chinese）.
[20]	CAPONIGRO M， GHEZZI R， PICCOLI B， et al. Regularization of chattering phenomena via bounded variation controls［J］. IEEE Transactions on Automatic Control， 2018， 63（7）： 2046-2060.
[21]	PEI C Y， YOU S X， DAI R， et al. A unified optimization algorithm for Bang-Bang optimal control［C］∥ AIAA Scitech 2022 Forum. Reston： AIAA， 2022.
[22]	ANDRÉS-MARTÍNEZ O， FLORES-TLACUAHUAC A， KAMESWARAN S， et al. An efficient direct/indirect transcription approach for singular optimal control［J］. AIChE Journal， 2019， 65（3）： 937-946.
[23]	JACKSON M R， ZHAO Y J， SLATTERY R A. Sensitivity of trajectory prediction in air traffic management［J］. Journal of Guidance， Control， and Dynamics， 1999， 22（2）： 219-228.
[24]	MEHRA R， DAVIS R. A generalized gradient method for optimal control problems with inequality constraints and singular arcs［J］. IEEE Transactions on Automatic Control， 1972， 17（1）： 69-79.
[25]	BENSON D A， HUNTINGTON G T， THORVALDSEN T P， et al. Direct trajectory optimization and costate estimation via an orthogonal collocation method［J］. Journal of Guidance， Control， and Dynamics， 2006， 29（6）： 1435-1440.
[26]	ARCHIBALD R， GELB A， YOON J. Polynomial fitting for edge detection in irregularly sampled signals and images［J］. SIAM Journal on Numerical Analysis， 2005， 43（1）： 259-279.
[27]	POLES D. Base of aircraft data （BADA） aircraft performance modelling report［J］. EEC Technical/Scientific Report， 2009， 9： 1-68.
[28]	EUROCONTROL. Base of aircraft data （BADA）［EB/OL］. （2025-04-20）［2025-04-22］. .

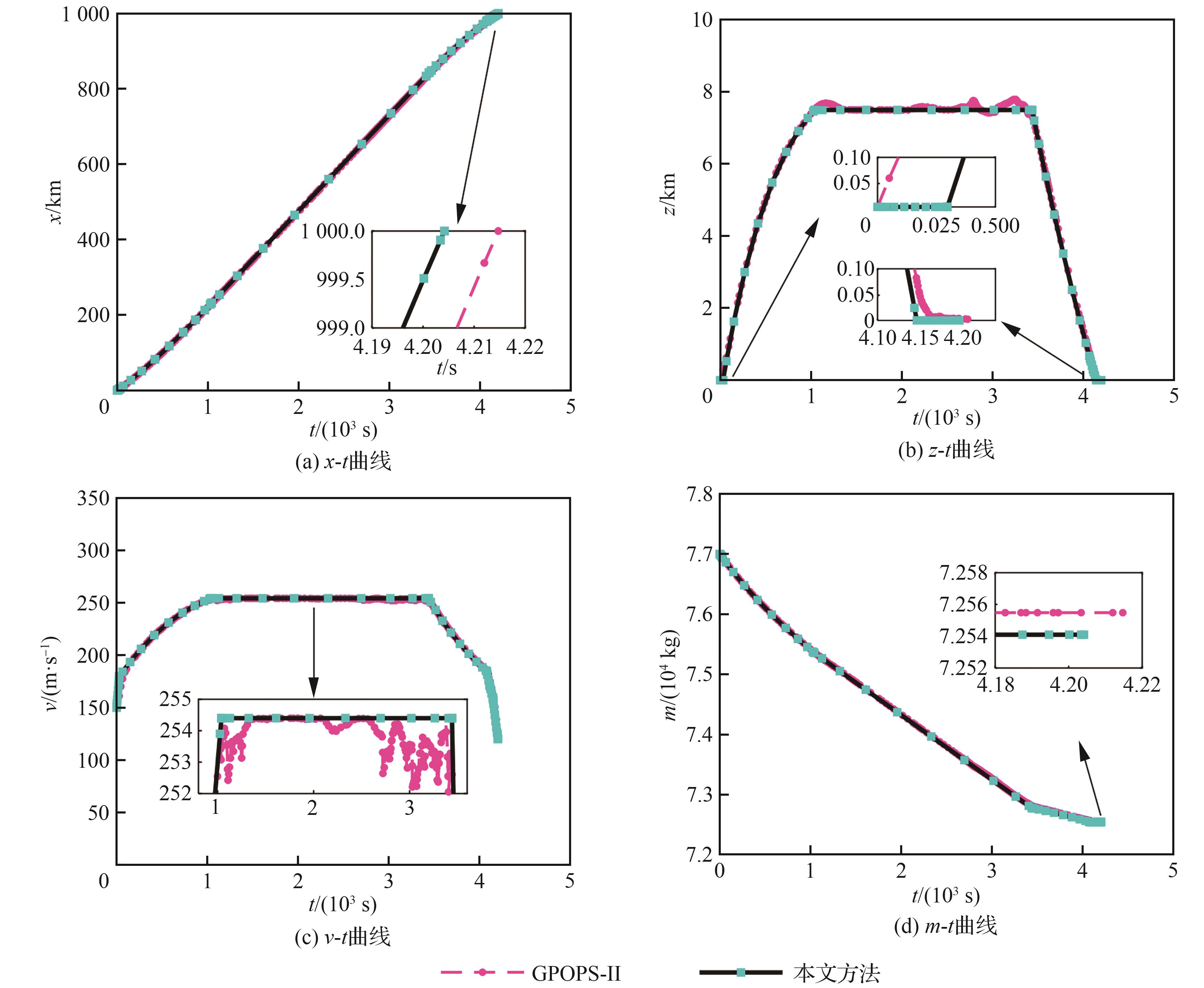

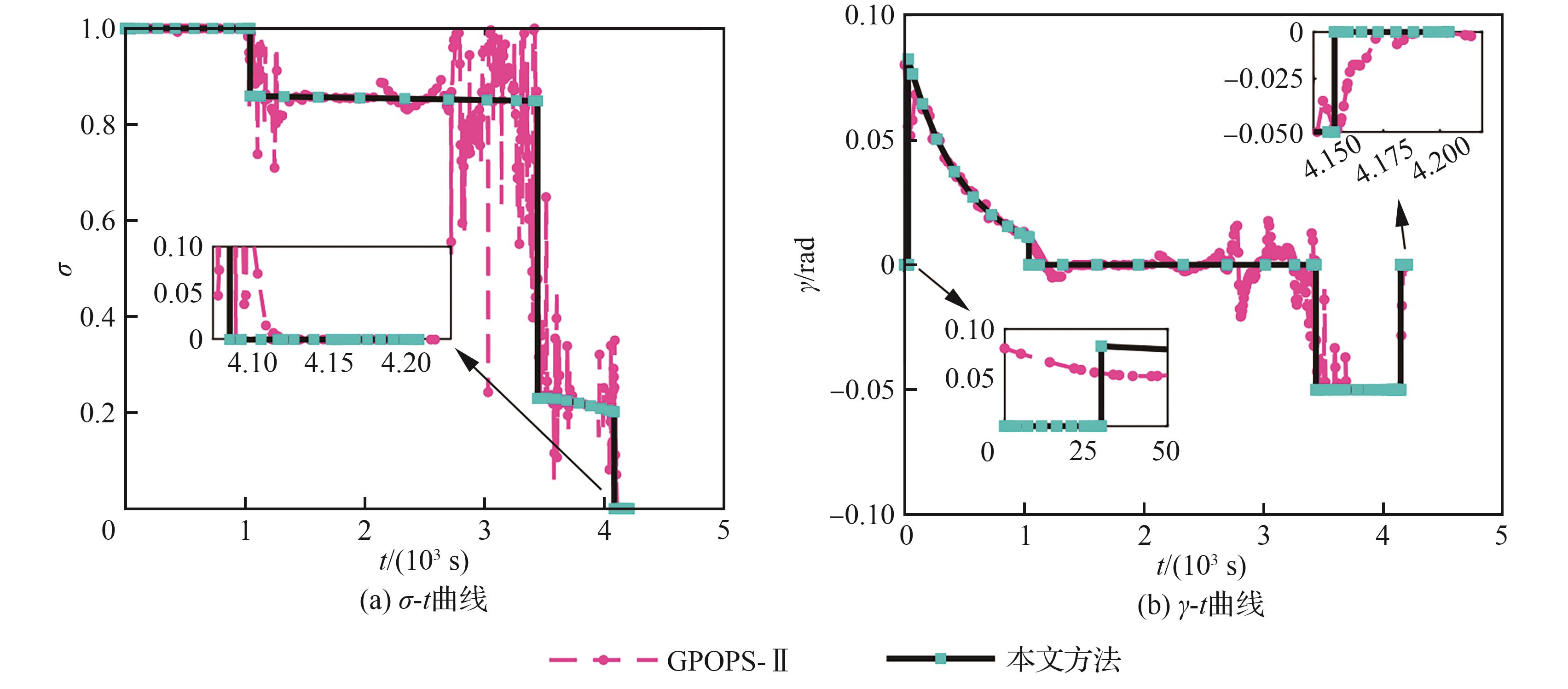

对比项目	本文方法	GPOPS-Ⅱ
燃油消耗量/kg	4 459.03	4 451.81
总飞行时间/s	4 204.19	4 214.73
优化迭代次数	4	15
最终LGR配点数	64	1 203
CPU平均运行时间/s	1.804 2	10.594 8

约束项	本文方法	GPOPS-Ⅱ
动力学约束残差最大值/10^-11	3.91	995
最大马赫数^*	0.82	0.82
最大飞行高度/m	7 483.87	7 778.27
最小飞行高度/m	0.00	0.00

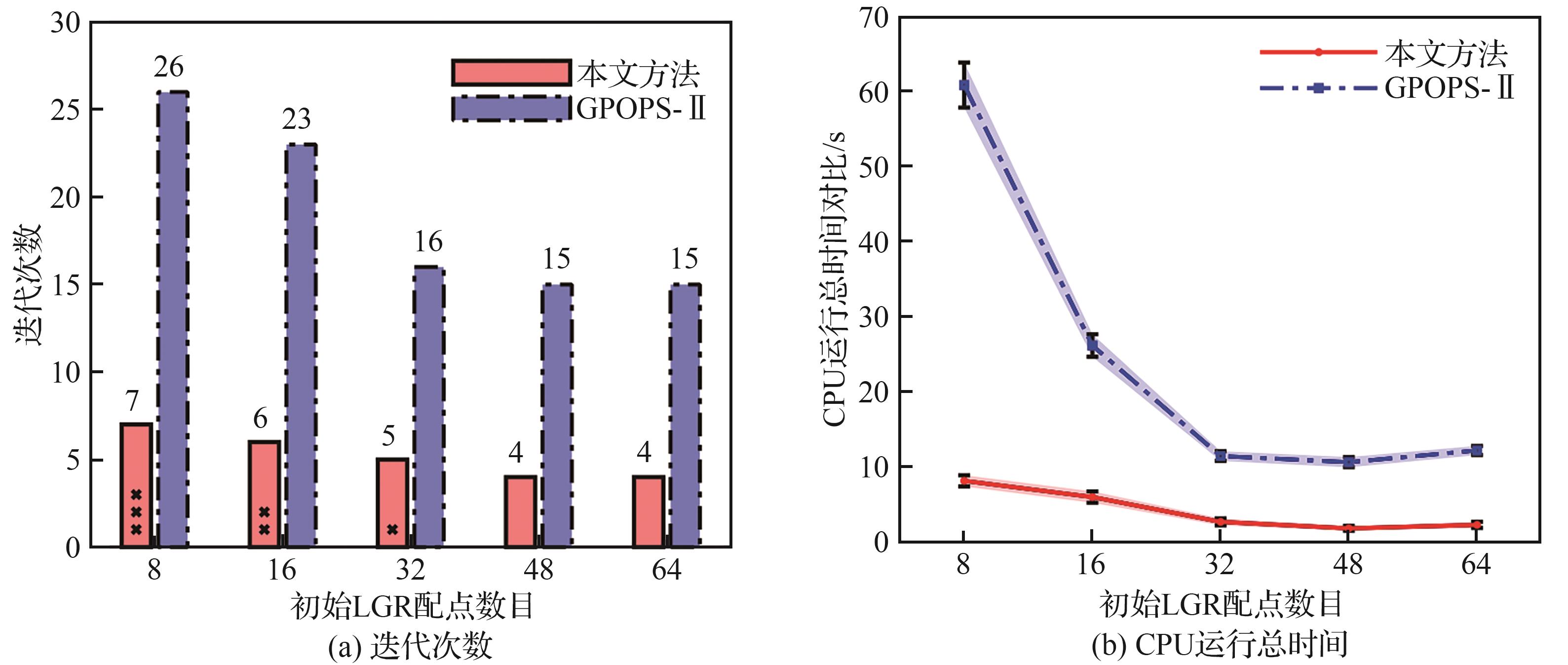

CPU运行时间/s	初始LGR配点数目					占总CPU运行时间的比值/%
CPU运行时间/s	8	16	32	48	64	占总CPU运行时间的比值/%
总时间	8.103 5	5.945 4	2.638 0	1.804 2	1.935 9
NLP优化求解	6.095 8	4.449 7	1.931 0	1.291 2	1.330 3	68.03~76.37
正则化迭代参数更新	0.674 3	0.493 7	0.156 8	0.094 3	0.123 4	5.23~8.32
残差计算	0.287 6	0.215 4	0.102 3	0.087 6	0.098 7	3.55~5.10
网格调整与伪谱矩阵计算	0.221 5	0.112 8	0.083 4	0.058 7	0.062 3	1.90~3.25
控制突变时刻的估计	0.356 7	0.287 6	0.154 3	0.093 4	0.105 6	4.40~5.85
控制类型的识别	0.278 4	0.215 4	0.102 3	0.087 6	0.098 7	3.44~5.10
协态变量的估计	0.115 4	0.087 6	0.016 5	0.007 6	0.008 3	0.42~1.47
其他	0.073 8	0.083 2	0.091 4	0.083 8	0.108 6	0.91~5.61

对比项目	案例2求解结果		案例3求解结果		案例4求解结果
对比项目	本文方法	GPOPS-Ⅱ	本文方法	GPOPS-Ⅱ	本文方法	GPOPS-Ⅱ
燃油消耗量/kg	4 088.96	4 085.24	2 763.68	2 762.57	4 310.55	4 306.35
总飞行时间/s	4 283.04	4 983.11	2 632.22	2 632.60	4 185.29	4 187.51
优化迭代次数	4	21	3	16	4	18
最终LGR配点数	93	1 786	59	1076	76	1 315
CPU平均运行时间/s	2.09	43.45	1.67	11.75	1.81	16.86
最大动力学约束残差/10^-10	4.56	98.4	41.1	31.4	0.35	90.5
最大马赫数	0.82	0.82	0.82	0.82	0.82	0.82
最大飞行高度/m	10 648.44	11 000	7 483.87	7 511.78	7 483.87	7 563.98
最小飞行高度/m	0	0	0	0	0	0

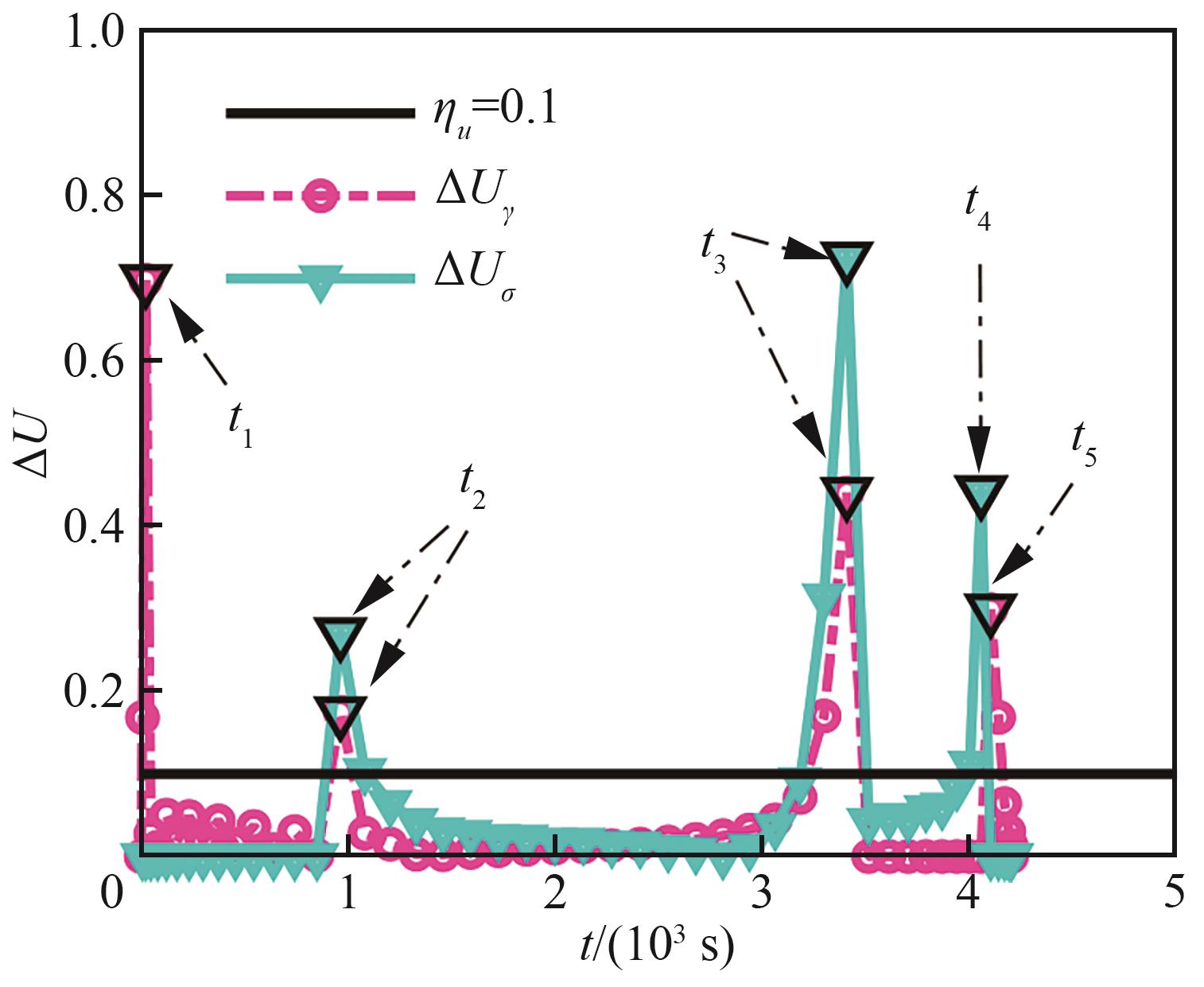

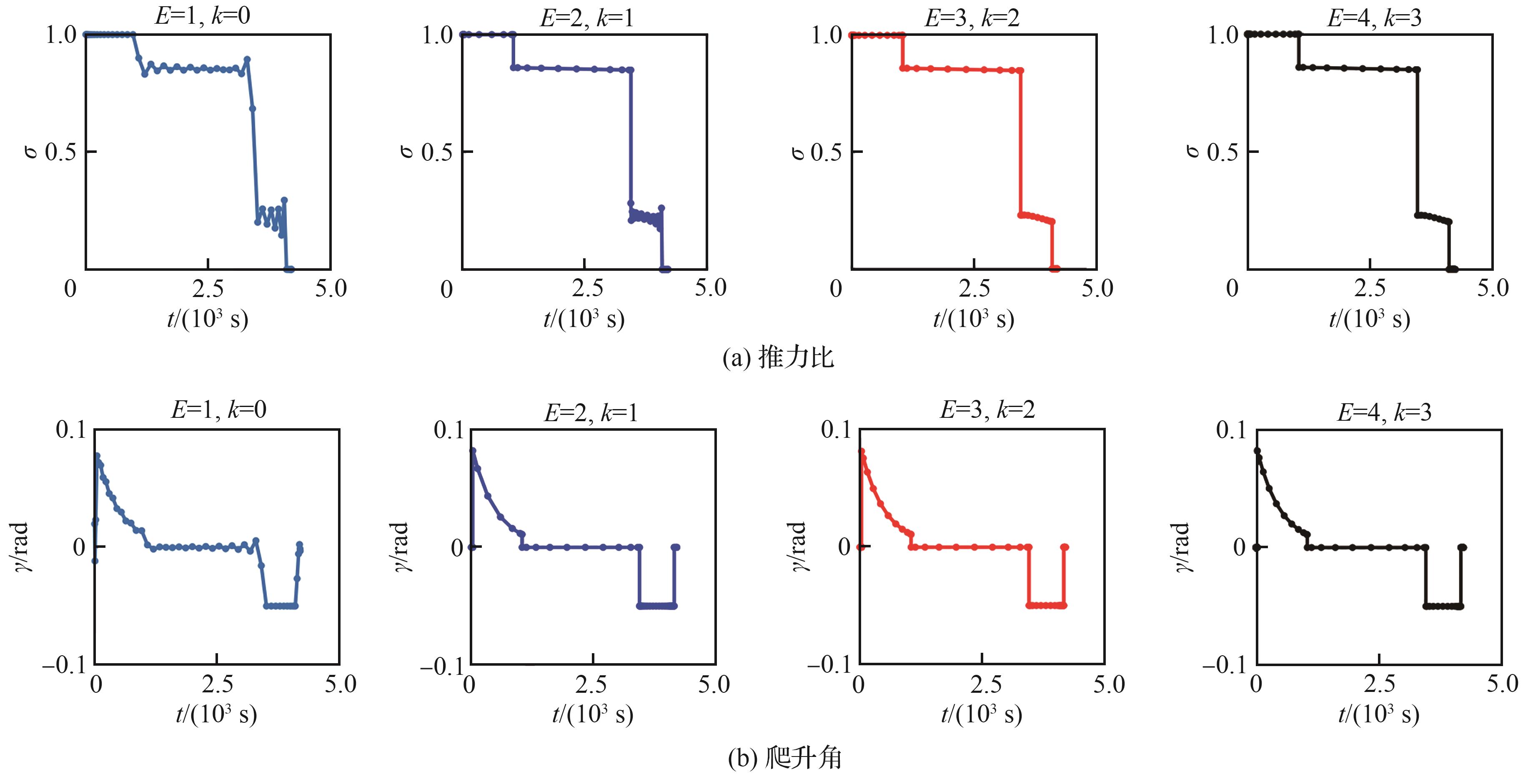

控制突变时刻	迭代历程
控制突变时刻	E=1	E=2	E=3	E=4
t₁/s	22.42	29.64	29.64	29.64
t₂/s	1 080.93	1 039.85	1 039.85	1 039.85
t₃/s	3 409.15	3 441.01	3 441.22	3 441.22
t₄/s	4 103.81	4 087.63	4 080.94	4 080.94
t₅/s	4 170.64	4 149.61	4 149.98	4 149.98

Singularity analysis and automatic solution method for aircraft multi-constrained trajectory optimization

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 17

References 28

Related Articles 15

Recommended Articles

Metrics

Comments

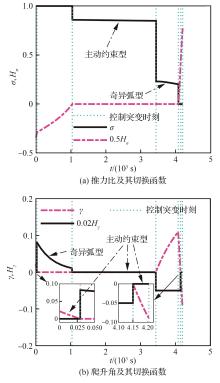

阶段	时间区间/s	控制类型
阶段	时间区间/s	推力比	爬升角
1	［0， 29.64］	Bang-bang型	主动约束型
2	［29.64，1 039.85］	Bang-bang型	奇异弧型
3	［1 039.85，3 441.22］	主动约束型	主动约束型
4	［3 441.22，4 080.94］	奇异弧型	Bang-bang型
5	［4 080.94，4 149.98］	Bang-bang型	Bang-bang型
6	［4 149.98，4 204.19］	Bang-bang型	主动约束型
