固体火箭超燃冲压发动机模态转换迟滞现象

doi:10.7527/S1000-6893.2025.32966

Abstract

Abstract:

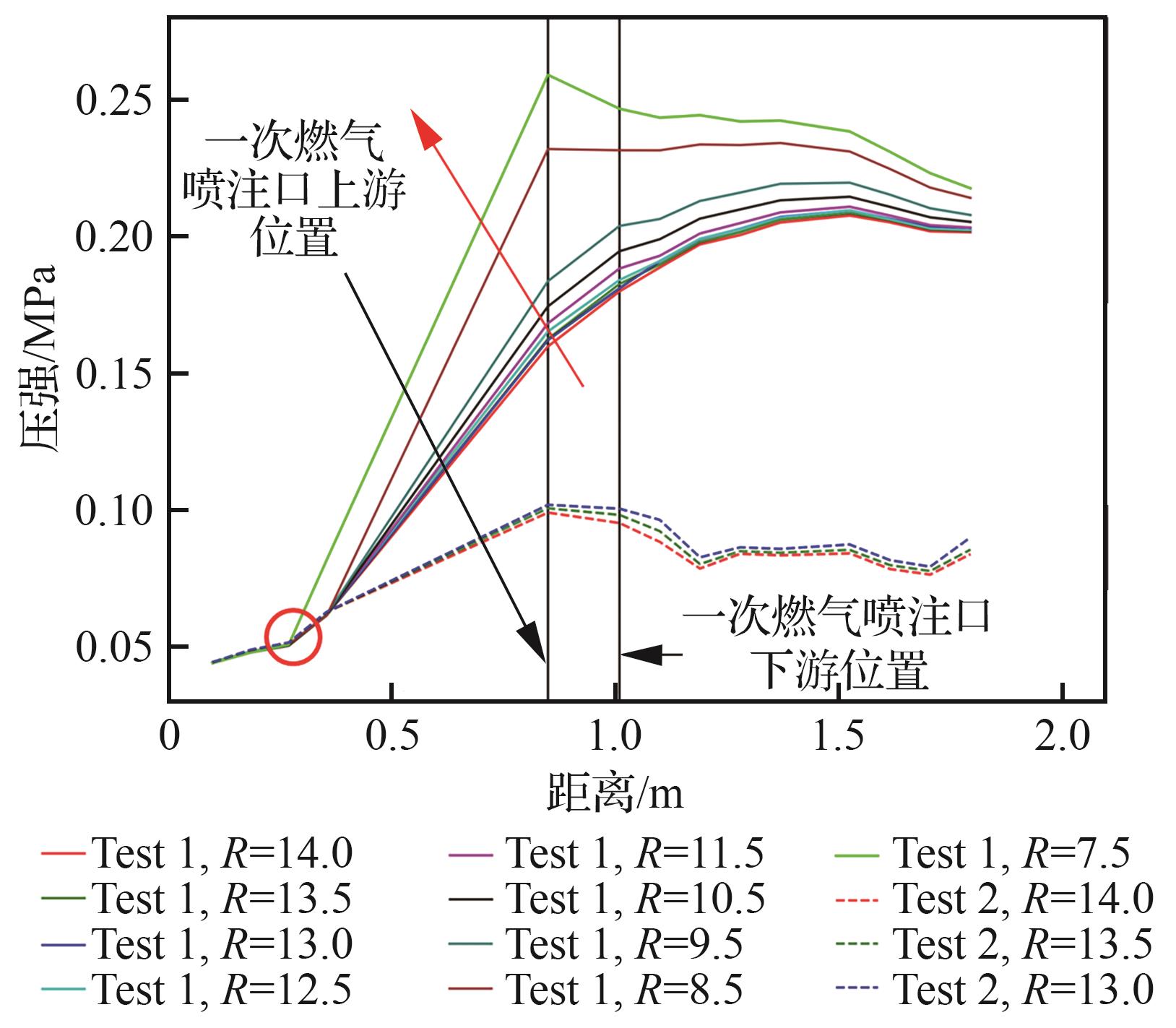

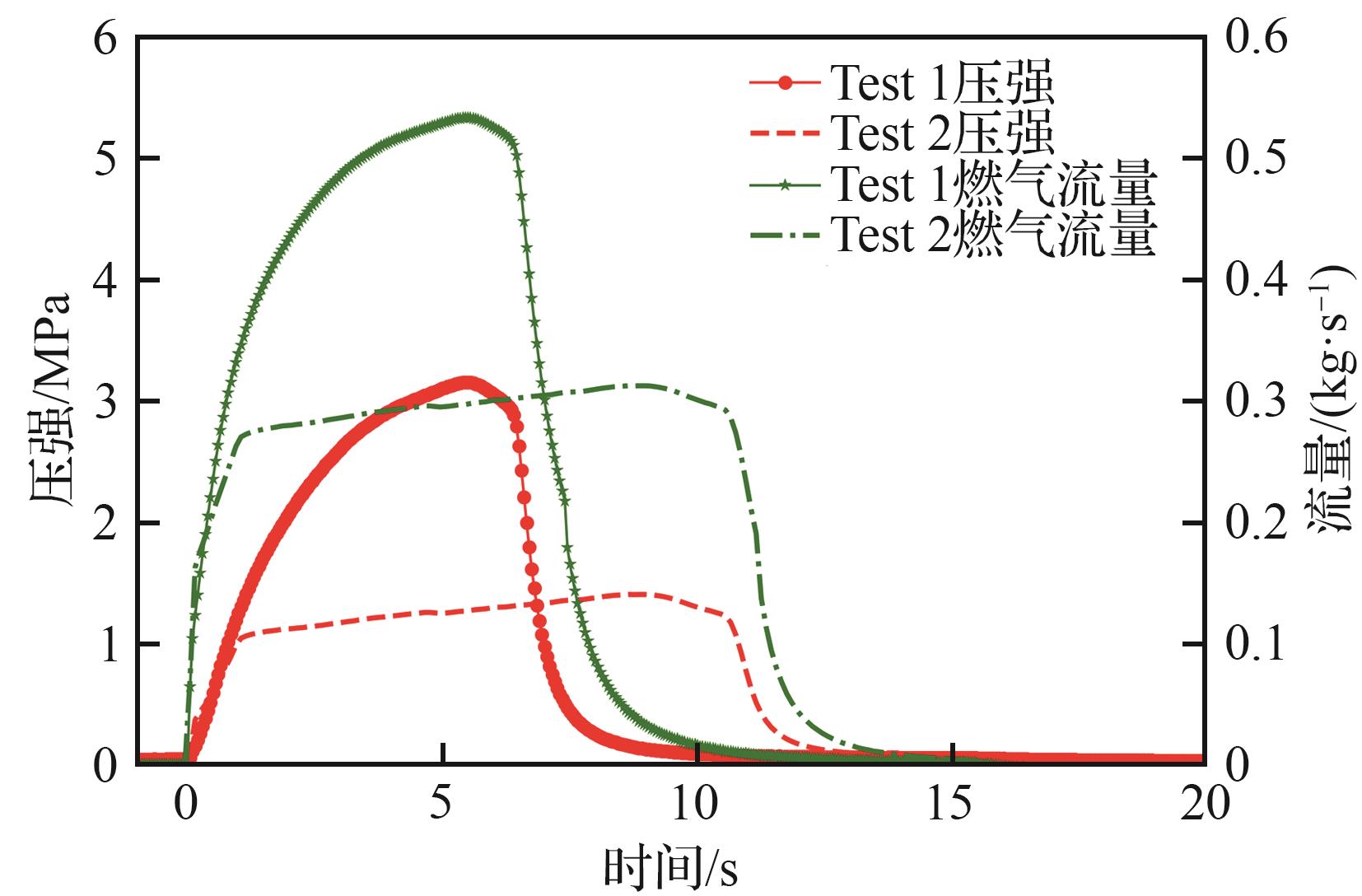

To raise the level of understanding of combustion mode transition characteristics in solid rocket scramjet engine， direct connect test of mode transition in solid rocket scramjet engine is investigated. The flight condition of Mach number 6.0 and height of 26.0 km is simulated in direct connect test， and mass flow rate of inflow air is 4.0 kg/s. With adjusting the mass rate of fuel gas， subsonic combustion mode and supersonic combustion mode are observed in the same configuration of combustor. The max pressure of fuel gas generator in subsonic combustion mode is 3.152 MPa， the max mass flow rate of fuel gas is 0.533 kg/s， and working hours is about 7 s； the max pressure of fuel gas generator in supersonic combustion mode is 1.404 MPa， the max mass flow rate of fuel gas is 0.312 kg/s， and working hours is about 11 s. The result shows that at the same air-fuel ratio （14.0， 13.5， 13.0）， the distribution of pressure along the engine in subsonic combustion mode is apparently higher than that in supersonic combustion mode. This phenomenon shows that under the same inlet flow condition and engine configuration， there may be subsonic combustion mode or supersonic combustion mode， and in other words， hysteresis of combustion mode transition appears. Analyzing the distribution of pressure along the engine during initial ignition stage of tests， it is found that hysteresis of combustion mode transition is caused by difference in ignition region of fuel gas.

Key words: solid rocket, scramjet, mode transition, hysteresis, direct connect test

CLC Number:

V438

Xingang DONG, Ruipeng CAI, Yuxin YANG, Likeng HUANG, Guoqiang HE. Hysteresis of combustion mode transition in solid rocket scramjet engine[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(17): 632966.

Figures/Tables 9

Table 1

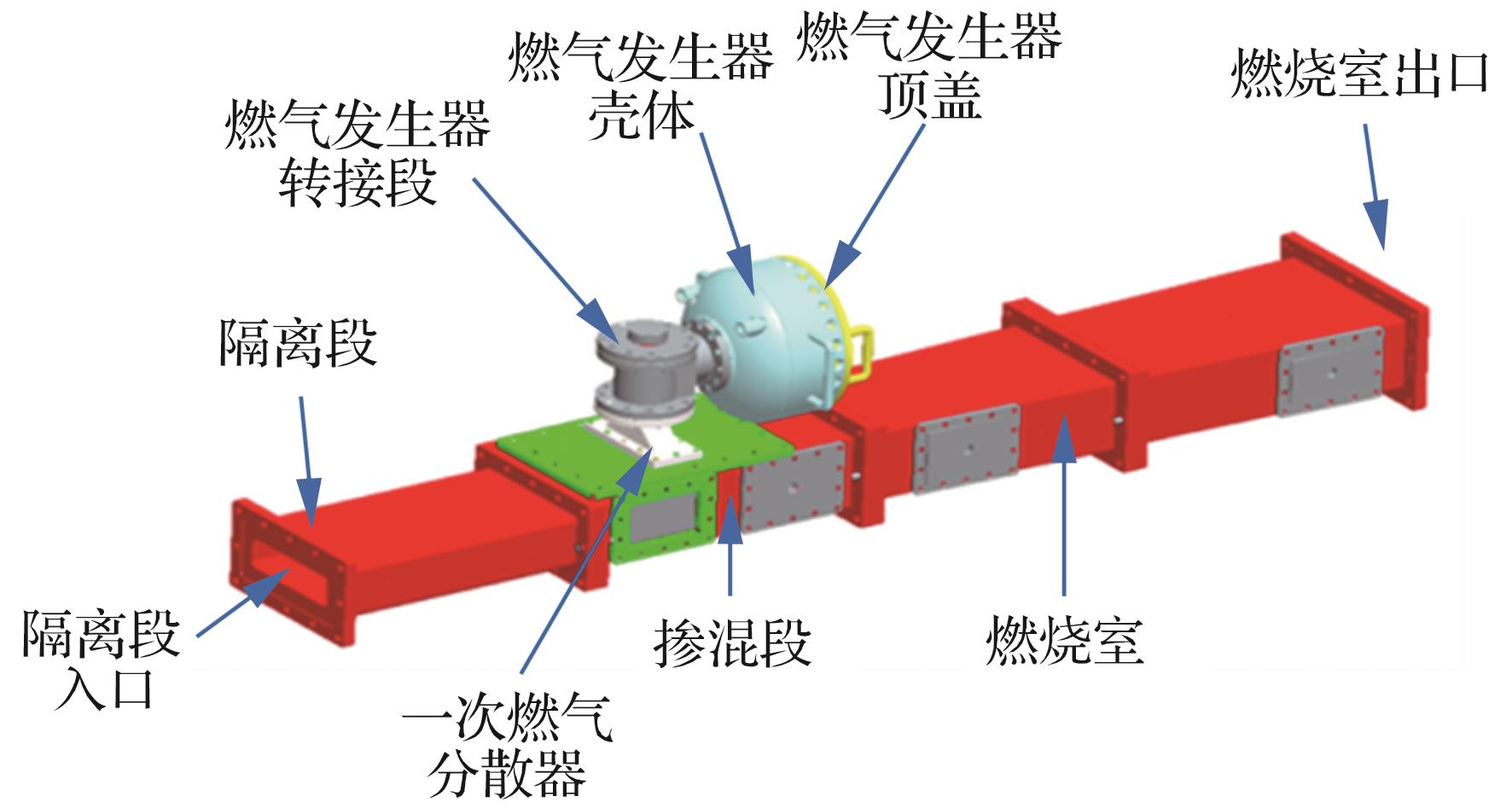

Fig.1

Table 2

Fig.2

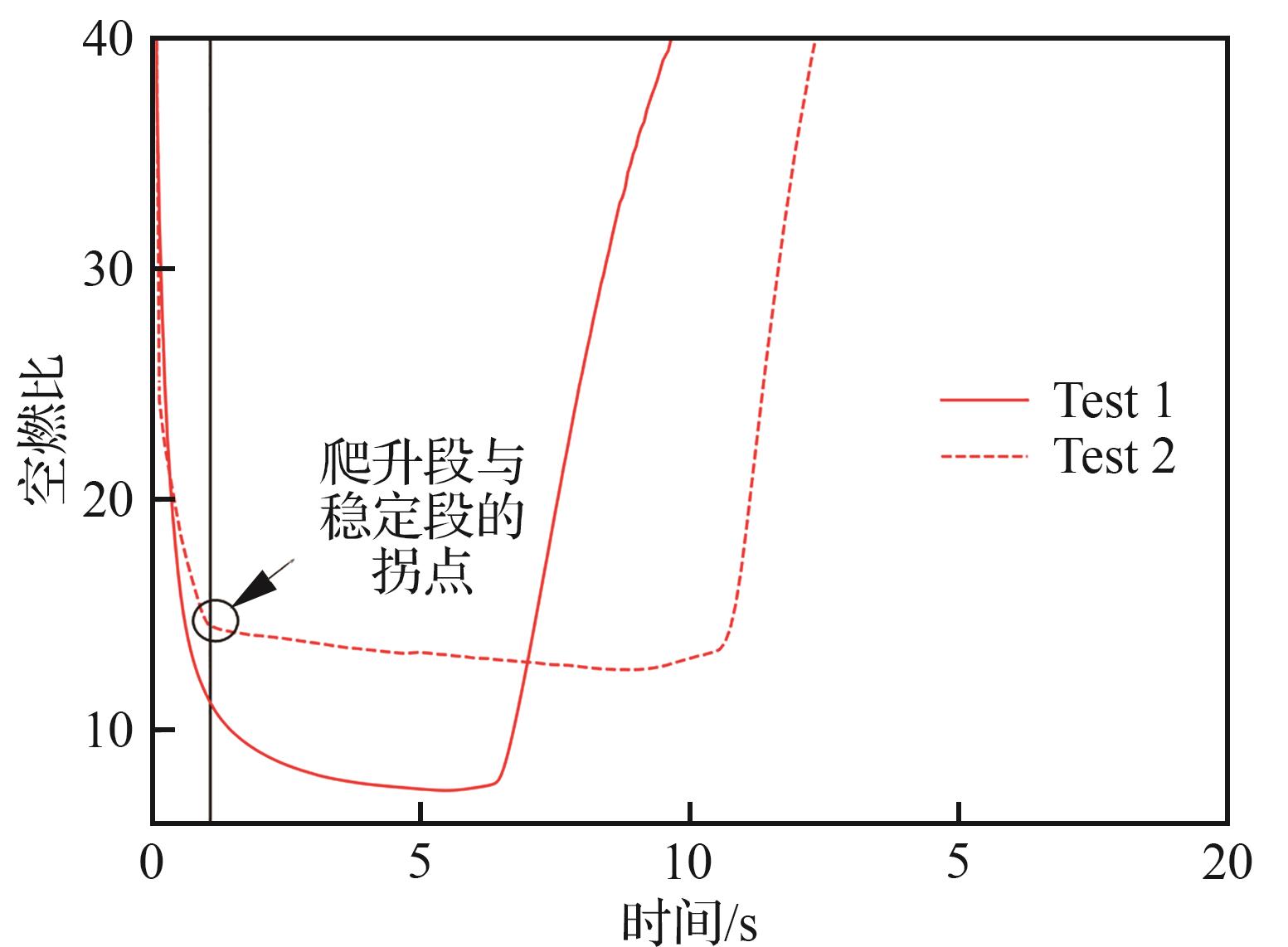

Fig.3

Fig.4

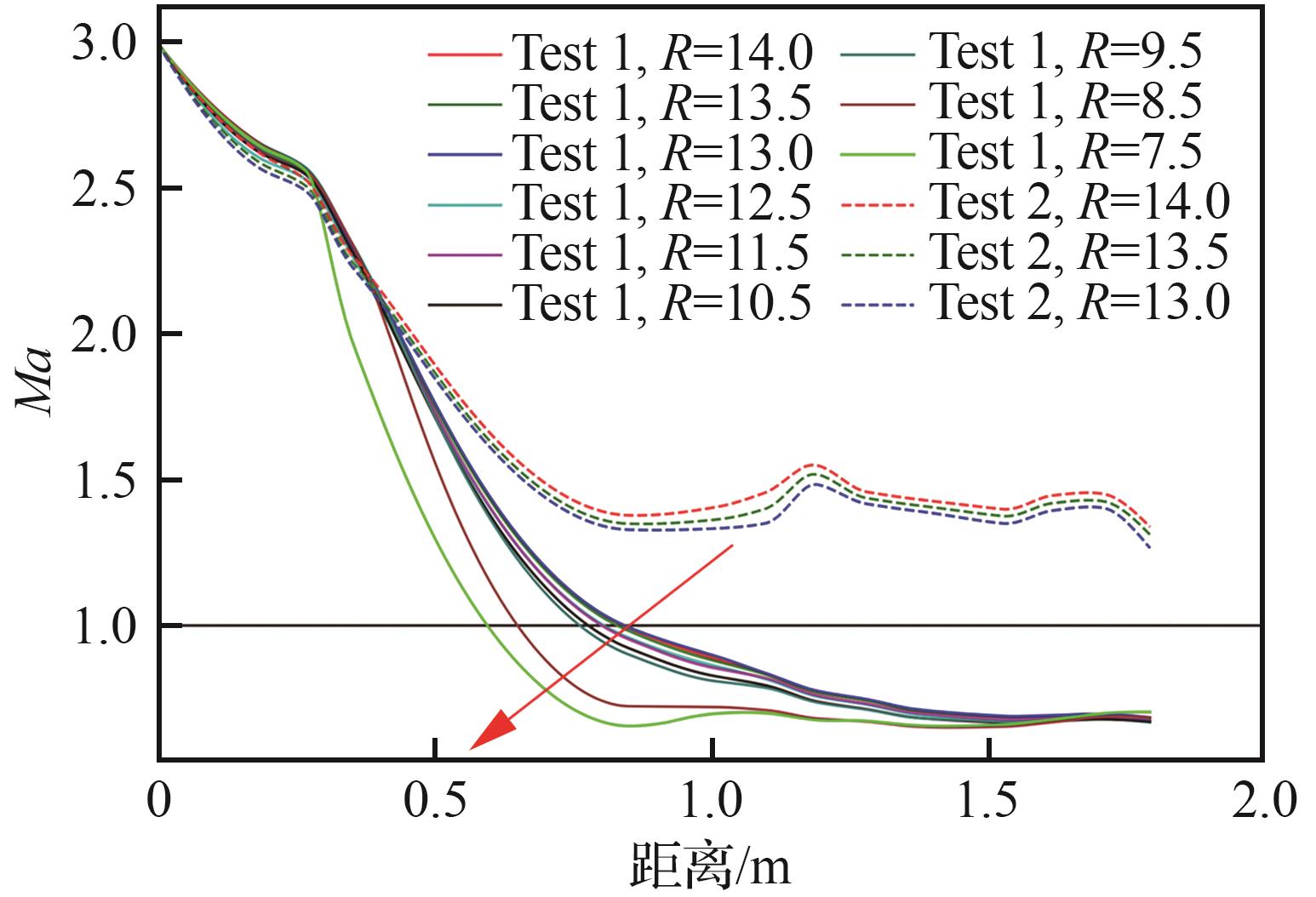

Fig.5

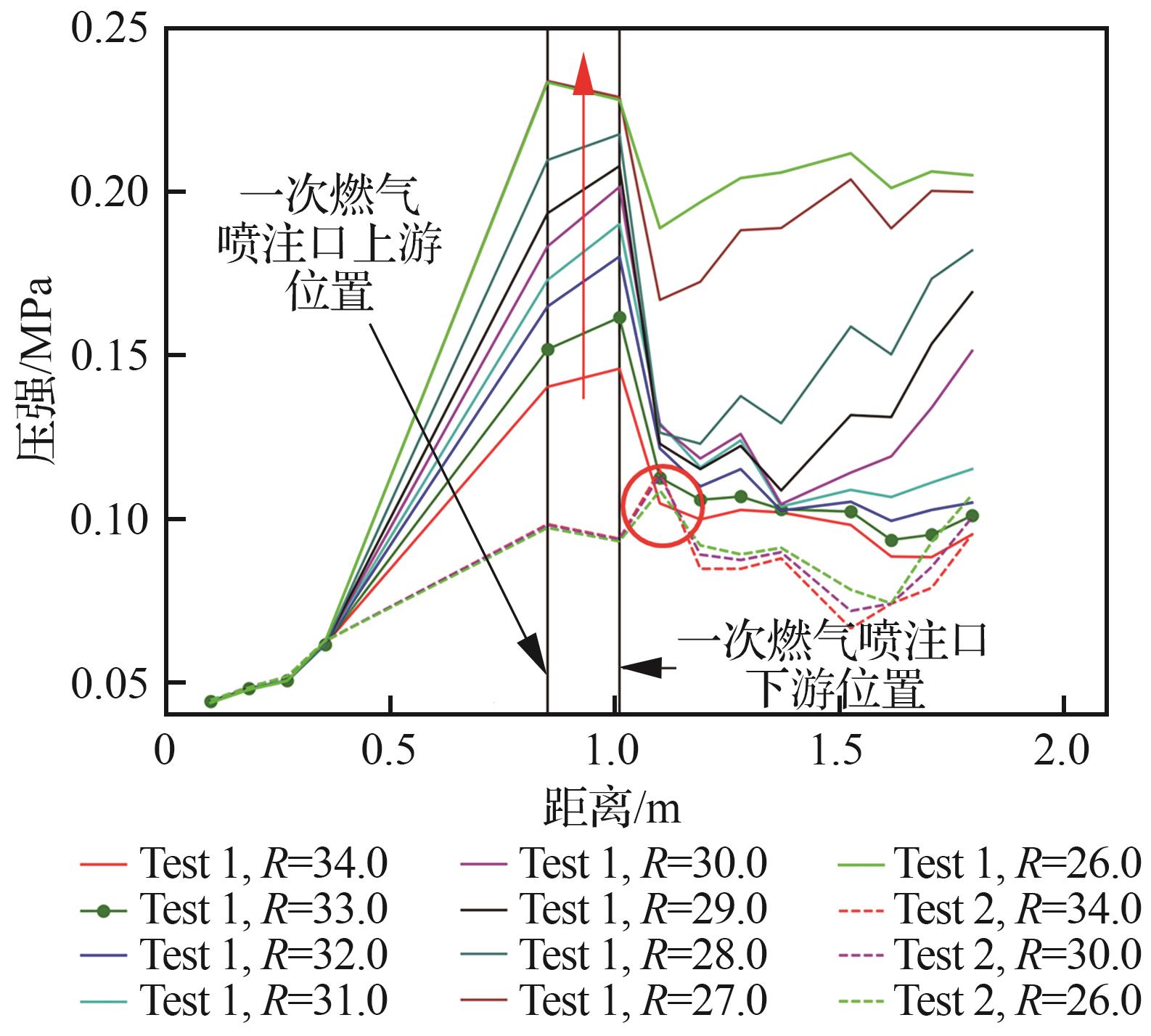

Fig.6

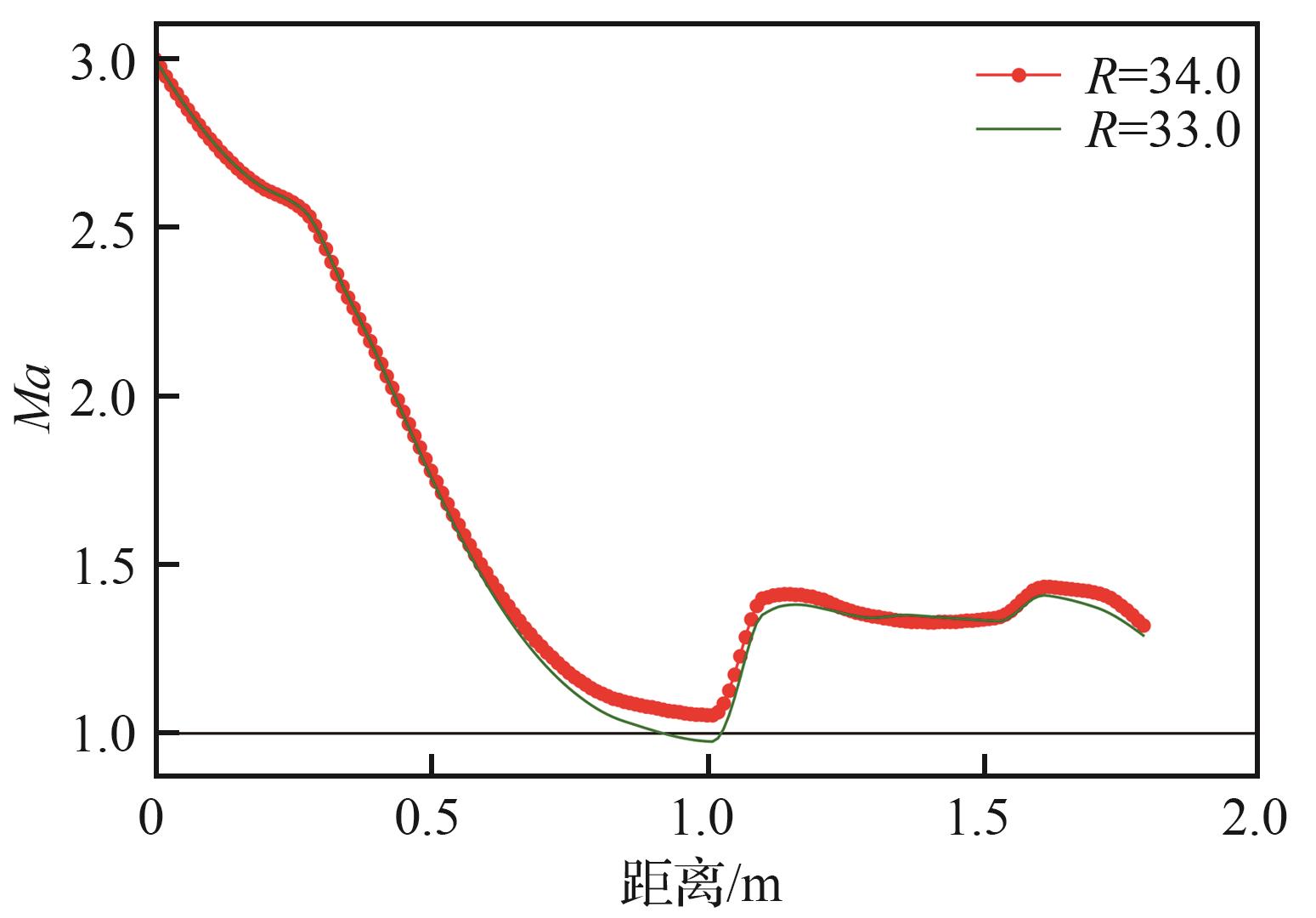

Fig.7

References 27

[1]	HEISER W， PRATT D， DALEY D， et al. Hypersonic airbreathing propulsion［M］. Reston： AIAA， Inc.， 1994.
[2]	陈军，白菡尘，万冰，等. 双模态冲压发动机：从宽域性能优化到模态设计［J］. 航空学报， 2024， 45（11）： 529781.
	CHEN J， BAI H C， WAN B， et al. Dual-mode scramjet： From performance optimization to mode-design［J］. Acta Aeronautica et Astronautica Sinica， 2024， 45（11）： 529781 （in Chinese）.
[3]	MICKA D J. Combustion stabilization， structure， and spreading in a laboratory dual-mode scramjet combustor［D］. Ann Arbor： The University of Michigan， 2010.
[4]	VAN DER LEE J， YOKEV N， MICHAELS D. Combustion instability due to combustion mode transition in a cavity-stabilized scramjet［J］. Journal of Propulsion and Power， 2022， 38（6）： 945-956.
[5]	KODERA M， TOMIOKA S， KANDA T， et al. Mach 6 test of a scramjet engine with boundary-layer bleeding［C］∥ 12th AIAA International Space Planes and Hypersonic Systems and Technologies. Reston： AIAA， 2003.
[6]	TURNER J C， SMART M K. Mode change characteristics of a three-dimensional scramjet at Mach 8［J］. Journal of Propulsion and Power， 2013， 29（4）： 982-990.
[7]	时文，乐嘉陵，田野. 污染组分对超燃冲压发动机工作特性影响［J］. 航空学报， 2024， 45（19）： 033027.
	SHI W， LE J L， TIAN Y. Vitiation effects on scramjet operational characteristics［J］. Acta Aeronautica et Astronautica Sinica， 2024， 45（19）： 033027 （in Chinese）.
[8]	LANDSBERG W O， VANYAI T， MCINTYRE T J， et al. Experimental scramjet combustion modes of hydrocarbon mixtures at Mach 8 flight conditions［J］. AIAA Journal， 2020， 58（12）： 5117-5122.
[9]	肖保国，晏至辉，田野，等. 超燃发动机燃烧模态判别准则初步研究［J］. 推进技术， 2015， 36（8）： 1121-1126.
	XIAO B G， YAN Z H， TIAN Y， et al. Preliminary study on criterion of indentifying combustion mode for scramjet［J］. Journal of Propulsion Technology， 2015， 36（8）： 1121-1126 （in Chinese）.
[10]	李朗，郑中华，田野. 当量比对超燃燃烧室燃烧性能影响的研究［J］. 应用力学学报， 2015， 32（6）： 1006-1011.
	LI L， ZHENG Z H， TIAN Y. Numerical investigation of combustion performance of fuel equivalence ratio in a scramjet combustor［J］. Chinese Journal of Applied Mechanics， 2015， 32（6）： 1006-1011 （in Chinese）.
[11]	潘余，李大鹏，刘卫东，等. 超燃冲压发动机燃烧模态转换试验研究［J］. 爆炸与冲击， 2008， 28（4）： 293-297.
	PAN Y， LI D P， LIU W D， et al. Combustion mode transition in a scramjet engine［J］. Explosion and Shock Waves， 2008， 28（4）： 293-297 （in Chinese）.
[12]	ZHANG Y， CHEN B， LIU G， et al. Influencing factors on the mode transition in a dual-mode scramjet［J］. Acta Astronautica， 2014， 103： 1-15.
[13]	MASUMOTO R， TOMIOKA S， KUDO K， et al. Experimental study on combustion modes in a supersonic combustor［J］. Journal of Propulsion and Power， 2011， 27（2）： 346-355.
[14]	浮强，宋文艳，石德永，等. 来流总温对双模态燃烧室模态转换边界的影响［J］. 航空动力学报， 2019， 34（5）： 1119-1126.
	FU Q， SONG W Y， SHI D Y， et al. Effects of incoming flow total temperature on mode transition boundary in dual mode scramjet combustor［J］. Journal of Aerospace Power， 2019， 34（5）： 1119-1126 （in Chinese）.
[15]	林旭阳，金捷，王方，等. 壁温对氢燃料超燃燃烧室流动特性的影响研究［J］. 推进技术， 2020， 41（5）： 1097-1102.
	LIN X Y， JIN J， WANG F， et al. Effects of wall temperature on flow characteristics of hydrogen fuel scramjet combustor［J］. Journal of Propulsion Technology， 2020， 41（5）： 1097-1102 （in Chinese）.
[16]	陈亮，宋文艳，罗飞腾. H₂O/CO₂污染对煤油燃料双模态超声速燃烧室影响研究［J］. 推进技术， 2015， 36（2）： 253-260.
	CHEN L， SONG W Y， LUO F T. Vitiation effects of H₂O/CO₂ on kerosene-fueled dual-mode supersonic combustor performance［J］. Journal of Propulsion Technology， 2015， 36（2）： 253-260 （in Chinese）.
[17]	ROCKWELL R D Jr， GOYNE C P， HAW W， et al. Experimental study of test-medium vitiation effects on dual-mode scramjet performance［J］. Journal of Propulsion and Power， 2011， 27（5）： 1135-1142.
[18]	于田. 超燃冲压发动机模态转换突变特性研究［D］. 哈尔滨：哈尔滨工业大学， 2009.
	YU T. Catastrophe characteristics of mode transition in scramjet［D］. Harbin： Harbin Institute of Technology， 2009 （in Chinese）.
[19]	ZHU S H， XU X. Experimental study on mode transition of the dual-mode scramjet with two-staged-strut injectors［J］. Proceedings of the Institution of Mechanical Engineers， Part G： Journal of Aerospace Engineering， 2018， 232（10）： 1864-1874.
[20]	YANG Q C， CHANG J T， BAO W， et al. A mechanism of combustion mode transition for hydrogen fueled scramjet［J］. International Journal of Hydrogen Energy， 2014， 39（18）： 9791-9797.
[21]	FENG S， CHANG J T， ZHANG C L， et al. Experimental and numerical investigation on hysteresis characteristics and formation mechanism for a variable geometry dual-mode combustor［J］. Aerospace Science and Technology， 2017， 67： 96-104.
[22]	JIAO X L， CHANG J T， WANG Z Q， et al. Hysteresis phenomenon of hypersonic inlet at high Mach number［J］. Acta Astronautica， 2016， 128： 657-668.
[23]	ZHU S H， XU X， JI P F. Flame stabilization and propagation in dual-mode scramjet with staged-strut injectors［J］. AIAA Journal， 2017， 55（1）： 171-179.
[24]	CUI T， TANG S L， ZHANG C， et al. Hysteresis phenomenon of mode transition in ramjet engines and its topological rules［J］. Journal of Propulsion and Power， 2012， 28（6）： 1277-1284.
[25]	赵李北，夏智勋，马立坤，等. 固体超燃冲压发动机燃烧模态转换研究［J］. 固体火箭技术， 2023， 46（2）： 167-178.
	ZHAO L B， XIA Z X， MA L K， et al. Investigation of combustion mode transition on solid rocket scramjet［J］. Journal of Solid Rocket Technology， 2023， 46（2）： 167-178 （in Chinese）.
[26]	董新刚，蔡瑞鹏，黄礼铿，等. 固体火箭超燃冲压发动机燃烧模态转换特性实验研究［J］. 推进技术， 2026， 47（3）： 201-208.
	DONG X G， CAI R P， HUANG L K， et al. Experimental investigation on combustion mode transition characteristics in solid rocket scramjet engine［J］. Journal of Propulsion Technology， 2026， 47（3）： 201-208 （in Chinese）.
[27]	李潮隆. 固体火箭超燃冲压发动机燃烧组织技术研究［D］. 长沙：国防科技大学， 2019.
	LI C L. Research on combustion organization technology of solid rocket scramjet［D］. Changsha： National University of Defense Technology， 2019 （in Chinese）.

参数	数值
模拟高度/km	26.0
飞行马赫数	6.0
隔离段入口马赫数	3.0
流量/（kg·s^-1）	4.0
总温/K	1 664.1
总压/MPa	2.4

参数	Test 1	Test 2
垫片厚度/mm	7	6
喉部面积/mm²	125.7	190.4
