含纳米颗粒碳氢燃料火箭发动机燃烧性能

doi:10.7527/S1000-6893.2025.32844

Abstract

Abstract:

Adding high-energy metallic or non-metallic solid particles to liquid hydrocarbon fuel is an important means to improve the energy characteristics of fuel. Based on the liquid rocket engine platform， the theoretical performance prediction and combustion test research of pure liquid fuel and fuel containing nano-aluminum/boron particles are carried out with residual oxygen coefficient of 0.60-0.80， and the influence of adding nano-aluminum particles and nano-boron particles to hydrocarbon fuel is explored， the effects of slurry dispersion scheme and gel dispersion scheme are compared. The results show that the addition of 10wt% nano-aluminum/boron particles leads to a decrease in combustion efficiency of 1.2%/2.4%， and the corresponding engine density specific impulse increased by 6.5%/3.2% respectively. The addition of nano-aluminum particles has more potential in engineering applications. Compared with QC pure liquid fuel， the combustion efficiency of QC+B slurry fuel with 20wt% nano-boron particles added is decreased by 9.1% on average， and the density specific impulse is decreased by 0.9% on average， while the combustion efficiency of QC+B gel fuel with 20wt% nano-boron particles added is decreased by 5.8% on average， and the density specific impulse is increased by 3.9% on average. The gel scheme is more conducive to giving full play to the high energy density characteristics of nanoparticles than the slurry scheme.

Key words: hydrocarbon fuel containing nanoparticles, slurry fuel, gel fuel, rocket engine, combustion performance

CLC Number:

V436⁺.2

Yang YU, Kai XIANG, Jiaxun LIU, Xu WANG, Qingchun YANG, Xu XU, Haiyun SUN, Lun PAN. Combustion performance of hydrocarbon fuel containing nanoparticles in rocket[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(17): 632844.

Figures/Tables 25

Fig.1

Table 1

Fig.2

Table 2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Table 3

Fig.9

Table 4

Table 5

Fig.10

Fig.11

Fig.12

Fig.13

Fig.14

Table 6

Fig.15

Fig.16

Table 7

Fig.17

Fig.18

References 47

[1]	靳雨树，徐旭，杨庆春. 含能碳氢燃料燃烧特性及发动机应用研究进展［J］. 航空学报， 2023， 44（5）： 026690.
	JIN Y S， XU X， YANG Q C. Research progress in combustion characteristics and engine applications of energetic hydrocarbon fuels［J］. Acta Aeronautica et Astronautica Sinica， 2023， 44（5）： 026690 （in Chinese）.
[2]	王鹏，闫涛，刘平安. 纳米铝粉的可控制备及表面包覆研究进展［J］. 火炸药学报， 2024， 47（10）： 870-880.
	WANG P， YAN T， LIU P A. Research progress on preparation and surface modification of nano-aluminum powder in energetic materials［J］. Chinese Journal of Explosives & Propellants， 2024， 47（10）： 870-880 （in Chinese）.
[3]	OJHA P K， KARMAKAR S. Boron for liquid fuel Engines-a review on synthesis， dispersion stability in li-quid fuel， and combustion aspects［J］. Progress in Aerospace Sciences， 2018， 100： 18-45.
[4]	杨立军，徐旭，富庆飞，等. 含能碳氢燃料的研究进展［J］. 空天技术， 2022（3）： 1-17， 41.
	YANG L J， XU X， FU Q F， et al. Research progress of energetic hydrocarbon fuels［J］. Aerospace Technology， 2022（3）： 1-17， 41 （in Chinese）.
[5]	王旭，刘佳迅，刘永祺，等. 镁粉二次燃烧增强碳氢燃料冲压发动机推力［J］. 航空学报， 2025， 46（18）： 131786.
	WANG X， LIU J X， LIU Y Q， et al. Secondary combustion of magnesium powder to enhance kerosene-fueled scramjet thrust［J］. Acta Aeronautica et Astronautica Sinica， 2025， 46（18）： 131786 （in Chinese）.
[6]	GORDON L J， LEE J B. Metals as fuels in multicomponent propellants［J］. ARS Journal， 1962， 32（4）： 600-606.
[7]	E X T F， ZHI X M， ZHANG Y M， et al. Jet fuel containing ligand-protecting energetic nanoparticles： A case study of boron in JP-10［J］. Chemical Engineering Science， 2015， 129： 9-13.
[8]	E X T F， PAN L， WANG F， et al. Al-nanoparticle-containing nanofluid fuel： Synthesis， stability， properties， and propulsion performance［J］. Industrial & Engineering Chemistry Research， 2016， 55（10）： 2738-2745.
[9]	GAN Y N， QIAO L. Optical properties and radiation-enhanced evaporation of nanofluid fuels containing carbon-based nanostructures［J］. Energy & Fuels， 2012， 26（7）： 4224-4230.
[10]	JAVED I， BAEK S W， WAHEED K， et al. Evaporation characteristics of kerosene droplets with dilute concentrations of ligand-protected aluminum nanoparticles at elevated temperatures［J］. Combustion and Flame， 2013， 160（12）： 2955-2963.
[11]	JAVED I， BAEK S W， WAHEED K. Effects of dense concentrations of aluminum nanoparticles on the evaporation behavior of kerosene droplet at elevated temperatures： The phenomenon of microexplosion［J］. Experimental Thermal and Fluid Science， 2014， 56： 33-44.
[12]	TYAGI H， PHELAN P E， PRASHER R， et al. Increased hot-plate ignition probability for nanoparticle-laden diesel fuel［J］. Nano Letters， 2008， 8（5）： 1410-1416.
[13]	KIM D M， BAEK S W， YOON J. Ignition characteristics of kerosene droplets with the addition of aluminum nanoparticles at elevated temperature and pressure［J］. Combustion and Flame， 2016， 173： 106-113.
[14]	胡泽君，冯运超，何志成，等. 微米级铝颗粒在水蒸气和氧气中的点火燃烧特性［J］. 航空学报， 2023， 44（15）： 528866.
	HU Z J， FENG Y C， HE Z C， et al. Ignition and combustion characteristics of micro-sized aluminum particles in H₂O and O₂ ［J］. Acta Aeronautica et Astronautica Sinica， 2023， 44（15）： 528866 （in Chinese）.
[15]	敖文，刘佩进，吕翔，等. 固体推进剂燃烧过程铝团聚研究进展［J］. 宇航学报， 2016， 37（4）： 371-380.
	AO W， LIU P J， LYU X， et al. Review of aluminum agglomeration during the combustion of solid propellants［J］. Journal of Astronautics， 2016， 37（4）： 371-380 （in Chinese）.
[16]	杨大力，夏智勋，胡建新，等. 煤油凝胶单液滴燃烧特性试验［J］. 航空学报， 2016， 37（3）： 847-853.
	YANG D L， XIA Z X， HU J X， et al. Experimental study on ignition and combustion characteristics of single kerosene gel droplet［J］. Acta Aeronautica et Astronautica Sinica， 2016， 37（3）： 847-853 （in Chinese）.
[17]	MORDOSKY J， ZHANG B， KUO K， et al. Spray combustion of gelled RP-1 propellants containing nano-sized aluminum particles in rocket engine conditions［C］∥ 37th Joint Propulsion Conference and Exhibit. Reston： AIAA， 2001.
[18]	PALASZEWSKI B， ZAKANY J. Metallized gelled propellants-oxygen/RP-1/aluminum rocket combustion experiments［C］∥ 31st Joint Propulsion Conference and Exhibit. Reston： AIAA， 1995.
[19]	ELLISON R， HALL A， MOSER M. Gelled RP-1 nanophase aluminum propellant［C］∥ 39th AIAA/ASME/SAE/ASEE Joint Propulsion Conference and Exhibit. Reston： AIAA， 2003.
[20]	LUO Y， XU X， ZOU J J， et al. Combustion of JP-10-based slurry with nanosized aluminum additives［J］. Journal of Propulsion and Power， 2016， 32（5）： 1167-1177.
[21]	邵昂，朱韶华，鄂秀天凤，等. 含铝金属化浆体推进剂火箭发动机燃烧性能试验研究［J］. 推进技术， 2018， 39（7）： 1650-1659.
	SHAO A， ZHU S H， E X T F， et al. Experimental study on combustion characteristic of rocket engine based on slurry propellant containing aluminum particles［J］. Journal of Propulsion Technology， 2018， 39（7）： 1650-1659 （in Chinese）.
[22]	刘毅，鄂秀天凤，李智欣，等. 高能量密度液体燃料的火箭发动机燃烧性能研究［J］. 推进技术， 2019， 40（5）： 1169-1176.
	LIU Y， E X T F， LI Z X， et al. Study on combustion performance of high-energy-density liquid fuels in rocket engine［J］. Journal of Propulsion Technology， 2019， 40（5）： 1169-1176 （in Chinese）.
[23]	JIN Y S， XU X， WANG X， et al. Propulsive and combustion behavior of hydrocarbon fuels containing boron nanoparticles in a liquid rocket combustor［J］. Proceedings of the Institution of Mechanical Engineers， Part G： Journal of Aerospace Engineering， 2022， 236（12）： 2580-2591.
[24]	GAFNI G， KUZNETSOV A， NATAN B. Experimental investigation of an aluminized gel fuel ramjet combustor［M］∥Chemical rocket propulsion： A comprehensive survey of energetic materials. Cham： Springer International Publishing， 2017： 297-315.
[25]	NEGRI M， CIEZKI H K. Combustion of gelled propellants containing microsized and nanosized aluminum particles［J］. Journal of Propulsion and Power， 2015， 31（1）： 400-407.
[26]	XIAO Y L， XIA Z X， HUANG L Y， et al. Experimental investigation of the effects of chamber length and boron content on boron-based gel fuel ramjet performance［J］. Acta Astronautica， 2019， 160： 101-105.
[27]	JIN Y S， DOU S Y， YANG Q C， et al. Performance characteristics of a scramjet engine using JP-10 fuel containing aluminum nanoparticles［J］. Acta Astronautica， 2021， 185： 70-77.
[28]	靳雨树，李智欣，徐旭，等. 含硼碳氢燃料在超燃冲压发动机中的燃烧试验研究［J］. 推进技术， 2023， 44（3）： 265-275.
	JIN Y S， LI Z X， XU X， et al. Experimental study on combustion of boron containing hydrocarbon fuel in scramjet［J］. Journal of Propulsion Technology， 2023， 44（3）： 265-275 （in Chinese）.
[29]	鄂秀天凤，彭浩，邹吉军，等. 含有纳米铝颗粒的高密度悬浮燃料研究［J］. 推进技术， 2016， 37（5）： 974-978.
	E X T F， PENG H， ZOU J J， et al. Study on Al NPs-containing suspension as high-density liquid fuel［J］. Journal of Propulsion Technology， 2016， 37（5）： 974-978 （in Chinese）.
[30]	夏益志，王勇，洪流，等. 凝胶自燃推进剂着火及火焰试验［J］. 航空学报， 2020， 41（1）： 123254.
	XIA Y Z， WANG Y， HONG L， et al. Experiment on ignition and flame of gelled hypergolic bipropellants［J］. Acta Aeronautica et Astronautica Sinica， 2020， 41（1）： 123254 （in Chinese）.
[31]	WANG L， ZHANG X W， ZOU J J， et al. Acid-catalyzed isomerization of tetrahydrotricyclopentadiene： Synthesis of high-energy-density liquid fuel［J］. Energy & Fuels， 2009， 23（5）： 2383-2388.
[32]	裴慧霞，鄂秀天凤，张磊，等. 添加高能纳米硼颗粒的高密度液体碳氢燃料研究［J］. 现代化工， 2017， 37（1）： 111-114.
	PEI H X， E X T F， ZHANG L， et al. Study on high-density liquid fuel containing energetic nanoparticles［J］. Modern Chemical Industry， 2017， 37（1）： 111-114 （in Chinese）.
[33]	邹吉军，郭成，张香文，等. 航天推进用高密度液体碳氢燃料：合成与应用［J］. 推进技术， 2014， 35（10）： 1419-1425.
	ZOU J J， GUO C， ZHANG X W， et al. High-density liquid hydrocarbon fuels for aerospace propulsion： Synthesis and application［J］. Journal of Propulsion Technology， 2014， 35（10）： 1419-1425 （in Chinese）.
[34]	曹锦文，潘伦，张香文，等. 含纳米铝颗粒的JP-10凝胶燃料理化及流变性能［J］. 含能材料， 2020， 28（5）： 382-390.
	CAO J W， PAN L， ZHANG X W， et al. Physicochemical and rheological properties of Al/JP-10 gelled fuel［J］. Chinese Journal of Energetic Materials， 2020， 28（5）： 382-390 （in Chinese）.
[35]	CAO J W， ZHANG Y C， PAN L， et al. Synthesis and characterization of gelled high-density fuels with low-molecular mass gellant［J］. Propellants， Explosives， Pyrotechnics， 2020， 45（7）： 1018-1026.
[36]	DOU S Y， JIN Y S， YANG Q C， et al. Combustion characteristics and application performance of JP-10/nano-sized aluminum gel-fueled scramjet［J］. AIAA Journal， 2024， 62（4）： 1330-1341.
[37]	蔡国飙. 液体火箭发动机设计［M］. 北京：北京航空航天大学出版社， 2011： 35-36.
	CAI G B. Design of liquid rocket engine［M］. Beijing： Beihang University Press， 2011： 35-36 （in Chinese）.
[38]	YEH C L， KUO K K. Ignition and combustion of boron particles［J］. Progress in Energy and Combustion Science， 1996， 22（6）： 511-541.
[39]	GAN Y N， QIAO L. Combustion characteristics of fuel droplets with addition of nano and micron-sized aluminum particles［J］. Combustion and Flame， 2011， 158（2）： 354-368.
[40]	LIU J Z， CHEN B H， WU T T， et al. Ignition and combustion characteristics and agglomerate evolution mechanism of aluminum in nAl/JP-10 nanofluid fuel［J］. Journal of Thermal Analysis and Calorimetry， 2019， 137（4）： 1369-1379.
[41]	章洪涛. RP-3航空煤油及掺混纳米铝颗粒燃油的低压着火燃烧及微爆特性研究［D］. 杭州：浙江大学， 2021.
	ZHANG H T. Study on ignition/combustion and micro-explosion characteristics of RP-3 aviation kerosene and Al nanoparticles embedded kerosene under sub-atmospheric pressure［D］. Hangzhou： Zhejiang University， 2021 （in Chinese）.
[42]	CHINTERSINGH K L， SCHOENITZ M， DREIZIN E L. Oxidation kinetics and combustion of boron particles with modified surface［J］. Combustion and Flame， 2016， 173： 288-295.
[43]	冯昱嘉，孙振华，王坤，等. 含硼凝胶冲压发动机技术研究进展［J］. 航空学报， 2025， 46（14）： 031256.
	FENG Y J， SUN Z H， WANG K， et al. Advances in boron-loaded gel ramjet technologies［J］. Acta Aeronautica et Astronautica Sinica， 2025， 46（14）： 031256 （in Chinese）.
[44]	SAXENA V， KUMAR N， SAXENA V K. A comprehensive review on combustion and stability aspects of metal nanoparticles and its additive effect on diesel and biodiesel fuelled C.I. engine［J］. Renewable and Sustainable Energy Reviews， 2017， 70： 563-588.
[45]	YOUNG G， SULLIVAN K， ZACHARIAH M R， et al. Combustion characteristics of boron nanoparticles［J］. Combustion and Flame， 2009， 156（2）： 322-333.
[46]	SOLOMON Y， NATAN B， COHEN Y. Combustion of gel fuels based on organic gellants［J］. Combustion and Flame， 2009， 156（1）： 261-268.
[47]	FENG S J， HE B， HE H B， et al. Experimental studies the burning process of gelled unsymmetrical dimethylhydrazine droplets under oxidant convective conditions［J］. Fuel， 2013， 111： 367-373.

燃料名称	成分	密度/（g∙mL^-1）	质量热值/（MJ∙kg^-1）	体积热值/（MJ∙L^-1）	恰当氧燃比

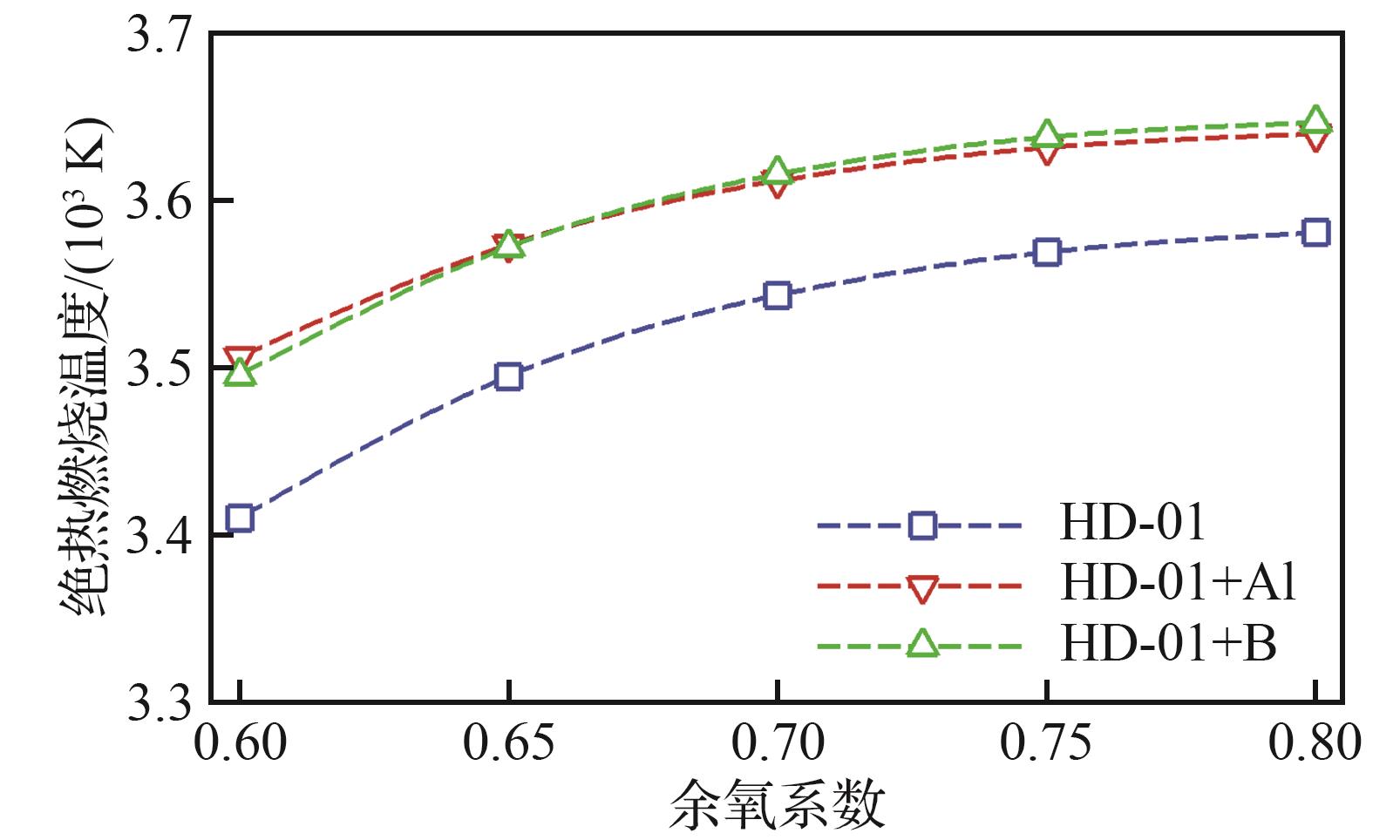

HD-01	C₁₀H₁₆	0.934	42.1	39.3	3.29

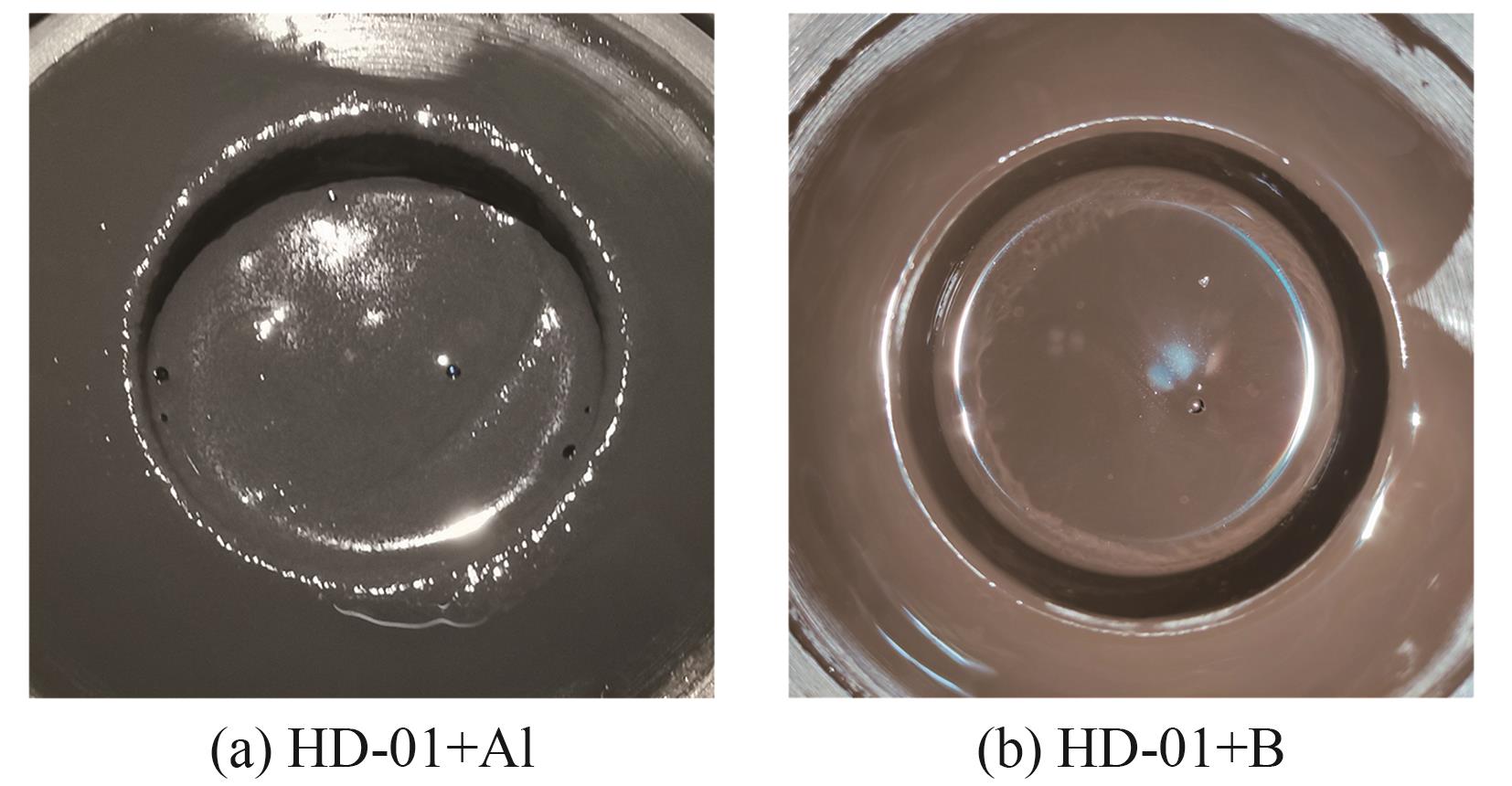

HD-01+Al	90wt%C₁₀H₁₆+10wt%Al	1.013	41.0	41.5	3.05
HD-01+B	90wt%C₁₀H₁₆+10wt%B	0.996	43.8	43.6	3.18

燃料名称	成分	密度/（g∙mL^-1）	质量热值/（MJ∙kg^-1）	体积热值/（MJ∙L^-1）	恰当氧燃比

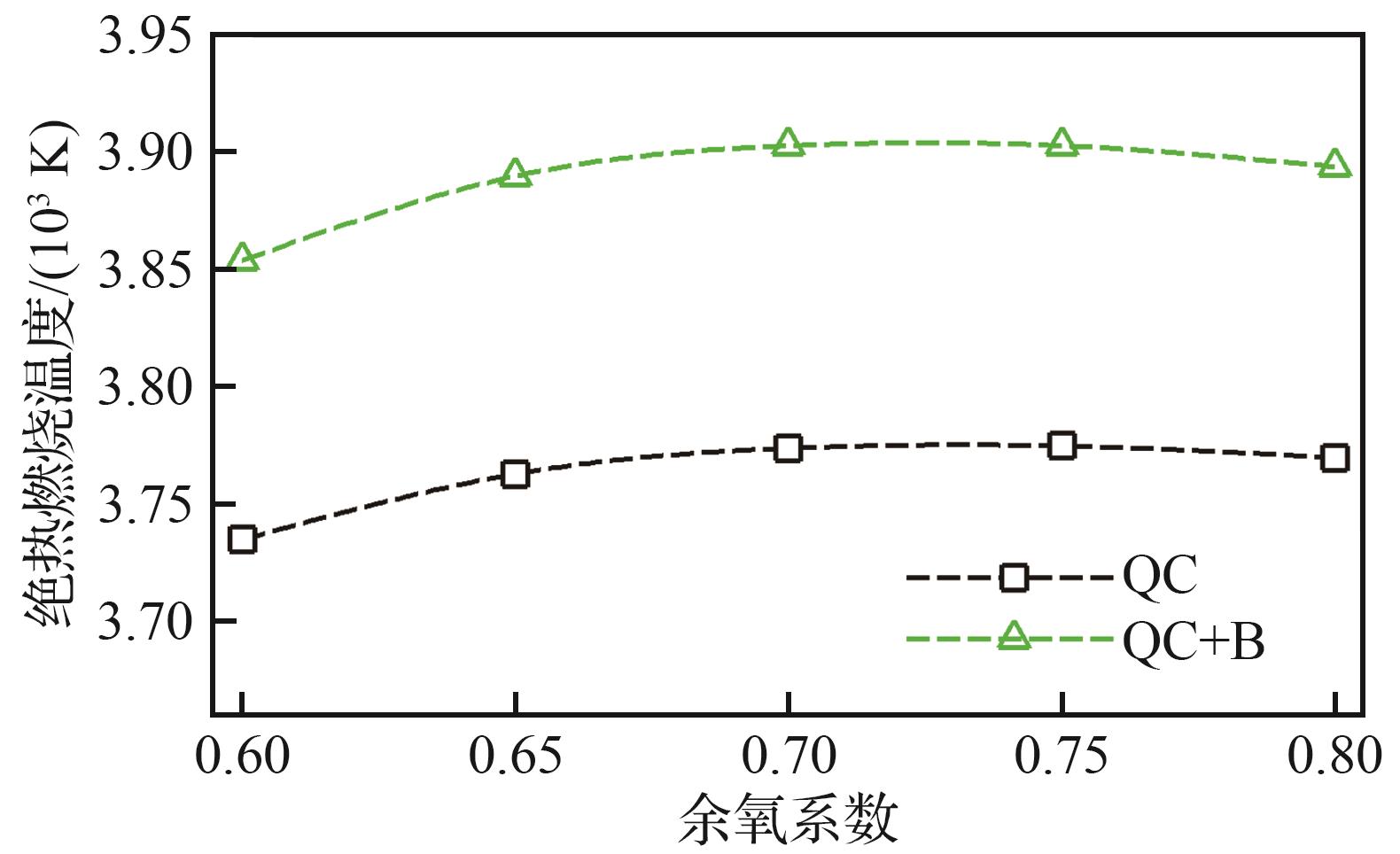

QC	C₇H₈	0.984	44.3	43.6	3.13
Slurry QC+B	80wt%C₇H₈+20wt%B	1.107	47.4	52.5	2.95
Gelled QC+B	80wt%C₇H₈+20wt%B	1.105	47.3	52.3	2.92

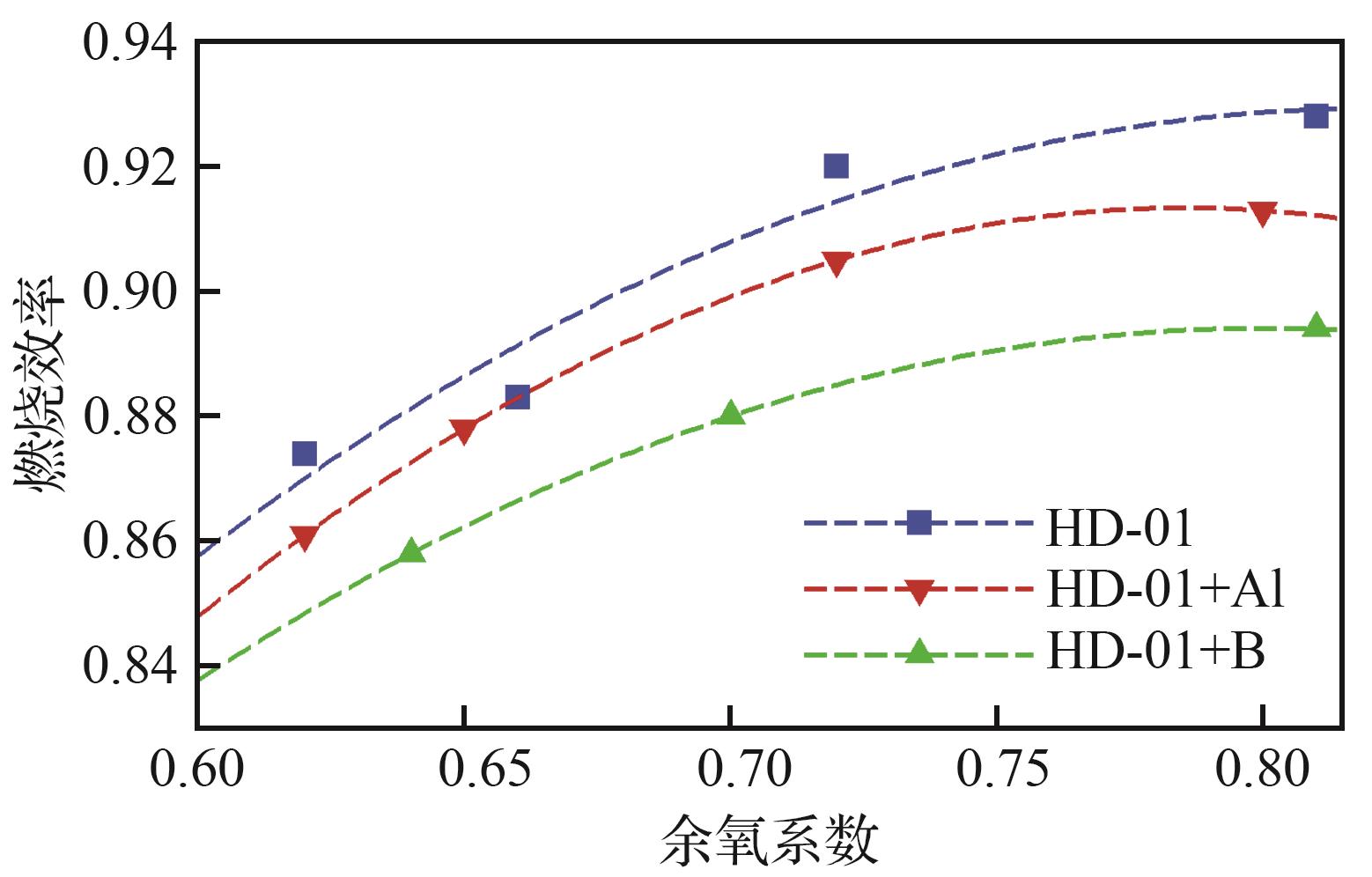

燃料	余氧系数	推进剂总流量/（g∙s^-1）	室压/MPa	实际特征速度/（m∙s^-1）	理论特征速度/（m∙s^-1）	燃烧效率/%
HD-01	0.62	90.0	2.0	1 569.0	1 796.2	87.4
	0.66	93.1	2.1	1 584.3	1 794.7	88.3
	0.72	90.9	2.1	1 639.2	1 781.2	92.0
	0.81	90.2	2.1	1 629.9	1 757.3	92.8
HD-01+Al	0.62	91.5	2.0	1 542.1	1 790.7	86.1
	0.65	89.7	2.0	1 567.3	1 785.1	87.8
	0.72	90.0	2.0	1 600.5	1 768.7	90.5
	0.80	90.4	2.1	1 596.4	1 747.7	91.3
HD-01+B	0.64	88.3	2.0	1 535.6	1 789.1	85.8
	0.70	87.1	2.0	1 565.1	1 778.1	88.0
	0.81	89.7	2.0	1 560.7	1 746.0	89.4

颗粒	熔点/K	沸点/K
Al	933	2 792
B	2 349	4 200

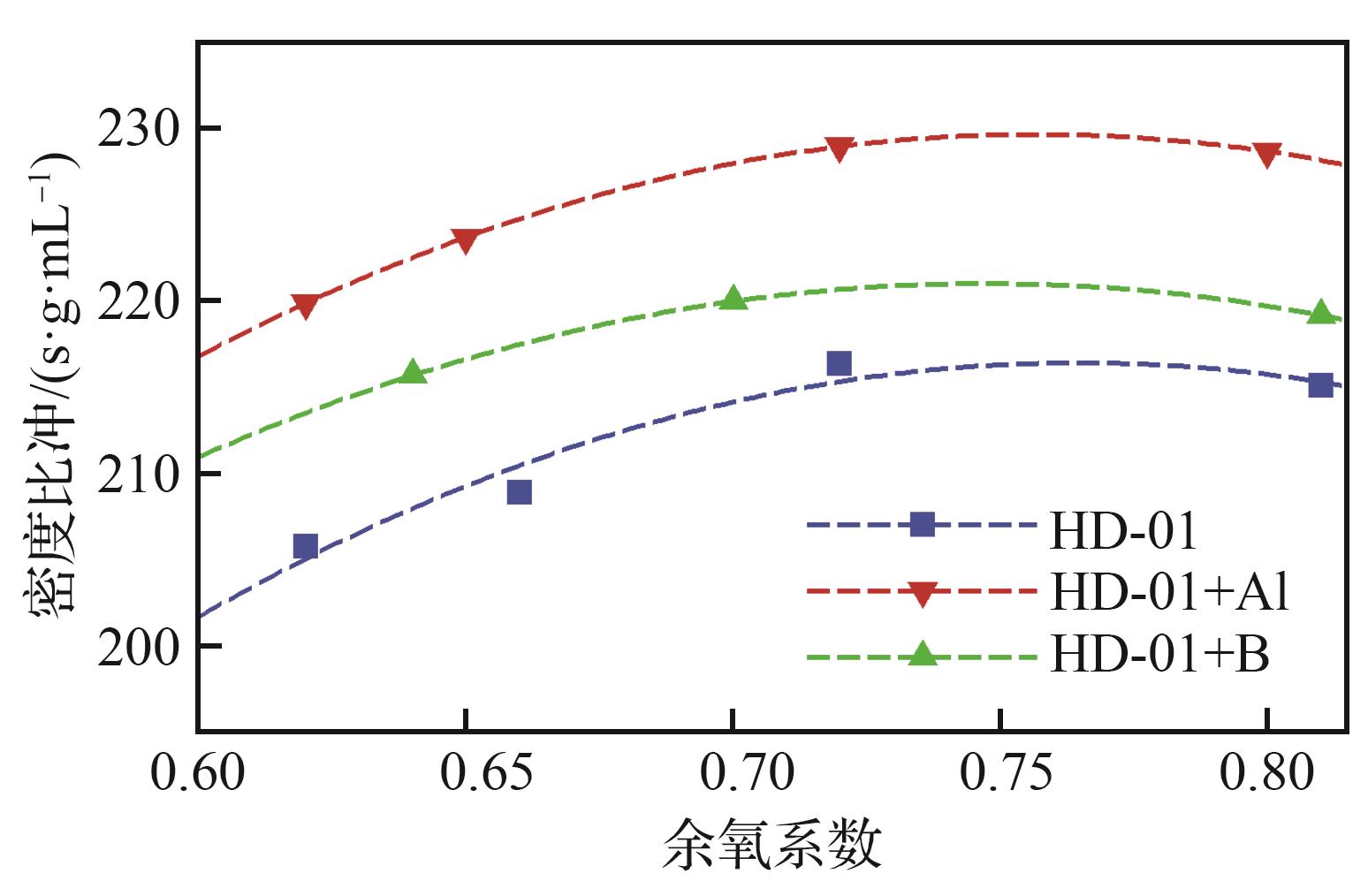

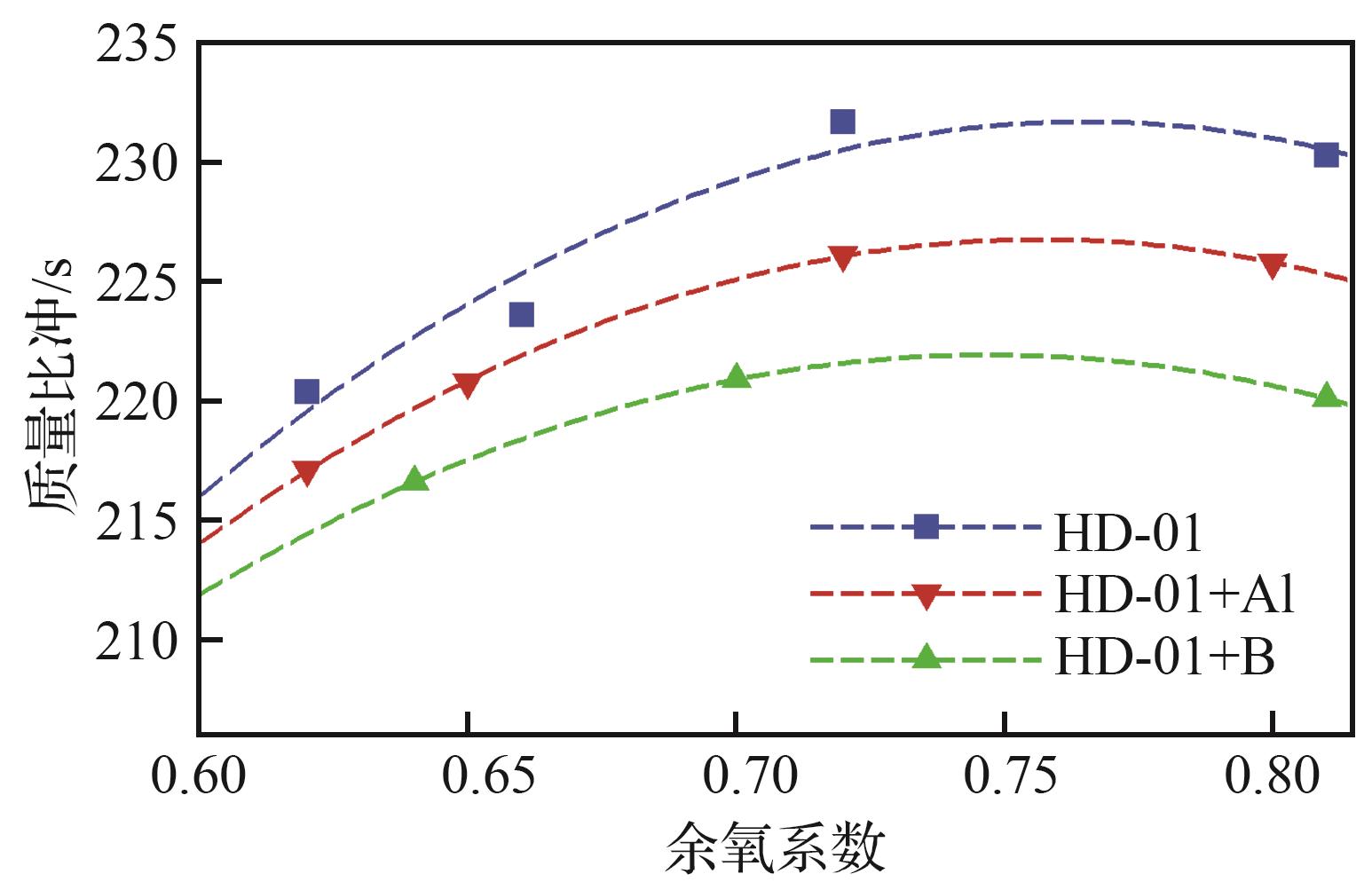

燃料	余氧系数	质量比冲/s	密度比冲/ （s∙g∙mL^-1）
HD-01	0.62	220.4	205.8
	0.66	223.6	208.9
	0.72	231.7	216.4
	0.81	230.3	215.1
HD-01+Al	0.62	217.1	219.9
	0.65	220.8	223.7
	0.72	226.1	229.0
	0.80	225.8	228.7
HD-01+B	0.64	216.6	215.7
	0.70	220.9	220.0
	0.81	220.1	219.2

Combustion performance of hydrocarbon fuel containing nanoparticles in rocket

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 25

References 47

Related Articles 15

Recommended Articles

Metrics

Comments

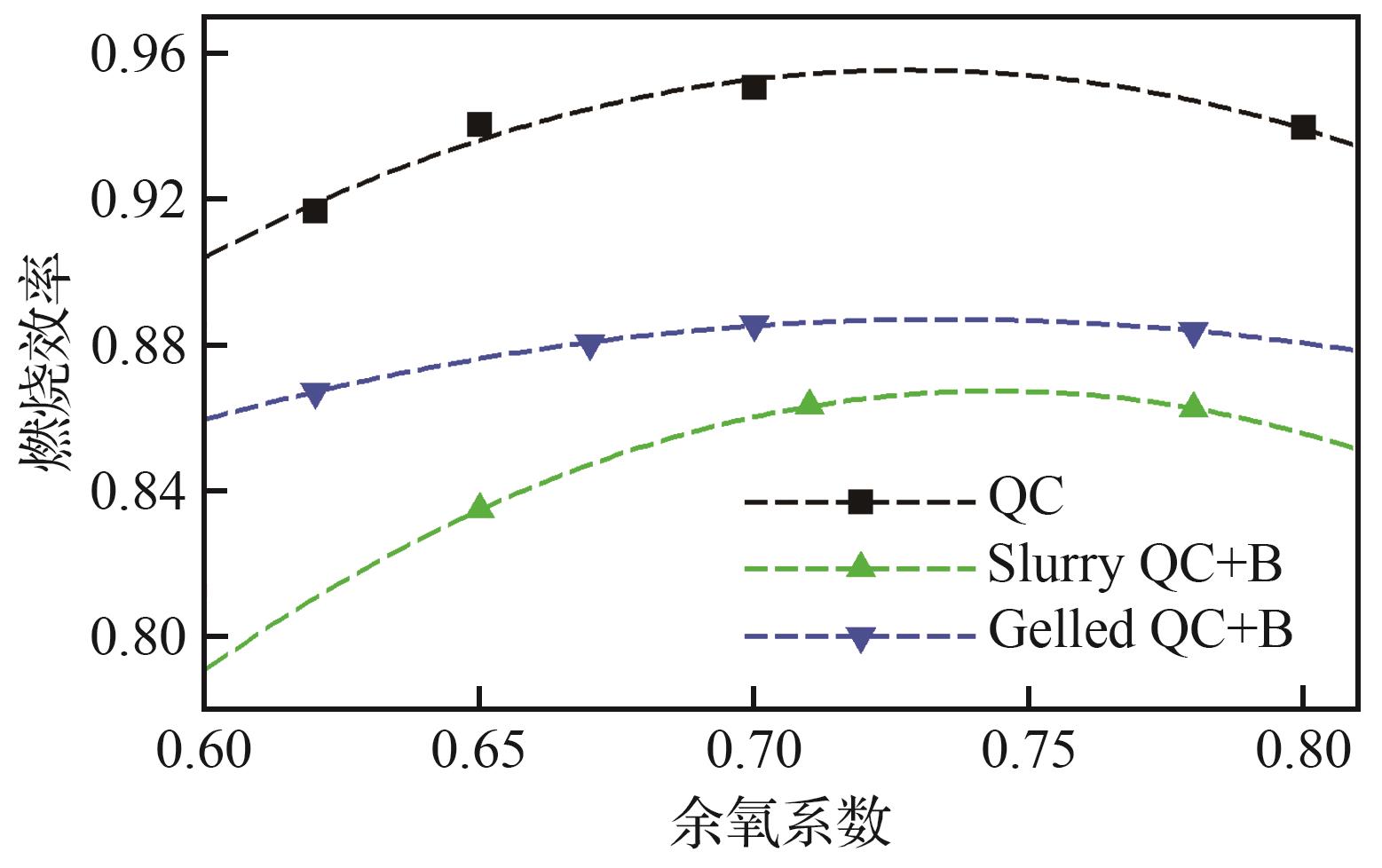

燃料	余氧系数	推进剂总流量/（g∙s^-1）	室压/MPa	实际特征速度/（m∙s^-1）	理论特征速度/（m∙s^-1）	燃烧效率/%
QC	0.62	90.0	2.2	1 707.4	1 862.6	91.7
	0.65	88.0	2.2	1 742.2	1 852.4	94.1
	0.70	88.7	2.2	1 744.4	1 834.8	95.1
	0.80	89.5	2.2	1 692.9	1 801.5	94.0
Slurry QC+B	0.65	87.4	2.0	1 520.0	1 820.8	83.5
	0.71	88.8	2.0	1 556.0	1 802.6	86.3
	0.78	87.4	2.0	1 533.9	1 778.1	86.2
Gelled QC+B	0.62	91.4	2.2	1 588.7	1 831.7	86.7
	0.67	89.7	2.1	1 599.9	1 817.0	88.1
	0.70	89.2	2.1	1 600.4	1 807.1	88.6
	0.78	89.5	2.1	1 572.5	1 779.1	88.4

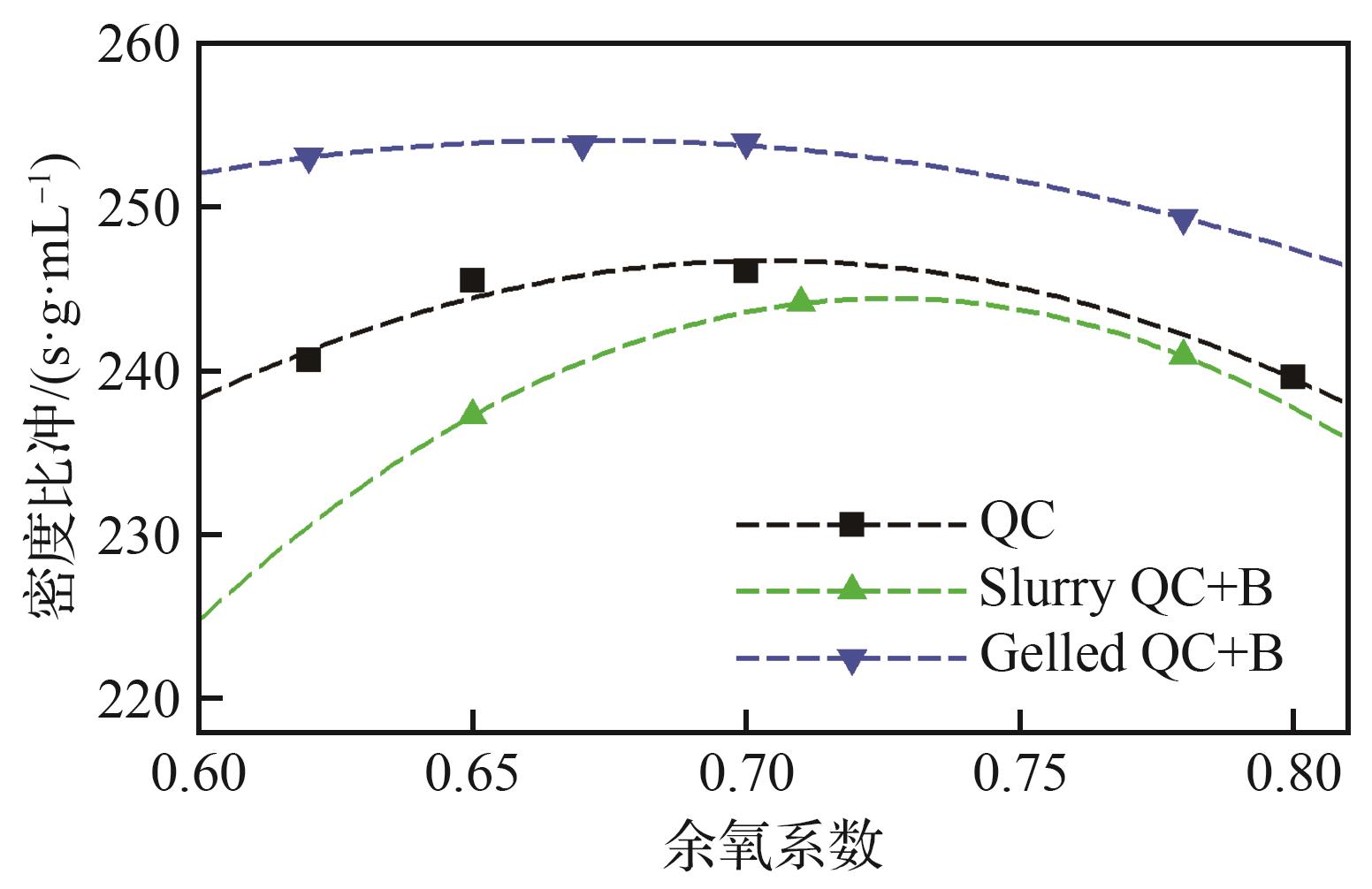

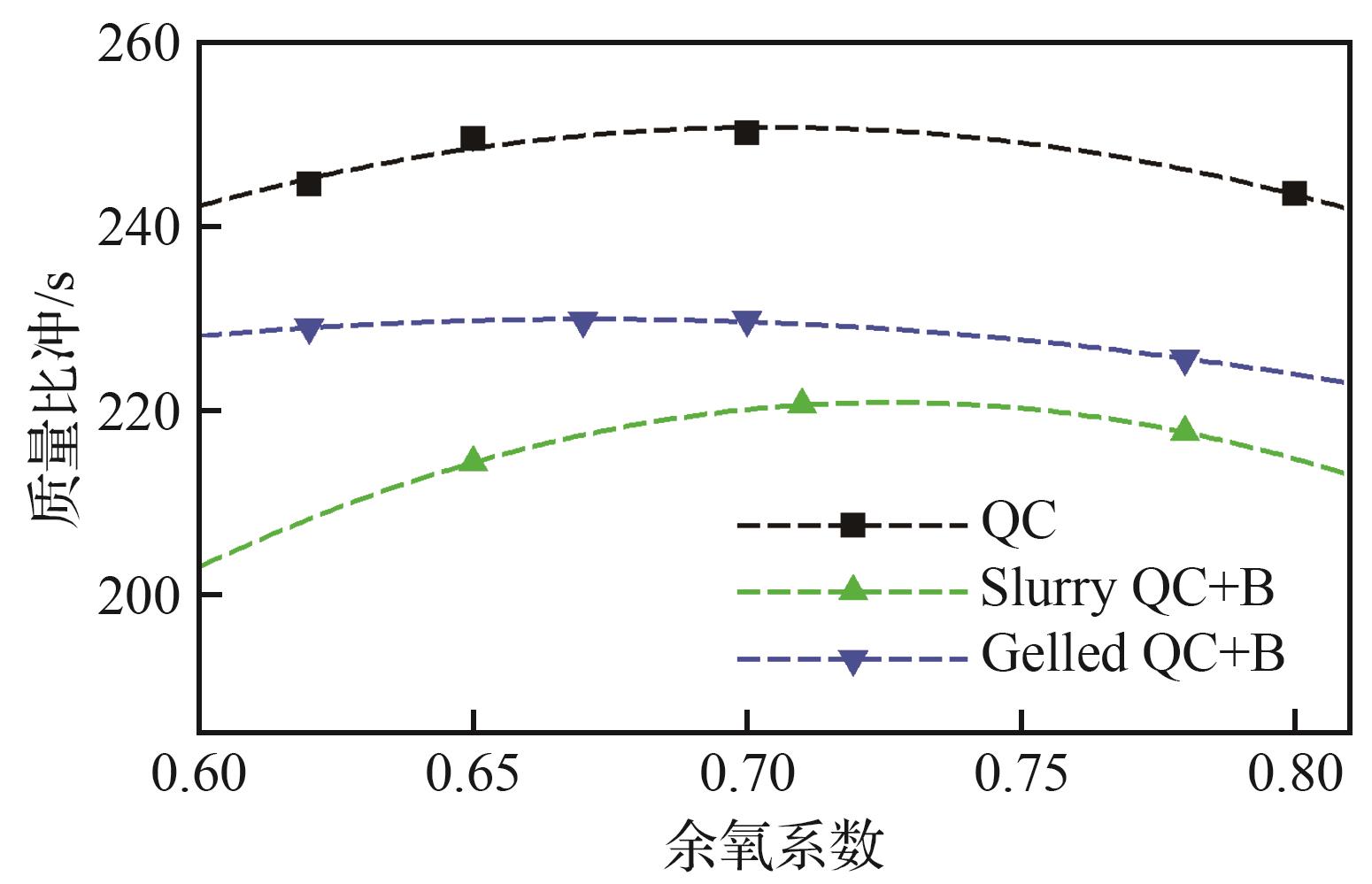

燃料	余氧系数	质量比冲/s	密度比冲/ （s∙g∙mL^-1）
QC	0.62	244.7	240.7
	0.65	249.6	245.5
	0.70	250.2	246.1
	0.80	243.6	239.6
Slurry QC+B	0.65	214.4	237.3
	0.71	220.6	244.1
	0.78	217.7	240.9
Gelled QC+B	0.62	229.1	253.1
	0.67	229.8	253.8
	0.70	229.9	254.0
	0.78	225.7	249.3
