铝粉燃料水冲压发动机火焰吹熄特性

doi:10.7527/S1000-6893.2025.32709

Abstract

Abstract:

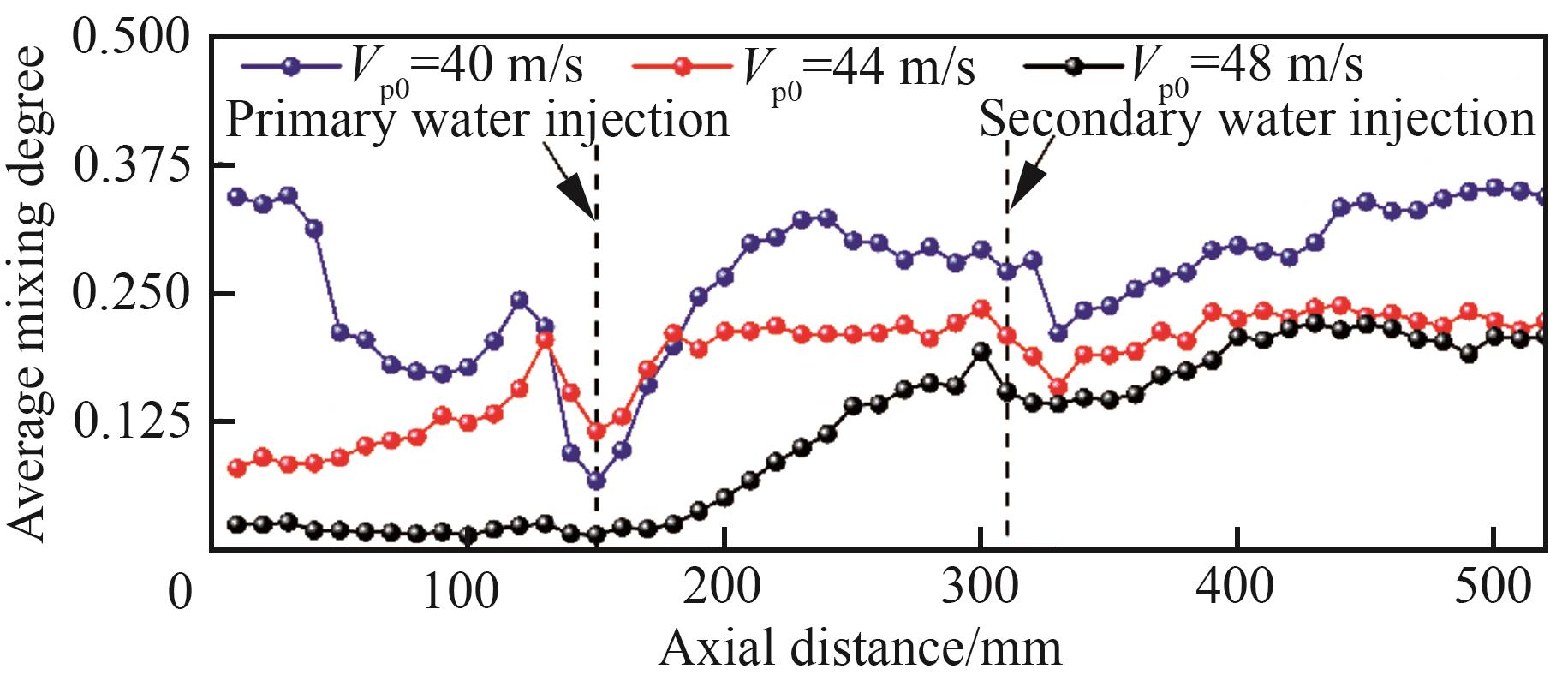

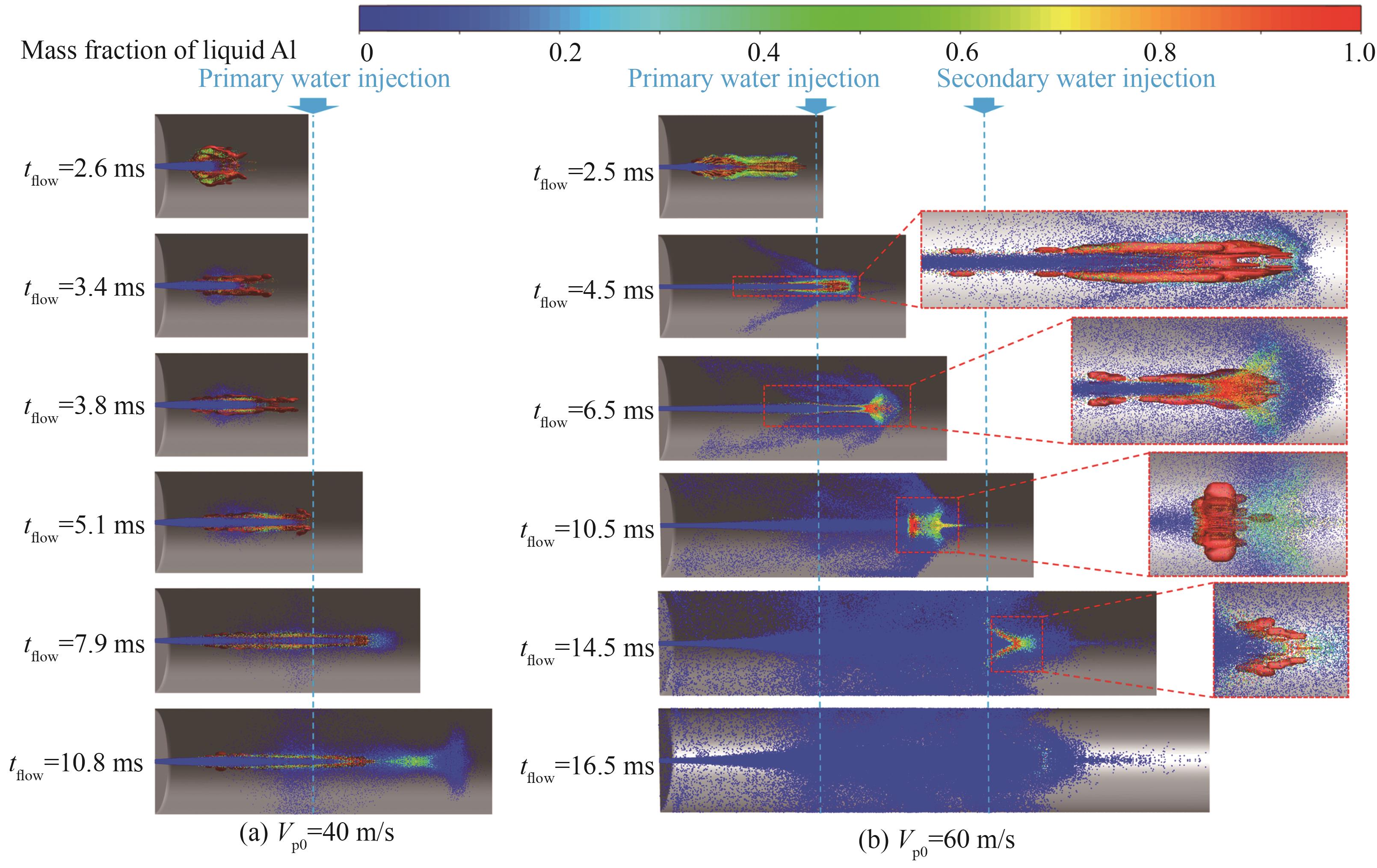

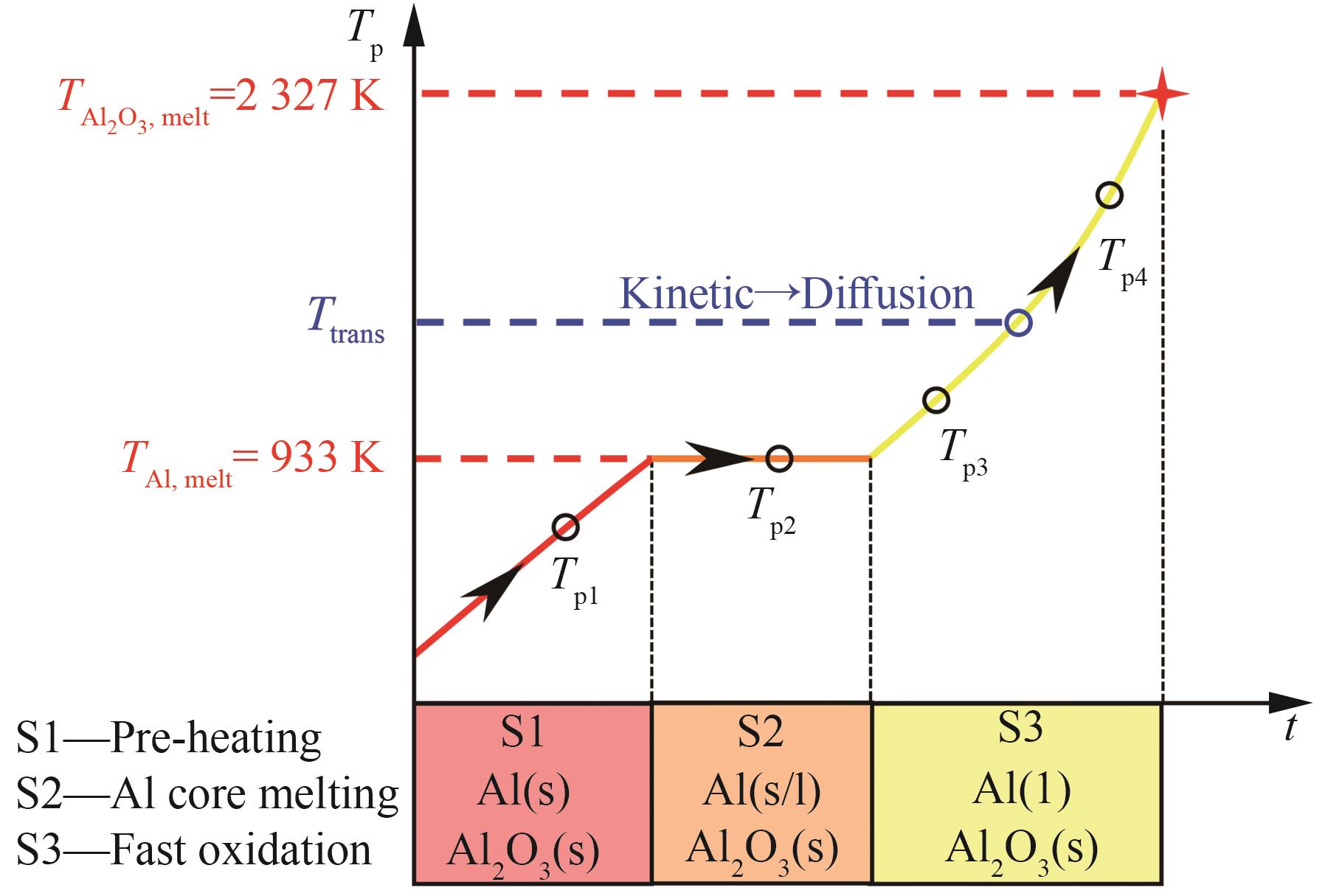

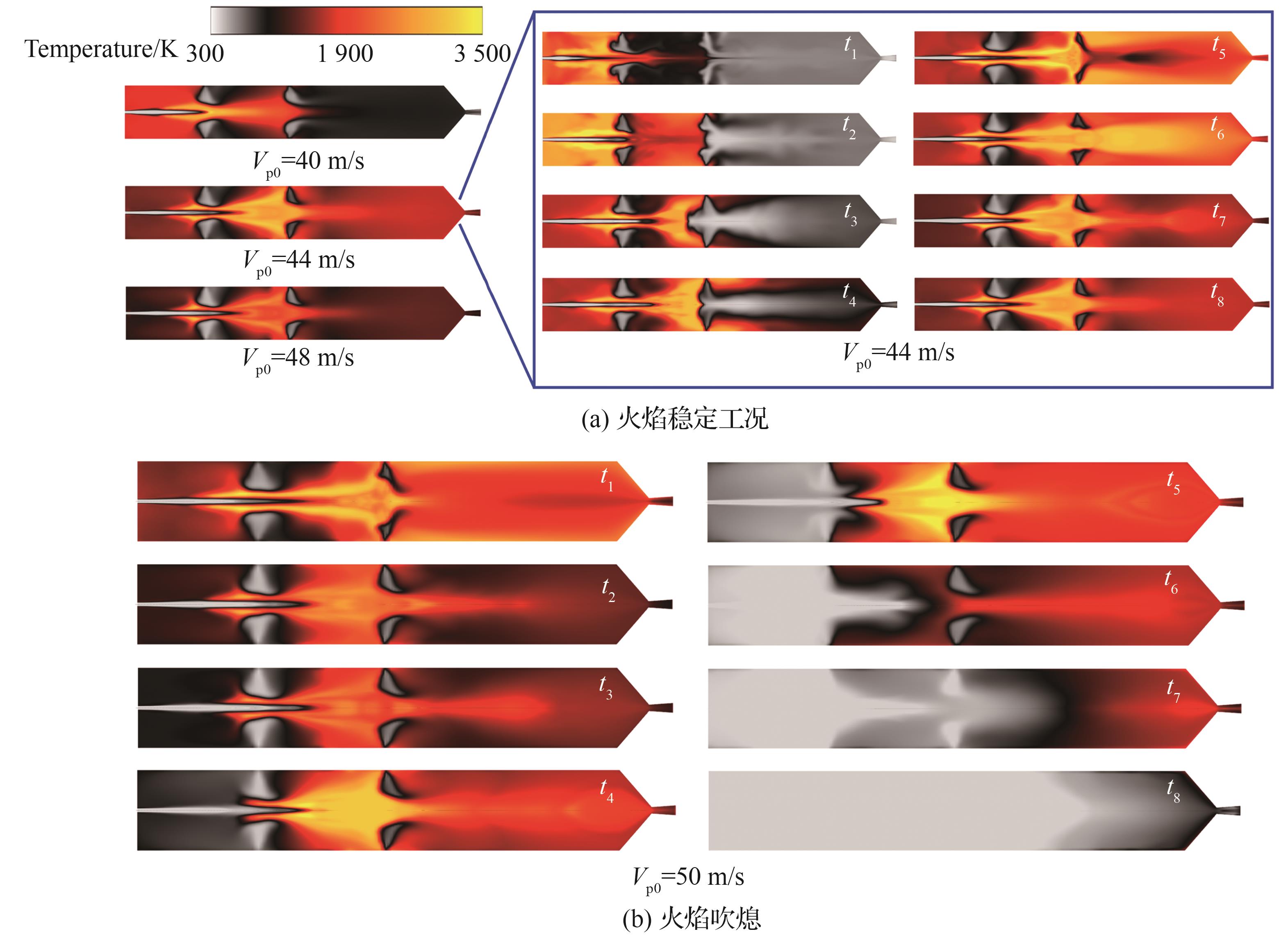

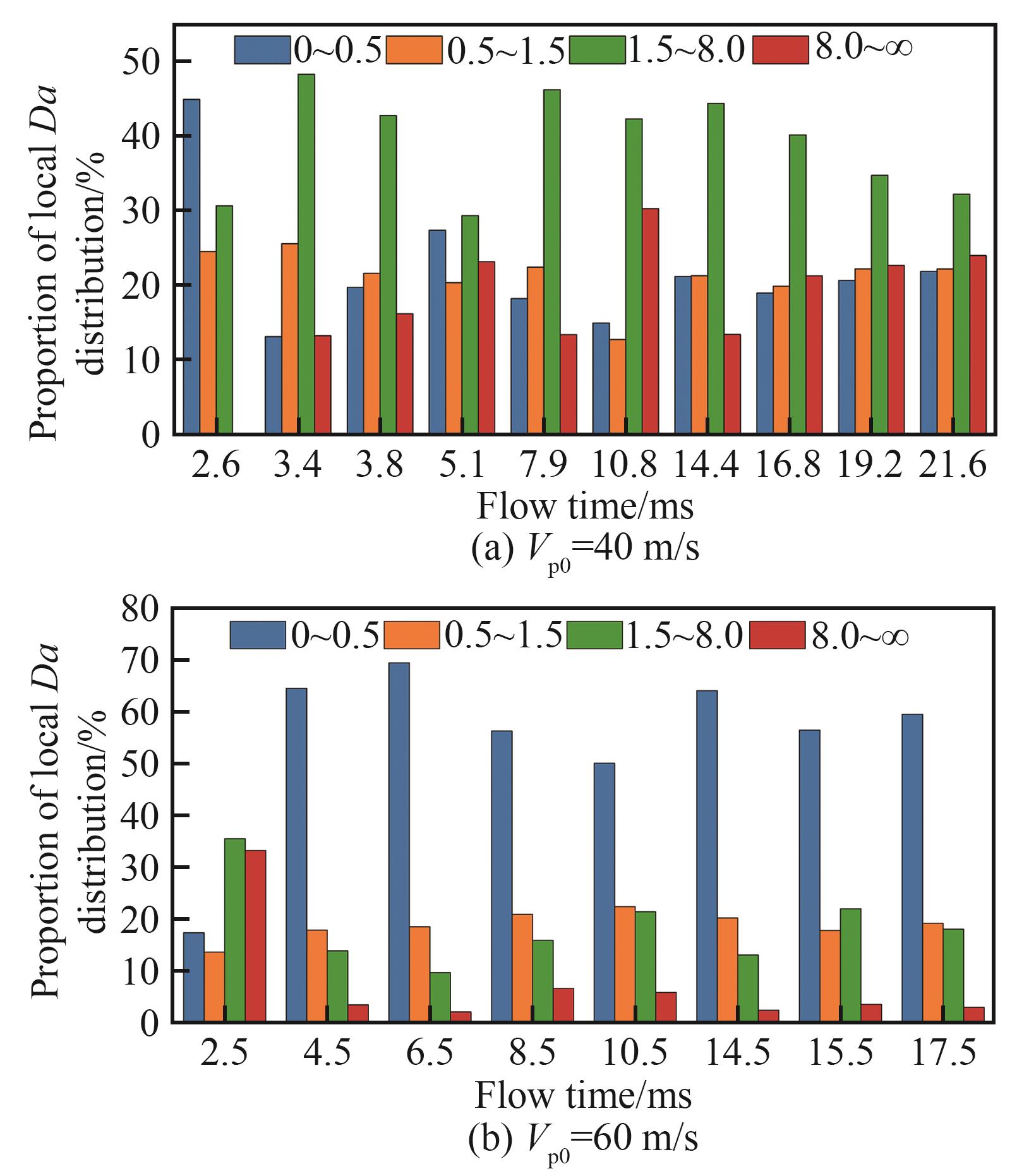

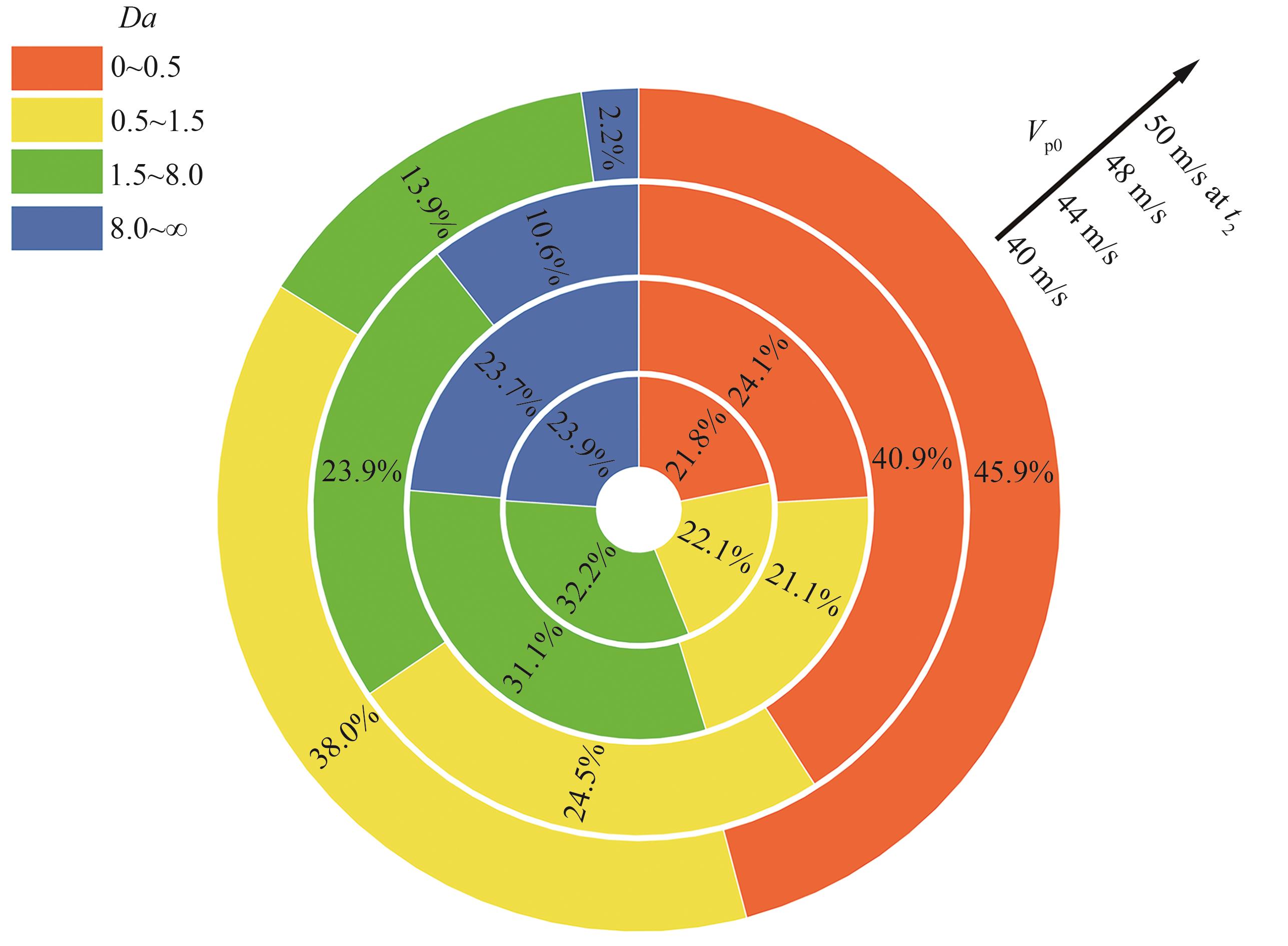

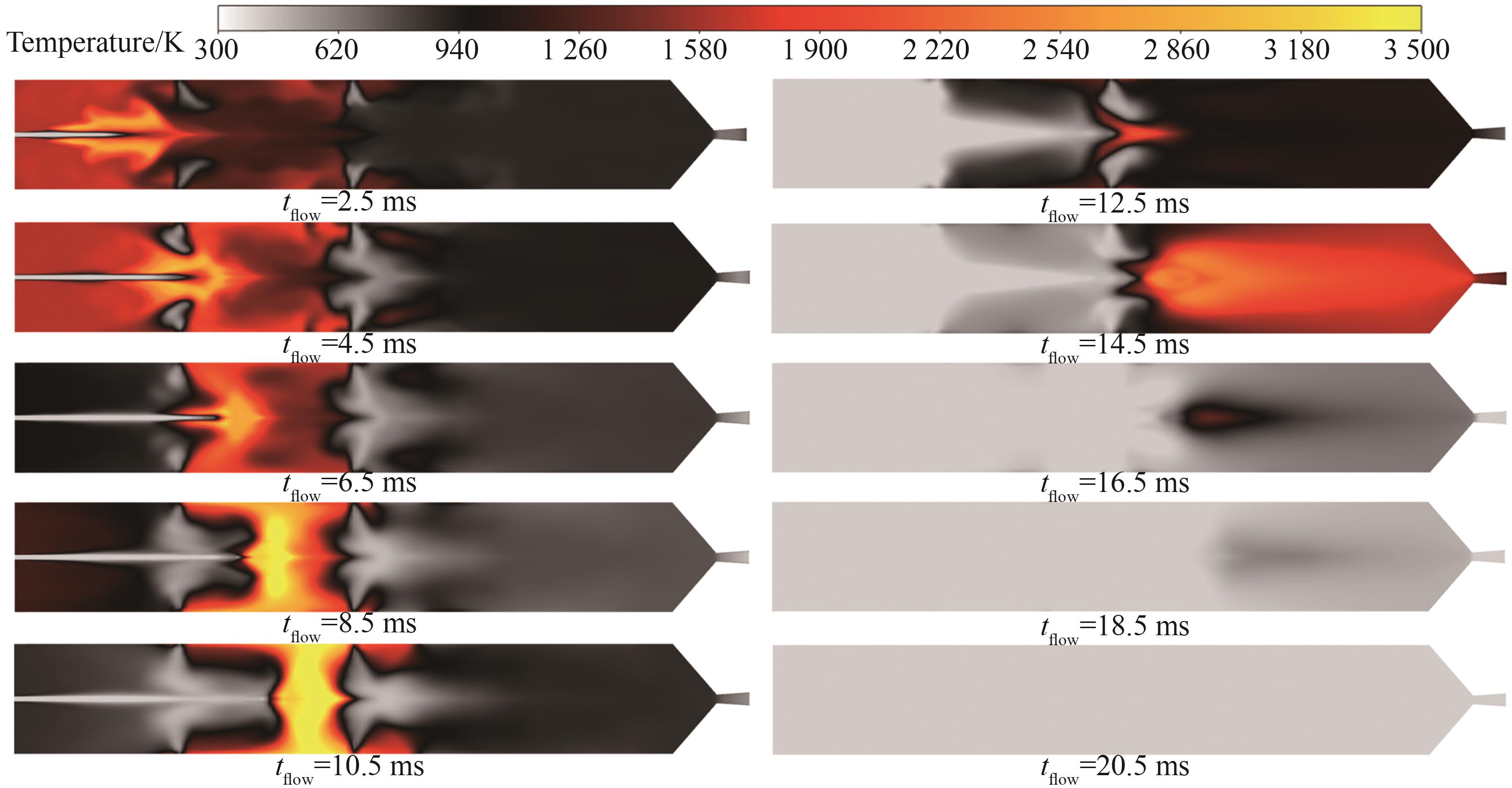

Aluminum powder-fueled water ramjet engines demonstrate promising application potential in high-speed underwater propulsion and air-water trans-medium vehicles. However， excessively high powder injection velocities may prevent flame stabilization in the combustion chamber and even lead to blow-off. This study investigates the flame blow-off characteristics of such engines through experimental and numerical methods， aiming to delineate the stable ignition operating range and provide guidance for the design of powder injection velocities. The results indicate that the near-blow-off limit under the current experimental conditions is 48 m/s. Increasing the injection velocity reduces the mixing efficiency between aluminum particles and surrounding steam as well as the local oxygen-fuel ratio. Under the low-velocity blow-off condition of 50 m/s， a transient flame is established ahead of the primary water inlet before eventual blow-off occurs. In contrast， under the high-velocity blow-off condition of 60 m/s， the flame is directly expelled from the combustor once formed. A particle ignition analysis method based on the Damköhler number （Da） was established， revealing that the average Da decreases with increasing injection velocity. The ignition potential remains above 60% under stable flame conditions but drops to 43.6% near the blow-off limit. A characteristic “end-cluster distribution pattern” of Da is observed near blow-off condition， manifested by a significant increase in low-Da particles， a sharp decrease in high-Da particles， and relatively slight variation in the mid-range Da particles.

Key words: aluminum powder fuel, water ramjet engine, fuel injection, flame blow-off, Damk?hler number (Da)

CLC Number:

V435

Shixuan HUI, Xile QIAN, Xi HUANG, Shang LIU, Dianlong SUN, Naimeng SONG, Tao YAN, Hui QI, Ping’an LIU. Flame blow-off characteristics in an aluminum powder-fueled water ramjet engine[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(17): 632709.

Figures/Tables 19

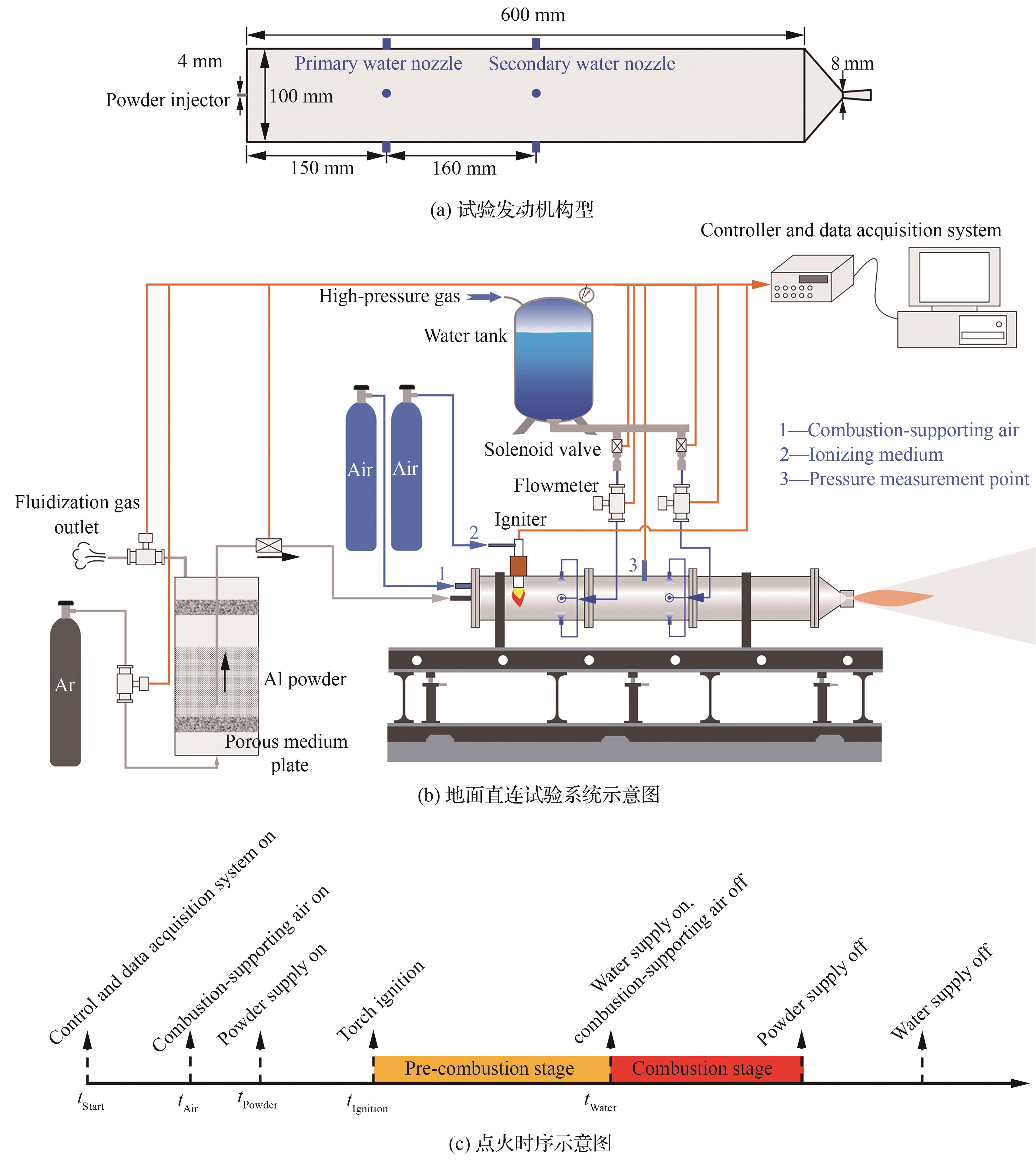

Fig.1

Table 1

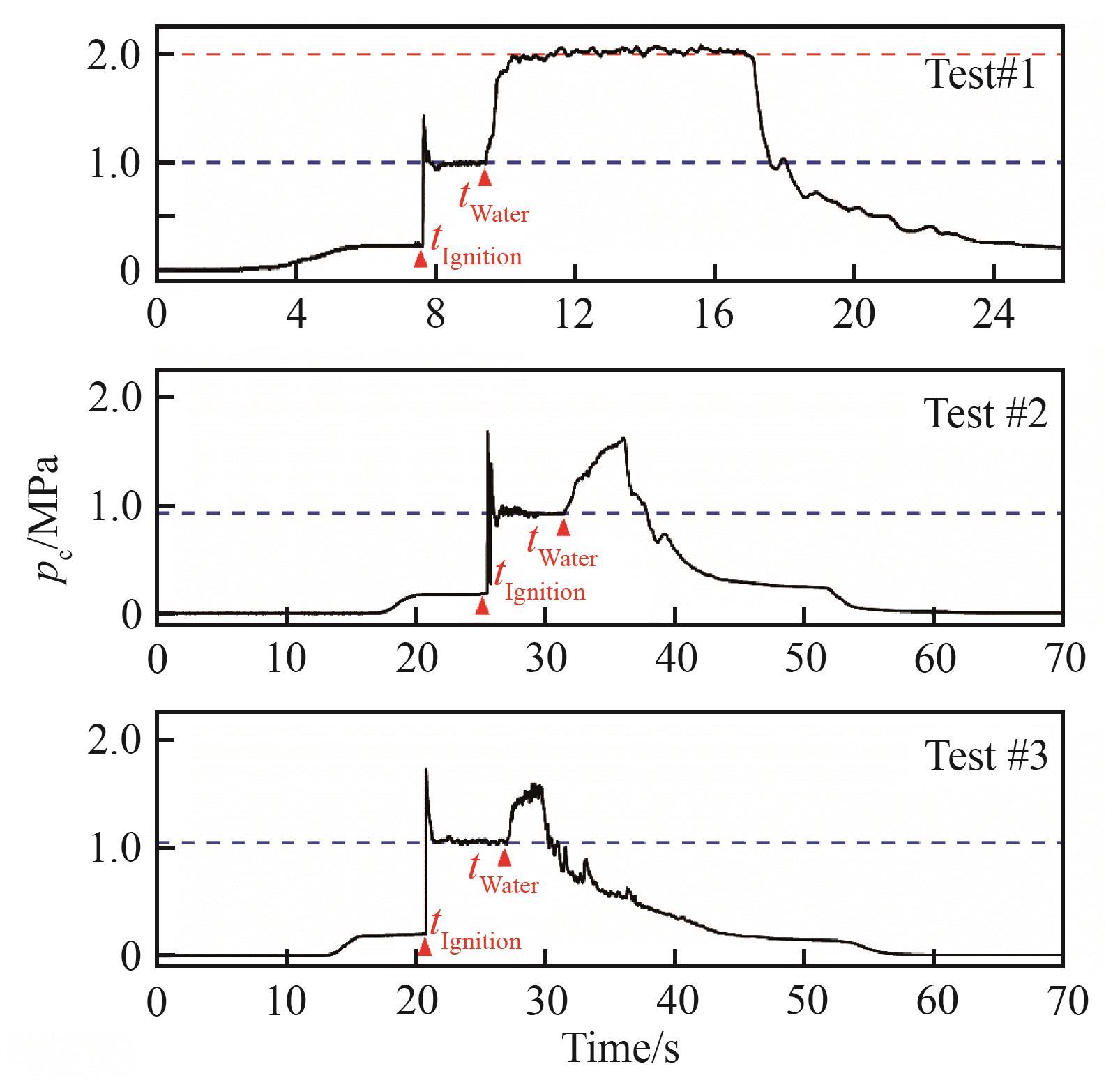

Test condition parameters

参数	Test #1	Test #2	Test #3
氩气流量 $m ˙ A r$ /（g·s^-1）	8.23	9.30	10.85
铝粉流量 $m ˙ A l$ /（g·s^-1）	28.89	32.4	37.03
气固比 $m ˙ A r$ / $m ˙ A l$	0.28	0.29	0.29
铝粉颗粒直径d_p/μm	15	15	15
空气流量 $m ˙ A i r$ /（g·s^-1）	29.3	20.7	20.1
一次水燃比 $m ˙ w a t e r 1 / m ˙ A r + m ˙ A l$	0.82	0.81	0.79
二次水燃比 $m ˙ w a t e r 2 / m ˙ A r + m ˙ A l$	0.95	0.97	1.01

Table 1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

Fig.12

Fig.13

Fig.14

Fig.15

Fig.16

Fig.17

Fig.18

References 36

[1]	BORYAEV A A. Calculation and experimental estimation of the efficiency of using lithium， sodium， magnesium， and aluminum as fuels in hydro-reactive propellants［J］. Thermal Science and Engineering Progress， 2021， 23： 100881.
[2]	LI C， HU C B， ZHU X F， et al. Experimental study on the thrust modulation performance of powdered magnesium and CO₂ bipropellant engine［J］. Acta Astronautica， 2018， 147： 403-411.
[3]	LI Y， HU C B， DENG Z， et al. Experimental study on multiple-pulse performance characteristics of ammonium perchlorate/aluminum powder rocket motor［J］. Acta Astronautica， 2017， 133： 455-466.
[4]	董新刚，霍东兴，张强，等. 粉末发动机技术研究现状及展望［J］. 固体火箭技术， 2021， 44（2）： 166-178.
	DONG X G， HUO D X， ZHANG Q， et al. Research progresses and prospect of powdered fuel engine technology［J］. Journal of Solid Rocket Technology， 2021， 44（2）： 166-178 （in Chinese）.
[5]	LUO S B， FENG Y B， SONG J W， et al. Progress and challenges in exploration of powder fueled ramjets［J］. Applied Thermal Engineering， 2022， 213： 118776.
[6]	SUNDARAM D S， PURI P， YANG V. A general theory of ignition and combustion of nano-and micron-sized aluminum particles［J］. Combustion and Flame， 2016， 169： 94-109.
[7]	BRANSTETTER J R， ALBERT M L， MELVIN G. Combustion properties of aluminum as ramjet fuel： NACA-RM-E51B02［R］. Washington， D.C.： National Advisory Committee for Aeronautics， 1951.
[8]	OLSON W T， GIBBONS L C. Status of combustion research on high-energy fuels for ram jets： NACA-RM-E51D23［R］. Washington， D.C.： National Advisory Committee for Aeronautics， 1951.
[9]	REN G L， SUN H J， HU C B， et al. Historical trajectory， current status， and future challenges of powder engines and propellant supply technologies： A comprehensive review［J］. Defence Technology， 2025， 52： 142-183.
[10]	YANG Q C， WANG X， XU X， et al. Effects of magnesium particle size on combustion characteristic of Martian ramjet engine［J］. Energy， 2022， 260： 125121.
[11]	WANG X， BU Y P， XU X， et al. Effect of mixing section configurations on combustion efficiency of Mg-CO₂ Martian ramjet［J］. Chinese Journal of Aeronautics， 2023， 36（4）： 165-173.
[12]	HU J M， HU C B， CHE Y H， et al. Experimental study on the working performance of powdered magnesium and liquid carbon dioxide bipropellant rocket engine for Mars missions［J］. Acta Astronautica， 2021， 184： 274-285.
[13]	LI Y， HU C B， ZHU X F， et al. Experimental study on combustion characteristics of powder magnesium and carbon dioxide in rocket engine［J］. Acta Astronautica， 2019， 155： 334-349.
[14]	LI C， HU C B， HU J M. Effects of injection schemes on the performance of powdered magnesium-liquid CO₂ rocket engine［J］. Aerospace Science and Technology， 2024， 144： 108802.
[15]	刘龙. 镁硼混合粉末燃料冲压发动机点火自维持燃烧特性研究［D］. 长沙：国防科学技术大学， 2014： 67-68.
	LIU L. Investigations on the characteristics of ignition and self-maitenance combustion of powdered fuel ramjet charged with a mixture of magnesium and boron［D］. Changsha： National University of Defense Technology， 2014： 67-68 （in Chinese）.
[16]	孔龙飞. 驻涡式粉末燃料冲压发动机燃烧组织技术研究［D］. 长沙：国防科学技术大学， 2012： 51-53.
	KONG L F. Investigations on combustion organization technology of trapped vortex powdered fuel ramjet［D］. Changsha： National University of Defense Technology， 2012： 51-53 （in Chinese）.
[17]	申慧君. 粉末燃料冲压发动机关键技术探索与研究［D］. 长沙：国防科技大学， 2008： 117-118.
	SHEN H J. Exploration and research on the key technologies of powdered fuel ramjet［D］. Changsha： National University of Defense Technology， 2008： 117-118 （in Chinese）.
[18]	XU Y H， JIA R， MEDINA H， et al. Effect of tangential swirl air inlet angle on the combustion efficiency of a hybrid powder-solid ramjet［J］. Acta Astronautica， 2019， 159： 87-95.
[19]	李尚中. 粉末燃料水冲压发动机旋流燃烧组织技术研究［D］. 长沙：国防科技大学， 2022： 1-13.
	LI S Z. Research on the swirl combustion technology of powdered fuel water ramjet［D］. Changsha： National University of Defense Technology， 2022： 1-13 （in Chinese）.
[20]	HUI S X， QI H， SUN D L， et al. Numerical study on multiphase combustion characteristics of aluminum-based powder-fueled water ramjet engine［J］. Chinese Journal of Aeronautics， 2025， 38（3）： 103273.
[21]	HUI S X， HUANG X， QIAN X L， et al. Flow combustion characteristics and performance of Al powder-fueled water ramjet engine under different injection schemes［J］. Chinese Journal of Aeronautics， 2026， 39（2）： 103773.
[22]	MILLER T F， WALTER J L， KIELY D H. A next-generation AUV energy system based on aluminum-seawater combustion［C］∥Proceedings of the 2002 Workshop on Autonomous Underwater Vehicles， 2002. Piscataway： IEEE Press， 2003： 111-119.
[23]	HAN D H， SUNG H G. A numerical study on heterogeneous aluminum dust combustion including particle surface and gas-phase reaction［J］. Combustion and Flame， 2019， 206： 112-122.
[24]	ZHANG J R， STEIN O T， LUU T D， et al. Detailed modeling of aluminum particle combustion-From single particles to cloud combustion in Bunsen flames［J］. Chinese Journal of Aeronautics， 2022， 35（5）： 319-332.
[25]	MORSI S A， ALEXANDER A J. An investigation of particle trajectories in two-phase flow systems［J］. Journal of Fluid Mechanics， 1972， 55（2）： 193-208.
[26]	RANZ W E， MARSHALL W R. Evaporation from droplets［J］. Chemical Engineering Progress， 1952， 48（3）： 141-146.
[27]	MI X C， FUJINAWA A， BERGTHORSON J M. A quantitative analysis of the ignition characteristics of fine iron particles［J］. Combustion and Flame， 2022， 240： 112011.
[28]	Ansys Fluent theory guide［M］. Canonsburg： Ansys Inc.， 2021： 451-457.
[29]	LIU C T， LINDSAY W T Jr. Vapor pressure of deuterated water from 106 to 300.deg［J］. Journal of Chemical & Engineering Data， 1970， 15（4）： 510-513.
[30]	KALPAKLI B， ACAR E B， ULAS A. Improved combustion model of boron particles for ducted rocket combustion chambers［J］. Combustion and Flame， 2017， 179： 267-279.
[31]	LIU D C， LI S L， XIE G N. Effect of primary water injection angle on thermal propulsion performance of a water ramjet engine［J］. Aerospace Science and Technology， 2020， 97： 105630.
[32]	ZHANG Y Q， WU Z W， ZHANG Z H， et al. Effect of gas injection holes on mixing and combustion in solid propellant ducted rockets［J］. Applied Thermal Engineering， 2023， 226： 120212.
[33]	ZHANG Y Q， WU Z W， ZHANG Z H， et al. Effect of synergistic impact gas injection device on secondary combustion in boron-based ducted rockets［J］. Applied Thermal Engineering， 2024， 242： 122558.
[34]	陈斌斌，夏智勋，王德全，等. 固冲发动机补燃室掺混过程评估方法研究［J］. 固体火箭技术， 2013， 36（6）： 731-735.
	CHEN B B， XIA Z X， WANG D Q， et al. Study on mixing process assessment method in solid ramjet［J］. Journal of Solid Rocket Technology， 2013， 36（6）： 731-735 （in Chinese）.
[35]	陈斌斌. 固冲发动机补燃室掺混燃烧特性及结构参数优化研究［D］. 长沙：国防科学技术大学， 2013： 25.
	CHEN B B. Solid ducted ramjet mixing and combustion characteristic and structure optimization research［D］. Changsha： National University of Defense Technology， 2013： 25 （in Chinese）.
[36]	GOSMAN A D， LOANNIDES E. Aspects of computer simulation of liquid-fueled combustors［J］. Journal of Energy， 1983， 7（6）： 482-490.
