直升机铝合金机身弹伤形态快速预测方法

doi:10.7527/S1000-6893.2025.32015

Abstract

Abstract:

For the rapid prediction and repair requirements of helicopter combat damage morphologies， a database for aluminum alloy body structures subjected to conical-cup-shaped armor-piercing bullets was established based on the Johnson-Cook constitutive model and impact finite element models. A double elliptic function model was developed to describe non-symmetric damage characteristics， incorporating key parameters such as bullet caliber， velocity， and incident angle to establish a relationship function for non-symmetric damage halves. A rapid prediction method for combat damage morphologies was proposed and compared against finite element numerical simulations， support vector machine mode optimized by genetic algorithm models（GA-SVR mode）， and experimental results. Subsequently， investigate the effects of projectile caliber， impact velocity， and incidence angle on wound ballistics morphology. The results demonstrate good agreement with experimental measurements， achieving maximum errors of 12.04% in width and 7.03% in length. Compared to finite element numerical simulations and the GA-SVR model， the rapid prediction method achieved MAPE （Mean Absolute Percentage Error） values of 2.87%， 4.32%， and 0.62% for the left semi-length， right semi-length， and width of the projectile hole， respectively， while the comparative methods yielded 2.92%， 2.67%， and 0.64% respectively. The MAE （Mean Absolute Error） for eccentricity was 0.554 and 0.35 respectively. The computational accuracy of the rapid prediction method is comparable to both finite element numerical method and the GA-SVR model. However， the computation time was reduced by approximately 88% and 97.7% respectively， demonstrating significantly improved computational efficiency. Compared to bullet caliber and velocity， incident angle has a greater impact on combat damage morphologies. The relationship between the incident angle and the left and right halves of perforation diameter is described by a two-term exponential function， while its relationship with offset distance is given by a three-term polynomial equation.

Key words: helicopter, armor-piercing bullet, aluminum alloy fuselage, bullet damage morphologies, rapid prediction method

CLC Number:

V229⁺.6

Zhen ZHANG, Jianfeng TAN, Jinglong ZHAO, Linhai CHEN, Yuze YAN, Changliang LIN. Rapid prediction method of bullet damage morphology of helicopter aluminum alloy fuselage[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(1): 232015.

Figures/Tables 25

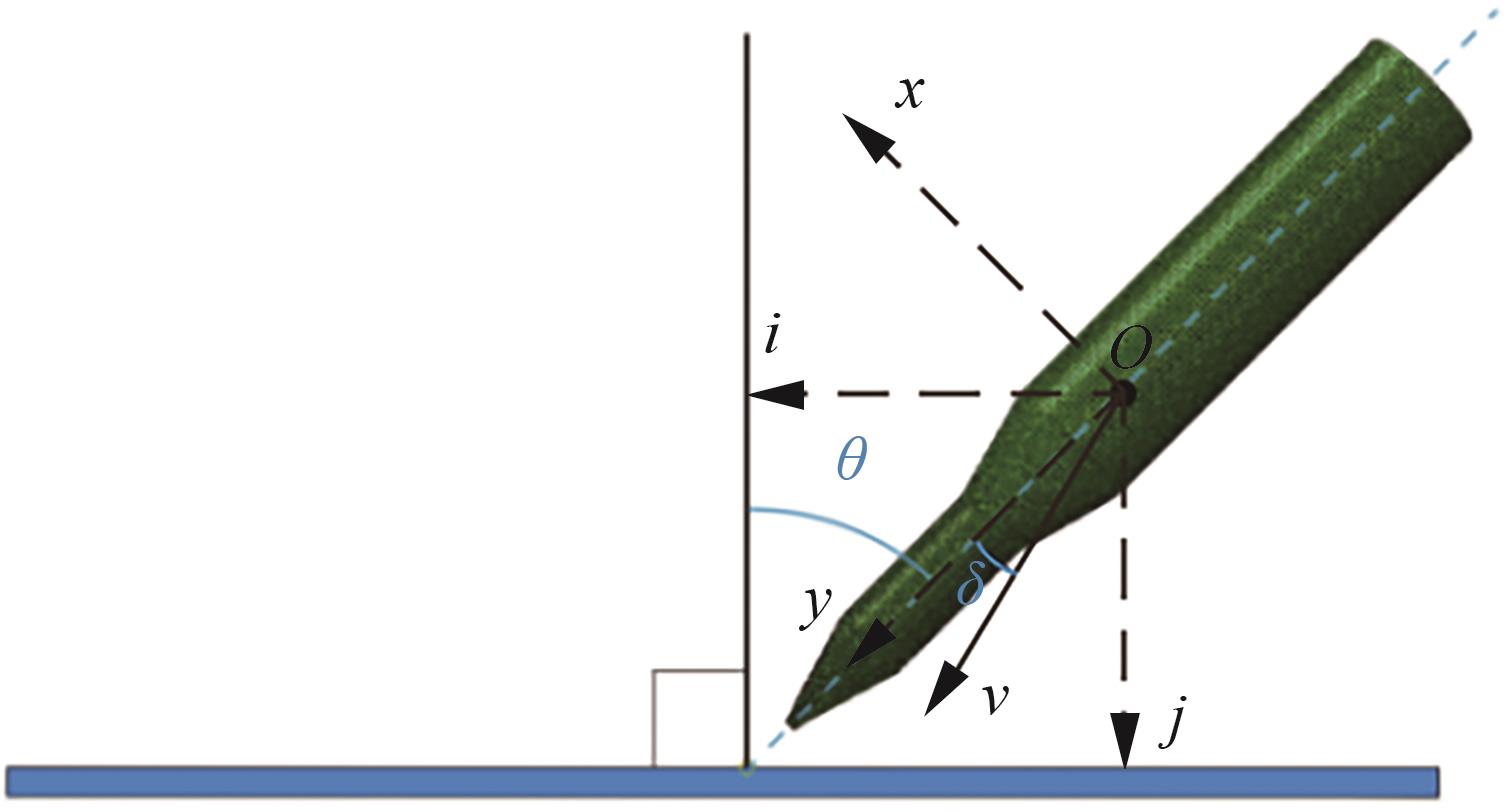

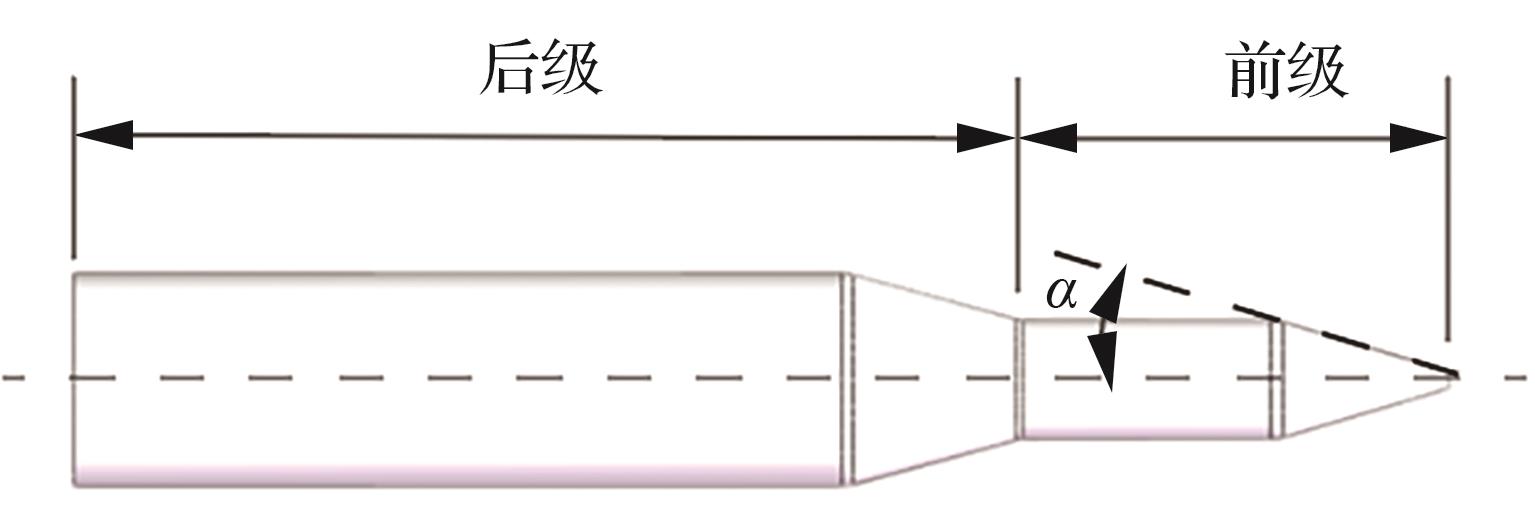

Fig.1

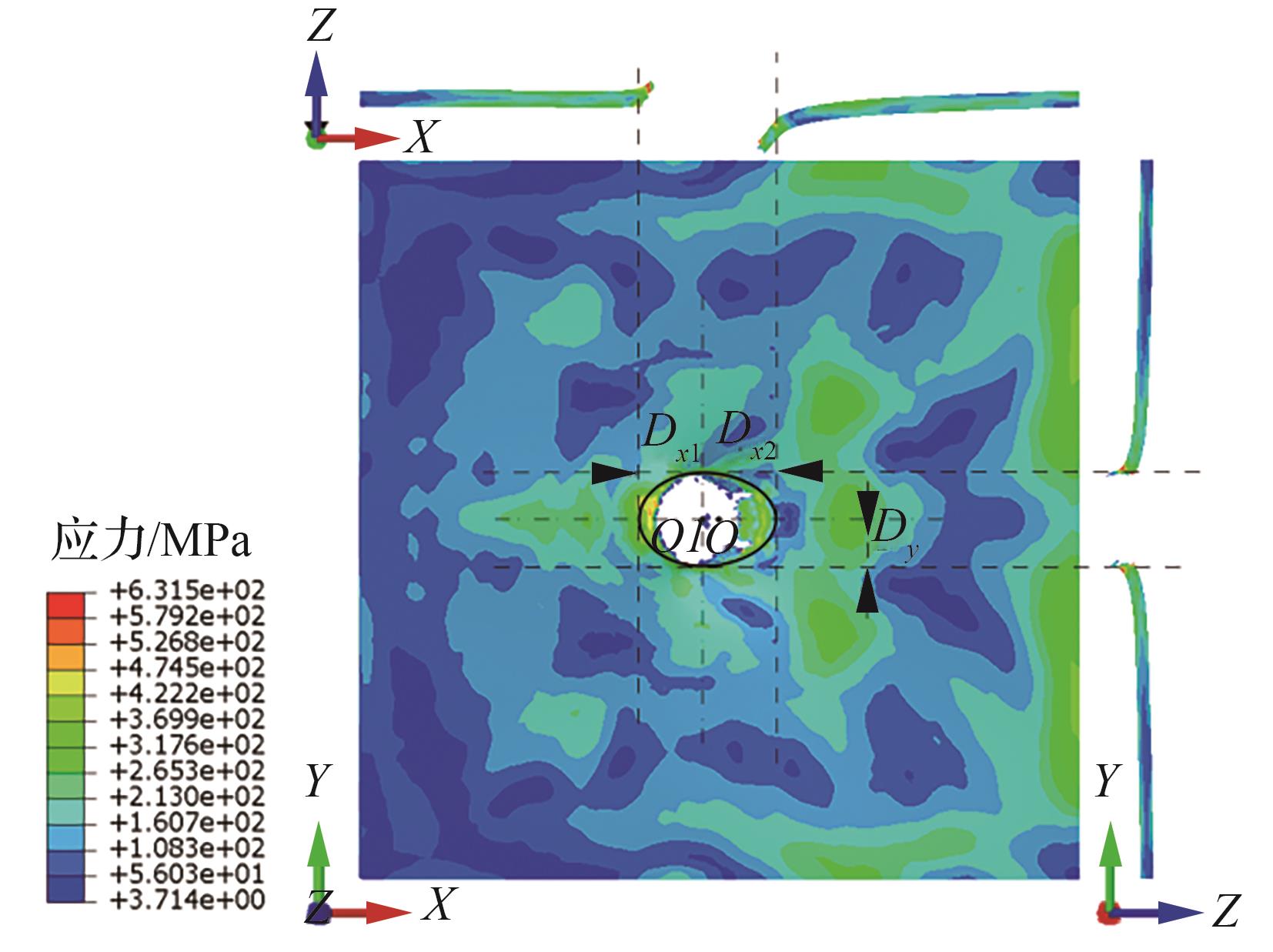

Fig.2

Table 1

Fig.3

Table 2

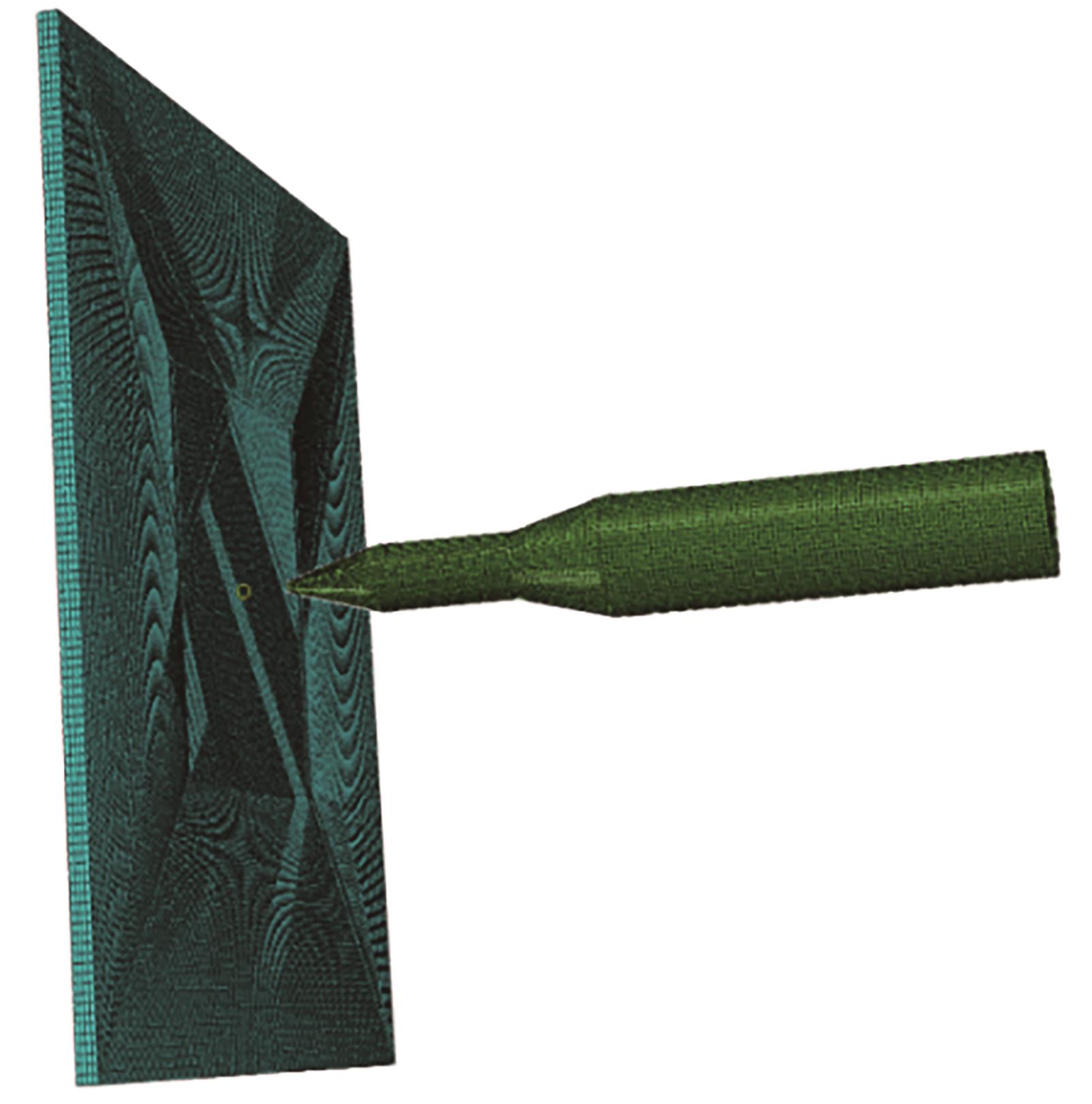

Fig.4

Fig.5

Table 3

Table 4

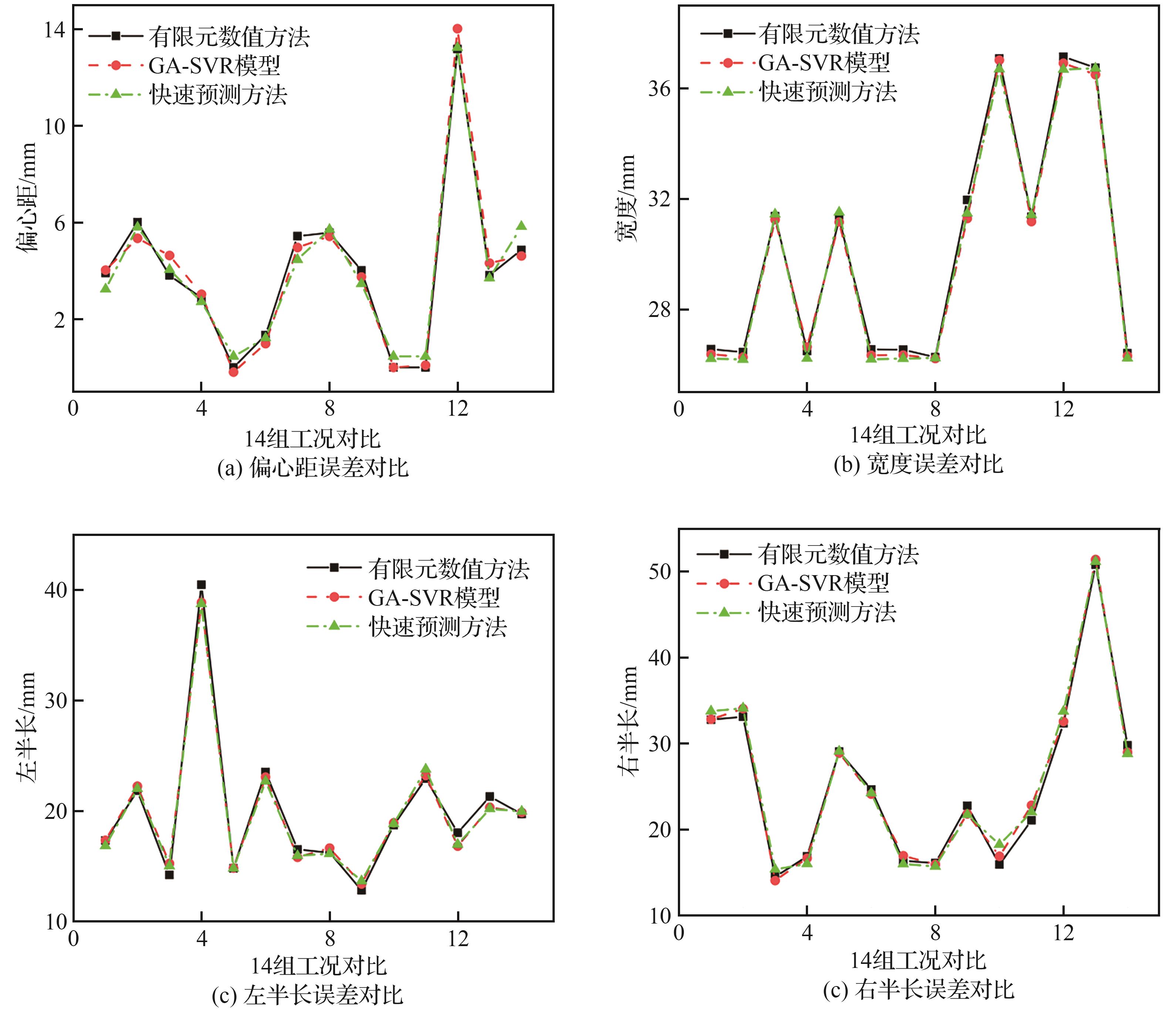

Fig.6

Fig.7

Table 5

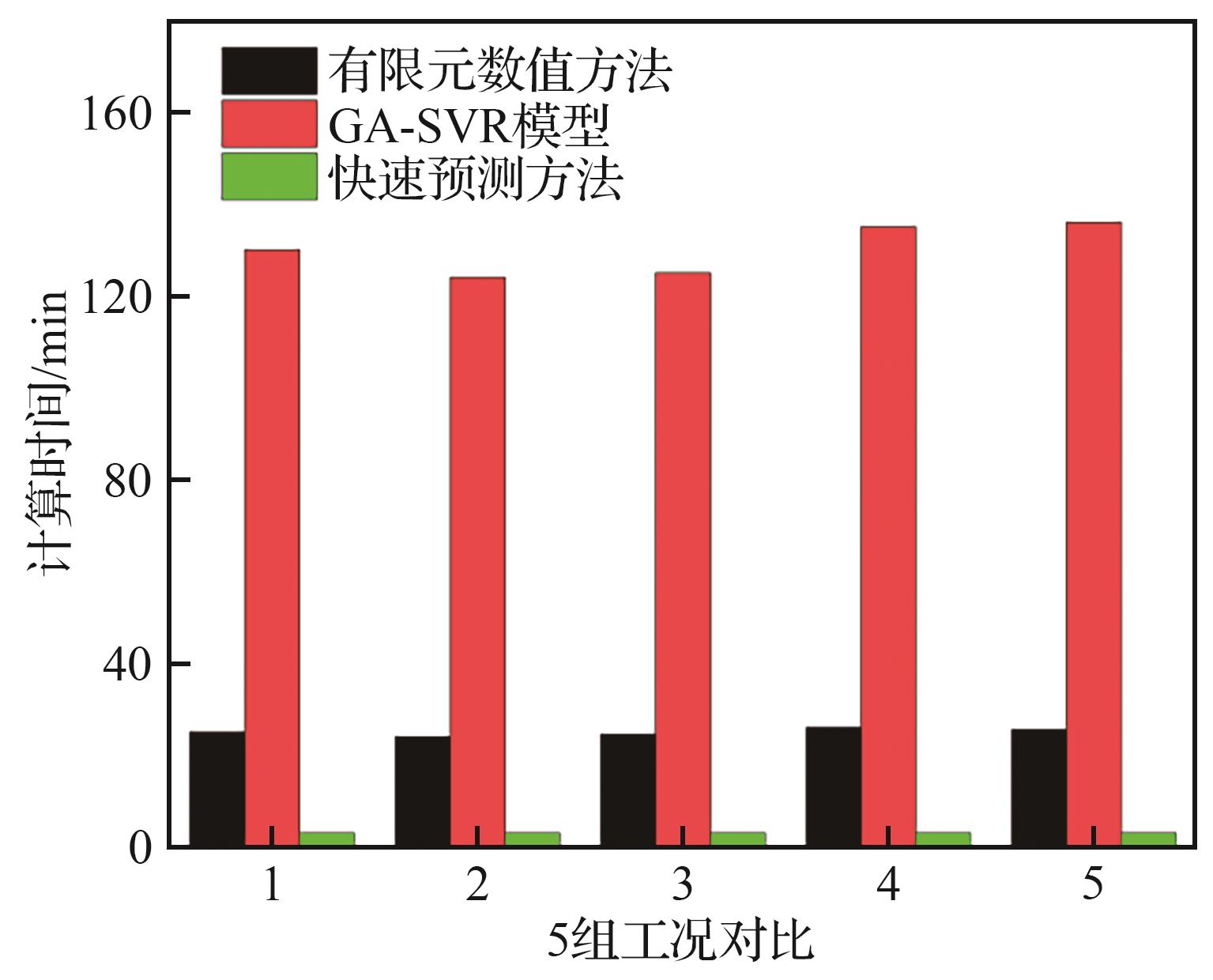

Fig.8

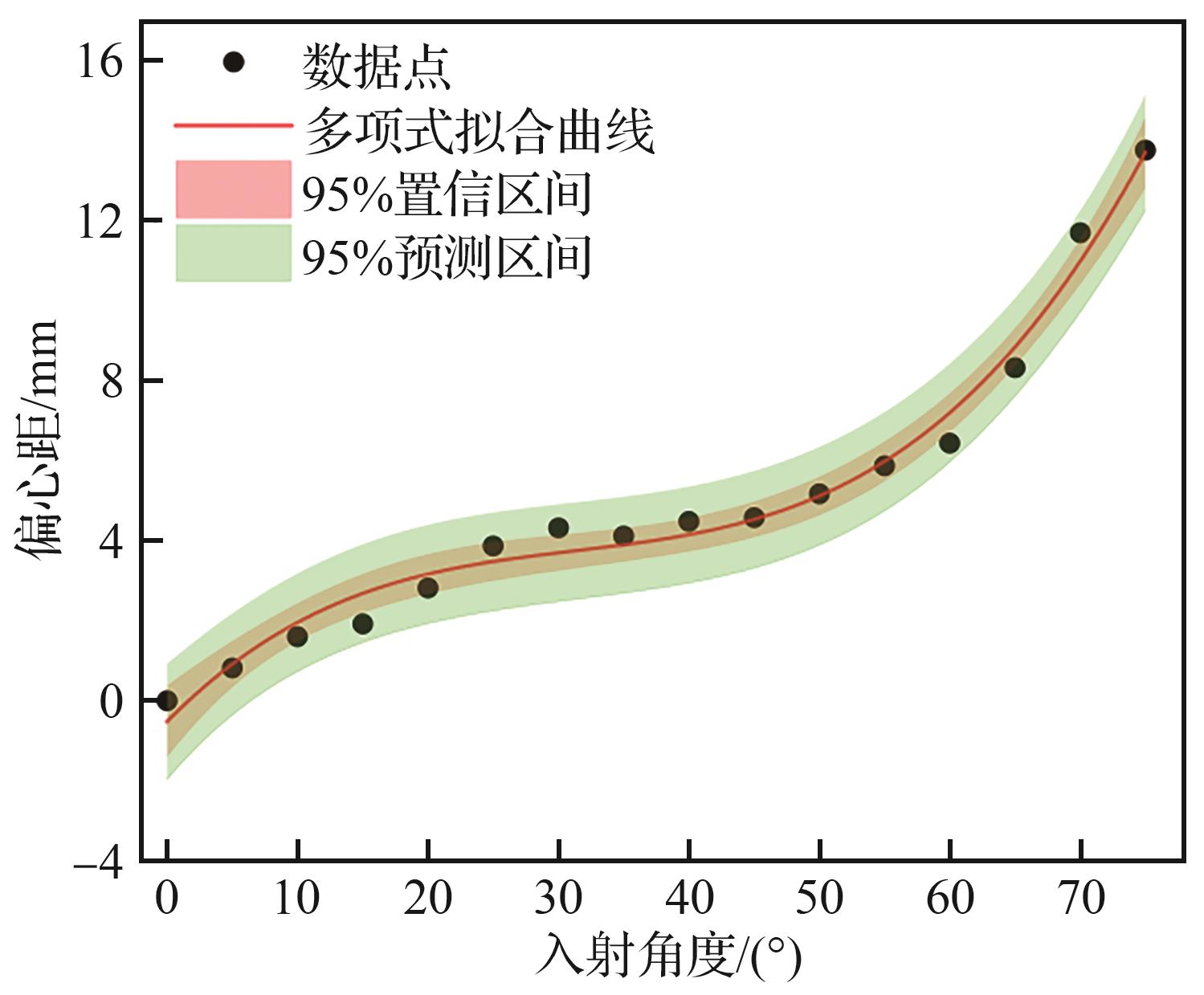

Fig.9

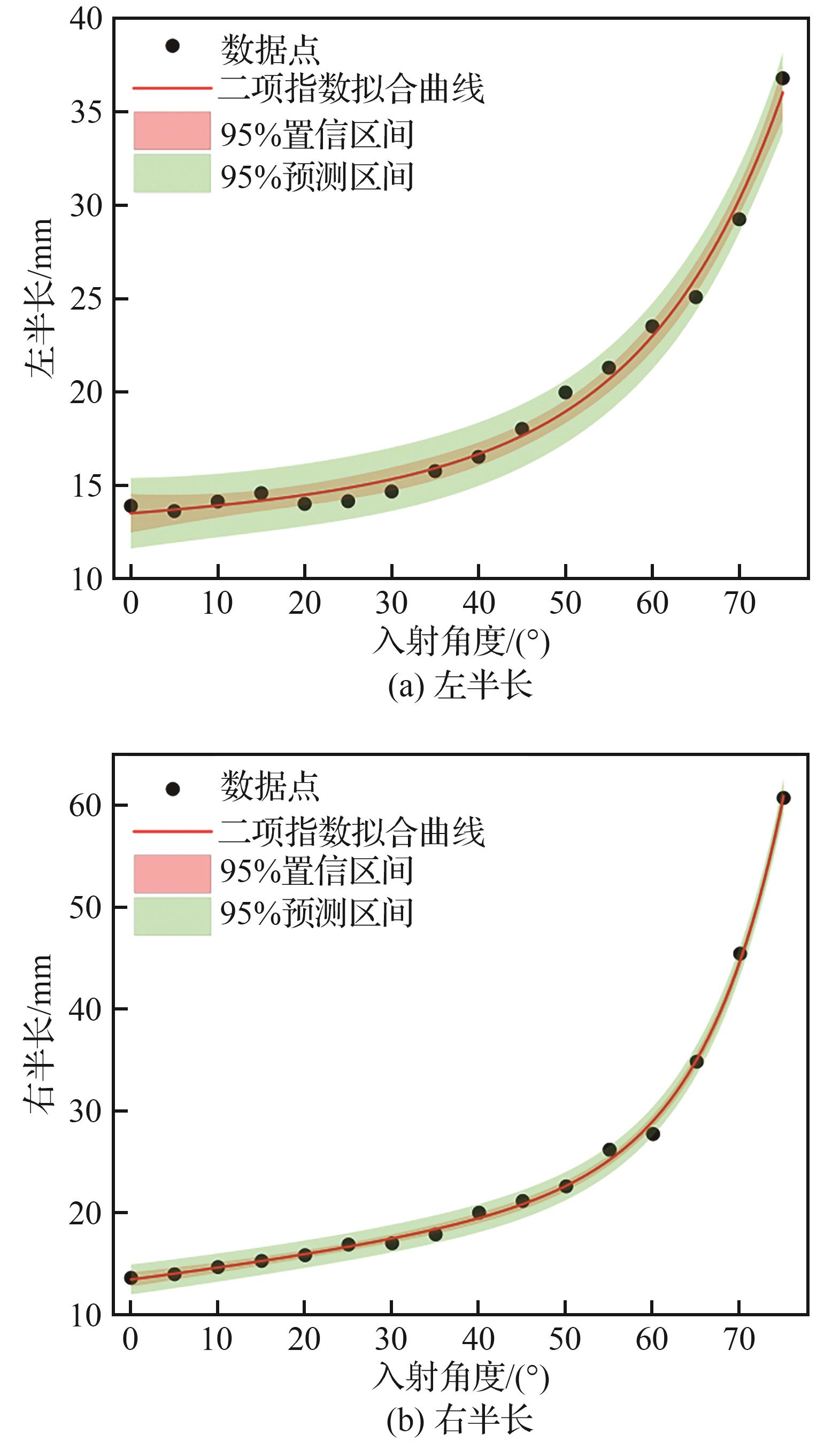

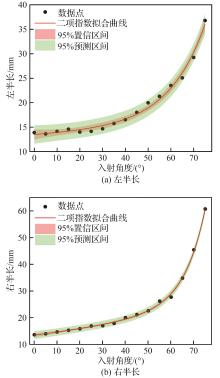

Fig.10

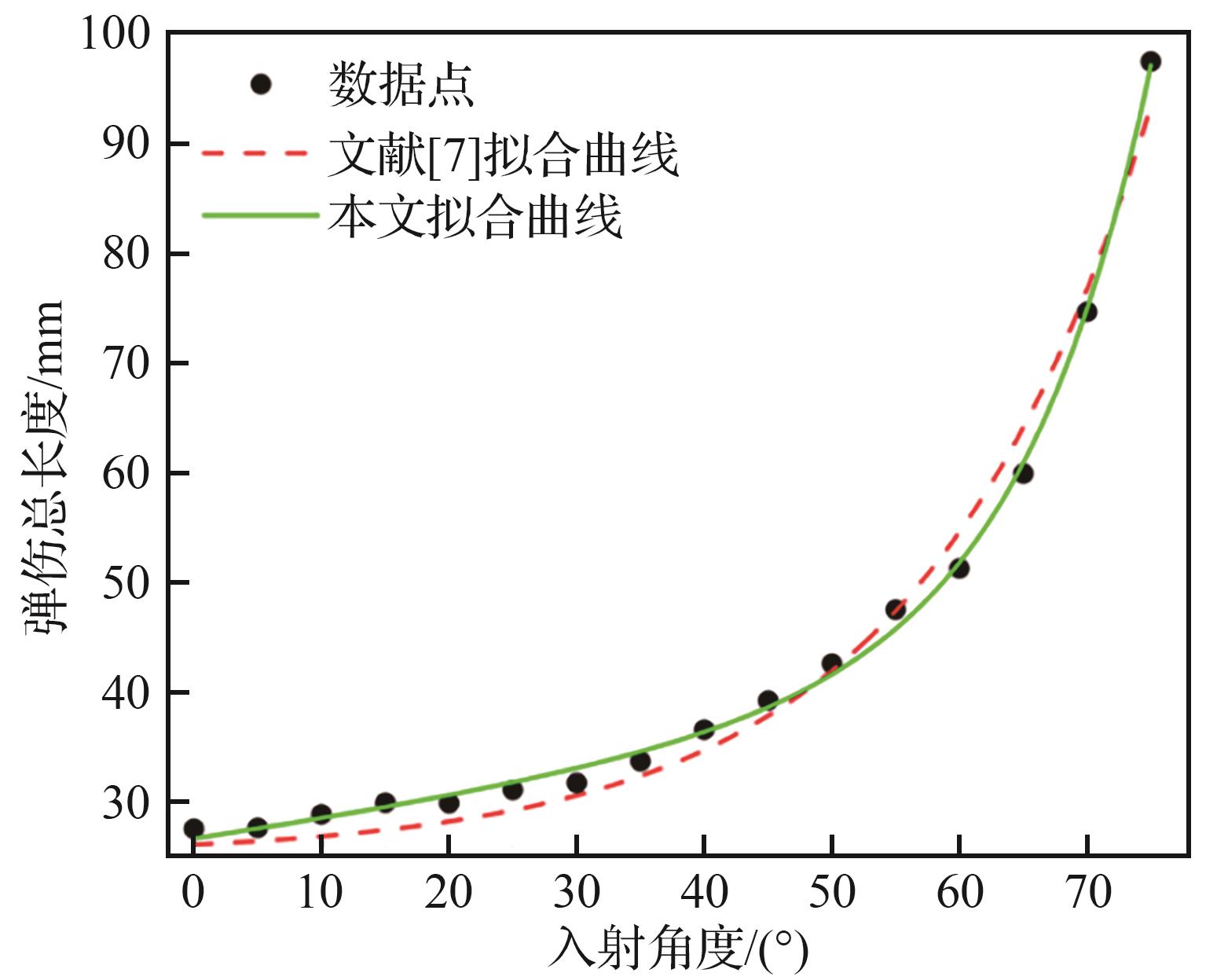

Fig.11

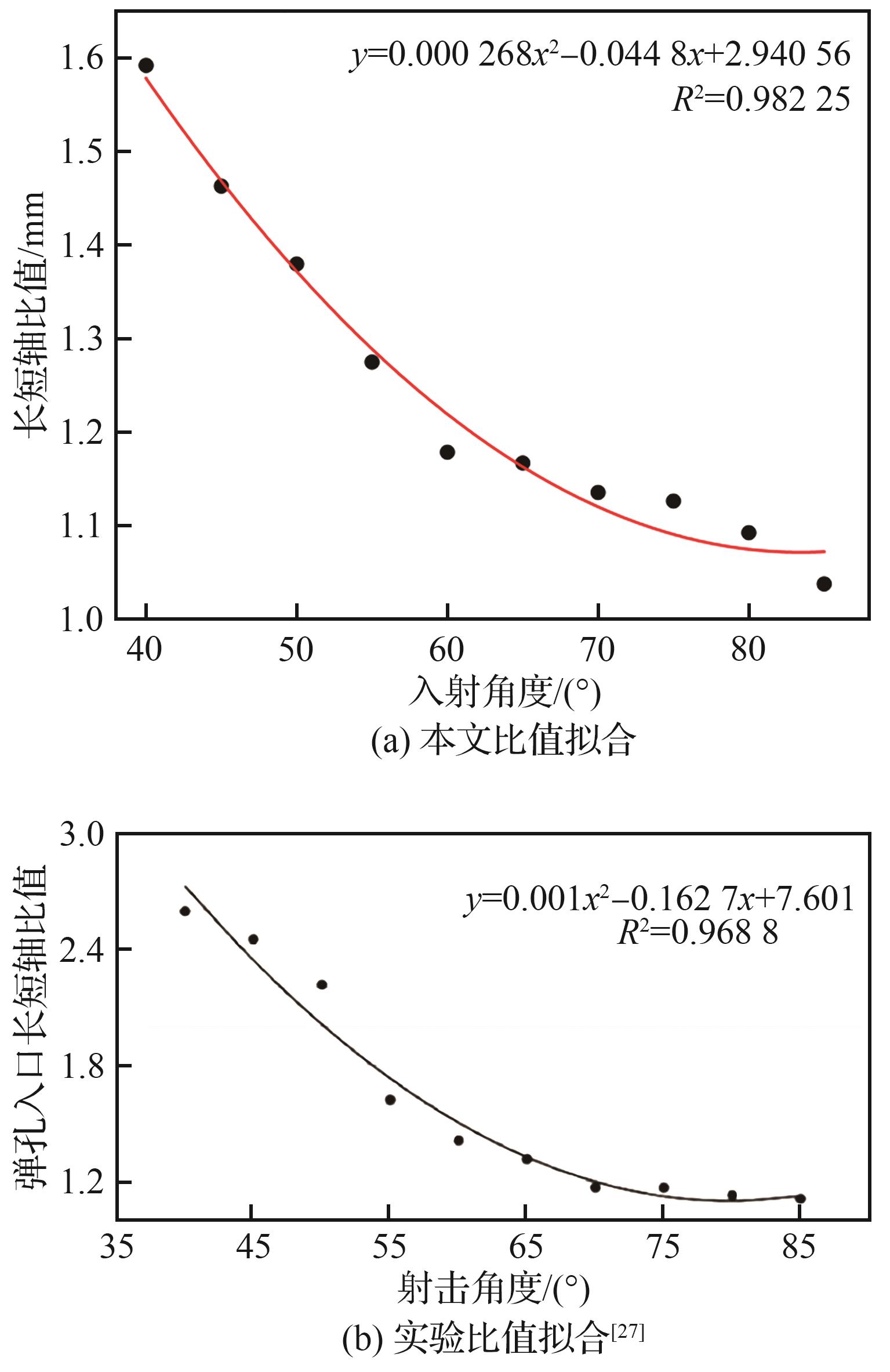

Fig.12

Fig.13

Fig.14

Fig.15

Table 6

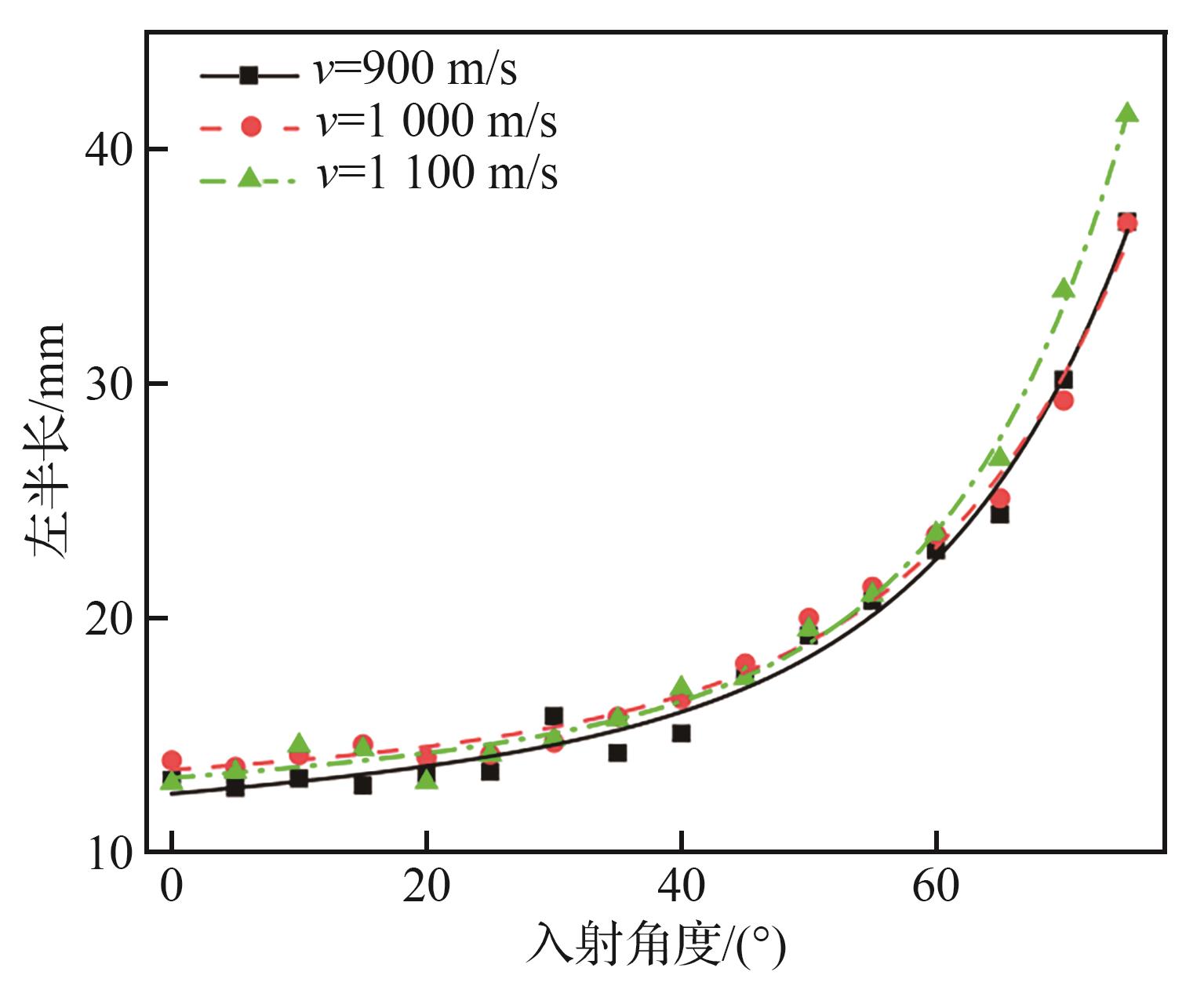

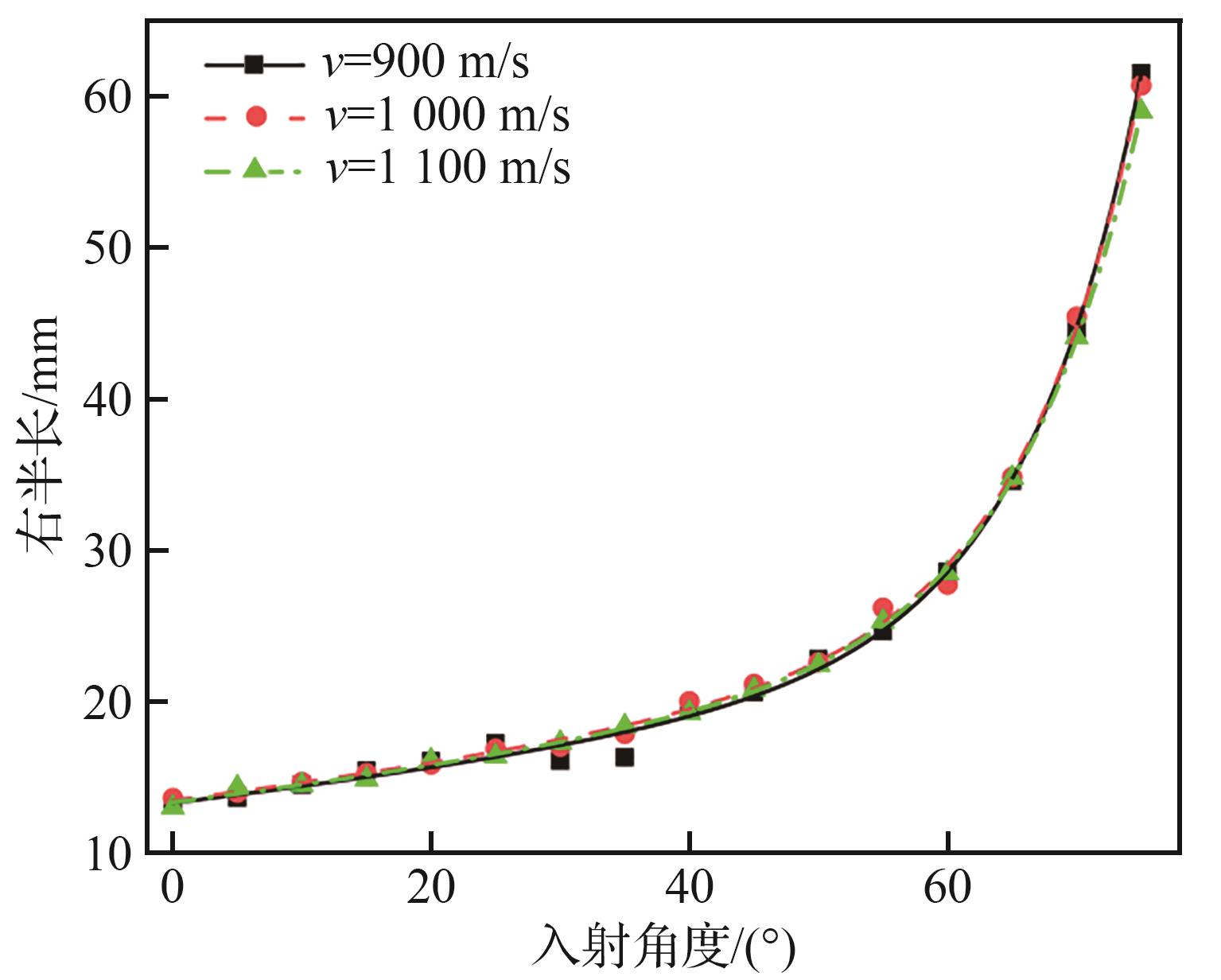

RMSE for different speeds

项目	RMSE
项目	$v$ =900 m/s	$v$ =1 000 m/s		$v$ =1 100 m/s
左半长	0.725 2	0.624 3	0.543 6
右半长	0.608 7	0.508 2	0.217 4

Table 6

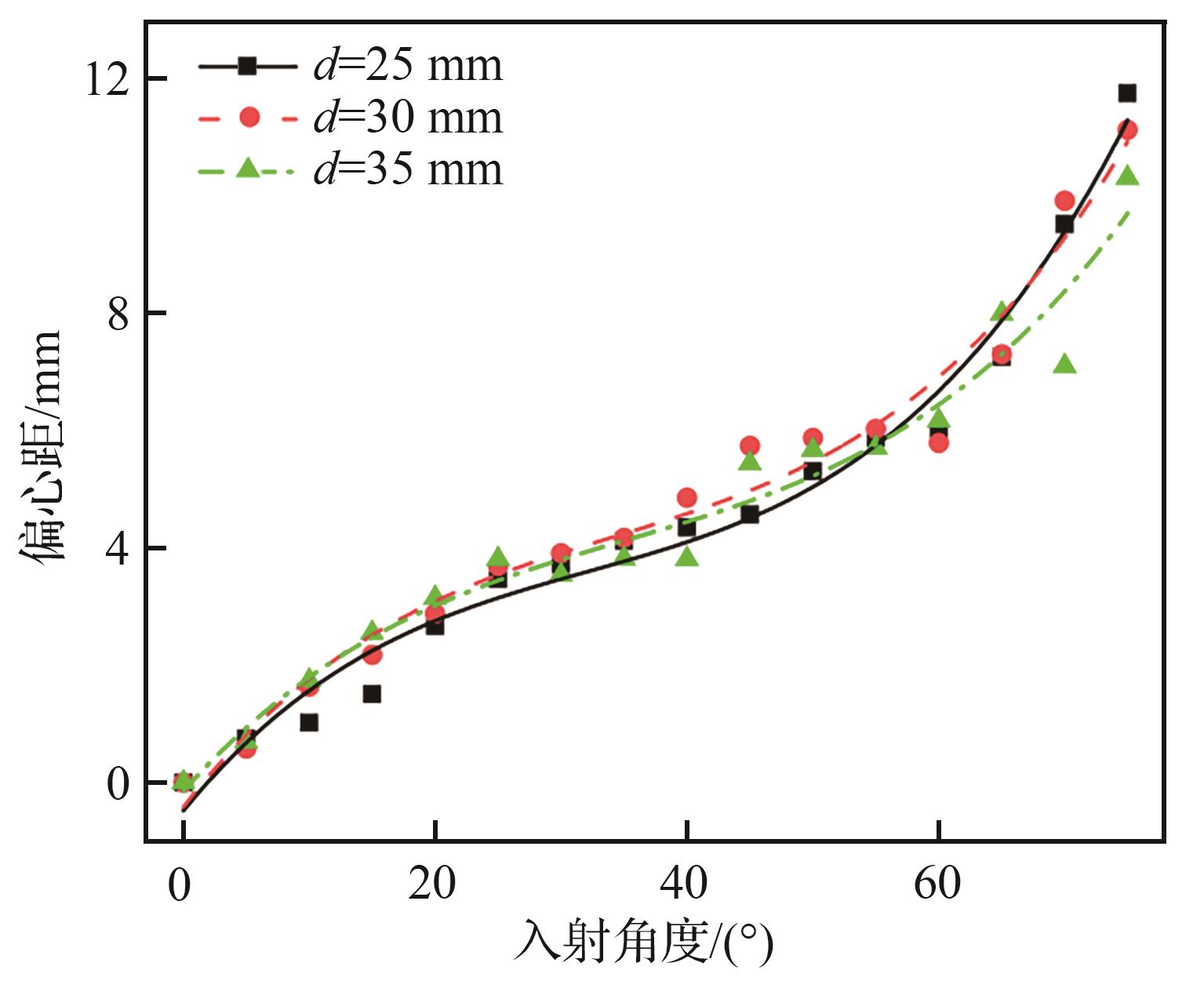

Fig.16

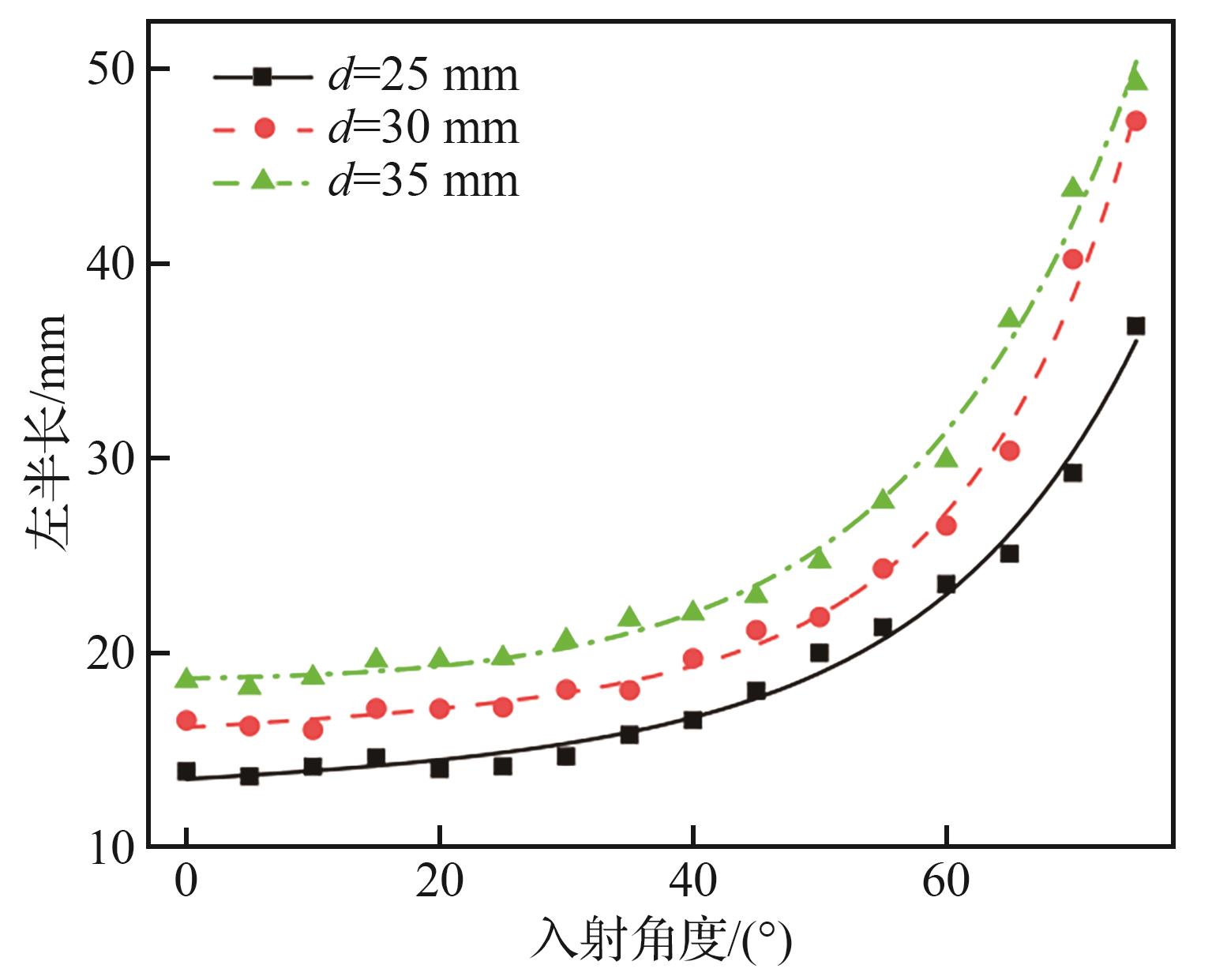

Fig.17

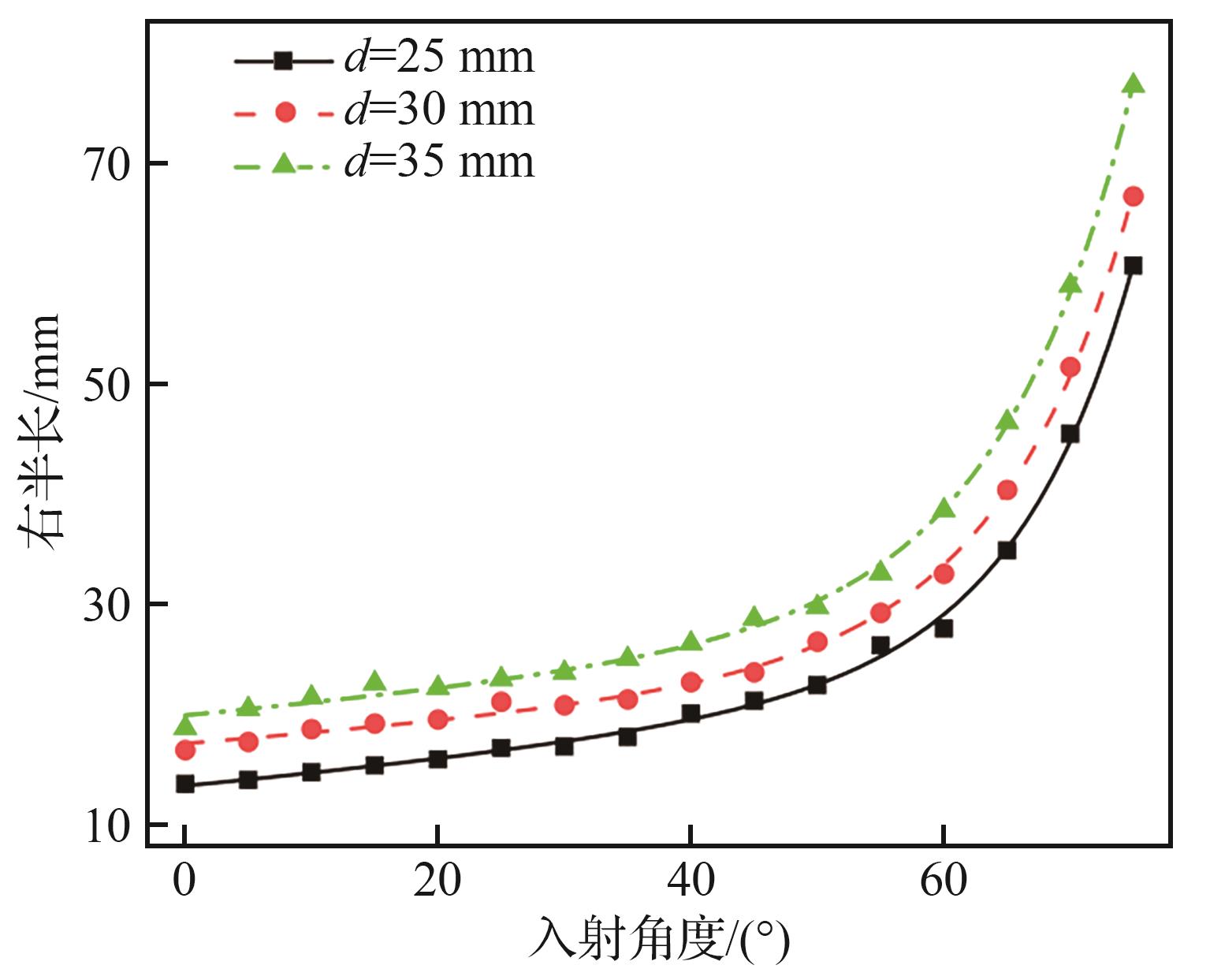

Fig.18

Table 7

RMSE for different calibers

项目	RMSE
项目	$d$ =25 mm	$d$ =30 mm	$d$ =35 mm
左半长	0.624 3	0.704 7	0.891 4
右半长	0.586 9	0.544 4	0.632 8

Table 7

References 27

[1]	邢肖兵，谭剑锋，杨宇霄，等. 基于子弹击穿理论的直升机机身弹伤快速分析方法［J］. 北京航空航天大学学报， 2025， 51（9）： 3212-3221.
	XING X B， TAN J F， YANG Y X， et al. An efficient analysis method of helicopter fuselage bullet damage based on bullet penetration theory［J］. Journal of Beijing University of Aeronautics and Astronautics， 2025， 51（9）： 3212-3221 （in Chinese）.
[2]	WALTERS M， LISCIO E. The accuracy and repeatability of reconstructing single bullet impacts using the 2D ellipse method［J］. Journal of Forensic Sciences， 2020， 65（4）： 1120-1127.
[3]	LISCIO E， PARK J. The lead-in method for bullet impacts in metal panels［J］. Forensic Science International， 2021， 326： 110914.
[4]	胡静，吕瑜晗. 斜撞击角度对铝合金薄板失效特性影响研究［J］. 机械强度， 2022， 44（5）： 1119-1127.
	HU J， LÜ Y H. Study on the effect of oblique impact angle on the failure characteristics of aluminum alloy sheet［J］. Journal of Mechanical Strength， 2022， 44（5）： 1119-1127 （in Chinese）.
[5]	KPENYIGBA K M， JANKOWIAK T， RUSINEK A， et al. Influence of projectile shape on dynamic behavior of steel sheet subjected to impact and perforation［J］. Thin-Walled Structures， 2013， 65： 93-104.
[6]	薛建锋，沈培辉，王晓鸣. 钻地弹斜侵彻混凝土靶的工程计算模型［J］. 航空学报， 2016， 37（6）： 1899-1911.
	XUE J F， SHEN P H， WANG X M. Engineering calculation model for oblique penetration into concrete target by earth penetration weapon［J］. Acta Aeronautica et Astronautica Sinica， 2016， 37（6）： 1899-1911 （in Chinese）.
[7]	管公顺，哈跃，庞宝君. 铝球弹丸超高速斜撞击薄铝板特性研究［J］. 高压物理学报， 2007， 21（4）： 347-353.
	GUAN G S， HA Y， PANG B J. Investigation on damage characteristics of thin Al-plates by oblique hypervelocity impact of Al-sphere［J］. Chinese Journal of High Pressure Physics， 2007， 21（4）： 347-353 （in Chinese）.
[8]	王瀚艺. 硬38CrSi平头弹斜撞击45钢靶侵彻特性研究［J］. 中国民航飞行学院学报， 2019， 30（1）： 13-16.
	WANG H Y. Research on penetration characteristics of 45 steel target impact by hard 38CrSi flat-nosed projectile［J］. Journal of Civil Aviation Flight University of China， 2019， 30（1）： 13-16 （in Chinese）.
[9]	IQBAL M A， GUPTA G， GUPTA N K. 3D numerical simulations of ductile targets subjected to oblique impact by sharp nosed projectiles［J］. International Journal of Solids and Structures， 2010， 47（2）： 224-237.
[10]	IQBAL M A， CHAKRABARTI A， BENIWAL S， et al. 3D numerical simulations of sharp nosed projectile impact on ductile targets［J］. International Journal of Impact Engineering， 2010， 37（2）： 185-195.
[11]	陈尚军，秦庆华，张威，等. 低速冲击下金属蜂窝夹芯板抗侵彻性能的试验研究［J］. 航空学报， 2018， 39（2）： 221483.
	CHEN S J， QIN Q H， ZHANG W， et al. Experimental investigation on against penetration of metallic honeycomb sandwich plates under low-velocity impact［J］. Acta Aeronautica et Astronautica Sinica， 2018， 39（2）： 221483 （in Chinese）.
[12]	王立纲，王日晗，肖思维，等. 2024-T42铝合金圆管抗球形钢弹侵彻特性研究［J］. 机械强度， 2025， 47（6）： 118-123.
	WANG L G， WANG R H， XIAO S W， et al. Research on the penetration resistance characteristic of 2024-T42 aluminum alloy tube to spherical steel projectile［J］. Journal of Mechanical Strength， 2025， 47（6）： 118-123 （in Chinese）.
[13]	王砚书. 刚体弹丸侵彻靶板的毁伤效应预测分析［D］. 哈尔滨：哈尔滨工业大学， 2023： 14-16.
	WANG Y S. Prediction and analysis of the destructive effect of rigid body projectile penetrating the target plate［D］. Harbin： Harbin Institute of Technology， 2023： 14-16 （in Chinese）.
[14]	王峰，王肖钧，胡秀章，等. 卵形杆弹对铝靶的斜侵彻［J］. 爆炸与冲击， 2005， 25（3）： 265-270.
	WANG F， WANG X J， HU X Z， et al. Oblique penetration of an ogive-nosed rod into the aluminum target［J］. Explosion and Shock Waves， 2005， 25（3）： 265-270 （in Chinese）.
[15]	伍乾坤，韩旭，谭柱华，等. 考虑攻角的长杆弹斜穿透中厚铝靶机理［J］. 工程力学， 2012， 29（6）： 338-345.
	WU Q K， HAN X， TAN Z H， et al. Mechanism of perforation of inclined moderately thick aluminum target by long-rod projectile with yaw［J］. Engineering Mechanics， 2012， 29（6）： 338-345 （in Chinese）.
[16]	辛壮壮，张向东，江睿毅，等. 弹头角速度与侵彻倾角对铝合金薄板损伤分析［J］. 弹道学报， 2022， 34（4）： 23-29.
	XIN Z Z， ZHANG X D， JIANG R Y， et al. Influence of warhead angular velocity and penetration angle on damage performance of aluminum alloy sheet［J］. Journal of Ballistics， 2022， 34（4）： 23-29 （in Chinese）.
[17]	高旭东，李庆明. 带攻角斜侵彻混凝土的弹道偏转分析［J］. 兵工学报， 2014， 35（）： 33-39.
	GAO X D， LI Q M. Trajectory analysis of projectile obliquely penetrating into concrete target at attack angle［J］. Acta Armamentarii， 2014， 35（）： 33-39 （in Chinese）.
[18]	李钊，孙旭光，周中锋. 穿甲弹斜侵彻钛合金靶板试验与数值模拟研究［J］. 振动与冲击， 2023， 42（23）： 159-166.
	LI Z， SUN X G， ZHOU Z F. Tests and numerical simulation of oblique penetration of armour-piercing projectile into titanium alloy target［J］. Journal of Vibration and Shock， 2023， 42（23）： 159-166 （in Chinese）.
[19]	康海峰，代廷静，沈培辉，等. 弹体形状对侵彻弹道的影响分析［J］. 弹箭与制导学报， 2012， 32（2）： 73-76.
	KANG H F， DAI T J， SHEN P H， et al. The analysis of the influence of projectile’s shape on penetration trajectory［J］. Journal of Projectiles， Rockets， Missiles and Guidance， 2012， 32（2）： 73-76 （in Chinese）.
[20]	CHENG J C， ZHANG S， LIU Q， et al. Ballistic impact experiments and modeling on impact cratering， deformation and damage of 2024-T4 aluminum alloy［J］. International Journal of Mechanical Sciences， 2022， 224： 107312.
[21]	KUMAR REDDY SIRIGIRI V， YADAV GUDIGA V， SHANKAR GATTU U， et al. A review on Johnson Cook material model［J］. Materials Today： Proceedings， 2022， 62： 3450-3456.
[22]	李春雷. 2A12铝合金本构关系实验研究［D］. 哈尔滨：哈尔滨工业大学， 2006： 40-42.
	LI C L. Experimental investigation into the constitutive relationship of 2A12 aluminum alloy［D］. Harbin： Harbin Institute of Technology， 2006： 40-42 （in Chinese）.
[23]	熊瑞亮. 2024铝合金超精密车削有限元模拟及实验研究［D］. 南昌：南昌大学， 2020： 11-12.
	XIONG R L. Finite element simulation and experimental study of 2024 aluminum alloy ultra precision turning［D］. Nanchang： Nanchang University， 2020： 11-12 （in Chinese）.
[24]	余庆波，王海福，俞为民. 结构参数对截锥弹低速正侵彻装甲靶的影响［J］. 工程力学， 2012， 29（1）： 207-213.
	YU Q B， WANG H F， YU W M. Influence of structural parameters on perpendicular penetrating armor of truncated conical projectile in low speed［J］. Engineering Mechanics， 2012， 29（1）： 207-213 （in Chinese）.
[25]	李亚，任杰，马大为，等. 多角度高速侵彻金属靶的有限元模拟和实验研究［J］. 兵器材料科学与工程， 2017， 40（5）： 72-77.
	LI Y， REN J， MA D W， et al. FEM simulation and experimental study of multiangular high velocity penetration of metallic targets［J］. Ordnance Material Science and Engineering， 2017， 40（5）： 72-77 （in Chinese）.
[26]	裴桂艳，聂建新，王秋实，等. 舰炮半穿甲模拟弹对金属靶板斜侵彻研究［J］. 兵工学报， 2024， 45（3）： 731-743.
	PEI G Y， NIE J X， WANG Q S， et al. Study on oblique penetration of metal plate by naval Gun semi-armor-piercing simulation projectile［J］. Acta Armamentarii， 2024， 45（3）： 731-743 （in Chinese）.
[27]	于遨洋，杨通. 平板玻璃上弹孔形态与射击方向的相关性检验［J］. 中国刑警学院学报， 2017（3）： 91-95.
	YU A Y， YANG T. Correlation study on the direction of fire and the shape of bullet hole in flat glass［J］. Journal of Criminal Investigation Police University of China， 2017（3）： 91-95 （in Chinese）.

参数		数值
密度ρ/（kg·m^-3）		2 790
剪切模量G/GPa		27.6
弹性模量E/GPa		73.416
泊松比μ		0.33
屈服应力A/MPa		265
应变硬化常数B/MPa		426
应变硬化指数n		0.34
应变率常数C		0.015
热软化系数m		1
熔点T_m/K		775
室温T_r/K		300
断裂常数	D₁	0.130
	D₂	0.130
	D₃	-1.500
	D₄	0.011
	D₅	0

入射角度/ （°）	偏心距/ mm	宽度/mm	左半长/ mm	右半长/ mm
0	0	26.84	13.89	13.62
5	0.82	26.61	13.62	13.98
10	1.60	26.39	14.13	14.69
15	1.92	26.54	14.58	15.30
20	2.82	26.30	14.00	15.85
25	3.87	26.61	14.14	16.90
30	4.32	26.89	14.66	17.02
35	4.12	26.41	15.76	17.90
40	4.48	26.49	16.52	20.02
45	4.58	26.80	18.02	21.18
50	5.17	26.75	19.97	22.61
55	5.87	26.43	21.29	26.21
60	6.44	26.73	23.51	27.75
65	8.32	26.79	25.07	34.85
70	11.7	26.28	29.24	45.44
75	13.76	26.41	36.79	60.73

工况类型	偏心距/ mm	宽度/mm	左半长/ mm	右半长/ mm
有限元①	6.02	31.33	21.82	26.56
预测方法①	5.81	31.46	22.05	25.63
有限元②	3.81	36.47	23.40	26.31
预测方法②	4.05	36.65	22.56	24.96
有限元③	2.88	31.00	17.32	19.36
预测方法③	2.72	31.55	16.84	18.87
有限元④	5.58	31.13	20.57	23.77
预测方法④	5.71	31.51	19.96	23.34

参数	R²	MAE	RMSE
偏心距	0.982 1	0.350 1	0.437 9
宽度	0.996 7	0.192 1	0.240 3
左半长	0.987 4	0.572 9	0.732 4
右半长	0.994 2	0.593 9	0.740 4

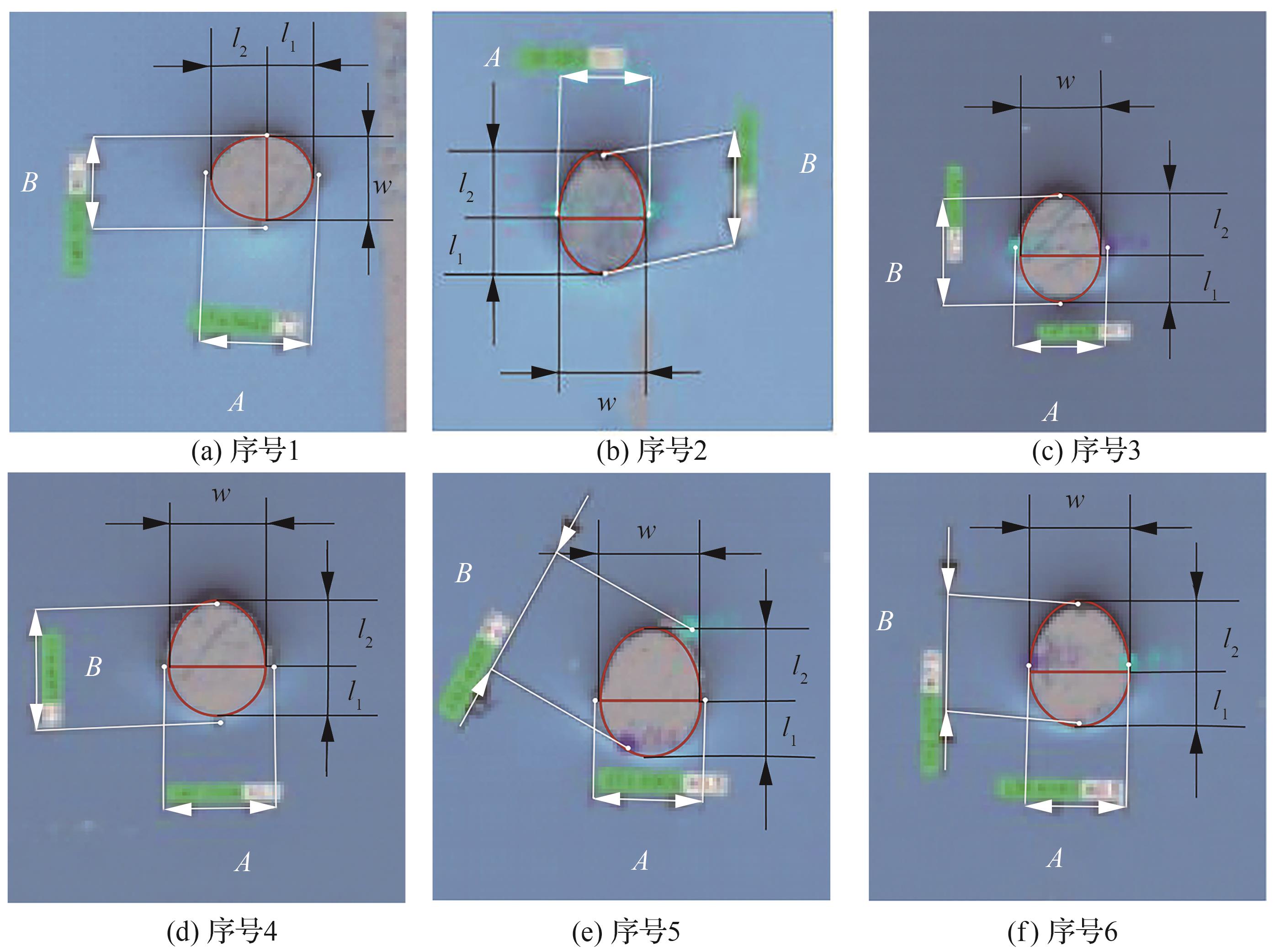

序号	宽度/mm×长度/mm	误差/%
1，2	143.08×160.98，129.803×149.668	9.28，7.03
3，4	147.50×164.75，129.784×162.002	12.04，2.75
5，6	144.28×172.18，129.686×163.052	10.12，5.30
