高速飞行器编队有限时间逆优化复合控制

doi:10.7527/S1000-6893.2025.32952

Abstract

Abstract:

To meet the performance requirements of rapid convergence of cooperative errors for high-speed aircraft formation， a finite-time inverse optimization composite control strategy is proposed. Firstly， the dynamic model of the high-speed aircraft is simplified， and a second-order system model along with a formation error dynamic model is established. Then， a sliding mode control method with finite-time convergence is designed to enhance the convergence speed of cooperative errors in high-speed aircraft formation， thereby meeting the real-time requirements of cooperative control during rapid maneuvers. To further enhance the cooperative performance on the basis of finite-time convergence， an inverse optimization composite control method is proposed to satisfy specified optimal performance metrics. Finally， simulation experiments verify the effectiveness and feasibility of the proposed finite-time inverse optimization composite control method.

Key words: high-speed aircraft formation, cooperative control, finite-time control, inverse optimization control, sliding mode control

CLC Number:

V249

Jinli GUO, Mou CHEN. Finite-time inverse optimization composite control of high-speed aircraft formation[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(S1): 732952.

Figures/Tables 9

Fig.1

Fig.2

Fig.3

Table 1

Initial states of followers

$x i, y i, z i / m$	$V i / (m · s - 1)$	$o i / m$	$ϕ i / r a d$	$χ i / r a d$
$0,29 000,31 610$	$1 700$	$600$	$- 0.499 π$	$0$
$0,29 605,29 500$	$1 700$	$4002$	$π / 4$	$π / 3$
$0,29 990,29 009$	$1 700$	$4002$	$π / 4$	$π / 3$

Table 1

Table 2

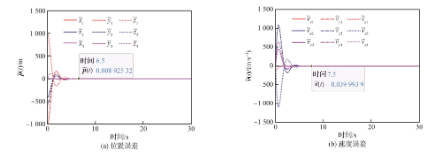

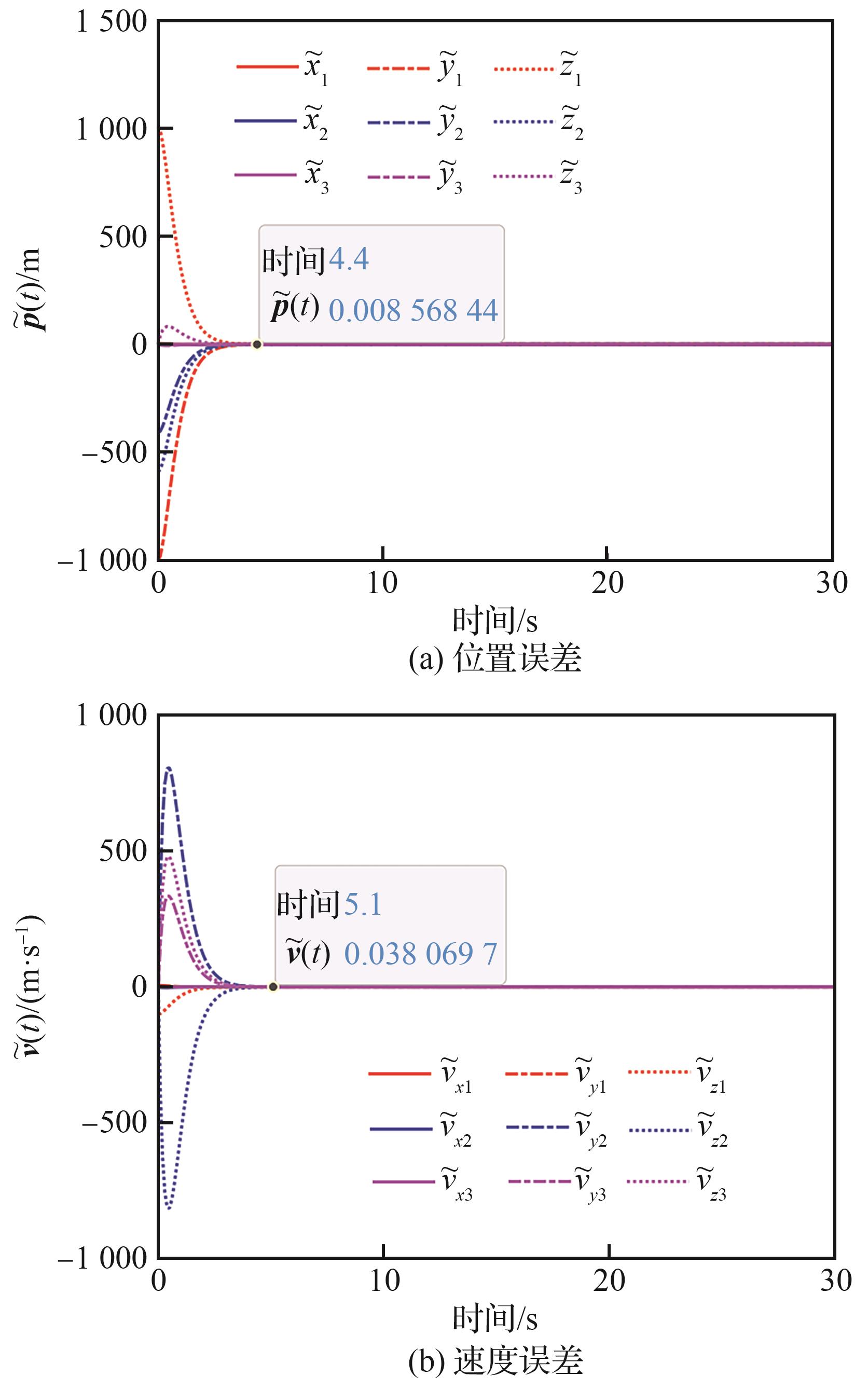

Convergence time with/without finite-time control strategy

变量	收敛时间/s
变量	未加入有限时间控制	加入有限时间控制
$p ˜ t$	6.5	4.4
$v ˜ t$	7.5	5.1

Table 2

Fig.4

Fig.5

Fig.6

Fig.7

References 26

[1]	胡砚洋，王温，白成超. 滑翔式高超声速飞行器时间协同与编队控制技术研究综述［J］. 中国科学（物理学、力学、天文学）， 2025， 55（9）： 20-33.
	HU Y Y， WANG W， BAI C C. Time coordination and formation control techniques for hypersonic gliding vehicles： A survey［J］. Scientia Sinica Physica， Mechanica & Astronomica， 2025， 55（9）： 20-33 （in Chinese）.
[2]	赵恩娇. 多飞行器编队控制及协同制导方法［D］. 哈尔滨：哈尔滨工业大学， 2018： 2-5.
	ZHAO E J. Formation control and cooperative guidance methods for multiple flight vehicles［D］. Harbin： Harbin Institute of Technology， 2018： 2-5 （in Chinese）.
[3]	安凯，郭振云，黄伟，等. 低/高速飞行器系统编队协同控制方法研究进展［J］. 航空兵器， 2022， 29（5）： 53-65.
	AN K， GUO Z Y， HUANG W， et al. Research progress of formation-cooperative control methods for low-speed and high-speed vehicle systems［J］. Aero Weaponry， 2022， 29（5）： 53-65 （in Chinese）.
[4]	刘哲，陆浩然，郑伟，等. 多滑翔飞行器时间协同轨迹快速规划［J］. 航空学报， 2021， 42（11）： 524497.
	LIU Z， LU H R， ZHENG W， et al. Rapid time-coordination trajectory planning method for multi-glide vehicles［J］. Acta Aeronautica et Astronautica Sinica， 2021， 42（11）： 524497 （in Chinese）.
[5]	姜鹏，郭栋，韩亮，等. 多飞行器再入段时间协同弹道规划方法［J］. 航空学报， 2020， 41（S1）： 723776.
	JIANG P， GUO D， HAN L， et al. Trajectory optimization for cooperative reentry of multiple hypersonic glide vehicle［J］. Acta Aeronautica et Astronautica Sinica， 2020， 41（S1）： 723776 （in Chinese）.
[6]	LIANG Z X， LV C， ZHU S Y. Lateral entry guidance with terminal time constraint［J］. IEEE Transactions on Aerospace and Electronic Systems， 2023， 59（3）： 2544-2553.
[7]	YU J L， DONG X W， LI Q D， et al. Cooperative guidance strategy for multiple hypersonic gliding vehicles system［J］. Chinese Journal of Aeronautics， 2020， 33（3）： 990-1005.
[8]	周健，龚春林，粟华，等. 复杂约束下的编队姿态有限时间协同控制方法［J］. 宇航学报， 2018， 39（12）： 1340-1347.
	ZHOU J， GONG C L， SU H， et al. Finite-time distributed synchronization of spacecraft formation attitude with complex constraints［J］. Journal of Astronautics， 2018， 39（12）： 1340-1347 （in Chinese）.
[9]	LV M L， ZHOU C H. Adaptive performance-constrained synchronization control for hypersonic flight vehicle swarms： A novel finite-time convergence protocol methodology［J］. Guidance， Navigation and Control， 2023， 3（2）： 2350011.
[10]	CUI Y W， HE Y S， LI A J， et al. Finite-time antisaturation tracking control for hypersonic vehicle with uncertain dynamics［J］. International Journal of Aerospace Engineering， 2020， 2020： 8852339.
[11]	廖腾，刘燕斌，陈柏屹，等. 高超声速飞行器主动增阻的时间一致协同方法［J］. 宇航学报， 2024， 45（10）： 1656-1665.
	LIAO T， LIU Y B， CHEN B Y， et al. Time consensus method for active drag increment of hypersonic flight vehicle［J］. Journal of Astronautics， 2024， 45（10）： 1656-1665 （in Chinese）.
[12]	江锐，张欣，王晓芳. 基于最优控制的高速飞行器突防技术研究［J］. 飞行力学， 2024， 42（1）： 32-38.
	JIANG R， ZHANG X， WANG X F. Research on penetration technology of high-speed aircraft based on optimal control［J］. Flight Dynamics， 2024， 42（1）： 32-38 （in Chinese）.
[13]	高海燕，陈智超，蔡远利，等. 高超声速飞行器干扰补偿与解耦最优反步控制策略［J］. 西安交通大学学报， 2025， 59（10）： 170-179.
	GAO H Y， CHEN Z C， CAI Y L， et al. Disturbance compensation and decoupling optimal backstepping control strategy for hypersonic vehicle［J］. Journal of Xi’an Jiaotong University， 2025， 59（10）： 170-179 （in Chinese）.
[14]	WANG Q S， DUAN Z S， WANG J Y， et al. LQ synchronization of discrete-time multiagent systems： A distributed optimization approach［J］. IEEE Transactions on Automatic Control， 2019， 64（12）： 5183-5190.
[15]	WANG L， QI R Y， JIANG B. Adaptive fault-tolerant optimal control for hypersonic vehicles with state constrains based on adaptive dynamic programming［J］. Journal of the Franklin Institute， 2024， 361（8）： 106833.
[16]	MA B， CHEN M， SHEN Y H， et al. Inverse optimal zero effort miss guidance based on disturbance observer［J］. Aerospace， 2022， 9（12）： 767.
[17]	王会，王秀红. 一类随机非线性系统的逆最优镇定［J］. 控制工程， 2016， 23（5）： 660-664.
	WANG H， WANG X H. Inverse optimal stabilization for a class of stochastic nonlinear systems［J］. Control Engineering of China， 2016， 23（5）： 660-664 （in Chinese）.
[18]	MEMON A Y. Optimal output regulation of minimum phase nonlinear systems［C］∥Proceedings of 2012 UKACC International Conference on Control. Piscataway： IEEE Press， 2012： 490-495.
[19]	胡朝晖，黄伟. 基于动态调节时间的导弹编队逆最优控制算法［J］. 火力与指挥控制， 2020， 45（7）： 31-34.
	HU Z H， HUANG W. Inverse optimal control algorithm of missile formation based on dynamic tuning time［J］. Fire Control & Command Control， 2020， 45（7）： 31-34 （in Chinese）.
[20]	SUN Y， LI F X. Algebraic connectivity and disjoint vertex subsets of graphs［J］. Mathematical Problems in Engineering， 2020， 2020： 5763218.
[21]	周慧波. 基于有限时间和滑模理论的导引律及多导弹协同制导研究［D］. 哈尔滨：哈尔滨工业大学， 2015： 110-112.
	ZHOU H B. Study on guidance law and cooperative guidance for multi-missiles based on finite-time and sliding mode theory［D］. Harbin： Harbin Institute of Technology， 2015： 110-112 （in Chinese）.
[22]	WEI L L， CHEN M. Distributed DETMs-based internal collision avoidance control for UAV formation with lumped disturbances［J］. Applied Mathematics and Computation， 2022， 433： 127362.
[23]	WEI L L， CHEN M， LI T. Disturbance-observer-based formation-containment control for UAVs via distributed adaptive event-triggered mechanisms［J］. Journal of the Franklin Institute， 2021， 358（10）： 5305-5333.
[24]	CHEN M， JIANG B. Robust bounded control for uncertain flight dynamics using disturbance observer［J］. Journal of Systems Engineering and Electronics， 2014， 25（4）： 640-647.
[25]	KRSTIC M， TSIOTRAS P. Inverse optimal stabilization of a rigid spacecraft［J］. IEEE Transactions on Automatic Control， 1999， 44（5）： 1042-1049.
[26]	HONG Y G， HUANG J， XU Y S. On an output feedback finite-time stabilization problem［J］. IEEE transactions on Automatic Control， 2001， 46（2）： 305-309.
