大型运载火箭加筋圆柱壳混合整数序列近似优化方法

doi:10.7527/S1000-6893.2024.30189

Abstract

Abstract:

A Sequential Approximate Optimization method based on exploitation/exploration Competing Parallel Sampling strategy （SAOCPS） is proposed to conquer the difficulties of coupling multi-mixed-integer variables， high computational cost， and poor optimization convergence in the lightweight design of stiffened cylindrical shells for large launch vehicles. In this method， the Augmented Radial Basis Function （ARBF） approximate model of axial load-carrying capacity is constructed to improve the efficiency of post-buckling analysis for the stiffened cylindrical shells. A dual-elite population evolution-based exploitation strategy is developed to exploit the information in promising regions， thereby enhancing the local optimization performance of SAOCPS. Meanwhile， the new levels are determined according to the one-dimensional projection characteristics of discrete and continuous variables. The combination of element exchange and probabilistic transition is employed to enhance the performance of the permutation optimization method， achieving a uniform coverage of the exploration sample points to the discrete-continuous design space and enhancing the global optimization performance of SAOCPS. Ultimately， the exploration/exploitation competitive mechanism driven by performance gains is introduced for the balance between exploration and exploitation， thereby guiding the rapid convergence of the high-dimensional and time-consuming mixed-integer optimization problems. In applying the lightweight design of large-diameter stiffened cylindrical shells， the optimization results of SAOCPS are still comparable to those of the literature work， even if the initial sample points are greatly reduced by more than 90%. Furthermore， the weight is reduced by 279.8 kg compared with the classical PoF optimization method. The effectiveness and superiority of the proposed method are validated for the prospect of the engineering applications.

Key words: large-diameter stiffened cylindrical shells, mixed-integer optimization, element exchange and probabilistic transition, competitive parallel sampling mechanism, sequential approximate optimization method

CLC Number:

V214

Zhixiang WANG, Yongjun LEI, Dapeng ZHANG, Huiru CUI. Mixed-integer sequential approximate optimization method for stiffened cylindrical shells in large launch vehicles[J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(10): 230189.

Figures/Tables 26

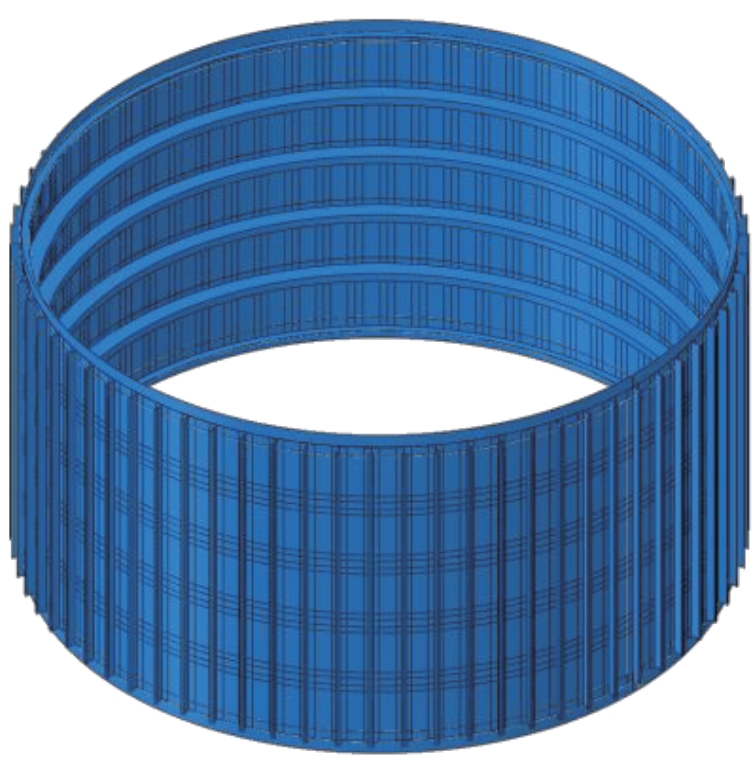

Fig.1

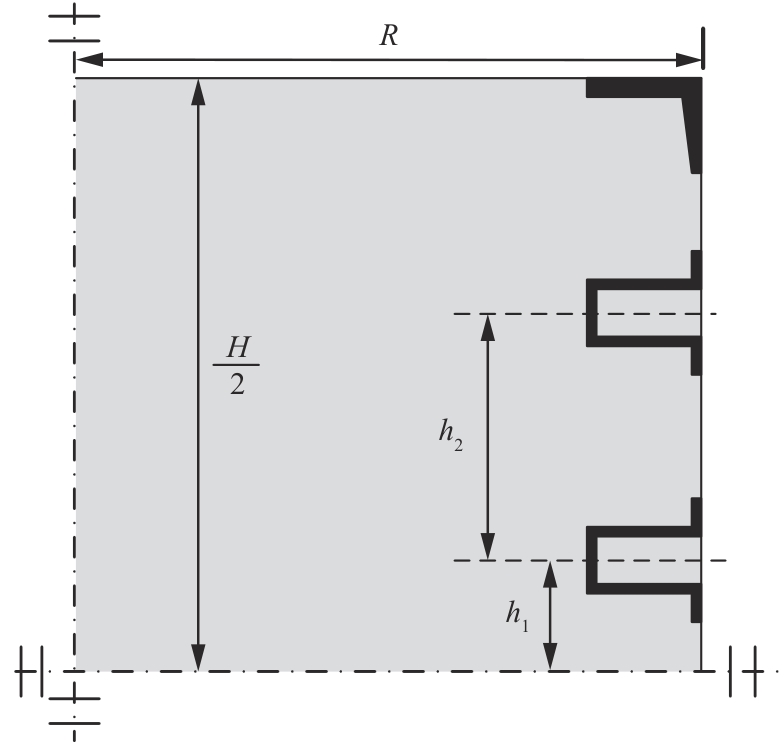

Fig.2

Fig.3

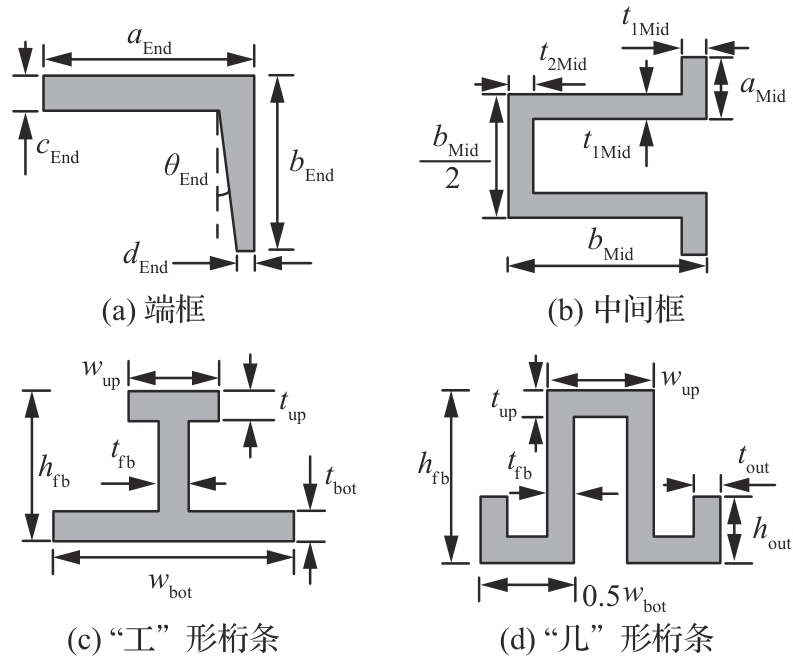

Table 1

Ranges of design variables in large-diameter stiffened cylindrical shells

变量	设计范围	变量	设计范围
$a E n d$ /mm	45~80	$h o u t$ /mm	10~30
$b E n d$ /mm	75~120	$t o u t$ /mm	2~15
$c E n d$ /mm	2~10	$n s$	85~105
$d E n d$ /mm	2~10	$t s k i n$ /mm	1.2~1.5
$θ E n d$ /（°）	4~5	$a M i d$ /mm	22~50
$w b o t$ /mm	50~100	$t 1 M i d$ /mm	2~10
$t b o t$ /mm	2~15	$b M i d$ /mm	80~150
$w u p$ /mm	20~50	$t 2 M i d$ /mm	2~10
$t u p$ /mm	2~15	$h 1$ /mm	400~600
$h f b$ /mm	50~150	$h 2$ /mm	800~1 200
$t f b$ /mm	2~15

Table 1

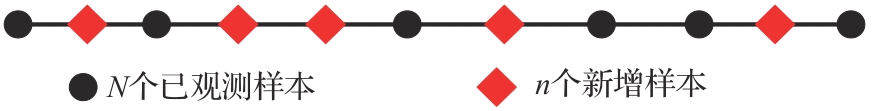

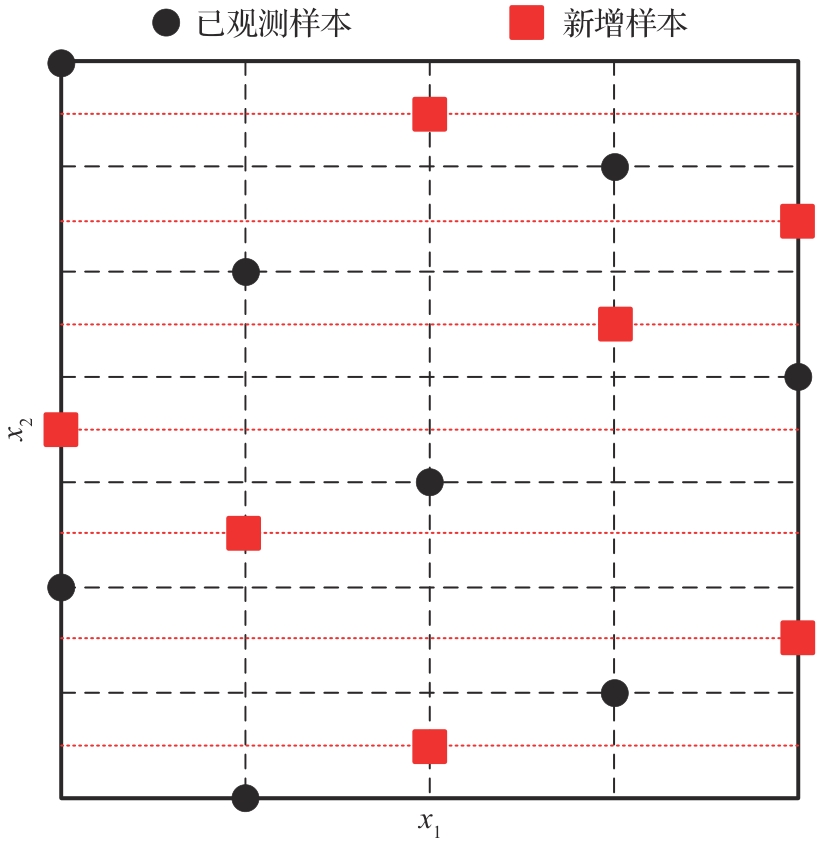

Fig.4

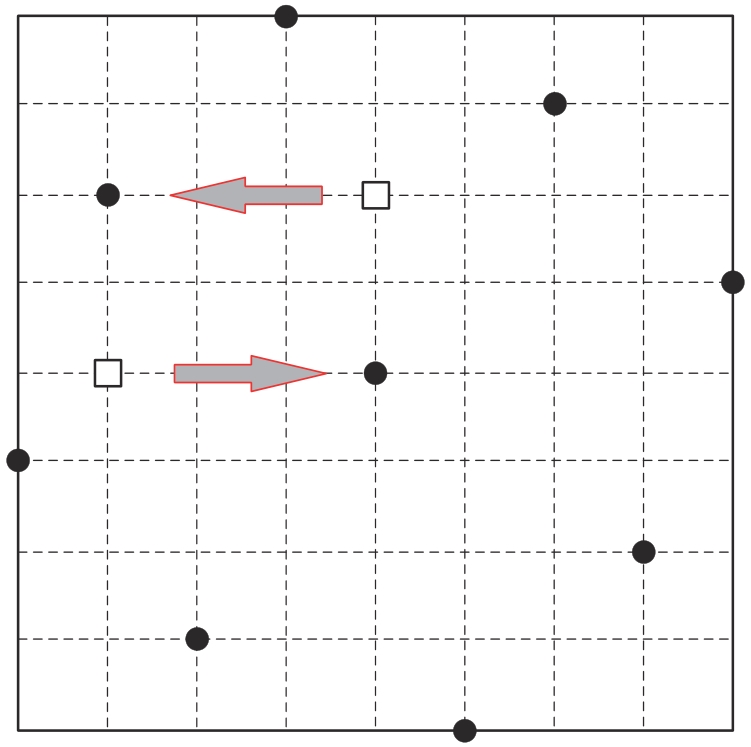

Fig.5

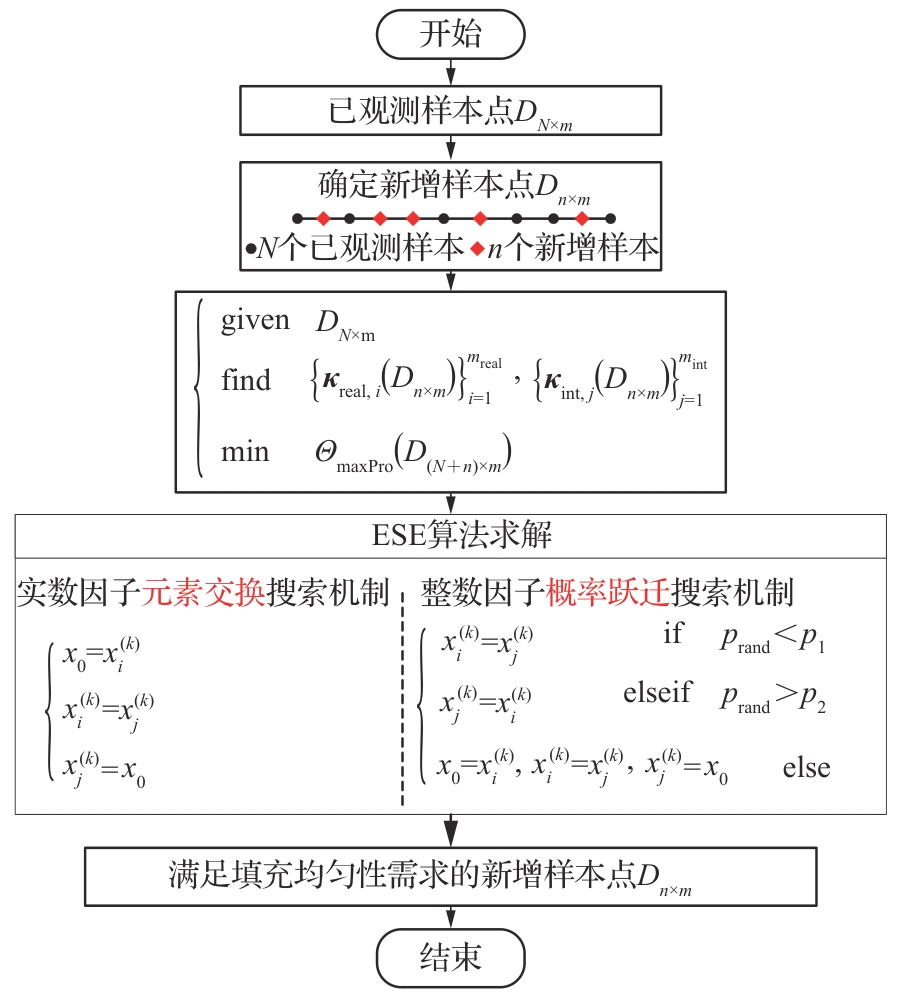

Fig.6

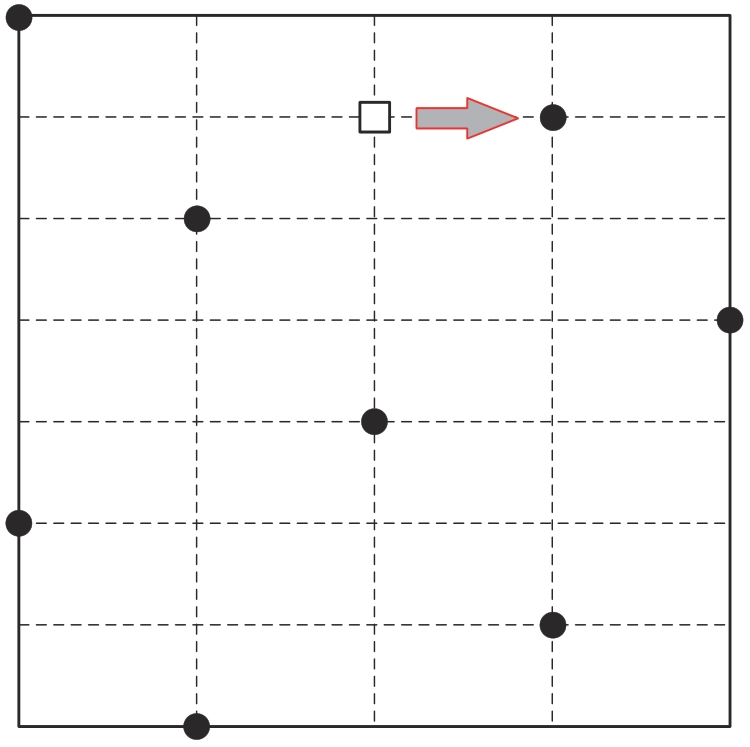

Fig.7

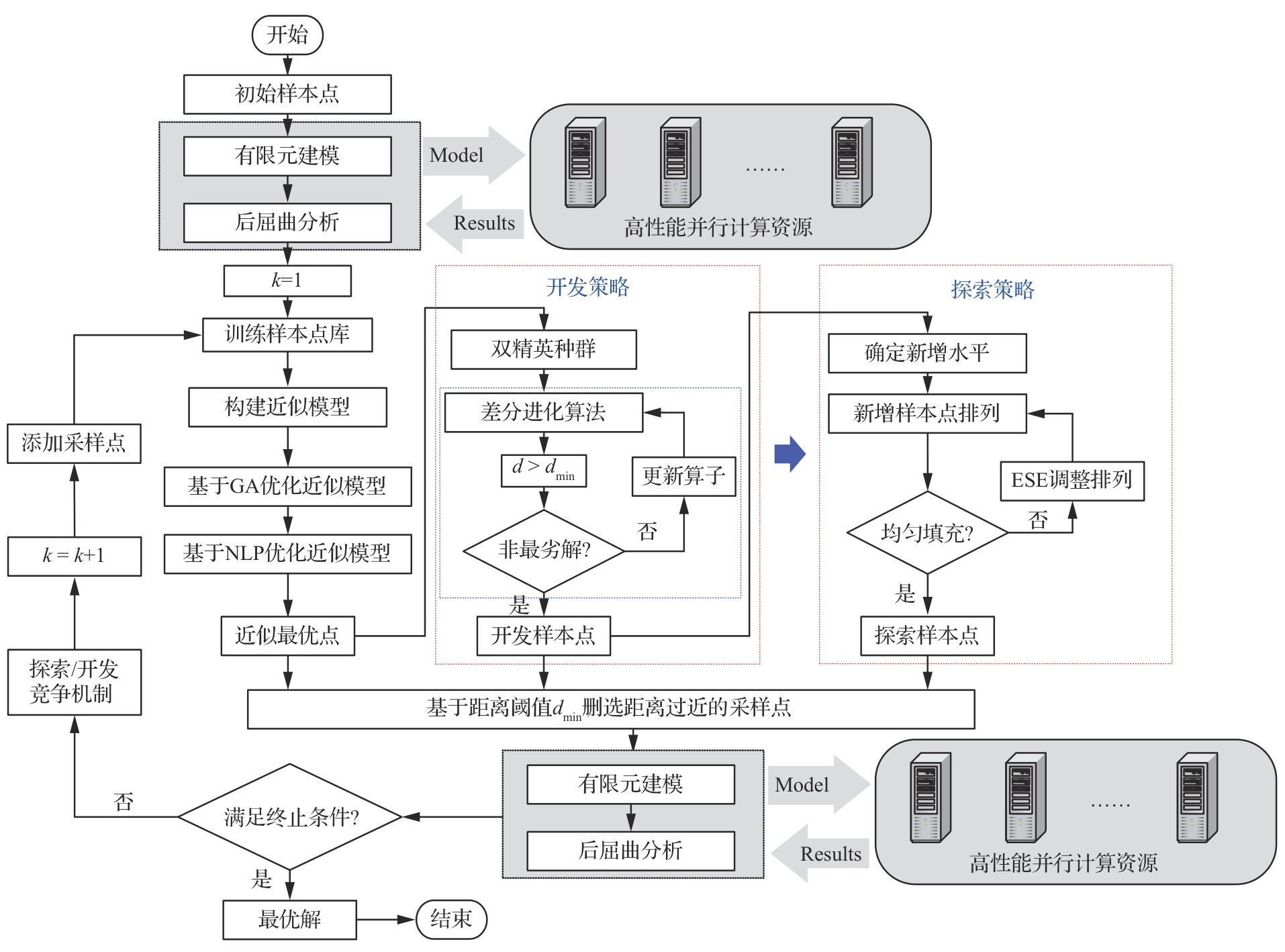

Fig.8

Fig.9

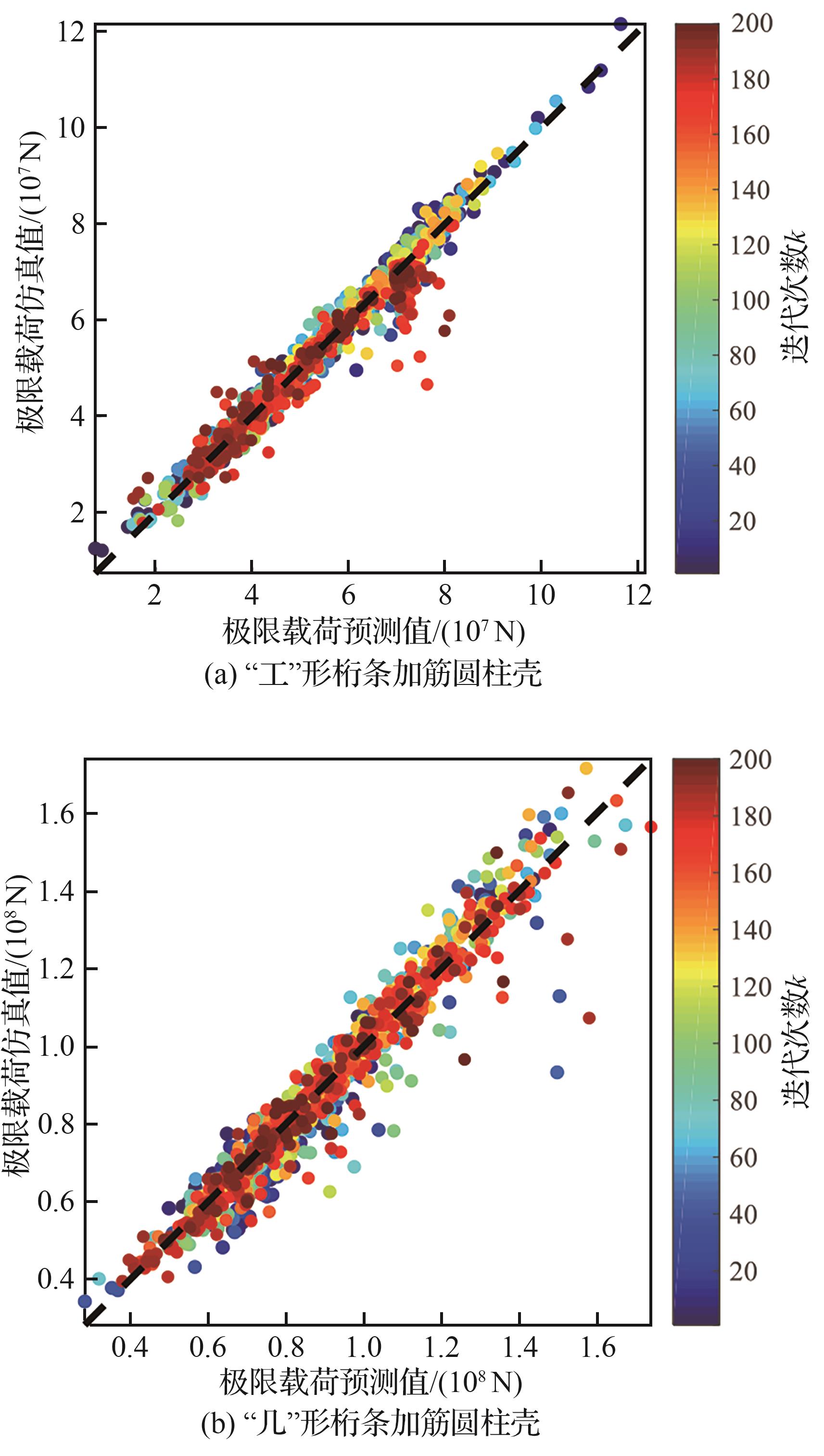

Fig.10

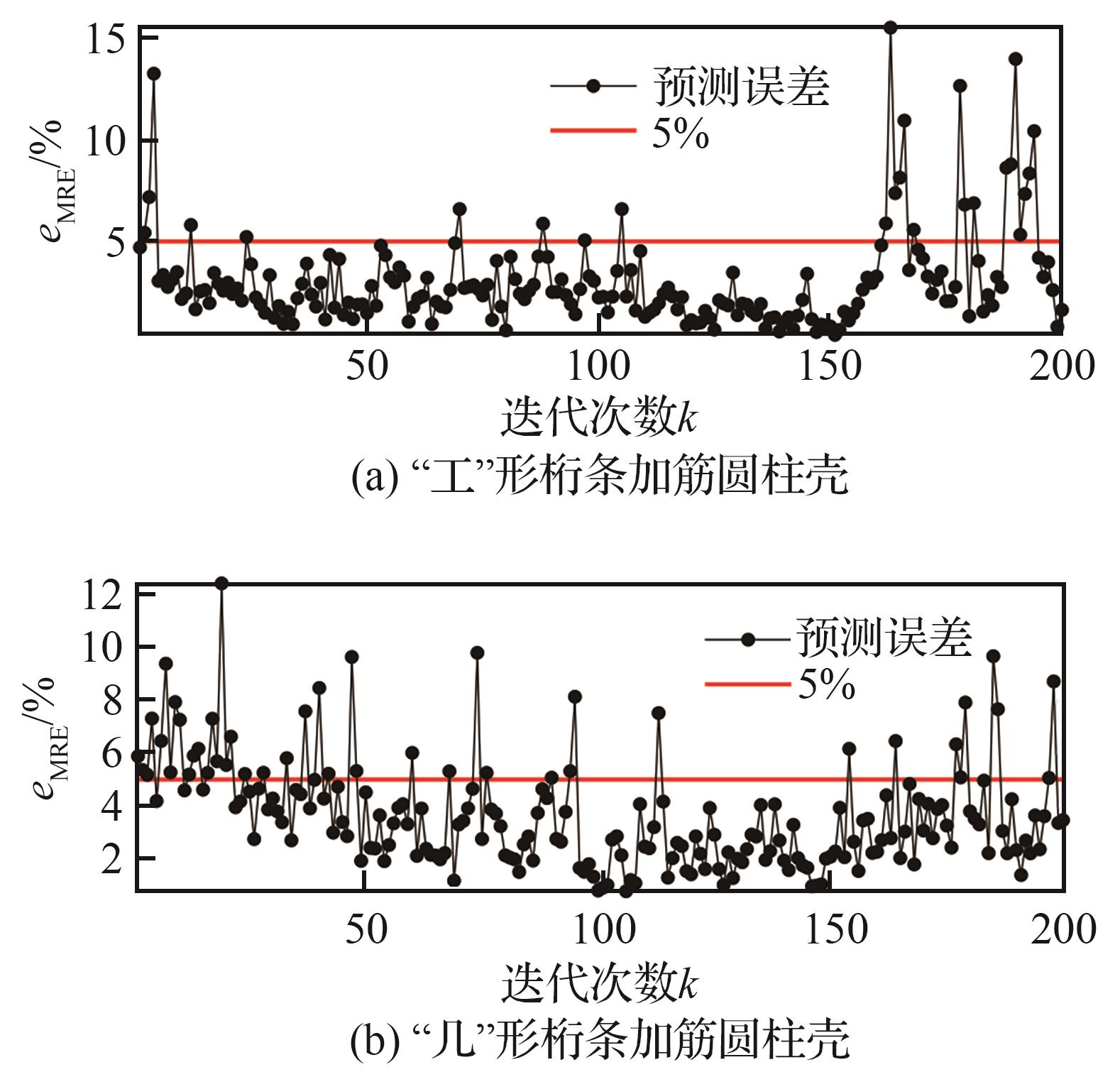

Fig.11

Fig.12

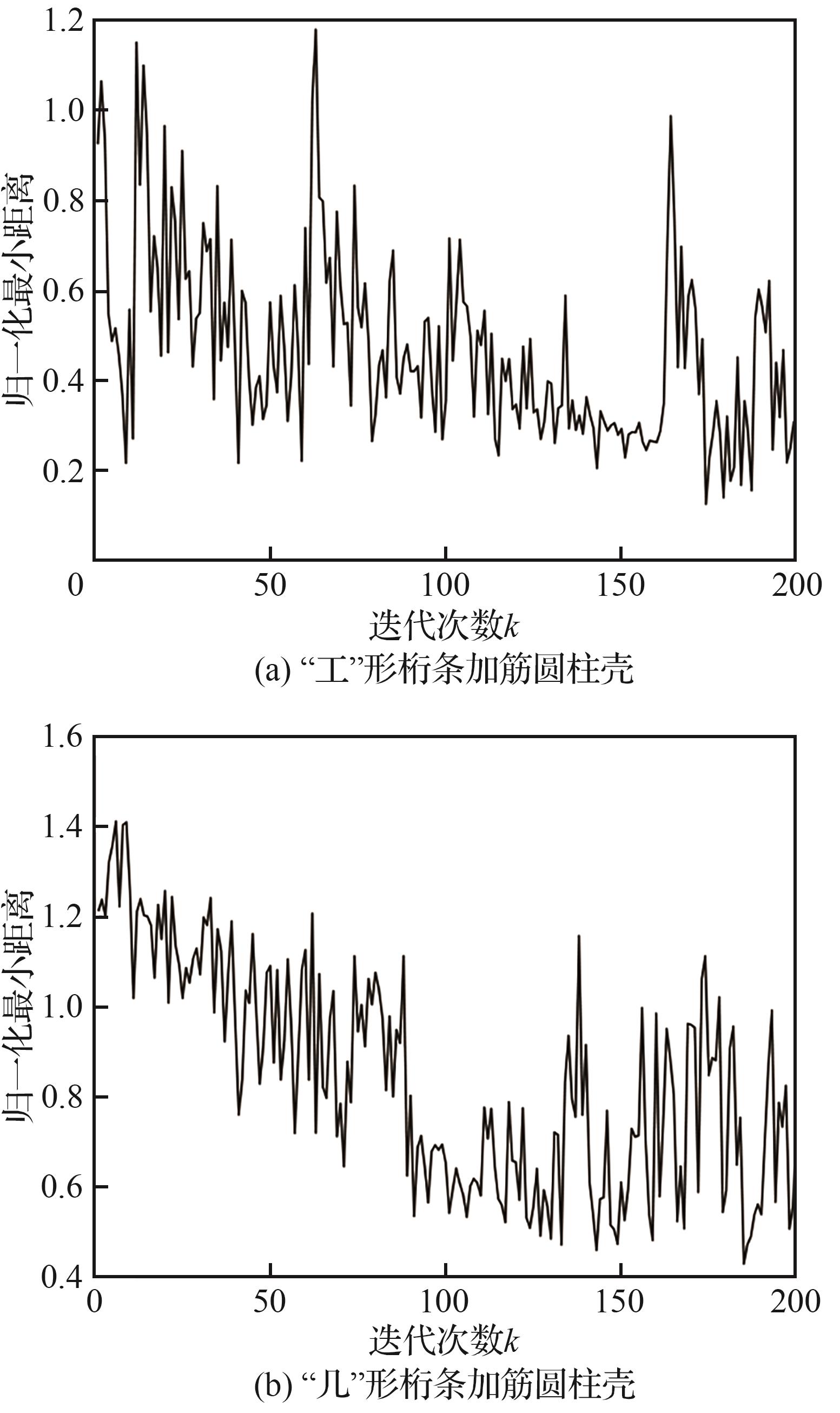

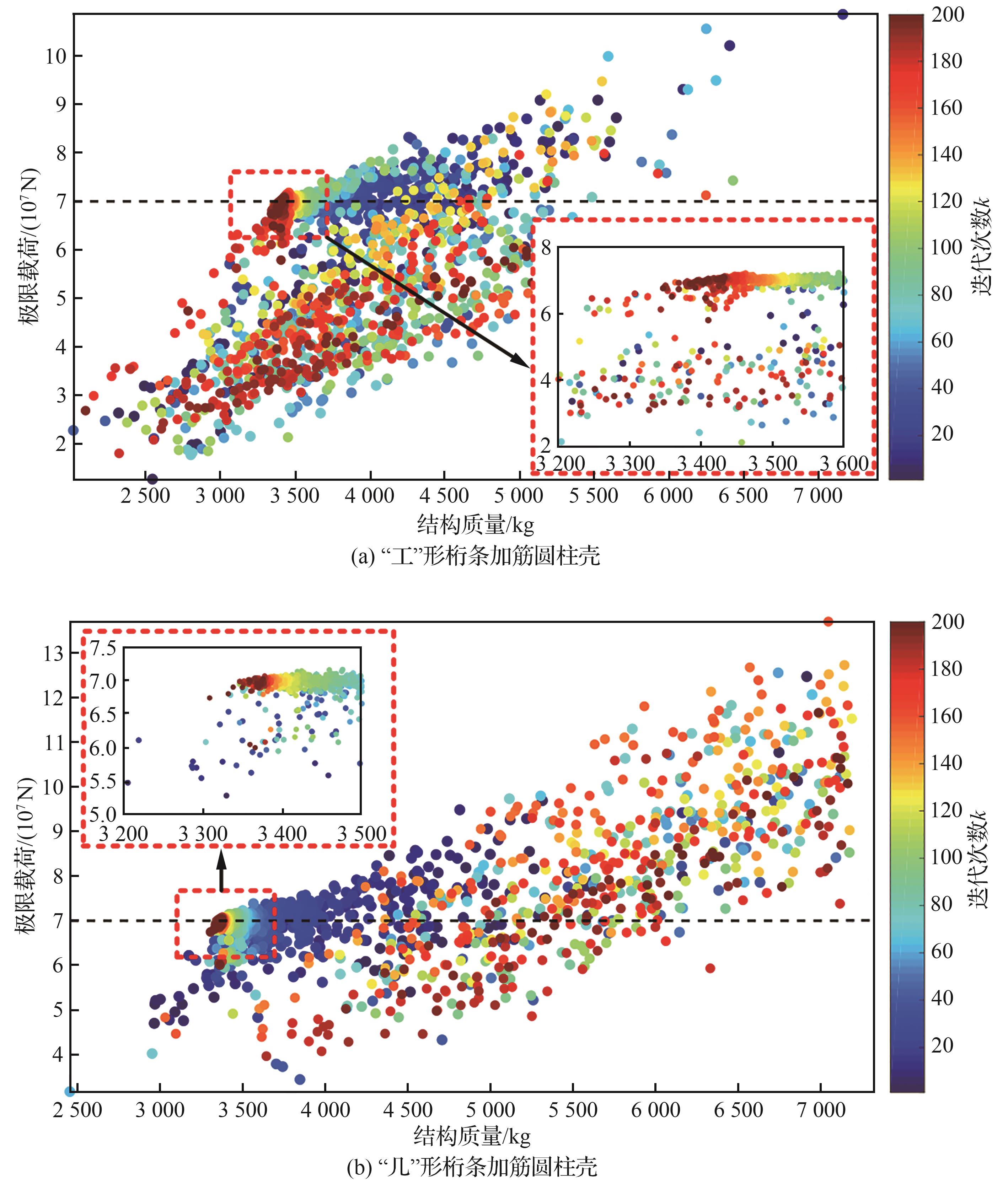

Fig.13

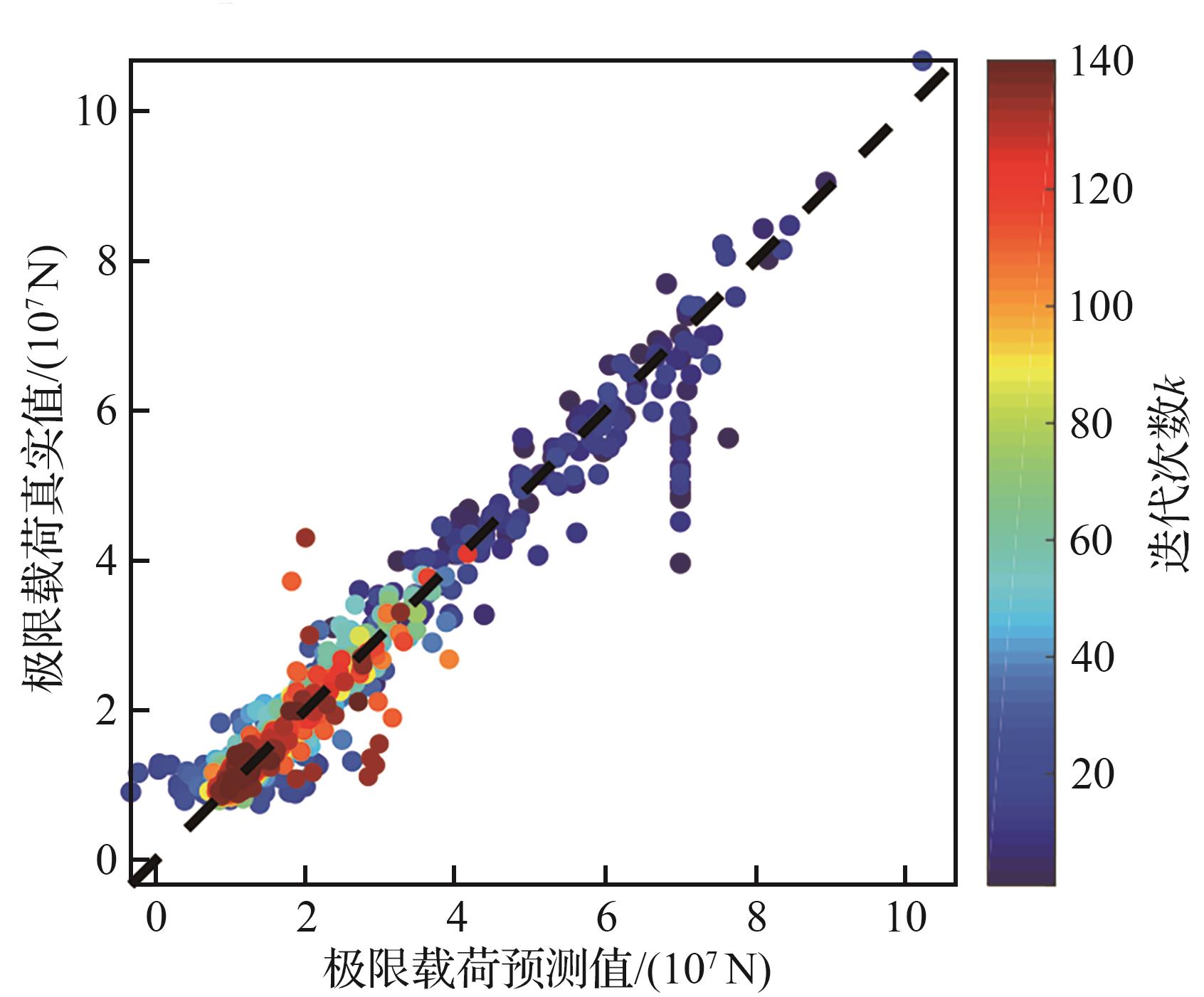

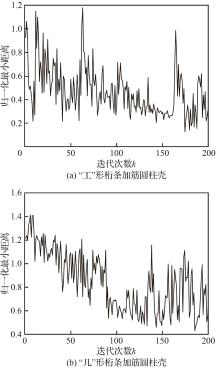

Fig.14

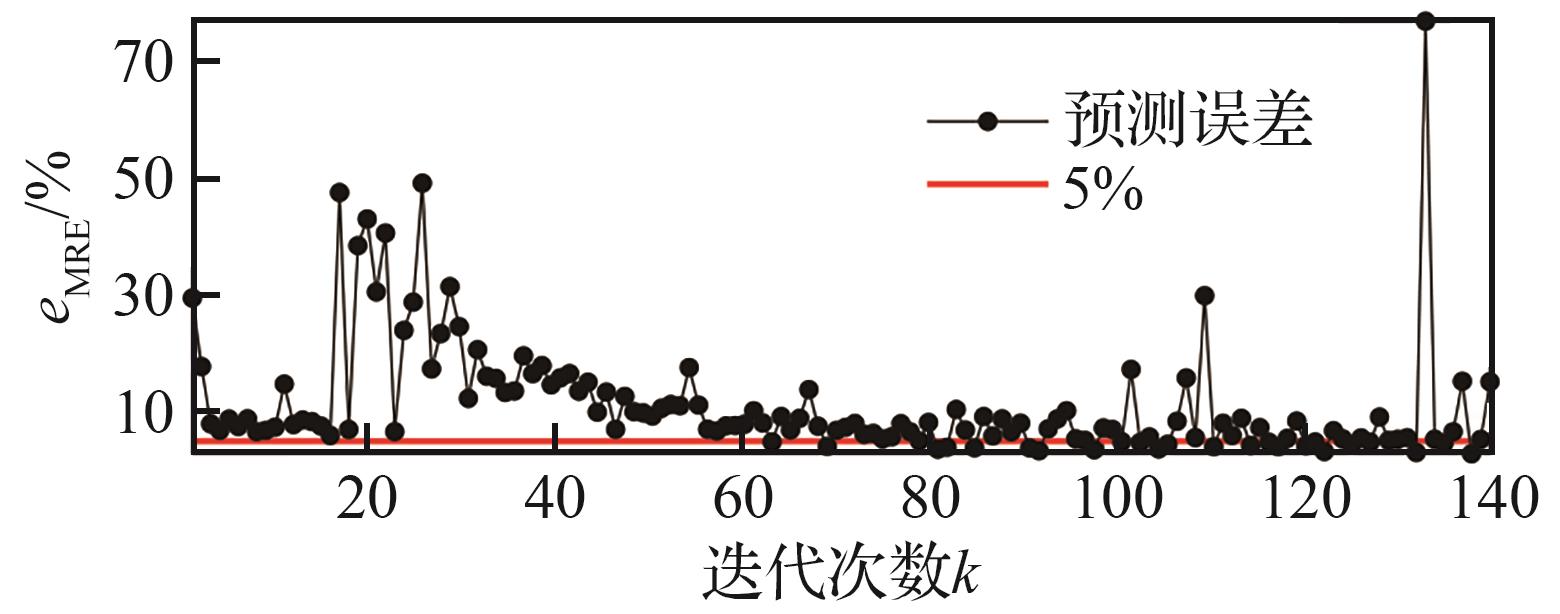

Fig.15

Fig.16

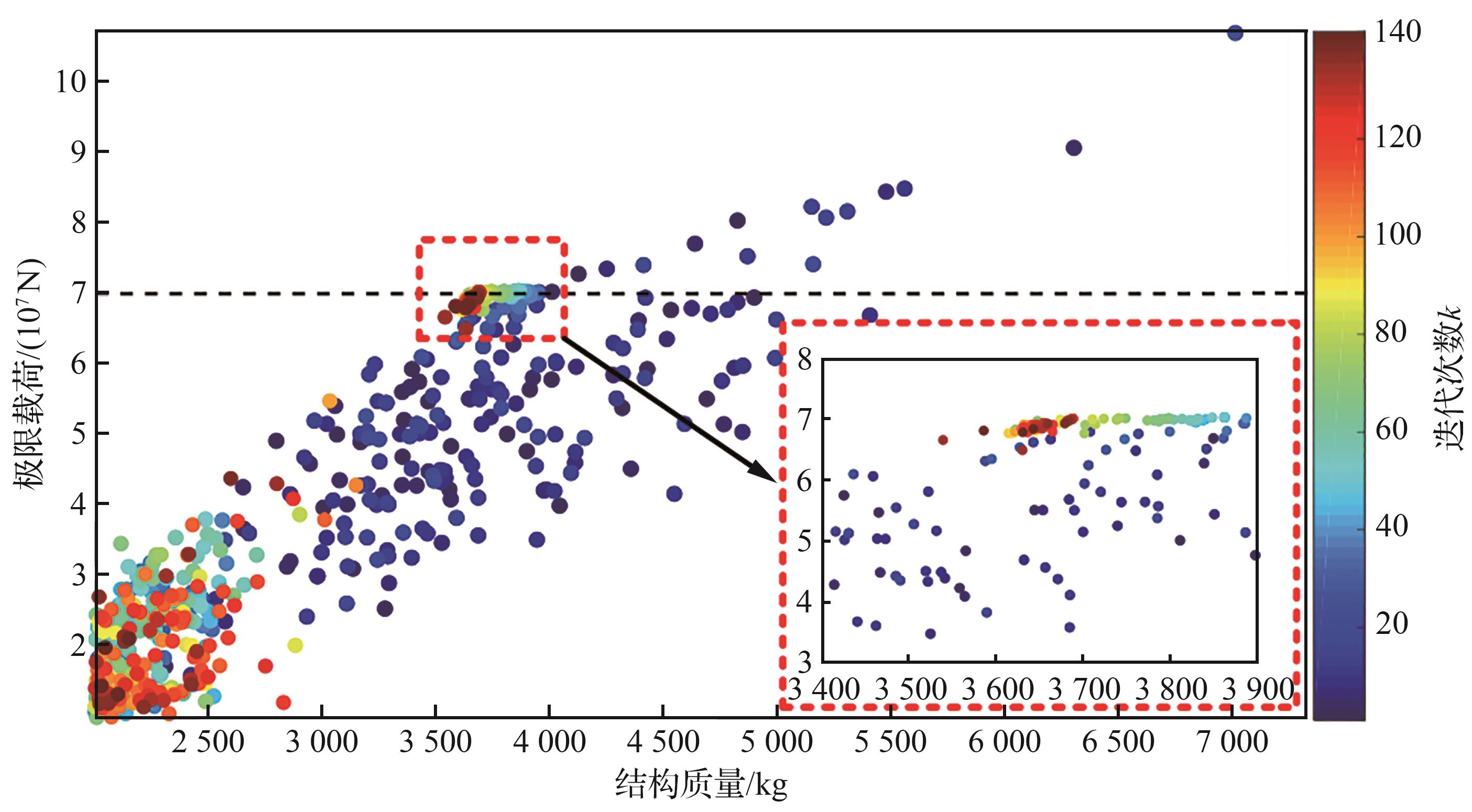

Fig.17

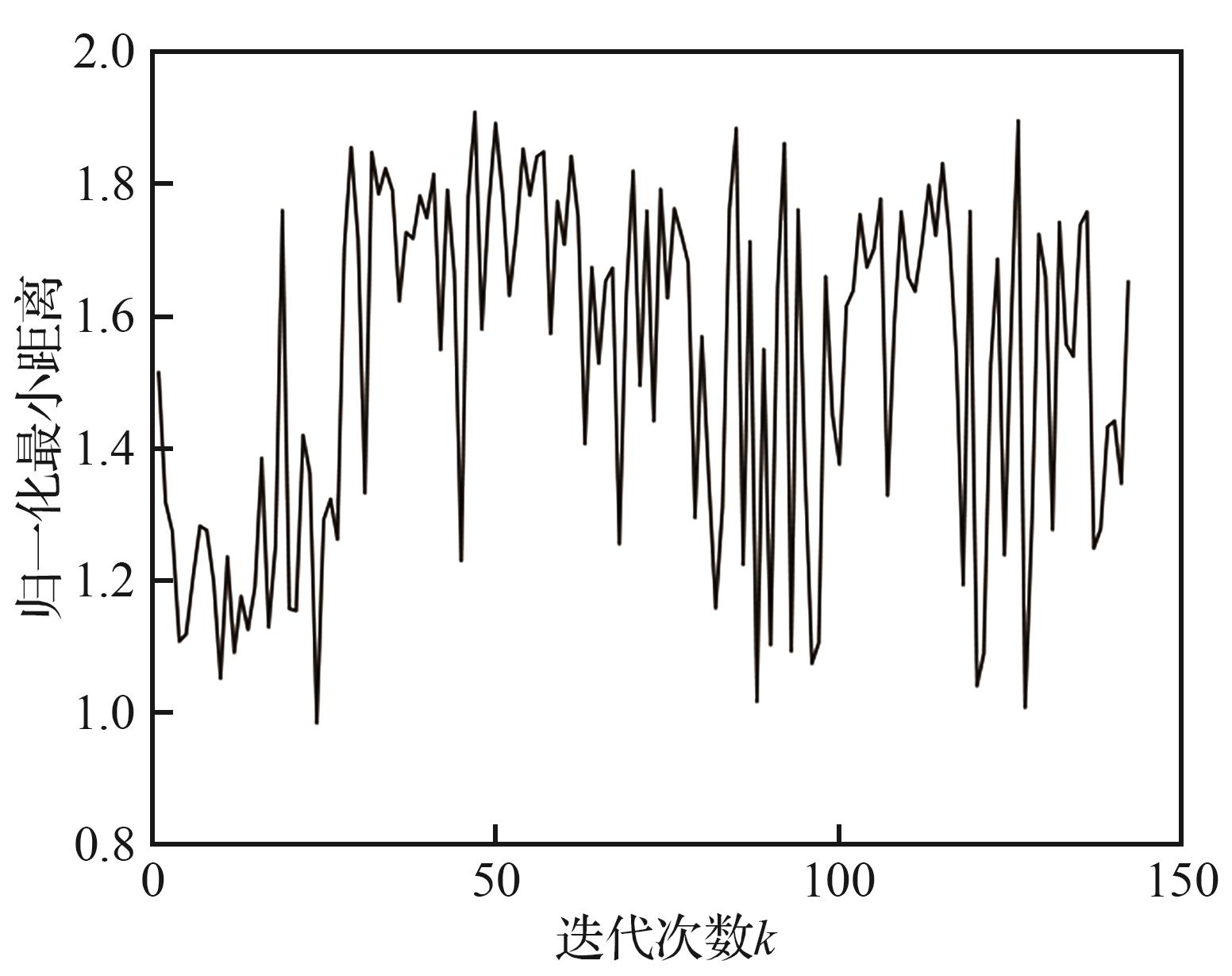

Fig.18

Fig.19

Table 2

Comparisons of optimal design variables in large-diameter stiffened cylindrical shells

参数	SAOCPS		PoF	文献［16］
参数	“工”形	“几”形	“工”形	“几”形
$a E n d$ /mm	48.83	55.63	63.59	50.00
$b E n d$ /mm	75.15	77.41	92.09	75.00
$c E n d$ /mm	2.082	2.165	2.720	2.010
$d E n d$ /mm	5.122	2.319	5.870	3.020
$θ E n d$ /（°）	4.850	4.035	4.010	4.390
$w b o t$ /mm	94.95	100.00	98.63	97.80
$t b o t$ /mm	14.73	13.90	14.91	11.10
$w u p$ /mm	49.90	32.77	36.21	32.60
$t u p$ /mm	2.29	3.63	4.06	3.26
$h f b$ /mm	92.02	148.11	94.58	127.51
$t f b$ /mm	2.72	2.01	6.13	4.25
$h o u t$ /mm		21.11		21.45
$t o u t$ /mm		2.03		4.32
$n s$	100	85	85	95
$t s k i n$ /mm	1.41	1.20	1.41	27.34
$a M i d$ /mm	38.24	24.47	33.02	2.00
$t 1 M i d$ /mm	2.01	2.01	2.00	80.00
$b M i d$ /mm	100.10	93.27	129.61	2.58
$t 2 M i d$ /mm	4.24	2.20	6.04	404.7
$h 1$ /mm	403.55	595.67	486.50	965.60
$h 2$ /mm	1 187.10	1 197.90	1 199.60	1.26
$M$ /kg	3 410	3 357.10	3 689.70	3 321.65
$F c r$ /（10⁷ N）	7.02	7.01	7.02	7.04

Table 2

Table 3

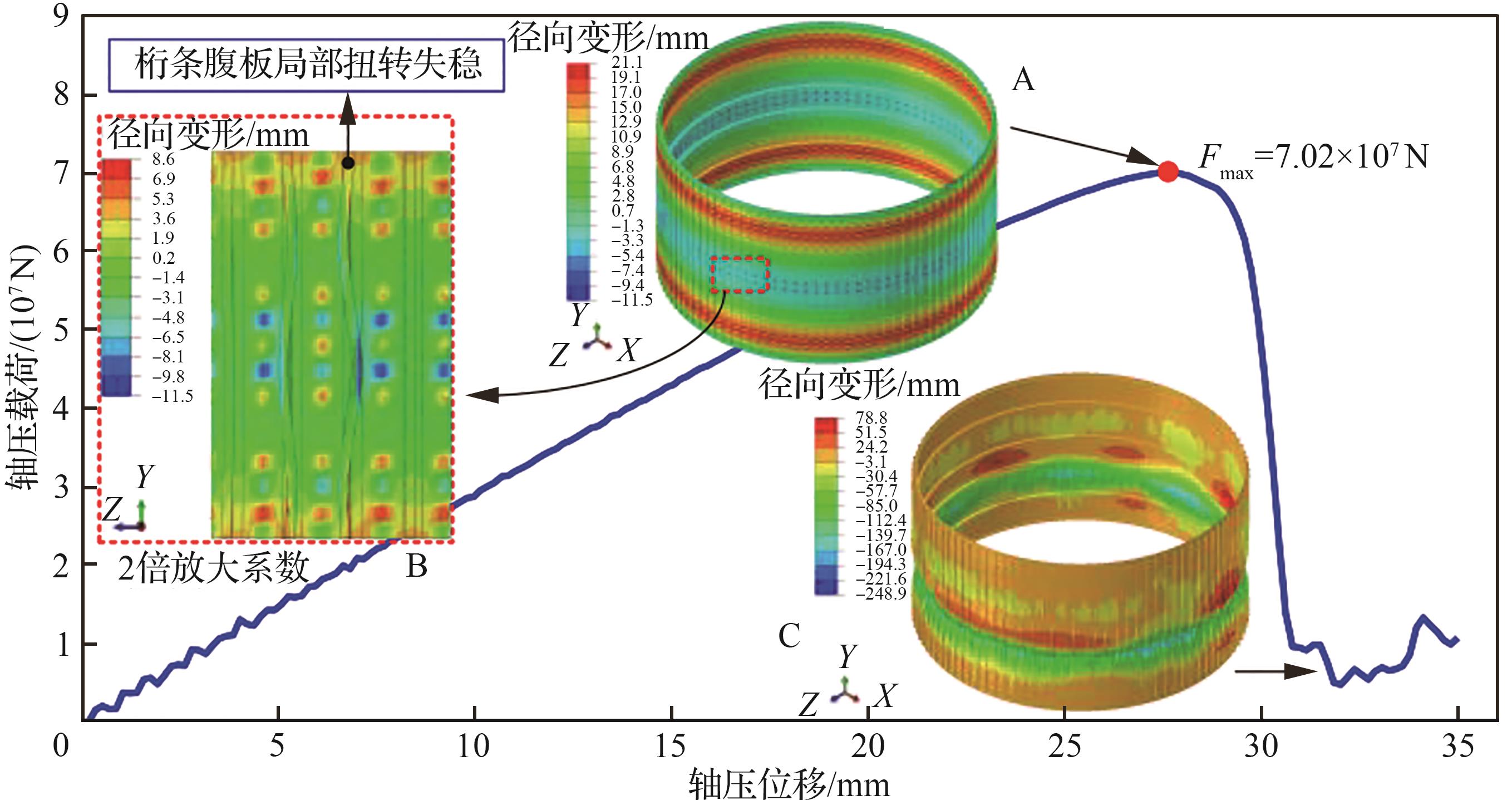

Fig.20

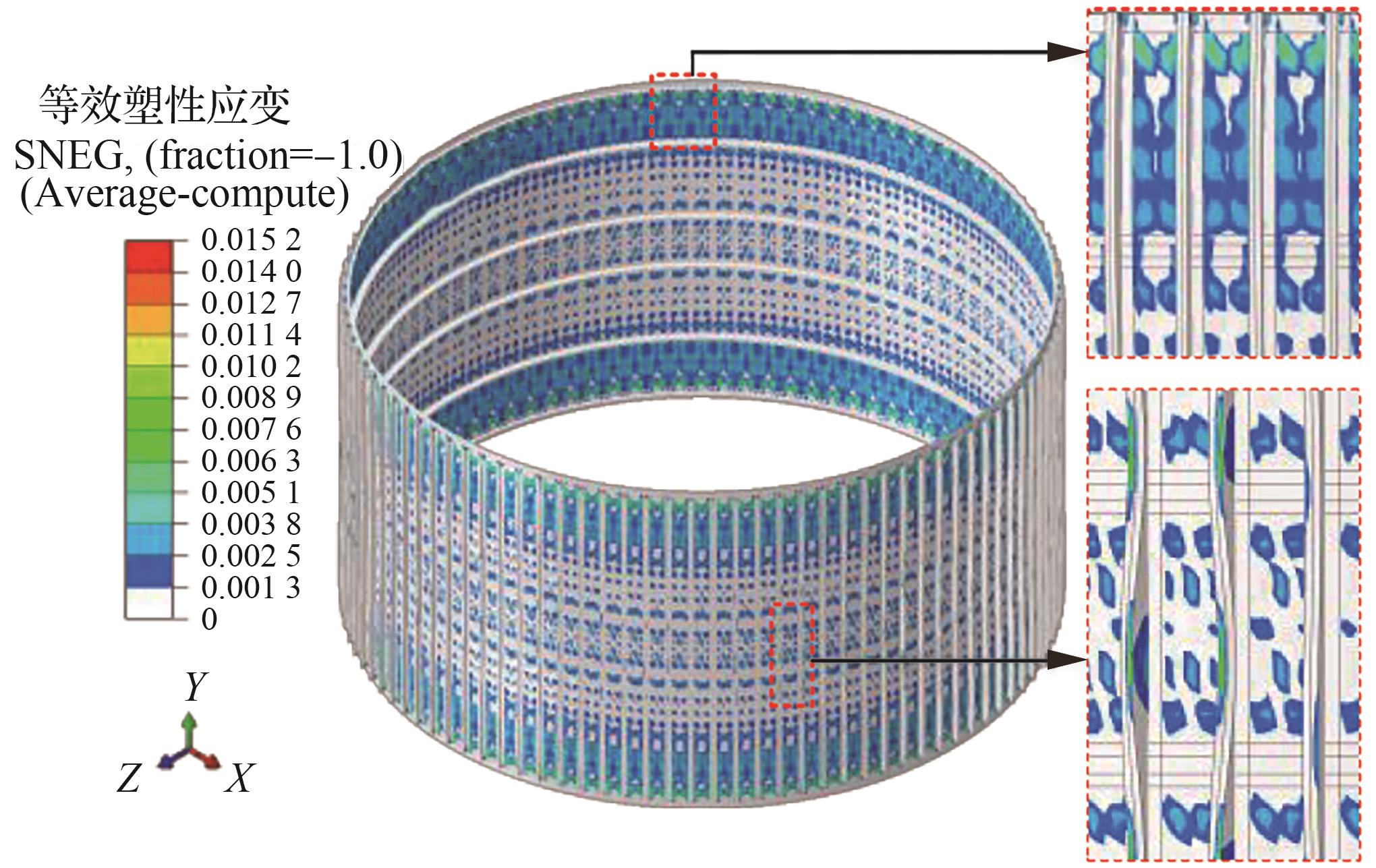

Fig.21

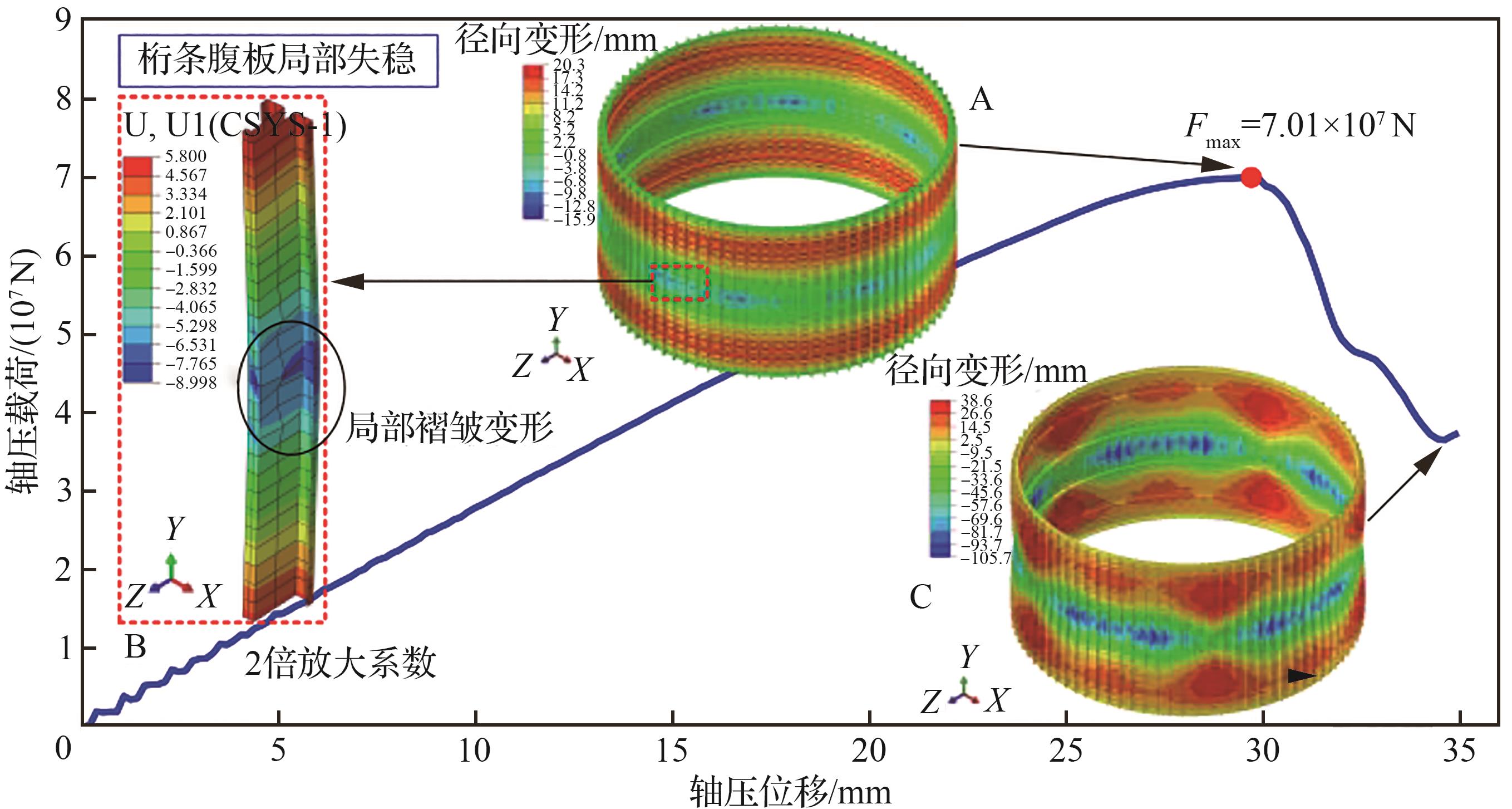

Fig.22

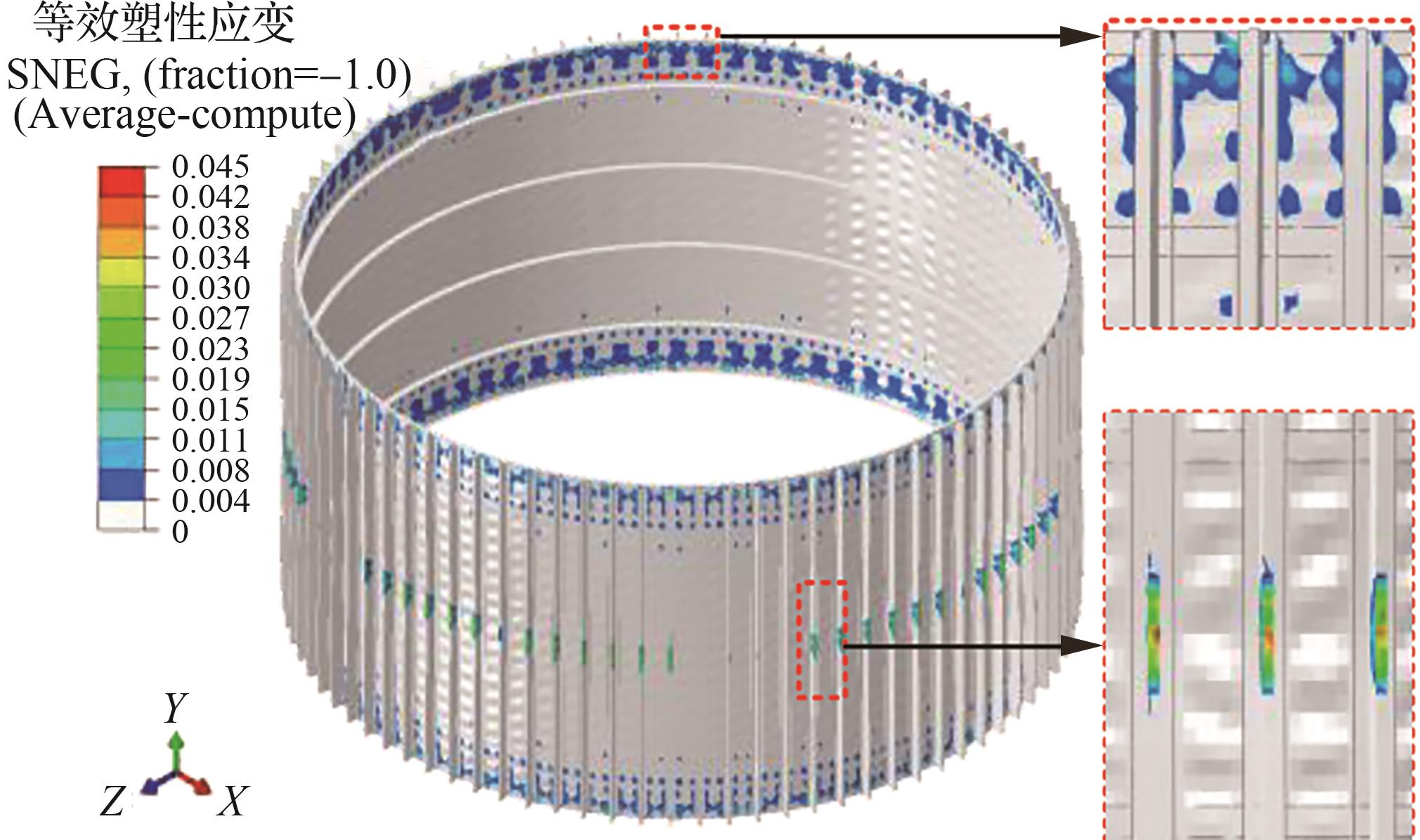

Fig.23

References 43

1	王志祥，顾名坤，雷勇军，等. 大型运载火箭助推器超静定捆绑方案研究［J］. 振动与冲击， 2020， 39（4）： 129-135.
	WANG Z X， GU M K， LEI Y J， et al. A study on the scheme of large hyper-static strap-on launch vehicles［J］. Journal of Vibration and Shock， 2020， 39（4）： 129-135 （in Chinese）.
2	龙乐豪，郑立伟. 关于重型运载火箭若干问题的思考［J］. 宇航总体技术， 2017， 1（1）： 8-12.
	LONG L H， ZHEN L W. Consideration of some issues on the heavy launch vehicle ［J］. Astronautical Systems Engineering Technology， 2017， 1（1）： 8-12 （in Chinese）.
3	王志祥，雷勇军，段静波，等. 重型运载火箭集中力扩散舱段多区域联合设计与优化［J］. 航空学报， 2021， 43（3）： 225135.
	WANG Z X， LEI Y J， DUAN J B， et al. Multi-region integrated design and optimization of the concentrated-force diffusion component in heavy-lift launch vehicle ［J］. Acta Aeronautica et Astronautica Sinica， 2021， 43（3）： 225135 （in Chinese）.
4	王博，郝鹏，田阔，等. 航空航天结构轻量化设计与实验方法研究进展［J］. 宇航学报， 2023， 44（4）： 596-606.
	WANG B， HAO P， TIAN K， et al. Advances in lightweight design and experimental methods for aerospace structures［J］. Journal of Astronautics， 2023， 44（4）： 596-606 （in Chinese）.
5	王国辉，曾杜娟，刘观日，等.中国下一代运载火箭结构技术发展方向与关键技术分析［J］.宇航总体技术，2021，5（5）：1-11.
	WANG G H， ZENG D J， LIU G R， et al. Development direction and key technology analysis for China's next generation launch vehicles structure ［J］. Astronautical Systems Engineering Technology， 2021， 5（5）： 1-11 （in Chinese）.
6	程耿东，徐亮. 周期材料与结构等效性质预测与优化［M］. 北京：科学出版社， 2023.
	CHENG G D， XU L. Prediction and optimization of equivalent properties of periodic materials and structures［M］. Beijing： Science Press， 2023 （in Chinese）.
7	KIDANE S， LI G Q， HELMS J， et al. Buckling load analysis of grid stiffened composite cylinders‍［J］. Composites Part B： Engineering， 2003， 34（1）： 1-9.
8	MARTINEZ O A， SANKAR B V， HAFTKA R T， et al. Micromechanical analysis of composite corrugated-core sandwich panels for integral thermal protection systems［J］. AIAA Journal， 2007， 45（9）： 2323-2336.
9	LEE C Y， YU W B. Homogenization and dimensional reduction of composite plates with in-plane heterogeneity［J］. International Journal of Solids and Structures， 2011， 48（10）： 1474-1484.
10	CHENG G D， CAI Y W， XU L. Novel implementation of homogenization method to predict effective properties of periodic materials［J］. Acta Mechanica Sinica， 2013， 29（4）： 550-556.
11	CAI Y W， XU L， CHENG G D. Novel numerical implementation of asymptotic homogenization method for periodic plate structures［J］. International Journal of Solids and Structures， 2014， 51（1）： 284-292.
12	王博，田阔，郑岩冰，等. 超大直径网格加筋筒壳快速屈曲分析方法［J］. 航空学报， 2017， 38（2）： 220379.
	WANG B， TIAN K， ZHENG Y B， et al. A Rapid buckling analysis method for large-scale grid-stiffened cylindrical shells‍［J］. Acta Aeronautica et Astronautica Sinica， 2017， 38（2）： 220379 （in Chinese）.
13	HAO P， WANG B， TIAN K， et al. Efficient optimization of cylindrical stiffened shells with reinforced cutouts by curvilinear stiffeners‍［J］. AIAA Journal， 2016， 54（4）： 1350-1363.
14	WANG B， TIAN K， ZHAO H X， et al. Multilevel optimization framework for hierarchical stiffened shells accelerated by adaptive equivalent strategy［J］. Applied Composite Materials， 2017， 24（3）： 575-592.
15	王志祥，武泽平，王婕，等. 大型运载火箭加筋柱壳近似建模方法［J］. 宇航学报， 2020， 41（10）： 1267-1279.
	WANG Z X， WU Z P， WANG J， et al. Approximation modeling method for cylindrical stiffened shells in large launch vehicles‍［J］. Journal of Astronautics， 2020， 41（10）： 1267-1279 （in Chinese）.
16	王志祥，雷勇军，张大鹏，等. 考虑加工误差的大型运载火箭框桁加强薄壁圆柱壳优化设计［J］. 机械工程学报， 2021， 57（18）： 190-203.
	WANG Z X， LEI Y J， ZHANG D P， et al. Optimization of cylindrical stiffened shells in large launch vehicles considering manufacturing tolerance［J］. Journal of Mechanical Engineering， 2021， 57（18）： 190-203 （in Chinese）.
17	HAO P， WANG B， TIAN K， et al. Integrated optimization of hybrid-stiffness stiffened shells based on sub-panel elements［J］. Thin-Walled Structures， 2016， 103： 171-182.
18	HAO P， WANG B， LI G. Surrogate-based optimum design for stiffened shells with adaptive sampling［J］. AIAA Journal， 2012， 50（11）： 2389-2407.
19	SINGH K， KAPANIA R K. Accelerated optimization of curvilinearly stiffened panels using deep learning‍［J］. Thin-Walled Structures， 2021， 161： 107418.
20	TIAN K， LI Z C， HUANG L， et al. Enhanced variable-fidelity surrogate-based optimization framework by Gaussian process regression and fuzzy clustering‍［J］. Computer Methods in Applied Mechanics and Engineering， 2020， 366： 113045.
21	TIAN K， LI Z C， MA X T， et al. Toward the robust establishment of variable-fidelity surrogate models for hierarchical stiffened shells by two-step adaptive updating approach‍［J］. Structural and Multidisciplinary Optimization， 2020， 61（4）： 1515-1528.
22	李增聪，田阔，黄蕾，等. 面向变刚度复合材料筒壳高效屈曲分析的变保真度迁移学习模型［J］. 复合材料学报， 2022， 39（5）： 2430-2440.
	LI Z C， TIAN K， HUANG L， et al. Variable-fidelity transfer learning model for efficient buckling analysis of variable stiffness composite cylindrical shells‍［J］. Acta Materiae Compositae Sinica， 2022， 39（5）： 2430-2440 （in Chinese）.
23	李增聪，田阔，赵海心. 面向多级加筋壳的高效变保真度代理模型［J］. 航空学报， 2020， 41（7）： 623435.
	LI Z C， TIAN K， ZHAO H X. Efficient variable-fidelity models for hierarchical stiffened shells［J］. Acta Aeronautica et Astronautica Sinica， 2020， 41（7）：623435 （in Chinese）.
24	ZHANG J Y， LIU C， LI X J， et al. A survey for solving mixed integer programming via machine learning‍［J］. Neurocomputing， 2023， 519： 205-217.
25	DONG H C， WANG P， SONG B W， et al. Kriging-assisted Discrete Global Optimization （KDGO） for black-box problems with costly objective and constraints［J］. Applied Soft Computing， 2020， 94： 106429.
26	MÜLLER J， SHOEMAKER C A， PICHÉ R. SO-‍Ⅰ： A surrogate model algorithm for expensive nonlinear integer programming problems including global optimization applications［J］. Journal of Global Optimization， 2014， 59（4）： 865-889.
27	MÜLLER J， SHOEMAKER C A， PICHÉ R. SO-MI： A surrogate model algorithm for computationally expensive nonlinear mixed-integer black-box global optimization problems‍［J］. Computers & Operations Research， 2013， 40（5）： 1383-1400.
28	TRAN A， TRAN M， WANG Y. Constrained mixed-integer Gaussian mixture Bayesian optimization and its applications in designing fractal and auxetic metamaterials［J］. Structural and Multidisciplinary Optimization， 2019， 59（6）： 2131-2154.
29	ZHENG L， YANG Y P， FU G Q， et al. A surrogate-based optimization method with dynamic adaptation for high-dimensional mixed-integer problems‍［J］. Swarm and Evolutionary Computation， 2022， 72： 101099.
30	胡嘉欣，芮姝，高瑞朝，等. 飞行器结构布局与尺寸混合优化方法［J］. 航空学报， 2022， 43（5）： 225363.
	HU J X， RUI S， GAO R C， et al. Hybrid optimization method for structural layout and size of flight vehicles ［J］. Acta Aeronautica et Astronautica Sinica， 2022， 43（5）： 225363 （in Chinese）.
31	李昊达，龙腾，史人赫，等. 基于样本映射与动态Kriging的飞行器离散连续优化方法［J］. 航空学报， 2024， 45（3）： 228726.
	LI H D， LONG T， SHI R H， et al. Kriging-based mixed-integer optimization method using sample mapping mechanism for flight vehicle design［J］. Acta Aeronautica et Astronautica Sinica， 2024， 45（3）： 228726 （in Chinese）.
32	PARR J M， KEANE A J， FORRESTER A I J， et al. Infill sampling criteria for surrogate-based optimization with constraint handling［J］. Engineering Optimization， 2012， 44（10）： 1147-1166.
33	ZHANG Y， HAN Z H， ZHANG K S. Variable-fidelity expected improvement method for efficient global optimization of expensive functions［J］. Structural and Multidisciplinary Optimization， 2018， 58（4）： 1431-1451.
34	WANG Z L， IERAPETRITOU M. Constrained optimization of black-box stochastic systems using a novel feasibility enhanced Kriging-based method［J］. Computers & Chemical Engineering， 2018， 118： 210-223.
35	王志祥. 重型运载火箭加筋圆柱壳舱段结构优化与试验［D］. 长沙：国防科技大学， 2021.
	WANG Z X. Optimization design and experiment of stiffened cylindrical shells in heavy-lift launch vehicle‍［D］.Changsha： National University of Defense Technology， 2021 （in Chinese）.
36	WANG Z X， LEI Y J， WU Z P， et al. Lightweight design of cylindrical stiffened shells in launch vehicles by a dual-elite population sequential approximation optimization approach［J］. Engineering Optimization， 2021， 53（6）： 984-1004.
37	武泽平，王志祥，张为华. 数据驱动的近似建模方法及应用［M］. 北京：国防工业出版社， 2023.
	WU Z P， WANG Z X， ZHANG W H. Data-driven metamodeling methods and applications‍［M］. Beijing： National Defense Industry Press， 2023 （in Chinese）.
38	WU Z P， WANG D H， OKOLO P N， et al. Efficient space-filling and near-orthogonality sequential Latin hypercube for computer experiments‍［J］. Computer Methods in Applied Mechanics and Engineering， 2017， 324： 348-365.
39	武泽平. 基于数值模拟的序列近似优化方法研究［D］. 长沙：国防科技大学， 2018.
	WU Z P. Study on numerical simulation based sequential approximate optimization‍［D］. Changsha： National University of Defense Technology， 2018 （in Chinese）.
40	JOSEPH V R， GUL E， BA S. Designing computer experiments with multiple types of factors： The MaxPro approach［J］. Journal of Quality Technology， 2020， 52（4）： 343-354.
41	MORRIS M D， MITCHELL T J. Exploratory designs for computational experiments［J］. Journal of Statistical Planning and Inference， 1995， 43（3）： 381-402.
42	JIN R C， CHEN W， SUDJIANTO A. An efficient algorithm for constructing optimal design of computer experiments［J］. Journal of Statistical Planning and Inference， 2005， 134（1）： 268-287.
43	QIAN J C， YI J X， CHENG Y S， et al. Asequential constraints updating approach for Kriging surrogate model-assisted engineering optimization design problem［J］. Engineering with Computers， 2020， 36（3）： 993-1009.

[1]	Baoshi YU, Yongjun LEI, Zhibin SHEN, Dapeng ZHANG. Review on analysis and control technology of curing residual stress in solid motor propellants [J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(8): 31083-031083.
[2]	Yue Wang Zhi-Xiang WANG Yongjun Lei. A fast approximate modeling method for stiffened composite cylindrical shells enhanced by sample clustering [J]. Acta Aeronautica et Astronautica Sinica, 0, (): 1-0.
[3]	Yufeng XING, Yuting LI. Semi-analytical solution for natural vibration of rectangular stiffened plates [J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(5): 531240-531240.
[4]	. A new global-local higher order model for laminated composite beams [J]. Acta Aeronautica et Astronautica Sinica, 0, (): 1-0.
[5]	. Stress characterization of high-temperature DIC experiments based on a data fusion-knowledge transfer method [J]. Acta Aeronautica et Astronautica Sinica, 0, (): 1-0.
[6]	Shu ZHANG, Kuo TIAN, Cong GUO. Complex space reduction and optimization method based on multiple fidelity model [J]. Acta Aeronautica et Astronautica Sinica, 2024, 45(S1): 730583-730583.
[7]	Yongxin SHI, Kuo TIAN, Bo WANG. Topology optimization of aerospace axisymmetric structures based on bidirectional density function [J]. Acta Aeronautica et Astronautica Sinica, 2024, 45(S1): 730585-730585.
[8]	Baicheng JIN, Kuo TIAN, Lei HUANG. Parametric reconstruction method for topology optimization results of curved stiffened structures [J]. Acta Aeronautica et Astronautica Sinica, 2024, 45(24): 630586-630586.
[9]	Wei LI, Xin SONG, Xiangqi LIN, Zhilin SU, Chengbo WANG, Tong LI. Fast optimization method for nail load homogenization of composite joint structures [J]. Acta Aeronautica et Astronautica Sinica, 2024, 45(23): 230345-230345.
[10]	. Crashworthiness Analysis and Optimization for eVTOL Vehicles [J]. Acta Aeronautica et Astronautica Sinica, 0, (): 1-0.
[11]	. Mixed-integer sequential approximate optimization method for stiffened cylindrical shells in large launch vehicles [J]. Acta Aeronautica et Astronautica Sinica, 0, (): 0-0.
[12]	Yuexing WANG, Qiyang ZHOU, Minqian LI, Weixing MIAO, Yandi LU, Xianliang GE. Prototyping of UAV swarm control software [J]. Acta Aeronautica et Astronautica Sinica, 2024, 45(20): 630678-630678.
[13]	Yanhe TAO, Qintao GUO, Jin ZHOU, Jiaqian MA, Xiaofa LI. Efficient variational Bayesian model updating under observation uncertainty [J]. Acta Aeronautica et Astronautica Sinica, 2024, 45(19): 229969-229969.
[14]	. Neural Network Model for Wing Strain-Load Relationship by fusing real data and virtual data [J]. Acta Aeronautica et Astronautica Sinica, 0, (): 0-0.
[15]	Qingfa LUO, Qin YU, Gang LI, Dong WANG. Layout optimization of control sensors in environmental vibration test [J]. Acta Aeronautica et Astronautica Sinica, 2024, 45(18): 0-229843-.

Mixed-integer sequential approximate optimization method for stiffened cylindrical shells in large launch vehicles

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 26

References 43

Related Articles 15

Recommended Articles

Metrics

Comments

项目	SAOCPS		PoF	文献［16］
项目	“工”形	“几”形	“工”形	“几”形
初始样本数量	200	200	200	2 400
迭代次数	200	200	143	150
每次迭代采样数量	11	11	11	11
总样本数量	2 400	2 400	1 773	4 050
