电动起降飞机用电池多维健康指标联合估算

doi:10.7527/S1000-6893.2024.31440

Abstract

Abstract:

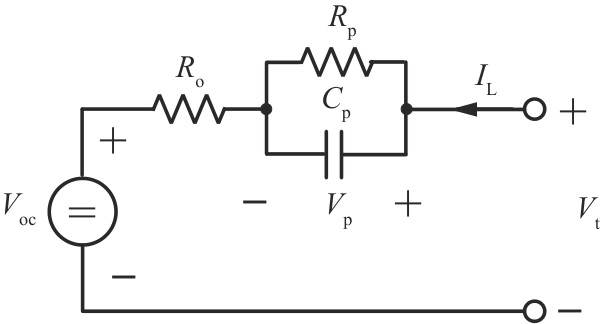

Electric Vertical Take-off and Landing （eVTOL） aircraft is one of the significant trends in the development of renewable low-altitude aircraft. To meet the requirements for safe and reliable operation of eVTOL， it is necessary for the battery management system to accurately and efficiently estimate the State-of-Health （SoH） of the on-board lithium-ion battery system based on the characteristics of the flight profile. At present， most SoH estimation algorithms for eVTOL applications only consider the battery capacity loss， and lack the ability to comprehensively and precisely estimate battery degradation in both energy and power based on the data recorded during the specific flight phase. To address the aforementioned issue， the battery current and voltage measured during the take-off phase of the eVTOL aircraft are selected as the inputs for the estimation algorithm， and the battery capacity， the ohmic resistance， and the polarization resistance are utilized as the health indicators to comprehensively characterize the battery degradation. To improve the training efficiency and estimation accuracy of the model for multi-indicator estimation， a multi-output least squares support vector regression-based method for joint estimation of multiple battery health indicators is proposed， which can achieve rapid and accurate estimation of the battery capacity and resistance by considering the coupling relationship among output parameters. Finally， experimental verification is conducted based on the eVTOL Battery Dataset. The results of the comparative study demonstrate that based on the proposed method， the mean absolute percentage error of the estimated battery capacity and internal resistance are overall below 2.5% and the model training time is within 0.05 s， successfully realizing a comprehensive， efficient， and accurate estimation of lithium-ion battery health indicators for eVTOL applications.

Key words: electric Vertical Take-off and Landing (eVTOL) aircraft, lithium-ion battery, battery management system, health indicator estimation, least squares support vector regression

CLC Number:

V242

Jufeng YANG, Wenxin HUANG, Jiukang SUN, Zhongchen MA, Guodong FAN, Xi ZHANG. Joint estimation of multidimensional battery health indicators for electric vertical take-off and landing aircraft applications[J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(14): 331440.

Figures/Tables 11

Fig.1

Fig.2

Fig.3

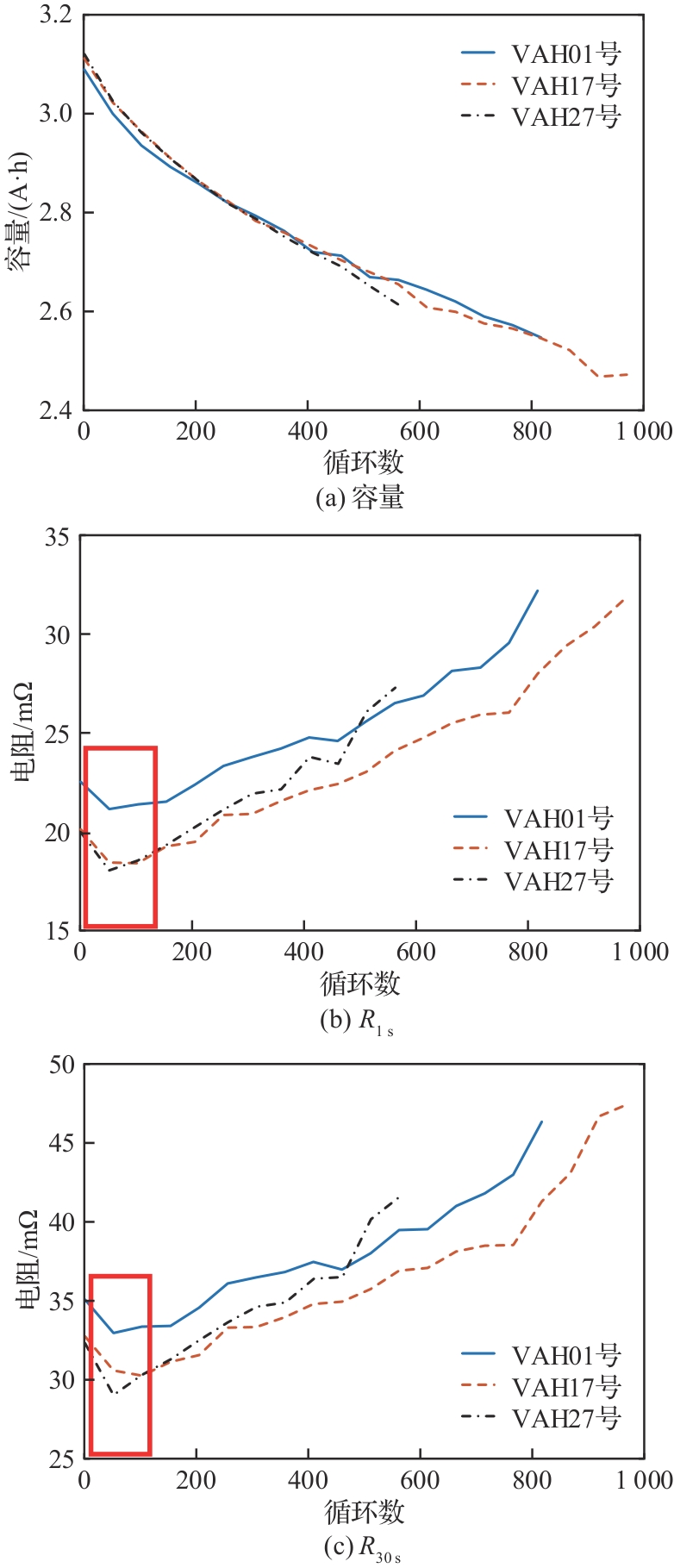

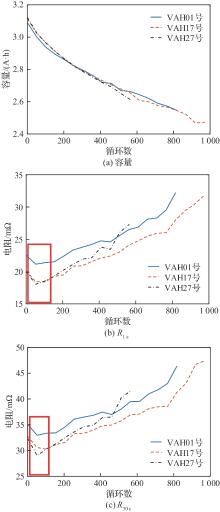

Fig.4

Fig.5

Fig.6

Table 1

Table 2

Table 3

Fig.7

Table 4

References 26

[1]	YANG X G， LIU T， GE S H， et al. Challenges and key requirements of batteries for electric vertical takeoff and landing aircraft［J］. Joule， 2021， 5（7）： 1644-1659.
[2]	苏宁，黄文新. 电推进飞机定子双绕组感应发电机并联系统［J］. 航空学报， 2022， 43（8）： 325409.
	SU N， HUANG W X. Parallel power generation system based on dual-stator winding induction generator for electric propulsion aircraft［J］. Acta Aeronautica et Astronautica Sinica， 2022， 43（8）： 325409 （in Chinese）.
[3]	MITICI M， HENNINK B， PAVEL M， et al. Prognostics for lithium-ion batteries for electric vertical take-off and landing aircraft using data-driven machine learning［J］. Energy and AI， 2023， 12： 100233.
[4]	邓景辉. 电动垂直起降飞行器的技术现状与发展［J］. 航空学报， 2024， 45（5）： 529937.
	DENG J H. Technical status and development of electric vertical take-off and landing aircraft［J］. Acta Aeronautica et Astronautica Sinica， 2024， 45（5）： 529937 （in Chinese）.
[5]	赵冬冬，赵国胜，夏磊，等. 无人机用燃料电池阴极供气系统建模与控制［J］. 航空学报， 2021， 42（7）： 324659.
	ZHAO D D， ZHAO G S， XIA L， et al. Modeling and control of fuel cell cathode gas supply system for UAV［J］. Acta Aeronautica et Astronautica Sinica， 2021， 42（7）： 324659 （in Chinese）.
[6]	王超君，陈翔，彭思侃，等. 锂离子电池发展现状及其在航空领域的应用分析［J］. 航空材料学报， 2021， 41（3）： 83-95.
	WANG C J， CHEN X， PENG S K， et al. Recent advances in lithium-ion batteries and their applications towards aerospace‍［J］. Journal of Aeronautical Materials， 2021， 41（3）： 83-95 （in Chinese）.
[7]	刘文学，侯聪，杨亚联，等. 面向城市空中交通的电动飞行汽车关键性能指标分析［J］. 机械工程学报， 2024， 60（22）： 257-275.
	LIU W X， HOU C， YANG Y L， et al. Analysis of key performance metrics of electric flying cars for urban air mobility［J］. Journal of Mechanical Engineering， 2024， 60（22）： 257-275 （in Chinese）.
[8]	VALIŠ D， HLINKA J， FORBELSKÁ M， et al. Perspective study on charge time measurement of long-term stored lithium-ion batteries used in electric-powered aircraft assessed and modelled by specific growth model with diffusion process backup［J］. Journal of Energy Storage， 2024， 80： 110385.
[9]	BISHT A， AMIN R， DIXIT M， et al. Impact of cycling conditions on lithium-ion battery performance for electric vertical takeoff and landing applications‍［J］. Journal of Power Sources， 2024， 602： 234335.
[10]	HATHERALL O， BARAI A， NIRI M F， et al. Novel battery power capability assessment for improved eVTOL aircraft landing‍［J］. Applied Energy， 2024， 361： 122848.
[11]	WEI Z B， RUAN H K， LI Y， et al. Multistage state of health estimation of lithium-ion battery with high tolerance to heavily partial charging‍［J］. IEEE Transactions on Power Electronics， 2022， 37（6）： 7432-7442.
[12]	MOHTAT P， LEE S， SIEGEL J B， et al. Comparison of expansion and voltage differential indicators for battery capacity fade‍［J］. Journal of Power Sources， 2022， 518： 230714.
[13]	YANG J F， CAI Y F， MI C. Lithium-ion battery capacity estimation based on battery surface temperature change under constant-current charge scenario‍［J］. Energy， 2022， 241： 122879.
[14]	GONG D L， GAO Y， KOU Y L， et al. State of health estimation for lithium-ion battery based on energy features［J］. Energy， 2022， 257： 124812.
[15]	YANG J F， LI X， SUN X D， et al. An efficient and robust method for lithium-ion battery capacity estimation using constant-voltage charging time‍［J］. Energy， 2023， 263： 125743.
[16]	YANG J F， XIA B， HUANG W X， et al. Online state-of-health estimation for lithium-ion batteries using constant-voltage charging current analysis‍［J］. Applied Energy， 2018， 212： 1589-1600.
[17]	YANG J F， CAI Y F， MI C C. State-of-health estimation for lithium-ion batteries based on decoupled dynamic characteristic of constant-voltage charging current‍［J］. IEEE Transactions on Transportation Electrification， 2022， 8（2）： 2070-2079.
[18]	LUO Y W， QIAN Y P， ZENG Z Z， et al. Simulation and analysis of operating characteristics of power battery for flying car utilization［J］. eTransportation， 2021， 8： 100111.
[19]	BILLS A， SRIPAD S， FREDERICKS L， et al. A battery dataset for electric vertical takeoff and landing aircraft［J］. Scientific Data， 2023， 10（1）： 344.
[20]	GRANADO L， BEN-MARZOUK M， SOLANO SAENZ E， et al. Machine learning predictions of lithium-ion battery state-of-health for eVTOL applications［J］. Journal of Power Sources， 2022， 548： 232051.
[21]	廖龙飞. 多输出支持向量机及其应用研究［D］. 北京：北京化工大学， 2011： 6-7.
	LIAO L F. Research on multi-output support vector machine and its application［D］. Beijing： Beijing University of Chemical Technology， 2011： 6-7 （in Chinese）.
[22]	杨驹丰. 基于等效电路模型的锂离子动力电池参数辨识与状态估计［D］. 南京：南京航空航天大学， 2019： 37-38.
	YANG J F. Parameter identification and state estimation of lithium-ion power battery based on equivalent circuit model［D］. Nanjing： Nanjing University of Aeronautics and Astronautics， 2019： 37-38 （in Chinese）.
[23]	ZHENG Y S， CHE Y H， HU X S， et al. Sensorless temperature monitoring of lithium-ion batteries by integrating physics with machine learning［J］. IEEE Transactions on Transportation Electrification， 2024， 10（2）： 2643-2652.
[24]	戴鹏，周平，梁延灼，等. 基于多输出最小二乘支持向量回归建模的自适应非线性预测控制及应用［J］. 控制理论与应用， 2019， 36（1）： 43-52.
	DAI P， ZHOU P， LIANG Y Z， et al. Multi-output least squares support vector regression modeling based adaptive nonlinear predictive control and its application［J］. Control Theory & Applications， 2019， 36（1）： 43-52 （in Chinese）.
[25]	XU S， AN X， QIAO X D， et al. Multi-output least-squares support vector regression machines［J］. Pattern Recognition Letters， 2013， 34（9）： 1078-1084.
[26]	马忠臣. 集成剪枝评估准则及PS-ELMs模型在时间序列预测中的应用研究［D］. 南京：南京航空航天大学， 2014： 17-18.
	MA Z C. Research on the application of integrated pruning evaluation criterion and PS-ELMs model in time series prediction［D］. Nanjing： Nanjing University of Aeronautics and Astronautics， 2014： 17-18 （in Chinese）.

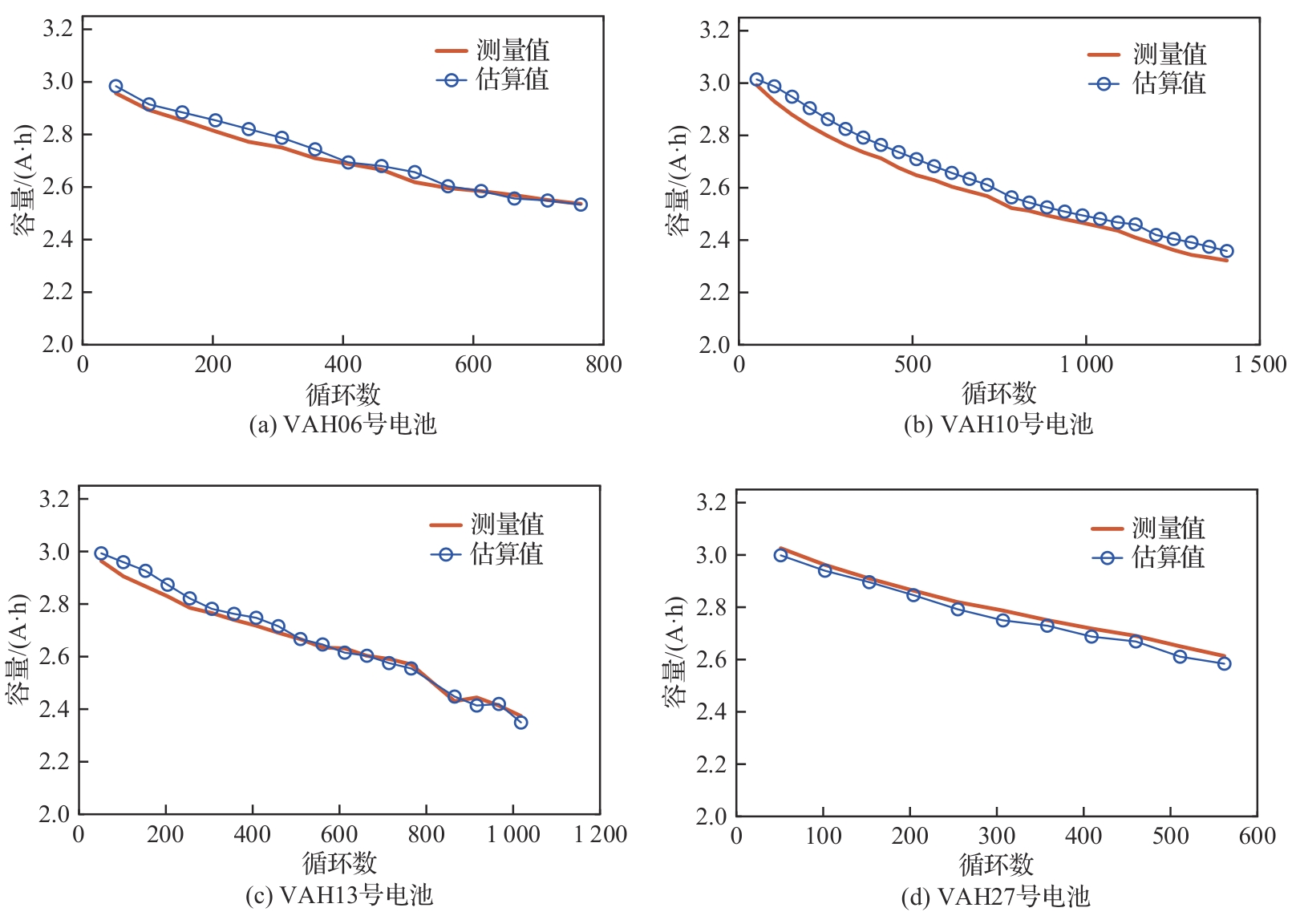

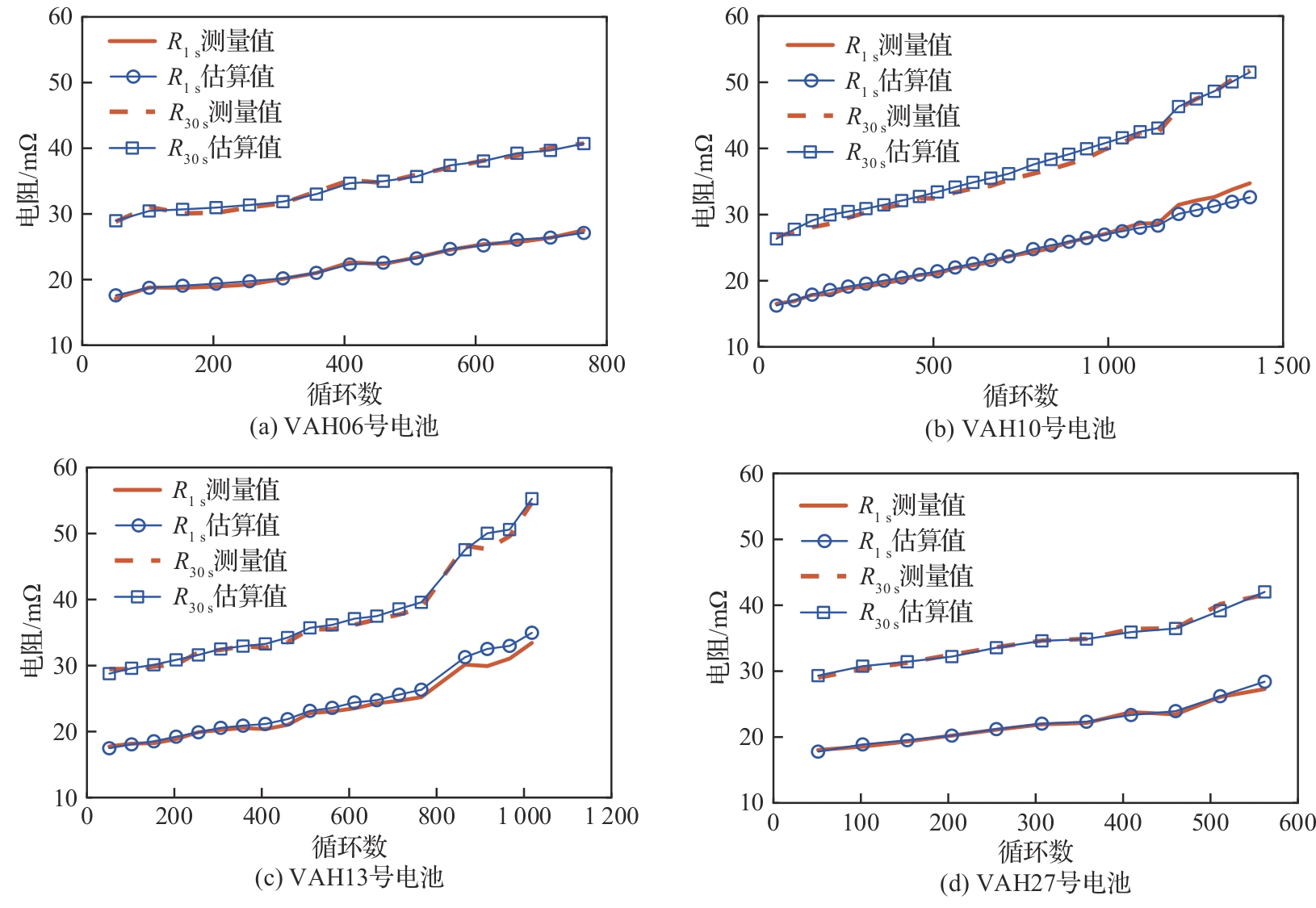

电池号	容量		R_{1 s}		R_{30 s}
电池号	MAE/（mA·h）	MAPE/%	MAE/mΩ	MAPE/%	MAE/mΩ	MAPE/%
总体	32.0	1.20	0.50	1.98	0.57	1.61
VAH06	21.5	0.78	0.25	1.18	0.35	1.05
VAH10	46.0	1.77	0.53	1.94	0.76	2.21
VAH13	24.0	0.88	0.78	3.05	0.64	1.65
VAH27	26.2	0.94	0.30	1.33	0.29	0.83

模型输入	容量		R_{1 s}		R_{30 s}
模型输入	MAE/（mA·h）	MAPE/%	MAE/mΩ	MAPE/%	MAE/mΩ	MAPE/%
I_L	41.8	1.58	0.74	3.16	1.00	2.97
V_t	25.2	0.95	1.06	4.33	1.74	4.67
T	122	4.71	1.64	6.96	1.95	5.02
I_L+V_t+T	59.9	2.33	1.25	4.94	1.42	3.75
I_L+V_t	32.0	1.20	0.50	1.98	0.57	1.61

飞行阶段	容量		R_{1 s}		R_{30 s}
飞行阶段	MAE/（mA·h）	MAPE/%	MAE/mΩ	MAPE/%	MAE/mΩ	MAPE/%
起飞	32.0	1.20	0.50	1.98	0.57	1.61
巡航	35.3	1.35	0.71	2.79	0.75	1.96
降落	79.3	3.08	0.65	2.73	1.06	2.88

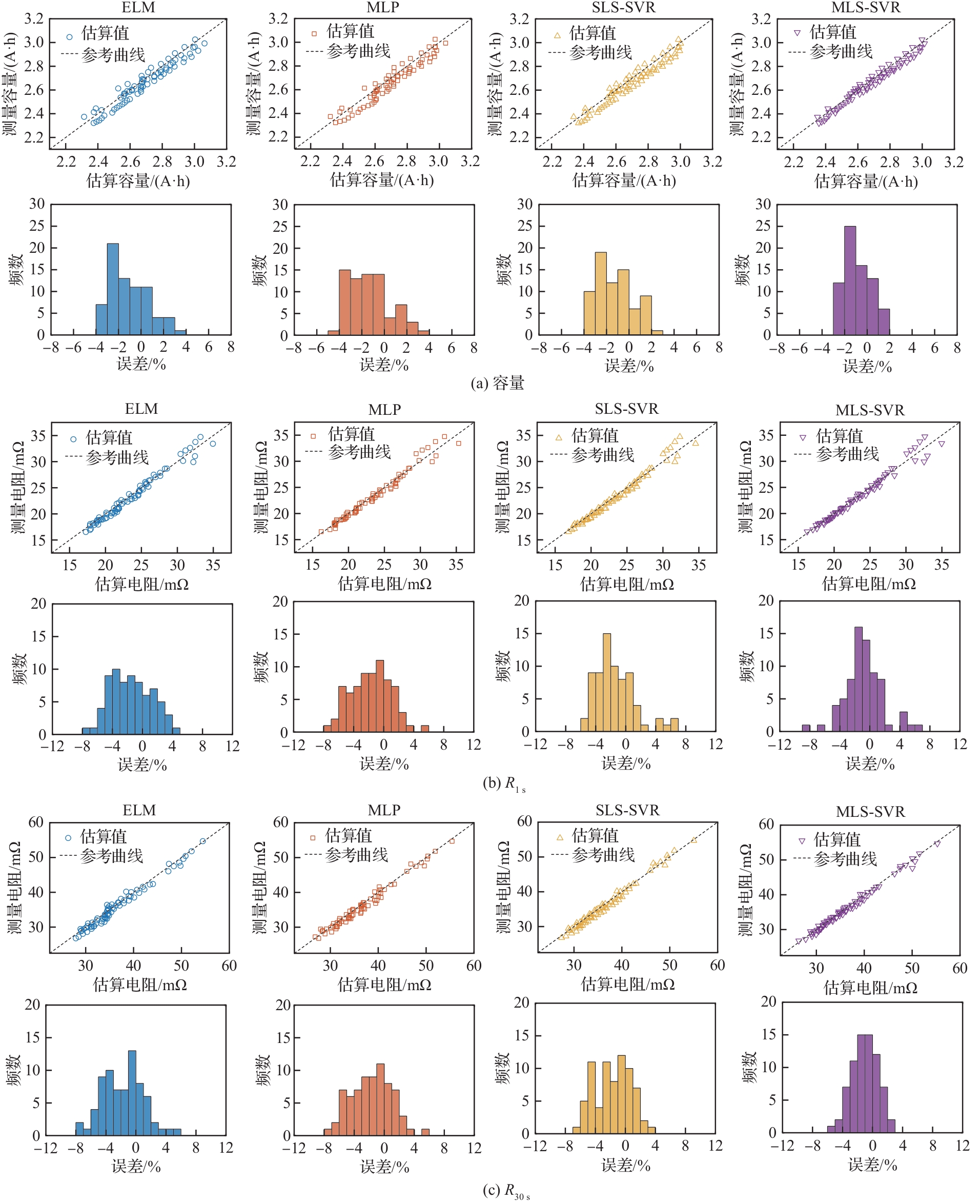

方法	容量		R_{1 s}		R_{30 s}		训练时间/s
方法	MAE/（mA·h）	MAPE/%	MAE/mΩ	MAPE/%	MAE/mΩ	MAPE/%	训练时间/s
ELM	46.4	1.75	0.61	2.65	0.90	2.60	5.60
MLP	50.9	1.93	0.55	2.26	0.88	2.54	6.57
SLS-SVR	45.8	1.73	0.58	2.42	0.79	2.28	0.008 1
MLS-SVR	32.0	1.20	0.50	1.98	0.57	1.61	0.015
