高温激光-仅线圈式表面波EMAT优化设计及应用

doi:10.7527/S1000-6893.2025.31970

Abstract

Abstract:

Aimed at the problems of traditional permanent magnet or liquid-cooled permanent magnet type ElectroMagnetic Acoustic transducer （EMAT）， such as large volume， easy demagnetization of permanent magnet at high temperature and difficulty in sustained high temperature detection， a laser coil-only Rayleigh Wave （RW） EMAT detection method for high-temperature-sustained on-line monitoring is proposed. A finite element model for field-circuit coupling analysis of the aluminum alloy laser coil-only RW EMAT detection process based on the surface constraint mechanism was established， and the effects of key design parameters such as the excitation coil of the coil-only RW EMAT on the amplitude and wave packet width of the RW detection were analyzed by using orthogonal experimental method， according to which， the optimal design parameter combinations of the coil-only RW EMAT was obtained and verified by experiments. The laser coil-only RW EMAT high-temperature on-line detection system was developed， and the on-line detection experiment of surface crack defects of high-temperature aluminum alloy at 20-500 ℃ was carried out. The results show that the number of wire splitting and coil turns of the receiving coil （meander coil） have a major influence on the received signal amplitude and wave packet width of the coil-only RW EMAT， respectively. The receiving amplitude of the optimized coil-only RW EMAT is increased by 1.67 times. Furthermore， the on-line detection of surface crack defects of 500 ℃ high-temperature aluminum alloy can be realized by using the differential circuit device and matching the width of the laser line light source with the turn spacing of the coil-only RW EMAT coil. The proposed method provides theoretical support and technical guidance for laser coil-only RW EMAT high-temperature on-line non-destructive testing and monitoring.

Key words: high-temperature detection, laser, coil-only RW EMAT, surface constraint, field-circuit coupling, orthogonal test

CLC Number:

V261.3

Lifei DONG, Zichen DENG, Chao LU, Wenze SHI, Pan HE, Weiwei CHEN. Optimal design and application of high-temperature laser coil-only Rayleigh wave EMAT[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(3): 431970.

Figures/Tables 27

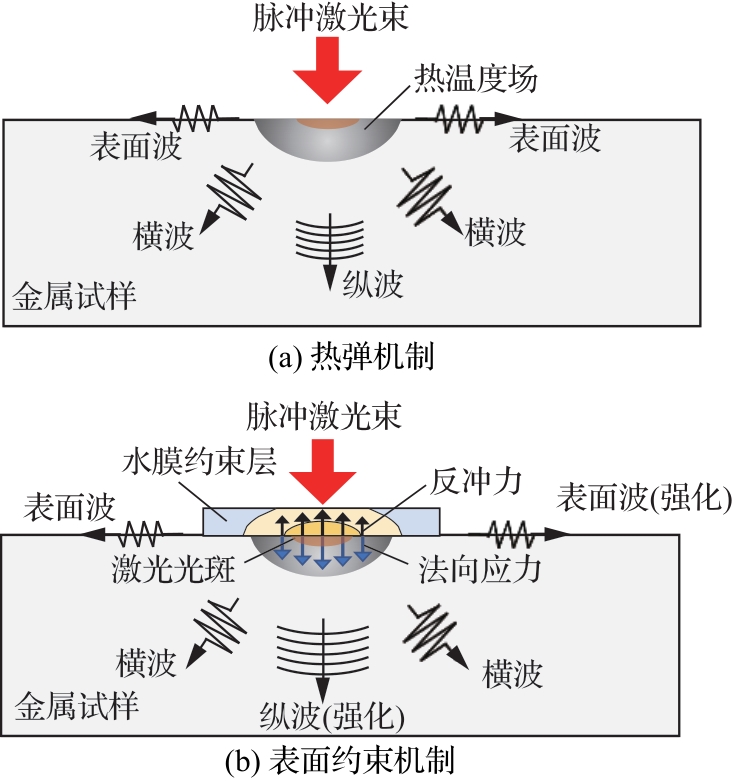

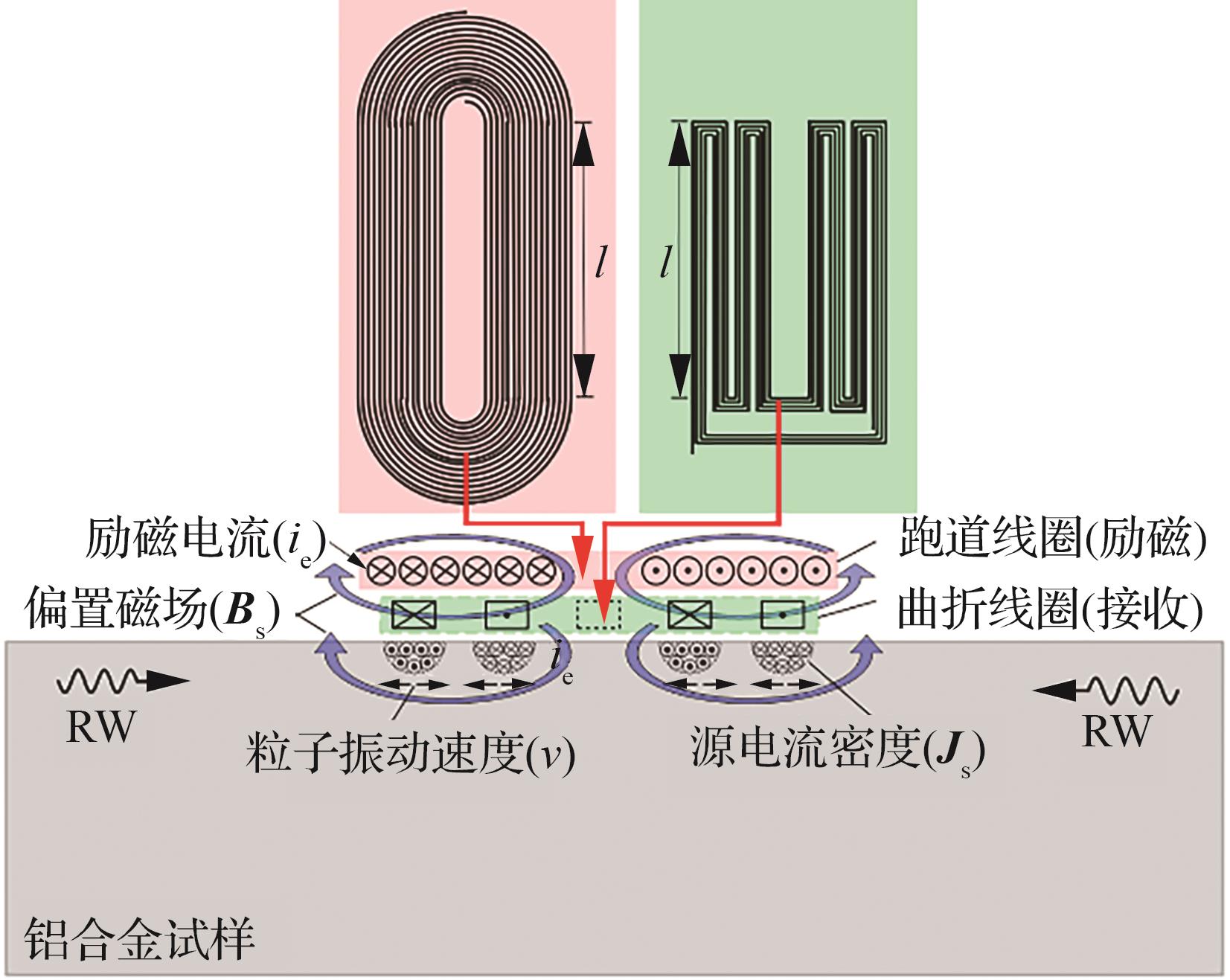

Fig.1

Fig.2

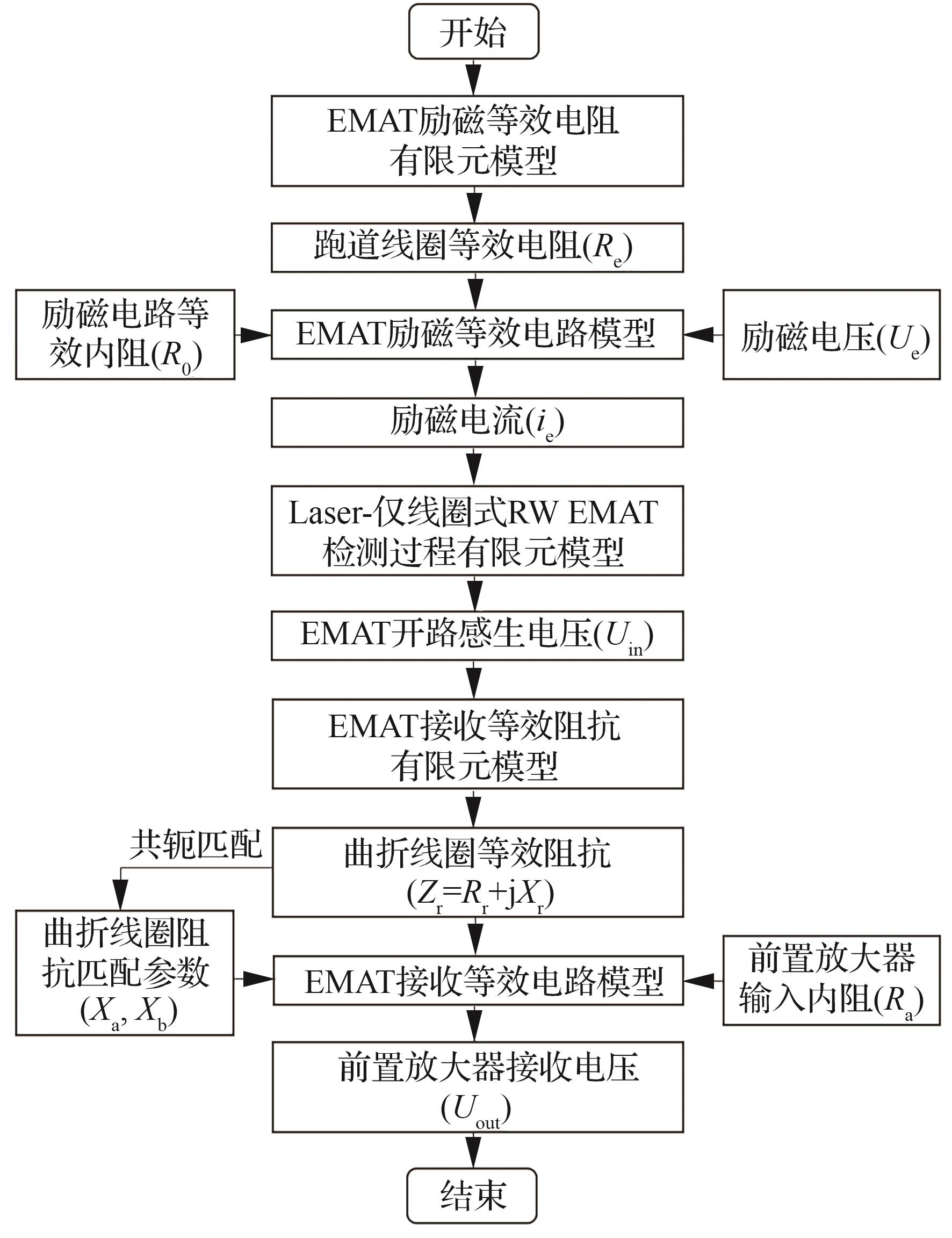

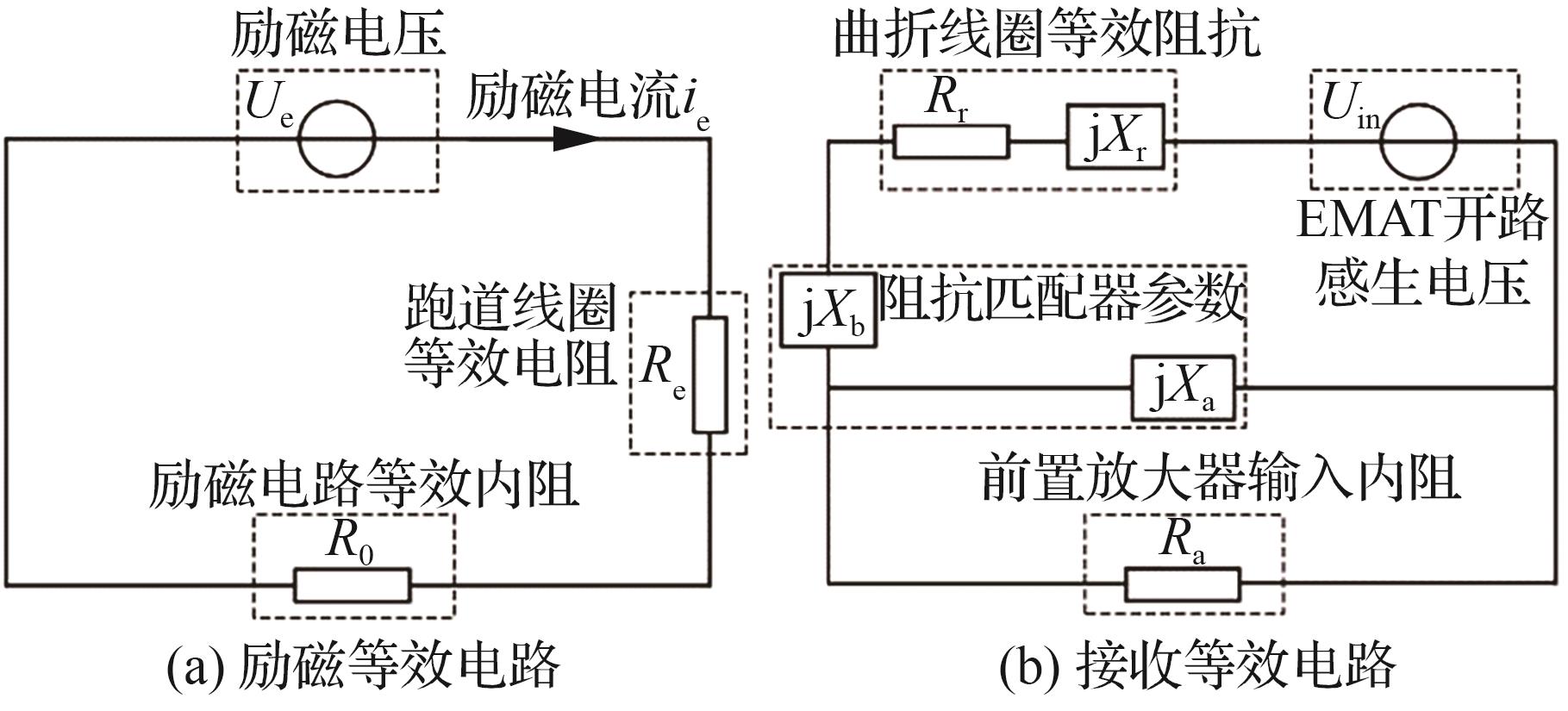

Fig.3

Fig.4

Fig.5

Table 1

Table 2

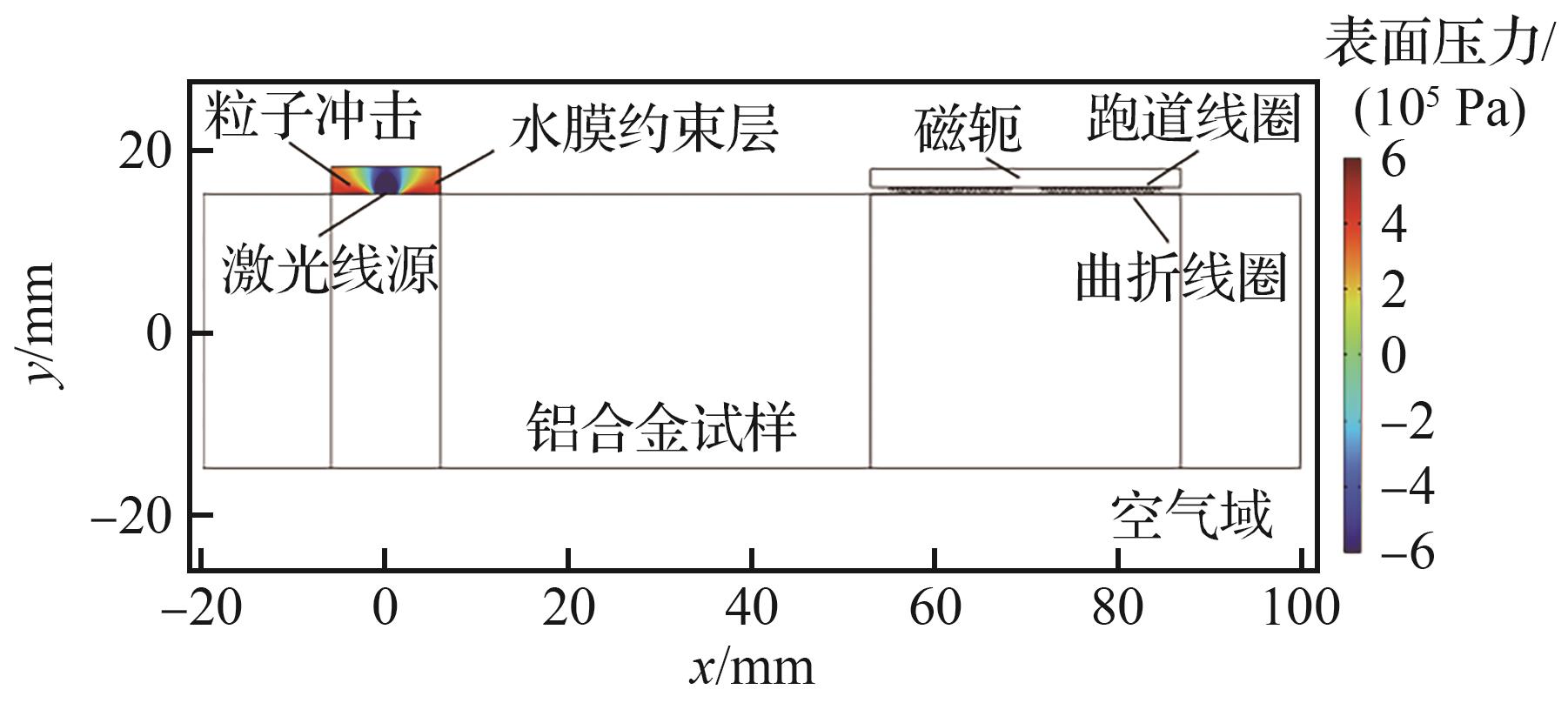

Fig.6

Fig.7

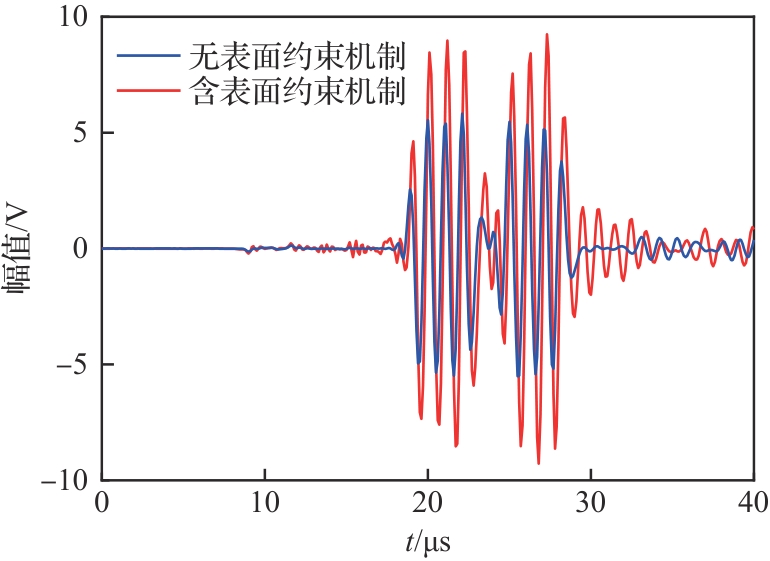

Fig.8

Table 3

Fig.9

Table 4

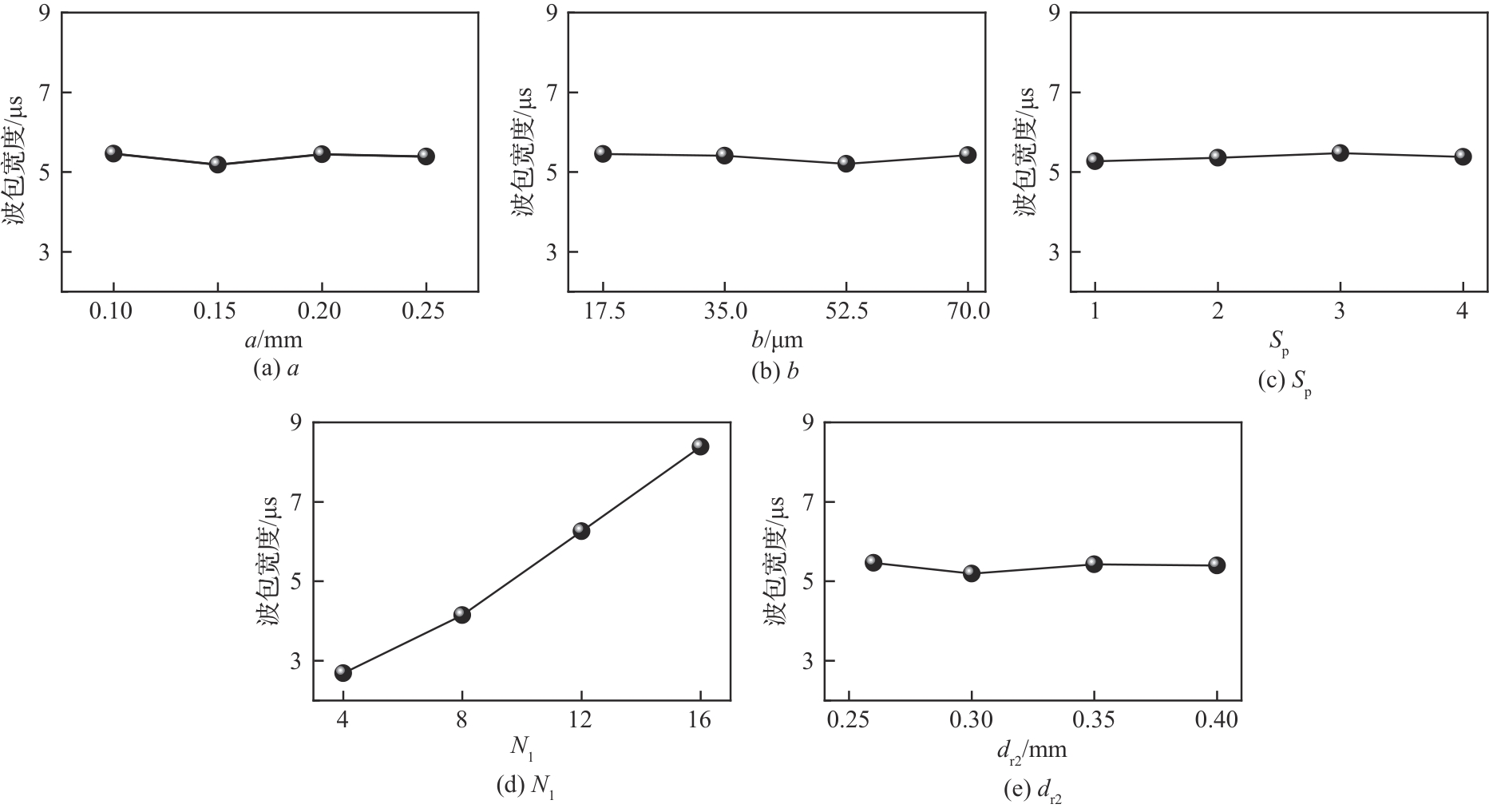

Fig.10

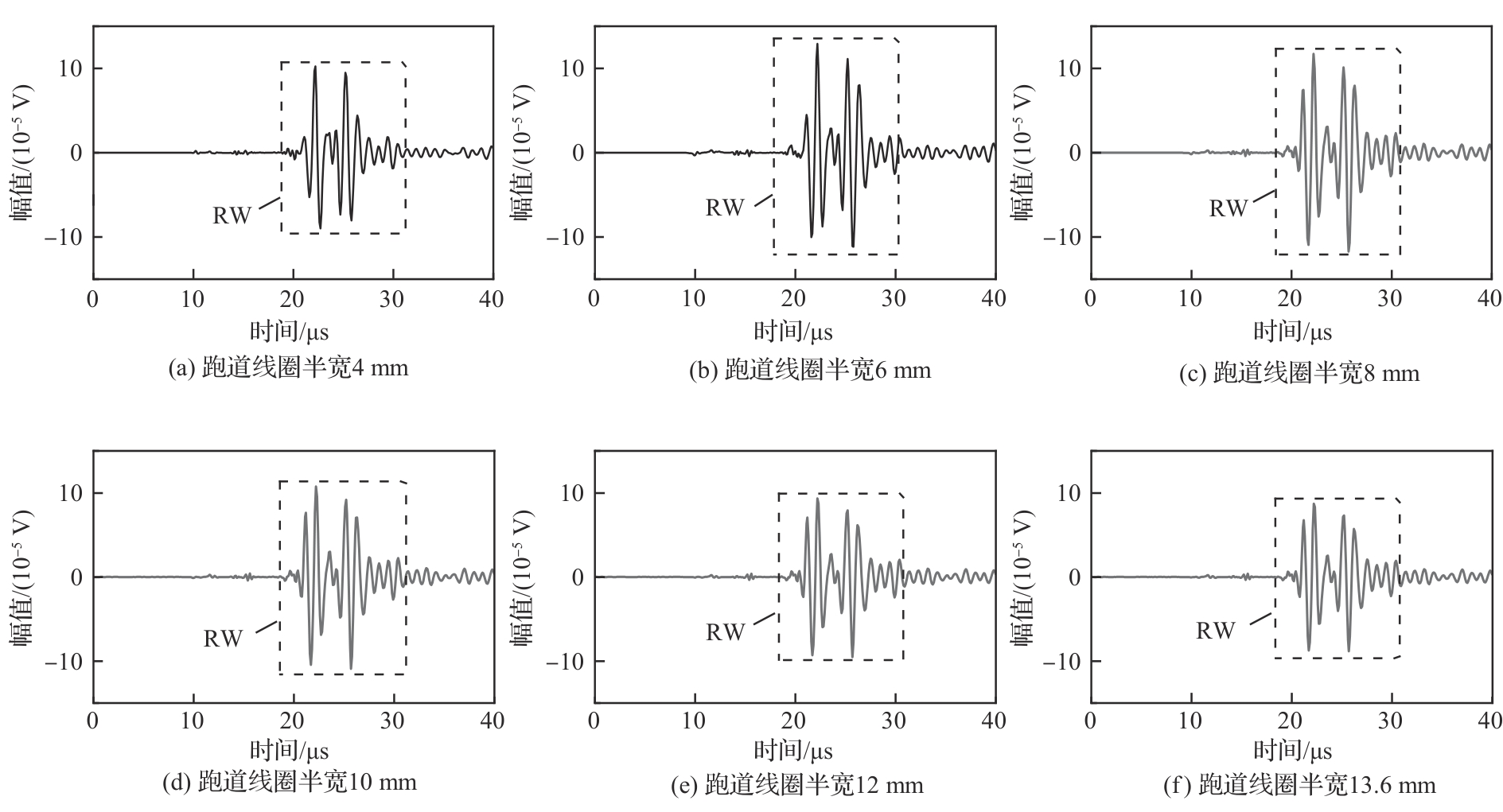

Fig.11

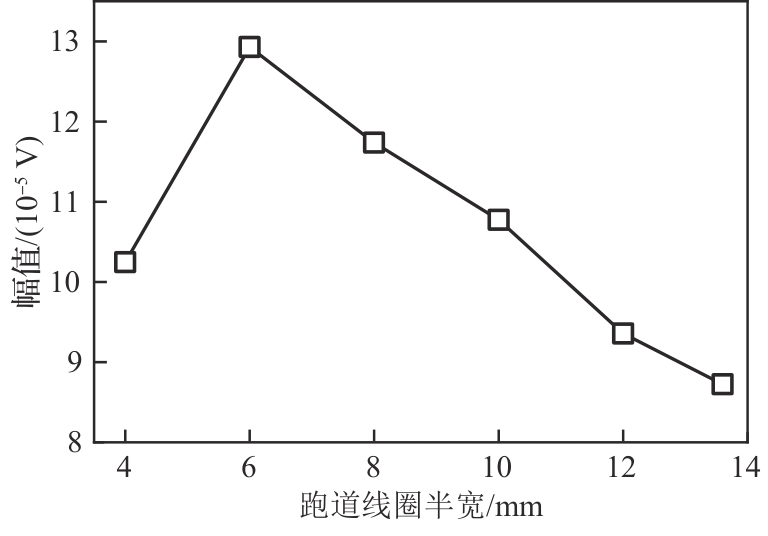

Fig.12

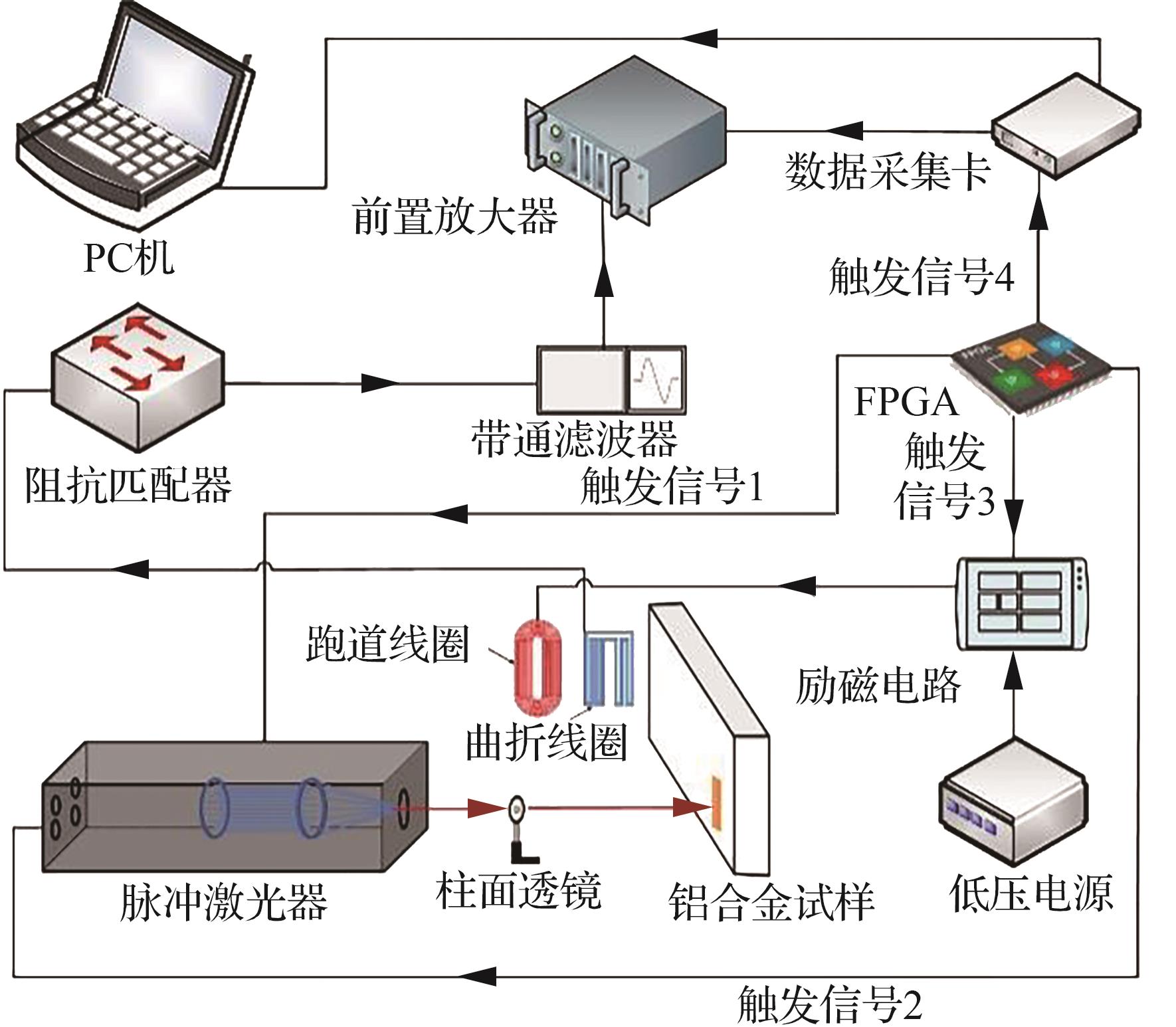

Fig.13

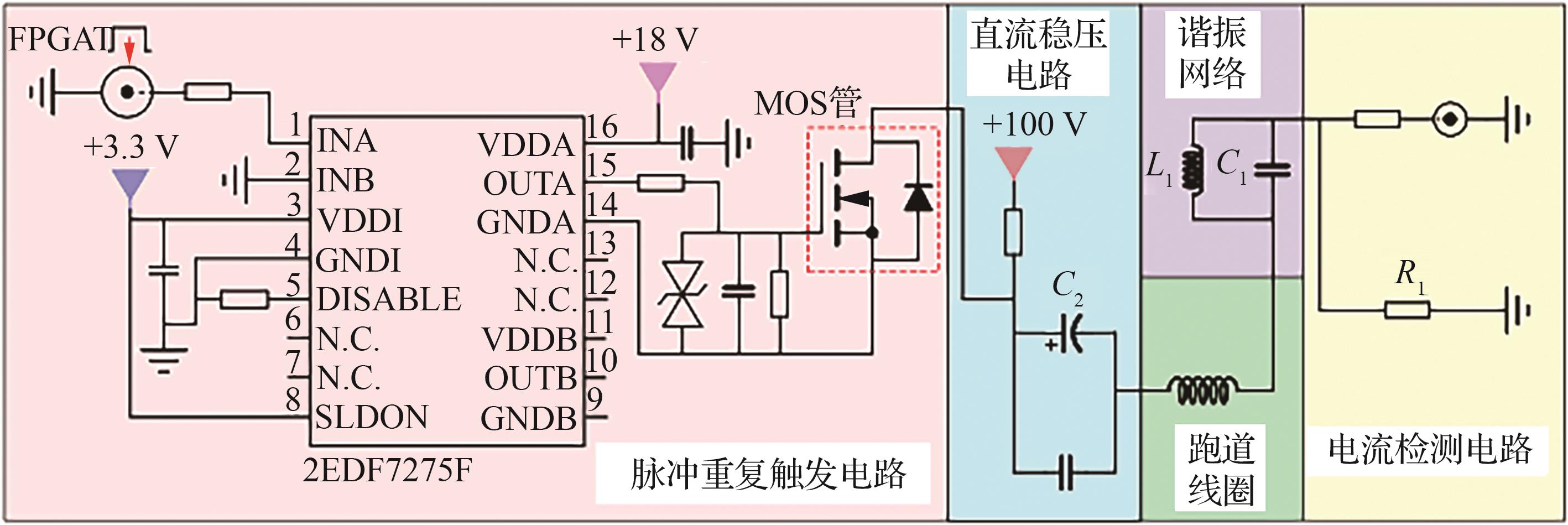

Fig.14

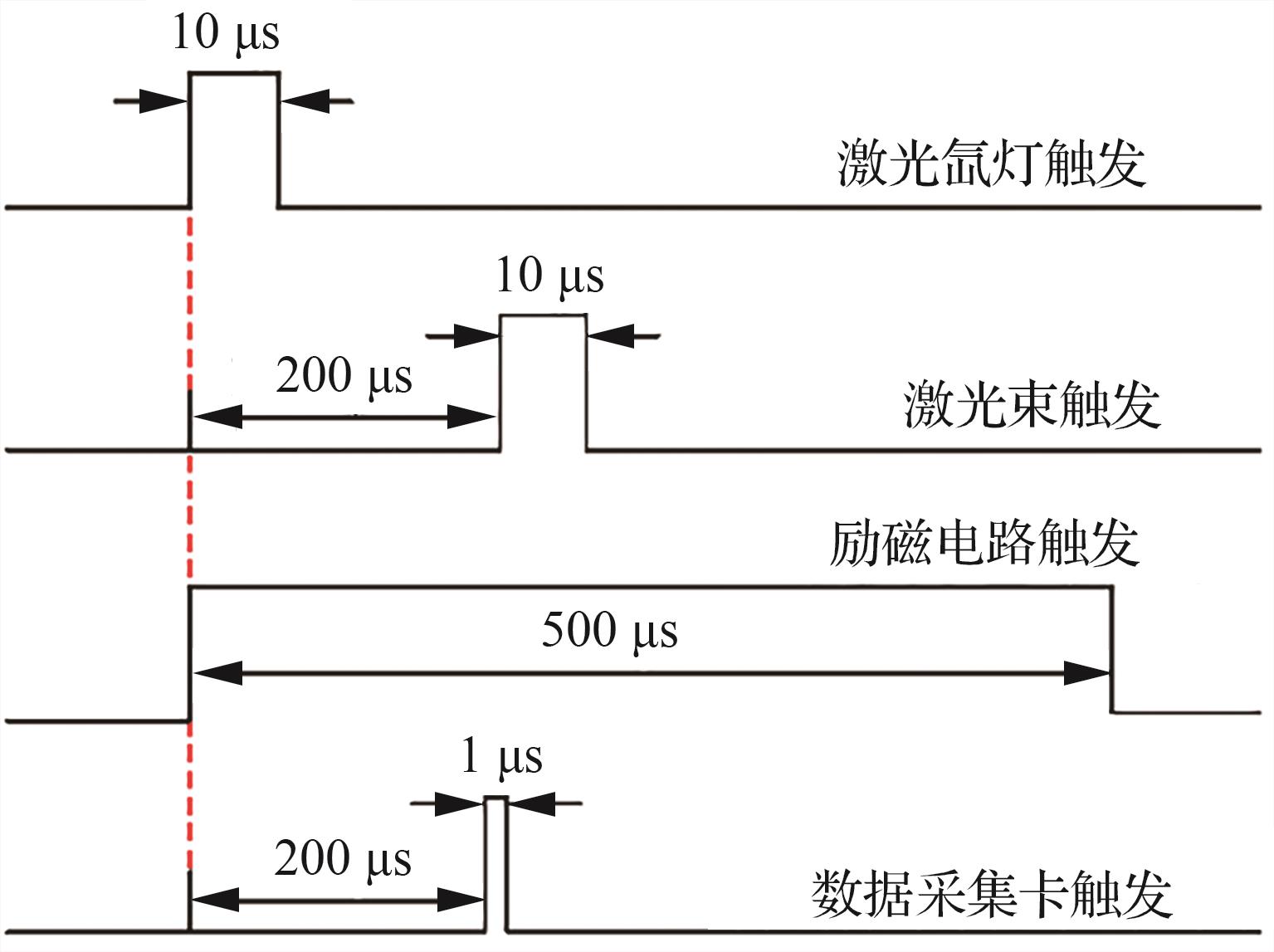

Fig.15

Fig. 16

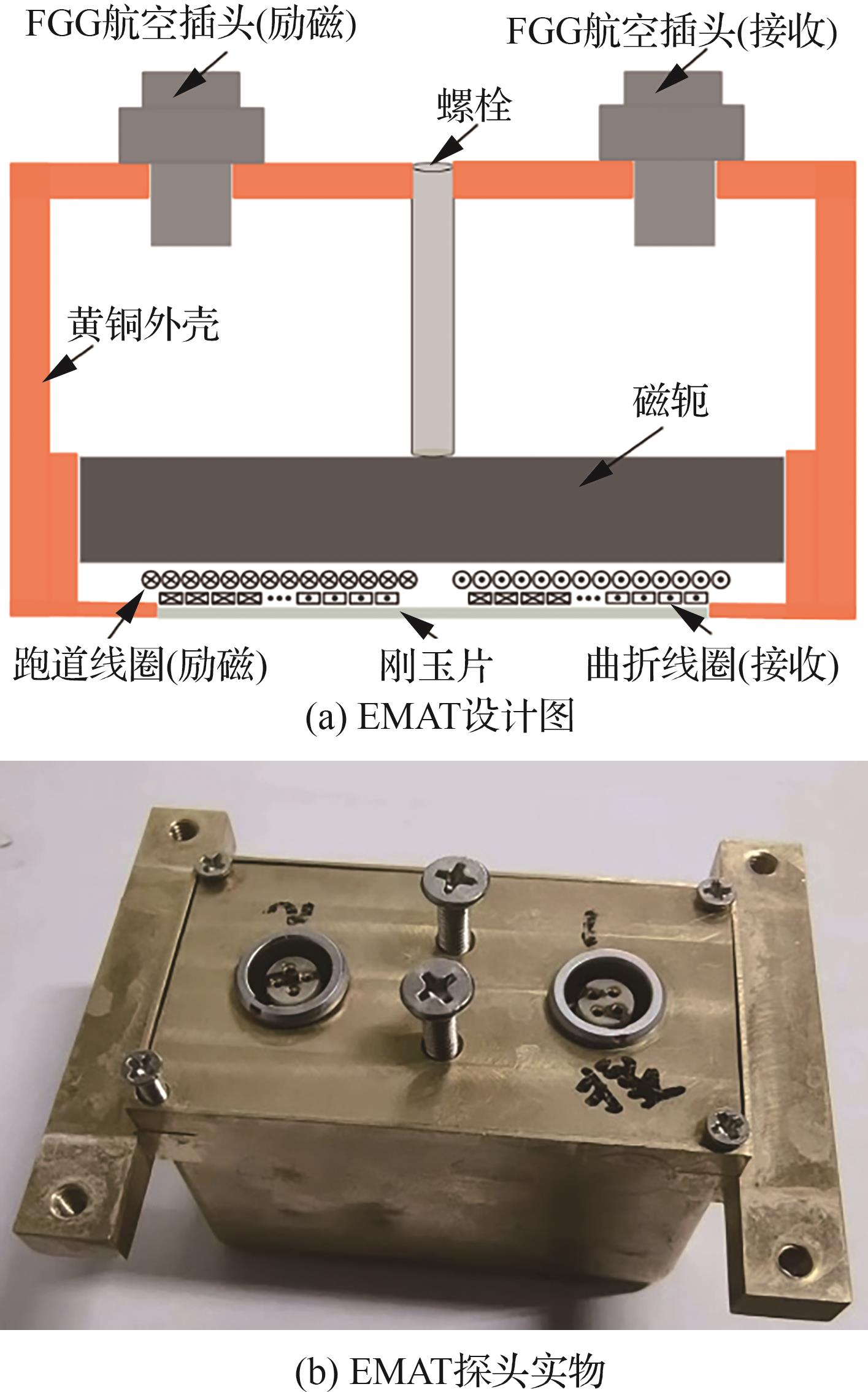

Fig.17

Fig.18

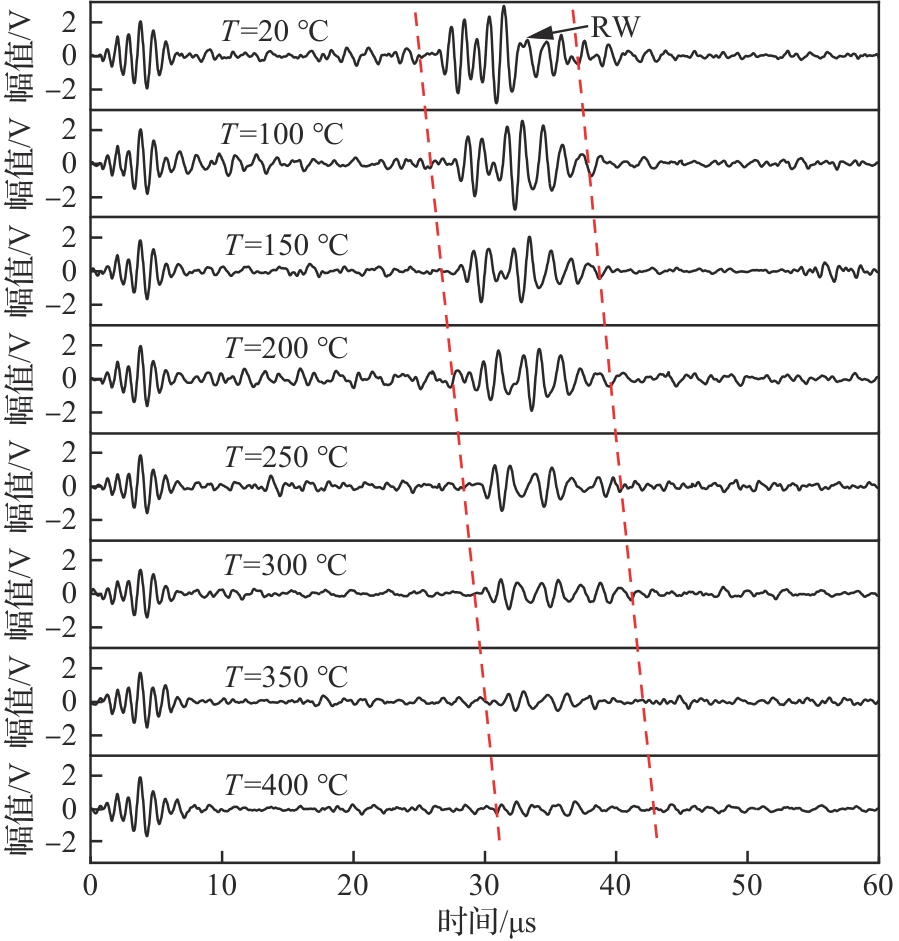

Fig.19

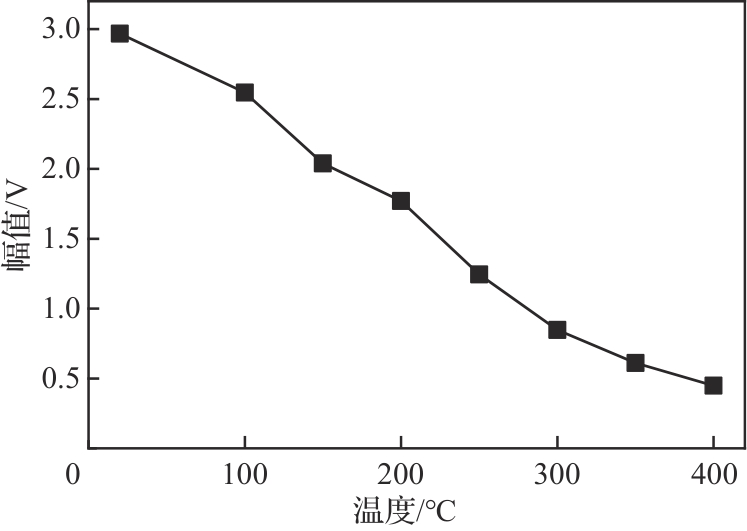

Fig.20

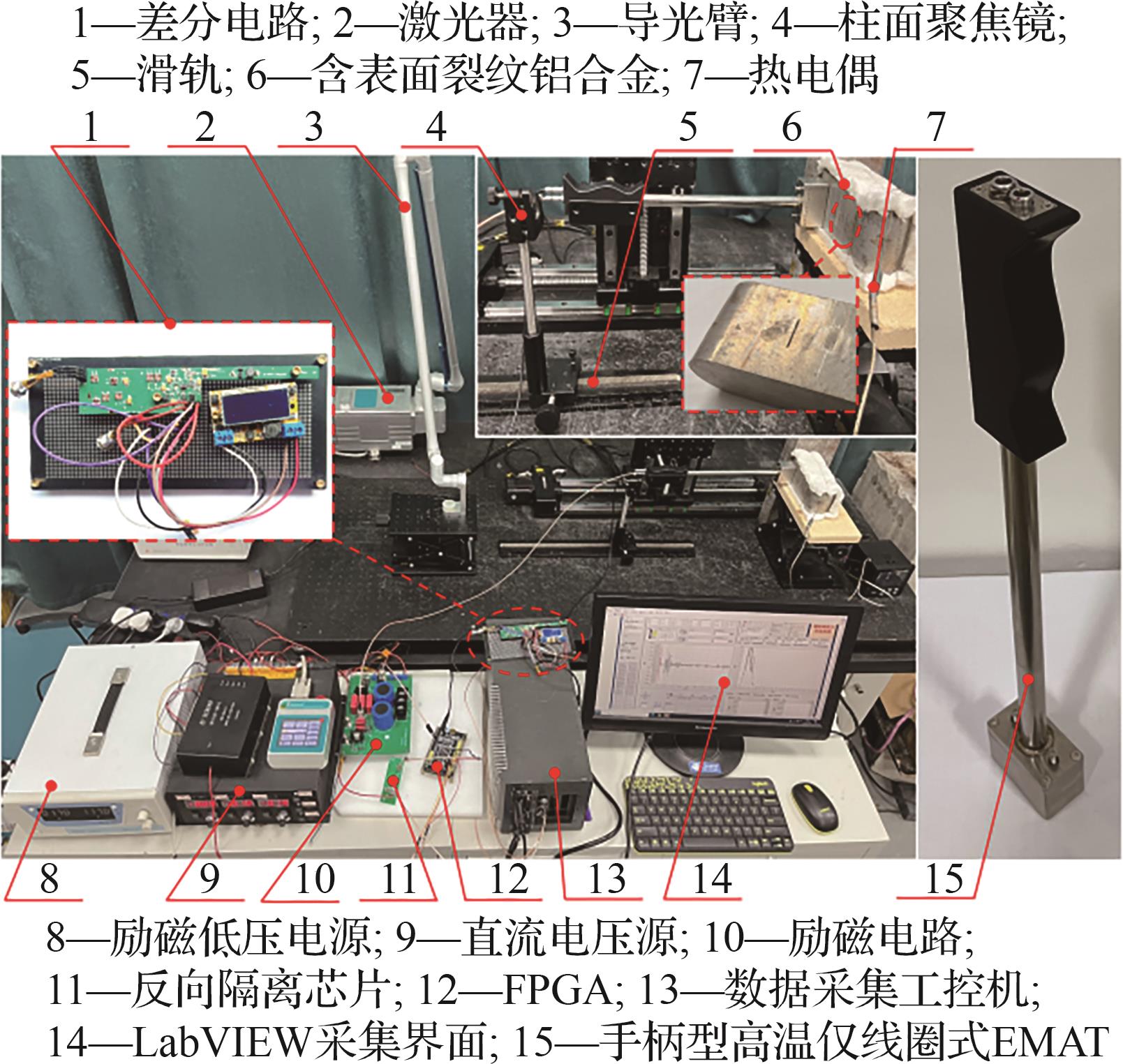

Fig.21

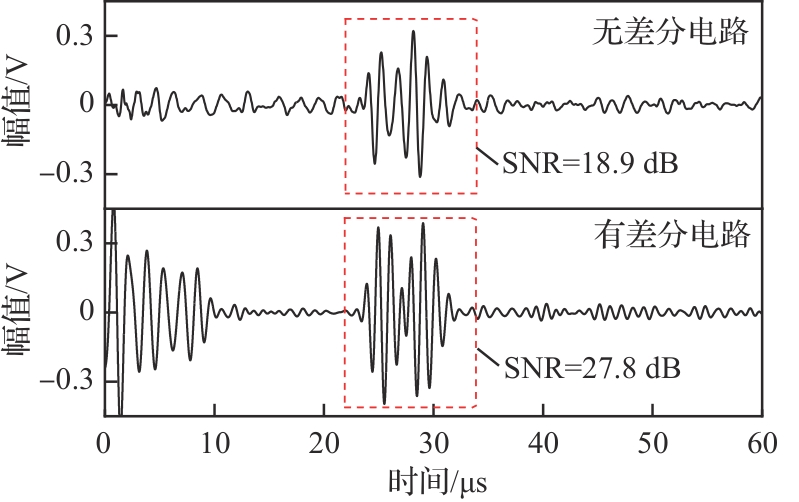

Fig.22

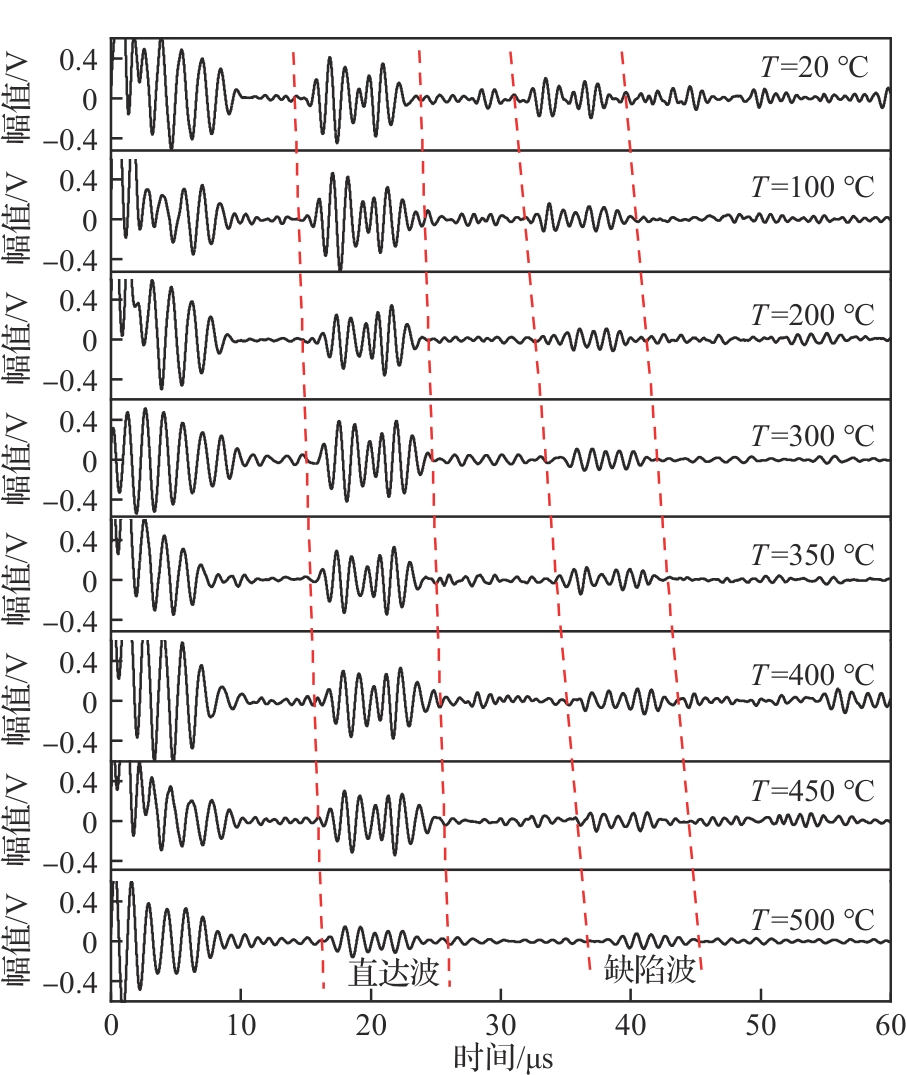

Fig.23

References 33

[1]	汪勇，张攀，钟梓彬，等. 基于点云降维的飞机薄壁件化铣刻型轮廓三维检测技术［J］. 航空学报， 2025， 46（2）： 430718.
	WANG Y， ZHANG P， ZHONG Z B， et al. 3D inspection of chemical milling contour for aircraft thin-walled parts based on point cloud dimensionality reduction［J］. Acta Aeronautica et Astronautica Sinica， 2025， 46（2）： 430718 （in Chinese）.
[2]	SHANG H B， SUN C， LIU J X， et al. Deep learning-based borescope image processing for aero-engine blade in situ damage detection［J］. Aerospace Science and Technology， 2022， 123： 107473.
[3]	陈亚军，刘辰辰，王付胜. 预腐蚀和交替腐蚀作用下航空铝合金多轴疲劳行为及寿命预测［J］. 航空学报， 2019， 40（4）： 222465.
	CHEN Y J， LIU C C， WANG F S. Multiaxial fatigue behavior and life prediction of aerospace aluminum alloy under pre-corrosion and alternate corrosion［J］. Acta Aeronautica et Astronautica Sinica， 2019， 40（4）： 222465 （in Chinese）.
[4]	黄娟，黄元春，申振宇，等. 终轧温度及退火温度对5052铝合金板材组织及性能的影响［J］. 金属热处理， 2021， 46（9）： 79-84.
	HUANG J， HUANG Y C， SHEN Z Y， et al. Effect of finish rolling temperature and annealing temperature on microstructure and properties of 5052 aluminum alloy sheet［J］. Heat Treatment of Metals， 2021， 46（9）： 79-84 （in Chinese）.
[5]	RUDNYTSKYJ A， SIMON P， JECH M， et al. Constitutive modelling of the 6061 aluminium alloy under hot rolling conditions and large strain ranges［J］. Materials & Design， 2020， 190： 108568.
[6]	BRAY D E. Ultrasonic stress measurement and material characterization in pressure vessels， piping， and welds［J］. Journal of Pressure Vessel Technology， 2002， 124（3）： 326-335.
[7]	MATT H， BARTOLI I， DI SCALEA F L. Ultrasonic guided wave monitoring of composite wing skin-to-spar bonded joints in aerospace structures［J］. The Journal of the Acoustical Society of America， 2005， 118（4）： 2240-2252.
[8]	YULE L， ZAGHARI B， HARRIS N， et al. Surface temperature condition monitoring methods for aerospace turbomachinery： Exploring the use of ultrasonic guided waves［J］. Measurement Science and Technology， 2021， 32（5）： 052002.
[9]	CEGLA F B， CAWLEY P， ALLIN J， et al. High-temperature （>500 ℃） wall thickness monitoring using dry-coupled ultrasonic waveguide transducers［J］. IEEE Transactions on Ultrasonics， Ferroelectrics， and Frequency Control， 2011， 58（1）： 156-167.
[10]	RÖMMELER A， FURRER R， SENNHAUSER U， et al. Air coupled ultrasonic defect detection in polymer pipes［J］. NDT & E International， 2019， 102： 244-253.
[11]	董亮，冯双，朱磊，等. 基于激光超声的铝板体内裂纹缺陷定位定量研究［J］. 应用激光， 2022， 42（7）： 102-111.
	DONG L， FENG S， ZHU L， et al. Research on crack defect location and dimensions in aluminum plate based on laser ultrasonic［J］. Applied Laser， 2022， 42（7）： 102-111 （in Chinese）.
[12]	陶程，殷安民，王煜帆，等. 高温下表面波测量亚表面缺陷宽度的数值模拟［J］. 激光与红外， 2019， 49（4）： 403-409.
	TAO C， YIN A M， WANG Y F， et al. Numerical simulation on width gauging of subsurface defects using surface waves at high temperature［J］. Laser & Infrared， 2019， 49（4）： 403-409 （in Chinese）.
[13]	陈巍巍，石文泽，卢超，等. 高温锻件在线快速检测螺旋线圈EMAT优化设计［J］. 机械工程学报， 2022， 58（10）： 12-23.
	CHEN W W， SHI W Z， LU C， et al. Optimal design of spiral coil EMAT for online and rapid detection of high-temperature forgings［J］. Journal of Mechanical Engineering， 2022， 58（10）： 12-23 （in Chinese）.
[14]	CHENG J J， SHI W Z， LU C， et al. Study and comparison of pulse compression techniques with three types of excitation for high-temperature EMAT detection［J］. Insight-Non-Destructive Testing and Condition Monitoring， 2022， 64（3）： 138-145.
[15]	BAILLIE I， GRIFFITH P， JIAN X， et al. Implementing an ultrasonic inspection system to find surface and internal defects in hot， moving steel using EMATs［J］. Insight-Non-Destructive Testing and Condition Monitoring， 2007， 49（2）： 87-92.
[16]	BURROWS S E， FAN Y， DIXON S. High temperature thickness measurements of stainless steel and low carbon steel using electromagnetic acoustic transducers［J］. NDT & E International， 2014， 68： 73-77.
[17]	TONG Y S， SHI W Z， HUANG L， et al. Analysis of influencing factors on the conversion efficiency of laser-EMAT ultrasound detection with high-temperature carbon steel forgings［J］. Journal of Testing and Evaluation， 2023， 51（5）： 2763-2779.
[18]	HE P， SHI W Z， LU C， et al. Optimisation of Rayleigh wave laser-EMAT with the application of surface constraint mechanism［J］. Nondestructive Testing and Evaluation， 2023， 38（6）： 931-965.
[19]	RUETER D， MORGENSTERN T. Ultrasound generation with high power and coil only EMAT concepts［J］. Ultrasonics， 2014， 54（8）： 2141-2150.
[20]	RUETER D. Experimental demonstration and circuitry for a very compact coil-only pulse echo EMAT［J］. Sensors， 2017， 17（4）： 926.
[21]	RIEGER K， ERNI D， RUETER D. A compact and powerful EMAT design for contactless detection of inhomogeneities inside the liquid volume of metallic tanks［J］. Tm-Technisches Messen， 2020， 87（5）： 349-359.
[22]	翟国富，梁宝，邓超然，等. 耐高温双线圈结构电磁超声换能器设计［J］. 中国电机工程学报， 2021， 41（11）： 3943-3951.
	ZHAI G F， LIANG B， DENG C R， et al. Design of high temperature resistant electromagnetic acoustic transducer with double coil structure［J］. Proceedings of the CSEE， 2021， 41（11）： 3943-3951 （in Chinese）.
[23]	LIANG B， TAO W G， HUO C L， et al. Performance analysis of high-temperature flexible dual-coil EMAT for ferromagnetic steel measurement［J］. IEEE Sensors Journal， 2024， 24（22）： 36560-36568.
[24]	WANG C Y， SUN A Y， YANG X Y， et al. Laser-generated Rayleigh wave for width gauging of subsurface lateral rectangular defects［J］. Journal of Applied Physics， 2018， 124（6）： 065104.
[25]	何盼，卢超，石文泽，等. 铝合金激光超声表面检测中EMAT接收性能对比［J］. 航空学报， 2023， 44（16）： 428085.
	HE P， LU C， SHI W Z， et al. Comparation of reception performance of EMATs in laser ultrasonic surface detection of aluminum alloys［J］. Acta Aeronautica et Astronautica Sinica， 2023， 44（16）： 428085 （in Chinese）.
[26]	WU J J， ZHAO J B， QIAO H C， et al. The new technologies developed from laser shock processing［J］. Materials， 2020， 13（6）： 1453.
[27]	CHEN W W， LU C， LI X B， et al. A novel laser-EMAT ultrasonic longitudinal wave resonance method for wall thickness measurement at high temperatures［J］. Ultrasonics， 2024， 141： 107340.
[28]	WANG S J， LI Z C， LI P Z， et al. Numerical and experimental evaluation of the receiving performance of meander-line coil EMATs［J］. Nondestructive Testing and Evaluation， 2014， 29（4）： 269-282.
[29]	HIRAO M. EMATs for science and industry noncontacting ultrasonic measurements［M］. Berlin： Springer 2014， 140（3-4）： 247-255.
[30]	LIANG B， YU Y， LI Z C， et al. High-temperature transduction efficiency analysis of the Lorentz force mechanism EMAT［J］. IEEE Transactions on Instrumentation and Measurement， 2025， 74： 9508312.
[31]	石文泽，陈巍巍，卢超，等. 高温铝合金电磁超声检测回波特性及因素分析［J］. 航空学报， 2020， 41（12）： 423854.
	SHI W Z， CHEN W W， LU C， et al. Characteristics and factor analyses for electromagnetic ultrasonic detection echoes in high-temperature aluminum alloy［J］. Acta Aeronautica et Astronautica Sinica， 2020， 41（12）： 423854 （in Chinese）.
[32]	闫怡旭，陈友兴，贾鹏飞，等. 板状材料中激光激发超声波的数值模拟［J］. 应用激光， 2020， 40（1）： 169-175.
	YAN Y X， CHEN Y X， JIA P F， et al. Numerical simulation of ultrasonic waves generated by laser in plate［J］. Applied Laser， 2020， 40（1）： 169-175 （in Chinese）.
[33]	张青枝，吴钢，庞之洋，等. 基于激光光热法的固体热扩散率数值分析［J］. 激光与红外， 2012， 42（2）： 129-132.
	ZHANG Q Z， WU G， PANG Z Y， et al. Numerical analysis of solid thermal diffusivity based on laser photothermal method［J］. Laser & Infrared， 2012， 42（2）： 129-132 （in Chinese）.

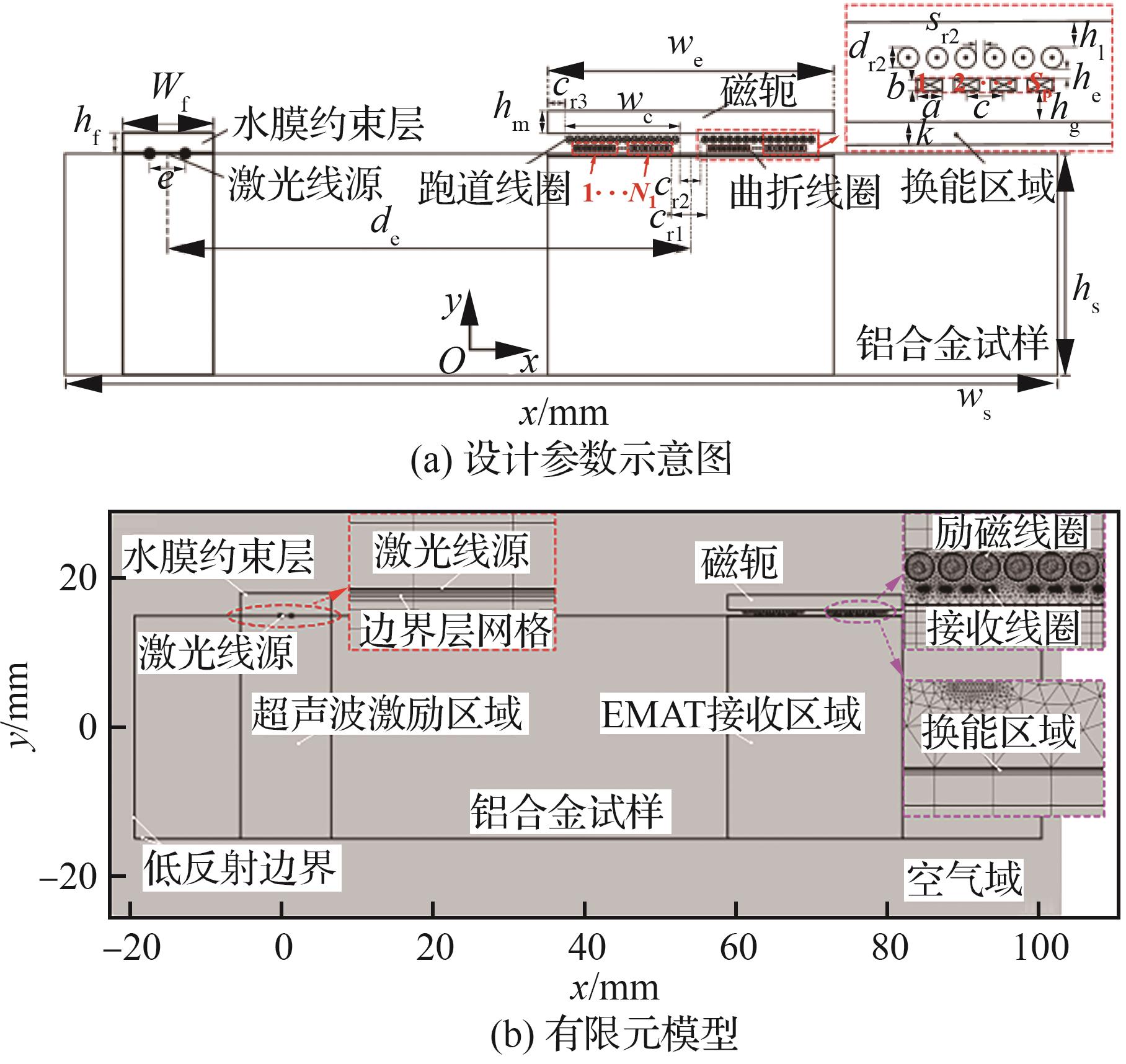

参数	数值	参数	数值
试样高度h_s/mm	30	跑道线圈空腔间隔c_r2/mm	3
试样宽度w_s/mm	120	曲折线圈提离h_g/mm	0.2
磁轭高度h_m/mm	2	励磁-接收距离h_c/mm	0.1
曲折线圈导线宽度a/mm	0.10~0.25	跑道线圈-磁轭距离h_l/mm	0.05
曲折线圈导线高度b/mm	0.175~0.070	激励-接收距离d_c/mm	70
曲折线圈导线间距c/mm	0.3	跑道线圈-磁轭左/右端距离c_r3/mm	2
曲折线圈匝间距d/mm	1.5	电磁趋肤深度k/mm	0.1
曲折线圈导线分裂数S_p	1~4	水膜宽度w_f/mm	12
曲折线圈匝数N₁	4~16	水膜厚度h_f/mm	3
曲折线圈空腔间隔c_r1/mm	5	激光线源宽度e/mm	1.5
跑道线圈线径d_r2/mm	0.26~0.40	激光能量Q₀	185
跑道线圈线间距s_r2/mm	0.05	激光脉冲持续时间t₀/ns	8

参数	数值	参数	数值
弹性模量E/GPa	70	恒压热容c_v /（J·（kg∙K）^-1）	900
泊松比	0.33	热导率k/（W·（m∙K^-1））	238
密度ρ/（kg·m^-3）	2 700	电导率σ/（10⁷ S·m^-1）	3.774
热膨胀系数α/（10^-5 K^-1）	2.3

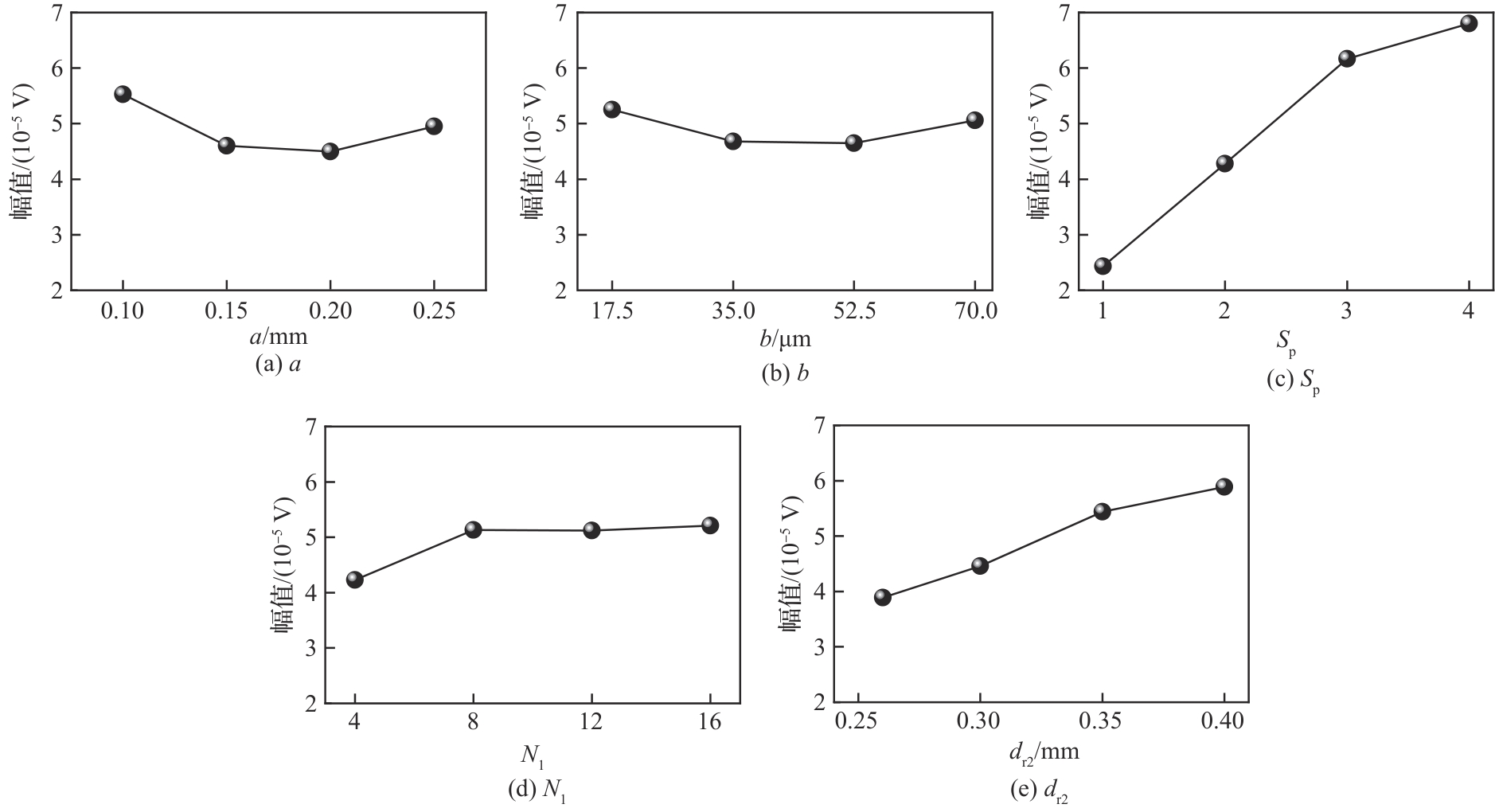

序号	a/mm	b/μm	S_p	N₁	d_r2/mm	RW幅值/（10^-5 V）	RW波包宽度/μs
1	0.10	17.5	1	4	0.26	1.64	2.85
2	0.10	35.0	2	8	0.30	4.40	4.09
3	0.10	52.5	3	12	0.35	7.26	6.35
4	0.10	70.0	4	16	0.40	8.81	8.56
5	0.15	17.5	2	12	0.40	5.46	6.17
6	0.15	35.0	1	16	0.35	2.68	8.19
7	0.15	52.5	4	4	0.30	5.11	2.17
8	0.15	70.0	3	8	0.26	5.17	4.21
9	0.20	17.5	3	16	0.30	6.02	8.47
10	0.20	35.0	4	12	0.26	5.40	6.47
11	0.20	52.5	1	8	0.40	3.06	3.98
12	0.20	70.0	2	4	0.35	3.93	2.86
13	0.25	17.5	4	8	0.35	7.89	4.31
14	0.25	35.0	3	4	0.40	6.24	2.88
15	0.25	52.5	2	16	0.26	3.36	8.32
16	0.25	70.0	1	12	0.30	2.34	6.05

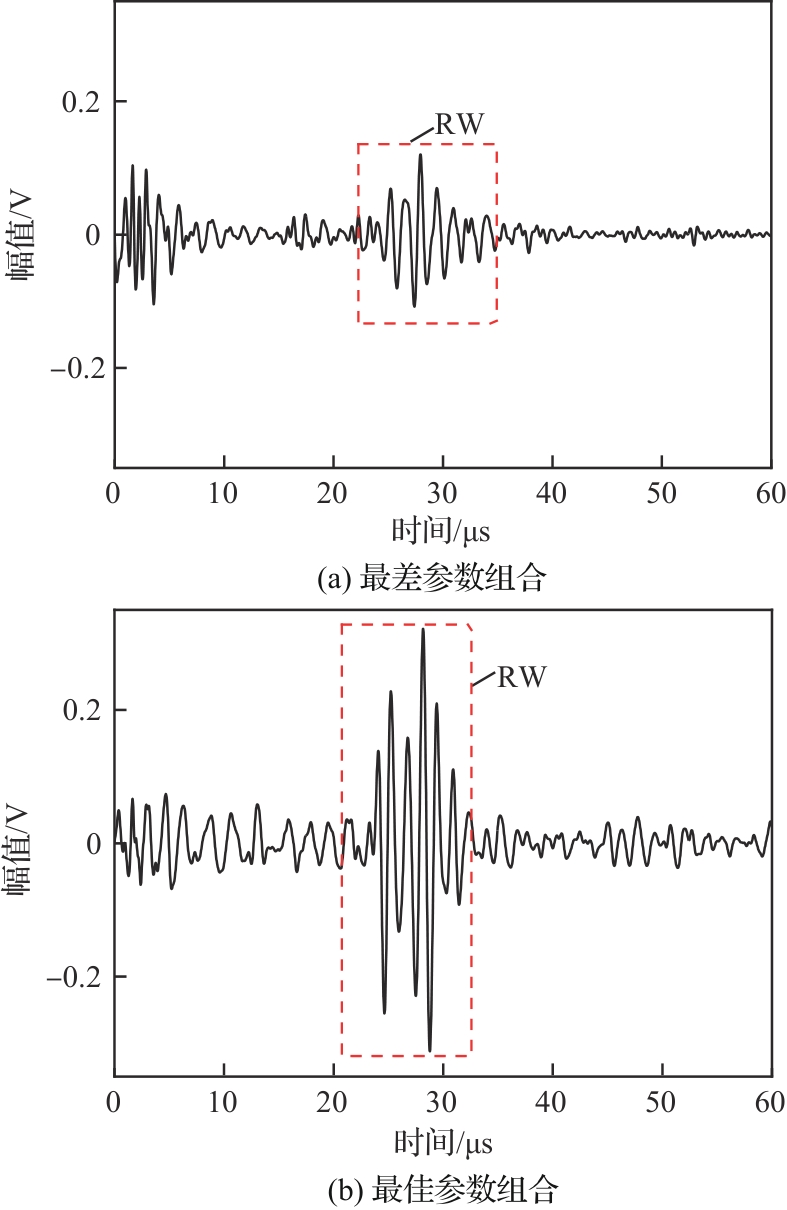

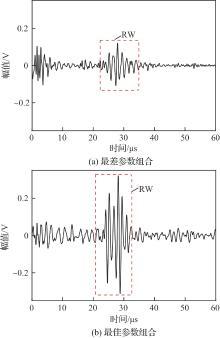

预测组合	a/mm	b/μm	S_p	N₁	d_r2/mm	RW幅值/（10^-5 V）
最差	0.20	52.5	1	4	0.26	1.58
最佳	0.10	17.5	4	16	0.40	8.98
