激光熔化沉积Ti-3Cu合金变形机制的准原位电子背散射衍射拉伸试验

doi:10.7527/S1000-6893.2025.31642

Abstract

Abstract:

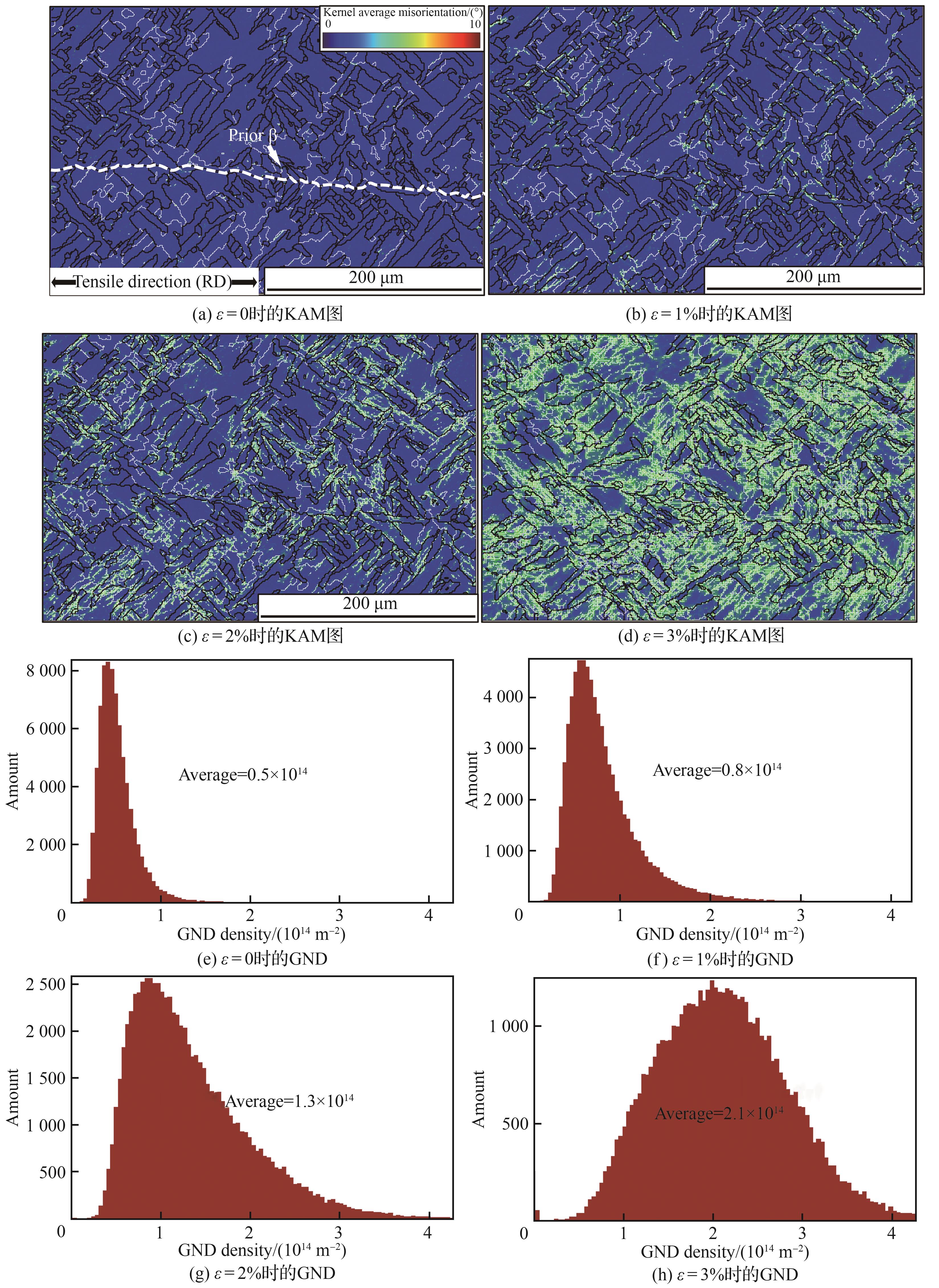

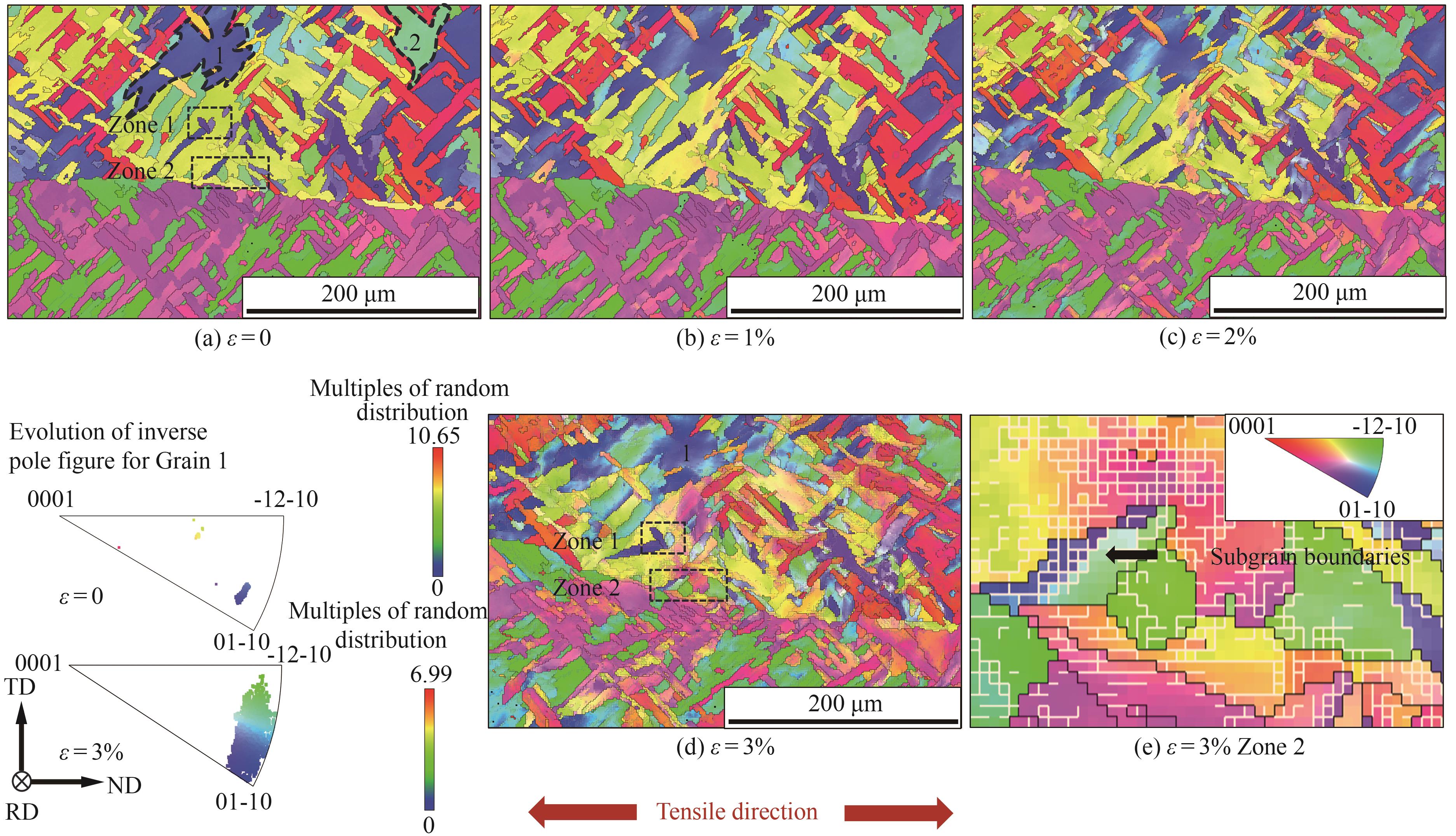

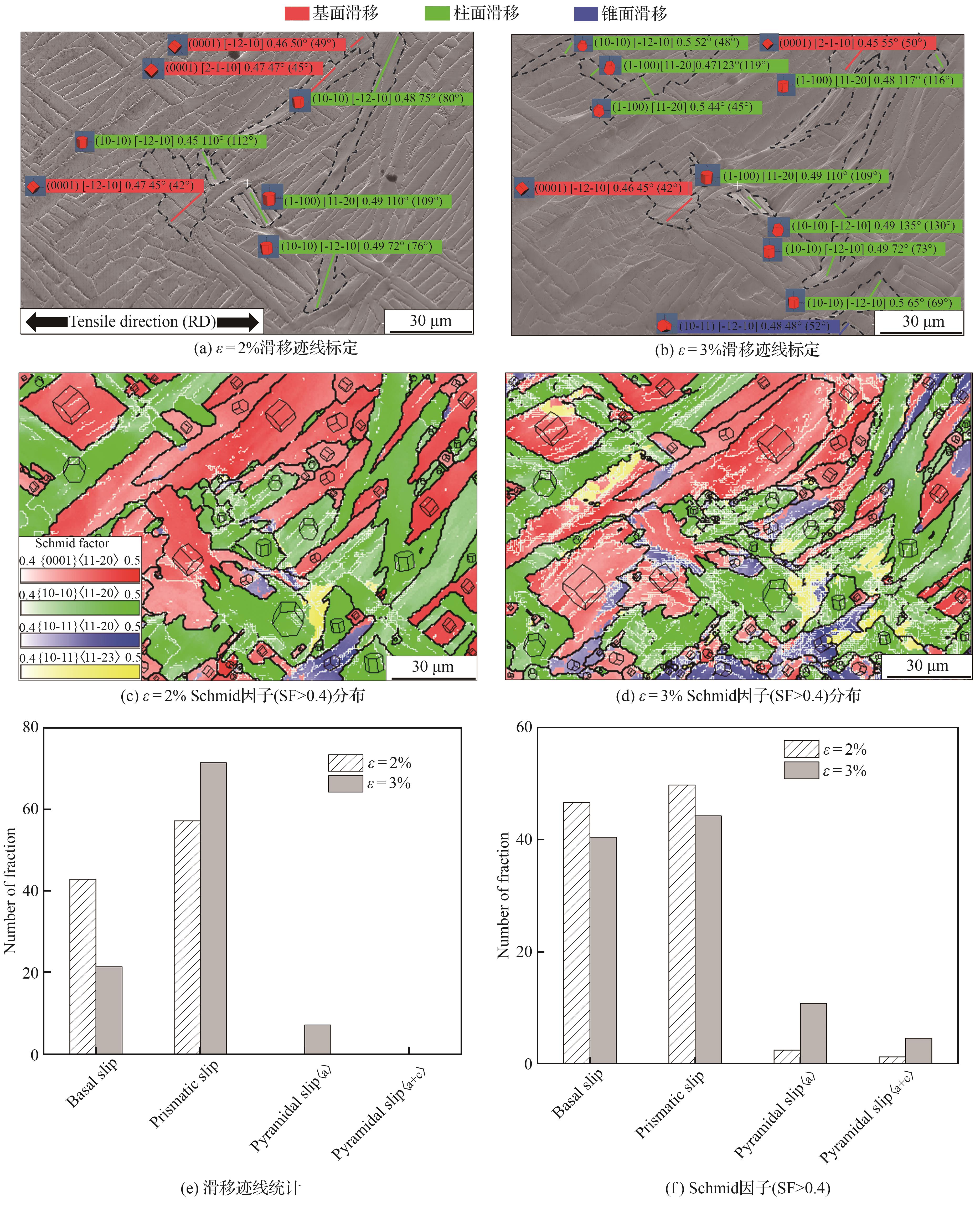

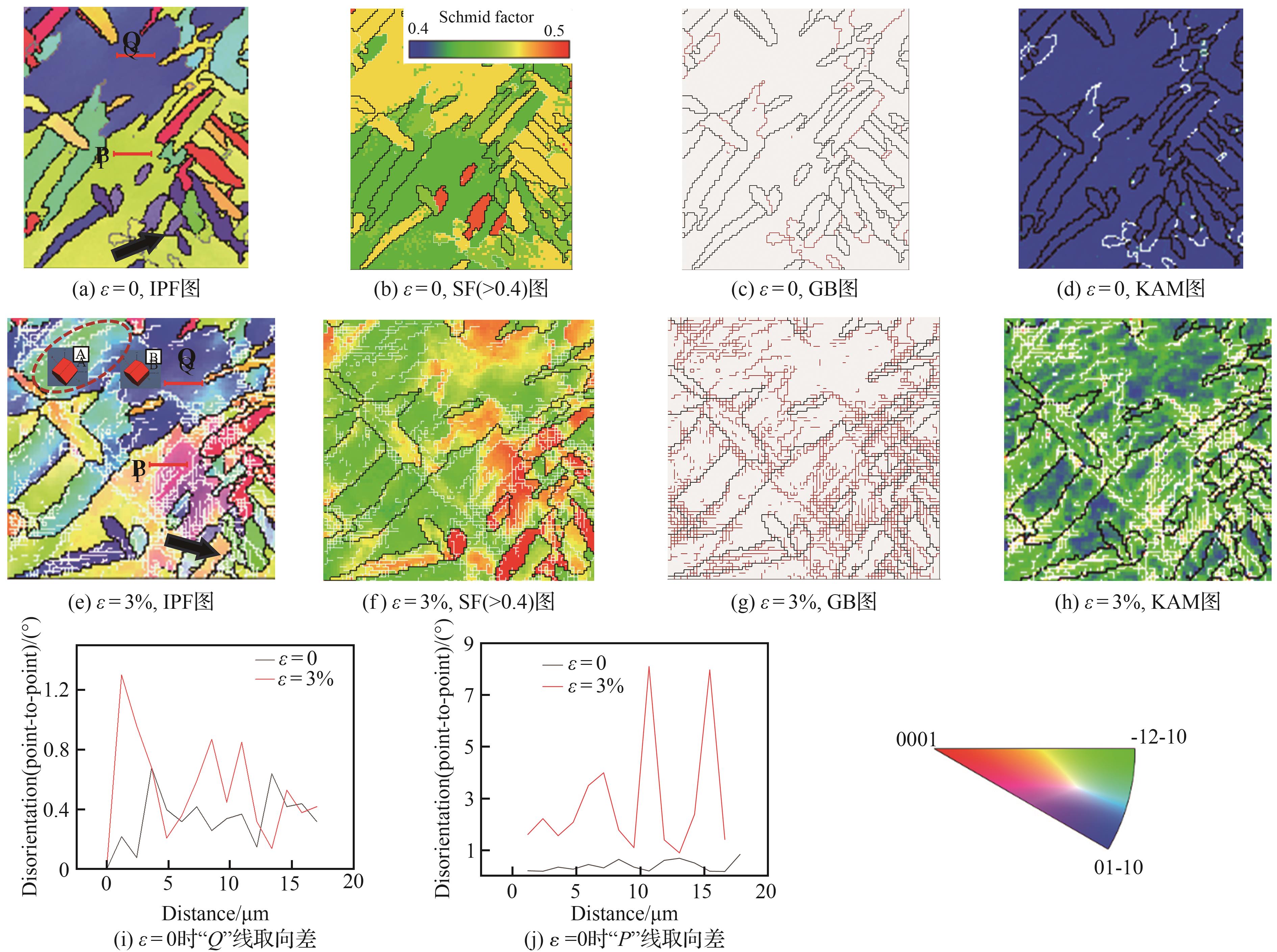

Ti-Cu alloys exhibit excellent mechanical properties and corrosion resistance， making them promising candidates for biomedical and aerospace engineering applications. However， their deformation mechanisms remain poorly understood. Quasi-in situ tensile testing combined with Electron Backscatter Diffraction （EBSD） was employed to investigate the microstructural evolution of a Laser Melting Deposited （LMD） Ti-3Cu alloy fabricated via in situ alloying during room-temperature tensile deformation. The results demonstrated heterogeneous orientation rotations within localized regions of individual grains. Dislocations were primarily concentrated at grain and subgrain boundaries， accompanied by a progressive increase in the fraction of Low-Angle Grain Boundaries （LAGBs， 2°-15°） with increasing strain. Analysis of localized grain evolution revealed that α-grains with distinct crystallographic orientations and morphologies underwent non-uniform deformation， where macroscopic strain was accommodated through grain rotation and substructure formation. Quantitative Schmid factor analysis combined with slip trace characterization confirmed the dominance of the prismatic slip system in the Ti-3Cu alloy. These findings provide critical insights into the deformation mechanisms of laser-melting-deposited Ti-Cu alloys， offering guidance for their fabrication and application in advanced technologies.

Key words: Ti-3Cu alloy, Laser Melting Deposition (LMD), Electron Backscatter Diffraction (EBSD), in situ tensile test, deformation mechanism

CLC Number:

V252.2

Lihong JIANG, Lin ZHU, Zheng LIU. Quasi-in situ electron backscatter diffraction tensile test on deformation mechanisms of laser melting deposited Ti-3Cu alloy[J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(22): 431642.

Figures/Tables 11

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

References 35

[1]	WANG H D， YU C， YU Z Y， et al. Revealing the evolution of microstructure and mechanical properties with energy density to achieve high-strength Ti-6wt%Cu alloy by laser metal deposition［J］. Materials Science and Engineering： A， 2023， 885： 145599.
[2]	何斌斌，邹海燕，辛程，等. Cu含量对生物医用Ti-Cu合金抑菌表现及性能的影响［J］. 中国有色金属学报， 2023， 33（8）： 2536-2548.
	HE B B， ZOU H Y， XIN C， et al. Effects of Cu content on antibacterial performance and properties of biomedical Ti-xCu alloys［J］. The Chinese Journal of Nonferrous Metals， 2023， 33（8）： 2536-2548 （in Chinese）.
[3]	侯冰. Cu元素的存在形式对Ti-Cu合金力学性能和抗菌性能的影响规律［D］. 沈阳：东北大学， 2015.
	HOU B. The influenec of the existence form of Cu element on the mechanical properties and antibacterial property of Ti-Cu alloys［D］. Shenyang： Northeastern University， 2015 （in Chinese）.
[4]	CARDOSO F F， CREMASCO A， CONTIERI R J， et al. Hexagonal martensite decomposition and phase precipitation in Ti-Cu alloys［J］. Materials & Design， 2011， 32（8-9）： 4608-4613.
[5]	DONTHULA H， VISHWANADH B， ALAM T， et al. Morphological evolution of transformation products and eutectoid transformation（s） in a hyper-eutectoid Ti-12 at% Cu alloy［J］. Acta Materialia， 2019， 168： 63-75.
[6]	WANG X， ZHANG L J， NING J， et al. Effect of Cu-induced eutectoid transformation on microstructure and mechanical properties of Ti-6Al-4V alloy by laser wire deposition［J］. Materials Science and Engineering： A， 2022， 833： 142316.
[7]	AKBARPOUR M R， MIRABAD H M， HEMMATI A， et al. Processing and microstructure of Ti-Cu binary alloys： A comprehensive review［J］. Progress in Materials Science， 2022， 127： 100933.
[8]	ZHANG D Y， QIU D， GIBSON M A， et al. Additive manufacturing of ultrafine-grained high-strength titanium alloys［J］. Nature， 2019， 576（7785）： 91-95.
[9]	XI L X， HOU J X， XU J C， et al. Laser additive manufacturing of Ti and Ce co-modified 2195 difficult-to-process aluminum alloy： Grain refinement， cracking suppression and enhanced mechanical properties［J］. Chinese Journal of Aeronautics， 2025， 38（8）： 103262.
[10]	ALSHAMMARI Y， YANG F， BOLZONI L. Low-cost powder metallurgy Ti-Cu alloys as a potential antibacterial material［J］. Journal of the Mechanical Behavior of Biomedical Materials， 2019， 95： 232-239.
[11]	MOSALLANEJAD M H， NIROUMAND B， AVERSA A， et al. In-situ alloying in laser-based additive manufacturing processes： A critical review［J］. Journal of Alloys and Compounds， 2021， 872： 159567.
[12]	司瑞，陈勇. 民用飞机增材制造技术应用发展趋势［J］. 航空学报， 2024， 45（5）： 529677.
	SI R， CHEN Y. Application trends of additive manufacturing technology for civil aircraft［J］. Acta Aeronautica et Astronautica Sinica， 2024， 45（5）： 529677 （in Chinese）.
[13]	魏取龙，姜丽红，刘征，等. 选区激光熔化制备TPMS晶格结构及力学性能［J］. 航空学报， 2025， 46（3）： 303-318.
	WEI Q L， JIANG L H， LIU Z， et al. Lattice structure and mechanical properties of TPMS prepared by selective laser melting［J］. Acta Aeronautica et Astronautica Sinica， 2025， 46（3）： 303-318 （in Chinese）.
[14]	李毅，王振忠，肖宇航，等. 金属激光增材+X复合制造技术综述［J］. 航空学报， 2024， 45（13）： 629349.
	LI Y， WANG Z Z， XIAO Y H， et al. Review of laser-metal additive manufacturing + X hybrid technology［J］. Acta Aeronautica et Astronautica Sinica， 2024， 45（13）： 629349 （in Chinese）.
[15]	KIM T W， KIM D H， CHO Y T， et al. Manufacturing high strength Ti alloy with in situ Cu alloying via directed energy deposition and evaluation of material properties［J］. Journal of Materials Research and Technology， 2024， 28： 1810-1823.
[16]	ZHANG L W， LI H， BIAN T J， et al. Significant reduction of anisotropy in stress relaxation aging and mechanical properties improvement for 2195 Al-Cu-Li alloy subjected to plastic loading［J］. Chinese Journal of Aeronautics， 2025， 38（1）： 103165.
[17]	ZHAO R， SONG Y S， KANG H， et al. Microstructure evolution and mechanical properties of brazing joint for ultra-thin-walled Inconel 718 considering grain size effect and brazing temperature［J］. Chinese Journal of Aeronautics， 2024， 37（2）： 541-556.
[18]	HUANG S X， ZHAO Q Y， LIN C， et al. In-situ investigation of tensile behaviors of Ti-6Al alloy with extra low interstitial［J］. Materials Science and Engineering： A， 2021， 809： 140958.
[19]	JI X Y， XU J W， ZHANG H， et al. Plastic deformation mechanism of TA1 pure titanium plate using SEM-EBSD in situ tensile testing［J］. Materials Science and Engineering： A， 2024， 908： 146768.
[20]	ULLAH R， LU J X， SANG L J， et al. Investigating the microstructural evolution during deformation of laser additive manufactured Ti-6Al-4V at 400 ℃ using in situ EBSD［J］. Materials Science and Engineering： A， 2021， 823： 141761.
[21]	RIZWAN M， LU J X， ULLAH R， et al. Microstructural and texture evolution investigation of laser melting deposited TA15 alloy at 500 ℃ using in situ EBSD tensile test［J］. Materials Science and Engineering： A， 2022， 857： 144062.
[22]	WILLIAMS J C， BAGGERLY R G， PATON N E. Deformation behavior of HCP Ti-Al alloy single crystals［J］. Metallurgical and Materials Transactions A， 2002， 33（3）： 837-850.
[23]	FITZNER A， LEO PRAKASH D G， FONSECA J Q DA， et al. The effect of aluminium on twinning in binary alpha-titanium［J］. Acta Materialia， 2016， 103： 341-351.
[24]	ZAEFFERER S. A study of active deformation systems in titanium alloys： Dependence on alloy composition and correlation with deformation texture［J］. Materials Science and Engineering： A， 2003， 344（1-2）： 20-30.
[25]	WANG H J， RAN X Z， WANG H C， et al. Microstructure formation mechanism and mechanical properties of super-thickness TC11 titanium alloy joint by electron beam welding and laser additive manufacturing hybrid connection technology［J］. Journal of Materials Processing Technology， 2024， 331： 118502.
[26]	YAN W G， WANG H M， TANG H B， et al. Effect of Nd addition on microstructure and tensile properties of laser additive manufactured TC11 titanium alloy［J］. Transactions of Nonferrous Metals Society of China， 2022， 32（5）： 1501-1512.
[27]	BHARDWAJ T， SHUKLA M， PAUL C P， et al. Direct energy deposition-laser additive manufacturing of titanium-molybdenum alloy： Parametric studies， microstructure and mechanical properties［J］. Journal of Alloys and Compounds， 2019， 787： 1238-1248.
[28]	CHEN Y H， YANG C L， FAN C L， et al. Microstructure evolution mechanism and mechanical properties of TC11-TC17 dual alloy after annealing treatment［J］. Journal of Alloys and Compounds， 2020， 842： 155874.
[29]	王哲. 铸造钛铜合金组织演变规律及力学和腐蚀性能研究［D］. 天津：河北工业大学， 2022.
	WANG Z. Microstructure evolution and mechanical corrosion properties of cast titanium-copper alloys［D］. Tianjin： Hebei University of Technology， 2022 （in Chinese）.
[30]	ZHAO G H， SUN M X， LI J， et al. Study on quasi-in-situ tensile microstructure evolution law of 5052-O aluminum alloy based on EBSD［J］. Materials Today Communications， 2022， 33： 104572.
[31]	CALCAGNOTTO M， PONGE D， DEMIR E， et al. Orientation gradients and geometrically necessary dislocations in ultrafine grained dual-phase steels studied by 2D and 3D EBSD［J］. Materials Science and Engineering： A， 2010， 527（10-11）： 2738-2746.
[32]	KUNDU A， FIELD D P. Influence of plastic deformation heterogeneity on development of geometrically necessary dislocation density in dual phase steel［J］. Materials Science and Engineering： A， 2016， 667： 435-443.
[33]	JIANG J， BRITTON T B， WILKINSON A J. Evolution of dislocation density distributions in copper during tensile deformation［J］. Acta Materialia， 2013， 61（19）： 7227-7239.
[34]	LU J X， CHANG L， WANG J， et al. In-situ investigation of the anisotropic mechanical properties of laser direct metal deposition Ti6Al4V alloy［J］. Materials Science and Engineering： A， 2018， 712： 199-205.
[35]	LI W S， YAMASAKI S， MITSUHARA M， et al. In situ EBSD study of deformation behavior of primary α phase in a bimodal Ti-6Al-4V alloy during uniaxial tensile tests［J］. Materials Characterization， 2020， 163： 110282.
