超声速引射排气系统推力特性风洞试验

doi:10.7527/S1000-6893.2025.31934

Abstract

Abstract:

There is mutual interference between engine jet and airframe flow， but there is not enough research on thrust characteristic of exhaust system under the condition of airframe flow. The reason is that the traditional jet test platform only simulates the nozzle pressure ratio condition corresponding to the working condition of the exhaust system， but it can’t simulate the flow condition in front of the aircraft. The flight velocity domain of supersonic aircraft is wide， covering many speed domains such as low speed， subsonic speed， transonic speed and supersonic speed， which make the interaction between engine jet and airframe flow more complex and changeable. This paper presents a wind tunnel test method for the thrust characteristics of supersonic ejector exhaust system under the constraints of supersonic aircraft airframe， and obtains the variation law of the thrust characteristics of the ejector exhaust system under the conditions of multi-flight velocity domain circumfluence of supersonic aircraft. The experimental results show that there is a great difference between the design state and the non-design state thrust characteristics of the supersonic ejector exhaust system in different speed ranges. The thrust coefficient of the design state can reach above 0.98 and the minimum thrust coefficient of the non-design state can be reduced to around 0.79. The experimental results can provide an important basis for the design of the supersonic ejector exhaust system and the performance tradeoff design of the non-design point. Based on the results of numerical simulation， the characteristics of the flow field and the relationship between the design state and the non-design state of the supersonic ejector exhaust system and the thrust characteristics are analyzed.

Key words: supersonic civil aircraft, cross-speed domain, exhaust system, thrust characteristics, wind tunnel test

CLC Number:

V215.1

Hui ZHANG, Junqiang AI, Kun QIN, Xiangxi TANG, Jun JI. Wind tunnel test for thrust characteristics of supersonic ejector exhaust system[J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(20): 531934.

Figures/Tables 15

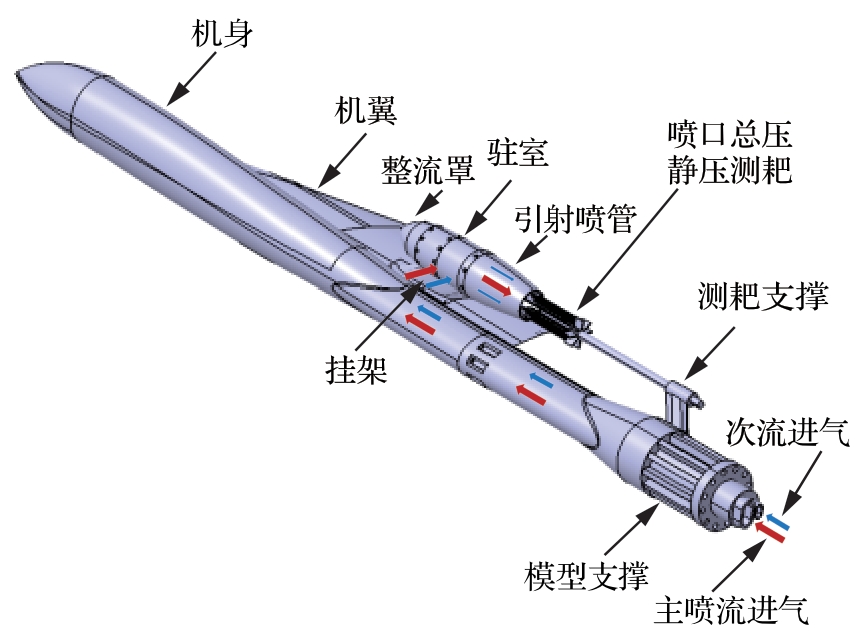

Fig.1

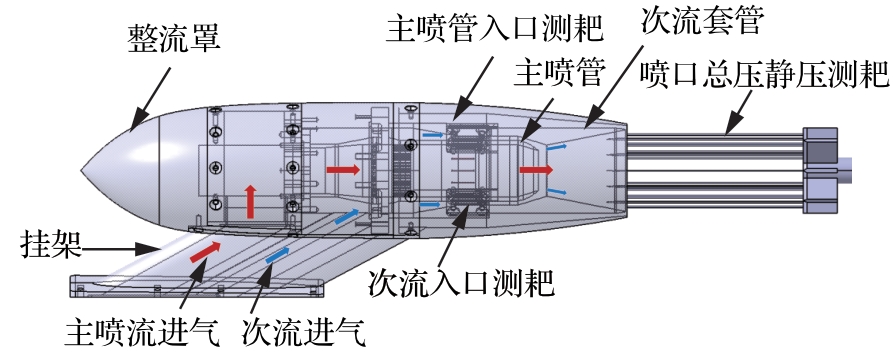

Fig.2

Fig.3

Fig.4

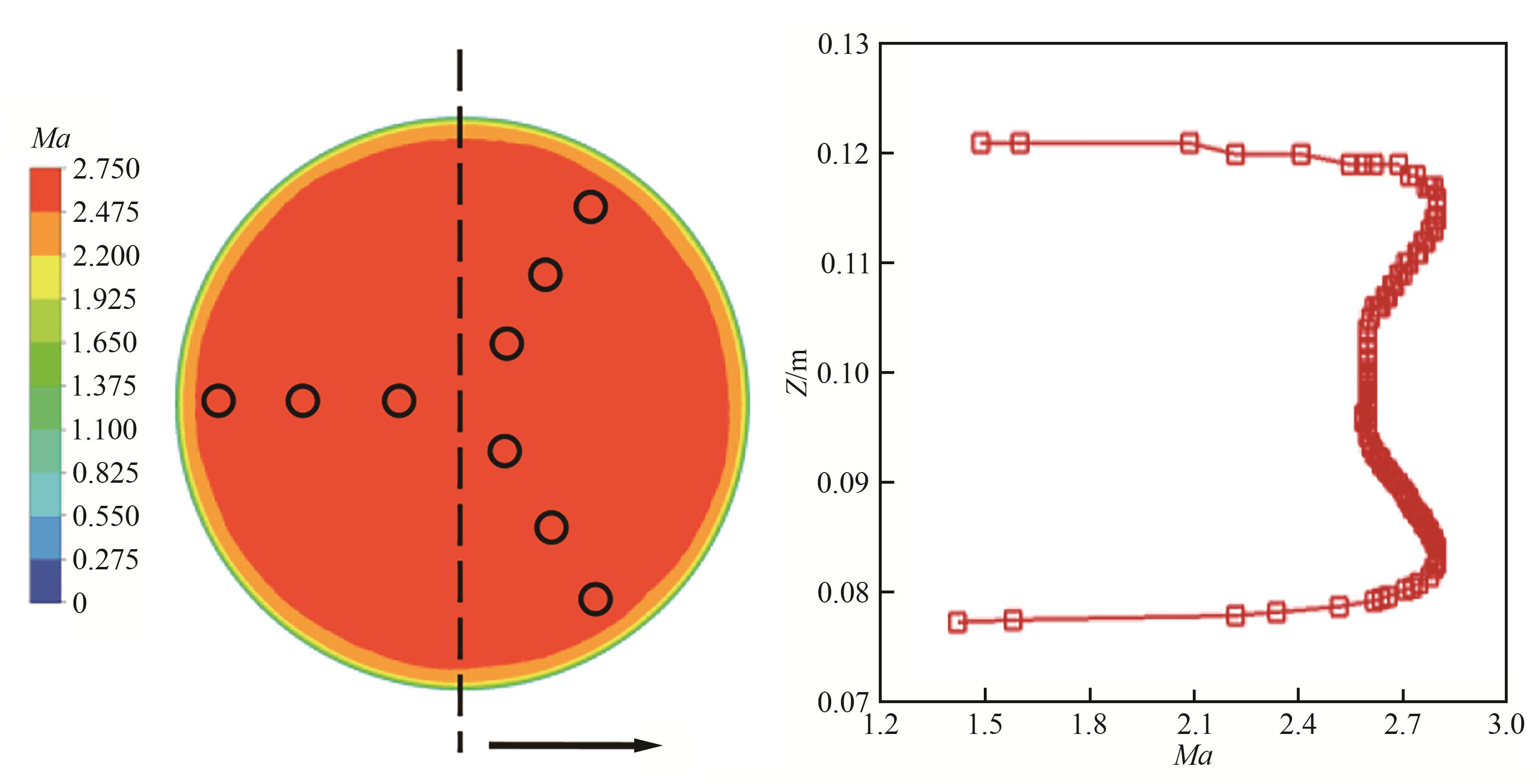

Fig.5

Table 1

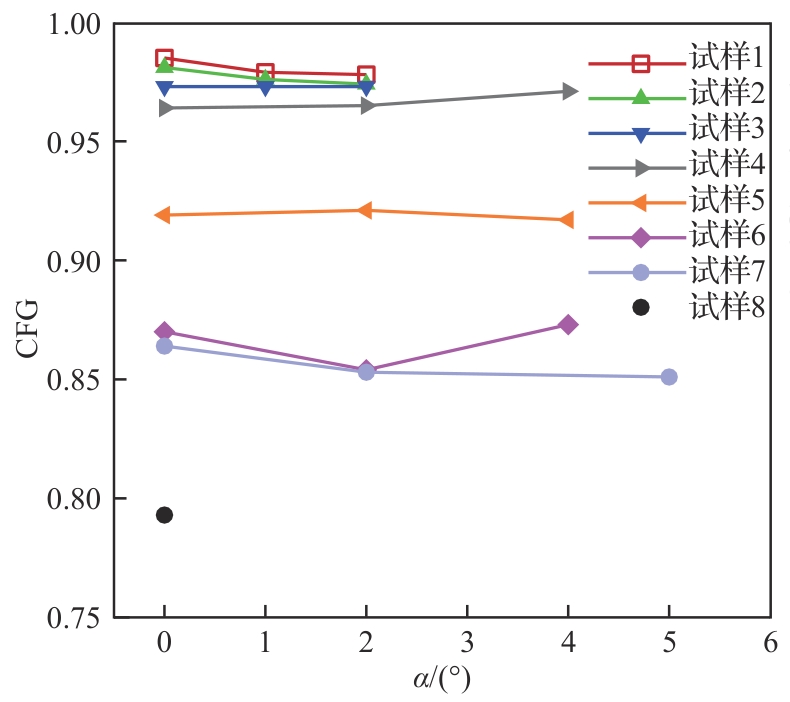

Fig.6

Fig.7

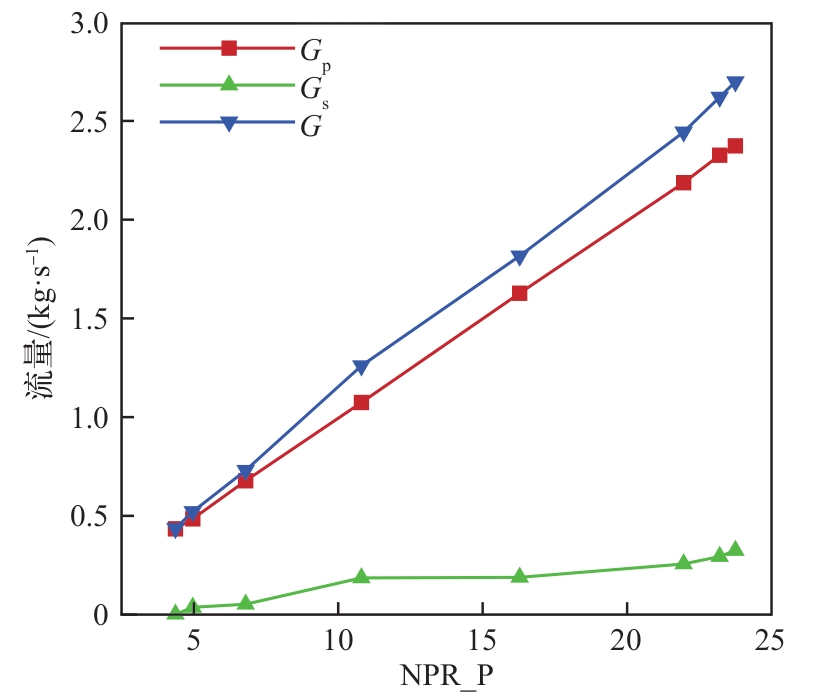

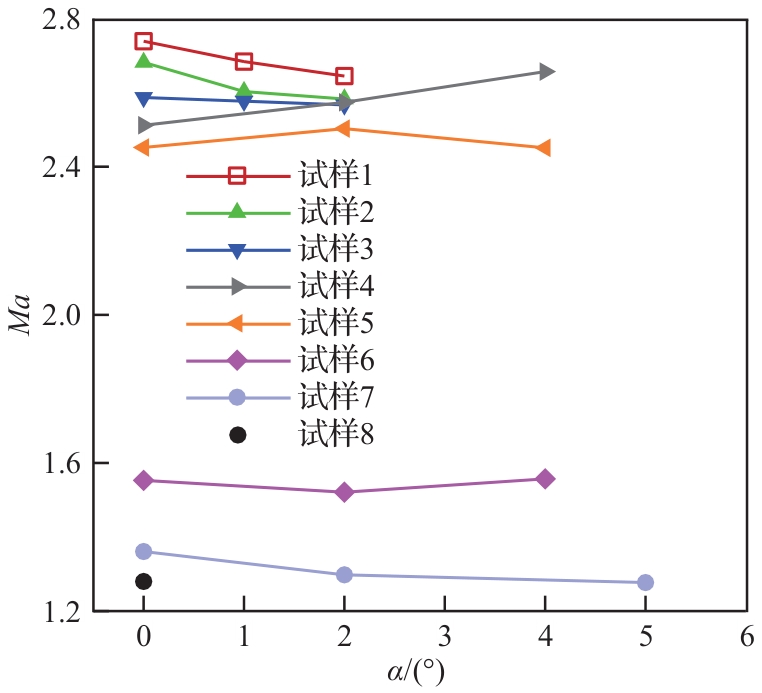

Fig.8

Fig.9

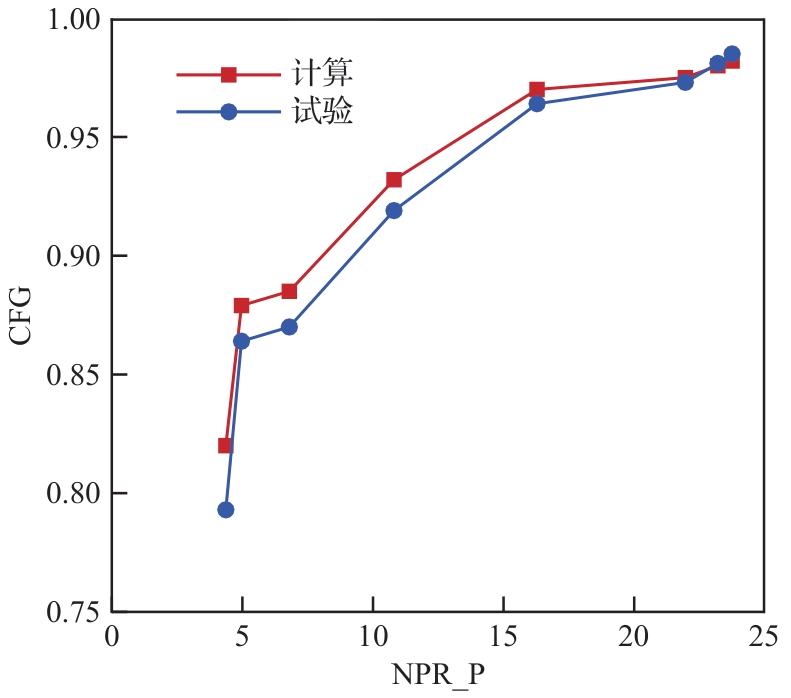

Fig.10

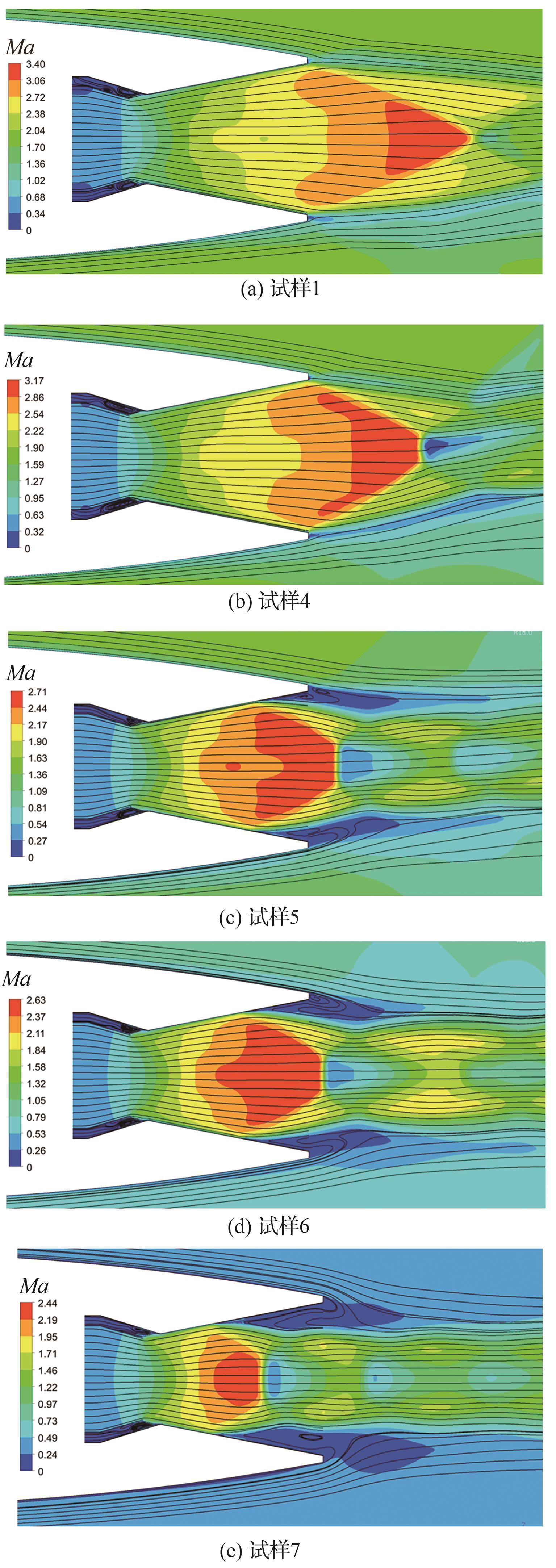

Fig.11

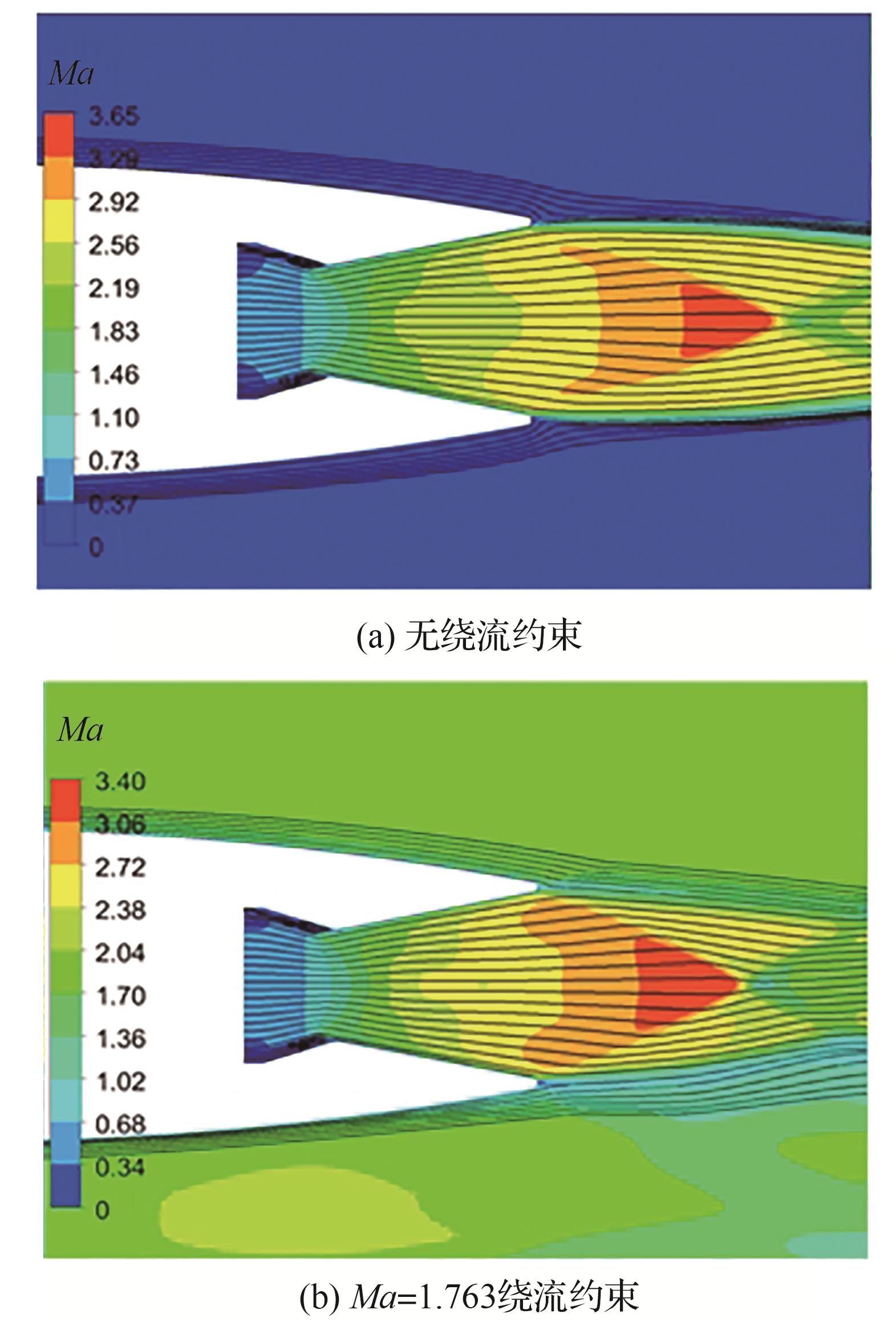

Fig.12

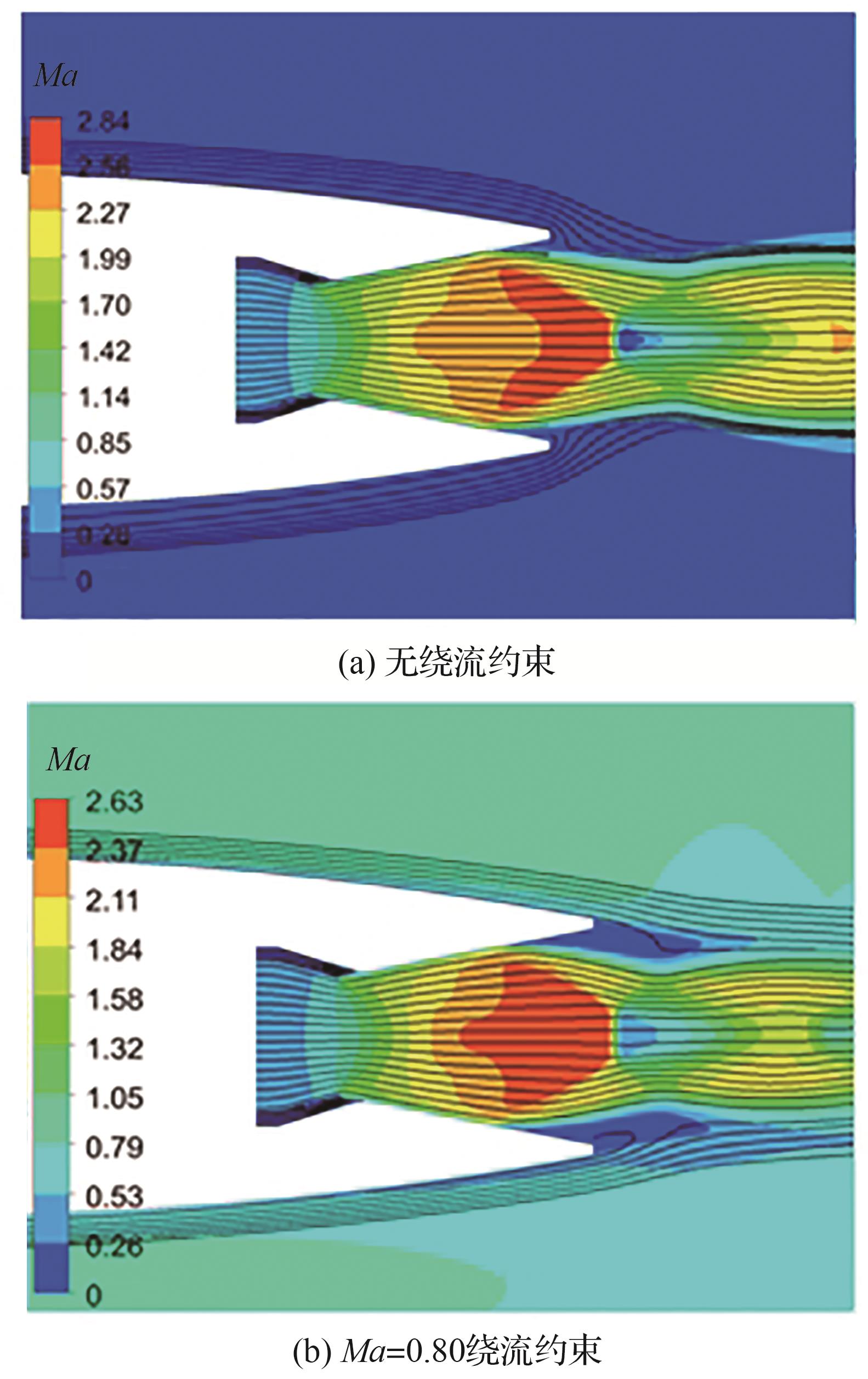

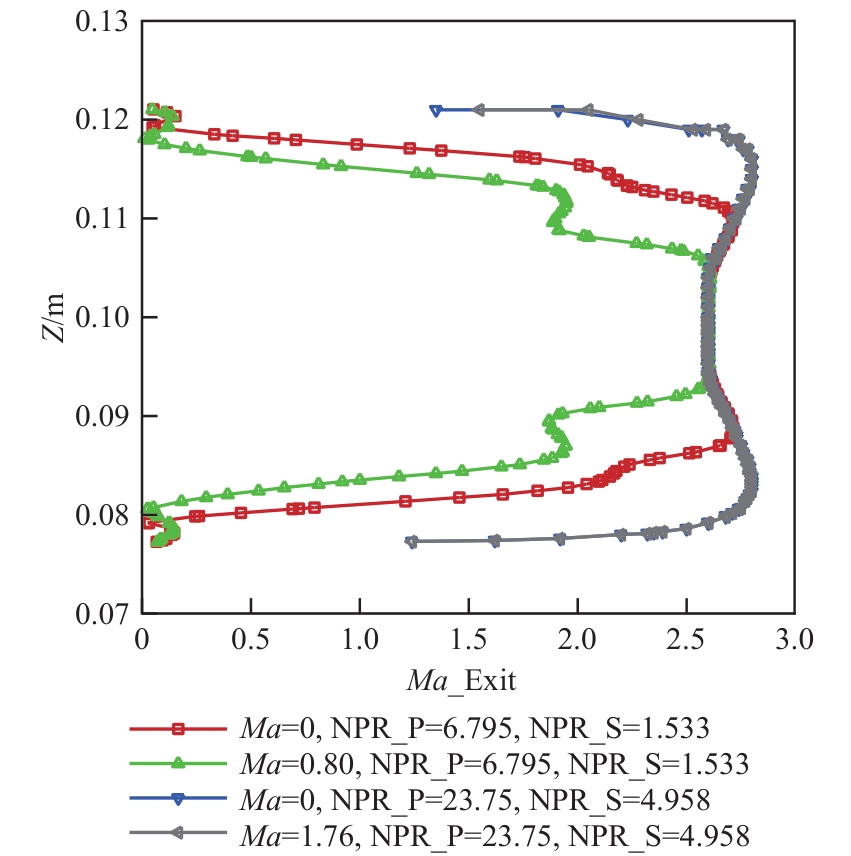

Fig.13

Fig.14

References 25

[1]	徐悦，韩忠华，尤延铖，等. 新一代绿色超声速民机的发展现状与挑战［J］. 科学通报， 2020， 65（）： 127-133.
	XU Y， HAN Z H， YOU Y C， et al. Development status and challenges of a new generation of green supersonic civil aircraft［J］. Chinese Science Bulletin， 2020， 65（Sup 1）： 127-133 （in Chinese）.
[2]	韩玉琪. 超声速民机动力发展分析［J］. 航空动力， 2023（3）： 47-49.
	HAN Y Q. Analysis of engines for supersonic airliners［J］. Aerospace Power， 2023（3）： 47-49 （in Chinese）.
[3]	丁玉临，韩忠华，乔建领，等. 超声速民机总体气动布局设计关键技术研究进展［J］. 航空学报， 2023， 44（2）： 626310.
	DING Y L， HAN Z H， QIAO J L， et al. Research progress in key technologies for conceptual-aerodynamic configuration design of supersonic transport aircraft［J］. Acta Aeronautica et Astronautica Sinica， 2023， 44（2）： 626310 （in Chinese）.
[4]	ARUN KUMAR R， RAJESH G. Physics of vacuum generation in zero-secondary flow ejectors［J］. Physics of Fluids， 2018， 30（6）： 066102.
[5]	KARTHICK S K， RAO S M， JAGADEESH G， et al. Parametric experimental studies on mixing characteristics within a low area ratio rectangular supersonic gaseous ejector［J］. Physics of Fluids， 2016， 28（7）： 076101.
[6]	BASTIAN M， MARCEL S， SEBASTIAN B， et al. Basic study of the ejector effects［C］∥47th AIAA/ASME /SAE/ASEE Joint Propulsion Conference & Exhibit. Reston： AIAA， 2011.
[7]	黄河峡，张可心，谭慧俊，等. 带第三流路辅助进气的引射喷管流动特性研究［J］. 推进技术， 2020， 41（12）： 2729-2738.
	HUANG H X， ZHANG K X， TAN H J， et al. Flow characteristics of an integrated ejector nozzle with tertiary intake［J］. Journal of Propulsion Technology， 2020， 41（12）： 2729-2738 （in Chinese）.
[8]	蔡佳，李子杰，黄河峡，等. 宽速域引射喷管巡航状态流动特性仿真［J］. 火箭推进， 2020， 46（6）： 22-29.
	CAI J， LI Z J， HUANG H X， et al. Numerical study on the flow characteristics of ejector nozzle with wide-speed range under cruise state［J］. Journal of Rocket Propulsion， 2020， 46（6）： 22-29 （in Chinese）.
[9]	肖天航，徐雅楠，朱震浩，等. 超声速民机发动机短舱布局对声爆的影响［J］. 北京航空航天大学学报， 2023， 49（9）： 2267-2278.
	XIAO T H， XU Y N， ZHU Z H， et al. Effect of engine nacelle layout on sonic boom of supersonic transport［J］. Journal of Beijing University of Aeronautics and Astronautics， 2023， 49（9）： 2267-2278 （in Chinese）.
[10]	HOTER Z， CASTNER R S， ZAMAN K Q. CFD optimization of ejector flaps in a one-sided mixer ejector nozzle［C］∥AIAA Scitech 2019 Forum. Reston： AIAA， 2019.
[11]	ALAN S E， TIMOTHY J M. Cold-flow model tests to determine static performance of a NASA one-sided ejector nozzle system［R］. Washington，D. C： NASA， 2020.
[12]	JOHN D W. A 1/10th scale model test of a fixed chute mixer-ejector nozzle in unsuppressed mode［C］. Washingtoy，D. C： NASA， 2007.
[13]	THIRUMURTHY D， BLAISDELL G， LYRINTZIS A， et al. Preliminary design and computational analysis of an ejector nozzle with chevrons［C］∥49th AIAA Aerospace Sciences Meeting Including the New Horizons Forum and Aerospace Exposition. Reston： AIAA， 2011.
[14]	WITTE I， GRAHAM C， AGARWAL R K， et al. Evaluation of six turbulence models for accurate numerical simulation of 2D slot nozzle ejector［C］∥34th AIAA Applied Aerodynamics Conference. Reston： AIAA， 2016.
[15]	CHEN H Y， CAI C P， JIANG S B， et al. Numerical modeling on installed performance of turbofan engine with inlet ejector［J］. Aerospace Science and Technology， 2021， 112： 106590.
[16]	CHEN H Y， ZHANG H B， XI Z H， et al. Modeling of the turbofan with an ejector nozzle based on infrared prediction［J］. Applied Thermal Engineering， 2019， 159： 113910.
[17]	ZAMAN K Q， FAGAN A F， BRIDGES J E. Experimental investigation of a one-sided ejector nozzle［C］∥AIAA Scitech 2019 Forum. Reston： AIAA， 2019.
[18]	ZAMAN K Q， BRIDGES J E， CASTNER R S， et al. An investigation of a mixer-ejector nozzle for jet noise reduction［C］∥25th AIAA/CEAS Aeroacoustics Conference. Reston： AIAA， 2019.
[19]	HENDRICKS E， SEIDEL J. A multidisciplinary approach to mixer-ejector analysis and design［C］∥48th AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston： AIAA， 2012.
[20]	RANGWALA H S， WILSON D. Simulation of a low-bypass turbofan engine with an ejector nozzle using NPSS［C］∥53rd AIAA/SAE/ASEE Joint Propulsion Conference. Reston： AIAA， 2017.
[21]	许哲文，唐海龙，陈敏，等. 基于混合维度仿真的自适应循环发动机引射喷管安装性能研究［J］. 推进技术， 2023， 44（9）： 2207083.
	XU Z W， TANG H L， CHEN M， et al. Study on installation performance of ejector nozzle of adaptive cycle engine based on mixed dimension simulation［J］. Journal of Propulsion Technology， 2023， 44（9）：2207083 （in Chinese）.
[22]	XU Z W， TANG H L， CONG J M， et al. An efficient multi-fidelity simulation method for adaptive cycle engine ejector nozzle performance evaluation［J］. Aerospace Science and Technology， 2022， 124： 107568.
[23]	季军，邓祥东，白玉平，等. FL-3风洞喷流试验高精度数字阀的设计与实现［J］. 实验流体力学， 2014， 28（5）： 76-80.
	JI J， DENG X D， BAI Y P， et al. Design and implementation of high accurate digital valve for FL-3 wind tunnel［J］. Journal of Experiments in Fluid Mechanics， 2014， 28（5）： 76-80 （in Chinese）.
[24]	季军，宋孝宇，邓祥东，等. 高速风洞一体形式的喷流影响试验技术研究［J］. 实验流体力学， 2017， 31（6）： 71-77.
	JI J， SONG X Y， DENG X D， et al. Research on metric thrust jet-effects testing methodology in high-speed wind tunnel［J］. Journal of Experiments in Fluid Mechanics， 2017， 31（6）： 71-77 （in Chinese）.
[25]	JOHN D A. Fundamentals of aerodynamics［M］. Singapore： McGraw-Hill International Editions， 1991： 443-445.

试样	Ma	α/（°）	NPR_P	NPR_S
1	1.763	0，1，2	23.747	4.958
2	1.763	0，1，2	23.203	4.432
3	1.763	0，1，2	21.956	3.930
4	1.516	0，2，4	16.279	3.005
5	1.200	0，2，4	10.801	2.384
6	0.800	0，2，4	6.795	1.533
7	0.400	0，2，5	4.964	1.117
8	0.000	0	4.365	1.000
