钛合金表面纳米管直径对模拟月尘粘附性能的影响

doi:10.7527/S1000-6893.2024.31803

Abstract

Abstract:

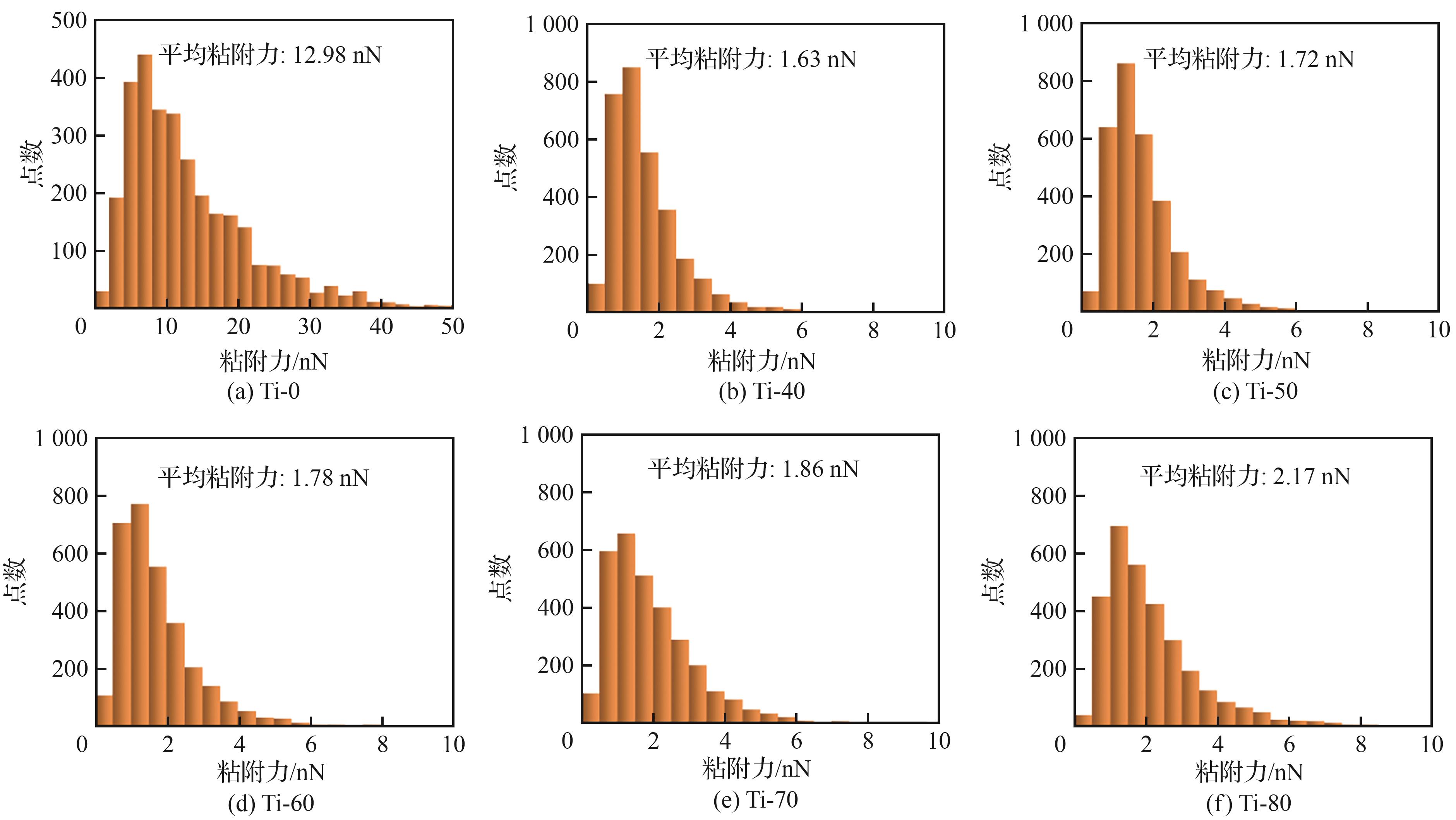

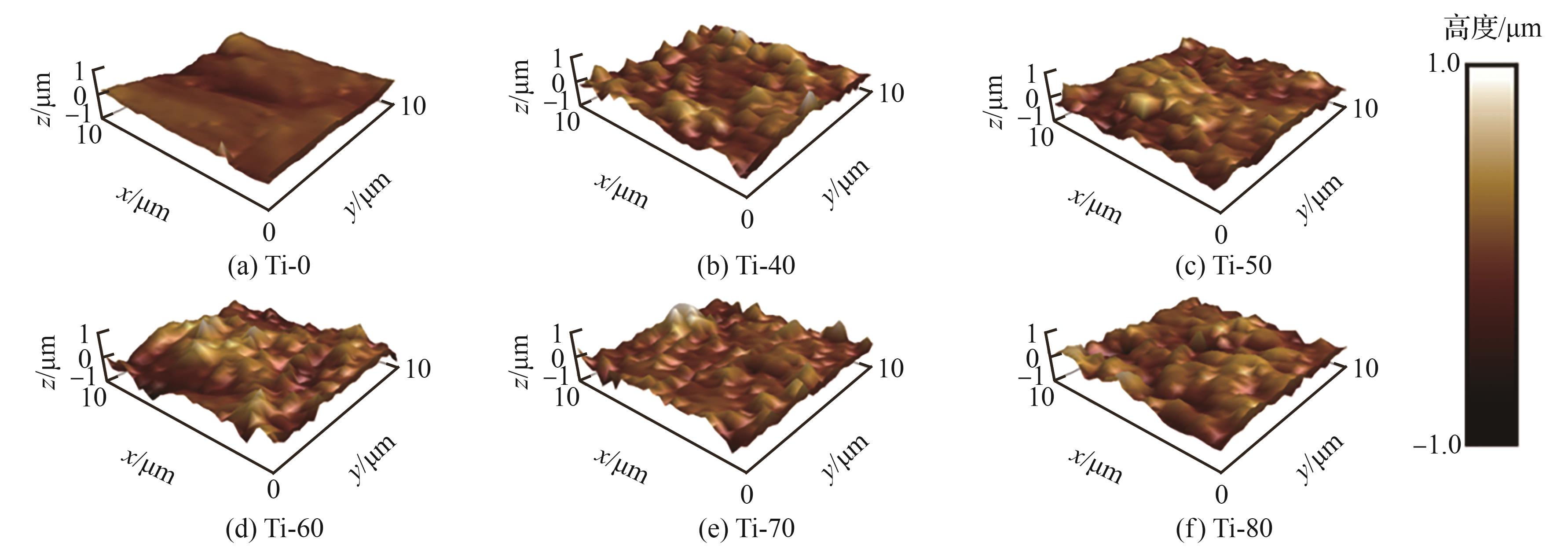

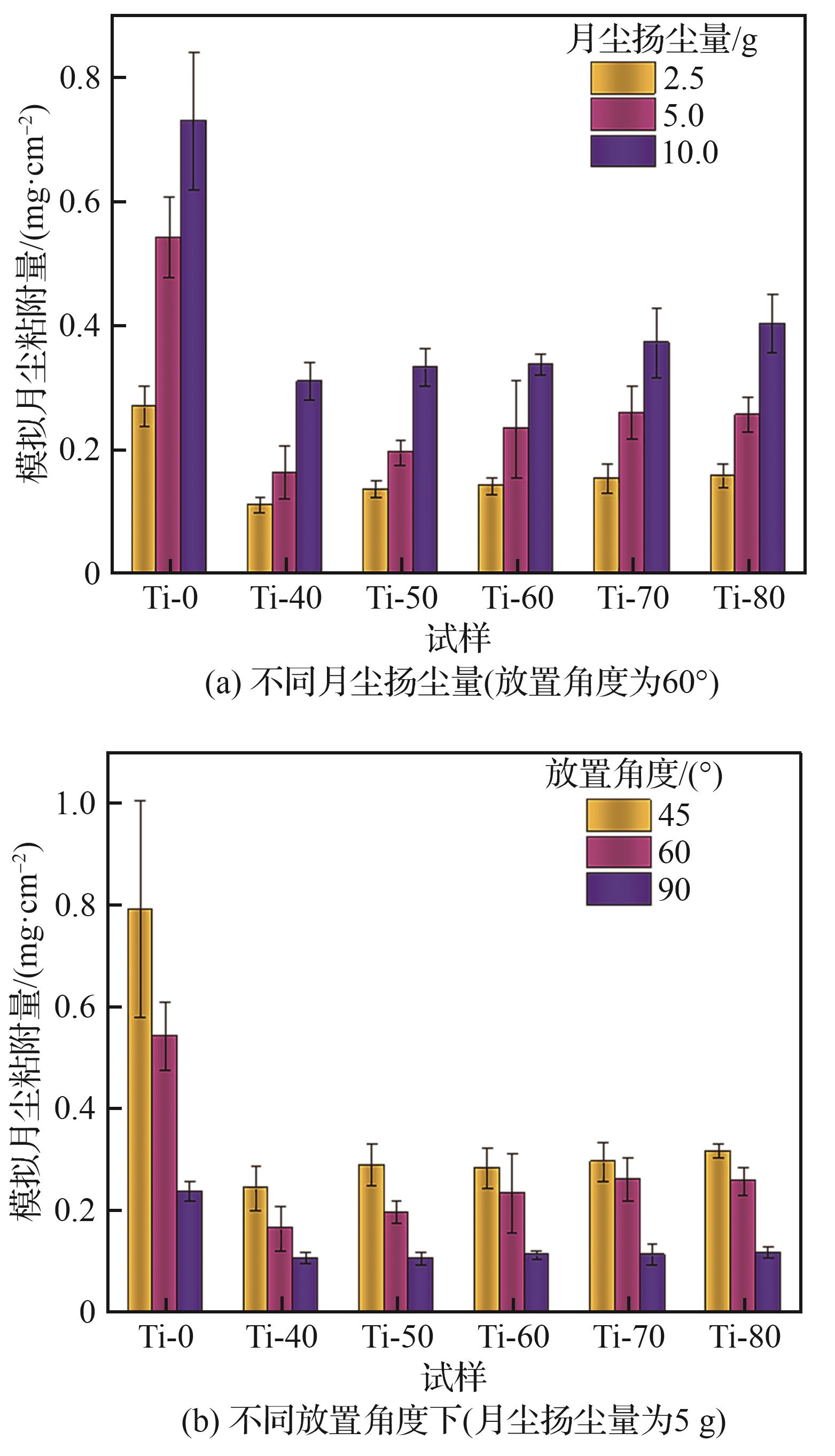

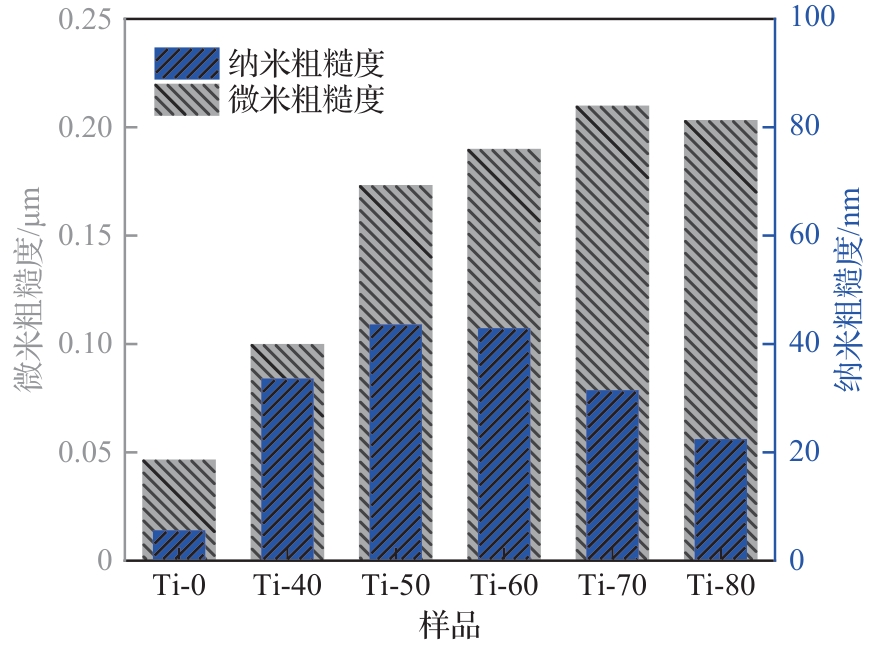

The adhesion of lunar dust on the surface of spacecraft seriously threatens the stable operation of spacecraft. Passive dust mitigation technology reduces van der Waals forces through surface nanostructures， and has great application potential without additional energy. Titanium dioxide nanotube arrays were prepared on the surface of titanium alloy by anodic oxidation. The microstructure of the surface was characterized. The adhesion force between the surface and a single simulated lunar dust and the amount of simulated lunar dust adhesion when exposed to simulated lunar dust were measured.Results show that compared with the untreated titanium alloy surface， the adhesion force between a single simulated lunar dust particle and the surface is reduced by 87%， and the adhesion of simulated lunar dust is reduced by 70%. The diameter of the nanotubes （50-110 nm） can be precisely controlled by adjusting the voltage. In this range， the smaller diameter nanotubes exhibit better dust mitigation performance due to the minimization of the contact area， which is consistent with the theoretical model prediction based on van der Waals forces. The decrease of surface inclination angle or the increase of lunar dust exposure will lead to a significant increase in adhesion， indicating that both surface structure and operational conditions must be jointly optimized for practical applications.

Key words: titanium alloys, lunar dust, nanotube arrays, adhesion force, dust mitigation, van der Waals forces

CLC Number:

V252

Jun HE, Shigang XIN, Haiyang JIAO, Qing HUANG. Effect of nanotube diameter on adhesion of simulated lunar dust on titanium alloy surface[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(1): 431803.

Figures/Tables 14

Fig.1

Fig.2

Table 1

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

Fig.12

Fig.13

References 34

[1]	GRÜN E， HORANYI M， STERNOVSKY Z. The lunar dust environment［J］. Planetary and Space Science， 2011， 59（14）： 1672-1680.
[2]	GAIER J R. Interpretation of the Apollo 14 thermal degradation sample experiment［J］. Icarus， 2012， 221（1）： 167-173.
[3]	ZHANG H Y， WANG Y， CHEN L P， et al. In-situ lunar dust deposition amount induced by lander landing in Chang’E-3 mission［J］. Science China Technological Sciences， 2020， 63（3）： 520-527.
[4]	JIN H， LI X Y， WEI G F， et al. Properties of lunar dust and their migration on the moon［J］. Space： Science & Technology， 2024， 4： 142.
[5]	GOLUB’ A P， POPEL S I. On the fluxes of dust particles detected near the lunar surface by the Chang’e 3 lander［J］. Solar System Research， 2021， 55（5）： 389-397.
[6]	LEMELLE L， ROUQUETTE S， MOTTIN E， et al. Passive limitation of surface contamination by perFluoroDecylTrichloroSilane coatings in the ISS during the MATISS experiments［J］. NPJ Microgravity， 2022， 8： 31.
[7]	POPEL S I， ZELENYI L M， GOLUB A P， et al. Lunar dust and dusty plasmas： Recent developments， advances， and unsolved problems［J］. Planetary and Space Science， 2018， 156： 71-84.
[8]	CAIN J R. Lunar dust： the hazard and astronaut exposure risks［J］. Earth， Moon， and Planets， 2010， 107（1）： 107-125.
[9]	ZANON P， DUNN M， BROOKS G. Current Lunar dust mitigation techniques and future directions［J］. Acta Astronautica， 2023， 213： 627-644.
[10]	BRADDOCK M. Hazards of lunar regolith for respiratory， central nervous system， cardiovascular and ocular function［M］∥The Human Factor in the Settlement of the Moon. Cham： Springer International Publishing， 2021： 141-157.
[11]	CANNON K M， DREYER C B， SOWERS G F， et al. Working with lunar surface materials： Review and analysis of dust mitigation and regolith conveyance technologies［J］. Acta Astronautica， 2022， 196： 259-274.
[12]	BARKER D C， OLIVAS A， FARR B， et al. Adhesion of lunar simulant dust to materials under simulated lunar environment conditions［J］. Acta Astronautica， 2022， 199： 25-36.
[13]	LEE R G， WORTHY E S， WILLIS E M， et al. Development of a comprehensive physics-based model for study of NASA gateway lunar dust contamination［J］. Acta Astronautica， 2023， 210： 616-626.
[14]	JIANG J， LU Y F， ZHAO H Y， et al. Experiments on dust removal performance of a novel PLZT driven lunar dust mitigation technique［J］. Acta Astronautica， 2019， 165： 17-24.
[15]	HIRABAYASHI M， HARTZELL C M， BELLAN P M， et al. Electrostatic dust remediation for future exploration of the Moon［J］. Acta Astronautica， 2023， 207： 392-402.
[16]	FARR B， WANG X， GOREE J， et al. Improvement of the electron beam （e-beam） lunar dust mitigation technology with varying the beam incident angle［J］. Acta Astronautica， 2021， 188： 362-366.
[17]	DOVE A， DEVAUD G， WANG X， et al. Mitigation of lunar dust adhesion by surface modification［J］. Planetary and Space Science， 2011， 59（14）： 1784-1790.
[18]	JIANG J， LU Y F， YAN X T， et al. An optimization dust-removing electrode design method aiming at improving dust mitigation efficiency in lunar exploration［J］. Acta Astronautica， 2020， 166： 59-68.
[19]	FARR B， WANG X， GOREE J， et al. Dust mitigation technology for lunar exploration utilizing an electron beam［J］. Acta Astronautica， 2020， 177： 405-409.
[20]	JIANG J， ZHAO H Y， WANG L， et al. Analysis of influence factors on dust removal efficiency for novel photovoltaic lunar dust removal technology［J］. Smart Materials and Structures， 2017， 26（12）： 125025.
[21]	GAIER J， BERKEBILE S. Implication of adhesion studies for dust mitigation on thermal control surfaces［C］∥50th AIAA Aerospace Sciences Meeting Including the New Horizons Forum and Aerospace Exposition. Reston： AIAA， 2012： 875.
[22]	ZHANG H Y， WANG X， ZHANG J， et al. Adhesion effect analysis of ultra-fine lunar dust particles on the aluminum-based rough surface based on the fractal theory［J］. Advances in Space Research， 2022， 69（7）： 2745-2755.
[23]	ZHANG G L， HUANG J D， WANG L S， et al. Design and fabrication of dust removal nanoarray structure on the surface of solar cell glass cover［J］. Journal of Science： Advanced Materials and Devices， 2023， 8（2）： 100545.
[24]	WANG X， WANG W D， SHAO H， et al. Lunar dust-mitigation behavior of aluminum surfaces with multiscale roughness prepared by a composite etching method［J］. ACS Applied Materials & Interfaces， 2022， 14（29）： 34020-34028.
[25]	LEE S S， MICKLOW L， TUNELL A， et al. Engineering large-area antidust surfaces by harnessing interparticle forces［J］. ACS Applied Materials & Interfaces， 2023， 15（10）： 13678-13688.
[26]	ZHANG J W， WANG W Q， ZHOU S X， et al. Transparent dust removal coatings for solar cell on Mars and its Anti-dust mechanism［J］. Progress in Organic Coatings， 2019， 134： 312-322.
[27]	ALIJANI M， SOPHA H， NG S， et al. High aspect ratio TiO₂ nanotube layers obtained in a very short anodization time［J］. Electrochimica Acta， 2021， 376： 138080.
[28]	ROY P， BERGER S， SCHMUKI P. TiO₂ nanotubes： synthesis and applications［J］. Angewandte Chemie International Edition， 2011， 50（13）： 2904-2939.
[29]	PODDAR S， BIT A， SINHA S K. A study on influence of anodization on the morphology of titania nanotubes over Ti6Al4V alloy in correlation to hard tissue engineering application［J］. Materials Chemistry and Physics， 2020， 254： 123457.
[30]	KIM D， GHICOV A， SCHMUKI P. TiO₂ nanotube arrays： Elimination of disordered top layers （“nanograss”） for improved photoconversion efficiency in dye-sensitized solar cells［J］. Electrochemistry Communications， 2008， 10（12）： 1835-1838.
[31]	LIU Y， PARK J， HILL E， et al. Morphology and physical characteristics of Apollo 17 dust particles［C］∥Earth & Space 2006. American Society of Civil Engineers， 2006： 1-6.
[32]	PENG M， HAN X， XIAO G Z， et al. Spherical volume elements scheme for calculating van der Waals force between irregular particles and rough surfaces［J］. Chinese Journal of Physics， 2021， 72： 645-654.
[33]	PEILLON S， AUTRICQUE A， REDOLFI M， et al. Adhesion of tungsten particles on rough tungsten surfaces using Atomic Force Microscopy［J］. Journal of Aerosol Science， 2019， 137： 105431.
[34]	HASEGAWA M， LIU J C， OKUDA K， et al. Calculation of the fractal dimensions of machined surface profiles. ［J］ Wear 1996， 192（1-2）： 40-45.

成分	含量/wt%
成分	模拟月尘	Apollo 14163^［29］
Na₂O	4.2	0.71
MgO	5.5	8.00
Al₂O₃	18.0	19.0
SiO₂	46.0	48.50
K₂O	2.1	0.59
CaO	6.6	11.30
TiO₂	2.2	1.70
MnO	0.2	0.12
Fe₂O₃	14.0	9.20
