基于动态波束赋形的雷达搜索资源优化方法

doi:10.7527/S1000-6893.2026.33261

Abstract

Abstract:

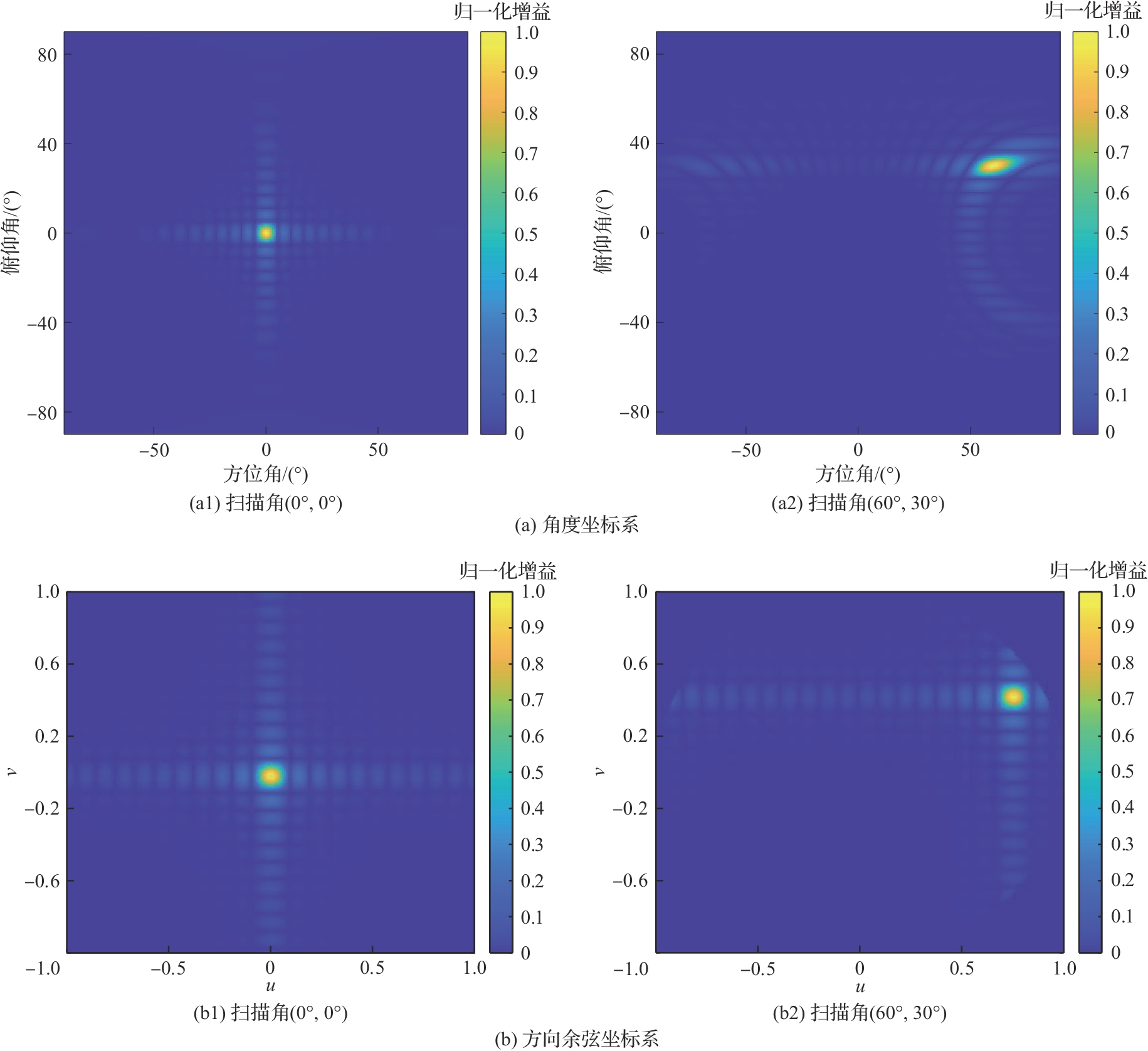

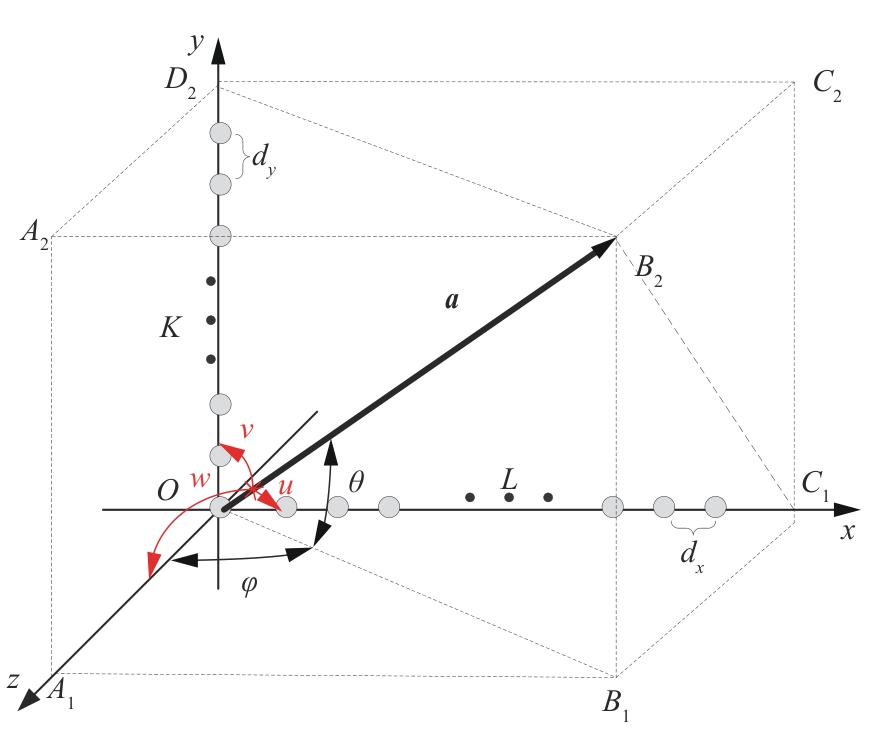

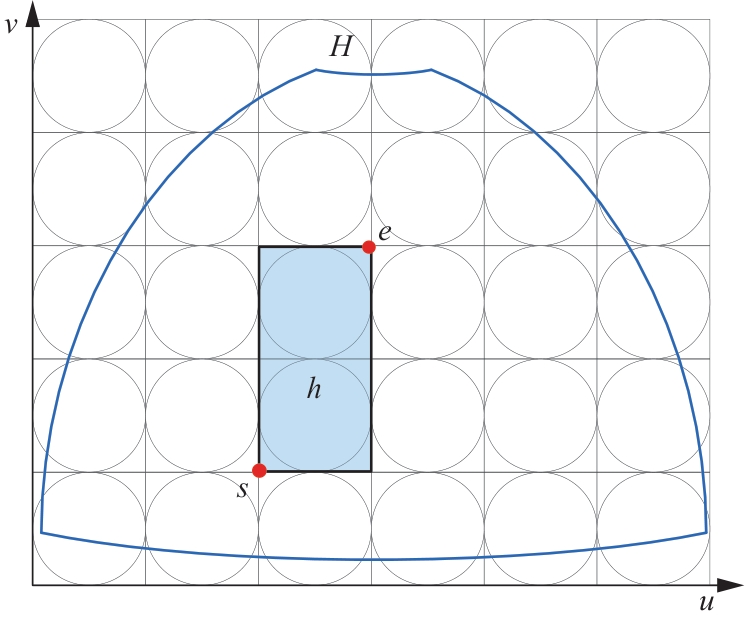

To improve the fast search capability of digital array radar in the Broad-Transmit Multi-Receive mode， an optimization method for search resources based on dynamic beamforming is proposed. First， to address the beam distortion problem in the angular domain， the beam search space is transformed into the direction cosine coordinate system to effectively combine beam pointing with scanning loss. A shaped beam model is established based on the analysis of energy requirements of each beam， and the expressions for the shape and directional gain of the shaped beam are derived based on the beam grid. Then， a joint optimization model of beam-dwell time is constructed with the objective function of minimizing the search frame period， which achieves fast search by dynamically adjusting the beam dwell time and beam shape. In addition， a targeted preprocessing strategy and solution method are designed. Finally， the effectiveness of the proposed optimization method is verified by simulation. Results show that the proposed dynamic beamforming method can achieve effective coverage of the airspace with a small number of beams， and the search frame period can be shortened by more than 32.35% compared with the conventional sequential beam-position scanning method. This paper provides a reference for the application of shaped beams in digital array radar systems.

Key words: digital array radar, search frame period, broad-transmit multi-receive, dwell time, beamforming

CLC Number:

V412.1

Xuchao HU, Xiansi TAN, Zhiguo QU, Zhihuai LI, Zhangyu PENG. Optimization method for radar search resources based on dynamic beamforming[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(17): 333261.

Figures/Tables 19

Fig.1

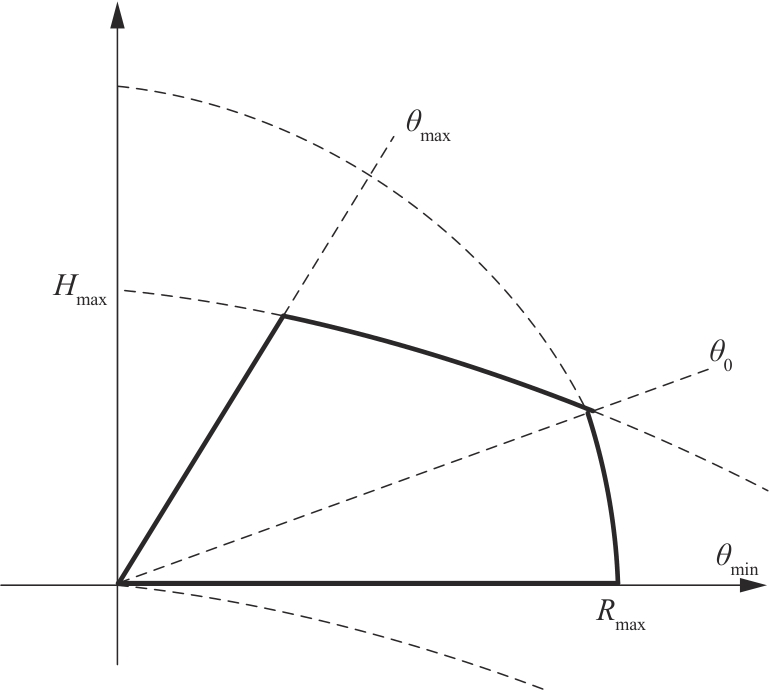

Fig.2

Fig.3

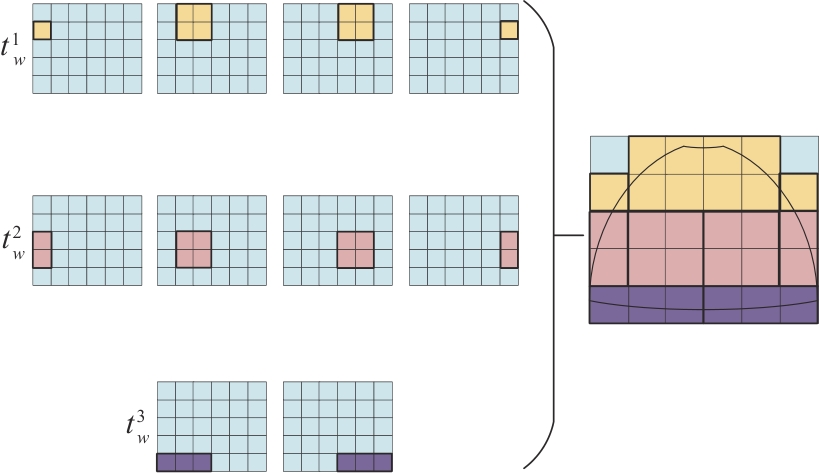

Fig.4

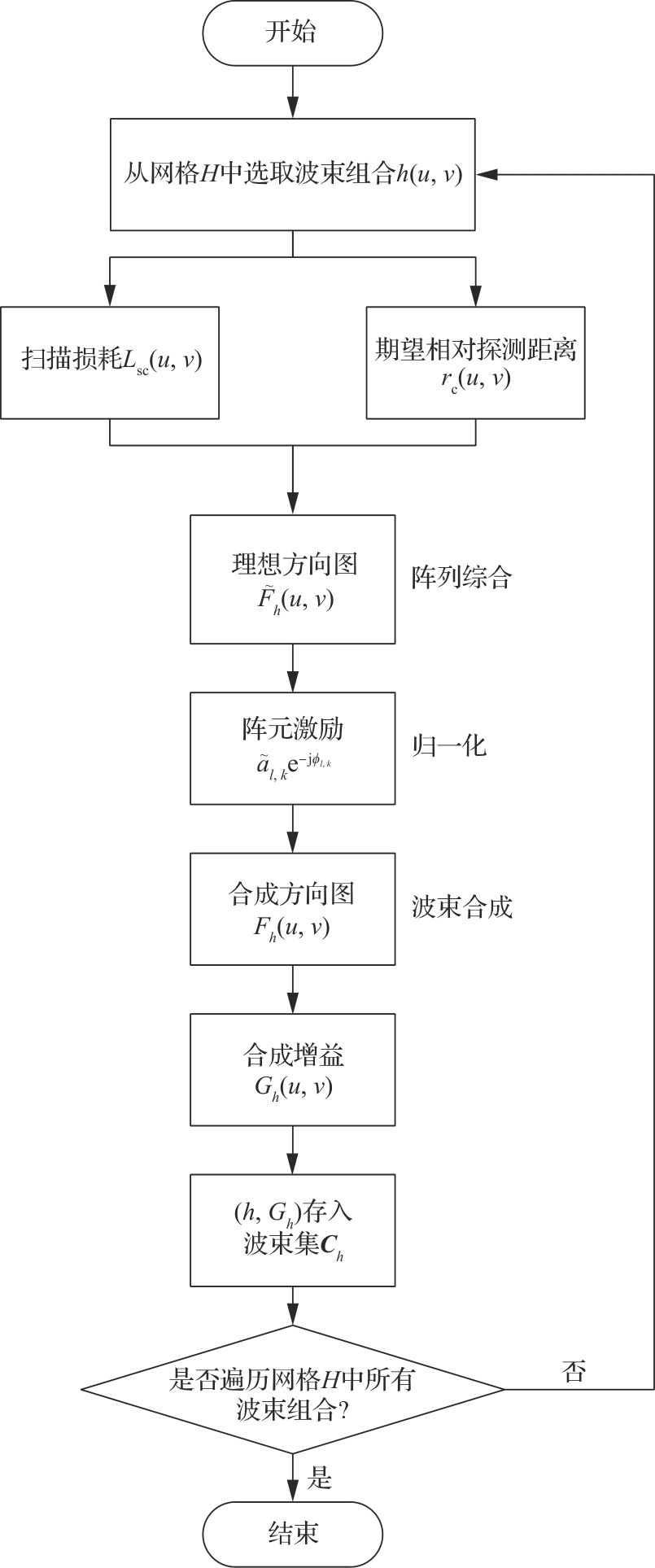

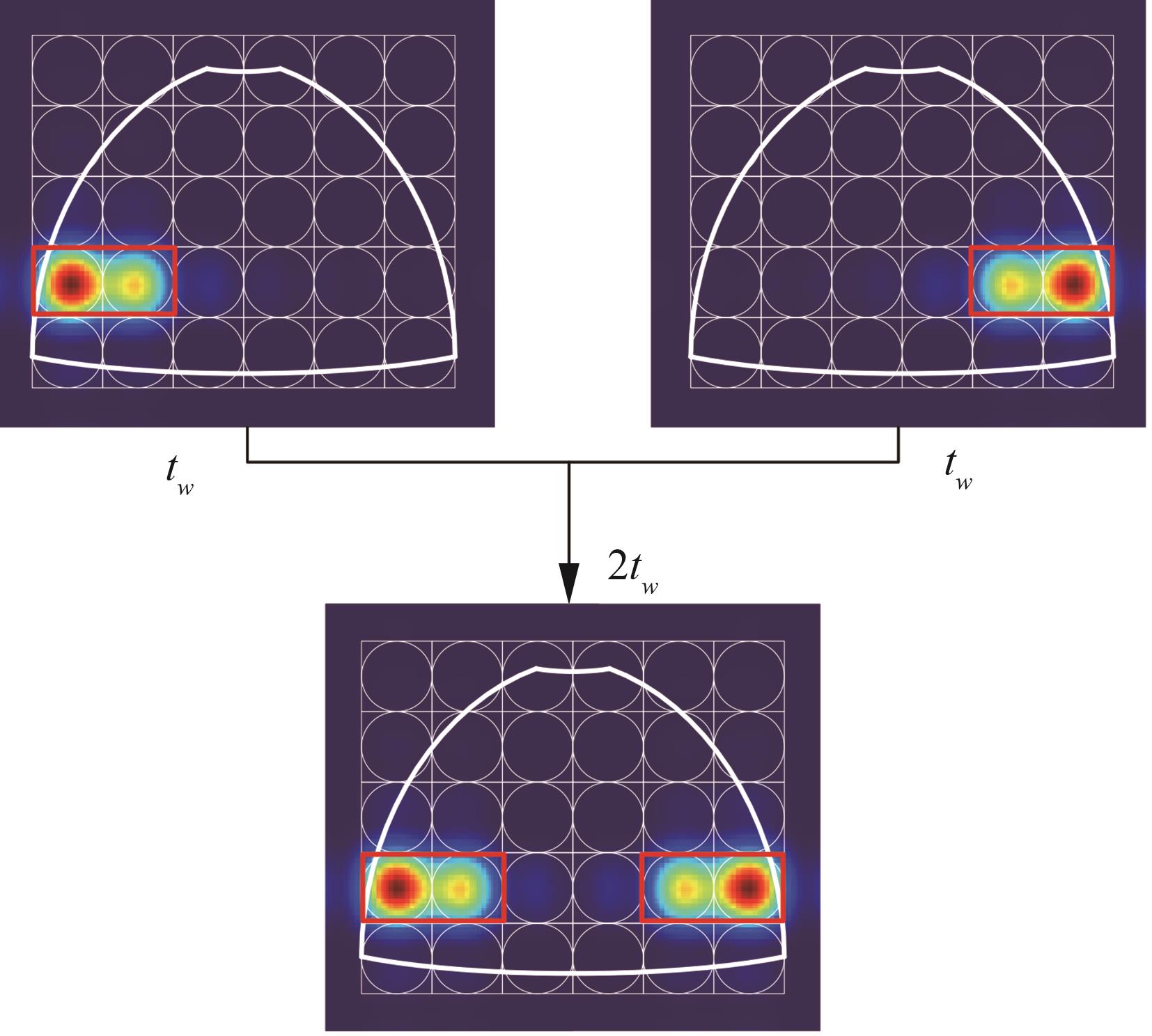

Fig.5

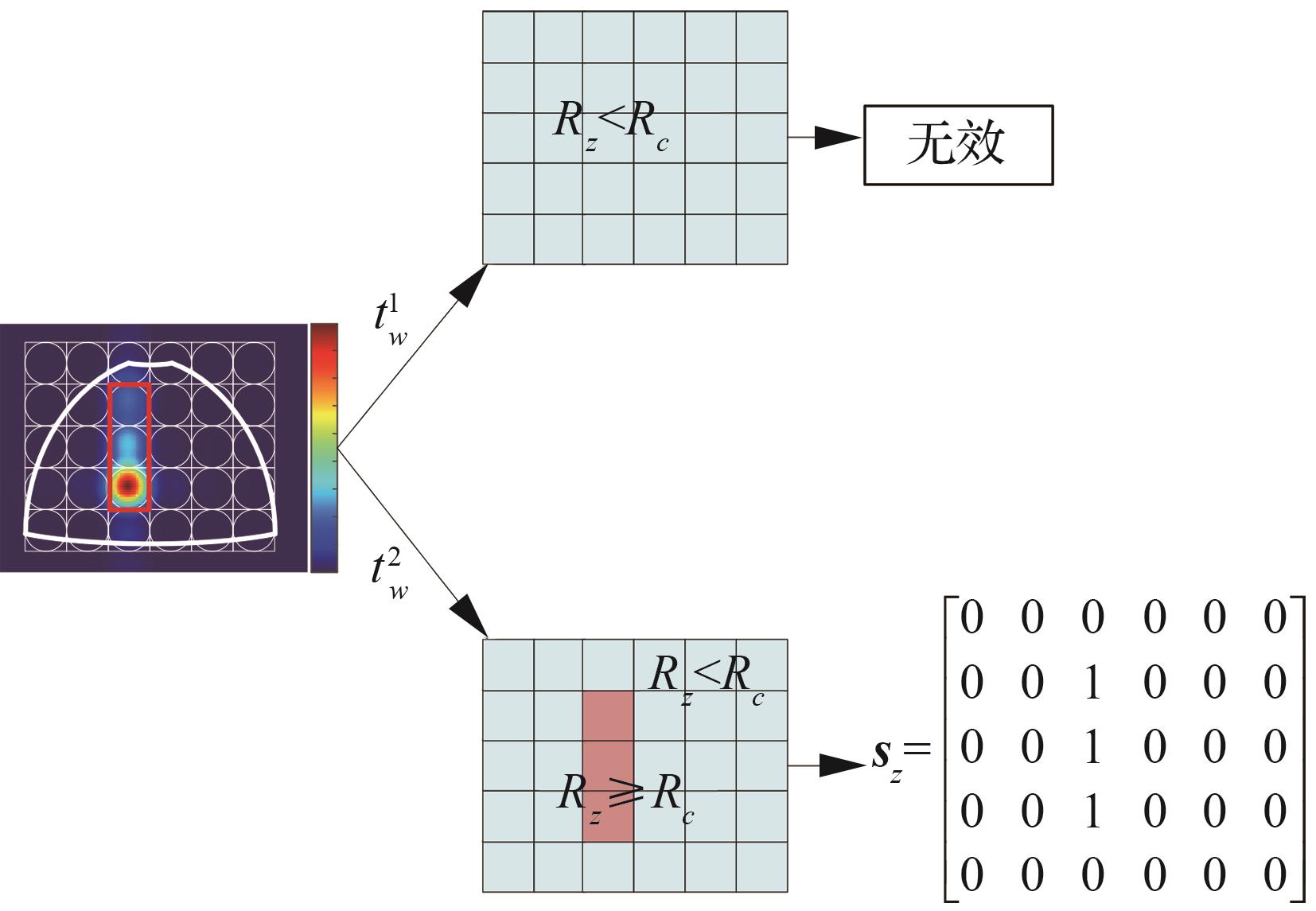

Fig.6

Fig.7

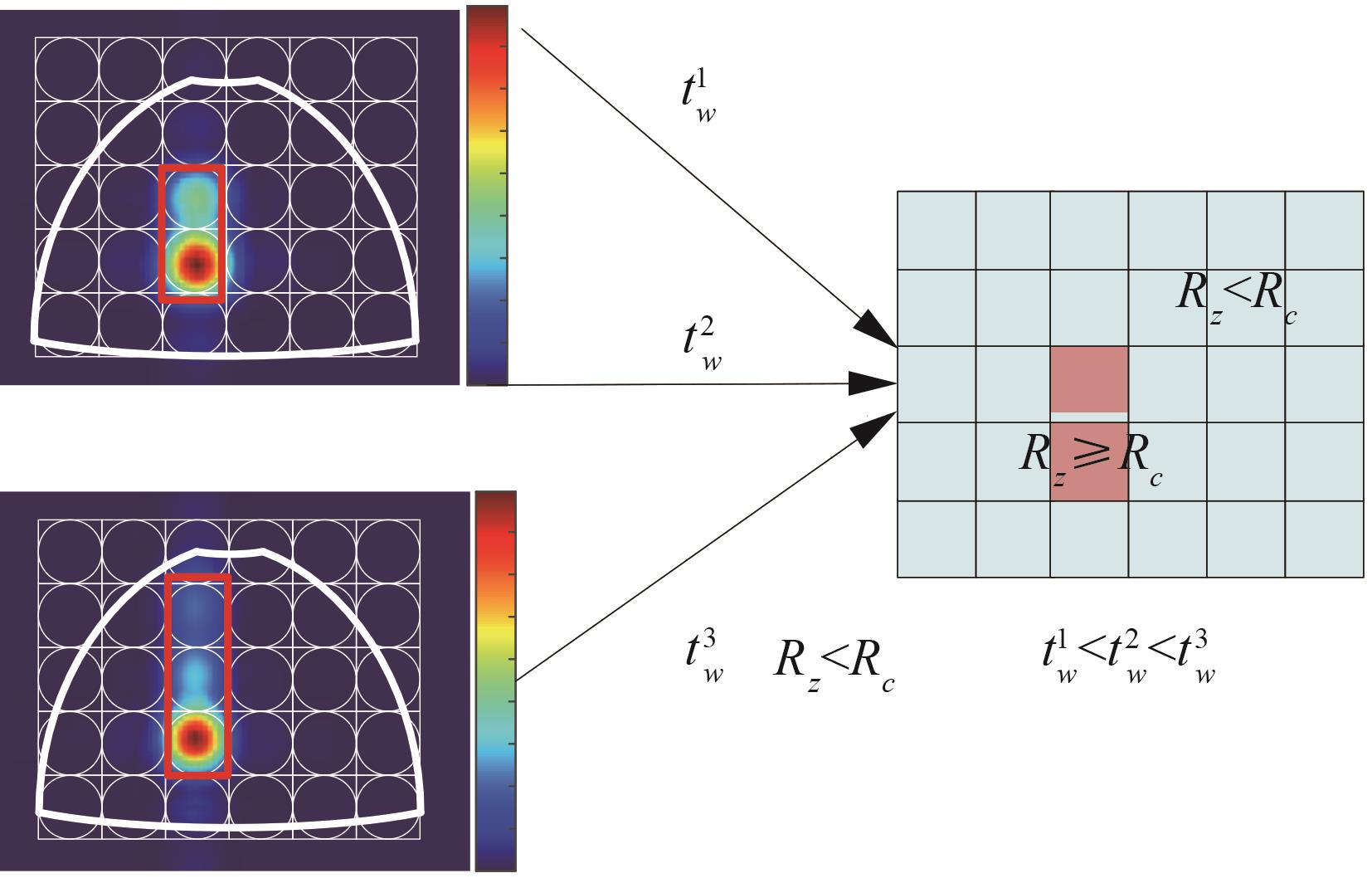

Fig.8

Fig.9

Table 1

Simulation parameters

参数	数值
阵元数	$20 × 20$
阵元间隔/m	0.5 $λ$
波长 $λ$ /m	0.1
阵面倾斜角 $ε$ /（°）	10
雷达平均功率 $P a v$ /kW	10
系统损耗 $L s$ /dB	6
噪声系数 $F$ /dB	3
接收机带宽B/MHz	1
检测因子 $D 0$ /dB	13
俯仰角范围 $β$ /（°）	［0，60］
方位角范围 $α$ /（°）	［-60，60］
基准波束最大增益 $G 0$ /dB	40

Table 1

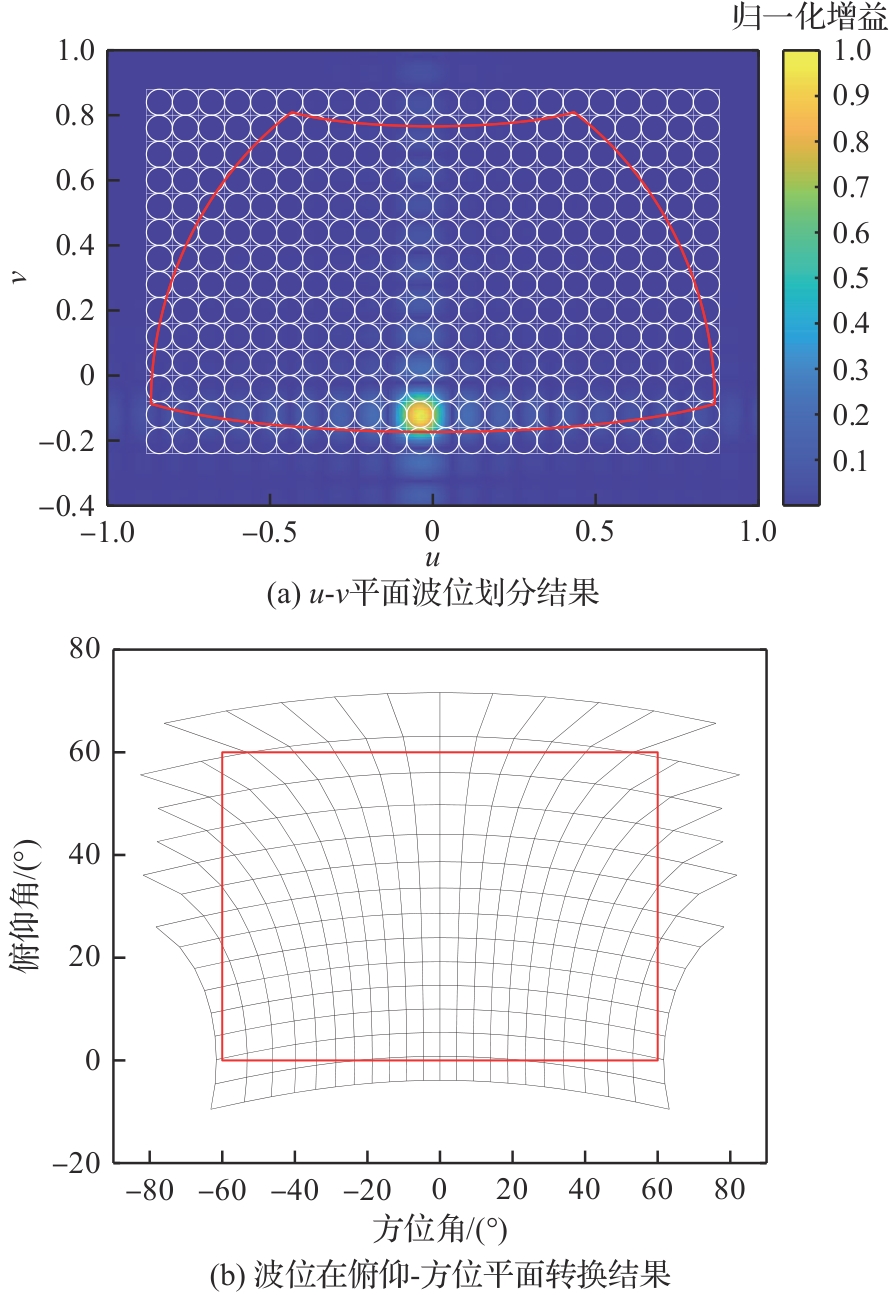

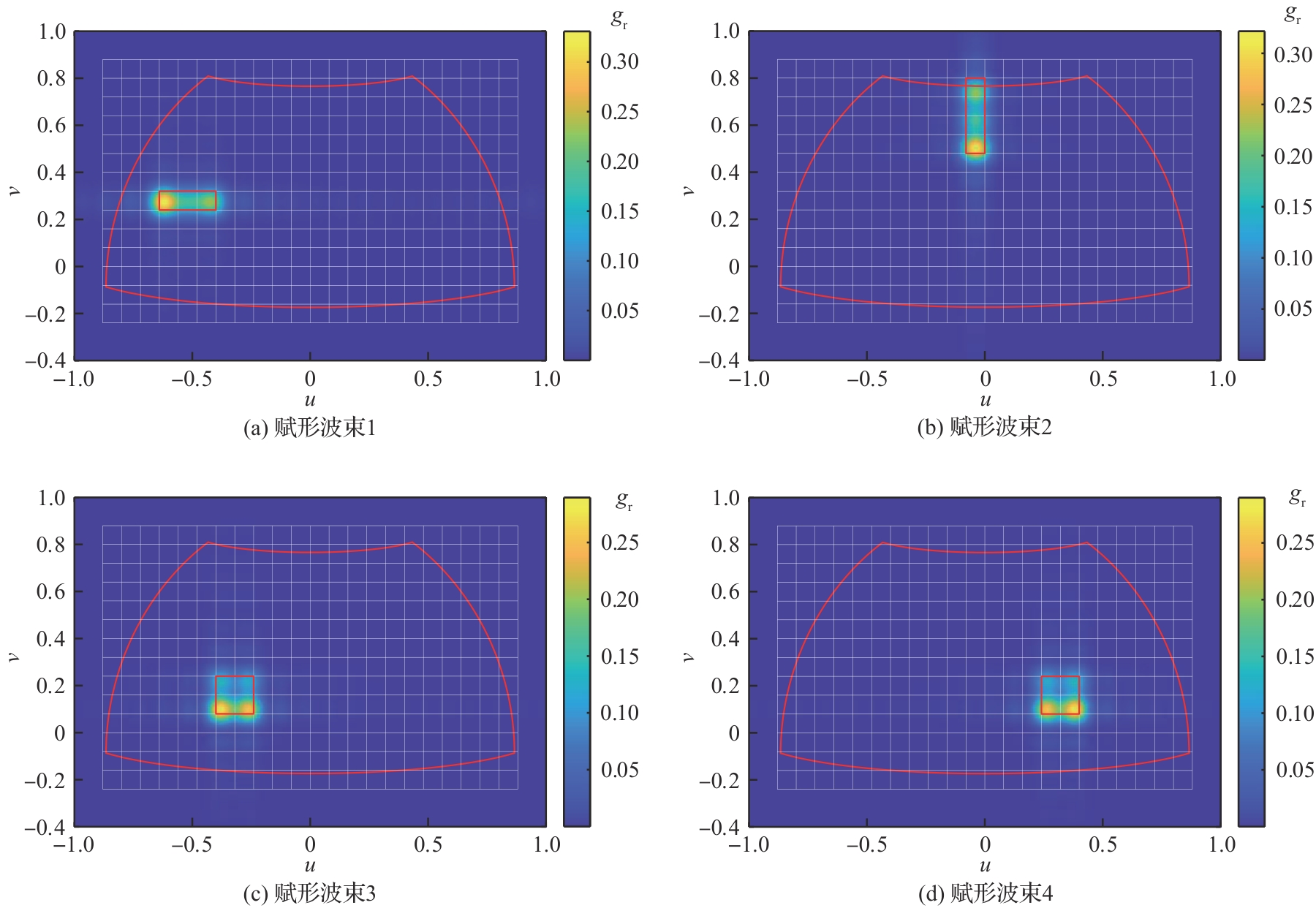

Fig.10

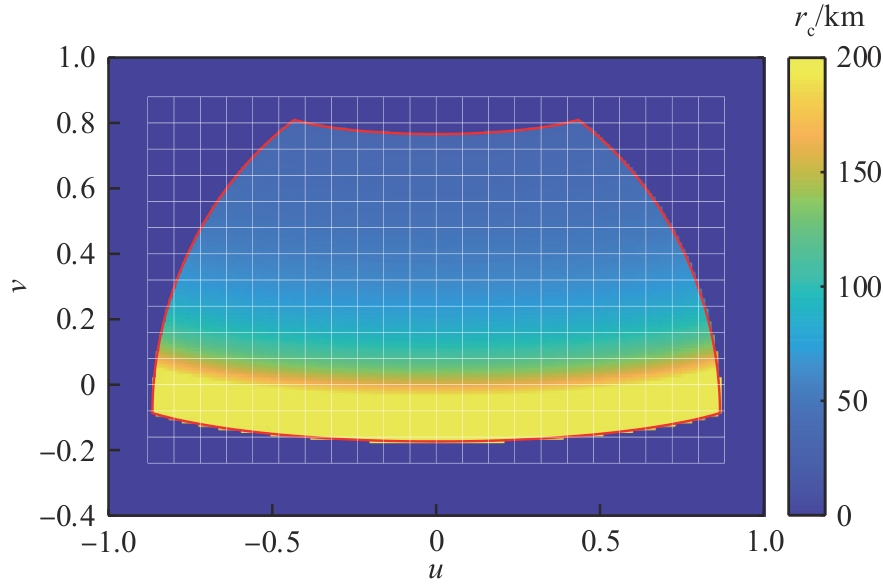

Fig.11

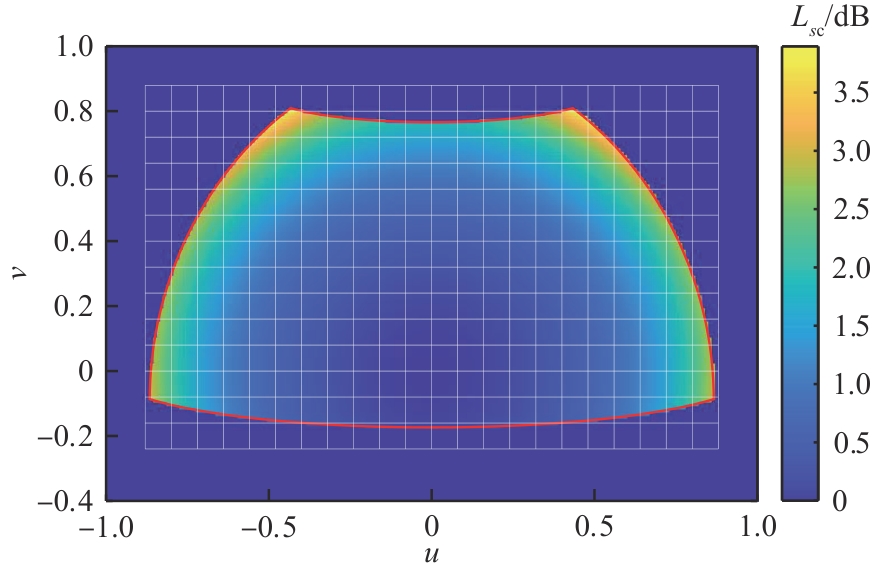

Fig.12

Fig.13

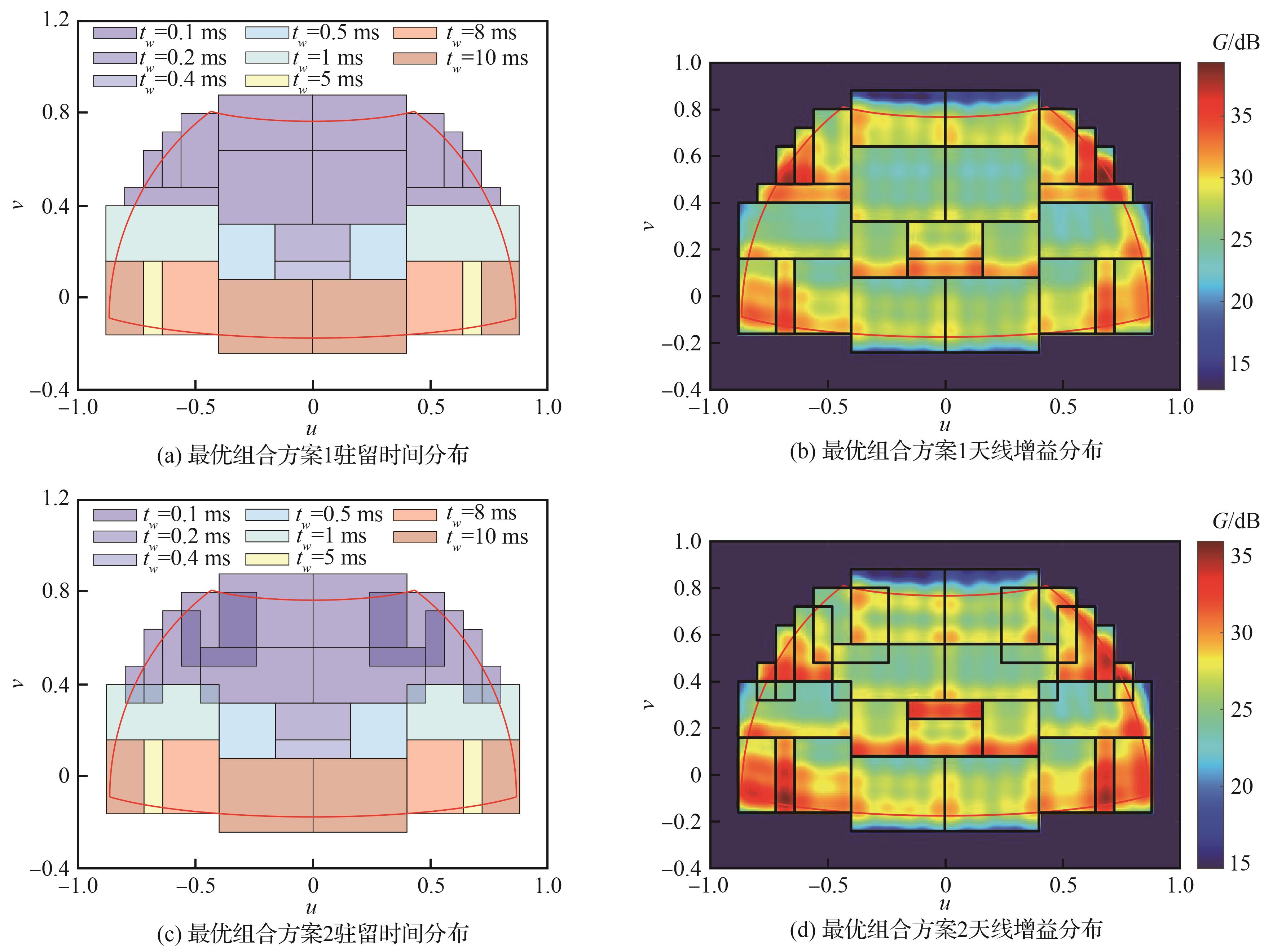

Table 2

Fig.14

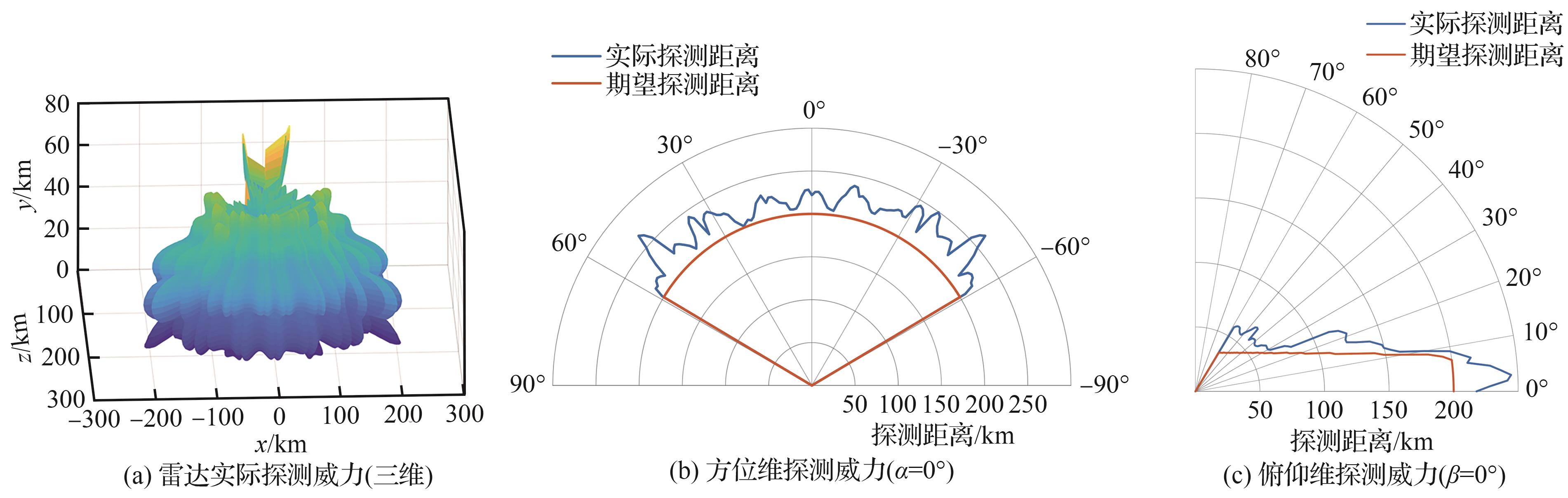

Fig.15

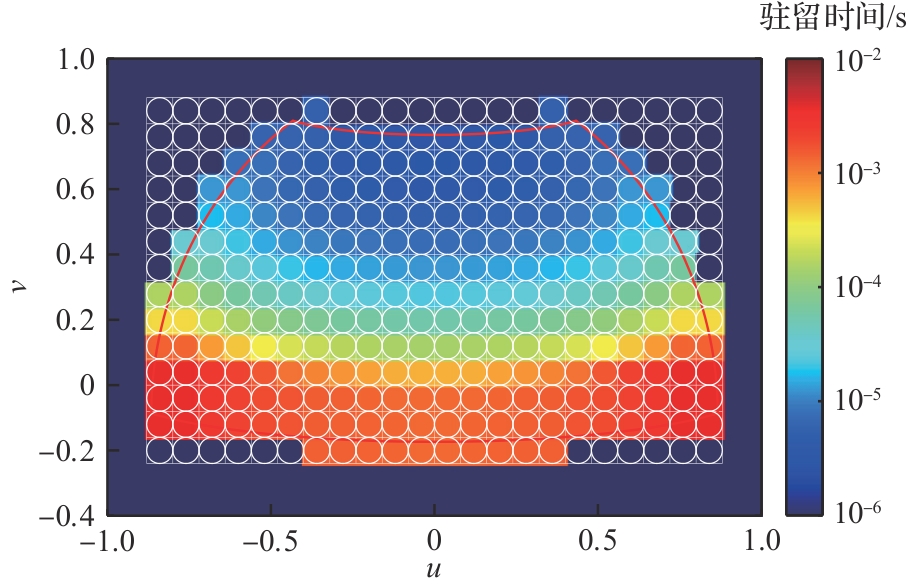

Fig.16

Fig.17

References 21

[1]	胡卫东. 相控阵雷达资源管理的理论与方法［M］. 北京：国防工业出版社， 2010： 42-65.
	HU W D. Theory and method of phased array radar resource management［M］. Beijing： National Defense Industry Press， 2010： 42-65 （in Chinese）.
[2]	毕增军. 相控阵雷达资源管理技术［M］. 北京：国防工业出版社， 2016： 67-82.
	BI Z J. Resource management technology of phased array radar［M］. Beijing： National Defense Industry Press， 2016： 67-82 （in Chinese）.
[3]	吴其华. 相控阵雷达搜索资源管理优化方法研究［D］. 长沙：国防科技大学， 2015： 18-33.
	WU Q H. Research on optimal search resource management for phased array radar［D］. Changsha： National University of Defense Technology， 2015： 18-33 （in Chinese）.
[4]	陈智伶. 相控阵雷达自适应资源优化管理［D］. 成都：电子科技大学， 2022： 12-20.
	CHEN Z L. Adaptive resource optimization management of phased array radar［D］. Chengdu： University of Electronic Science and Technology of China， 2022： 12-20 （in Chinese）.
[5]	陶庆，张劲东，邱旦峰. 基于混合变量规划的雷达最优搜索方法［J］. 雷达科学与技术， 2021， 19（1）： 104-110.
	TAO Q， ZHANG J D， QIU D F. Radar optimal search method based on mixed variable programming［J］. Radar Science and Technology， 2021， 19（1）： 104-110 （in Chinese）.
[6]	郑建成，曲智国，谭贤四，等. 一种相控阵雷达搜索参数设计策略［J］. 航空学报， 2023， 44（16）： 263-273.
	ZHENG J C， QU Z G， TAN X S， et al. Design of search parameters for hypersonic target detection by phased array radar［J］. Acta Aeronautica et Astronautica Sinica， 2023， 44（16）： 263-273 （in Chinese）.
[7]	刘一鸣，盛文. 相控阵雷达资源受限时搜索参数调整策略［J］. 现代雷达， 2020， 42（1）： 8-12.
	LIU Y M， SHENG W. Search parameter adjustment strategy for phased array radar under limited resource［J］. Modern Radar， 2020， 42（1）： 8-12 （in Chinese）.
[8]	朱新国，巫书航，吴道庆. 一种数字阵列雷达搜索工作模式设计方法［J］. 现代雷达， 2025， 47（1）： 31-38.
	ZHU X G， WU S H， WU D Q. A design method for search working mode of digital array radar［J］. Modern Radar， 2025， 47（1）： 31-38 （in Chinese）.
[9]	张光义. 相控阵雷达技术［M］. 北京：电子工业出版社， 2024： 63-85.
	ZHANG G Y. Phased array radar technology［M］. Beijing： Publishing House of Electronics Industry， 2024： 63-85 （in Chinese）.
[10]	葛建军，张春城. 数字阵列雷达［M］. 北京：国防工业出版社， 2017： 82-86.
	GE J J， ZHANG C C. Digital array radar［M］. Beijing： National Defense Industry Press， 2017： 82-86 （in Chinese）.
[11]	廖桂生，陶海红，曾操. 雷达数字波束形成技术［M］. 北京：国防工业出版社， 2017： 32-46.
	LIAO G S， TAO H H， ZENG C. Digital beamforming technique of phased array radar［M］. Beijing： National Defense Industry Press， 2017： 32-46 （in Chinese）.
[12]	BRIHECHE Y， BARBARESCO F， BENNIS F， et al. Non-uniform constrained optimization of radar search patterns in direction cosines space using integer programming［C］∥ 2016 17th International Radar Symposium （IRS）. Piscataway： IEEE Press， 2016： 1-6.
[13]	江涛，陈翼，王盛利. 凝视数字多波束合成孔径雷达系统性能分析［J］. 系统工程与电子技术， 2013， 35（4）： 745-752.
	JIANG T， CHEN Y， WANG S L. System performance analysis of staring digital multiple beam synthetic aperture radar［J］. Systems Engineering and Electronics， 2013， 35（4）： 745-752 （in Chinese）.
[14]	MAHAFZA B R， ELSHERBENI A Z. MATLAB simulations for radar systems design［M］. Boca Raton： Chapman and Hall/CRC， 2003： 29-42.
[15]	LEE R Q， ROMISCH S， POPOVIC Z. Multi-beam phased array antennas： NASA/TM-2002-211827［R］. Washington， D.C.： NASA Glenn Research Center， 2002.
[16]	栾铸徵，史厚宝. 正弦空间在相控阵雷达设计中的应用［J］. 舰船电子对抗， 2020， 43（1）： 42-51.
	LUAN Z Z， SHI H B. Application of sine-space to phased array radar design［J］. Shipboard Electronic Countermeasure， 2020， 43（1）： 42-51 （in Chinese）.
[17]	王阳. 一种低截获概率的波位编排方法［J］. 电讯技术， 2020， 60（9）： 1064-1068.
	WANG Y. A beam position arrangement method with low probability of intercept［J］. Telecommunication Engineering， 2020， 60（9）： 1064-1068 （in Chinese）.
[18]	BROWN A D. Electronically scanned arrays MATLAB modeling and simulation［M］. London： CRC press， 2012： 43-45.
[19]	BALANIS C A. Antenna theory analysis and design［M］. Canada： John Wiley & Sons， Inc， 2005： 27-70.
[20]	王小谟，罗健，匡永胜，等. 监视雷达技术［M］. 北京：电子工业出版社， 2024： 36-43.
	WANG X M， Luo J， Kuang Y S， et al. Surveillance radar technology［M］. Beijing： Publishing House of Electronics Industry， 2024： 36-43 （in Chinese）.
[21]	MathWorks. MATLAB intlinprog mixed-integer linear programming ［EB/OL］. ［2025-12-10］. .

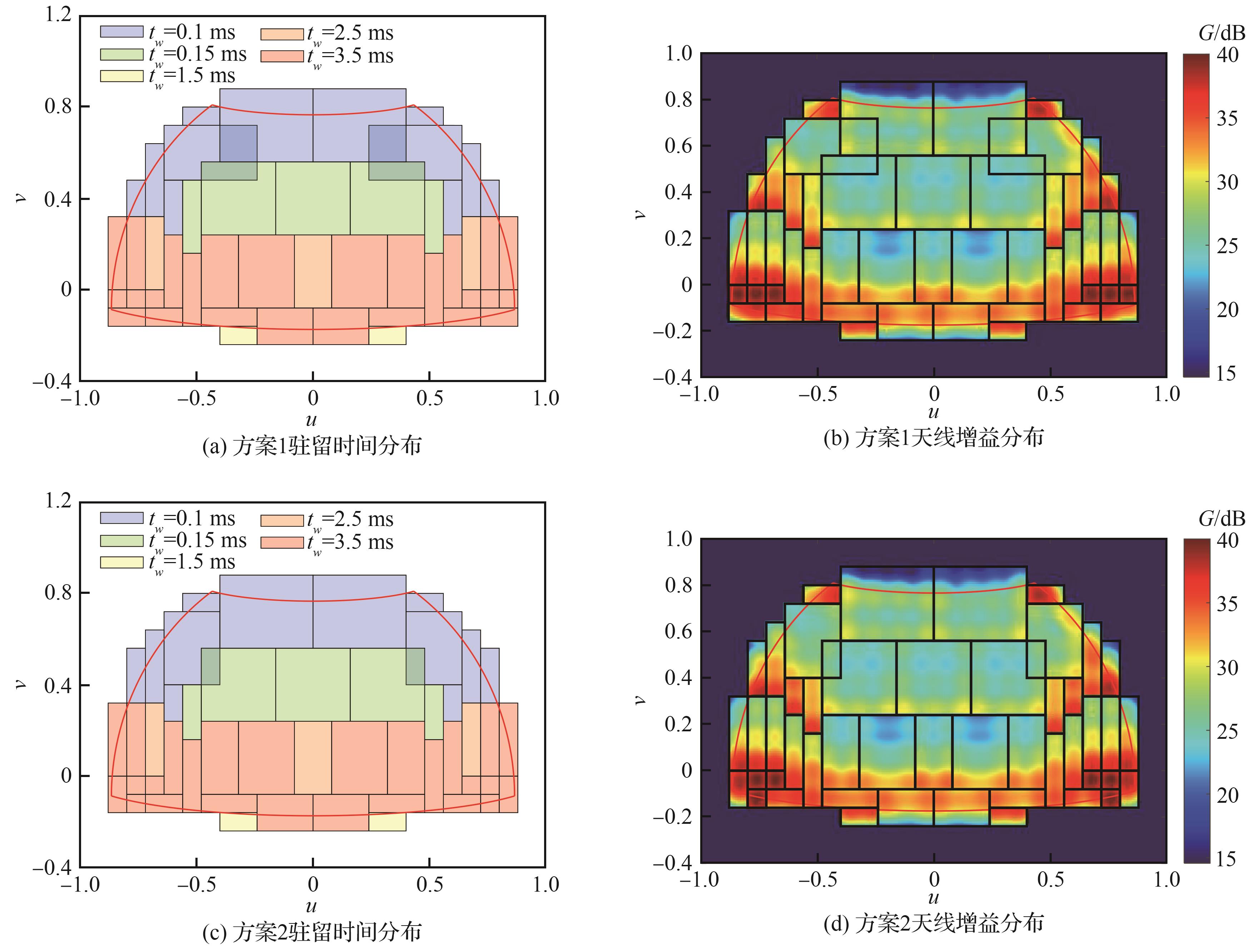

方案	波位数						搜索帧周期/s
方案	t_w =0.1 ms	t_w =0.15 ms	t_w =1.5 ms	t_w =2.5 ms	t_w =3.5 ms	总数	搜索帧周期/s
方案1	12	4	2	3	26	47	0.103 5
方案2	12	4	2	3	26	47	0.103 5
