基于运动意图识别的空间护卫策略设计

doi:10.7527/S1000-6893.2025.33013

Abstract

Abstract:

To address the challenges of unknown target intent and strategy selection under incomplete-information orbital games， an intent-inference-based maneuver-decision framework is proposed. First， considering the impulsive characteristics of spacecraft， a model-predictive-control scheme is devised within a finite-time horizon to rapidly generate guardian strategies for a single prespecified intent. Subsequently， an integrated guardian maneuver optimization method is developed that fuses intent interference results of a non-cooperative target， making it applicable to multi-intent scenarios. By dynamically adjusting the strategy optimization objective according to the inferred intent distribution， the escort maneuver strategy becomes more flexible when responding to uncertain operational environments. Simulation results across diverse space-guardian missions confirm the superior performance of the proposed approach.

Key words: non-cooperative target, intent recogntion, deep learning, spacecraft guarding, orbital game

CLC Number:

V448.2

Qinbo SUN, Zhaohui DANG. Spacecraft guardian strategy design via motion-intent recognition[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(S1): 733013.

Figures/Tables 28

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Table 1

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

Table 2

Fig.12

Fig.13

Table 3

Fig.14

Fig.15

Fig.16

Table 4

Table 5

Fig.17

Fig.18

Fig.19

Table 6

Fig.20

Fig.21

Table 7

References 20

[1]	ZHAO L R， ZHANG Y L， DANG Z H. PRD-MADDPG： An efficient learning-based algorithm for orbital pursuit-evasion game with impulsive maneuvers［J］. Advances in Space Research， 2023， 72（2）： 211-230.
[2]	LIU Y J， JIANG Y， LI H N， et al. Determining origins of satellite breakup events in LEO region［J］. Astrodynamics， 2023， 7（4）： 465-476.
[3]	CHERNIAKOV M， HOARE E G， GASHINOVA M， et al. Recognition of objects in orbit and their intentions with space-borne sub-THz Inverse Synthetic Aperture Radar［J］. IET Radar， Sonar & Navigation， 2024， 18（4）： 564-576.
[4]	CHEN S， LI J， XIE Y， et al. Approaching intention prediction of orbital maneuver based on dynamic bayesian network［J］. Transactions of Nanjing University of Aeronautics & Astronautics， 2023， 40（4）： 460-471.
[5]	LI J S， YANG Z， LUO Y Z. Intention inference for space targets using deep convolutional neural network［J］. Advances in Space Research， 2025， 75（2）： 2184-2200.
[6]	ZHANG H L， LUO J J， GAO Y， et al. An intention inference method for the space non-cooperative target based on BiGRU-Self Attention［J］. Advances in Space Research， 2023， 72（5）： 1815-1828.
[7]	SUN Q B， DANG Z H. Deep neural network for non-cooperative space target intention recognition［J］. Aerospace Science and Technology， 2023， 142： 108681.
[8]	SUN Q B， ZHAO L R， TANG S Y， et al. Orbital motion intention recognition for space non-cooperative targets based on incomplete time series data［J］. Aerospace Science and Technology， 2025， 158： 109912.
[9]	罗亚中，李振瑜，祝海. 航天器轨道追逃微分对策研究综述［J］. 中国科学（技术科学）， 2020， 50（12）： 1533-1545.
	LUO Y Z， LI Z Y， ZHU H. Survey on spacecraft orbital pursuit-evasion differential games［J］. Scientia Sinica Technologica， 2020， 50（12）： 1533-1545 （in Chinese）.
[10]	SHEN D， JIA B， CHEN G S， et al. Pursuit-evasion games with information uncertainties for elusive orbital maneuver and space object tracking［J］. Sensors and Systems for Space Applications Ⅷ， 2015： 94690J.
[11]	LI Z Y， ZHU H， LUO Y Z. An escape strategy in orbital pursuit-evasion games with incomplete information［J］. Science China Technological Sciences， 2021， 64（3）： 559-570.
[12]	WANG Z W， GONG B C， YUAN Y H， et al. Incomplete information pursuit-evasion game control for a space non-cooperative target［J］. Aerospace， 2021， 8（8）： 211.
[13]	YANG B， LIU P X， FENG J L， et al. Two-stage pursuit strategy for incomplete-information impulsive space pursuit-evasion mission using reinforcement learning［J］. Aerospace， 2021， 8（10）： 299.
[14]	祝海. 基于微分对策的航天器轨道追逃最优控制策略［D］. 长沙：国防科技大学， 2017.
	ZHU H. Optimal control of spacecraft orbital pursuit-evasion based on differential game［D］. Changsha： National University of Defense Technology， 2017 （in Chinese）.
[15]	马昌凤，柯艺芬，谢亚君. 最优化计算方法及其MATLAB程序实现［M］. 北京：国防工业出版社， 2015： 219-222.
	MA C F， KE Y F， XIE Y J. Optimization calculation method and its MATLAB program realization［M］. Beijing： National Defense Industry Press， 2015： 219-222 （in Chinese）.
[16]	SUN Q B， ZHAO L R， DANG Z H. BiGAT： A model for recognizing motion intentions of space noncooperative targets［J］. IEEE Transactions on Aerospace and Electronic Systems， 2025， 61（2）： 2586-2600.
[17]	MAVSAR M， MORIMOTO J， UDE A. GAN-based semi-supervised training of LSTM nets for intention recognition in cooperative tasks［J］. IEEE Robotics and Automation Letters， 2024， 9（1）： 263-270.
[18]	KHODABANDELOU G， MOON H， AMIRAT Y， et al. A fuzzy convolutional attention-based GRU network for human activity recognition［J］. Engineering Applications of Artificial Intelligence， 2023， 118： 105702.
[19]	VASWANI A， SHAZEER N， PARMAR N， et al. Attention is all you need［C］∥NIPS’17： Proceedings of the 31st International Conference on Neural Information Processing Systems， 2017.
[20]	SUN Q B， ZHAO L R， DANG Z H. Comprehensive classification of non-periodic relative motion styles of spacecraft： A geometric approach and applications［J］. Astrodynamics， 2025， 9（6）： 969-992.

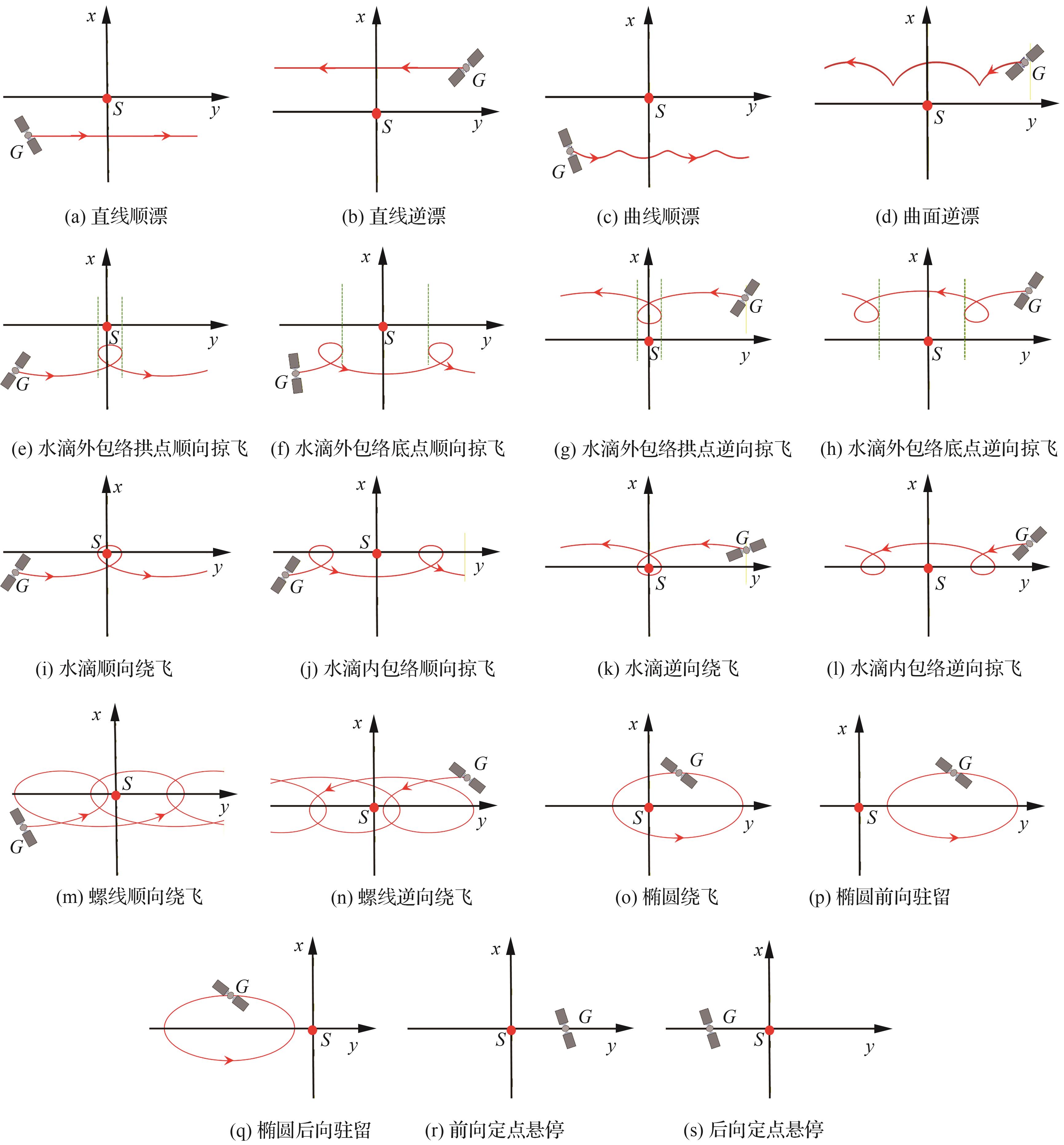

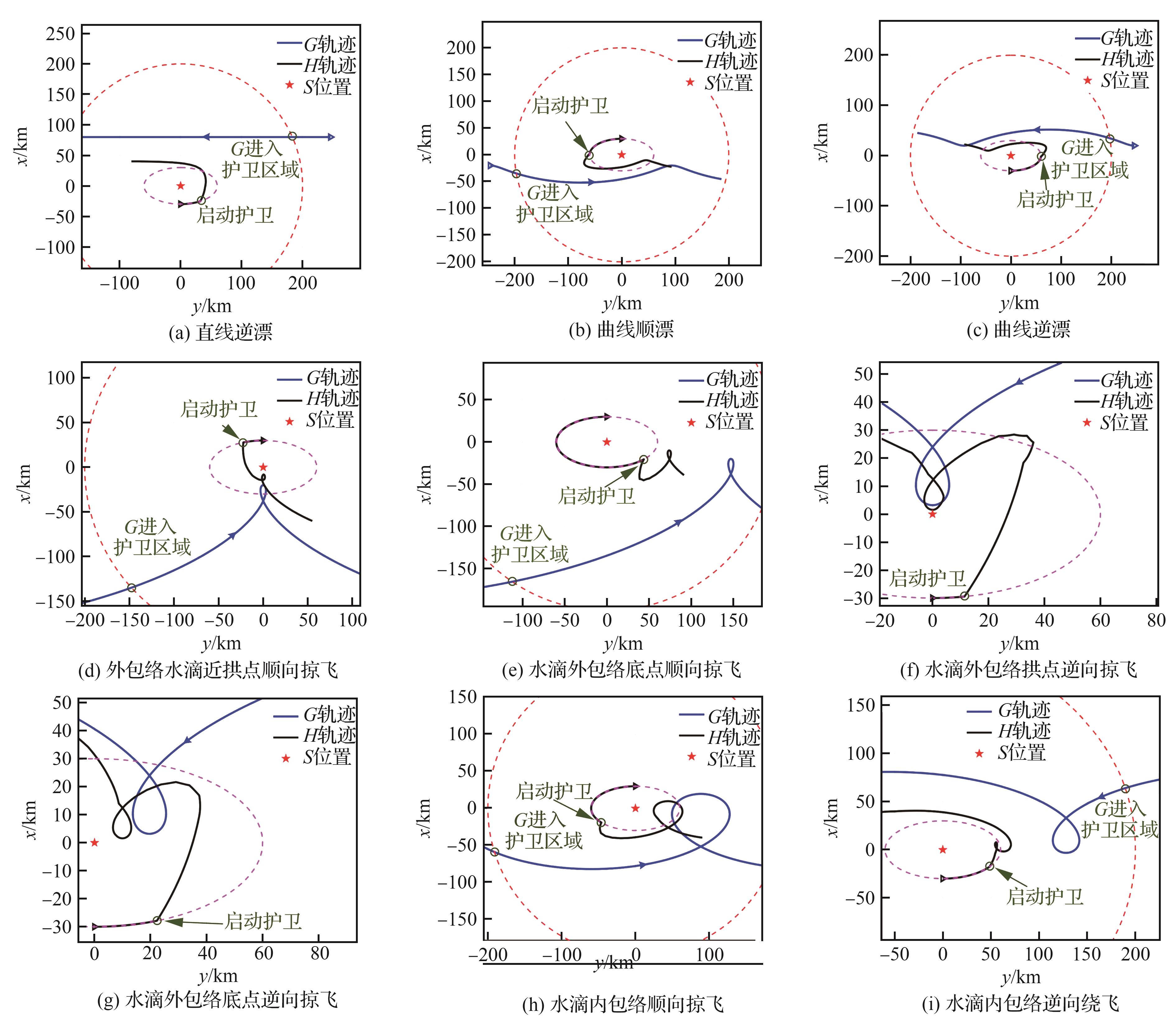

序号	非合作目标G意图
1	交会	G与S之间的最小距离小于阈值
2	掠飞	直线顺漂
		直线逆漂
		曲线顺漂
		曲线逆漂
		外包络水滴近拱点顺向掠飞
		水滴外包络底点顺向掠飞
		水滴外包络拱点逆向掠飞
		水滴外包络底点逆向掠飞
		水滴内包络顺向掠飞
		水滴内包络逆向掠飞
3	绕飞	水滴式顺向绕飞
		水滴式逆向绕飞
		螺线顺向绕飞
		螺线逆向绕飞
		椭圆绕飞
4	驻留	椭圆前向驻留
		椭圆后向驻留
		前向定点悬停
		后向定点悬停

航天器	相对位置/km			相对速度/（m·s^-1）
航天器	x	y	z	x	y	z
S	0	0	0	0	0	0
H	0	15	0	0	0	0
G	-23.51	145.72	-5.87	2.373 6	3.449 0	0.593 4

航天器	相对位置/km			相对速度/（m∙s^-1）
航天器	x	y	z	x	y	z
S	0	0	0	0	0	0
H	0	15	0	0	0	0
G	-80	-245.7	-5.87	0	0.008 8	0.000 6

序号	H-G初始距离/km	到达视线中间时刻t_m/h	t_m 时H-G与S-H相对距离差/m	t_m后H-G与S-H距离之差/m
1	269.28	9.24	998.09	297.97
2	250.82	21.39	999.56	768.52
3	250.82	26.43	999.31	500.64
4	276.66	10.79	995.37	481.70
5	834.65	23.08	992.50	224.78
6	224.80	5.72	999.50	418.80
7	242.09	9.07	995.12	519.89
8	207.07	32.48	999.94	636.82
9	330.12	18.79	997.98	739.24

航天器	相对位置/km			相对速度/（m·s^-1）
航天器	x	y	z	x	y	z
S	0	0	0	0	0	0
H	0	-100	0	0	0	0
G	-72.10	-465	-8	-5.44	8.81	0.43

Spacecraft guardian strategy design via motion-intent recognition

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 28

References 20

Related Articles 15

Recommended Articles

Metrics

Comments

序号	H-G初始距离/ km	进入视线时刻t_v/ h	t_v时刻方位角/（°）	相对距离小于1 km时刻/ h
1	429.48	7.98	178.59	15.69
2	384.72	6.44	178.96	15.44
3	79.91	5.69	178.66	9.01
4	164.34	0.65	179.13	9.09

序号	H-G初始距离/km	进入视线时刻t_v/h	t_v时刻方位角/（°）	S-H轨迹中心距离/km	H-G轨迹中心距离/km
1	160.70	4.67	178.55	45.13	114.87
2	185.53	4.71	179.19	51.38	128.62
3	182.48	7.80	179.16	50.89	129.11
4	182.48	7.79	178.85	51.33	128.11
