基于神经网络的S弯喷管-涡扇发动机多维度仿真

doi:10.7527/S1000-6893.2024.30791

Abstract

Abstract:

The internal flow of the serpentine nozzle is complex， with numerous parameters affecting its aerodynamic performance. Traditional component-based zero-dimensional engine models cannot accurately assess the aerodynamic performance impact of the serpentine nozzle on the overall engine. In this paper， a high-fidelity performance prediction model for serpentine nozzles is established using the back propagation （BP） neural network， and is coupled with a zero-dimensional turbofan engine model. This integrated approach is employed to investigate the influence of the baseline serpentine nozzle on engine speed， altitude characteristics， and component behaviors， as well as the differences in nozzle and engine performance with various geometric parameters. The results indicate that compared to axisymmetric nozzles， the engine equipped with the serpentine nozzle experiences a decline in performance. Specifically， at sea-level static conditions， the engine’s thrust decreases by 4.50%， while the fuel consumption increases by 4.75%； the fan bypass ratio decreases by a maximum of 0.33% at sea level， accompanied by a reduction in surge margin. Conversely， at an altitude of 12 km， the fan bypass ratio increases by a maximum of 0.28%， and the surge margin increases. These variation trends in fan operating characteristics can be attributed to the differences in throttling effects of the serpentine nozzle on the core and bypass of mixing chamber at different altitudes. Additionally， increasing the length-to-diameter ratio of the serpentine nozzle from 2.2 to 3.0 enhances its performance， resulting in an 8.0% increase in thrust coefficient and a 4.8% increase in discharge coefficient. The multi-dimensional coupling model between serpentine nozzle and engine established in this study can effectively evaluate the changes in engine performance and component characteristics following the installation of serpentine nozzles of varying geometric parameters.

Key words: numerical zooming, serpentine nozzle, turbofan engine, multi-dimensional coupling, neural network, geometric parameter

CLC Number:

V231.1

Chengxi WANG, Li ZHOU, Xiaolin SUN, Xiaobo ZHANG, Zhanxue WANG. Multi-dimensional simulation between serpentine nozzle and turbofan based on neural network[J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(15): 130791.

Figures/Tables 26

Fig.1

Fig.2

Table 1

Table 2

Parameters range of serpentine nozzle

参数	下限	上限
L/D	2.2	3
W/H_n	2	11
A_e/A_i	0.5	0.9
P $c $ /P $b $	0.9	1.1
NPR_c	1.5	4.5
T $c *$ /K	600	1 000
T $b *$ /K	250	500

Table 2

Fig.3

Table 3

Fig.4

Fig.5

Table 4

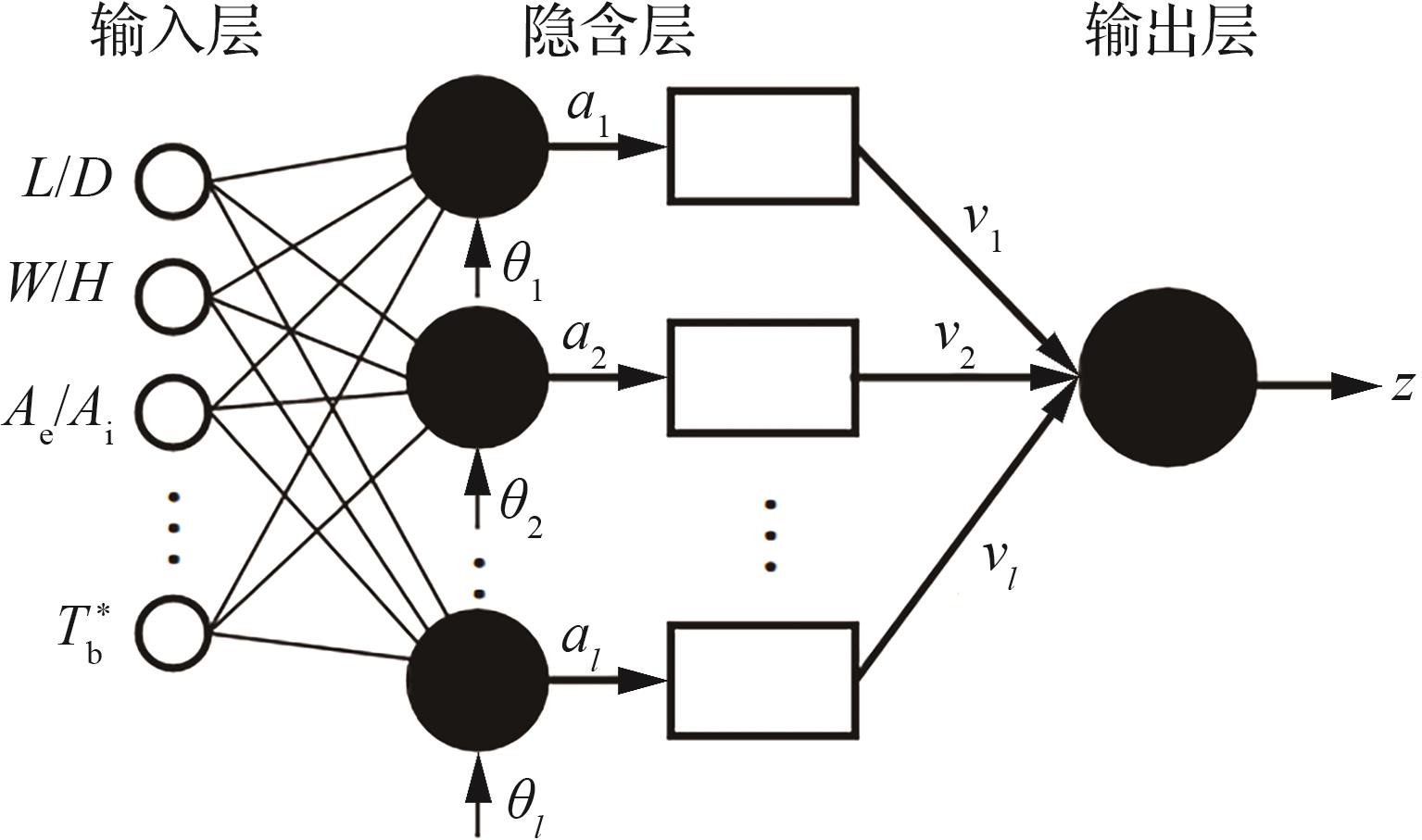

Fig.6

Fig.7

Table 5

Table 6

Fig.8

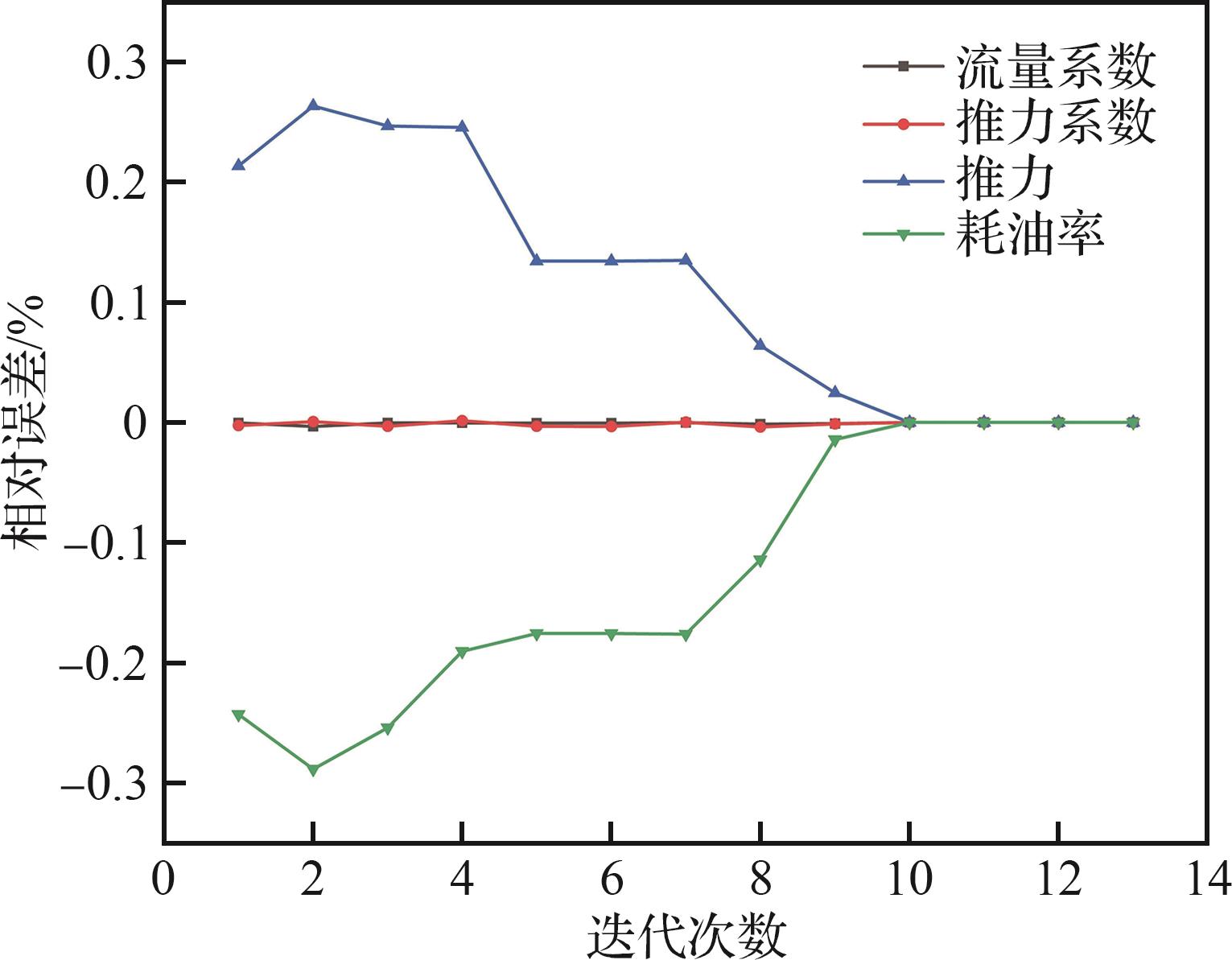

Fig.9

Table 7

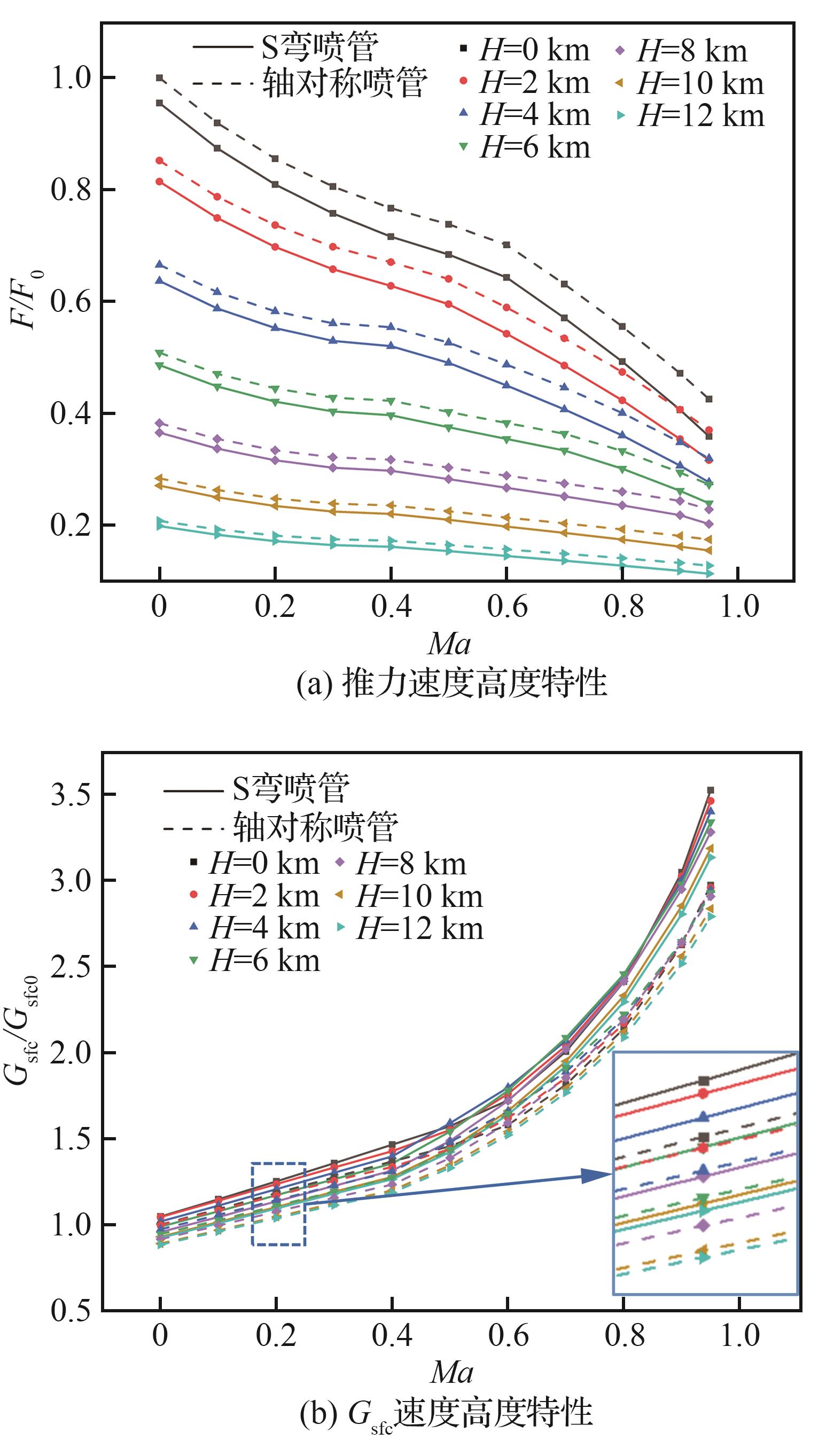

Fig.10

Fig.11

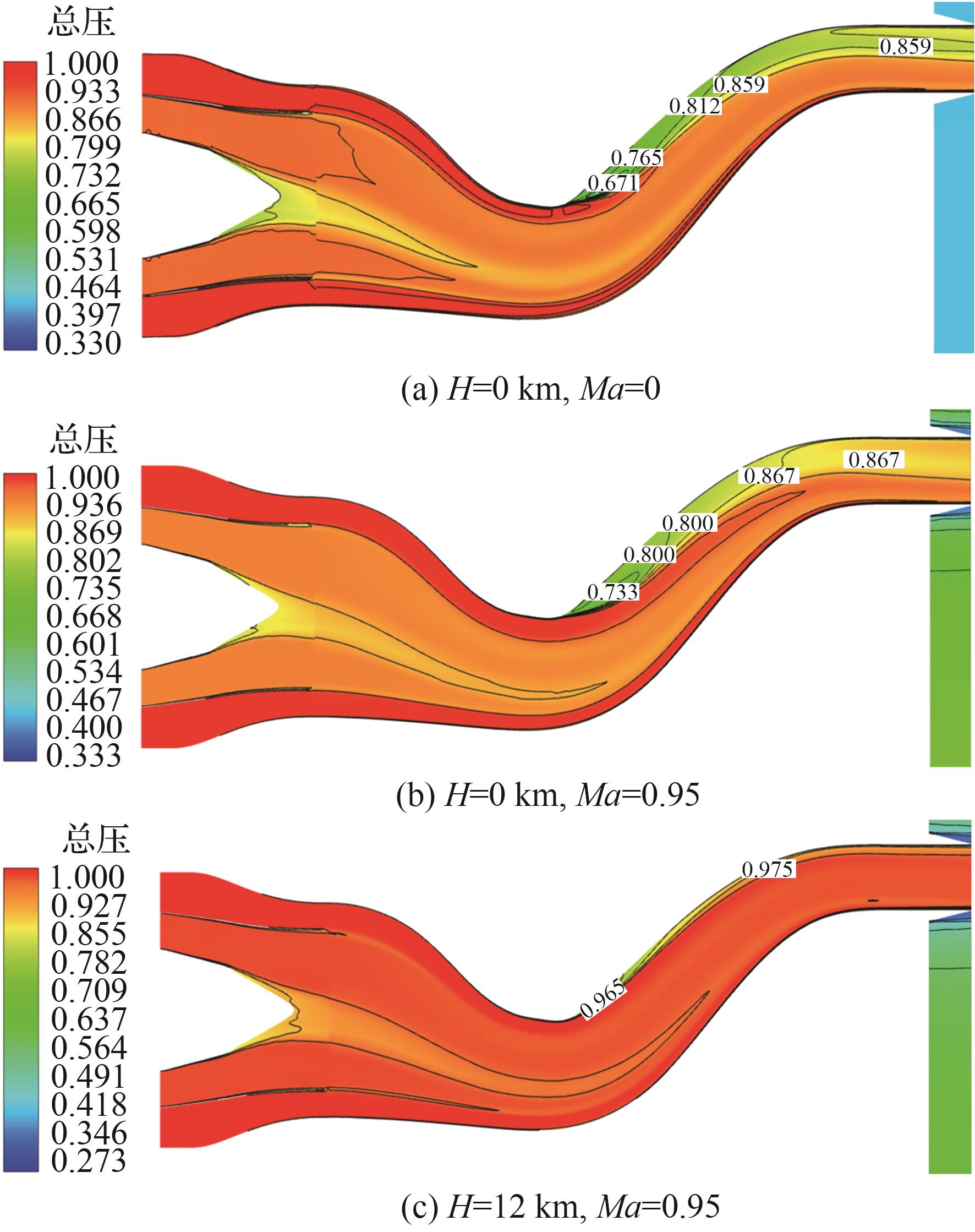

Fig.12

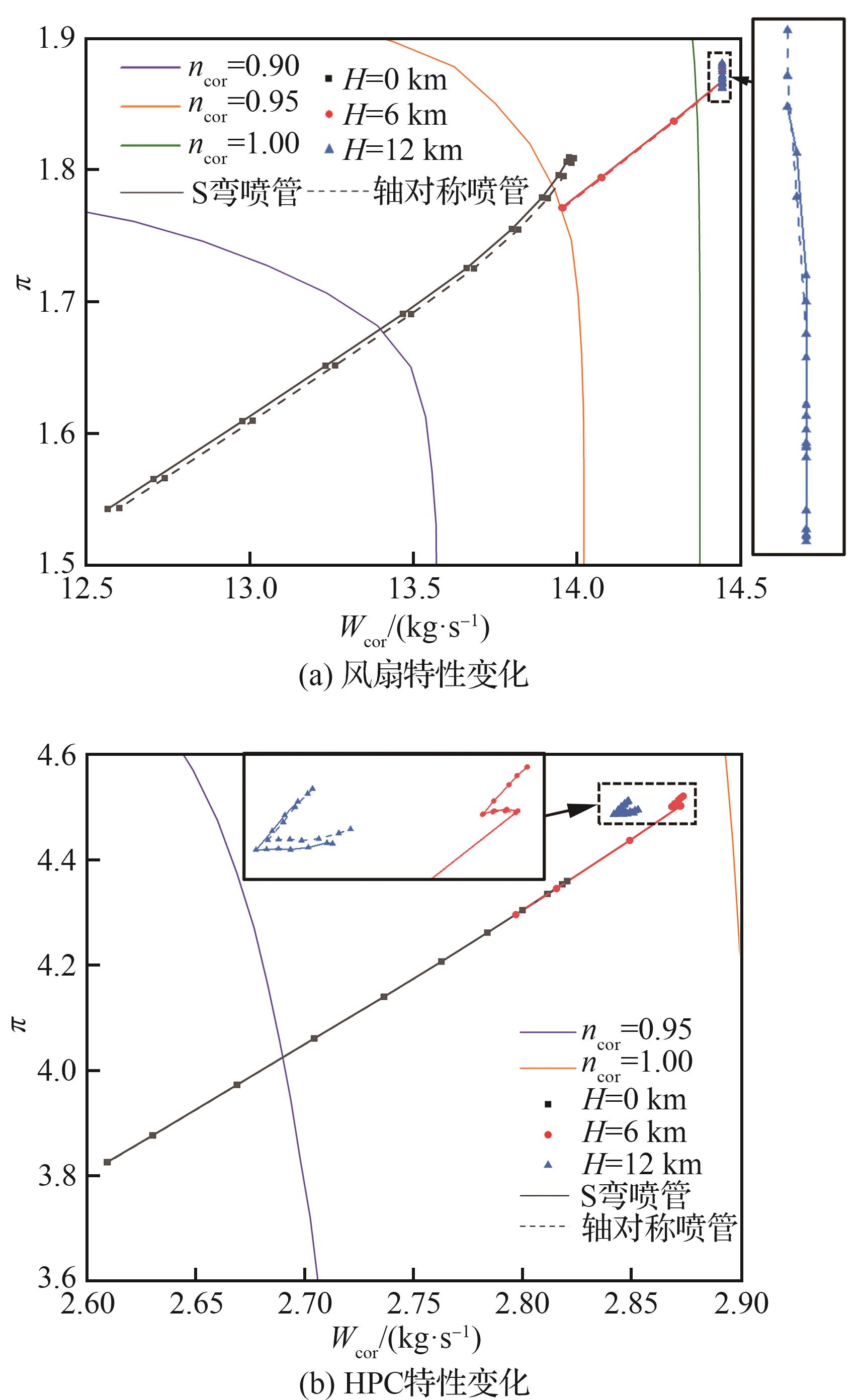

Fig.13

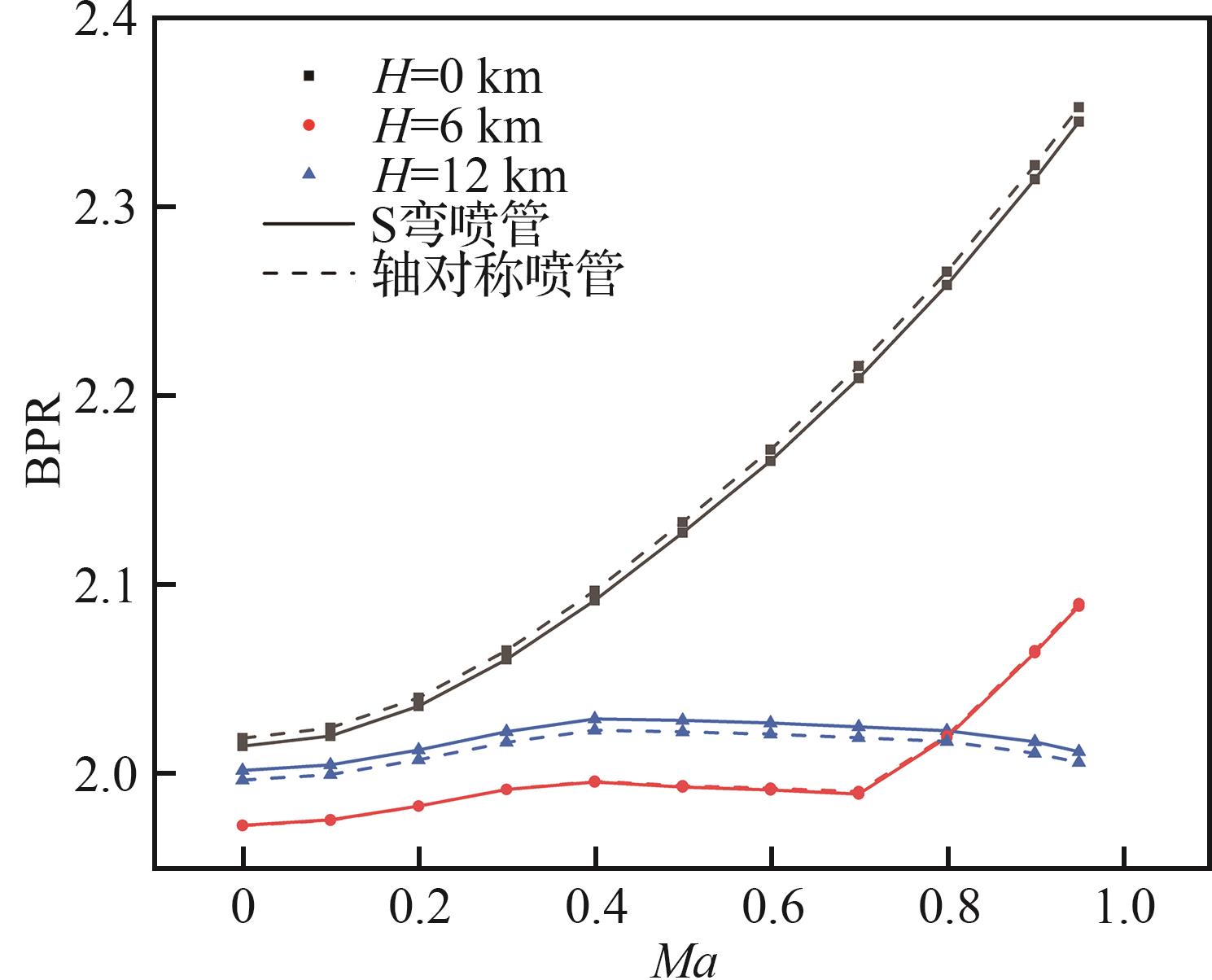

Fig.14

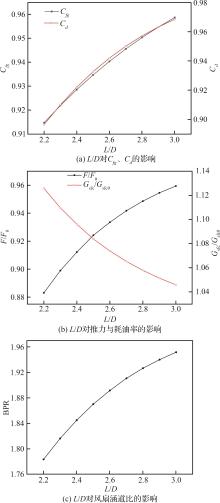

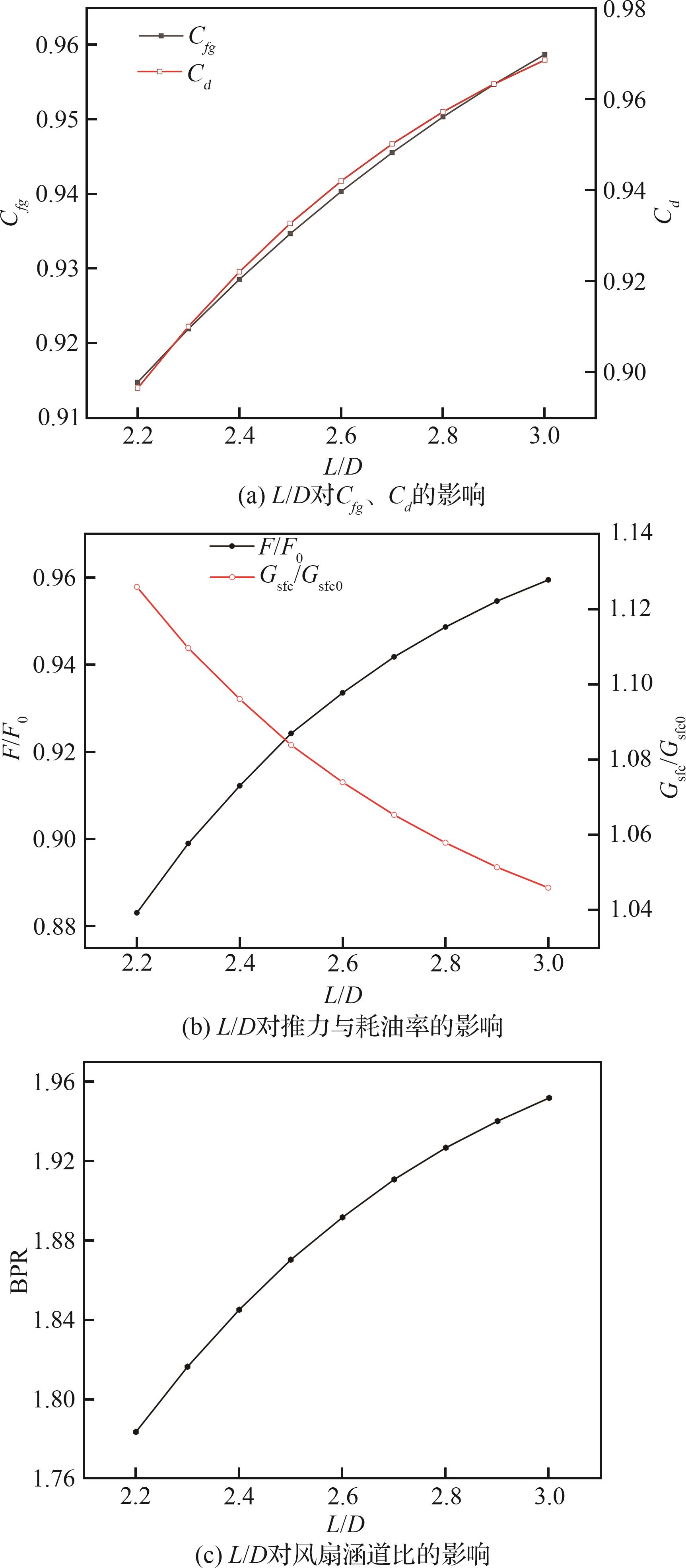

Fig.15

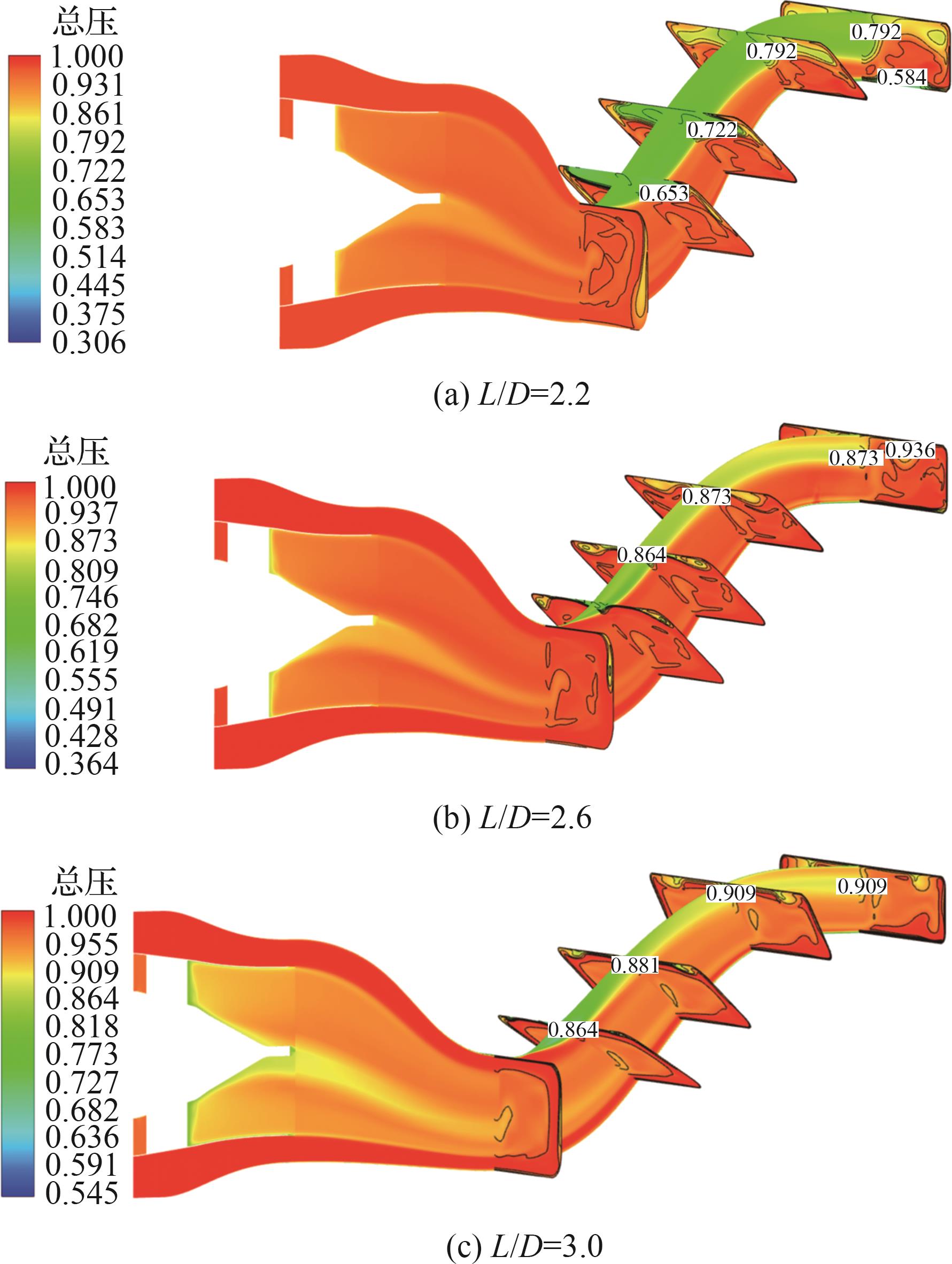

Fig.16

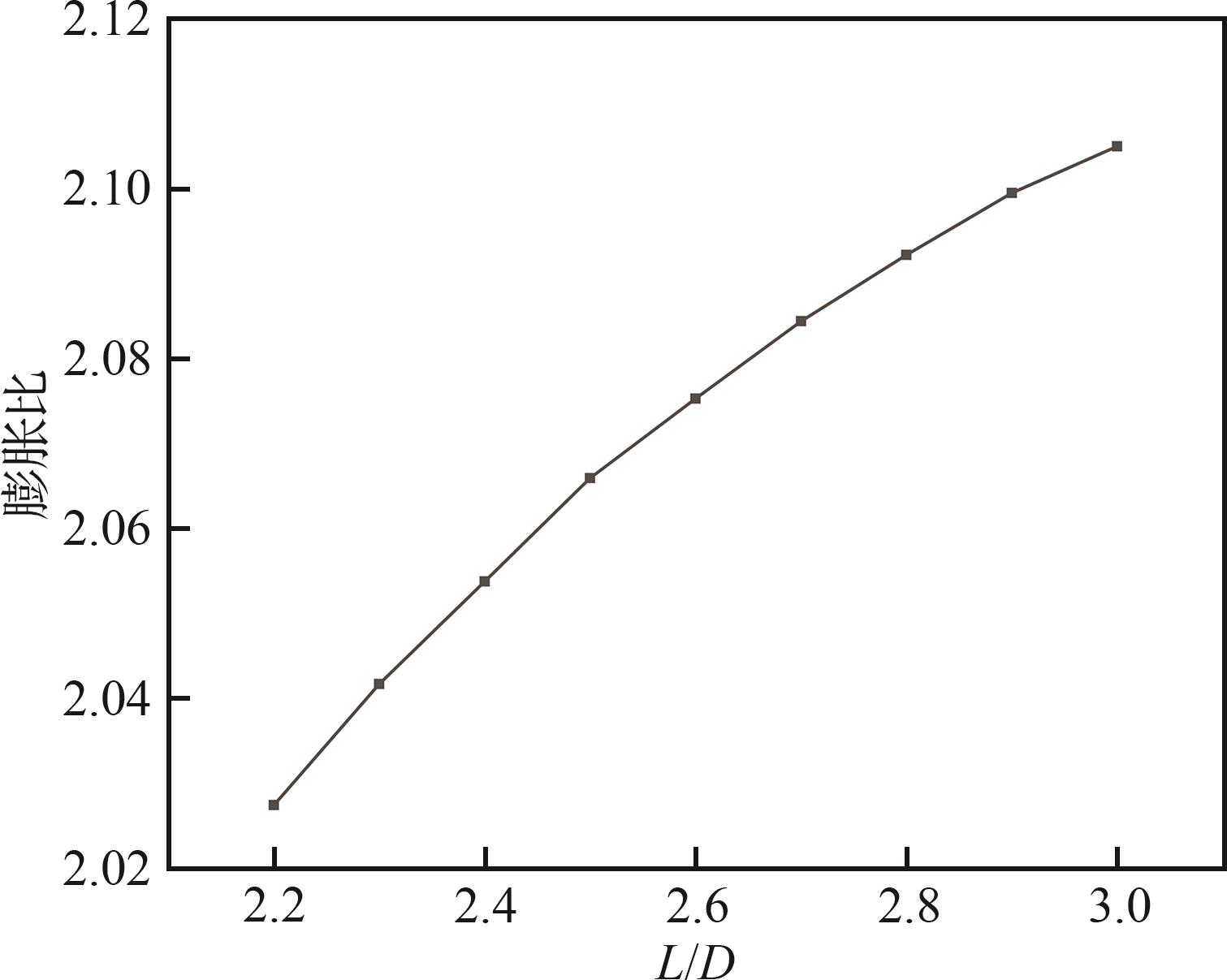

Fig.17

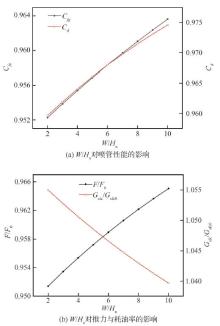

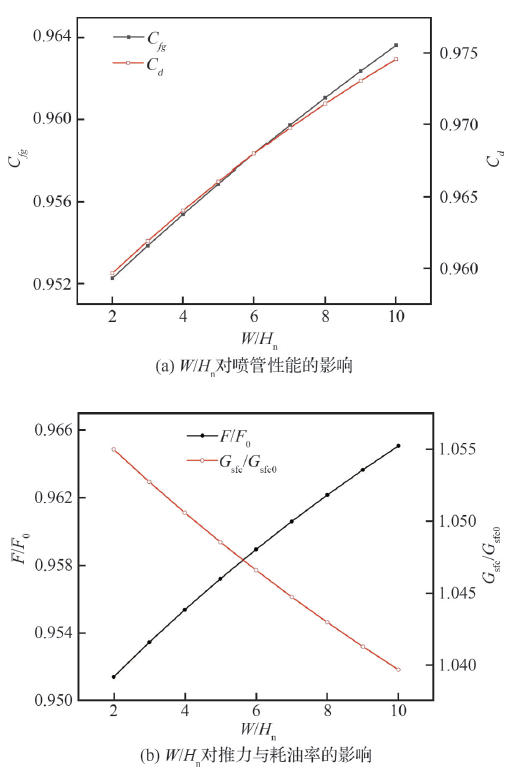

Fig.18

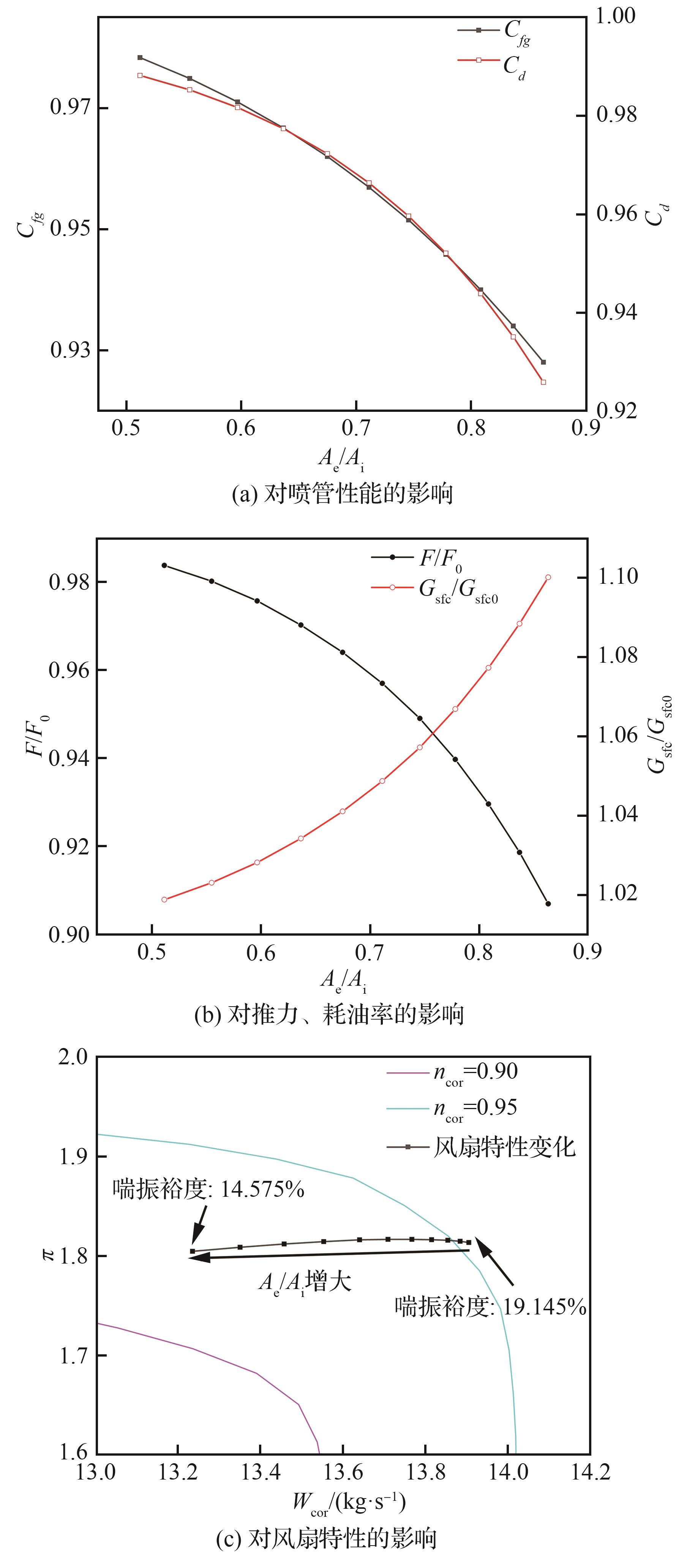

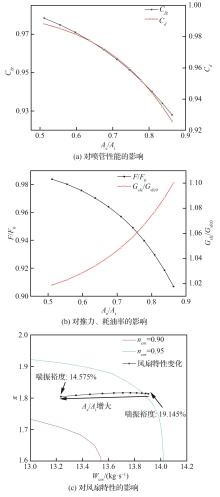

Fig.19

References 28

[1]	刘大响. 航空发动机设计手册：进排气装置［M］. 北京：航空工业出版社， 2002： 276.
	LIU D X. Aeroengine design manual： Inlet and exhaust system ［M］. Beijing： Aviation Industry Press， 2002： 276 （in Chinese）.
[2]	高翔. 飞行器/排气系统红外辐射及电磁散射特性数值研究［D］. 西安：西北工业大学， 2016： 4-6.
	GAO X. Numerical study on infrared radiation and electromagnetic scattering characteristics of aircraft/exhaust system［D］. Xi’an： Northwestern Polytechnical University， 2016： 4-6 （in Chinese）.
[3]	是介，周莉，史经纬，等. 复杂来流条件下设计参数对S弯喷管红外辐射特征影响［J］. 航空学报， 2024， 45（17）： 530082.
	SHI J， ZHOU L， SHI J W， et al. Influence of design parameters on infrared radiation characteristics of serpentine nozzles under complex flow conditions‍［J］. Acta Aeronautica et Astronautica Sinica， 2024， 45（17）： 530082 （in Chinese）.
[4]	GRIDLEY M C， WALKER S H. Inlet and nozzle technology for 21st century fighter aircraft［C］∥ASME 1996 International Gas Turbine and Aeroengine Congress and Exhibition. New York： ASME， 2015.
[5]	MAHULIKAR S P， SONAWANE H R， ARVIND RAO G. Infrared signature studies of aerospace vehicles［J］. Progress in Aerospace Sciences， 2007， 43（7-8）： 218-245.
[6]	STACK C M， GAITONDE D V. Shear layer dynamics in a supersonic rectangular multistream nozzle with an aft-deck［J］. AIAA Journal， 2018， 56（11）： 4348-4360.
[7]	孙啸林. 低可探测S弯喷管设计及性能评估方法研究［D］. 西安：西北工业大学， 2018.
	SUN X L. Study on design and performance evaluation method of low detectable S-bend nozzle［D］. Xi’an： Northwestern Polytechnical University， 2018 （in Chinese）.
[8]	孟钰博，史经纬，周莉，等. 异型喷口的多维偏转S弯喷管设计方法［J］. 航空学报， 2024， 45（8）： 128930.
	MENG Y B， SHI J W， ZHOU L， et al. Design method for multi-dimensional deflected serpentine nozzle with abnormal exit［J］. Acta Aeronautica et Astronautica Sinica， 2024， 45（8）： 128930 （in Chinese）.
[9]	王明新，周莉，史经纬，等. S弯收扩喷管过膨胀状态下流动分离特性研究［J］. 推进技术， 2024， 45（9）： 76-87.
	WANG M X， ZHOU L， SHI J W， et al. Flow separation characteristics of S-shaped convergent-divergent nozzle under overexpanded condition［J］. Journal of Propulsion Technology， 2024， 45（9）： 76-87 （in Chinese）.
[10]	周莉，孟钰博，王占学. S弯收扩喷管流动特性数值研究［J］. 推进技术， 2021， 42（1）： 103-113， 2.
	ZHOU L， MENG Y B， WANG Z X. Numerical study on flow characteristics of serpentine convergent-divergent nozzle［J］. Journal of Propulsion Technology， 2021， 42（1）： 103-113， 2 （in Chinese）.
[11]	MENG Y B， SHI J W， ZHOU L， et al. Numerical investigation on flow characteristics of multi-stream supersonic nozzle with serpentine configuration［J］. Aerospace Science and Technology， 2024， 144： 108799.
[12]	李秋琳，周莉，孙鹏，等. 出口宽高比对S弯喷管流固耦合特性影响［J］. 航空学报， 2023， 44（14）： 628204.
	LI Q L， ZHOU L， SUN P， et al. Influence mechanism of aspect ratio on fluid-structure interaction characteristics of serpentine nozzle［J］. Acta Aeronautica et Astronautica Sinica， 2023， 44（14）： 628204 （in Chinese）.
[13]	HUI Z H， SHI J W， ZHOU L， et al. Experimental investigation on the effects of complex pressure gradients on the film cooling effectiveness of a serpentine nozzle［J］. Applied Thermal Engineering， 2024， 254： 123894.
[14]	CLAUS R， LAVELLE T， TOWNSEND S， et al. Variable fidelity analysis of complete engine systems［C］∥43rd AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston： AIAA， 2007.
[15]	EVANS A， FOLLEN G， NAIMAN C， et al. Numerical propulsion system simulation’s national cycle program［C］∥34th AIAA/ASME/SAE/ASEE Joint Propulsion Conference and Exhibit. Reston： AIAA， 1998.
[16]	NICHOLS L， CHAMIS C. Numerical propulsion system simulation-An interdisciplinary approach［C］∥Conference on Advanced SEI Technologies. Reston： AIAA， 1991.
[17]	CLAUS R W， EVANS A L， LYLTE J K， et al. Numerical propulsion system simulation［J］. Computing Systems in Engineering， 1991， 2（4）： 357-364.
[18]	LYTEL J， FOLLEN G， NAIMAN C， et al. 2001 numerical propulsion system simulation review： NASA/TM-2002-211197‍［R］. Washington， D.‍ C.： NASA， 2002.
[19]	REITENBACH S， SCHNÖS M， BECKER R G， et al. Optimization of compressor variable geometry settings using multi-fidelity simulation［C］∥ASME Turbo Expo 2015： Turbine Technical Conference and Exposition. New York： ASME， 2015， doi：10.1115/GT2015-42832 .
[20]	FOLLEN G， AUBUCHON M. Numerical zooming between a NPSS engine system simulation and a one-dimensional high compressor analysis code： NASA/TM-2000-209913［R］. Washington， D. C.： NASA， 2020.
[21]	宋甫，周莉，王占学，等. 部件三维仿真模型与发动机循环参数分析的耦合方法研究［J］. 推进技术， 2022， 43（7）： 80-87.
	SONG F， ZHOU L， WANG Z X， et al. Coupling method between three-dimensional component simulation model and aero-engine cycle parameter analysis［J］. Journal of Propulsion Technology， 2022， 43（7）： 80-87 （in Chinese）.
[22]	XU Y B， YAN C， PIAO Y. Analysis of discrepancies between 3-D coupled and uncoupled schemes based on CFD in full engine simulation［J］. Aerospace Science and Technology， 2022， 131： 107978.
[23]	SONG F， ZHOU L， WANG Z X， et al. Integration of high-fidelity model of forward variable area bypass injector into zero-dimensional variable cycle engine model［J］. Chinese Journal of Aeronautics， 2021， 34（8）： 1-15.
[24]	许哲文，唐海龙，陈敏，等. 基于混合维度仿真的自适应循环发动机引射喷管安装性能研究［J］. 推进技术， 2023， 44（9）： 20-34.
	XU Z W， TANG H L， CHEN M， et al. Installed performance of adaptive cycle engine ejector nozzle based on multi-fidelity simulation［J］. Journal of Propulsion Technology， 2023， 44（9）： 20-34 （in Chinese）.
[25]	CONNOLLY J W， FRIEDLANDER D J， KOPASAKIS G. Computational fluid dynamics modeling of a supersonic nozzle and integration into a variable cycle engine model［C］∥50th AIAA/ASME/SAE/ASEE Joint Propulsion Conference. Reston： AIAA， 2014： 3687.
[26]	陈玉春，黄兴，高本兵，等. 发动机总体与尾喷管三维并行设计研究［J］. 航空动力学报， 2007， 22（10）： 1695-1699.
	CHEN Y C， HUANG X， GAO B B， et al. Parallel design of turbo engine and three-dimensional nozzle［J］. Journal of Aerospace Power， 2007， 22（10）： 1695-1699 （in Chinese）.
[27]	亚历山大·I . J. 福瑞斯特，安德瑞斯·索比斯特，安迪·J . 肯尼. 基于代理模型的工程设计：实用指南［M］. 韩忠华，张科施，译. 北京：航空工业出版社， 2018： 17-26.
	ALEXANDER I J F， ANDRÁS S， ANDY J K. Engineering design via surrogate modelling［M］. HAN Z H， ZHANG K S， translated.Beijing： Aviation Industry Press， 2018： 17-26 （in Chinese）.
[28]	周红. 变循环发动机特性分析及其与飞机一体化设计研究［D］. 西安：西北工业大学， 2016： 42-44.
	ZHOU H. Characteristic analysis of variable cycle engine and its integrated design with aircraft［D］. Xi’an： Northwestern Polytechnical University， 2016： 42-44 （in Chinese）.

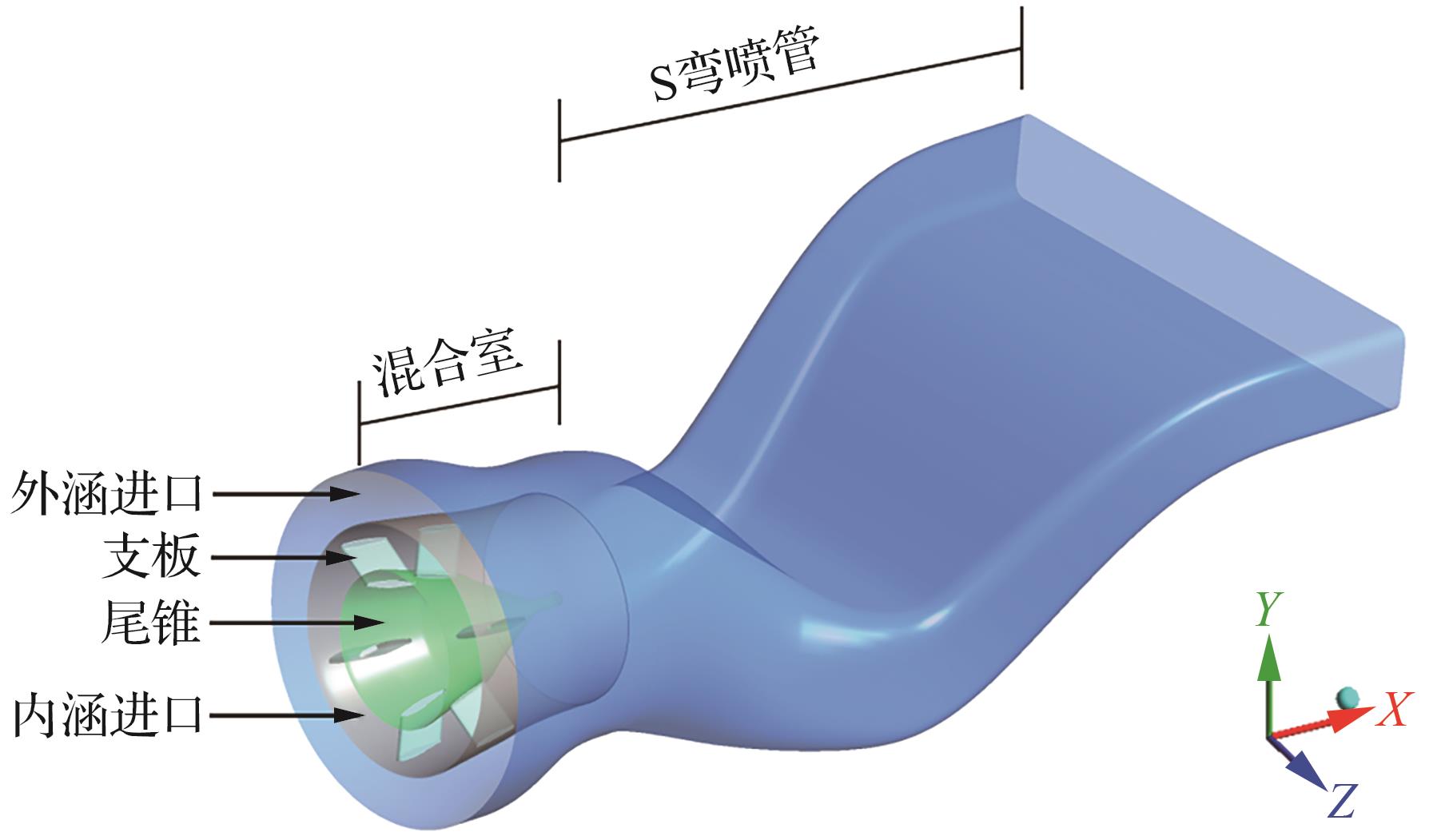

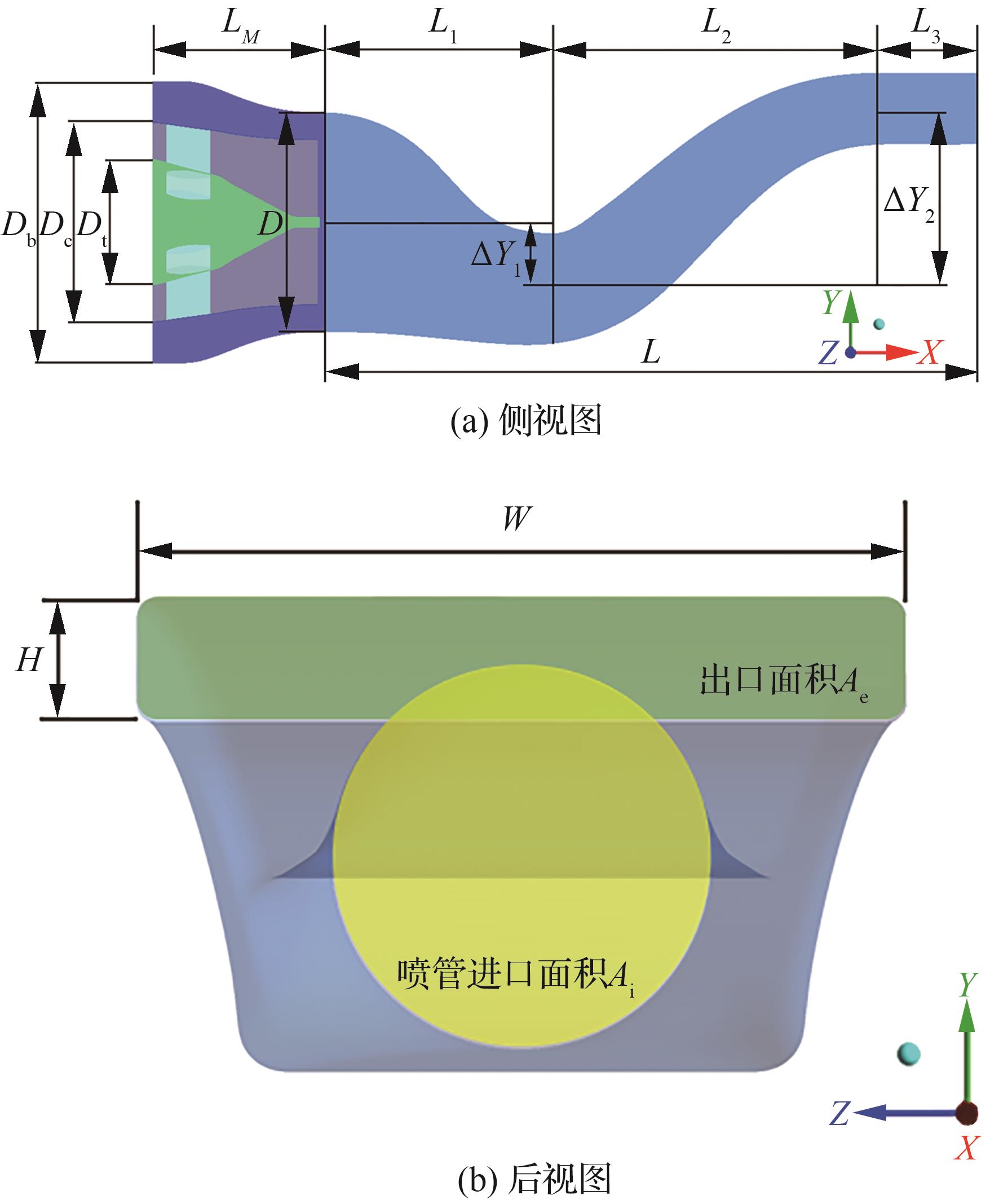

参数所属部件	参数名称	参数符号
混合室	长度	L_M
	外涵直径	D_b
	内涵直径	D_c
喷管	进口直径	D
	总长度	L
	出口宽度	W
	出口高度	H_n
	进口面积	A_i
	出口面积	A_e
	长径比	L/D
	出口宽高比	W/H_n
	出进口面积比	A_e/A_i

边界名称	边界类型
混合室外涵进口	压力进口
混合室内涵进口	压力进口
混合室-喷管交界面	interface
混合室壁面	绝热无滑移壁面
喷管壁面	绝热无滑移壁面
喷管-远场交界面	interface
远场进口	压力进口
远场边界	开放边界（Opening）
远场出口	压力出口

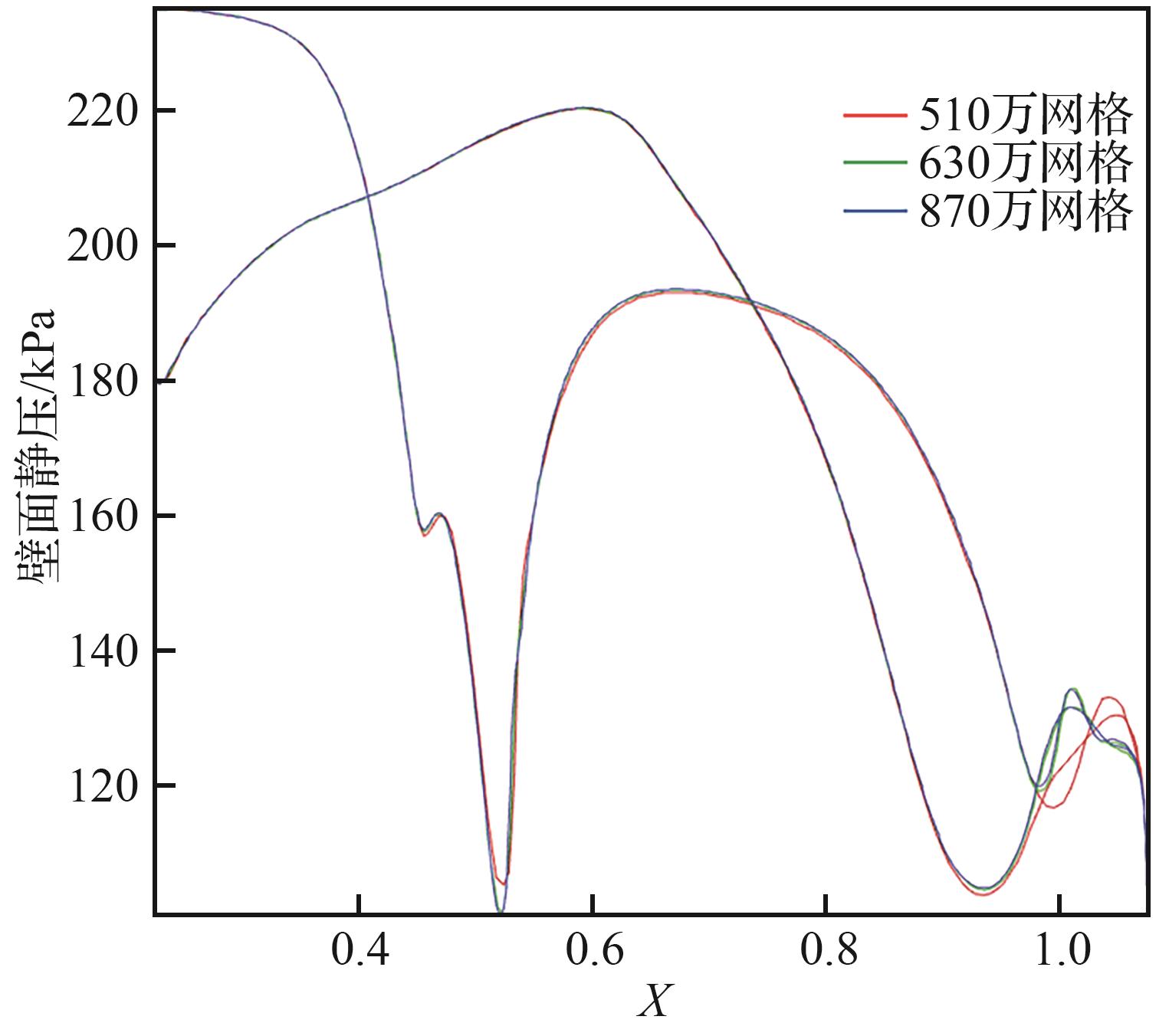

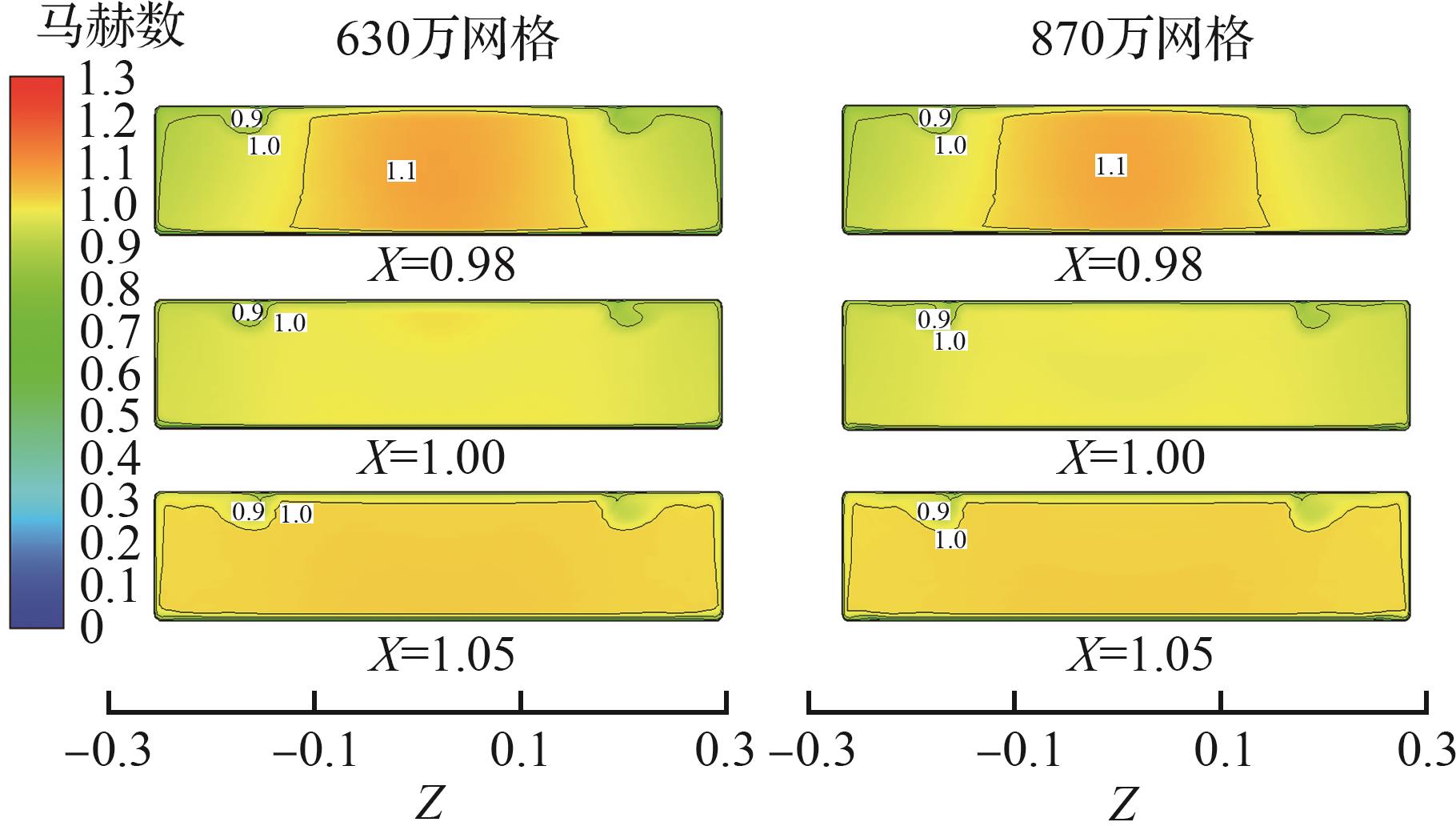

网格数量/10⁴	推力系数	流量系数
相对误差/%	0.06	0.05
630	0.977 213	0.983 522
870	0.977 776	0.983 996

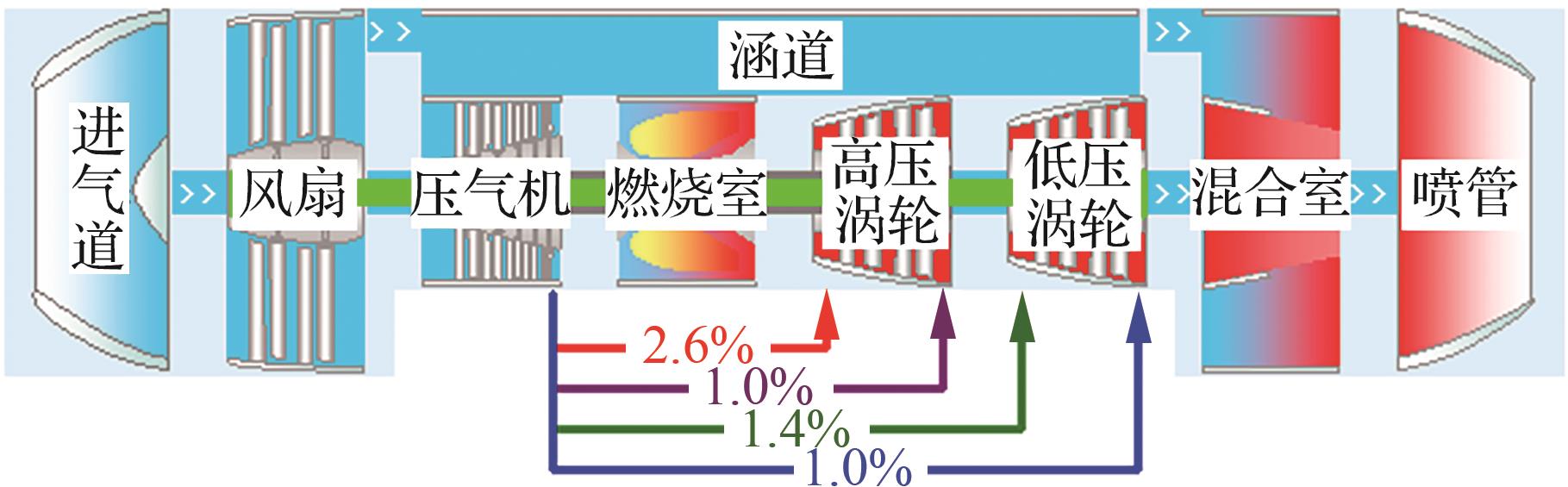

设计参数	数值
飞行高度/km	0
飞行马赫数	0
风扇压比	1.81
涵道比	2.01
压气机压比	4.36
涡轮前总温/K	1 255.00

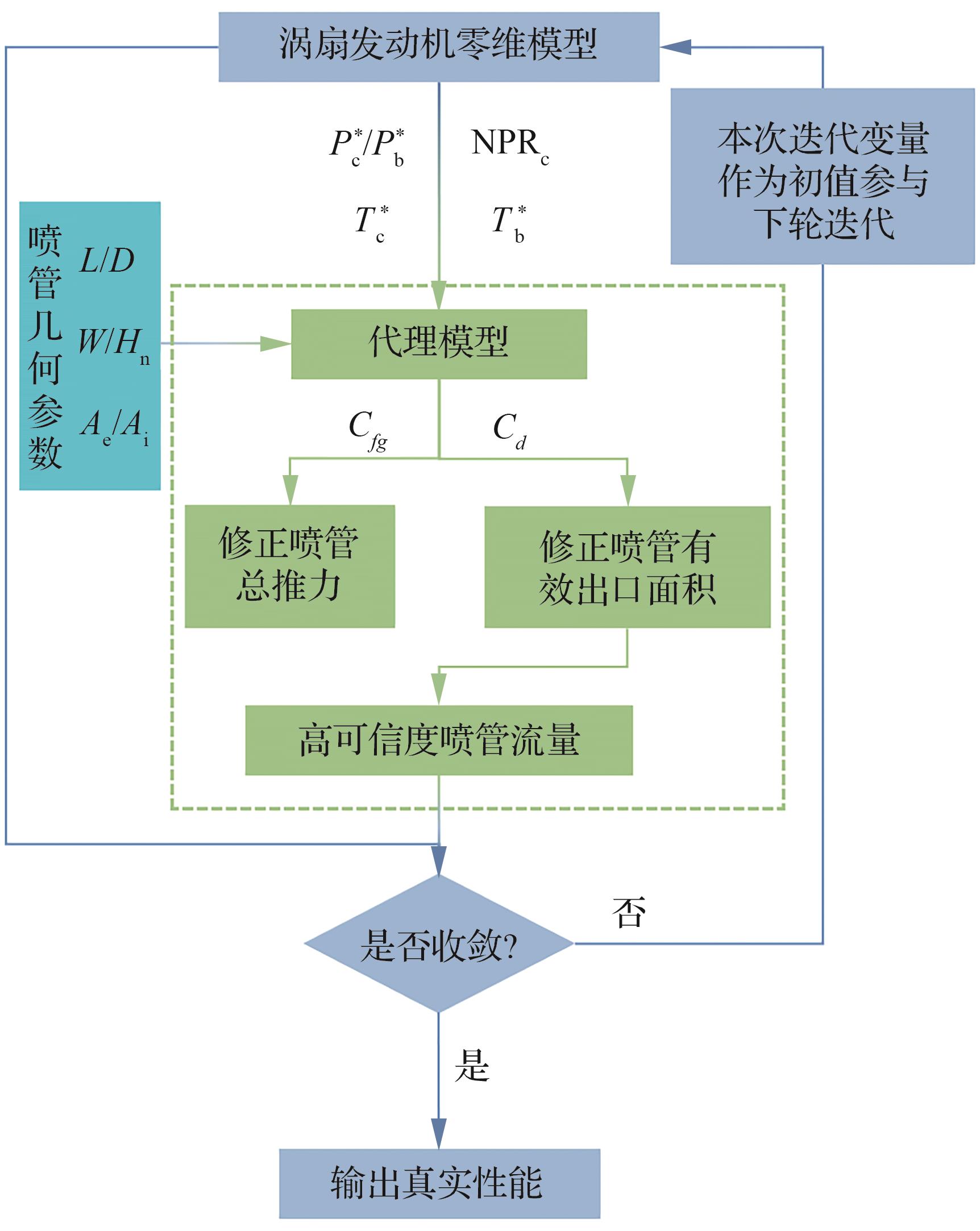

部件	迭代变量	残差变量
风扇	涵道比、β	质量流量
高压压气机	β	质量流量
燃烧室	出口总温T_t4	质量流量
高压涡轮	β	质量流量
低压涡轮	β	质量流量
混合室		静压
喷管		质量流量
低压轴	转速	功率
高压轴	转速	功率

Multi-dimensional simulation between serpentine nozzle and turbofan based on neural network

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 26

References 28

Related Articles 15

Recommended Articles

Metrics

Comments

结果	F/F_0，e	G_sfc/G_sfc0，e	P_t3/P_t3，0，e
相对误差/%	0.357 3	0.348 7	0.508 6
实验数据	0.951 62	1.043 83	0.994 97
模型计算	0.955 02	1.047 47	1.000 03
