多模态飞机热管理系统双温协同架构设计与优化

doi:10.7527/S1000-6893.2026.33166

Abstract

Abstract:

The thermal management system of contemporary aircraft necessitates meticulous regulation in a multi-modal， multi-objective operational environment. This study introduces an adaptive fuel thermal management system designed to achieve synergistic control of dual target temperatures for fuel and airframe skin under highly dynamic thermal loads. Through the co-optimization of physical-layer thermal pathway reconfiguration and control-layer adaptive refinement， the system demonstrates superior transient performance during transitions between stealth and non-stealth operational modes. At the physical-layer level， the system employs a reconfigurable three-way valve architecture to establish both open-loop and closed-loop heat dissipation pathways， effectively mitigating thermal load contention between fuel and skin. At the control-layer level， an embedded adaptive fuzzy PID algorithm facilitates dynamic decoupling of dual-temperature regulation via real-time modulation of compressor rotational velocity， electronic expansion valve aperture， and liquid cooling pump operational speed. High-fidelity dynamic simulations reveal that， relative to conventional PID control， the proposed adaptive thermal management system attains a 55 s reduction in fuel temperature settling time， accompanied by an 11.85% enhancement in transient response. The skin temperature stabilization duration is curtailed by 83 s， with a 23.38% improvement in dynamic performance. Furthermore， adaptive control significantly refines the actuation dynamics of critical components， minimizing mechanical dissipation and energy expenditure. The liquid cooling pump’s peak rotational velocity diminishes by 400 r/min， the compressor’s maximum speed declines by 700 r/min， and the electronic expansion valve’s overshoot in aperture modulation is reduced by 15.1%. This synergistic integration of physical-layer decoupling and control-layer optimization furnishes a robust and efficient thermal management paradigm for next-generation aircraft， ensuring operational resilience in complex and evolving combat scenarios.

Key words: aircraft thermal management system, dynamic mode switching, dual target temperature regulation, adaptive fuzzy PID control, heat transfer path optimization

CLC Number:

Shengnan JI, Qing AI, Pengda GUAN, Meng LIU, Yong SHUAI. Design and optimization of dual-temperature collaborative architecture for multi-mode aircraft thermal management system[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(13): 633166.

Figures/Tables 10

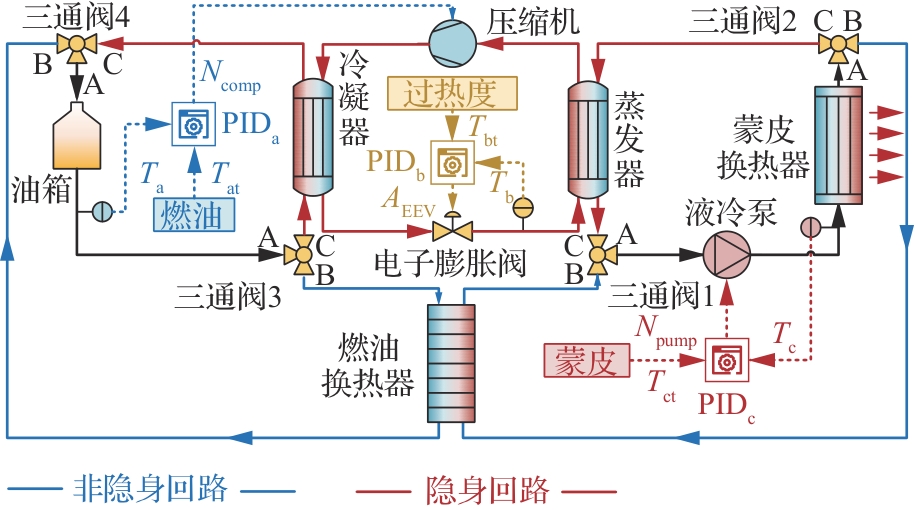

Fig.1

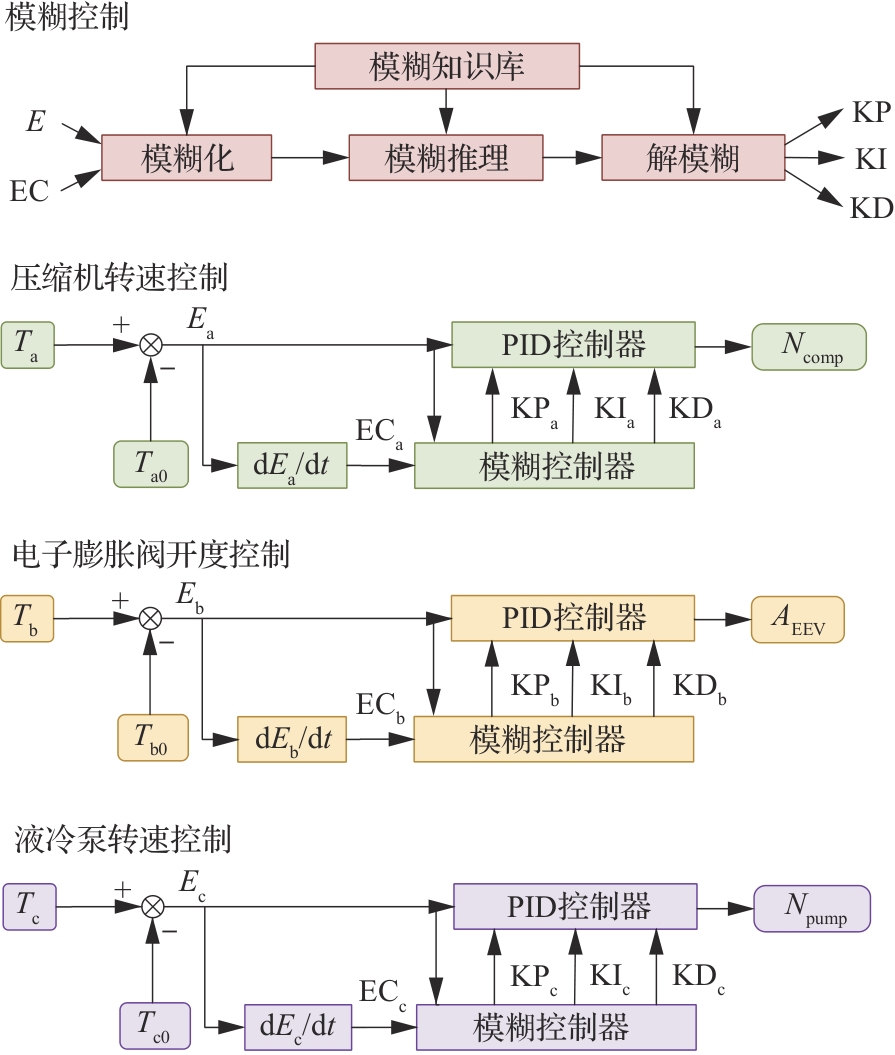

Fig.2

Table 1

Input and output of adaptive optimization control

控制主体	$E$	$E C$	输出参数
压缩机	$E a = T a - T a t$	$E C a = (T a - T a t) / d t$	$N c o m p = K P a E a + K I a ∫ 0 t E a d t + K D a d E a d t$
EEV	$E b = T b - T b t$	$E C b = (T b - T b t) / d t$	$A E E V = K P b E b + K I b ∫ 0 t E b d t + K D b d E b d t$
液冷泵	$E c = T c - T c t$	$E C c = (T c - T c t) / d t$	$N p u m p = K P c E c + K I c ∫ 0 t E c d t + K D c d E c d t$

Table 1

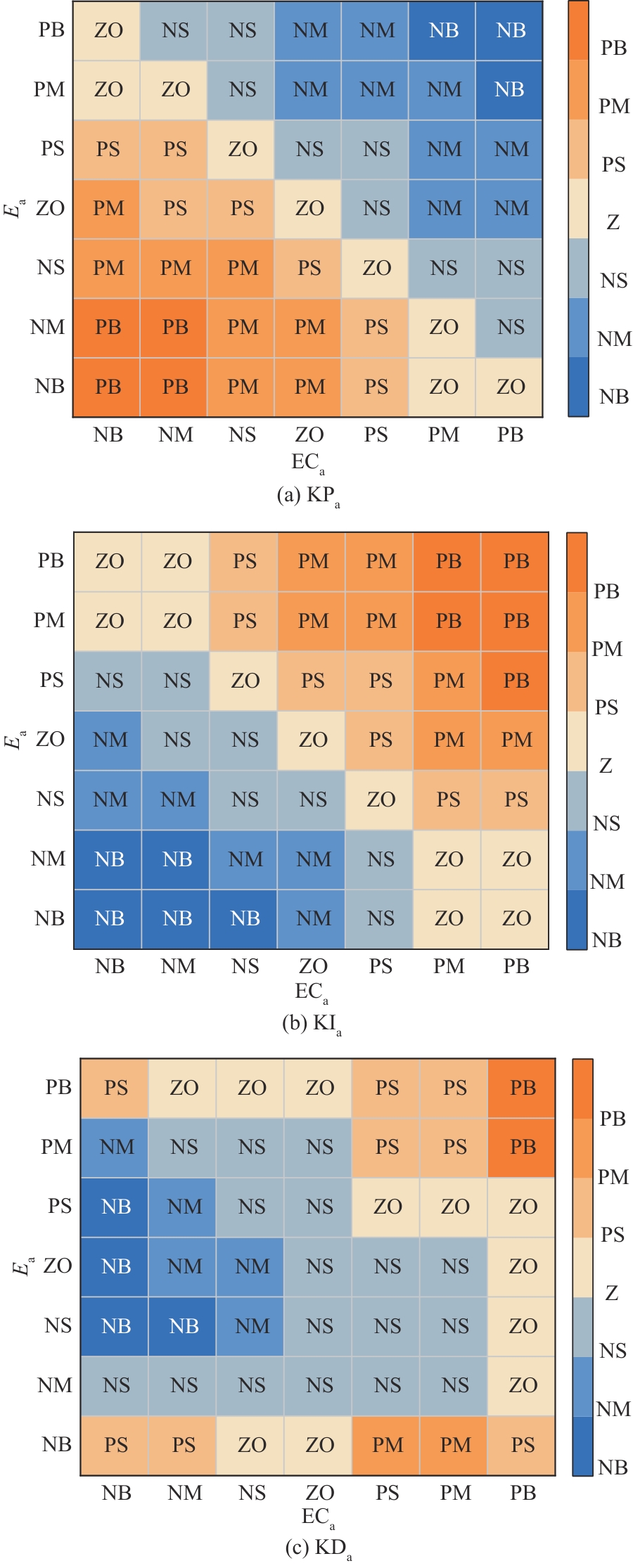

Fig.3

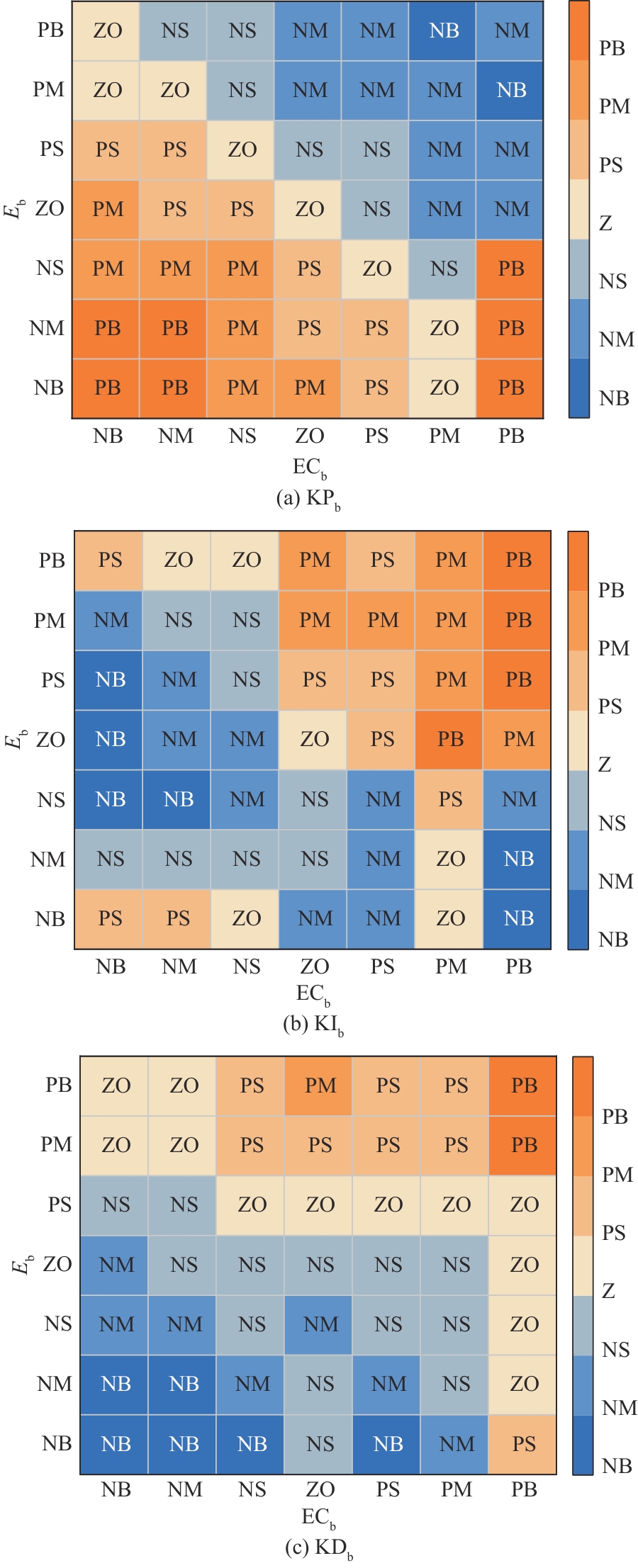

Fig.4

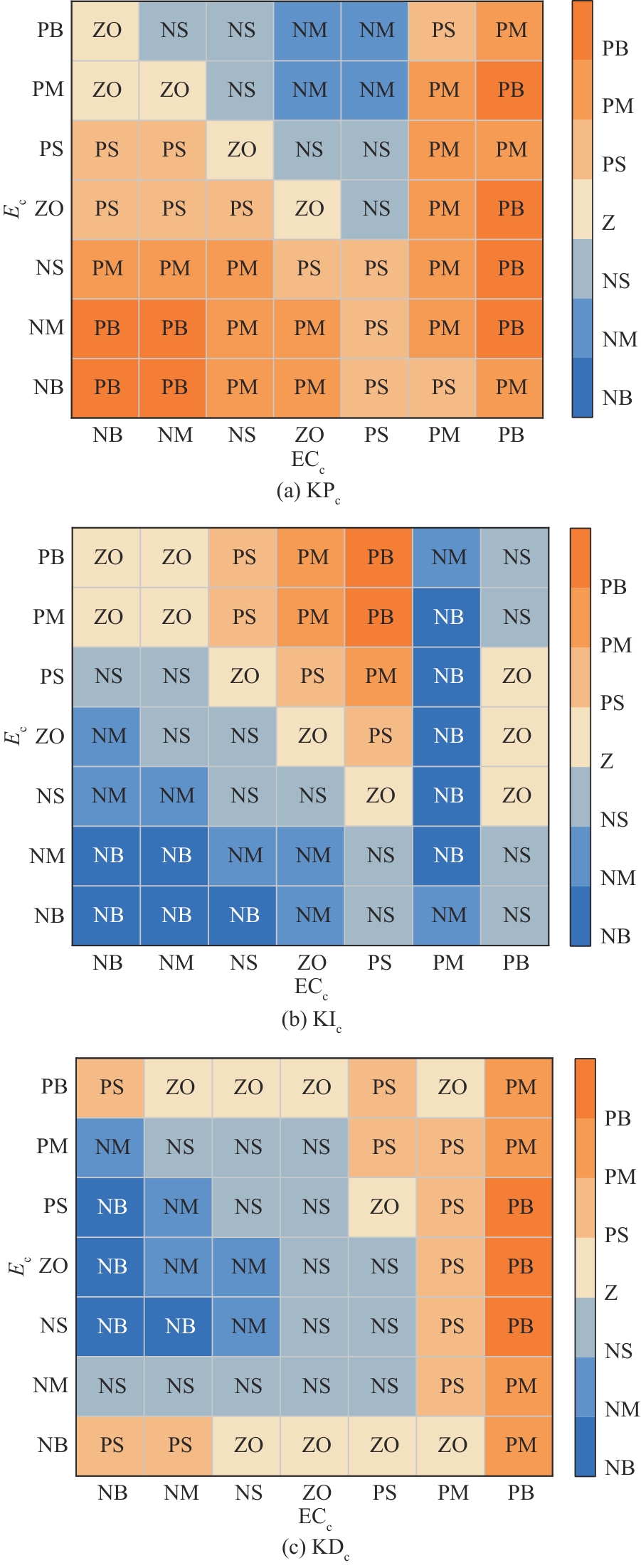

Fig.5

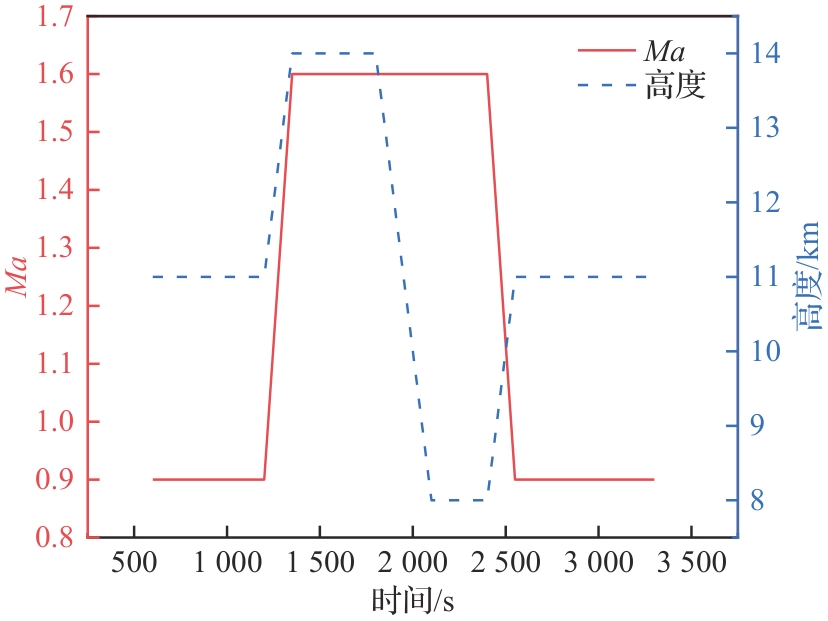

Fig.6

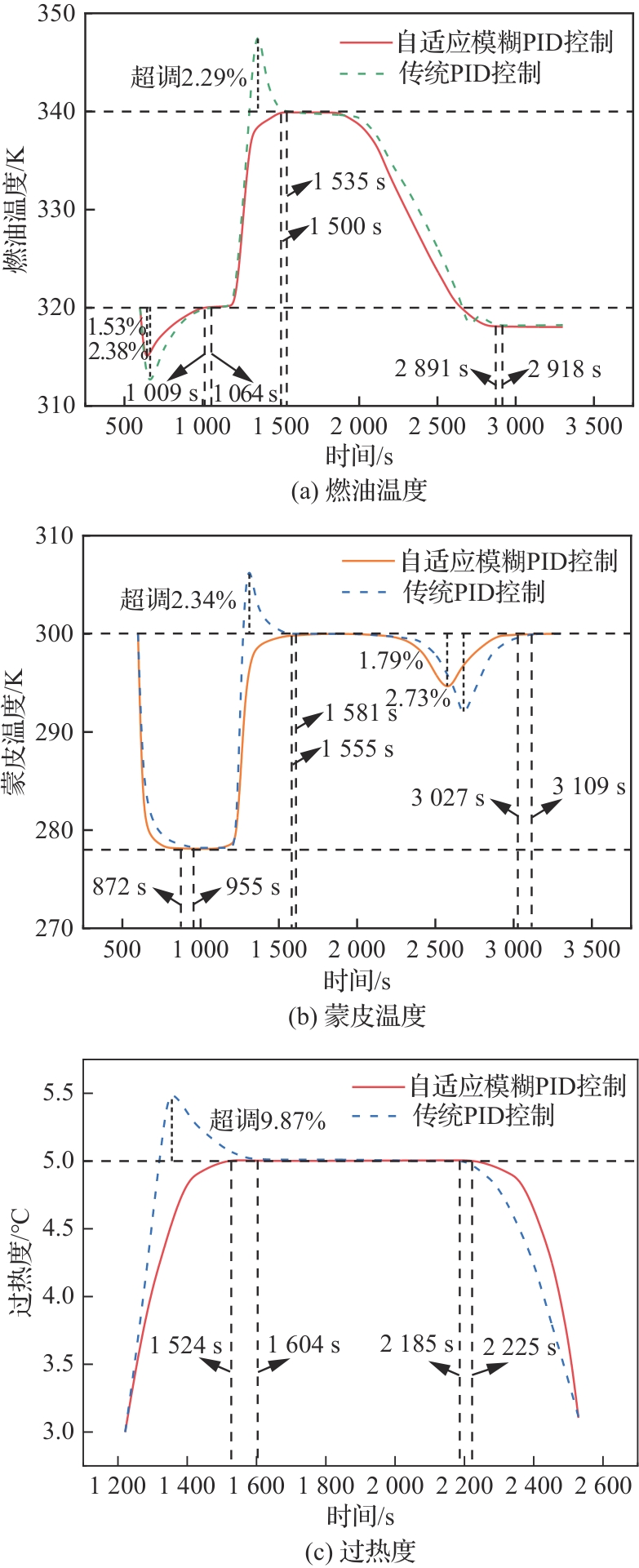

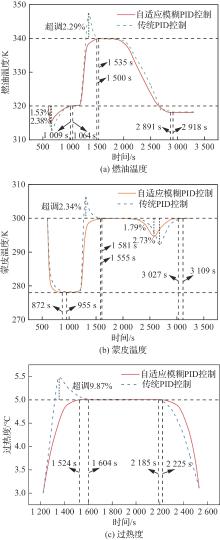

Fig.7

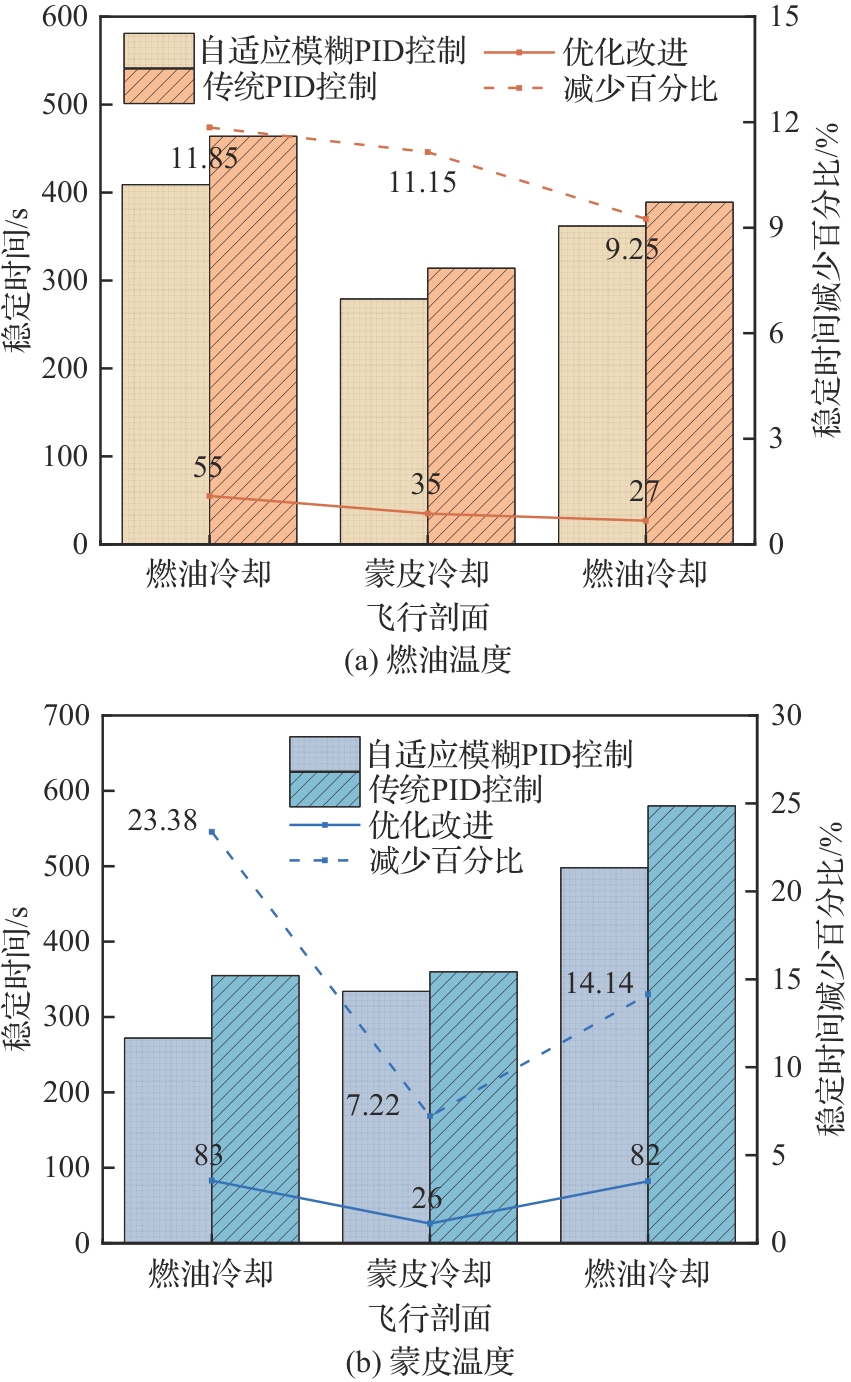

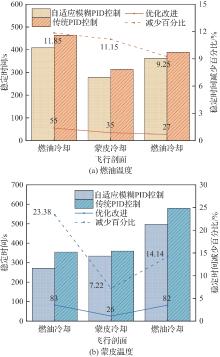

Fig.8

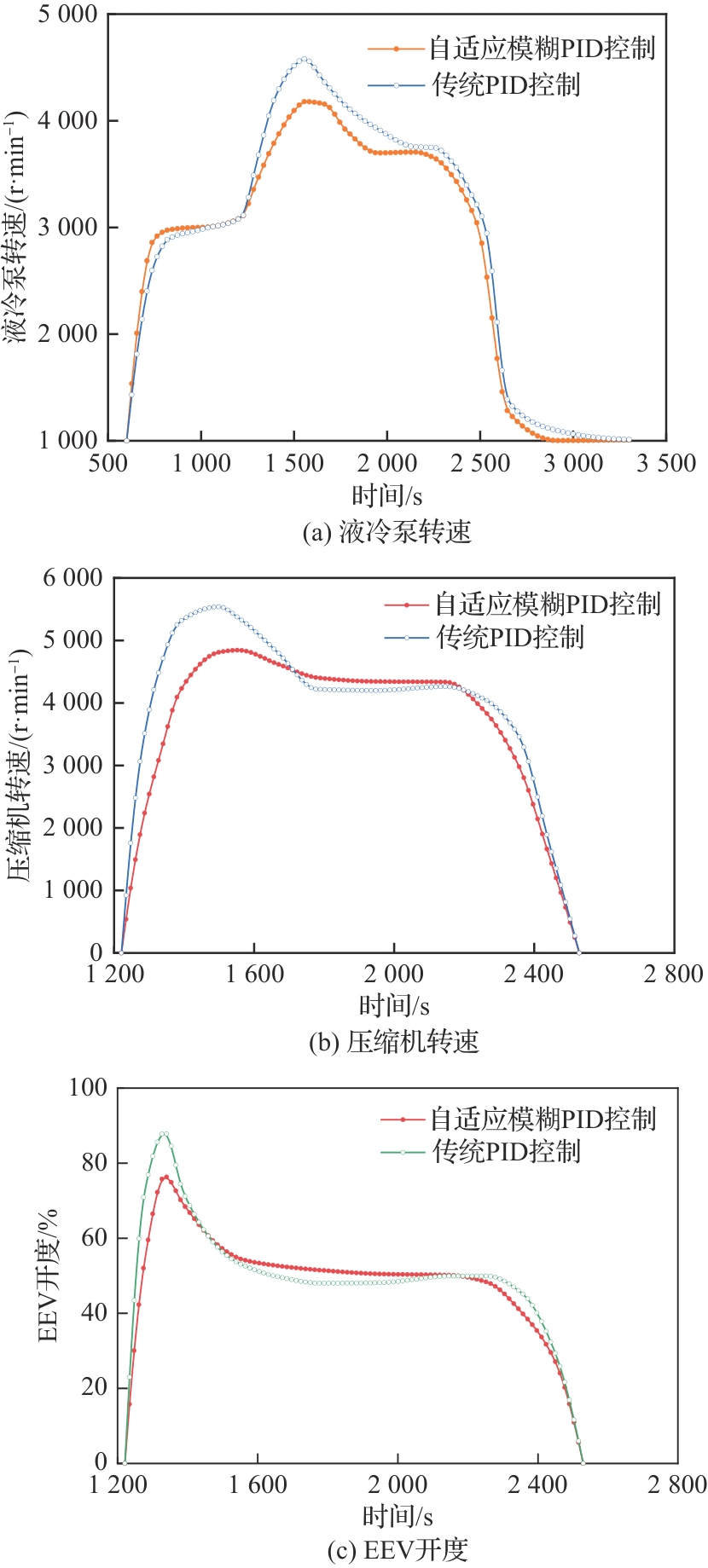

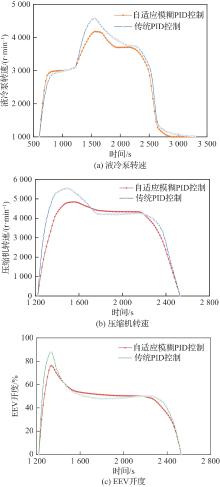

Fig.9

References 31

[1]	DOOLEY M， LUI N， NEWMAN R， et al. Aircraft thermal management-heat sink challenge［C］∥ SAE Technical Paper Series. Warrendale： SAE， 2014： 3-8.
[2]	WANG J X， LI Y Z， LIU X D， et al. Recent active thermal management technologies for the development of energy-optimized aerospace vehicles in China［J］. Chinese Journal of Aeronautics， 2021， 34（2）： 1-27.
[3]	OUYANG Z， NIKOLAIDIS T， JAFARI S. Integrated power and thermal management systems for civil aircraft： review， challenges， and future opportunities［J］. Applied Sciences-Basel， 2024， 14（9）： 3689.
[4]	SCHLABE D， LIENIG J. Model-based thermal management functions for aircraft systems［C］∥ SAE Technical Paper Series. Warrendale： SAE， 2014： 89-98.
[5]	LIU H， JIANG H， DONG S， et al. Simulation of an aircraft thermal management system based on vapor cycle response surface model［J］. Chinese Journal of Aeronautics， 2024， 37（6）： 64-77.
[6]	MUIJDEN J V， AALBERS J. Aircraft level thermal management analysis for early design stages of future aircraft： integration of systems and compartments into an interacting generic approach［J］. Engineering Proceedings， 2025， 90（1）： 102.
[7]	KELLERMANN H， HABERMANN A L， VRATNY P C， et al. Assessment of fuel as alternative heat sink for future aircraft［J］. Applied Thermal Engineering， 2020， 170： 114985.
[8]	ALYANAK E J， ALLISON D L. Fuel thermal management system consideration in conceptual design process［C］∥ 57th AIAA/ASCE/AHS/ASC Structures， Structural Dynamics， and Materials Conference. 2016： 1-18.
[9]	DOMAN D B. Fuel flow topology and control for extending aircraft thermal endurance［J］. Journal of Thermophysics and Heat Transfer， 2018， 32（1）： 35-50.
[10]	LIU Y， LIN G， GUO J， et al. Dynamic prediction of fuel temperature in aircraft fuel tanks based on surrogate［J］. Applied Thermal Engineering， 2022， 215： 118926.
[11]	LEI T， MIN Z， GAO Q， et al. The architecture optimization and energy management technology of aircraft power systems： a review and future trends［J］. Energies， 2022， 15（11）： 4109.
[12]	DUAN Z， SUN H， WU C， et al. Flow-network based dynamic modelling and simulation of the temperature control system for commercial aircraft with multiple temperature zones［J］. Energy， 2022， 238： 121874.
[13]	SHI Z， DONG M， LIU Q， et al. Simulation and experimental study of the characteristic parameters of an aircraft cabin temperature control valve［J］. Applied Sciences-Basel， 2022， 12（21）： 11061.
[14]	ZHENG Y， LIU M， WU H， et al. Temperature and pressure dynamic control for the aircraft engine bleed air simulation test using the LPID controller［J］. Aerospace， 2021， 8（12）： 367.
[15]	ZHENG Y， LIU M， WU H， et al. An available-to-implement thermal facility for dynamic bleed air test of aircraft environmental control system［J］. Aerospace， 2022， 9（10）： 584.
[16]	MA X， JIANG P， ZHU Y. Dynamic simulation and analysis of transient characteristics of a thermal-to-electrical conversion system based on supercritical CO₂ Brayton cycle in hypersonic vehicles［J］. Applied Energy， 2024， 359： 122686.
[17]	WU T Y， JIANG Y Z， SU Y Z， et al. Using simplified swarm optimization on multiloop fuzzy PID controller tuning design for flow and temperature control system［J］. Applied Sciences-Basel， 2020， 10 （23）： 8472.
[18]	LEISTER D D， KOELN J P. Nonlinear hierarchical MPC with application to aircraft fuel thermal management systems［J］. IEEE Transactions on Control Systems Technology， 2023， 31（3）： 1165-1178.
[19]	GAO Q， LEI T， DENG F， et al. A deep reinforcement learning based energy management strategy for fuel-cell electric UAV［C］∥ International Conference on Power Energy Systems and Applications. 2022： 25-27.
[20]	LI Y， LIU D， WANG H， et al. Enhancing temperature adaptability for airborne equipment in non-pressurized cabin： a methodological investigation［C］∥ 5th International Conference on Mechatronics Technology and Intelligent Manufacturing. 2024： 193-198.
[21]	XIA K， YU L， WANG J， et al. PSA-optimized compressor speed control strategy of electric vehicle thermal management systems［J］. Energies， 2025， 18（11）： 2687.
[22]	ABRAHAMA J P， SPARROWB E M， Tong J C K. Heat transfer in all pipe flow regimes： laminar， transitional/intermittent， and turbulent［J］. International Journal of Heat and Mass Transfer， 2009， 52（3-4）： 557-563.
[23]	SHAH M M. A general correlation for heat transfer during film condensation inside pipes［J］. International Journal of Heat and Mass Transfer， 1979， 22（4）： 547-556.
[24]	SHAH M M. Evaluation of general correlations for heat transfer during boiling of saturated liquids in tubes and annuli［J］. Science and Technology for the Built Environment， 2006， 12（4）： 1047-1063.
[25]	MOBARAKY A EL， KOUISS K， CHEBAK A. Total energy control system-based interval type-3 fuzzy logic controller for fixed-wing unmanned aerial vehicle longitudinal flight dynamics［J］. Aerospace Science and Technology， 2025， 162： 110253.
[26]	XIANG X， YU C， LAPIERRE L， et al. Survey on fuzzy-logic-based guidance and control of marine surface vehicles and underwater vehicles［J］. International Journal of Fuzzy Systems， 2018， 20： 572-586.
[27]	SAKLY A， BENREJEB M. On the choice of the adequate fuzzy implication operator with the Center of Gravity defuzzification method based on precision criterion in fuzzy control［C］∥ IEEE International Conference on Fuzzy Systems. 2022： 482-487.
[28]	LI Q， BAI X， LU Y， et al. Flow control of tractor multi-channel hydraulic tester based on AMESim and PSO-optimized fuzzy-PID［J］. Agriculture-Basel， 2025， 15 （11）： 1190.
[29]	YANARATES C， OKUR S， ALTAN A. Performance analysis of digitally controlled nonlinear systems considering time delay issues［J］. Heliyon， 2023， 9（10）： 20994.
[30]	LI J， WANG W， SONG Y， et al. Adaptive fuzzy PI control for the dynamic operation of the transcritical CO₂ thermal system in electric vehicles［J］. Applied Thermal Engineering， 2025， 259： 124737.
[31]	LIU D， ZHAO S， ZHANG J. Adaptive PID control of hydropower units based on particle swarm optimization and fuzzy inference［J］. Water， 2025， 17（10）： 1512.
