基于诊断与预测的金属搭接结构动态风险评估

doi:10.7527/S1000-6893.2025.32500

Abstract

Abstract:

Hidden cracks in metallic lap-joint structures are difficult to detect， and conventional risk assessment methods rely heavily on offline nondestructive inspections. To address these challenges， an integrated diagnosis and prognosis dynamic risk assessment method within a digital twin framework has been proposed. The method employs an experimental strain driven physics and data fusion crack propagation model and implements a dynamic Bayesian network to close the loop between virtual and physical models. Crack initiation is detected using the Cumulative Sum Control Chart （CUSUM） algorithm； crack location is determined by a k-Nearest Neighbors （KNN） classifier； crack size is estimated through a Multi-Output Gaussian Process Regression （MOGPR） model； subsequently， a Dynamic Bayesian Network （DBN） is employed to dynamically update the crack propagation parameters C and m in real time. Based on these updated parameters， the Single Flight Probability of Failure （SFPOF） is computed through Monte Carlo simulation. Experimental results demonstrate that the combined CUSUM and SFPOF criterion provides timely crack warnings and reduces dependence on high-precision Equivalent Initial Flaw Size （EIFS）. As monitoring data accumulate， the standard deviations of C and m decrease， lowering uncertainty in life predictions. The proposed method enables continuous online quantitative risk evaluation of metallic lap-joint structures， offering reliable support for condition-based maintenance decisions.

Key words: risk assessment, structural fault diagnosis and health management, fatigue damage diagnosis and prognosis, single flight probability of failure, crack propagation

CLC Number:

V215.5

Liang HAN, Xiaofan HE. Dynamic risk assessment of metallic lap-joint structures based on diagnosis and prognosis[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(7): 232500.

Figures/Tables 32

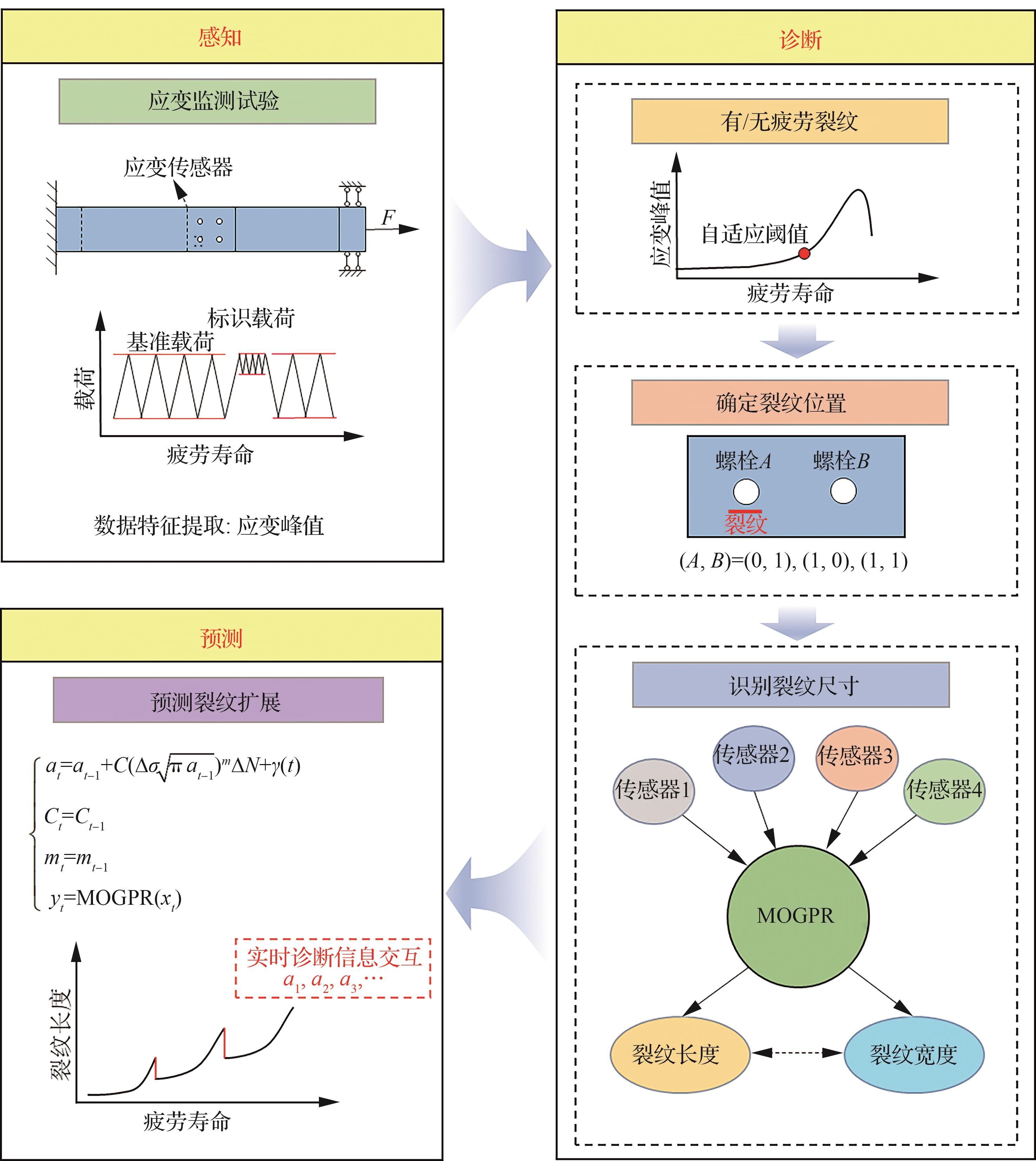

Fig.1

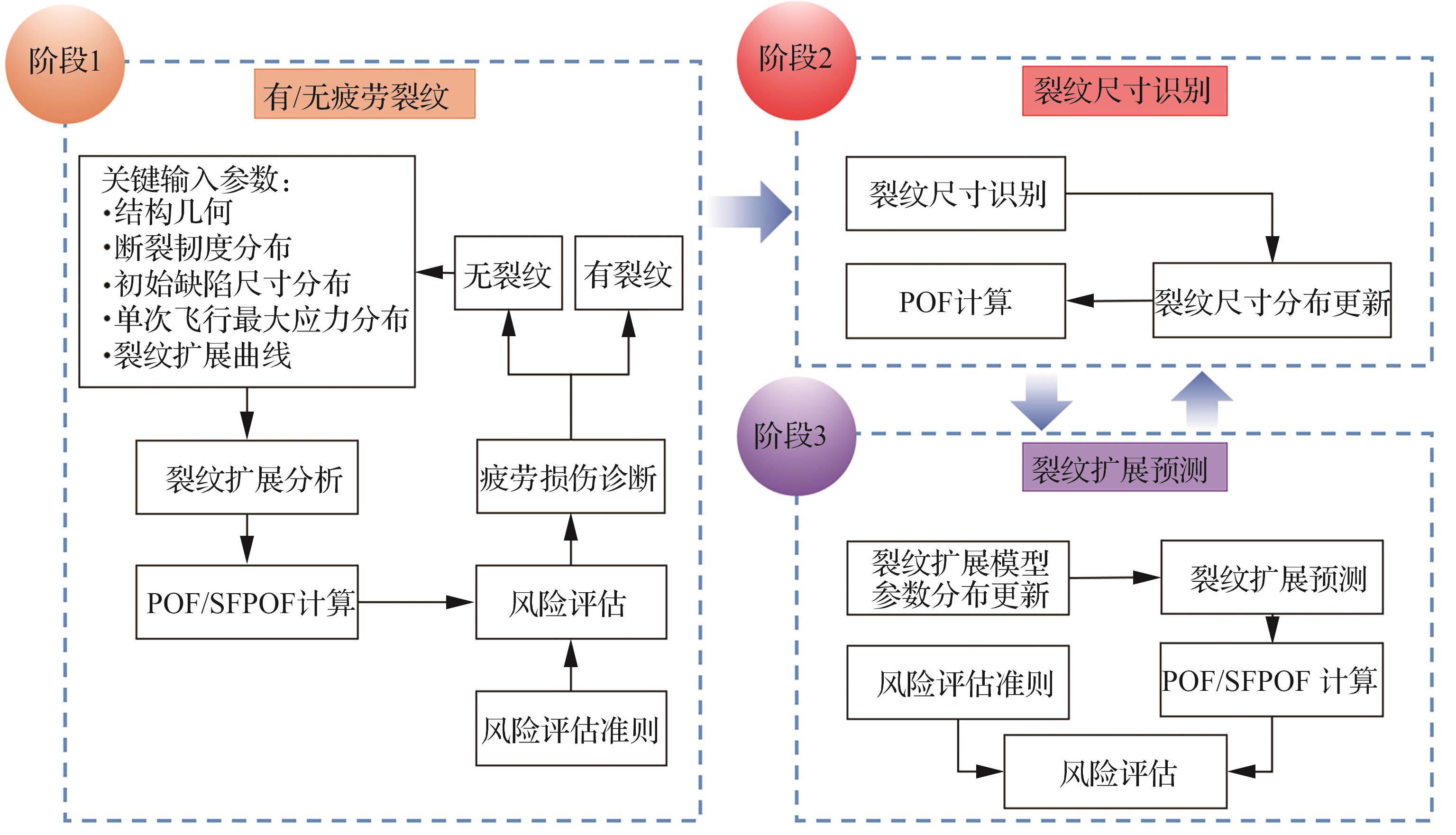

Fig.2

Fig.3

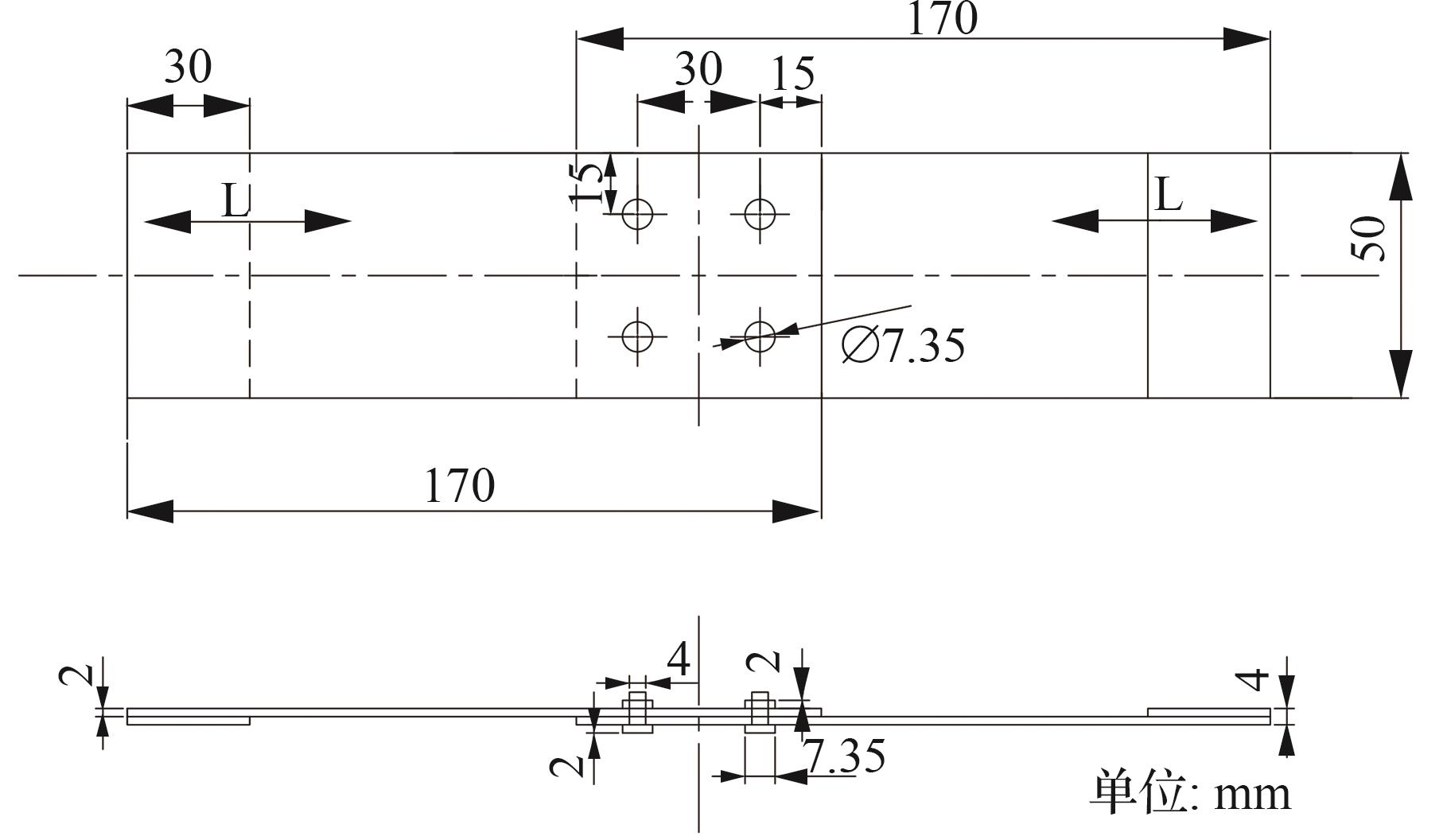

Fig.4

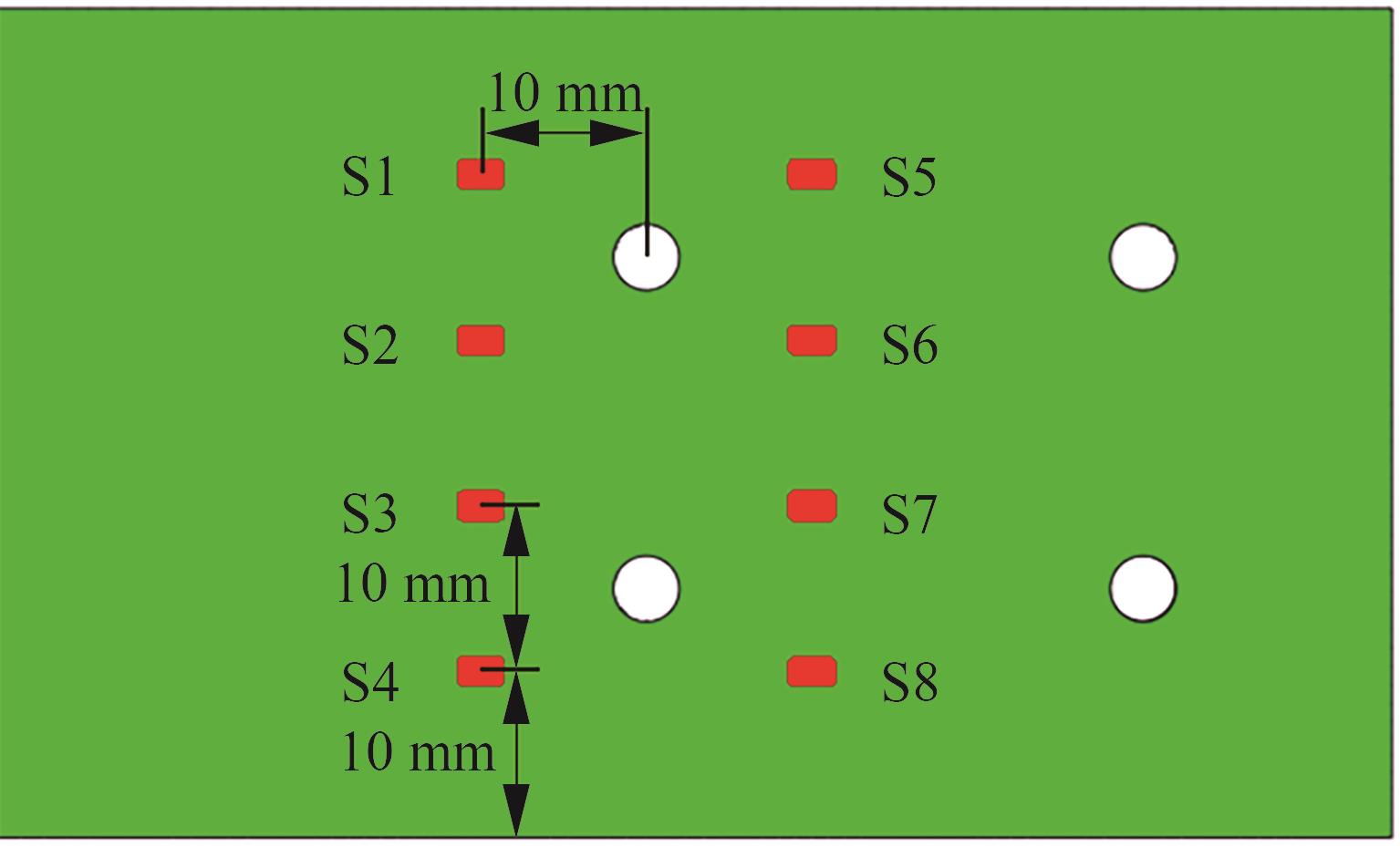

Fig.5

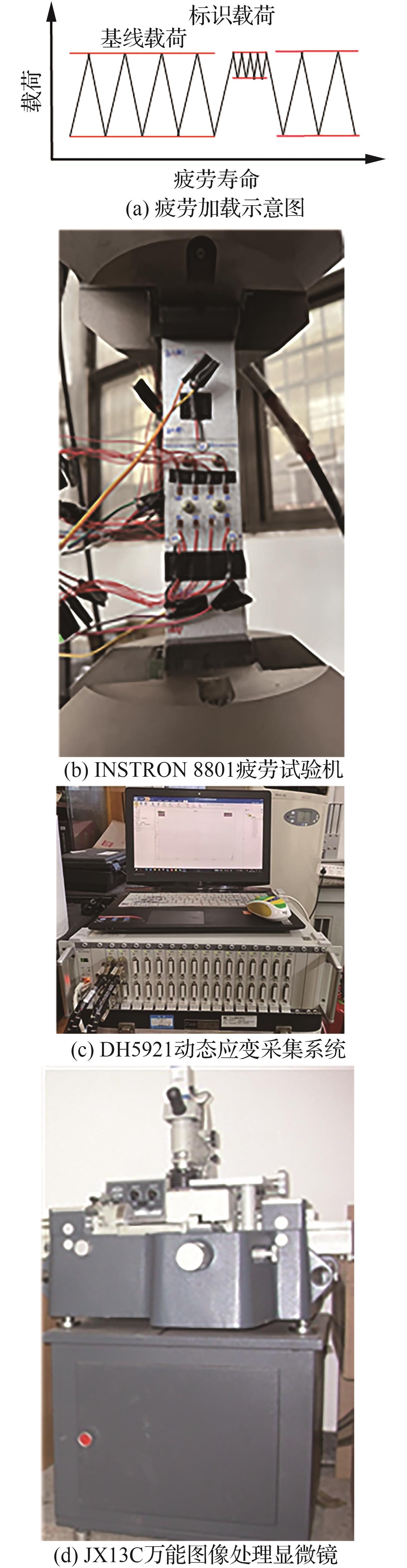

Fig.6

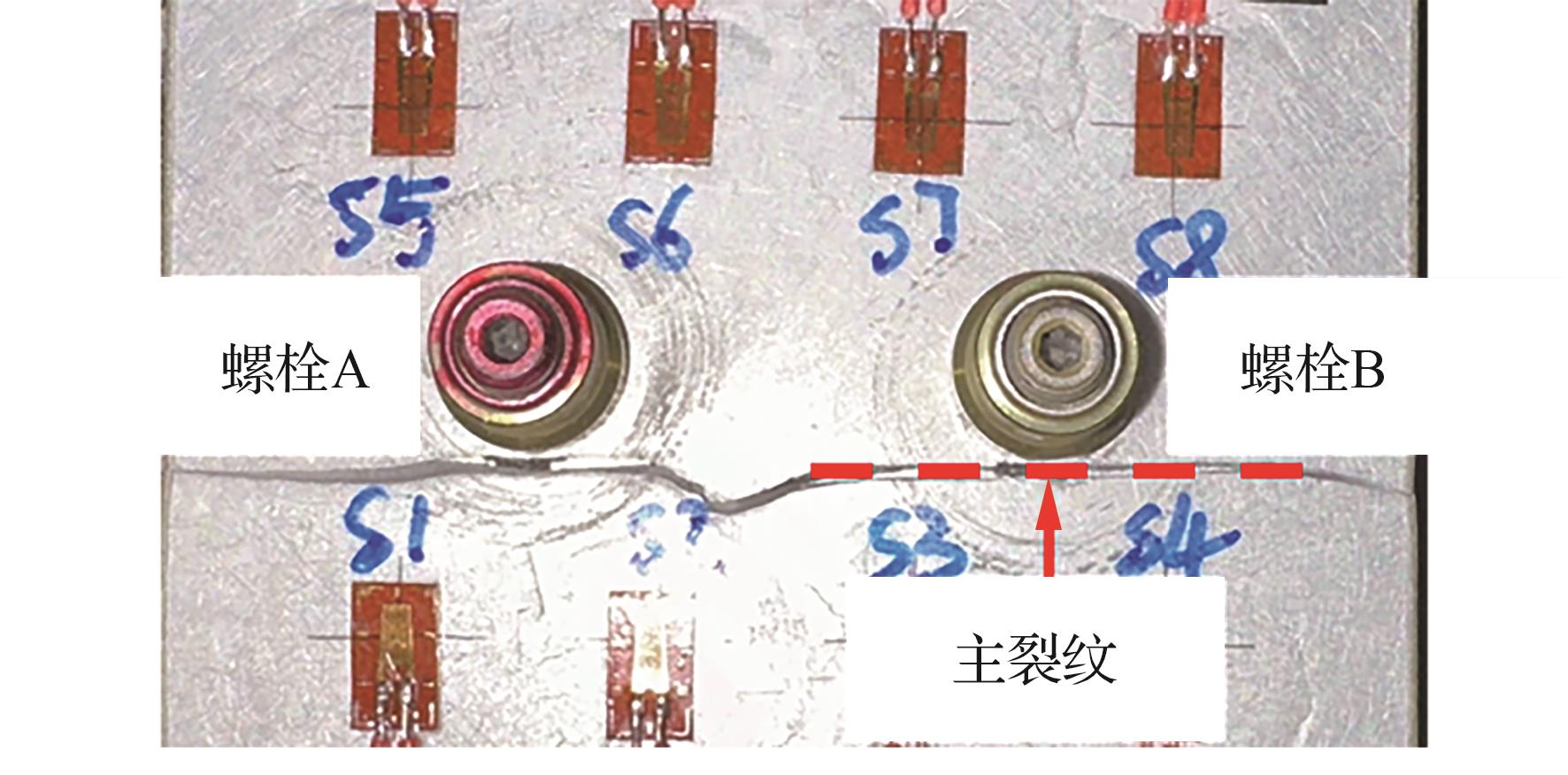

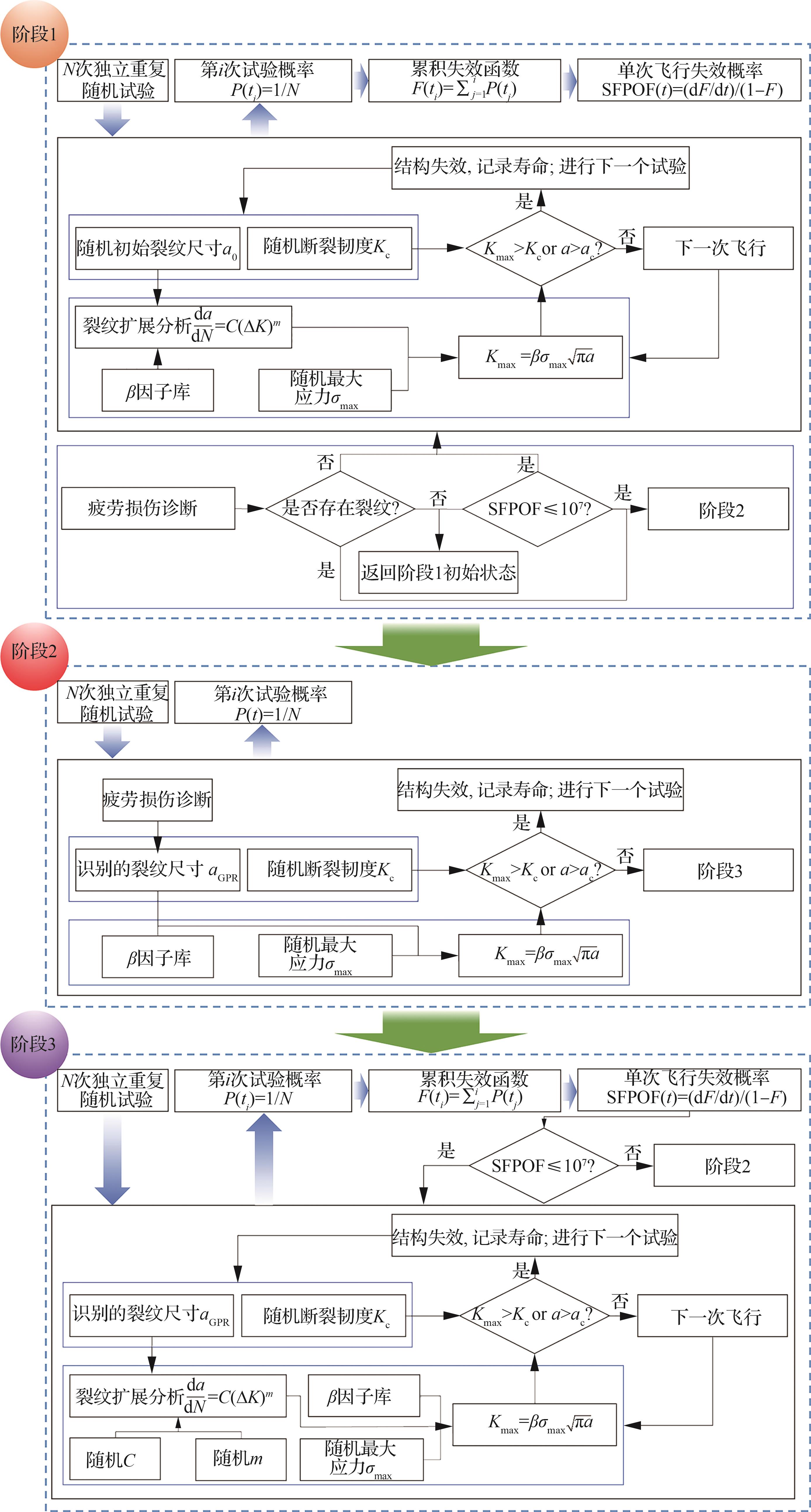

Fig.7

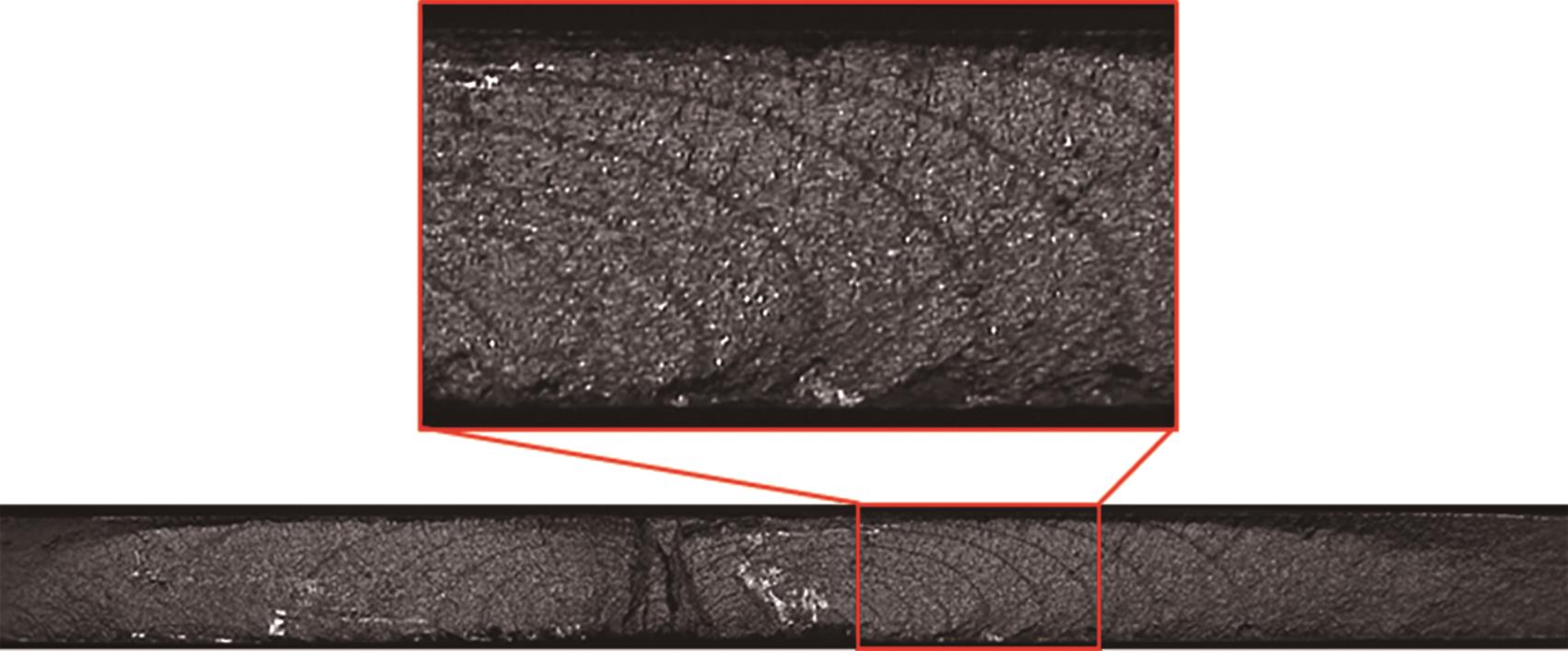

Fig.8

Fig.9

Table 1

Fig.10

Fig.11

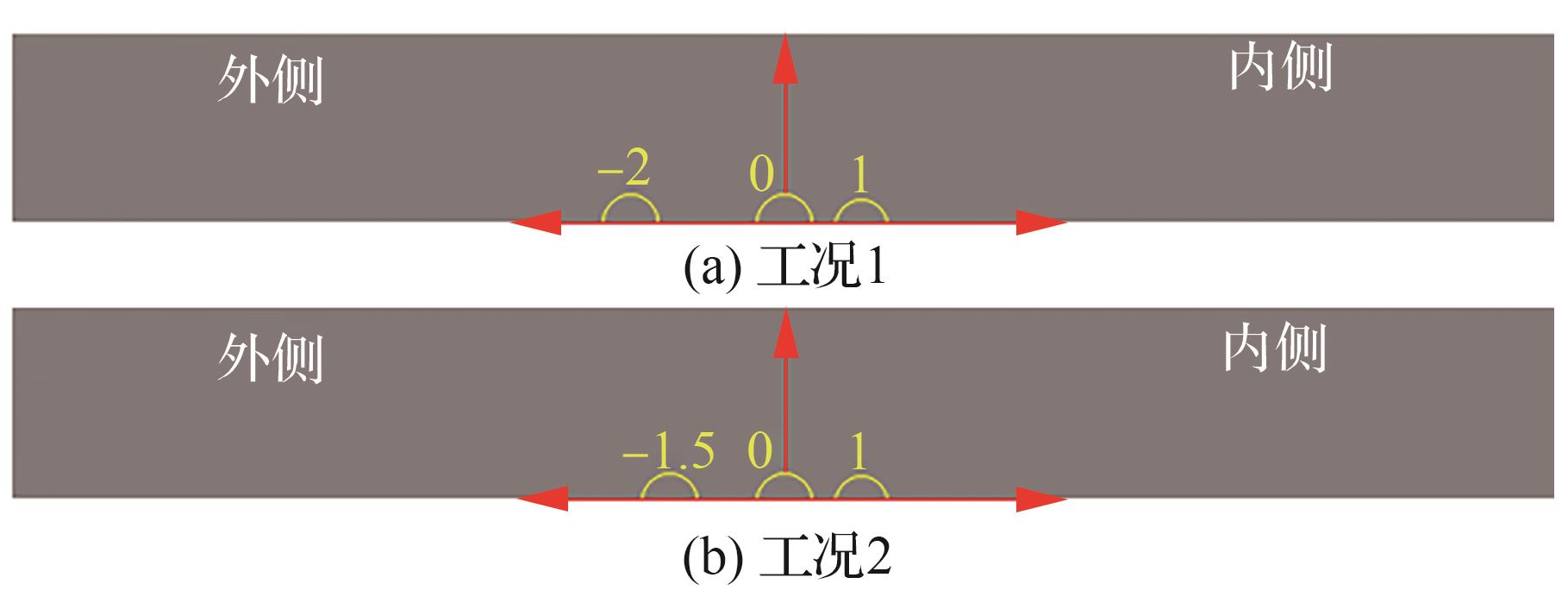

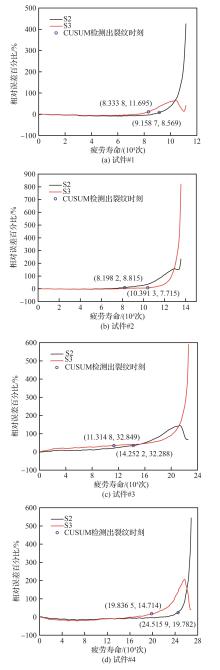

Fig.12

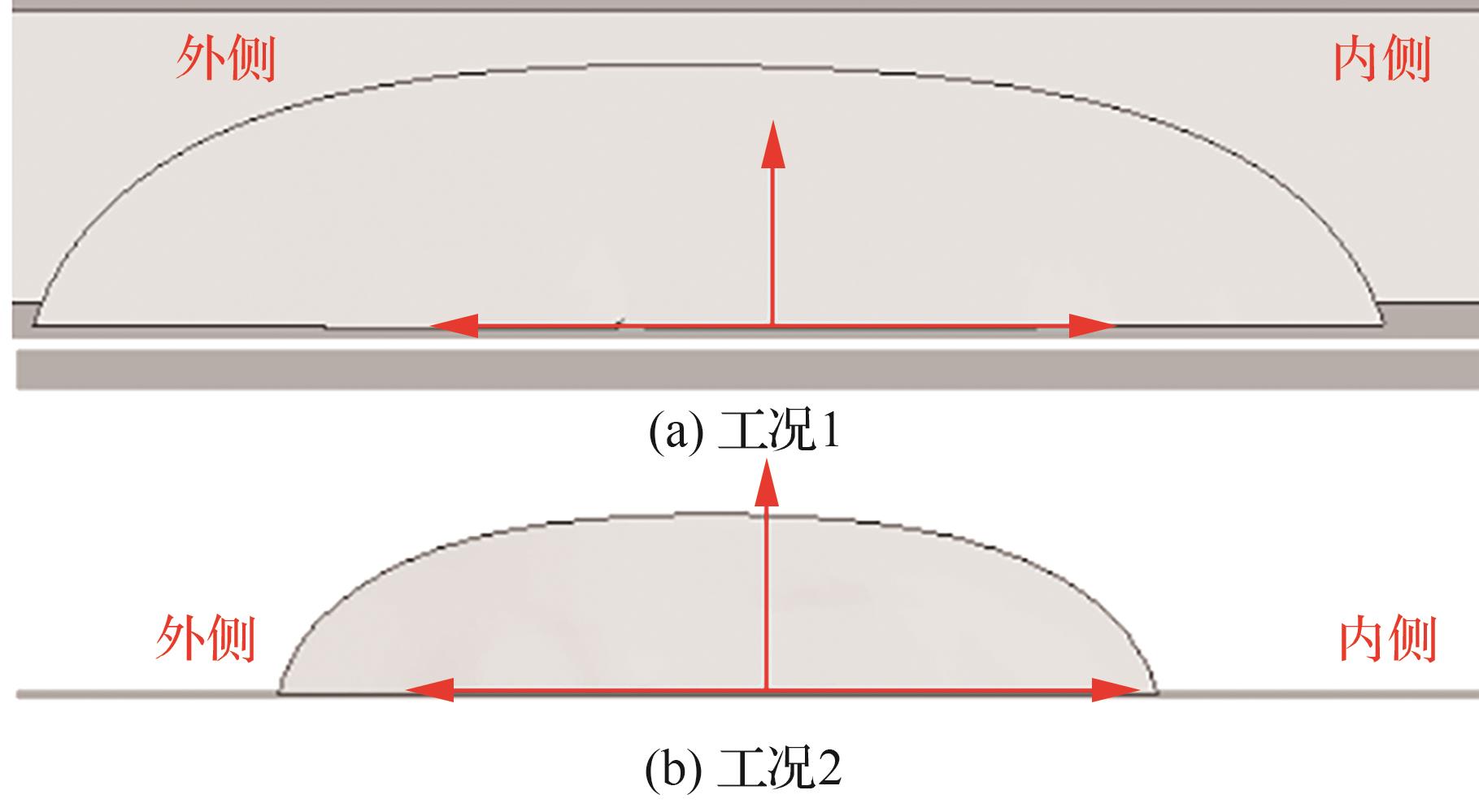

Fig.13

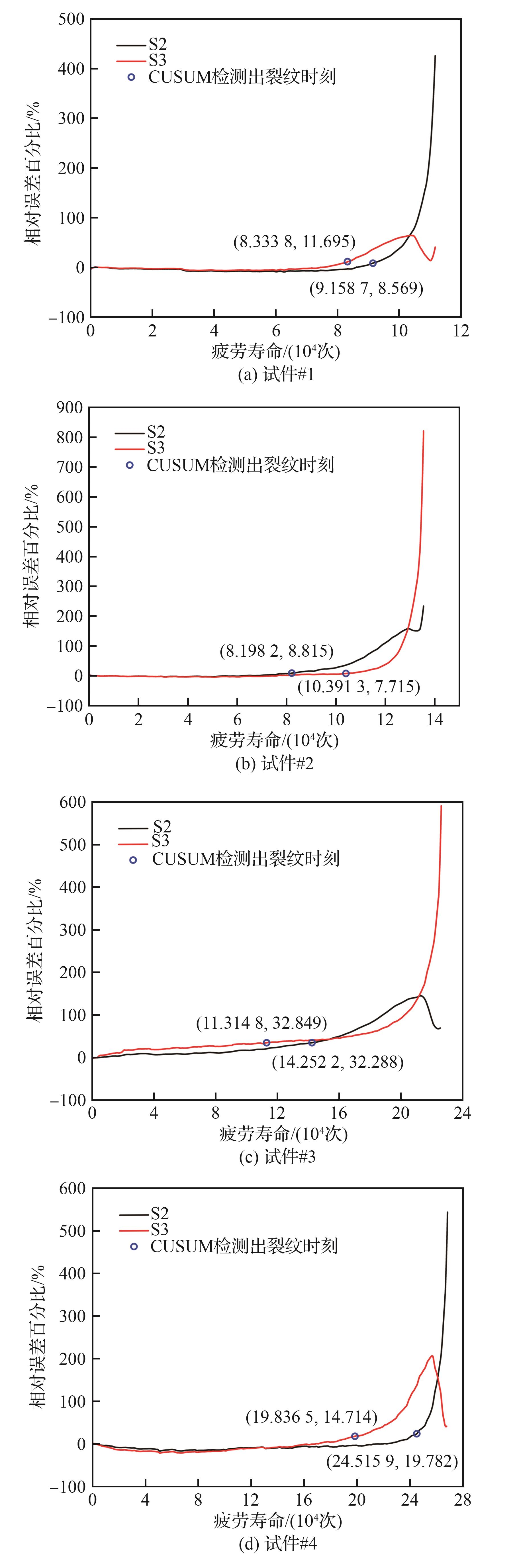

Fig.14

Table 2

Optimized parameter configurations for KNN-bolt A and KNN-bolt B

参数	KNN-螺栓A	KNN-螺栓B
邻居数量	7	1
距离度量	余弦	余弦
距离权重	平方倒数	等权
平局处理	最小类别	最小类别
搜索方法	穷尽搜索	穷尽搜索
样本数量	26	26
分类成本	$0120$	$0120$

Table 2

Table 3

MOGPR model hyperparameter configurations

超参数	符号	MOGPR-螺栓A	MOGPR-螺栓B
核函数类型		MaternKernel	MaternKernel
核平滑参数	$ν$	1.5	1.5
输出尺度	$σ f 2$	0.699 5	1.099 9
长度尺度	$l$	13.702 2	13.722 4
噪声方差	$σ n 2$	0.000 135	0.000 136 4
任务数量		2	2
任务协方差矩阵	$B$	$13.449 9 1.479 4 1.479 4 0.447 1$	$8.590 9 0.945 2 0.945 2 0.285 0$
学习率		0.05	0.05
训练轮数		500	500

Table 3

Table 4

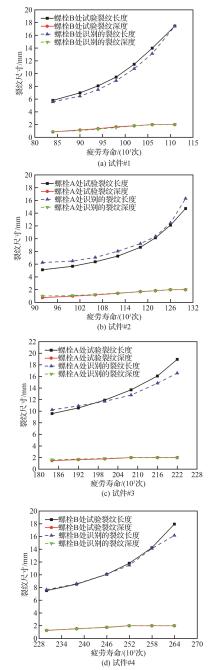

Fig.15

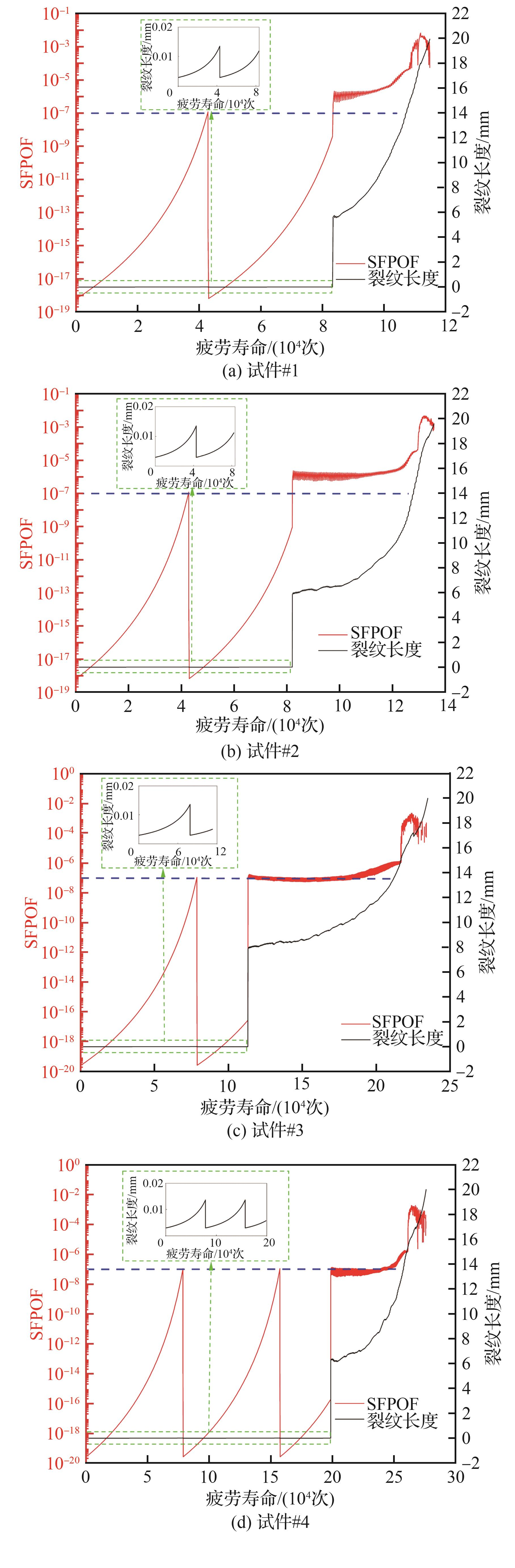

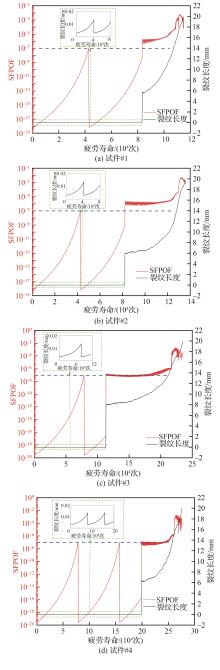

Fig.16

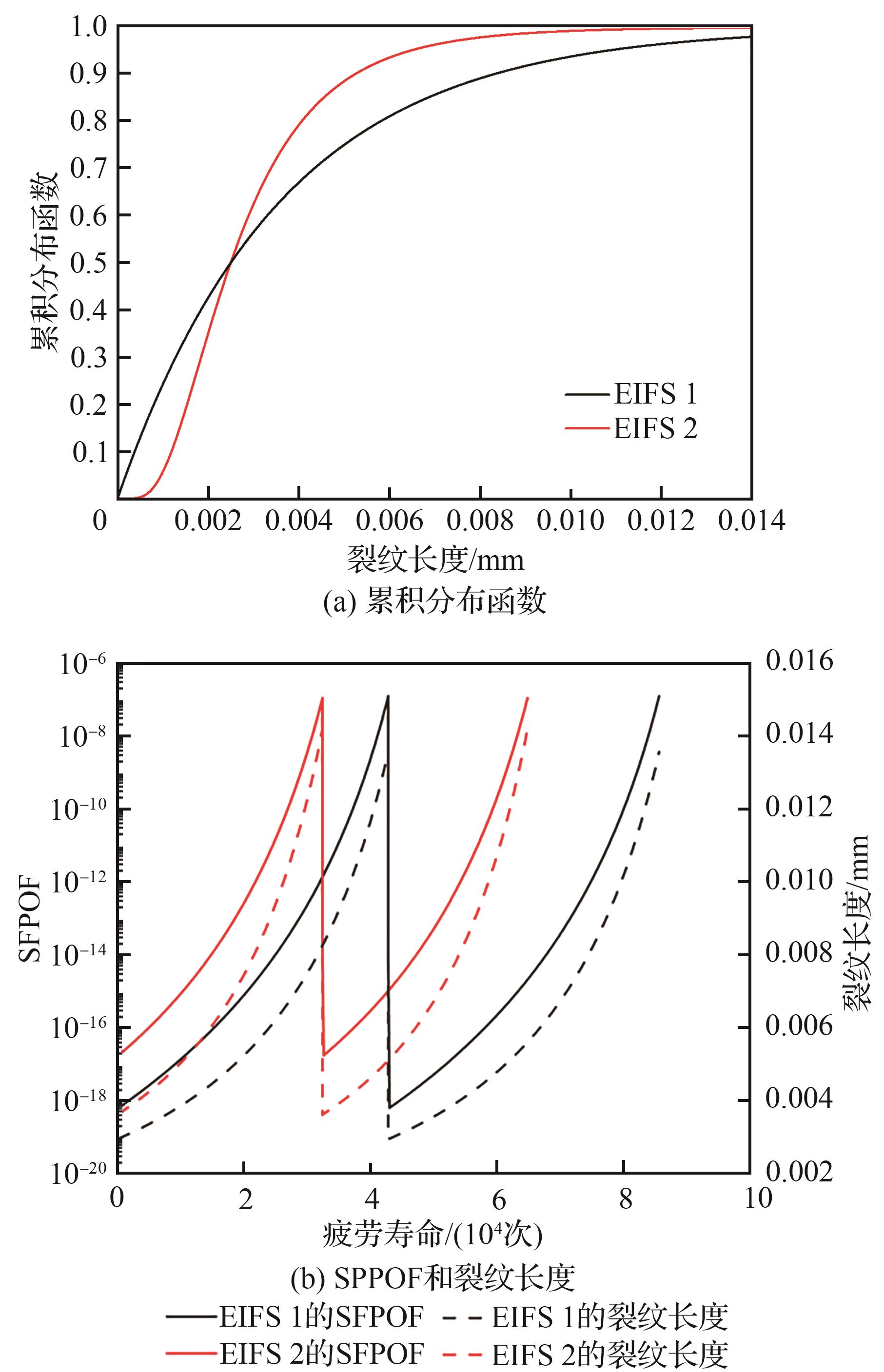

Fig.17

Table 5

Fig.18

Fig.19

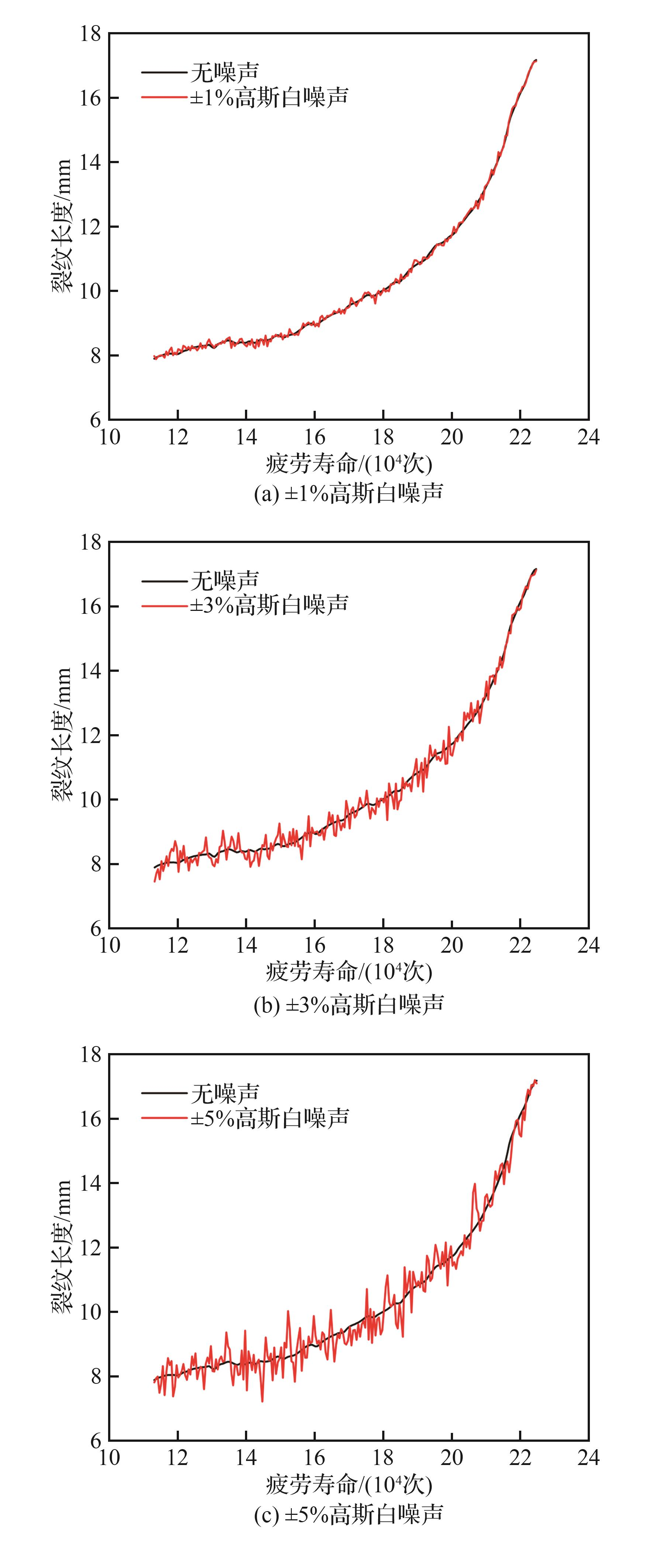

Fig.20

Fig.21

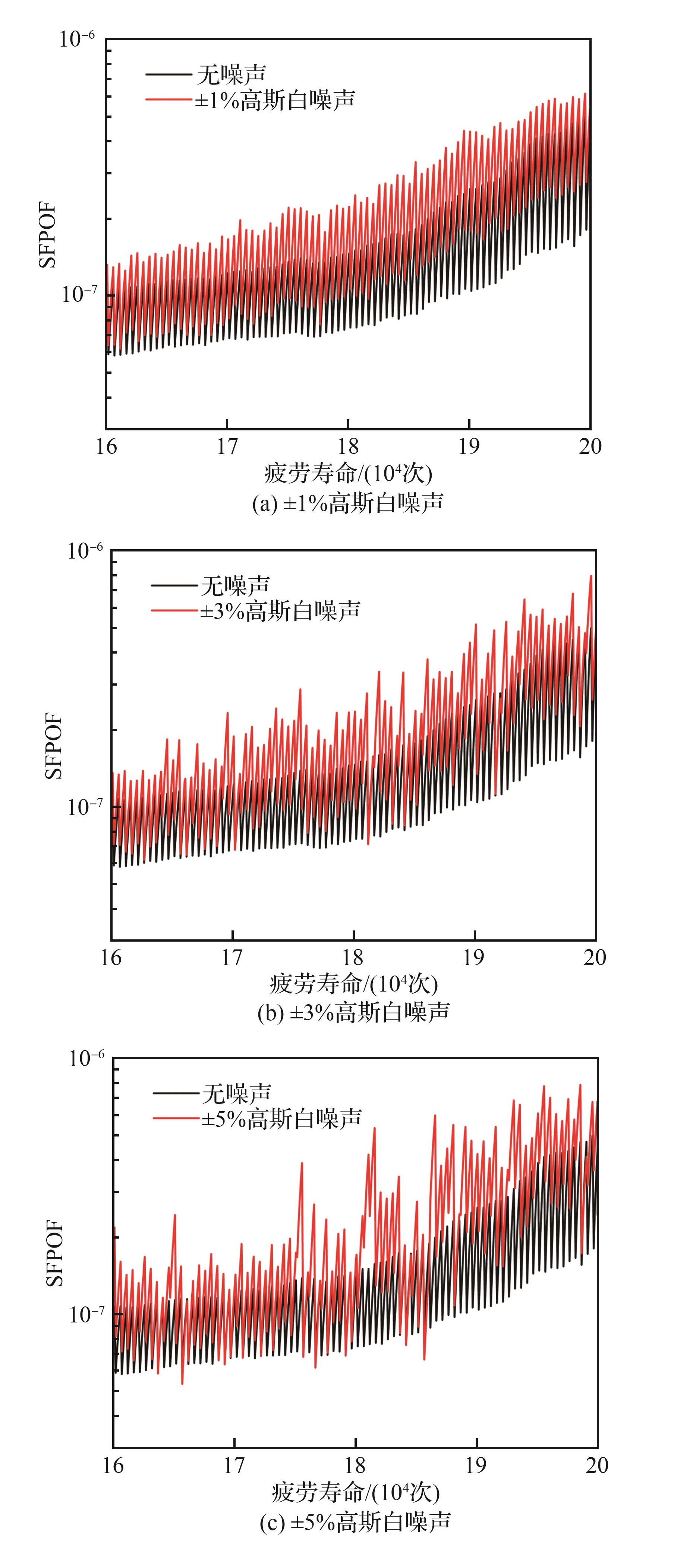

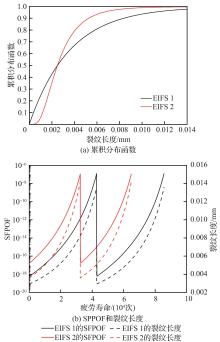

Fig.22

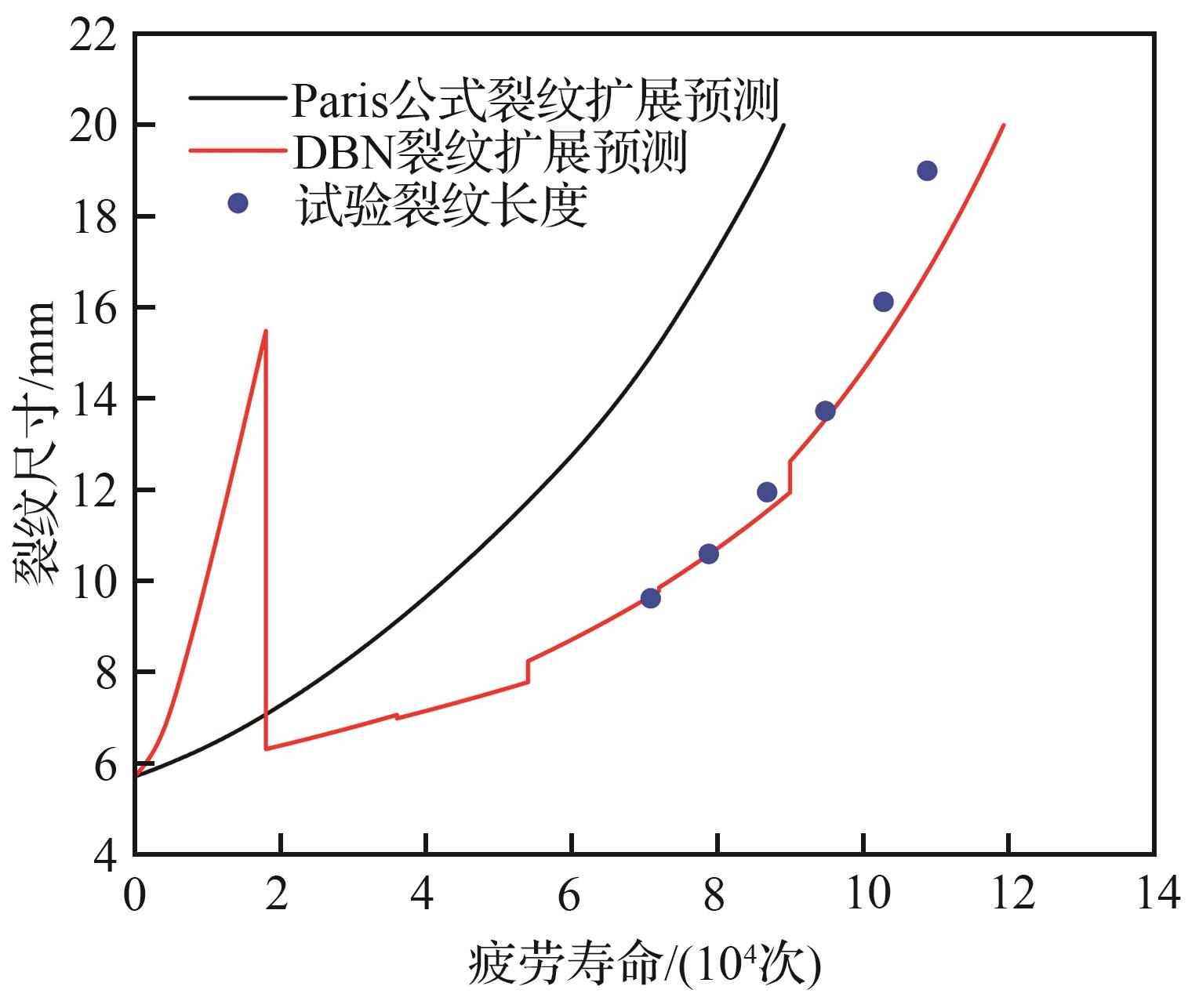

Fig.23

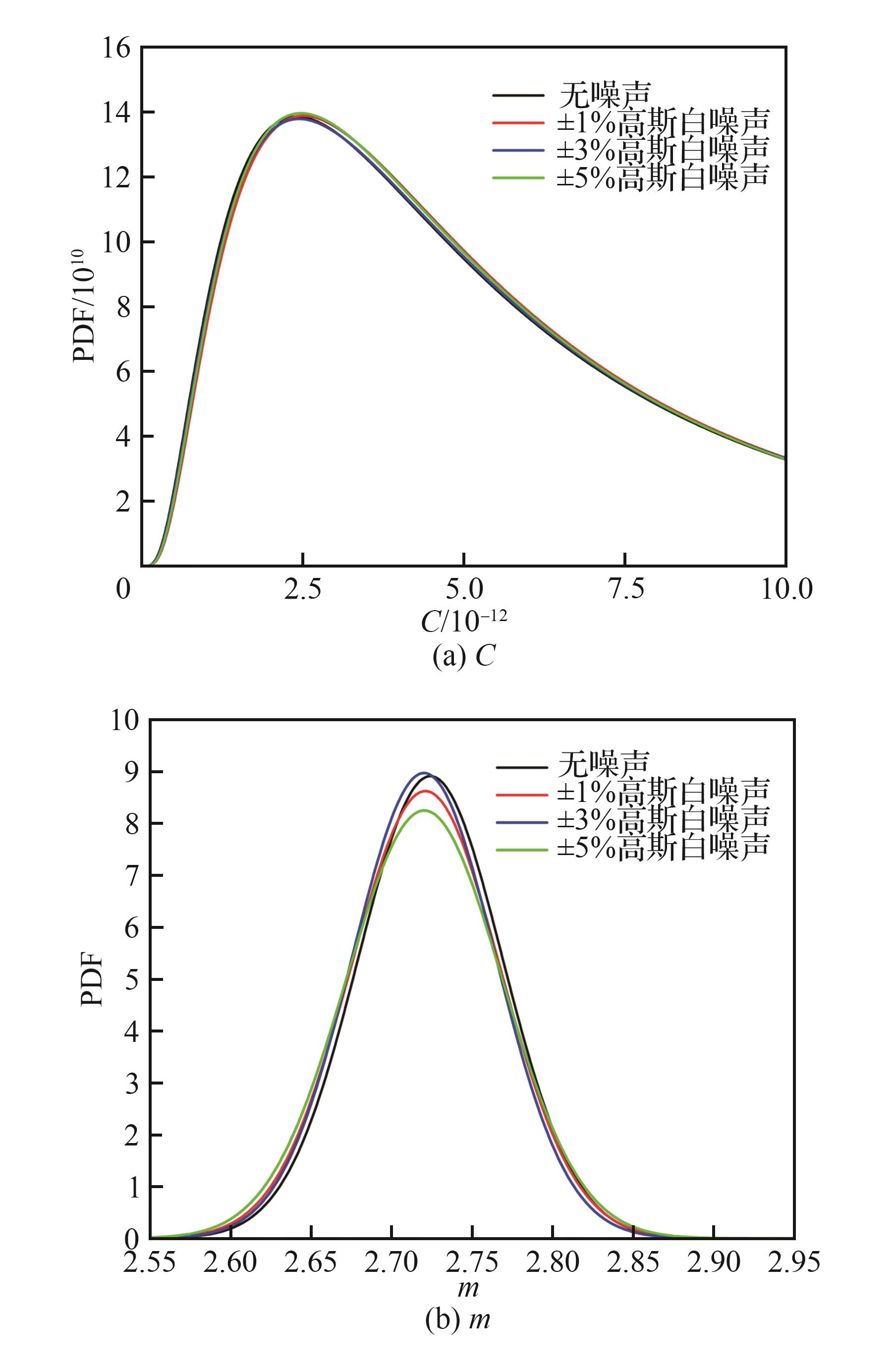

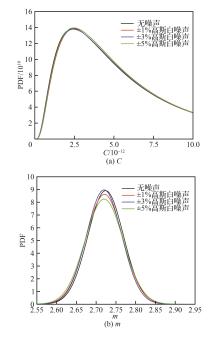

Fig.24

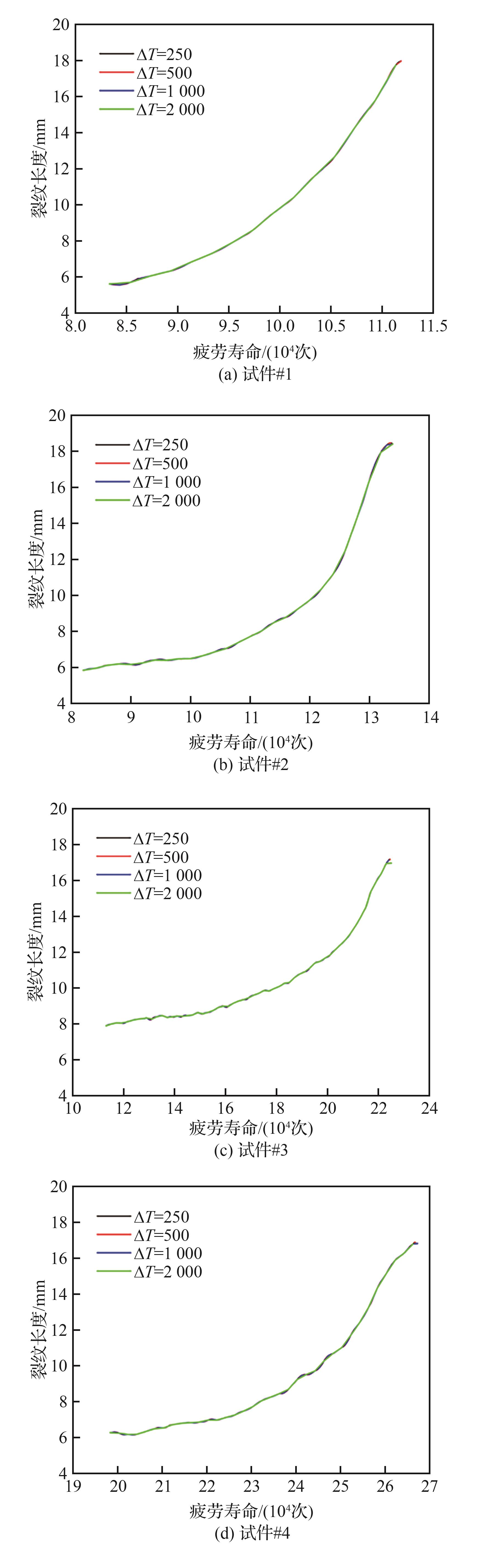

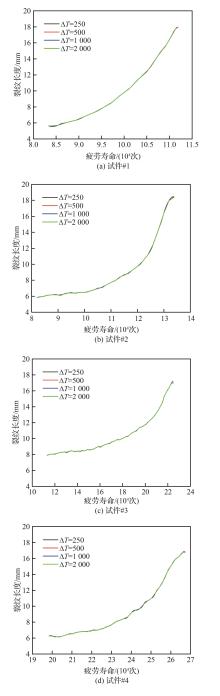

Fig.25

Table 6

Fig. 26

References 31

[1]	U.S. Department of Defense. Aircraft Structural Integrity Program （ASIP）（SUPERSEDING MIL-S TD-1530D）： MIL-STD-1530D［S］. Washington， D.C.： Department of Defense， 2016.
[2]	中国人民解放军总装备部. 军用飞机结构完整性大纲： GJB 775A-2012 ［S］. 北京：总装备部军标出版发行部， 2012.
	The General Armament Department of the PLA. Military aircraft structural integrity program： GJB 775A-2012 ［S］. Beijing： Military Standard Publishing Department， General Armament Department of the PLA， 2012 （in Chinese）.
[3]	LINCOLN J W. Risk assessment of an aging military aircraft［J］. Journal of Aircraft， 1985， 22（8）： 687-691.
[4]	LIAO M， BOMBARDIER Y， RENAUD G. Probabilistic risk analysis for aircraft structures with limited in-service damages［C］∥Proceedings of the 28th International Congress of the Aeronautical Sciences. Brisbane： ICAS Secretariat， 2012.
[5]	FERRARI V， LIAO M， FERRARI M， et al. Practical application of structural risk assessment with SMART DT［C］∥Proceedings of the 31st Symposium of the International Committee on Aeronautical Fatigue and Structural Integrity （ICAF）. Delft： NLR， 2023.
[6]	WHITE P. Review of methods and approaches for the structural risk assessment of aircraft：DSTO-TR-1916 ［R］. Melbourne： Defence Science and Technology Organisation， 2006.
[7]	TORNG T Y. Equivalent initial flaw size distribution impact on aircraft risk assessment［C］∥53rd AIAA/ASME/ASCE/AHS/ASC Structures， Structural Dynamics and Materials Conference；20th AIAA/ASME/AHS Adaptive Structures Conference. Reston： AIAA， 2012.
[8]	LIAO M. Comparison of different single flight probability of failure （SFPOF） calculations for aircraft structural risk analysis［C］∥Proceedings of the Aircraft Airworthiness and Sustainment （AA&S） Conference. 2012.
[9]	HALBERT K， FITZWATER L M， SMITH H， et al. Single flight probability of failure in probabilistic damage tolerance analysis［C］∥54th AIAA/ASME/ASCE/AHS/ASC Structures， Structural Dynamics， and Materials Conference. Reston： AIAA， 2013.
[10]	FREUDENTHAL A M， GARRETTS J M， SHINOZUKA M. The analysis of structural safety［J］. Journal of the Structural Division， 1966， 92（1）： 267-326.
[11]	GALLAGHER J P， BABISH C A， MALAS J C. Damage-tolerant risk analysis techniques for evaluating the structural integrity of aircraft structures［C］∥Proceedings of the Structural Integrity in Transportation Systems Symposium， 11th International Conference on Fracture. 2005.
[12]	LIAO M， BOMBARDIER Y， RENAUD G， et al. Advanced damage tolerance and risk analysis methodologies and tools for aircraft structures containing multiple-site and multiple-element fatigue damages［J］. Proceedings of the Institution of Mechanical Engineers， Part G： Journal of Aerospace Engineering， 2012， 226（11）： 1412-1423.
[13]	DOMYANCIC L， MCFARLAND J M， CARDINAL J W. Review of methods for calculating single flight probability of failure［C］∥AIAA Scitech 2021 Forum. Reston： AIAA， 2021.
[14]	CROSS R， MAKEEV A， ARMANIOS E. Simultaneous uncertainty quantification of fracture mechanics based life prediction model parameters［J］. International Journal of Fatigue， 2007， 29（8）： 1510-1515.
[15]	WANG X， RABIEI M， HURTADO J， et al. A probabilistic-based airframe integrity management model［J］. Reliability Engineering & System Safety， 2009， 94（5）： 932-941.
[16]	LI M， MEEKER W Q， HOVEY P. Joint estimation of NDE inspection capability and flaw-size distribution for in-service aircraft inspections［J］. Research in Nondestructive Evaluation， 2012， 23（2）： 104-123.
[17]	TUEGEL E J. Evaluation of prognostic and probabilistic individual aircraft tracking （P2IAT）： Volume 1-Results ［R］. Wright-Patterson Air Force Base： Air Force Research Laboratory， 2022.
[18]	KIM N H， AN D， CHOI J H. Prognostics and health management of engineering systems［M］. Cham： Springer International Publishing， 2016： 1-24.
[19]	袁慎芳. 结构健康监控［M］. 北京：国防工业出版社， 2007.
	YUAN S F. Structural health monitoring and damage control［M］. Beijing： National Defense Industry Press， 2007 （in Chinese）.
[20]	TSUI K L， CHEN N， ZHOU Q， et al. Prognostics and health management： A review on data driven approaches［J］. Mathematical Problems in Engineering， 2015， 2015（1）： 793161.
[21]	HAN L， HE X F. Strain monitoring-based diagnosis and prognosis for hidden cracks in metallic lap-joint structures［J］. International Journal of Fatigue， 2025， 200： 109115.
[22]	LIAO M， RENAUD G， BOMBARDIER Y， et al. Development of initial crack size distribution for risk assessment of aircraft structures［C］∥Proceedings of the RTO-MP-AVT-157 Military Platform Ensured Availability Symposium. 2008.
[23]	LEE D， KWON K. Dynamic Bayesian network model for comprehensive risk analysis of fatigue-critical structural details［J］. Reliability Engineering & System Safety， 2023， 229： 108834.
[24]	ASTM. Standard specification for stainless steel nuts：F594-24 ［S］. West Conshohocken： ASTM International， 2024.
[25]	WANG J Y， HE X F， DANG L W， et al. Insertion of high-R cycles into random load spectra as fractographic markers［J］. International Journal of Fatigue， 2025， 198： 109001.
[26]	HAN L， HE X F， NING Y， et al. Fatigue damage diagnosis and prognosis for 2024 aluminum plates with center holes： A strain monitoring approach［J］. International Journal of Fatigue， 2023， 170： 107535.
[27]	MURAKAMI Y， KEER L M. Stress intensity factors handbook， Vol. 3 ［M］. Oxford： Pergamon Press， 1993.
[28]	TUEGEL E J. Aircraft structural reliability and risk analysis handbook： Volume 2， structural fatigue degradation and probability of failure examples：AFRL-RQ-WP-TR-2020-0069 ［R］.Wright-Patterson Air Force Base： Air Force Research Laboratory， 2020.
[29]	王神洲. ADB610钢疲劳裂纹扩展的统计分布研究［D］. 昆明：昆明理工大学， 2012.
	WANG S Z. ADB610Steel fatigue crack propagation statistical distribution research［D］. Kunming： Kunming University of Science and Technology， 2012 （in Chinese）.
[30]	曲先强，马永亮，崔洪斌，等. Paris公式中材料参数的统计特性分析［C］∥2008全国MTS断裂测试研讨会论文集. 北京：中国力学学会， 2008.
	QU X Q， MA Y L， CUI H B， et al. Statistical characteristics analysis of material parameters in the Paris equation ［C］∥Proceedings of the 2008 National MTS Fracture Testing Symposium. Beijing： Chinese Society of Theoretical and Applied Mechanics， 2008.
[31]	BARAL T. Paris’ law parameters estimation for fatigue crack prediction of an aluminum alloy plate under cyclic loading ［J］. Canadian Society for Mechanical Engineering Transactions， 2022， 46（4）： 1150-1160.

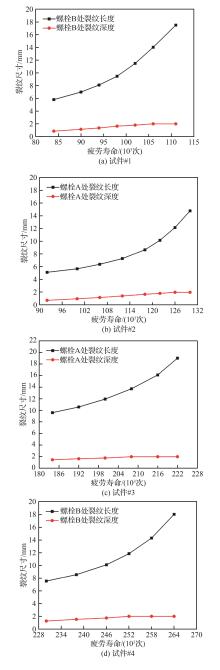

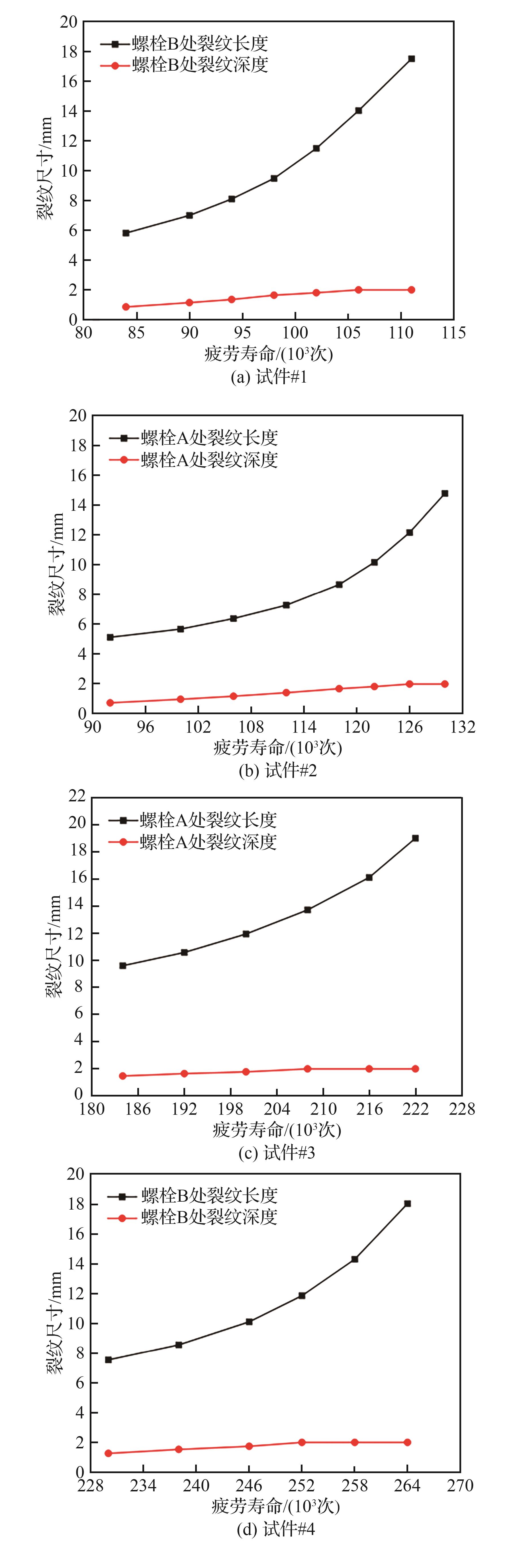

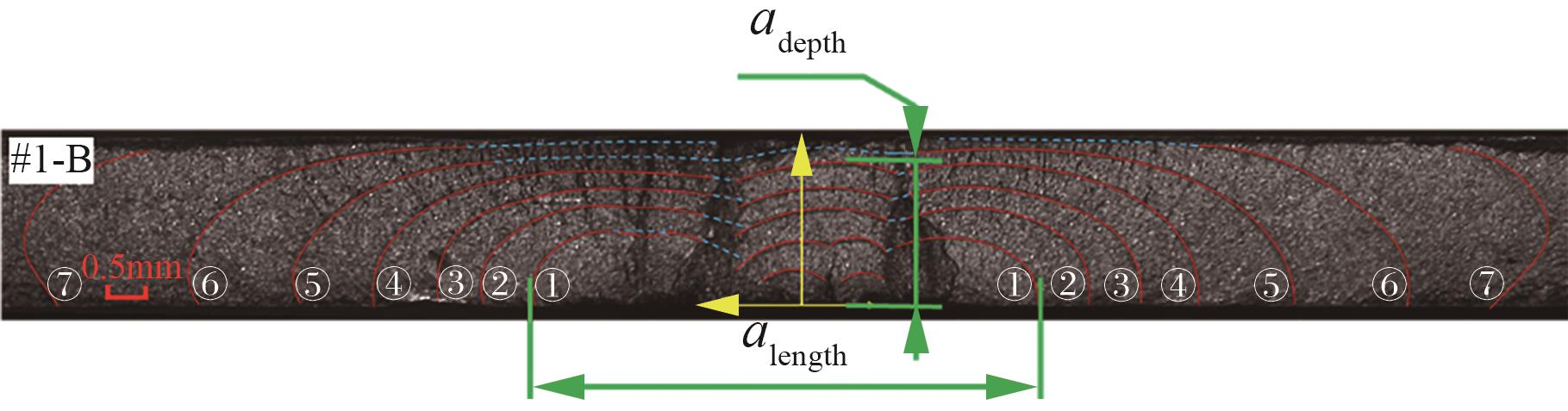

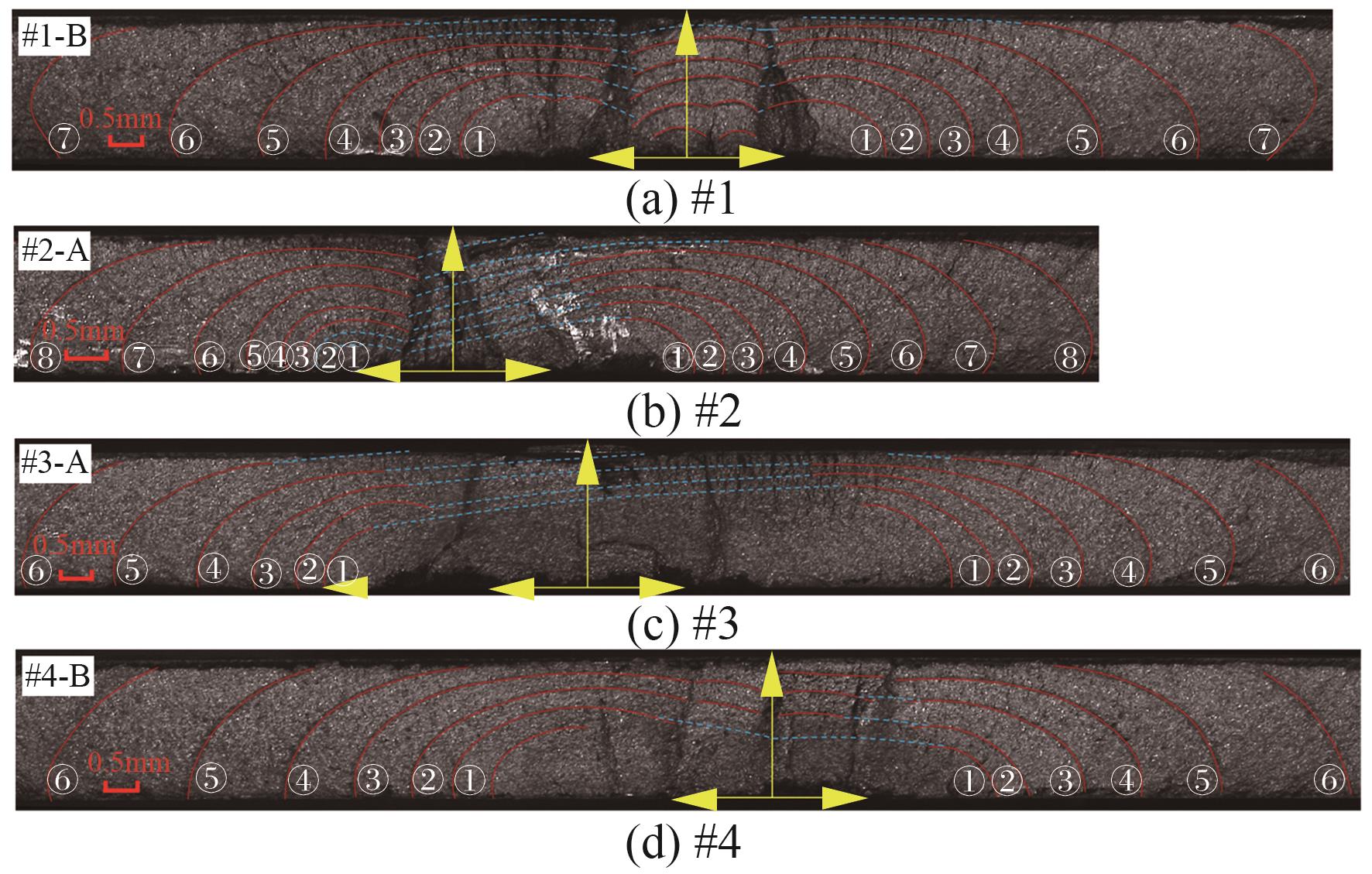

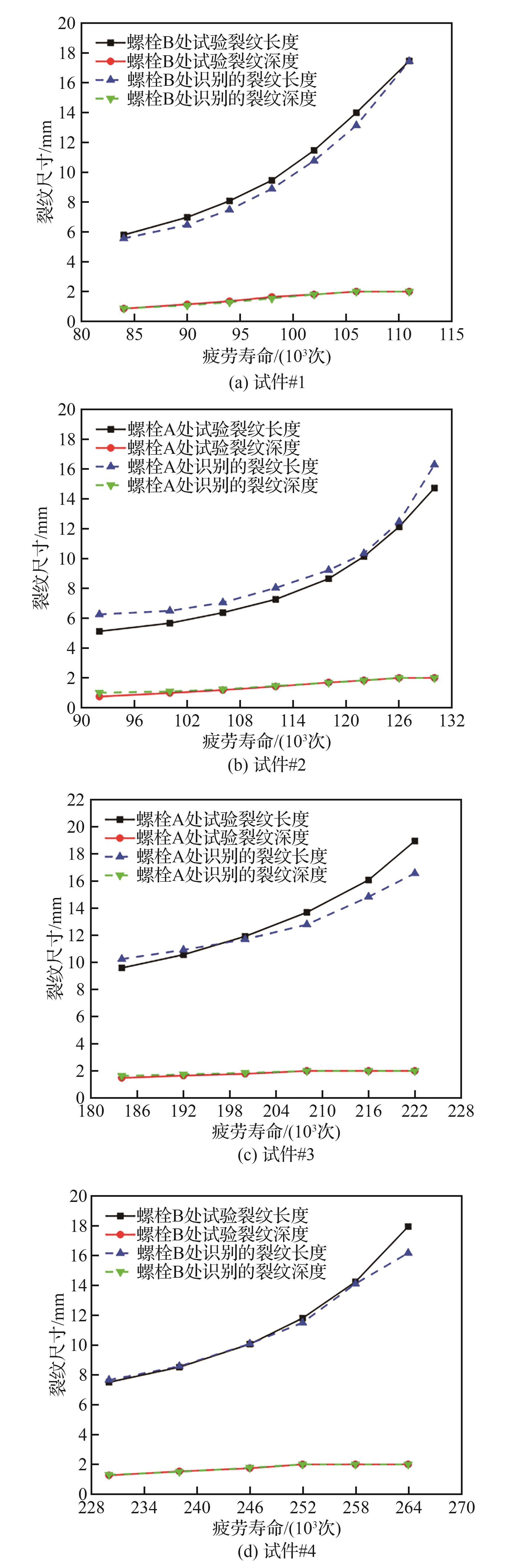

试件	载荷条件	裂纹位置	断口图	a-N曲线
#1	F _max=10 kN，R=0.1	螺栓B	图10 （a）	图11 （a）
#2	F _max=10 kN，R=0.1	螺栓A	图10 （b）	图11 （b）
#3	F _max=8 kN，R=0.1	螺栓A	图10 （c）	图11 （c）
#4	F _max=8 kN，R=0.1	螺栓B	图10 （d）	图11 （d）

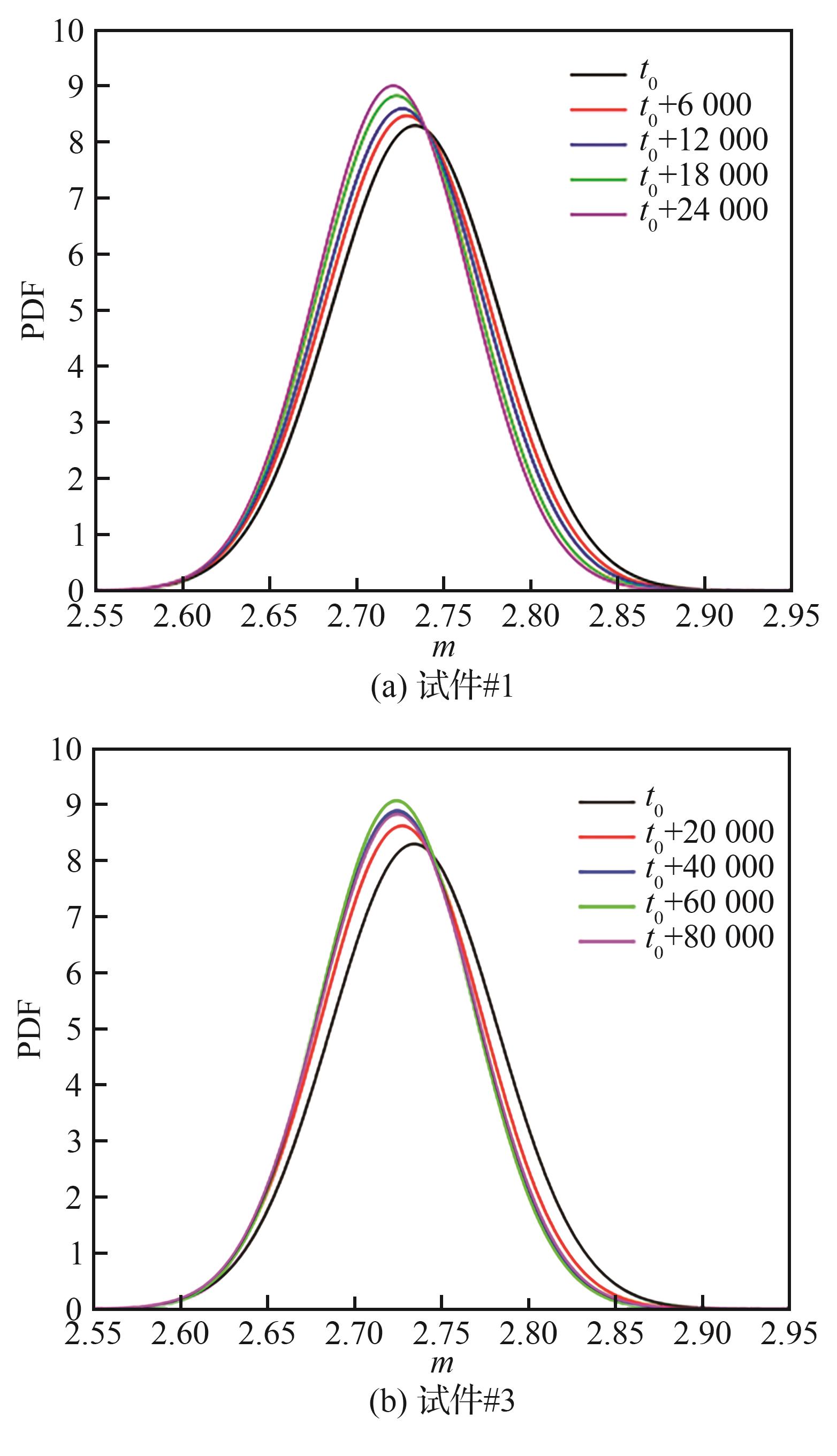

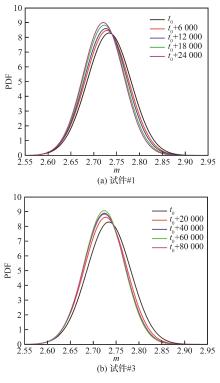

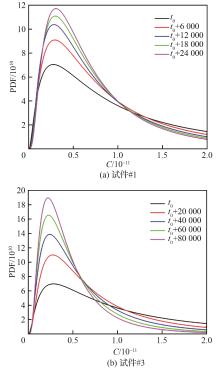

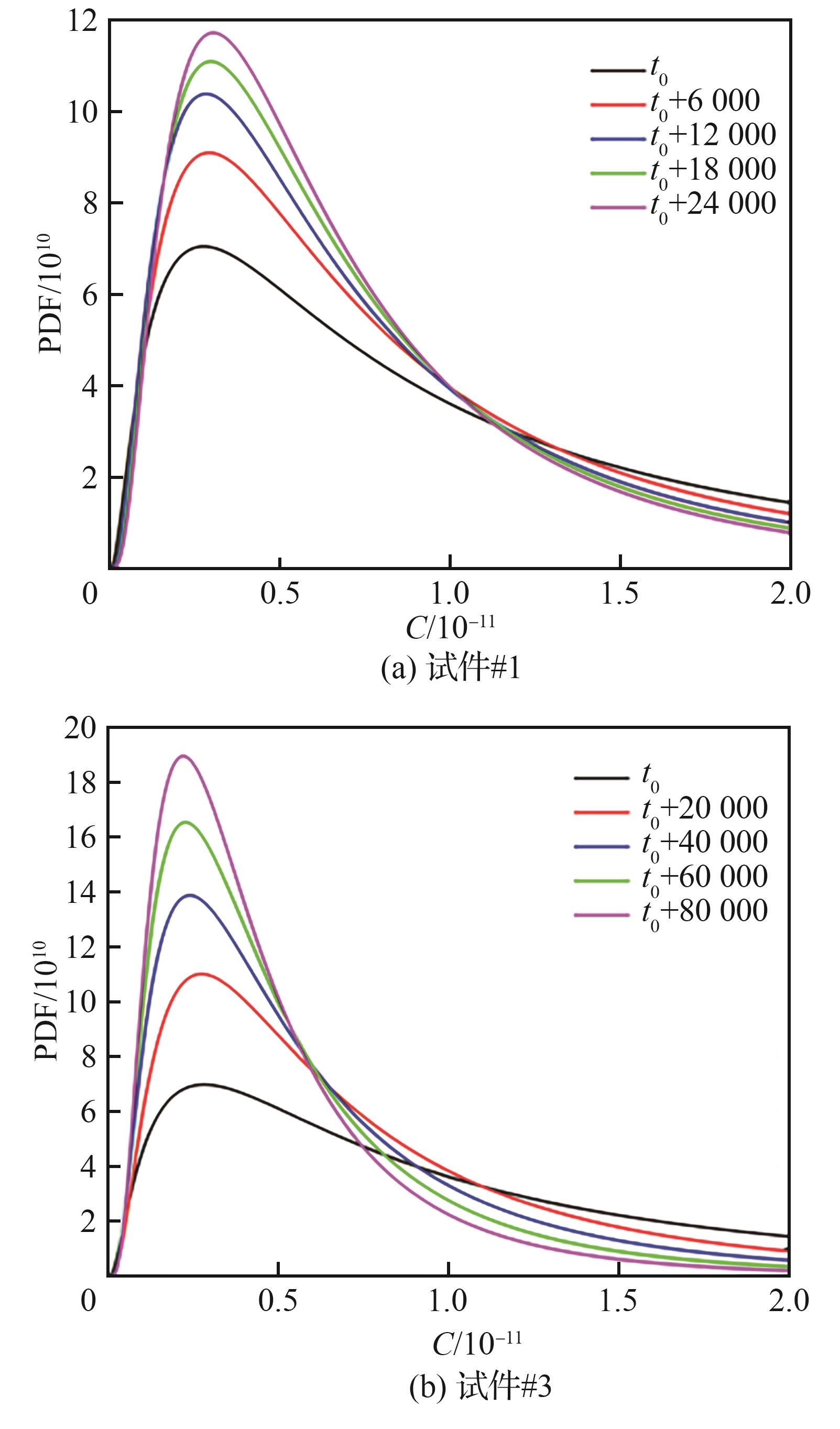

试件	检查周期/次	C （对数正态分布）		m （正态分布）
试件	检查周期/次	µ	σ	µ	σ
#1 峰值载荷10 kN	t ₀	-25.383 7	1.108 3	2.733 7	0.048 1
	t ₀+6 000	-25.648 3	0.952 1	2.729 0	0.047 1
	t ₀+12 000	-25.773 2	0.901 7	2.726 3	0.046 4
	t ₀+18 000	-25.823 9	0.845 2	2.723 1	0.045 2
	t ₀+24 000	-25.863 8	0.805 9	2.721 1	0.044 3
#3 峰值载荷8 kN	t ₀	-25.376 2	1.103 0	2.733 8	0.048 0
	t ₀+20 000	-25.829 4	0.889 9	2.726 8	0.046 2
	t ₀+40 000	-26.046 6	0.841 1	2.724 1	0.044 8
	t ₀+60 000	-26.197 3	0.781 8	2.723 6	0.043 9
	t ₀+80 000	-26.304 6	0.731 0	2.724 3	0.045 1

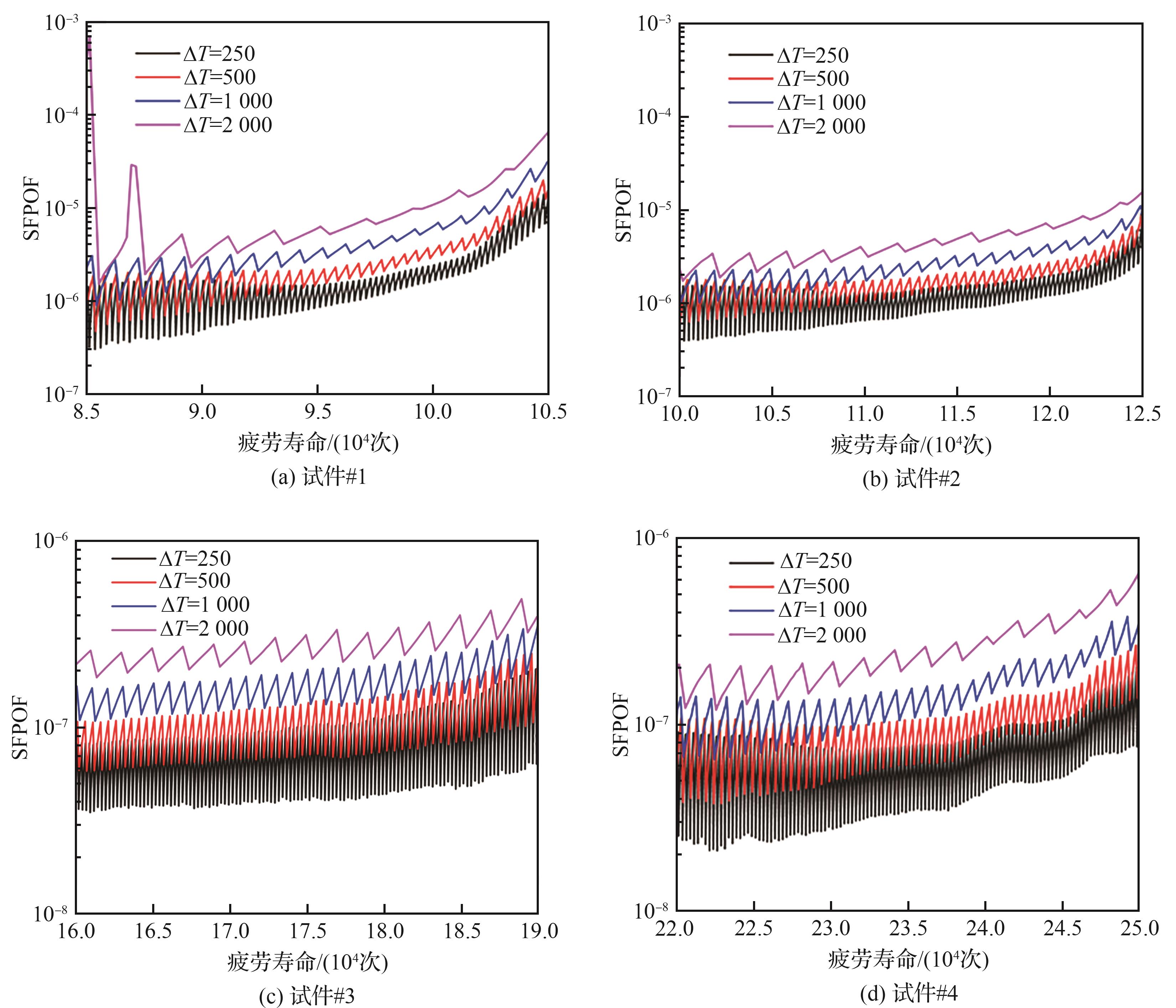

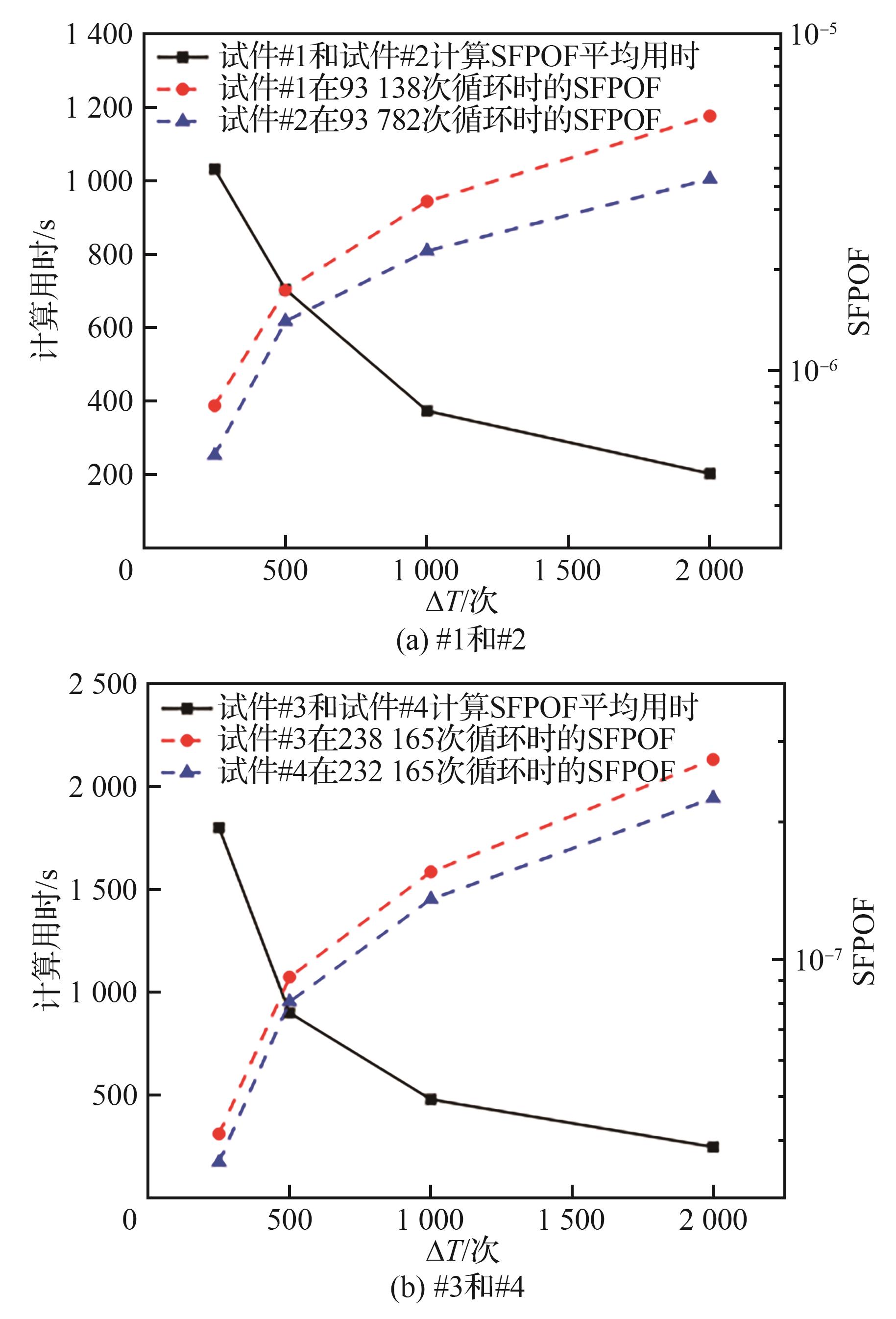

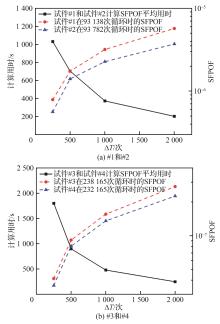

诊断间隔	时间/s
诊断间隔	#1	#2	#1和#2平均	#3	#4	#3和#4平均
ΔT = 250	978.36	1 083.72	1 031.04	2 253.22	1 356.02	1 804.62
ΔT = 500	746.67	660.54	703.605	1 113.78	689.26	901.52
ΔT = 1 000	339.7	406.08	372.89	585.67	373.09	479.38
ΔT = 2 000	110.13	294.58	202.355	314.05	180.51	247.28
