内埋式舱门机构的混合时变可靠性分析

doi:10.7527/S1000-6893.2025.32310

Abstract

Abstract:

As a key component of fighter aircraft， the embedded cabin door mechanism has a significant impact on the stealth performance of the fighter’s cabin door. In order to solve the problem of the step difference that may occur in the movement stage of the embedded cabin door mechanism with pre-deformed cabin door in advanced fighter aircraft， this paper analyzes the contact force and aerodynamic load of the embedded cabin door mechanism based on the established rigid-flexible coupling model of the embedded cabin door. On this basis， in order to solve the problem of accuracy reliability analysis of the cabin door mechanism， a time-dependent reliability analysis method based on symbolic misjudgment probability under hybrid uncertainty is proposed， which further improved the reliability analysis efficiency of the cabin door mechanism. First， the formula of the symbolic misjudgment probability is derived. Then， a symbolic misjudgment probability function is established as a learning function to simultaneously update random samples， interval samples， and time nodes. The accuracy and efficiency of the method are verified through a numerical example. Finally， the upper and lower bounds of the time-dependent failure probability of the embedded cabin door mechanism throughout the movement process are calculated using this method， providing a quantitative basis for the safety margin assessment and reliability design optimization of the embedded cabin door mechanism.

Key words: embedded cabin door mechanism, rigid-flexible coupling, symbolic misjudgment, hybrid uncertainties, time-dependent reliability

CLC Number:

V215.7

Yi CHEN, Pan WANG, Guijie LI, Fukang XIN. Hybrid time-dependent reliability analysis of embedded cabin door mechanism[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(3): 232310.

Figures/Tables 25

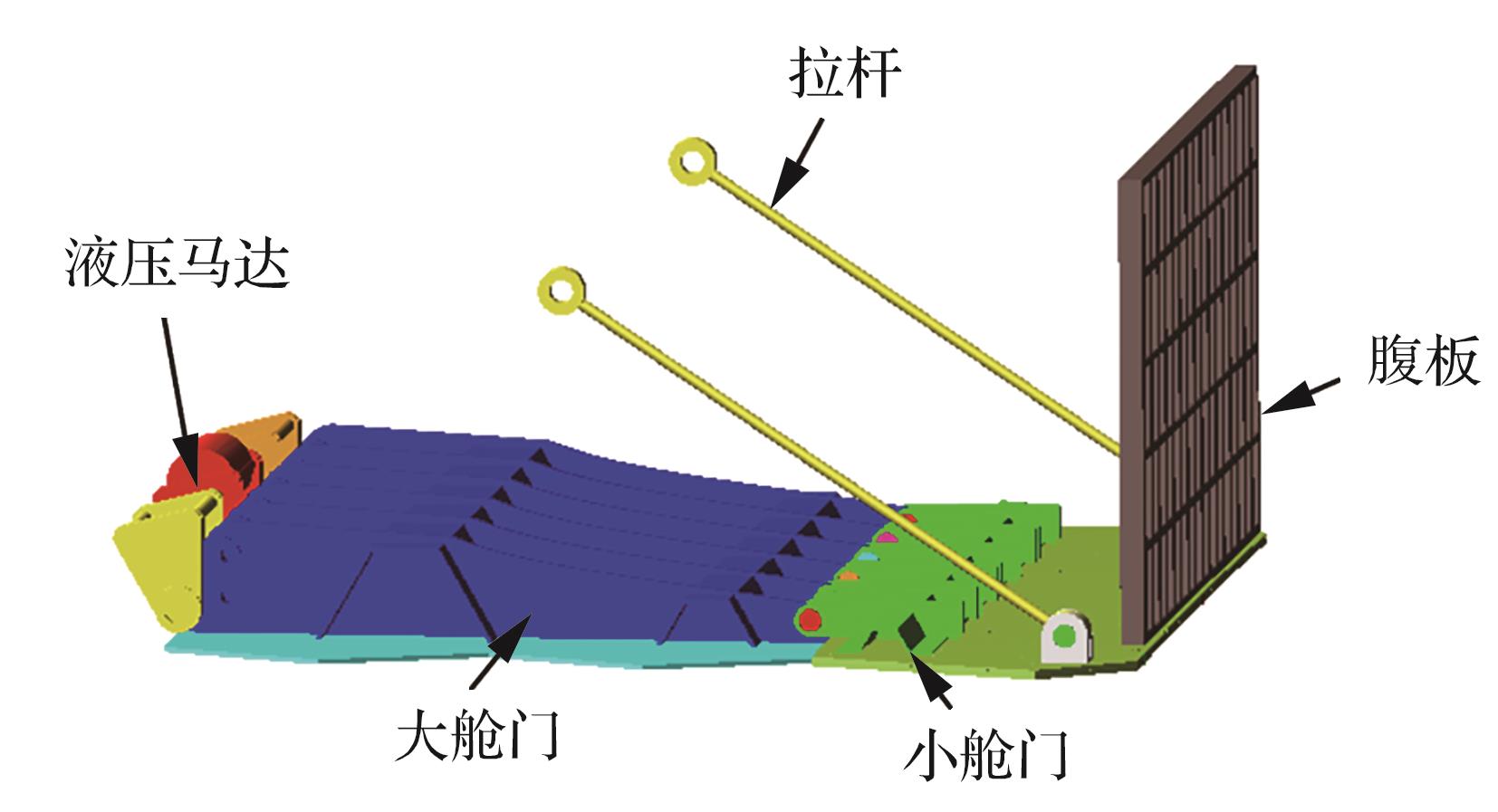

Fig.1

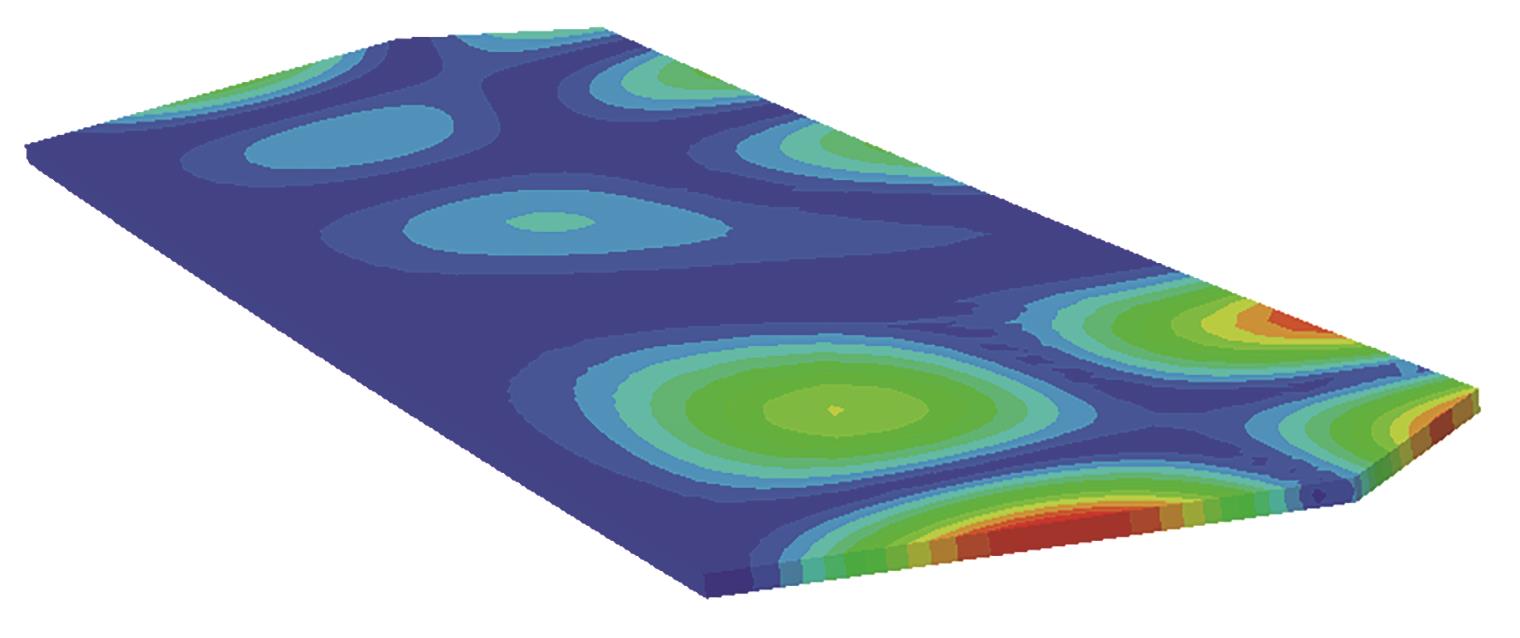

Fig.2

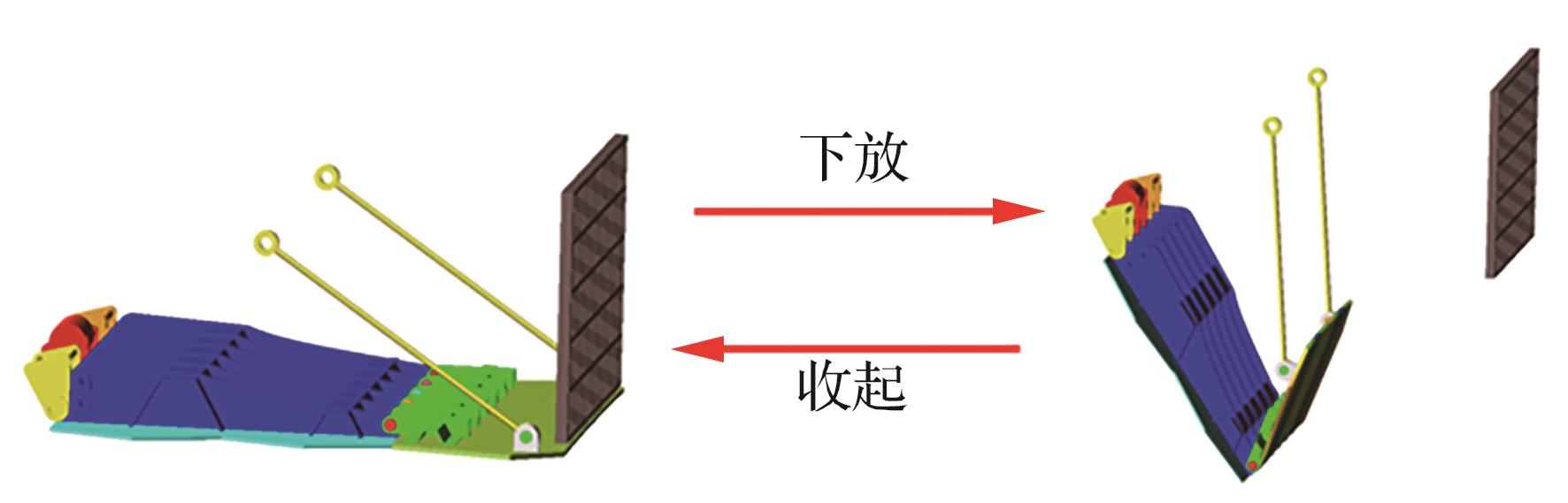

Fig.3

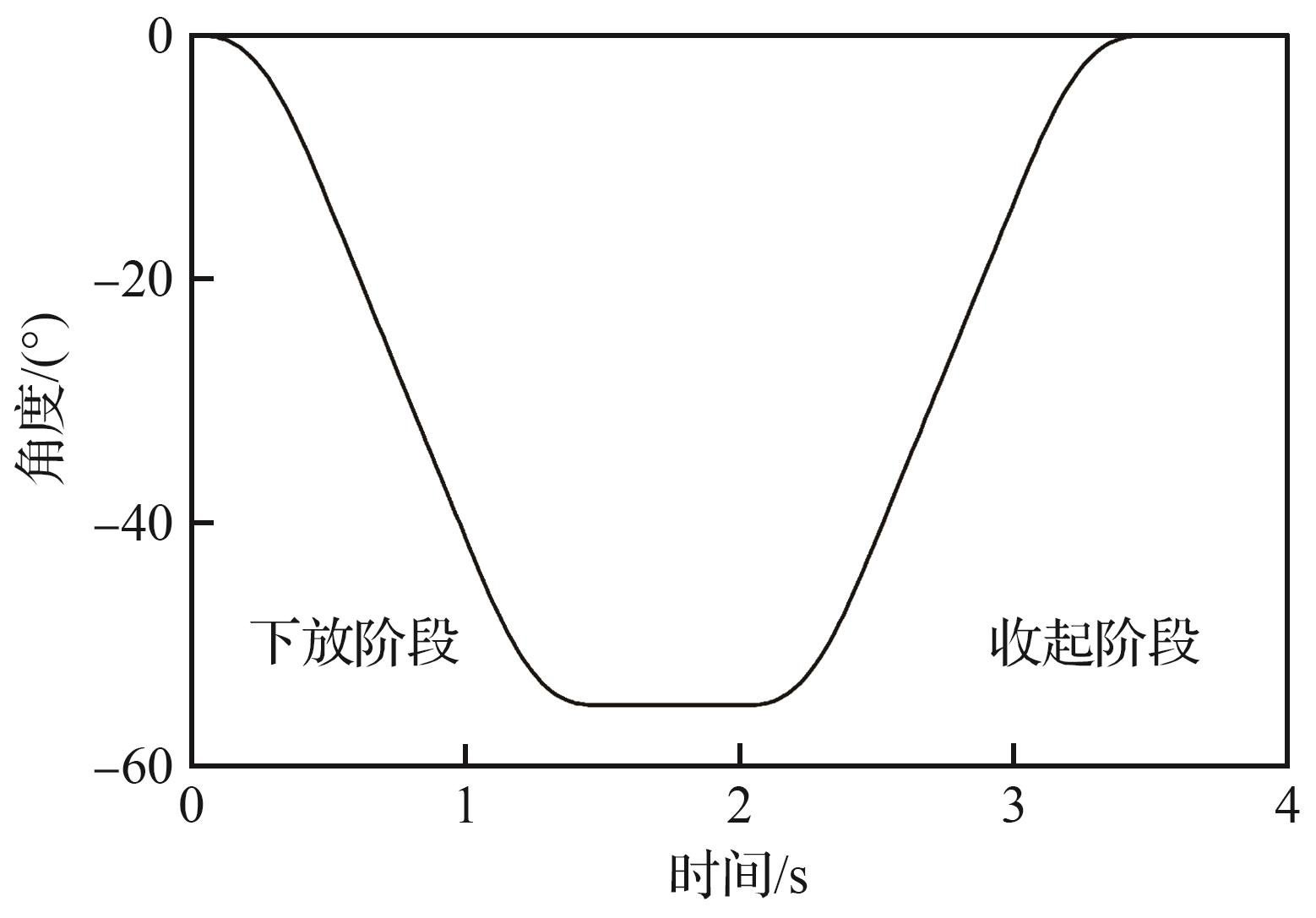

Fig.4

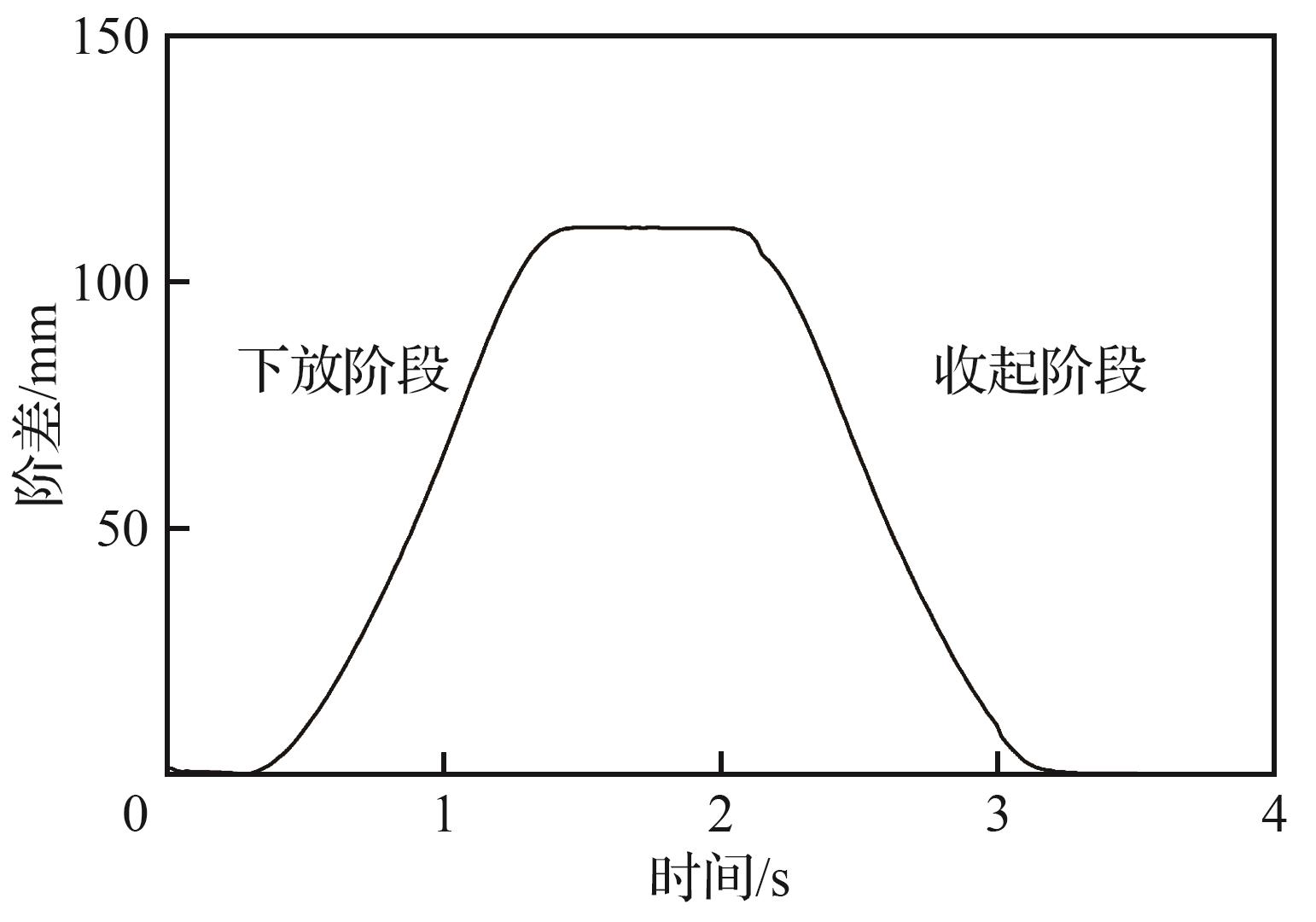

Fig.5

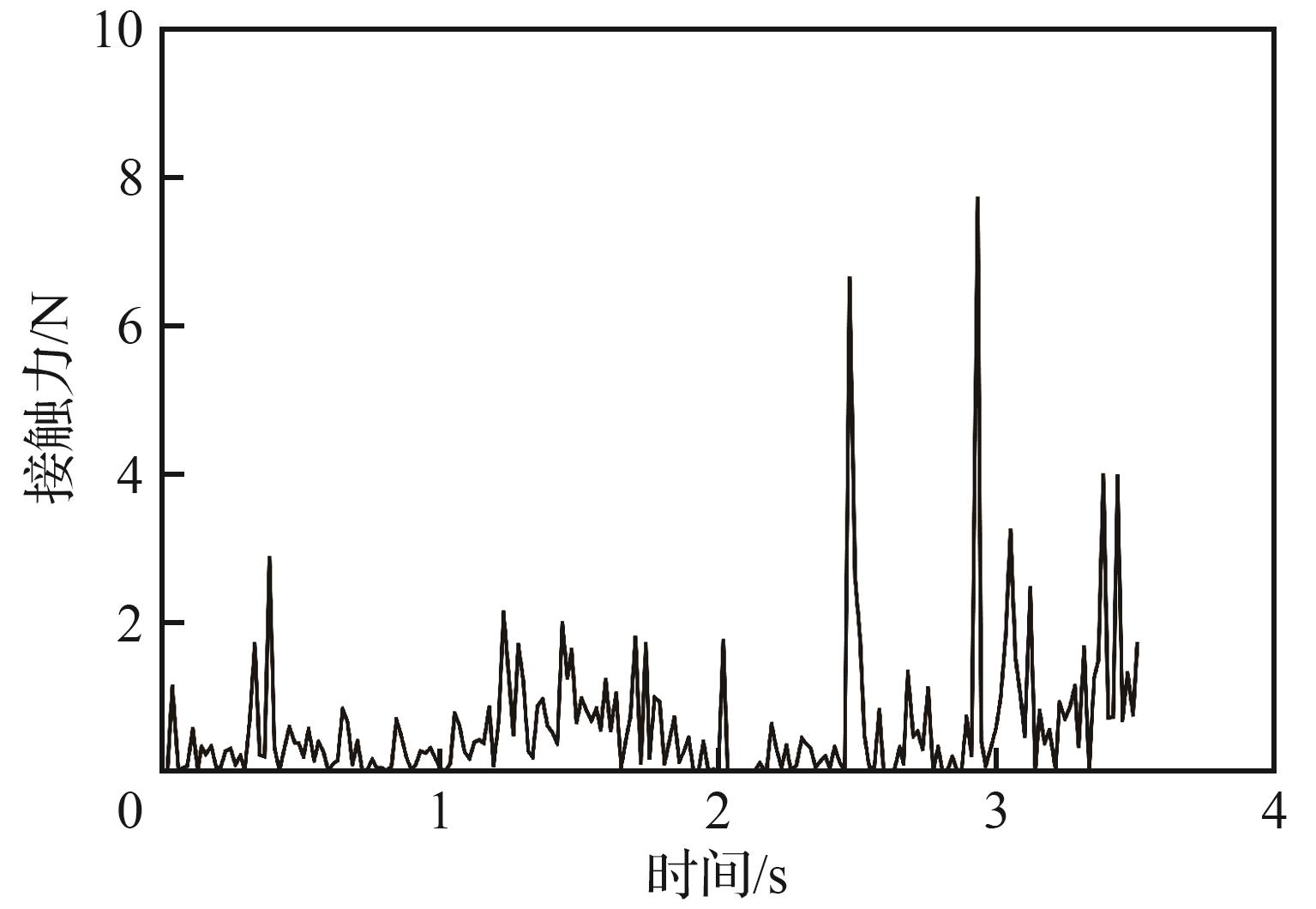

Fig.6

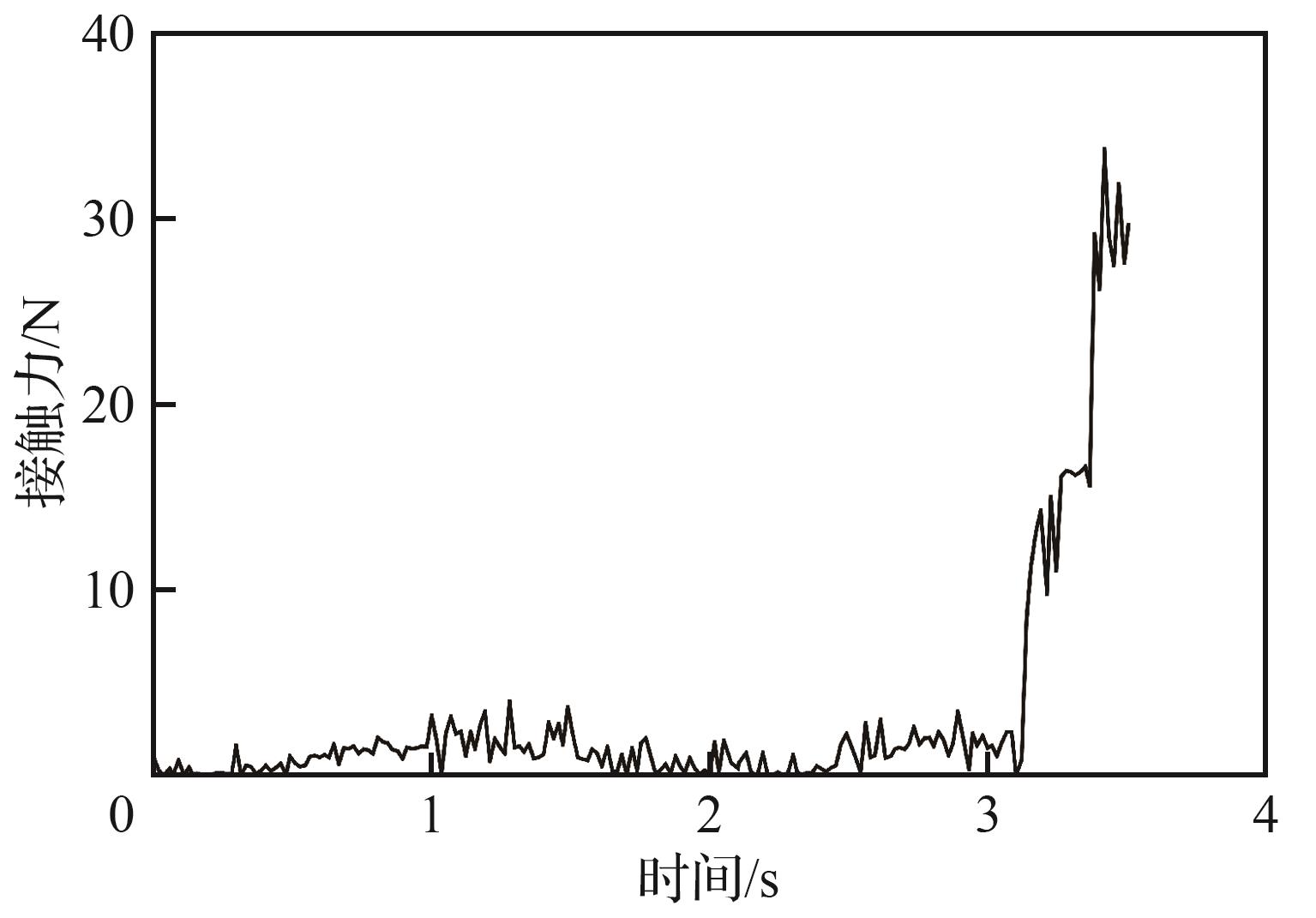

Fig.7

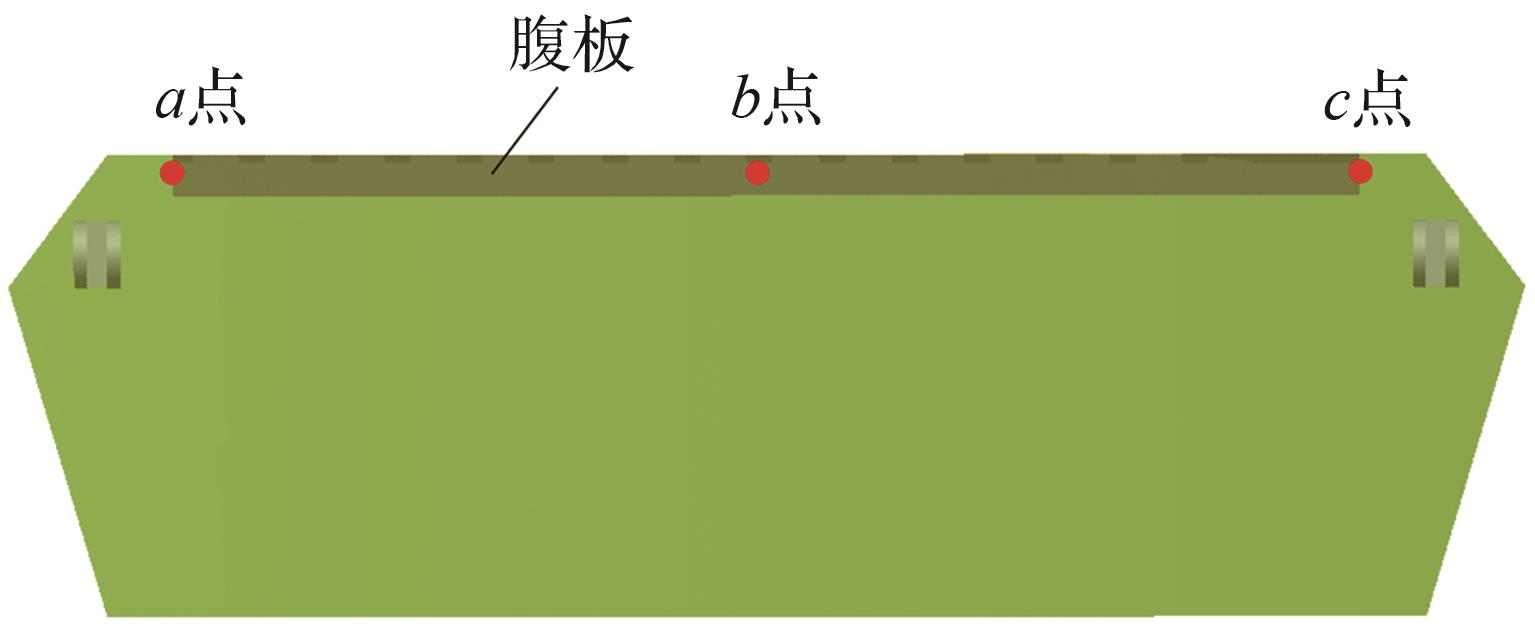

Fig.8

Fig.9

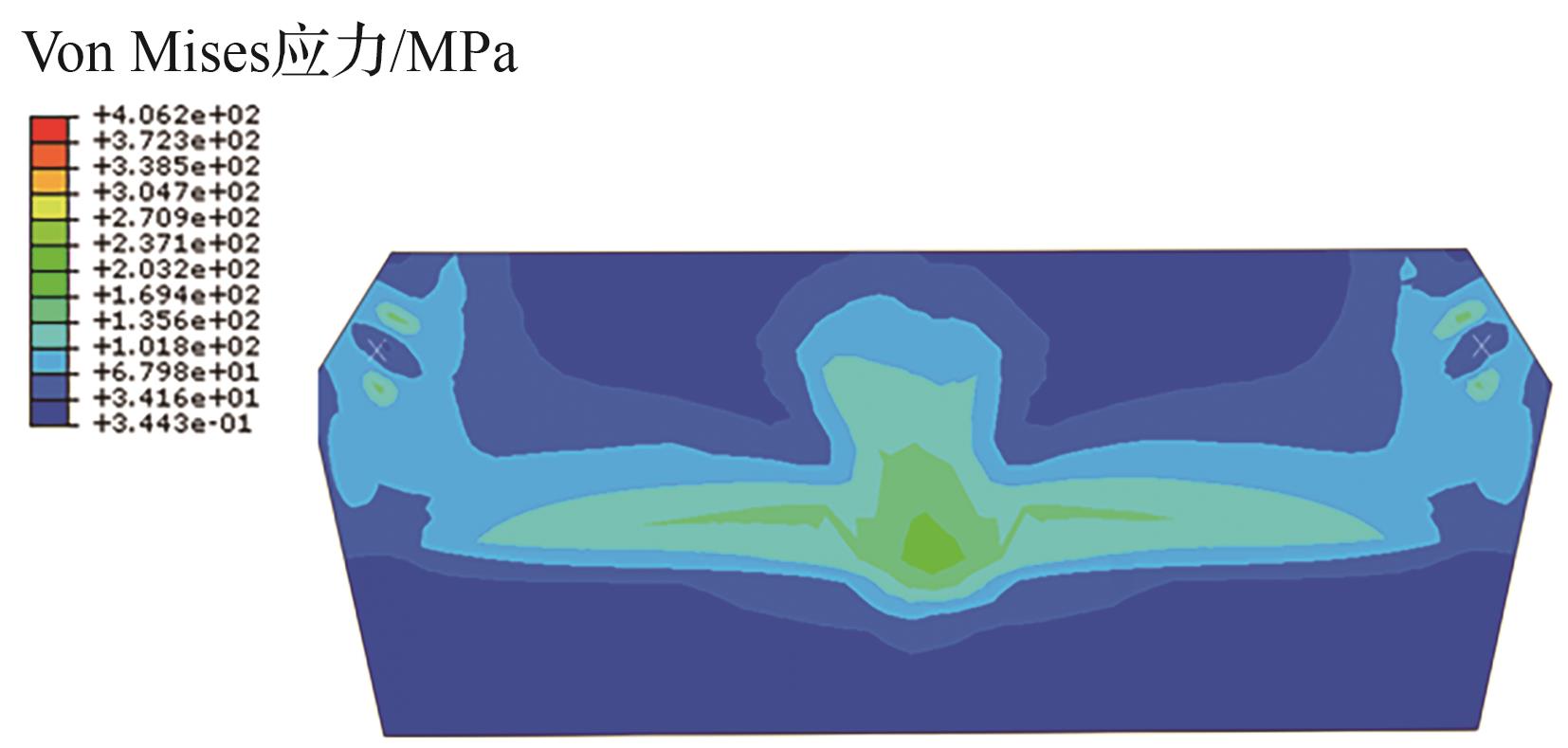

Fig.10

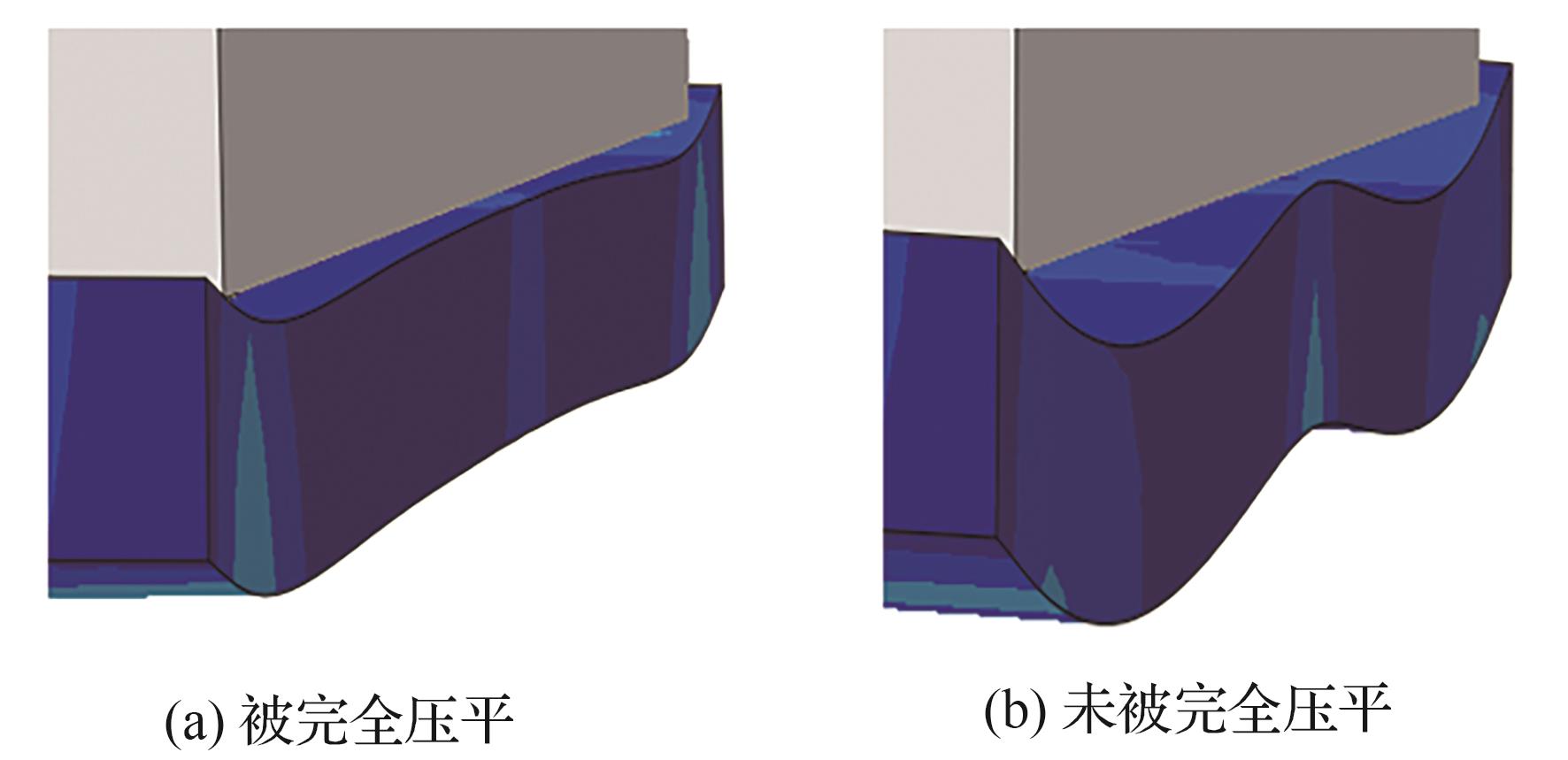

Fig.11

Fig.12

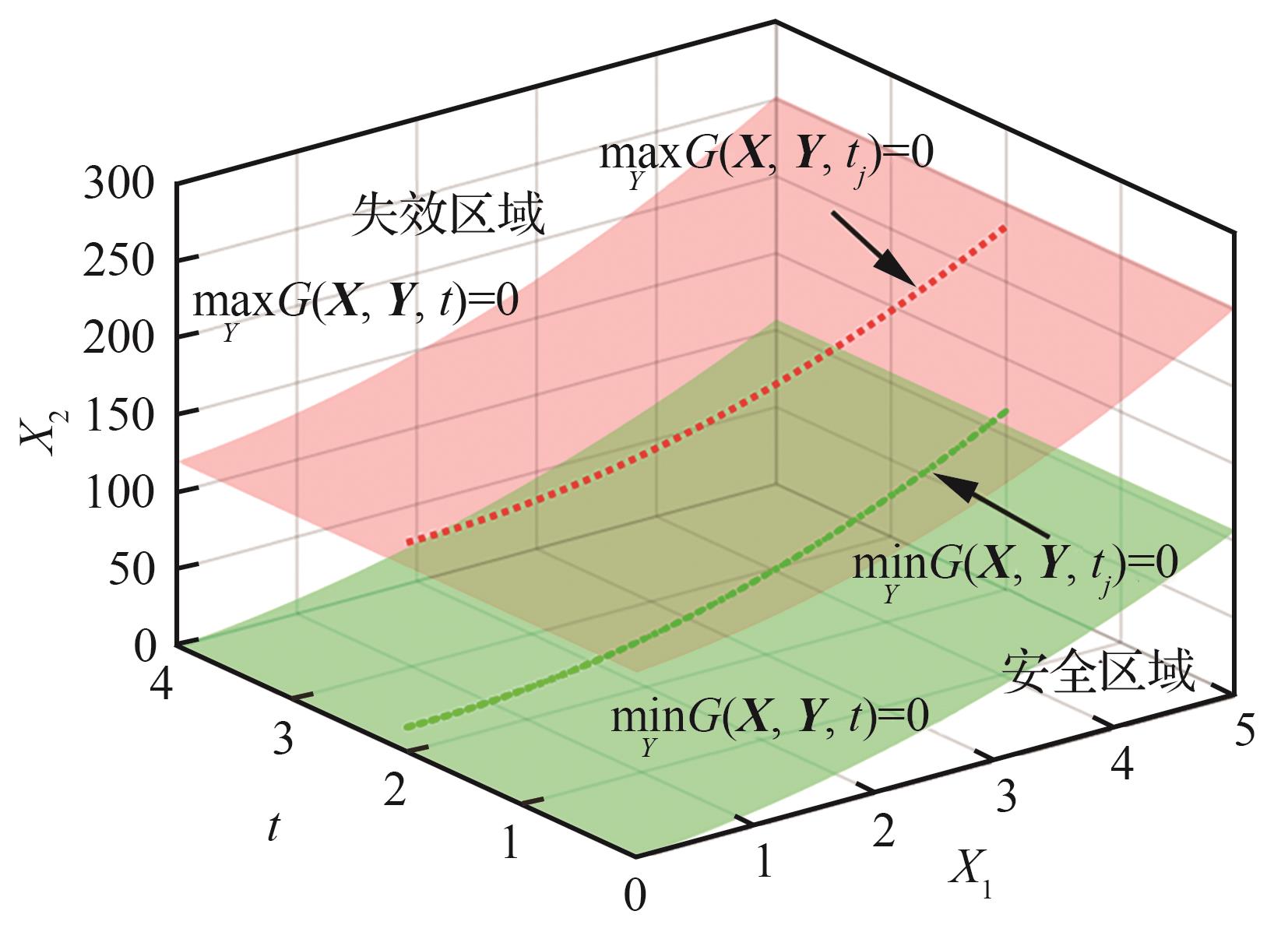

Fig.13

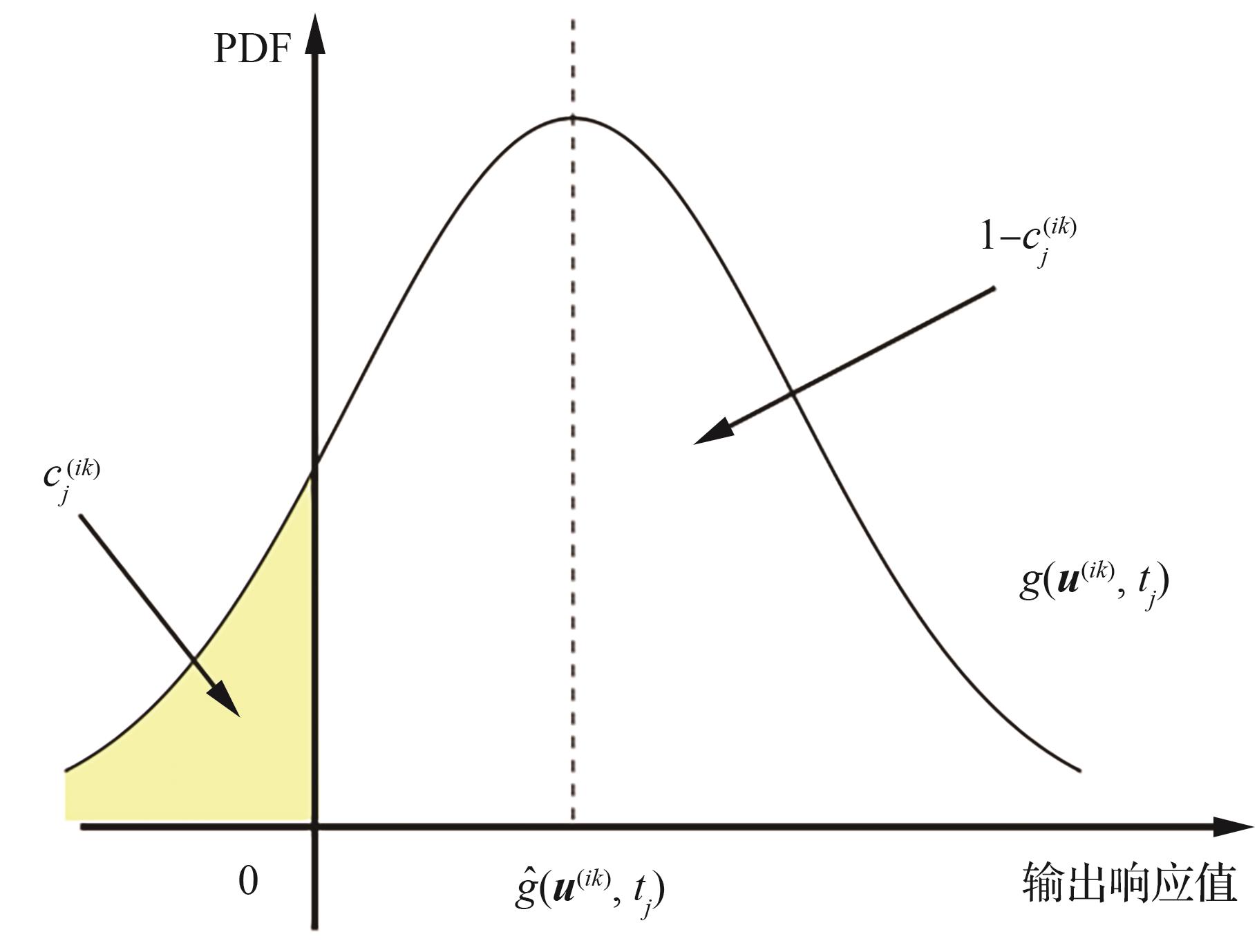

Fig.14

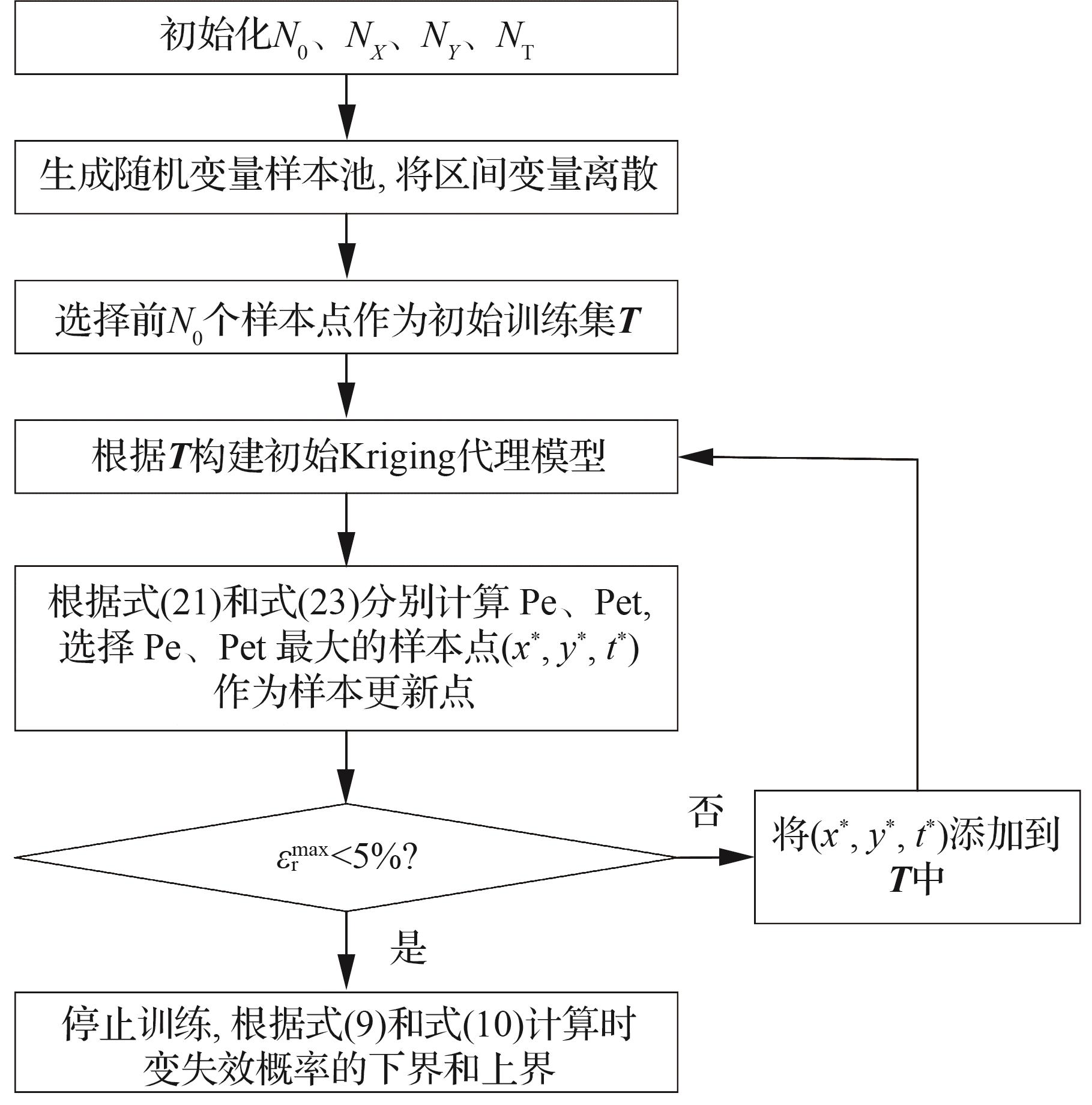

Fig.15

Table 1

Calculation results of numerical examples

方法	$P f m i n$	$P f m a x$	$N c a l l$	$ε r m a x$
MCS	0.018 21	0.113 17	10⁵ $×$ 101
MCSO	0.017 00	0.114 00	10⁵ $×$ 200
SLK-HTRA	0.014 00	0.112 00	11+35	0.046 73
所提方法	0.018 10	0.113 00	11+9	0.047 34

Table 1

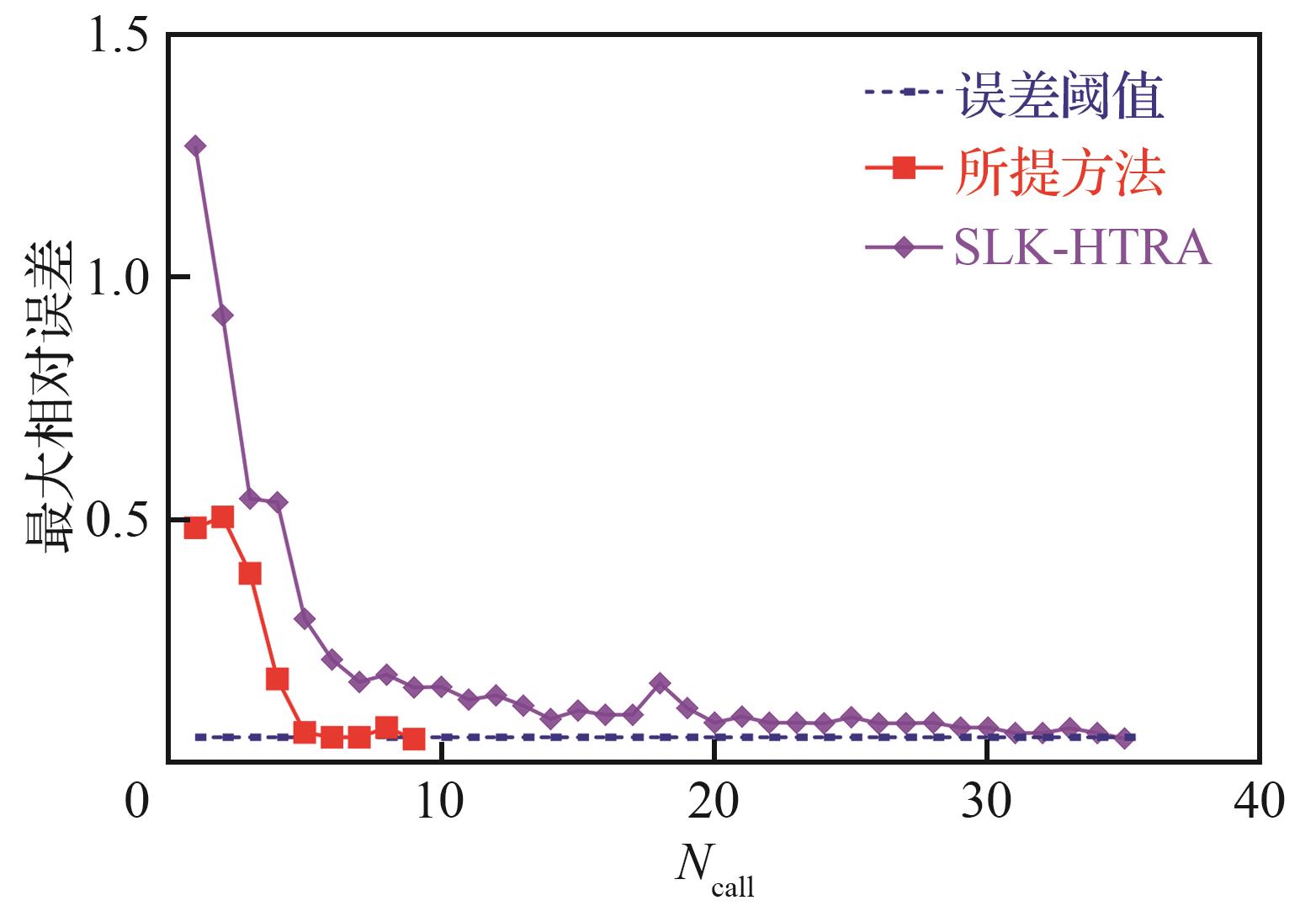

Fig.16

Fig.17

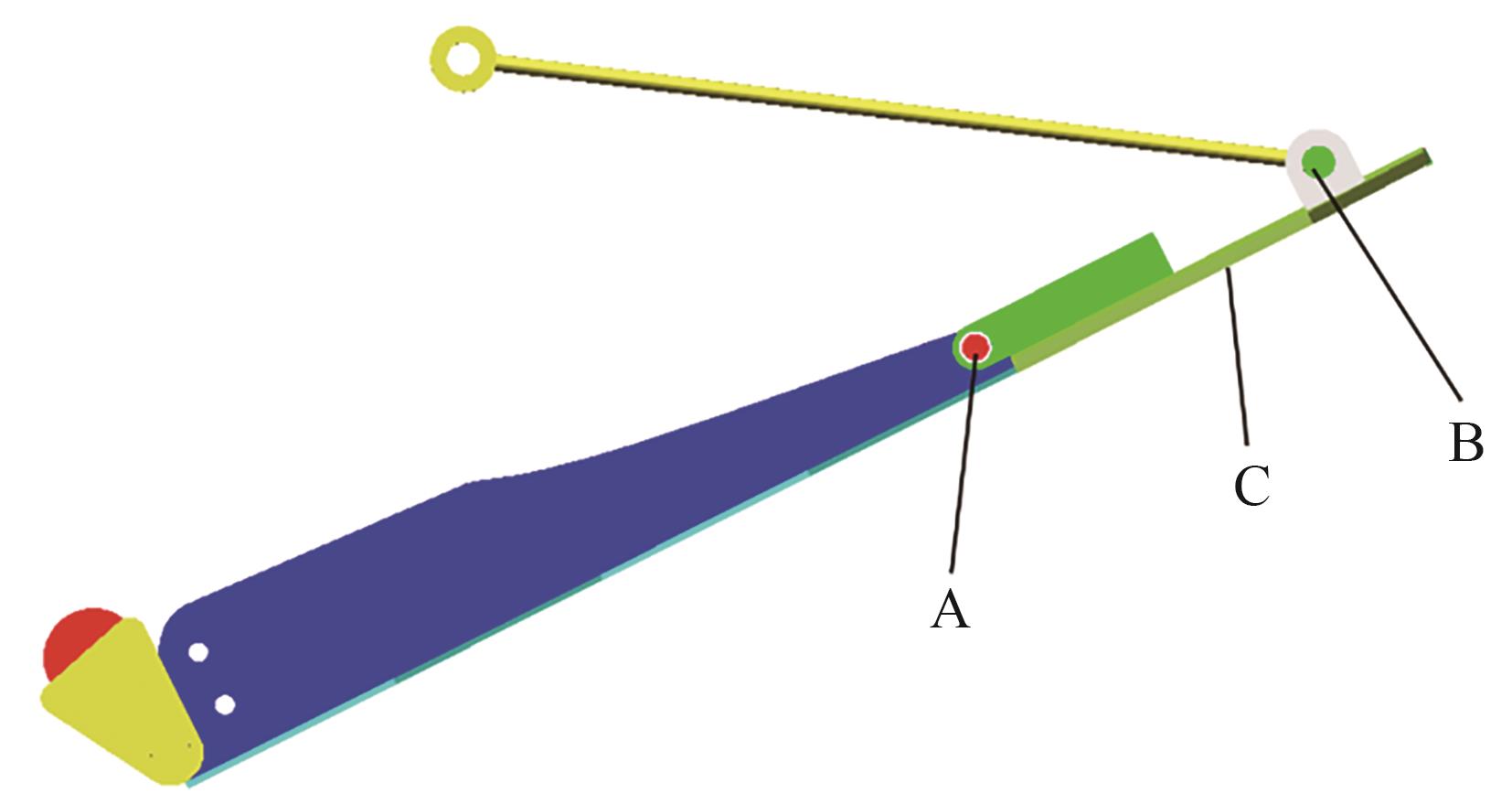

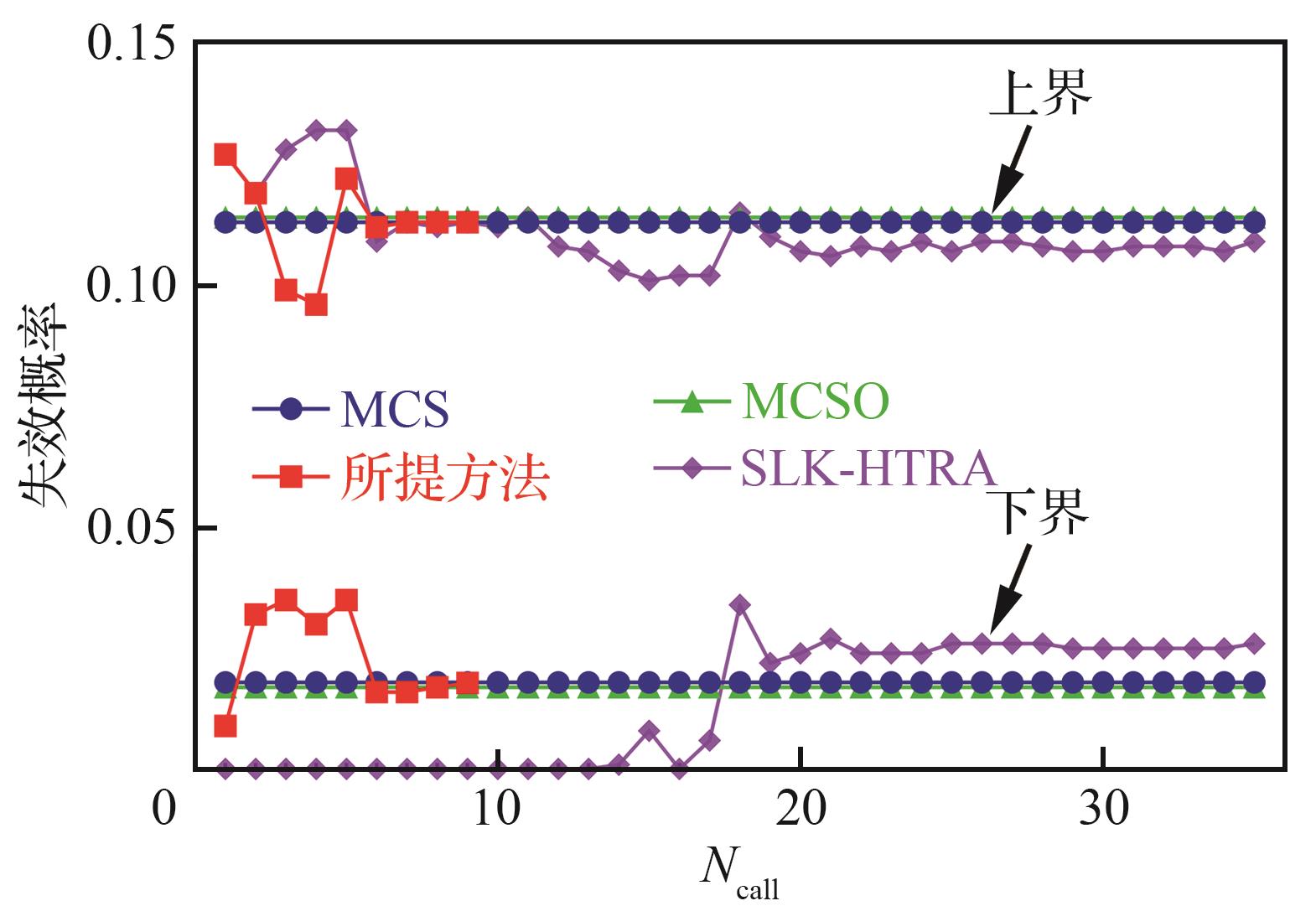

Fig.18

Fig.19

Table 2

Parameter distribution of input variable

变量	含义	分布类型	均值/下界	标准差/上界
$X 1$	销轴A半径	正态分布	2.4	0.1
$X 2$	销轴B半径	正态分布	2.4	0.1
$X 3$	C处气动载荷	正态分布	15	1
$Y 1$	销轴A摩擦系数	区间分布	0.01	0.15
$Y 2$	销轴B摩擦系数	区间分布	0.01	0.15

Table 2

Table 3

Reliability analysis results of embedded cabin door mechanism

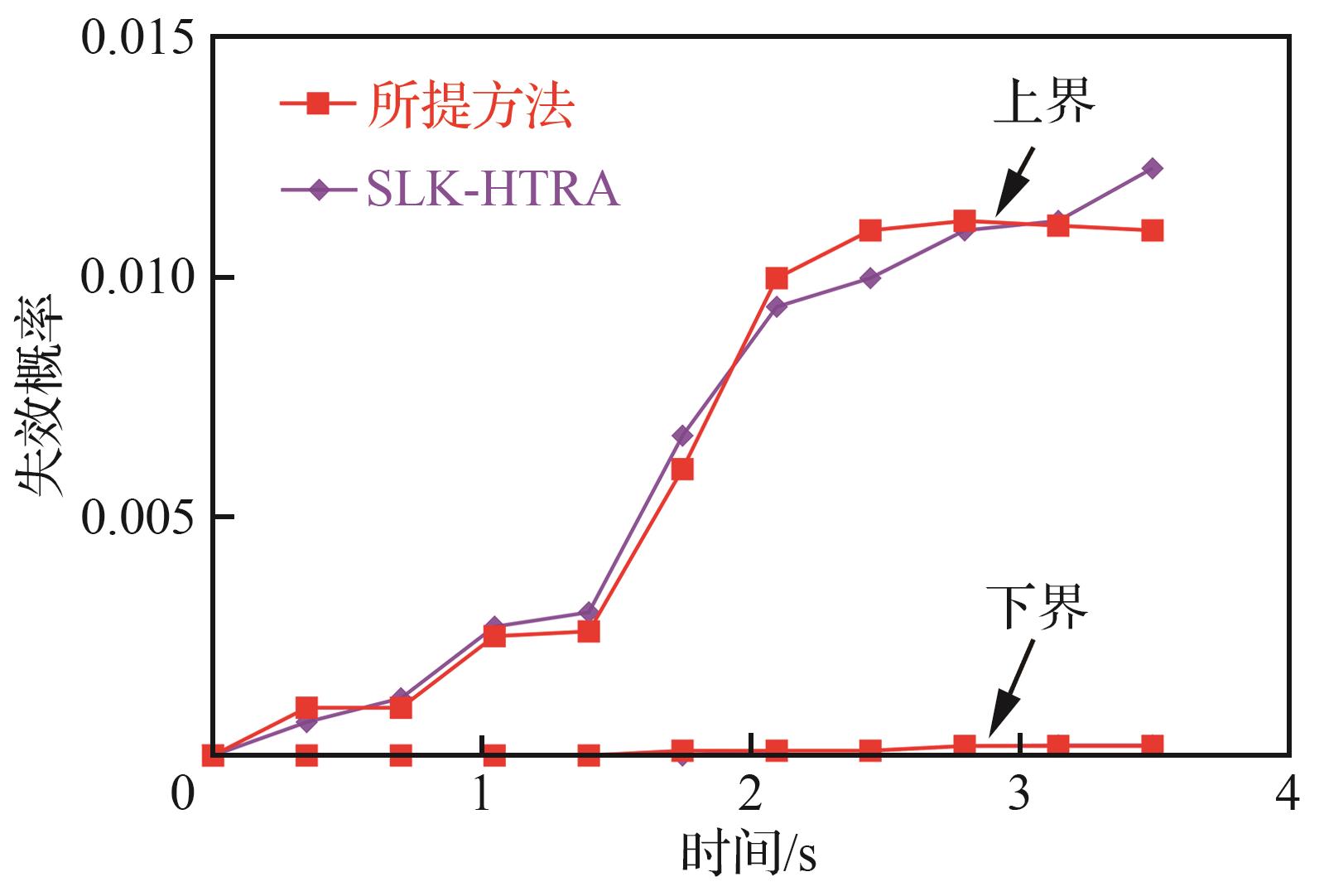

方法	$P f m i n$	$P f m a x$	$N c a l l$	$ε r m a x$
SLK-HTRA	0.000 2	0.012 3	30+26	0.043 0
所提方法	0.000 2	0.011 0	30+15	0.041 6

Table 3

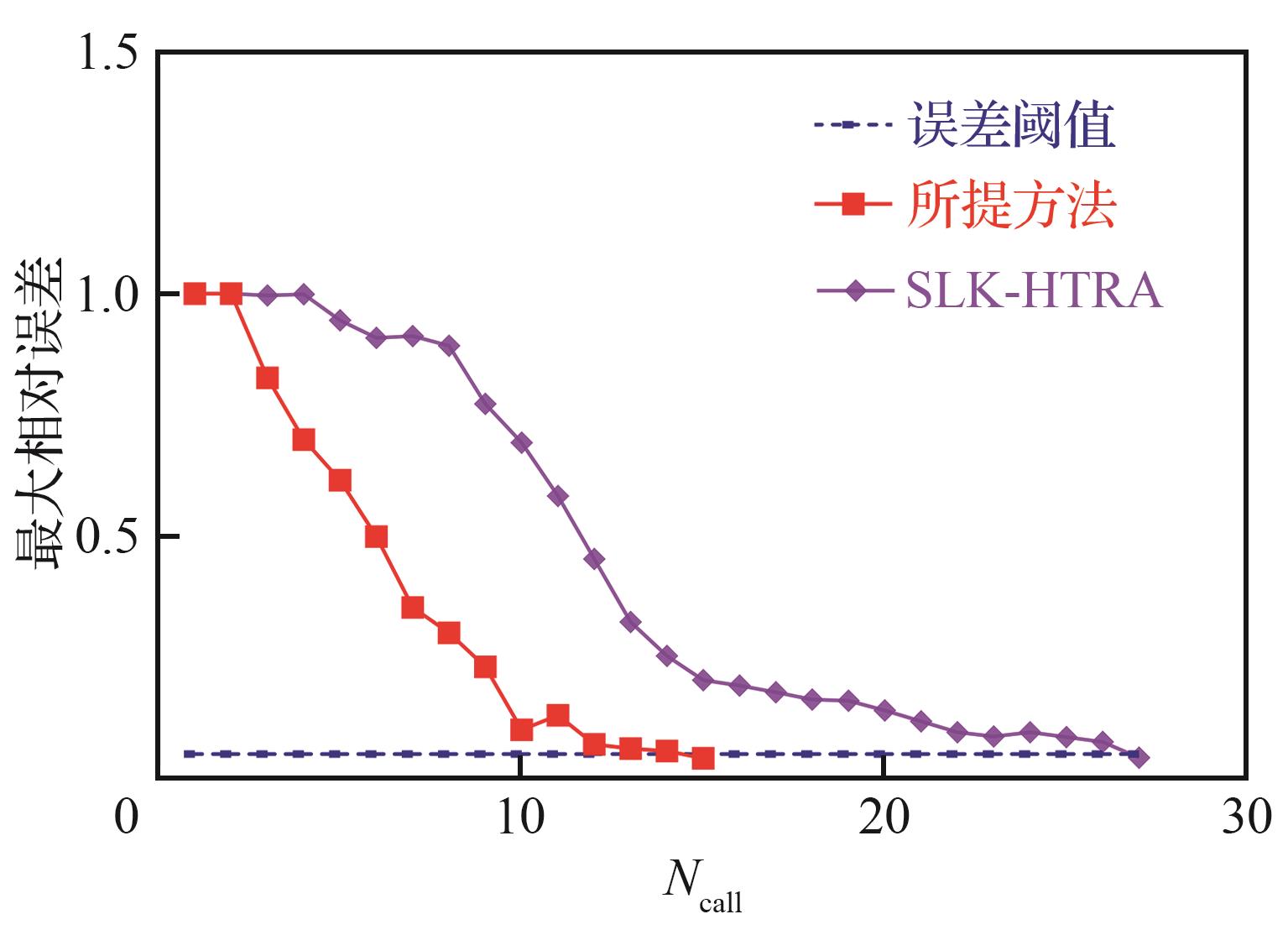

Fig.20

Fig.21

Fig.22

References 40
