无网格VDQ法分析非规则薄板热-振耦合特性

doi:10.7527/S1000-6893.2025.32248

Abstract

Abstract:

A meshless Variational Differential Quadrature （VDQ） method is proposed for thin plates with irregular geometric configurations. By integrating Differential Reproducing Kernel （DRK） interpolation technique and radial basis function approximation， a differential operator suitable for unstructured nodes is constructed. Meanwhile， an adaptive integral operator based on Voronoi diagram theory is developed to achieve numerical integration over irregular computational domains. The effectiveness of this method is validated through systematic investigations of thermally driven vibrations in both homogeneous single-layer plates and Functionally Graded Materials （FGM） with five typical boundary shapes， including square plates， round-corner-defective plates， square-corner-defective plates， circular-hole plates， and square-hole plates. Numerical results demonstrate that compared with traditional grid-based methods， the meshless VDQ method reduces the number of nodes while maintaining engineering accuracy requirements. In thermal-vibration analysis， the maximum deflection magnitudes for both types of plates exhibit a significant decrease trend： intact > round-corner-defective > square-corner-defective > circular-hole > square-hole， revealing the influence mechanism of irregular geometric boundaries on thermal-vibration responses of thin plate structures. This research provides an efficient and reliable numerical tool for thermal-vibration analysis of complex thin plate structures in aerospace， precision machinery， and other engineering fields.

Key words: irregular boundary thin plates, variational differential quadrature (VDQ) method, Voronoi diagram, meshless method, thermal vibration

CLC Number:

V214.4

Ligang WANG, Runze XU, Zhipeng LIU, Yuchao HUANG, Ke WANG. Meshfree VDQ method for thermal-vibration coupling characteristic analysis of irregular thin plates[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(3): 232248.

Figures/Tables 16

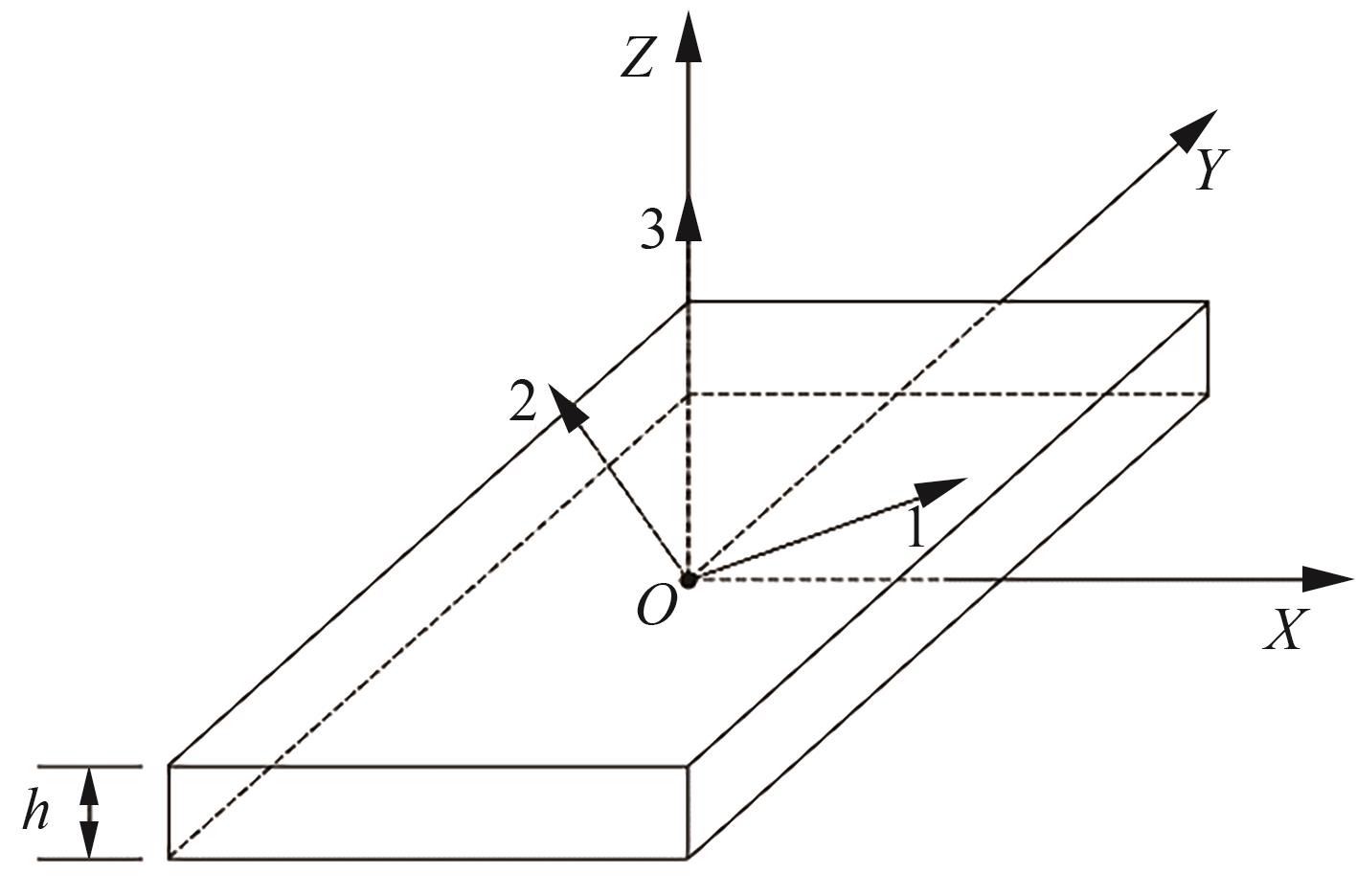

Fig.1

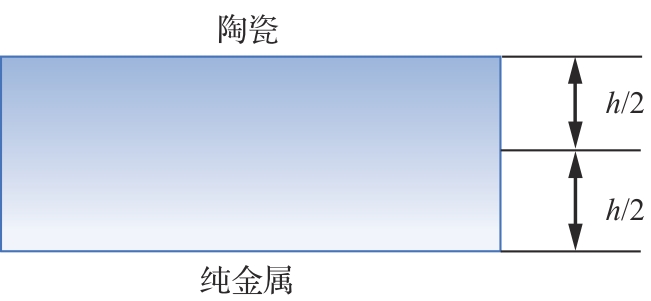

Fig.2

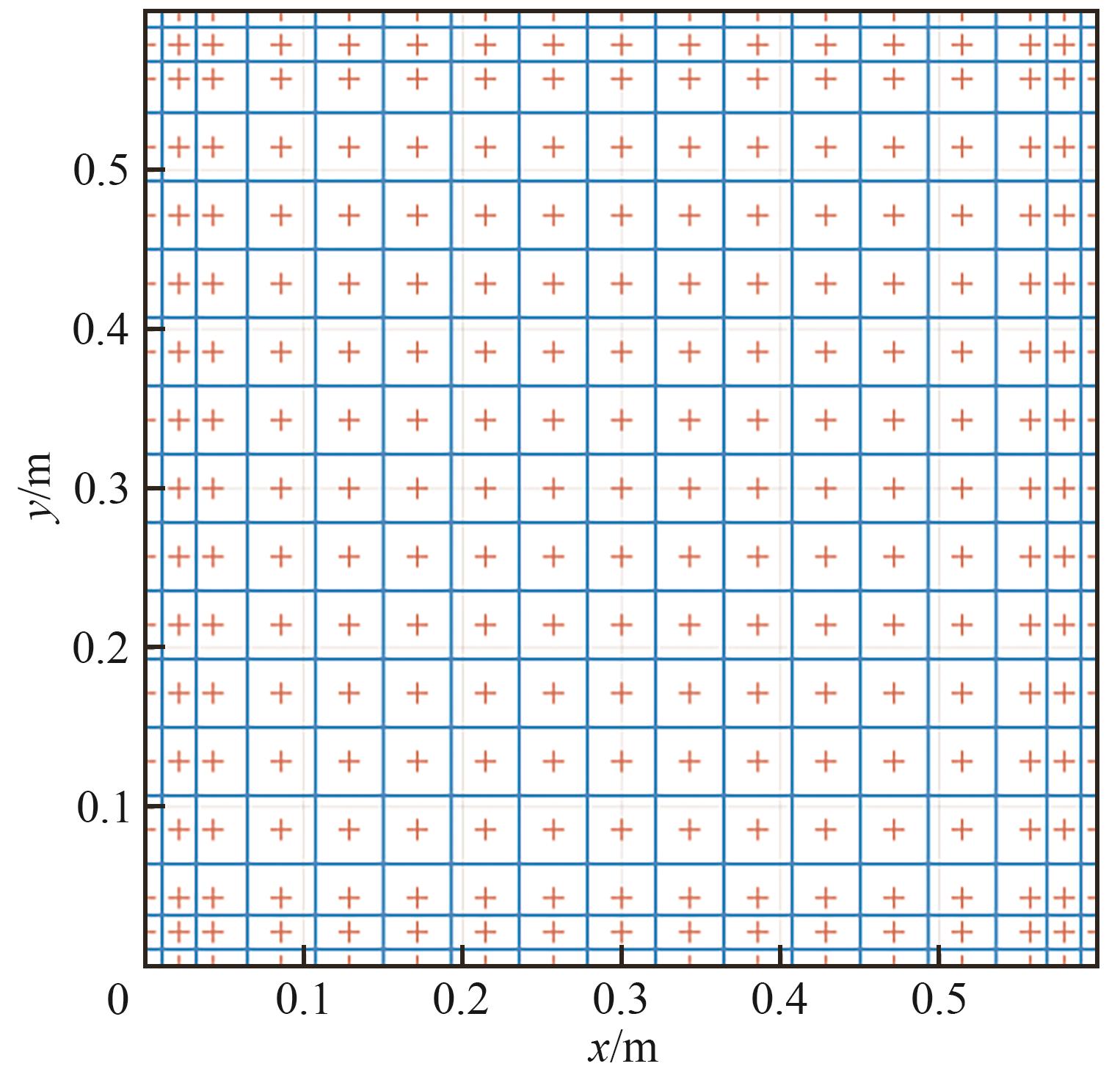

Fig.3

Fig.4

Table 1

Opening parameters of thin plates

开孔结构	中心坐标/m	长度/半径/m
方洞	$a / 2, b / 2$	$2 a / 5$
方角	$0,0$	$a / 5$
圆洞	$a / 2, b / 2$	$a / 5$
圆角	$0,0$	$a / 5$

Table 1

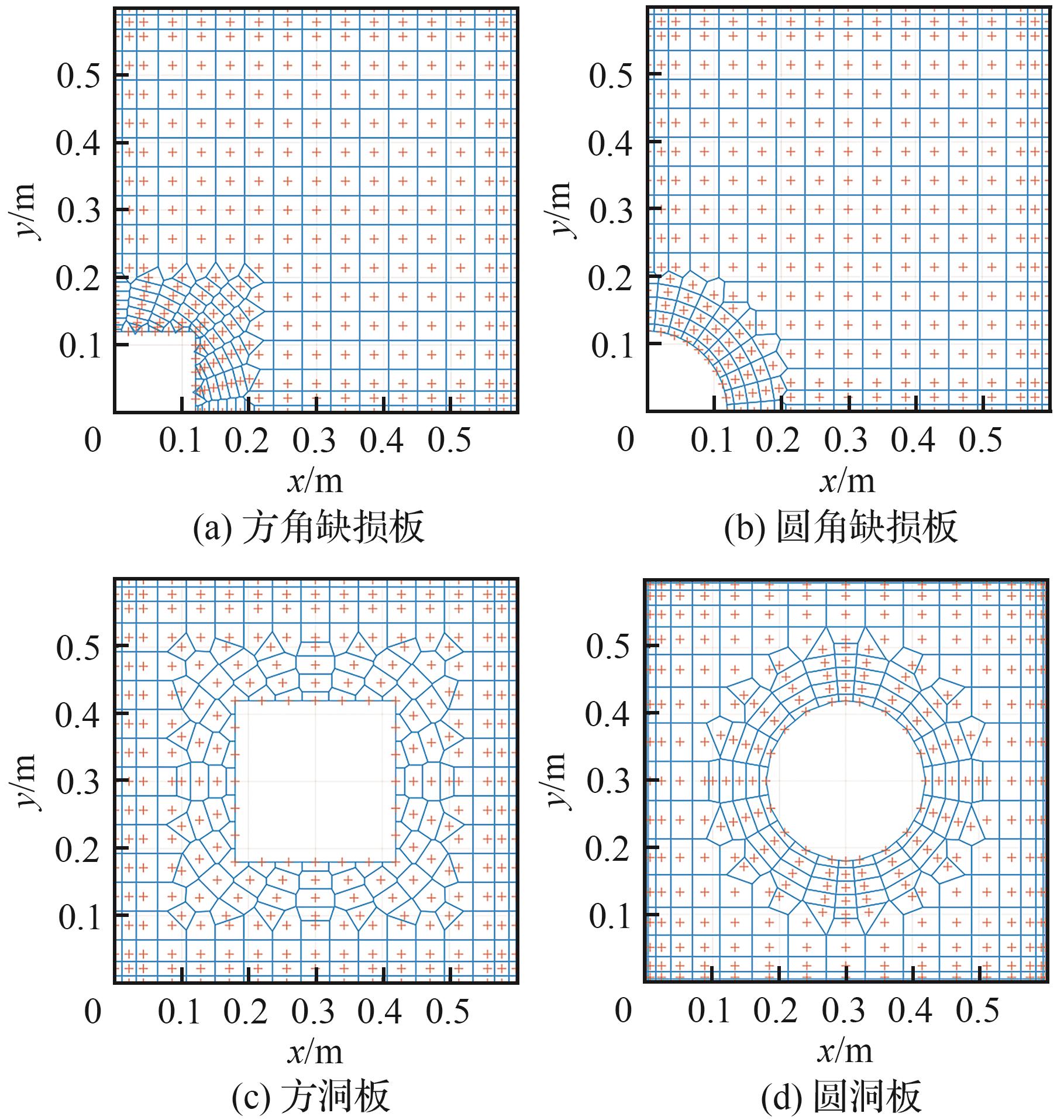

Fig.5

Table 2

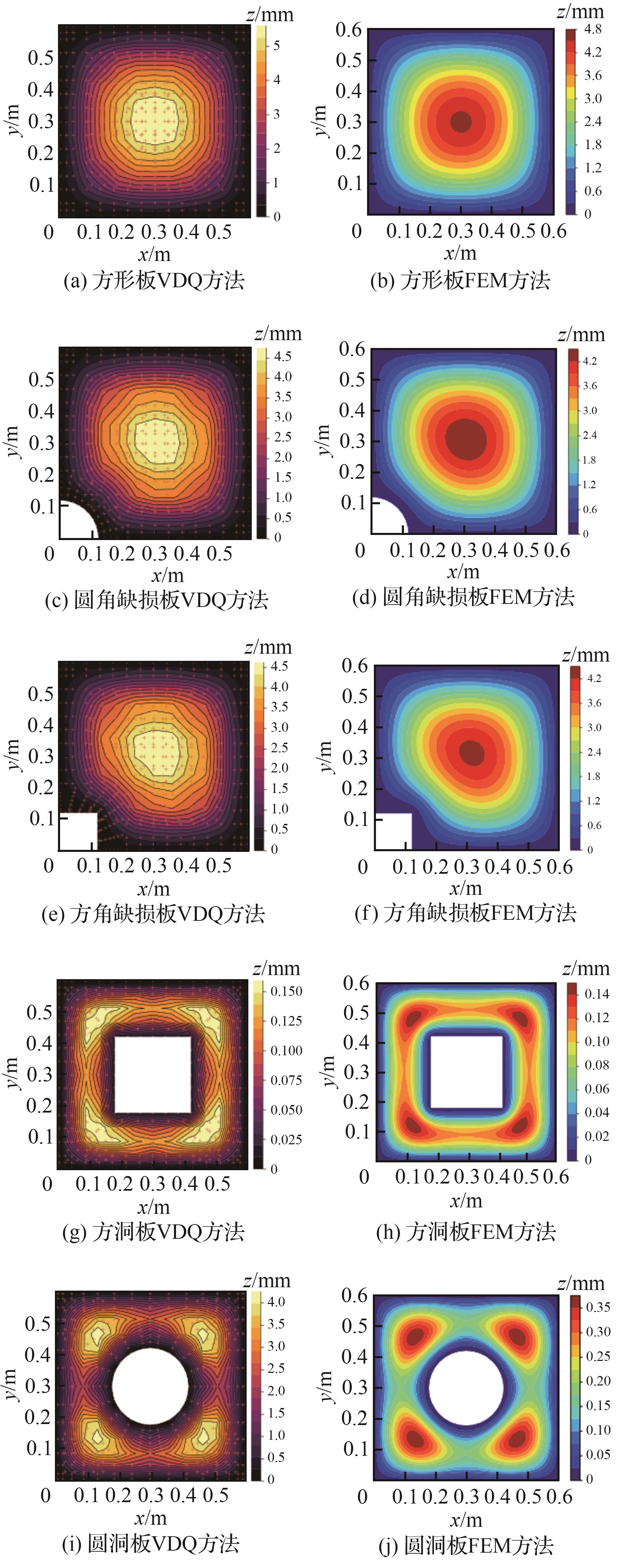

Fig.6

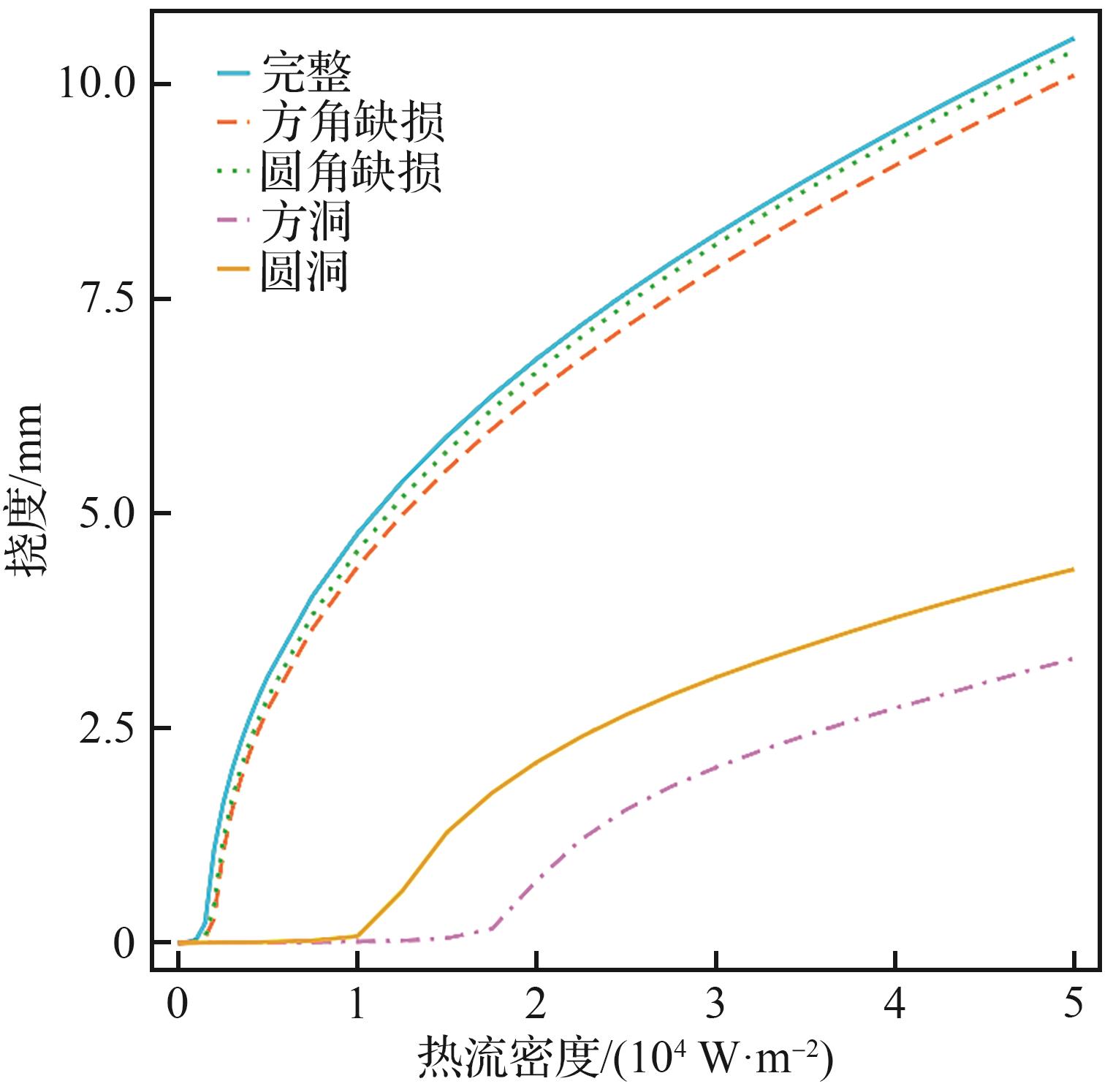

Fig.7

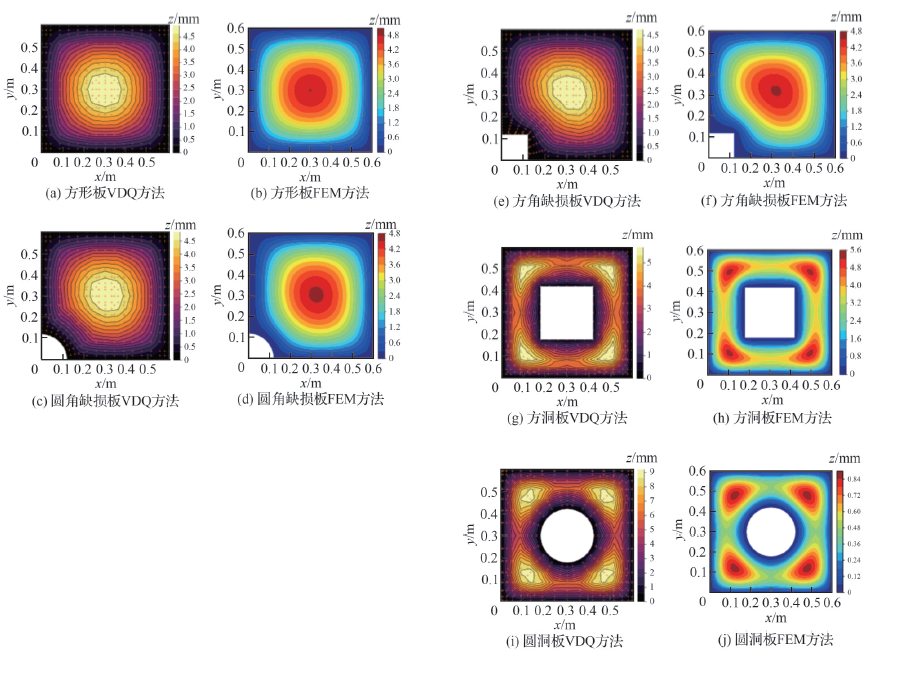

Fig.8

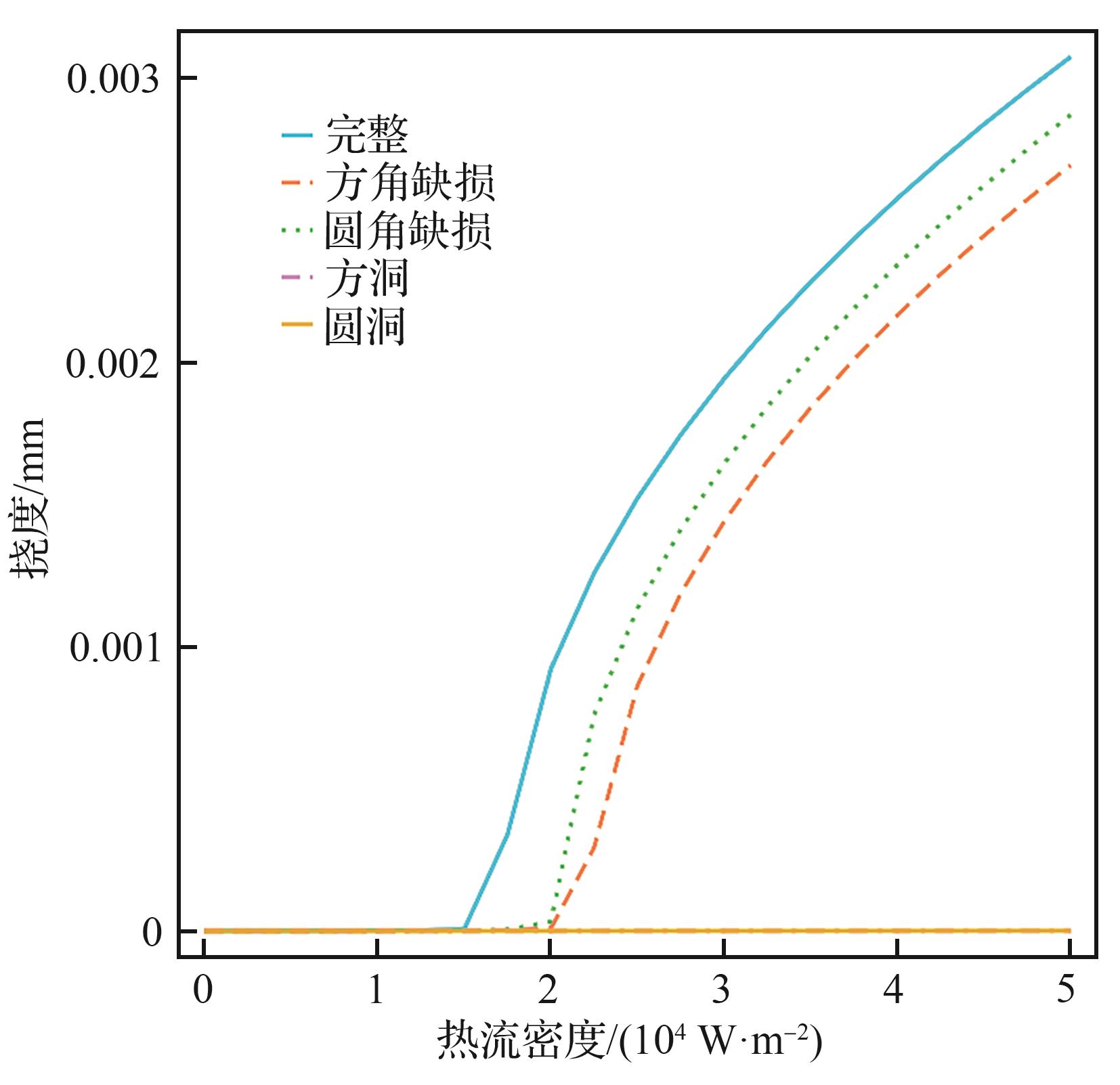

Fig.9

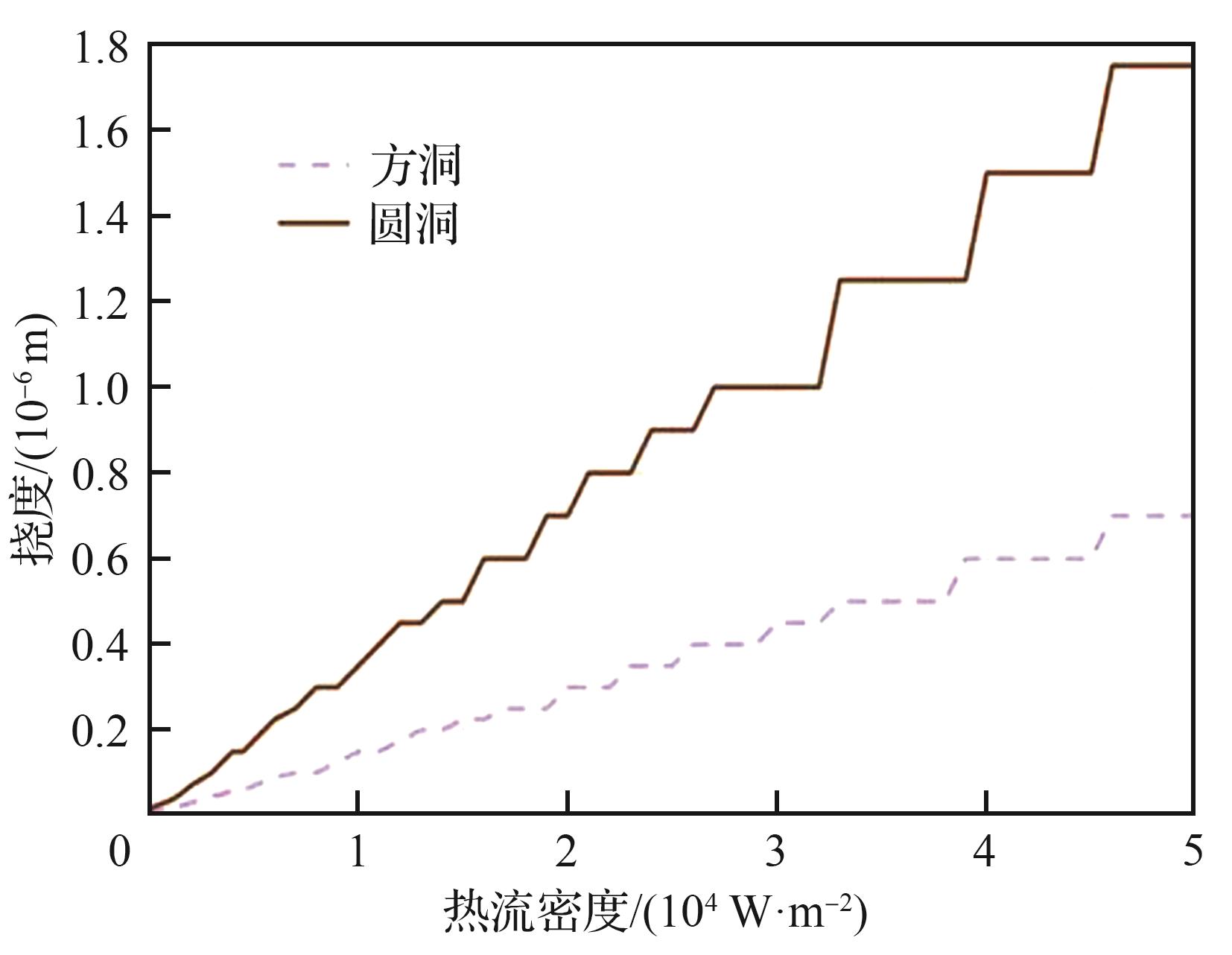

Fig.10

Table 3

Table 4

Table D1

Material properties of single-layer plate

参数	数值
密度 $ρ$ /（kg·m^-3）	2 370
弹性模量E/Pa	3.22×10¹¹
泊松比 $μ$	0.24
比热容/（J·kg^-1·K^-1）	736.393
热导率K/（W·m^-1·K^-1）	10.120 26
热扩散系数 $α T$ /（m²·s^-1）	7.474 56×10^-6

Table D1

Table D2

Material properties of FMG plate

材料	参数	$P 0$	$P 1$	$P 2$	$P 3$
SUS304	密度 $ρ$ /（kg·m^-3）	8 166	0	0	0
	弹性模量E/Pa	2.010 4×10¹¹	3.079×10^-4	-6.534×10^-7	0
	泊松比 $μ$	0.326 2	-2.002×10^-4	3.797×10^-7	0
	比热容/（J·kg^-1·K^-1）	496.56	-1.151×10^-3	1.636×10^-6	-5.863×10^-10
	热导率K/（W·m^-1·K^-1）	15.379	-1.264×10^-3	2.092×10^-6	-7.223×10^-10
	热扩散系数 $α T$ /（m²·s^-1）	1.233×10^-5	8.086×10^-4	0	0
Si3N4	密度 $ρ$ /（kg·m^-3）	2 370	0	0	0
	弹性模量E/Pa	3.484 3×10¹¹	-3.07×10^-4	2.16×10^-7	-8.946×10^-11
	泊松比 $μ$	0.24	0	0	0
	比热容/（J·kg^-1·K^-1）	555.11	1.016×10^-3	2.92×10^-7	-1.67×10^-10
	热导率K/（W·m^-1·K^-1）	13.723	-1.032×10^-3	5.466×10^-7	-7.876×10^-11
	热扩散系数 $α T$ /（m²·s^-1）	5.872 3×10^-6	9.095×10^-4	0	0

Table D2

References 23

[1]	张国治，沙云东，朱林，等. 热声载荷作用下薄壁壳结构非线性响应及疲劳寿命估算［J］. 沈阳航空航天大学学报， 2015， 32（3）： 18-24， 36.
	ZHANG G Z， SHA Y D， ZHU L， et al. Nonlinear response and fatigue life estimation of thin-shell structures under thermo-acoustic loads［J］. Journal of Shenyang Aerospace University， 2015， 32（3）： 18-24， 36 （in Chinese）.
[2]	HE Q L， YU T T， VAN LICH L， et al. Thermal buckling adaptive multi-patch isogeometric analysis of arbitrary complex-shaped plates based on locally refined NURBS and Nitsche’s method［J］. Thin-Walled Structures， 2021， 169： 108383.
[3]	ZHONG S F， ZHANG J H， JIN G Y， et al. Thermal bending and vibration of FGM plates with various cutouts and complex shapes using isogeometric method［J］. Composite Structures， 2021， 260： 113518.
[4]	杨建军，文丕华. 无网格法理论与算法［M］. 北京：科学出版社， 2018： 1-10.
	YANG J J， WEN P H. Meshless method［M］. Beijing： Science Press， 2018： 1-10 （in Chinese）.
[5]	SHU C， CHEW Y T， RICHARDS B E. Generalized differential and integral quadrature and their application to solve boundary layer equations［J］. International Journal for Numerical Methods in Fluids， 1995， 21（9）： 723-733.
[6]	KHAYYER A， SHIMIZU Y， GOTOH H， et al. A 3D SPH-based entirely Lagrangian meshfree hydroelastic FSI solver for anisotropic composite structures［J］. Applied Mathematical Modelling， 2022， 112： 560-613.
[7]	LI J， WANG G C， LIU S， et al. Efficient thermomechanical analysis of functionally graded structures using the symmetric SPH method［J］. Case Studies in Thermal Engineering， 2021， 25： 100889.
[8]	LIU W K， JUN S， LI S F， et al. Reproducing kernel particle methods for structural dynamics［J］. International Journal for Numerical Methods in Engineering， 1995， 38（10）： 1655-1679.
[9]	张建平，龚曙光，黄云清，等. 基于重构核粒子法的带孔薄板模态分析研究［J］. 机械科学与技术， 2007， 26（10）： 1366-1370.
	ZHANG J P， GONG S G， HUANG Y Q， et al. Modal analysis of perforated thin plate based on reproducing kernel particle method（RKPM）［J］. Mechanical Science and Technology for Aerospace Engineering， 2007， 26（10）： 1366-1370 （in Chinese）.
[10]	陈丽，程玉民. 瞬态热传导问题的复变量重构核粒子法［J］. 物理学报， 2008， 57（10）： 6047-6055.
	CHEN L， CHENG Y M. Complex variable reproducing kernel particle method for transient heat conduction problems［J］. Acta Physica Sinica， 2008， 57（10）： 6047-6055 （in Chinese）.
[11]	MAJDISOVA Z， SKALA V. Radial basis function approximations： Comparison and applications［J］. Applied Mathematical Modelling， 2017， 51： 728-743.
[12]	LUO X B， LI D M， LIU C L， et al. Buckling analysis of variable stiffness composite plates with elliptical cutouts using an efficient RPIM based on naturally stabilized nodal integration scheme［J］. Composite Structures， 2022， 302： 116243.
[13]	REN S H， MENG G W， NIE B， et al. A novel stabilized node-based smoothed radial point interpolation method （SNS-RPIM） for coupling analysis of magneto-electro-elastic structures in hygrothermal environment［J］. Computer Methods in Applied Mechanics and Engineering， 2020， 365： 112975.
[14]	HU S W， ZHONG R， WANG Q S， et al. A strong-form Chebyshev-RPIM meshless solution for free vibration of conical shell panels with variable thickness and fiber curvature［J］. Composite Structures， 2022， 296： 115884.
[15]	ANSARI R， FAGHIH SHOJAEI M， ROUHI H， et al. A novel variational numerical method for analyzing the free vibration of composite conical shells［J］. Applied Mathematical Modelling， 2015， 39（10-11）： 2849-2860.
[16]	FAGHIH SHOJAEI M， ANSARI R. Variational differential quadrature： A technique to simplify numerical analysis of structures［J］. Applied Mathematical Modelling， 2017， 49： 705-738.
[17]	ANSARI R， ZARGAR ERSHADI M， FARAJI OSKOUIE M， et al. A VDQ approach to nonlinear vibration analysis of functionally graded porous circular plates resting on elastic foundation under hygrothermal shock［J］. Acta Mechanica， 2023， 234（10）： 5115-5129.
[18]	REDDY J N. Mechanics of laminated composite plates and shells： Theory and analysis［M］. 2nd Edition. Boca Raton： CRC Press， 2003： 109-157.
[19]	TOURATIER M. An efficient standard plate theory［J］. International Journal of Engineering Science， 1991， 29（8）： 901-916.
[20]	BUHMANN M D， DE MARCHI S， PERRACCHIONE E. Analysis of a new class of rational RBF expansions［J］. IMA Journal of Numerical Analysis， 2020， 40（3）： 1972-1993.
[21]	WANG Y M， CHEN S M， WU C P. A meshless collocation method based on the differential reproducing kernel interpolation［J］. Computational Mechanics， 2010， 45（6）： 585-606.
[22]	WU C P， YANG S W， WANG Y M， et al. A meshless collocation method for the plane problems of functionally graded material beams and plates using the DRK interpolation［J］. Mechanics Research Communications， 2011， 38（6）： 471-476.
[23]	ZHOU J X， WEN J B， ZHANG H Y， et al. A nodal integration and post-processing technique based on Voronoi diagram for Galerkin meshless methods［J］. Computer Methods in Applied Mechanics and Engineering， 2003， 192（35-36）： 3831-3843.

薄板形状	节点数量
薄板形状	无网格VDQ	有限元
方形板	289	3 003
圆角缺损板	306	2 968
方角缺损板	329	2 891
圆洞板	352	2 759
方洞板	304	2 632

薄板形状	最大挠度值/m
薄板形状	单层板	FGM板
方形板	0.015 0	0.003 1
圆角缺损板	0.013 0	0.002 8
方角缺损板	0.011 0	0.002 6
圆洞板	0.004 5	1.8×10^-9
方洞板	0.003 2	0.7×10^-9

薄板形状	热流密度值/（W·m^-2）
薄板形状	单层板	FGM板
方形板	0.15×10⁴	1.6×10⁴
圆角缺损板	0.15×10⁴	2.0×10⁴
方角缺损板	0.15×10⁴	2.0×10⁴
圆洞板	1.0×10⁴
方洞板	1.6×10⁴
