面向航空发动机可调收扩喷管的安装性能协同优化方法

doi:10.7527/S1000-6893.2025.32176

Abstract

Abstract:

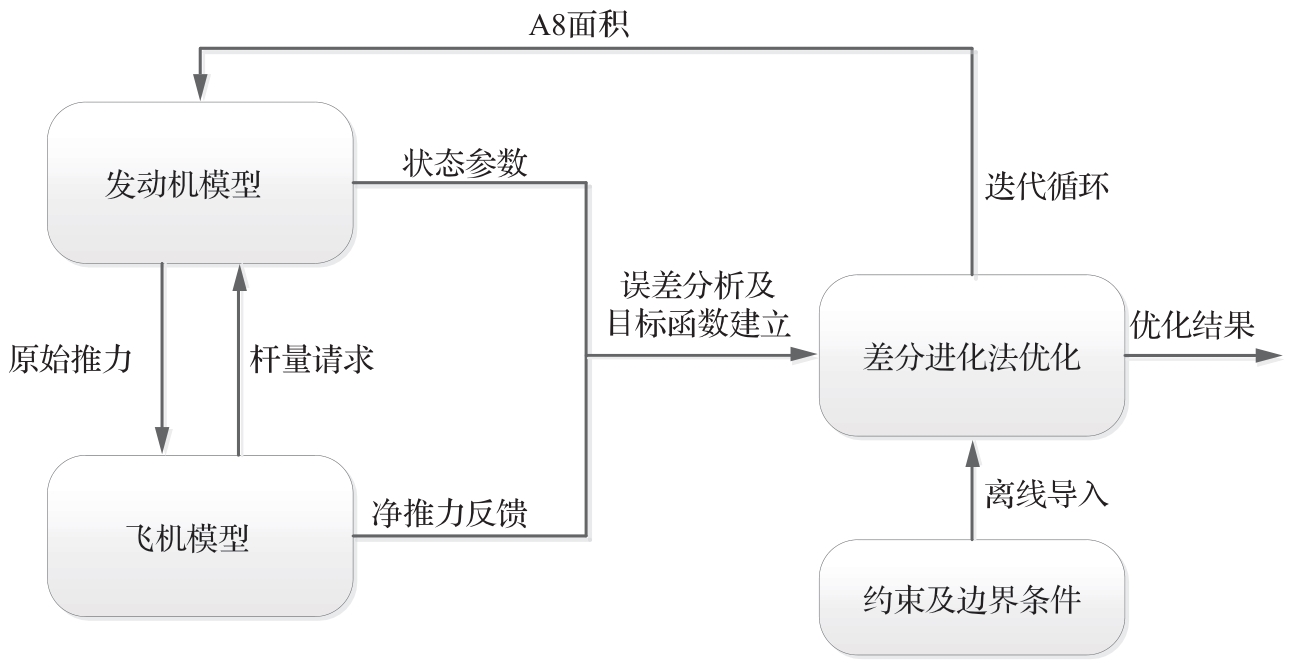

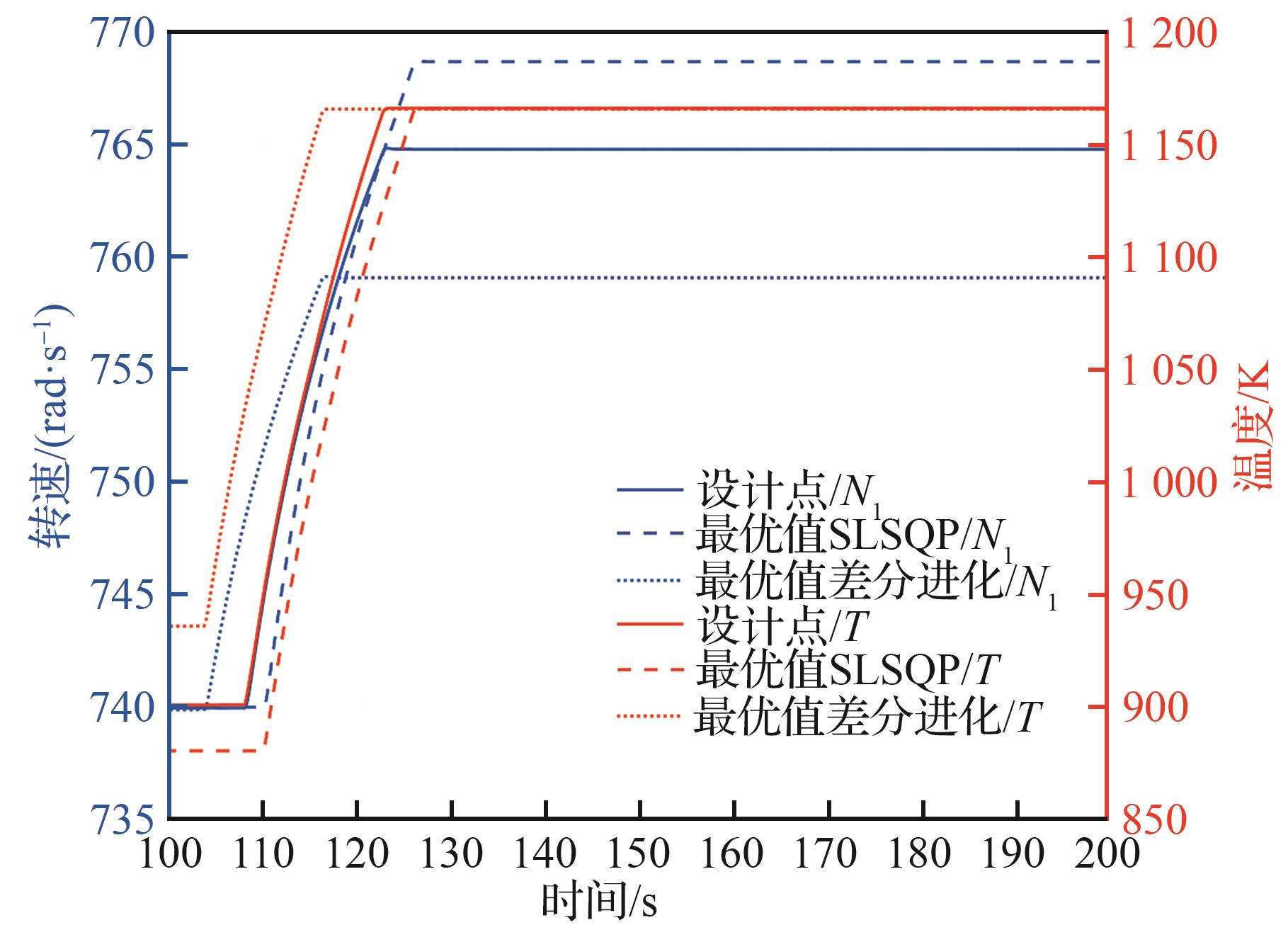

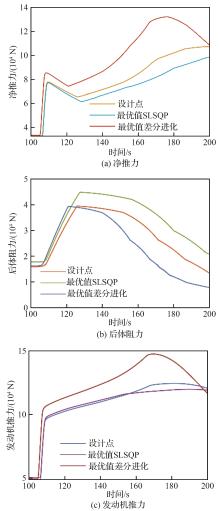

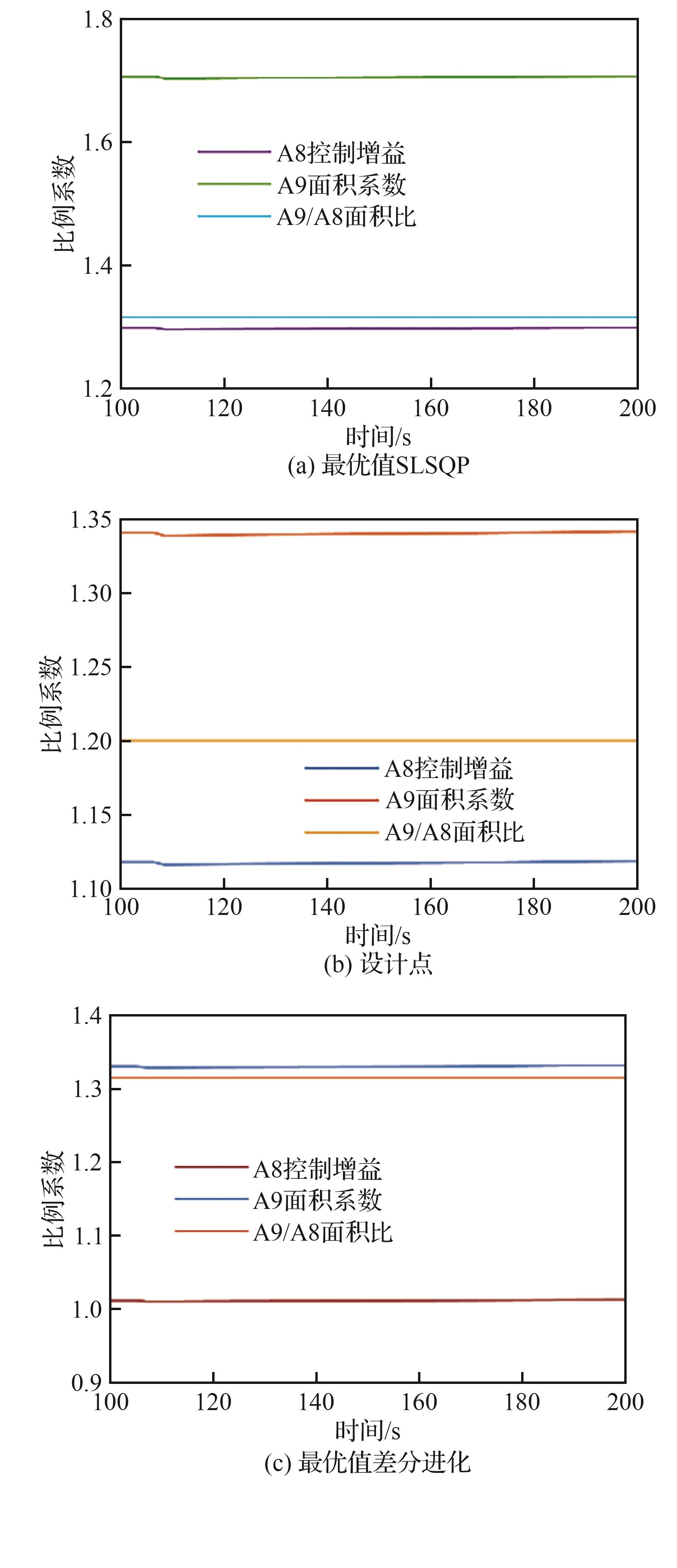

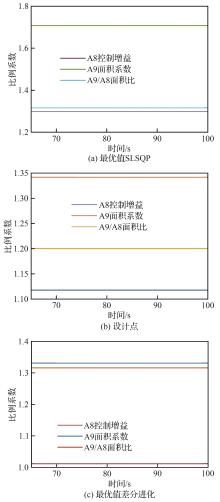

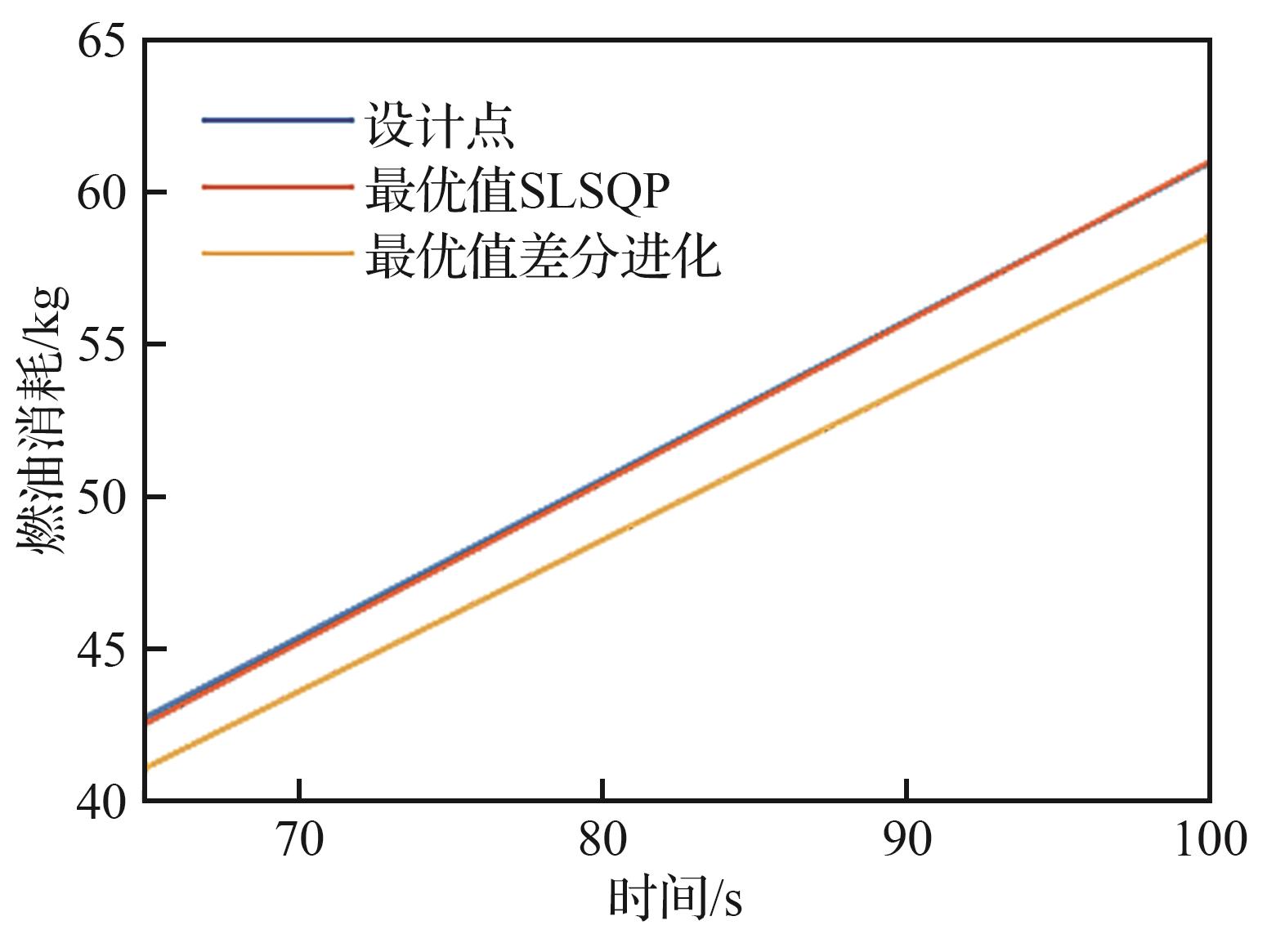

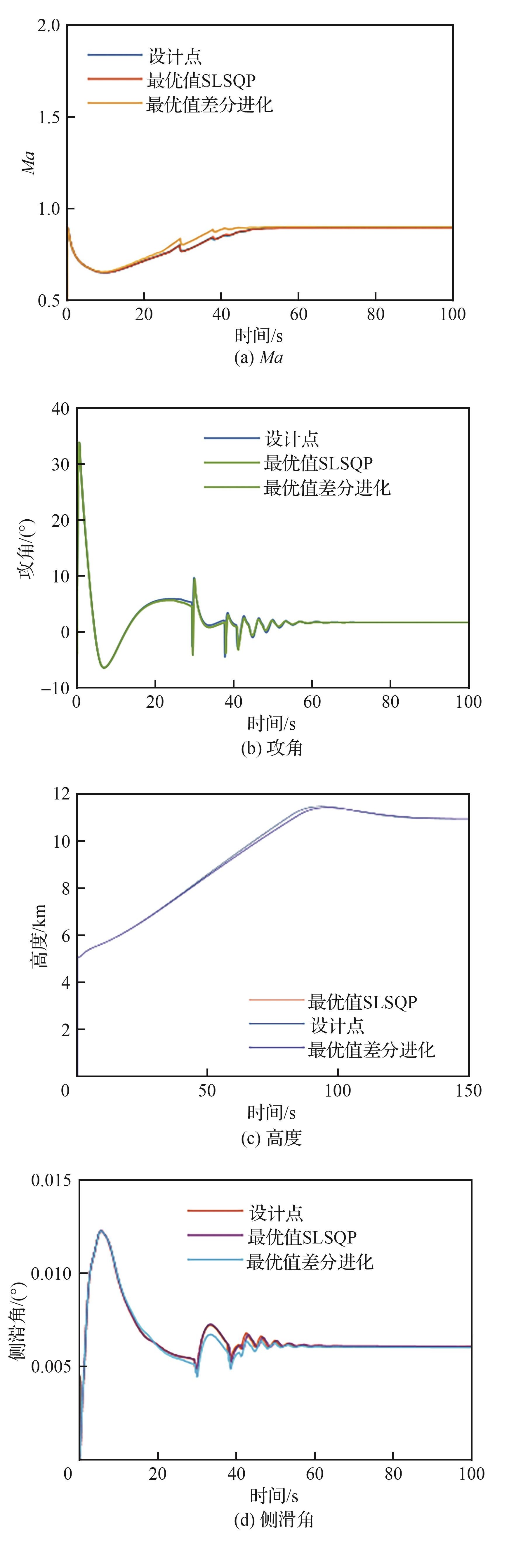

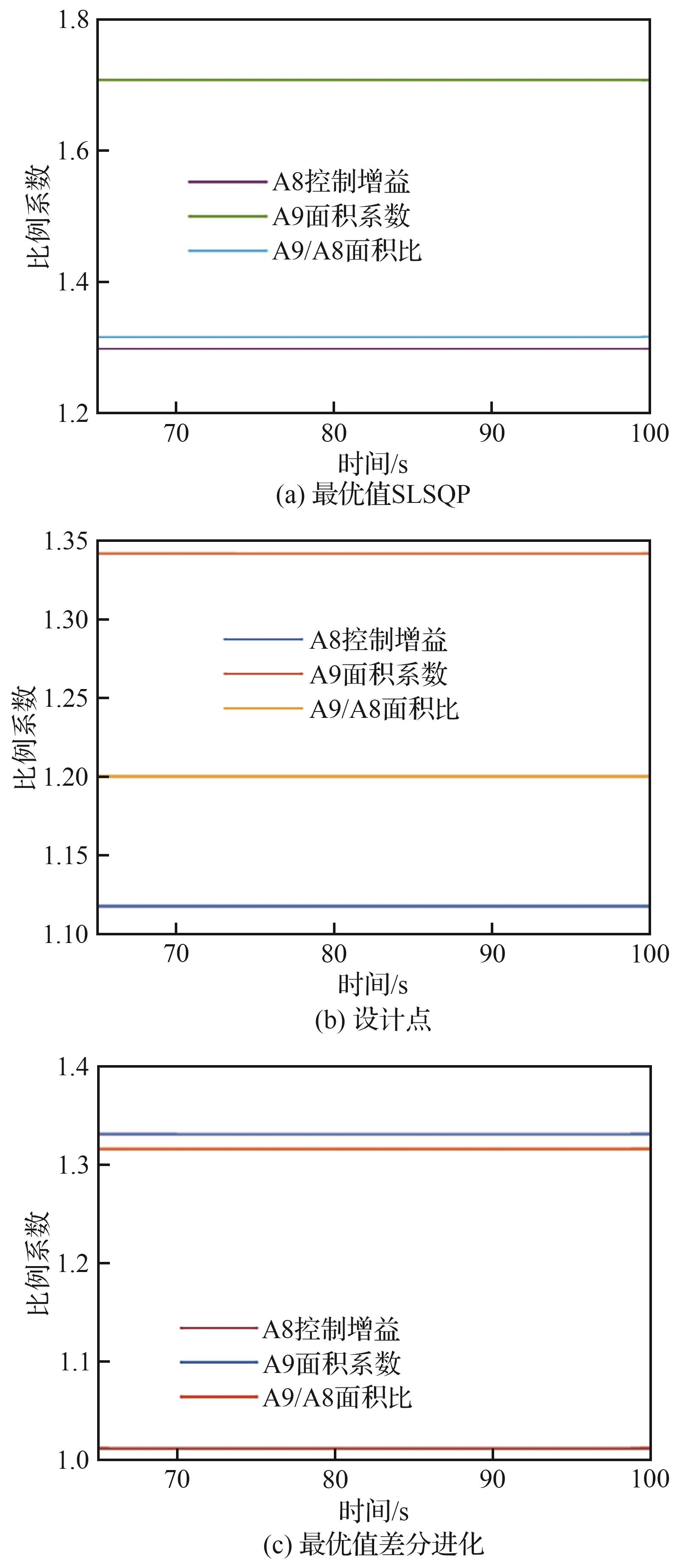

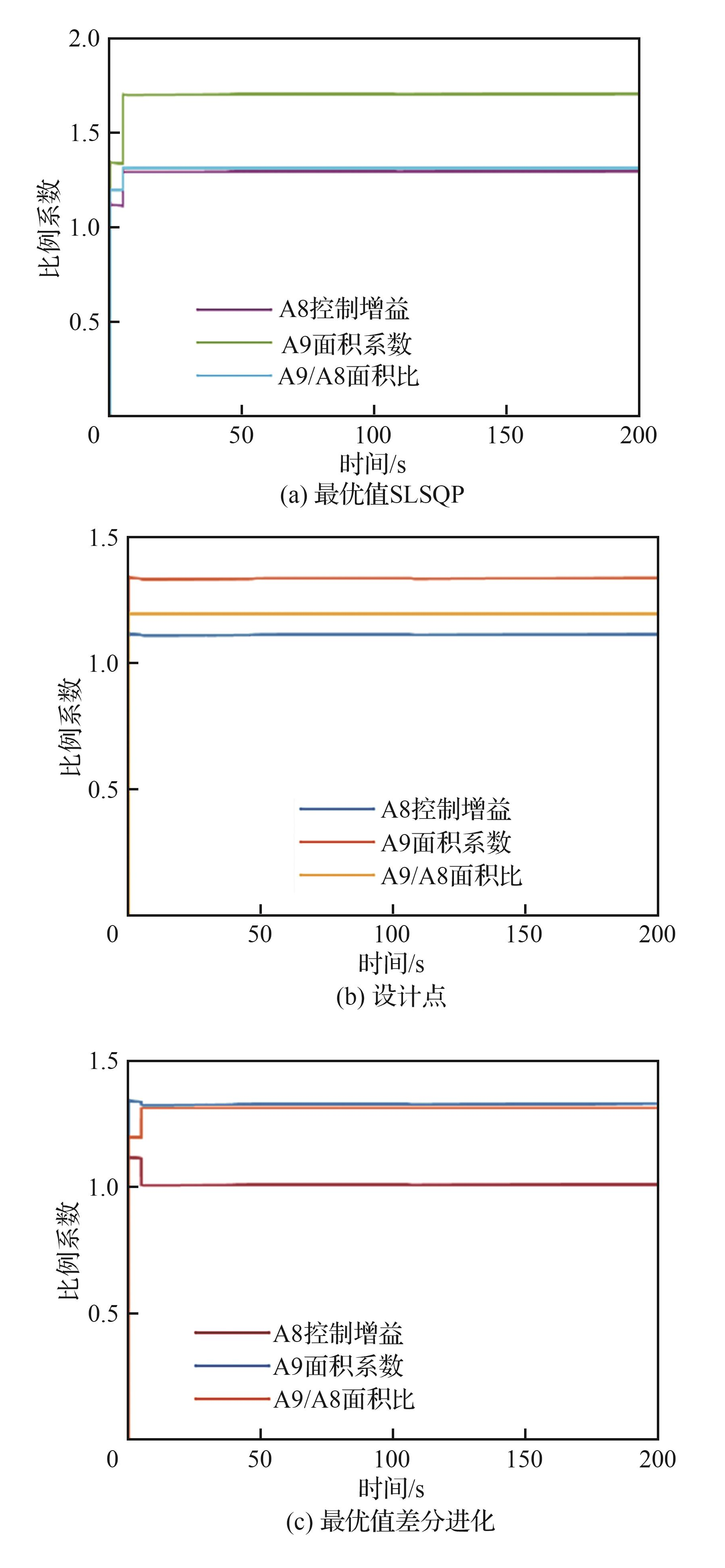

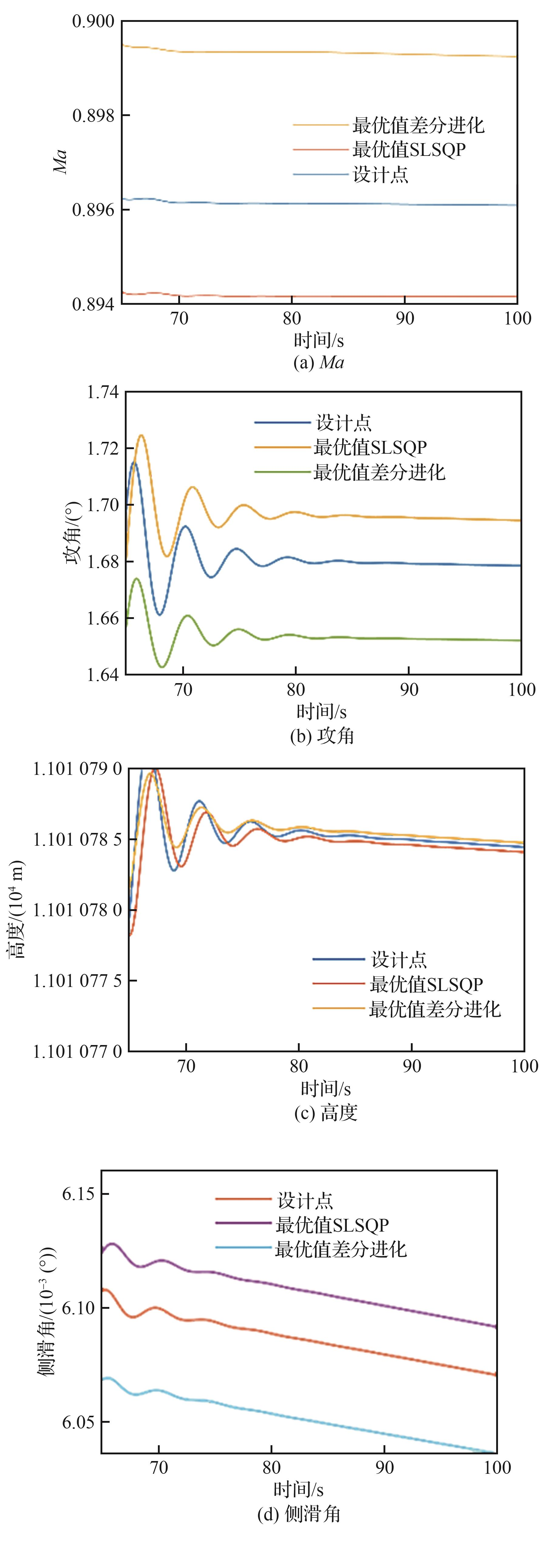

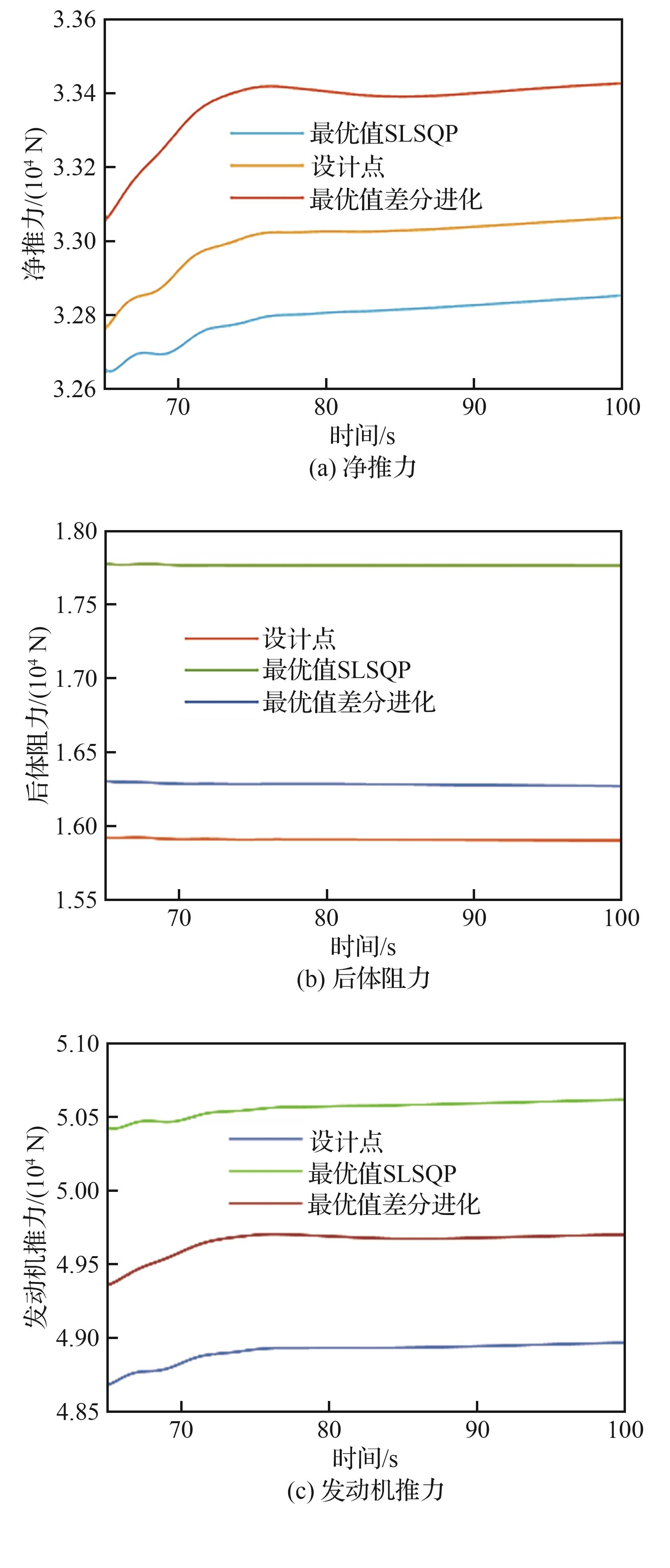

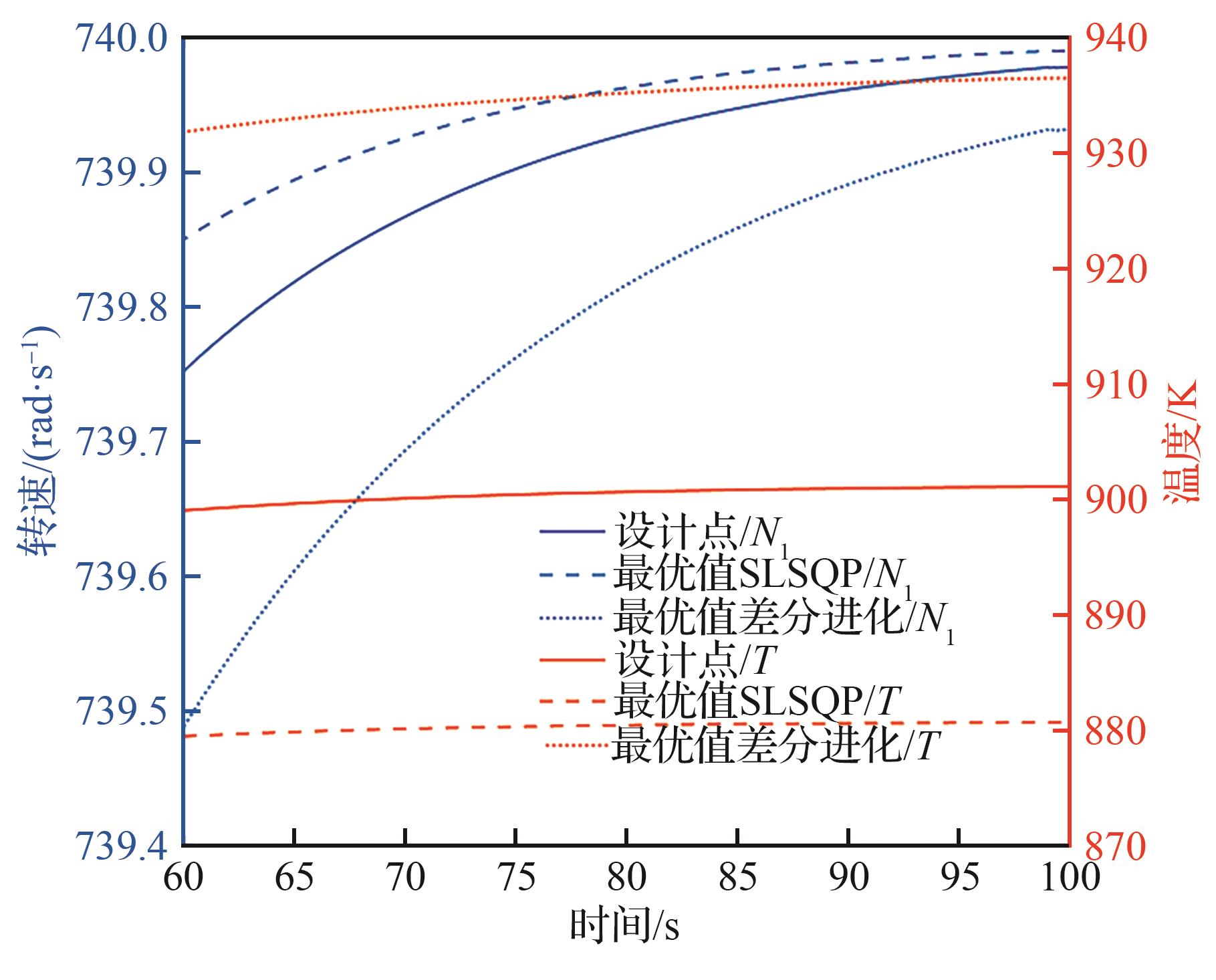

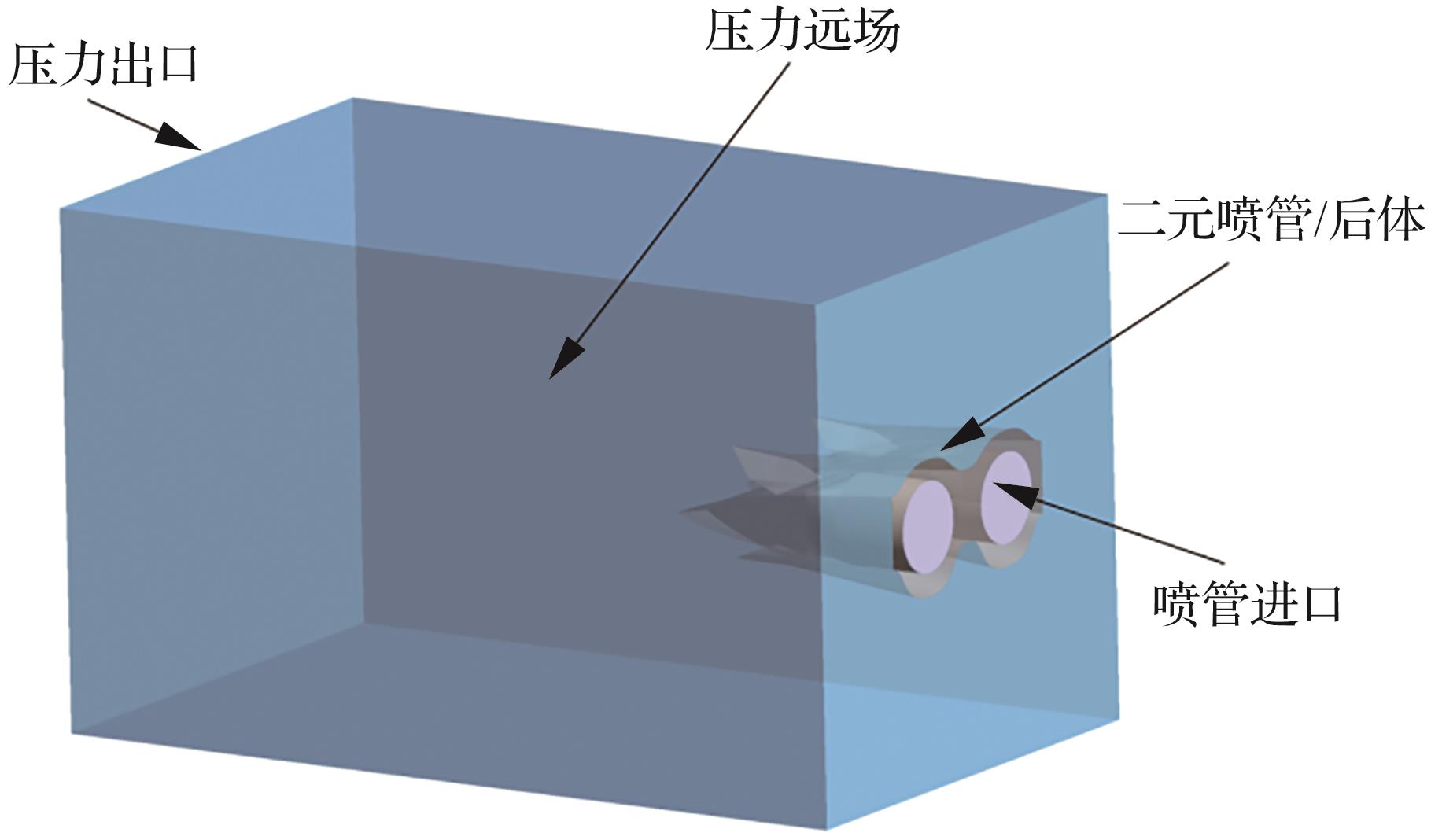

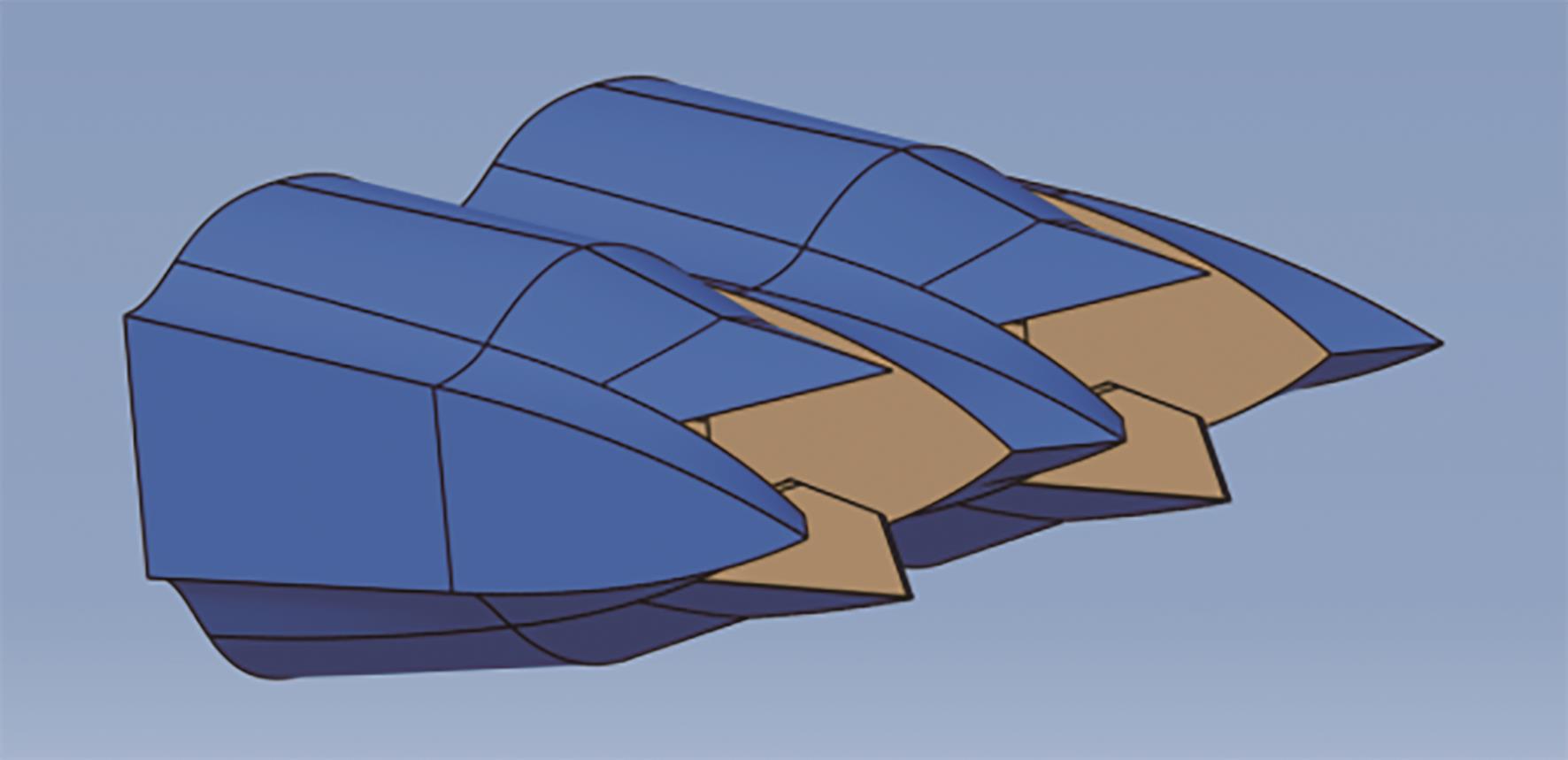

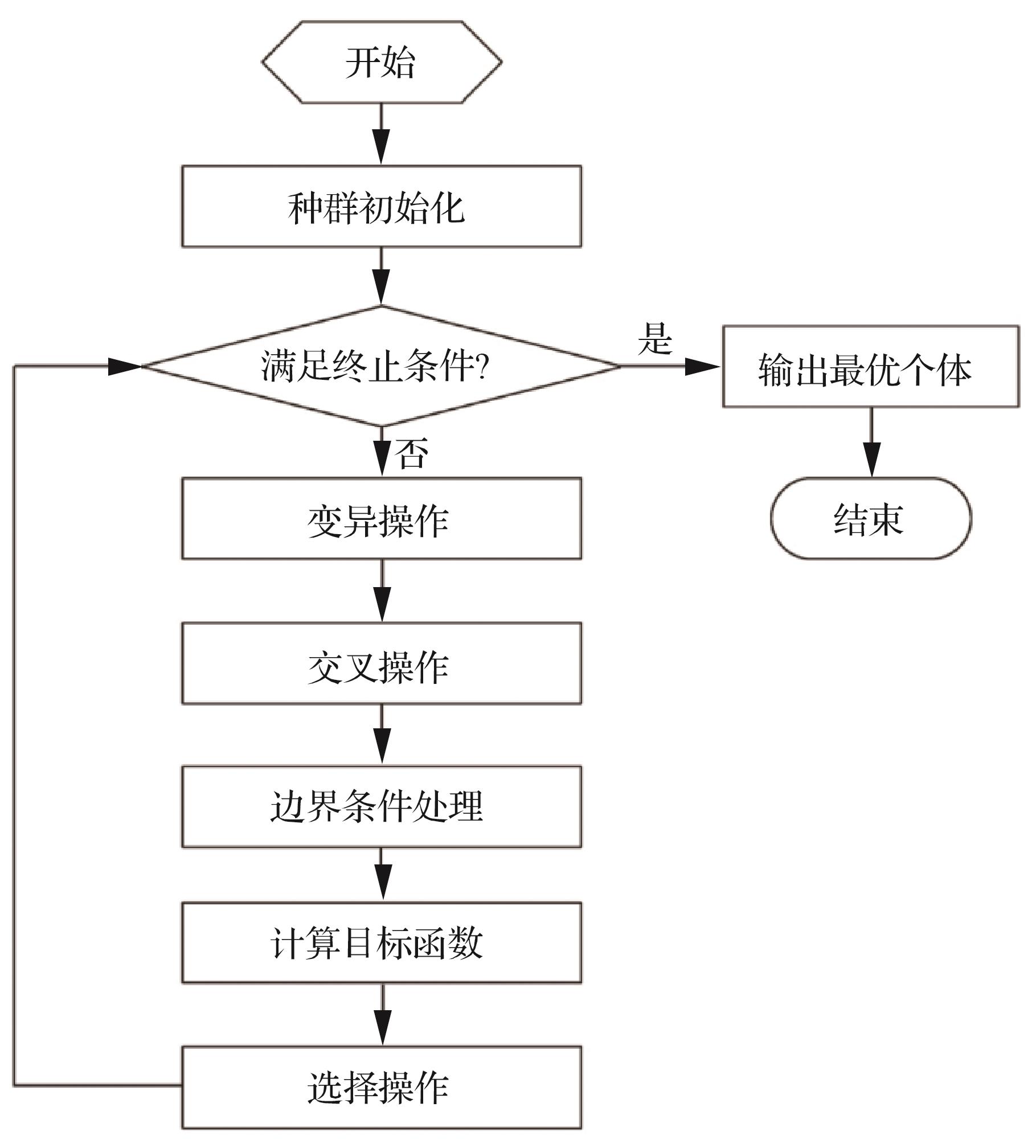

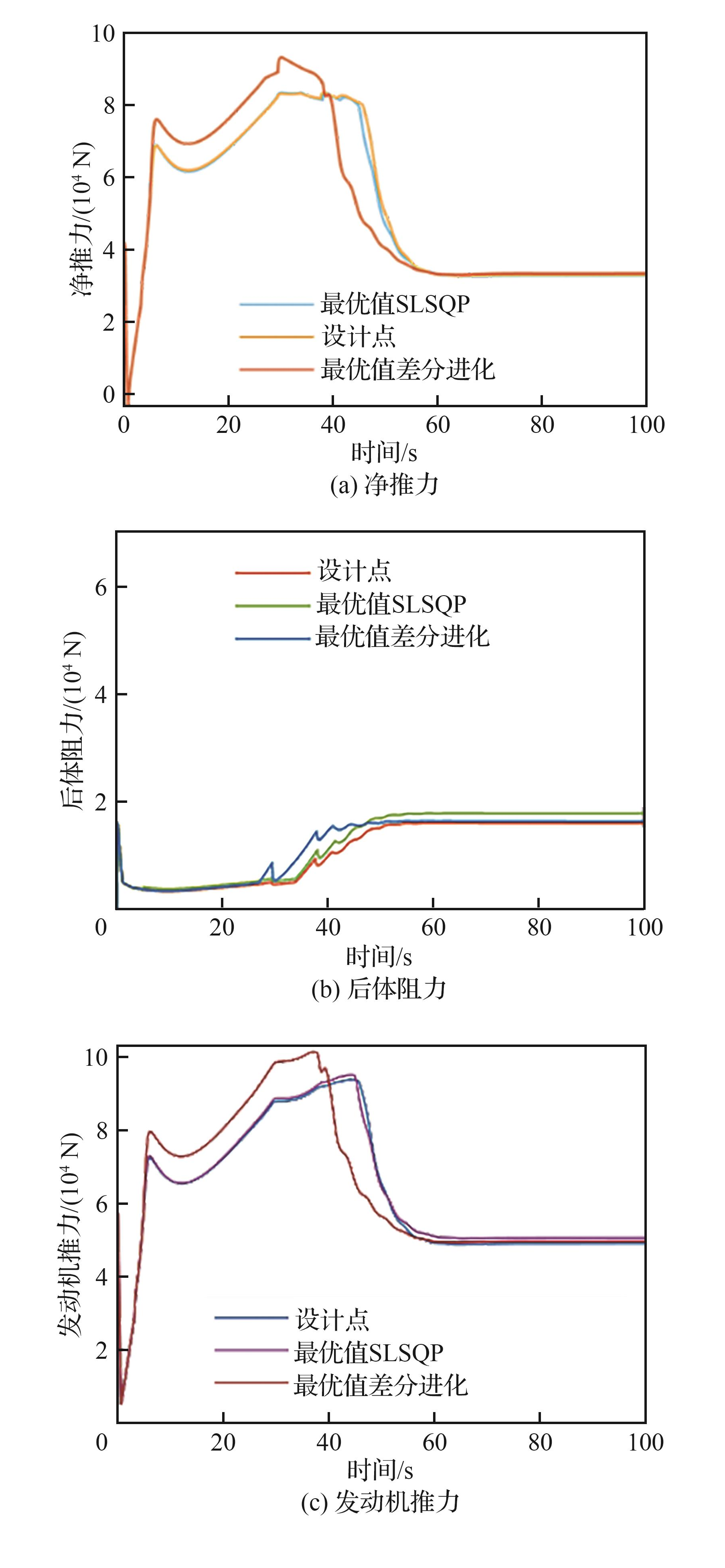

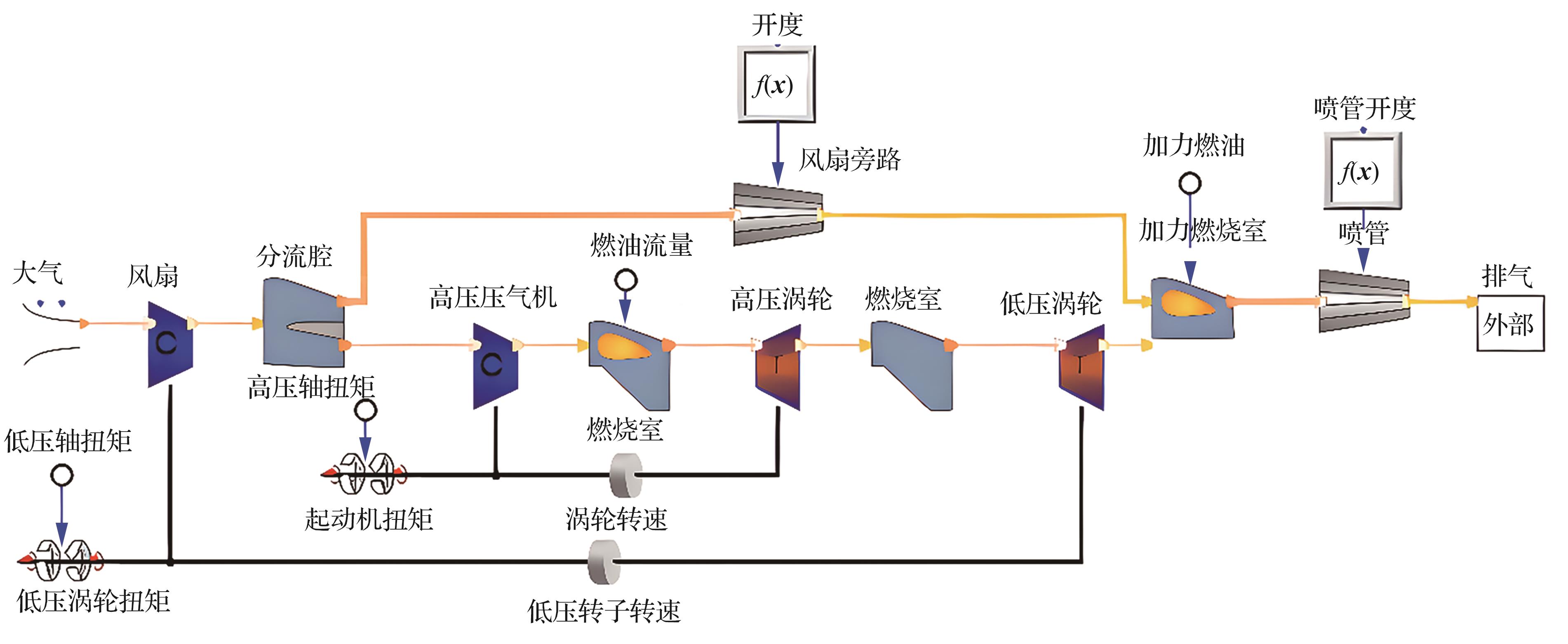

The technology for solving dynamic ordinary differential equations is used to solve the dynamic model of the engine in real time， and the bisection method is combined to achieve the real-time evaluation of the engine’s stability. Based on the dynamic simulation data of the model and the results of aerodynamic stability evaluation， an optimization method for the A8 control law and the A9/A8 area ratio that optimizes the installed thrust of the engine and aerodynamic stability based on the differential evolution algorithm is established， so as to realize the integrated joint simulation evaluation of the aircraft and the engine based on the flight conditions. The research shows that compared with the Sequential Least Squares Programming （SLSQP） method， the optimization method based on the differential evolution algorithm exhibits global optimality. The area optimization of the A8 of the aeroengine under three typical working conditions is performed， which are accelerating from Mach number 0.9 to Mach number 1.2 in the level flight state at an altitude of 11 km， cruising at Mach number 0.9 at an altitude of 11 km， and climbing from an altitude of 5 km to 11 km in the intermediate state. Compared with the design point， in the level flight state and climbing state， the optimization method based on the differential evolution algorithm realizes an increase in the time-averaged net thrust of the engine by 15.38% and 12.36% respectively by optimizing the A8 control law and the A9/A8 area ratio， and the fuel consumption is reduced by 6.88% in the cruising state. The results of this paper prove that the optimization method based on the differential evolution algorithm can increase the net thrust of the engine and reduce fuel consumption， and can provide theoretical methods and technical guidance for increasing the installed thrust of the aircraft.

Key words: installed thrust, optimization of nozzle adjustment plan, differential evolution algorithm, aerodynamic stability, afterbody drag

CLC Number:

V231

Sifang LIU, Weimin GAO, Zhibo REN, Fangchao TIAN, Zhiqiang SUN. Collaborative optimization method of installation performance for adjustable retracting and expanding nozzle for aero-engine[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(7): 632176.

Figures/Tables 24

Fig.1

Table 1

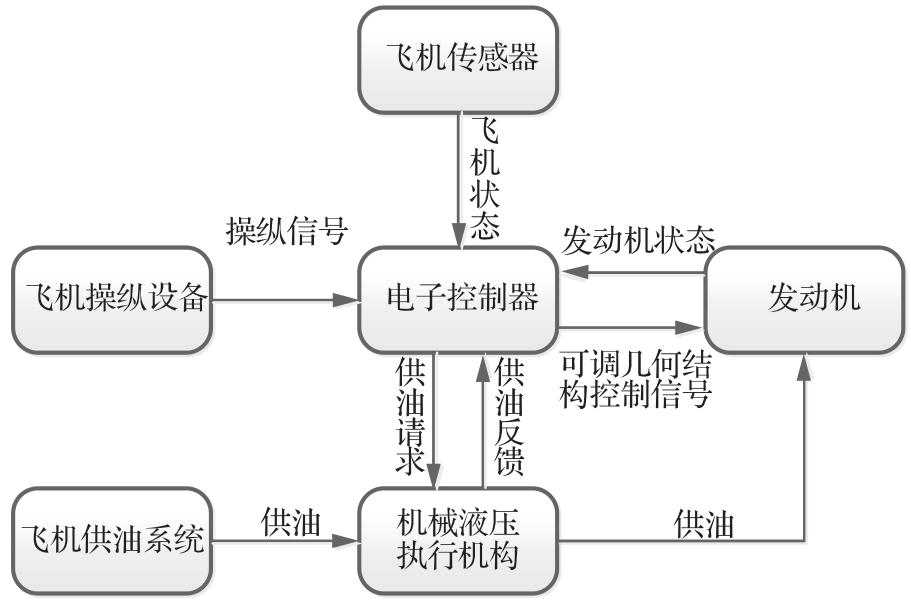

Fig.2

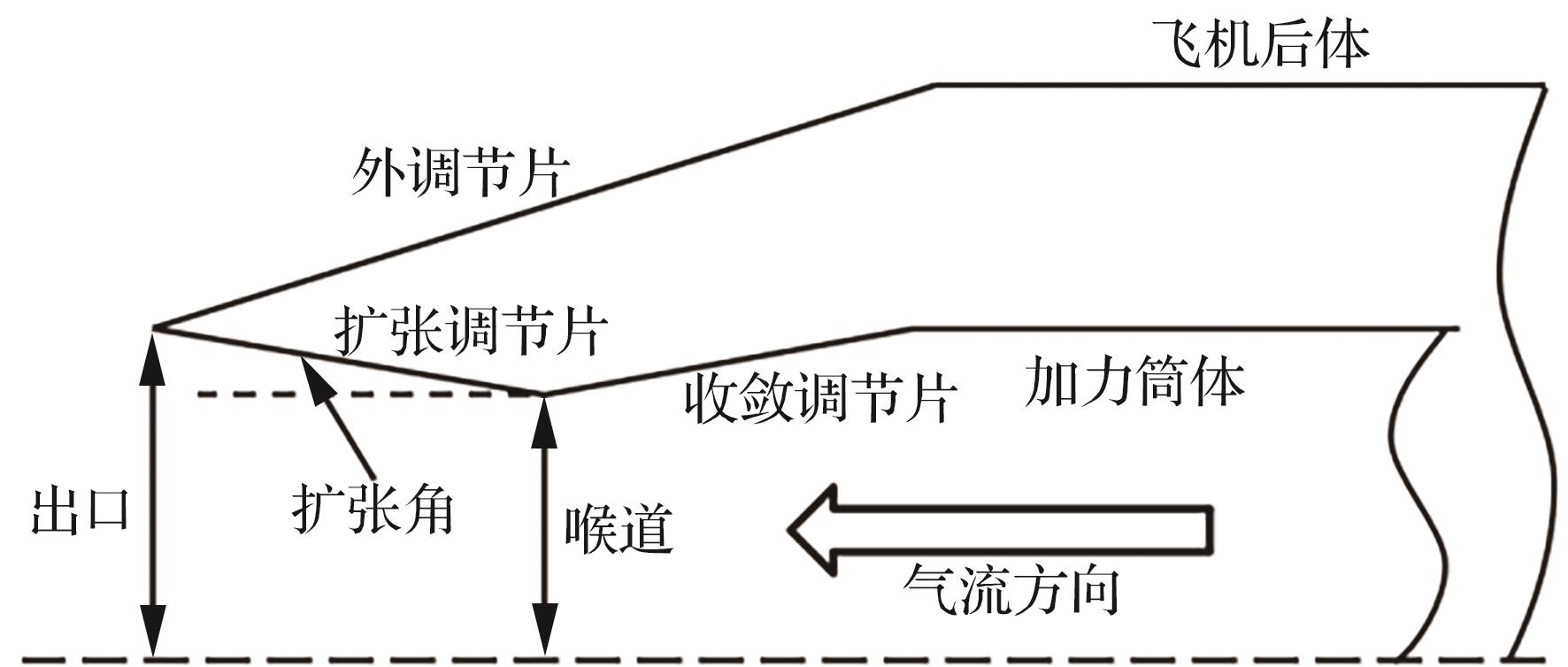

Fig.3

Fig.4

Fig.5

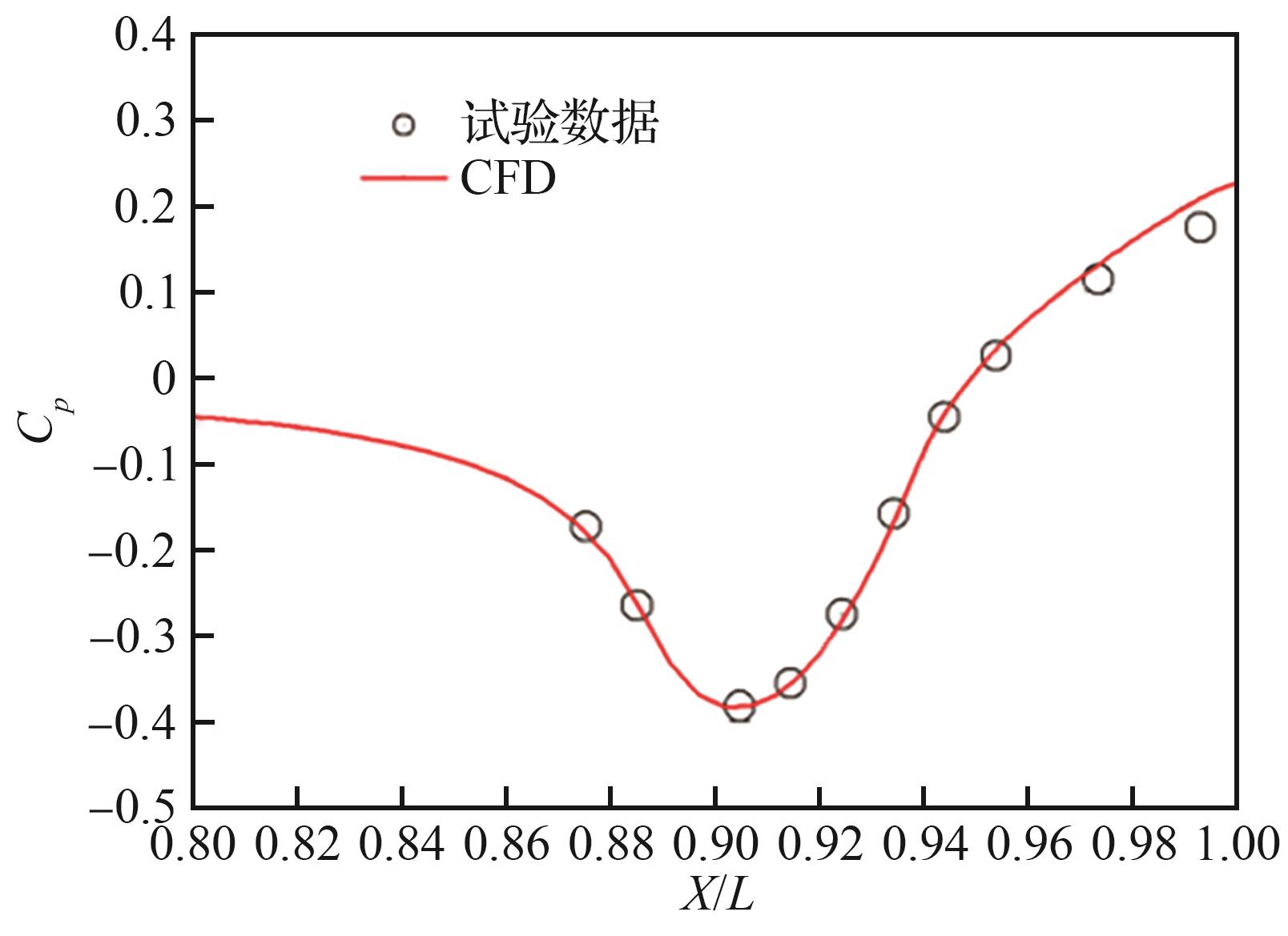

Fig.6

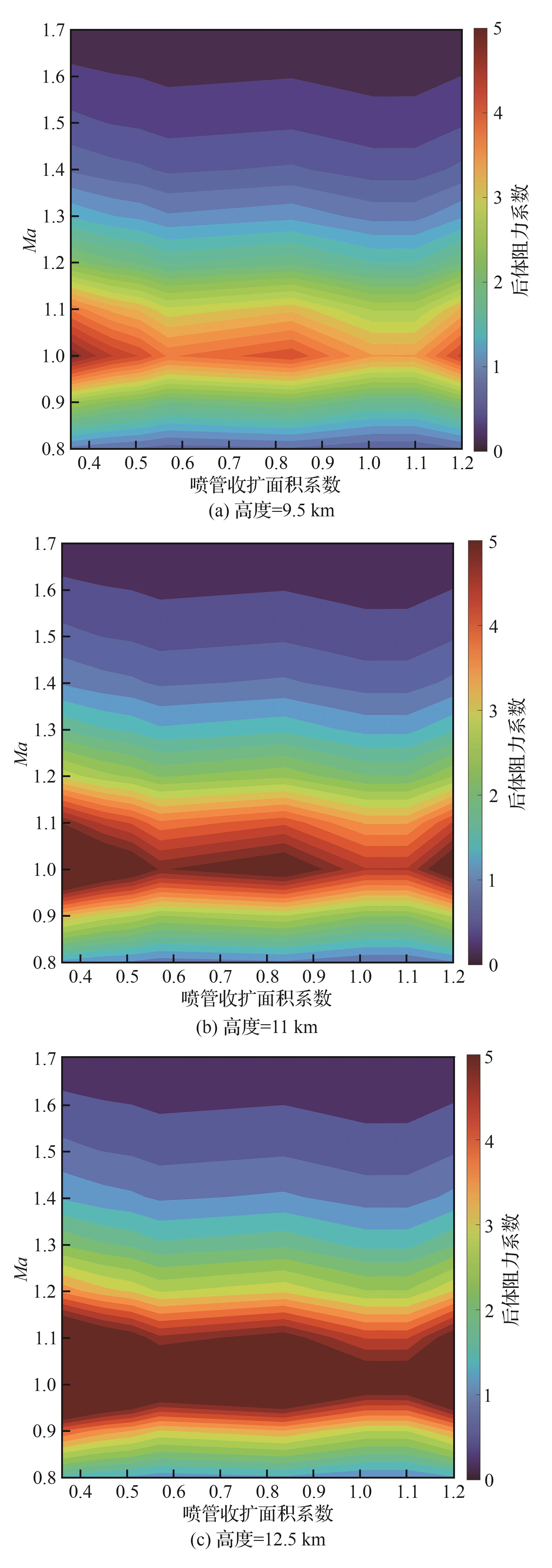

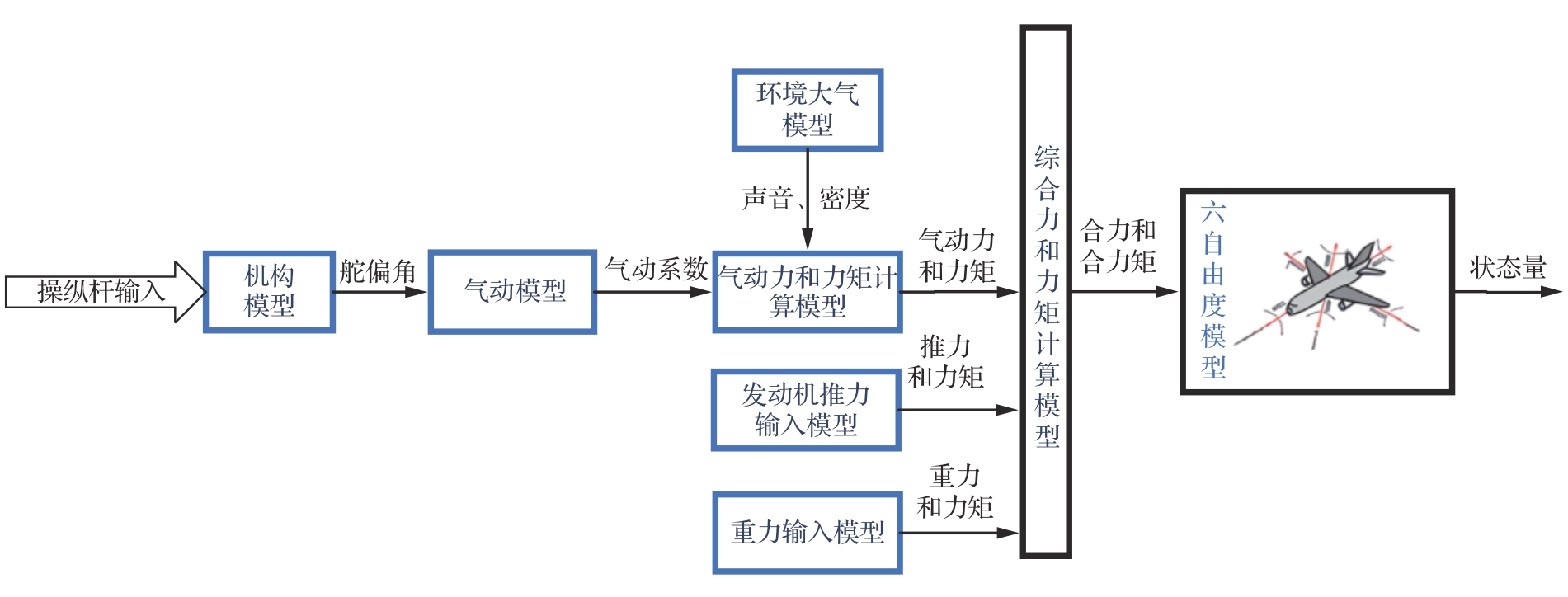

Fig.7

Fig.8

Fig.9

Fig.10

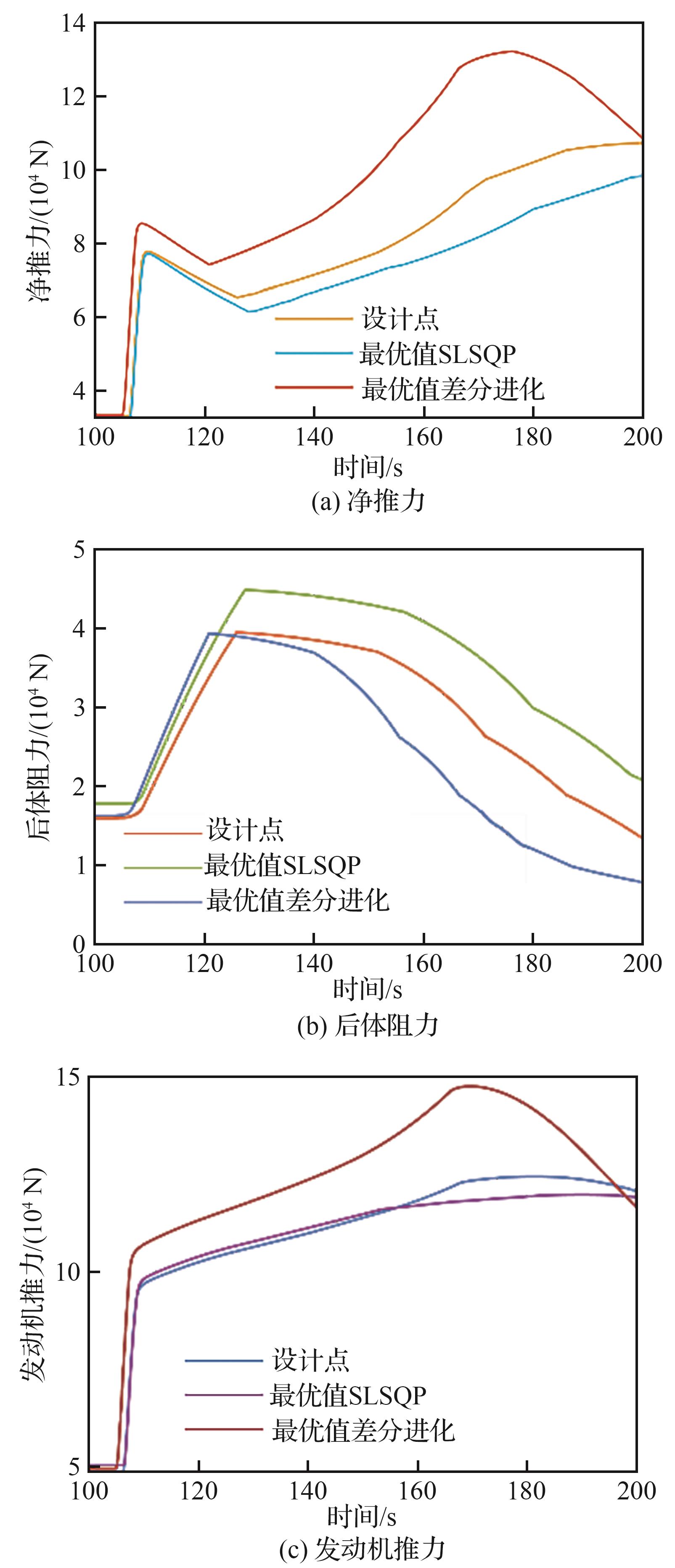

Fig.11

Fig.12

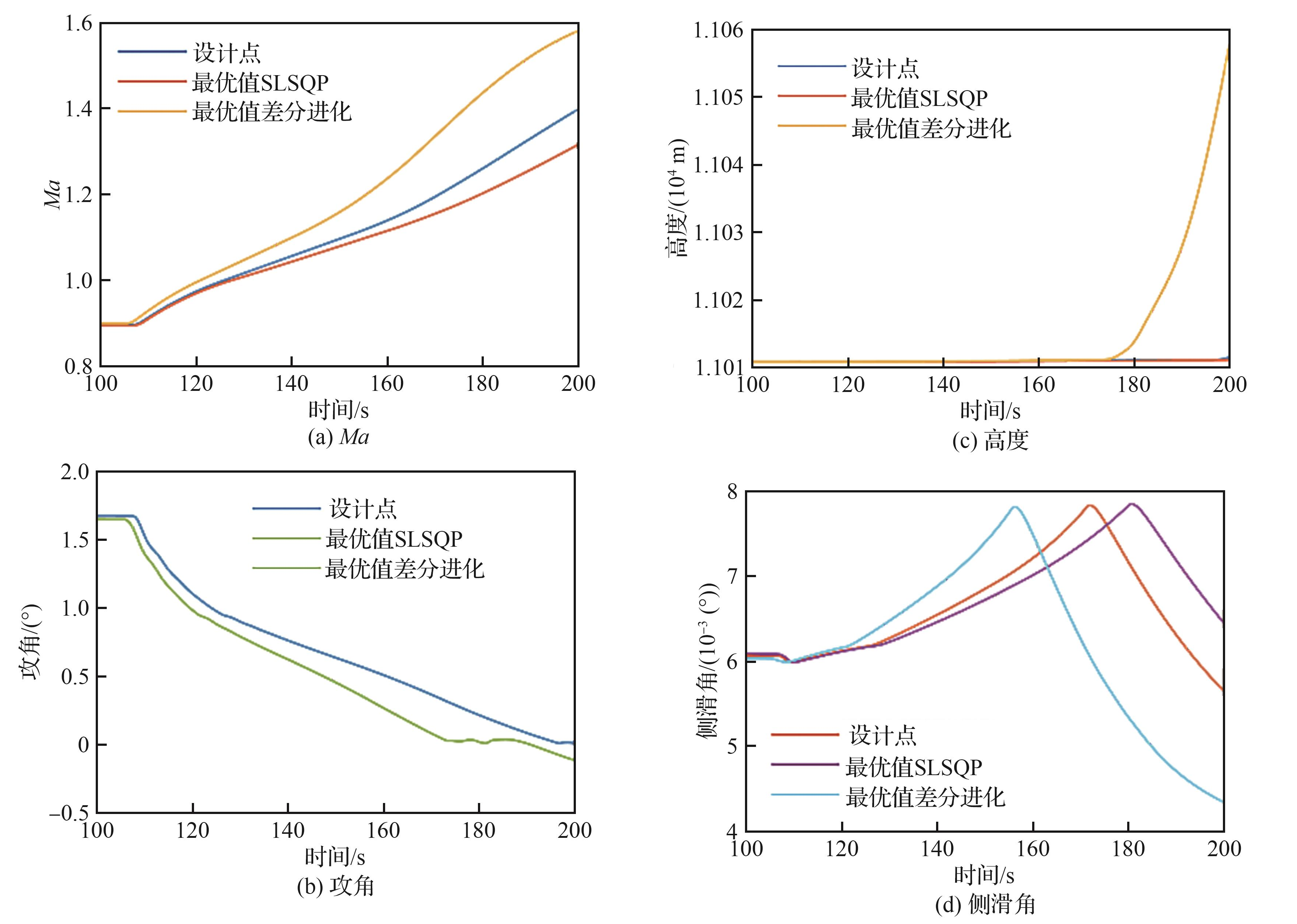

Fig.13

Fig.14

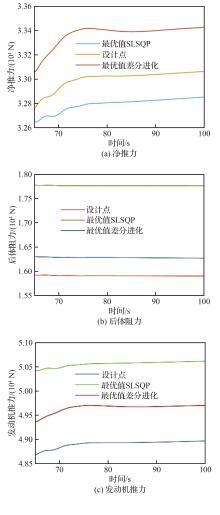

Fig.15

Fig.16

Fig.17

Fig.18

Fig.19

Fig.20

Fig.21

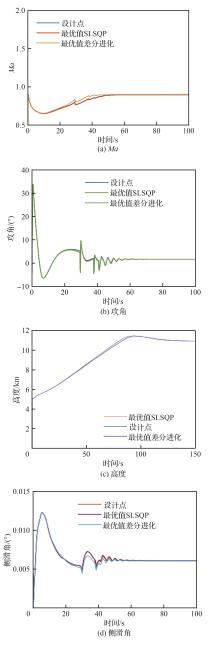

Fig.22

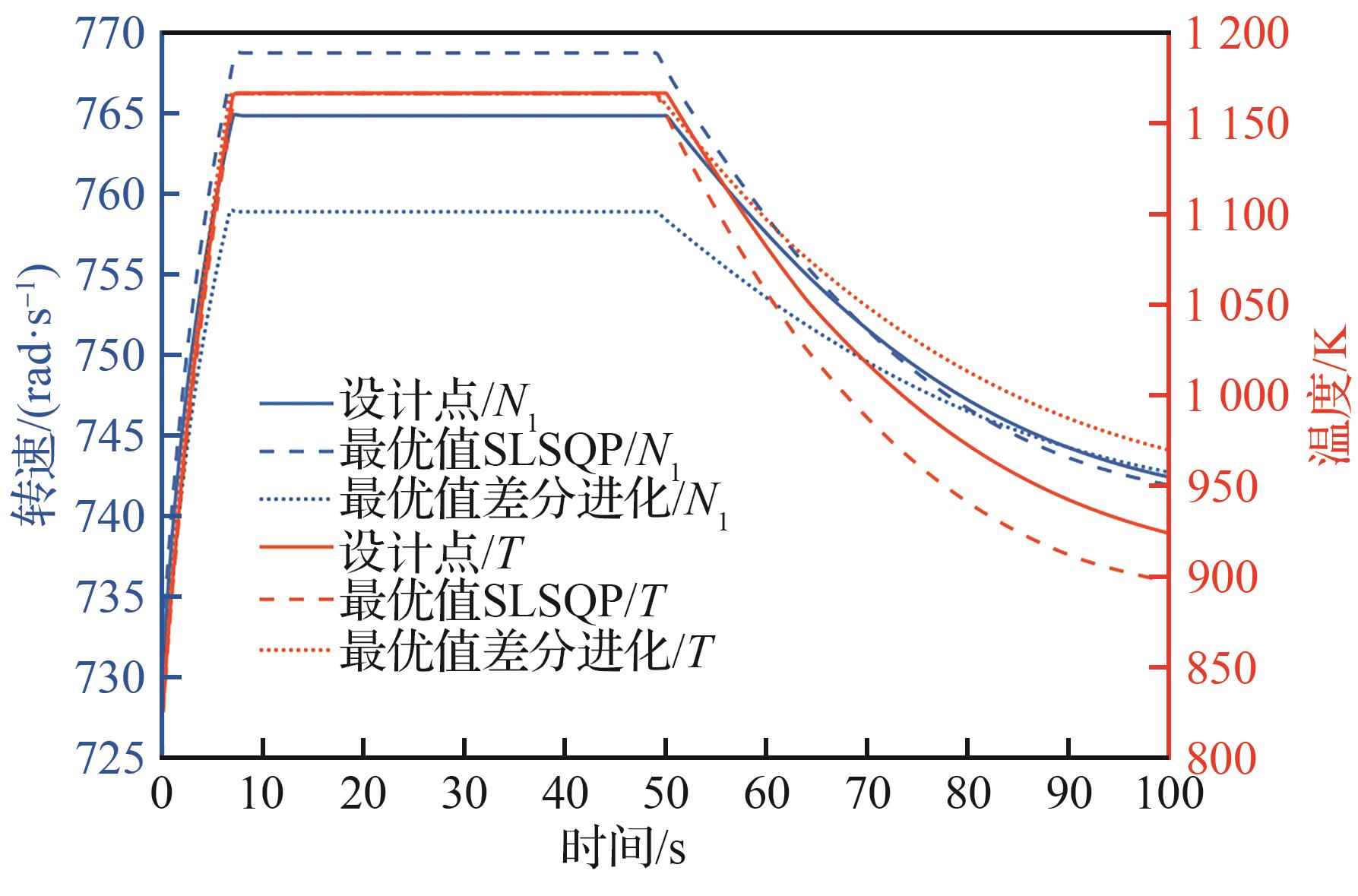

Fig.23

References 21

[1]	OTTER J J， STAŃKOWSKI T， ROBINSON M， et al. Installation aerodynamics of civil aero-engine exhaust systems［J］. Aerospace Science and Technology， 2019， 89： 345-355.
[2]	TRIPATHI A， MANISANKAR C， VERMA S B. Control of base pressure for a boat-tailed axisymmetric afterbody via base geometry modifications［J］. Aerospace Science and Technology， 2015， 45： 284-293.
[3]	张永升，刘丹，郎卫东. 后体参数对运输机后体阻力的影响［J］. 力学季刊， 2013， 34（4）： 585-590.
	ZHANG Y S， LIU D， LANG W D. Effects of geometry parameters on drag about afterbodies of transport air-craft［J］. Chinese Quarterly of Mechanics， 2013， 34（4）： 585-590 （in Chinese）.
[4]	DODBELE S S， VAN DAM C P， VIJGEN P M H W， et al. Shaping of airplane fuselages for minimum drag［J］. Journal of Aircraft， 1987， 24（5）： 298-304.
[5]	MCBRIDE E E， FISHER L J. Experimental investigation of the effect of rear-fuselage shape on ditching behavior［R］. Washington， D.C.： NASA Center for Aerospace Information （CASI）， 1953.
[6]	LEAVITT L D， BARE E A. Effects of twin-vertical-tail parameters on twin-engine afterbody/nozzle aerodynamic characteristics： NASA-TP-2158［R］. Washington， D.C.： NASA Center for Aerospace Information （CASI）， 1983.
[7]	LEAVITT L D. Effect of empennage location on twin-engine afterbody-nozzle aerodynamic characteristics at Mach Numbers from 0.6 to 1.2： NASA-TP-2116［R］. Washington， D.C.： NASA Center for Aerospace Information （CASI）， 1983.
[8]	NICOLOSI F， DELLA VECCHIA P， CILIBERTI D， et al. Fuselage aerodynamic prediction methods［J］. Aerospace Science and Technology， 2016， 55： 332-343.
[9]	RANJAN R， AULTMAN M， GAITONDE D. Mean flowfield evolution with upsweep angle in a simulated cargo fuselage aftbody［J］. Journal of Aircraft， 2020， 57（6）： 1156-1169.
[10]	任超奇，王强，胡海洋，等. 带尾翼干扰的喷管-后体一体化流场数值模拟［J］. 航空发动机， 2014， 40（4）： 69-74.
	REN C Q， WANG Q， HU H Y， et al. Integrated nozzle-afterbody flowfield simulation with empennage interference［J］. Aeroengine， 2014， 40（4）： 69-74 （in Chinese）.
[11]	POLHAMUS E C， SPREEMANN K P. Subsonic wind-tunnel investigation of the effect of fuselage afterbody on directional stability of wing-fuselage combinations at high angles of attack： NACA-TN-3896［R］. Washington， D.C.： NASA Center for Aerospace Information （CASI）， 1956.
[12]	RUNCKEL J F. Interference between exhaust system and afterbody of twin-engine fuselage configurations： NASA-TN-D-7525［R］. Washington， D.C.： NASA Center for Aerospace Information （CASI）， 1974.
[13]	NUGENT J， PENDERGRAFT O C. Comparison of wind tunnel and flight test afterbody and nozzle pressures for a twin-jet fighter aircraft at transonic speeds［R］. Washington， D.C.： NASA Center for Aerospace Information （CASI）， 1987.
[14]	杨体浩，白俊强，王丹，等. 考虑发动机干扰的尾吊布局后体气动优化设计［J］. 航空学报， 2014， 35（7）： 1836-1844.
	YANG T H， BAI J Q， WANG D， et al. Aerodynamic optimization design for after-body of tail-mounted engine layout considering interference of en-gines［J］. Acta Aeronautica et Astronautica Sinica， 2014， 35（7）： 1836-1844 （in Chinese）.
[15]	杨锦文，陈海昕，张宇飞，等. 后体单边膨胀面气动优化研究［J］. 气动研究与试验， 2023， 1（4）： 92-101.
	YANG J W， CHEN H X， ZHANG Y F， et al. After-body single expansion surfaces aerodynamic op-timization［J］. Aerodynamic Research & Experiment， 2023， 1（4）： 92-101 （in Chinese）.
[16]	李娜，吉洪湖. 混合排气二元收敛喷管与发动机流量匹配设计方法［J］. 航空动力学报， 2011， 26（9）： 2141-2147.
	LI N， JI H H. Study on matching method for core and bypass mass flux of 2-D convergent nozzle of mixed flow［J］. Journal of Aerospace Power， 2011， 26（9）： 2141-2147 （in Chinese）.
[17]	MARTENS R E. F-15 nozzle/afterbody integration［J］. Journal of Aircraft， 1976， 13（5）： 327-333.
[18]	潘睿丰. 与后体相容的新型气动矢量喷管性能研究［D］.南京：南京航空航天大学， 2021.
	PAN R F. Study on performance of a new aerodynamic vector noz-zle compatible with afterbody［D］. Nanjing： Nanjing University of Aeronautics and Astronautics， 2021 （in Chinese）.
[19]	任超奇，王强，胡海洋. 收-扩喷管与飞行器后体的一体化气动优化设计［J］. 航空动力学报， 2014， 29（10）： 2294-2302.
	REN C Q， WANG Q， HU H Y. Integrated aerodynamic optimization design of convergent-divergent nozzle and vehicle afterbody［J］. Journal of Aerospace Power， 2014， 29（10）： 2294-2302 （in Chinese）.
[20]	张瑞霞，许羚，巩亚南，等. 单环调节轴对称收扩喷管全包线推力特性数值分析［J］. 航空发动机， 2024， 50（4）： 82-87.
	ZHANG R X， XU L， GONG Y N， et al. Numerical analysis of full-envelope thrust characteristics of axisymmetric convergent-divergent nozzle with single actuating ring［J］. Aeroengine， 2024， 50（4）： 82-87 （in Chinese）.
[21]	WILLIAM B C. Comparison of turbulence models for nozzle-afterbody flows with propulsive Jets： NASA-TP-3592［R］.Washington， D.C.： NASA Center for Aerospace Information （CASI）， 1996.

设计参数	设计值
风扇压比	4.1
压气机压比	5.1
涡轮前温度/K	2 000
总体质量流量/（kg·s^-1）	120
涵道比	0.8
N ₁转速/（r·min^-1）	9 000
N ₂转速/（r·min^-1）	15 000
