大型航空行星轮系内齿圈柔性与疲劳可靠性

doi:10.7527/S1000-6893.2024.31468

Abstract

Abstract:

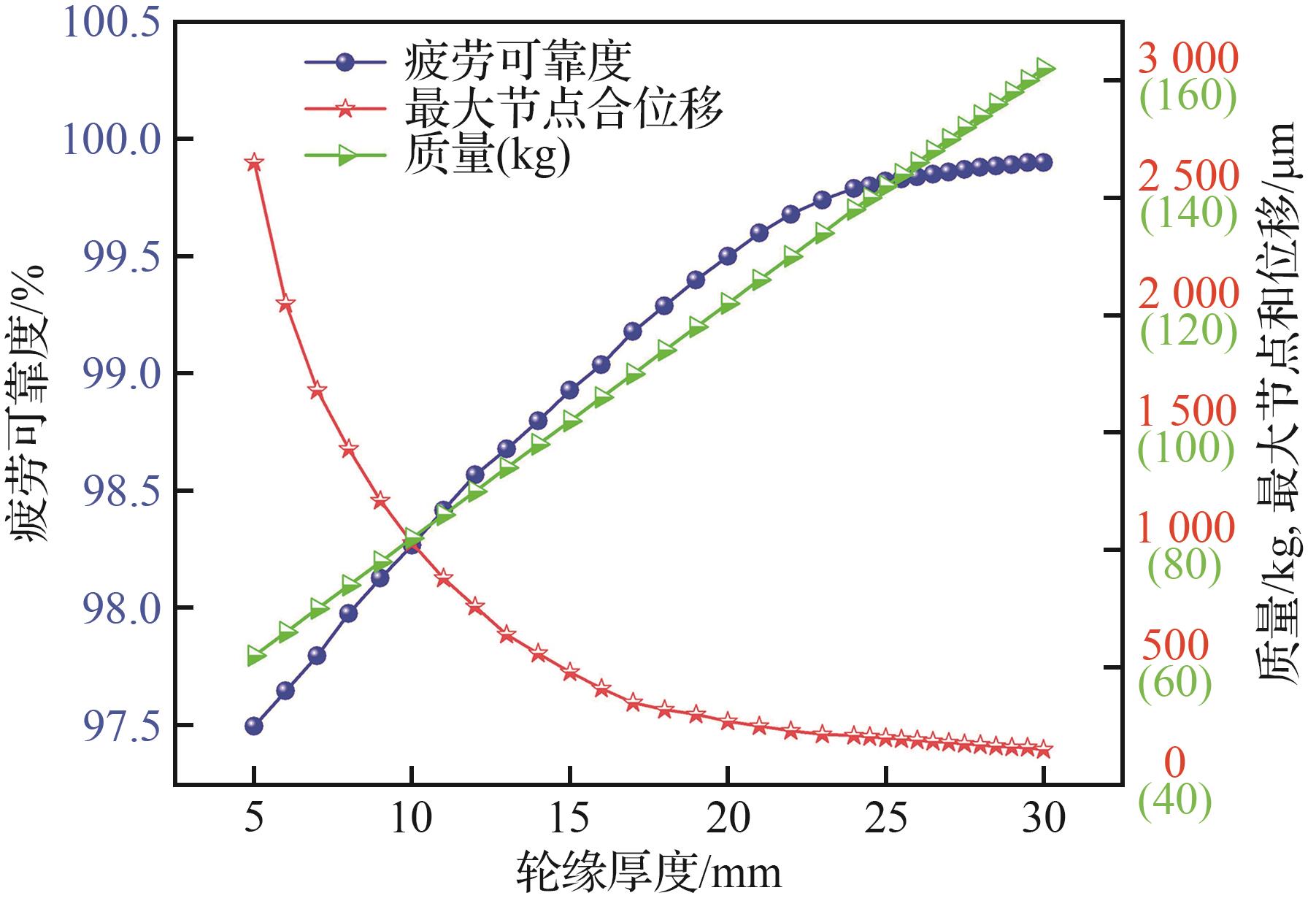

The flexibility of the ring gear significantly influences the mechanical properties of planetary transmission at both the tooth meshing level and the system power split level， making it one of the most important design factors determining the service reliability of large aerospace planetary mechanisms. To analyze the way and extent to which the rim flexibility of the ring gear affects the fatigue reliability of the planetary system， a planetary system reliability assessment model is developed using the stress-strength interference theory and the full probability formula calculation. The model incorporates load and strength input variables obtained through the lumped mass finite element method and probabilistic life transformation test of the gear teeth. Finally， the mapping relationship between rim thickness and the reliability index of the planetary system is established， and the thickness range of the ring gear rim with the best reliability gain effect under the mass constraint is accurately determined. This study provides a technical reserve for the fatigue reliability design of large aviation planetary systems.

Key words: planetary gear transmission, ring gear flexibility, fatigue reliability, finite element, probability lifespan conversion

CLC Number:

V222

Ming LI, Xin WAN, Puzheng JI. Influence of ring gear flexibility on fatigue reliability in large aerospace planetary mechanisms[J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(14): 231468.

Figures/Tables 20

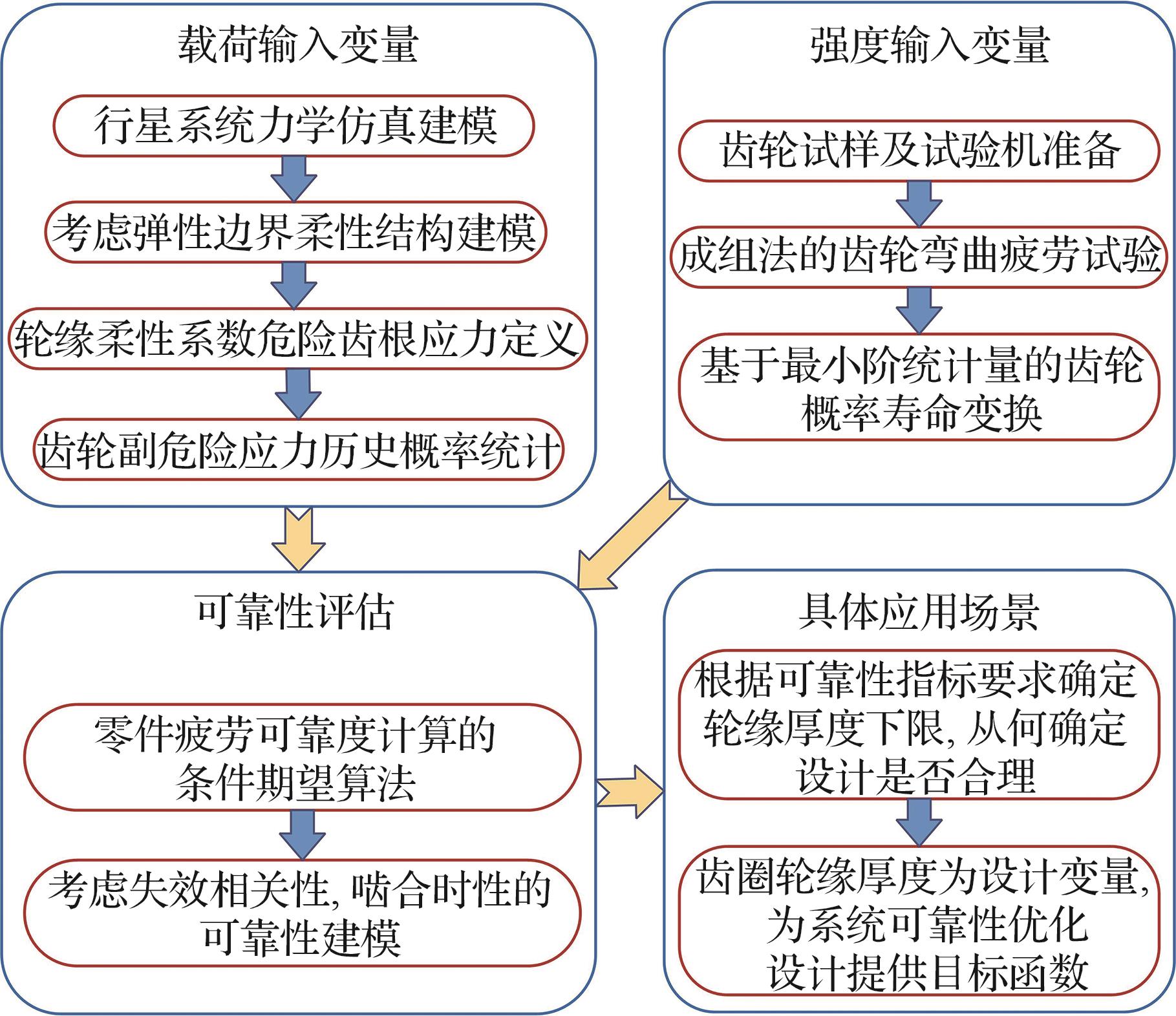

Fig.1

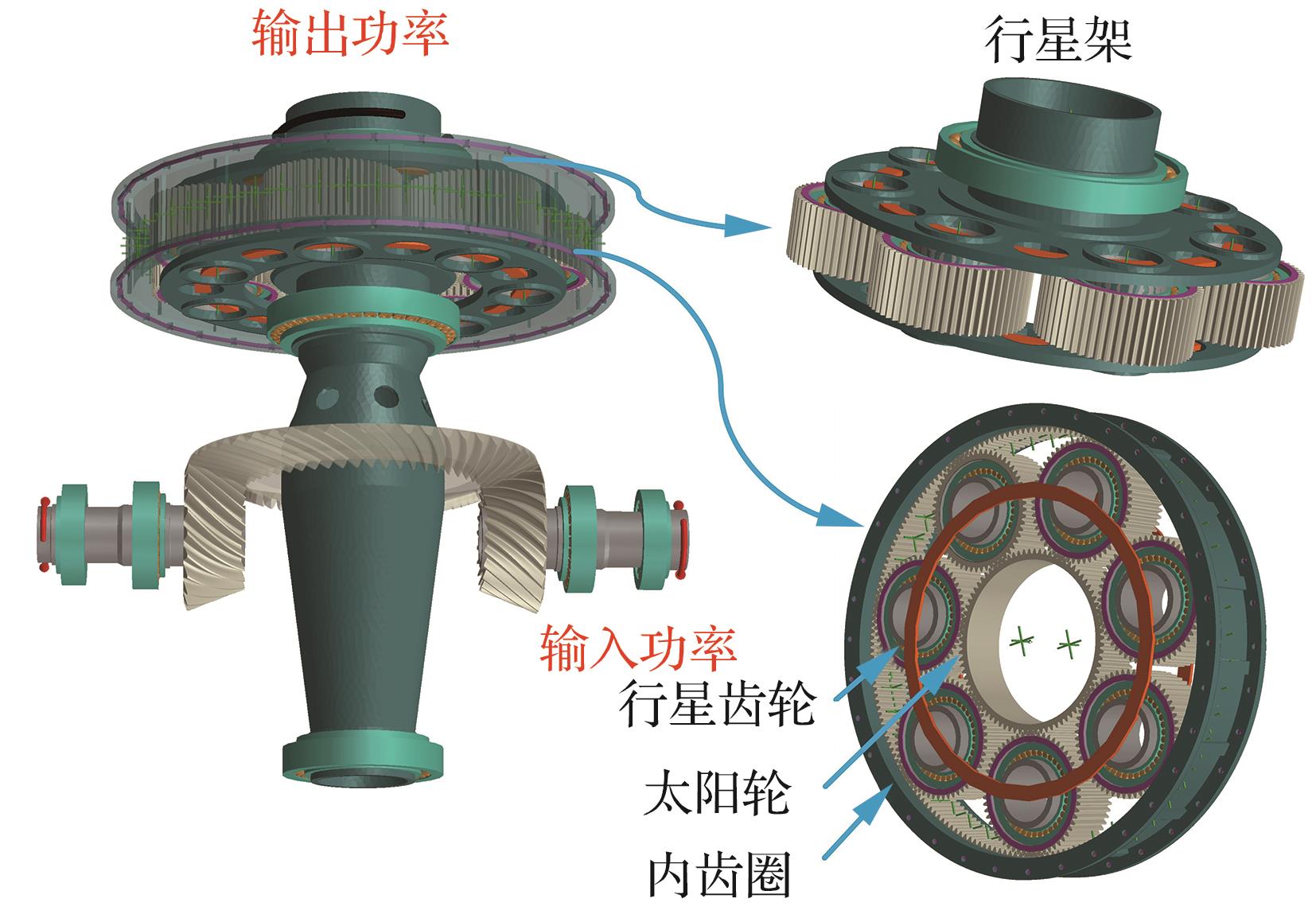

Fig.2

Table 1

Fig.3

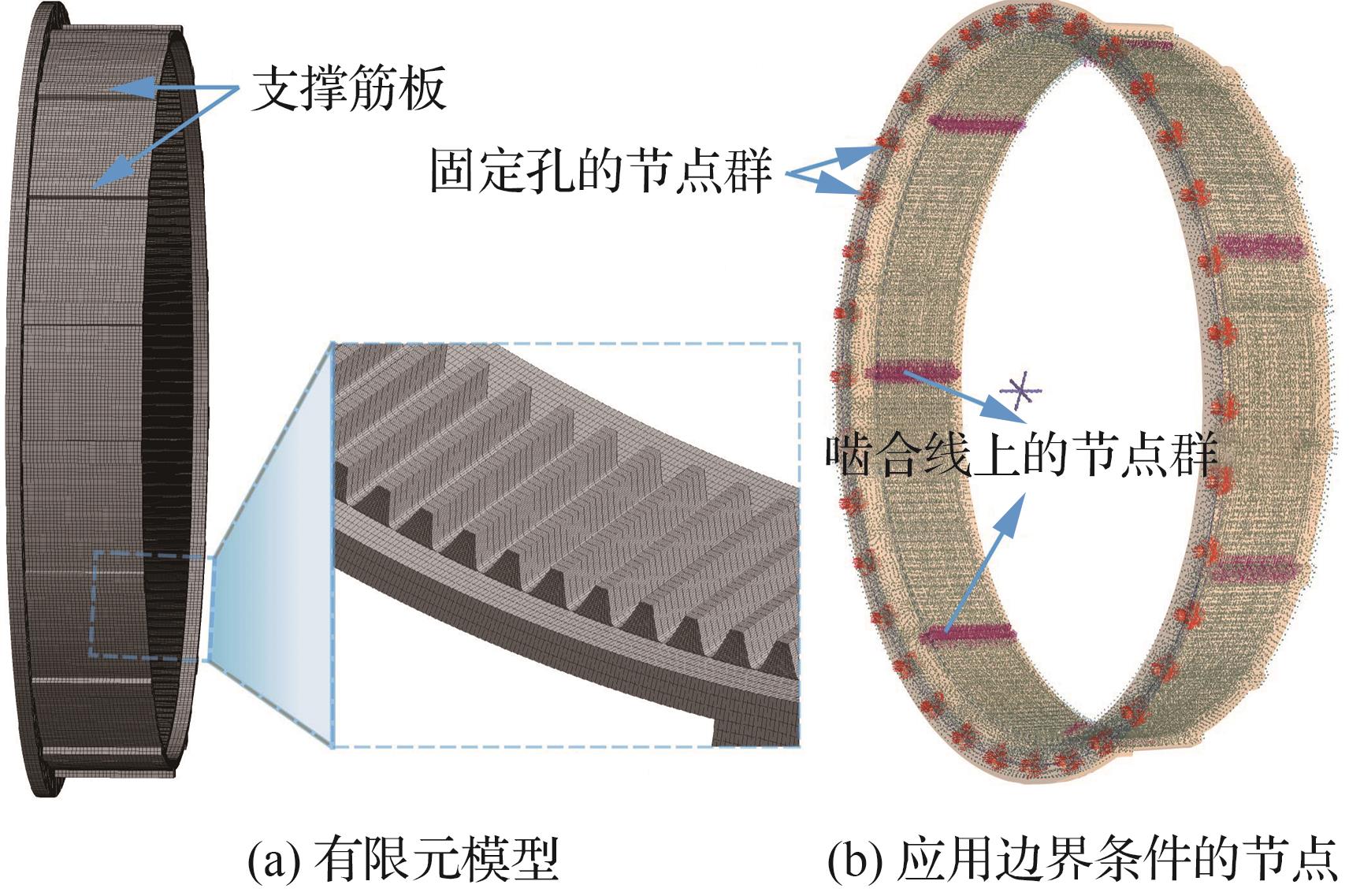

Fig.4

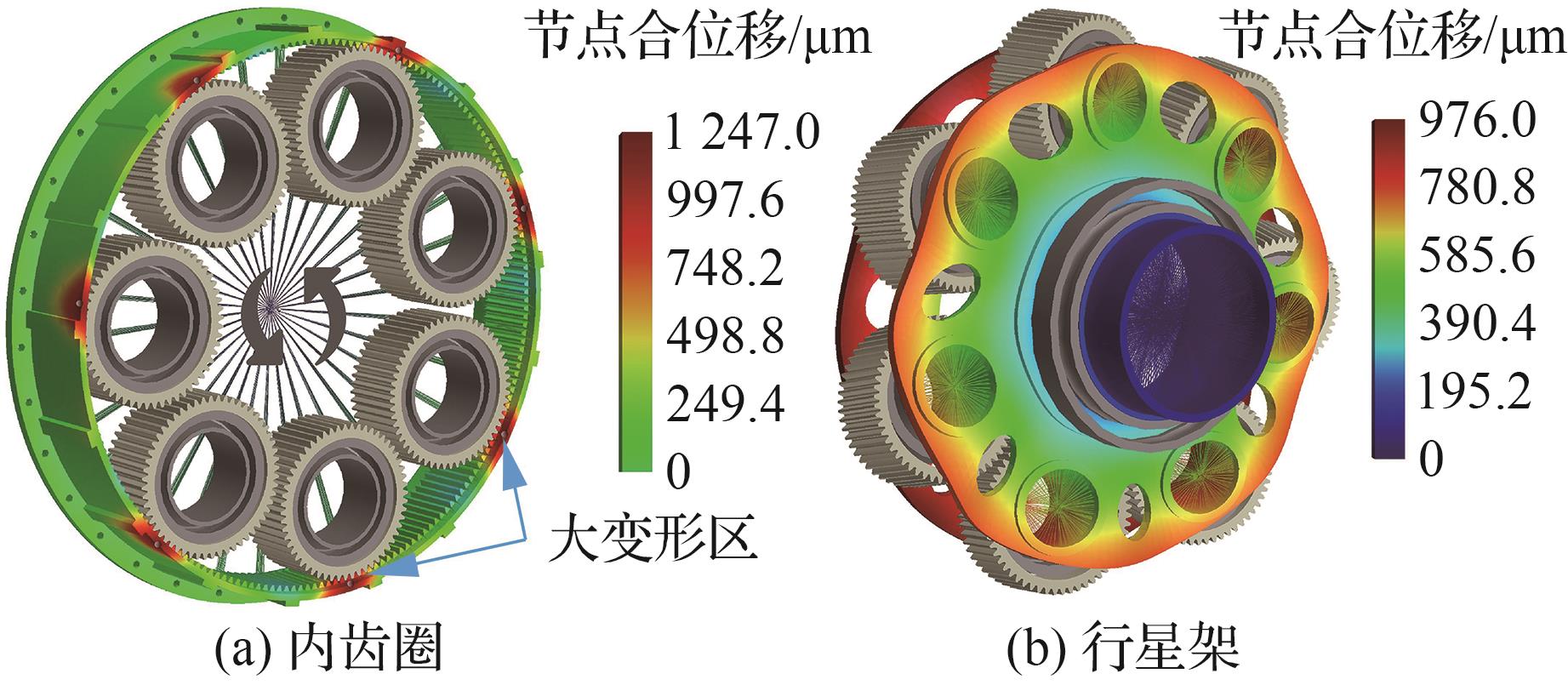

Fig.5

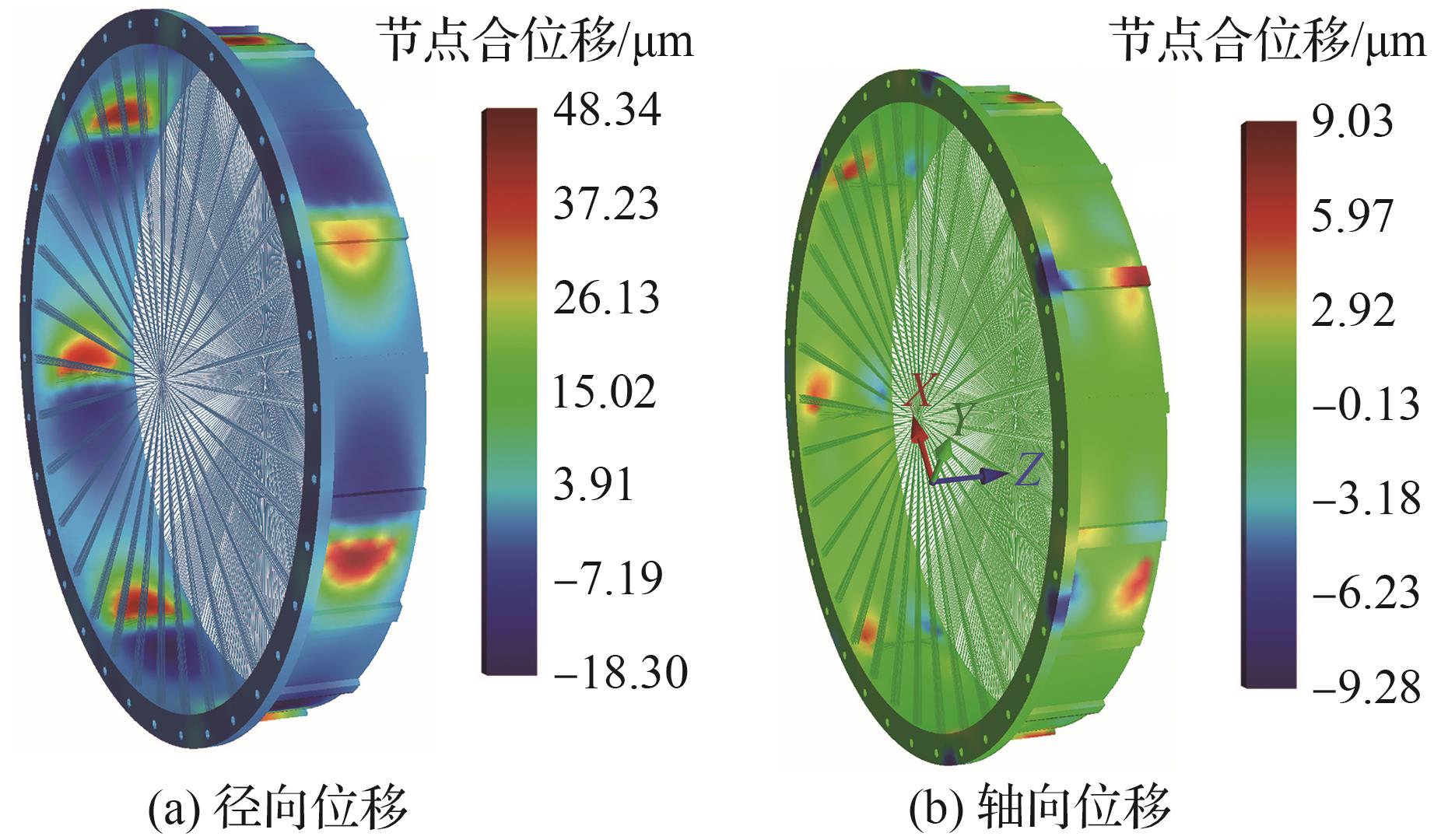

Fig.6

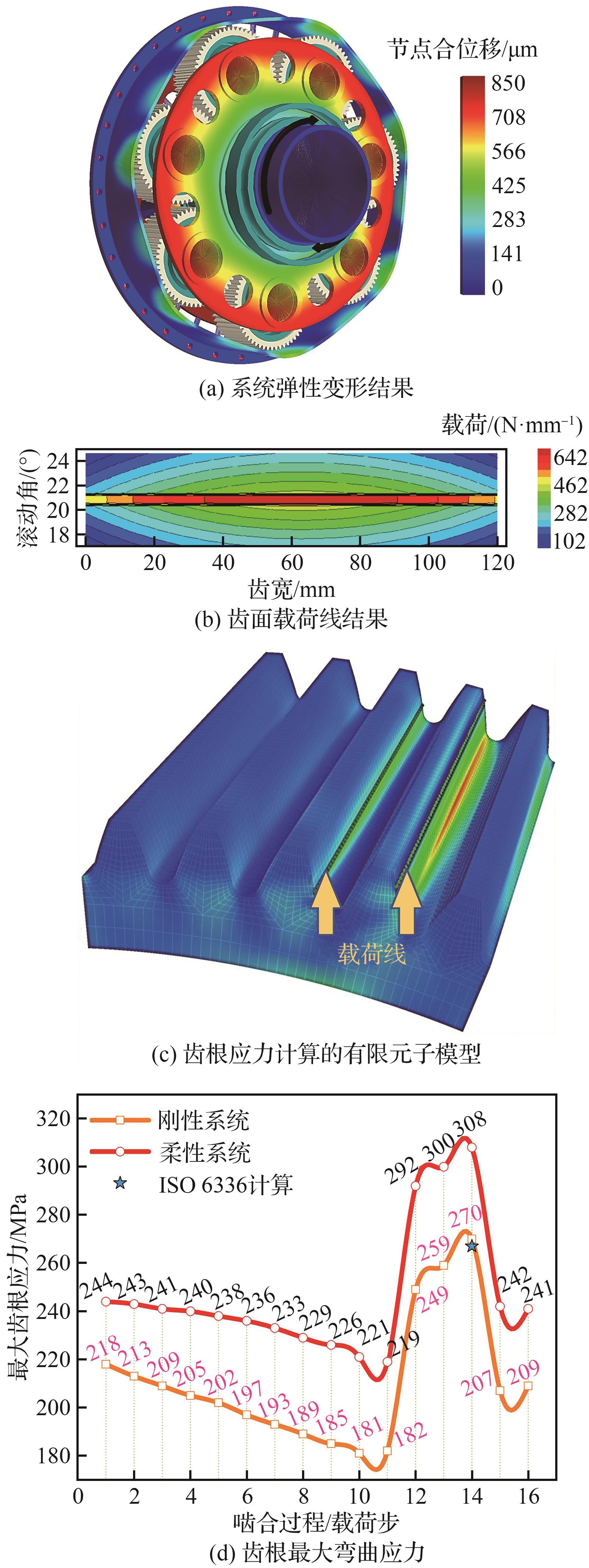

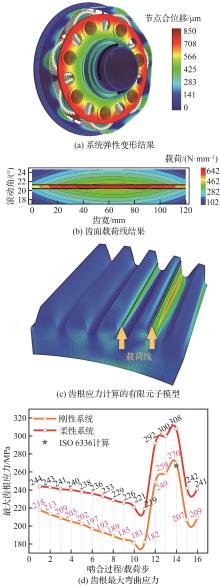

Fig.7

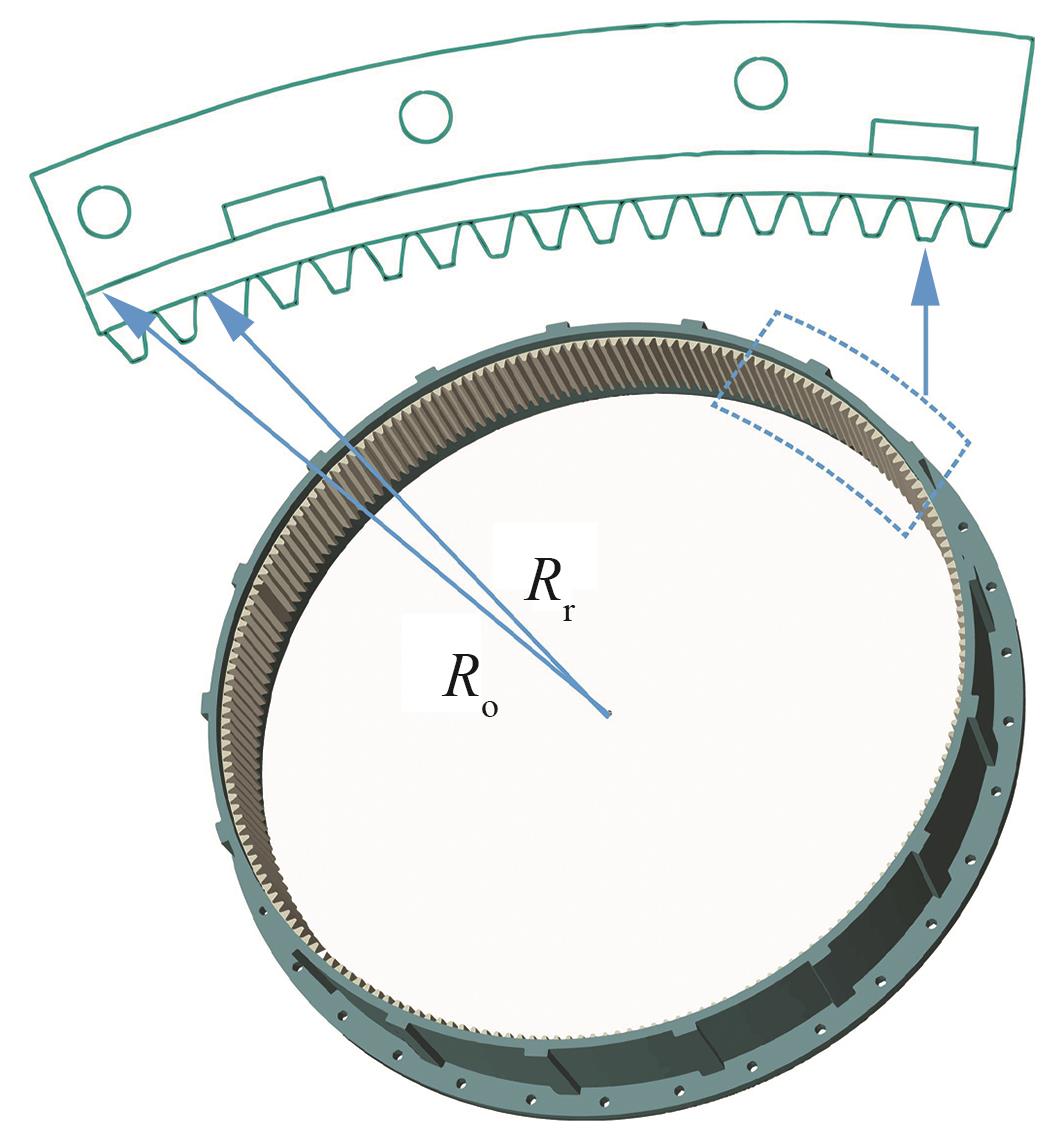

Fig.8

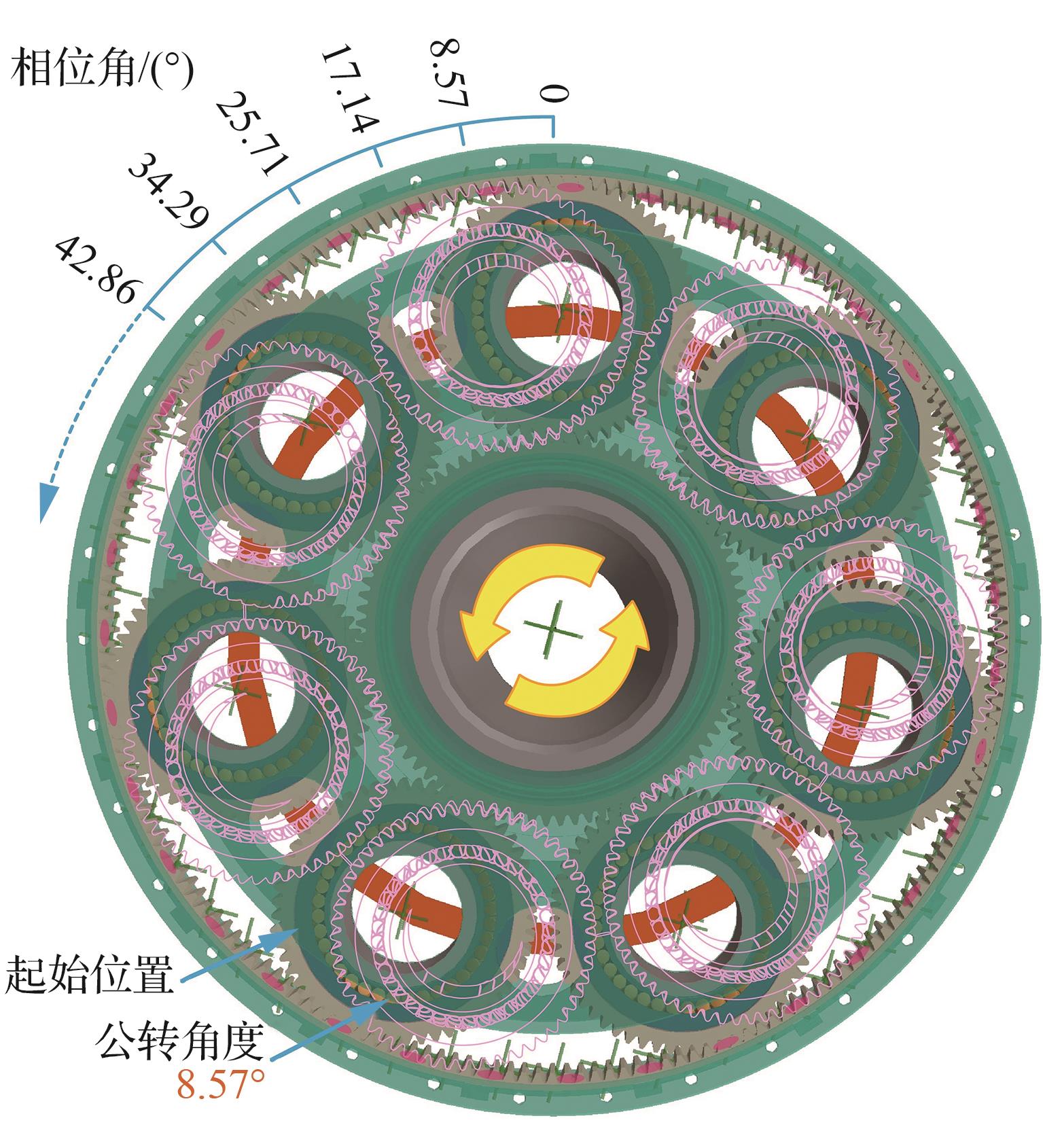

Fig.9

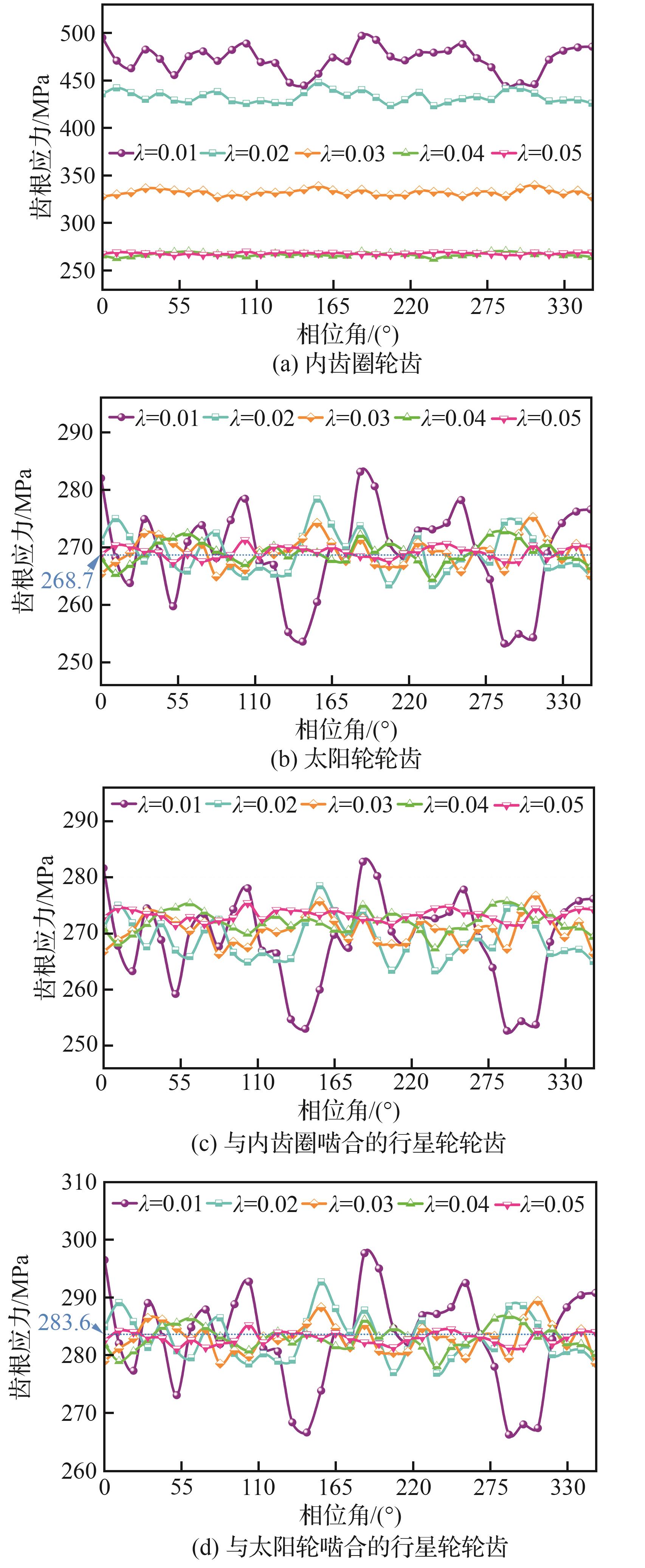

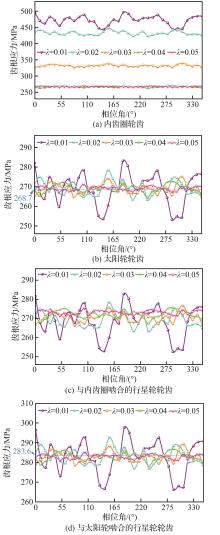

Fig.10

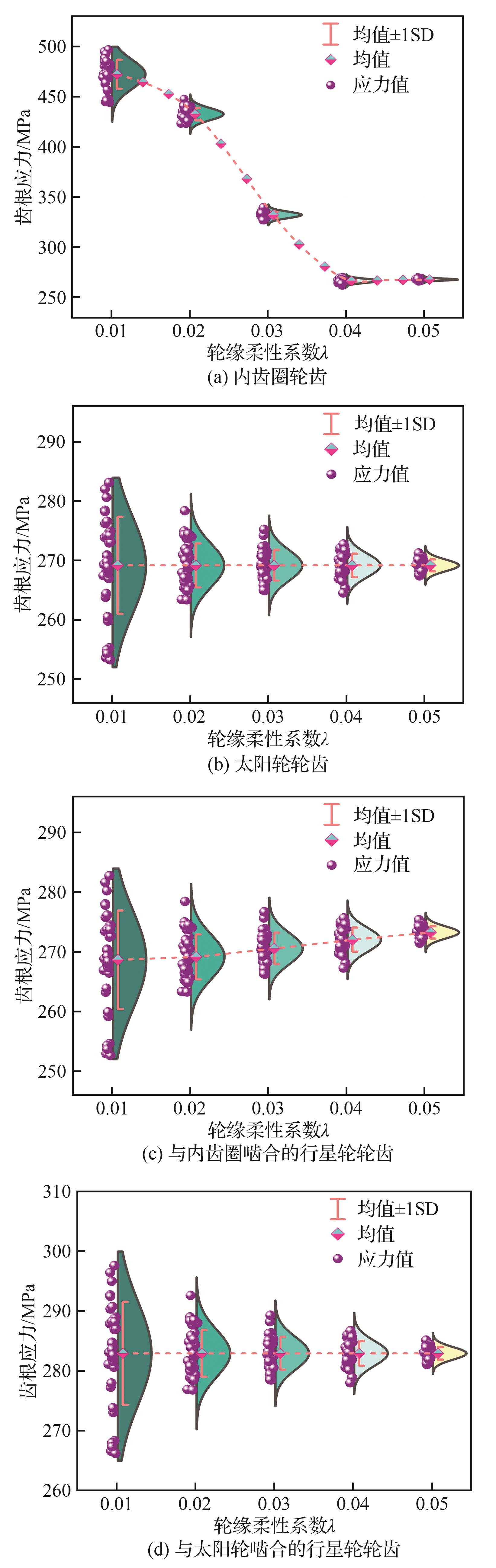

Fig.11

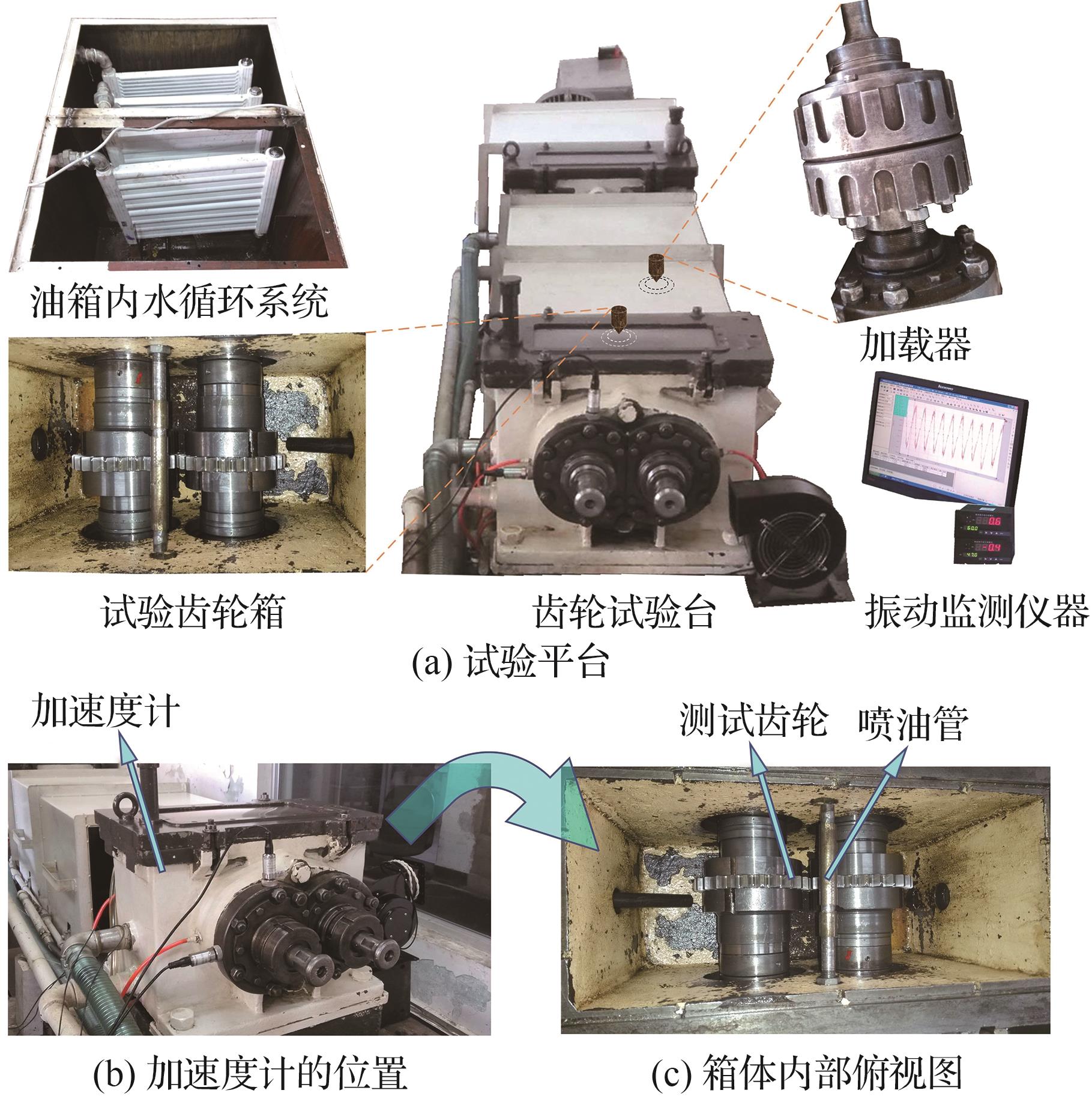

Fig.12

Table 2

Fig.13

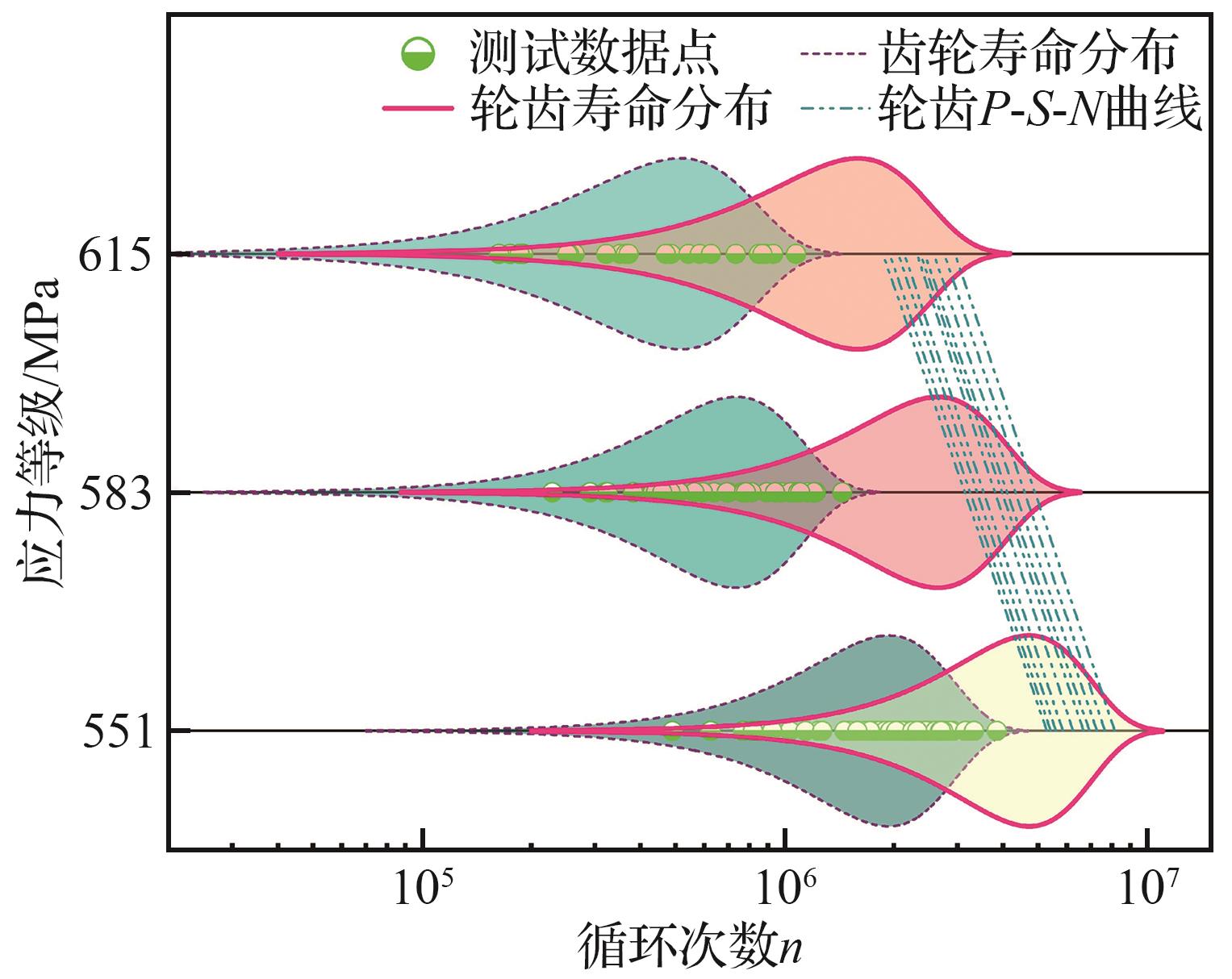

Fig.14

Fig.15

Table 3

Kinematic parameters of planetary gear system

构件	角速度	相对角速度	单齿啮合次数
太阳轮	$ω S$	$p · ω S 1 + p$	$n S t = p · ω S · t · k P 1 + p$
行星轮	$ω S 1 - p$	$2 p · ω S 1 - p 2$	$n P S t = n P R t = 2 p · ω S · t p 2 - 1$
内齿圈	0	$- ω S 1 + p$	$n R t = ω S · t · k P 1 + p$
行星架	$ω S 1 + p$

Table 3

Fig.16

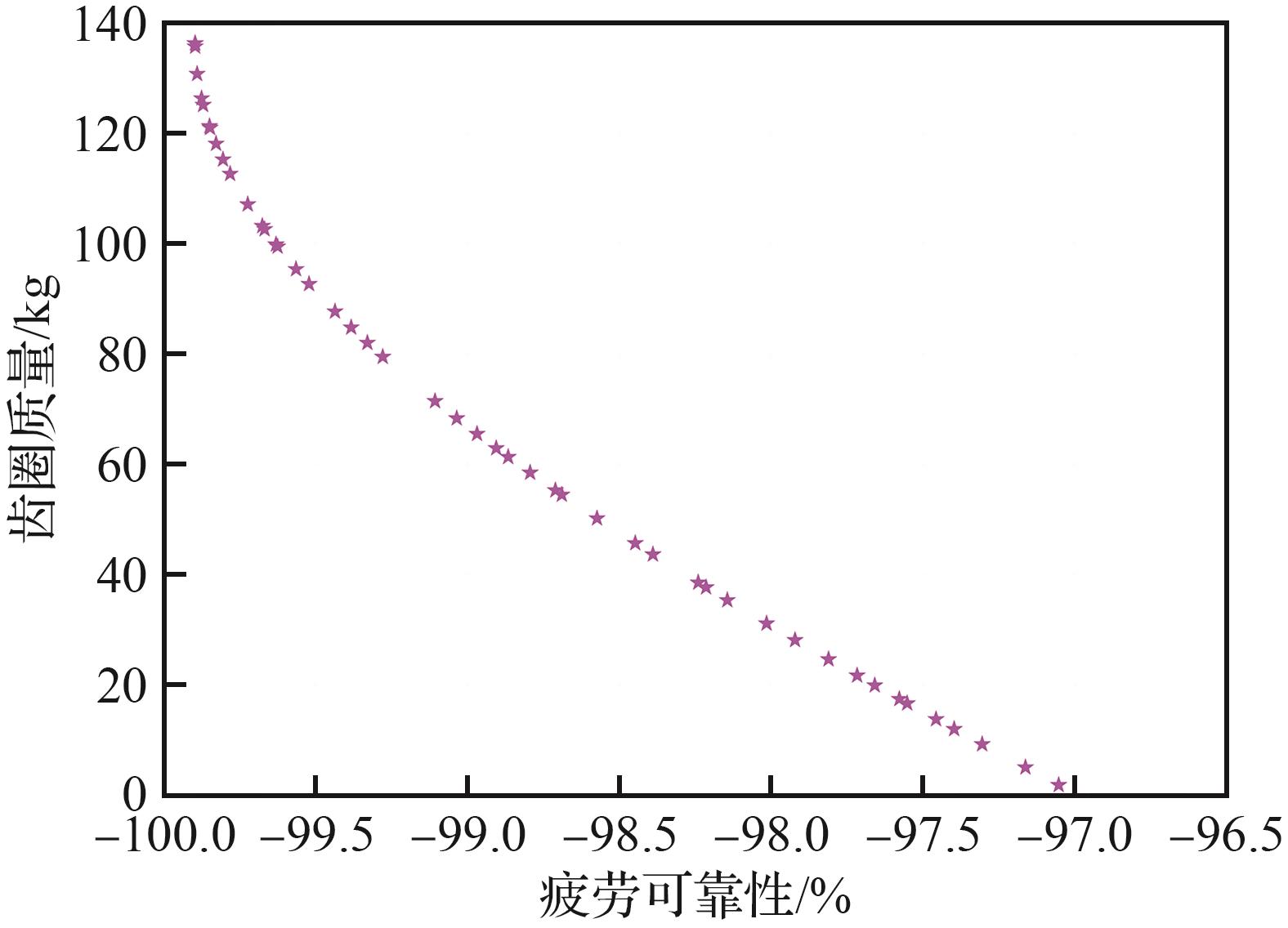

Fig.17

References 21

[1]	ASTRIDGE D G. Helicopter transmissions： Design for safety and reliability［J］. Proceedings of the Institution of Mechanical Engineers， Part G： Journal of Aerospace Engineering， 1989， 203（2）： 123-138.
[2]	许华超，秦大同. 内激励下弹性边界柔性直齿内齿圈振动响应研究［J］. 机械工程学报， 2018， 54（9）： 161-167.
	XU H C， QIN D T. Vibration response of flexible spur ring gear with elastic foundation under internal excitation［J］. Journal of Mechanical Engineering， 2018， 54（9）： 161-167 （in Chinese）.
[3]	WANG C L， ZHANG X F， ZHOU J X， et al. Calculation method of dynamic stress of flexible ring gear and dynamic characteristics analysis of thin-walled ring gear of planetary gear train［J］. Journal of Vibration Engineering & Technologies， 2021， 9（5）： 751-766.
[4]	李铭，罗源，谢里阳. 基于层级有限元法的大型航空行星机构可靠性优化设计［J］. 机械工程学报， 2023， 59（1）： 59-70.
	LI M， LUO Y， XIE L Y. Reliability optimization design for large aerospace planetary mechanism based on hierarchical finite element［J］. Journal of Mechanical Engineering， 2023， 59（1）： 59-70 （in Chinese）.
[5]	DUAN T T， ZHANG A Q， WEI J， et al. Effects of crack and structural flexibility on planetary gear system fault feature considering ring gear boundary condition［J］. Engineering Failure Analysis， 2023， 149： 107245.
[6]	GUAN X L， TANG J Y， HU Z H， et al. Dynamic analysis of spur gear pair established by flexible ring and time-varying mesh model［J］. Journal of the Brazilian Society of Mechanical Sciences and Engineering， 2022， 44（4）： 159.
[7]	KAHRAMAN A， KHARAZI A A， UMRANI M. A deformable body dynamic analysis of planetary gears with thin rims［J］. Journal of Sound and Vibration， 2003， 262（3）： 752-768.
[8]	王成，张翔，周剑. 柔性内齿圈动态应力计算方法及薄壁齿圈动态特性分析［J］. 航空学报， 2020， 58（5）： 751-766.
	WANG C， ZHANG X， ZHOU J. Calculation method of dynamic stress of flexible inner gear ring and analysis of dynamic characteristics of thin-walled gear ring［J］. Acta Aeronautica et Astronautica Sinica， 2020， 58（5）： 751-766 （in Chinese）.
[9]	ABOUSLEIMAN V， VELEX P， BECQUERELLE S. Modeling of spur and helical gear planetary drives with flexible ring gears and planet carriers［J］. Journal of Mechanical Design， 2007， 129（1）： 95-106.
[10]	ABOUSLEIMAN V， VELEX P. A hybrid 3D finite element/lumped parameter model for quasi-static and dynamic analyses of planetary/epicyclic gear sets［J］. Mechanism and Machine Theory， 2006， 41（6）： 725-748.
[11]	LI M， LUO Y， XIE L. Fatigue reliability design method for large aviation planetary system considering the flexibility of the ring gear［J］.Applied Sciences， 2022， 12（20）： 10361.
[12]	HU Y， TALBOT D， KAHRAMAN A. A gear load distribution model for a planetary gear set with a flexible ring gear having external splines［J］. Journal of Mechanical Design， 2019， 141（5）： 053301.
[13]	CHEN Z G， SHAO Y M. Mesh stiffness of an internal spur gear pair with ring gear rim deformation［J］. Mechanism and Machine Theory， 2013， 69： 1-12.
[14]	CHEN Z G， SHAO Y M， SU D Z. Dynamic simulation of planetary gear set with flexible spur ring gear［J］. Journal of Sound and Vibration， 2013， 332（26）： 7191-7204.
[15]	CHEN Z G， ZHU Z F， SHAO Y M. Fault feature analysis of planetary gear system with tooth root crack and flexible ring gear rim［J］. Engineering Failure Analysis， 2015， 49： 92-103.
[16]	KAHRAMAN A， VIJAYAKAR S. Effect of internal gear flexibility on the quasi-static behavior of a planetary gear set［J］. Journal of Mechanical Design， 2001， 123（3）： 408-415.
[17]	KAHRAMAN A， LIGATA H， SINGH A. Influence of ring gear rim thickness on planetary gear set behavior［J］. Journal of Mechanical Design， 2010， 132（2）： 021002.
[18]	CHEN Z G， SHAO Y M. Mesh stiffness of an internal spur gear pair with ring gear rim deformation［J］. Mechanism and Machine Theory， 2013， 69： 1-12.
[19]	YAN Y Y. Load characteristic analysis and fatigue reliability prediction of wind turbine gear transmission system［J］. International Journal of Fatigue， 2020， 130： 105259.
[20]	王正，王增全. 基于应力-强度干涉的车用发动机机械零部件B10寿命计算方法［J］. 机械工程学报， 2014， 50（16）： 47-53.
	WANG Z， WANG Z Q. Method for calculating the B10 reliable life of mechanical components of vehicle engine based on the stress-strength interference［J］. Journal of Mechanical Engineering， 2014， 50（16）： 47-53 （in Chinese）.
[21]	LI M， XIE L Y， DING L J. Load sharing analysis and reliability prediction for planetary gear train of helicopter［J］. Mechanism and Machine Theory， 2017， 115： 97-113.

参数	太阳轮	行星轮	内齿圈
模数/mm	5	5	5
齿数	84	56	196
齿轮个数	1	7	1
压力角/（°）	20	20	20
螺旋角/（°）	0	0	0
齿宽/mm	120	120	120
基圆直径/mm	394.671	263.114	920.899
基圆间距/mm	14.761	14.761	14.761
齿根圆角半径/mm	1.85	1.77	1.81
齿根圆半径/mm			496.25
外圆半径/mm			501.25-521.25
材料	1Cr18Ni9Ti	1Cr18Ni9Ti	1Cr18Ni9Ti
弹性模量/（10⁵ MPa）	2.07	2.07	2.07
泊松比	0.3	0.3	0.3

项目	参数	项目	参数
模数/mm	5	ISO质量等级	5
齿数	25	材料	1Cr18Ni9Ti
压力角/（°）	21	渗碳深度/mm	0.8±0.11
螺旋角/（°）	0	轮齿表面硬度	57~61 HRC
齿宽	32	轮齿齿芯硬度	32~46 HRC
齿根圆角半径/mm	1.7	精密加工方法	磨削
