空间柔性卷绕式太阳电池阵减振防护技术

doi:10.7527/S1000-6893.2025.32192

Abstract

Abstract:

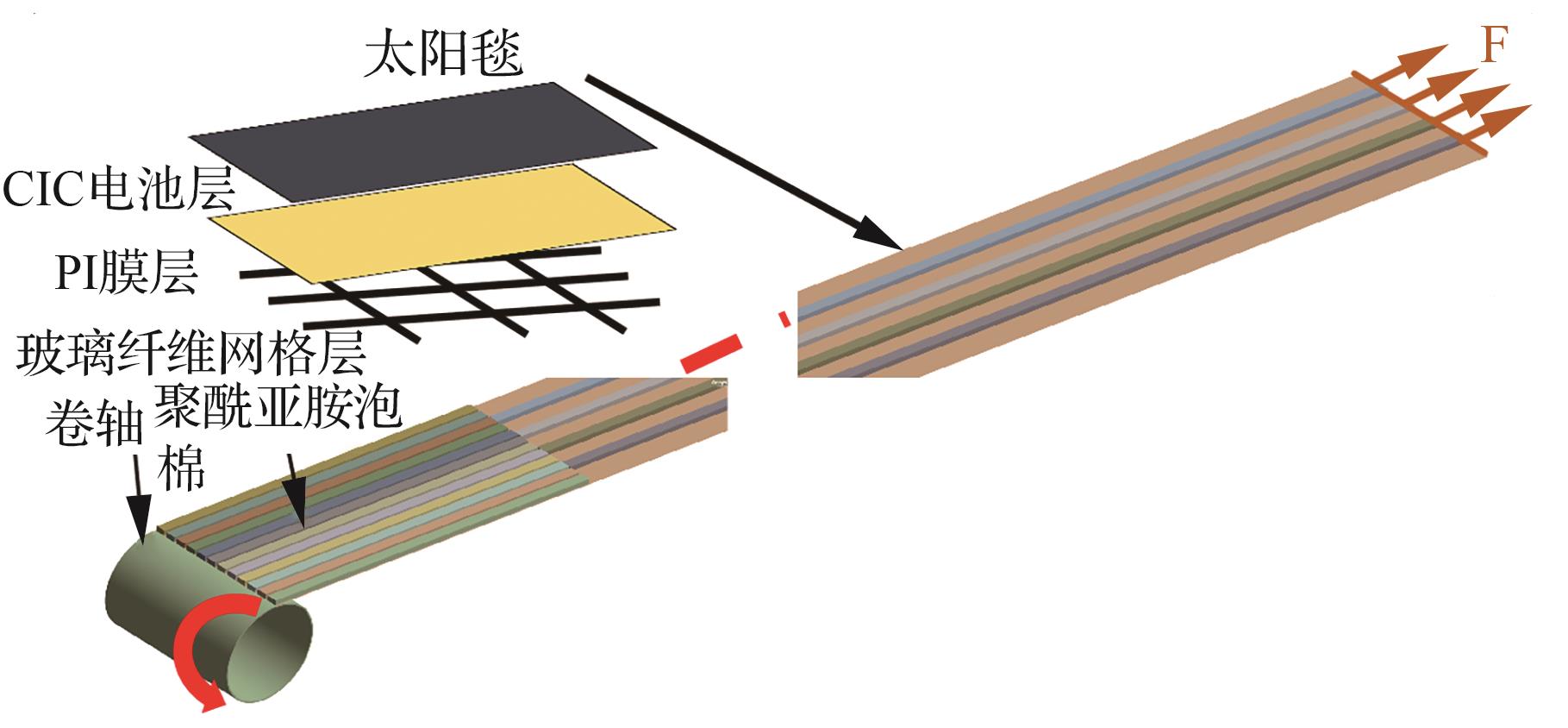

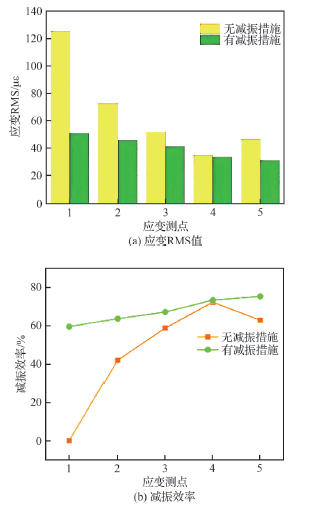

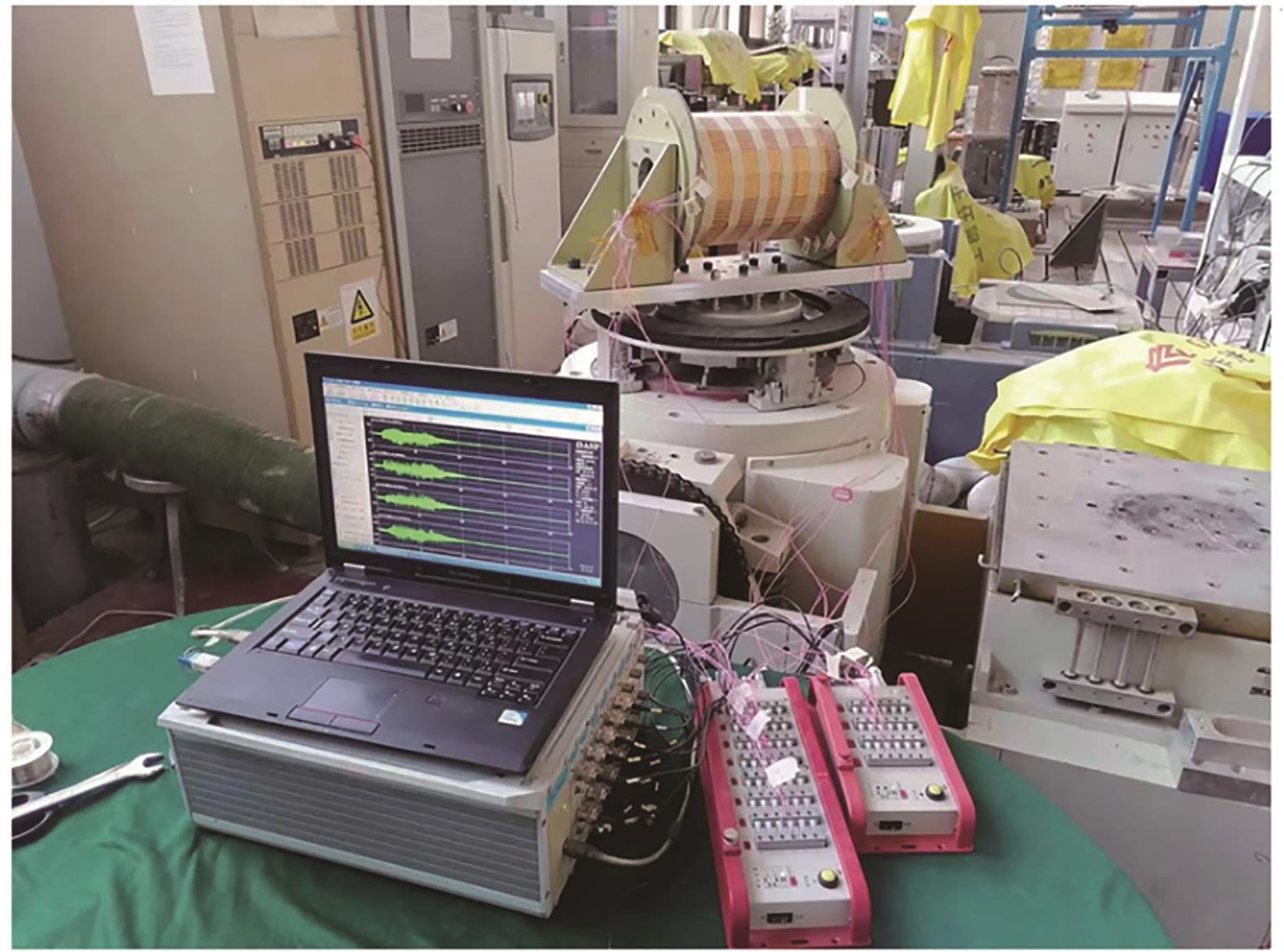

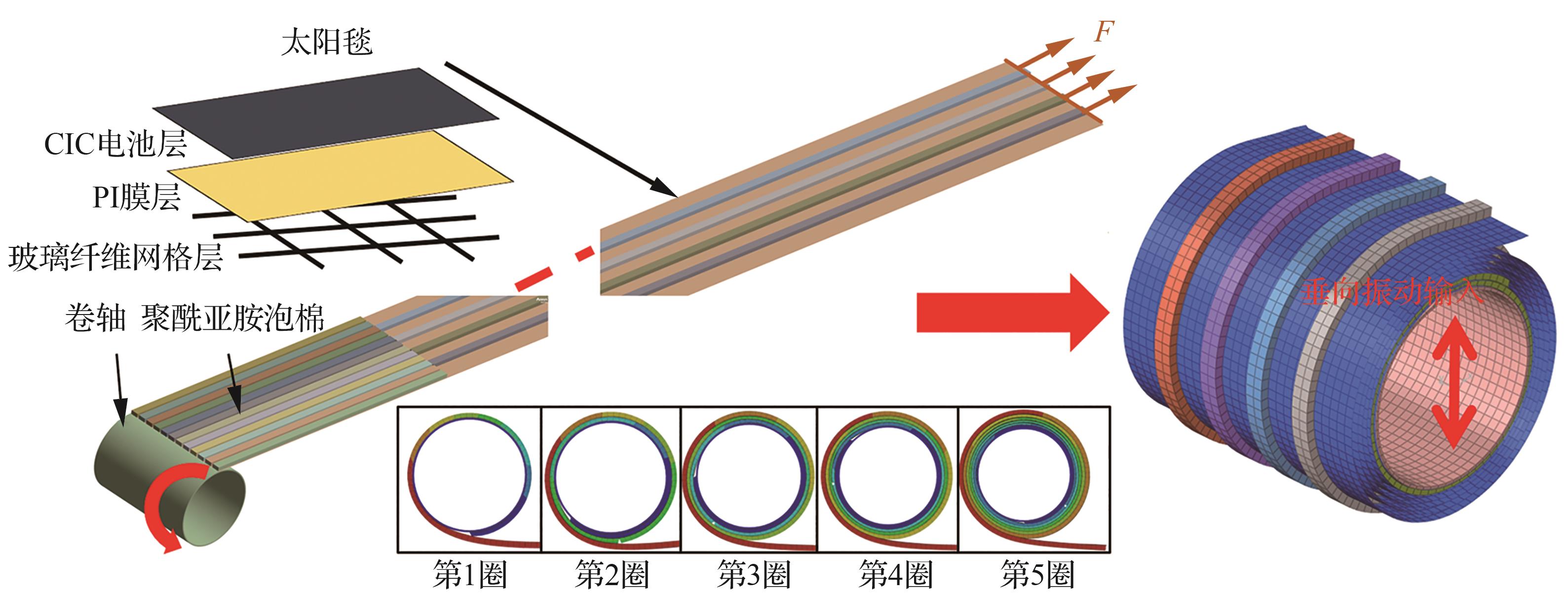

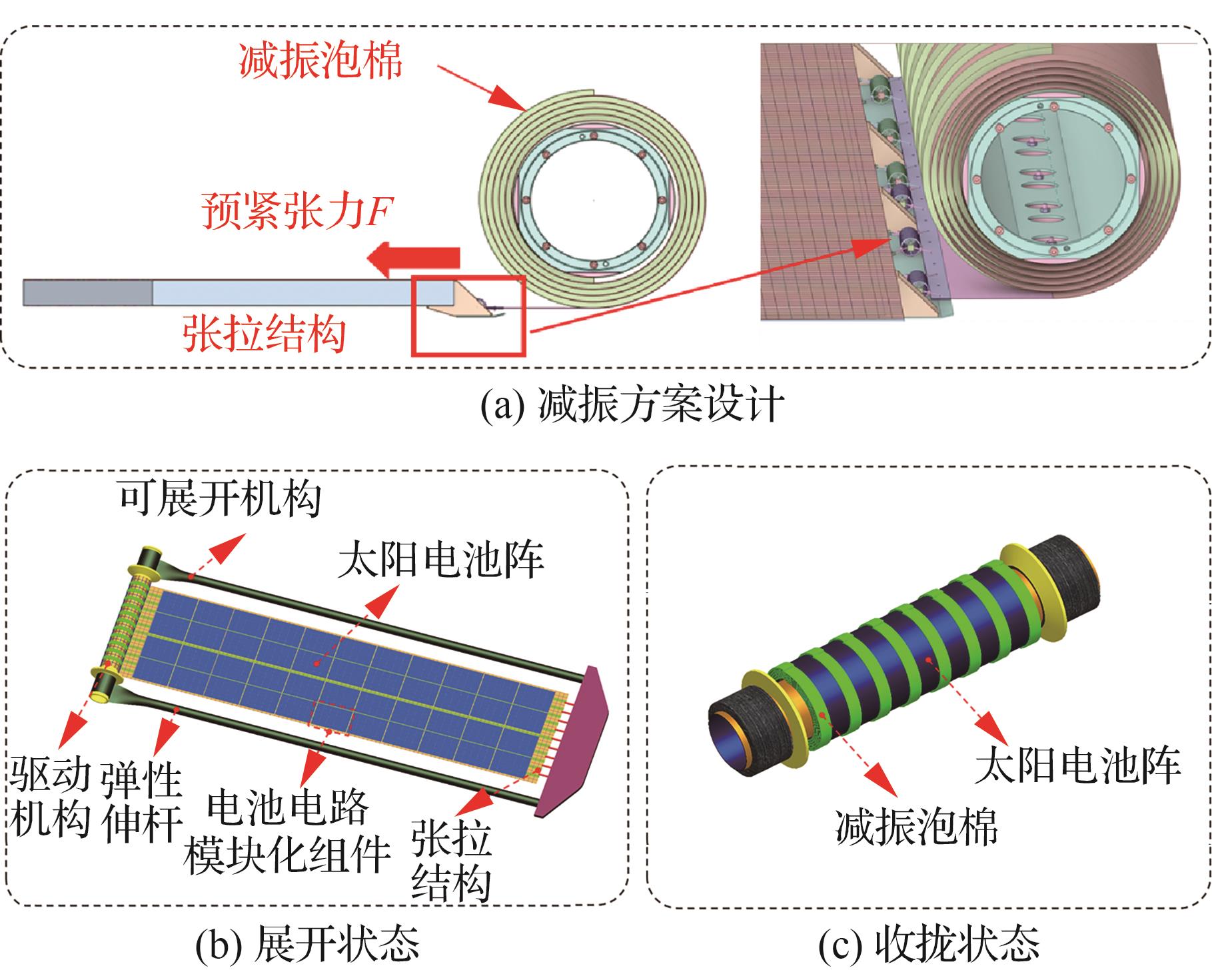

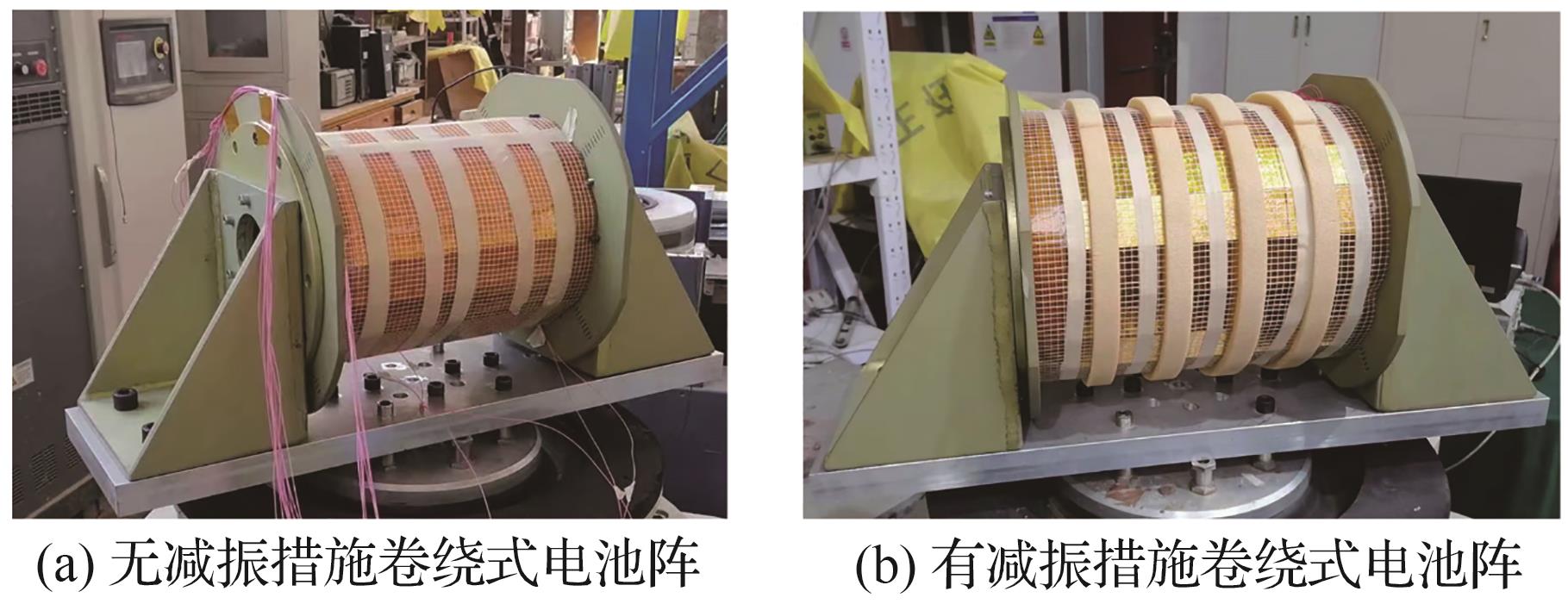

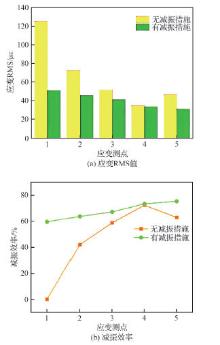

To address the structural safety of flexible roll-out solar array in the vibration environment during the launch phase， an innovative vibration reduction and protection method based on winding preload and polyimide foam is proposed. This solution effectively improves the vibration resistance of the battery array without the need for additional complex structures， simply by adjusting the winding preload and introducing a polyimide foam vibration damping layer. This study first established a refined finite element simulation model of a flexible wound solar array， and then evaluated the effects of different vibration frequencies， amplitudes and preload forces on the structural safety of the array. Finally， vibration experiments on a small engineering prototype verified the vibration damping effect of the scheme in practical applications. The results show that the design can significantly reduce the strain response of the CIC cell， and the vibration damping efficiency reaches more than 60%. The high consistency of the simulation and experimental results indicates that the vibration damping scheme has strong engineering feasibility and practical application potential.

Key words: flexible roll-out solar array, winding preload, vibration reduction and protection, polyimide foam, strain response

CLC Number:

V414.1

Shougen ZHAO, Hongxin GAO, Jialin ZHU, Yibo LI, Zhen ZHANG, Letian YANG. Vibration reduction and protection method of flexible roll-out solar array[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(2): 232192.

Figures/Tables 35

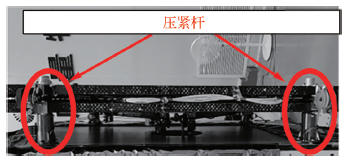

Fig.1

Fig.2

Fig.3

Fig.4

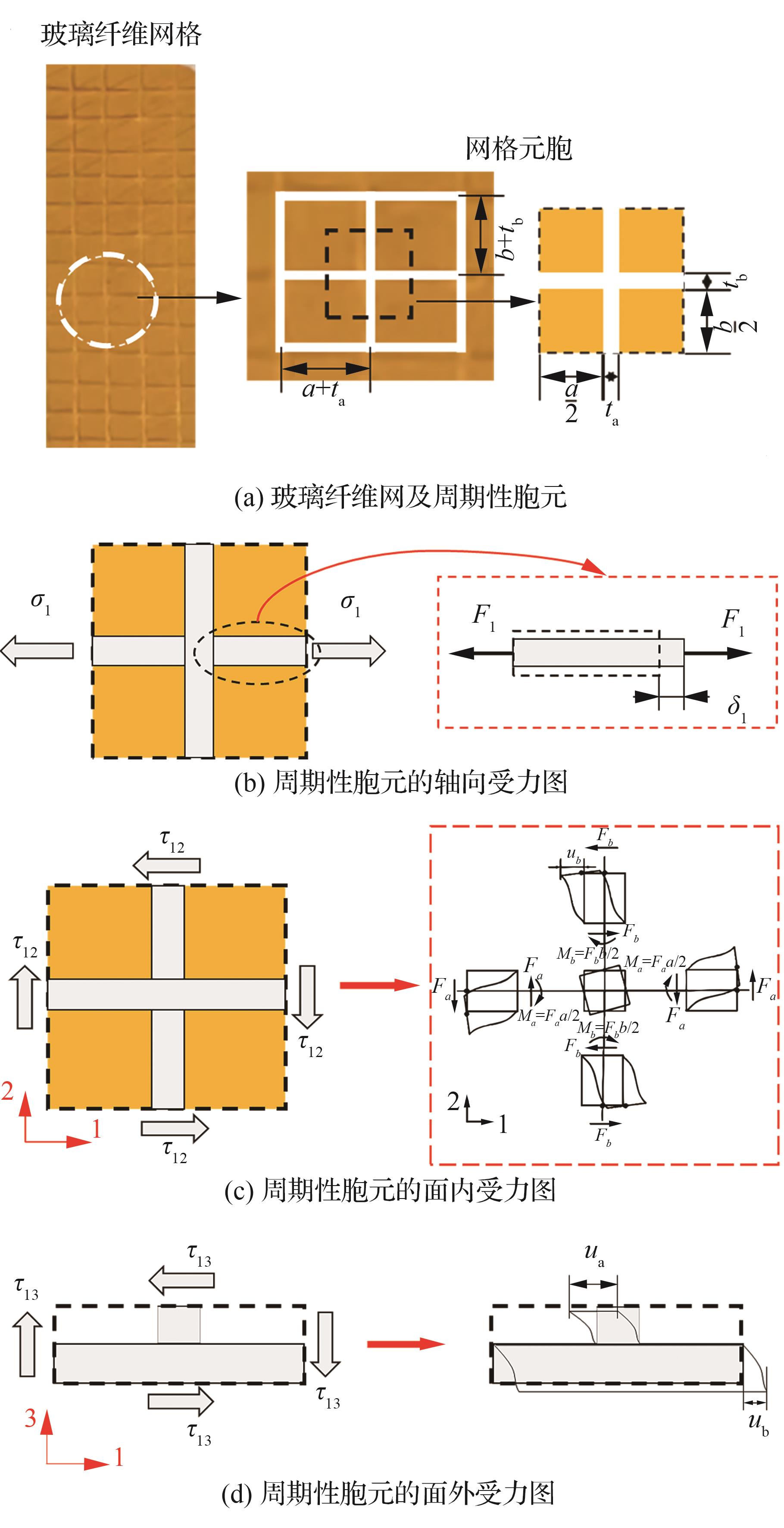

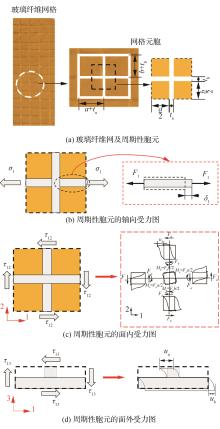

Fig.5

Table 1

Fig.6

Table 2

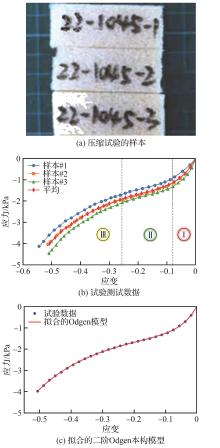

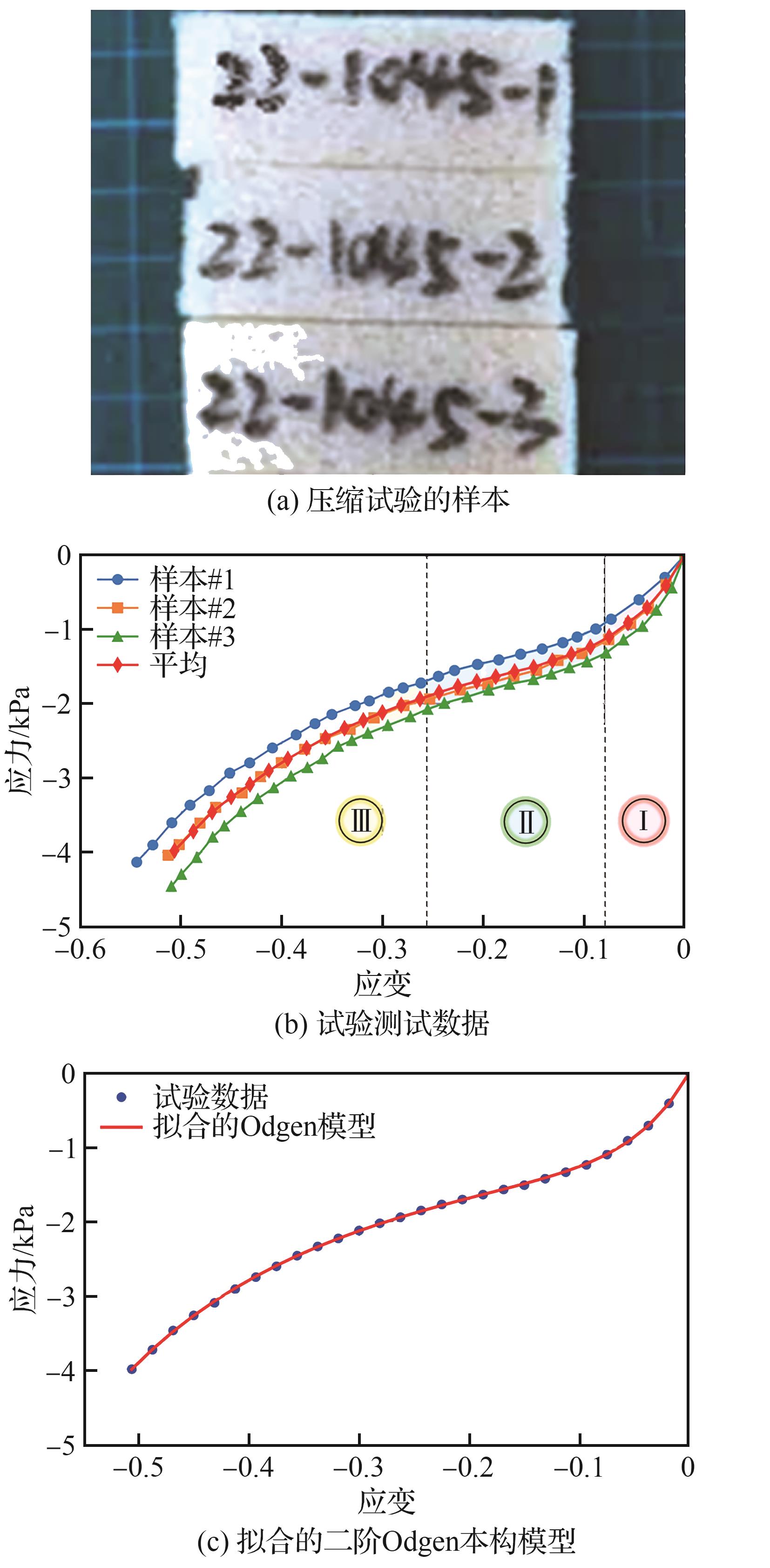

Parameters of Ogden foam constitutive model for polyimide foam

Ogden foam本构模型参数	数值
$μ 1 / M P a$	1.13×10^-3
$α 1$	23.27
$β 1$	3.5×10^-2
$μ 2 / M P a$	3.129×10^-4
$α 2$	2.95×10^-4
$β 2$	3.5×10^-2

Table 2

Fig.7

Fig.8

Table 3

Fig.9

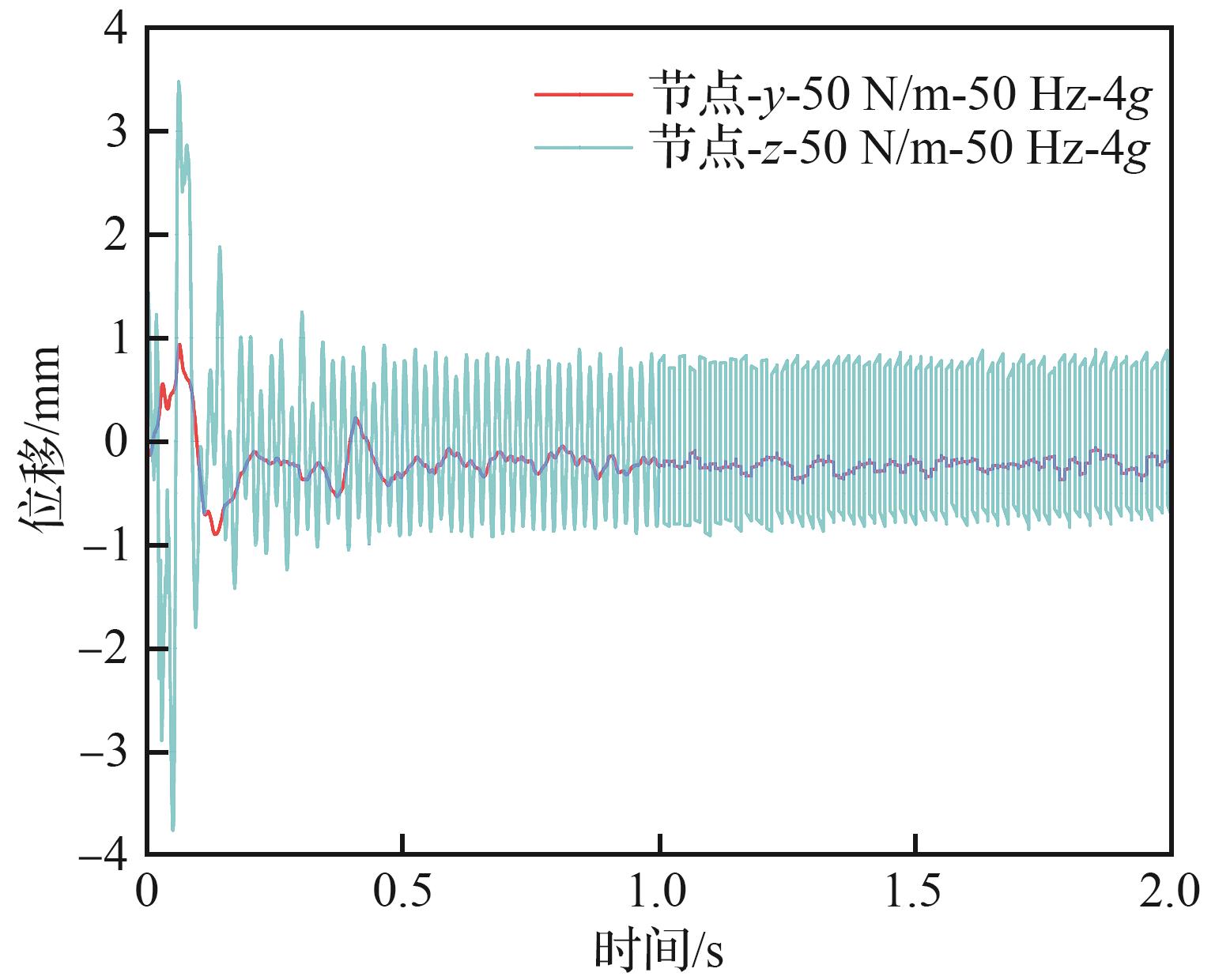

Fig.10

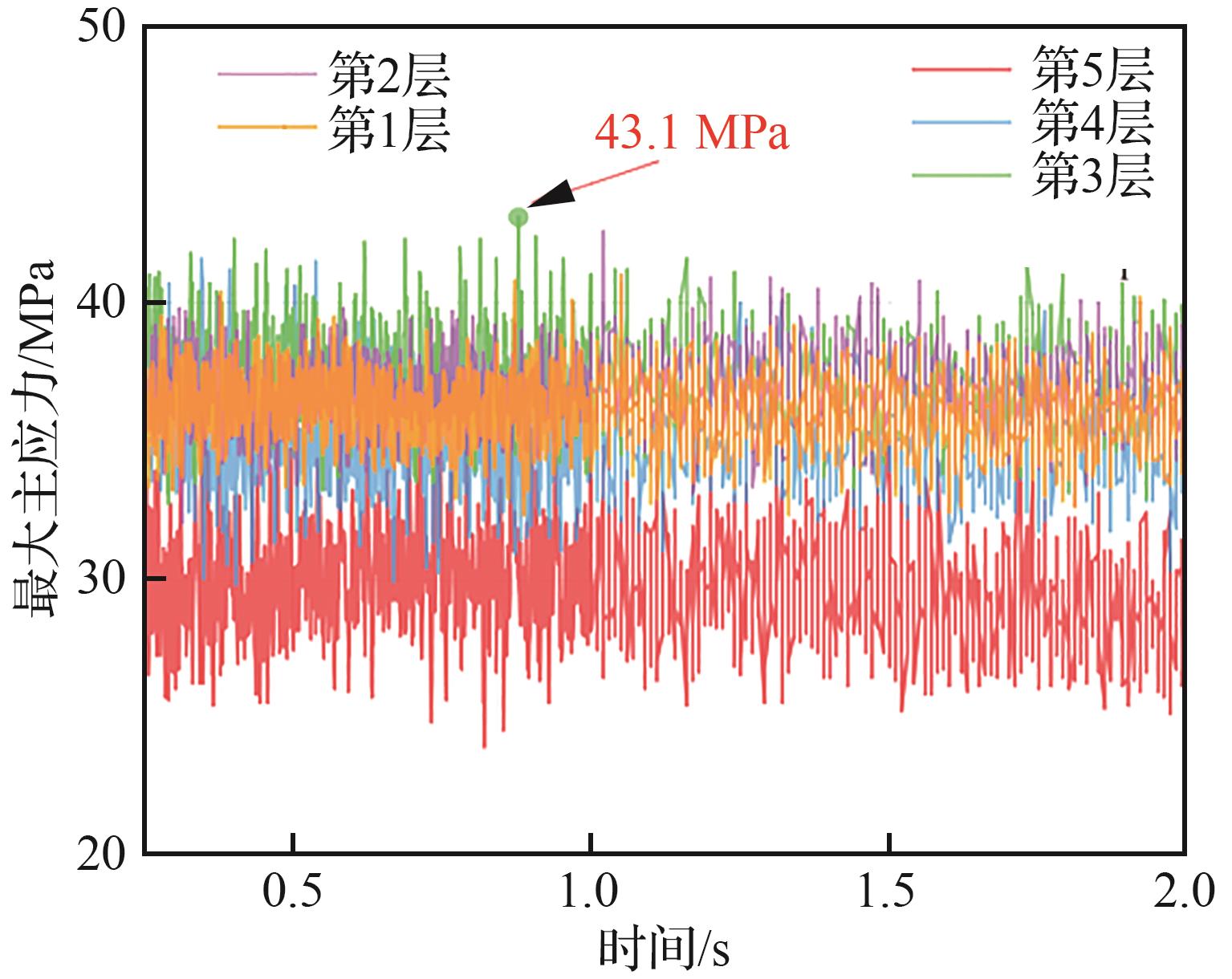

Fig.11

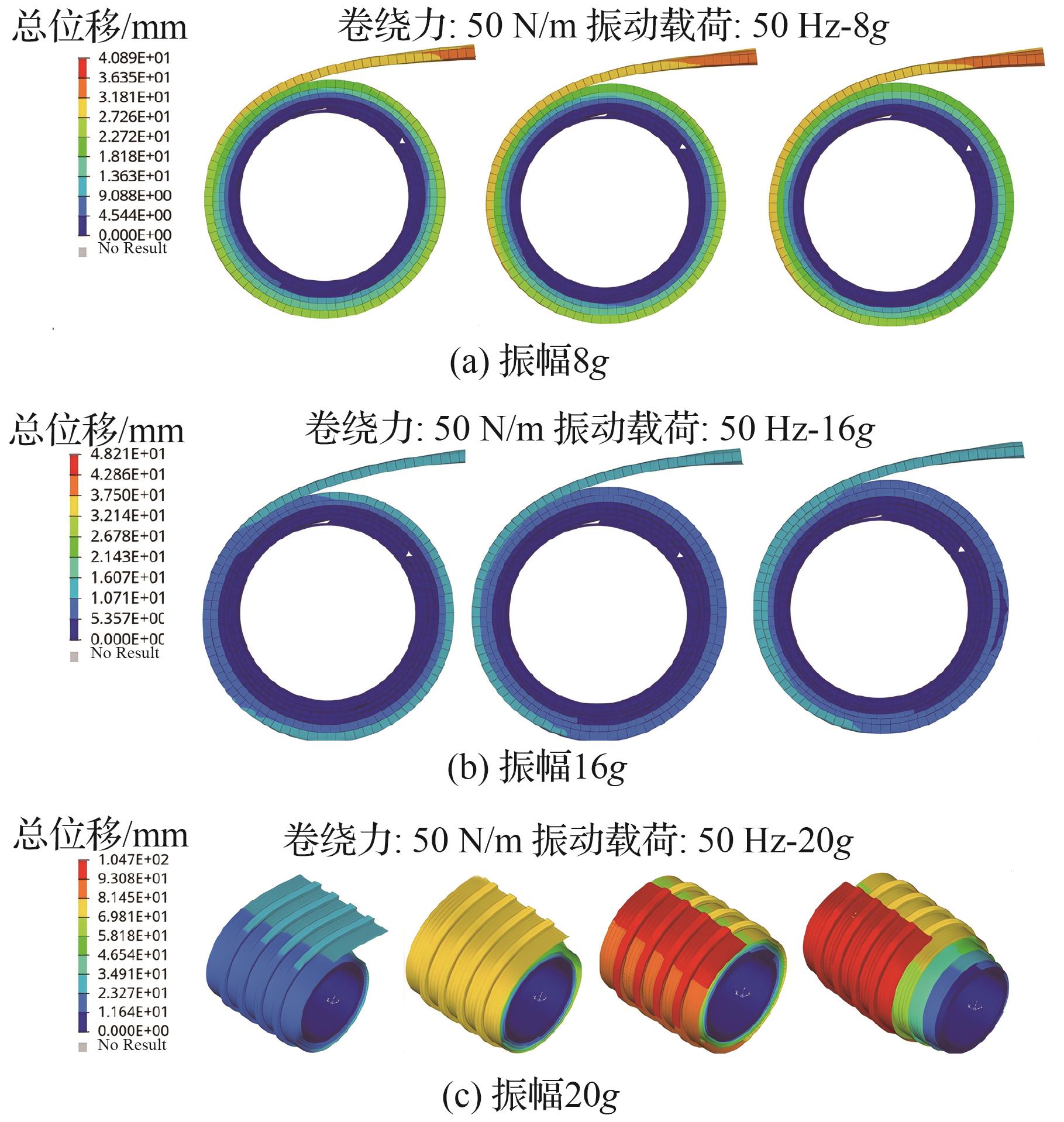

Fig.12

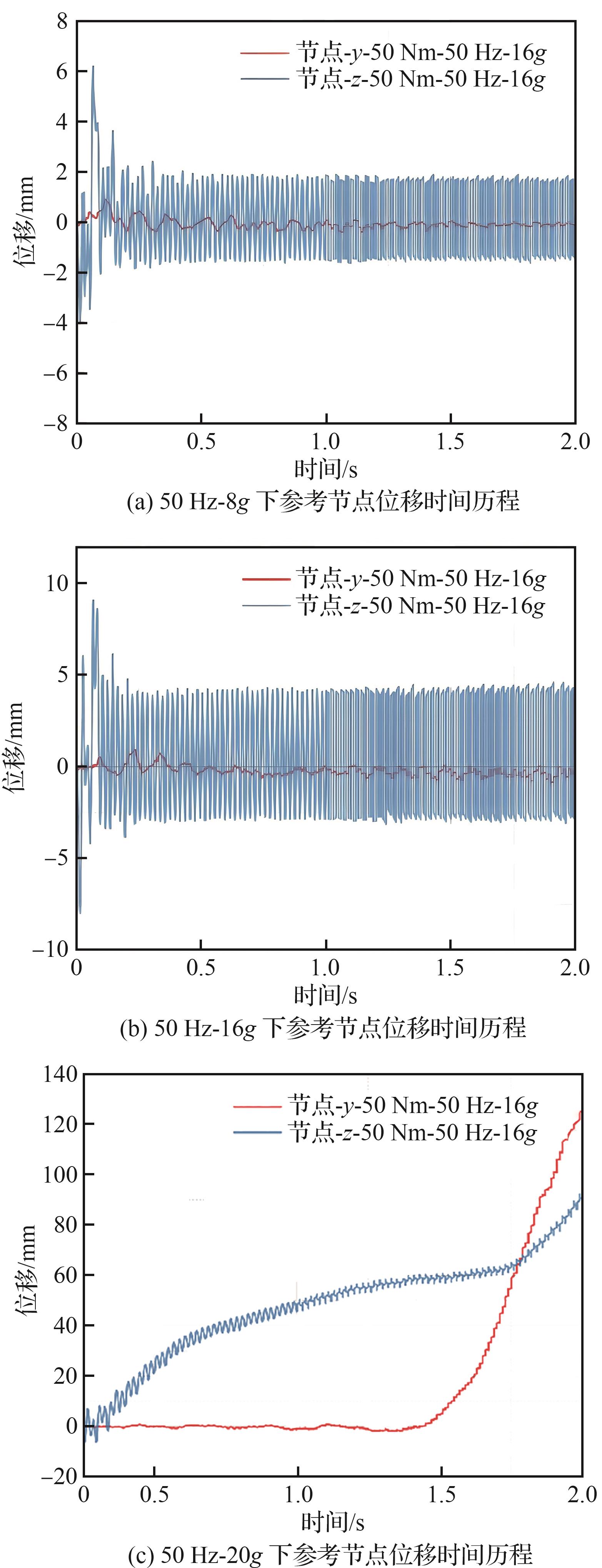

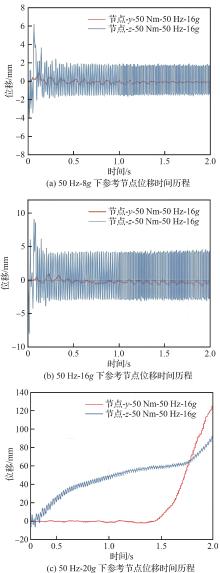

Fig.13

Fig.14

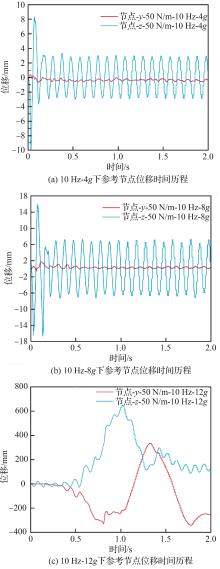

Fig.15

Fig.16

Fig.17

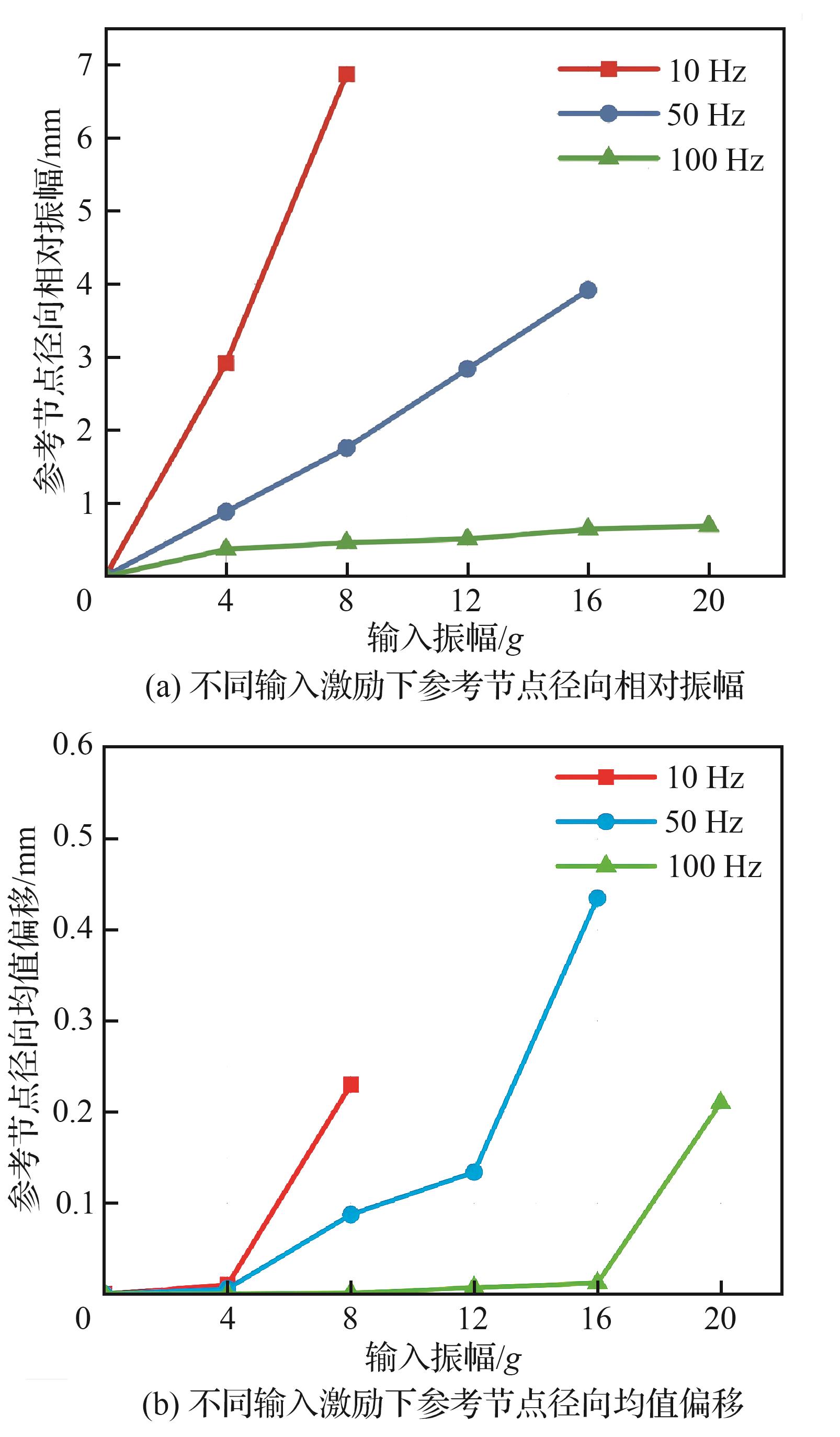

Fig.18

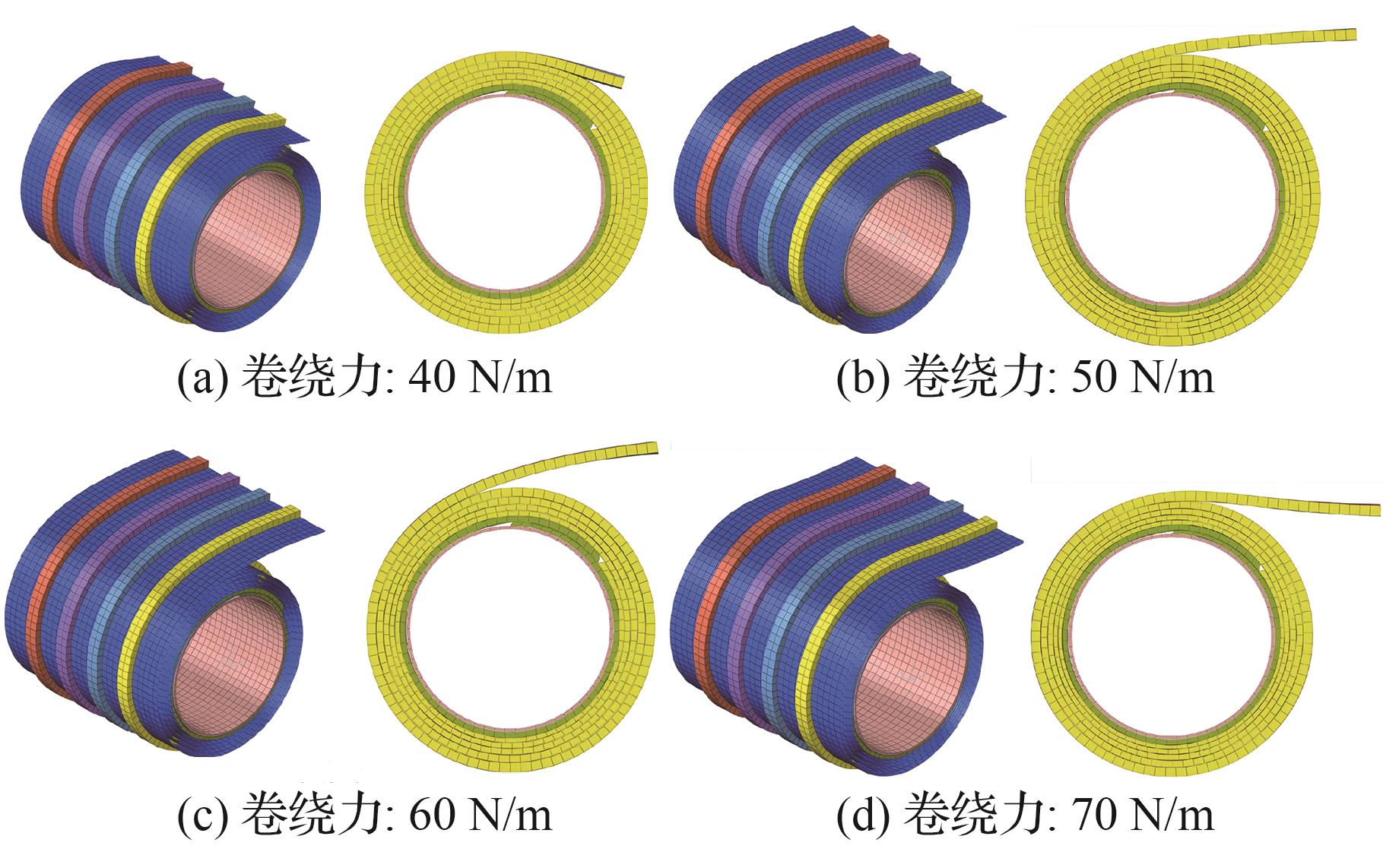

Fig.19

Fig.20

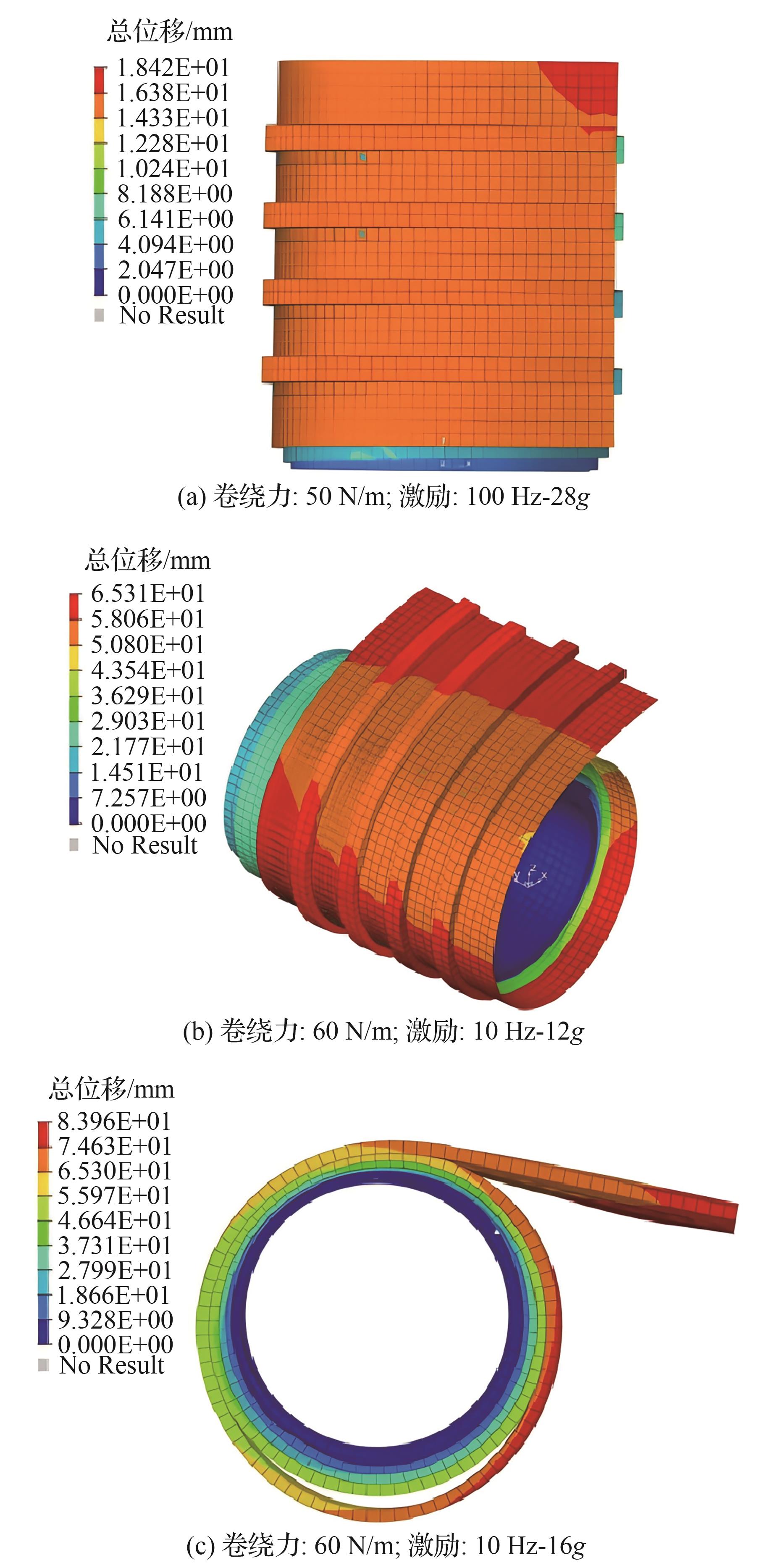

Fig.21

Fig.22

Fig.23

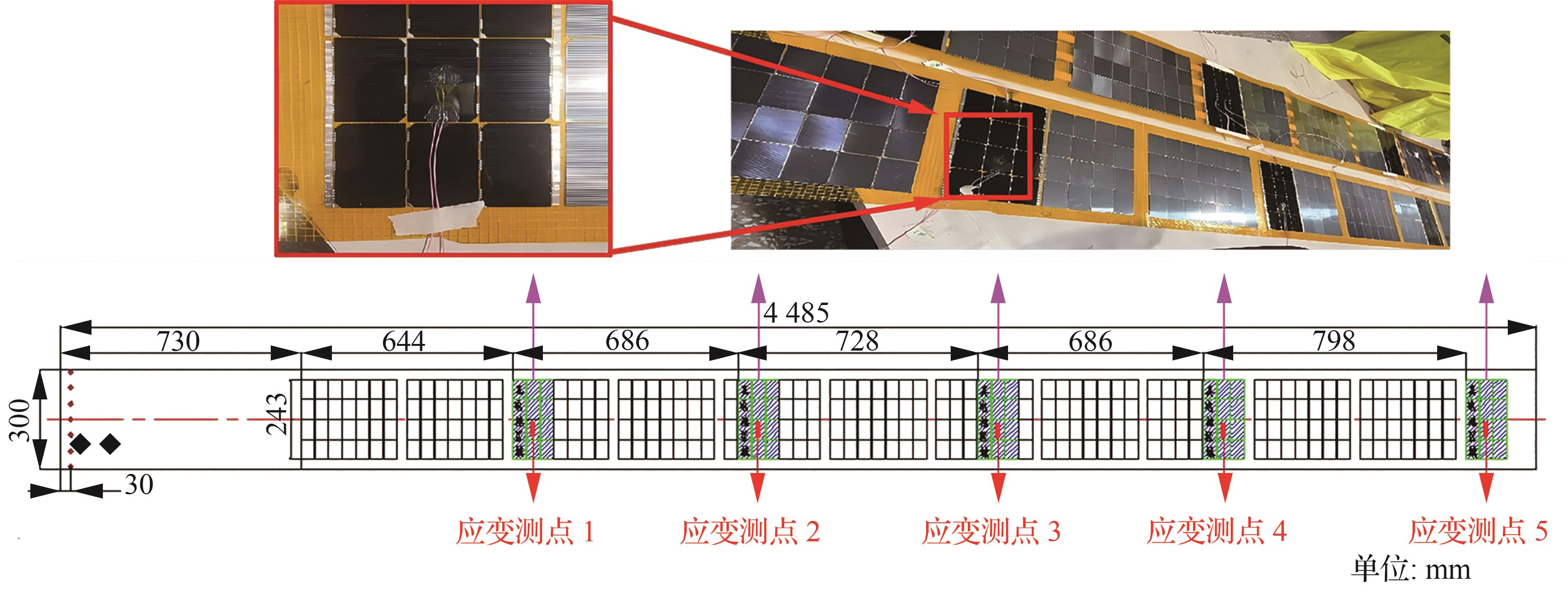

Fig.24

Fig.25

Fig.26

Table 4

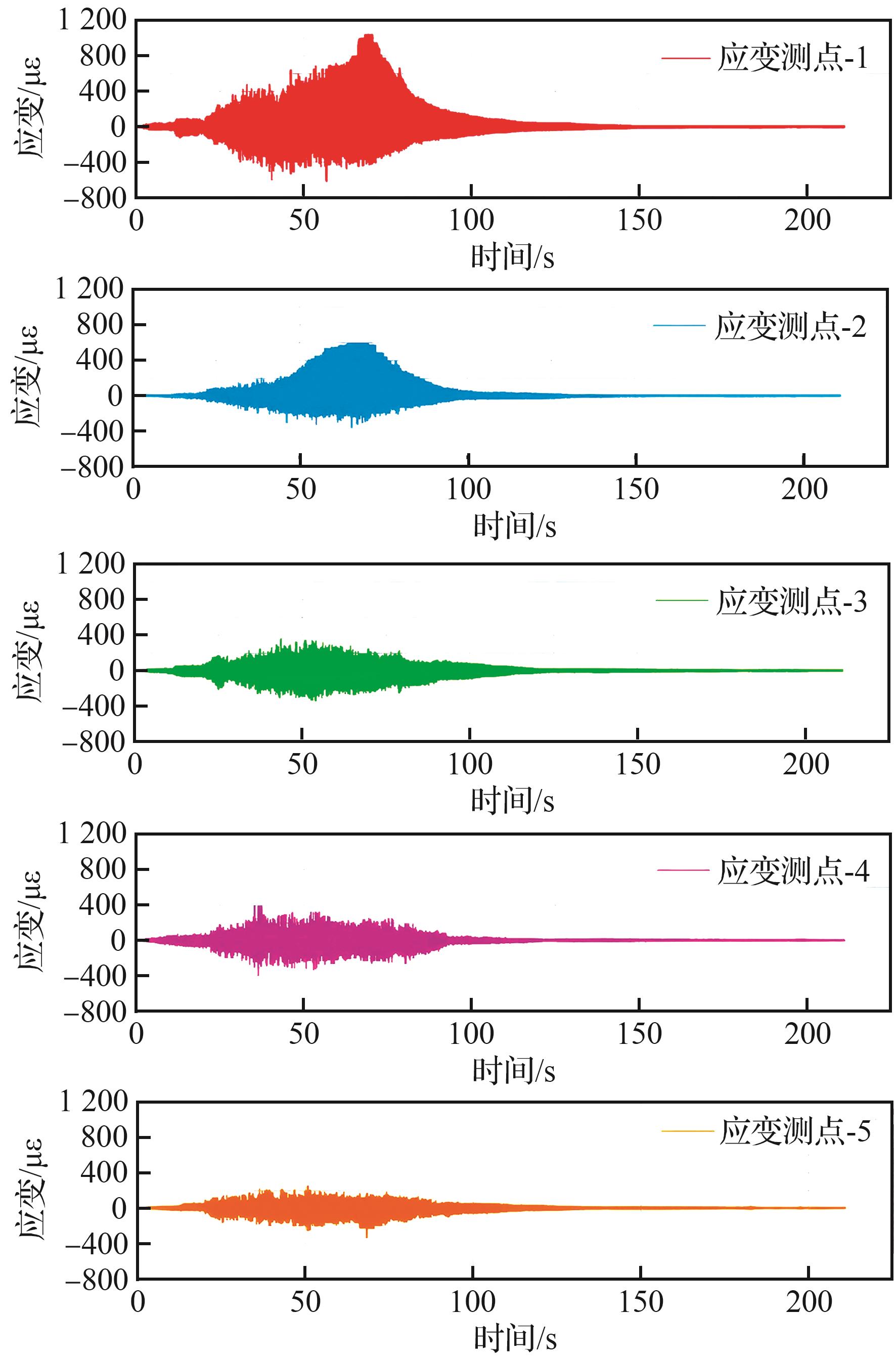

Fig.27

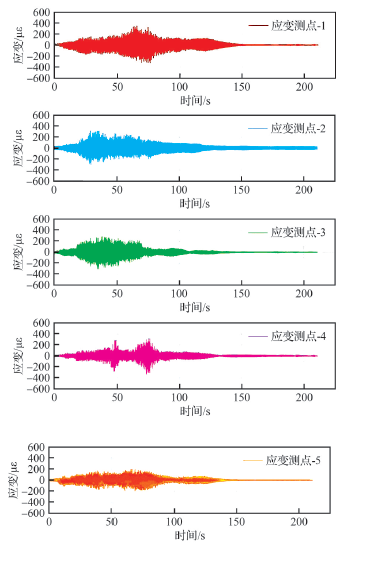

Fig.28

Fig.29

Fig.30

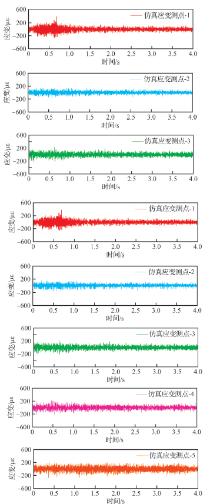

Fig.31

References 20

[1]	于辉，张伟，崔新宇，等. 空间太阳电池阵技术现状及发展趋势［J］. 电源技术， 2020， 44（10）： 1552-1557.
	YU H， ZHANG W， CUI X Y， et al. Present situation and development trend of space solar array technology［J］. Chinese Journal of Power Sources， 2020， 44（10）： 1552-1557 （in Chinese）.
[2]	吉万炜. 空间大面积薄膜太阳电池阵机构设计与分析［D］. 哈尔滨：哈尔滨工程大学， 2020.
	JI W W. Mechanism design and analysis of large-scal membrane solar cell array［D］. Harbin： Harbin Engineering University， 2020 （in Chinese）.
[3]	金海雯，于辉，赵颖，等. 半刚性太阳电池阵抗力学环境设计与分析［J］. 电源技术， 2012， 36（6）： 813-815.
	JIN H W， YU H， ZHAO Y， et al. Against mechanical environmental design and analysis of semi-rigid solar array［J］. Chinese Journal of Power Sources， 2012， 36（6）： 813-815 （in Chinese）.
[4]	MA X F， LI T J， MA J Y， et al. Recent advances in space-deployable structures in China［J］. Engineering， 2022， 17： 207-219.
[5]	BANIK J， HAUSGEN P. Roll-out solar arrays （ROSA）： Next generation flexible solar array technology［C］∥AIAA SPACE and Astronautics Forum and Exposition. Reston： AIAA， 2017.
[6]	HOANG B， WHITE S， SPENCE B， et al. Commercialization of deployable space systems’roll-out solar array （ROSA） technology for Space Systems Loral （SSL） solar arrays［C］∥2016 IEEE Aerospace Conference. Piscataway： IEEE Press， 2016： 1-12.
[7]	CHAMBERLAIN M K， KIEFER S H， BANIK J. On-orbit structural dynamics performance of the roll-out solar array［C］∥2018 AIAA Spacecraft Structures Conference. Reston： AIAA， 2018.
[8]	BANIK J， KIEFER S， LAPOINTE M， et al. On-orbit validation of the roll-out solar array［C］∥2018 IEEE Aerospace Conference. Piscataway： IEEE Press， 2018： 1-9.
[9]	吴思杰. 形状记忆伸杆及其驱动的卷轴式太阳电池阵研究［D］. 哈尔滨：哈尔滨工业大学， 2020.
	WU S J. Research on shape memory boom and its roll-out solar array［D］. Harbin： Harbin Institute of Technology， 2020 （in Chinese）.
[10]	CHAMBERLAIN M K， KIEFER S H， BANIK J. Structural analysis methods for the roll-out solar array flight experiment［C］∥AIAA Scitech 2019 Forum. Reston： AIAA， 2019.
[11]	CHAMBERLAIN M K， KIEFER S H， BANIK J. Structural analysis methods for the roll-out solar array flight experiment［C］∥AIAA Scitech 2019 Forum. Reston： AIAA， 2019.
[12]	SPENCE B R， WHITE S， LAPOINTE M， et al. International space station （ISS） roll-out solar array （ROSA） spaceflight experiment mission and results［C］∥2018 IEEE 7th World Conference on Photovoltaic Energy Conversion （WCPEC）（A Joint Conference of 45th IEEE PVSC， 28th PVSEC & 34th EU PVSEC）. Piscataway： IEEE Press， 2018.
[13]	LAN X， LIU L W， ZHANG F H， et al. World’s first spaceflight on-orbit demonstration of a flexible solar array system based on shape memory polymer composites［J］. Science China Technological Sciences， 2020， 63（8）： 1436-1451.
[14]	WRIGHT JR K H， HONG B， SCHNEIDER T A， et al. ROSA and solar cell module combined environments test plan［C］∥16th Spacecraft Charging and Technology Conference. 2022.
[15]	UMALI J A， WILSON L L， PELLEGRINO S. Vibration response of ultralight coilable spacecraft structures［C］∥4th AIAA Spacecraft Structures Conference. Reston： AIAA， 2017.
[16]	高红鑫，赵寿根，朱佳林，等. 柔性太阳电池极限弯曲半径测量方法［J］. 北京航空航天大学学报， 2025， 51（8）： 2776-2781.
	GAO H X， ZHAO S G， ZHU J L， et al. Measurement methods for the critical bending radius of flexible solar cells［J］. Journal of Beijing University of Aeronautics and Astronautics， 2025， 51（8）： 2776-2781 （in Chinese）.
[17]	WEN A， PELLEGRINO S. Launch vibration of pre-tensioned coiled structures［C］∥AIAA Scitech 2022 Forum. Reston： AIAA， 2022.
[18]	WEN A， PELLEGRINO S. Launch vibration damping using slip in pretensioned coils［C］∥AIAA Scitech 2023 Forum. Reston AIAA， 2023.
[19]	WEN A. Vibration damping of coiled structures through frictional slip ［D］. Pasadena： California Institute of Technology， 2024.
[20]	WEN A， PELLEGRINO S. Performance and scaling metrics for launch vibration of coiled space structures with embedded friction damping［C］∥AIAA Scitech 2024 Forum. Reston： AIAA， 2024.

材料参数	数值
E₁/GPa	17.5
E₂/GPa	17.5
G₁₂/GPa	0.56
G₂₃/GPa	1.12
μ₁₂	0.22
ρ/（g·cm^-3）	0.098

材料参数	数值
E₁/GPa	92.08
E₂/GPa	79.17
G₁₂/GPa	44.17
G₂₃/GPa	5.187
μ₁₂	0.25
μ₂₃	0.30
ρ/（kg·cm^-3）	3704

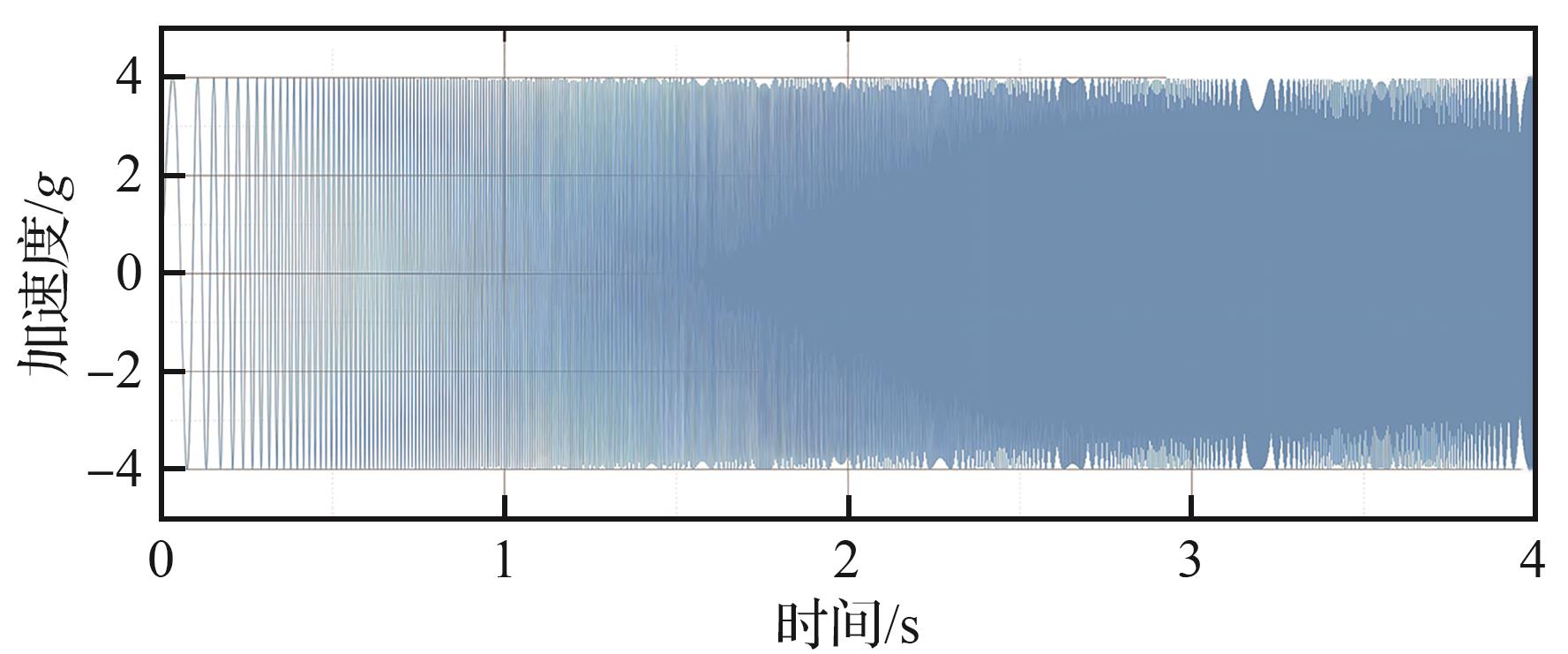

条件参数	参数设置
试验频率/Hz	5~500
振动量级/g	4
试验方向	z
扫描速率/（oct·min^-1）	2
