航空油冷双凸极高压直流发电机绕组故障下的温升特性

doi:10.7527/S1000-6893.2025.32094

Abstract

Abstract:

More-electric/all-electric aircraft impose stringent requirements on the safe operation capability of aircraft high-voltage DC power supply systems. The doubly salient electro-magnetic machine， with its robust and reliable rotor structureand ability to regulate flux under fault conditions， exhibits potential application advantages as an aircraft high-voltage DC generator. This paper first introduces the structure and operating principle of the oil-cooled doubly salient electro-magnetic machine， and analyzes the influence patterns of armature winding open-circuit and short-circuit faults on electromagnetic characteristics and loss distribution. Subsequently， based on a lumped-winding thermal conduction equivalent model， a three-dimensional temperature field finite element analysis model for oil-cooled motors is established to investigate the temperature rise characteristics under normal and fault conditions. Finally， using the winding’s extreme temperature rise as a safety threshold， the fault-tolerant output capability of the machine under different faults is analyzed and evaluated through thermal limit constraints analysis and relevant verification experiments； thereby， providing theoretical and practical foundations for fault-tolerant operation in aircraft high-voltage DC power supply systems.

Key words: doubly salient electro-magnetic machine, fault tolerance, thermal loss, temperature rise characteristics, temperature field modeling

CLC Number:

Li YU, Wenhao LI, Jian ZHANG, Zhuoran ZHANG, Yao SUN, Guangyuan HU. Temperature rise characteristics of oil-cooled doubly salient high-voltage DC generator for aircraft application under winding fault[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(1): 632094.

Figures/Tables 28

Fig.1

Fig.2

Table 1

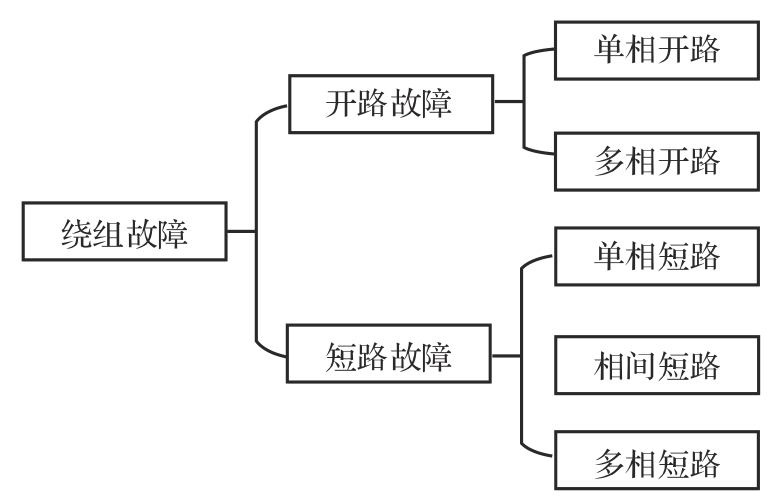

Fig.3

Fig.4

Table 2

Fig.5

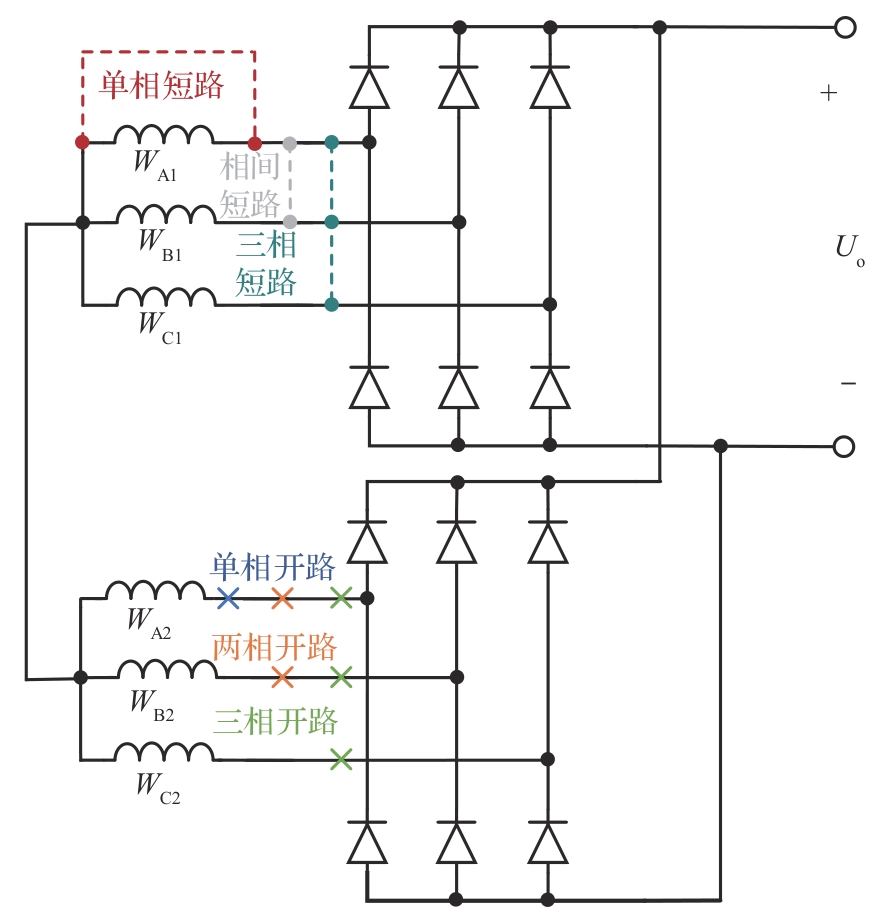

Fig.6

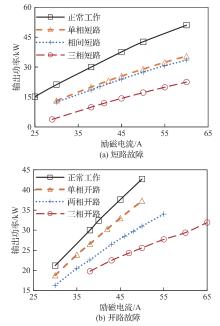

Fig.7

Table 3

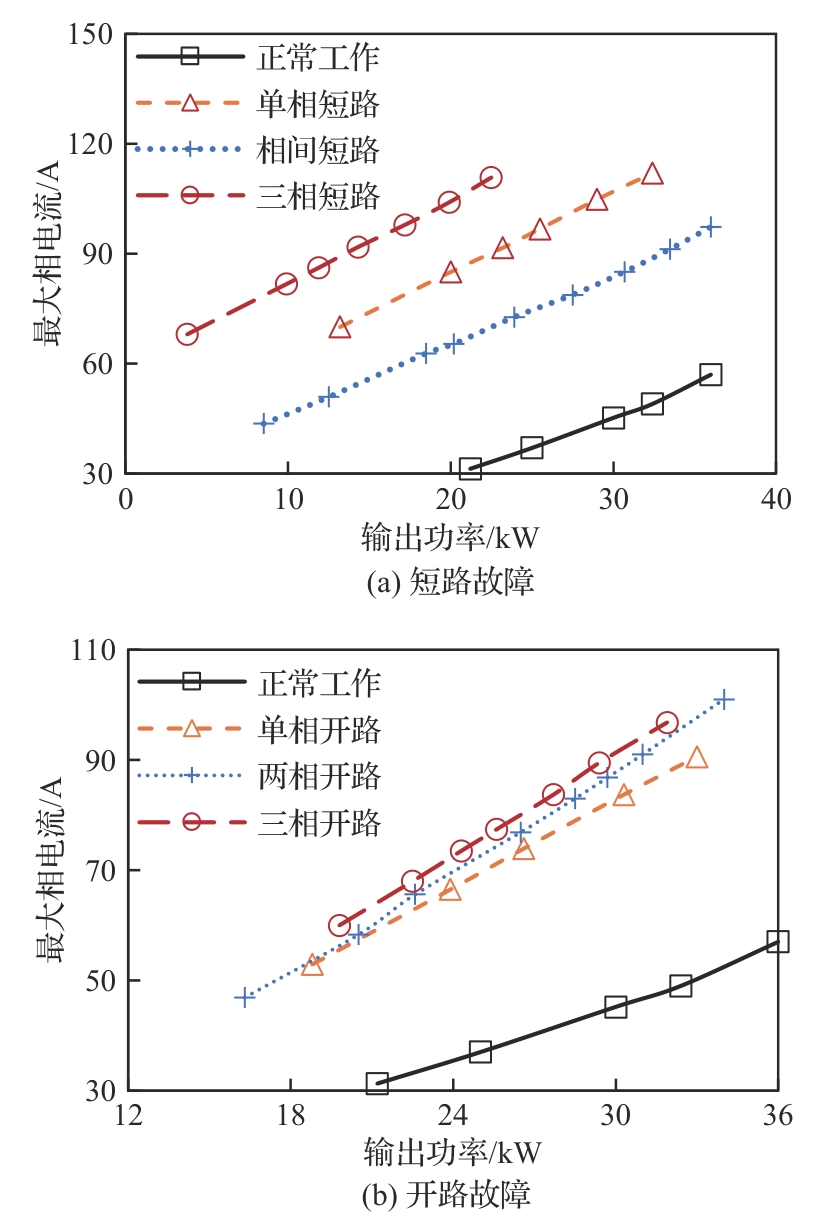

Fig.8

Fig.9

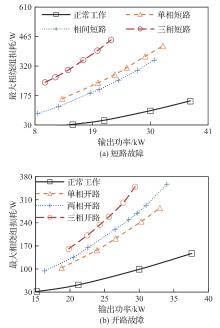

Fig.10

Fig.11

Table 4

Fig.12

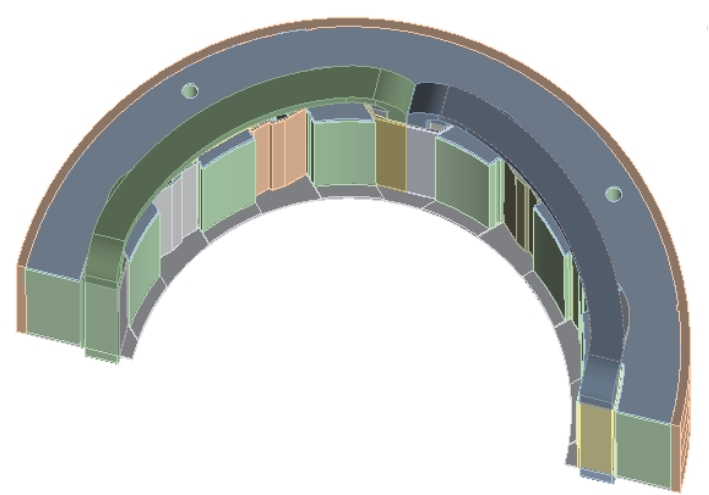

Fig.13

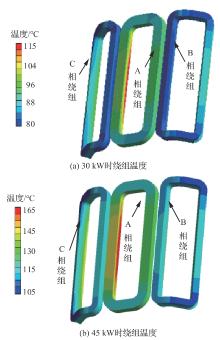

Fig.14

Fig.15

Table 5

Fig.16

Table 6

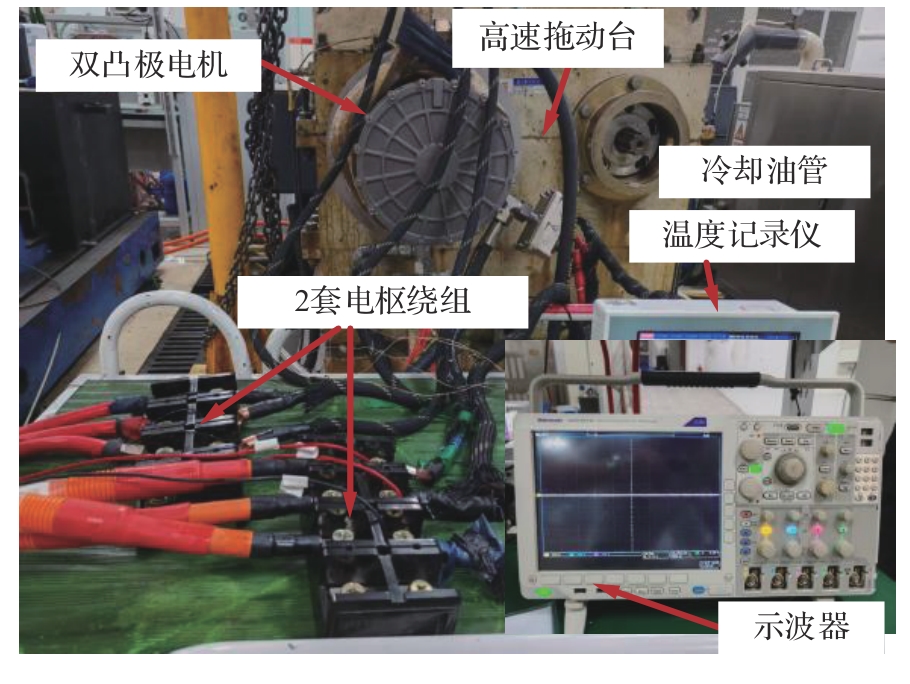

Fig.17

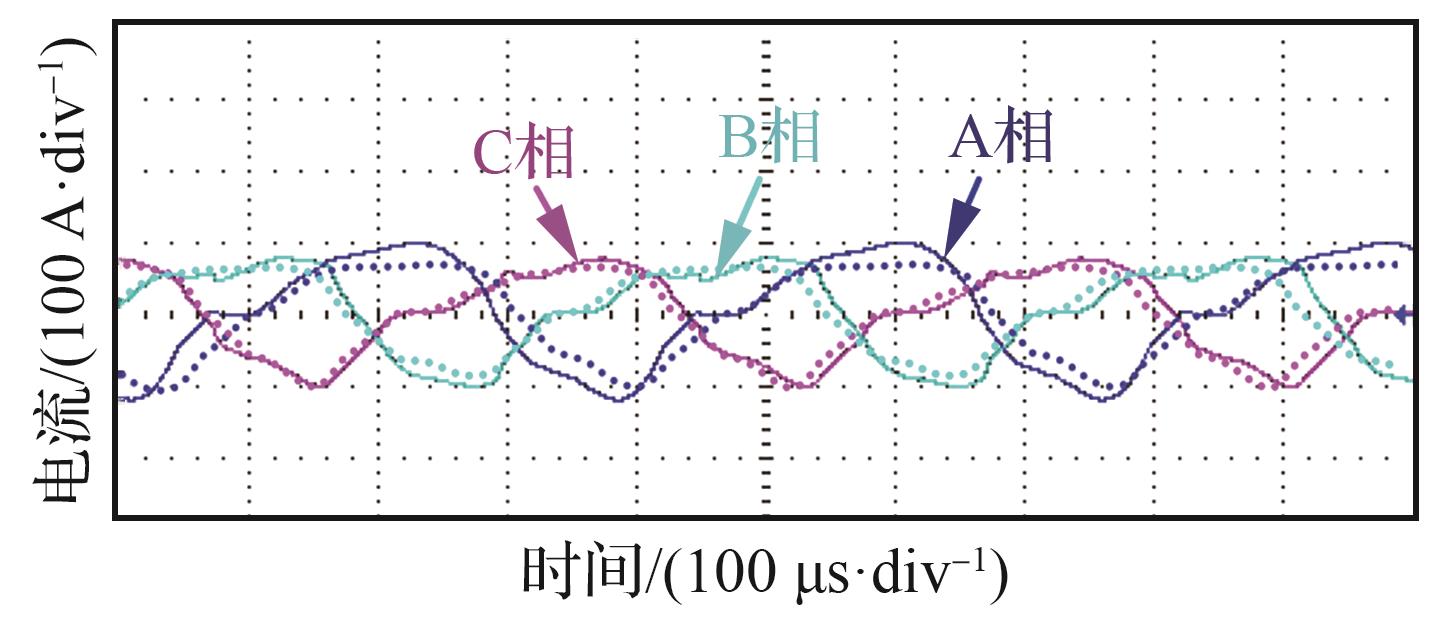

Fig.18

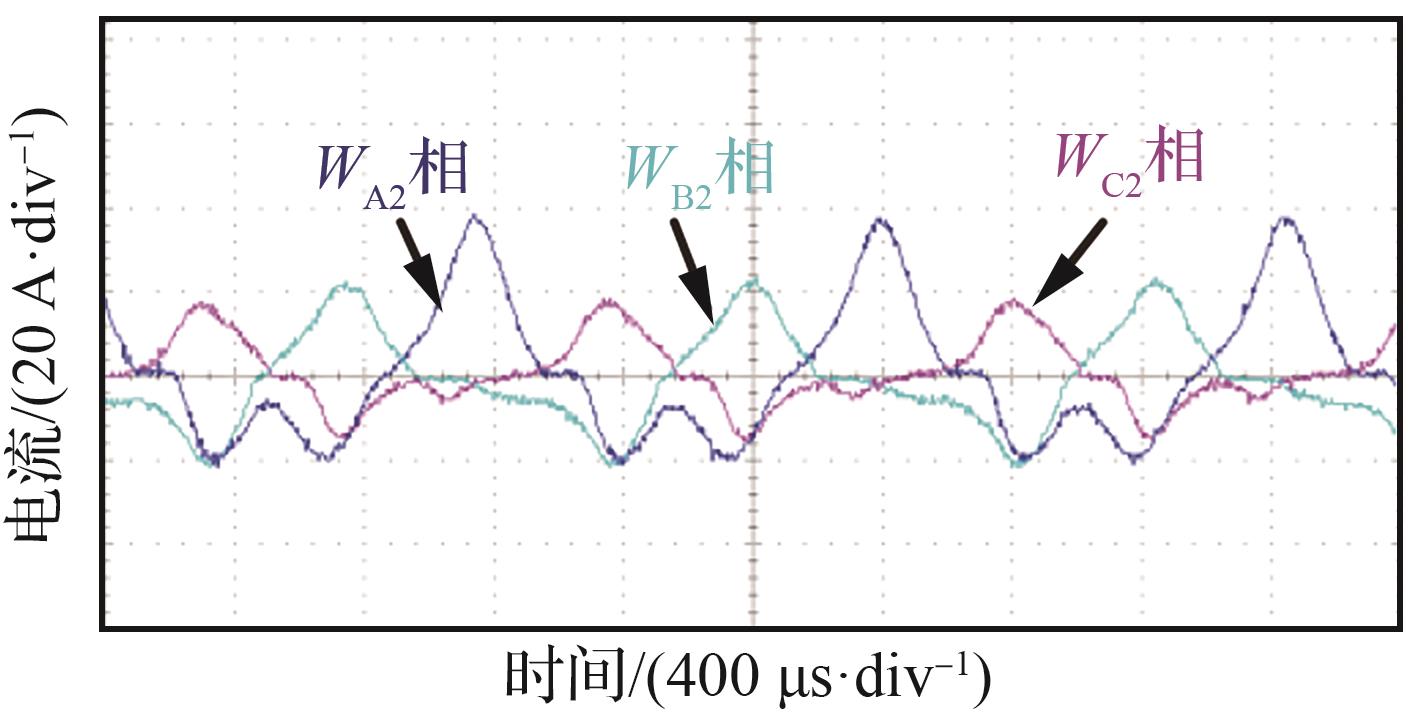

Fig.19

Fig.20

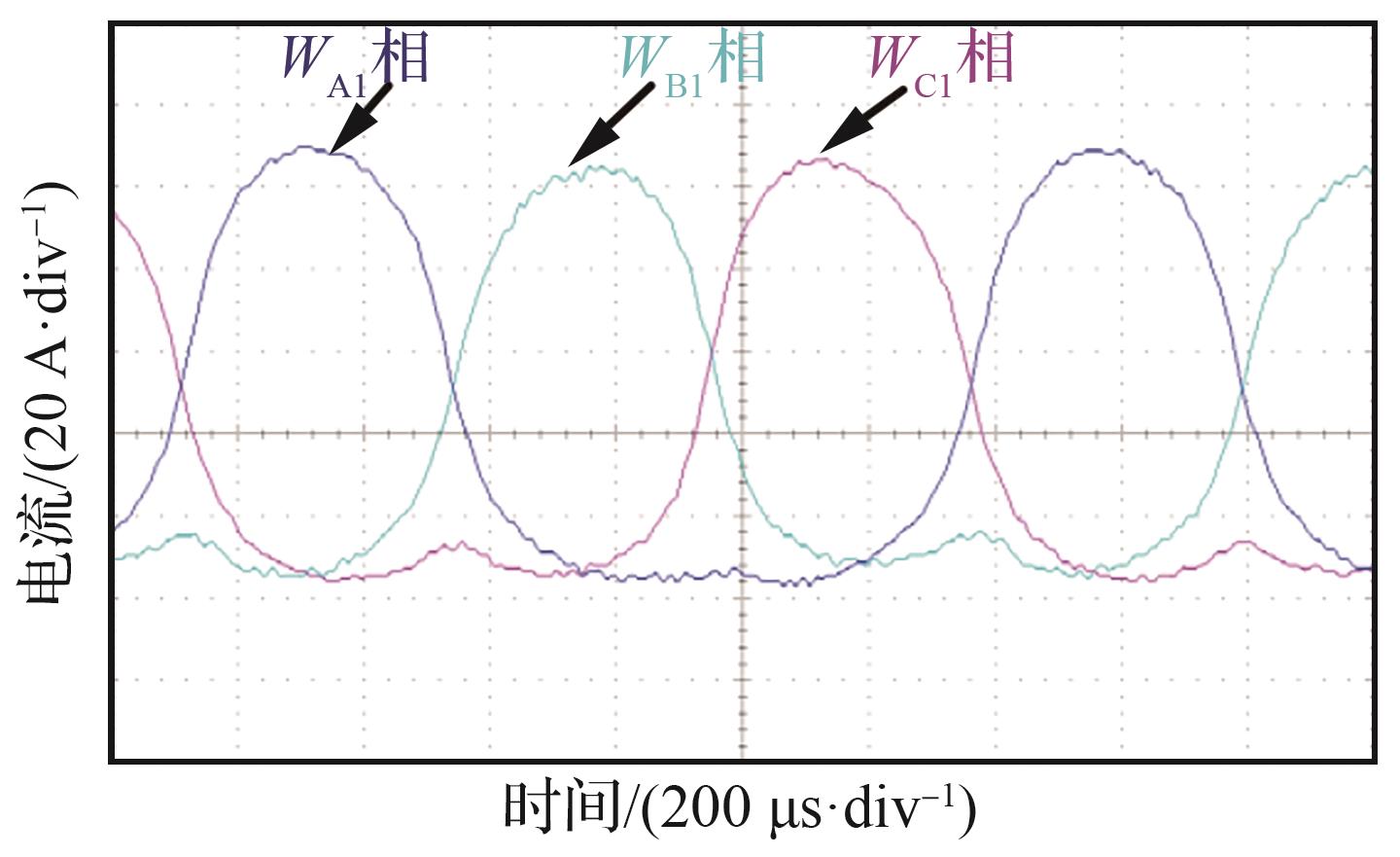

Fig.21

Fig.22

References 23

[1]	SARLIOGLU B， MORRIS C T. More electric aircraft： Review， challenges， and opportunities for commercial transport aircraft［J］. IEEE Transactions on Transportation Electrification， 2015， 1（1）： 54-64.
[2]	张卓然，于立，李进才，等. 飞机电气化背景下的先进航空电机系统［J］. 南京航空航天大学学报， 2017， 49（5）： 622-634.
	ZHANG Z R， YU L， LI J C， et al. Key technologies of advanced aircraft electrical machine systems for aviation electrification［J］. Journal of Nanjing University of Aeronautics & Astronautics， 2017， 49（5）： 622-634 （in Chinese）.
[3]	张卓然，李进才，韩建斌，等. 多电飞机大功率高压直流起动发电机系统研究与实现［J］. 航空学报， 2020， 41（2）： 323537.
	ZHANG Z R， LI J C， HAN J B， et al. Research and implementation of high-power high-voltage DC brushless starter generator system for more-electric-aircraft［J］. Acta Aeronautica et Astronautica Sinica， 2020， 41（2）： 323537 （in Chinese）.
[4]	于立，张卓然，张健，等. 多电发动机内装式高速起动发电机研究与实践［J］. 中国电机工程学报， 2020， 40（14）： 4615-4628， 4740.
	YU L， ZHANG Z R， ZHANG J， et al. Study and implementation on high-speed starter/generator for more electric engine application［J］. Proceedings of the CSEE， 2020， 40（14）： 4615-4628， 4740 （in Chinese）.
[5]	李进才，李涵琪，张卓然，等. 航空油冷三级式无刷发电机流固耦合传热研究及散热优化［J］. 电工技术学报， 2024， 39（22）： 7030-7044.
	LI J C， LI H Q， ZHANG Z R， et al. Research on fluid-solid coupling heat transfer and optimization of heat dissipation in the aircraft oil-cooled wound rotor synchronous generator［J］. Transactions of China Electrotechnical Society， 2024， 39（22）： 7030-7044 （in Chinese）.
[6]	BIAN W X， ZHANG Z R， LI L Q， et al. An approximate three-phase AC excitation method with parallel capacitors for aircraft wound rotor synchronous starter/generator［J］. IEEE Transactions on Transportation Electrification， 2025， 11（2）： 5497-5508.
[7]	BIAN W X， ZHANG Z R， LI L Q， et al. Performance improvement of brushless exciter for aircraft wound rotor synchronous machine based on magnetic slot wedge［J］. IEEE Transactions on Magnetics， 2024， 60（9）： 8102106.
[8]	FERREIRA C A， JONES S R， HEGLUND W S， et al. Detailed design of a 30-kW switched reluctance starter/generator system for a gas turbine engine application［J］. IEEE Transactions on Industry Applications， 1995， 31（3）： 553-561.
[9]	FERREIRA C A， RICHTER E. Detailed design of a 250-kW switched reluctance starter/generator for an aircraft engine［J］. SAE Transactions， 1993， 102： 289-300.
[10]	丁文，陈硕，李可，等. 一种提高开关磁阻发电机输出性能的改进型他励变换器［J］. 电工技术学报， 2022， 37（14）： 3555-3565.
	DING W， CHEN S， LI K， et al. An improved separately excited converter for improving the performance of switched reluctance generator system［J］. Transactions of China Electrotechnical Society， 2022， 37（14）： 3555-3565 （in Chinese）.
[11]	周波，相蓉，王川云，等. 电磁式双凸极电机电磁特性的理论分析［J］. 航空学报， 2003， 24（4）： 355-359.
	ZHOU B， XIANG R， WANG C Y， et al. Theoretical analysis on the electro-magnetic characteristics for doubly salient electro-magnetic machines［J］. Acta Aeronautica et Astronautica Sinica， 2003， 24（4）： 355-359 （in Chinese）.
[12]	CHEN X， ZHANG Z R， YU L， et al. A variable sampling-frequency-based commutation delay compensation method for high-speed doubly salient motor considering speed fluctuation［J］. IEEE Transactions on Industrial Electronics， 2024， 71（9）： 10221-10234.
[13]	WANG K M， ZHOU B， ZHOU X W， et al. A current self-injection based position sensorless control for DSEG with controlled rectification［J］. IEEE Transactions on Power Electronics， 2022， 37（3）： 3308-3320.
[14]	张健，朱锡庆，张卓然，等. 电励磁双凸极无刷直流发电机热网络建模与热特性研究［J］. 中国电机工程学报， 2023， 43（1）： 318-329.
	ZHANG J， ZHU X Q， ZHANG Z R， et al. Thermal network modeling and thermal characteristics analysis of doubly salient brushless DC generator with stator field winding［J］. Proceedings of the CSEE， 2023， 43（1）： 318-329 （in Chinese）.
[15]	ZHANG J， ZHU X Q， ZHANG Z R， et al. AC loss calculation and analysis of hollow conductor for doubly salient brushless DC generator［J］. IEEE Transactions on Magnetics， 2022， 58（8）： 8106805.
[16]	周贵荣，徐见源，马少博，等. 大型客机航电系统综合集成关键技术综述［J］. 航空学报， 2024， 45（5）： 529956.
	ZHOU G R， XU J Y， MA S B， et al. Review of key technologies for avionics systems integration on large passenger aircraft［J］. Acta Aeronautica et Astronautica Sinica， 2024， 45（5）： 529956 （in Chinese）.
[17]	苏宁，黄文新. 电推进飞机定子双绕组感应发电机并联系统［J］. 航空学报， 2022， 43（8）： 325409.
	SU N， HUANG W X. Parallel power generation system based on dual-stator winding induction generator for electric propulsion aircraft［J］. Acta Aeronautica et Astronautica Sinica， 2022， 43（8）： 325409 （in Chinese）.
[18]	XU Y W， ZHANG Z R， LI J C， et al. Architecture analysis and optimization of high voltage DC parallel electric power system for more electric aircraft［C］∥2016 IEEE International Conference on Aircraft Utility Systems （AUS）. Piscataway： IEEE Press， 2016： 244-249.
[19]	刘文霞，马铁，杨梦瑶，等. 严重通信故障下主动配电系统分布式电源应急运行策略优化［J］. 中国电机工程学报， 2020， 40（3）： 754-765.
	LIU W X， MA T， YANG M Y， et al. Contingency optimization strategy for distributed generations of active distribution network under serious communication failure［J］. Proceedings of the CSEE， 2020， 40（3）： 754-765 （in Chinese）.
[20]	XIONG L， GE H J， ZHOU B， et al. Fault-tolerant control strategy for doubly salient electromagnetic machine based on current profile function under loss of excitation［J］. IEEE Transactions on Power Electronics， 2025， 40（2）： 3441-3455.
[21]	MIR S， ISLAM M S， SEBASTIAN T， et al. Fault-tolerant switched reluctance motor drive using adaptive fuzzy logic controller［J］. IEEE Transactions on Power Electronics， 2004， 19（2）： 289-295.
[22]	汪波，黄珺，查陈诚，等. 多三相分数槽集中式绕组容错电机匝间短路故障温度场分析［J］. 电工技术学报， 2023， 38（19）： 5101-5111.
	WANG B， HUANG J， ZHA C C， et al. Thermal analysis of multiple 3-phase fractional slot concentrated winding fault tolerant machine with turn fault［J］. Transactions of China Electrotechnical Society， 2023， 38（19）： 5101-5111 （in Chinese）.
[23]	张健. 高速电励磁双凸极电机损耗分析与热管理技术研究［D］. 南京：南京航空航天大学，2020： 94-101.
	ZHANG J. Research on loss analysis and thermal management technology of high-speed doubly salient electromagnetic machine［D］. Nanjing：Nanjing University of Aeronautics and Astronautics，2020： 94-101 （in Chinese）.

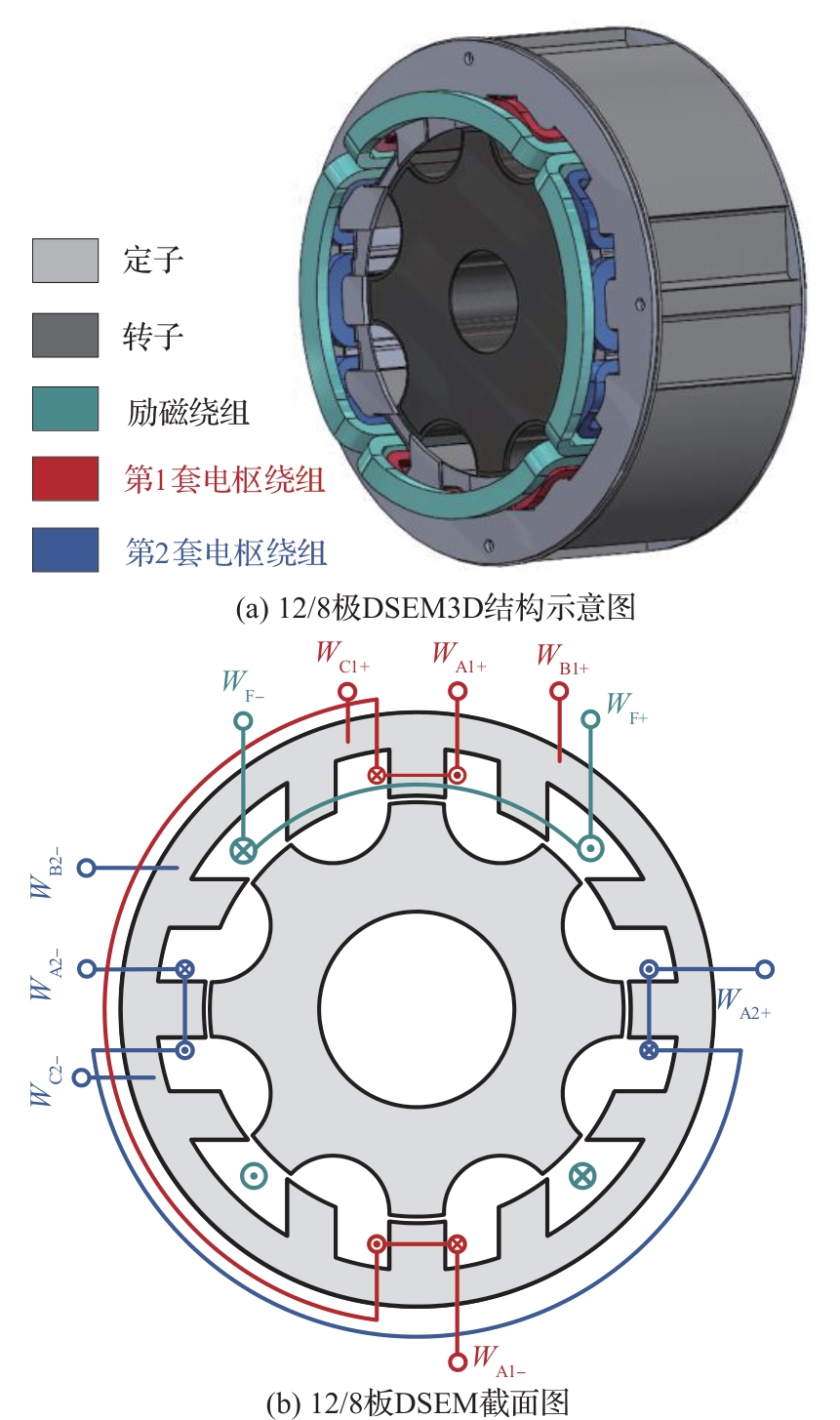

参数	数值
定子外径/mm	212
转子外径/mm	149.4
气隙长度/mm	0.3
额定转速/（r·min^-1）	10 000
铁心长度/mm	75
每极电枢绕组匝数	11
励磁绕组匝数	22×4
定转子铁心叠压系数	0.95

参数	P_O=15 kW	P_O=30 kW	P_O=45 kW
定子铁损/kW	0.45	0.46	0.49
转子铁损/kW	0.33	0.36	0.41
电枢绕组铜损/kW	0.14	0.47	1.41
励磁绕组铜损/kW	0.11	0.28	0.61
总损耗/kW	1.06	1.65	2.92

故障类型	A相电流/A		B相电流/A		C相电流/A
故障类型	I_A1	I_A2	I_B1	I_B2	I_C1	I_C2
单相短路	85	44	42	33	19	45
相间短路	63	51	60	40	47	22
三相短路	82	31	77	29	79	28
单相开路	0	74	55	27	33	47
两相开路	0	66	0	55	48	29
三相开路	0	60	0	53	0	55

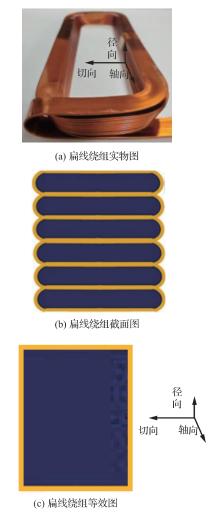

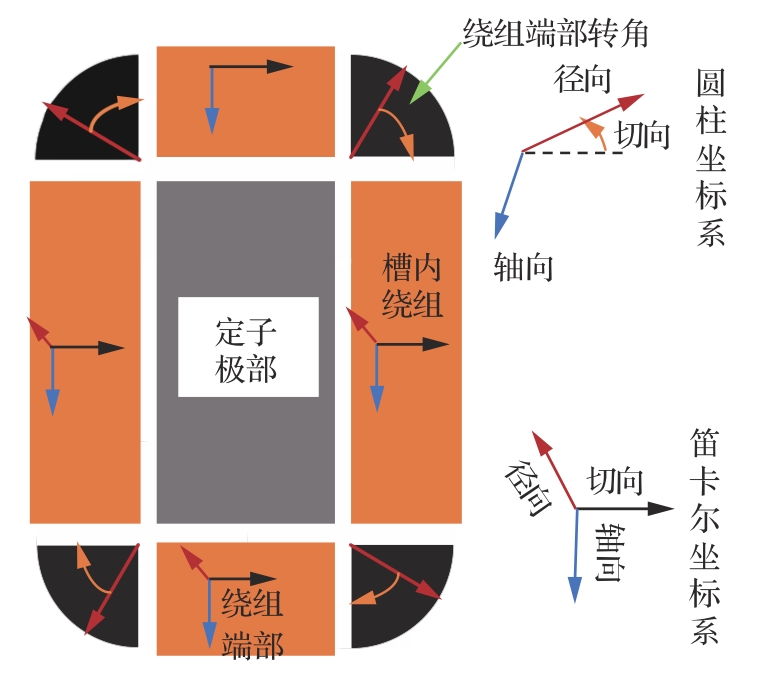

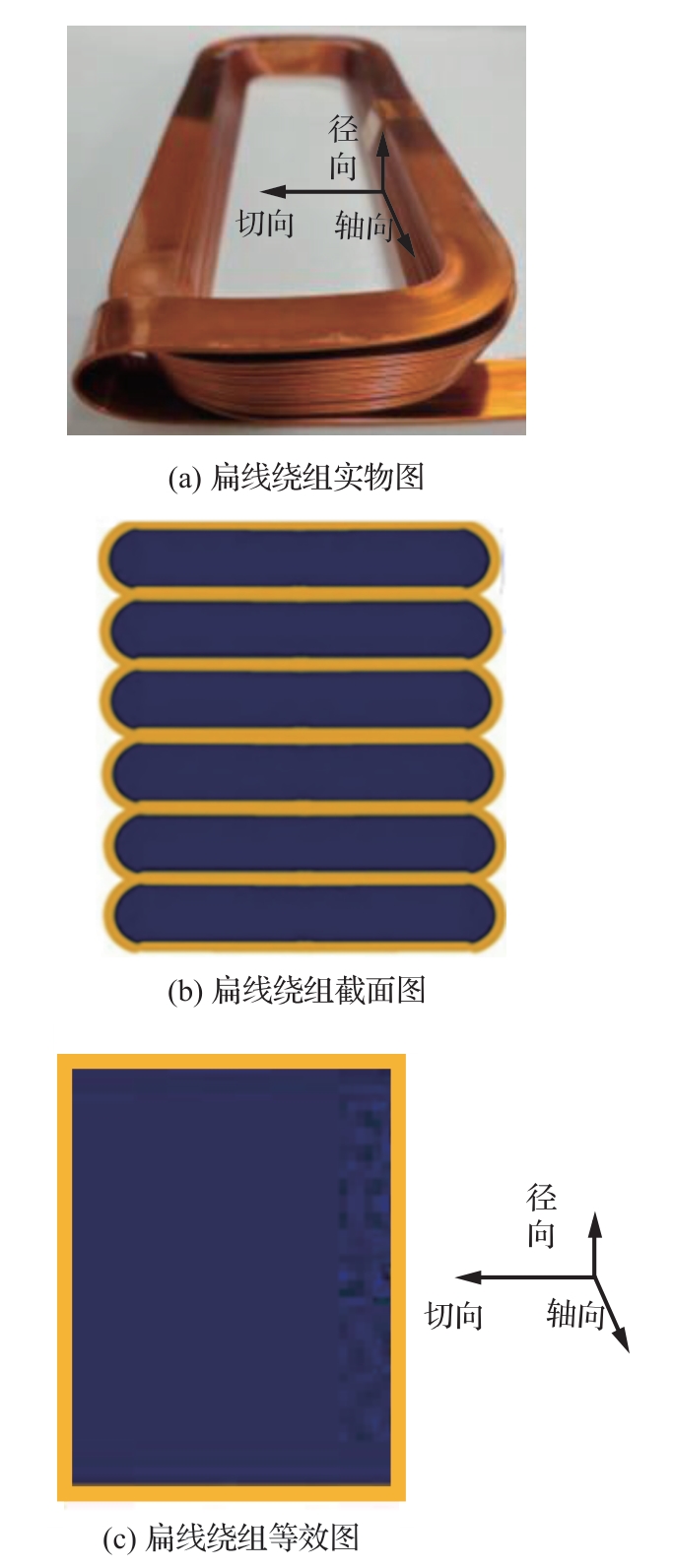

部件名称	等效传热系数/（W·（m·℃）^-1）
部件名称	切向	径向	轴向
A相绕组	332	1	332
B/C相绕组	362	2	362
励磁绕组	335	1	335
铁心	22	22	2.2
机壳和油管	8	8	8

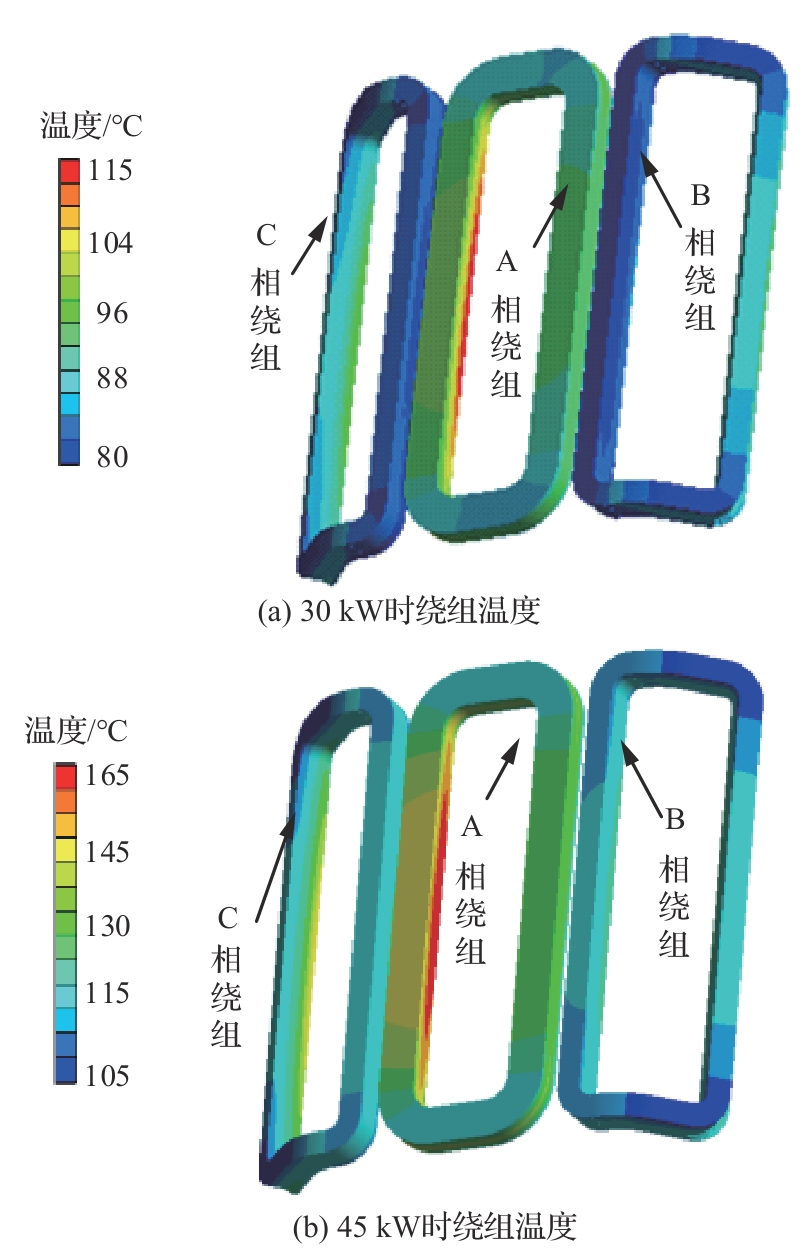

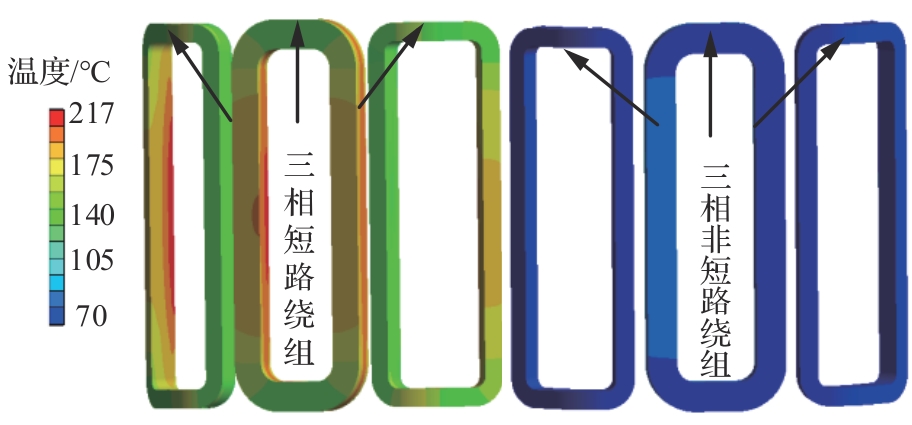

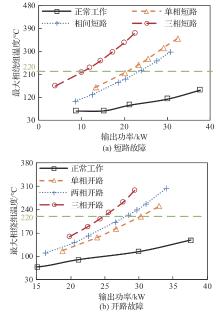

故障类型	电枢绕组最高温度/℃	相绕组最大电流密度/（A·mm^-2）
单相短路	215	26.6
相间短路	174	19.6
三相短路	217	25.6
单相开路	183	23.1
两相开路	162	20.6
三相开路	159	18.8

Temperature rise characteristics of oil-cooled doubly salient high-voltage DC generator for aircraft application under winding fault

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 28

References 23

Related Articles 10

Recommended Articles

Metrics

Comments

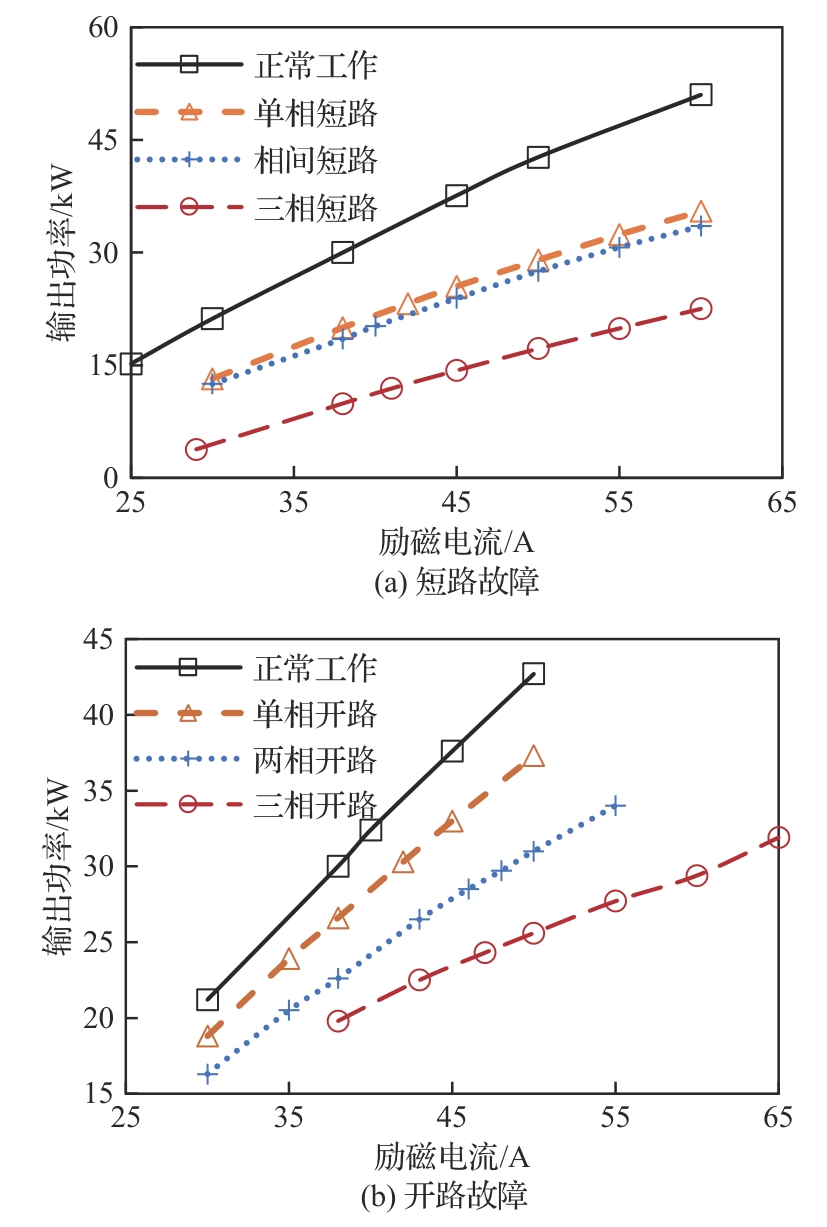

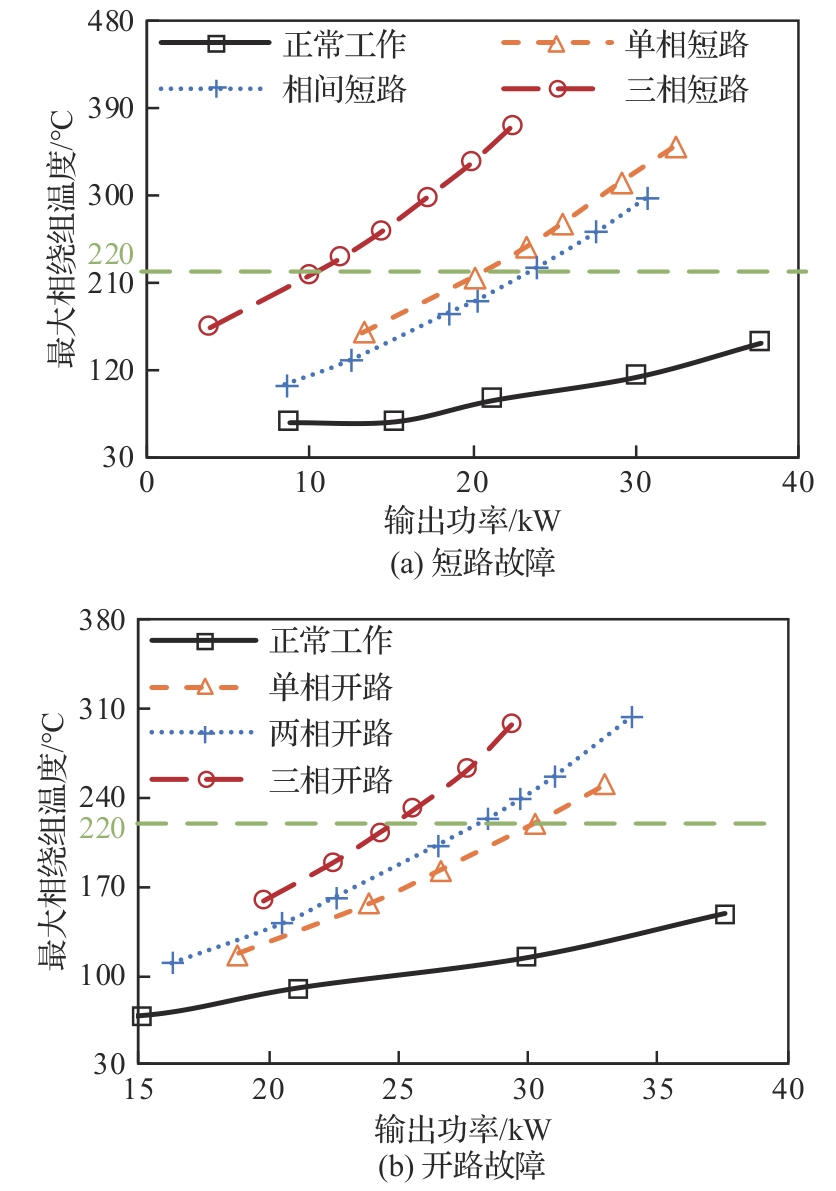

故障类型	热限制下容错输出最大功率/kW	最大电流密度/ （A·mm^-2）
单相短路	20（I_f =38.5 A）	26.6
相间短路	23.9（I_f =45 A）	24.7
三相短路	11.9（I_f =38.2 A）	26.9
单相开路	30（I_f=42 A）	26.2
两相开路	27（I_f=43 A）	25.9
三相开路	23（I_f=47 A）	23.6
