凹腔燃烧室中粉末燃料流动特性大涡模拟

doi:10.7527/S1000-6893.2026.32849

Abstract

Abstract:

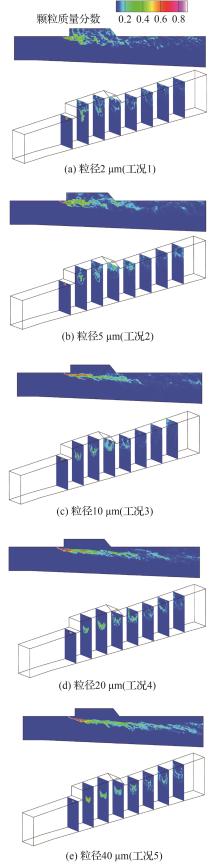

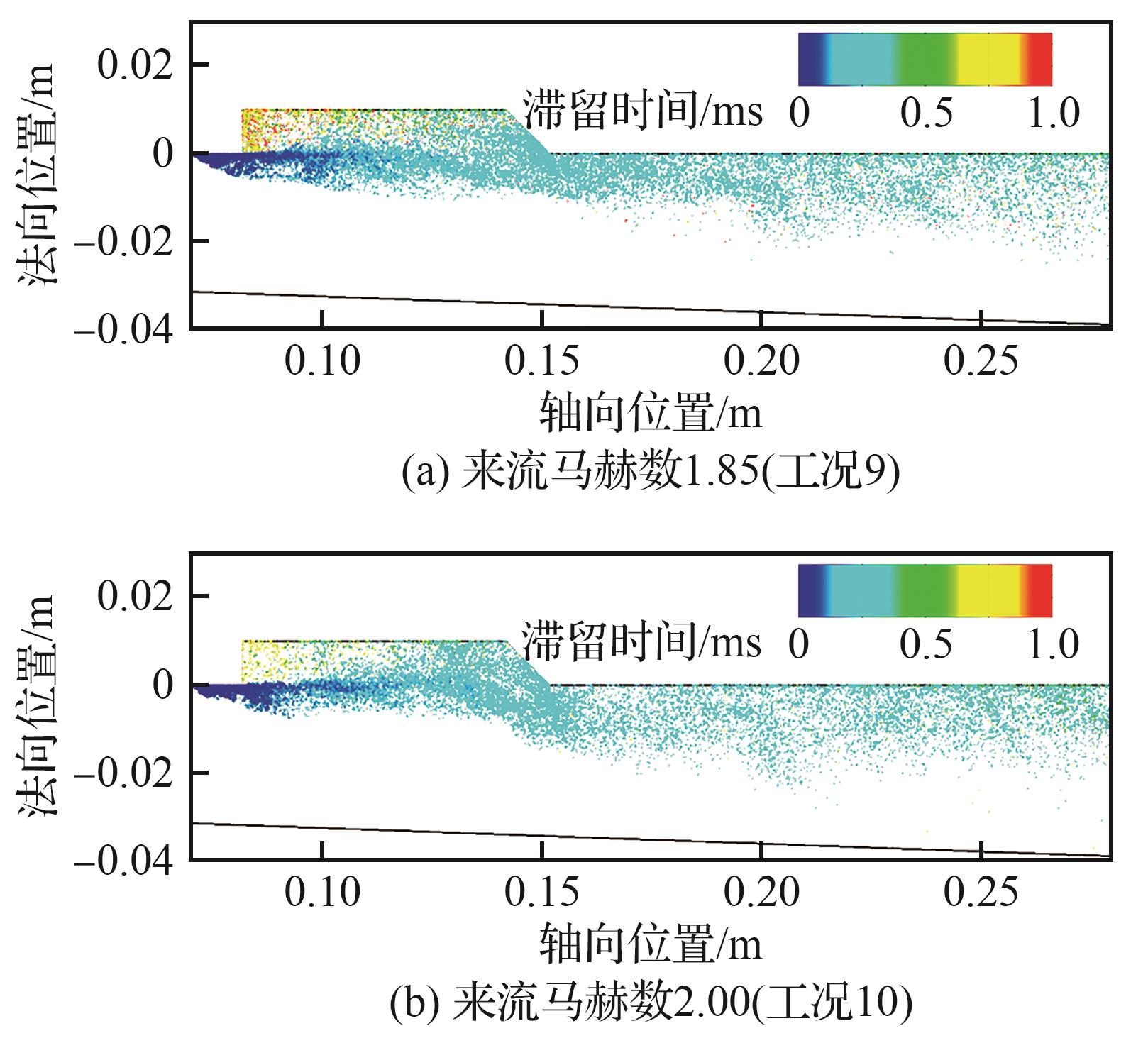

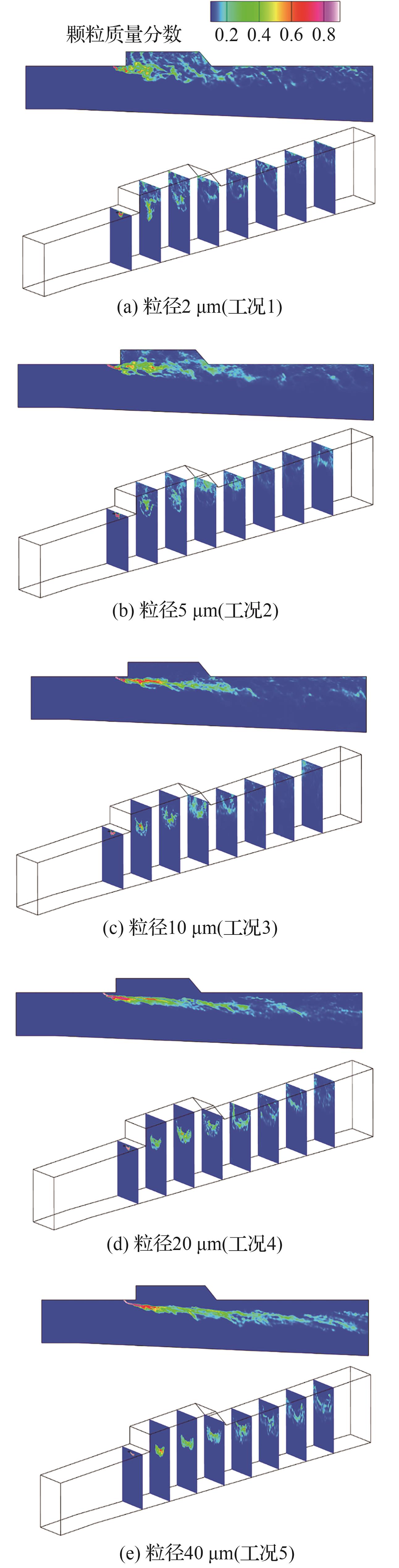

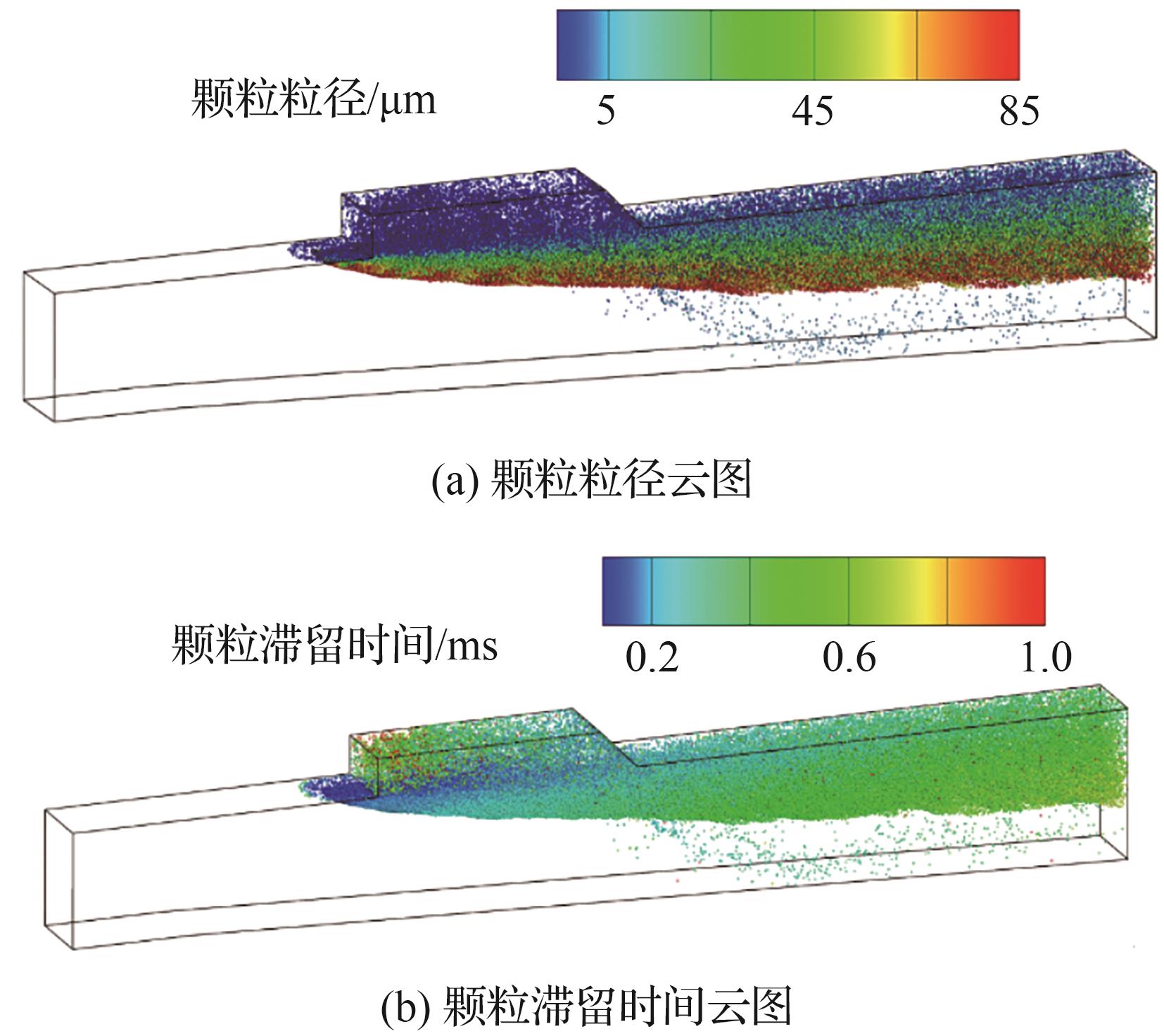

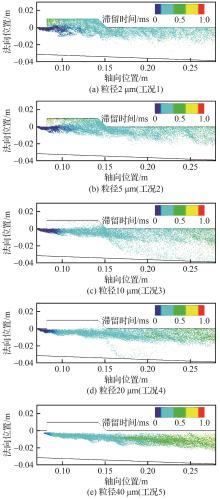

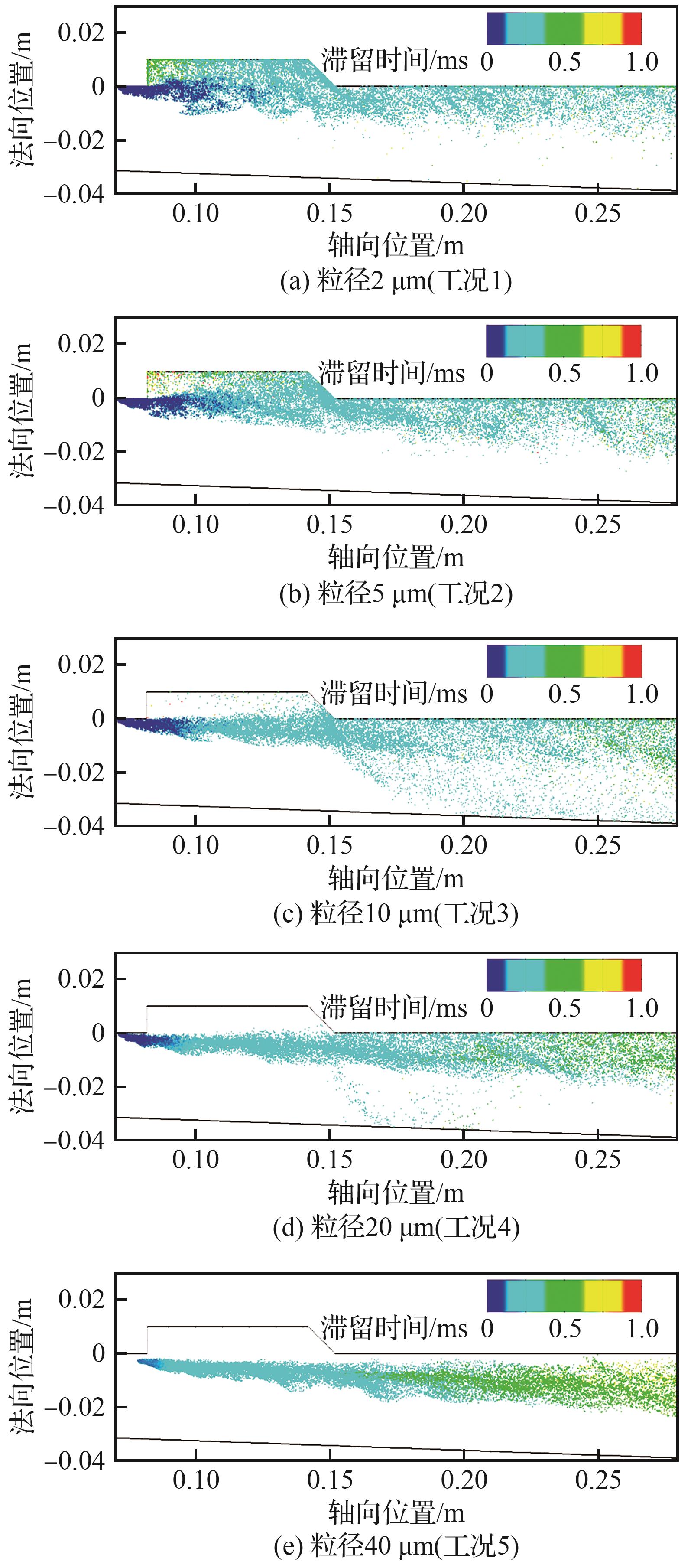

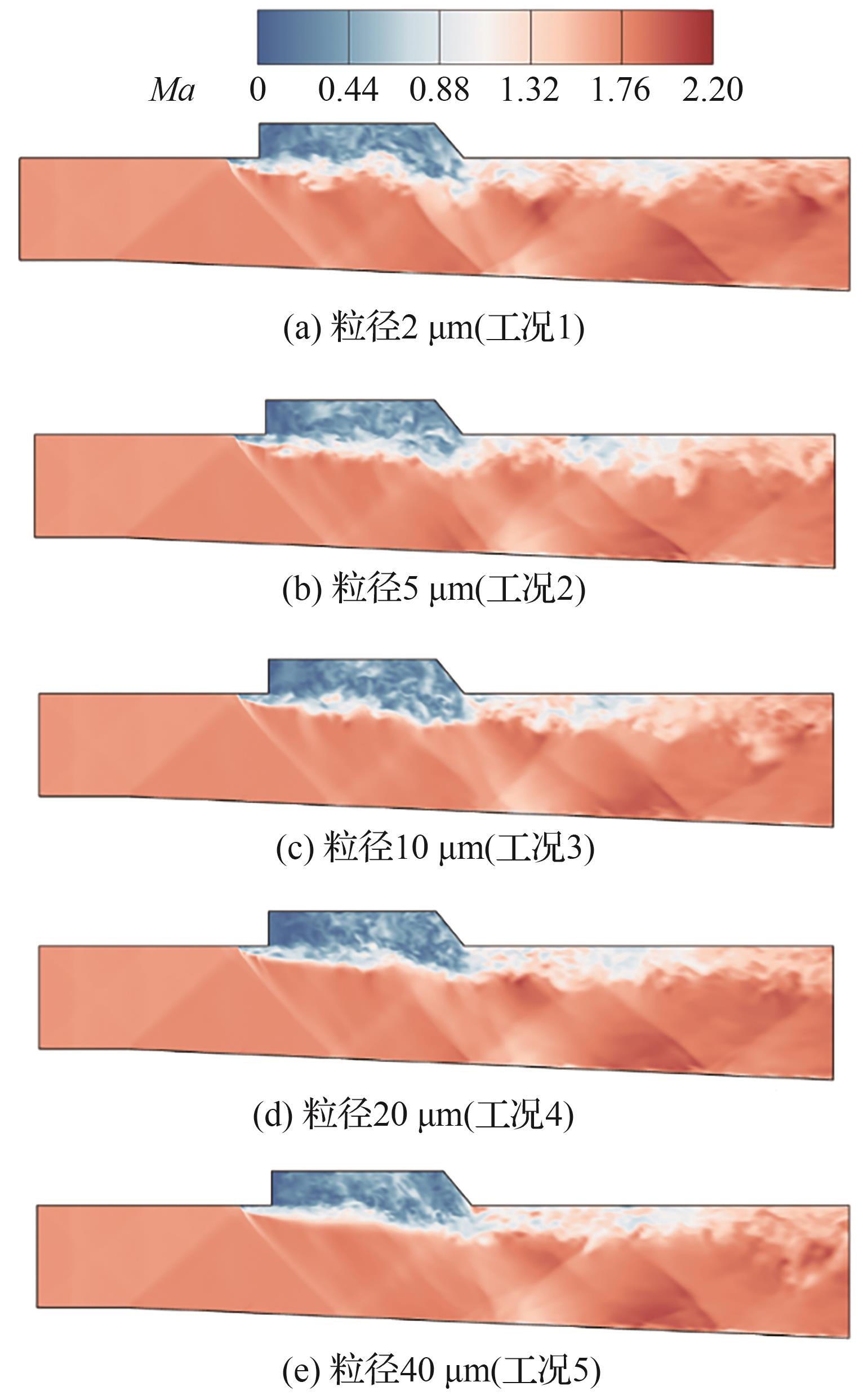

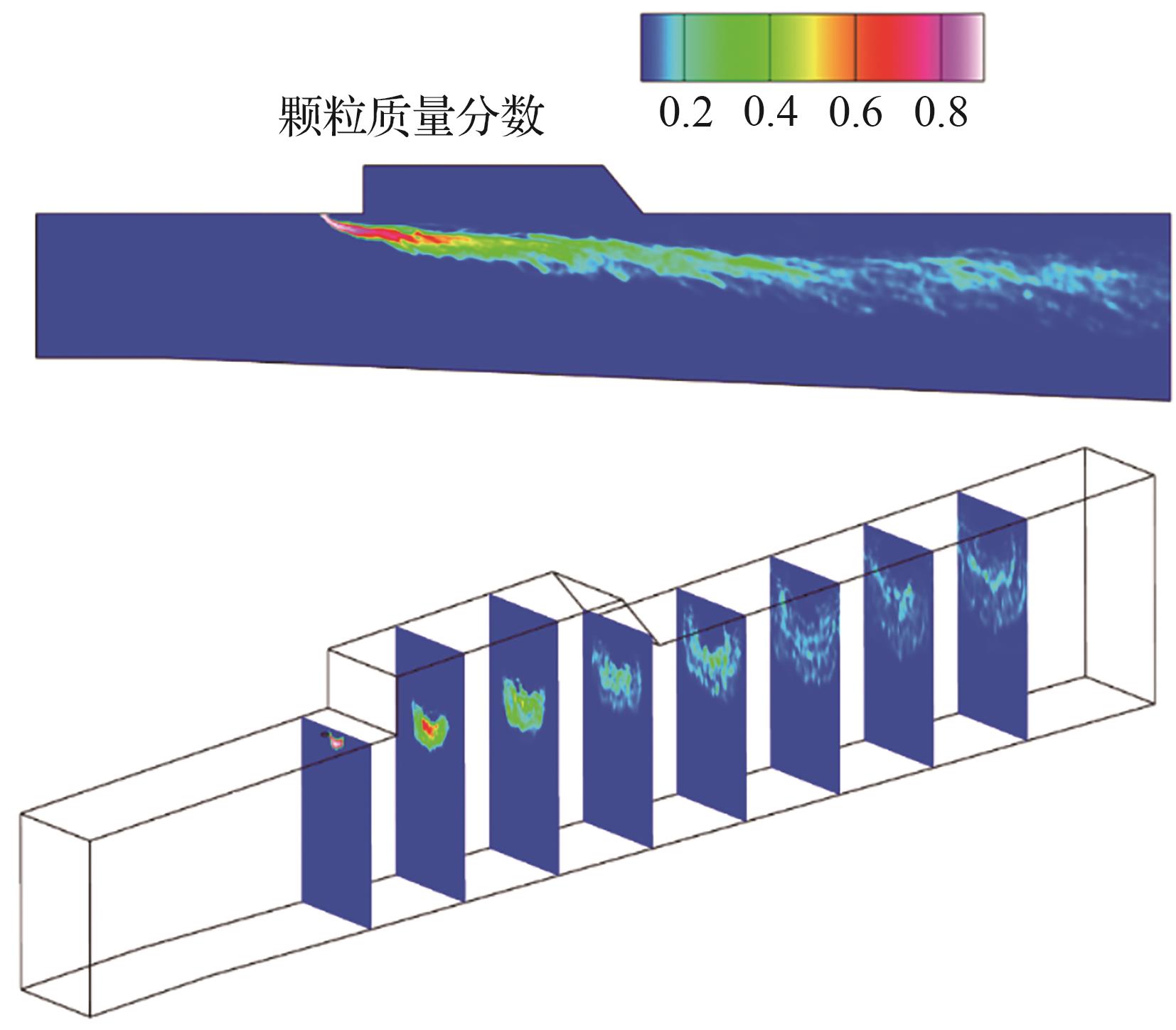

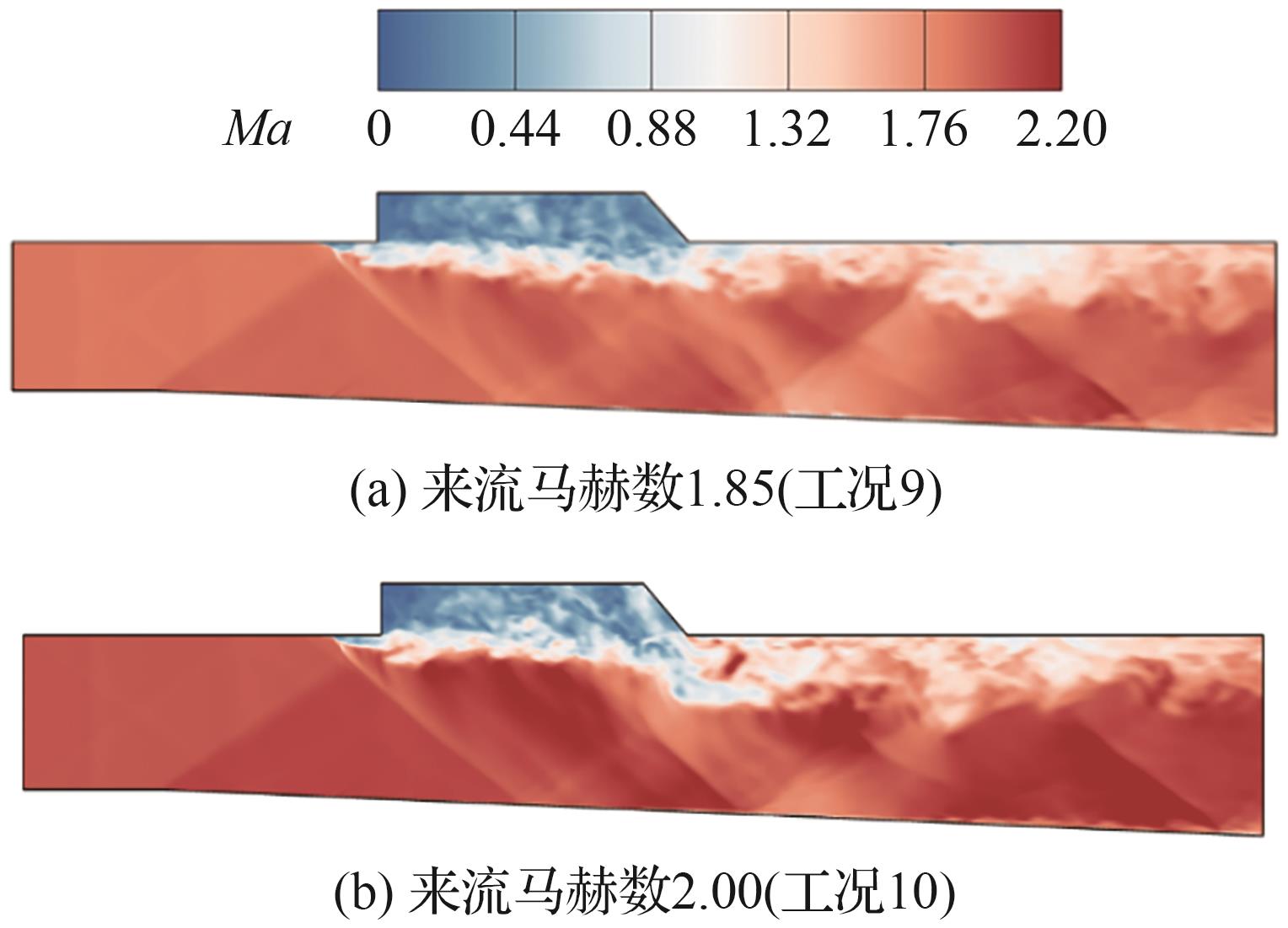

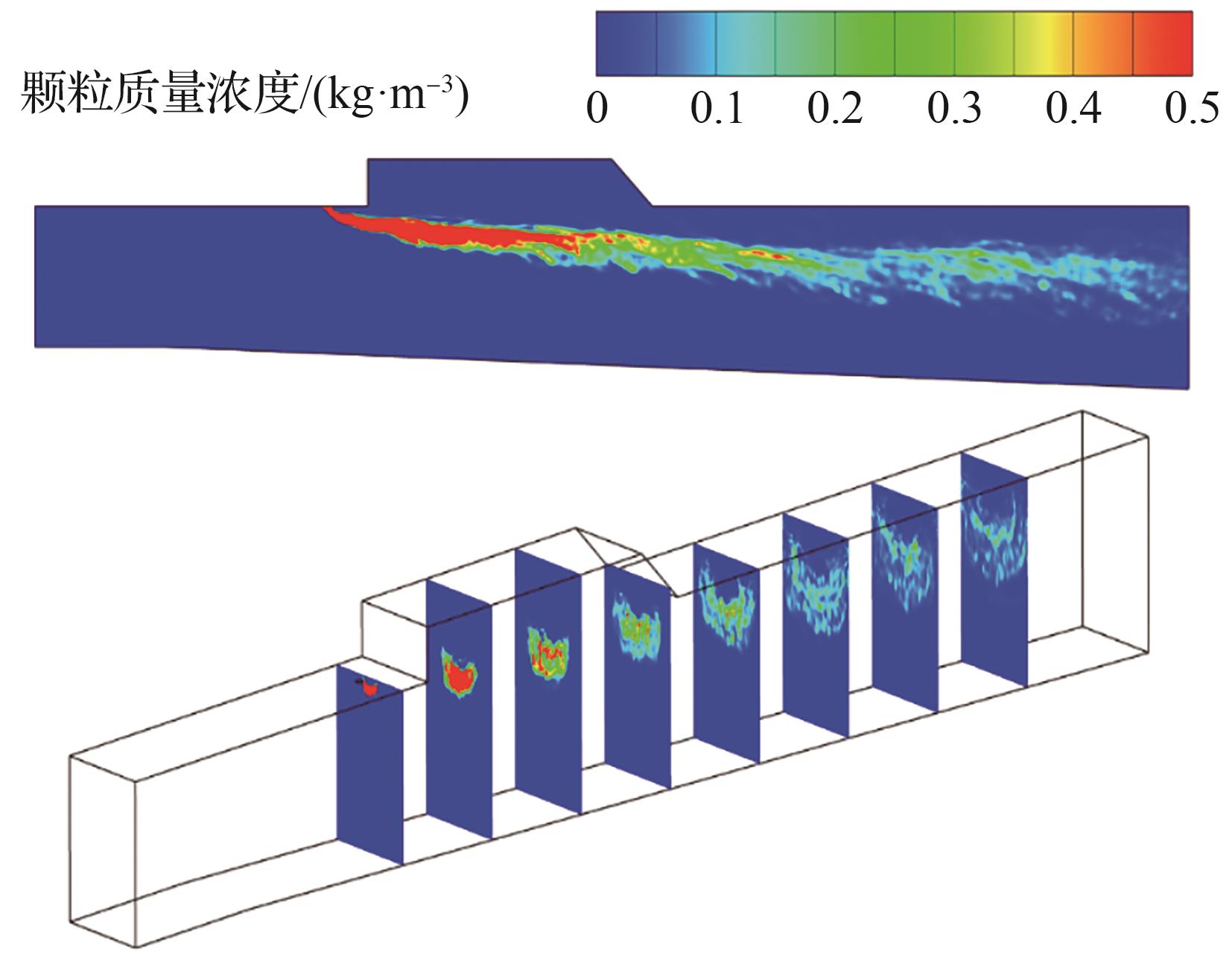

Based on the Large Eddy Simulation （LES） method， this paper provides a detailed investigation into the effects of powder fuel particle size， injection velocity， and incoming flow velocity on the powder fuel mixing characteristics within the combustion chamber of a scramjet. The study shows that smaller particles （2， 5 μm） tend to flow near the wall and enter the cavity， while larger particles remain closer to the main flow region. The residence time of particles in the cavity area （approximately 1 ms） is longer than that of particles outside the cavity （about 0.4 ms）. For 2 μm and 5 μm particles， their trajectories cover the low-velocity recirculation zone inside the cavity， extending their residence time through a recirculation mechanism. At the same time， small particles （2， 5 μm） induce significant fluctuations in the shear layer profile， and their motion is more easily influenced by the vortical structures of the flow field. The particle mass fraction reaches about 0.9 near the injection point but decreases rapidly downstream， dropping to approximately 0.1–0.3 in the main flow region. Increasing the injection velocity enhances the penetration depth of the particle jet， whereas raising the incoming flow Mach number reduces the particle residence time. Meanwhile， the increased momentum of the incoming flow makes it more difficult for the particle jet to penetrate the main flow region， resulting in noticeable jet deflection. This study provides a theoretical basis for the further design of powder fuel injection strategies.

Key words: powder-fueled scramjet, supersonic flow, cavity structure, particle injection, mixing characteristics

CLC Number:

V430

Ying HU, Jiaxin DONG, Zhengyang WANG, Chao LI, Quanbin REN. Large eddy simulation on flow characteristics of powder fuel in a cavity combustor[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(17): 632849.

Figures/Tables 19

Fig.1

Table 1

Table 2

Fig.2

Table 3

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

Fig.12

Fig.13

Fig.14

Fig.15

Fig.16

References 24

[1]	刘小勇，王明福，刘建文，等. 超燃冲压发动机研究回顾与展望［J］. 航空学报， 2024， 45（5）： 29878.
	LIU X Y， WANG M F， LIU J W， et al. Review and prospect of research on scramjet［J］. Acta Aeronautica et Astronautica Sinica， 2024， 45（5）： 29878 （in Chinese）.
[2]	夏智勋，冯运超，马立坤，等. 固体火箭超燃冲压发动机燃烧技术研究进展［J］. 航空学报， 2023， 44（15）： 28793.
	XIA Z X， FENG Y C， MA L K， et al. Research progress of solid rocket scramjet combustion technology［J］. Acta Aeronautica et Astronautica Sinica， 2023， 44（15）： 28793 （in Chinese）.
[3]	REN G L， SUN H J， HU C B， et al. Historical trajectory， current status， and future challenges of powder engines and propellant supply technologies： A comprehensive review［J］. Defence Technology， 2025， 52： 142-183.
[4]	LUO S B， FENG Y B， SONG J W， et al. Progress and challenges in exploration of powder fueled ramjets［J］. Applied Thermal Engineering， 2022， 213： 118776.
[5]	DING H M， ZHUO C F， DENG H Y， et al. Experimental and numerical study on the development process and flow characteristics of powder fuel jet in the powder fuel scramjet［J］. Energy， 2023， 262： 125431.
[6]	FENG Y B， LUO S B， SONG J W， et al. Numerical investigation on the combustion characteristics of aluminum powder fuel in a supersonic cavity-based combustor［J］. Applied Thermal Engineering， 2023， 221： 119842.
[7]	FENG Y B， LUO S B， SONG J W， et al. Numerical investigation on the combustion characteristics of powder fuel under different regulation parameters［J］. Aerospace Science and Technology， 2023， 142： 108608.
[8]	DUAN L， XIA Z X， FENG Y C， et al. Transient flameout process of boron-magnesium agglomerates during combustion in oxygen-rich atmospheres［J］. Particuology， 2024， 88： 290-301.
[9]	LUO S B， XU D Q， LIU J， et al. Improvement of combustion performance with novel vortex generators in the powder-fueled ramjets［J］. Aerospace Science and Technology， 2023， 142： 108598.
[10]	MAIKAP S， ARUN KUMAR R. Investigation of mixing characteristics and flow physics induced by spanwise tandem injection in supersonic crossflow［J］. Physical Review Fluids， 2024， 9（9）： 093401.
[11]	LI C L， MA L K， XIA Z X， et al. Numerical investigation on mixing process of a sonic fuel jet into a supersonic crossflow［J］. International Journal of Hydrogen Energy， 2022， 47（87）： 37025-37039.
[12]	ZHAO M J， BIAN Y F， LI Q L， et al. Large eddy simulation of transverse single/double jet in supersonic crossflow［J］. Aerospace Science and Technology， 2019， 89： 31-45.
[13]	WATANABE J， KOUCHI T， TAKITA K， et al. Large-eddy simulation of jet in supersonic crossflow with different injectant species［J］. AIAA Journal， 2012， 50（12）： 2765-2778.
[14]	WATANABE J， KOUCHI T， TAKITA K， et al. Characteristics of hydrogen jets in supersonic crossflow： Large-eddy simulation study［J］. Journal of Propulsion and Power， 2013， 29（3）： 661-674.
[15]	SEBASTIAN R， SCHREYER A M. Design considerations for efficient spanwise-inclined air-jet vortex generators for separation control in supersonic and hypersonic flows［J］. Aerospace Science and Technology， 2024， 147： 109033.
[16]	ZHAO K C， XIA Z X， MA L K， et al. Large-eddy simulation of gas-particle two-phase jet into a supersonic crossflow［J］. Physics of Fluids， 2023， 35（2）： 023310.
[17]	LI X， ZHANG H B， BAI B F. Particle-free zone of the two-phase flow in a convergent-divergent nozzle［J］. Powder Technology， 2021， 394： 1169-1177.
[18]	YU H S， YANG S L， HU J H， et al. Numerical investigation of wide continuous particle size distribution on the supersonic powder loading oxygen jet［J］. Powder Technology， 2023， 428： 118885.
[19]	BALAKRISHNAN K， BELLAN J. High-fidelity modeling and numerical simulation of cratering induced by the interaction of a supersonic jet with a granular bed of solid particles［J］. International Journal of Multiphase Flow， 2018， 99： 1-29.
[20]	LI C， CHE Y H， LEI R， et al. Study on the mixing characteristics of powder fuel in supersonic flow［J］. Acta Astronautica， 2025， 234： 398-409.
[21]	ZHANG Q， WEI Z J， SU W X， et al. Theoretical modeling and numerical study for thrust- oscillation characteristics in solid rocket motors［J］. Journal of Propulsion and Power， 2012， 28（2）： 312-322.
[22]	HORWITZ J A K， MANI A. Correction scheme for point-particle models applied to a nonlinear drag law in simulations of particle-fluid interaction［J］. International Journal of Multiphase Flow， 2018， 101： 74-84.
[23]	YANG X L， LI F， LIU X， et al. An alternative two-way coupled Euler-Lagrange scheme to model the performance of finite-size particle in supersonic flow［J］. International Journal of Multiphase Flow， 2024， 170： 104647.
[24]	LOTH E， DASPIT J T， JEONG M， et al. Supersonic and hypersonic drag coefficients for a sphere［J］. AIAA Journal， 2021， 59（8）： 3261-3274.

参数	数值
颗粒密度/（g·cm^-3）	2 600
热导率/（W·m·K^-1）	1.4
定压比热容/（J·kg^-1·K^-1）	740
熔点/K	2 000

粒径分布/µm	体积分数/%
1~10	0.46
10~30	18.28
30~55	77.23
55~100	4.03

工况	粒径/μm	颗粒喷射速度/（m·s^-1）	冲压空气马赫数
0	0~100	20	1.70
1	2	20	1.70
2	5	20	1.70
3	10	20	1.70
4	20	20	1.70
5	40	20	1.70
6	5	30	1.70
7	5	40	1.70
8	5	50	1.70
9	5	20	1.85
10	5	20	2.00
