融合泰勒补偿和投影相消的PHD波达方向跟踪方法

doi:10.7527/S1000-6893.2026.33190

Abstract

Abstract:

In multi-domain collaborative sensing and target situation awareness tasks， traditional high-accuracy Direction-of-Arrival （DOA） estimation methods typically rely on a known and fixed number of sources. However， during continuous tracking， the number of targets may vary over time， causing fixed-source-number models to become invalid. Meanwhile， in passive array sensing， multi-target signals often appear in a superimposed form， making it difficult to construct effective single-target likelihood functions and thus limiting the applicability of Random Finite Set （RFS）-based filters in DOA tracking. To address these challenges， this paper proposes a continuous DOA tracking method based on a Taylor-expanded projection-cancellation model. By performing a Taylor expansion of the steering vector around the predicted angle， an extended signal subspace is constructed， and interference from other sources is eliminated using sequential projection operators， resulting in a single-source-equivalent pseudo-spectrum. This enables robust decomposition of multi-source superimposed observations and reliable construction of single-target likelihoods. Furthermore， based on the energy characteristics of the projection-cancellation spectrum and the particle-weight distribution， a birth-death detection mechanism is introduced， which adaptively adjusts the likelihood dimension in the PHD filter without requiring prior source-number estimation. Simulation results demonstrate that the proposed method achieves superior DOA tracking performance compared with conventional approaches， particularly under low SNR conditions and dynamically varying source scenarios.

Key words: DOA tracking, multi-source superimposed measurements, Taylor expansion, projection cancellation, random finite set, pseudo-likelihood function

CLC Number:

V247

Jinke CAO, Xiaofei ZHANG, Qihui WU, De BEN. PHD-based DOA tracking via Taylor compensation and projection cancellation[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(16): 333190.

Figures/Tables 17

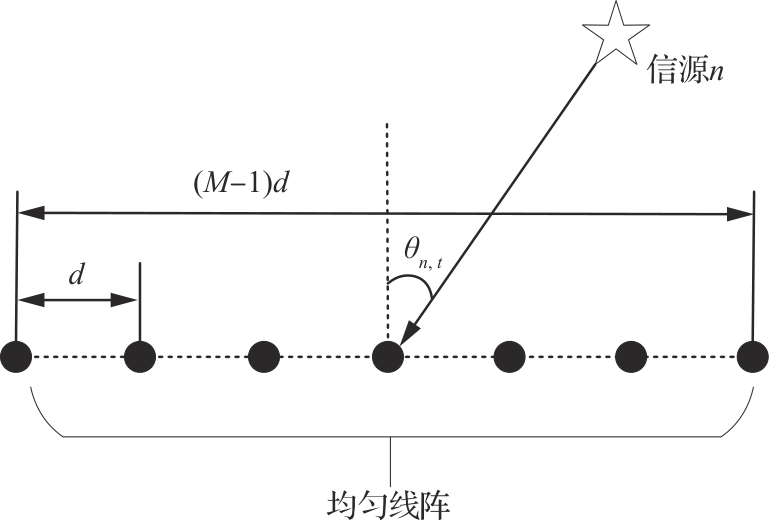

Fig.1

Table 1

Reference parameter configuration

参数	符号	取值
阵元数	$M$	8
阵元间距	$d$	$λ / 2$
阵列结构		均匀阵列
快照数	$J$	200
检测概率	$p D, t (·)$	0.98
存活概率	$p S, t (·)$	0.99
新生强度	$r t (·)$	0.02
新生粒子数	$K B, t$	1 000
新生信源能量谱比率	$η S, t$	4
消亡信源能量谱比率	$η N, t$	4
跟踪时长	$T$	50
采样间隔	$Δ T$	1
蒙特卡洛仿真次数	$M c$	200

Table 1

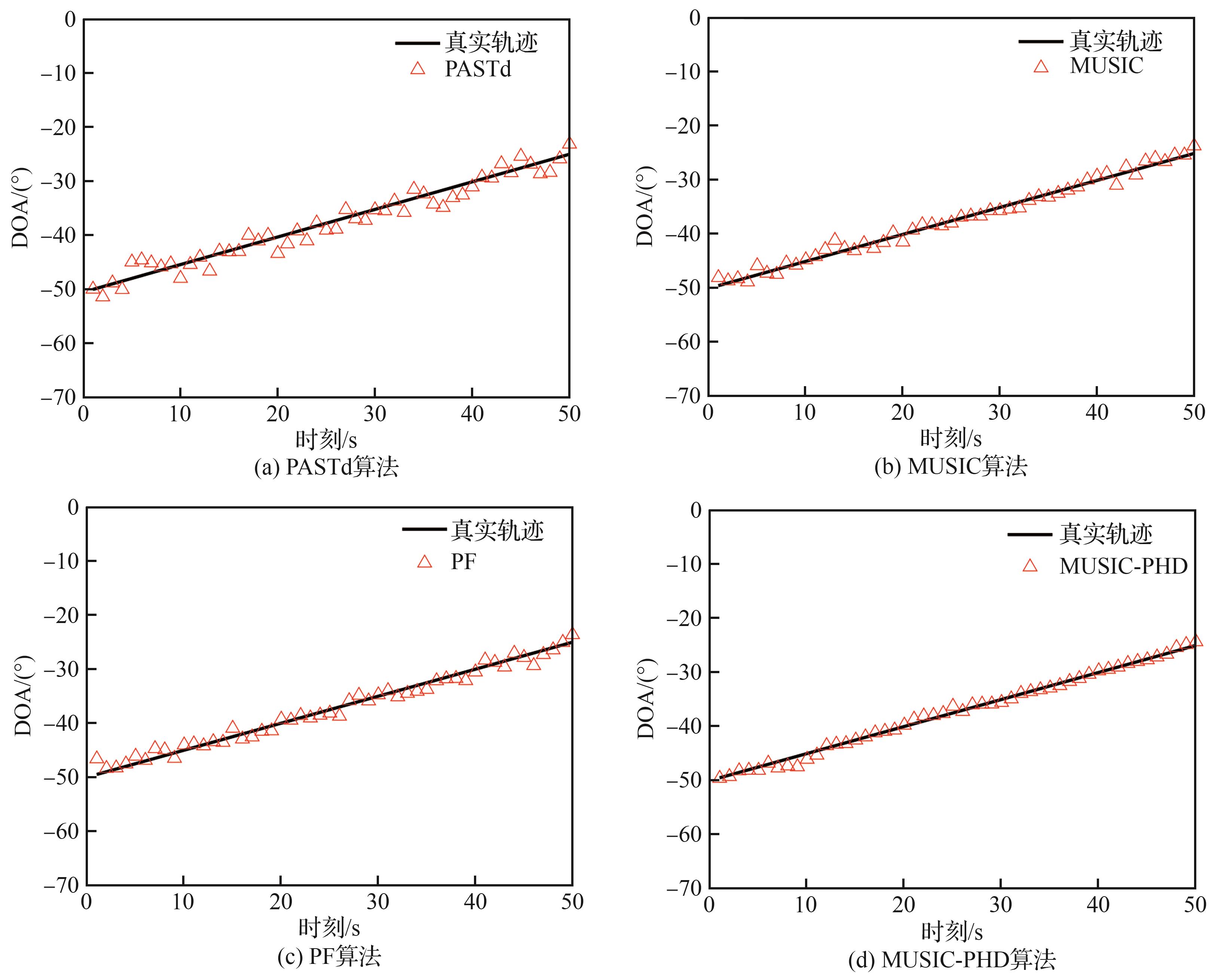

Fig.2

Table 2

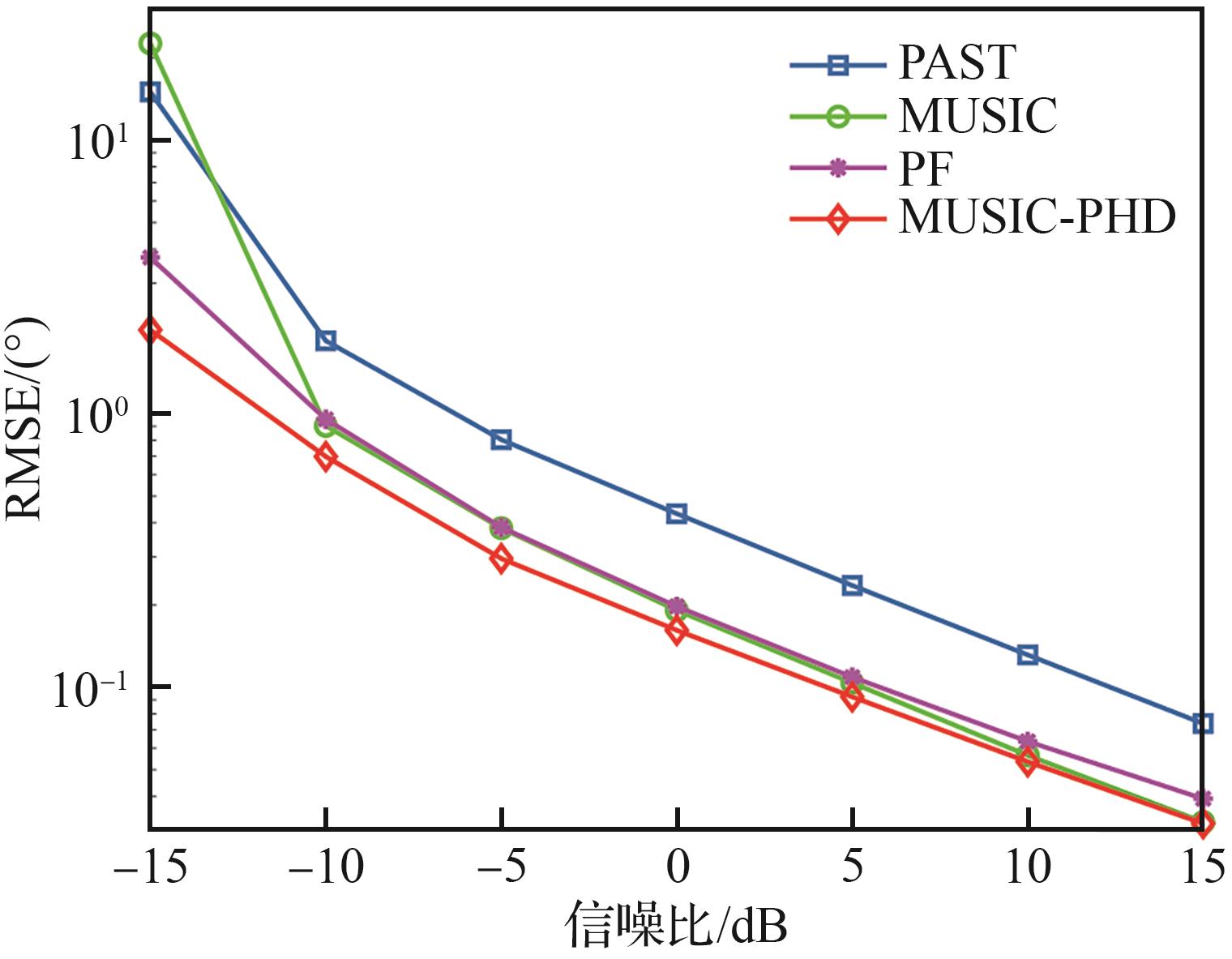

Fig.3

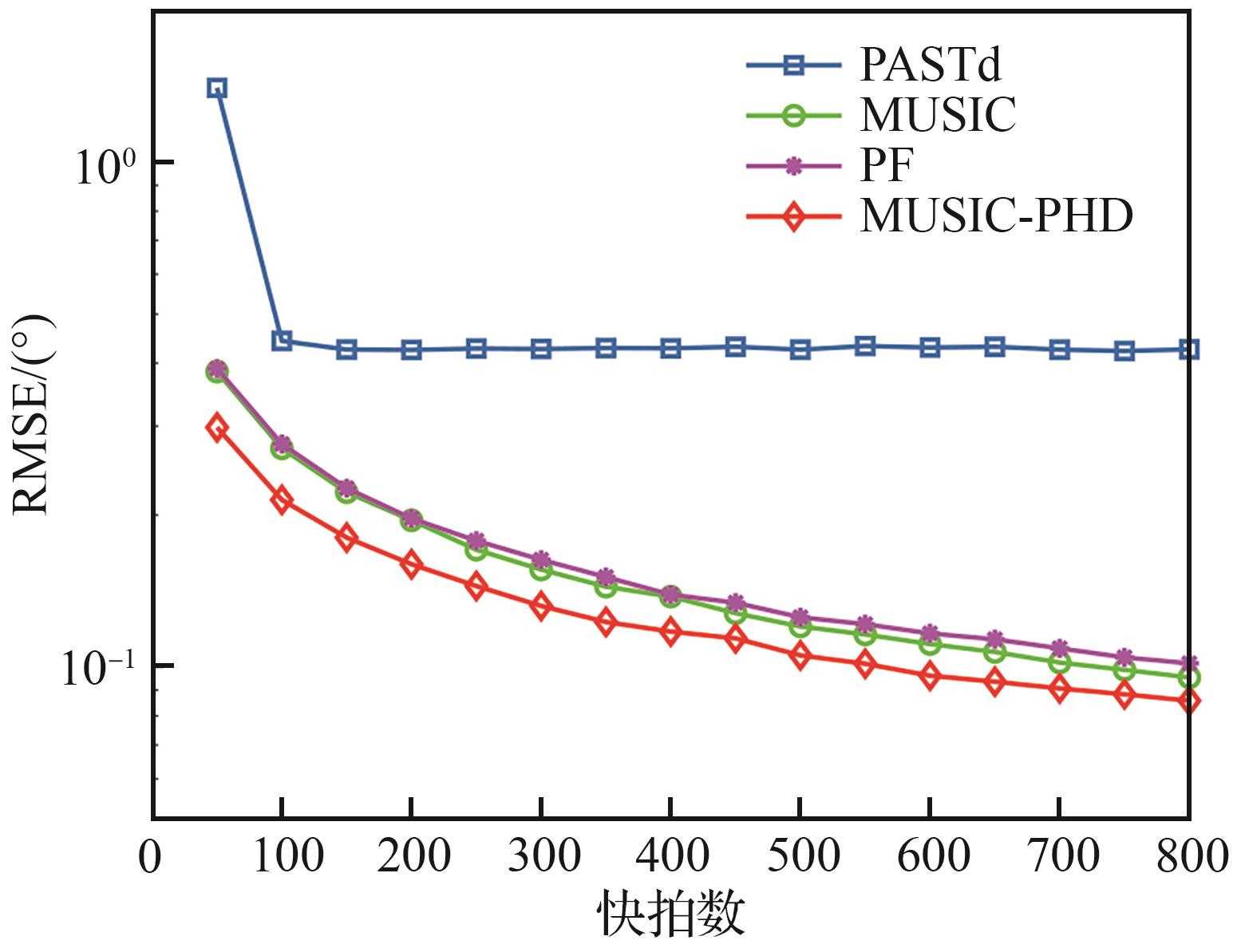

Fig.4

Table 3

Source parameters

信源编号	初始状态	出生时刻/s	消亡时刻/s
1	$[- 80,1] T$	1	50
2	$[30, - 1.5] T$	10	35
3	$[50, - 0.5] T$	25	45

Table 3

Fig.5

Fig.6

Table 4

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

Fig.12

Fig.13

References 28

[1]	陈开源，李嘉琪，张小飞. 圆与非圆信号混合入射下的低复杂度分布式信源DOA估计算法［J］. 信号处理， 2025， 41（5）： 958-966.
	CHEN K Y， LI J Q， ZHANG X F. A low-complexity DOA estimation algorithm for distributed sources under the coexistence of circular and non-circular sources［J］. Journal of Signal Processing， 2025， 41（5）： 958-966 （in Chinese）.
[2]	ZHANG X F， XU L Y， XU L， et al. Direction of departure （DOD） and direction of arrival （DOA） estimation in MIMO radar with reduced-dimension MUSIC［J］. IEEE Communications Letters， 2010， 14（12）： 1161-1163.
[3]	周静，鲍长春，段海威. 基于Kalman滤波与频率聚焦的单声源到达方向实时估计与跟踪方法［J］. 清华大学学报（自然科学版）， 2024， 64（11）： 1902-1910.
	ZHOU J， BAO C C， DUAN H W. Real time estimation and tracking method for the direction of arrival of single sound source based on Kalman filtering and frequency focusing［J］. Journal of Tsinghua University （Science and Technology）， 2024， 64（11）： 1902-1910 （in Chinese）.
[4]	SCHMIDT R. Multiple emitter location and signal parameter estimation［J］. IEEE Transactions on Antennas and Propagation， 1986， 34（3）： 276-280.
[5]	LI J F， JIANG D F， ZHANG X F. DOA estimation based on combined unitary ESPRIT for coprime MIMO radar［J］. IEEE Communications Letters， 2017， 21（1）： 96-99.
[6]	李天成，谢昱昕，李固冲，等. 面向多目标跟踪的数据关联方法研究综述［J］. 雷达科学与技术， 2025， 23（1）： 10-31.
	LI T C， XIE Y X， LI G C， et al. A survey on data association approaches to multi-target tracking［J］. Radar Science and Technology， 2025， 23（1）： 10-31 （in Chinese）.
[7]	WAN L T， HAN G J， SHU L， et al. The application of DOA estimation approach in patient tracking systems with high patient density［J］. IEEE Transactions on Industrial Informatics， 2016， 12（6）： 2353-2364.
[8]	YANG B. Projection approximation subspace tracking［J］. IEEE Transactions on Signal Processing， 1995， 43（1）： 95-107.
[9]	YANG B. Convergence analysis of the subspace tracking algorithms PAST and PASTd［C］∥1996 IEEE International Conference on Acoustics， Speech， and Signal Processing Conference Proceedings. Piscataway： IEEE Press， 2002： 1759-1762.
[10]	RISSANEN J. Modeling by shortest data description［J］. Automatica， 1978， 14（5）： 465-471.
[11]	AKAIKE H. A new look at the statistical model identification［J］. IEEE Transactions on Automatic Control， 1974， 19（6）： 716-723.
[12]	高一丁，吴敏，郝程鹏，等. 无需信源数先验的快速稀疏增强DOA估计方法［J］. 海军航空大学学报， 2024， 39（5）： 515-522.
	GAO Y D， WU M， HAO C P， et al. Fast sparse enhanced DOA estimation method without source number priors［J］. Journal of Naval Aviation University， 2024， 39（5）： 515-522 （in Chinese）.
[13]	DONG F B， XU L M， LI X S. Particle filter algorithm for DOA tracking using co-prime array［J］. IEEE Communications Letters， 2020， 24（11）： 2493-2497.
[14]	TANG Z Q， MANIKAS A. Multi direction-of-arrival tracking using rigid and flexible antenna arrays［J］. IEEE Transactions on Wireless Communications， 2021， 20（11）： 7568-7580.
[15]	TANG Z Q， MANIKAS A. Direction-of-arrival tracking of multiple fast-moving sources in antenna array based access networks［C］∥2020 IEEE International Conference on Communications （ICC）. Piscataway： IEEE Press， 2020： 1-6.
[16]	CAO J K， YOU M Y， LI D W， et al. Multi-source DOA tracking with an adaptive superposition model for sparse array［J］. Signal Processing， 2025， 230： 109877.
[17]	VO B N， SINGH S， DOUCET A. Random finite sets and sequential Monte Carlo methods in multi-target tracking［C］∥2003 Proceedings of the International Conference on Radar. Piscataway： IEEE Press， 2004： 486-491.
[18]	柴雷. 基于随机有限集的分布式多传感器分治融合算法研究［D］. 成都：电子科技大学， 2023.
	CHAI L. Random finite set-based heterogeneous multi-sensor fusion in distributed sensor networks［D］. Chengdu： University of Electronic Science and Technology of China， 2023 （in Chinese）.
[19]	钟展鸣，宋强，张月，等. 基于带标签CBMeMBer滤波器的低慢小群目标跟踪改进方法［J］. 信号处理， 2025， 41（5）： 906-923.
	ZHONG Z M， SONG Q， ZHANG Y， et al. Improved tracking method based on labeled cardinality balanced multi-target multi-bernoulli filter for low， slow， and small group targets［J］. Journal of Signal Processing， 2025， 41（5）： 906-923 （in Chinese）.
[20]	REIFLER B L， JONES B A. Improving labeled random finite-set-based filtering with limited fields of view［J］. IEEE Transactions on Aerospace and Electronic Systems， 2024， 60（6）： 9275-9290.
[21]	ZHAO J， GUI R Z， DONG X D. A new measurement association mapping strategy for DOA tracking［J］. Digital Signal Processing， 2021， 118： 103228.
[22]	DONG X D， SUN M， ZHAO J， et al. An improved PHD filtering for DOA tracking with sparse array via unscented transform strategy［J］. IEEE Transactions on Circuits and Systems Ⅱ： Express Briefs， 2023， 70（8）： 3174-3178.
[23]	陈雨轩，赵宏宇，张博轩，等. 基于自适应波束形成的水下目标高稳健DOA跟踪技术［J］. 无人系统技术， 2024， 7（2）： 82-91.
	CHEN Y X， ZHAO H Y， ZHANG B X， et al. Underwater high-robustness tracking technology based on adaptive beamforming［J］. Unmanned Systems Technology， 2024， 7（2）： 82-91 （in Chinese）.
[24]	CAO J K， YANG M， YOU M Y， et al. Passive multisource tracking via distributed sparse arrays： Homogeneous data fusion and multivariate adaptation［J］. IEEE Transactions on Intelligent Transportation Systems， 2025， 26（5）： 6570-6586.
[25]	MAHLER R. PHD filters of higher order in target number［J］. IEEE Transactions on Aerospace and Electronic Systems， 2007， 43（4）： 1523-1543.
[26]	VO B N， SINGH S， DOUCET A. Sequential Monte Carlo methods for multitarget filtering with random finite sets［J］. IEEE Transactions on Aerospace and Electronic Systems， 2005， 41（4）： 1224-1245.
[27]	张小飞，曾浩威，郑旺，等. 多阵列中非圆信号借助于降维搜索和子空间数据融合的直接定位算法［J］. 数据采集与处理， 2020， 35（6）： 1022-1032.
	ZHANG X F， ZENG H W， ZHENG W， et al. Direct position determination of non-circular signals with multiple arrays by exploiting reduced-dimension finding and subspace data fusion［J］. Journal of Data Acquisition and Processing， 2020， 35（6）： 1022-1032 （in Chinese）.
[28]	RAHMATHULLAH A S， GARCÍA-FERNÁNDEZ Á F， SVENSSON L. Generalized optimal sub-pattern assignment metric［C］∥2017 20th International Conference on Information Fusion （Fusion）. Piscataway： IEEE Press， 2017： 1-8.

算法名称	运行时间/s
PASTd	0.253
MUSIC	2.183
PF	0.386
MUSIC-PHD	0.417

算法名称	运行时间/s
MUSIC-PHD	7.844
MS-PHD	7.676
PC-PHD	1.817
TPC-PHD	1.843
