考虑视场角约束的突防/打击一体化智能决策算法

doi:10.7527/S1000-6893.2026.33053

Abstract

Abstract:

Aiming at the integrated penetration/strike design problem of the terminal guidance phase of hypersonic reentry glide missiles considering constraints such as the detection field of view angle， a Lagrange-proximal policy optimization intelligent penetration decision algorithm based on the Constrained Markov Decision Process （CMDP）and an adaptive training method for multiple scenarios are proposed. Suppose the terminal guidance phase of the gliding missile adopts the biased proportional guidance law to strike the target. Taking the relative motion state between the interceptor and the gliding missile， and between the gliding missile and the target as the state space， and the rate of change of the biased acceleration as the action space， the reward function is designed by comprehensively considering the penetration/strike result of the gliding missile， the control energy consumption， the constraint satisfaction situation， and the velocity vector lead angle of the interceptor. The constraint cost function about the field of view angle is constructed， and the constrained Markov decision process of the penetration/strike problem is established. The constraints are introduced into the loss function of the policy network through the Lagrange multiplier， and the constraint cost Critic network is introduced to construct the penetration network. The Proximal Policy Optimization （PPO） algorithm is used to train the network to obtain the biased acceleration. Establish rules for classifying the complexity of combat scenarios， and propose an adaptive sampling training method for combat scenarios of “progressive learning in the early stage and more learning on difficult points in the later stage” to enhance the convergence speed of the penetration strategy and its generalization to different combat scenarios. Simulation results show that this intelligent penetration/strike integrated strategy can enable gliding missile to successfully penetrate and strike the target at the specified impact angle while meeting the field of view angle constraints throughout the process， and it has good generalization.

Key words: hypersonic glide missile, integrated penetration and strike, field of view angle constraint, constrained Markov decision process, scene adaptive sampling

CLC Number:

V249.1

Gaopeng TAN, Xiaofang WANG, Hai LIN. Integrated intelligent decision-making algorithm for penetration and strike considering field of view angle constraint[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(15): 333053.

Figures/Tables 35

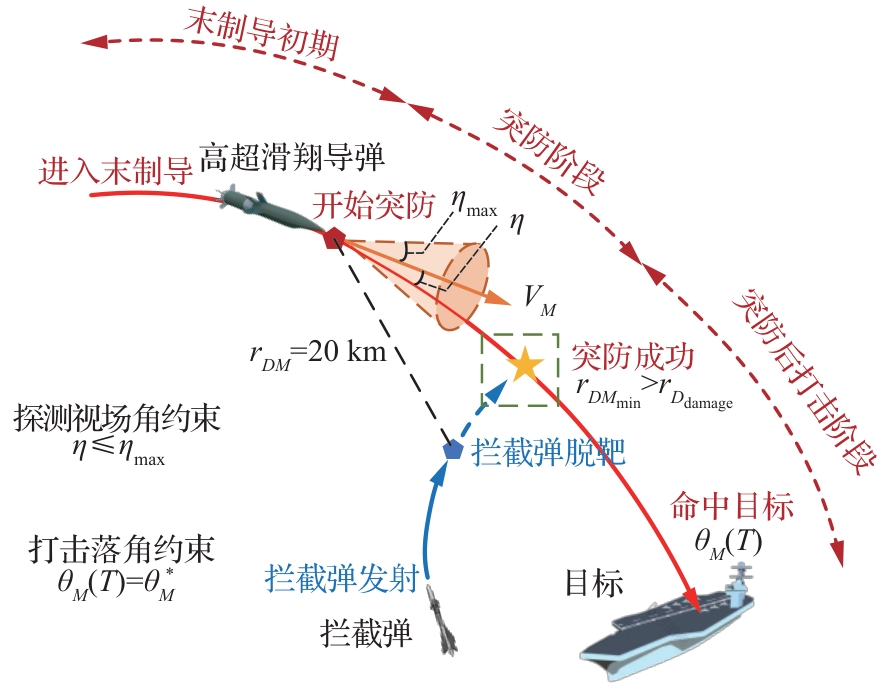

Fig.1

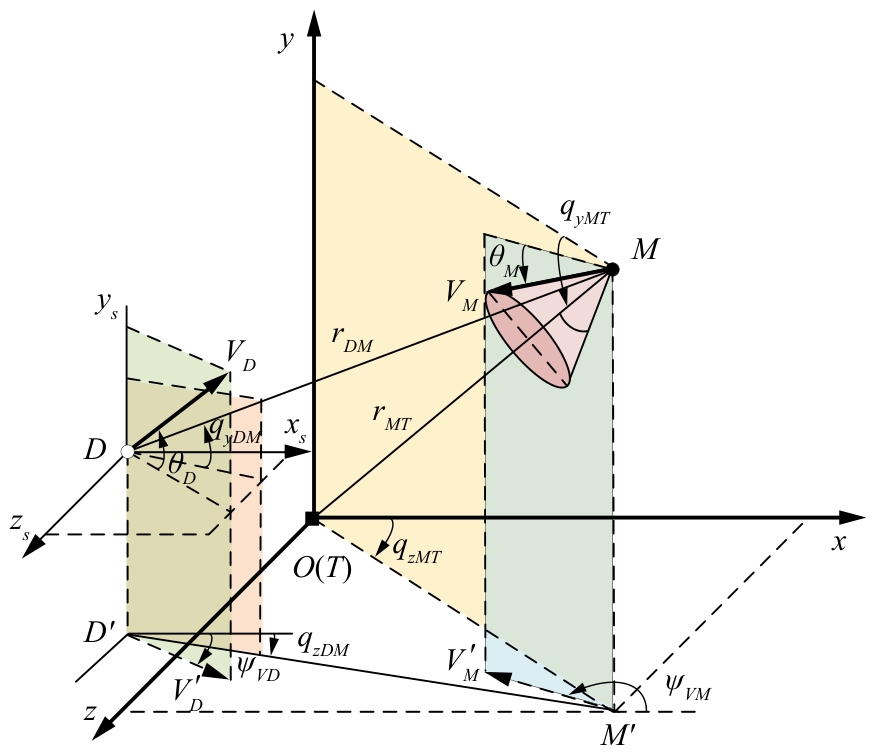

Fig.2

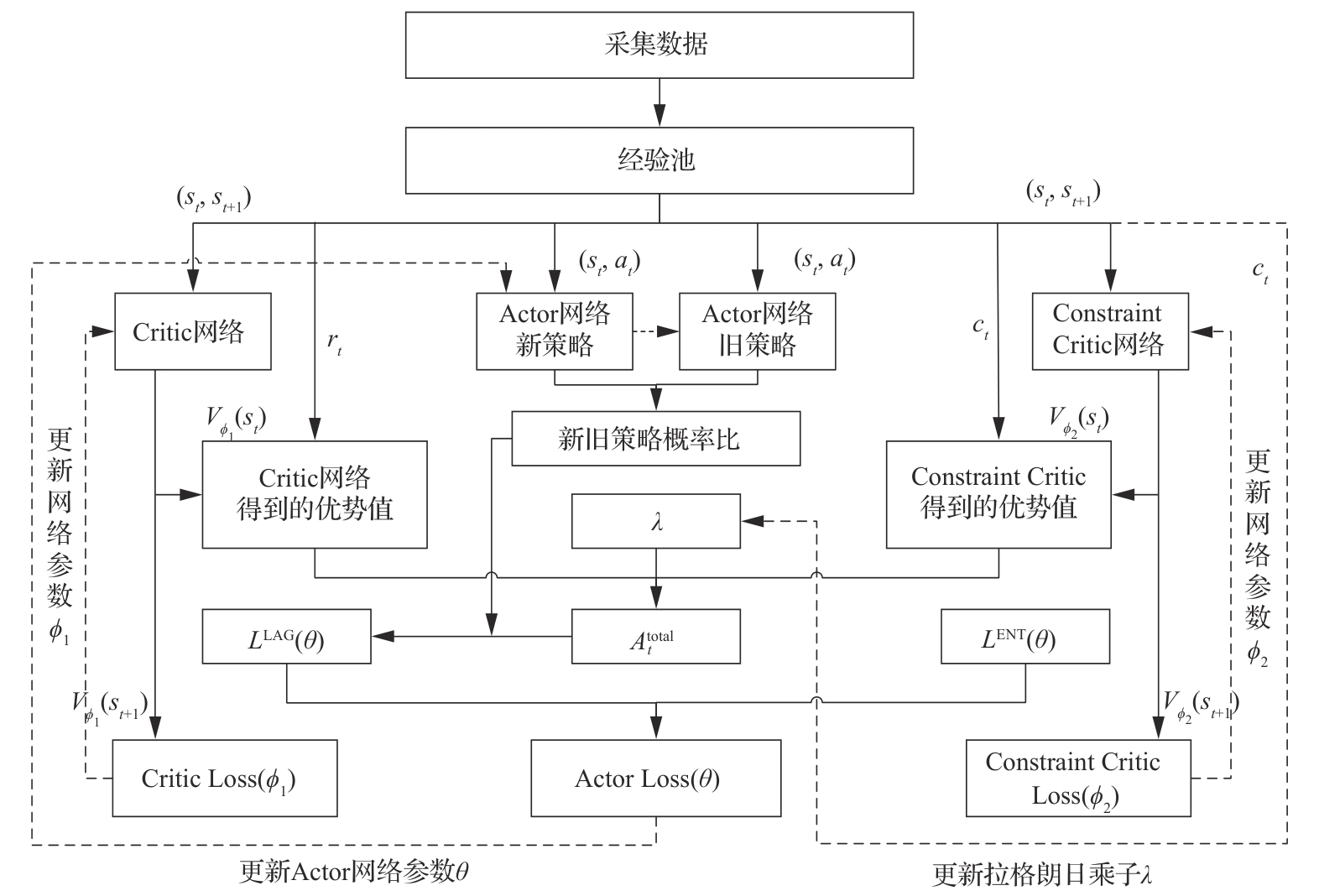

Fig.3

Table 1

Table 2

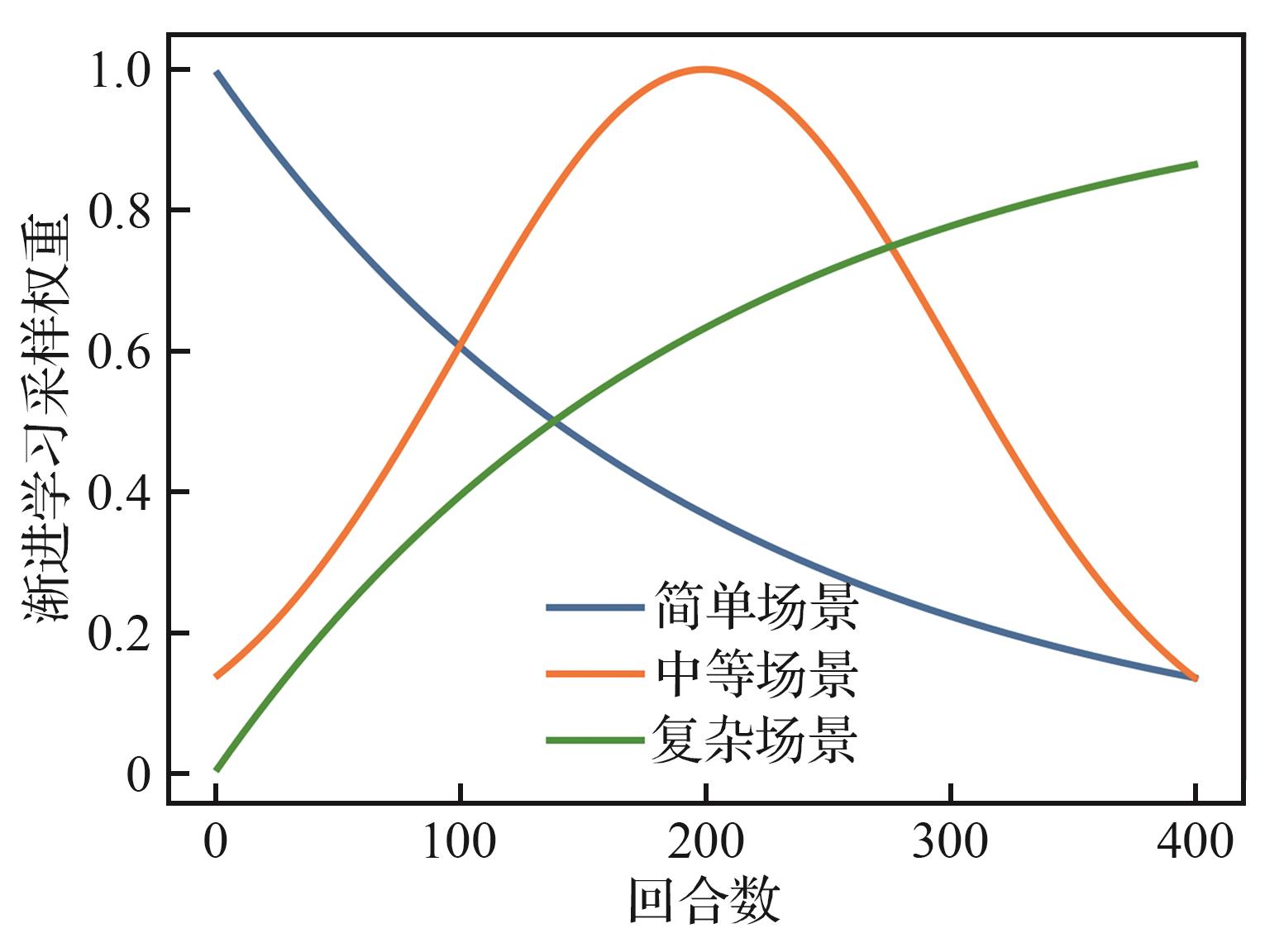

Fig.4

Table 3

Initial parameters of scene

对象	参数	初始值
目标	位置/km	（0， 0， 0）
滑翔弹	位置 $x 0$ /km	［-10， -1］
	位置 $y 0$ /km	［30，33］
	位置 $z 0$ /km	［-78， -72］
	速度 $V M 0$ /（m·s^-1）	［1 980， 2 000］
	弹道倾角 $θ M 0$ /（°）	［-3.0， 3.0］
	弹道偏角 $ψ V M 0$ /（°）	［-89， -84］
拦截弹	位置 $(x D 0, y D 0, z D 0)$ /km	（11.12， 0.02， -5.22）
拦截弹	发射速度 $V D 0$ /（m·s^-1）	48

Table 3

Table 4

Table 5

Hyperparameters for training penetration algorithm

参数	数值
折扣因子 $γ$	0.99
Actor学习率/10^-3	0.3
Critic学习率	0.001
Constraint Critic学习率	0.001
拉格朗日乘子 $λ$ 初始值	5
拉格朗日乘子 $λ$ 更新率	0.015
优化器	Adam
平滑因子 $ξ$	0.95
裁剪因子 $ε$	0.2

Table 5

Table 6

Interference acting on glide vehicle

干扰	大小
$d 1 / (r a d ⋅ s - 1)$	$0.1 N (0,1)$
$d 2 / (r a d ⋅ s - 1)$	$0.1 N (0,1)$

Table 6

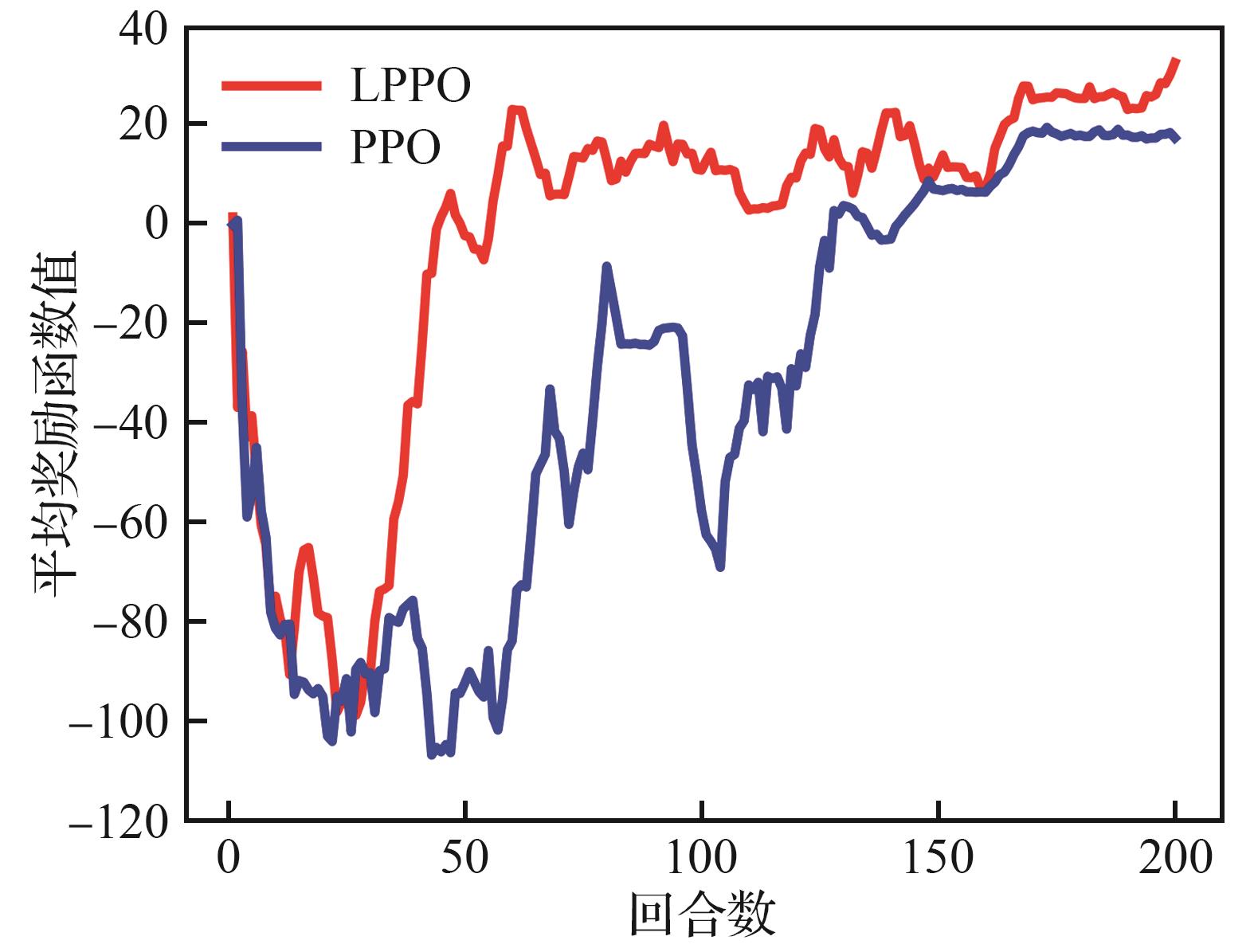

Fig.5

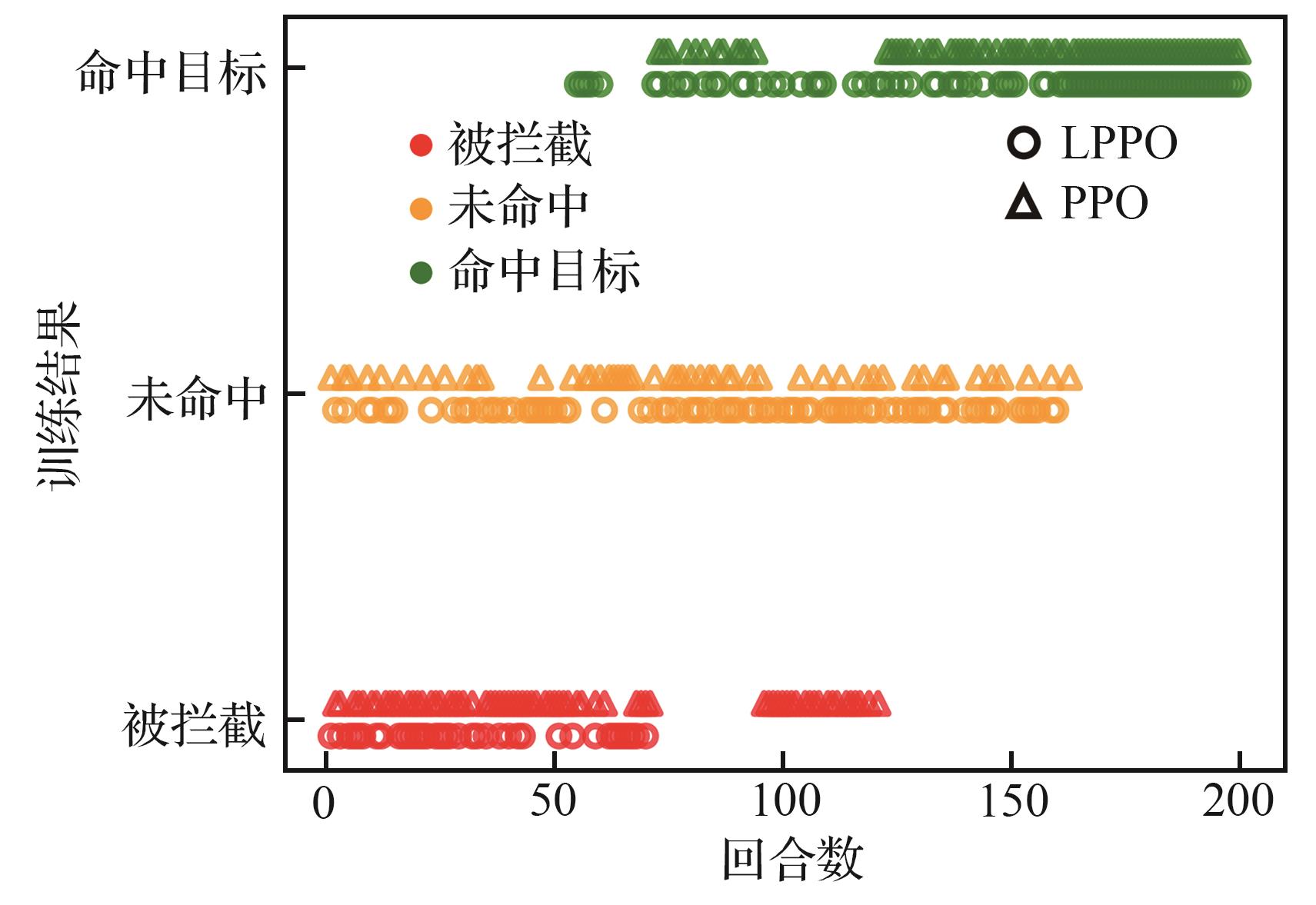

Fig.6

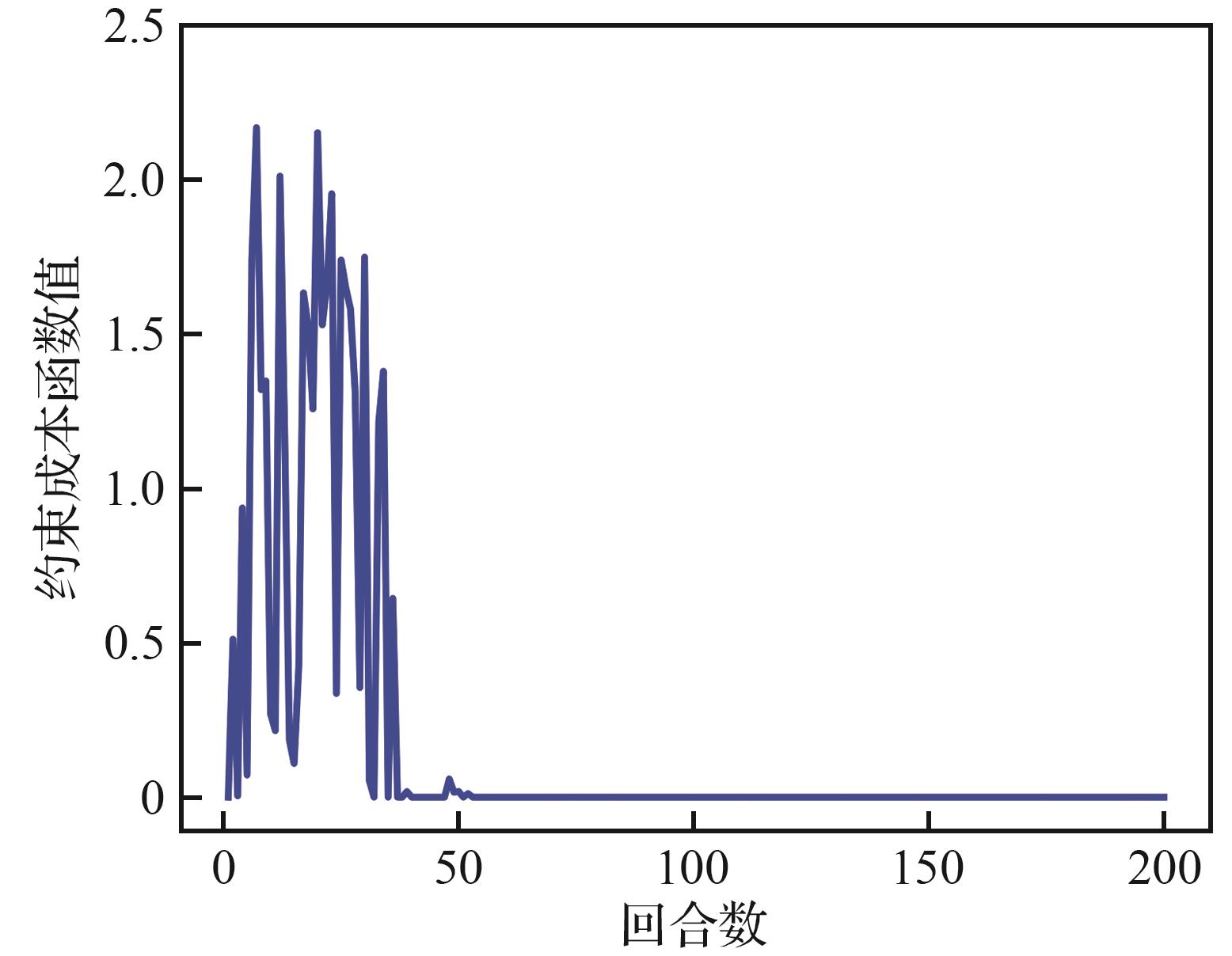

Fig.7

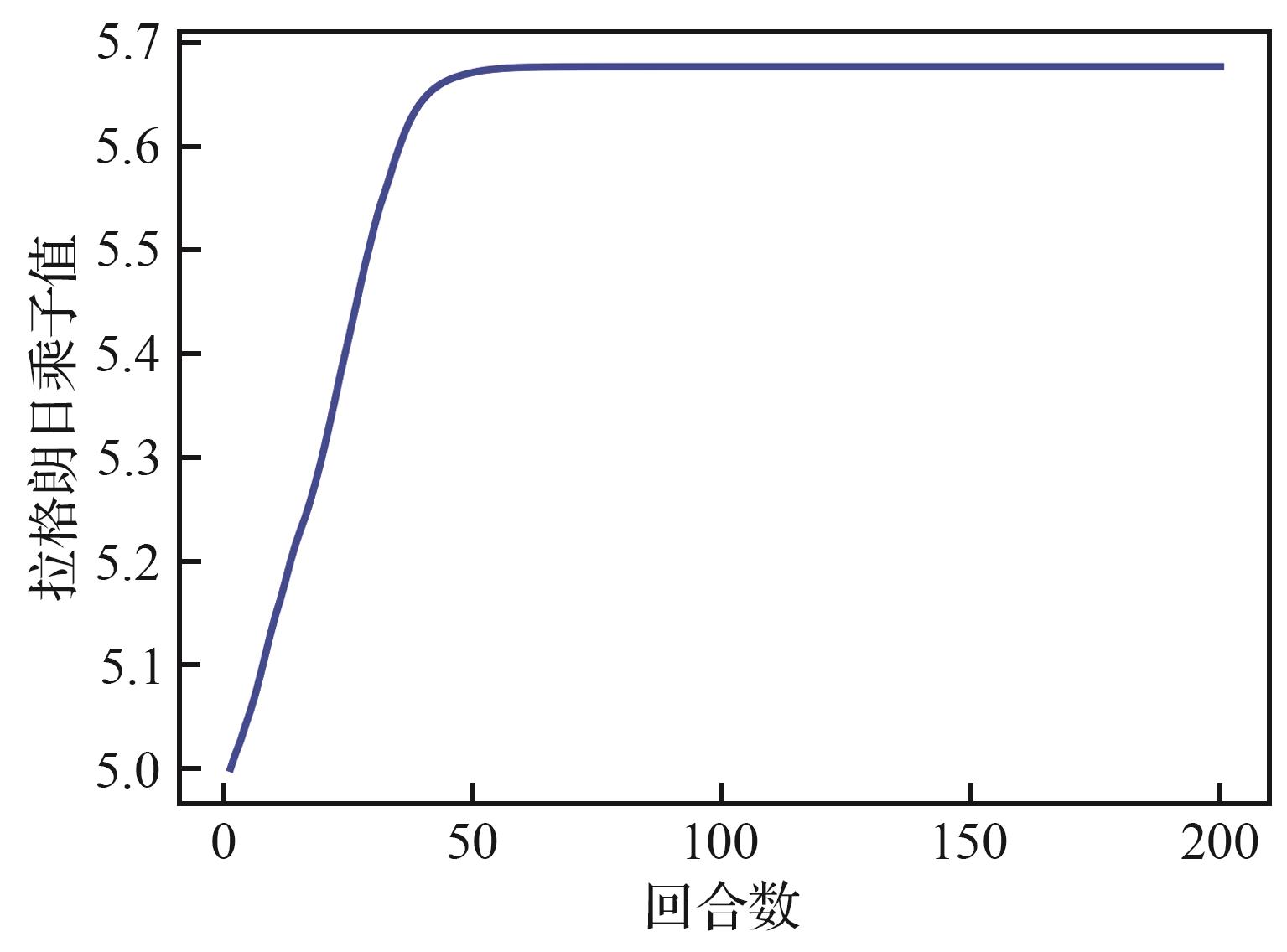

Fig.8

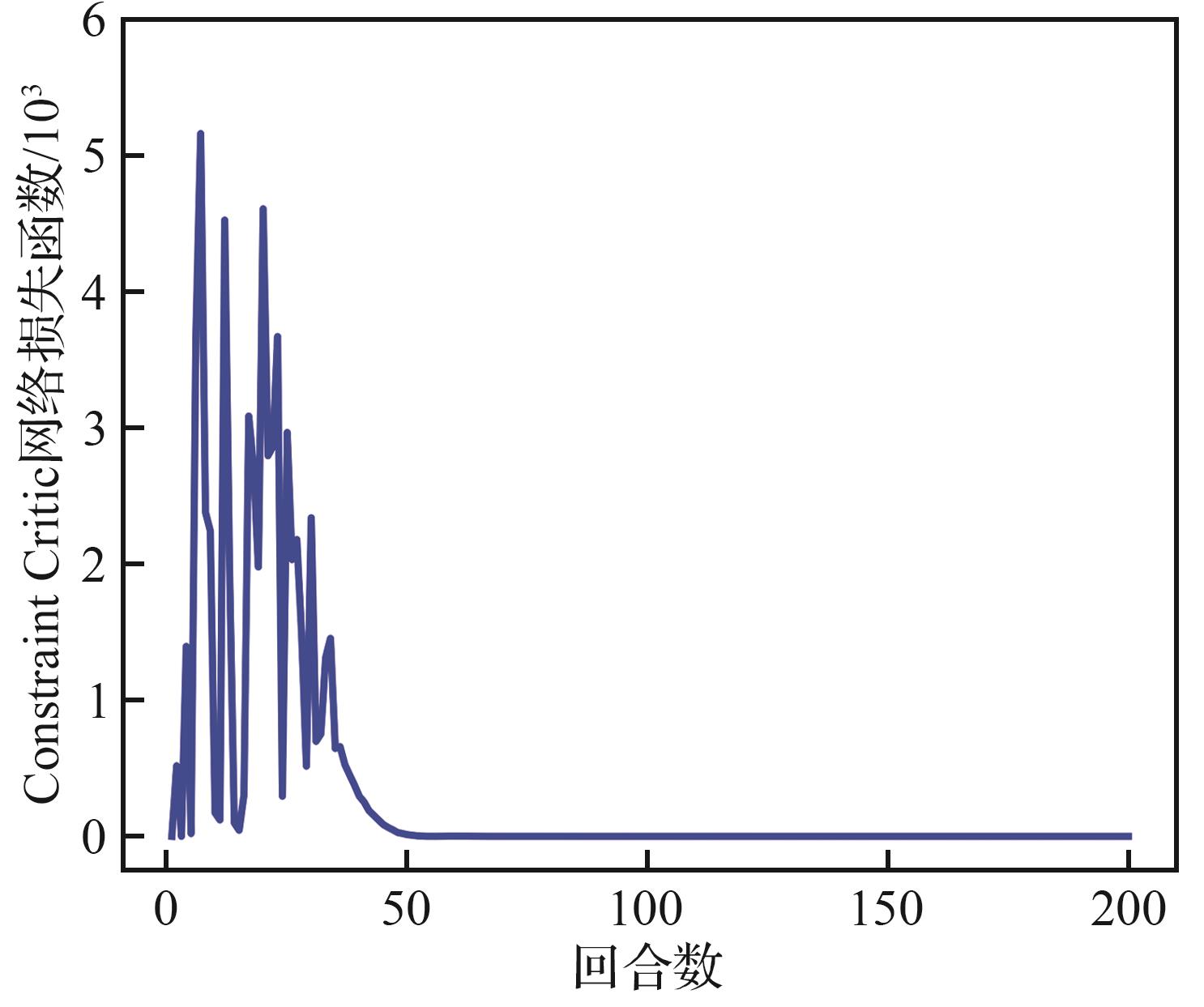

Fig.9

Fig.10

Fig.11

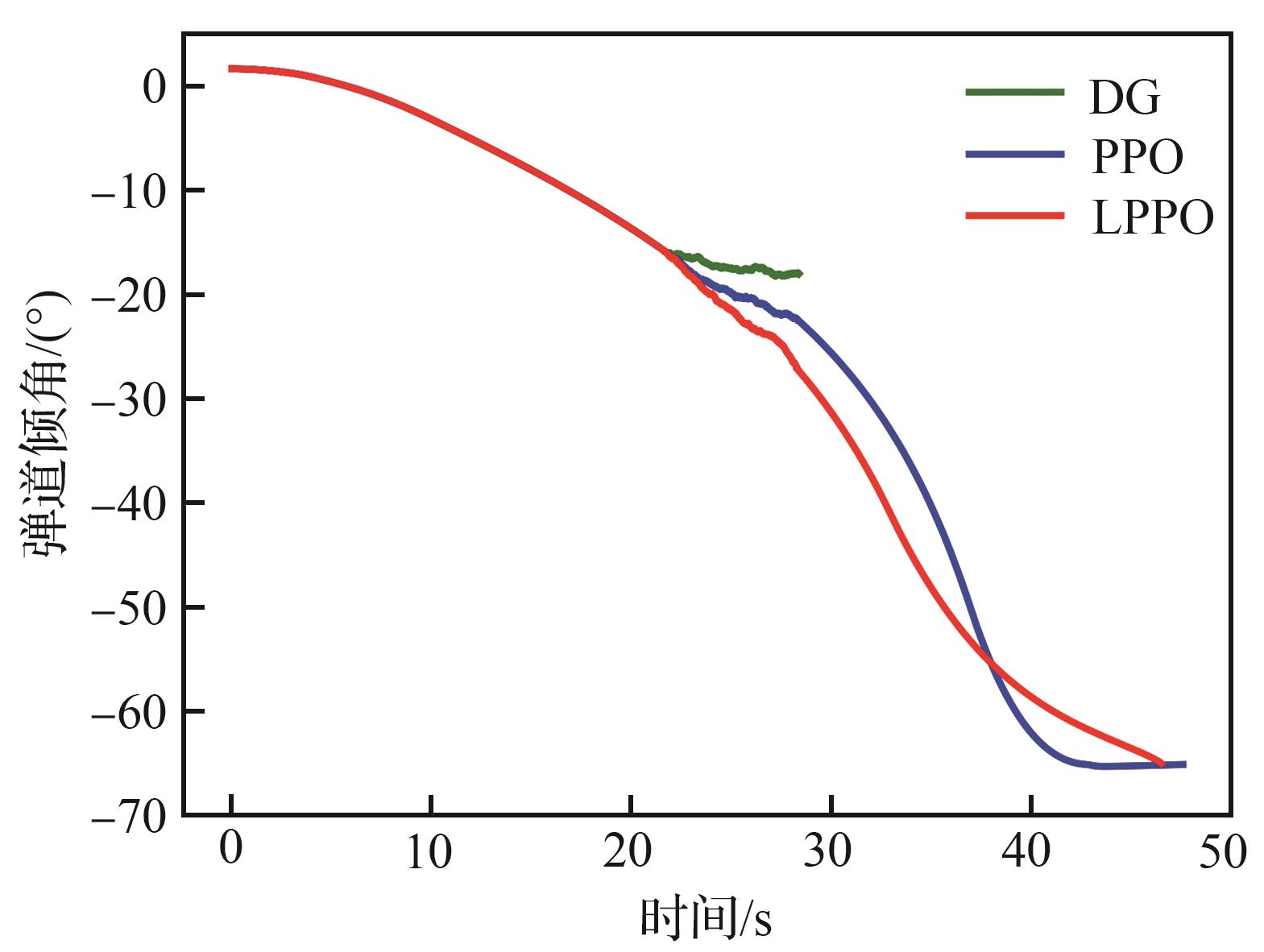

Fig.12

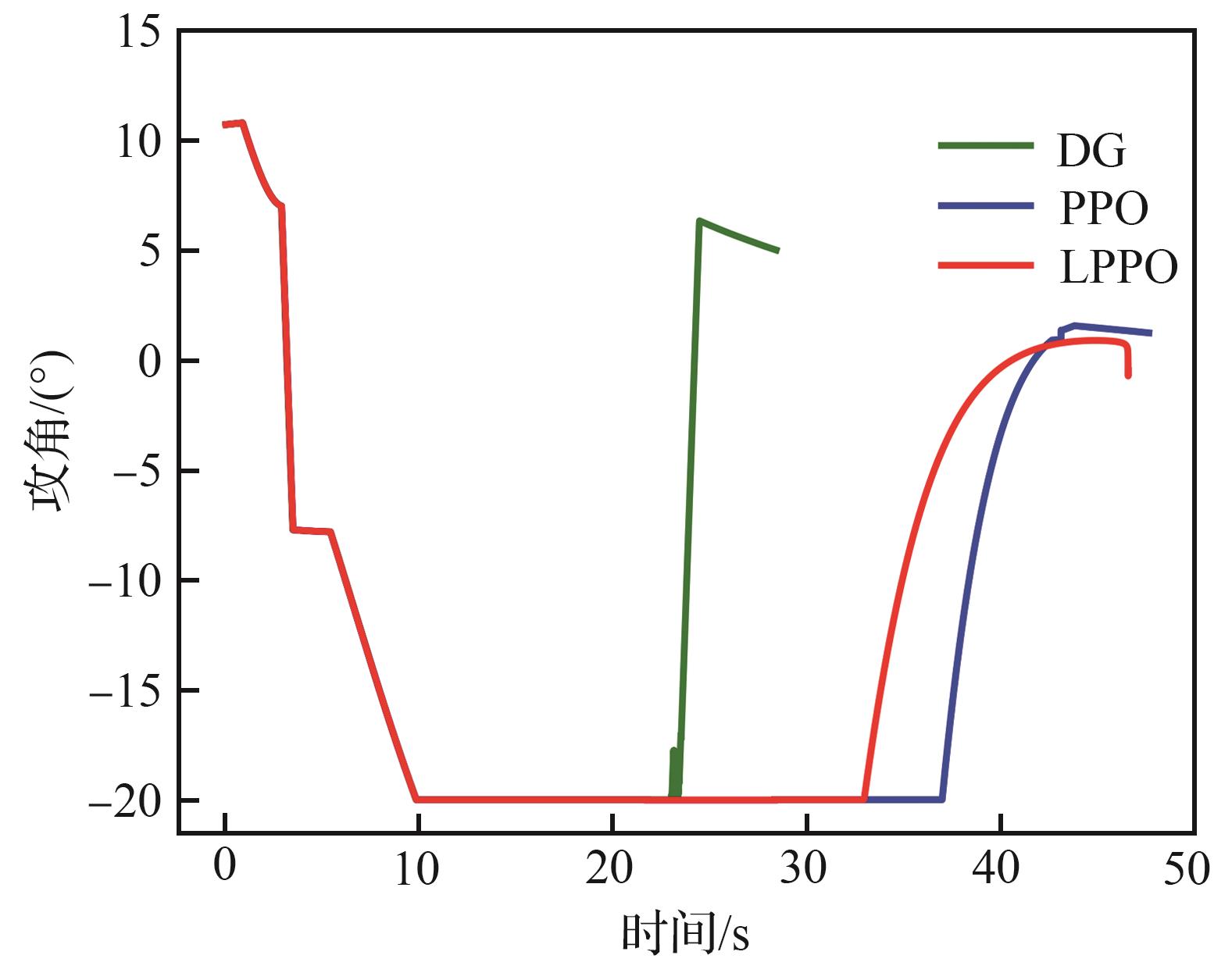

Fig.13

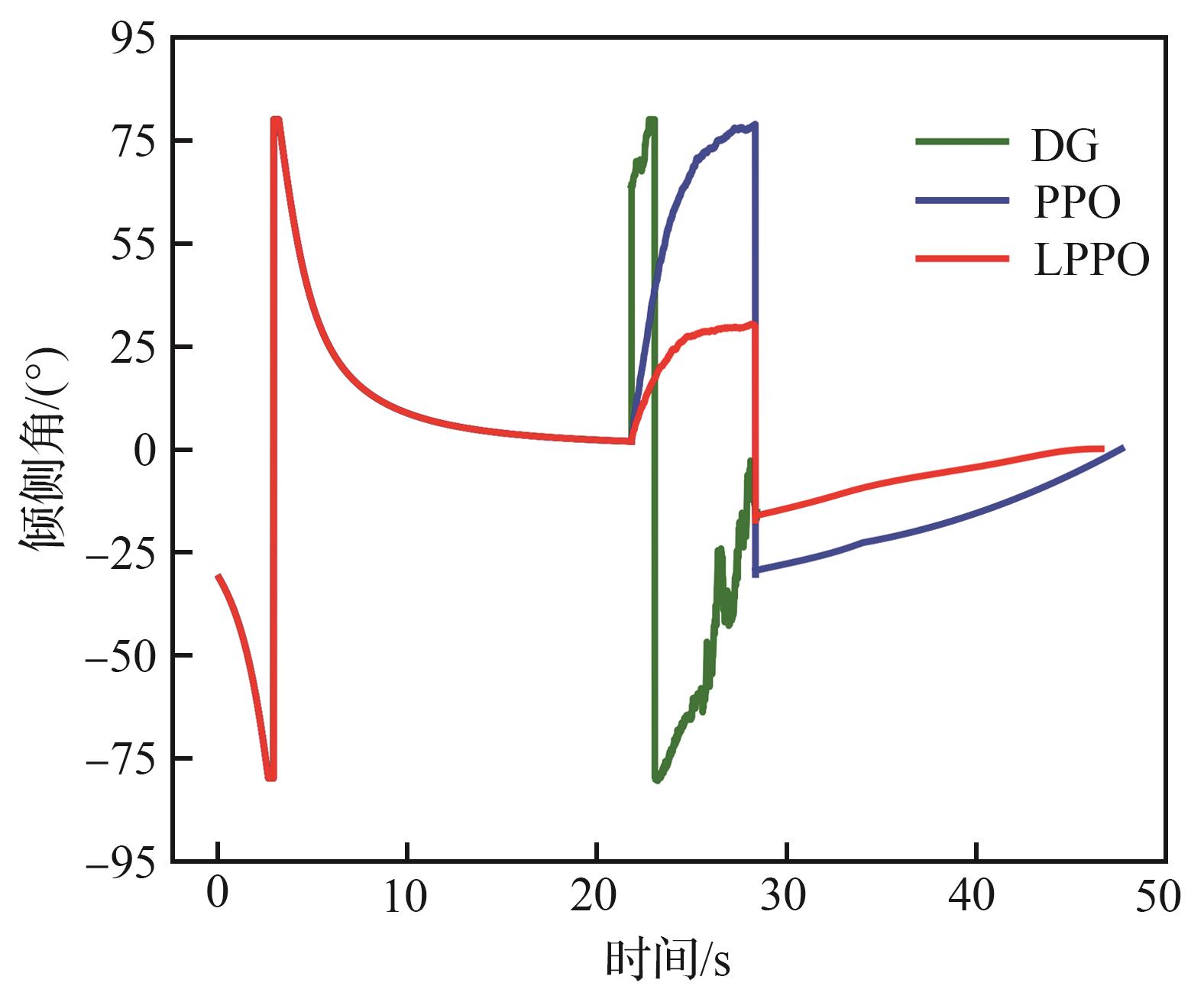

Fig.14

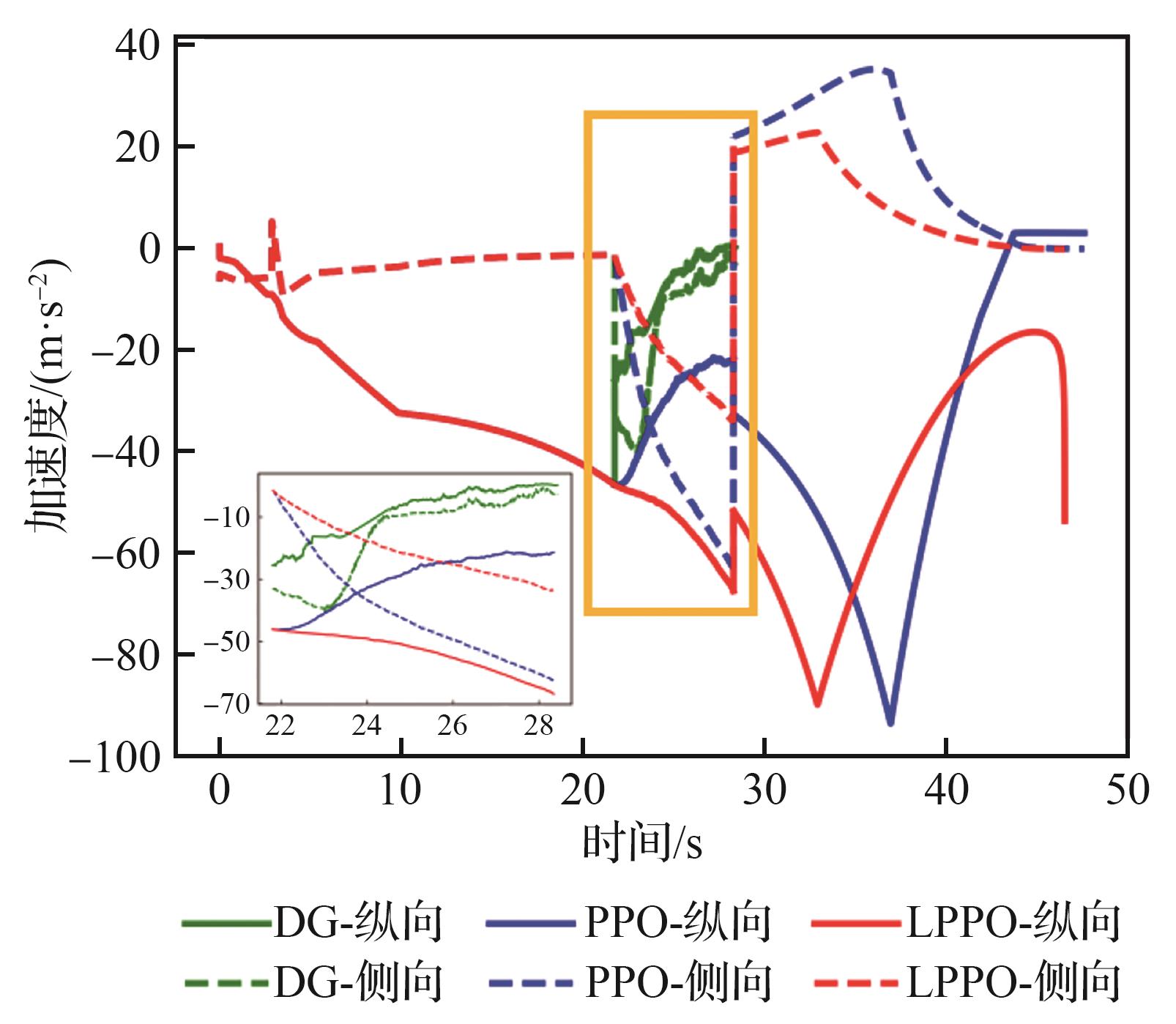

Fig.15

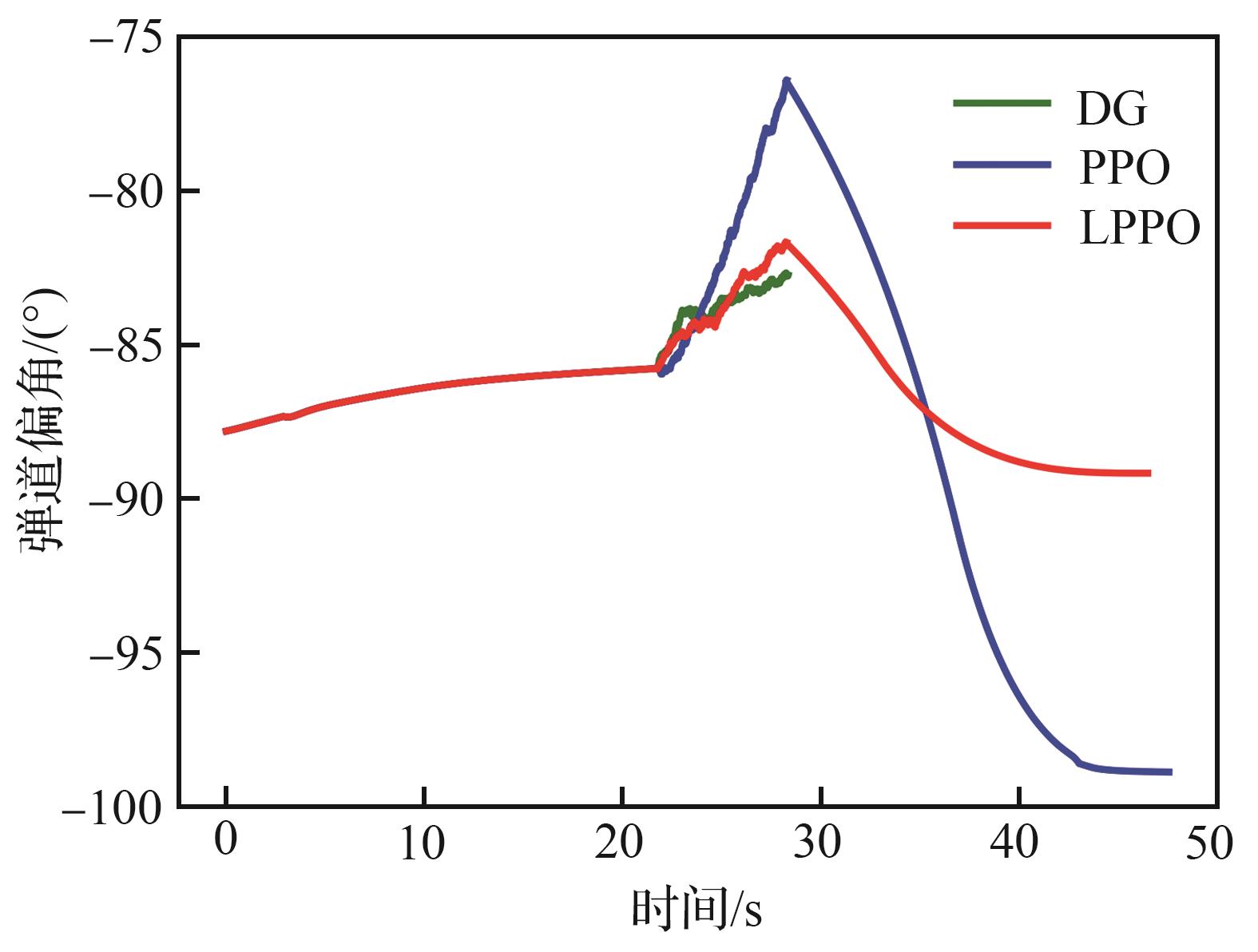

Fig.16

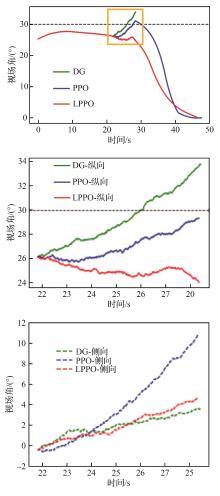

Fig.17

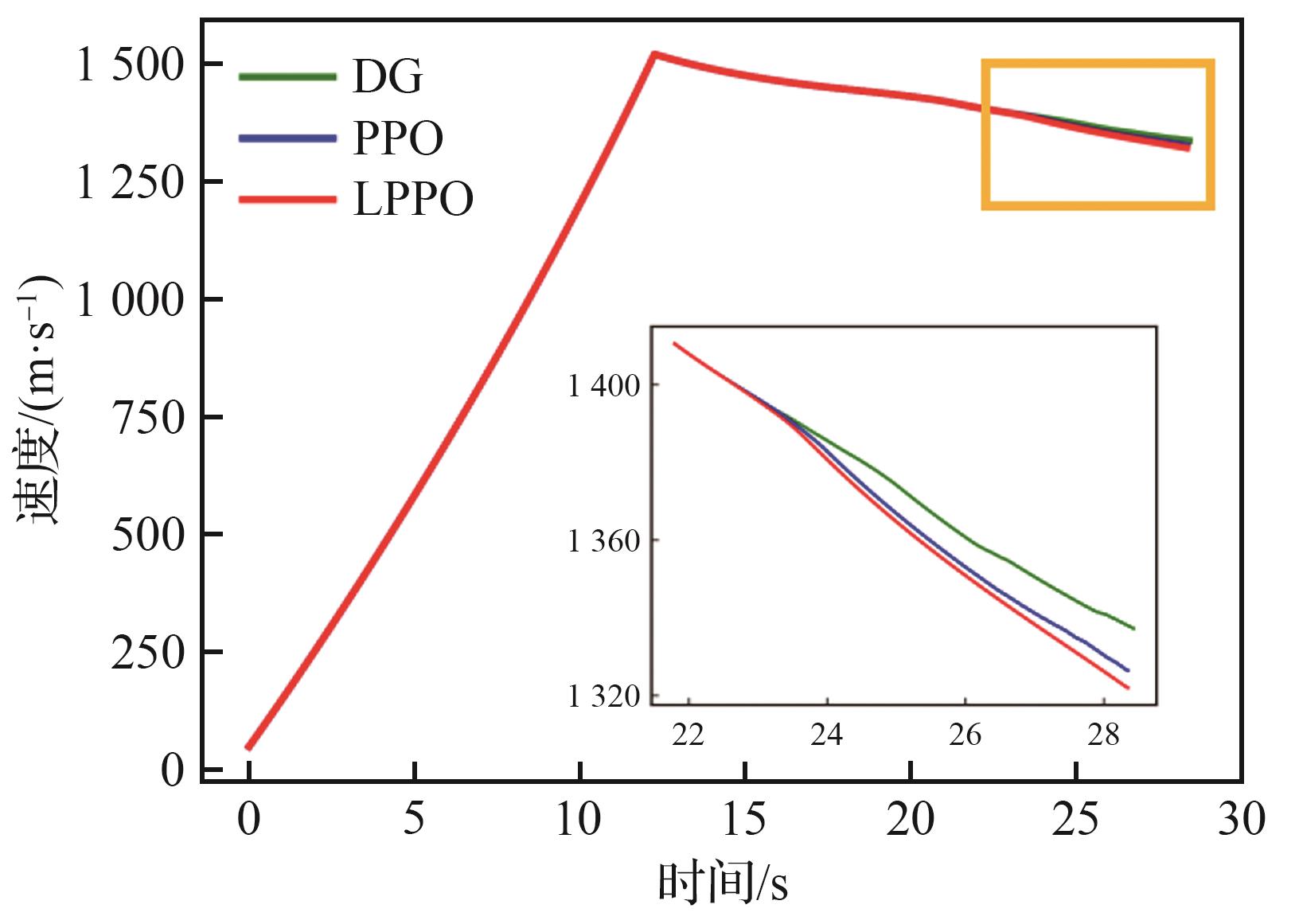

Fig.18

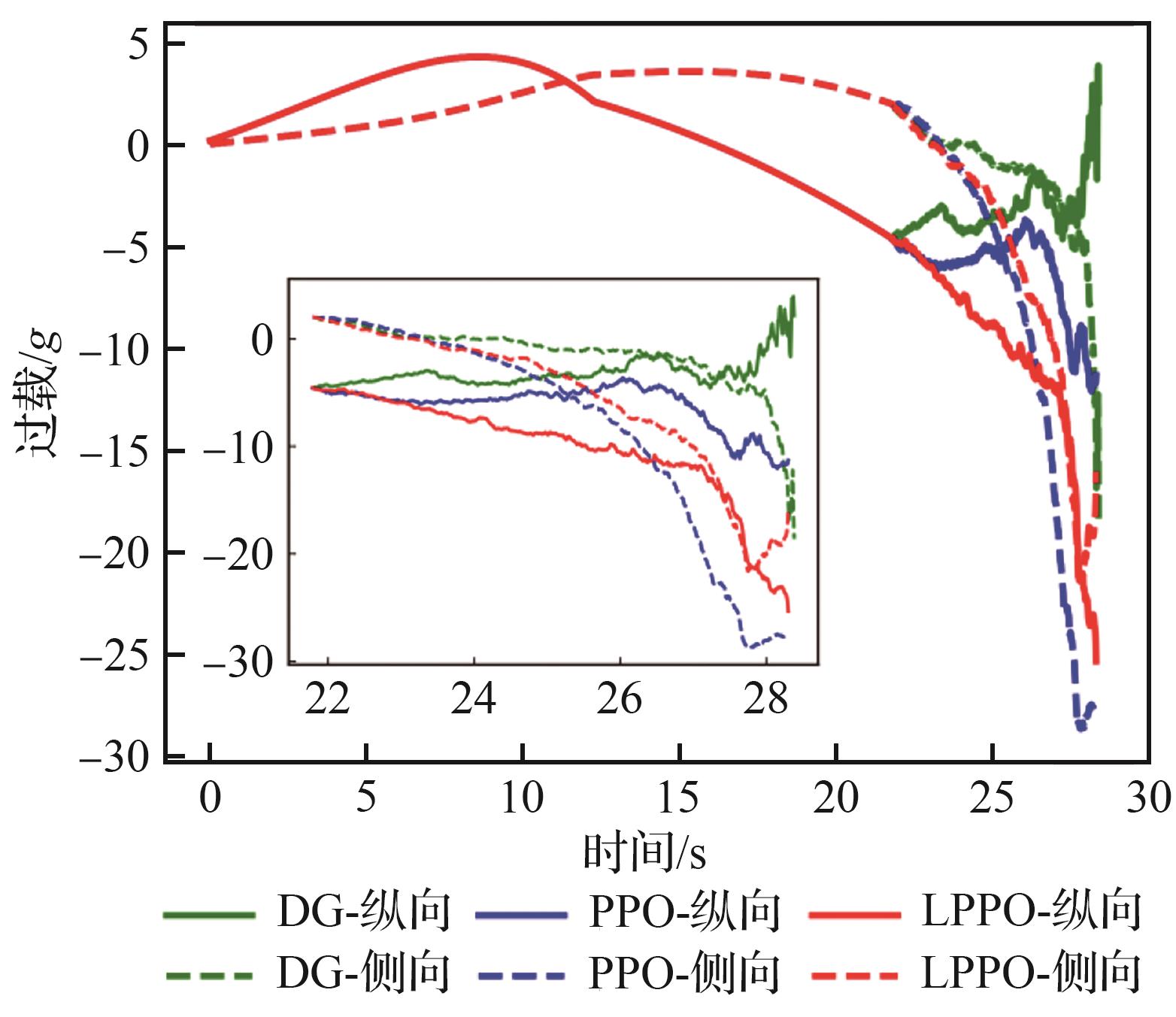

Fig.19

Fig.20

Fig.21

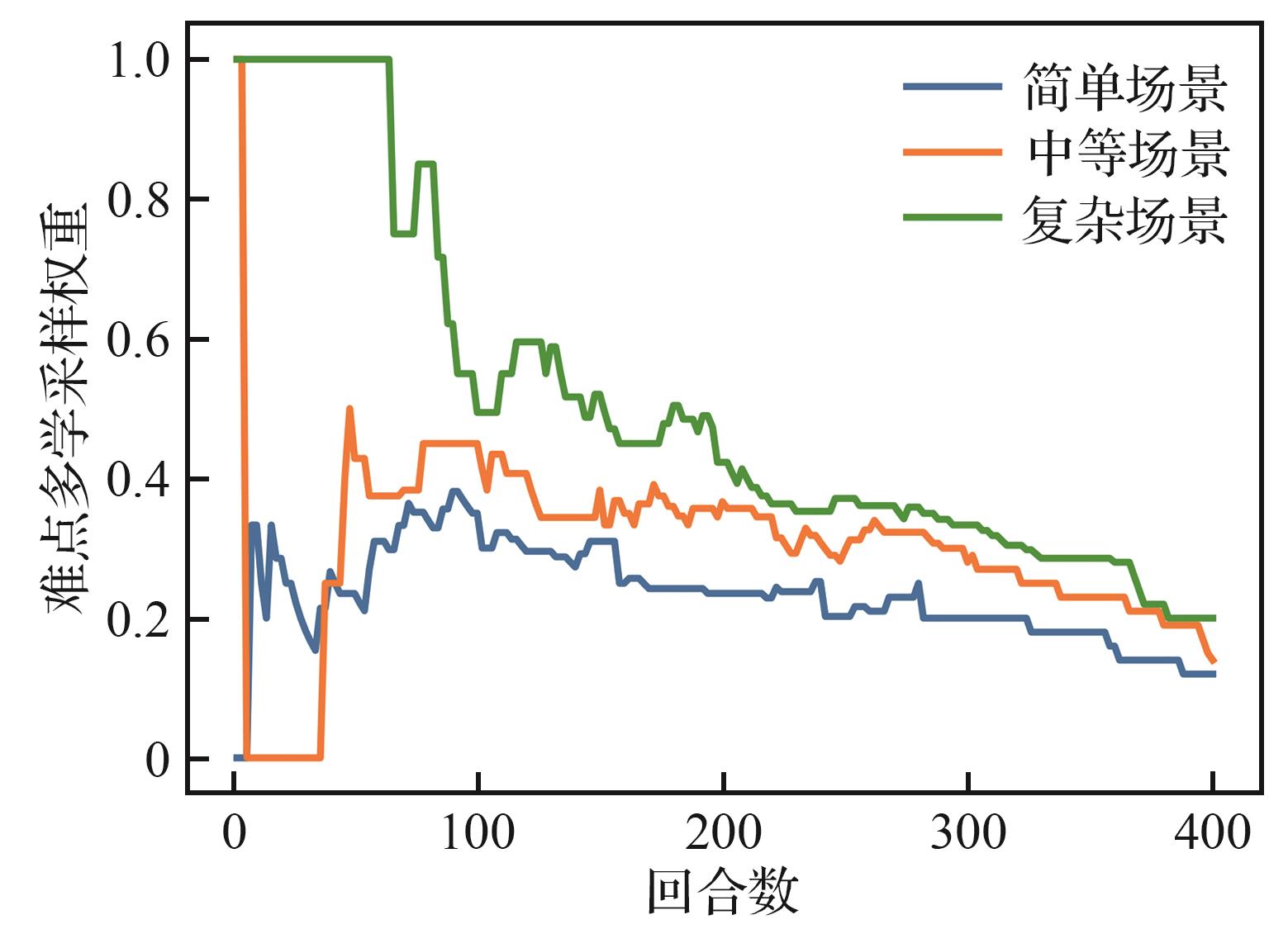

Fig.22

Fig.23

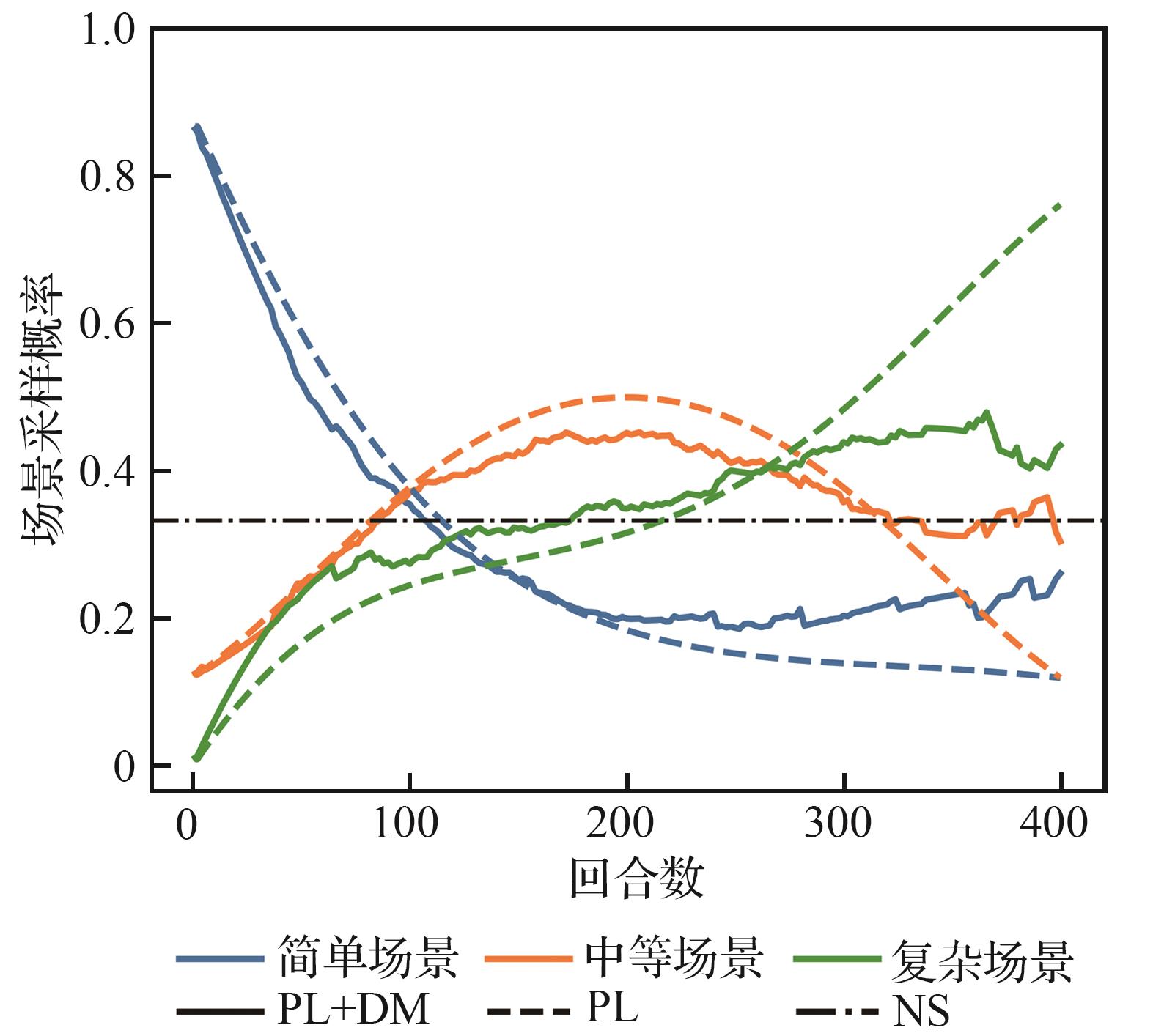

Fig.24

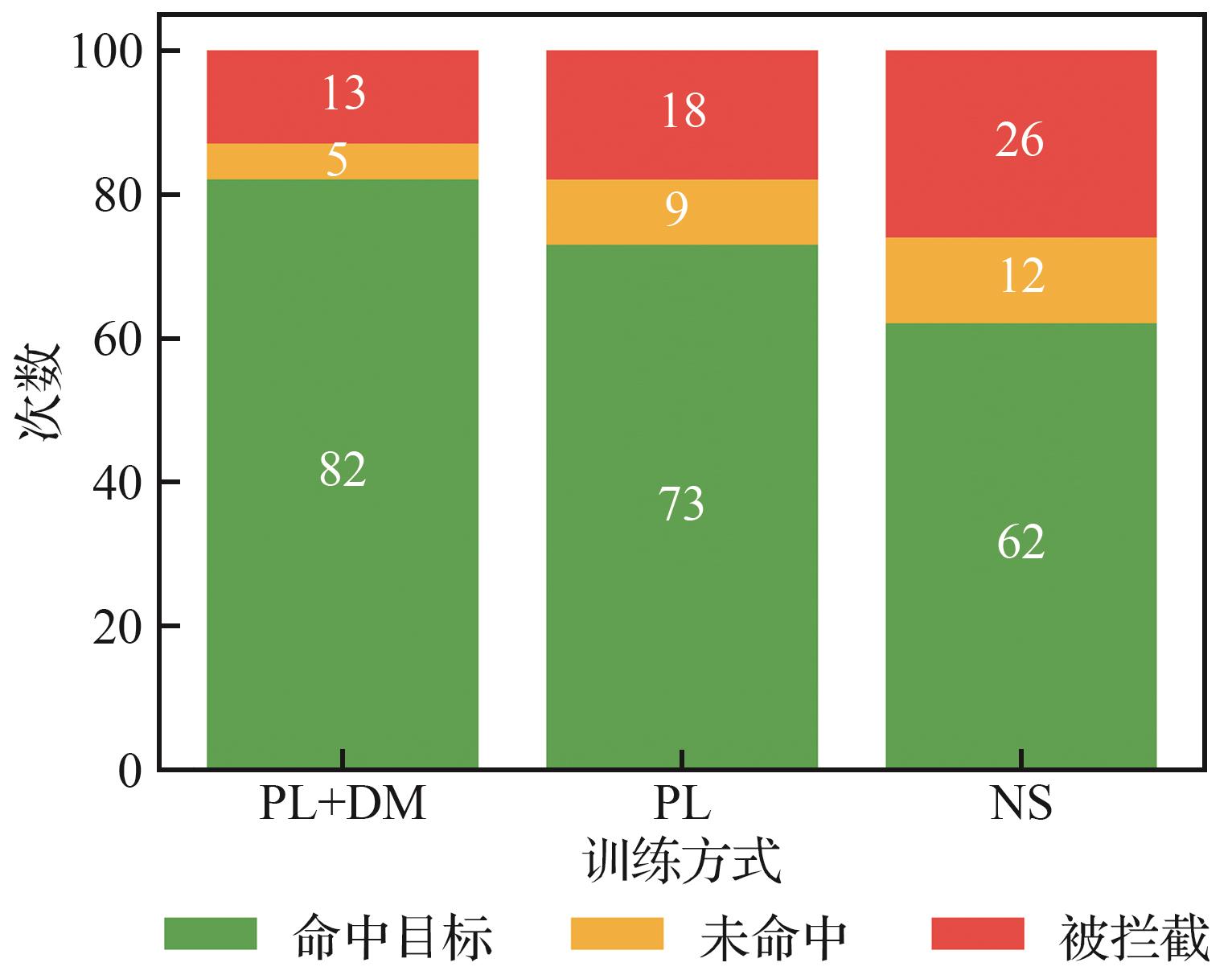

Fig.25

Fig.26

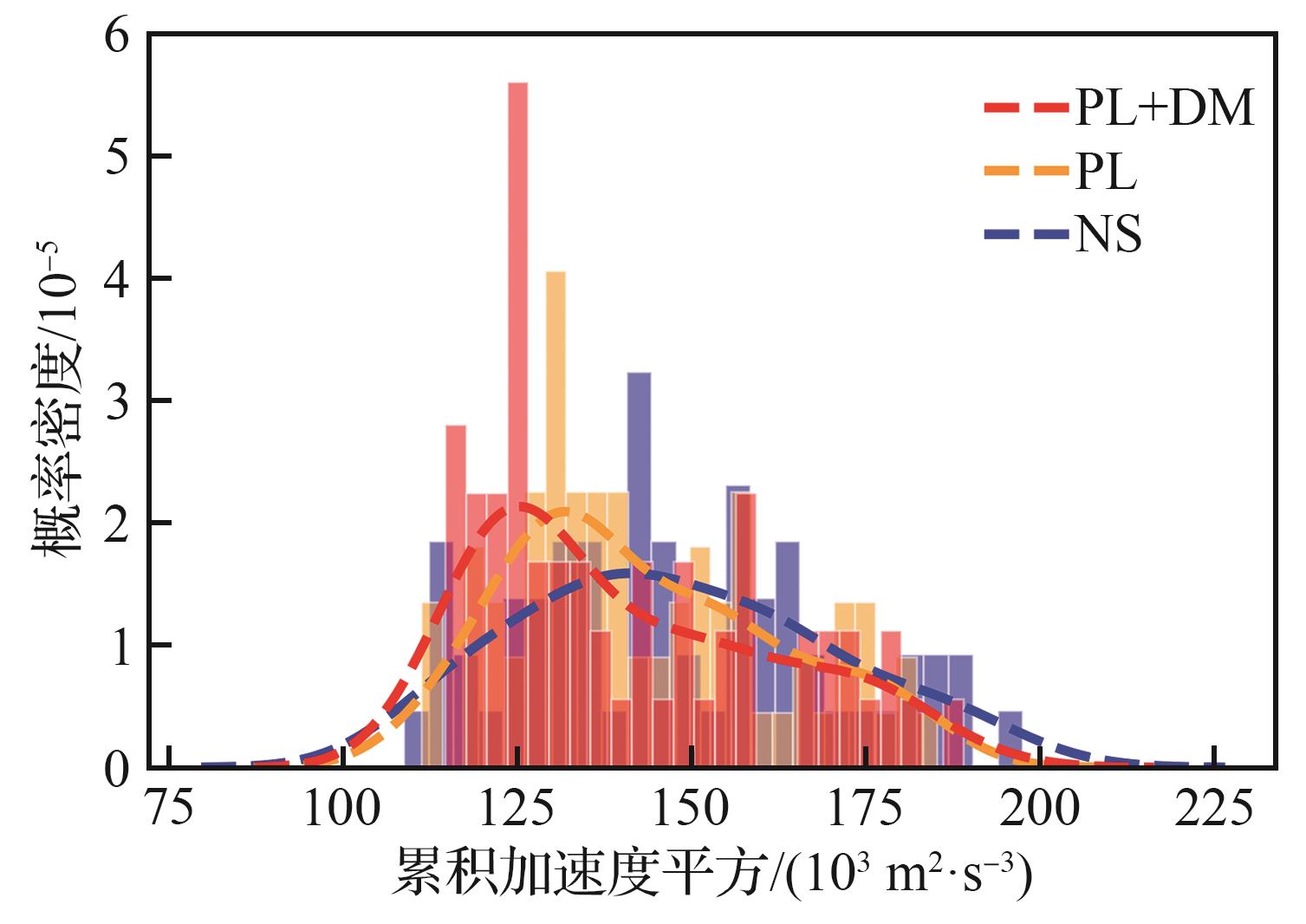

Fig.27

Table 7

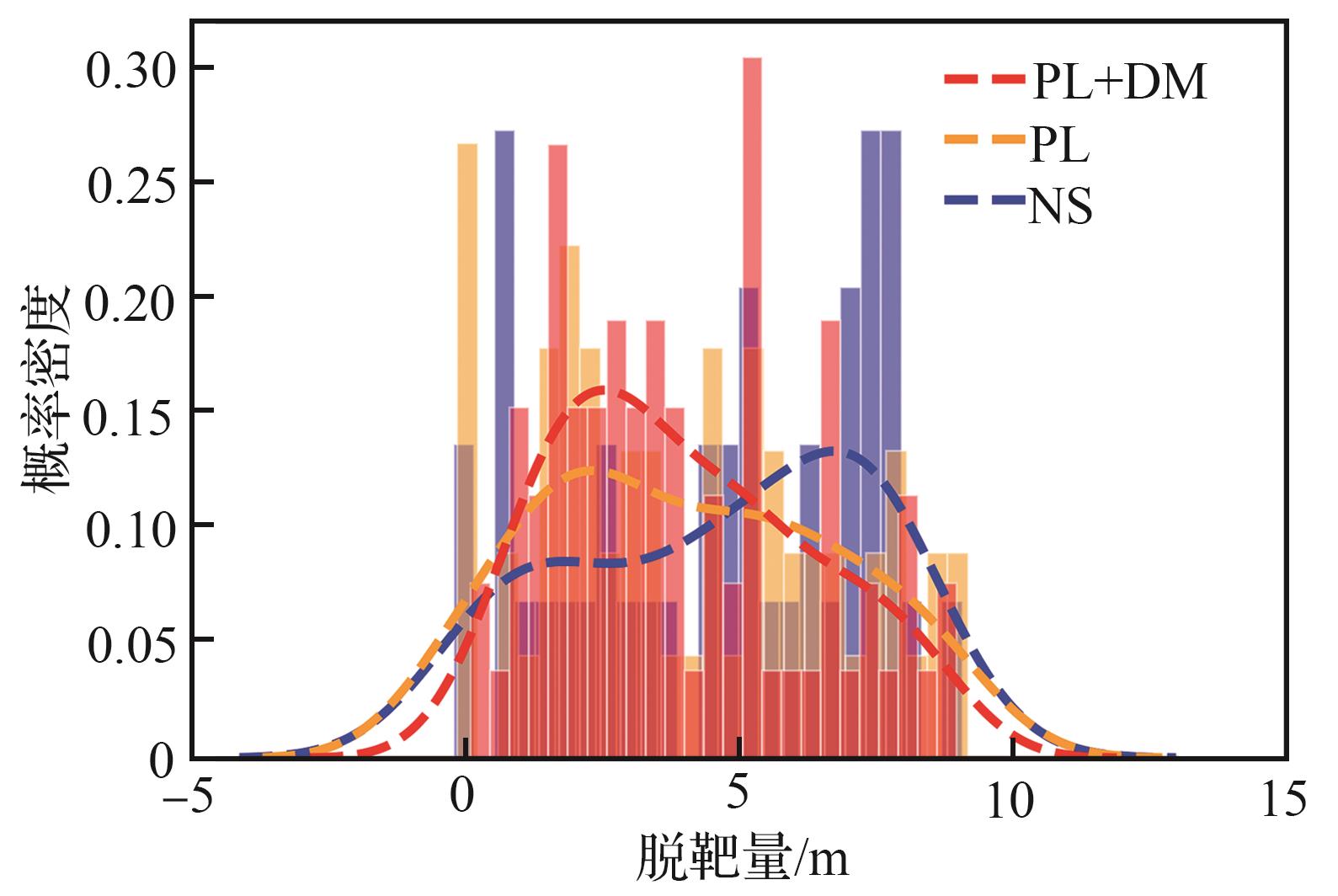

Performance comparison of penetration strategies with different training methods

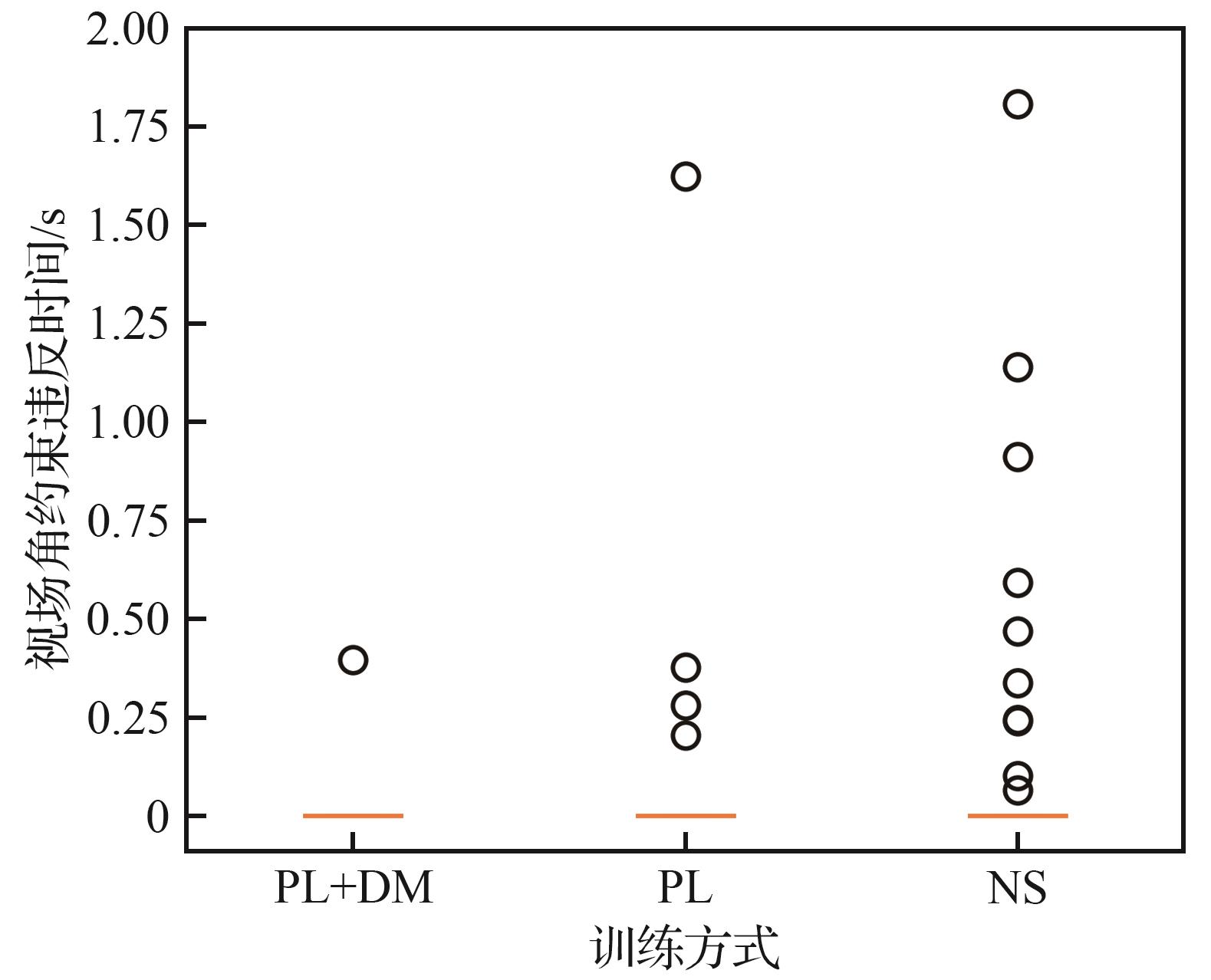

训练方式	脱靶量/m			累计加速度平方/（m²·s^-3）			视场角约束违反时间/s
训练方式	平均值	标准差	最大值	平均值	标准差	最大值	平均值	标准差	最大值	出现时段
PL+DM	4.14	2.26	9.06	140 350	18 547	183 948	0	0.04	0.38	$[T 1 + 6.02, T 2 - 0.11]$
PL	4.24	2.63	9.23	143 089	18 899	185 156	0.02	0.17	1.62	$[T 1 + 5.93, T 2 + 0.26]$
NS	4.83	2.65	9.26	147 701	21 884	197 382	0.06	0.24	1.81	$[T 1 + 5.81, T 2 + 1.08]$

Table 7

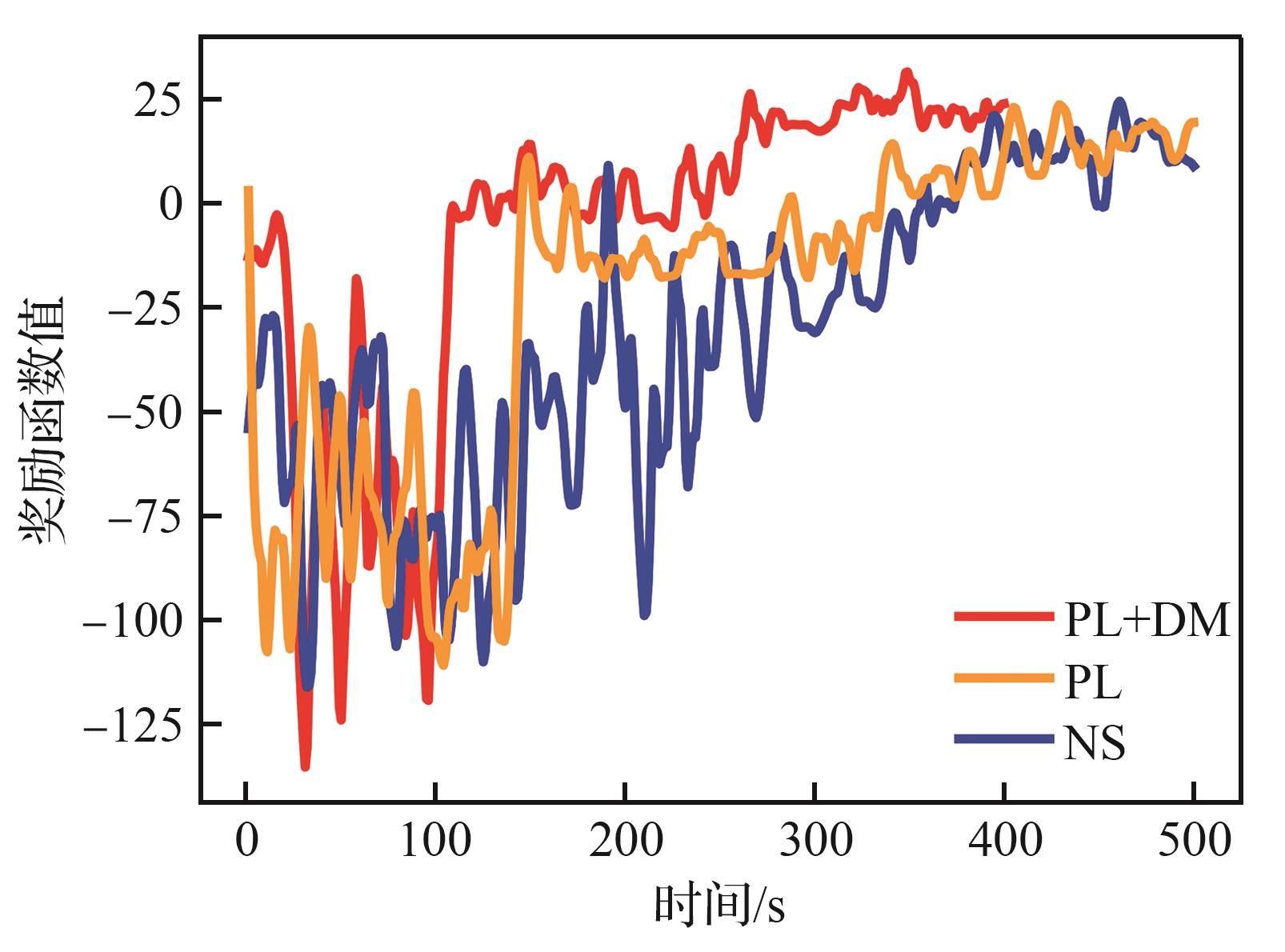

Fig.28

References 29
