BOS测量密度场泊松方程源项快速计算方法

doi:10.7527/S100-6893.2025.31713

Abstract

Abstract:

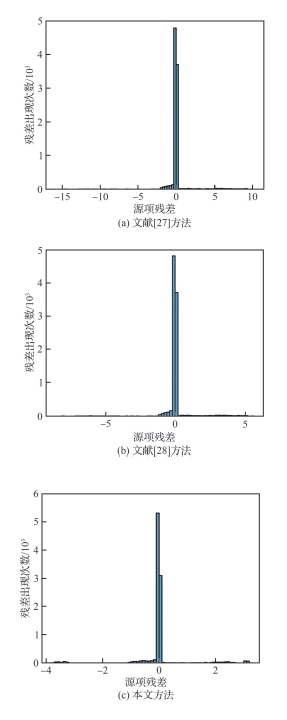

Background-Oriented Schlieren （BOS） is a vital non-intrusive method for measuring fluid density field. The finite difference method is employed to solve the Poisson equation for calculating the projected density field. However， existing approaches for computing the source term of the Poisson equation （which mainly includes the first-order partial derivatives of the light deflection angle at the grid nodes） are time-consuming and poor precision at discontinuities with abrupt changes. To address this issue， a fast calculation method of Poisson equation source term for BOS measuring density field is proposed. A Hash function between the point coordinates and the light deflection angle field data is presented to rapidly locate the BOS measurement points， their deflection angles in a local area centered around a given point， and the interpolation-based derivative formula for this local area are constructed. A region division method is proposed for areas with abrupt changes in light deflection angle， where first-order partial derivatives are computed separately using Hash tables and local interpolation. Simulation results show a 56.66% reduction in residuals and a 75.8% decrease in peak error near abrupt changes. For a cavity wind tunnel model， the method yields a finer density field and achieves a 411.85 speedup over existing Poisson source term methods. Two supersonic wind tunnel tests， on a 7° cone-cylinder and a sonic boom model， validate the method， with weak head shock waves closely matching theory and a maximum density ratio error of only 3.9%. The method proposed in this paper therefore improves the rapid and accuracy of the density field measurement， and can capture weak shock waves， offering substantial application value.

Key words: density field reconstruction, light deflection angle, background-oriented schlieren, Poisson equation, Hash function

CLC Number:

V556.5

Jian ZHANG, Zhengyu ZHANG, Yang YANG, Fengxue QIAN, Xiaoxia LI, Caigang WANG, Jiajie LUO. Fast calculation method of Poisson equation source term for BOS measuring density field[J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(17): 131713.

Figures/Tables 21

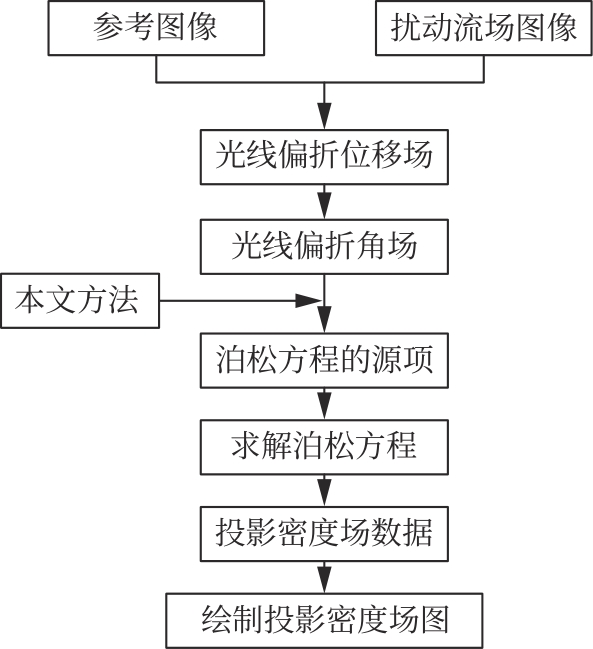

Fig.1

Table 1

Fig.2

Fig.3

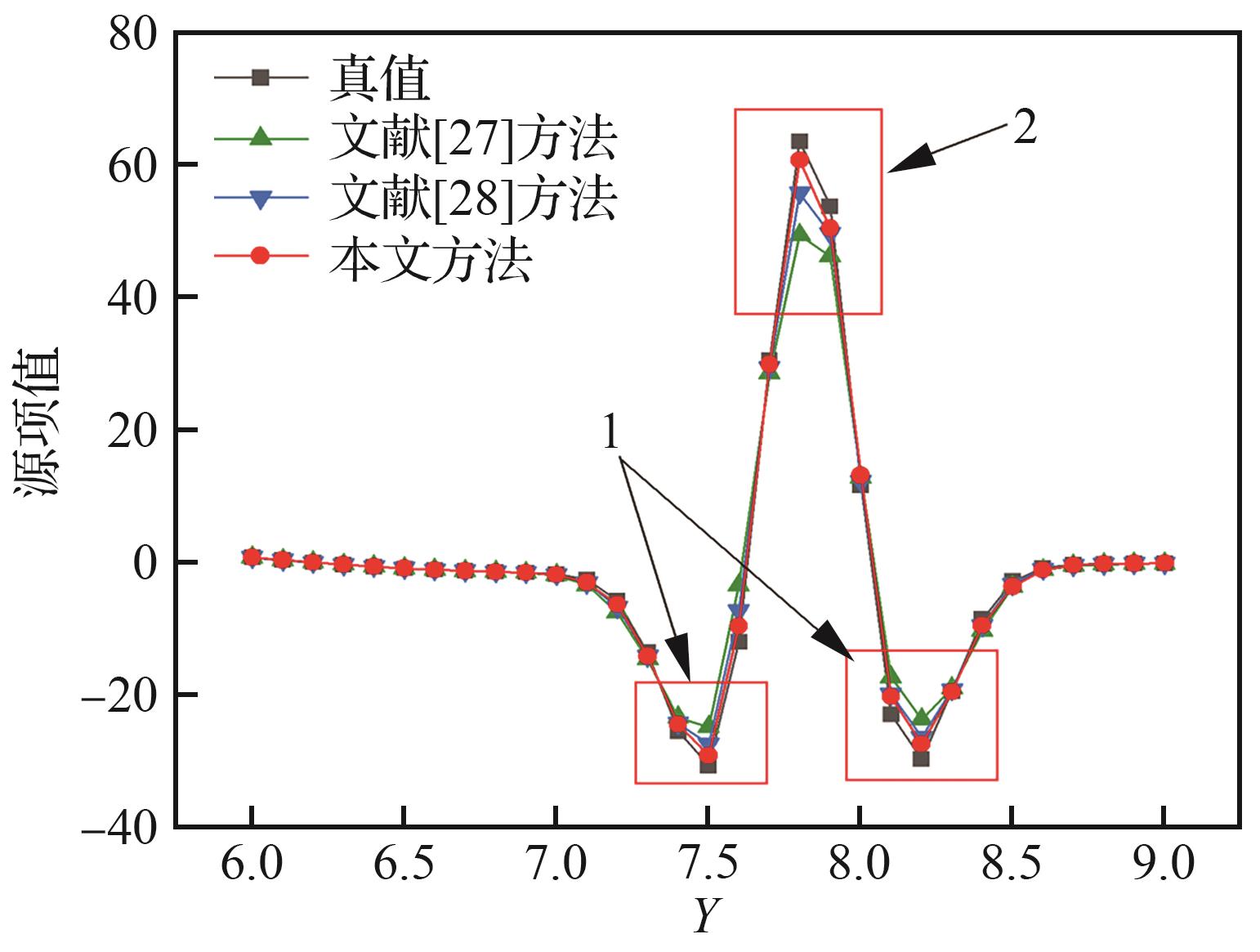

Fig.4

Fig.5

Fig.6

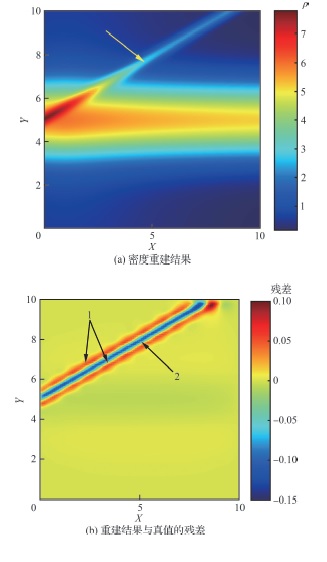

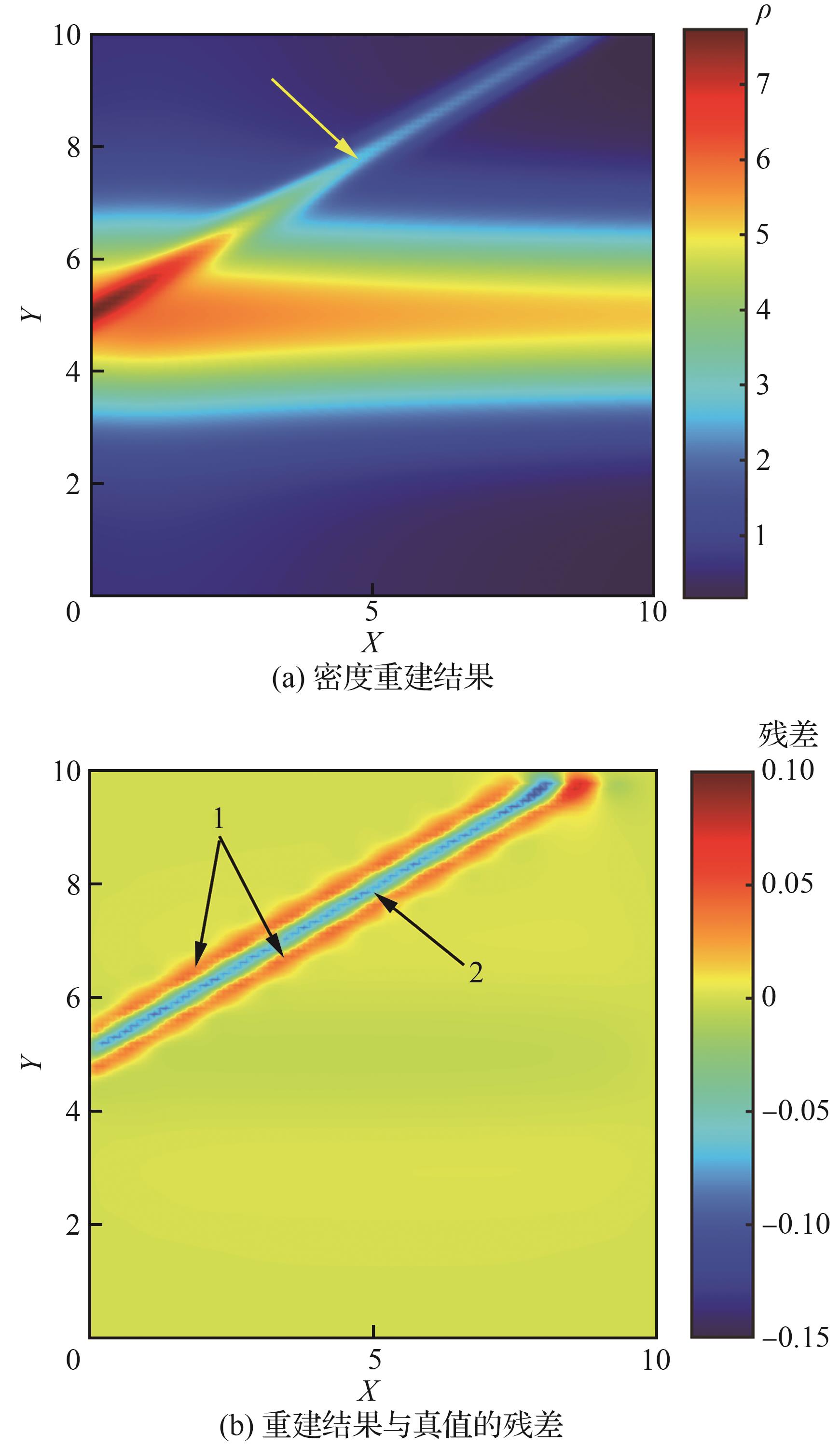

Fig.7

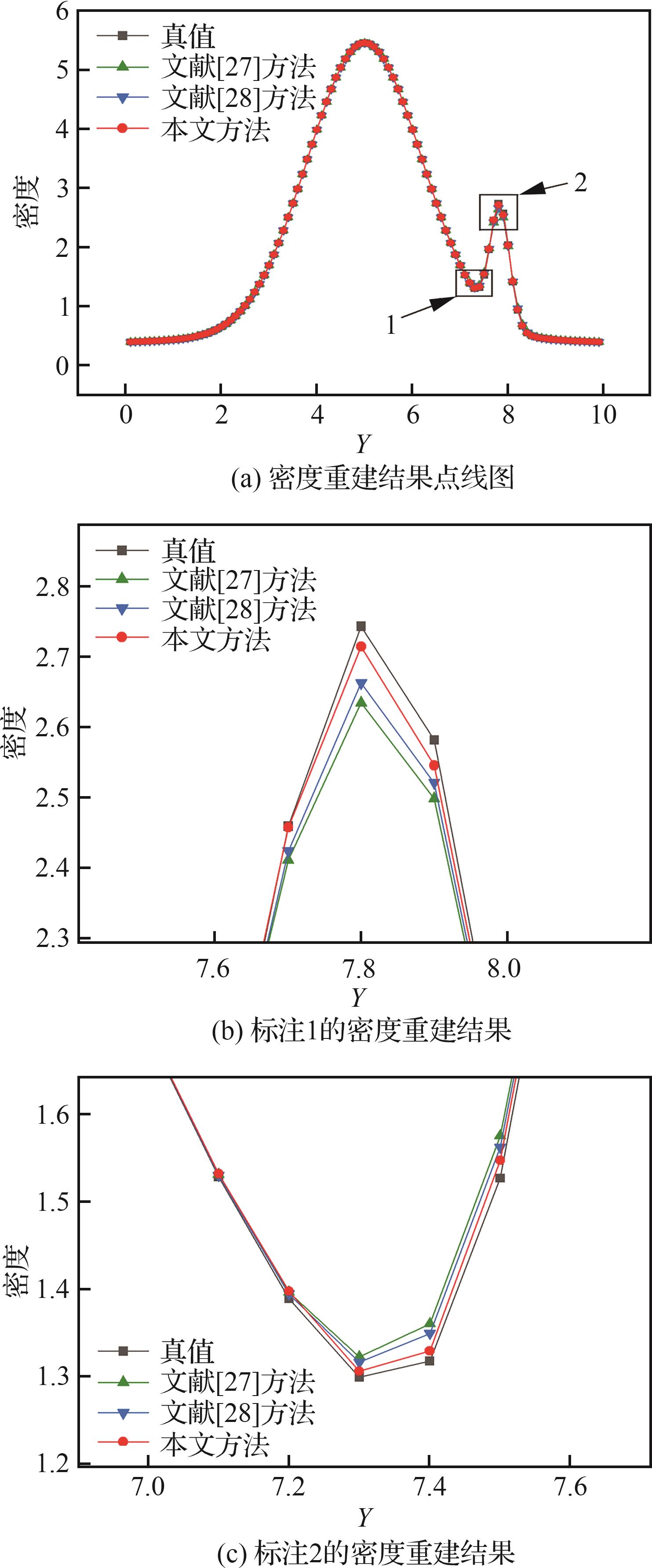

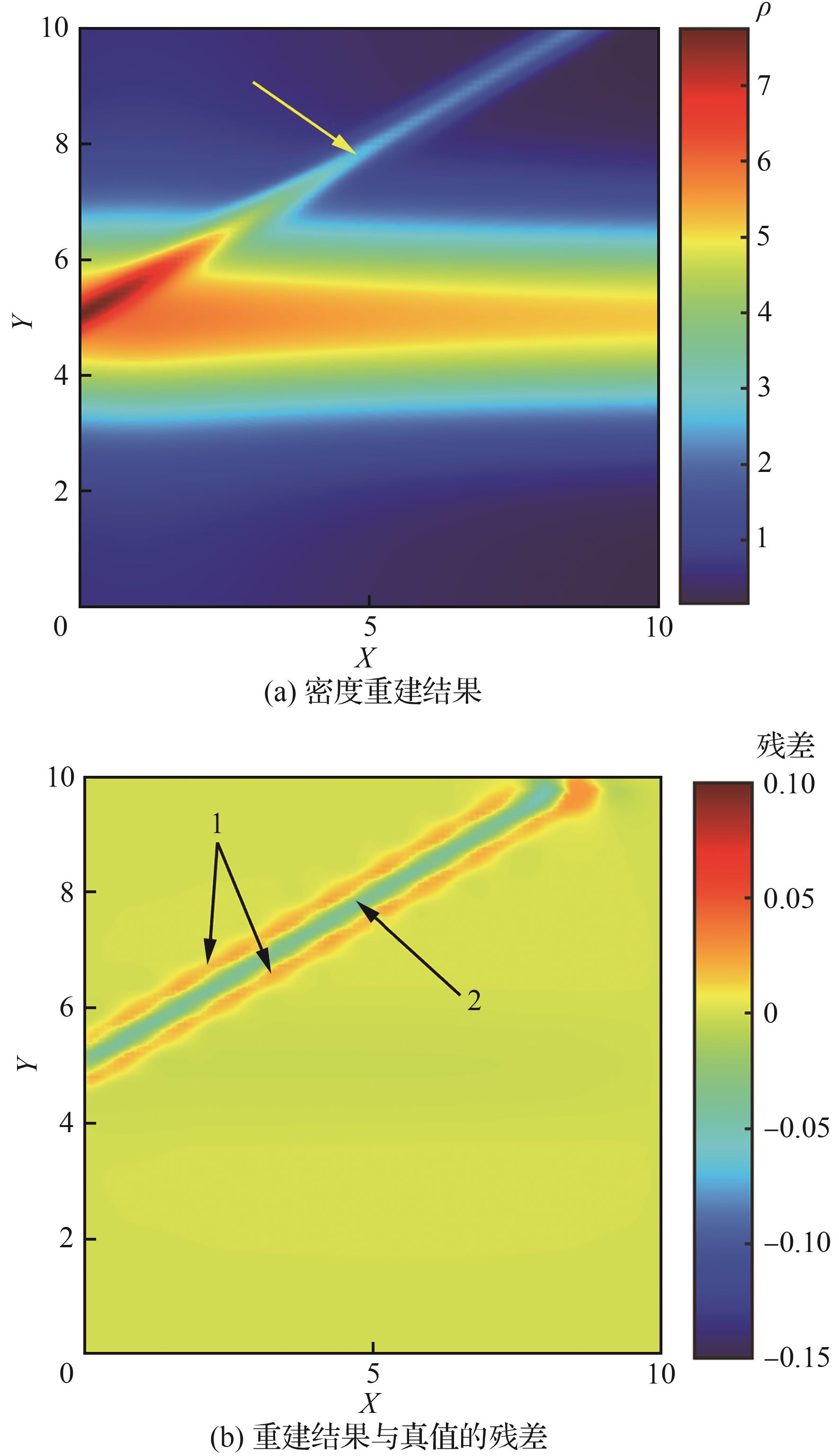

Fig.8

Table 2

Fig.9

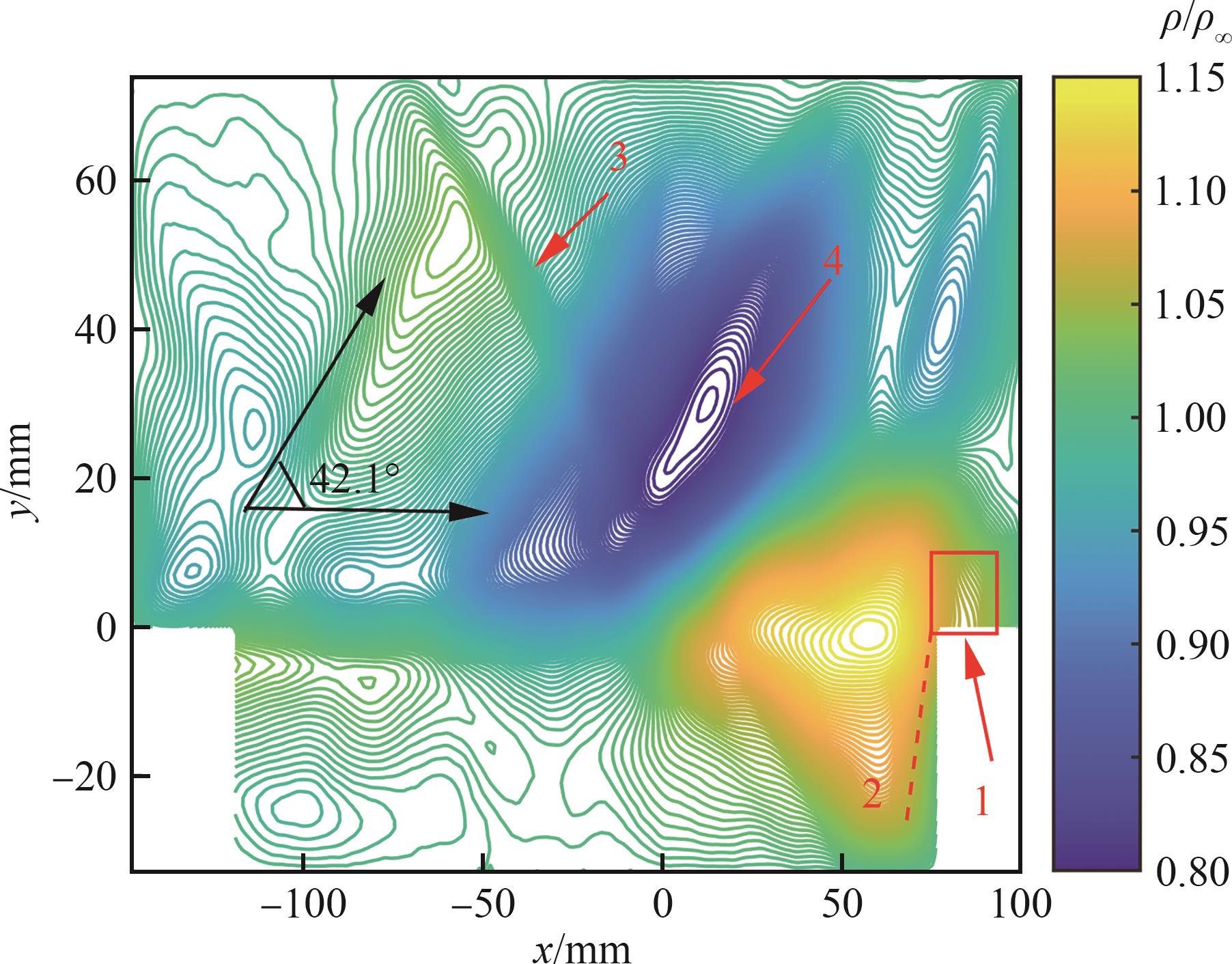

Fig.10

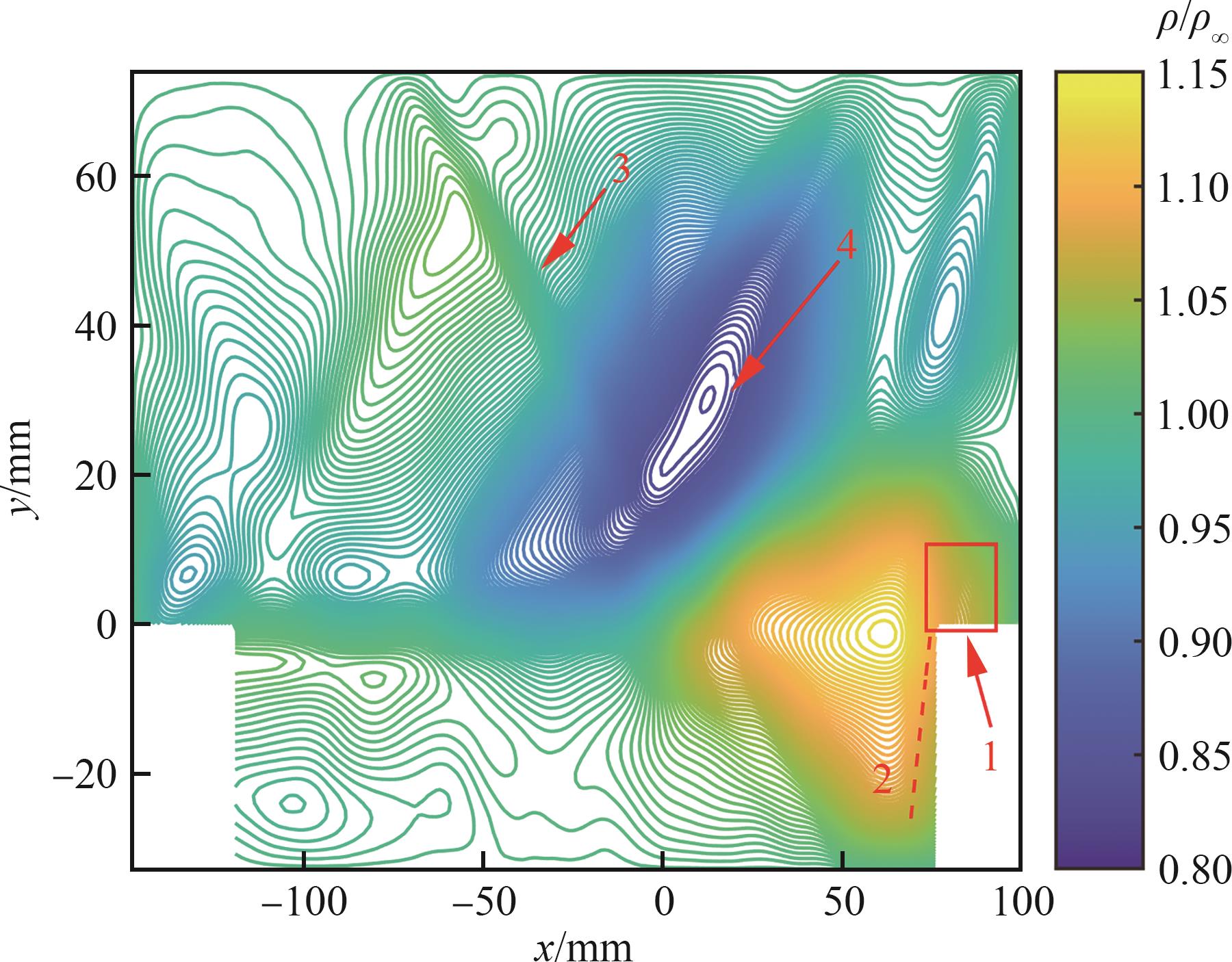

Fig.11

Table 3

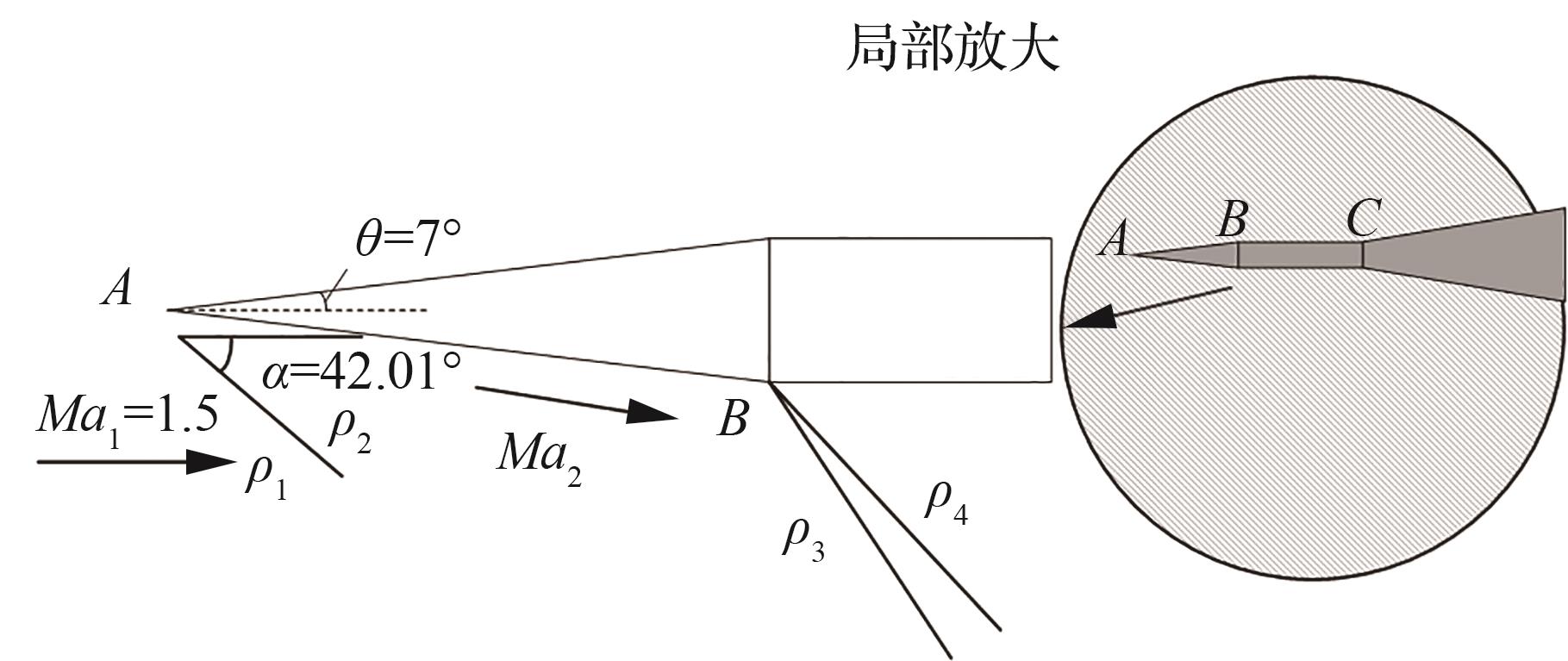

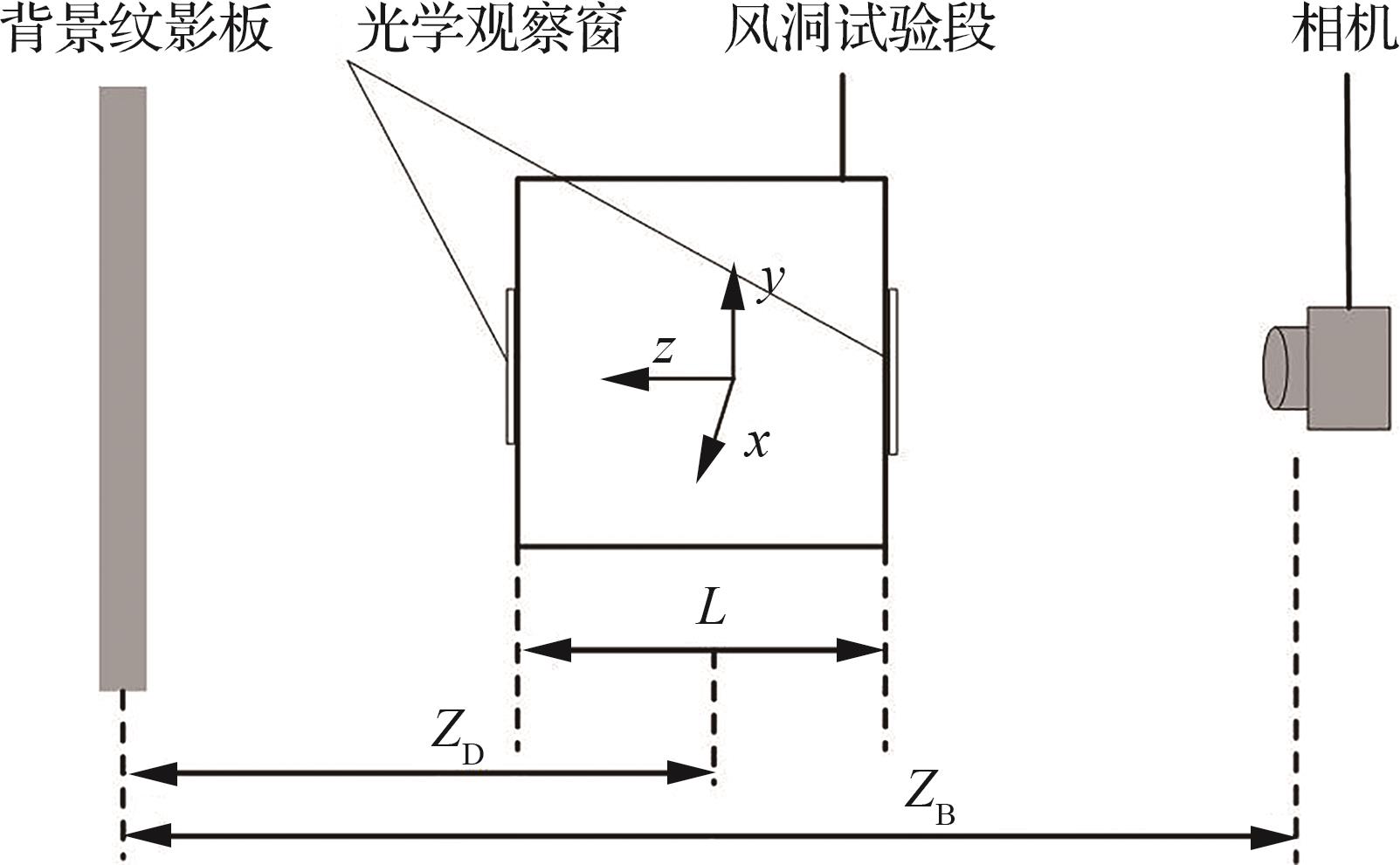

Fig.12

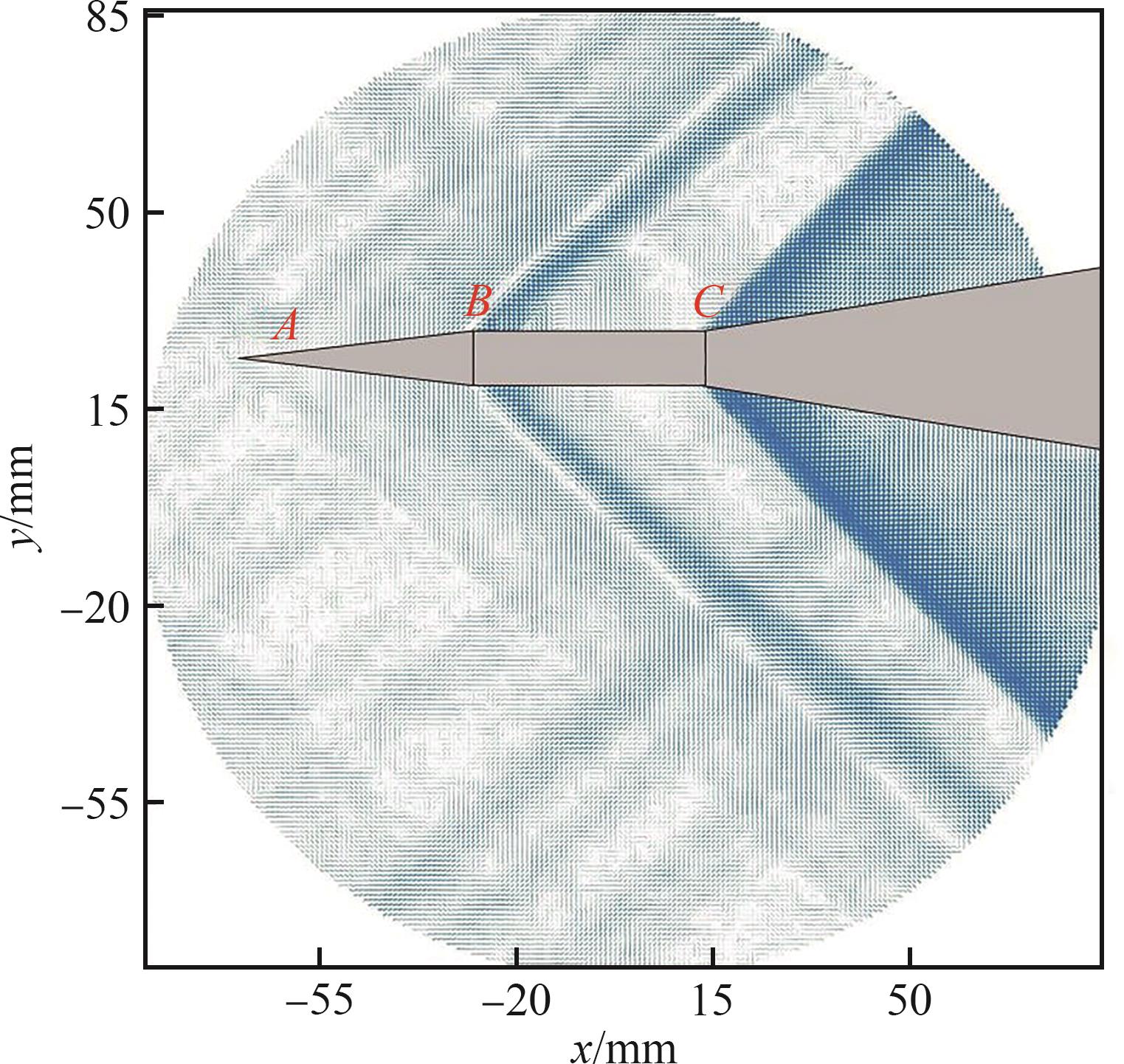

Fig.13

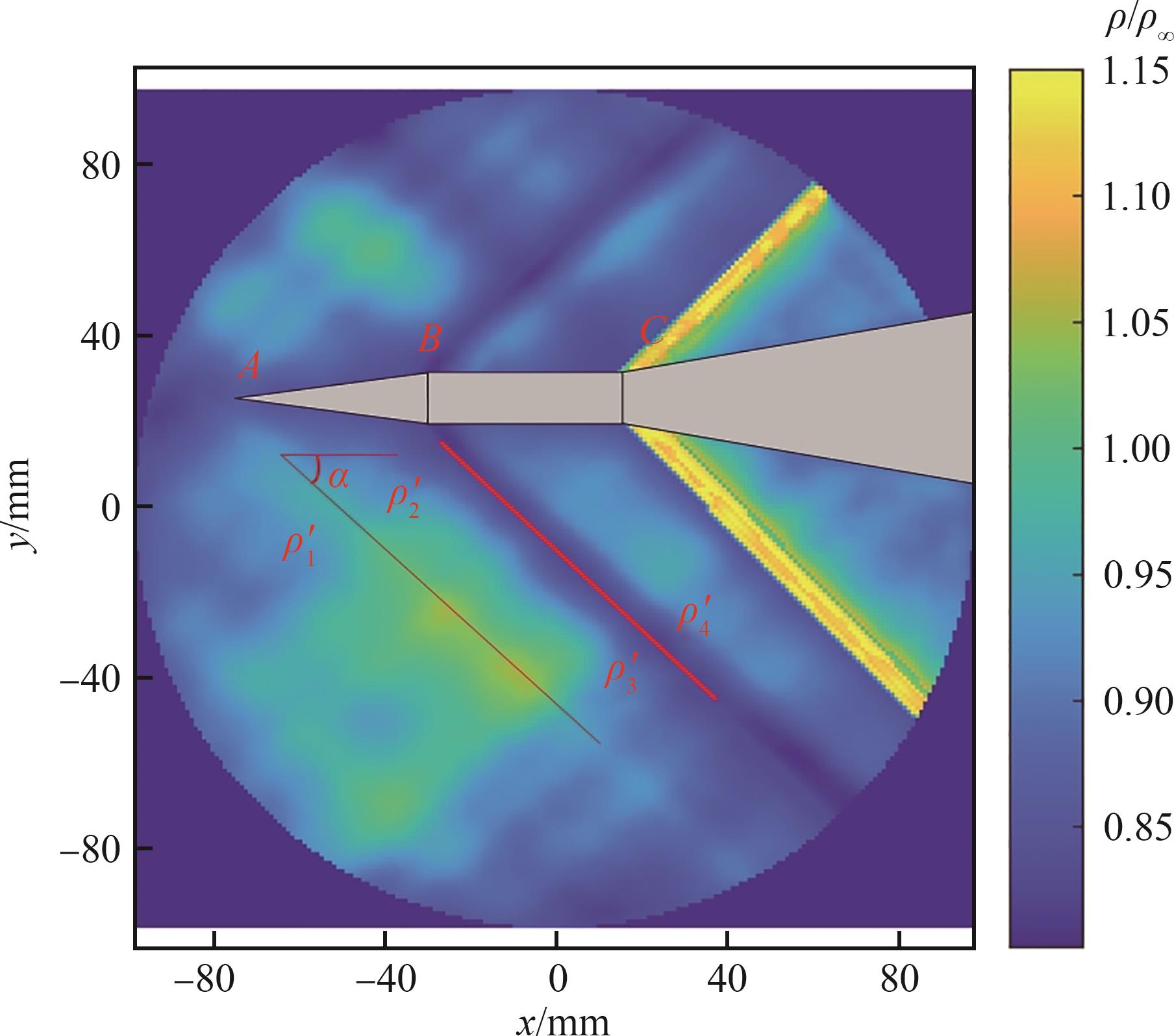

Fig.14

Fig.15

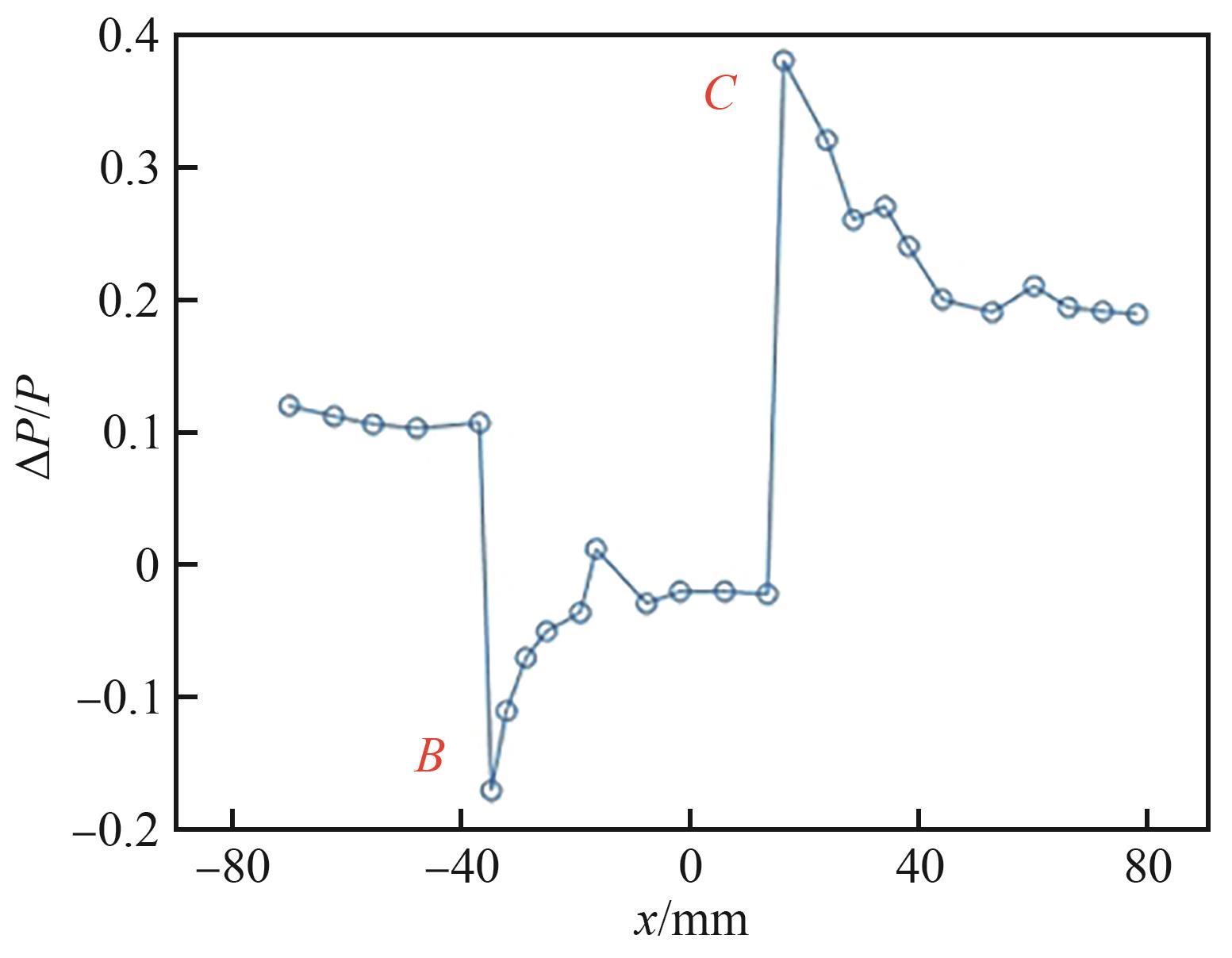

Fig.16

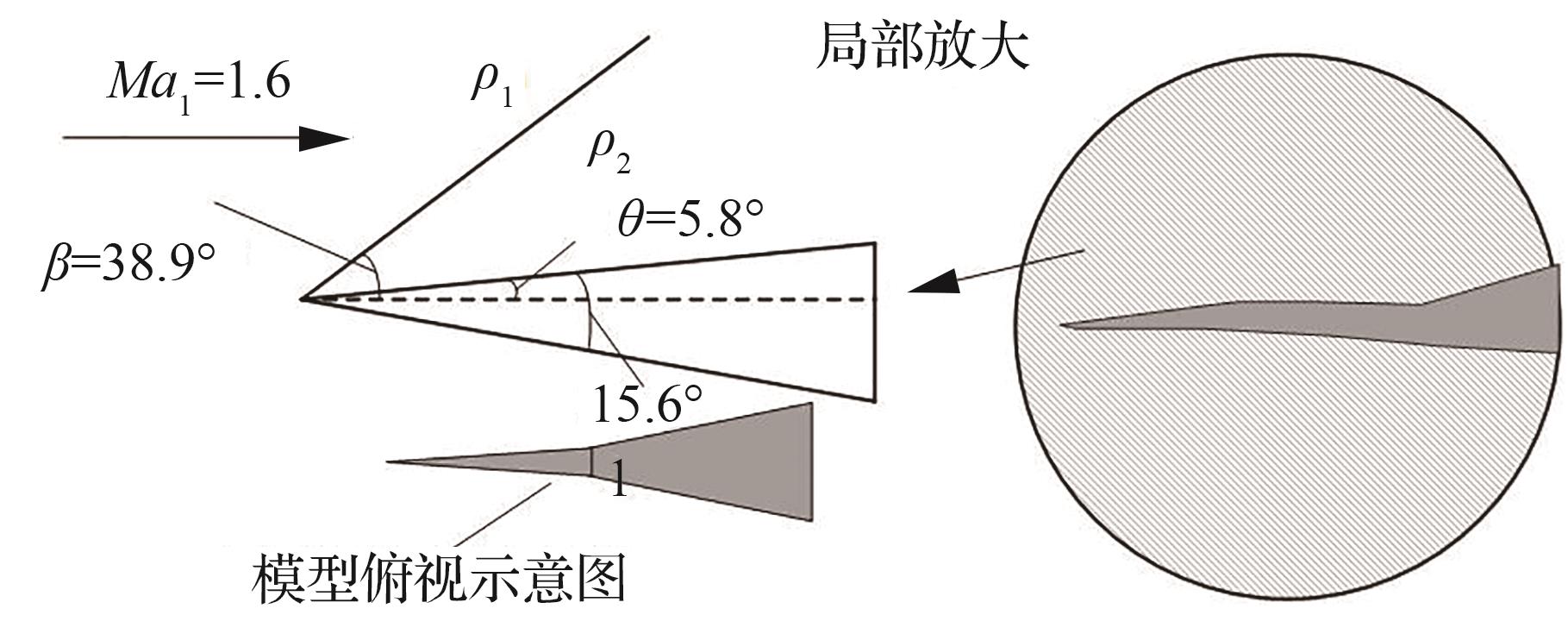

Fig.17

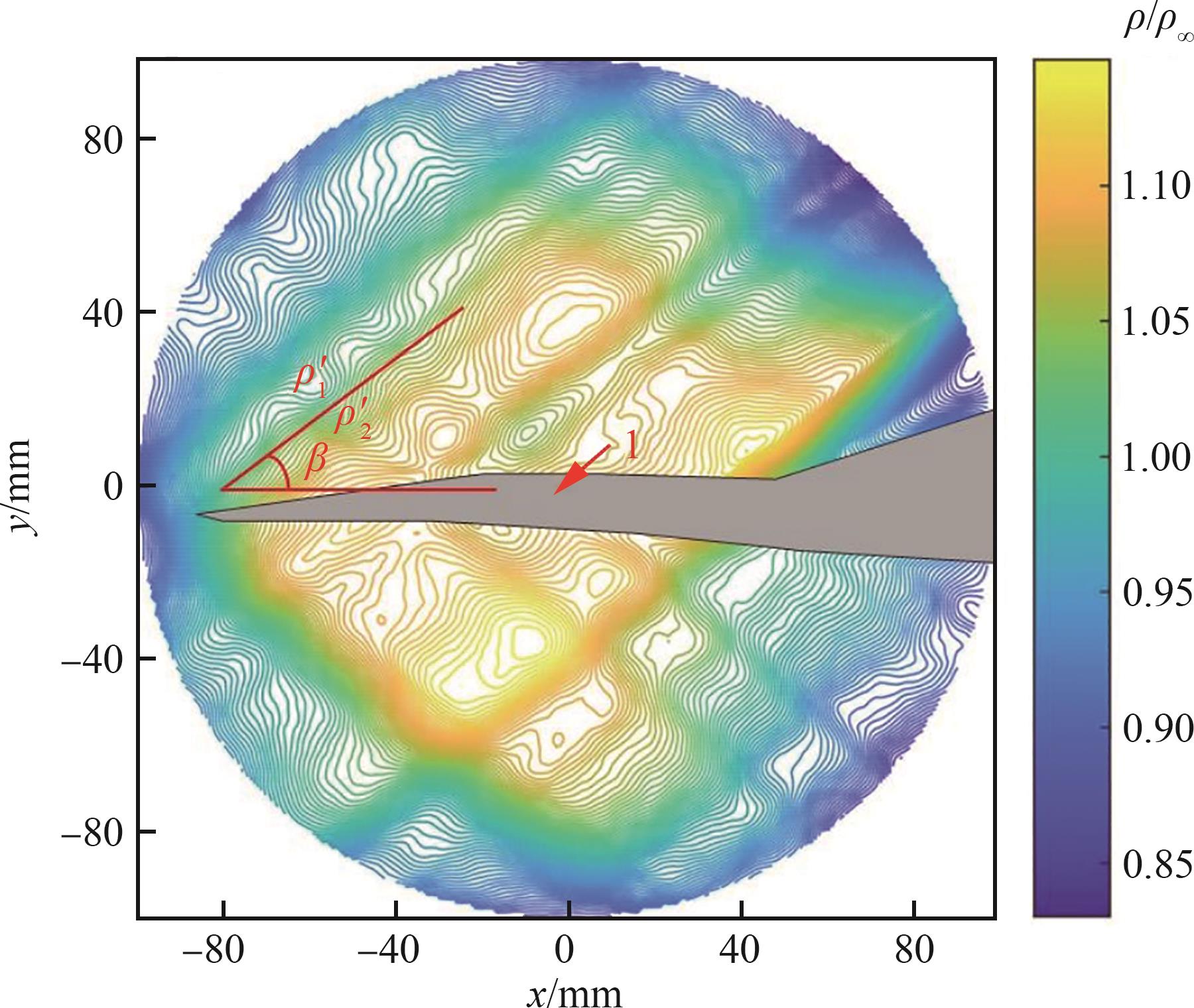

Fig.18

References 32

[1]	YANG C H， ZHANG H， FU W D. Pattern control for large-scale spacecraft swarms in elliptic orbits via density fields［J］. Chinese Journal of Aeronautics， 2022， 35（3）： 367-379.
[2]	ZHU W B， BONS J， GREGORY J. Boundary layer and near wake measurements of a two-dimensional airfoil with background-oriented schlieren method［J］. Experiments in Fluids， 2022， 64（1）： 03550.
[3]	吴军，祝玉恒，王豪爽，等. 采用纹影法解耦流速与密度场的高速气流场压力分布重构方法［J］. 光学学报， 2023， 43（11）： 71-80.
	WU J， ZHU Y H， WANG H S， et al. Reconstruction of pressure distribution in high-velocity airflow fields by schlieren decoupling of velocity and density fields［J］. Acta Optica Sinica， 2023， 43（11）： 71-80 （in Chinese）.
[4]	宋家辉，许爱国，苗龙，等. 激波/平板层流边界层干扰熵增特性［J］. 航空学报， 2023， 44（21）： 528520.
	SONG J H， XU A G， MIAO L， et al. Entropy increase characteristics of shock wave/plate laminar boundary layer interaction［J］. Acta Aeronautica et Astronautica Sinica， 2023， 44（21）： 528520 （in Chinese）.
[5]	孙佳濛，左光，徐艺哲，等. 临近空间高超声速飞行器武器投放方案数值模拟［J］. 航空学报， 2023， 44（13）： 127808.
	SUN J M， ZUO G， XU Y Z， et al. Numerical simulation of weapon delivery schemes for hypersonic vehicles in near space［J］. Acta Aeronautica et Astronautica Sinica， 2023， 44（13）： 127808 （in Chinese）.
[6]	CHEN F， LIU H. Particle image velocimetry for combustion measurements： Applications and developments［J］. Chinese Journal of Aeronautics， 2018， 31（7）： 1407-1427.
[7]	GUO G M， LIU H. Density and temperature reconstruction of a flame-induced distorted flow field based on background-oriented schlieren （BOS） technique［J］. Chinese Physics B， 2017， 26（6）： 064701.
[8]	RÜCKERT F U， LEHSER-PFEFFERMANN D， HÜBNER D， et al. Qualitative visualization of butane and helium tracers in air using a digital background oriented schlieren method［J］. Fuel， 2023， 342： 127818.
[9]	TZIOTZIOU K， SCULLION E， SHELYAG S， et al. Vortex motions in the solar atmosphere： definitions， theory， observations， and modelling［J］. Space Science Reviews， 2023， 219（1）： 00946.
[10]	靳旭红，黄飞，张俊，等. 上层大气层飞行器研究进展及气动技术挑战［J］. 航空学报， 2024， 45（22）： 6-21.
	JIN X H， HUANG F， ZHANG J， et al. Spacecraft in upper atmosphere： Research development and aerodynamic challenges［J］. Acta Aeronautica et Astronautica Sinica， 2024， 45（22）： 6-21 （in Chinese）.
[11]	BATHEL B， WEISBERGER J， JONES S， et al. Density-based optical diagnostic techniques at NASA Langley Research Center［C］∥AlAA Tennessee Section Monthly Seminar. Reston： AlAA， 2023.
[12]	WANG Y Y， SUN X B， QIAO Y L， et al. Optical signal characteristics analysis of atmospheric disturbance density fields generated by high-speed aircraft［J］. Chinese Journal of Aeronautics， 2025， 38（5）： 103270.
[13]	熊渊. 背景纹影测量技术研究与应用进展［J］. 实验流体力学， 2022， 36（2）： 30-48.
	XIONG Y. Recent advances in background oriented Schlieren and its applications［J］. Journal of Experiments in Fluid Mechanics， 2022， 36（2）： 30-48 （in Chinese）.
[14]	WEISBERGER J M， BATHEL B F. Projection background-oriented schlieren［J］. Applied Optics， 2022， 61（20）： 6006-6015.
[15]	AKATSUKA J， NAGAI S. Flow visualization by a simplified BOS technique［C］∥29th AIAA Applied Aerodynamics Conference. Reston： AIAA， 2011.
[16]	张俊，吴运刚，严来军，等. 基于BOS的超声速流场瞬态密度场的可视化［J］. 气体物理， 2021， 6（1）： 62-68.
	ZHANG J， WU Y G， YAN L J， et al. Visualization of instantaneous density distribution based on BOS for supersonic flow［J］. Physics of Gases， 2021， 6（1）： 62-68 （in Chinese）.
[17]	BRON J A， BAARS W J， SCHRIJER F F J. Density field reconstruction of an overexpanded supersonic jet using tomographic background-oriented schlieren［EB/OL］. ［2024-12-25］. .
[18]	AMJAD S， SORIA J， ATKINSON C. Three-dimensional density measurements of a heated jet using laser-speckle tomographic background-oriented schlieren［J］. Experimental Thermal and Fluid Science， 2023， 142： 110819.
[19]	ZHANG J， XU D， ZHANG L. Research on density measurement based on background oriented schlieren method［J］. Journal of Experiments in Fluid Mechanics， 2015， 29（1）： 77-82.
[20]	FISHER T B， QUINN M K， SMITH K L. An experimental sensitivity comparison of the schlieren and background-oriented schlieren techniques applied to hypersonic flow［J］. Measurement Science and Technology， 2019， 30（6）： 065202.
[21]	MEIER A H， ROESGEN T. Improved background oriented schlieren imaging using laser speckle illumination［J］. Experiments in Fluids， 2013， 54（6）： 1549.
[22]	李智豪，张彪，李健，等. 预混旋流燃烧火焰三维折射率场重建［J］. 航空学报， 2023， 44（4）： 126480.
	LI Z H， ZHANG B， LI J， et al. Reconstruction of three-dimensional refractive index field of premixed swirl combustion flame［J］. Acta Aeronautica et Astronautica Sinica， 2023， 44（4）： 126480 （in Chinese）.
[23]	AKAMINE M， TERAMOTO S， OKAMOTO K. Formulation and demonstrations of three-dimensional background-oriented schlieren using a mirror for near-wall density measurements［J］. Experiments in Fluids， 2023， 64（7）： 03672.
[24]	GOMEZ M， GRAUER S J， LUDWIGSEN J， et al. Megahertz-rate background-oriented schlieren tomography in post-detonation blasts［J］. Applied Optics， 2022， 61（10）： 2444-2452.
[25]	张征宇，王显圣，黄叙辉，等. 高速复杂流动结构的视频测量［J］. 航空学报， 2017， 38（8）： 120989.
	ZHANG Z Y， WANG X S， HUANG X H， et al. Videogrammetry measurement for high-speed complex flow structures［J］. Acta Aeronautica et Astronautica Sinica， 2017， 38（8）： 120989 （in Chinese）.
[26]	VENKATAKRISHNAN L， MEIER G E A. Density measurements using the background oriented schlieren technique［J］. Experiments in Fluids， 2004， 37（2）： 237-247.
[27]	AMJAD S， KARAMI S， SORIA J， et al. Assessment of three-dimensional density measurements from tomographic background-oriented schlieren （BOS）［J］. Measurement Science and Technology， 2020， 31（11）： 114002.
[28]	周润，唐亮，李平，等. 基于光线偏折的复杂流动密度重建方法［J］. 光学学报， 2022， 42（9）： 39-46.
	ZHOU R， TANG L， LI P， et al. Density reconstruction method for complex flow based on light deflection［J］. Acta Optica Sinica， 2022， 42（9）： 39-46 （in Chinese）.
[29]	李庆扬，王能超，易大义. 数值分析［M］. 5版. 北京：清华大学出版社， 2008： 25-29.
	LI Q Y， WANG N C， YI D Y. Numerical analysis［M］. 5th ed. Beijing： Tsinghua University Press， 2008： 25-29 （in Chinese）.
[30]	ADAM D. Data structures and algorithms in C++［M］. 3rd ed. Toronto： Thomson Course Technology， 2005： 415-445.
[31]	THOMPSON P A. Compressible-fluid dynamics［M］. New York： McGraw-Hill， 1972： 276-303.
[32]	ANDERSON J D. Modern compressible flow： with historical perspective［M］. 2nd ed. New York： McGraw-Hill， 1990： 294-303.

查找算法	算法复杂度
遍历查找	O（m×n）
算法1^［25］	O（m+n）
本文算法	O（1）

网格尺寸	耗时/ms		加速比
网格尺寸	传统方法^［27］	本文方法	加速比
100×100	13 481	47	286.83
150×150	29 802	73	408.25
200×200	56 334	101	557.76

参数	方法	数值
网格大小		249×108
耗时/ms	文献［27］	44 892
耗时/ms	本文方法	109
加速比		411.85
