内锥流场参数对定平面形状乘波体性能的影响

doi:10.7527/S1000-6893.2025.32041

Abstract

Abstract:

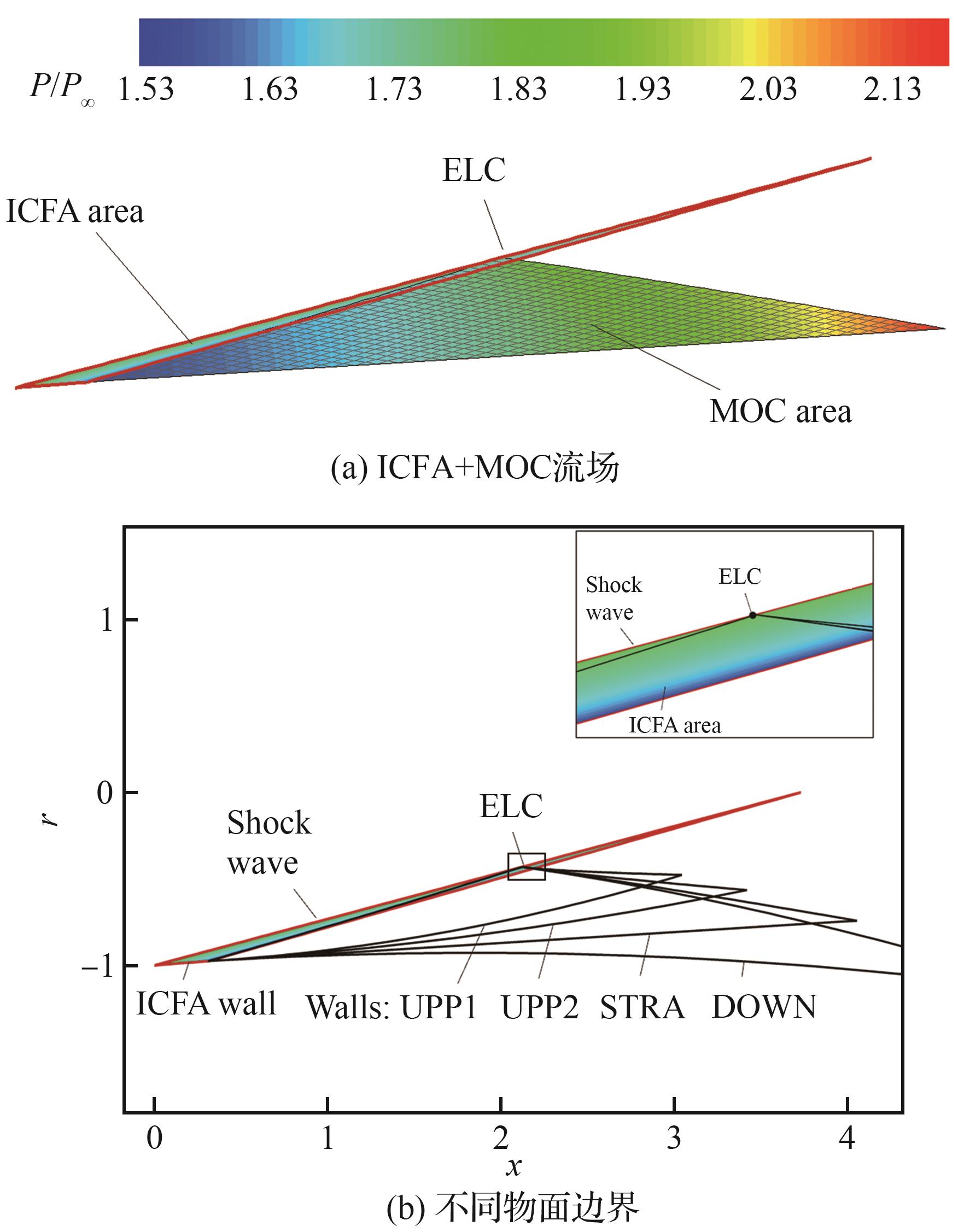

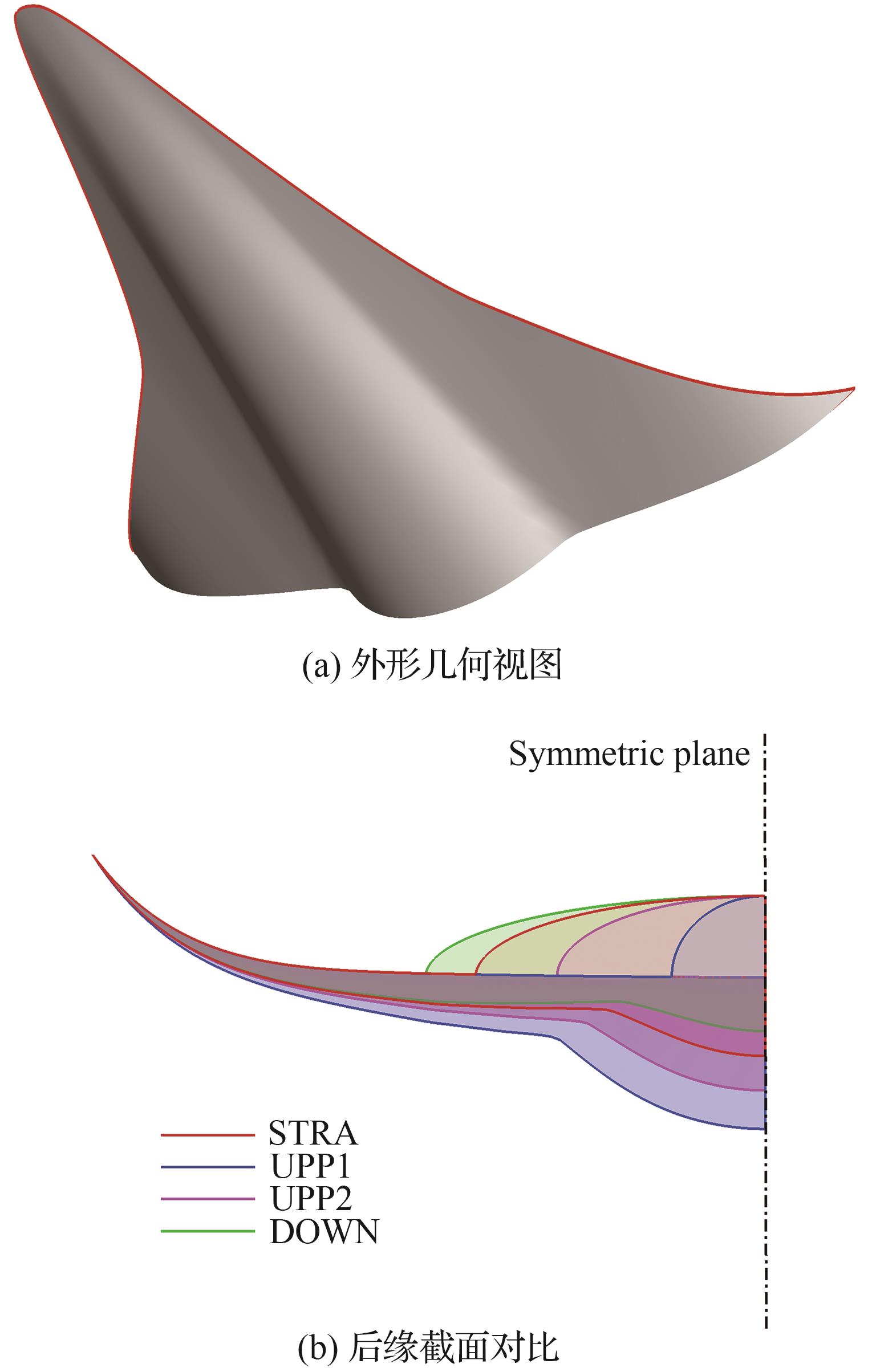

The straight-shock internal conical flow fields with various wall boundaries are generated by solving the Taylor-Maccoll equation combined with the method of characteristics. Employing the geometric relation in the osculating-cone method， the planform-customized waverider design is achieved using the straight-shock internal conical flow fields. The properties of straight-shock flow fields with different boundaries and pressure distributions were compared. Taking the 3D leading edge of one double swept waverider with wing dihedral as the baseline planform shape， the planform-customized waveriders using the internal conical flow fields with different boundaries are designed. Then the effect of the internal flow fields on the waverider performance was analyzed. The results show that the planform-customized waveriders generated from the internal flows with different wall boundaries feature high lift-to-drag ratio. The shock wave positions in their flow fields are nearly identical， indicating promising wave-riding performance. When the wall boundaries of the basic internal flow fields vary from elevated to descent profile along the axial coordinate， the pressure of the lower surface transitions from increasing to decreasing. The compression ability under the lower surface also decreases， but the total pressure recovery coefficients remain similar. In addition， as the wall boundary approaches a straight line more closely， the flow field uniformity under the lower surface of waveriders is better， just like that of the basic internal flow fields.

Key words: waverider, customized planform, straight shock wave, internal conical flow field, wall boundary

CLC Number:

V221.5

Xufei MENG, Peng BAI, Chuanzhen LIU. Influence of internal conical flow field parameters on performance of planform-customized waveriders[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(1): 632041.

Figures/Tables 21

Fig.1

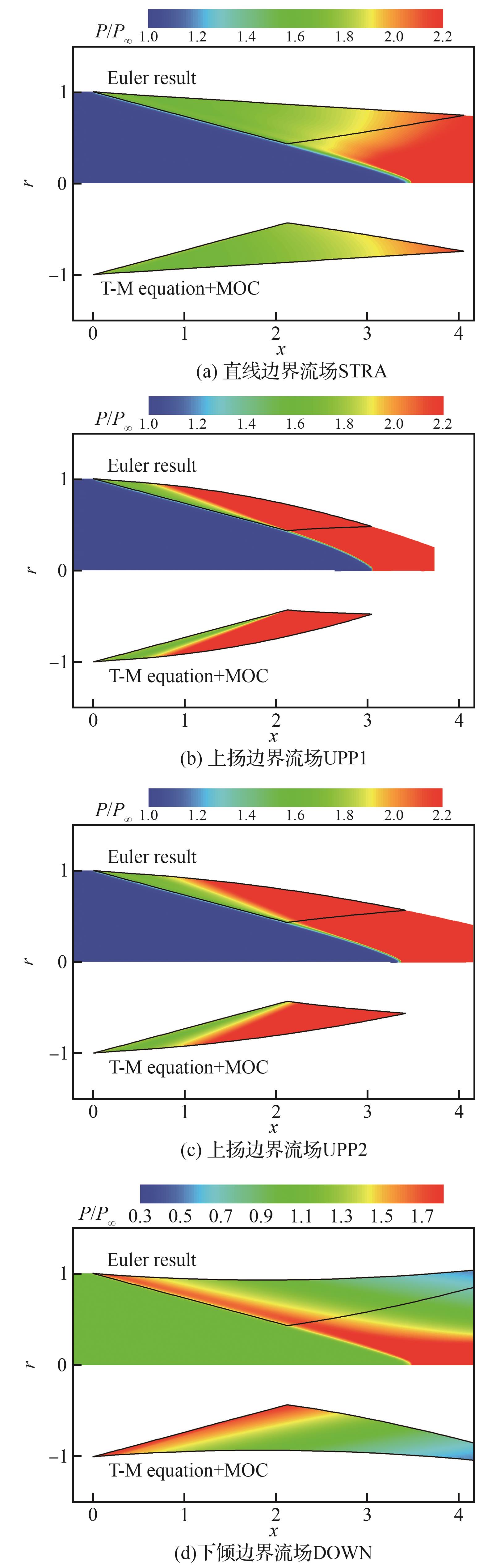

Fig.2

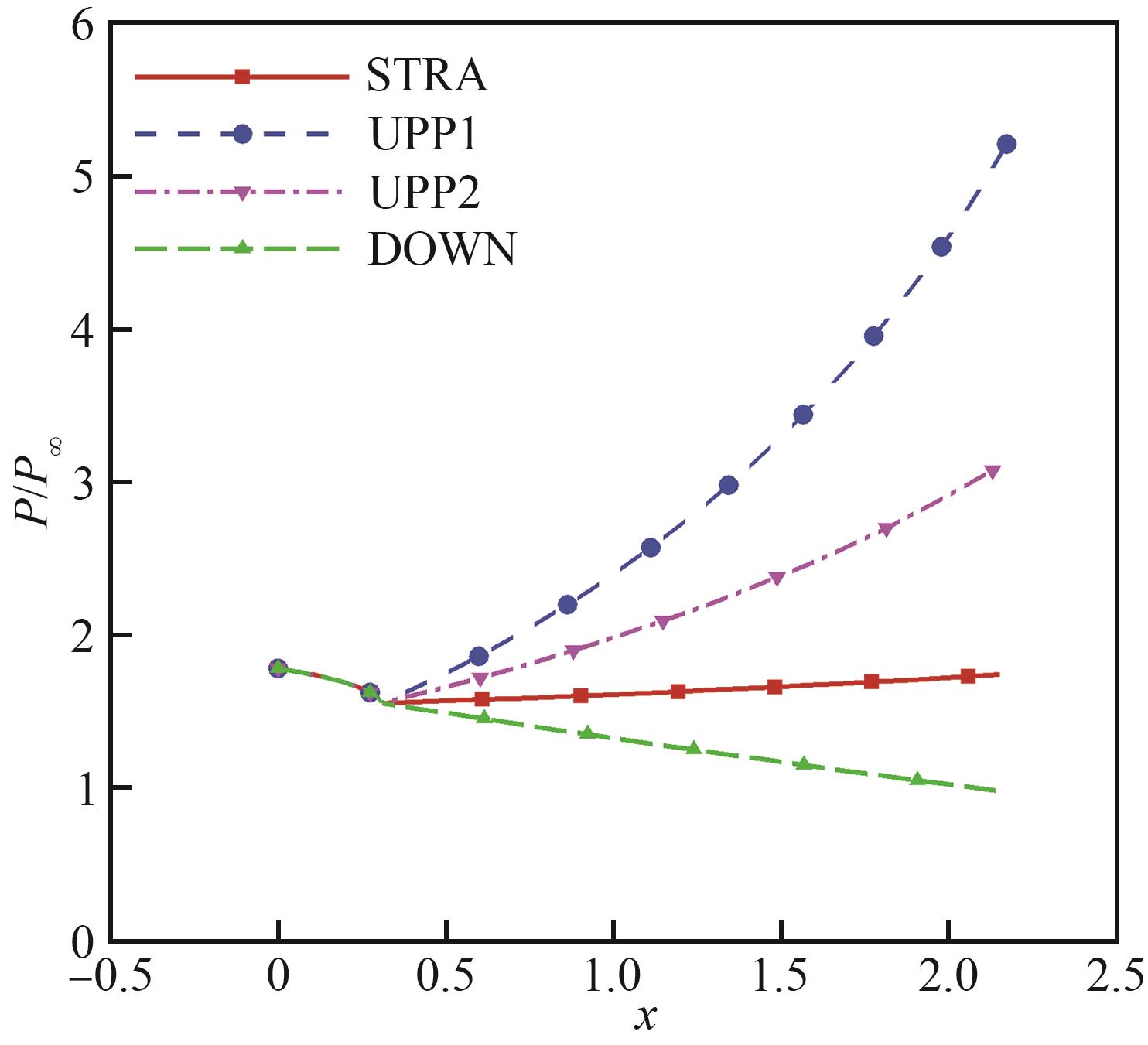

Fig.3

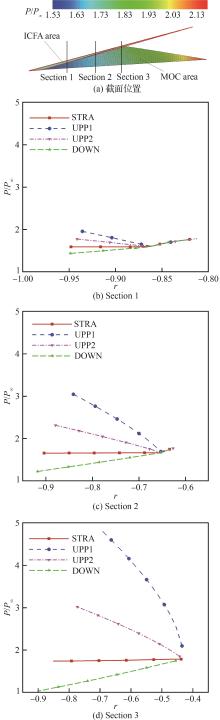

Fig.4

Table 1

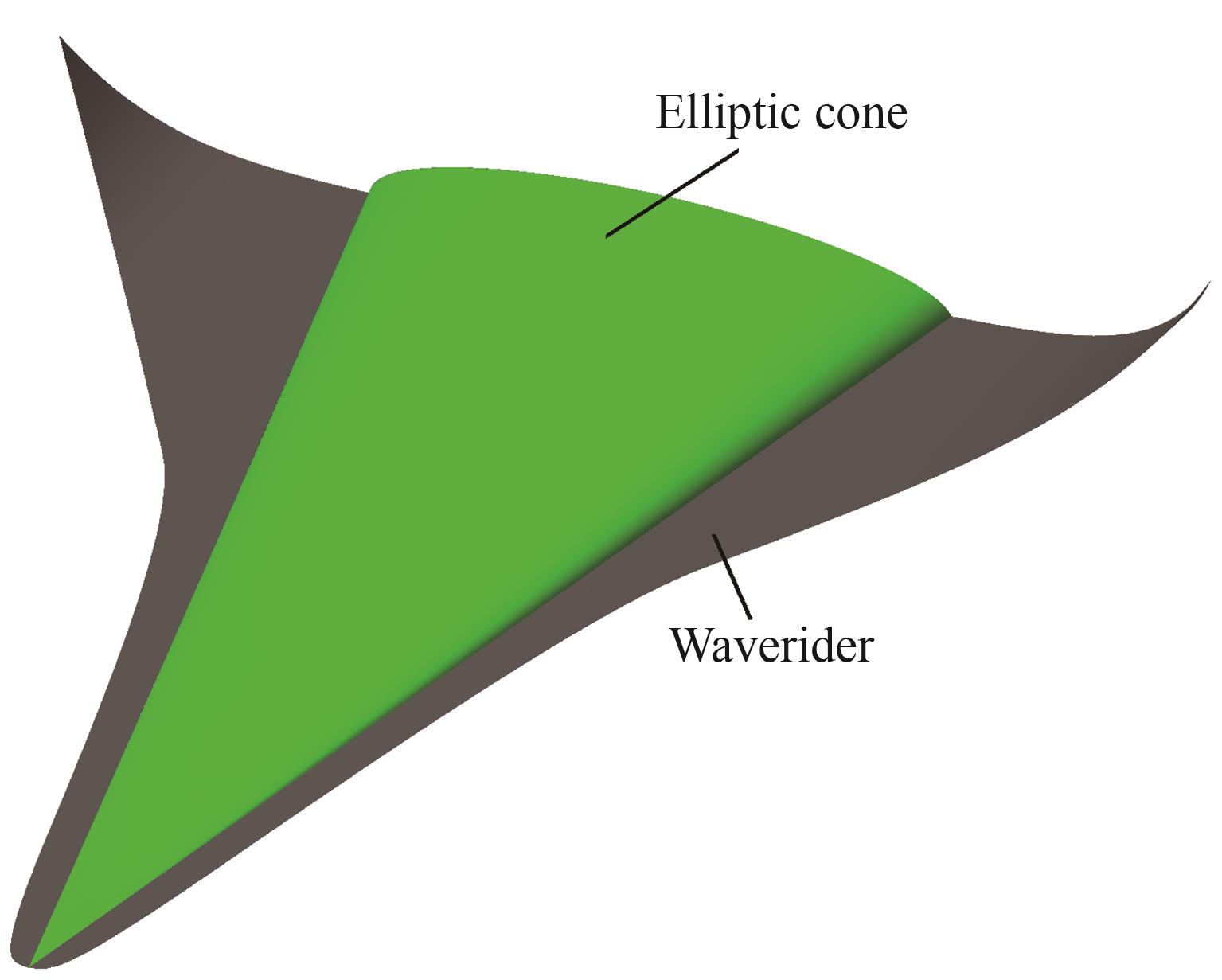

Fig.5

Fig.6

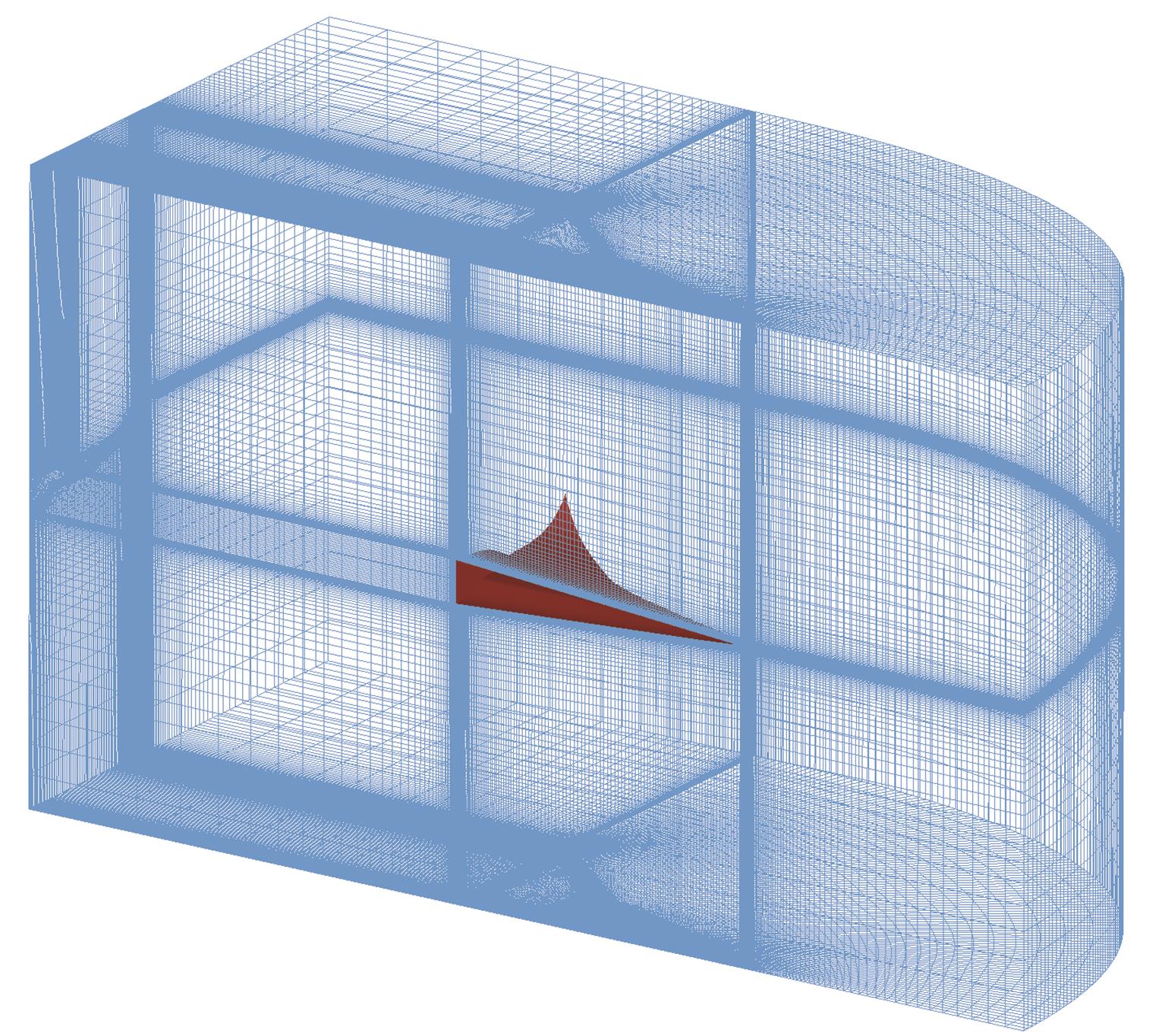

Fig.7

Table 2

Table 3

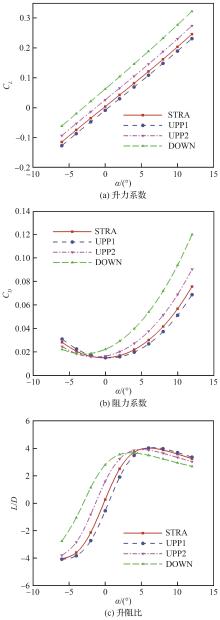

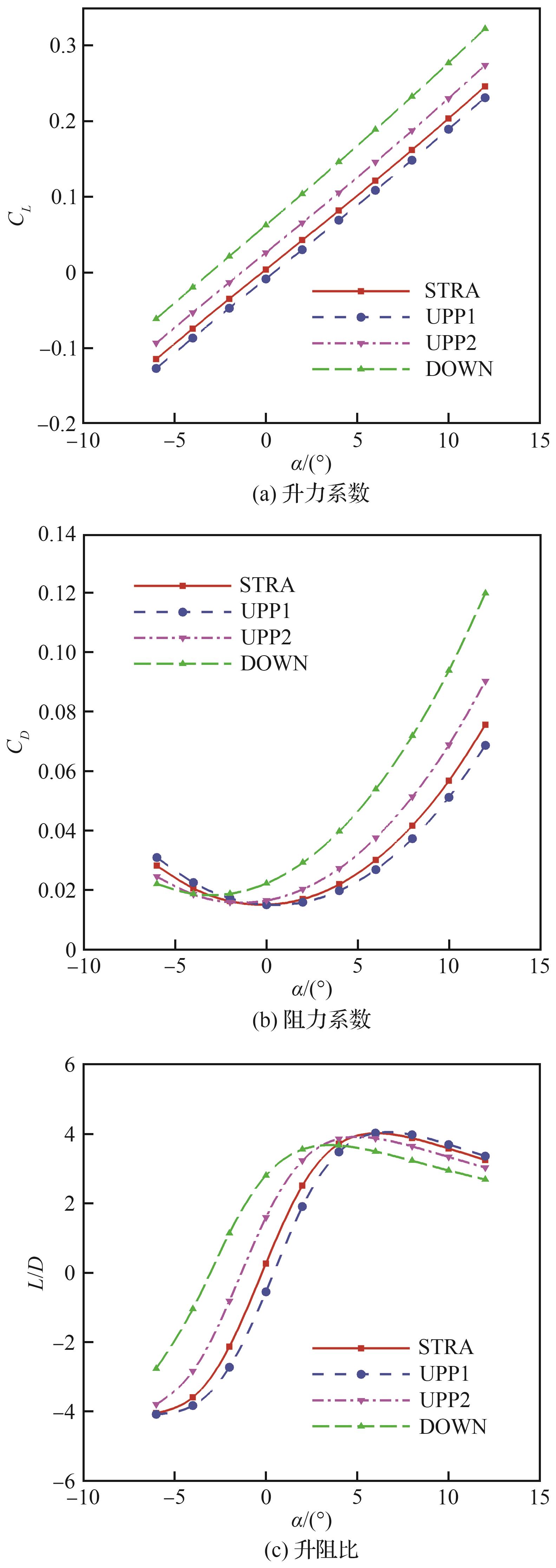

Fig.8

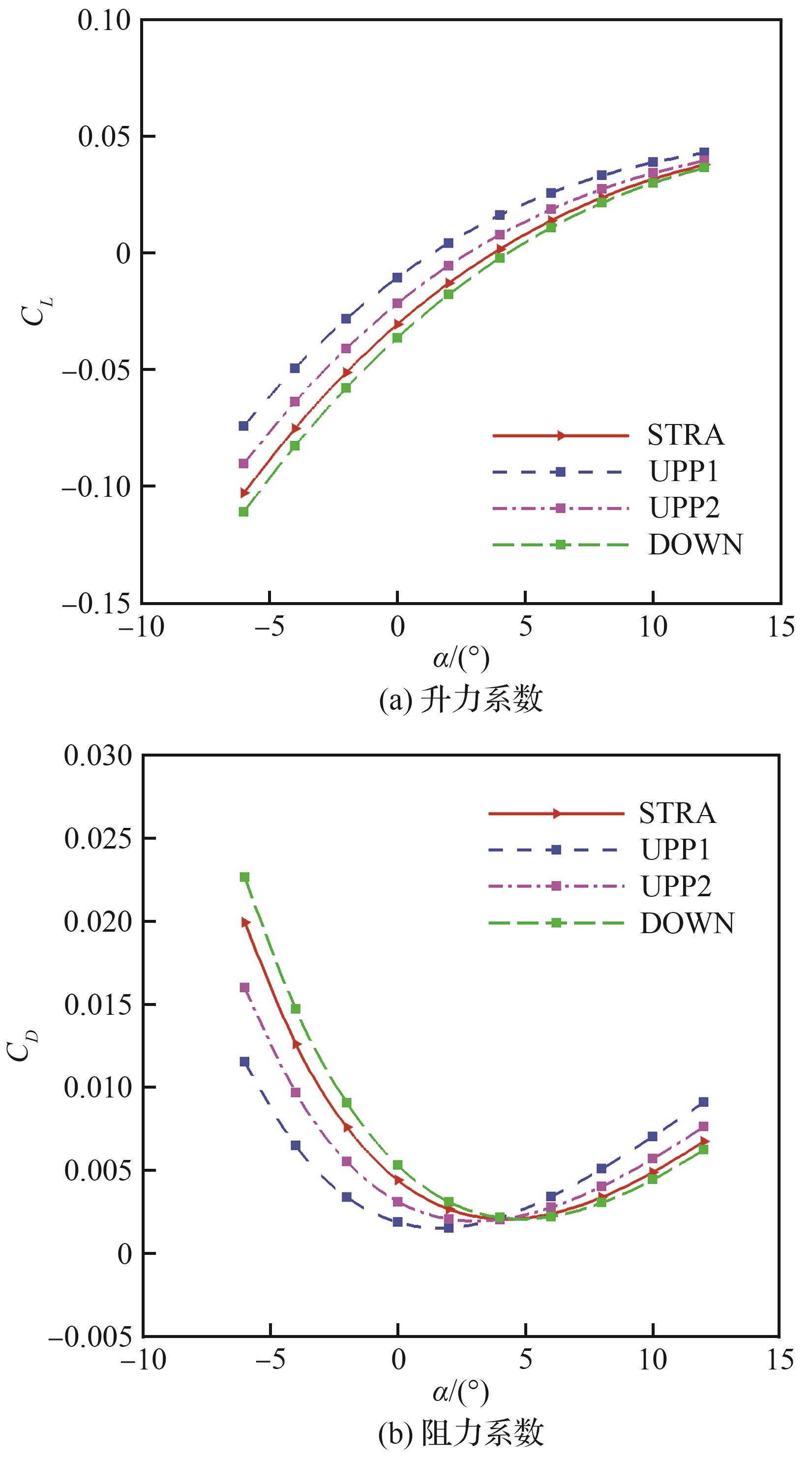

Fig.9

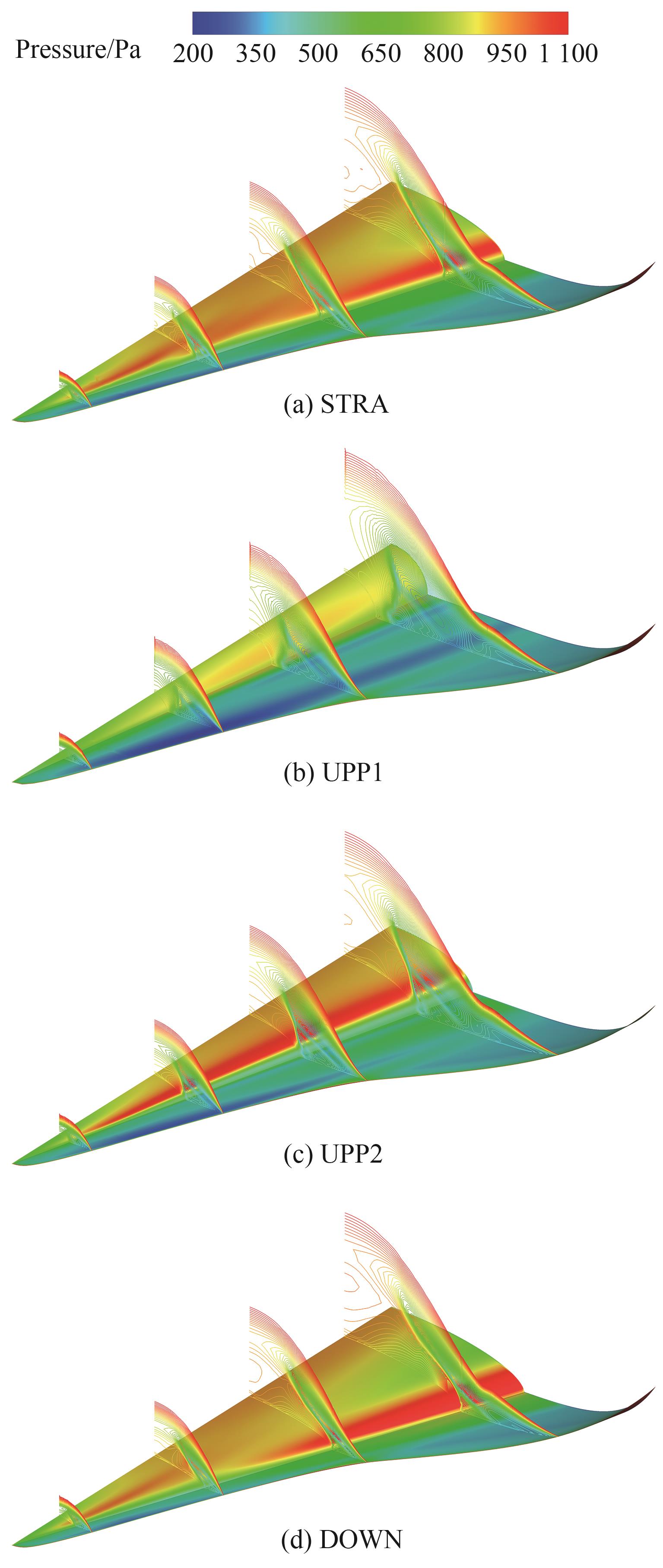

Fig.10

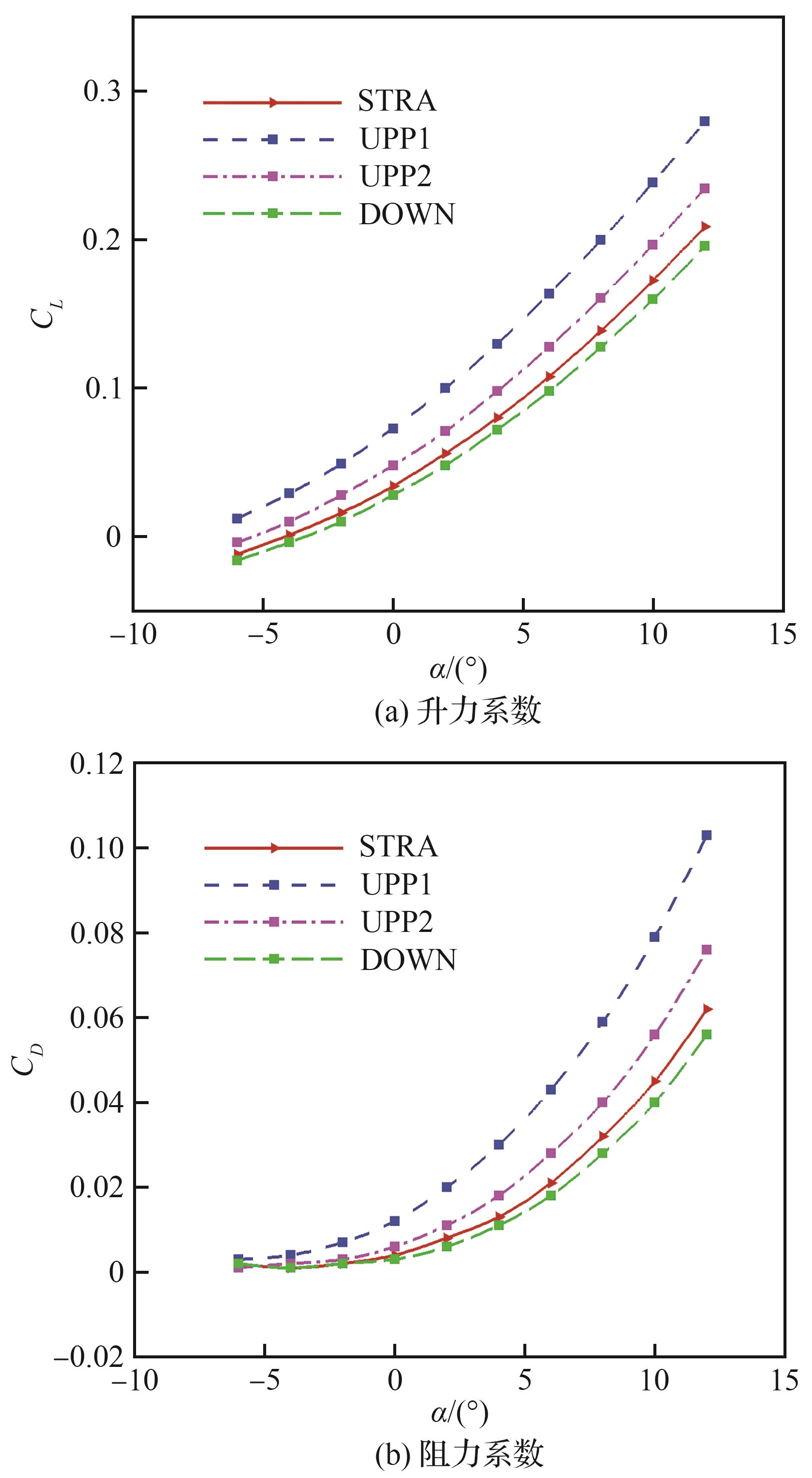

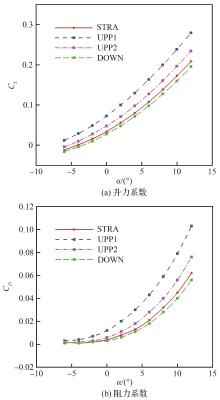

Fig.11

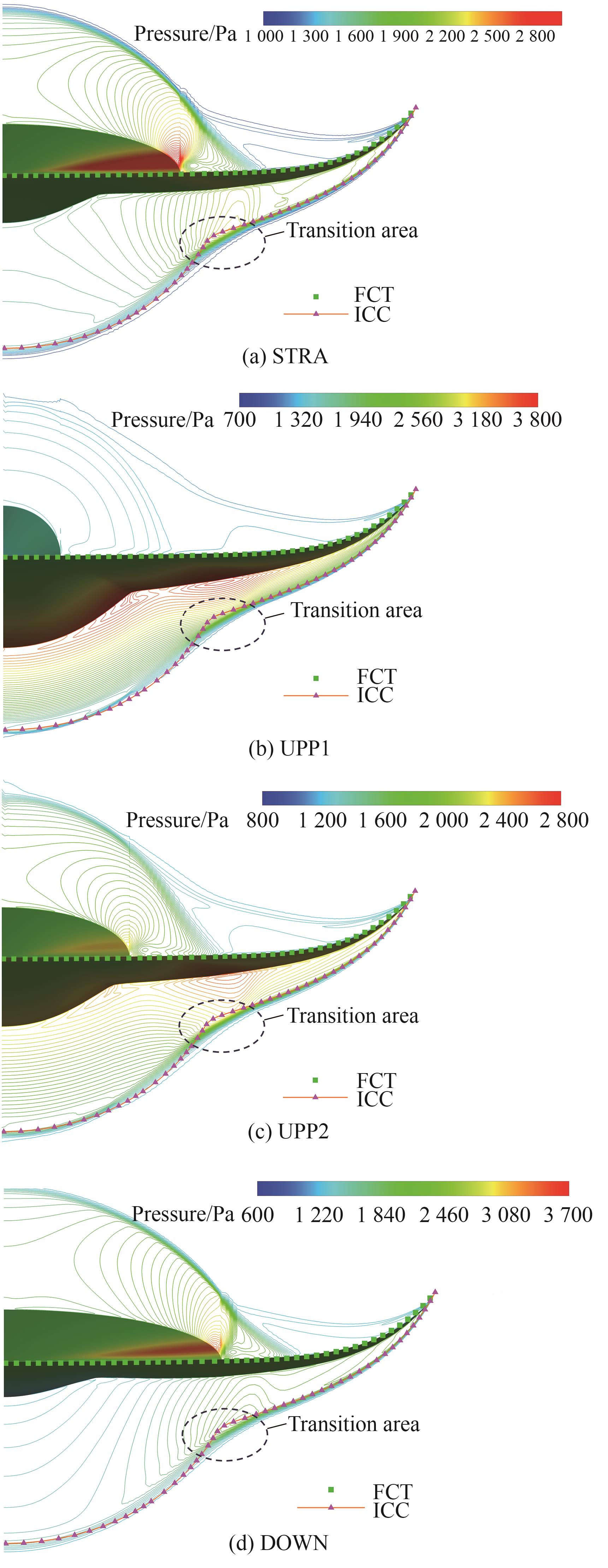

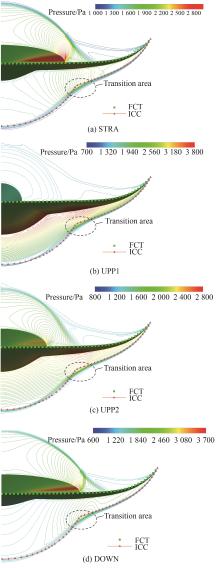

Fig.12

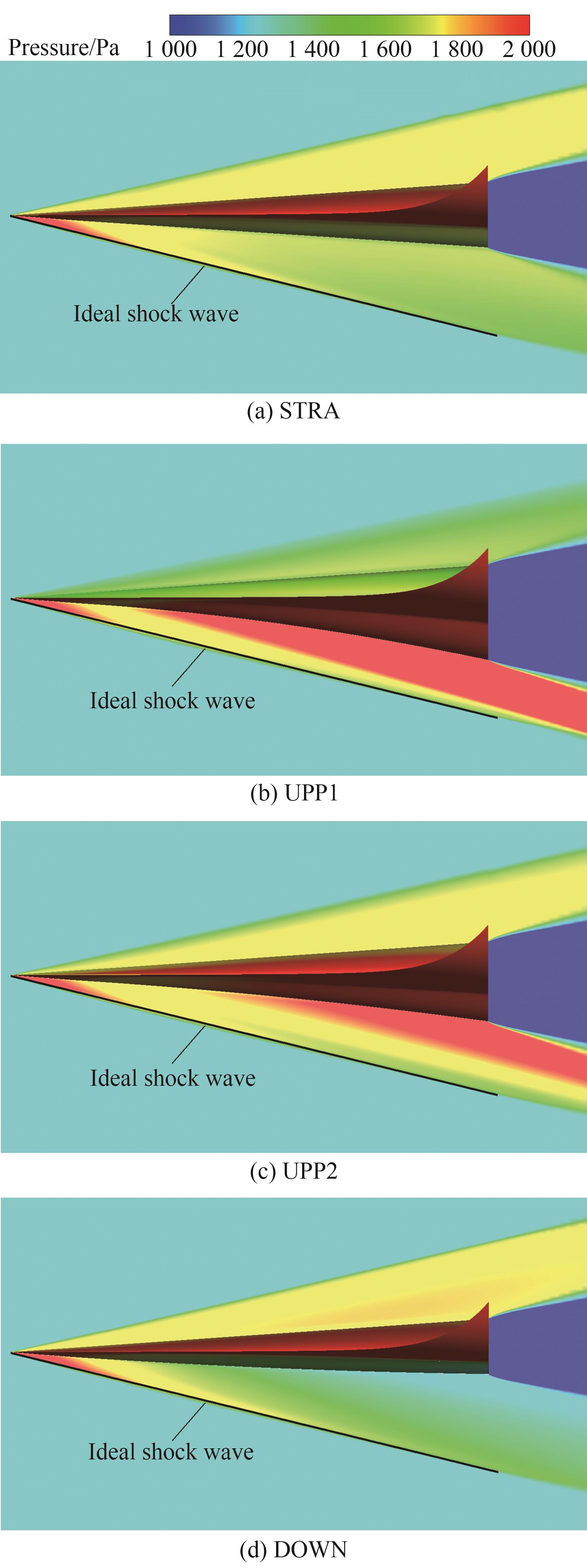

Fig.13

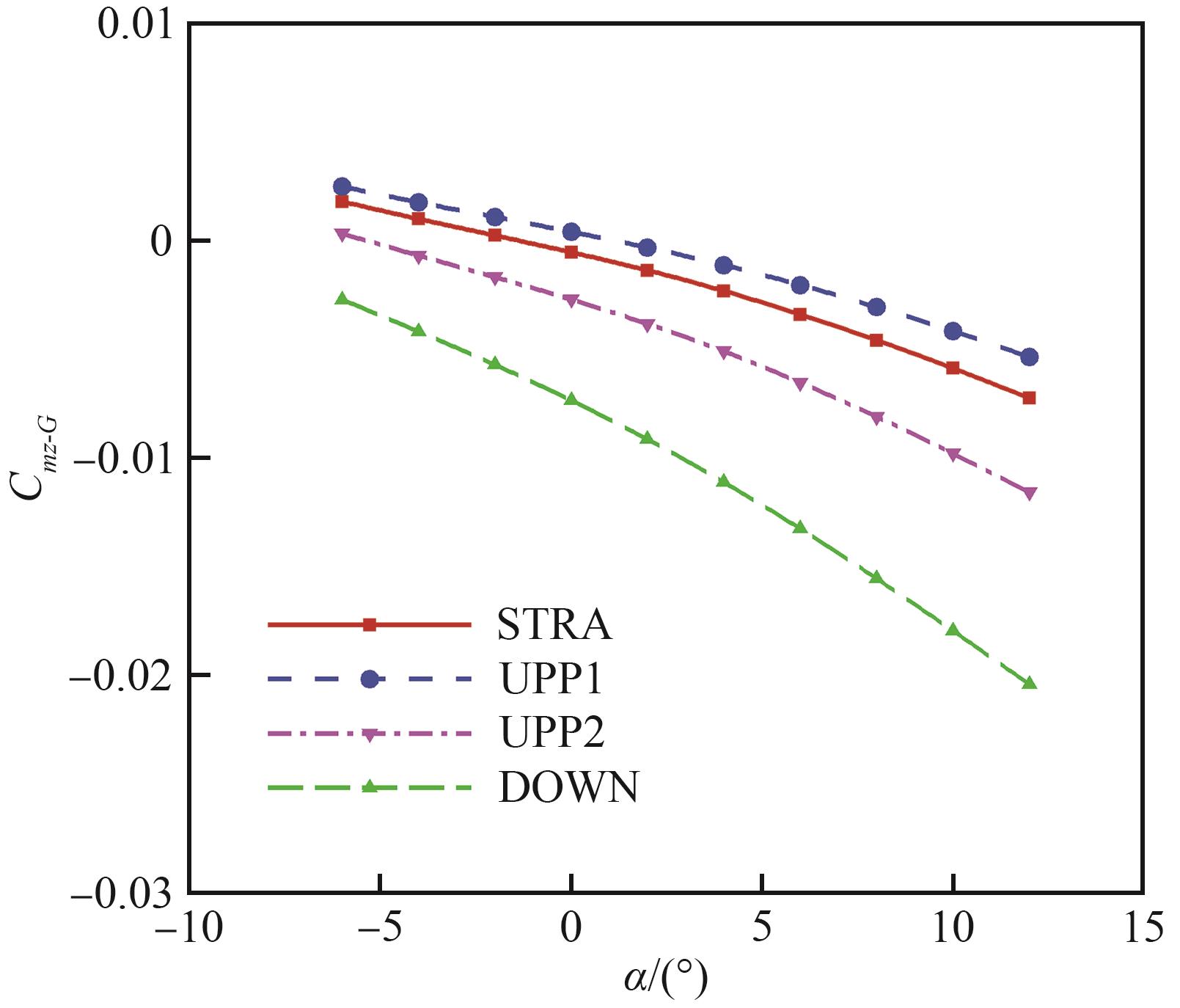

Fig.14

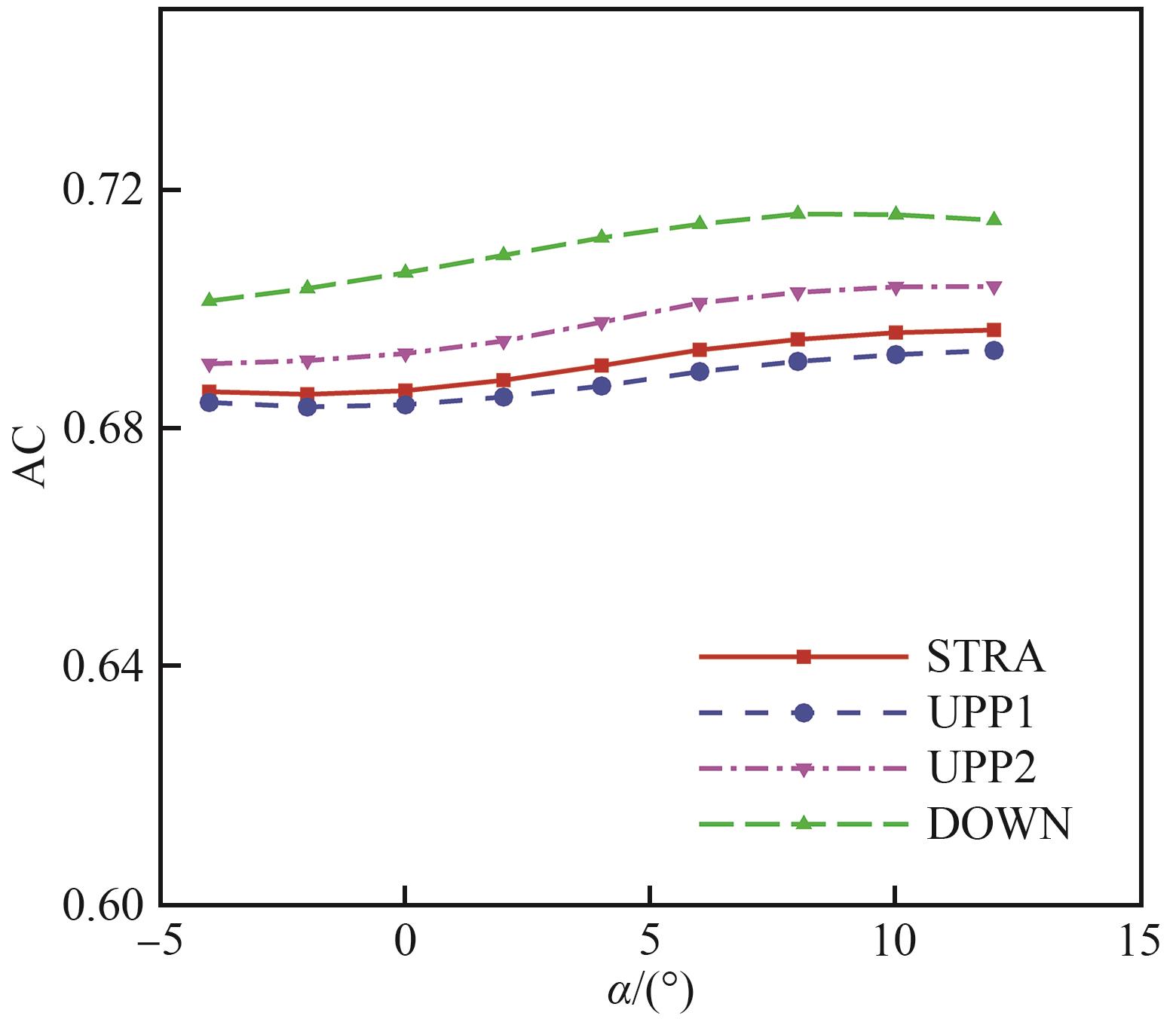

Fig.15

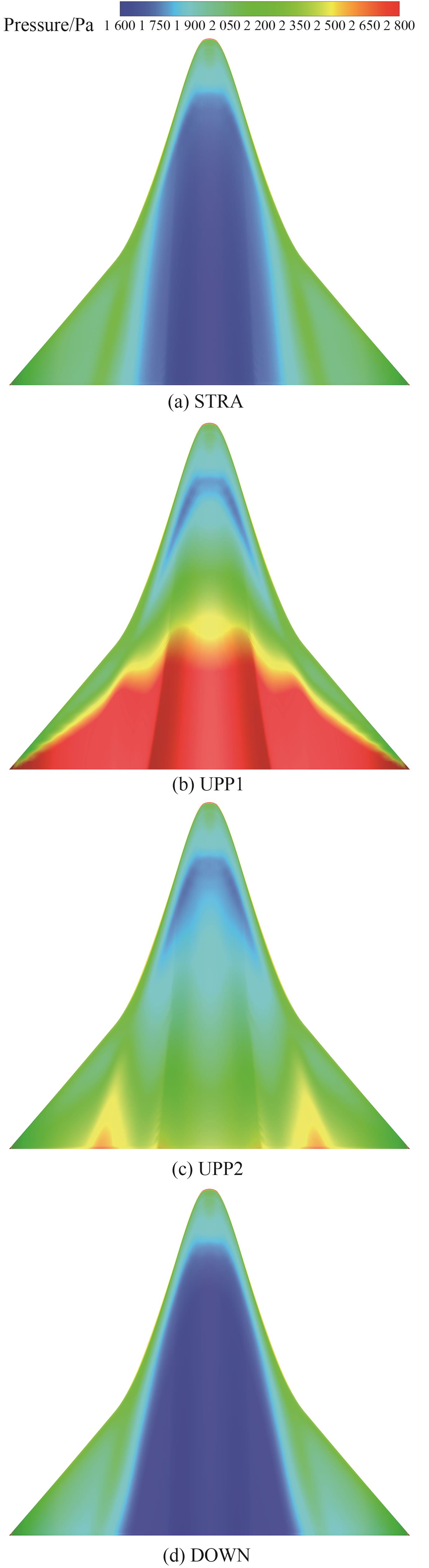

Fig.16

Fig.17

Table 4

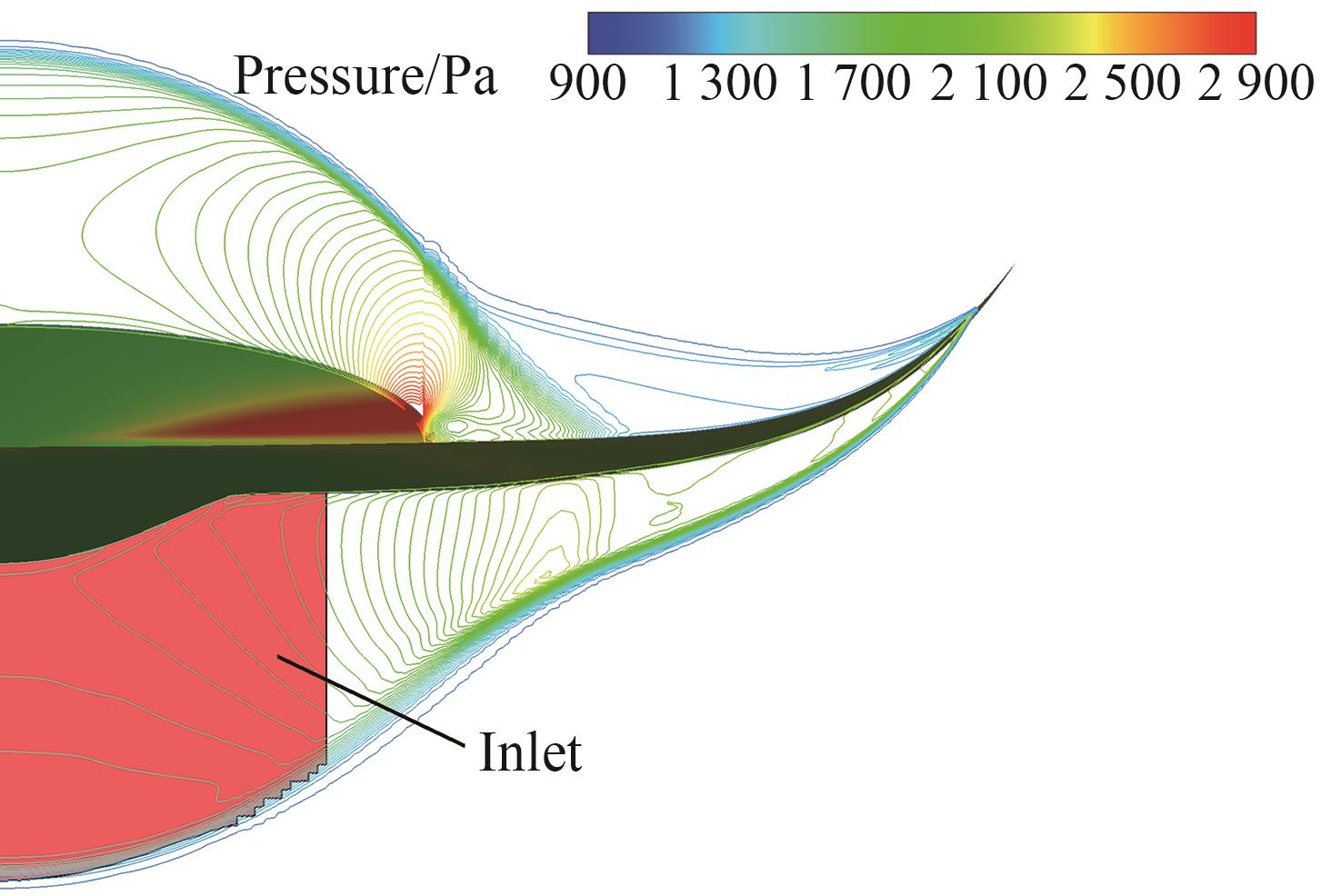

Compression characteristics at inlet entry area

Shape	$P ¯ / P ∞$	$P ¯ 0 / P 0 ∞$	ε
STRA	1.331 6	0.964 9	0.032 3
UPP1	2.188 9	0.967 0	0.198 3
UPP2	1.610 6	0.967 1	0.128 9
DOWN	1.196 6	0.965 4	0.060 8

Table 4

References 29

[1]	ZHAO Z T， HUANG W， YAN L， et al. An overview of research on wide-speed range waverider configuration［J］. Progress in Aerospace Sciences， 2020， 113： 100606.
[2]	王发民，丁海河，雷麦芳. 乘波布局飞行器宽速域气动特性与研究［J］. 中国科学（E辑：技术科学）， 2009， 39（11）： 1828-1835.
	WANG F M， DING H H， LEI M F. Aerodynamic characteristics and research of waverider aircraft in wide speed range［J］. Science in China （Series E （Technological Sciences））， 2009， 39（11）： 1828-1835 （in Chinese）.
[3]	LI S B， HUANG W， WANG Z G， et al. Design and aerodynamic investigation of a parallel vehicle on a wide-speed range［J］. Science China Information Sciences， 2014， 57（12）： 1-10.
[4]	ZHANG T T， WANG Z G， HUANG W， et al. A design approach of wide-speed-range vehicles based on the cone-derived theory［J］. Aerospace Science and Technology， 2017， 71： 42-51.
[5]	LI S B， WANG Z G， HUANG W， et al. Design and investigation on variable Mach number waverider for a wide-speed range［J］. Aerospace Science and Technology， 2018， 76： 291-302.
[6]	ZHAO Z T， HUANG W， LI S B， et al. Variable Mach number design approach for a parallel waverider with a wide-speed range based on the osculating cone theory［J］. Acta Astronautica， 2018， 147： 163-174.
[7]	LIU J， LIU Z， WEN X， et al. Novel osculating flowfield methodology for wide-speed range waverider vehicles across variable Mach number［J］. Acta Astronautica， 2019， 162： 160-167.
[8]	LIU Z， LIU J， DING F， et al. Novel methodology for wide-ranged multistage morphing waverider based on conical theory［J］. Acta Astronautica， 2017， 140： 362-369.
[9]	PHOENIX A A， ROGERS R E， MAXWELL J R， et al. Mach five to ten morphing waverider： Control point study［J］. Journal of Aircraft， 2018， 56（2）： 493-504.
[10]	SOBIECZKY H， DOUGHERTY F C， JONES K. Hypersonic waverider design from given shock wave［C］∥The First International Waverider Symposium. Maryland： University of Maryland， 1990.
[11]	LIU C Z， BAI P. Mathematical expression of geometric relationship in osculating-cone waverider design［J］. Journal of Aircraft， 2021， 58（4）： 858-866.
[12]	LIU C Z， BAI P， YANG Y J， et al. Double swept waverider from osculating-cone method［J］. Journal of Aerospace Engineering， 2018， 31（6）： 06018004.
[13]	LIU C Z， LIU Q， BAI P， et al. Planform-customized waverider design integrating with vortex effect［J］. Aerospace Science and Technology， 2019， 86： 438-443.
[14]	WANG J F， LIU C Z， BAI P， et al. Design methodology of the waverider with a controllable planar shape［J］. Acta Astronautica， 2018， 151： 504-510.
[15]	贾子安，张陈安，王柯穆，等. 乘波布局高超声速飞行器纵向静稳定特性分析［J］. 中国科学：技术科学， 2014， 44（10）： 1114-1122.
	JIA Z A， ZHANG C A， WANG K M， et al. Longitudinal static stability analysis of hypersonic waveriders［J］. Scientia Sinica （Technologica）， 2014， 44（10）： 1114-1122 （in Chinese）.
[16]	GOONKO Y P， MAZHUL I I， MARKELOV G N. Convergent-flow-derived waveriders［J］. Journal of Aircraft， 2000， 37（4）： 647-654.
[17]	贺旭照，倪鸿礼. 密切内锥乘波体设计方法和性能分析［J］. 力学学报， 2011， 43（5）： 803-808.
	HE X Z， NI H L. Osculating inward turning cone（oic） wave rider-design methods and performace analysis［J］. Chinese Journal of Theoretical and Applied Mechanics， 2011， 43（5）： 803-808 （in Chinese）.
[18]	LIU Z， LIU J， DING F， et al. Influence of surface pressure distribution of basic flowfield on osculating axisymmetric waverider［J］. AIAA Journal， 2019， 57（10）： 4560-4568.
[19]	MOLDER S. Internal， axisymmetric， conical flow［J］. AIAA Journal， 1967， 5（7）： 1252-1255.
[20]	CHEN Z C， LIU Y， BAO F T， et al. Research on flow characteristics of a variable Mach number aerodynamic test device by a rotating profile［J］. International Journal of Aerospace Engineering， 2022， 2022： 3292561.
[21]	孟旭飞，白鹏，李盾，等. 上/下反翼对双后掠乘波体高超特性的影响［J］. 航空学报， 2022， 43（2）： 124998.
	MENG X F， BAI P， LI D， et al. Effect of dihedral wings on hypersonic performance of double swept waverider［J］. Acta Aeronautica et Astronautica Sinica， 2022， 43（2）： 124998 （in Chinese）.
[22]	LIU C Z， TIAN J W， BAI P， et al. Effect of upper surface shape on waverider performances［J］. Proceedings of the Institution of Mechanical Engineers， Part G： Journal of Aerospace Engineering， 2022， 236（6）： 1239-1250.
[23]	ROE P L. Approximate Riemann solvers， parameter vectors， and difference schemes［J］. Journal of Computational Physics， 1981， 43（2）： 357-372.
[24]	VENKATAKRISHNAN V. On the accuracy of limiters and convergence to steady state solutions［C］∥31st Aerospace Sciences Meeting. Reston： AIAA， 1993： 880.
[25]	KERMANI M， PLETT E. Modified entropy correction formula for the Roe scheme［C］∥39th Aerospace Sciences Meeting and Exhibit. Reston： AIAA， 2001： 83.
[26]	MENTER F R. Two-equation eddy-viscosity turbulence models for engineering applications［J］. AIAA Journal， 1994， 32（8）： 1598-1605.
[27]	CHEN R F， WANG Z J. Fast， block lower-upper symmetric Gauss-seidel scheme for arbitrary grids［J］. AIAA Journal， 2000， 38（12）： 2238-2245.
[28]	陈冰雁，徐国武，刘周，等. 真实气体效应试飞器气动布局研究［J］. 力学季刊， 2015， 36（2）： 239-248.
	CHEN B Y， XU G W， LIU Z， et al. Aerodynamic configuration of real gas effect demonstration vehicle［J］. Chinese Quarterly of Mechanics， 2015， 36（2）： 239-248 （in Chinese）.
[29]	赵弘睿，龚安龙，刘周，等. 高空侧向喷流干扰效应数值研究［J］. 空气动力学学报， 2020， 38（5）： 996-1003.
	ZHAO H R， GONG A L， LIU Z， et al. Numerical study of lateral jet interaction at high altitude［J］. Acta Aerodynamica Sinica， 2020， 38（5）： 996-1003 （in Chinese）.

Section	STRA/10^-3	UPP1/10^-3	UPP2/10^-3	DOWN/10^-3
Section 1	5.590	8.375	5.176	9.830
Section 2	1.062	30.022	16.001	15.913
Section 3	1.386	37.240	22.929	24.312

Cells/10⁶	C_L	ΔC_L /%	C_D	ΔC_D/%	L/D
2.46	0.305 8	-0.60	0.110 1	-0.64	2.778 7
4.72	0.306 7	-0.32	0.110 3	-0.40	2.779 7
9.50	0.307 7		0.110 8		2.777 5

Cells/10⁶	C_A	ΔC_A /%	C_N	ΔC_N /%	C_mz	ΔC_mz /%
2.46	0.044 10	-0.70	0.322 00	-0.60	0.225 80	-0.61
4.72	0.044 16	-0.51	0.322 93	-0.33	0.226 44	-0.33
9.50	0.044 40		0.324 00		0.227 20
