基于扰动观测补偿电流调节器的双绕组感应发电机交直流集成发电控制技术

doi:10.7527/S1000-6893.2025.31865

Abstract

Abstract:

To address the issues of slow dynamic response and insufficient anti-interference ability of the current loop PI regulator in the AC/DC integrated power generation system of Dual Winding Induction Motor （DWIG）， a control strategy based on disturbance observation compensation current regulator for the DWIG AC-DC integrated power generation system is proposed. Firstly， a mathematical model of the DWIG AC-DC integrated power generation system is established， and the limitations of the traditional PI regulator in AC-DC coupling scenarios are analyzed. Secondly， the sum of the coupling terms in AC and DC currents is defined as a disturbance term， a disturbance state observer is designed， the transfer function of the disturbance observation value to the actual value is derived， and the design constraints of the observer parameters are given. Finally， the total disturbance observation value is introduced into the current control strategy to form feedforward compensation， realizing decoupling control of d-axis and q-axis currents as well as AC and DC side winding currents. Experimental results show that the proposed strategy effectively enhances the current loop response capability of the system， improves the dynamic performance of the generator， and significantly reduces the mutual influence of AC and DC sides. This ensures stable output of AC voltage and DC voltage， and provides technical support for high-performance power supply of more electric aircraft power systems.

Key words: AC-DC integrated power generation, Double Winding Induction Motor (DWIG), disturbance observation compensation, PI regulator, reduced order observer

CLC Number:

V242.4

Feifei BU, Pengyu SUN, Jianyu SHI, Tianyi ZHU, Yajun ZHAO, Haihong QIN, Wenxin HUANG. AC-DC integrated generation control technology of double-winding induction generator based on disturbance observation compensation current regulator[J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(18): 331865.

Figures/Tables 16

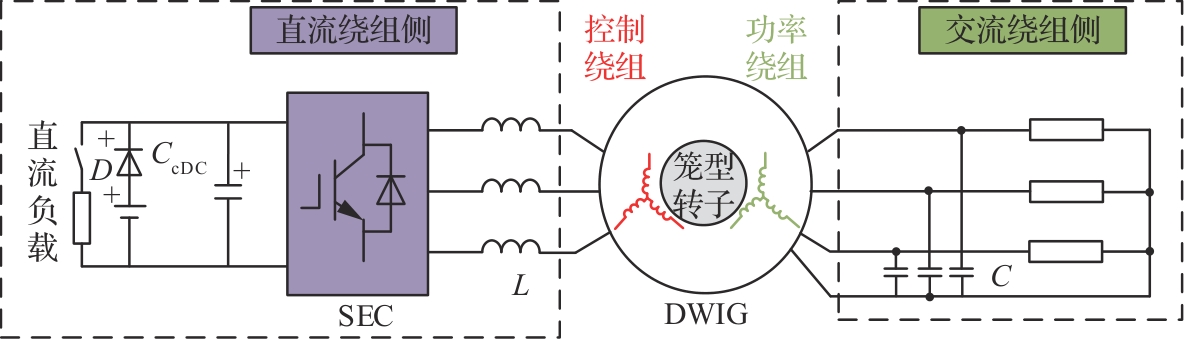

Fig.1

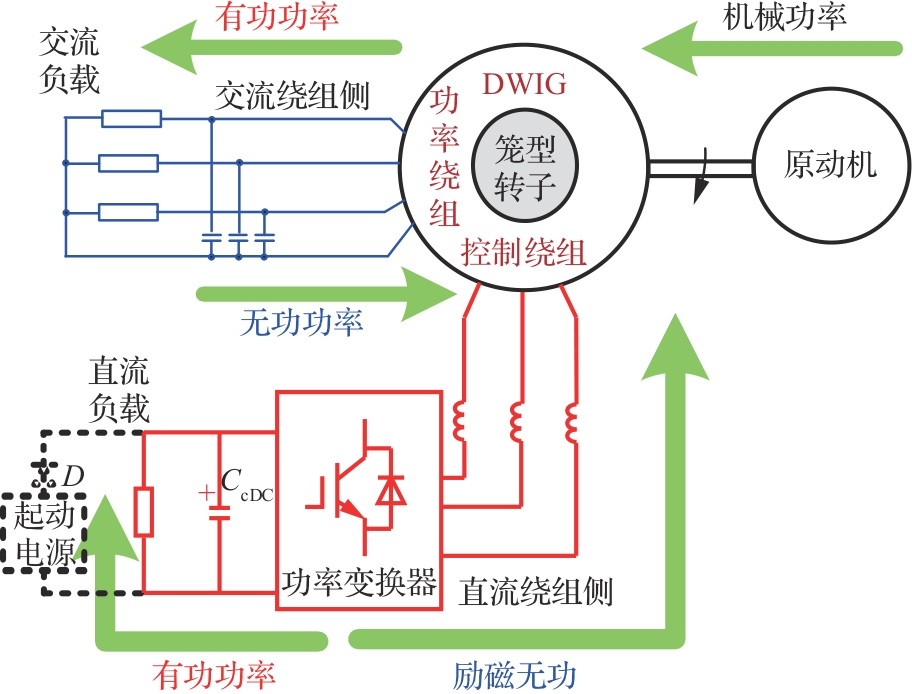

Fig.2

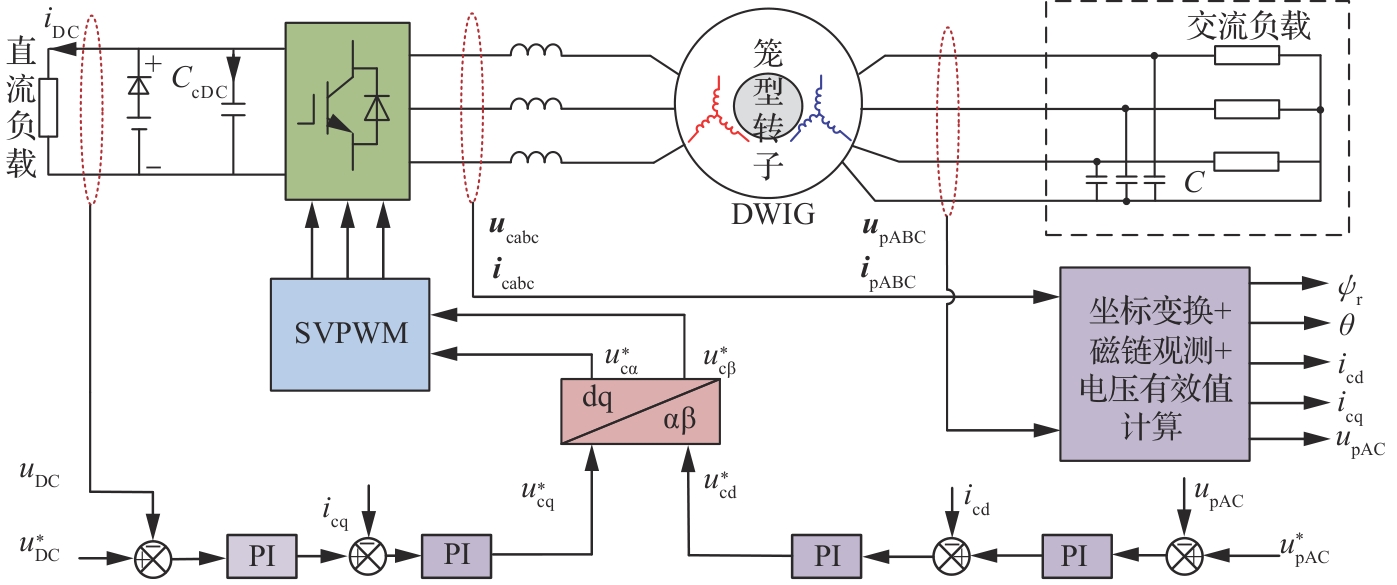

Fig.3

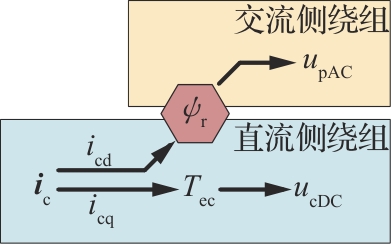

Fig.4

Fig.5

Fig.6

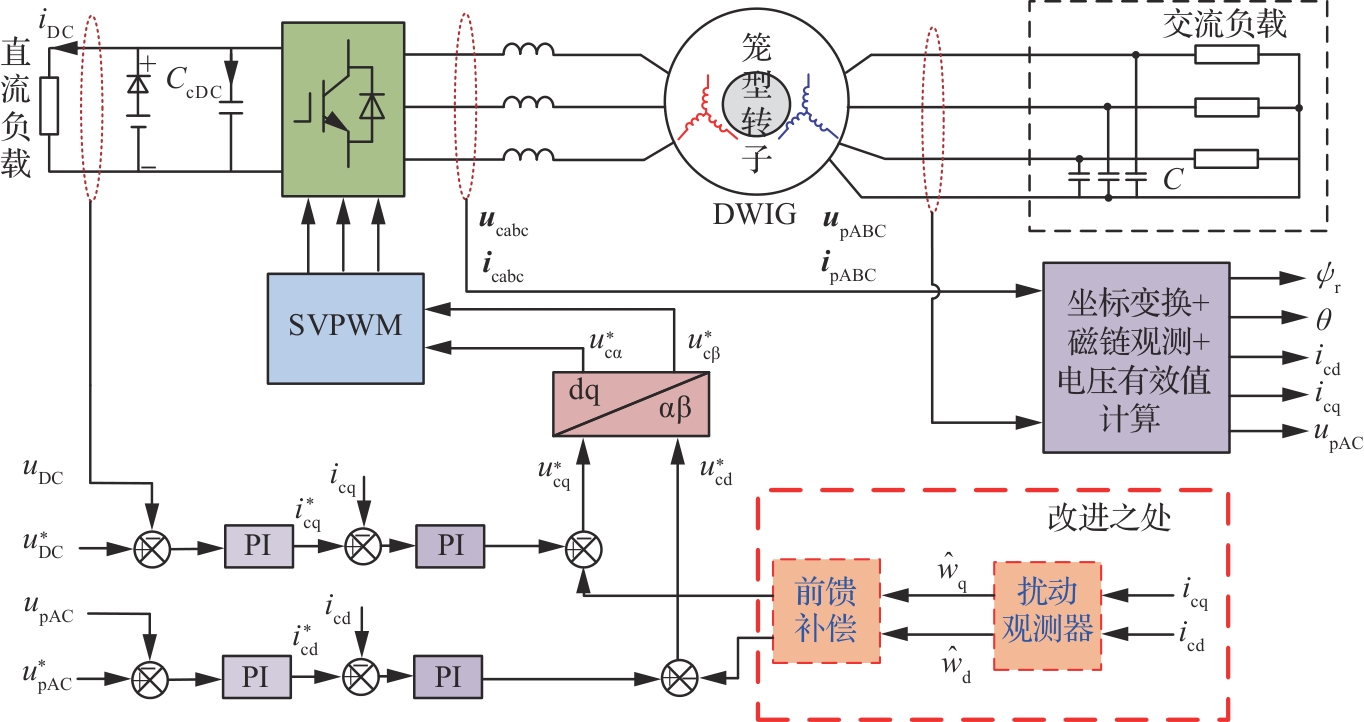

Fig.7

Fig.8

Fig.9

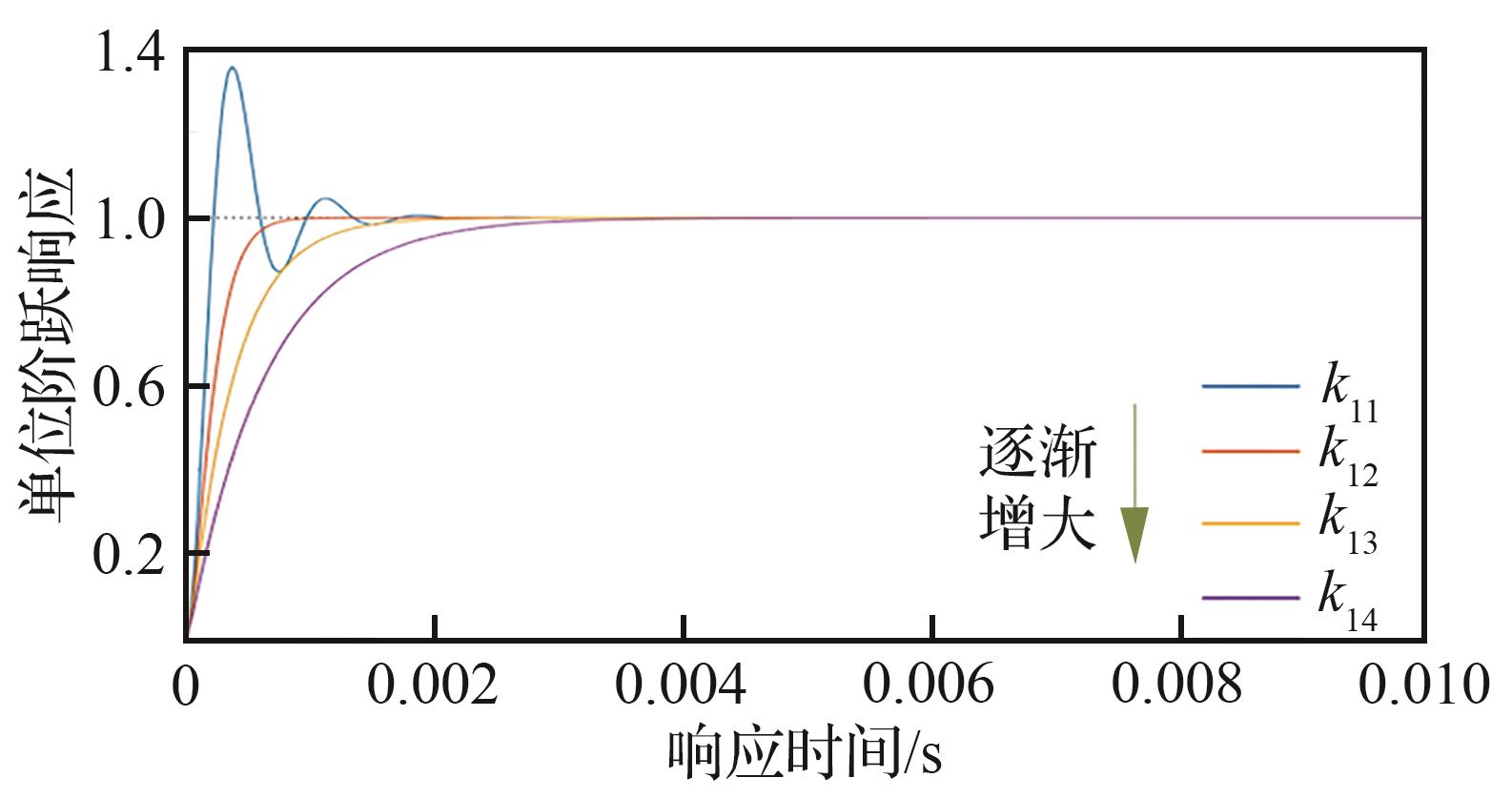

Fig.10

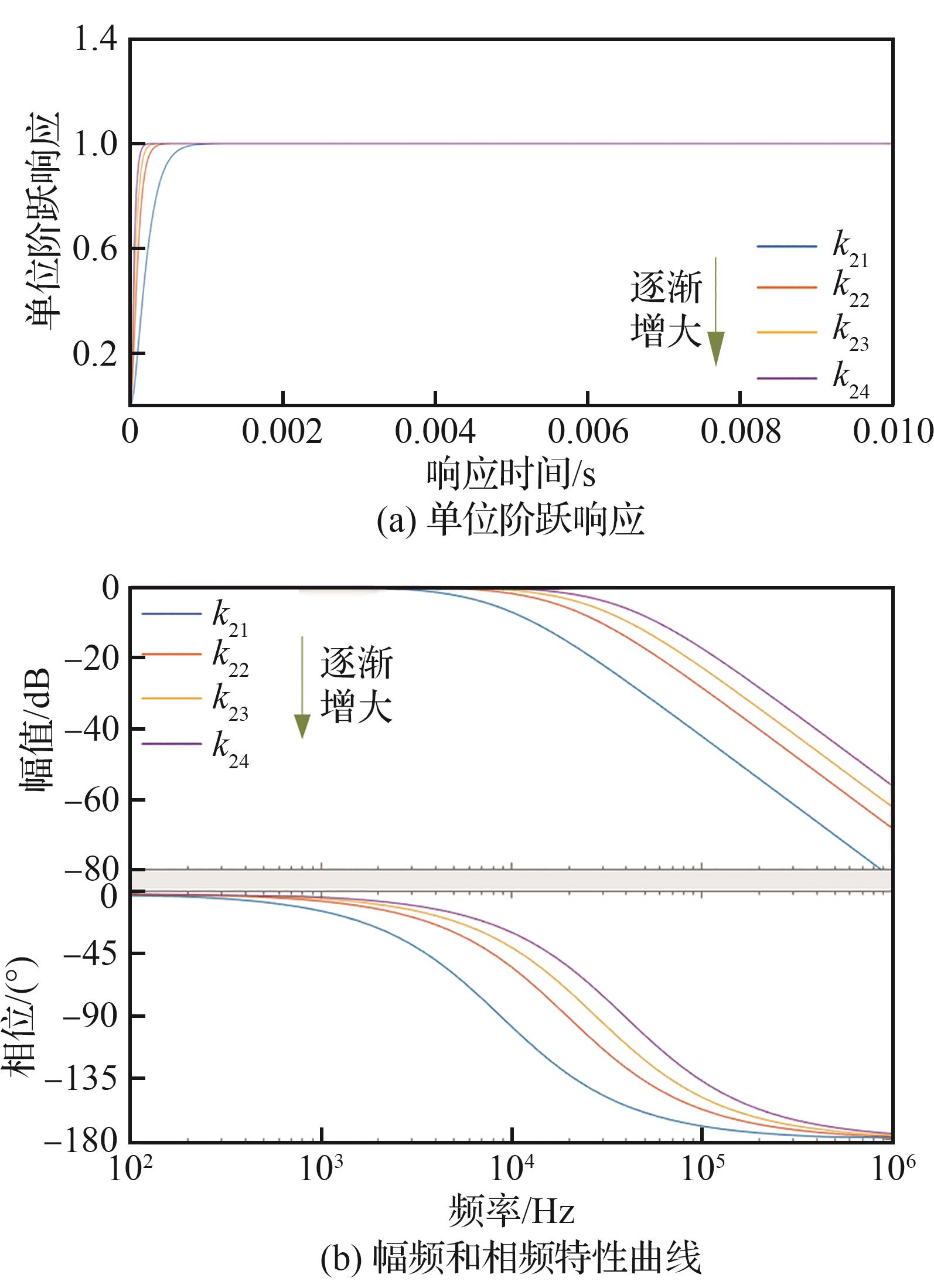

Fig.11

Fig.12

Fig.13

Fig.14

Fig.15

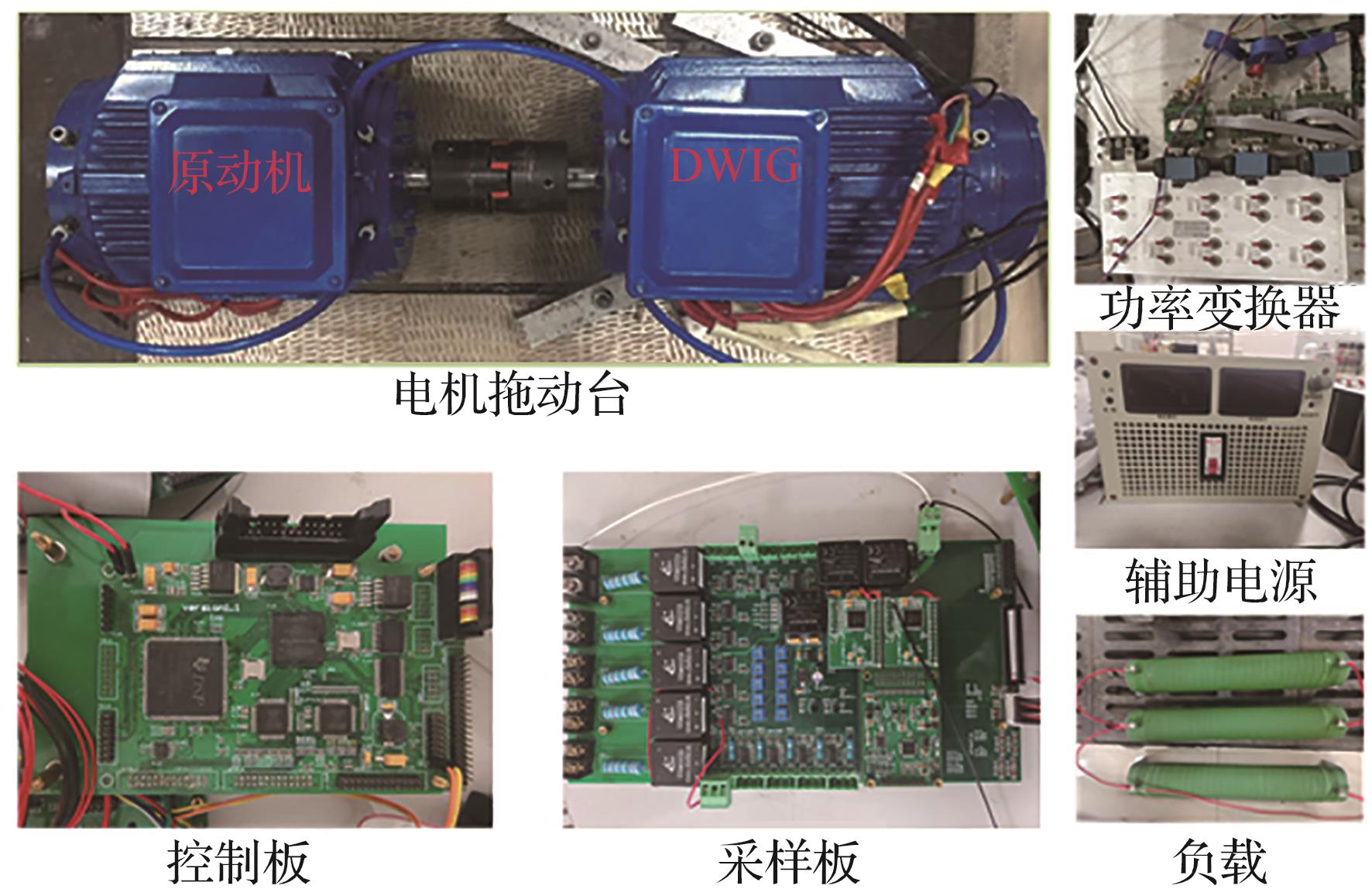

Table 1

Main parameters of DWIG power generation system used in the experiment

参数	数值	参数	数值
额定功率/（kV·A）	15	极对数	3
额定转速/（r·min^-1）	8 000	定子槽数	36
功率绕组额定相电压/V	115	转子槽数	33
控制绕组额定相电压/V	77	控制绕组每相串联匝数	12
定子外径/mm	194	控制绕组相带（电角度）	120
定子内径/mm	130	控制绕组节距	5/6
转子外径/mm	129.3	功率绕组每相串联匝数	18
转子内径/mm	35	功率绕组相带/（°）	120
气隙/mm	0.35	功率绕组节距	5/6
铁心长度/mm	110	激磁电感/ $m H$	1.058
功率绕组电阻/ $Ω$	0.024 7	功率绕组漏感/ $μ H$	66.4
控制绕组电阻/ $Ω$	0.032	控制绕组漏感/ $μ H$	66.4
转子电阻/ $Ω$	0.030 2	转子漏感/ $μ H$	65
交流绕组励磁电容/ $μ F$	40	绕组匝比	1.5
滤波电感/ $μ H$	58.5	直流母线滤波电容/ $μ F$	4 000

Table 1

References 26

[1]	秦海鸿，严仰光. 多电飞机的电气系统［M］. 北京：北京航空航天大学出版社， 2016.
	QIN H H， YAN Y G. Power system for more electric aircraft［M］. Beijing： Beihang University Press， 2016 （in Chinese）.
[2]	张卓然，许彦武，姚一鸣，等. 多电飞机电力系统及其关键技术［J］. 南京航空航天大学学报， 2022， 54（5）： 969-984.
	ZHANG Z R， XU Y W， YAO Y M， et al. Electric power system and key technologies of more electric aircraft［J］. Journal of Nanjing University of Aeronautics & Astronautics， 2022， 54（5）： 969-984 （in Chinese）.
[3]	WHEELER P， BOZHKO S. The more electric aircraft： Technology and challenges［J］. IEEE Electrification Magazine， 2014， 2（4）： 6-12.
[4]	BUTICCHI G， WHEELER P， BOROYEVICH D. The more-electric aircraft and beyond［J］. Proceedings of the IEEE， 2023， 111（4）： 356-370.
[5]	AREERAK K N， BOZHKO S V， ASHER G M， et al. Stability study for a hybrid AC-DC more-electric aircraft power system［J］. IEEE Transactions on Aerospace and Electronic Systems， 2012， 48（1）： 329-347.
[6]	DORN-GOMBA L， RAMOUL J， REIMERS J， et al. Power electronic converters in electric aircraft： Current status， challenges， and emerging technologies［J］. IEEE Transactions on Transportation Electrification， 2020， 6（4）： 1648-1664.
[7]	JIA Y J， RAJASHEKARA K. An induction generator-based AC/DC hybrid electric power generation system for more electric aircraft［J］. IEEE Transactions on Industry Applications， 2017， 53（3）： 2485-2494.
[8]	戴卫力，王慧贞，严仰光，等. 航空起动/发电系统的发展趋势与研究现状［J］. 航空科学技术， 2010， 21（5）： 28-32.
	DAI W L， WANG H Z， YAN Y G， et al. Development trend and current situation of starter-generator for aircraft engine［J］. Aeronautical Science and Technology， 2010， 21（5）： 28-32 （in Chinese）.
[9]	张卓然，李进才，韩建斌，等. 多电飞机大功率高压直流起动发电机系统研究与实现［J］. 航空学报， 2020， 41（2）： 323537.
	ZHANG Z R， LI J C， HAN J B， et al. Research and implementation of high-power high-voltage DC brushless starter generator system for more-electric-aircraft［J］. Acta Aeronautica et Astronautica Sinica， 2020， 41（2）： 323537 （in Chinese）.
[10]	BUTICCHI G， BOZHKO S， LISERRE M， et al. On-board microgrids for the more electric aircraft： Technology review［J］. IEEE Transactions on Industrial Electronics， 2019， 66（7）： 5588-5599.
[11]	OJO O， DAVIDSON I E. PWM-VSI inverter-assisted stand-alone dual stator winding induction generator［J］. IEEE Transactions on Industry Applications， 2000， 36（6）： 1604–1611.
[12]	OJO O， DAVIDSON I E. A dual stator winding induction generator with a four switch inverter battery scheme for control［C］∥2000 IEEE 31st Annual Power Electronics Specialists Conference. Piscataway：IEEE Press，2000： 230-234.
[13]	李勇，胡育文，陈光辉，等. 基于直接功率控制的定子双绕组感应发电机系统电压调节技术［J］. 中国电机工程学报， 2008， 28（26）： 111-117.
	LI Y， HU Y W， CHEN G H， et al. Voltage regulation for the dual stator-winding induction generator based on the direct power control［J］. Proceedings of the CSEE， 2008， 28（26）： 111-117 （in Chinese）.
[14]	BU F F， HUANG W X， HU Y W， et al. A stand-alone dual stator-winding induction generator variable frequency AC power system［J］. IEEE Transactions on Power Electronics， 2012， 27（1）： 10-13.
[15]	LIU H Z， BU F F， HUANG W X， et al. Linear active disturbance rejection control for dual-stator winding induction generator AC power system［J］. IEEE Transactions on Industrial Electronics， 2022， 70（7）： 6597-6607.
[16]	卜飞飞，罗捷，刘皓喆，等. 双绕组感应发电机系统无差拍电流预测控制策略［J］. 电工技术学报， 2021， 36（24）： 5213-5224.
	BU F F， LUO J， LIU H Z， et al. Deadbeat predictive current control strategy of dual winding induction generator system［J］. Transactions of China Electrotechnical Society， 2021， 36（24）： 5213-5224 （in Chinese）.
[17]	卜飞飞. 变速运行的定子双绕组异步发电机系统研究［D］. 南京：南京航空航天大学， 2014.
	BU F F. Research on the variable-speed-operation dual stator-winding induction generator system［D］. Nanjing： Nanjing University of Aeronautics and Astronautics， 2014 （in Chinese）.
[18]	BU F F， HU Y W， HUANG W X， et al. Wide-speed-range-operation dual stator-winding induction generator DC generating system for wind power applications［J］. IEEE Transactions on Power Electronics， 2015， 30（2）： 561-573.
[19]	BU F F， LIU H Z， HUANG W X， et al. Recent advances and developments in dual stator-winding induction generator and system［J］. IEEE Transactions on Energy Conversion， 2018， 33（3）： 1431-1442.
[20]	刘陵顺. 定子双绕组感应发电机的设计及控制系统的研究［D］. 南京：南京航空航天大学， 2007.
	LIU L S. Research on design of dual stator-winding induction generator and control of system［D］. Nanjing： Nanjing University of Aeronautics and Astronautics， 2007 （in Chinese）.
[21]	卜飞飞，胡育文，黄文新，等. 定子双绕组异步电机变频交流发电系统辅助励磁电容和滤波电感的优化设计［J］. 电工技术学报， 2014， 29（11）： 68-77.
	BU F F， HU Y W， HUANG W X， et al. Optimal design method of assistant excitation capacitor and filter inductor of dual stator-winding induction generator in variable frequency AC generation system［J］. Transactions of China Electrotechnical Society， 2014， 29（11）： 68-77 （in Chinese）.
[22]	卜飞飞，黄文新，胡育文，等. 定子双绕组感应电机风力发电系统励磁电容的优化选取［J］. 电工技术学报， 2011， 26（10）： 152-160.
	BU F F， HUANG W X， HU Y W， et al. Optimal selection of excitation capacitor for dual stator-winding induction generator wind power system［J］. Transactions of China Electrotechnical Society， 2011， 26（10）： 152-160 （in Chinese）.
[23]	BU F F， HU Y W， HUANG W X， et al. Control strategy and dynamic performance of dual stator-winding induction generator variable frequency AC generating system with inductive and capacitive loads［J］. IEEE Transactions on Power Electronics， 2014， 29（4）： 1681-1692.
[24]	施凯，黄文新，胡育文，等. 宽风速运行的定子双绕组感应电机风力发电系统拓扑及控制策略［J］. 电工技术学报， 2012， 27（7）： 78-85.
	SHI K， HUANG W X， HU Y W， et al. Topology and control strategies of dual stator-winding induction generator wind power system over a wide wind speed range［J］. Transactions of China Electrotechnical Society， 2012， 27（7）： 78-85 （in Chinese）.
[25]	庄圣伦. 基于双定子绕组异步电机的航空变频交流电源关键技术研究［D］. 南京：南京航空航天大学， 2017.
	ZHUANG S L. Research on the key technique of variable frequency AC aircraft power supply based on dual-stator winding induction generator［D］. Nanjing： Nanjing University of Aeronautics and Astronautics， 2017 （in Chinese）.
[26]	苏宁，黄文新. 电推进飞机定子双绕组感应发电机并联系统［J］. 航空学报， 2022， 43（8）： 325409.
	SU N， HUANG W X. Parallel power generation system based on dual-stator winding induction generator for electric propulsion aircraft［J］. Acta Aeronautica et Astronautica Sinica， 2022， 43（8）： 325409 （in Chinese）.
