金属丝网机匣处理结构参数对压气机稳定性的影响机理

doi:10.7527/S1000-6893.2025.32862

Abstract

Abstract:

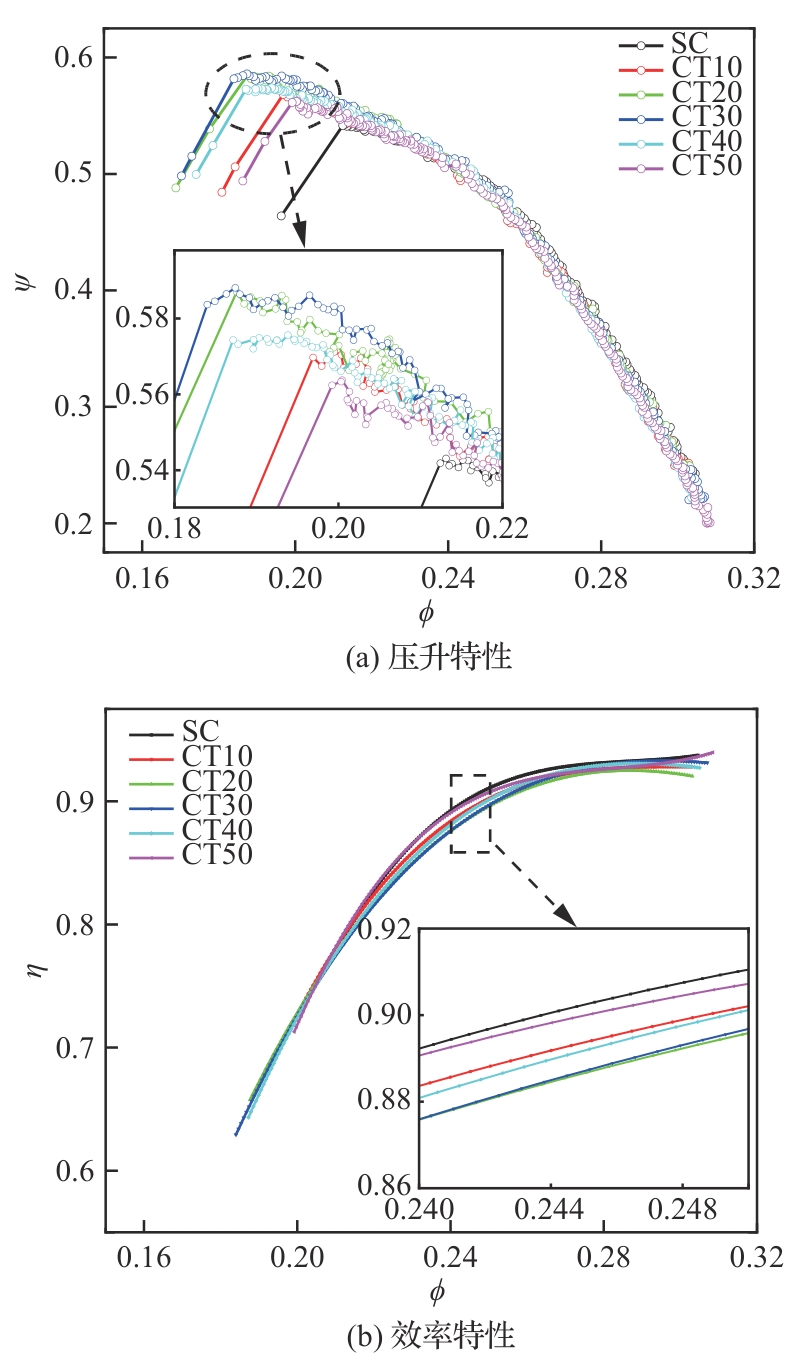

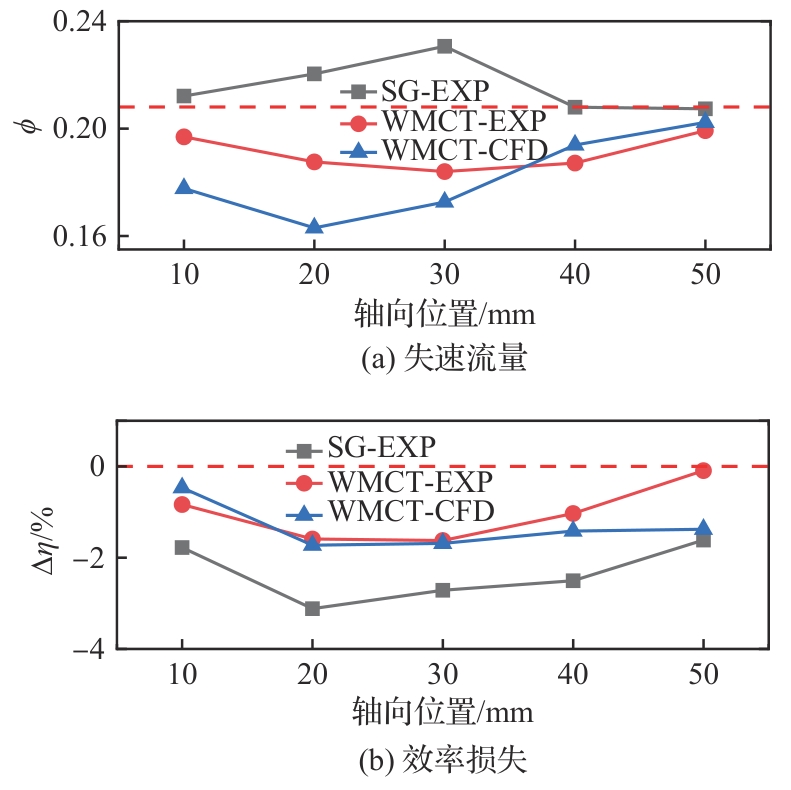

To explore the influence and stabilization mechanism of key structural parameters of the Wire Mesh Casing Treatment （WMCT） on compressor stability， this paper investigates the effects of the axial installation position and cavity depth of WMCT. Based on experimental and numerical simulation methods， the stabilization effects of WMCT at five axial positions were first studied. Combined with the variation laws of three-dimensional flow field structures and macroscopic performance parameters， the mechanism of the axial position on compressor stability was analyzed. For WMCT covering the rotor tip leading edge， it reduces the angle between the tip leakage vortex and the blade suction surface， delaying the occurrence of flow separation on the pressure side. For the case near the mid-span region without covering the tip leading edge， WMCT reorganizes the flow structure in the covered area， blocks the development of the tip leakage vortex in the blade passage， and delays the stall inception. When the axial position is 20 mm， the stabilization effect is relatively optimal. On this basis， three cavity depths were further studied. The results show that cavity depth has a significant effect on relieving the blockage in the tip region， and the effect becomes stronger with increasing depth. When the cavity depth exceeds 10 mm， further increase has little impact. Regarding the stabilization mechanism， WMCT improves flow stability by adjusting the steady aerodynamic load distribution of the rotor blades， and expands the stability margin of the compression system by suppressing the amplitude of unsteady stall precursor disturbances.

Key words: wire mesh casing treatment, axial position, cavity depth, stall margin, stabilization mechanism

CLC Number:

V231

Yongjian ZHENG, Lei FU, Ruoyang LIU, Ning MA, Ming ZHANG, Xu DONG, Dakun SUN, Xiaofeng SUN. Influence mechanisms of wire mesh casing treatment structural parameters on compressor stability[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(12): 132862.

Figures/Tables 23

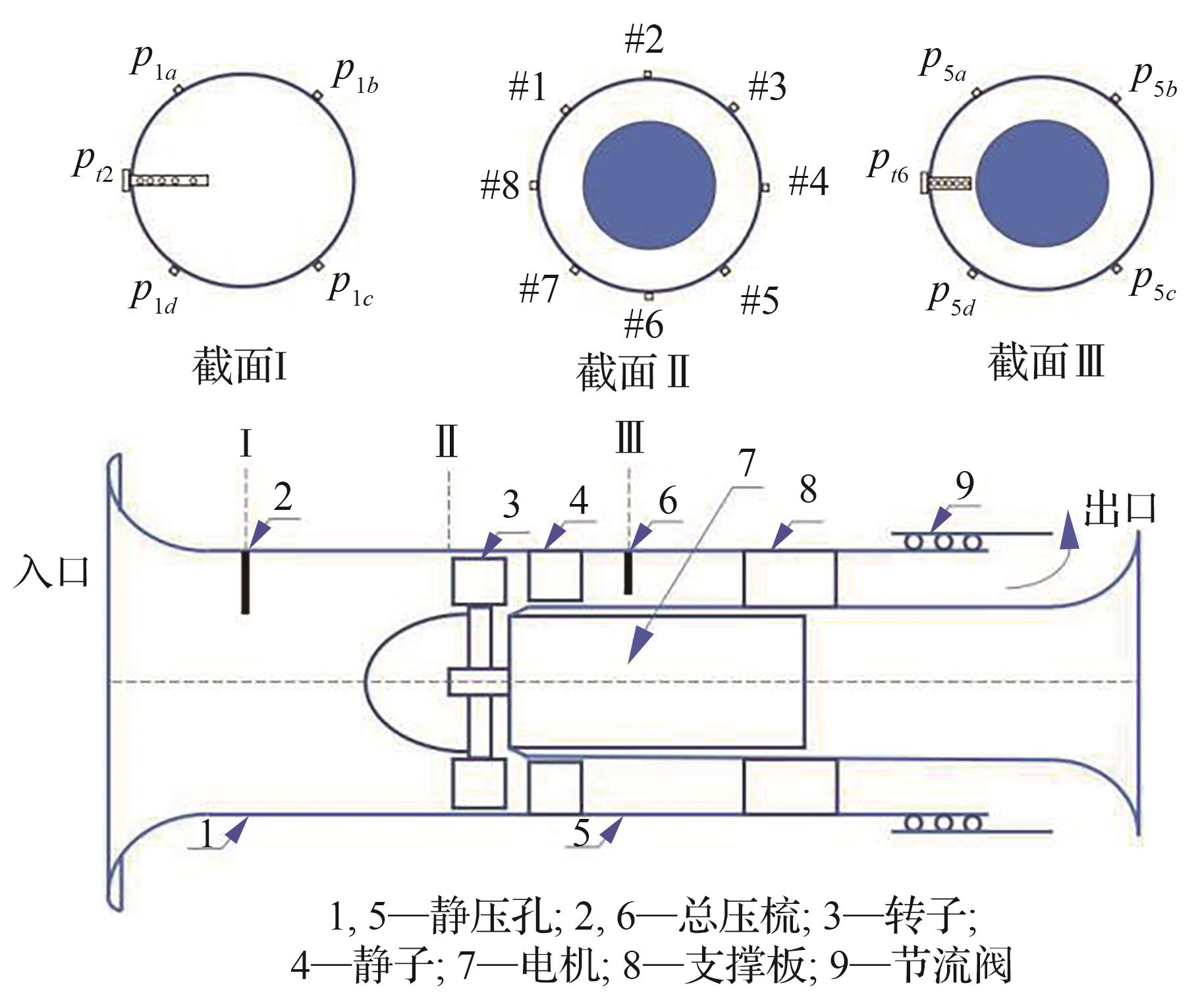

Fig.1

Table 1

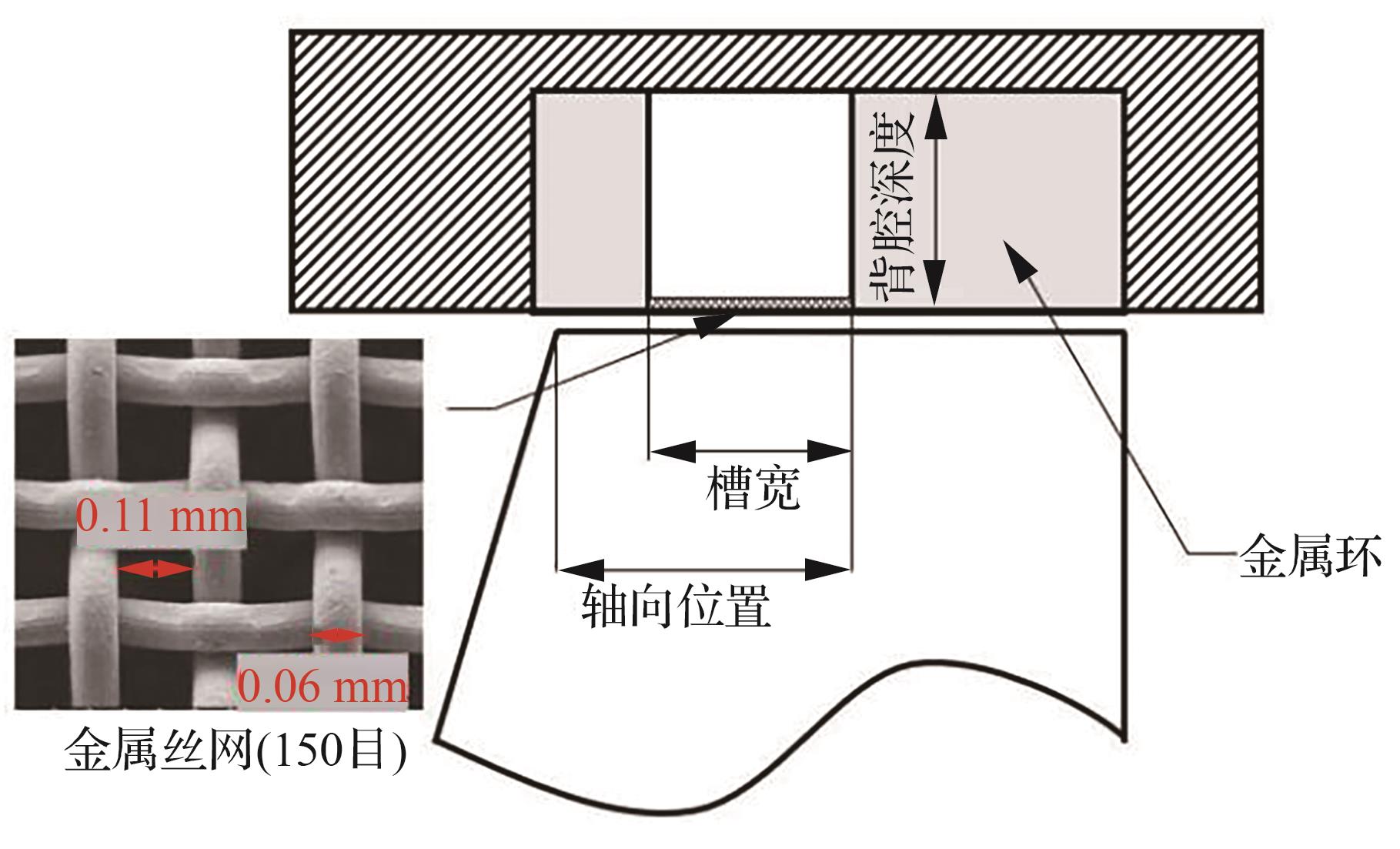

Fig.2

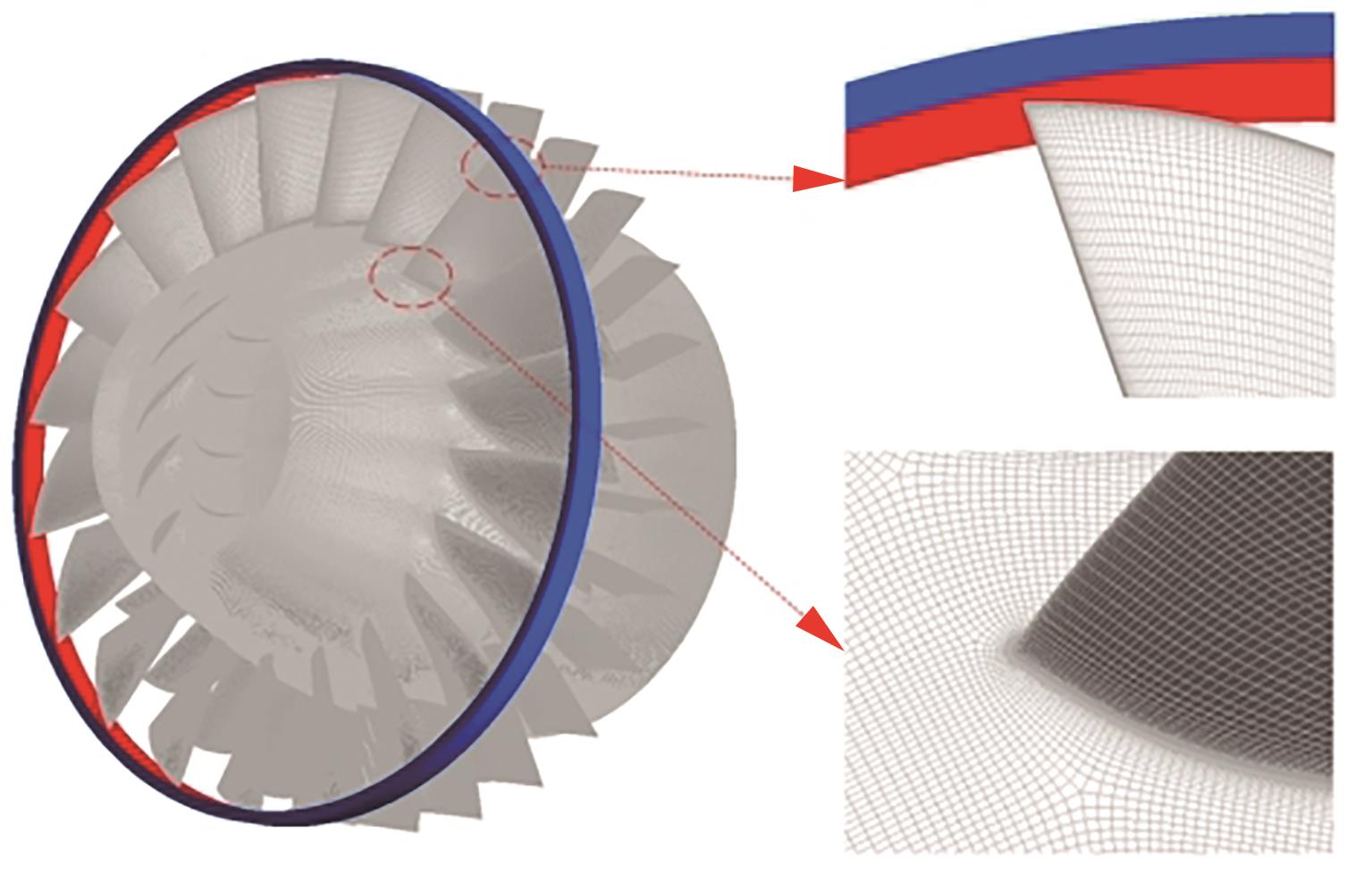

Fig.3

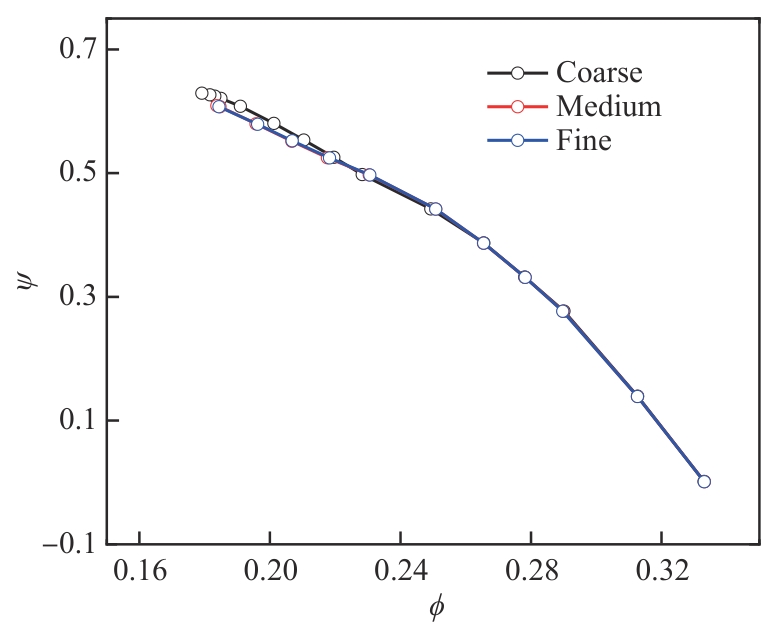

Fig.4

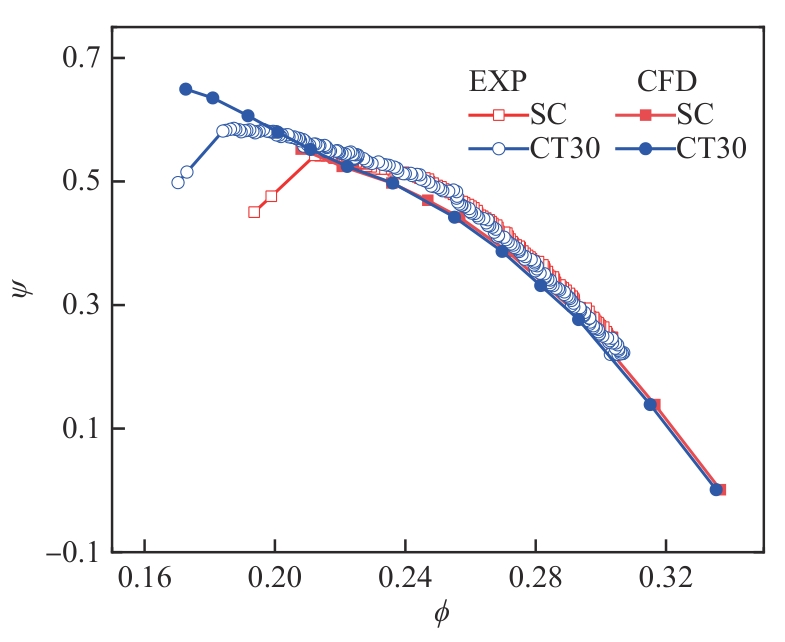

Fig.5

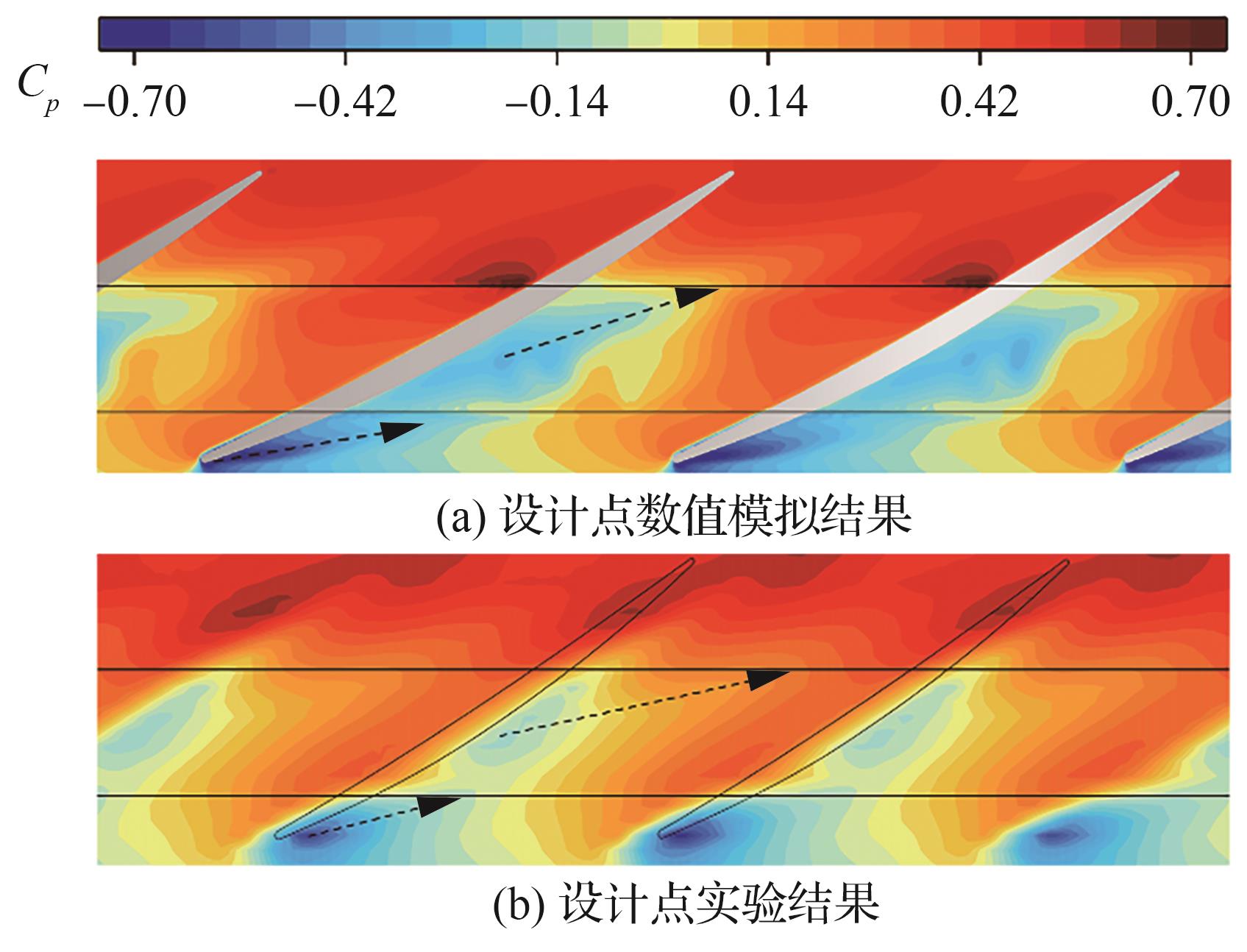

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

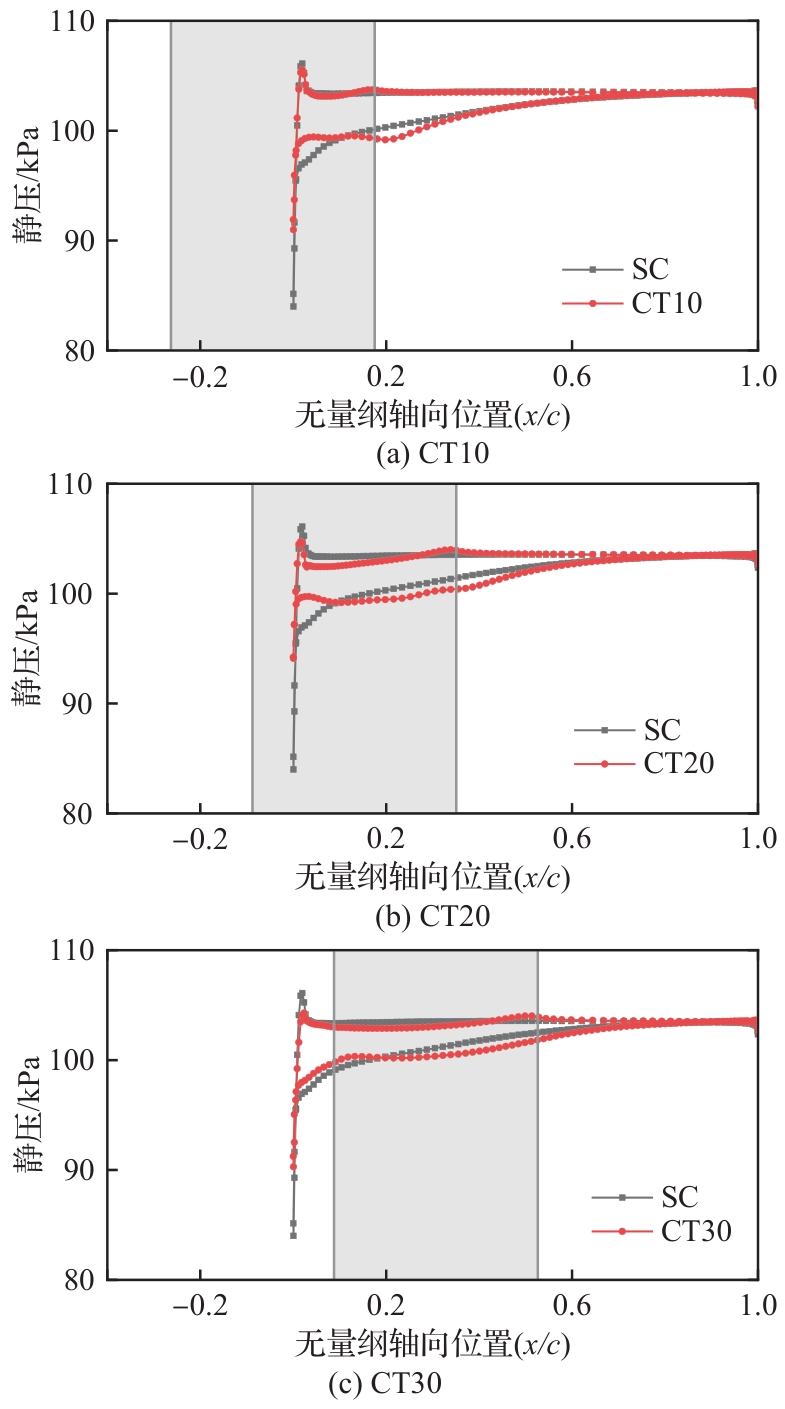

Fig.11

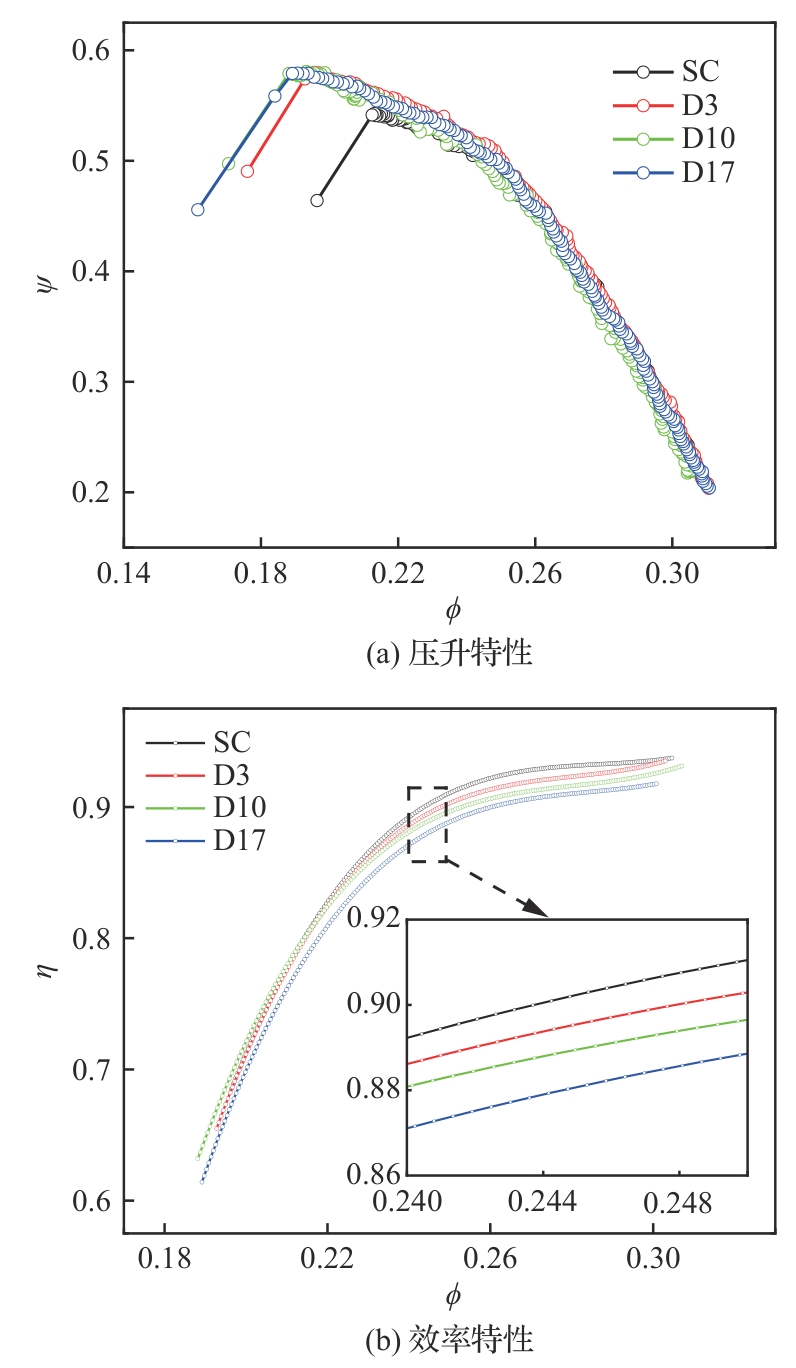

Fig.12

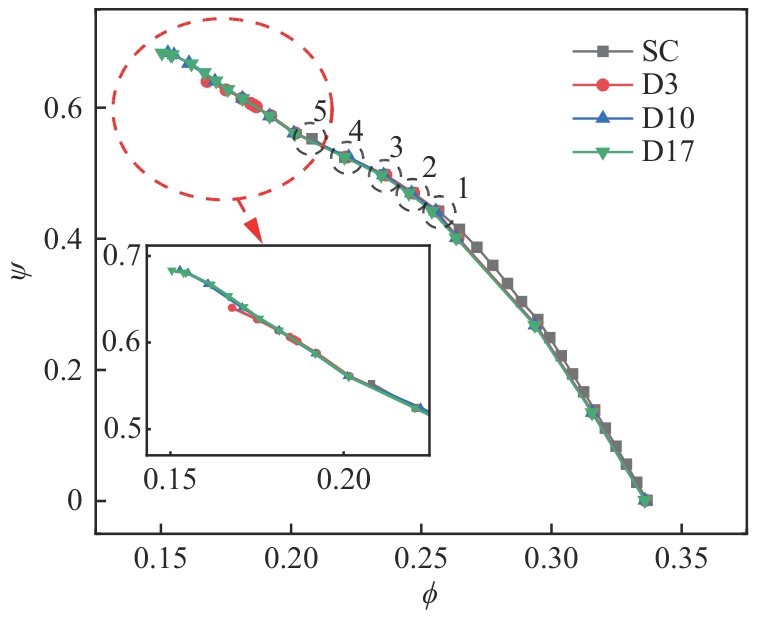

Fig.13

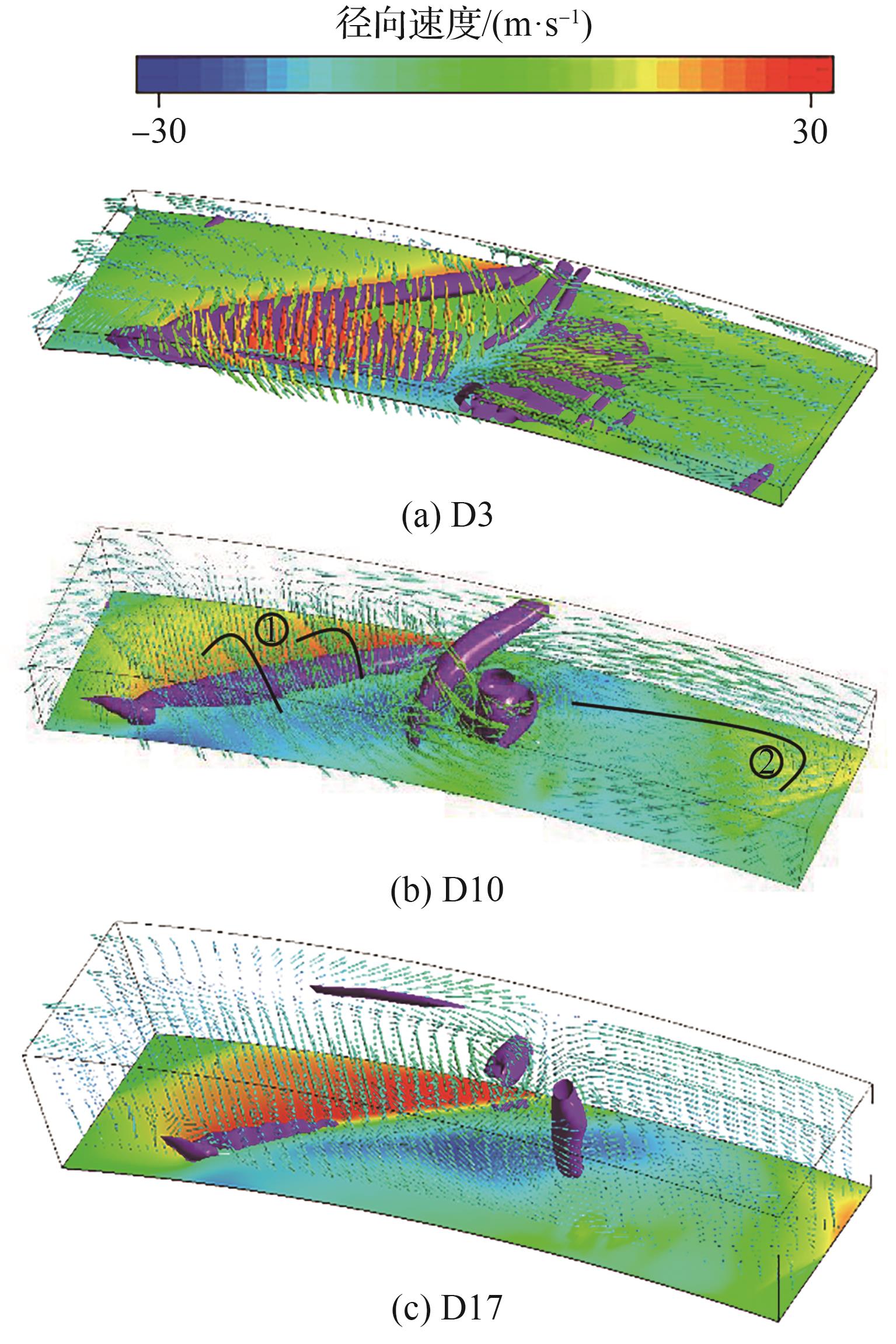

Fig.14

Fig.15

Fig.16

Fig.17

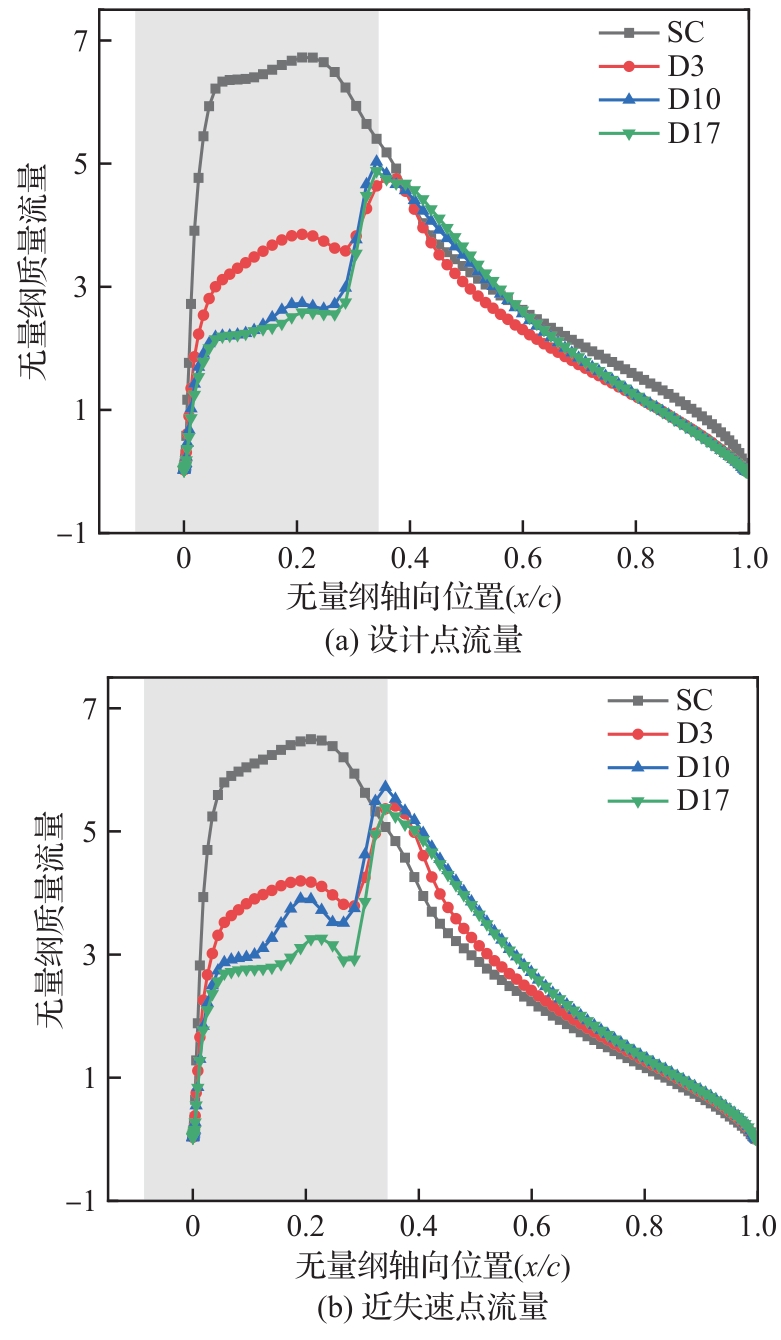

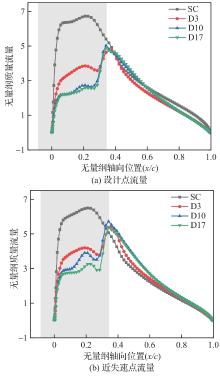

Fig.18

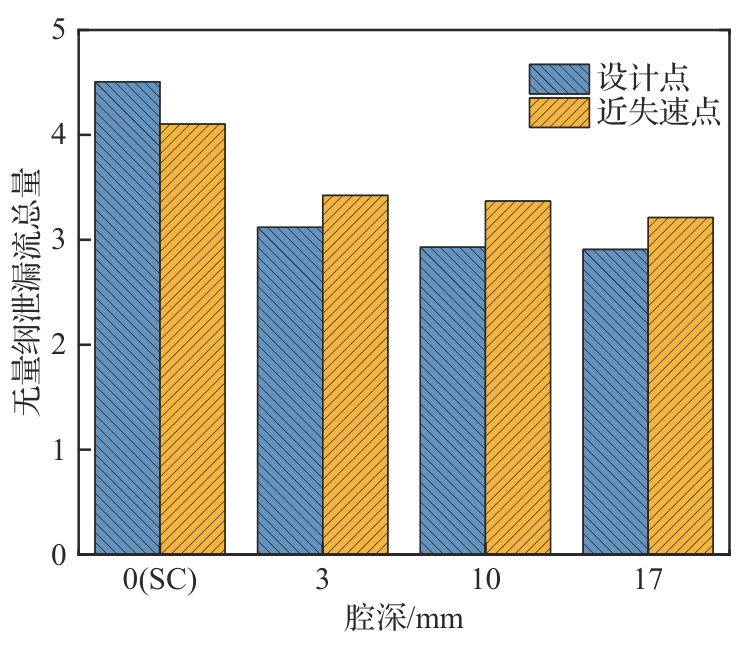

Fig.19

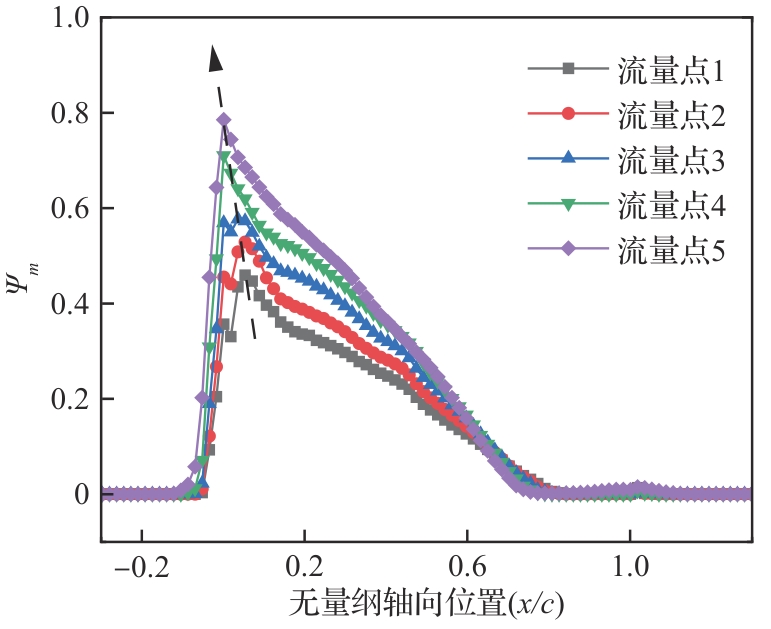

Fig.20

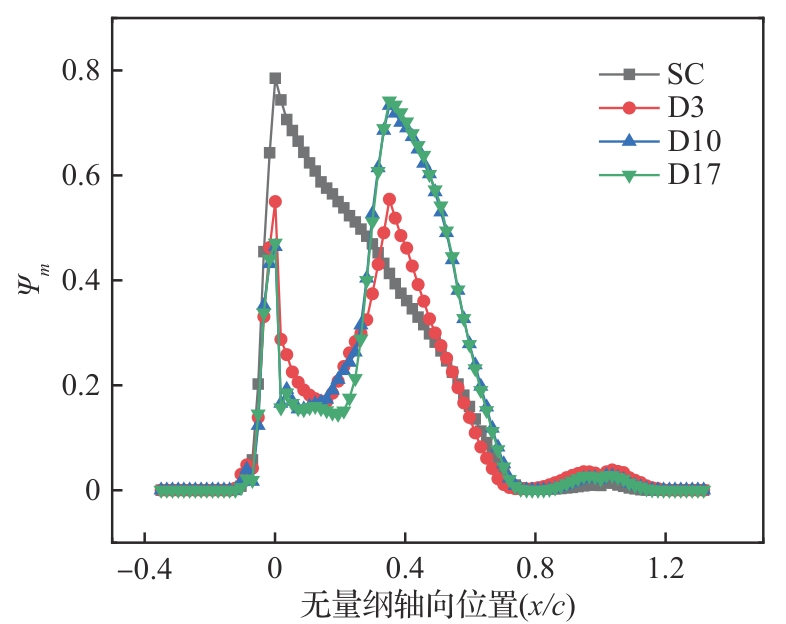

Fig.21

Fig.22

References 26

[1]	MULLER M W， SCHIFFER H P， HAH C. Effect of circumferential grooves on the aerodynamic performance of an axial single-stage transonic compressor［C］∥ASME Turbo Expo 2007： Power for Land， Sea， and Air. New York： ASME， 2007： 115-124.
[2]	HOUGHTON T， DAY I. Enhancing the stability of subsonic compressors using casing grooves［J］. Journal of Turbomachinery， 2011， 133（2）： 021007.
[3]	DANNER F C T， KAU H P， MULLER M M， et al. Experimental and numerical analysis of axial skewed slot casing treatments for a transonic compressor stage［C］∥ ASME Turbo Expo 2009： Power for Land， Sea， and Air. New York： ASME， 2009： 227-238.
[4]	BA D， ZHANG Q F， DU J， et al. Design optimization of axial slot casing treatment in a highly-loaded mixed-flow compressor［J］. Aerospace Science and Technology， 2020， 107： 106262.
[5]	楚武利，张皓光，吴艳辉，等. 槽式机匣槽宽变化对扩稳效果影响的试验与数值研究［J］. 航空学报， 2008， 29（4）： 866-872.
	CHU W L， ZHANG H G， WU Y H， et al. Impact of grooved width of grooved casing on stall margin improvement［J］. Acta Aeronautica et Astronautica Sinica， 2008， 29（4）： 866-872 （in Chinese）.
[6]	张皓光，安康，吴艳辉，等. 周向槽轴向位置影响机匣处理扩稳能力的机理［J］. 推进技术， 2016， 37（12）： 2296-2302.
	ZHANG H G， AN K， WU Y H， et al. Mechanism of affecting ability of casing treatment to improve stall margin with varying axial position of circumferential grooves［J］. Journal of Propulsion Technology， 2016， 37（12）： 2296-2302 （in Chinese）.
[7]	MAO X C， LIU B， TANG T Q， et al. The impact of casing groove location on the flow instability in a counter-rotating axial flow compressor［J］. Aerospace Science and Technology， 2018， 76： 250-259.
[8]	李继超，刘乐，杜娟，等. 低速轴流压气机周向单槽机匣处理扩稳实验研究［J］. 航空学报， 2015， 36（5）： 1422-1431.
	LI J C， LIU L， DU J， et al. Experimental investigation of stability enhancement with single circumferential groove casing treatment on a low speed axial compressor［J］. Acta Aeronautica et Astronautica Sinica， 2015， 36（5）： 1422-1431 （in Chinese）.
[9]	SAKUMA Y， WATANABE T， HIMENO T， et al. Numerical analysis of flow in a transonic compressor with a single circumferential casing groove： Influence of groove location and depth on flow instability［J］. Journal of Turbomachinery， 2014， 136（3）： 031017.
[10]	RABE D C， HAH C. Application of casing circumferential grooves for improved stall margin in a transonic axial compressor［C］∥ASME Turbo Expo 2002： Power for Land， Sea， and Air. New York： ASME， 2002： 1141-1153.
[11]	段真真，柳阳威，陆利蓬. 周向槽机匣处理对某跨音转子性能的影响［J］. 航空学报， 2014， 35（8）： 2163-2173.
	DUAN Z Z， LIU Y W， LU L P. Influence of circumferential casing grooves on transonic compressor rotor performance［J］. Acta Aeronautica et Astronautica Sinica， 2014， 35（8）： 2163-2173 （in Chinese）.
[12]	SUN X F， LIU X H， HOU R W， et al. A general theory of flow-instability inception in turbomachinery［J］. AIAA Journal， 2013， 51（7）： 1675-1687.
[13]	SUN X F， SUN D K， LIU X H， et al. Theory of compressor stability enhancement using novel casing treatment， part Ⅰ： Methodology［J］. Journal of Propulsion and Power， 2014， 30（5）： 1224-1235.
[14]	SUN D K， LIU X H， JIN D H， et al. Theory of compressor stability enhancement using novel casing treatment， part Ⅱ： Experiment［J］. Journal of Propulsion and Power， 2014， 30（5）： 1236-1247.
[15]	LI J， SUN D K， XU R， et al. Effect of the foam metal casing treatment on a low-speed axial compressor［C］∥ASME Turbo Expo： Turbomachinery Technical Conference and Exposition. New York： ASME， 2020： 1-11.
[16]	SUN D K， LI J， XU R Z， et al. Effects of the foam metal casing treatment on aerodynamic stability and aerocoustic noise in an axial flow compressor［J］. Aerospace Science and Technology， 2021， 115： 106793.
[17]	ZHANG M， ZHANG J M， HU J H， et al. Effect of wire mesh casing treatment on axial compressor performance and stability［J］. Chinese Journal of Aeronautics， 2024， 37（3）： 60-76.
[18]	ZHANG M， HU J H， FANG Y B， et al. Stability analysis of axial compressors with wire mesh casing treatment［J］. Physics of Fluids， 2023， 35（11）： 114107.
[19]	SUN D K， HU J H， XU D K， et al. Stall inception prediction of transonic compressor with wire mesh casing treatment［J］. AIAA Journal， 2024， 62（2）： 725-740.
[20]	CHEN H， LI Y C， KATZ J. On the interactions of a rotor blade tip flow with axial casing grooves in an axial compressor near the best efficiency point［J］. Journal of Turbomachinery， 2019， 141（1）： 1-11.
[21]	VO H D， TAN C S， GREITZER E M. Criteria for spike initiated rotating stall［J］. Journal of Turbomachinery， 2008， 130（1）： 011023.
[22]	SUDER K L， HATHAWAY M D， THORP S A， et al. Compressor stability enhancement using discrete tip injection［J］. Journal of Turbomachinery， 2001， 123（1）： 14-23.
[23]	CAMP T R， DAY I J. A study of spike and modal stall phenomena in a low-speed axial compressor［J］. Journal of Turbomachinery， 1998， 120（3）： 393-410.
[24]	TIRALAP A， TAN C S， DONAHOO E， et al. Effects of rotor tip blade loading variation on compressor stage performance［J］. Journal of Turbomachinery， 2017， 139（5）： 051006.
[25]	XU D K， DONG X， ZHOU C H， et al. Effect of rotor axial blade loading distribution on compressor stability［J］. Aerospace Science and Technology， 2021， 119： 107230.
[26]	GANNON A J， HOBSON G V. Pre-stall instability distribution over a transonic compressor rotor［J］. Journal of Fluids Engineering： Transactions of the ASME， 2009， 131（5）： 051106.

参数	转子	静子
叶片数	20	27
机匣内径/mm	600	600
进口轮毂比	0.577	0.699
叶尖间隙/mm	0.6~0.8	0.5
展弦比	1.18	1.40
设计转速/（r·min^-1）	2 930
级压比	1.026 7
级压升系数	0.48
