基于矩积分的有限元不确定性量化方法及其橡胶隔振器可靠性分析应用

doi:10.7527/S1000-6893.2025.33132

Abstract

Abstract:

Rubber isolators are important connecting and vibration-damping components in the auxiliary systems of aero-engines. Their vibration isolation performance is susceptible to material aging and uncertainties in service environments， making reliability assessment an urgent need. However， the traditional Monte Carlo method， which relies on a large number of random samples， incurs high computational costs. For typical aviation components like isolators-characterized by complex structures， multiple uncertain factors， and high test costs-existing methods still struggle to achieve reliability assessment with both computational efficiency and statistical accuracy. To address this issue， The study proposes an uncertainty quantification method based on moment quadrature and maximum entropy theory， enabling efficient reliability assessment of the vibration isolation performance of rubber isolators. First， an elastic modulus degradation model is established based on the accelerated aging test data of rubber materials. Optimal integration nodes and weights are derived by constructing a Hankel matrix through moment quadrature， replacing large-scale random sampling with a small number of key samples. Subsequently， the elastic moduli corresponding to the integration nodes are input into the random vibration finite element model to obtain the vibration isolation rate response and its statistical moments. The maximum entropy principle is then used to reconstruct the probability density function of the vibration isolation rate without the need to preset a distribution form. This method features significant advantages of being non-sampling and analytical quadrature. It can obtain multi-order statistical characteristics of vibration isolation performance with only a few optimal integration nodes， greatly reducing the number of finite element calls while maintaining accuracy. It provides an efficient technical approach for reliability analysis of complex structures.

Key words: rubber isolator, random vibration, moment quadrature, rubber degradation, reliability evaluation

CLC Number:

V240.2

Jingjing HE, Xunqi LIU, Weitao LOU, Xuefei GUAN. Finite element-based uncertainty quantification method using moment quadrature and its application in reliability analysis of rubber isolators[J]. Acta Aeronautica et Astronautica Sinica, 2026, 47(12): 233132.

Figures/Tables 20

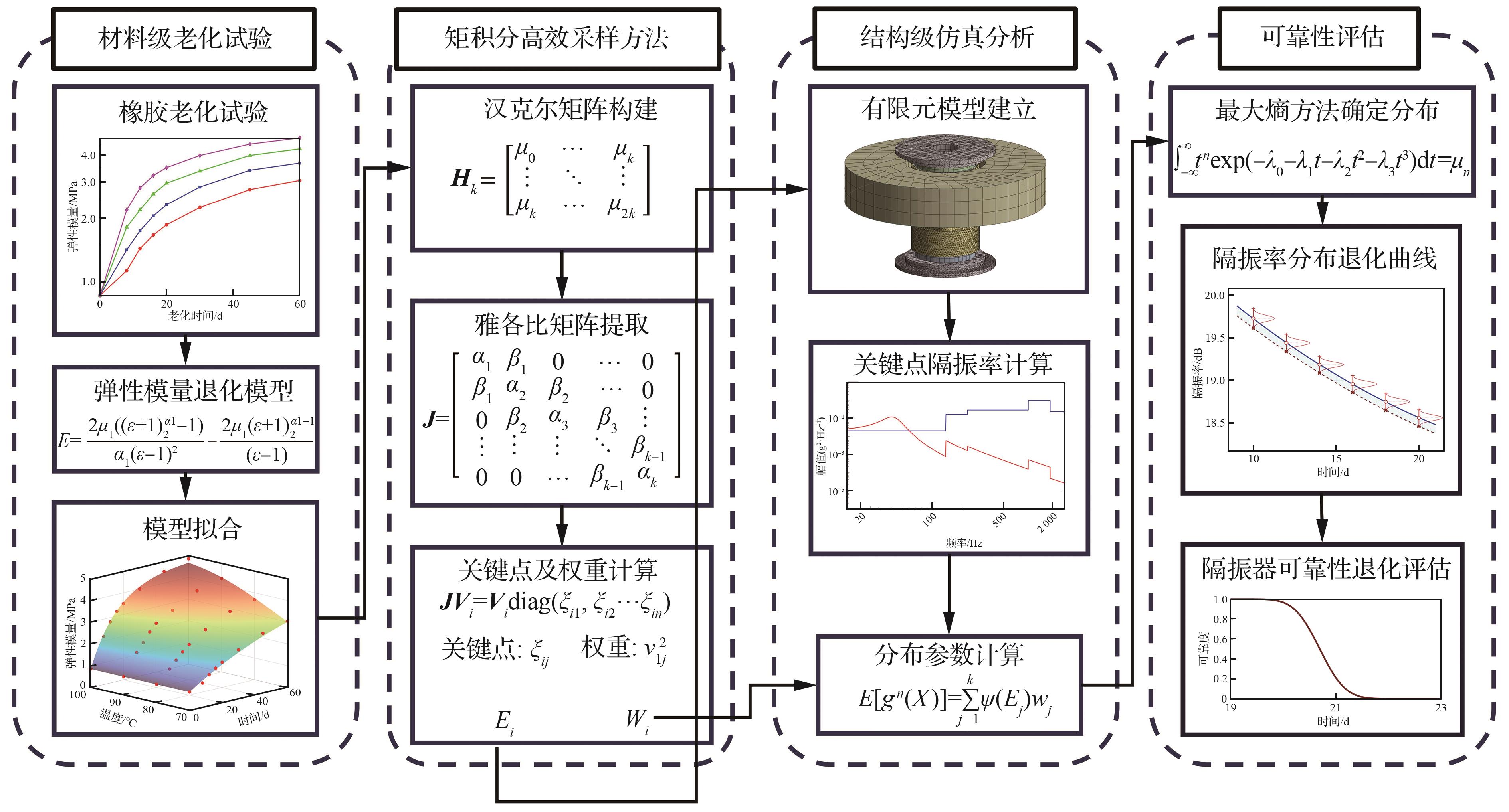

Fig.1

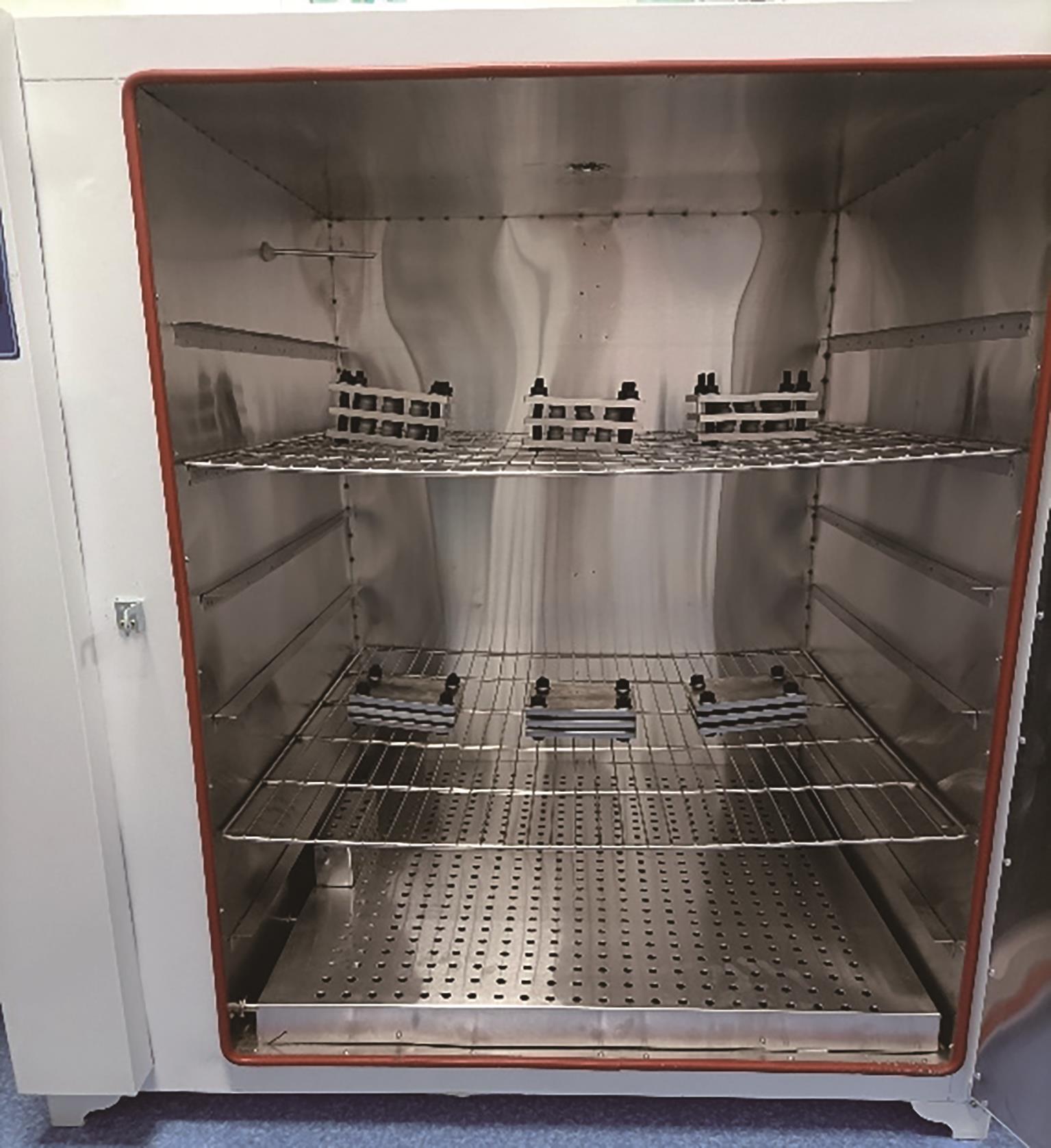

Fig.2

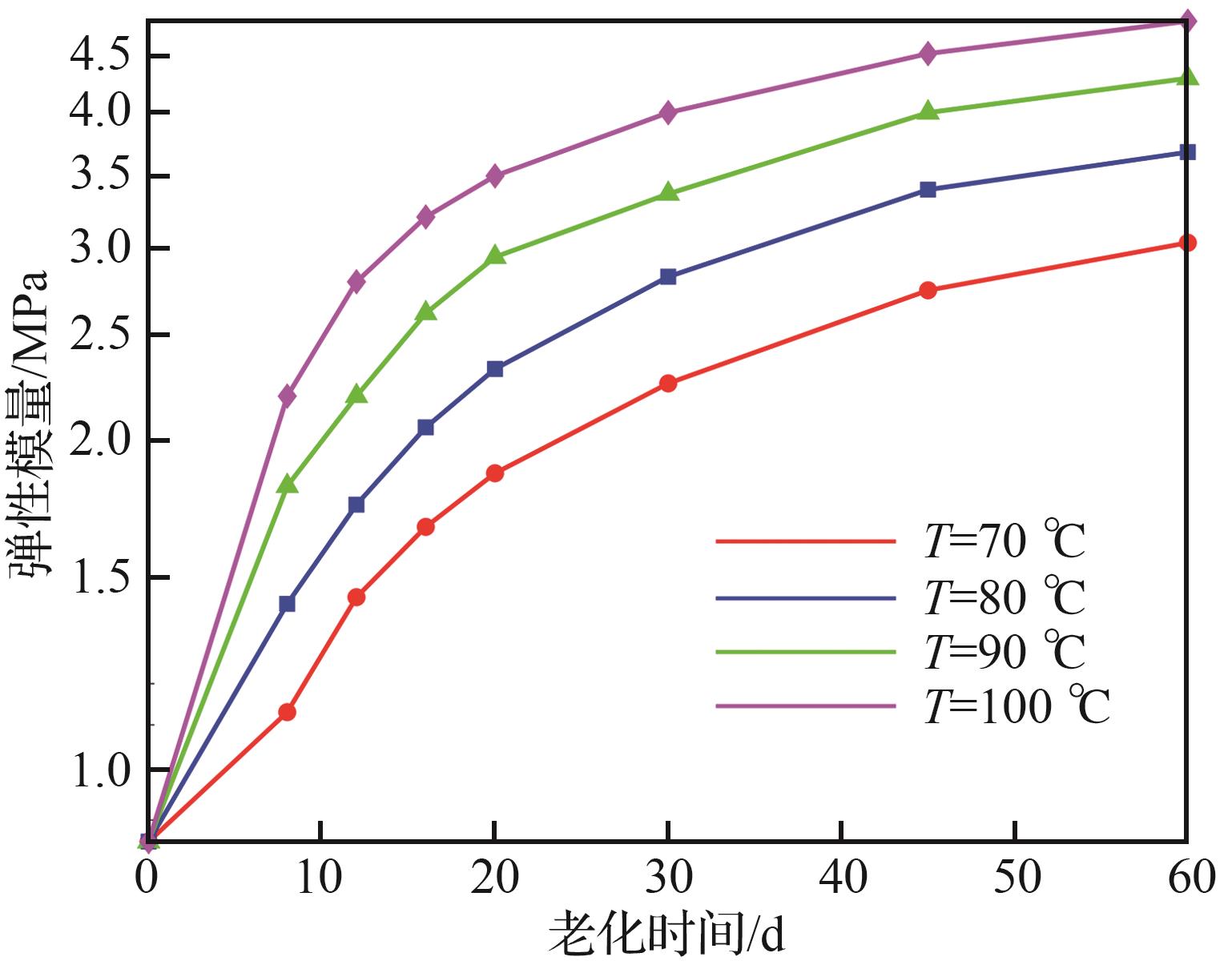

Fig.3

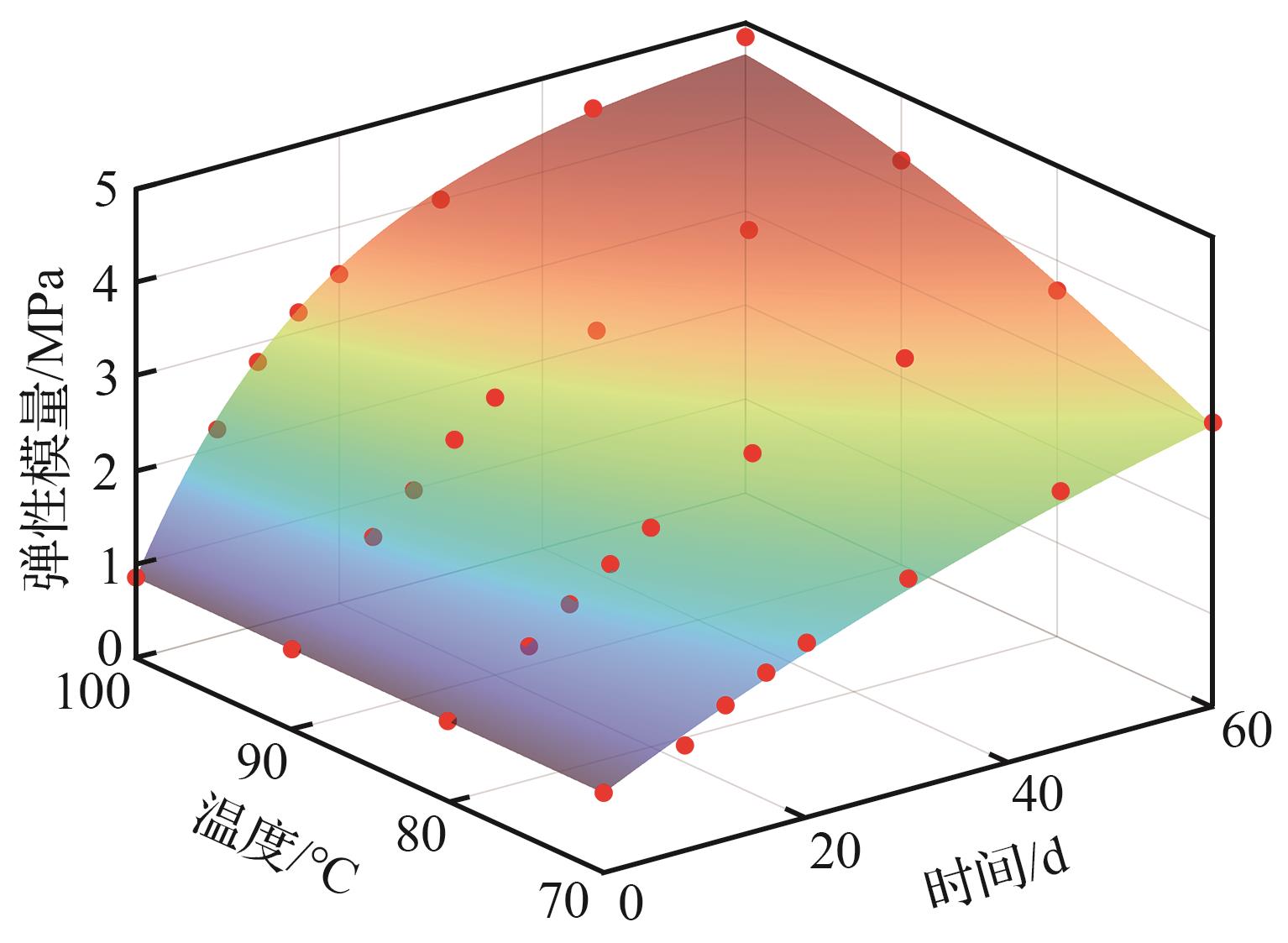

Fig.4

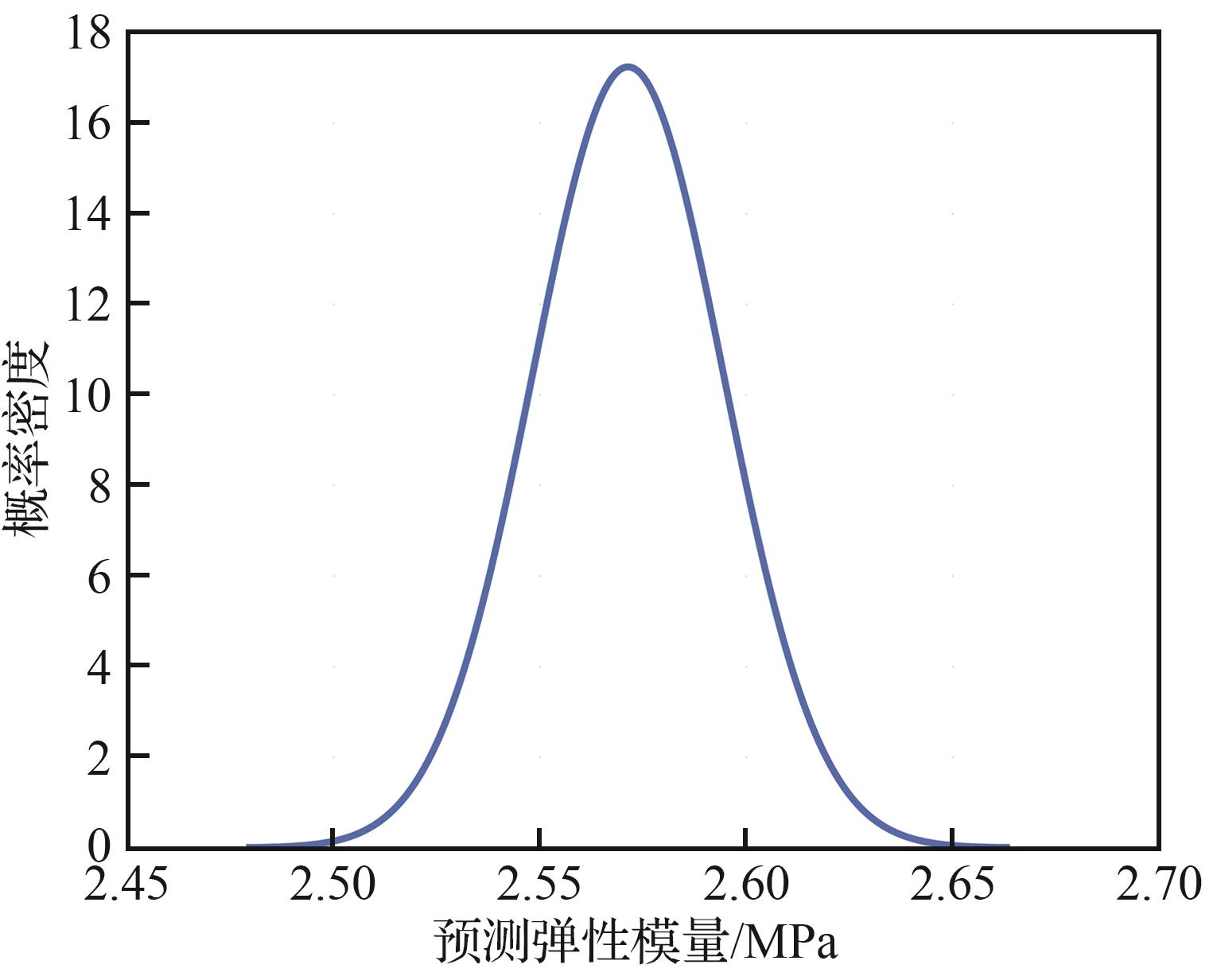

Fig.5

Table 1

Table 2

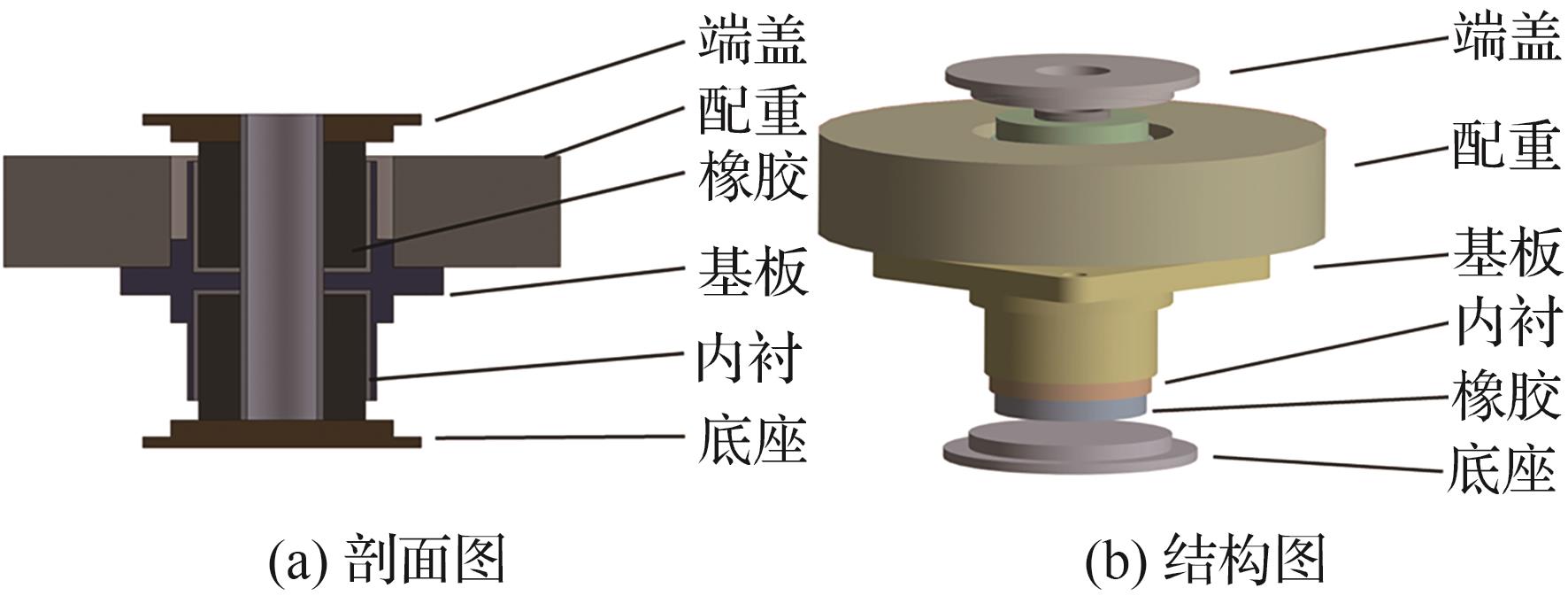

Fig.6

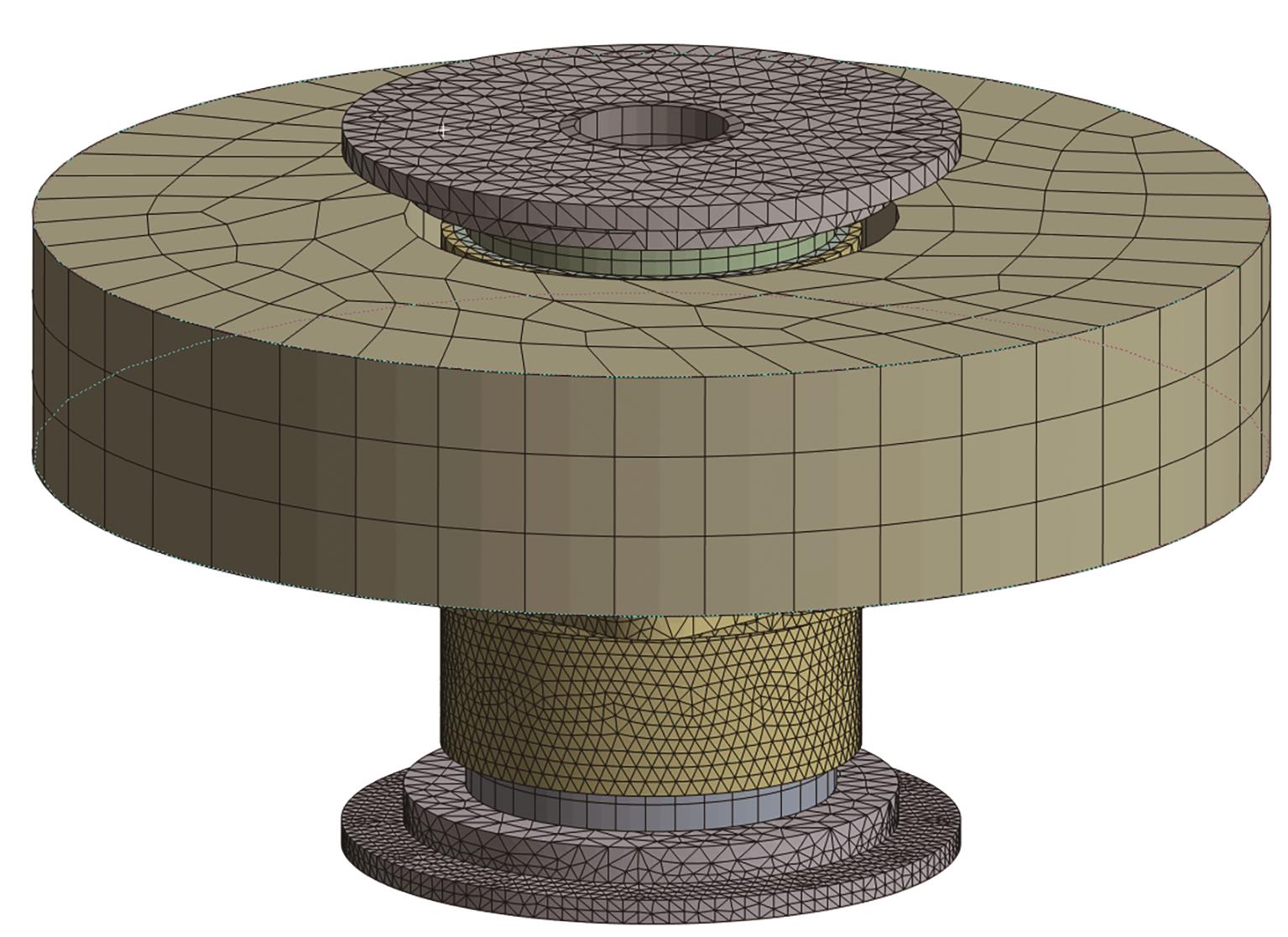

Fig.7

Table 3

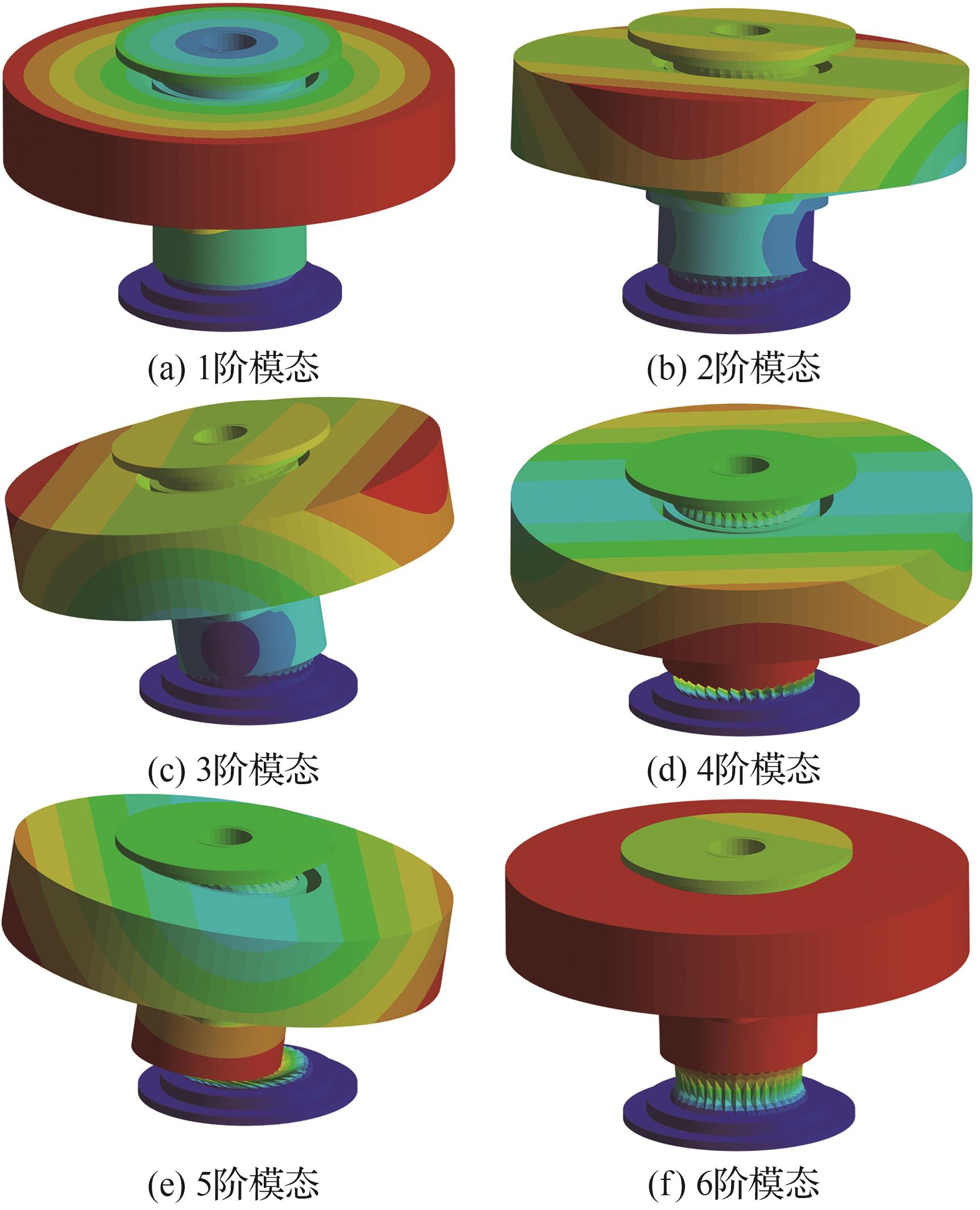

Fig.8

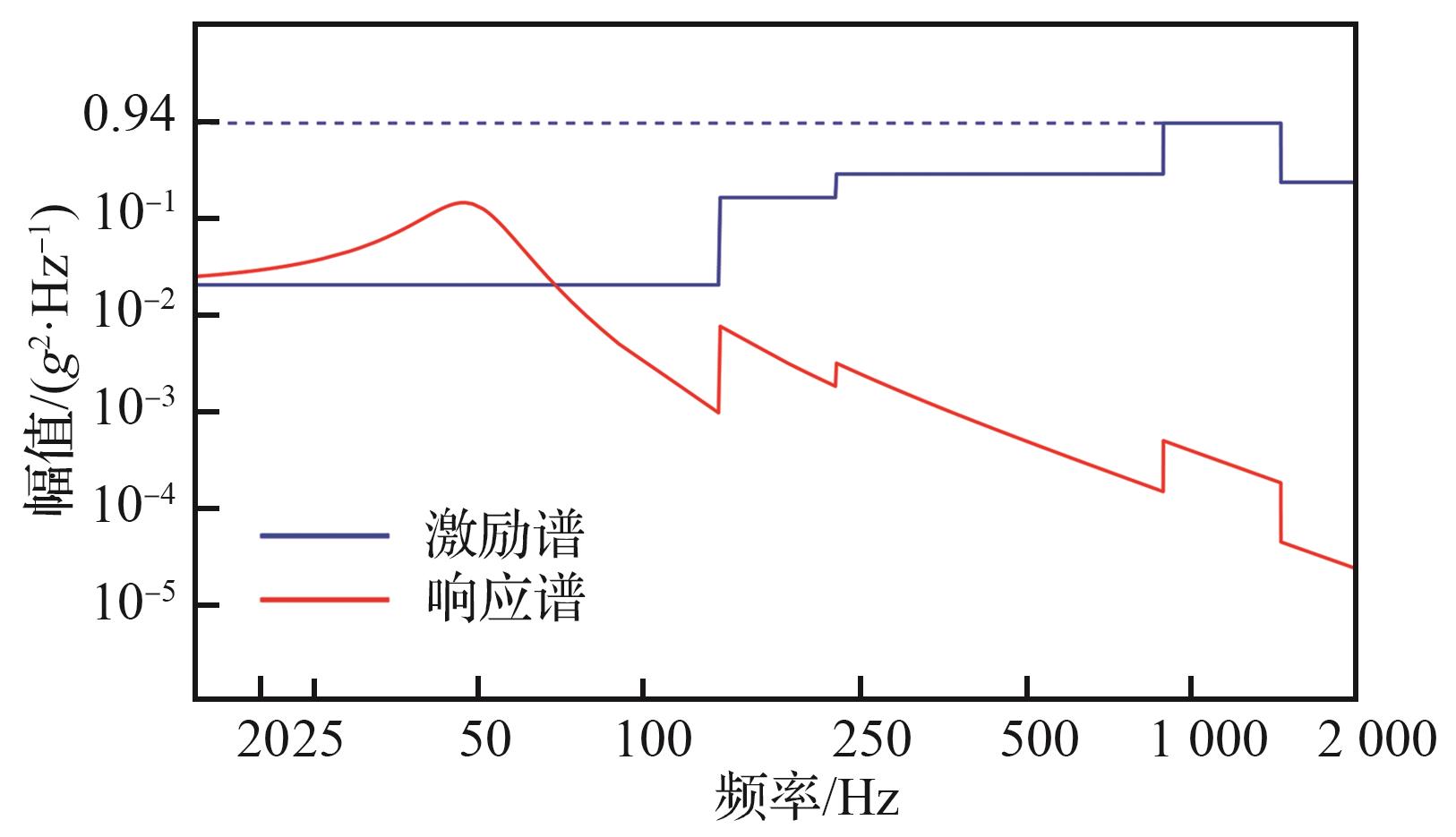

Fig.9

Table 4

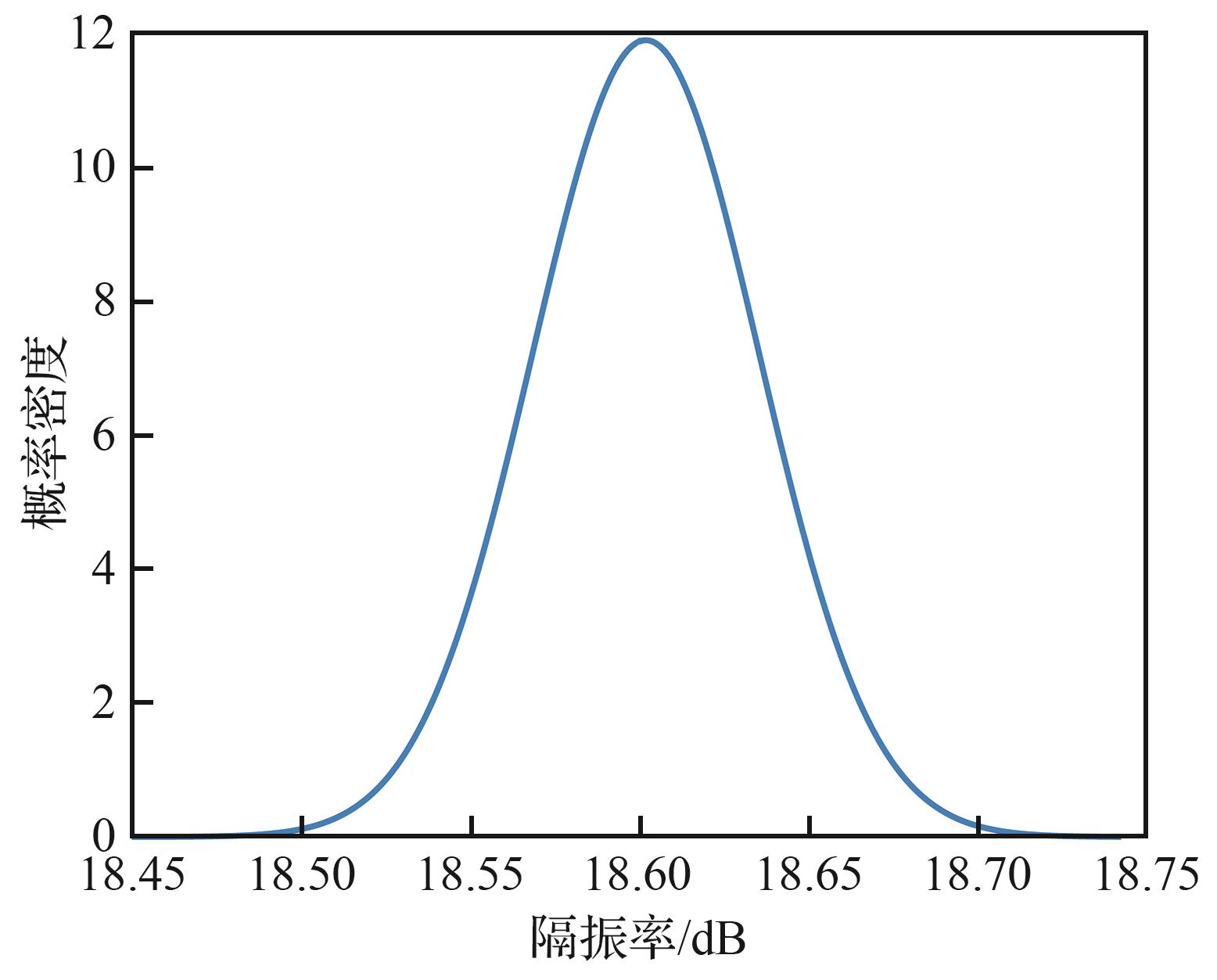

Fig.10

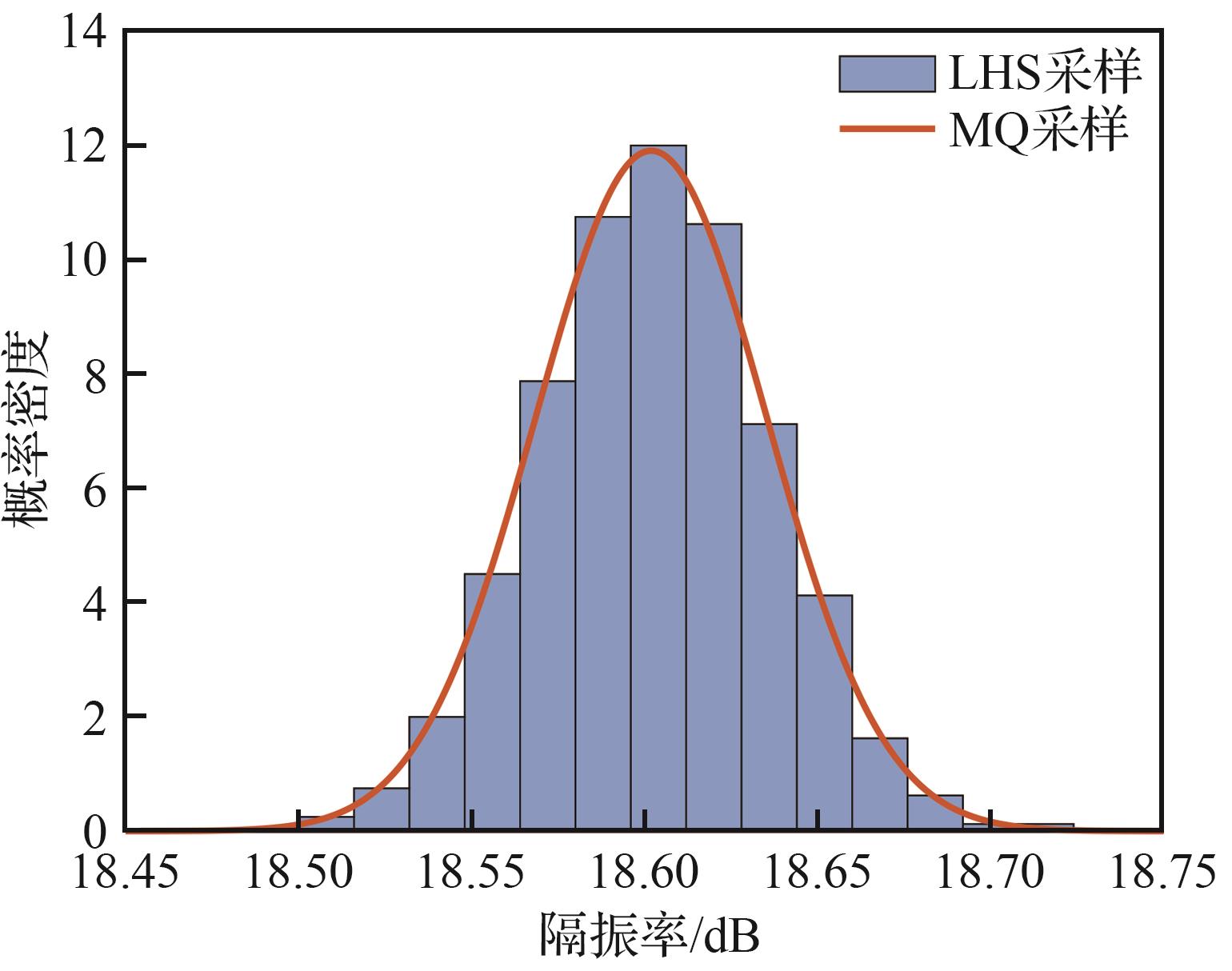

Fig.11

Table 5

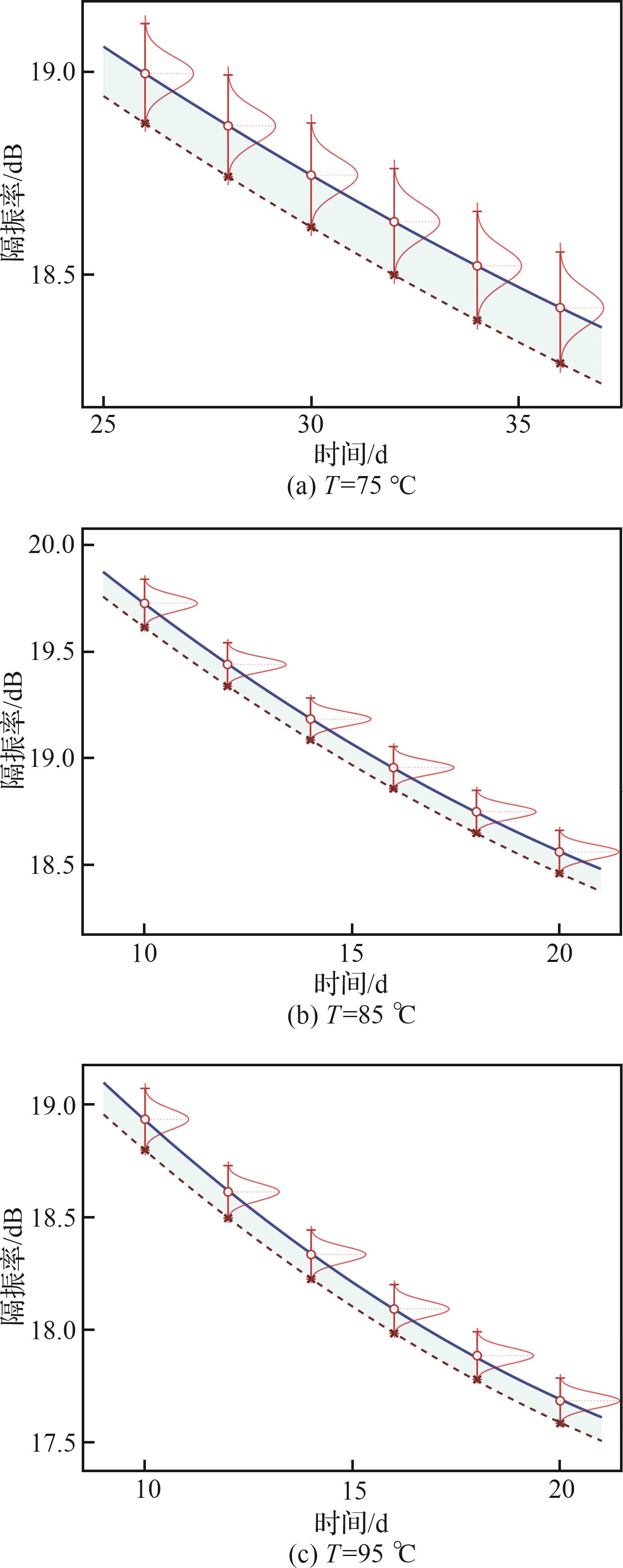

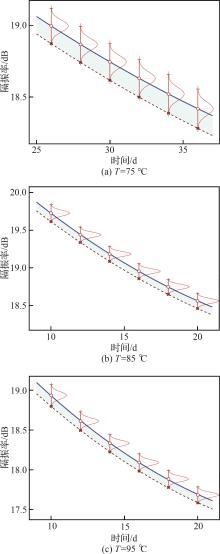

Fig.12

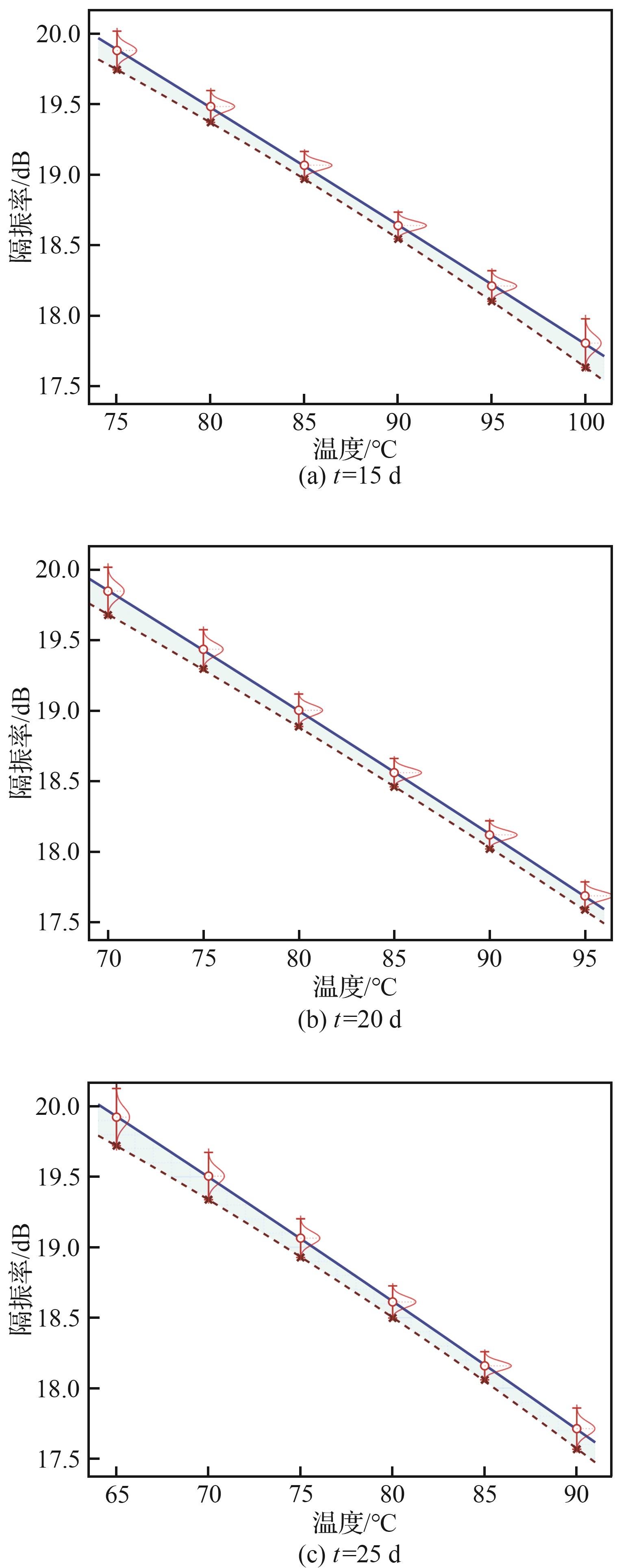

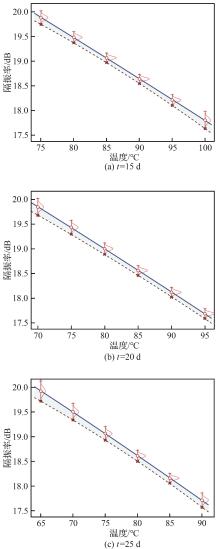

Fig.13

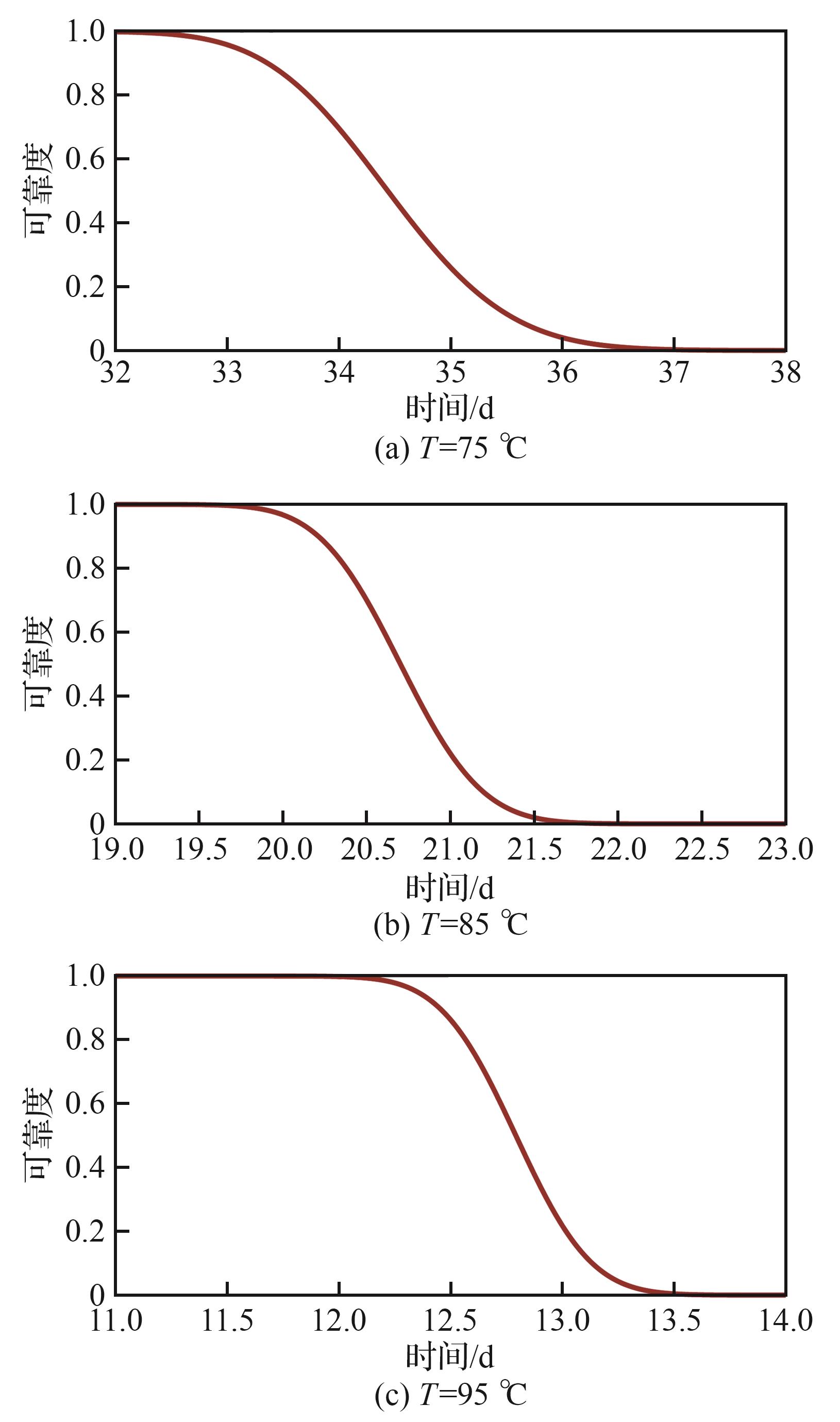

Fig.14

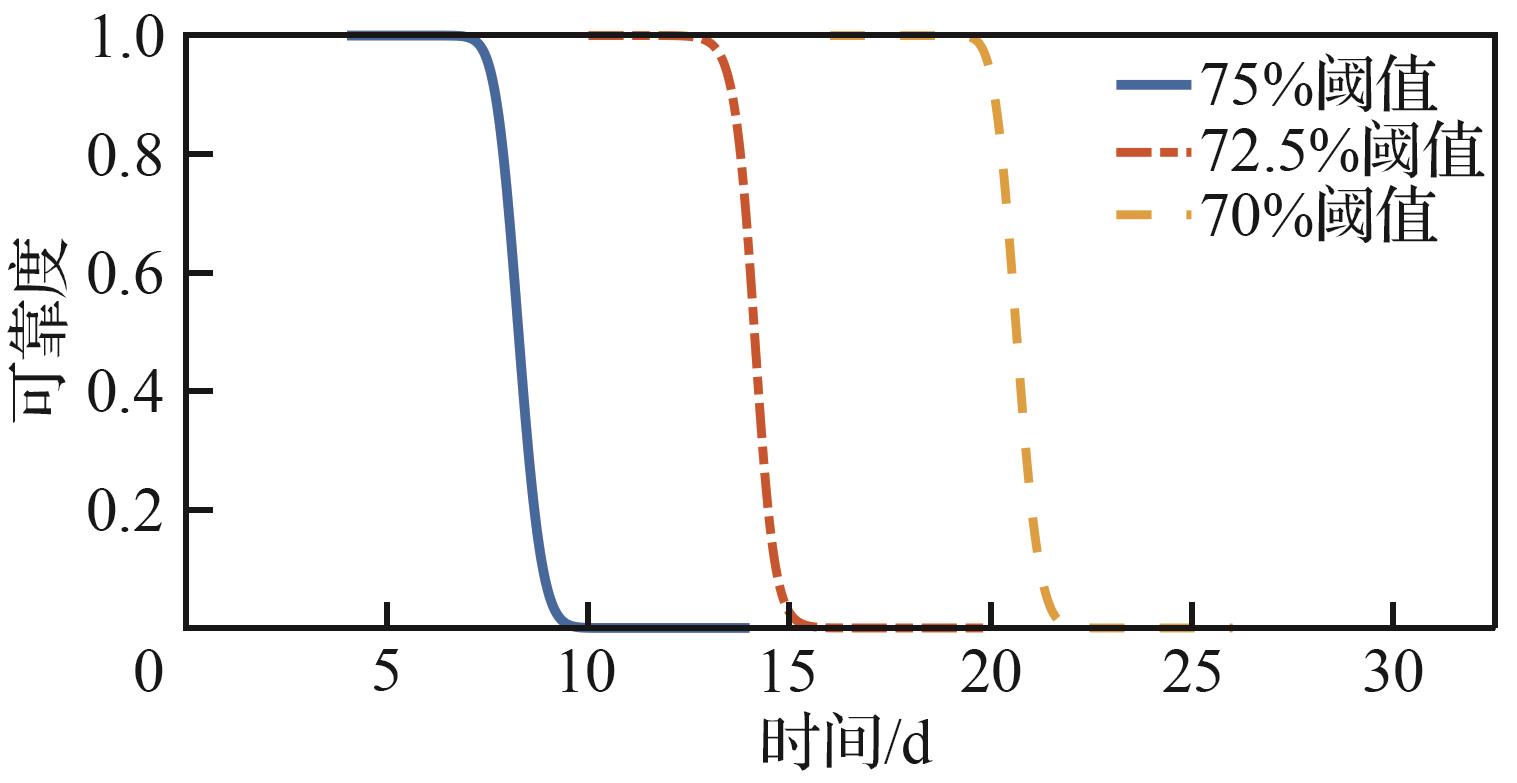

Fig.15

References 28

[1]	邓吉宏，王轲，陈国平，等. 金属橡胶减振器用于发动机安装减振的研究［J］. 航空学报， 2008， 29（6）： 1581-1585.
	DENG J H， WANG K， CHEN G P， et al. Study on effect of engine installation metal rubber damper［J］. Acta Aeronautica et Astronautica Sinica， 2008， 29（6）： 1581-1585 （in Chinese）
[2]	丁家松，张欢，童宗鹏，等. 船用橡胶隔振器寿命评估方法研究［J］. 振动与冲击， 2010， 29（12）： 230-233， 250.
	DING J S， ZHANG H， TONG Z P， et al. Lifetime evaluation of rubber isolator for warship application［J］. Journal of Vibration and Shock， 2010， 29（12）： 230-233， 250 （in Chinese）.
[3]	赵雷雷，于曰伟，周长城，等. 特种车辆驾驶室减振器节流阀片开度及阻尼特性研究［J］. 兵工学报， 2018， 39（4）： 645-654.
	ZHAO L L， YU Y W， ZHOU C C， et al. Throttle slice opening size and damping characteristics of cab damper for special vehicles［J］. Acta Armamentarii， 2018， 39（4）： 645-654 （in Chinese）.
[4]	WU Y， YU K P， JIAO J， et al. Dynamic isotropy design and analysis of a six-DOF active micro-vibration isolation manipulator on satellites［J］. Robotics and Computer-Integrated Manufacturing， 2018， 49： 408-425.
[5]	WU Q Q， LIU B L， CUI N， et al. Tracking control of a maglev vibration isolation system based on a high-precision relative position and attitude model［J］. Sensors， 2019， 19（15）： 3375.
[6]	TIAN M J， GAO B Z. Dynamics analysis of a novel in-wheel powertrain system combined with dynamic vibration absorber［J］. Mechanism and Machine Theory， 2021， 156： 104148.
[7]	XIE X， LI M， DU X L. Nonlinear dynamics of marine rotor-bearing system coupled with vibration isolation structure subject to ship rolling motion［J］. Applied Mathematical Modelling， 2022， 103： 344-359.
[8]	张望，张安付，刘浩，等. 聚氨酯隔振器加速寿命试验研究［J］. 环境技术， 2024， 42（6）： 236-241.
	ZHANG W， ZHANG A F， LIU H， et al. Research on accelerated life of polyurethane vibration isolator［J］. Environmental Technology， 2024， 42（6）： 236-241 （in Chinese）.
[9]	王先彪. 基于性能退化数据的金属橡胶隔振器寿命及可靠性分析［D］. 哈尔滨：哈尔滨工业大学， 2016： 68-82.
	WANG X B. Research on life-time and reliability of metal rubber isolator based on the performance degradation data［D］. Harbin： Harbin Institute of Technology， 2016： 68-82 （in Chinese）.
[10]	石菲，童宗鹏，龚丽琴，等. 橡胶隔振器老化寿命的预测［J］. 船舶工程， 2009， 31（4）： 38-40.
	SHI F， TONG Z P， GONG L Q， et al. Prediction of aging life for rubber vibration isolator［J］. Ship Engineering， 2009， 31（4）： 38-40 （in Chinese）.
[11]	LIU H Z， HUANG X Z， DING P F， et al. Reliability evaluation method of vibration isolation performance of nonlinear isolator［J］. Journal of Sound and Vibration， 2023， 551： 117616.
[12]	GAO X， NIU J C， HE L， et al. Vibration isolation performance and non-probabilistic reliability evaluation of multidimensional vibration isolator with interval joint clearance［J］. Multibody System Dynamics， 2025， 65（4）： 569-592.
[13]	李旻，姚棋水. 随机振动载荷下橡胶隔振器的疲劳寿命计算［J］. 华南理工大学学报（自然科学版）， 2024， 52（12）： 14-21.
	LI M， YAO Q S. Calculation of fatigue life of rubber vibration isolators under random vibration loads［J］. Journal of South China University of Technology （Natural Science Edition）， 2024， 52（12）： 14-21 （in Chinese）.
[14]	姚棋水. 随机振动载荷下橡胶隔振器疲劳寿命预测方法［D］. 广州：华南理工大学， 2024： 51-63.
	YAO Q S. Fatigue life prediction method of rubber isolator under random vibration load［D］. Guangzhou： South China University of Technology， 2024： 51-63 （in Chinese）.
[15]	GUAN X F. Moment quadrature method for uncertainty quantification of fatigue damage prognosis［J］. International Journal of Fatigue， 2023， 172： 107654.
[16]	MYSOVSKIKH I P. On the construction of cubature formulas with the smallest number of nodes［J］. Doklady Akademii Nauk SSSR， 1968，178（6）： 1252-1254.
[17]	XIU D B， KARNIADAKIS G E. The Wiener： Askey polynomial chaos for stochastic differential equations［J］. 2002， 24（2）： 619-644.
[18]	GOLUB G H， WELSCH J H. Calculation of Gauss quadrature rules［J］. Mathematics of Computation， 1969， 23（106）： 221-230， s1-s10.
[19]	王熠煊. 基于最大熵原理的结构响应多峰概率分布建模方法研究［D］. 大连：大连理工大学， 2024： 29-42.
	WANG Y X. Research on multi-modal probabilistic distribution modelling method of structural response based on maximum entropy principle［D］. Dalian： Dalian University of Technology， 2024： 29-42 （in Chinese） .
[20]	JAYNES E T. Information theory and statistical mechanics［J］. Physical Review， 1957， 106（4）： 620-630.
[21]	LOU W T， XIE C Y， GUAN X F. Thermal-aging constitutive model for a silicone rubber foam under compression［J］. Polymer Degradation and Stability， 2022， 198： 109873.
[22]	HILL R. Aspects of invariance in solid mechanics［M］∥ Advances in applied mechanics. Volume 18. Amsterdam： Elsevier， 1979： 1-75.
[23]	STORÅKERS B. On material representation and constitutive branching in finite compressible elasticity［J］. Journal of the Mechanics and Physics of Solids， 1986， 34（2）： 125-145.
[24]	OGDEN R W. Non-linear elastic deformations［J］. Engineering Analysis， 1984， 1（2）： 119.
[25]	MA Y H， TANG X X， WANG Y F， et al. Design of nonlinear metal rubber isolator subjected to random vibration［J］. Mechanical Systems and Signal Processing， 2023， 197： 110375.
[26]	刘晓娣，韩建立. 面向任务阶段的加速寿命试验方案综合设计［J］. 航空学报， 2025， 46（1）： 230510.
	LIU X D， HAN J L. Comprehensive design of task-oriented accelerated life test plan［J］. Acta Aeronautica et Astronautica Sinica， 2025， 46（1）： 230510 （in Chinese）.
[27]	周德卿，张文博，郭超，等. 基于失效物理的航空燃油齿轮泵滑动轴承全工况寿命预测与敏感度量化［J］. 航空学报， 2026， 47（2）： 432119.
	ZHOU D Q， ZHANG W B， GUO C， et al. Prediction of full operating life and sensitivity quantification of sliding bearings in aircraft fuel gear pumps based on failure physics［J］. Acta Aeronautica et Astronautica Sinica， 2026， 47（2）： 432119 （in Chinese）.
[28]	李翔羽. 氯丁橡胶的理化分析及隔振器的寿命预测［D］. 青岛：青岛科技大学， 2024： 14-15.
	LI X Y. Physicochemical analysis of neoprene and life prediction of vibration isolators ［D］. Qingdao： Qingdao University of Science and Technology， 2024：14-15 （in Chinese）.

阶数	原点矩	阶数	原点矩
1阶	2.57×10⁶	6阶	2.87×10³⁸
2阶	6.60×10¹³	7阶	7.39×10⁴⁴
3阶	1.69×10¹⁹	8阶	1.89×10⁵¹
4阶	4.35×10²⁶	9阶	4.88×10⁵⁷
5阶	1.12×10³³	10阶	1.25×10⁶⁴

弹性模量关键采样点/Pa	关键采样点权重
2 500 789	0.011 3
2 536 349	0.222 3
2 568 481	0.532 7
2 600 613	0.222 3
2 636 172	0.011 3

材料	温度/℃	密度/（kg·m^-3）	弹性模量/MPa	泊松比
天然橡胶	25	1 150	0.86	0.4
7075铝	25	2 810	71 700	0.33

弹性模量特征值/Pa	权重	隔振率/dB
2 500 789	0.011 3	18.658 3
2 536 349	0.222 3	18.607 3
2 568 481	0.532 7	18.561 9
2 600 613	0.222 3	18.516 6
2 636 172	0.011 3	18.467 1

指标	矩积分	拉丁超立方采样	相对差异/%
均值/dB	18.561 9	18.563 1	0.006 5
标准差/dB	0.033 5	0.033 1	1.2
可靠度	0.99	0.97	2
抽样次数	5	50	90
