基于深度强化学习的太阳能无人机航迹规划

doi:10.7527/S1000-6893.2024.31420

Abstract

Abstract:

High Altitude Long Endurance Solar-powered Unmanned Aerial Vehicles （HALE-SUAV） can significantly enhance the endurance performance through well-designed trajectory planning. Deep Reinforcement Learning （DRL） methods are ideal for this trajectory planning problem due to their real-time performance and adaptability. To address the HALE-SUAV trajectory planning problem based on DRL， this paper establishes the kinematics and dynamics models of the UAV， along with energy-related models， designs its energy management strategy， constructs the overall DRL framework for this trajectory planning problem， and ultimately conducts trajectory planning experiments under different solar radiation intensities using the trained model. The research results indicate that， based on the DRL method proposed in this paper， HALE-SUAVs can select reasonable control commands based on current solar radiation intensities to improve their endurance performance. The findings demonstrate the potential application value of DRL methods in HALE-SUAV trajectory planning problems.

Key words: deep reinforcement learning, HALE-SUAV, trajectory planning, endurance performance, energy management strategy

CLC Number:

V324.2

Zijie YU, Zheng ZHENG, Qingdong LI, Lin GUO, Suping REN, Jian GUO. Trajectory planning for solar-powered UAVs based on deep reinforcement learning[J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(12): 331420.

Figures/Tables 16

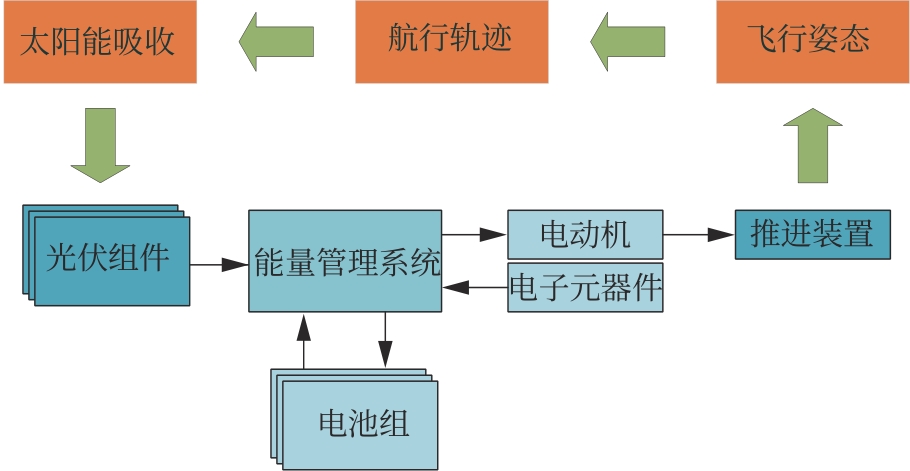

Fig.1

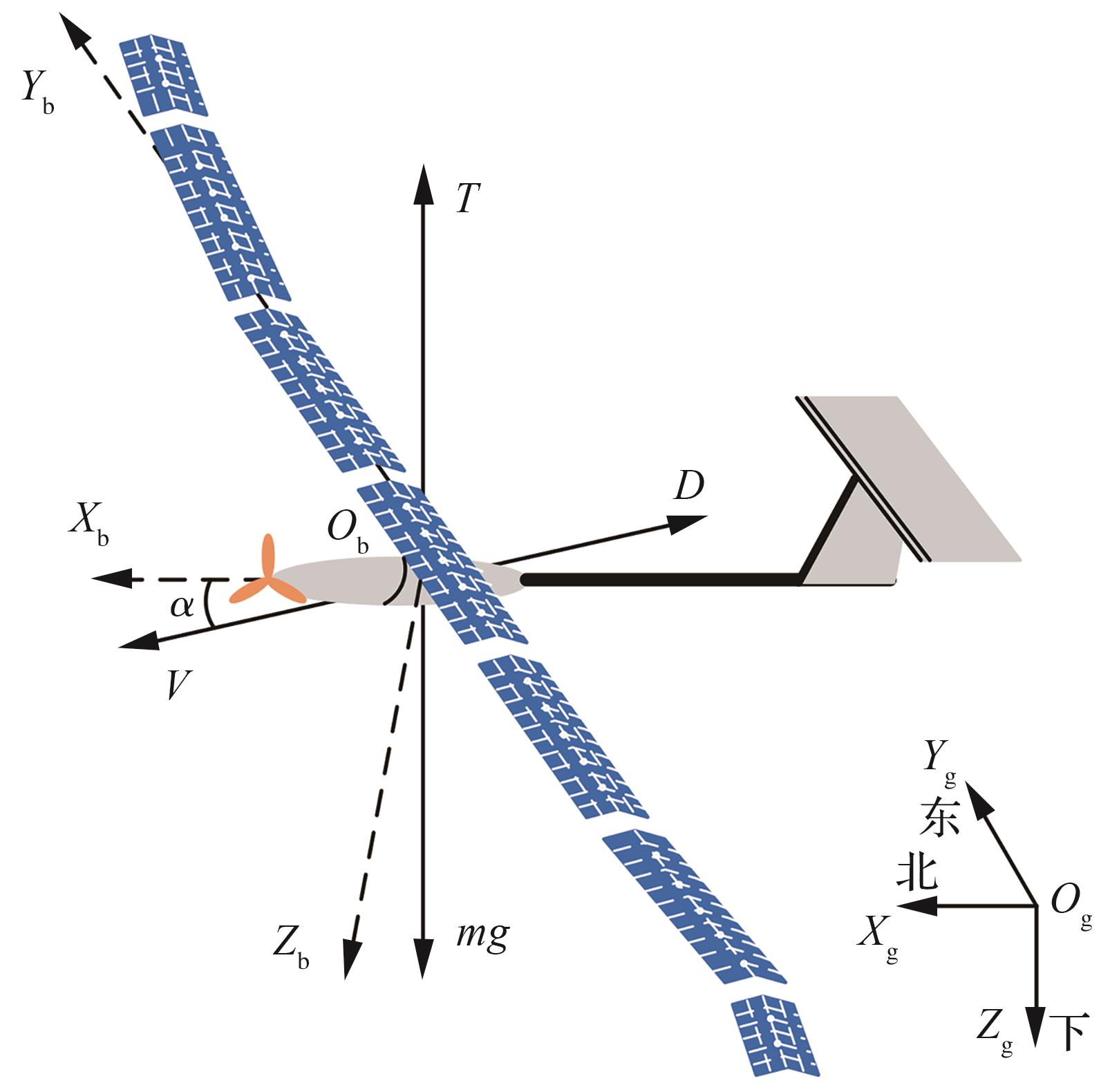

Fig.2

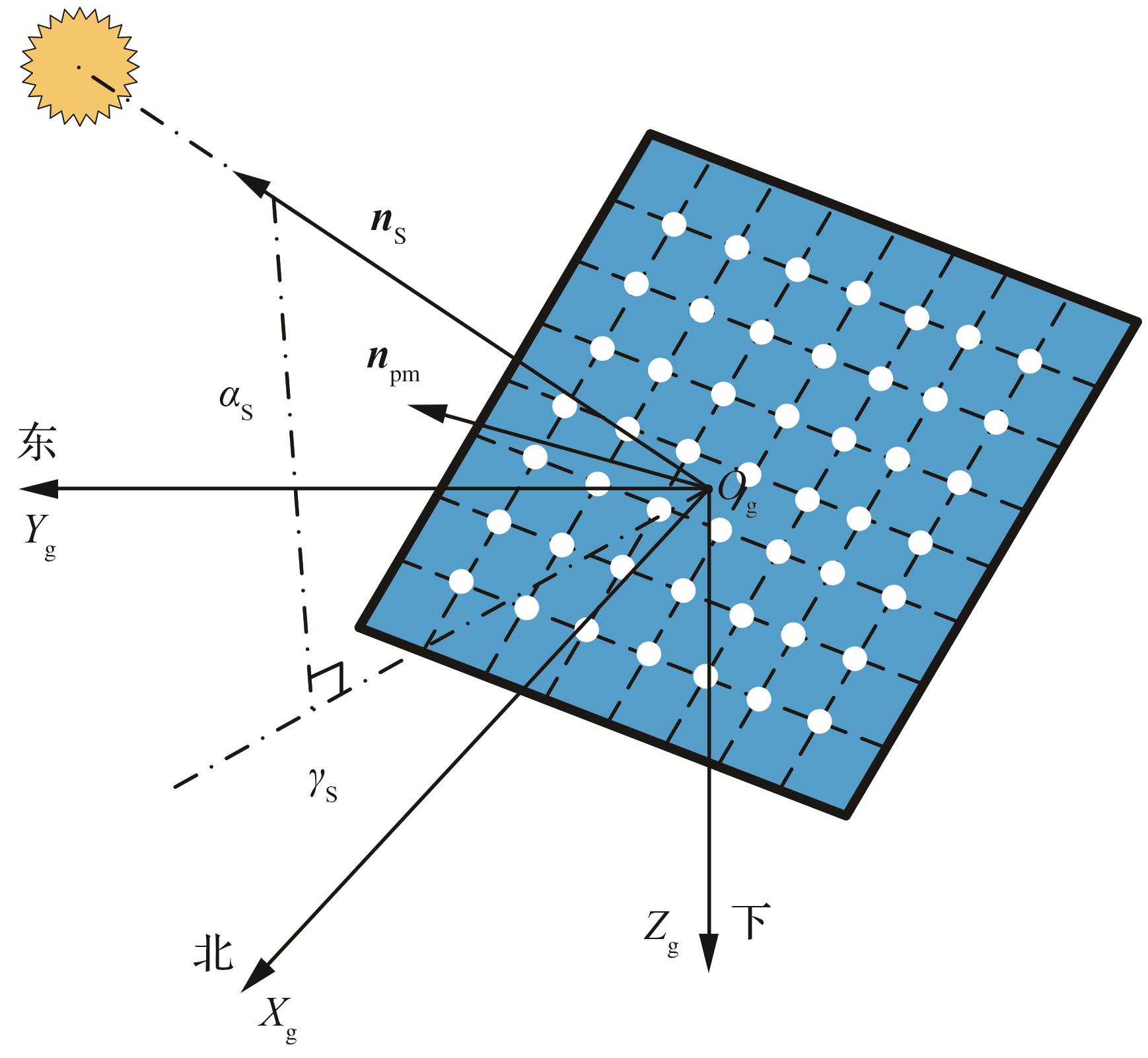

Fig.3

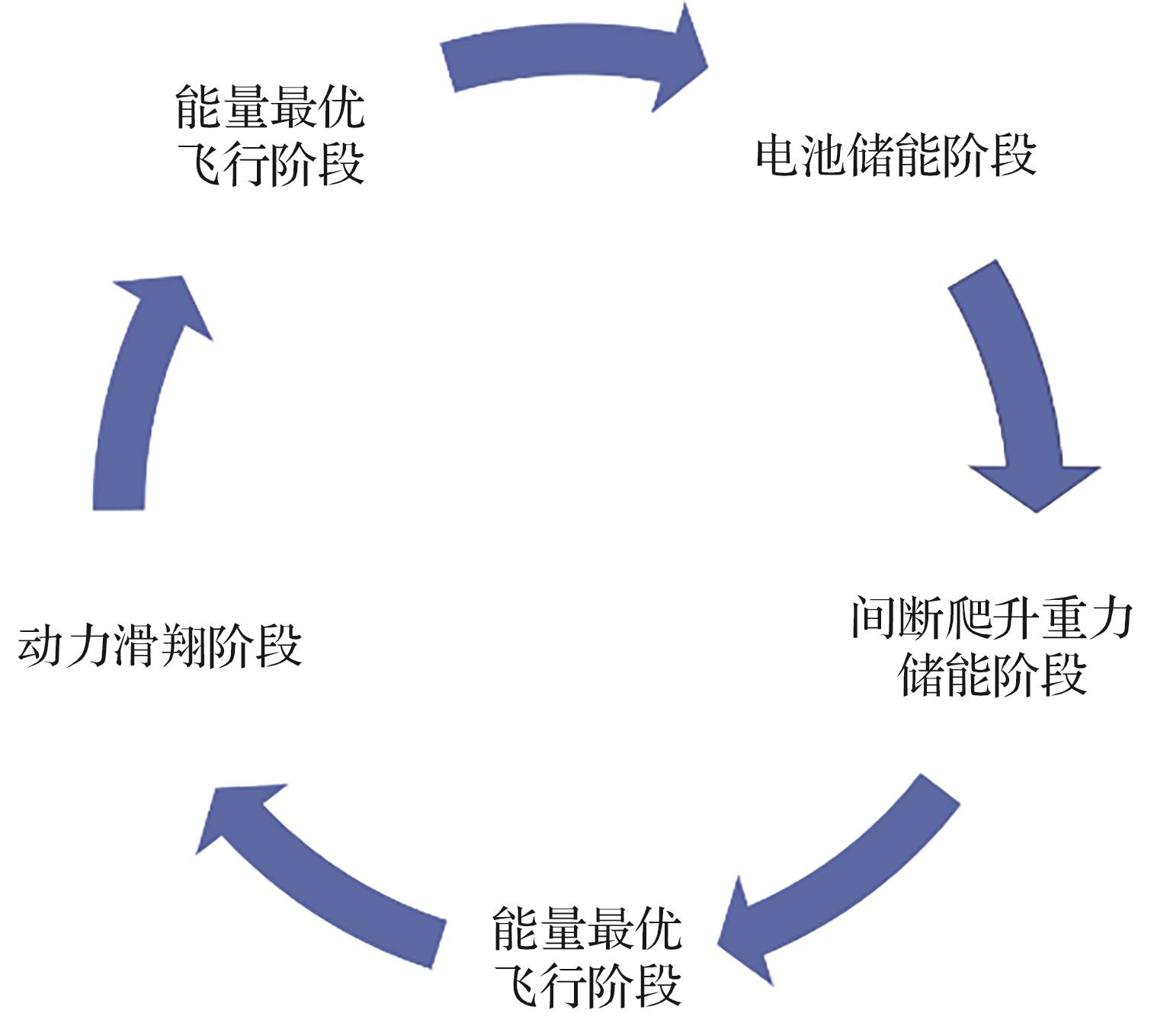

Fig.4

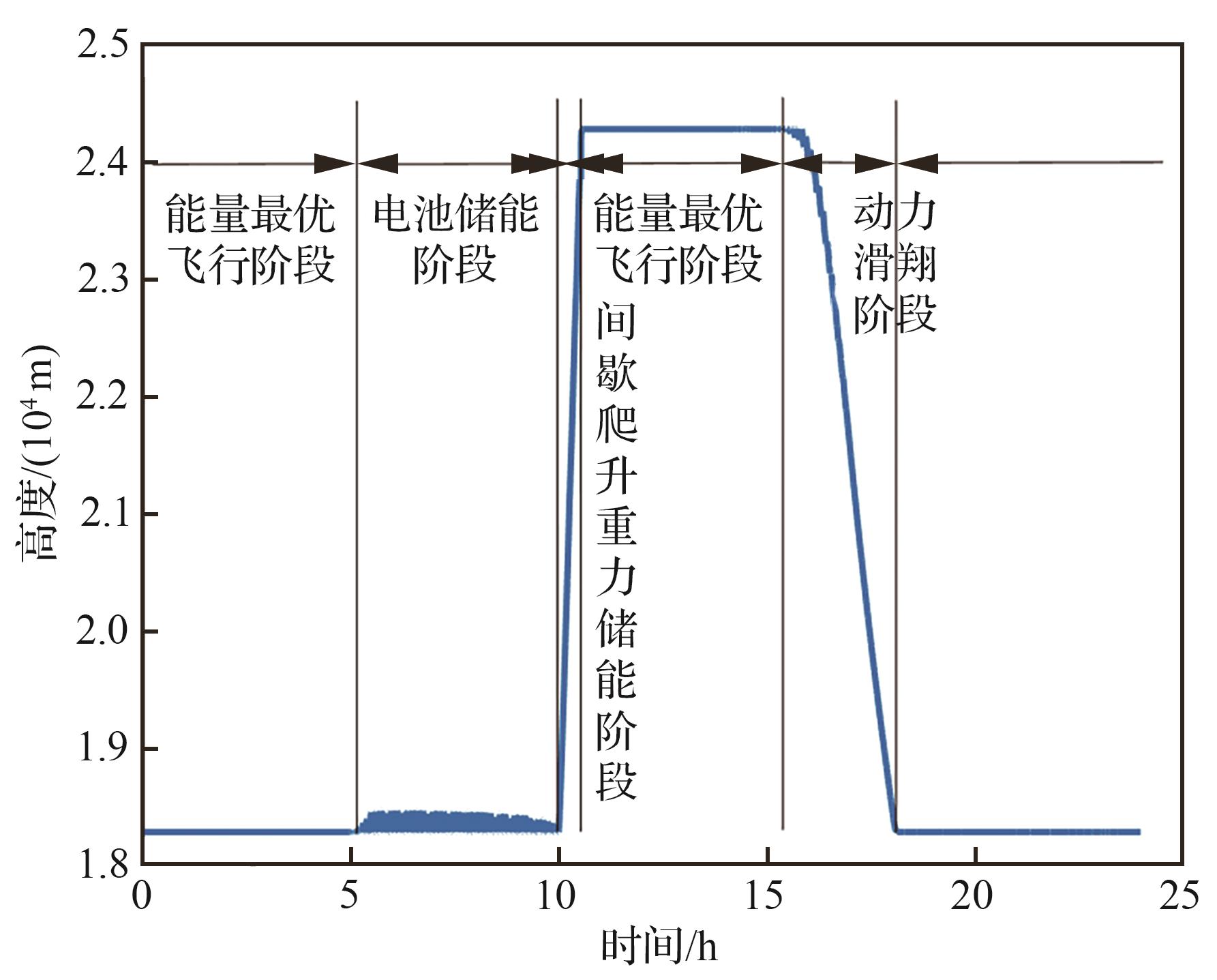

Fig.5

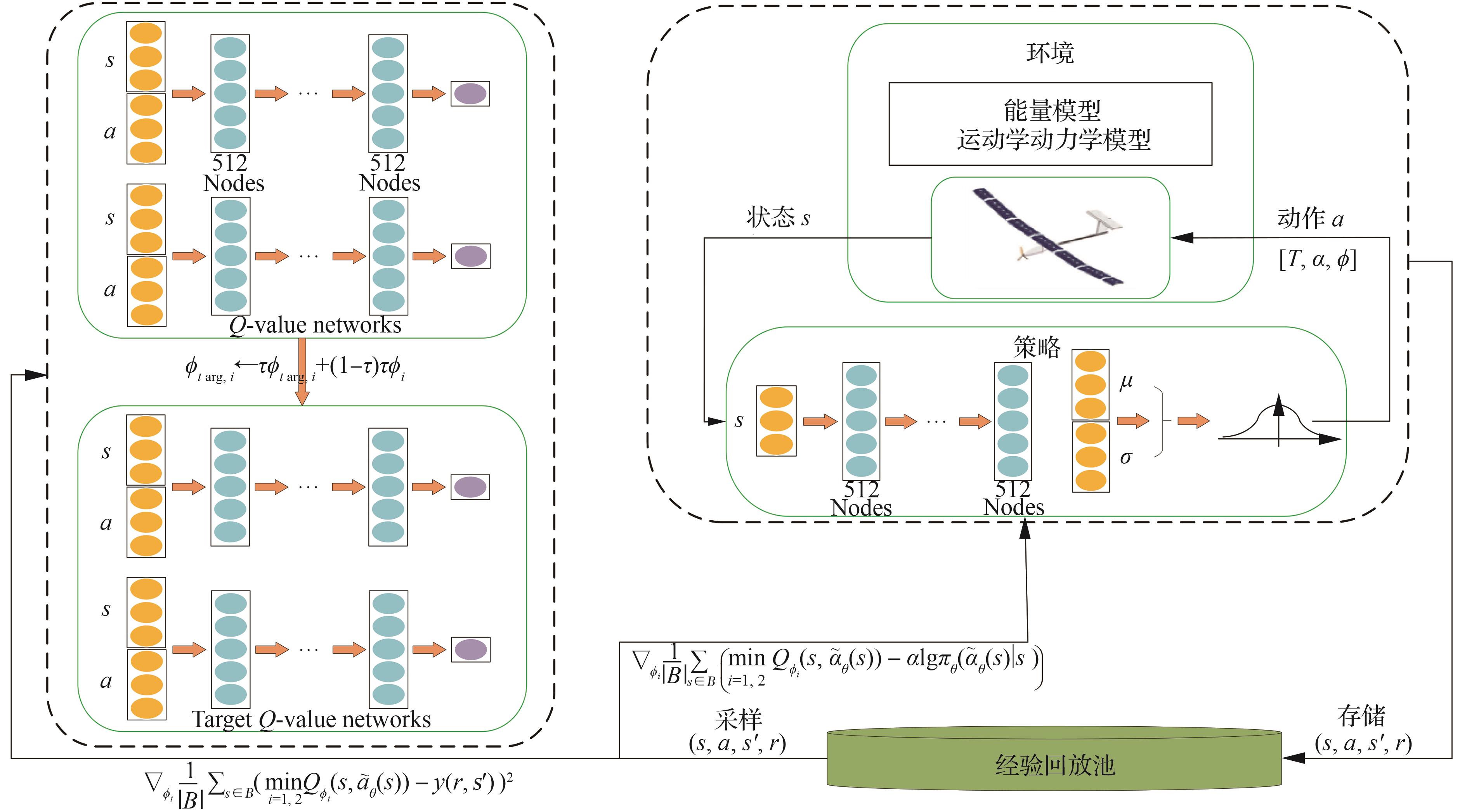

Fig.6

Table 1

HALE-SUAV related parameters

参数	符号	数值
总质量/kg	$m$	213
电池质量/kg	$m b e t t e r y$	141
最大飞行半径/km	$R m a x$	3
纵横比	$A R$	30
机翼面积/m²	$A$	60
翼展/m	$b$	42
电机效率	$η m o t o r$	0.95
最大飞行高度/m	$h m a x$	18 288
最小飞行高度/m	$h m i n$	24 288
最大攻角/ $°$	$α m a x$	10
最小攻角/ $°$	$α m i n$	0
最大倾斜角/ $°$	$ϕ m a x$	5
最小倾斜角/ $°$	$ϕ m i n$	-5
最大推力/N	$T p m a x$	500
最小推力/N	$T p m i n$	0
有效载荷质量/kg	$m p a y l o a d$	25
电池能量比/（（W·h）·kg^-1）	$U b a t t$	35
电池最大能量/（kW·h）	$E b a t t m a x$	59.5
最大放电功率/kW	$P b a t t e r y m a x$	11
最大充电功率/kW	$P b a t t e r y m i n$	-11
掠角/ $°$	$Λ$	17.5
有效载荷功率/W	$P p a y l o a d$	250
太阳能电池板面积/m²	$S$	60
螺旋桨半径/m	$r p r o p$	1.58

Table 1

Table 2

Values of fitting coefficients for aircraft lift surfaces

参数	数值
$a 1$	$3.774 21 × 10 - 1$
$a 2$	$1.243 16 × 10 - 1$
$a 3$	$7.646 15 × 10 - 7$
$a 4$	$- 5.682 28 × 10 - 3$
$a 5$	$- 6.445 53 × 10 - 13$
$a 6$	$- 2.650 58 × 10 - 8$

Table 2

Table 3

Values of fitting coefficients for aircraft drag surfaces

参数	数值
$b 1$	$6.448 15 × 10 - 2$
$b 2$	$- 1.878 41 × 10 - 7$
$b 3$	$1.793 26 × 10 - 13$
$b 4$	$- 1.113 85 × 10 - 2$
$b 5$	$3.750 46 × 10 - 8$
$b 6$	$- 3.105 91 × 10 - 14$
$b 7$	$1.097 53 × 10 - 3$
$b 8$	$- 2.367 96 × 10 - 9$
$b 9$	$1.584 61 × 10 - 15$

Table 3

Table 4

SMARTS model parameter setting information

参数	数值
仿真地点纬度/ $° N$	$35$
仿真地点经度/ $° W$	$106.6$
海拔高度/km	1.387
飞行高度/km	20
光谱范围/km	280~4 000
太阳辐照常数/km	1 366.1

Table 4

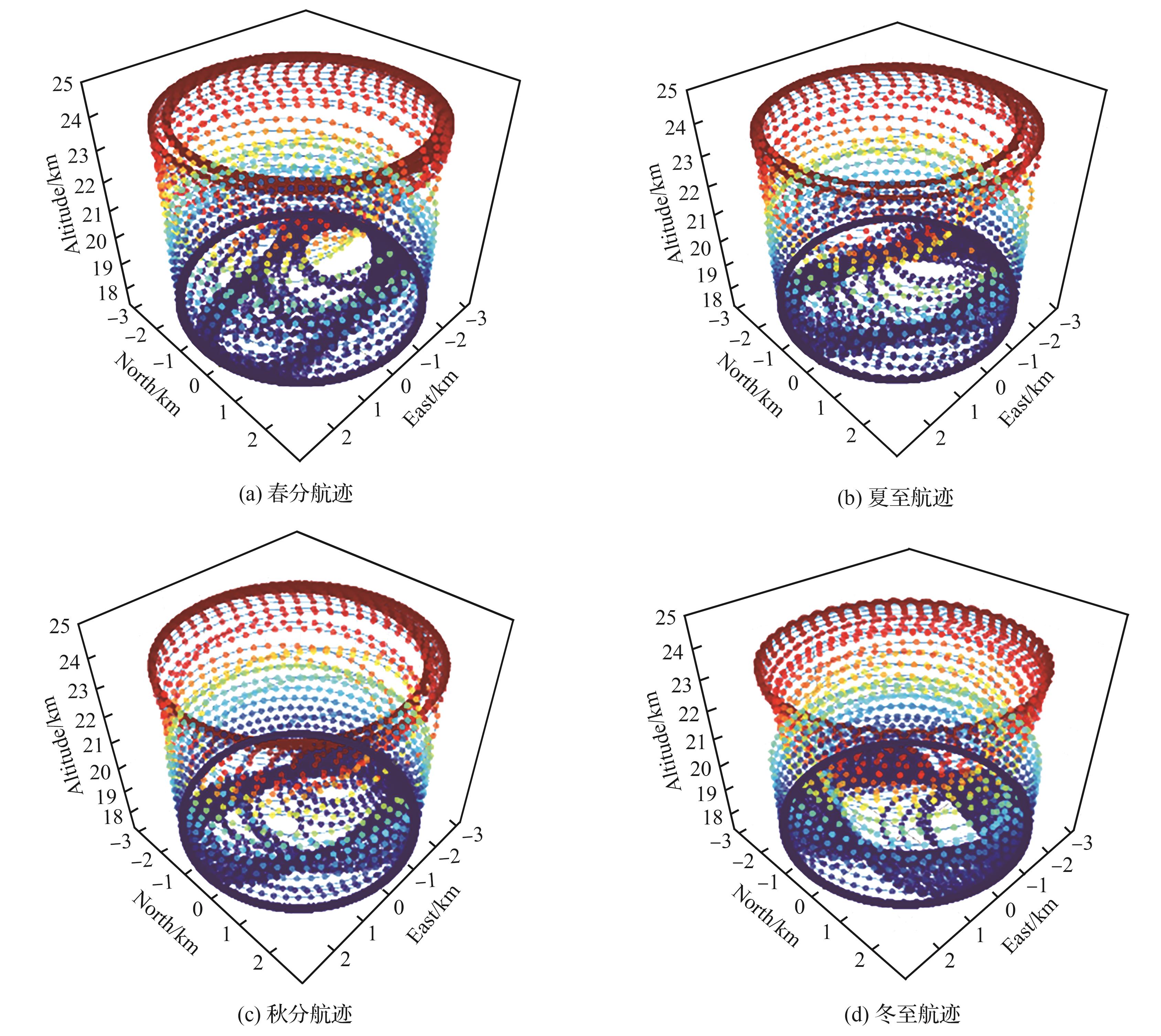

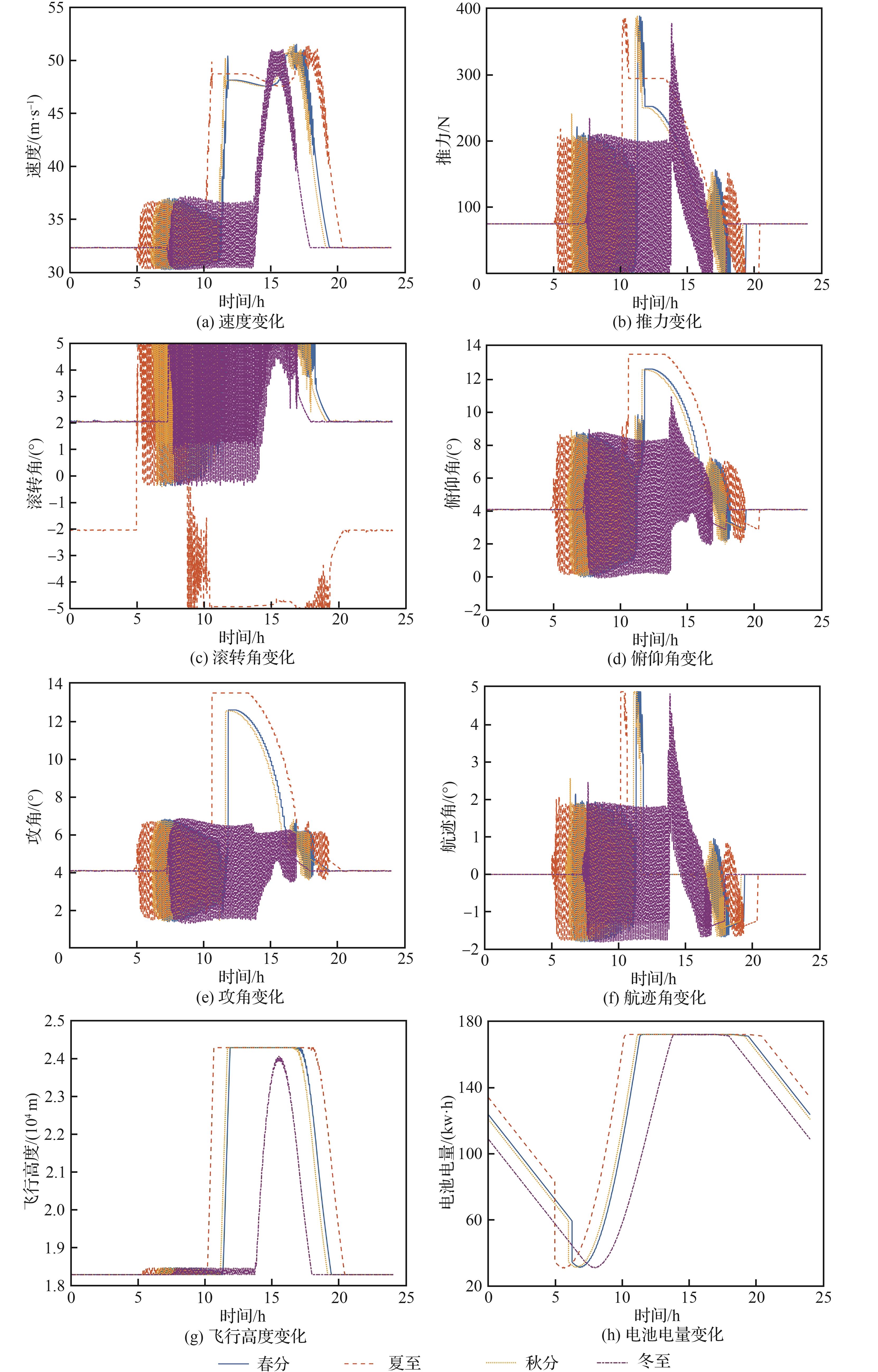

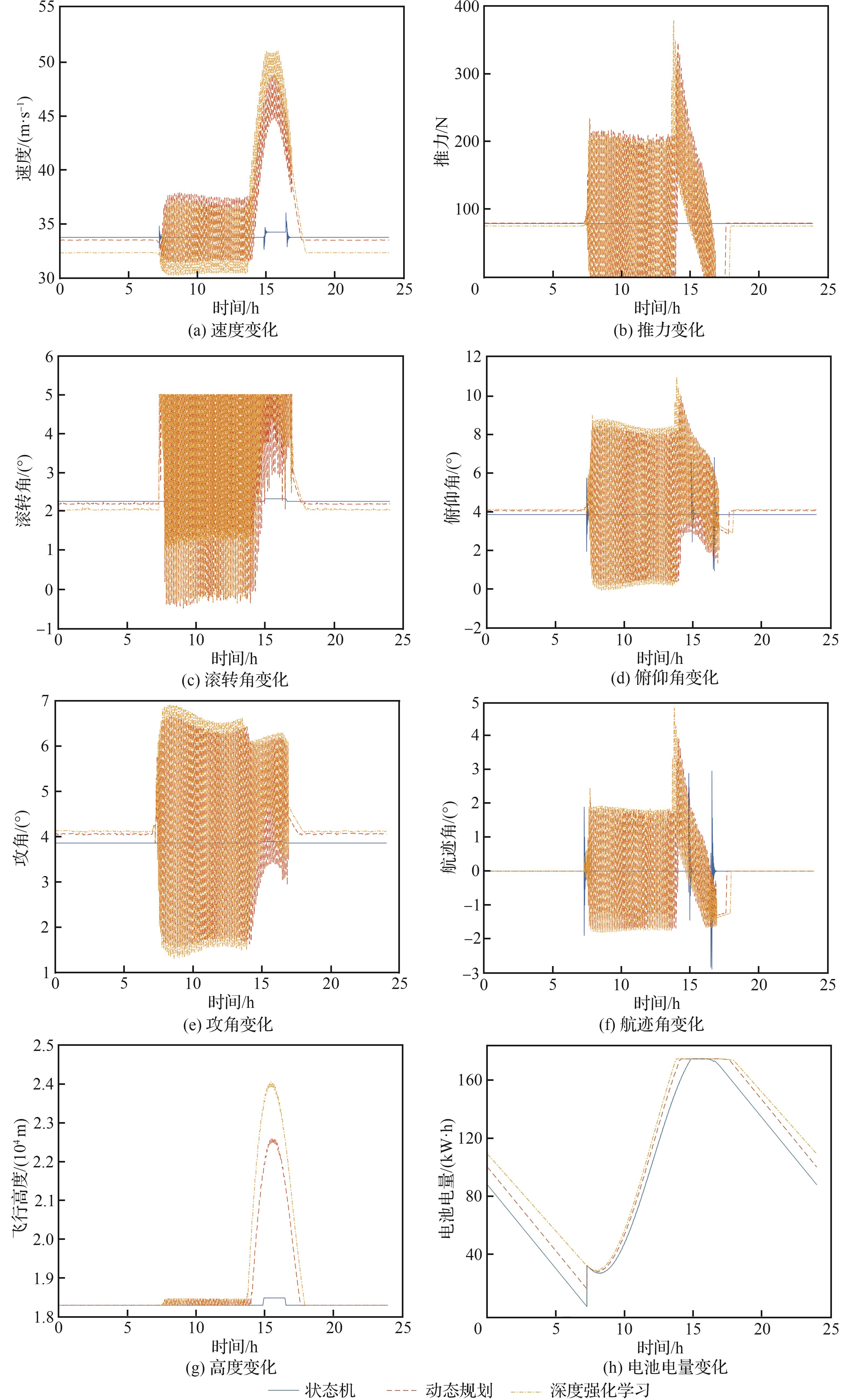

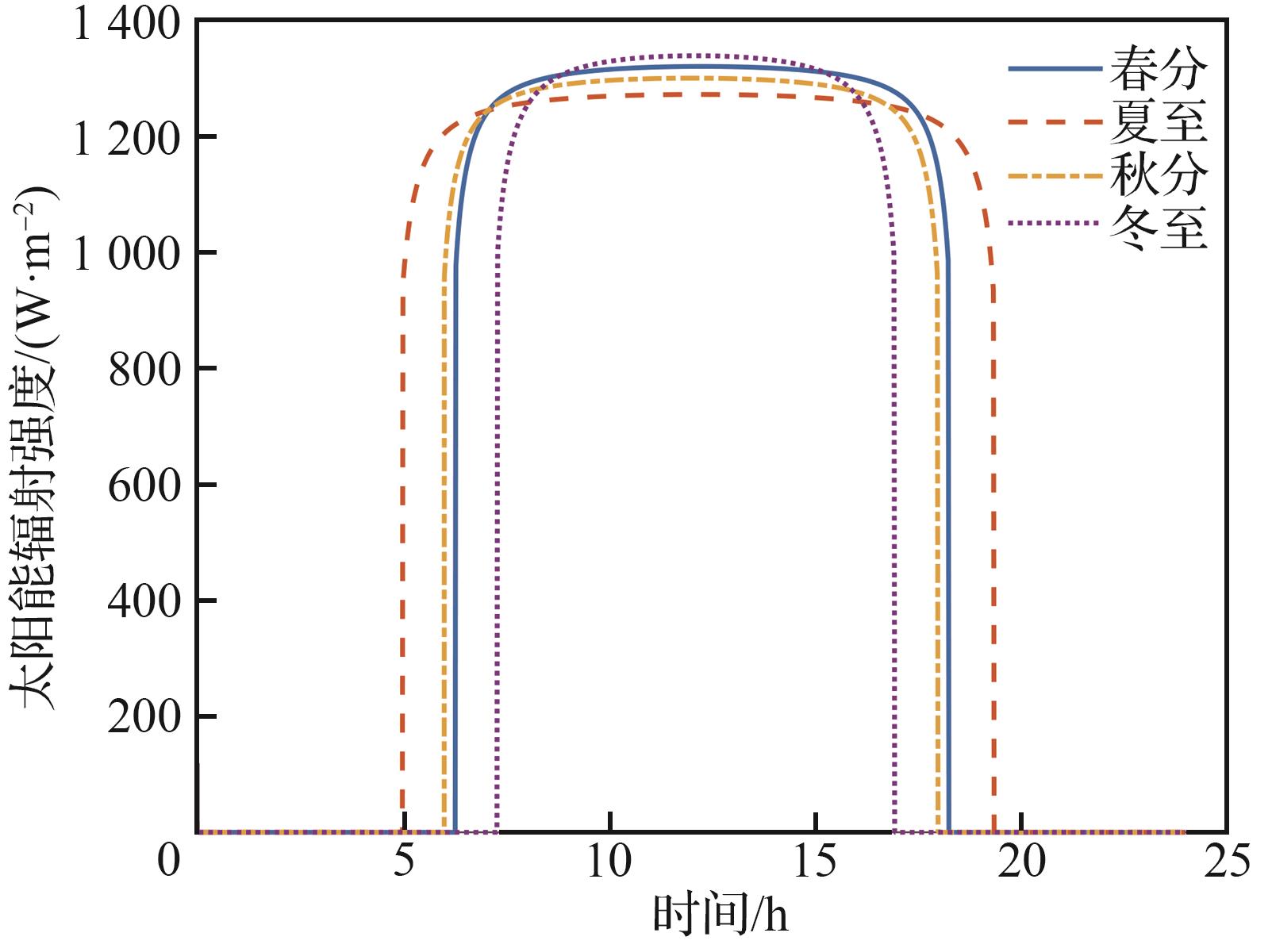

Fig.7

Fig.8

Fig.9

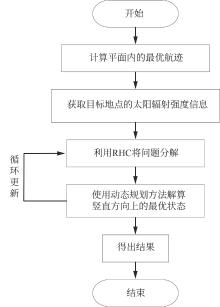

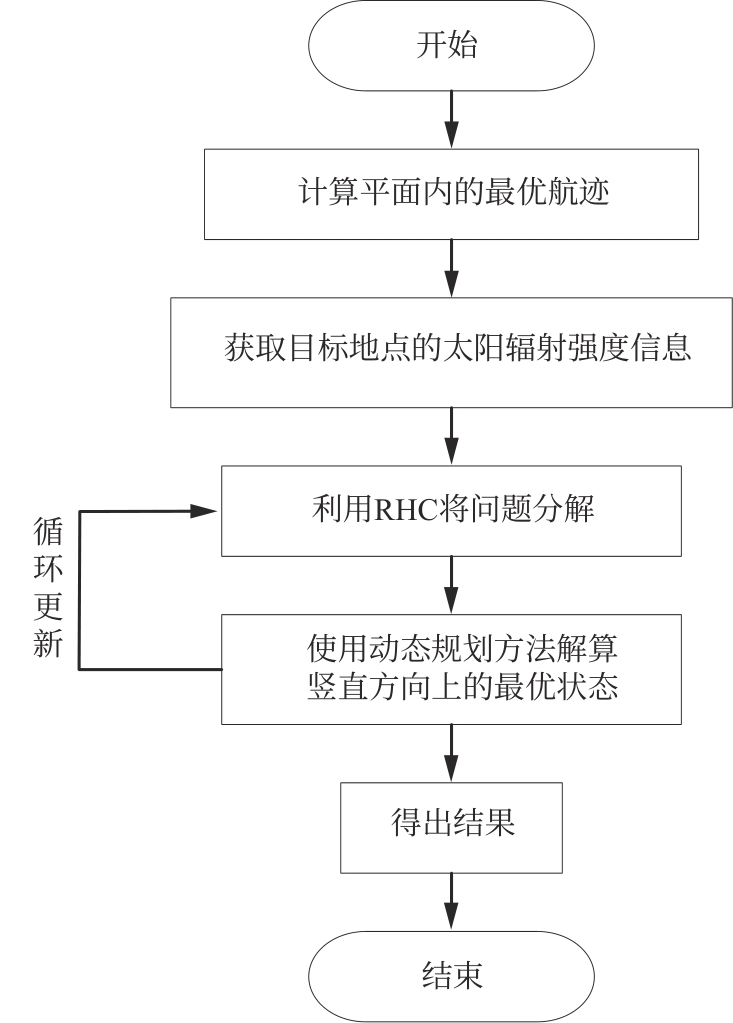

Fig.10

Fig.11

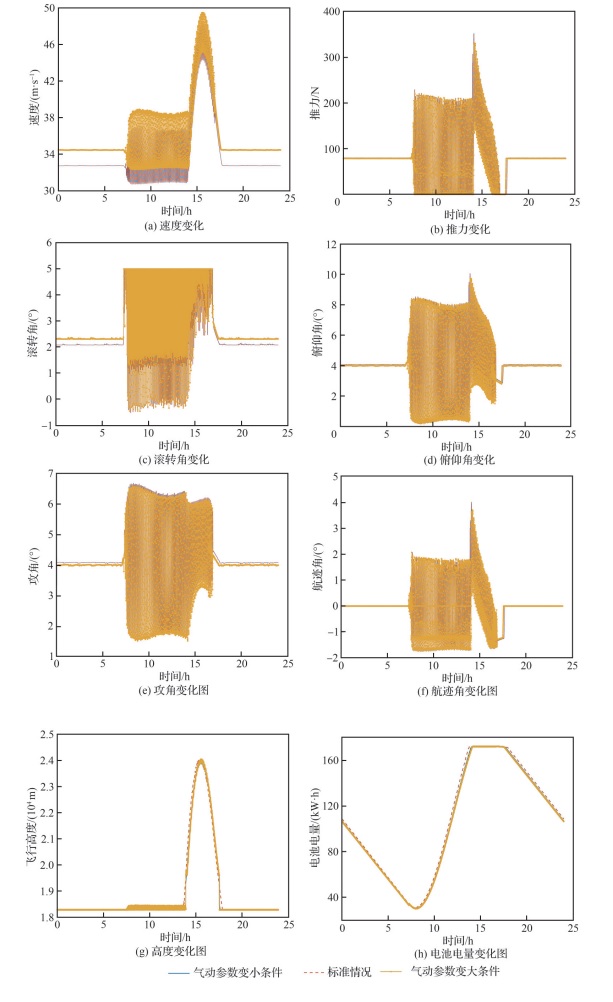

Fig.12
