平纹碳/碳复合材料指尖密封径向刚度特性多尺度研究

doi:10.7527/S1000-6893.2024.30878

Abstract

Abstract:

Carbon fiber reinforced carbon matrix （C/C） composite have unique excellent characteristics such as self-lubrication and wear resistance， making them well-suited to the technical requirements of dynamic seals and their corresponding application environments. These characteristics can significantly improve the service life of finger seals. However， the anisotropy performance， heterogeneous micro-structure and the complex curve lead to the complex mechanical characteristics of C/C composite finger beams， which further affects the sealing performance and service life of finger seals. Therefore，a multi-scale finite element model of the C/C composite finger seals was firstly constructed by analyzing the multi-scale structures and performance of the plain woven C/C composite laminates. Secondly， the variation trend and circumferential distribution characteristics of radial static stiffness of C/C composite finger beams with different positions and number of layers were analyzed deeply by the multi-scale finite element method. Finally， a radial mechanical performance test platform of the finger beam was built， and radial static stiffness of C/C composite finger beams with different angular positions was verified by experiments. The research results show that the load of circular finger beam increased linearly with the radial displacement， and its radial stiffness kept constant. The radial stiffness of the finger beam with three layers of carbon fiber fabric was about 3 times that of the finger beam with single layer. The radial stiffness of circumferential distributed finger beams presents a periodic distribution characteristic of decreasing first and then increasing， with a period of 90°， and the minimum stiffness was about 68% of the maximum stiffness. A large difference in radial stiffness will lead to local wear and hysteretic leakage. The research provides a reference and basis for the structure optimization and sealing performance of C/C composite finger seals.

Key words: finger seal, C/C composite, plain weave, multi-scale modeling, stiffness characteristic

CLC Number:

V257

Danlong SONG, Yuanhao WANG, Keyi HUA, Chunhua DU, Yanchao ZHANG, Yunjuan JING. Multi-scale study of radial stiffness characteristics of plain C/C composite finger seals[J]. Acta Aeronautica et Astronautica Sinica, 2025, 46(7): 430878.

Figures/Tables 14

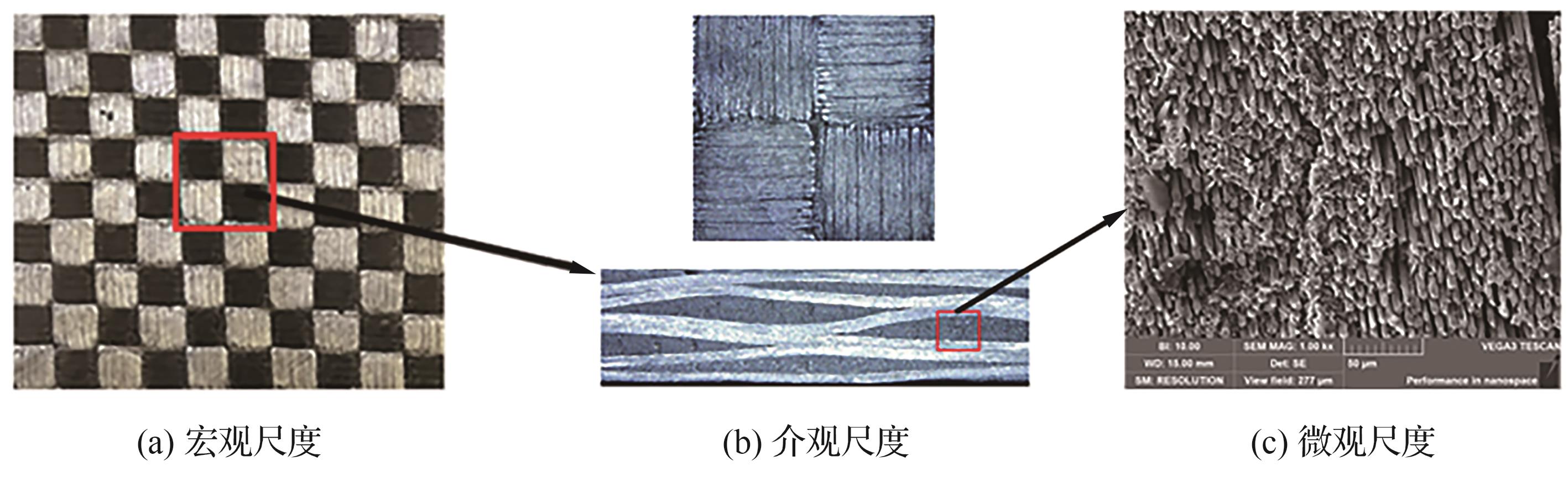

Fig.1

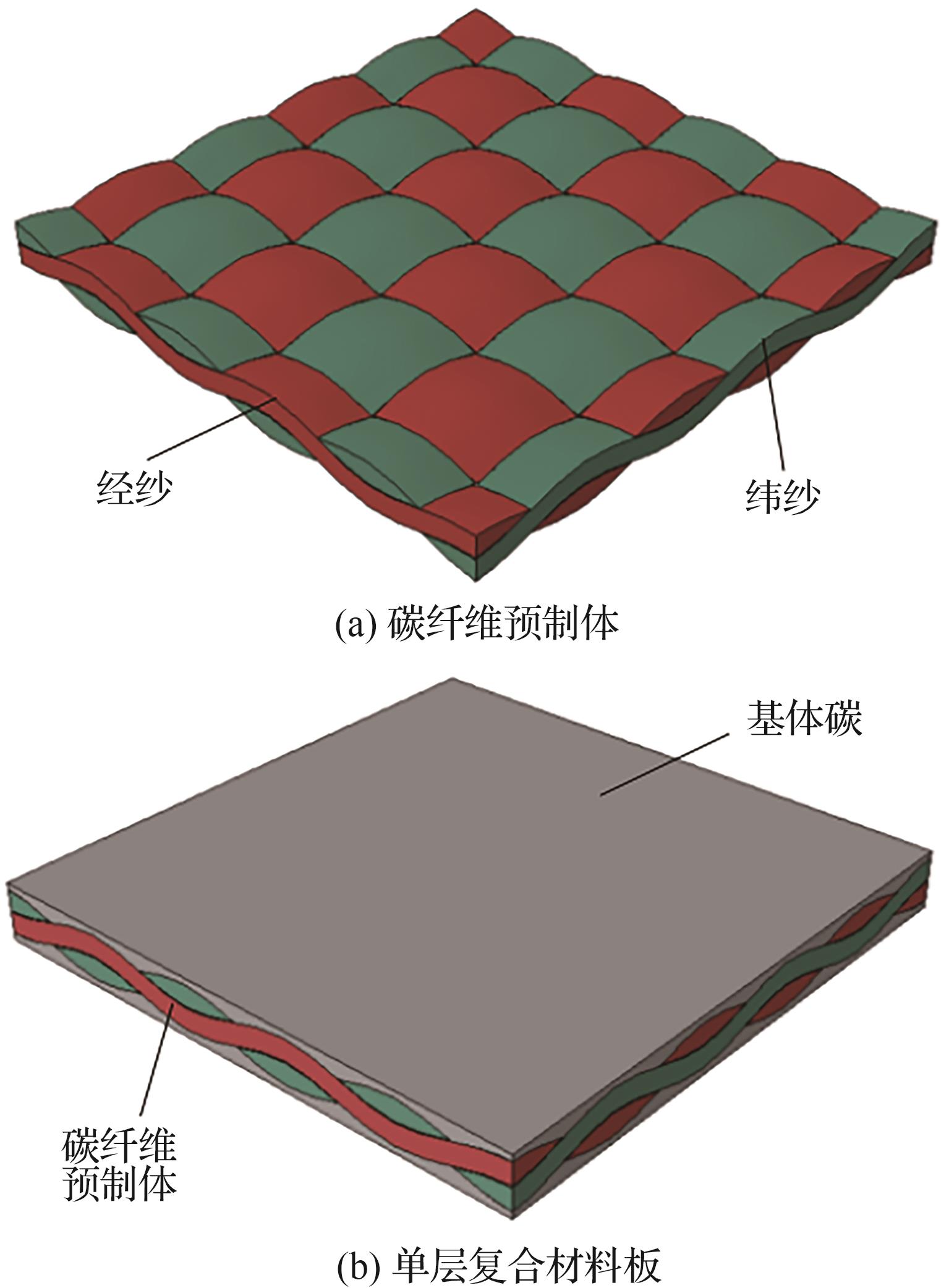

Fig.2

Table 1

Fig.3

Table 2

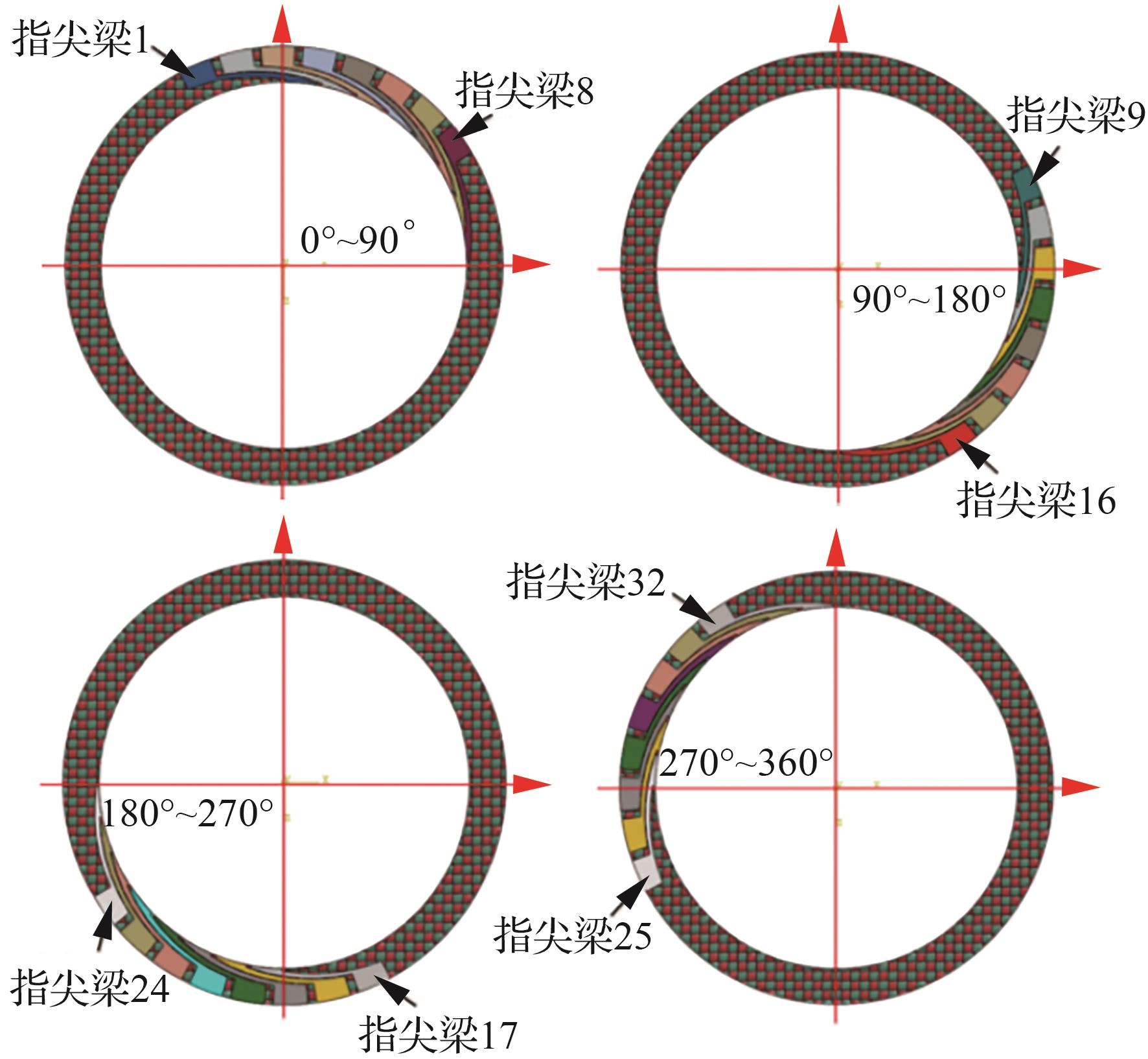

Fig.4

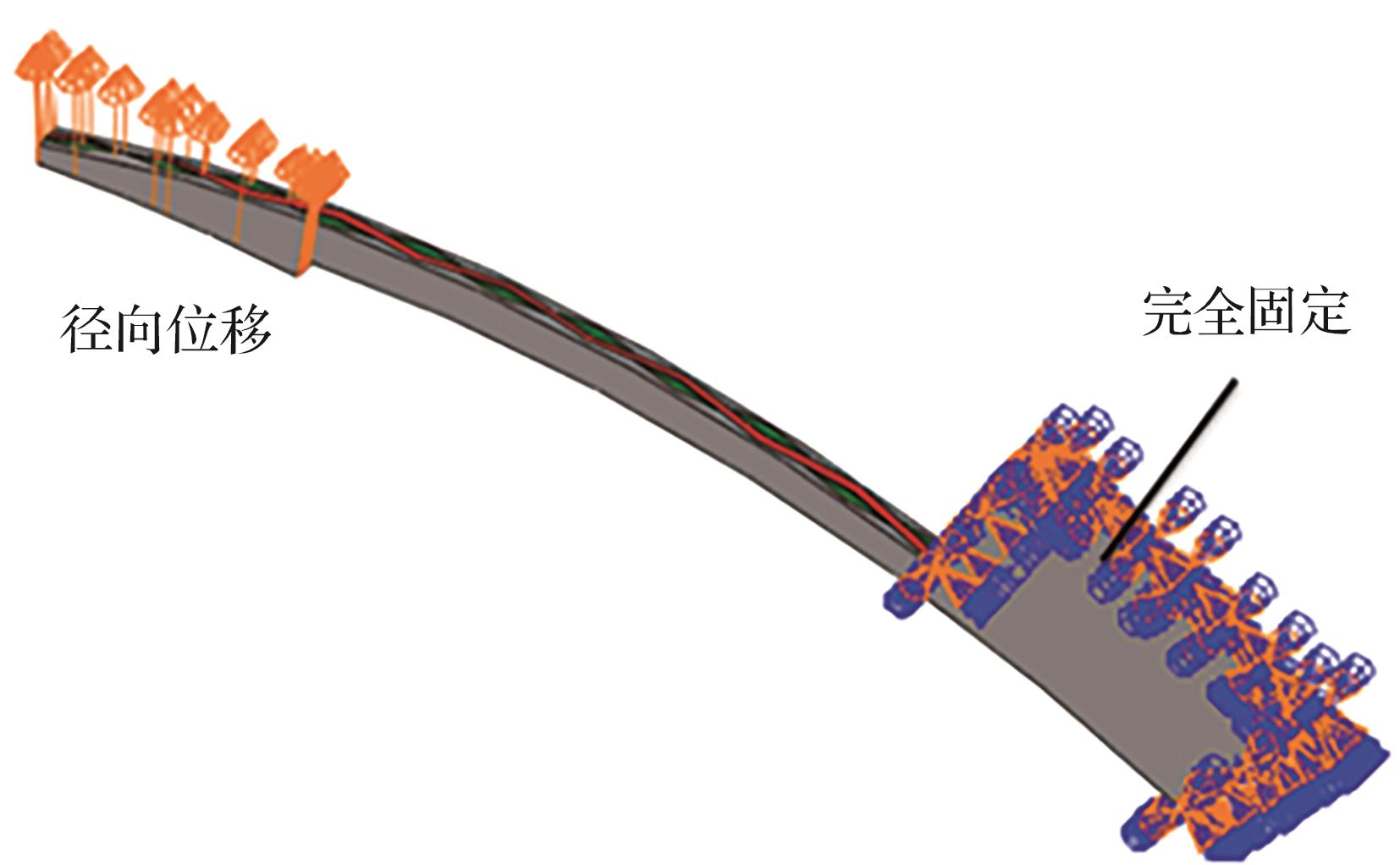

Fig.5

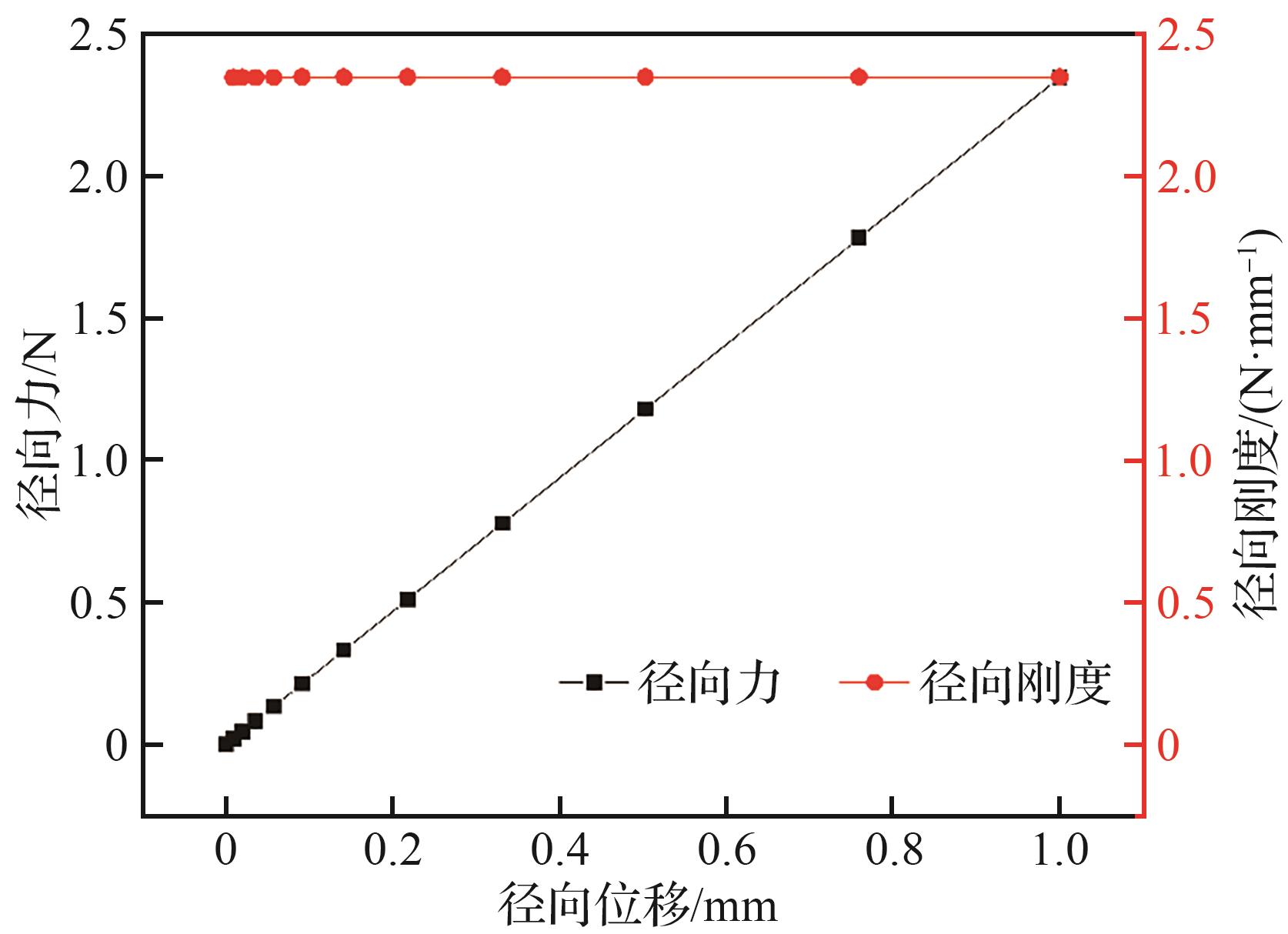

Fig.6

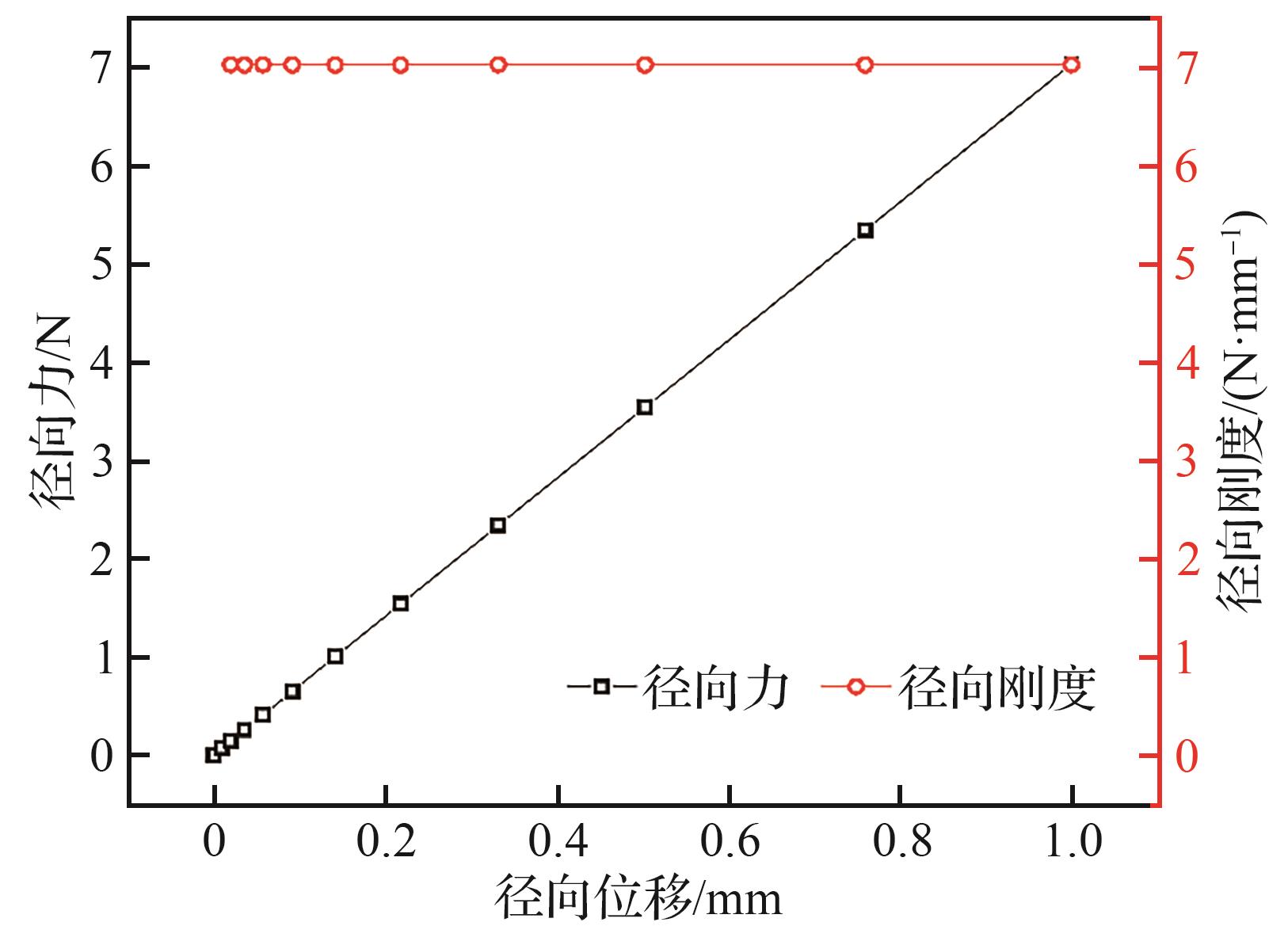

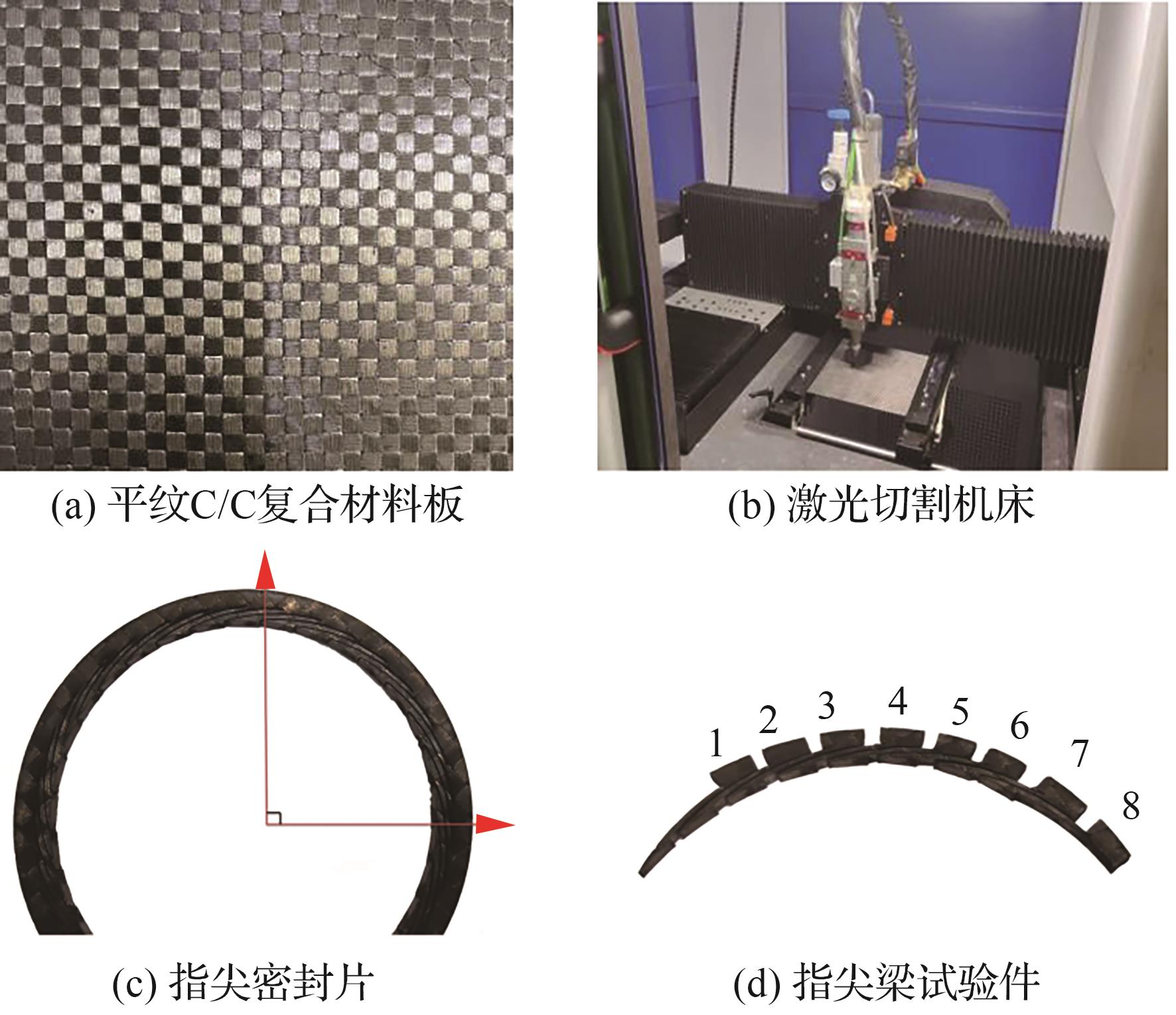

Fig.7

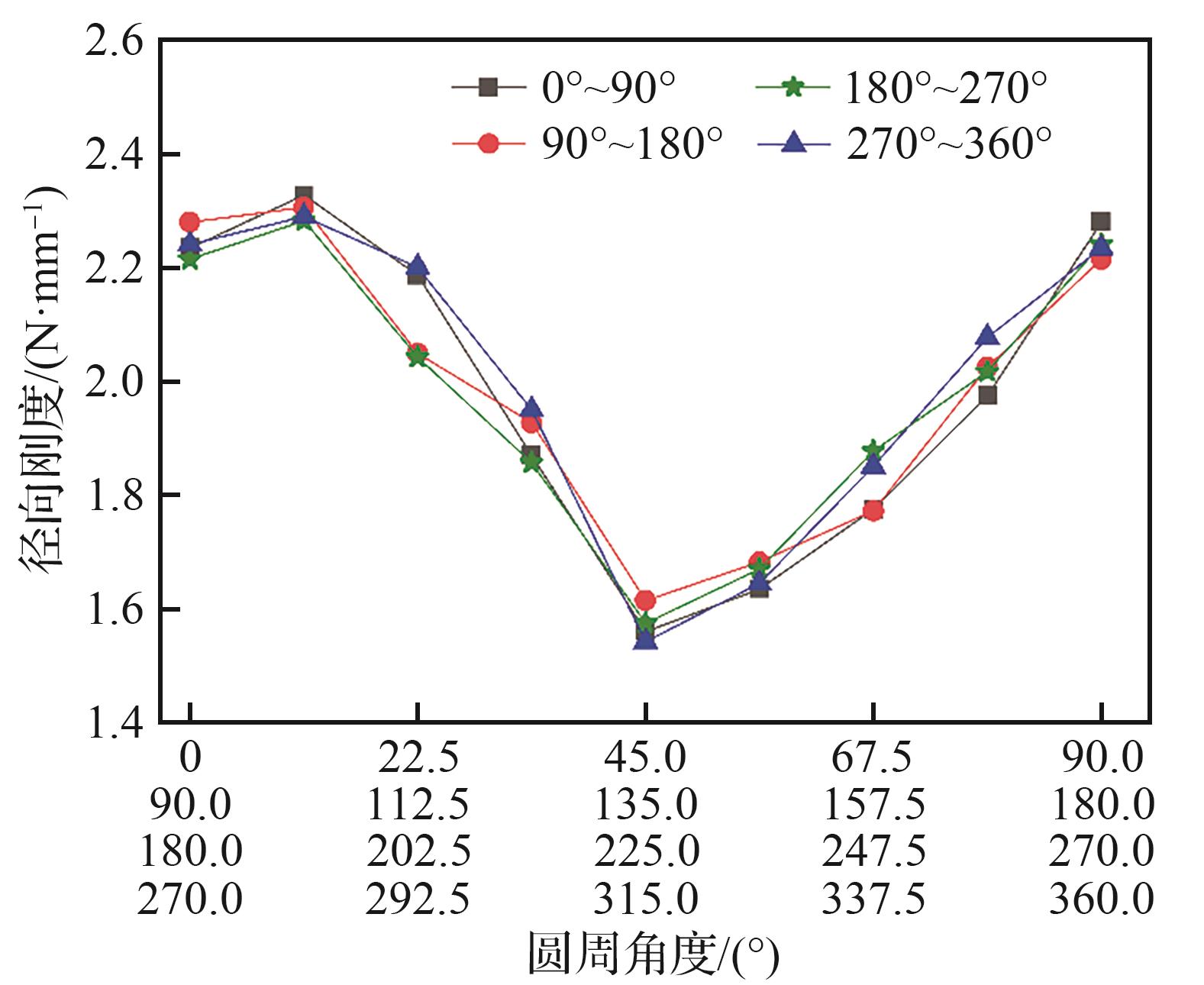

Fig.8

Fig.9

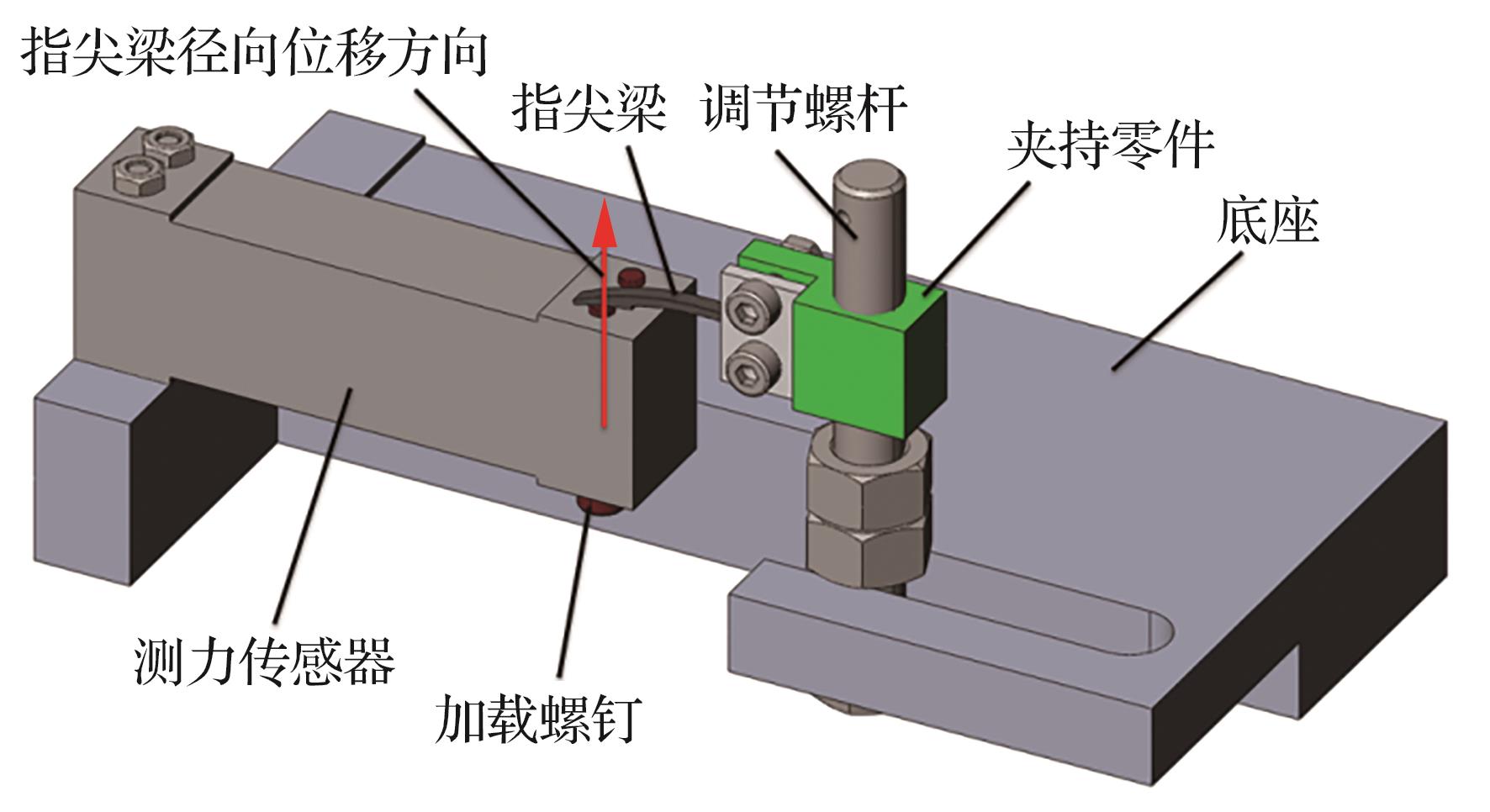

Fig.10

Fig.11

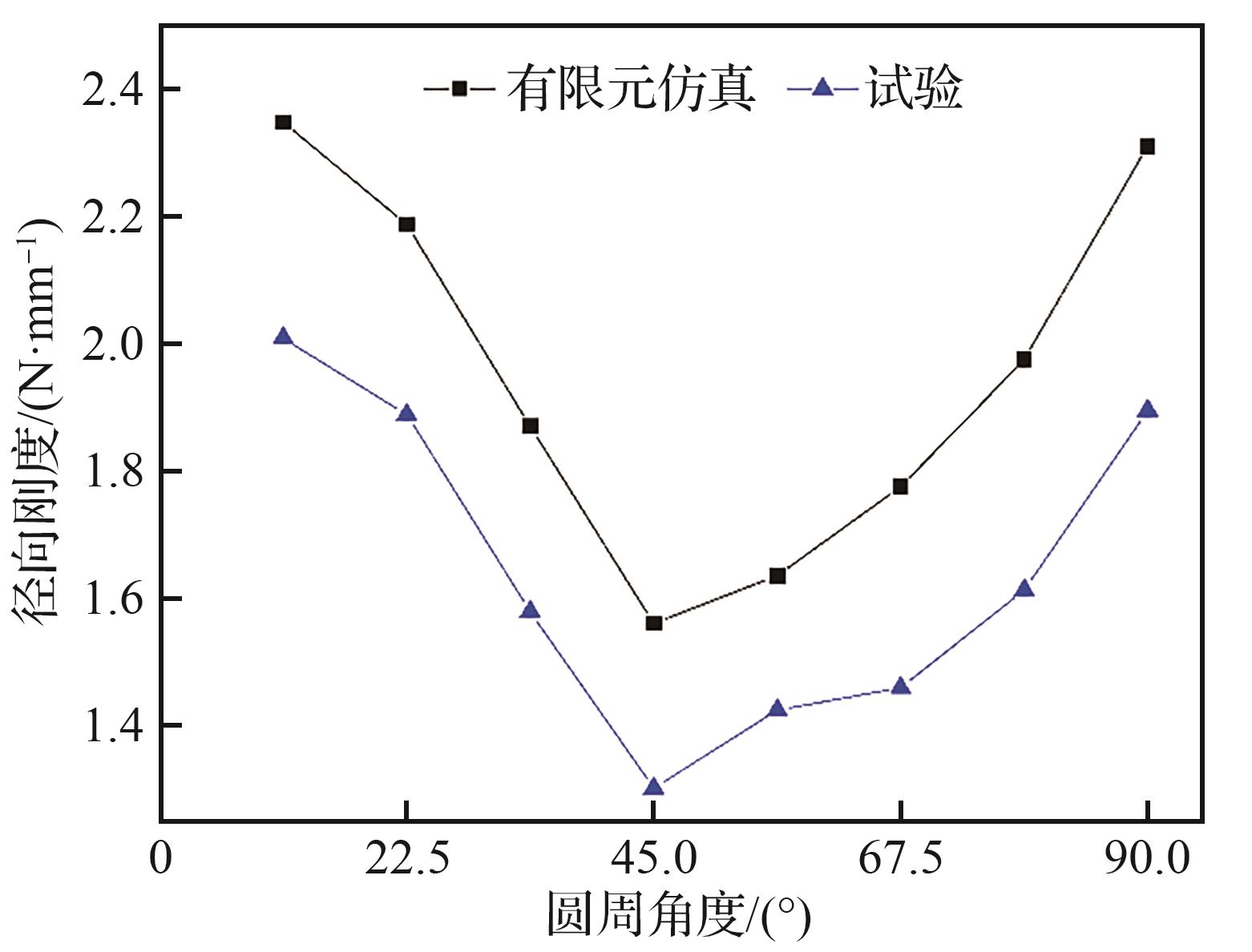

Fig.12

References 30

1	王强，张峰，黄清伟，等．指尖密封径向临界工作能力快速评估方法研究［J］. 推进技术， 2024， 45（7）： 232-241.
	WANG Q， ZHANG F， HUANG Q W， et al. Rapid evaluation method for radial critical operating capacity of finger seal［J］. Journal of Propulsion Technology， 2024， 45（7）： 232-241 （in Chinese）.
2	PROCTOR M P， KUMAR A， DELGADO I R. High-speed， high-temperature finger seal test results［J］. Journal of Propulsion and Power， 2004， 20（2）： 312-318.
3	赵海林，陈国定，苏华. 考虑粗糙渗流效应的指尖密封总泄漏性能分析［J］. 机械工程学报， 2020， 56（3）： 152-161.
	ZHAO H L， CHEN G D， SU H. Analysis of total leakage performance of finger seal considering the rough seepage effect［J］. Journal of Mechanical Engineering， 2020， 56（3）： 152-161 （in Chinese）.
4	LI G Q， ZHANG Q， GUO L， et al. Leakage and wear characteristics of finger seal in hot/cold state for aero-engine［J］. Tribology International， 2018， 127： 209-218.
5	周坤，力宁，潘君，等. 压力平衡型指尖密封泄漏特性试验研究［J］. 润滑与密封， 2021， 46（4）： 140-146.
	ZHOU K， LI N， PAN J， et al. Experimental investigation on leakage characteristics of pressure balanced finger seals［J］. Lubrication Engineering， 2021， 46（4）： 140-146 （in Chinese）.
6	CHEN G D， LU F， YU Q P， et al. Dynamic analysis of finger seal using equivalent model based on distributed mass method［J］. Proceedings of the Institution of Mechanical Engineers， Part C： Journal of Mechanical Engineering Science， 2014， 228（16）： 2992-3005.
7	苏华，陈国定. 指尖密封迟滞特性的机理分析［J］. 机械工程学报， 2009， 45（5）： 57-61.
	SU H， CHEN G D. Analysis on hysteresis charcteristics of finger seal［J］. Journal of Mechanical Engineering， 2009， 45（5）： 57-61 （in Chinese）.
8	CHEN G D， WANG L N， YU Q P， et al. Dynamic analysis of C/C composite finger seal［J］. Chinese Journal of Aeronautics， 2014， 27（3）： 745-758.
9	雷俊杰，刘美红， HU Xiangping，等. 基于分形理论的椭圆弧型指尖密封磨损特性分析［J］. 机械工程学报， 2023， 59（3）： 144-157.
	LEI J J， LIU M H， HU X P， et al. Analysis of wear characteristics of elliptic arc finger seal based on fractal theory［J］. Journal of Mechanical Engineering， 2023， 59（3）： 144-157 （in Chinese）.
10	杜春华，严豪宇，崔亚辉，等. 圆弧型指尖密封磨损计算方法及其特性研究［J］. 推进技术， 2021， 42（8）： 1839-1847.
	DU C H， YAN H Y， CUI Y H， et al. Calculation method and characteristics of wear of arc-shaped finger seal［J］. Journal of Propulsion Technology， 2021， 42（8）： 1839-1847 （in Chinese）.
11	王强，吉洪湖，胡娅萍，等. 考虑磨损效应的指尖密封瞬态泄漏特性分析［J］. 推进技术， 2020， 41（12）： 2815-2826.
	WANG Q， JI H H， HU Y P， et al. Transient leakage characteristics analysis of finger seal considering wear effects［J］. Journal of Propulsion Technology， 2020， 41（12）： 2815-2826 （in Chinese）.
12	张延超，陈国定，申晓龙. 指尖密封动态性能分析与泄漏量计算［J］. 航空学报， 2009， 30（11）： 2193-2199.
	ZHANG Y C， CHEN G D， SHEN X L. Analysis of dynamic performance and leakage for finger seal［J］. ActaAeronautica et Astronautica Sinica， 2009， 30（11）： 2193-2199 （in Chinese）.
13	白花蕾. 圆弧型线指尖密封结构的形成方法和迟滞性能分析［J］. 航空发动机， 2014， 40（3）： 49-51.
	BAI H L. Analysis of hysteresis and forming method for finger seal with arc shape curve［J］. Aeroengine， 2014， 40（3）： 49-51 （in Chinese）.
14	ZHANG Y C， YIN M H， ZENG Q R， et al. Theoretical and experimental investigation of variable stiffness finger seal［J］. Tribology Transactions， 2020， 63（4）： 634-646.
15	宗兆科，苏华. 圆弧型指尖密封的几何构型特征及结构优化［J］. 航空学报， 2010， 31（2）： 393-399.
	ZONG Z K， SU H. Geometric feature and structure optimization of arc finger seal［J］. Acta Aeronautica et Astronautica Sinica， 2010， 31（2）： 393-399 （in Chinese）.
16	葛毅成，易茂中. 基体碳结构对轴间密封环用C/C复合材料摩擦磨损特性的影响［J］. 航空学报， 2004， 25（6）： 619-624.
	GE Y C， YI M Z. Influence of carbon matrix on the tribology of C/C composites used as shaft sealing ring［J］. Acta Aeronautica et Astronautica Sinica， 2004， 25（6）： 619-624 （in Chinese）.
17	潘广镇，齐乐华，付业伟，等. 碳纤维布复合材料摩擦性能研究进展［J］. 中国材料进展， 2015， 34（6）： 453-460.
	PAN G Z， QI L H， FU Y W， et al. Progress in tribological properties of carbon fabric composites［J］. Materials China， 2015， 34（6）： 453-460 （in Chinese）.
18	孙洋，黄建，韩晨晨，等. 二维与三维机织复合材料面内力学性能对比［J］. 航空学报， 2023， 44（18）： 428267.
	SUN Y， HUANG J， HAN C C， et al. Comparison of in-plane mechanical properties of 2D and 3D woven composites［J］. Acta Aeronautica et Astronautica Sinica， 2023， 44（18）： 428267 （in Chinese）.
19	陈继刚，薛亚红，闫世程. 二维机织复合材料弹性常数的有限元法预测［J］. 复合材料学报， 2016， 33（8）： 1702-1709.
	CHEN J G， XUE Y H， YAN S C. Finite element prediction of elastic constants for 2D woven fabric composite［J］. Acta Materiae Compositae Sinica， 2016， 33（8）： 1702-1709 （in Chinese）.
20	WANG L N， WANG Y， SUN H C， et al. Dynamic analysis and experimental verification of the carbon‍-‍carbon composite finger seal under complex working states［J］. Proceedings of the Institution of Mechanical Engineers， Part G： Journal of Aerospace Engineering， 2019， 233（8）： 2914-2922.
21	王莉娜，陈国定，苏华，等. 考虑装配条件的C/C复合材料指尖密封动态性能［J］. 哈尔滨工业大学学报， 2016， 48（7）： 135-139.
	WANG L N， CHEN G D， SU H， et al. Dynamic performance of C/C composite finger seal considering assembly condition［J］. Journal of Harbin Institute of Technology， 2016， 48（7）： 135-139 （in Chinese）.
22	WANG L N， CHEN G D， SU H， et al. Impact dynamic analysis of C/C composite finger seal［J］. Proceedings of the Institution of Mechanical Engineers， Part G： Journal of Aerospace Engineering， 2017， 231（7）： 1225-1237.
23	路菲，陈国定，苏华，等. 2.5D碳/碳复合材料指尖密封动态性能分析［J］. 航空学报， 2013， 34（11）： 2616-2625.
	LU F， CHEN G D， SU H， et al. Analysis of dynamic performance for 2.5D carbon-carbon composite finger seals［J］. Acta Aeronautica et Astronautica Sinica， 2013， 34（11）： 2616-2625 （in Chinese）.
24	路菲，陈国定，苏华，等. 指尖密封用炭-炭复合材料摩擦磨损性能［J］. 哈尔滨工业大学学报， 2017， 49（1）： 184-188.
	LU F， CHEN G D， SU H， et al. Friction and wear behaviors of carbon-carbon composites used in finger seal［J］. Journal of Harbin Institute of Technology， 2017， 49（1）： 184-188 （in Chinese）.
25	LU F， LIU J， PANG X J， et al. Wear modelling and sealing performance prediction of C/C composite finger seal［J］. Proceedings of the Institution of Mechanical Engineers， Part J： Journal of Engineering Tribology， 2023， 237（5）： 1142-1155.
26	SU H， ZHANG C D， SUN S. Research on the wear model of carbon/carbon composite finger seal［J］. Wear， 2021， 476： 203682.
27	ZHANG Y C， ZHOU R M， YIN M H， et al. Experimental investigation on friction and wear performance of C/C composite finger seal［J］. Journal of Tribology， 2022， 144（2）： 021701.
28	庞生洋，胡成龙，杨鸷，等. 预制体结构对C/C复合材料力学性能、断裂行为以及热物性能的影响［J］. 机械工程学报， 2018， 54（9）： 97-107.
	PANG S Y， HU C L， YANG Z， et al. Effects of preform structures on the mechanical properties， fracture behaviors and thermophysical properties of C/C composites［J］. Journal of Mechanical Engineering， 2018， 54（9）： 97-107 （in Chinese）.
29	姜卓群，黄盛，王占学. 2D编织C/SiC孔边致密化结构多尺度混合模型与拉伸性能［J］. 航空学报， 2024， 45（13）： 628713.
	JIANG Z Q， HUANG S， WANG Z X. Multiscale hybrid modeling and tensile properties of 2D braided C/ SiC with hole-edge densification structures［J］. Acta Aeronautica et Astronautica Sinica， 2024， 45（13）： 628713 （in Chinese）.
30	SU H， WANG L. Study on 2.5D C/C composite finger seal integrate optimization combined with microstructural parameters of material and macro geometry of finger seal［J］. Proceedings of the Institution of Mechanical Engineers， Part C： Journal of Mechanical Engineering Science， 2017， 231（9）： 1599-1608.

力学性能参数	数值
纵向弹性模量E₁/GPa	144
横向弹性模量E₂/GPa	8.7
纵向剪切模量G₁₂/GPa	6.7
横向剪切模量G₂₃/GPa	3.5
纵向泊松比ν₁₂	0.24
横向泊松比ν₂₃	0.24

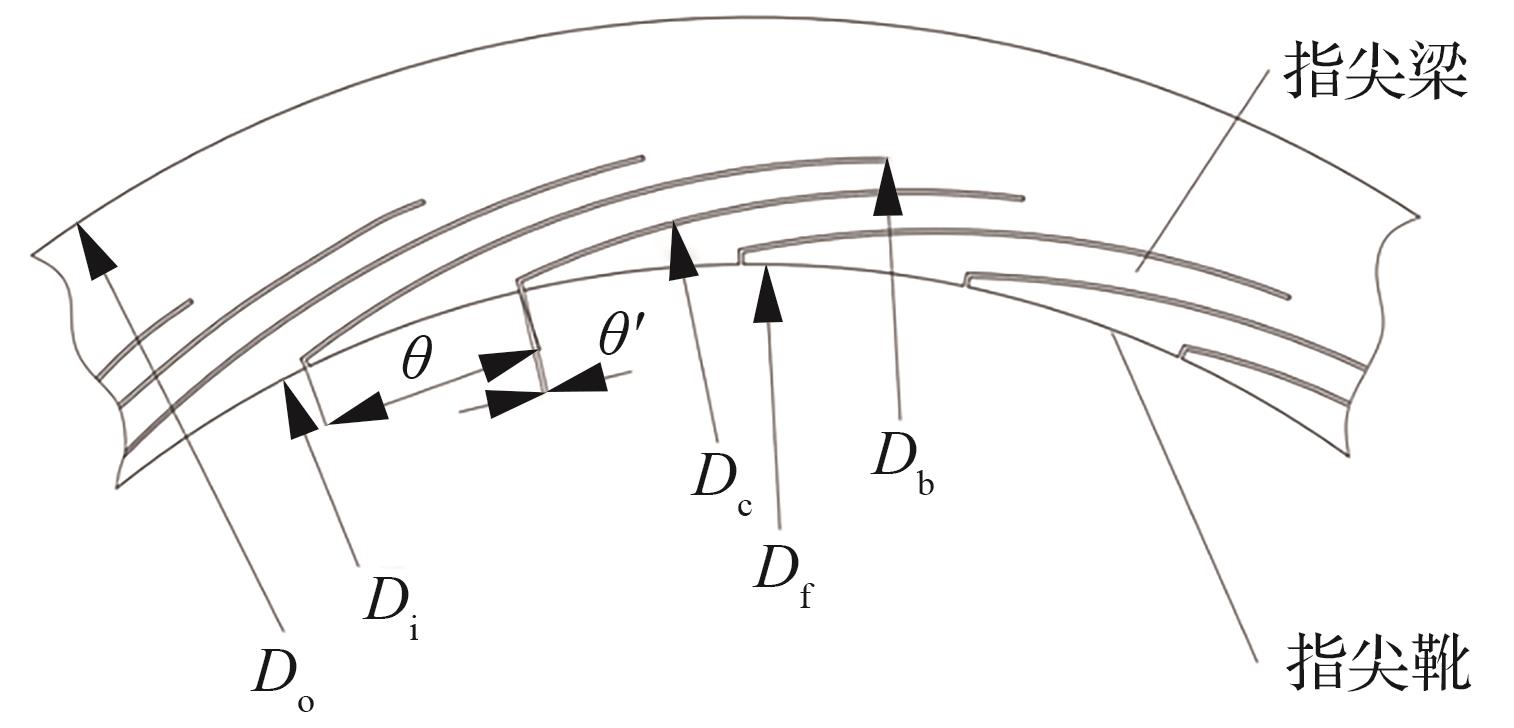

结构参数	数值
指尖密封外圆直径D_o/mm	92
指尖密封厚度t/mm	2.1
指尖梁根圆直径D_b/mm	84
指尖梁顶圆直径D_f/mm	78
指尖密封内圆直径D_i/mm	77
指尖梁型线基圆直径D_c/mm	74
指尖靴周向角θ/（°）	10.95
指尖靴周向间隙角θ'/（°）	0.3
指尖梁个数Z	32
